Sayfa 2-81 - Isuzu EPC

2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#45075) — 207 parça

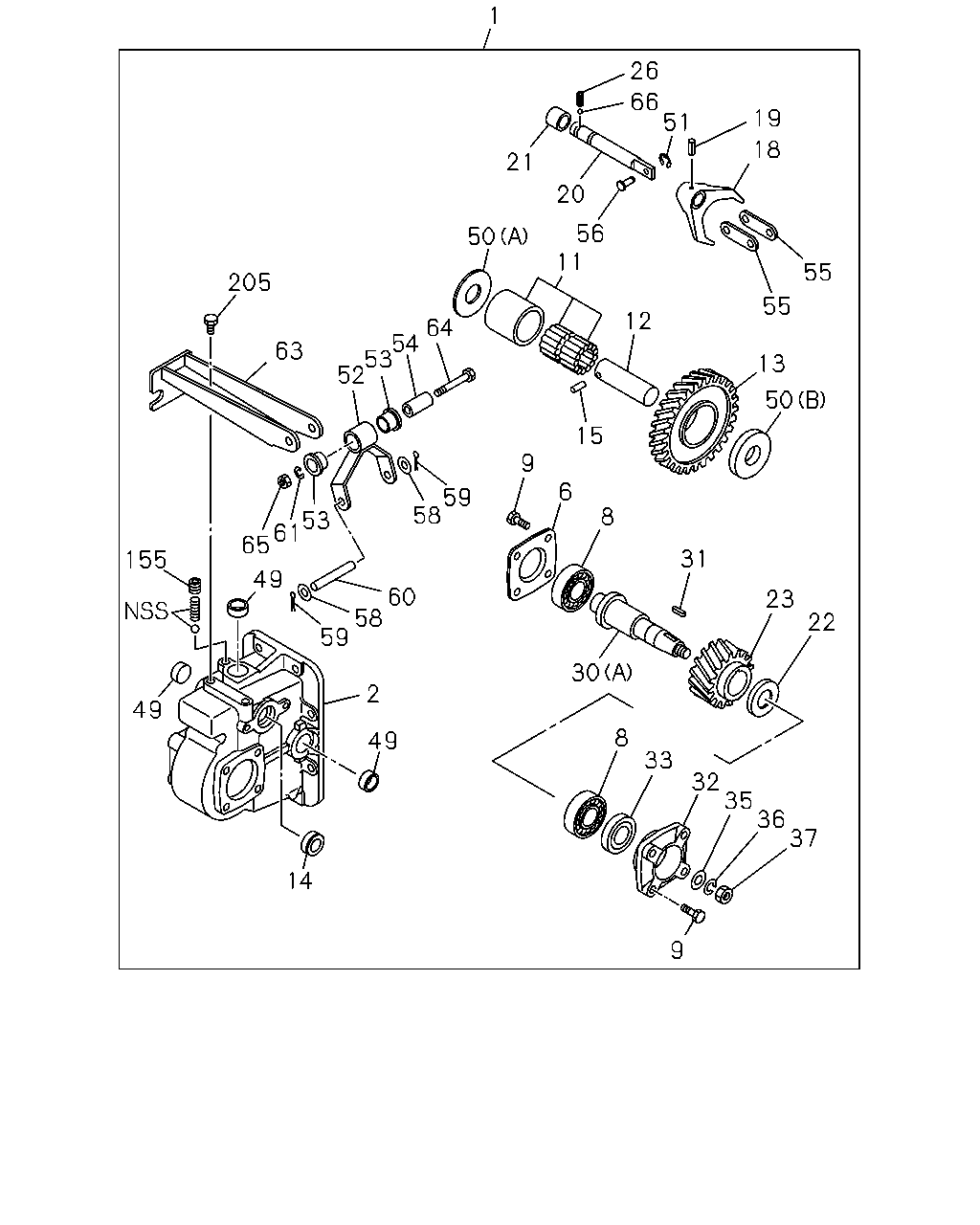

1 26 66 51 19 18 55 55 13 50 12 11 56 20 21 50 64 54 53 52 63 205 59 58 9 15 6 8 31 23 22 30 8 33 32 35 36 37 9 14 49 2 59 58 60 53 61 65 49 155 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-97309-237-3	01	1	0211-	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=YG	8-97286-908-7	01	1	0211-1210		●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=YG	8-98223-523-0	01	1	1211-1305		●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=YG	8-98233-783-1	01	1	1306-		●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97309-239-1	01	1	0211-	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97308-689-2	01	1	0211-1409		●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98282-381-0	01	1	1410-		●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66)	8-98233-778-0	01	1	1306-		●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66)	8-98046-612-0	01	1	0512-0701		●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66)	8-98046-612-0	01	1	0702-1305	●	●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66)	8-98046-612-0	01	1	1306-	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66)	8-97333-347-0	01	1	0211-0402	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66)	8-97333-347-0	01	1	0403-0511	●	●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66)	8-97333-347-0	01	1	0512-0701	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66)	9-38151-604-0	01	1	0211-0402		●	●
8	04.439 BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66) ID=25 OD=62	8-94343-031-1	02	1	0211-	●	●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) 04.338 M8X20 FLANGE	0-28050-820-0	08	1	0512-0701		●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) 04.338 M8X20 FLANGE	0-28050-820-0	08	1	0702-	●	●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) 02.559 M8X25 FLANGE	0-28680-825-0	08	1	0211-0511	●	●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) 02.559 M8X25 FLANGE	0-28680-825-0	08	1	0512-0701	●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT PTO TRANSMISSION SIDE(V66)	1-09811-144-0	01	1	0211-0506	●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT PTO TRANSMISSION SIDE(V66)	8-98068-087-0	01	1	0507-	●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) NSK	8-97106-734-0	02	1	0211-		●	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97305-817-0	01	1	0211-	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	0211-		●	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=36	8-97305-810-0	01	1	0211-	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=31	8-97308-700-0	01	1	0211-		●	●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	1-09625-358-0	01	1	0211-	●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	9-09724-015-0	01	1	0211-0509		●	●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	8-98028-789-0	01	1	0510-		●	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=20 OD=4	9-09678-514-0	01	1	0211-	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=16	9-09878-613-0	01	1	0211-		●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97305-819-0	01	1	0211-0506	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98009-081-0	01	1	0507-	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97224-702-0	01	1	0211-		●	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66)	8-97306-596-0	01	1	0211-	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) 04.303 L=25 OD=5	8-94135-771-0	01	1	0211-		●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97309-247-2	01	1	0211-0701	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98046-934-0	01	1	0702-	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97308-707-0	01	1	0211-0511		●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98046-623-0	01	1	0512-		●	●
21	04.439 COVER; SHIFTER ROD,TRANS SIDE PT PTO TRANSMISSION SIDE(V66)	1-09600-085-0	01	1	0211-0701	●
21	04.439 COVER; SHIFTER ROD,TRANS SIDE PT PTO TRANSMISSION SIDE(V66)	8-98046-619-0	01	1	0702-	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66)	1-38226-046-0	01	1	0211-0506	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66)	8-98068-086-0	01	1	0507-	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66)	9-38245-603-1	01	1	0211-		●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=26	8-97305-798-0	01	1	0211-	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=27	8-97308-714-0	01	1	0211-0805		●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=27	8-98120-609-0	01	1	0806-		●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	8-97309-246-0	01	1	0211-	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	9-09940-380-0	01	1	0211-		●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A)	8-97309-241-0	01	1	0211-0310	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A)	8-97374-129-1	01	1	0311-	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (B)	8-97118-183-1	01	1	0211-1210		●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (C)	8-98223-518-0	01	1	1211-1305		●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (C)	8-98233-777-0	01	1	1306-		●	●
31	04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=25	1-09735-024-0	01	1	0211-0506	●
31	04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=25	8-98068-088-0	01	1	0507-1210	●
31	04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=25	8-98068-088-0	01	1	1211-	●	●	●
32	04.439 COVER; RR,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66)	8-97305-794-0	01	1	0211-0511	●
32	04.439 COVER; RR,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66)	8-97305-794-0	01	1	0512-	●	●	●
32	04.439 COVER; RR,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66)	8-97350-757-3	01	1	0211-0511		●	●
33	04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66)	1-38159-007-0	01	1	0211-	●	●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 04.634 ID=15	0-91610-514-0	01	1	0512-0701		●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 04.634 ID=15	0-91610-514-0	01	1	0702-	●	●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 02.575 ID=15	9-09160-514-0	01	1	0211-0511	●	●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 02.575 ID=15	9-09160-514-0	01	1	0512-0701	●
36	04.439 WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 06.174 ID=14.2	0-91510-814-0	01	1	0512-0701		●	●
36	04.439 WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 06.174 ID=14.2	0-91510-814-0	01	1	0702-	●	●	●
36	04.439 WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 00.796 ID=14.2	9-09150-514-0	01	1	0211-0511	●	●	●
36	04.439 WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 00.796 ID=14.2	9-09150-514-0	01	1	0512-0701	●
37	04.439 NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 06.515 M14	0-91111-514-0	01	1	0512-0701		●	●
37	04.439 NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 06.515 M14	0-91111-514-0	01	1	0702-	●	●	●
37	04.439 NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 06.172 M14	9-99111-414-0	01	1	0211-0511	●	●	●
37	04.439 NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 06.172 M14	9-99111-414-0	01	1	0512-0701	●
49	04.439 PLUG; IDLE SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	1-09600-084-0	03	1	0211-0701	●
49	04.439 PLUG; IDLE SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98037-773-0	03	1	0702-	●
50	04.439 WASHER; THRUST,IDLE GEAR,TRANS S PTO TRANSMISSION SIDE(V66) (A)	1-38226-058-1	01	1	0211-	●
50	04.439 WASHER; THRUST,IDLE GEAR,TRANS S PTO TRANSMISSION SIDE(V66) (B)	8-97305-818-0	01	1	0211-	●
51	04.439 RING; SNAP,PIN,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 04.040 ID=6	9-09185-406-0	01	1	0211-0701	●
51	04.439 RING; SNAP,PIN,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 16.585 ID=6	0-91805-506-0	01	1	0702-	●
52	04.439 LEVER; CONT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97309-250-0	01	1	0211-	●
53	04.439 BUSHING; CONT LVR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	1-09330-023-0	02	1	0211-	●
54	04.439 COLLAR; DIST,CONT LVR,TRANS SIDE PTO TRANSMISSION SIDE(V66)	1-38321-003-1	01	1	0211-	●
55	04.439 PLATE; LEVER JOINT,TRANS SIDE PT PTO TRANSMISSION SIDE(V66)	1-38313-036-0	02	1	0211-0701	●
55	04.439 PLATE; LEVER JOINT,TRANS SIDE PT PTO TRANSMISSION SIDE(V66)	8-98046-938-0	02	1	0702-	●
56	04.439 PIN; PLATE TO LVR & ROD,TRANS SI PTO TRANSMISSION SIDE(V66) 08.942 OD=8 L=21	9-08213-821-0	01	1	0211-0701	●
56	04.439 PIN; PLATE TO LVR & ROD,TRANS SI PTO TRANSMISSION SIDE(V66)	8-98046-942-0	01	1	0702-	●
58	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 07.874 ID=10.5 OD=18	9-09160-510-0	02	1	0211-0701	●
58	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 17.198 ID=10.5	0-91610-510-0	02	1	0702-	●
59	04.439 PIN; PTO CONT LEVER PTO TRANSMISSION SIDE(V66) 08.938 OD=2.8 L=18	9-08113-018-0	02	1	0211-0701	●
59	04.439 PIN; PTO CONT LEVER PTO TRANSMISSION SIDE(V66) OD=2.8 L=18	0-81123-018-0	02	1	0702-	●
60	04.439 SHAFT; PTO CONT LEVER PTO TRANSMISSION SIDE(V66)	8-97309-251-0	01	1	0211-0701	●
60	04.439 SHAFT; PTO CONT LEVER PTO TRANSMISSION SIDE(V66)	8-98046-935-0	01	1	0702-	●
61	04.439 WASHER; LK,CONT LVR,TRANS SIDE P PTO TRANSMISSION SIDE(V66) 00.002 ID=10.2	9-09150-510-0	01	1	0211-0701	●
61	04.439 WASHER; LK,CONT LVR,TRANS SIDE P PTO TRANSMISSION SIDE(V66) 02.277 ID=10.2	0-91510-810-0	01	1	0702-	●
63	04.439 BRACKET; CONT LVR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97309-249-1	01	1	0211-	●
64	04.439 BOLT; CONT LEVER PTO TRANSMISSION SIDE(V66) 03.704 M10X60	0-10806-060-0	01	1	0211-0701	●
64	04.439 BOLT; CONT LEVER PTO TRANSMISSION SIDE(V66) 00.685 M10X60 FLANGE	0-28051-060-0	01	1	0702-	●
65	04.439 NUT; CONT LEVER PTO TRANSMISSION SIDE(V66) 00.002 M10	9-09110-510-0	01	1	0211-0701	●
65	04.439 NUT; CONT LEVER PTO TRANSMISSION SIDE(V66) 00.833 M10	0-91110-510-0	01	1	0702-	●
66	04.439 BALL; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 04.311	9-00097-009-0	01	1	0211-	●
155	04.439 PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66)	8-97309-248-0	01	1	0211-	●
155	04.439 PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66) 04.105 OD=24 L=31	9-33545-011-0	01	1	0211-0402		●	●
155	04.439 PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66)	8-97374-349-0	01	1	0403-0511		●	●
155	04.439 PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66)	8-98037-770-0	01	1	0512-		●	●
205	04.439 BOLT; BRKT,PTO,TRANS SIDE PTO TRANSMISSION SIDE(V66) 01.540 M10X20 FLANGE	0-28181-020-0	02	1	0211-0701	●
205	04.439 BOLT; BRKT,PTO,TRANS SIDE PTO TRANSMISSION SIDE(V66) 00.029 M10X16 FLANGE	0-28151-016-0	02	1	0702-	●

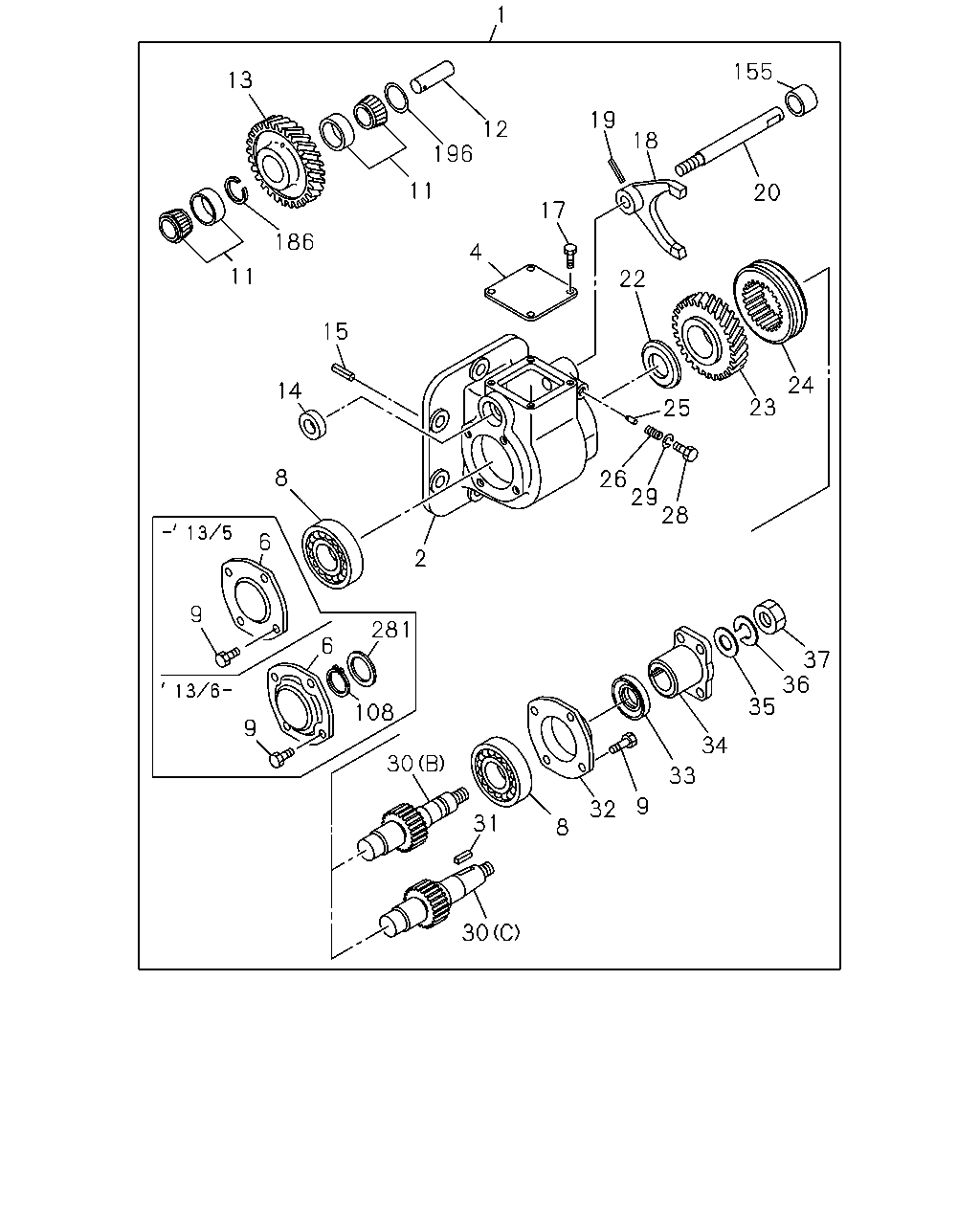

1 12 196 11 186 11 15 14 8 2 26 29 28 25 23 24 22 17 4 19 18 20 155 37 36 35 34 33 9 32 8 31 30 30 281 6 108 9 6 9 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-97309-237-3	01	1	0211-	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=YG	8-97286-908-7	01	1	0211-1210		●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=YG	8-98223-523-0	01	1	1211-1305		●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=YG	8-98233-783-1	01	1	1306-		●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97309-239-1	01	1	0211-	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97308-689-2	01	1	0211-1409		●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98282-381-0	01	1	1410-		●	●
4	04.439 COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97106-718-1	01	1	0211-0511		●	●
4	04.439 COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98046-613-0	01	1	0512-		●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66)	8-98233-778-0	01	1	1306-		●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66)	8-98046-612-0	01	1	0512-0701		●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66)	8-98046-612-0	01	1	0702-1305	●	●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66)	8-98046-612-0	01	1	1306-	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66)	8-97333-347-0	01	1	0211-0402	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66)	8-97333-347-0	01	1	0403-0511	●	●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66)	8-97333-347-0	01	1	0512-0701	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66)	9-38151-604-0	01	1	0211-0402		●	●
8	04.439 BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66) ID=25 OD=62	8-94343-031-1	02	1	0211-	●	●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) 04.338 M8X20 FLANGE	0-28050-820-0	08	1	0512-0701		●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) 04.338 M8X20 FLANGE	0-28050-820-0	08	1	0702-	●	●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) 02.559 M8X25 FLANGE	0-28680-825-0	08	1	0211-0511	●	●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) 02.559 M8X25 FLANGE	0-28680-825-0	08	1	0512-0701	●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT PTO TRANSMISSION SIDE(V66)	1-09811-144-0	01	1	0211-0506	●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT PTO TRANSMISSION SIDE(V66)	8-98068-087-0	01	1	0507-	●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) NSK	8-97106-734-0	02	1	0211-		●	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97305-817-0	01	1	0211-	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	0211-		●	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=36	8-97305-810-0	01	1	0211-	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=31	8-97308-700-0	01	1	0211-		●	●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	1-09625-358-0	01	1	0211-	●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	9-09724-015-0	01	1	0211-0509		●	●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	8-98028-789-0	01	1	0510-		●	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=20 OD=4	9-09678-514-0	01	1	0211-	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=16	9-09878-613-0	01	1	0211-		●	●
17	04.439 BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0211-0511		●	●
17	04.439 BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 04.338 M8X20 FLANGE	0-28050-820-0	04	1	0512-		●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97305-819-0	01	1	0211-0506	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98009-081-0	01	1	0507-	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97224-702-0	01	1	0211-		●	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66)	8-97306-596-0	01	1	0211-	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) 04.303 L=25 OD=5	8-94135-771-0	01	1	0211-		●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97309-247-2	01	1	0211-0701	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98046-934-0	01	1	0702-	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97308-707-0	01	1	0211-0511		●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98046-623-0	01	1	0512-		●	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66)	1-38226-046-0	01	1	0211-0506	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66)	8-98068-086-0	01	1	0507-	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66)	9-38245-603-1	01	1	0211-		●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=26	8-97305-798-0	01	1	0211-	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=27	8-97308-714-0	01	1	0211-0805		●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=27	8-98120-609-0	01	1	0806-		●	●
24	04.439 SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97231-316-1	01	1	0211-		●	●
25	04.439 PIN; LK,SIDE PTO PTO TRANSMISSION SIDE(V66)	8-94169-071-0	01	1	0211-		●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	8-97309-246-0	01	1	0211-	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	9-09940-380-0	01	1	0211-		●	●
28	04.439 BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97318-428-0	01	1	0211-0511		●	●
28	04.439 BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) M8	8-98038-424-0	01	1	0512-		●	●
29	04.439 WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) 00.002 ID=8.2	9-09150-508-0	01	1	0211-0511		●	●
29	04.439 WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) 02.559 ID=8.2	0-91510-808-0	01	1	0512-		●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A)	8-97309-241-0	01	1	0211-0310	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A)	8-97374-129-1	01	1	0311-	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (B)	8-97118-183-1	01	1	0211-1210		●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (C)	8-98223-518-0	01	1	1211-1305		●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (C)	8-98233-777-0	01	1	1306-		●	●
31	04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=25	1-09735-024-0	01	1	0211-0506	●
31	04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=25	8-98068-088-0	01	1	0507-1210	●
31	04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=25	8-98068-088-0	01	1	1211-	●	●	●
32	04.439 COVER; RR,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66)	8-97305-794-0	01	1	0211-0511	●
32	04.439 COVER; RR,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66)	8-97305-794-0	01	1	0512-	●	●	●
32	04.439 COVER; RR,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66)	8-97350-757-3	01	1	0211-0511		●	●
33	04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66)	1-38159-007-0	01	1	0211-	●	●	●
34	04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-97350-755-0	01	1	0211-0511		●	●
34	04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-98046-624-0	01	1	0512-1210		●	●
34	04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-98223-519-0	01	1	1211-		●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 04.634 ID=15	0-91610-514-0	01	1	0512-0701		●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 04.634 ID=15	0-91610-514-0	01	1	0702-	●	●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 02.575 ID=15	9-09160-514-0	01	1	0211-0511	●	●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 02.575 ID=15	9-09160-514-0	01	1	0512-0701	●
36	04.439 WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 06.174 ID=14.2	0-91510-814-0	01	1	0512-0701		●	●
36	04.439 WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 06.174 ID=14.2	0-91510-814-0	01	1	0702-	●	●	●
36	04.439 WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 00.796 ID=14.2	9-09150-514-0	01	1	0211-0511	●	●	●
36	04.439 WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 00.796 ID=14.2	9-09150-514-0	01	1	0512-0701	●
37	04.439 NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 06.515 M14	0-91111-514-0	01	1	0512-0701		●	●
37	04.439 NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 06.515 M14	0-91111-514-0	01	1	0702-	●	●	●
37	04.439 NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 06.172 M14	9-99111-414-0	01	1	0211-0511	●	●	●
37	04.439 NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 06.172 M14	9-99111-414-0	01	1	0512-0701	●
108	04.439 RING; SNAP,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66) 08.934 ID=23.2	9-09180-025-0	01	1	1306-		●	●
155	04.439 PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66)	8-97309-248-0	01	1	0211-	●
155	04.439 PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66) 04.105 OD=24 L=31	9-33545-011-0	01	1	0211-0402		●	●
155	04.439 PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66)	8-97374-349-0	01	1	0403-0511		●	●
155	04.439 PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66)	8-98037-770-0	01	1	0512-		●	●
186	04.439 RING; SNAP,IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-97106-730-0	01	1	0211-		●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.50	8-97106-724-0	02	1	0211-		●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.60	8-97106-725-0	02	1	0211-		●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.65	8-97106-726-0	02	1	0211-		●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.70	8-97106-727-0	02	1	0211-		●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.80	8-97106-728-0	02	1	0211-		●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.85	8-97106-729-0	02	1	0211-		●	●
281	04.439 SHIM; OUTPUT SHAFT PTO TRANSMISSION SIDE(V66) T=1.85	8-97106-729-0	01	1	1306-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
