2-52 — AUTO TRANS OVERDRIVE GEAR (#45071) — 80 parça

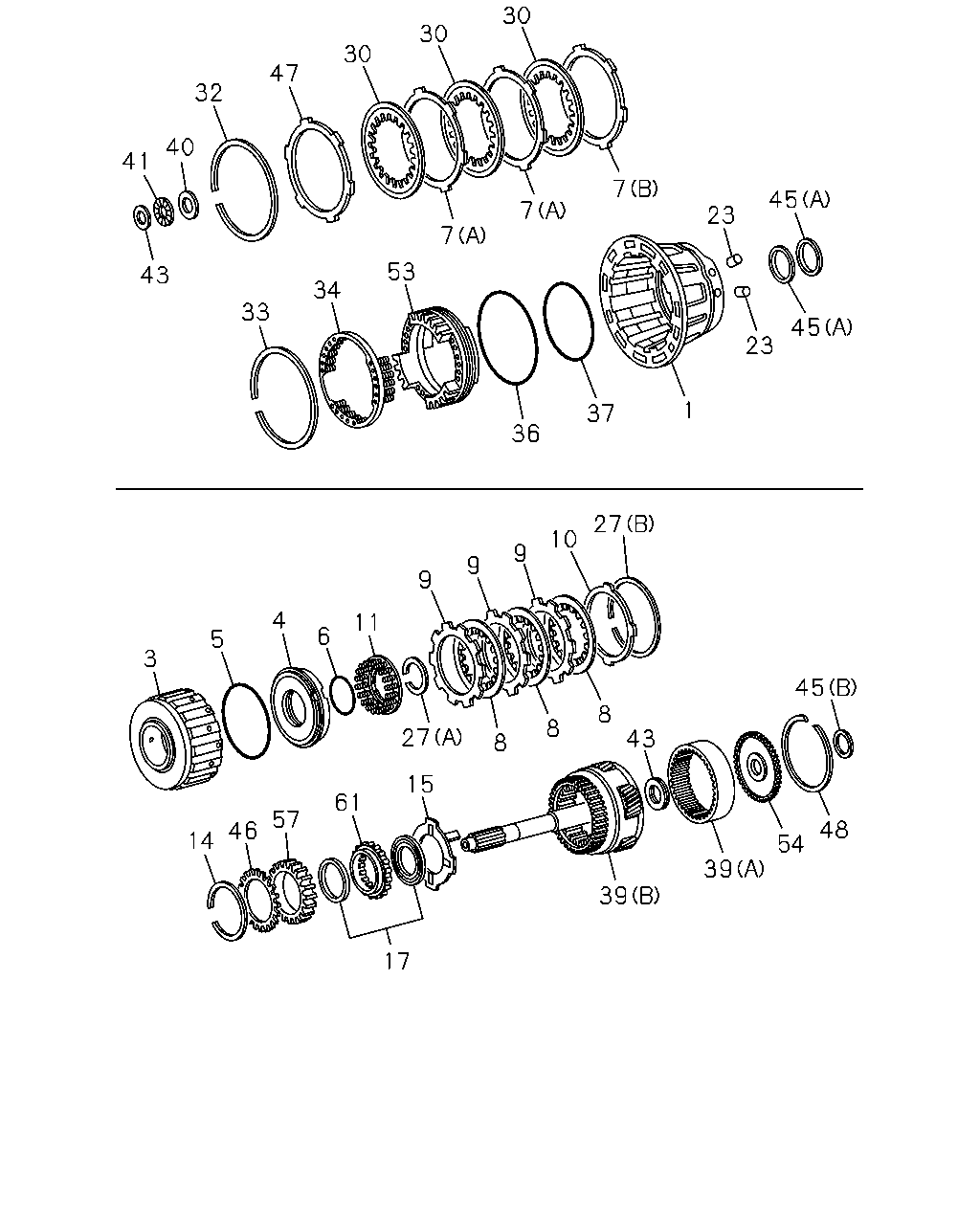

çizim 11806
30 30 30 47 32 40 41 7 45 7 23 7 53 43 34 33 45 23 1 37 36 27 10 9 9 9 4 11 6 5 3 45 8 8 27 43 8 15 61 57 48 46 14 54 39 39 17
BalonParca AdiParca NoAdetTipApplied Date
1 04.455 CASE ASM; OVERDRIVE,A/T 8-97257-018-0 01 1 0211-0501
1 04.455 CASE ASM; OVERDRIVE,A/T 8-97257-018-0 01 1 0510-
3 04.468 DRUM; CLU,OVERDRIVE,A/T 8-97257-039-0 01 1 0211-0501
3 04.468 DRUM; CLU,OVERDRIVE,A/T 8-97257-039-0 01 1 0510-
4 04.468 PISTON ASM; CLU,OVERDRIVE,A/T 8-97257-040-0 01 1 0211-0501
4 04.468 PISTON ASM; CLU,OVERDRIVE,A/T 8-97257-040-0 01 1 0510-
5 04.460 GASKET; CLU PISTON,OUTER,OVERDRI 8-97256-963-0 01 1 0211-0501
5 04.460 GASKET; CLU PISTON,OUTER,OVERDRI 8-97256-963-0 01 1 0510-
6 04.460 GASKET; CLU PISTON,INNER,OVERDRI 8-97257-041-0 01 1 0211-0501
6 04.460 GASKET; CLU PISTON,INNER,OVERDRI 8-97257-041-0 01 1 0510-
7 04.468 PLATE; CLU CUSHION
(A) 		8-97257-021-0 02 1 0211-0501
7 04.468 PLATE; CLU CUSHION
(B) 		8-97257-022-0 01 1 0211-0501
7 04.468 PLATE; CLU CUSHION
(A) 		8-97257-021-0 02 1 0510-
7 04.468 PLATE; CLU CUSHION
(B) 		8-97257-022-0 01 1 0510-
8 04.455 DISC; CLU,OVERDRIVE,A/T 8-97257-043-0 03 1 0211-0501
8 04.455 DISC; CLU,OVERDRIVE,A/T 8-97257-043-0 03 1 0510-
9 04.455 DISC ASM; CLU & FACING,OVERDRIVE 8-97256-969-0 03 1 0211-0501
9 04.455 DISC ASM; CLU & FACING,OVERDRIVE 8-97256-969-0 03 1 0510-
10 04.455 PLATE; CLU BACKING,OVERDRIVE,A/T
T=4.60 		8-97257-044-0 01 1 0211-0501
10 04.455 PLATE; CLU BACKING,OVERDRIVE,A/T
T=4.77 		8-97257-045-0 01 1 0211-0501
10 04.455 PLATE; CLU BACKING,OVERDRIVE,A/T
T=4.94 		8-97257-046-0 01 1 0211-0501
10 04.455 PLATE; CLU BACKING,OVERDRIVE,A/T
T=5.11 		8-97257-047-0 01 1 0211-0501
10 04.455 PLATE; CLU BACKING,OVERDRIVE,A/T
T=4.60 		8-97257-044-0 01 1 0510-
10 04.455 PLATE; CLU BACKING,OVERDRIVE,A/T
T=4.77 		8-97257-045-0 01 1 0510-
10 04.455 PLATE; CLU BACKING,OVERDRIVE,A/T
T=4.94 		8-97257-046-0 01 1 0510-
10 04.455 PLATE; CLU BACKING,OVERDRIVE,A/T
T=5.11 		8-97257-047-0 01 1 0510-
11 04.468 SPRING; CLU RETURN,OVERDRIVE,A/T 8-97257-042-0 01 1 0211-0501
11 04.468 SPRING; CLU RETURN,OVERDRIVE,A/T 8-97257-042-0 01 1 0510-
14 04.472 RING; RET,OVERDRIVE,A/T 8-97257-038-0 01 1 0211-0501
14 04.472 RING; RET,OVERDRIVE,A/T 8-97257-038-0 01 1 0510-
15 04.468 WASHER; THRUST,OVERDRIVE,A/T 8-97257-032-0 01 1 0211-0501
15 04.468 WASHER; THRUST,OVERDRIVE,A/T 8-97257-032-0 01 1 0510-
17 04.468 RACE; ONEWAY CLU,A/T
04.485 		8-97257-033-0 01 1 0211-0501
17 04.468 RACE; ONEWAY CLU,A/T
04.485 		8-97257-033-0 01 1 0510-
23 04.472 RING; RET,OVERDRIVE,A/T 8-97256-926-0 03 1 0211-0501
23 04.472 RING; RET,OVERDRIVE,A/T 8-97256-926-0 03 1 0510-
27 04.472 RING; RET,OVERDRIVE,A/T
(A) 		8-97256-966-0 01 1 0211-0501
27 04.472 RING; RET,OVERDRIVE,A/T
(B) 		8-97257-048-0 01 1 0211-0501
27 04.472 RING; RET,OVERDRIVE,A/T
(A) 		8-97256-966-0 01 1 0510-
27 04.472 RING; RET,OVERDRIVE,A/T
(B) 		8-97257-048-0 01 1 0510-
30 04.455 DISC; CLU,OVERDRIVE,A/T 8-97257-023-0 03 1 0211-0501
30 04.455 DISC; CLU,OVERDRIVE,A/T 8-97257-023-0 03 1 0510-
32 04.472 RING; RET,OVERDRIVE,A/T
04.485 		8-97256-933-0 01 1 0211-0501
32 04.472 RING; RET,OVERDRIVE,A/T
04.485 		8-97256-933-0 01 1 0510-
33 04.485 RETAINER; BRK RETURN SPR,OVERDRI 8-97256-933-0 01 1 0211-0501
33 04.485 RETAINER; BRK RETURN SPR,OVERDRI 8-97256-933-0 01 1 0510-
34 04.467 SPRING; BRK RETURN,OVERDRIVE,A/T 8-97257-020-0 01 1 0211-0501
34 04.467 SPRING; BRK RETURN,OVERDRIVE,A/T 8-97257-020-0 01 1 0510-
36 04.460 GASKET; PISTON,OUTER,A/T 8-97256-931-0 01 1 0211-0501
36 04.460 GASKET; PISTON,OUTER,A/T 8-97256-931-0 01 1 0510-
37 04.460 GASKET; PISTON,INNER,A/T 8-97256-930-0 01 1 0211-0501
37 04.460 GASKET; PISTON,INNER,A/T 8-97256-930-0 01 1 0510-
39 04.470 GEAR ASM; PLANETARY INTERNAL,A/T
(A) 		8-97257-028-0 01 1 0211-0501
39 04.470 GEAR ASM; PLANETARY INTERNAL,A/T
(B) 		8-97257-031-0 01 1 0211-0501
39 04.470 GEAR ASM; PLANETARY INTERNAL,A/T
(A) 		8-97257-028-0 01 1 0510-
39 04.470 GEAR ASM; PLANETARY INTERNAL,A/T
(B) 		8-97257-031-0 01 1 0510-
40 04.470 RACE; THRUST BRG,OVERDRIVE,A/T 8-97257-025-0 01 1 0211-0501
40 04.470 RACE; THRUST BRG,OVERDRIVE,A/T 8-97257-025-0 01 1 0510-
41 04.472 BEARING; THRUST,OVERDRIVE,A/T 8-97257-027-0 01 1 0211-0501
41 04.472 BEARING; THRUST,OVERDRIVE,A/T 8-97257-027-0 01 1 0510-
43 04.472 RACE; THRUST BRG,OVERDRIVE,A/T 8-97257-026-0 01 1 0211-0501
43 04.472 RACE; THRUST BRG,OVERDRIVE,A/T 8-97257-026-0 01 1 0510-
45 04.472 RING; SEAL,OVERDRIVE,A/T
(A) 		8-97256-928-0 02 1 0211-0501
45 04.472 RING; SEAL,OVERDRIVE,A/T
(B) 		8-97256-960-0 01 1 0211-0501
45 04.472 RING; SEAL,OVERDRIVE,A/T
(A) 		8-97256-928-0 02 1 0510-
45 04.472 RING; SEAL,OVERDRIVE,A/T
(B) 		8-97256-960-0 01 1 0510-
46 04.468 PLATE; RET,OVERDRIVE CLU 8-97257-035-0 01 1 0211-0501
46 04.468 PLATE; RET,OVERDRIVE CLU 8-97257-035-0 01 1 0510-
47 04.467 FLANGE; OVERDRIVE BRK,A/T 8-97257-024-0 01 1 0211-0501
47 04.467 FLANGE; OVERDRIVE BRK,A/T 8-97257-024-0 01 1 0510-
48 04.472 RING; SNAP,PLANETARY RING GEAR,O 8-97257-030-0 01 1 0211-0501
48 04.472 RING; SNAP,PLANETARY RING GEAR,O 8-97257-030-0 01 1 0510-
53 04.180 CAM; OVERDRIVE ROLLER CLU 8-97257-019-0 01 1 0211-0501
53 04.180 CAM; OVERDRIVE ROLLER CLU 8-97257-019-0 01 1 0510-
54 04.175 FLANGE; PLANETARY RING GEAR,OVER 8-97257-029-0 01 1 0211-0501
54 04.175 FLANGE; PLANETARY RING GEAR,OVER 8-97257-029-0 01 1 0510-
57 04.166 CLUTCH; FWD 8-97257-034-0 01 1 0211-0501
57 04.166 CLUTCH; FWD 8-97257-034-0 01 1 0510-
61 04.485 RETAINER; ONEWAY CLU,A/T 8-97257-033-0 01 1 0211-0501
61 04.485 RETAINER; ONEWAY CLU,A/T 8-97257-033-0 01 1 0510-
