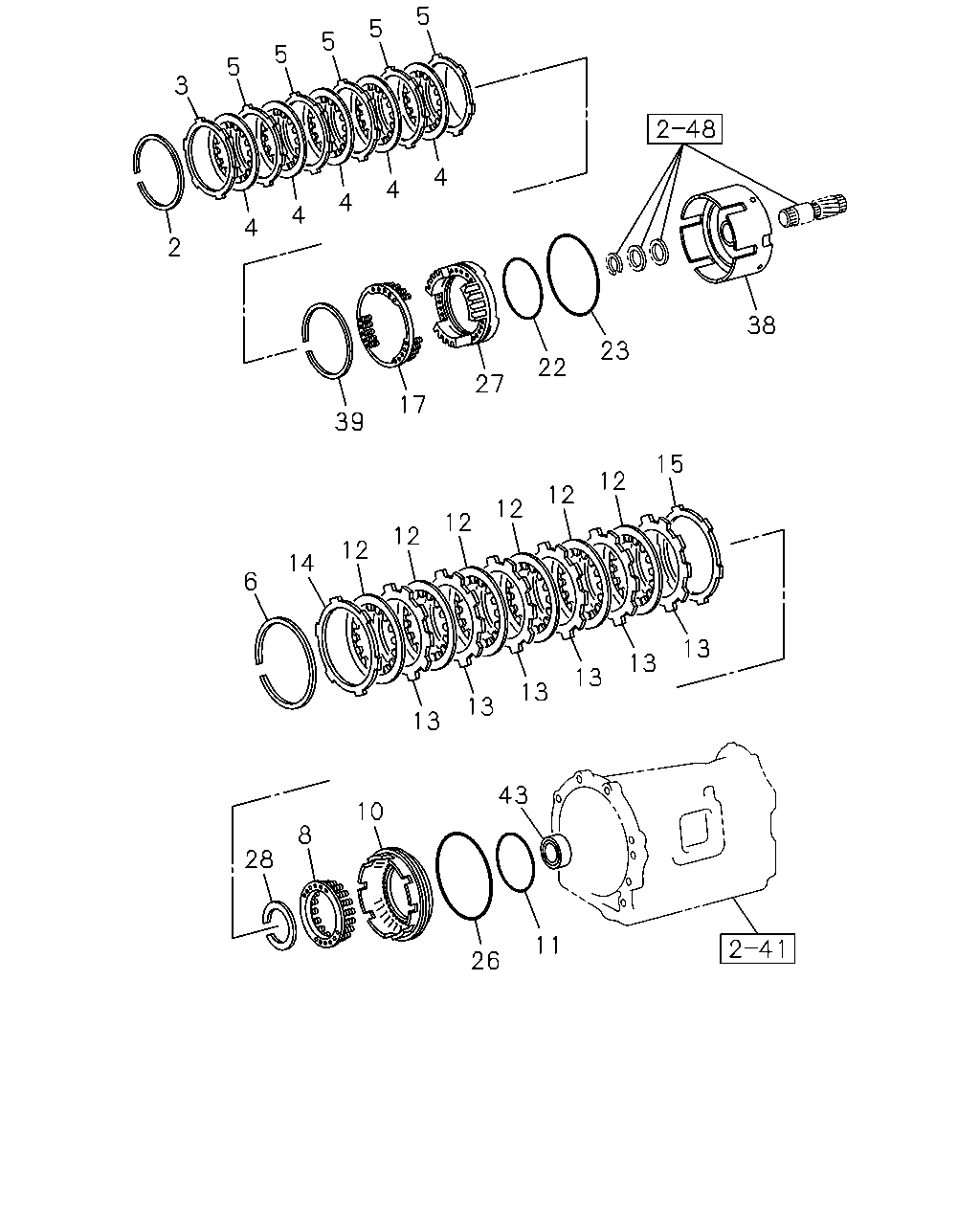

2-46 — AUTO TRANS SUPPORT AND PLANETARY GEAR (#45067) — 52 parça

3 5 5 5 5 5 4 4 4 4 4 2 39 17 27 22 23 38 15 12 12 12 12 12 12 14 6 13 13 13 13 13 13 28 8 10 43 26 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	04.166 RING; RET,FRT BRK,2ND BRK,A/T 04.485	8-97256-933-0	01	1	0211-0501
2	04.166 RING; RET,FRT BRK,2ND BRK,A/T 04.485	8-97256-933-0	01	1	0510-
3	04.164 PLATE; CLU BACKING,2ND BRK,A/T T=5.0	8-97256-934-0	01	1	0211-0501
3	04.164 PLATE; CLU BACKING,2ND BRK,A/T T=5.2	8-97256-935-0	01	1	0211-0501
3	04.164 PLATE; CLU BACKING,2ND BRK,A/T T=5.4	8-97256-936-0	01	1	0211-0501
3	04.164 PLATE; CLU BACKING,2ND BRK,A/T T=5.6	8-97256-937-0	01	1	0211-0501
3	04.164 PLATE; CLU BACKING,2ND BRK,A/T T=5.0	8-97256-934-0	01	1	0510-
3	04.164 PLATE; CLU BACKING,2ND BRK,A/T T=5.2	8-97256-935-0	01	1	0510-
3	04.164 PLATE; CLU BACKING,2ND BRK,A/T T=5.4	8-97256-936-0	01	1	0510-
3	04.164 PLATE; CLU BACKING,2ND BRK,A/T T=5.6	8-97256-937-0	01	1	0510-
4	04.163 DISC ASM; CLU & FACING,2ND BRK,A	8-97256-938-0	05	1	0211-0501
4	04.163 DISC ASM; CLU & FACING,2ND BRK,A	8-97256-938-0	05	1	0510-
5	04.163 DISC; CLU,2ND BRK,A/T	8-97256-939-0	05	1	0211-0501
5	04.163 DISC; CLU,2ND BRK,A/T	8-97256-939-0	05	1	0510-
6	04.166 RING; SNAP,FRT BRK,A/T 04.485	8-97256-933-0	01	1	0211-0501
6	04.166 RING; SNAP,FRT BRK,A/T 04.485	8-97256-933-0	01	1	0510-
8	04.166 SPRING; RETURN,FRT BRK,A/T	8-97256-949-0	01	1	0211-0501
8	04.166 SPRING; RETURN,FRT BRK,A/T	8-97256-949-0	01	1	0510-
10	04.166 PISTON; BRK,FRT,2ND BRK,A/T	8-97256-946-0	01	1	0211-0501
10	04.166 PISTON; BRK,FRT,2ND BRK,A/T	8-97256-946-0	01	1	0510-
11	04.166 GASKET; BRK PISTON,FRT,INNER,A/T	8-97256-947-0	01	1	0211-0501
11	04.166 GASKET; BRK PISTON,FRT,INNER,A/T	8-97256-947-0	01	1	0510-
12	04.166 PLATE; CLU,LOW & REV BRK,A/T	8-97256-954-0	06	1	0211-0501
12	04.166 PLATE; CLU,LOW & REV BRK,A/T	8-97256-954-0	06	1	0510-
13	04.163 DISC; CLU,LOW & REV BRK	8-97256-951-0	06	1	0211-0501
13	04.163 DISC; CLU,LOW & REV BRK	8-97256-951-0	06	1	0510-
14	04.166 FLANGE; BRK,LOW & REV BRAKE T=6.65	8-97256-955-0	01	1	0211-0501
14	04.166 FLANGE; BRK,LOW & REV BRAKE T=7.05	8-97256-956-0	01	1	0211-0501
14	04.166 FLANGE; BRK,LOW & REV BRAKE T=7.45	8-97256-957-0	01	1	0211-0501
14	04.166 FLANGE; BRK,LOW & REV BRAKE T=6.65	8-97256-955-0	01	1	0510-
14	04.166 FLANGE; BRK,LOW & REV BRAKE T=7.05	8-97256-956-0	01	1	0510-
14	04.166 FLANGE; BRK,LOW & REV BRAKE T=7.45	8-97256-957-0	01	1	0510-
15	04.166 PLATE; BRK CUSHION,A/T	8-97256-952-0	01	1	0211-0501
15	04.166 PLATE; BRK CUSHION,A/T	8-97256-952-0	01	1	0510-
17	04.166 SPRING; RETURN,RR BRK,A/T	8-97256-932-0	01	1	0211-0501
17	04.166 SPRING; RETURN,RR BRK,A/T	8-97256-932-0	01	1	0510-
22	04.166 GASKET; BRK PISTON,RR,INNER,A/T 04.460	8-97256-930-0	01	1	0211-0501
22	04.166 GASKET; BRK PISTON,RR,INNER,A/T 04.460	8-97256-930-0	01	1	0510-
23	04.166 GASKET; BRK PISTON,RR,OUTER,A/T 04.460	8-97256-931-0	01	1	0211-0501
23	04.166 GASKET; BRK PISTON,RR,OUTER,A/T 04.460	8-97256-931-0	01	1	0510-
26	04.166 GASKET; BRK PISTON,FRT,OUTER,A/T 04.460	8-97256-931-0	01	1	0211-0501
26	04.166 GASKET; BRK PISTON,FRT,OUTER,A/T 04.460	8-97256-931-0	01	1	0510-
27	04.166 PISTON; BRK,RR,2ND BRK,A/T	8-97256-929-0	01	1	0211-0501
27	04.166 PISTON; BRK,RR,2ND BRK,A/T	8-97256-929-0	01	1	0510-
28	04.163 RING; SNAP,RR BRK,A/T	8-97256-950-0	01	1	0211-0501
28	04.163 RING; SNAP,RR BRK,A/T	8-97256-950-0	01	1	0510-
38	04.163 CLUTCH ASM; ONEWAY,2ND BRK,A/T	8-97256-925-0	01	1	0211-0501
38	04.163 CLUTCH ASM; ONEWAY,2ND BRK,A/T	8-97256-925-0	01	1	0510-
39	04.164 RING; RET,SUN GEAR TO CLU 04.485	8-97256-933-0	01	1	0211-0501
39	04.164 RING; RET,SUN GEAR TO CLU 04.485	8-97256-933-0	01	1	0510-
43	04.265 BEARING; THRUST,A/T	8-97256-860-0	01	1	0211-0501
43	04.265 BEARING; THRUST,A/T	8-97256-860-0	01	1	0510-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
