Isuzu WW
▶
TRUCKS
▶
NPR
▶
50947 - NPR/NQR LHDEXC.EURO4
▶
2 - Clutch, Transmission, Trans Axle
▶
2-43 - AUTO TRANS CONTROL VALVE; UPPER BODY
▶

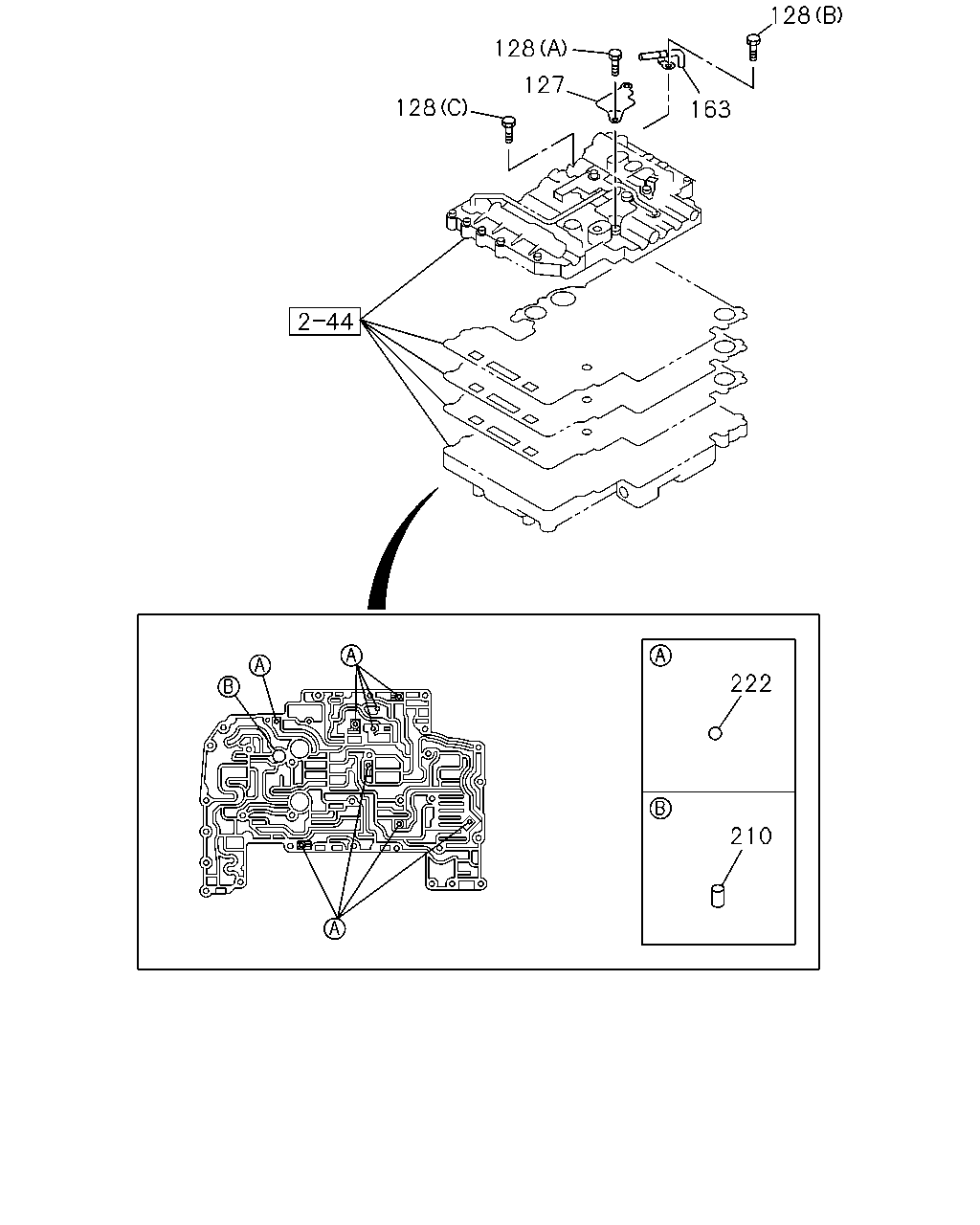

2-43 — AUTO TRANS CONTROL VALVE; UPPER BODY
(#45065) — 14 parça
128
128
163
127
128
222
210
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
127
04.265 COVER; VALVE BODY
8-97257-126-0
01
1
0211-0501
127
04.265 COVER; VALVE BODY
8-97257-126-0
01
1
0510-
128
04.265 BOLT; COVER
(C)
8-97257-132-0
01
1
0211-0501
128
04.265 BOLT; COVER
(B)
8-97257-136-0
01
1
0211-0501
128
04.265 BOLT; COVER
(A)
8-97257-137-0
01
1
0211-0501
128
04.265 BOLT; COVER
(C)
8-97257-132-0
01
1
0510-
128
04.265 BOLT; COVER
(B)
8-97257-136-0
01
1
0510-
128
04.265 BOLT; COVER
(A)
8-97257-137-0
01
1
0510-
163
04.265 PIPE; VLV BODY
8-97257-116-0
01
1
0211-0501
163
04.265 PIPE; VLV BODY
8-97257-116-0
01
1
0510-
210
04.265 STRAINER
8-97257-113-0
01
1
0211-0501
210
04.265 STRAINER
8-97257-113-0
01
1
0510-
222
04.265 BALL; STEEL,CHECK
8-97257-125-0
09
1
0211-0501
222
04.265 BALL; STEEL,CHECK
8-97257-125-0
09
1
0510-
