2-41 — AUTO TRANS CASE,CONVERTER AND OIL PUMP (#45063) — 109 parça

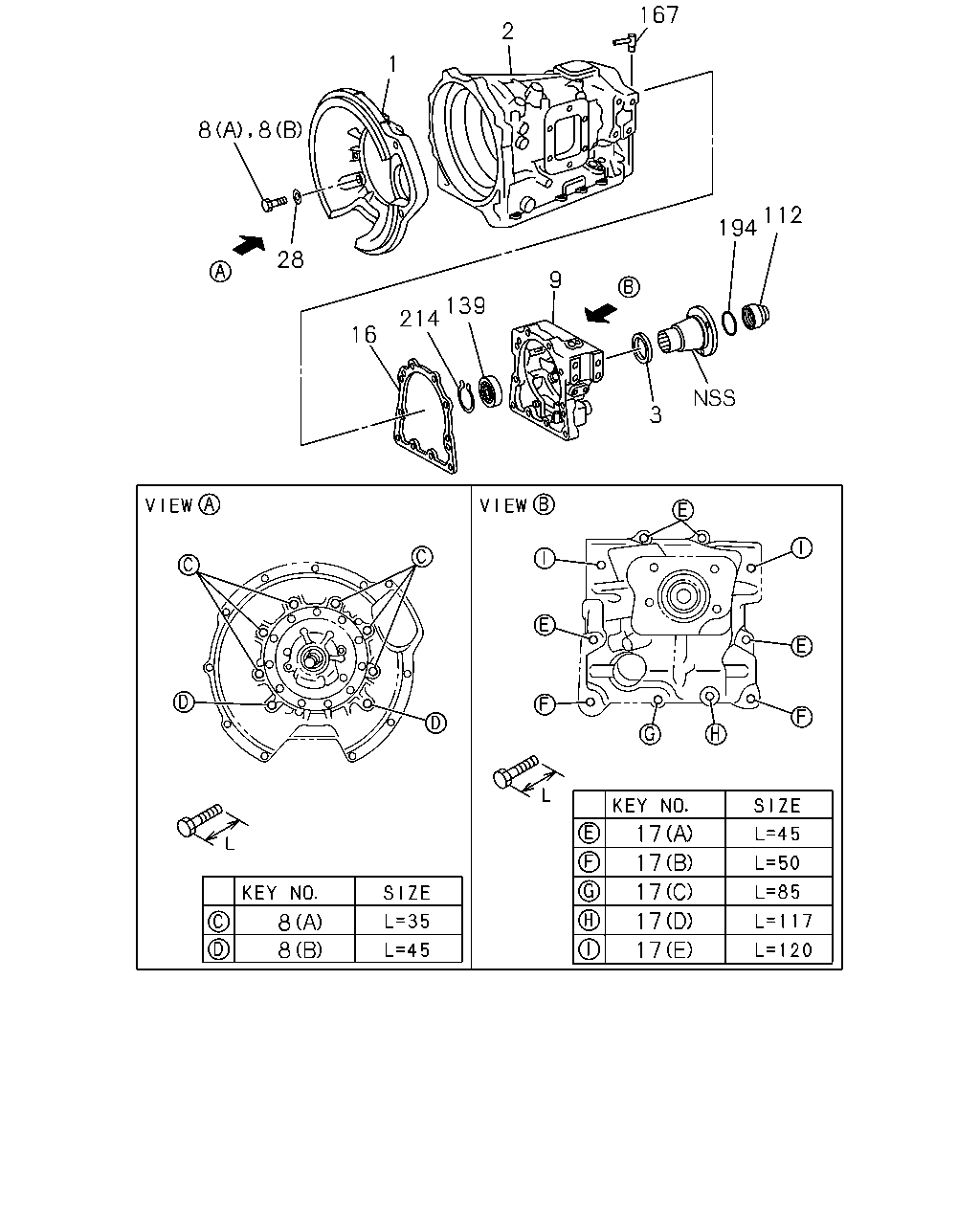

çizim 53573
167 2 1 8 8 112 194 28 9 139 214 16 3 17 17 17 17 8 8 17
BalonParca AdiParca NoAdetTipApplied Date
1 04.103 HOUSING; CONV,A/T 8-97257-079-0 01 1 0211-0501
1 04.103 HOUSING; CONV,A/T 8-97257-079-0 01 1 0510-
2 04.103 CASE ASM; A/T 8-97256-859-0 01 1 0211-0501
2 04.103 CASE ASM; A/T 8-97256-859-0 01 1 0510-
3 04.241 SEAL; OIL,RR COVER,A/T 8-97202-071-0 01 1 0211-0501
3 04.241 SEAL; OIL,RR COVER,A/T 8-97202-071-0 01 1 0510-
8 04.217 BOLT; HSG TO CASE
(A) L=35 		8-97256-912-0 06 1 0211-0501
8 04.217 BOLT; HSG TO CASE
(B) L=45 		8-97256-913-0 02 1 0211-0501
8 04.217 BOLT; HSG TO CASE
(A) L=35 		8-97256-912-0 06 1 0510-
8 04.217 BOLT; HSG TO CASE
(B) L=45 		8-97256-913-0 02 1 0510-
9 04.317 COVER ASM; RR,A/T
VOLTAGE 24V<7AE> 		8-97311-619-0 01 1 0211-0501
9 04.317 COVER ASM; RR,A/T
VOLTAGE 24V<7AE> 		8-97311-619-0 01 1 0510-
9 04.317 COVER ASM; RR,A/T
EXC. VOLTAGE 24V<7AE> 		8-97256-869-0 01 1 0211-0501
9 04.317 COVER ASM; RR,A/T
EXC. VOLTAGE 24V<7AE> 		8-97256-869-0 01 1 0510-
16 04.318 GASKET; EXT HSG 8-97256-870-0 01 1 0211-0501
16 04.318 GASKET; EXT HSG 8-97256-870-0 01 1 0510-
17 04.319 BOLT; REAR COVER TO CASE
(A) L=45 		8-97256-873-0 04 1 0211-0501
17 04.319 BOLT; REAR COVER TO CASE
(B) L=50 		8-97256-874-0 02 1 0211-0501
17 04.319 BOLT; REAR COVER TO CASE
(C) L=85 		8-97256-887-0 01 1 0211-0501
17 04.319 BOLT; REAR COVER TO CASE
(D) L=117 		8-97256-908-0 01 1 0211-0501
17 04.319 BOLT; REAR COVER TO CASE
(E) L=120 		8-97256-909-0 02 1 0211-0501
17 04.319 BOLT; REAR COVER TO CASE
(A) L=45 		8-97256-873-0 04 1 0510-
17 04.319 BOLT; REAR COVER TO CASE
(B) L=50 		8-97256-874-0 02 1 0510-
17 04.319 BOLT; REAR COVER TO CASE
(C) L=85 		8-97256-887-0 01 1 0510-
17 04.319 BOLT; REAR COVER TO CASE
(D) L=117 		8-97256-908-0 01 1 0510-
17 04.319 BOLT; REAR COVER TO CASE
(E) L=120 		8-97256-909-0 02 1 0510-
28 04.105 WASHER; HSG TO CASE 8-97256-915-0 01 1 0211-0501
28 04.105 WASHER; HSG TO CASE 8-97256-915-0 01 1 0510-
112 04.176 NUT; COUPLING DRIVER,A/T 8-97202-082-0 01 1 0211-0501
112 04.176 NUT; COUPLING DRIVER,A/T 8-97202-082-0 01 1 0510-
139 04.107 BEARING; OUTPUT SHAFT,RR END,A/T 8-97256-871-0 01 1 0211-0501
139 04.107 BEARING; OUTPUT SHAFT,RR END,A/T 8-97256-871-0 01 1 0510-
167 04.052 CONNECTOR; CASE,A/T 8-97256-868-0 01 1 0211-0501
167 04.052 CONNECTOR; CASE,A/T 8-97256-868-0 01 1 0510-
194 04.205 GASKET; COUPLING DRIVE 8-97202-087-0 01 1 0211-0501
194 04.205 GASKET; COUPLING DRIVE 8-97202-087-0 01 1 0510-
214 04.107 RING; SNAP,EXT HSG 8-97256-872-0 01 1 0211-0501
214 04.107 RING; SNAP,EXT HSG 8-97256-872-0 01 1 0510-

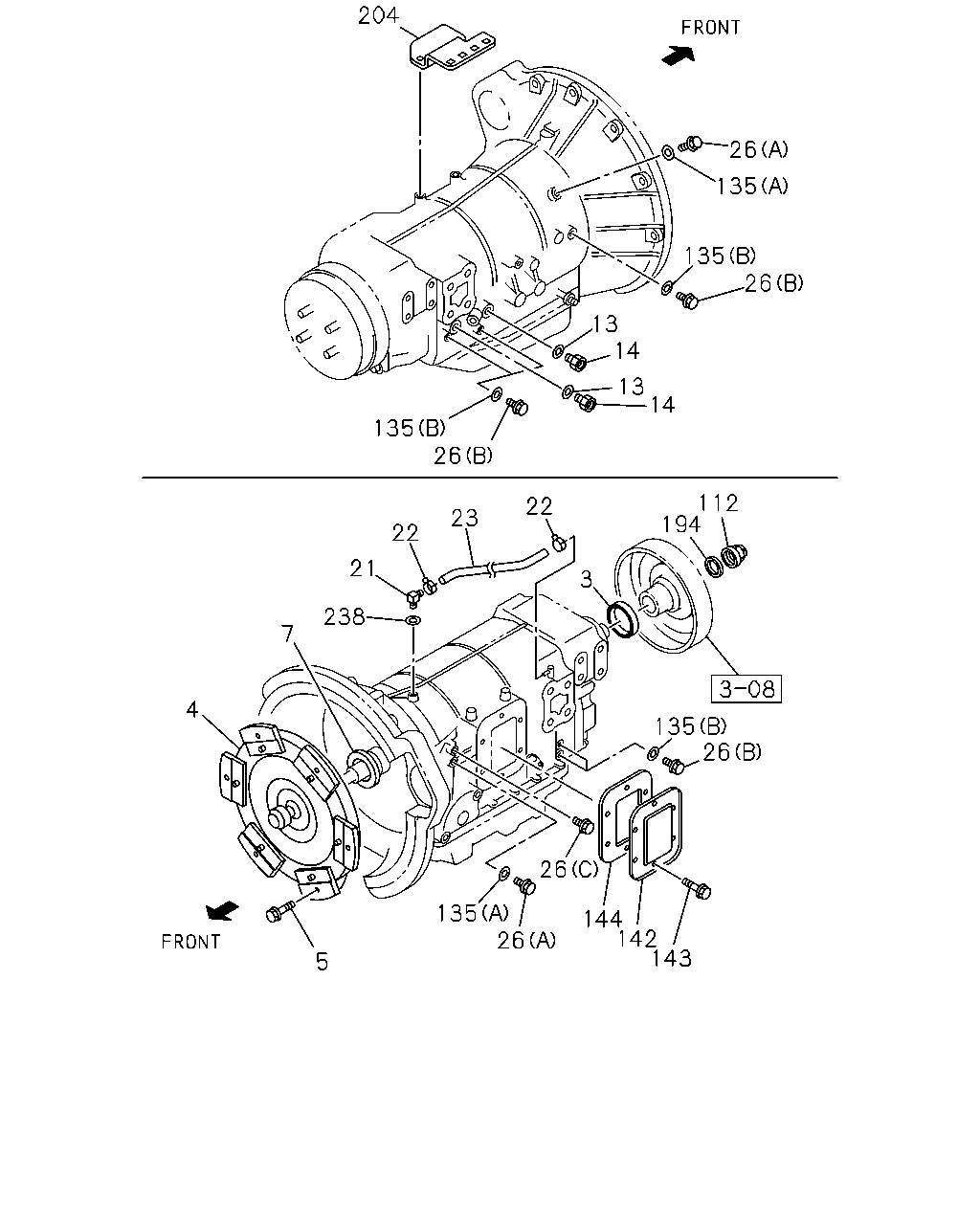

çizim 55118
204 26 135 135 26 13 14 13 14 135 26 112 194 22 23 22 21 3 238 7 4 135 26 26 13 26 144 142 143 5
BalonParca AdiParca NoAdetTipApplied Date
3 04.241 SEAL; OIL,RR COVER,A/T 8-97202-071-0 01 1 0211-0501
3 04.241 SEAL; OIL,RR COVER,A/T 8-97202-071-0 01 1 0510-
4 04.115 CONVERTER ASM; TORQUE,A/T 8-97202-043-0 01 1 0211-0501
4 04.115 CONVERTER ASM; TORQUE,A/T 8-97202-043-0 01 1 0510-
5 04.008 BOLT; RR PLATE TO TORQUE CONV
03.417 M10X25 FLANGE 		0-28081-025-0 06 1 0211-0501
5 04.008 BOLT; RR PLATE TO TORQUE CONV
03.417 M10X25 FLANGE 		0-28081-025-0 06 1 0510-0512
5 04.008 BOLT; RR PLATE TO TORQUE CONV
09.171 M10X25 FLANGE 		0-28051-025-0 06 1 0601-
7 04.226 SEAL; OIL,LIP,A/T 8-97218-280-0 01 1 0211-0501
7 04.226 SEAL; OIL,LIP,A/T 8-97218-280-0 01 1 0510-
13 04.205 GASKET; OIL COOLER PIPE 8-97202-084-0 02 1 0211-0501
13 04.205 GASKET; OIL COOLER PIPE 8-97202-084-0 02 1 0510-
14 04.205 UNION; OIL COOLER RETURN PIPE 8-97202-090-0 02 1 0211-0501
14 04.205 UNION; OIL COOLER RETURN PIPE 8-97202-090-0 02 1 0510-
21 04.104 PLUG; BREATHER,A/T 8-97202-098-0 01 1 0211-0501
21 04.104 PLUG; BREATHER,A/T 8-97202-098-0 01 1 0510-
22 04.101 CLIP; BREATHER HOSE,A/T 1-09701-190-0 02 1 0211-0501
22 04.101 CLIP; BREATHER HOSE,A/T 1-09701-190-0 02 1 0510-
23 04.101 HOSE; BREATHER,A/T 8-97202-070-0 01 1 0211-0501
23 04.101 HOSE; BREATHER,A/T 8-97202-070-0 01 1 0510-
26 04.195 PLUG; TRANS CASE
(A) 		1-34119-017-0 03 1 0211-0501
26 04.195 PLUG; TRANS CASE
(B) 		1-34559-007-0 05 1 0211-0501
26 04.195 PLUG; TRANS CASE
(A) 		1-34119-017-0 03 1 0510-
26 04.195 PLUG; TRANS CASE
(B) 		1-34559-007-0 05 1 0510-
26 04.195 PLUG; TRANS CASE
VOLTAGE 24V<7AE> (C) 		8-97264-848-0 01 1 0211-0501
26 04.195 PLUG; TRANS CASE
VOLTAGE 24V<7AE> (C) 		8-97264-848-0 01 1 0510-
112 04.176 NUT; COUPLING DRIVER,A/T 8-97202-082-0 01 1 0211-0501
112 04.176 NUT; COUPLING DRIVER,A/T 8-97202-082-0 01 1 0510-
135 04.195 GASKET; PLUG,A/T CASE
(B) 		1-09623-581-0 05 1 0211-0501
135 04.195 GASKET; PLUG,A/T CASE
(A) 		1-09623-604-0 03 1 0211-0501
135 04.195 GASKET; PLUG,A/T CASE
(B) 		1-09623-581-0 05 1 0510-
135 04.195 GASKET; PLUG,A/T CASE
(A) 		1-09623-604-0 03 1 0510-
142 04.318 COVER; PTO HOLE,A/T CASE 8-97202-050-0 01 1 0211-0501
142 04.318 COVER; PTO HOLE,A/T CASE 8-97202-050-0 01 1 0510-
143 04.319 BOLT; HOLE COVER,PTO,A/T 8-97202-102-0 06 1 0211-0501
143 04.319 BOLT; HOLE COVER,PTO,A/T 8-97202-102-0 06 1 0510-
144 04.316 GASKET; PTO HOLE COVER,A/T CASE 8-97202-051-0 01 1 0211-0501
144 04.316 GASKET; PTO HOLE COVER,A/T CASE 8-97202-051-0 01 1 0510-
194 04.205 GASKET; COUPLING DRIVE 8-97202-087-0 01 1 0211-0501
194 04.205 GASKET; COUPLING DRIVE 8-97202-087-0 01 1 0510-
204 04.226 BRACKET; HARNESS CONNECTOR 8-97180-853-1 01 1 0211-0501
204 04.226 BRACKET; HARNESS CONNECTOR 8-97180-853-1 01 1 0510-
238 04.195 GASKET; PLUG 8-97202-083-0 01 1 0211-0501
238 04.195 GASKET; PLUG 8-97202-083-0 01 1 0510-

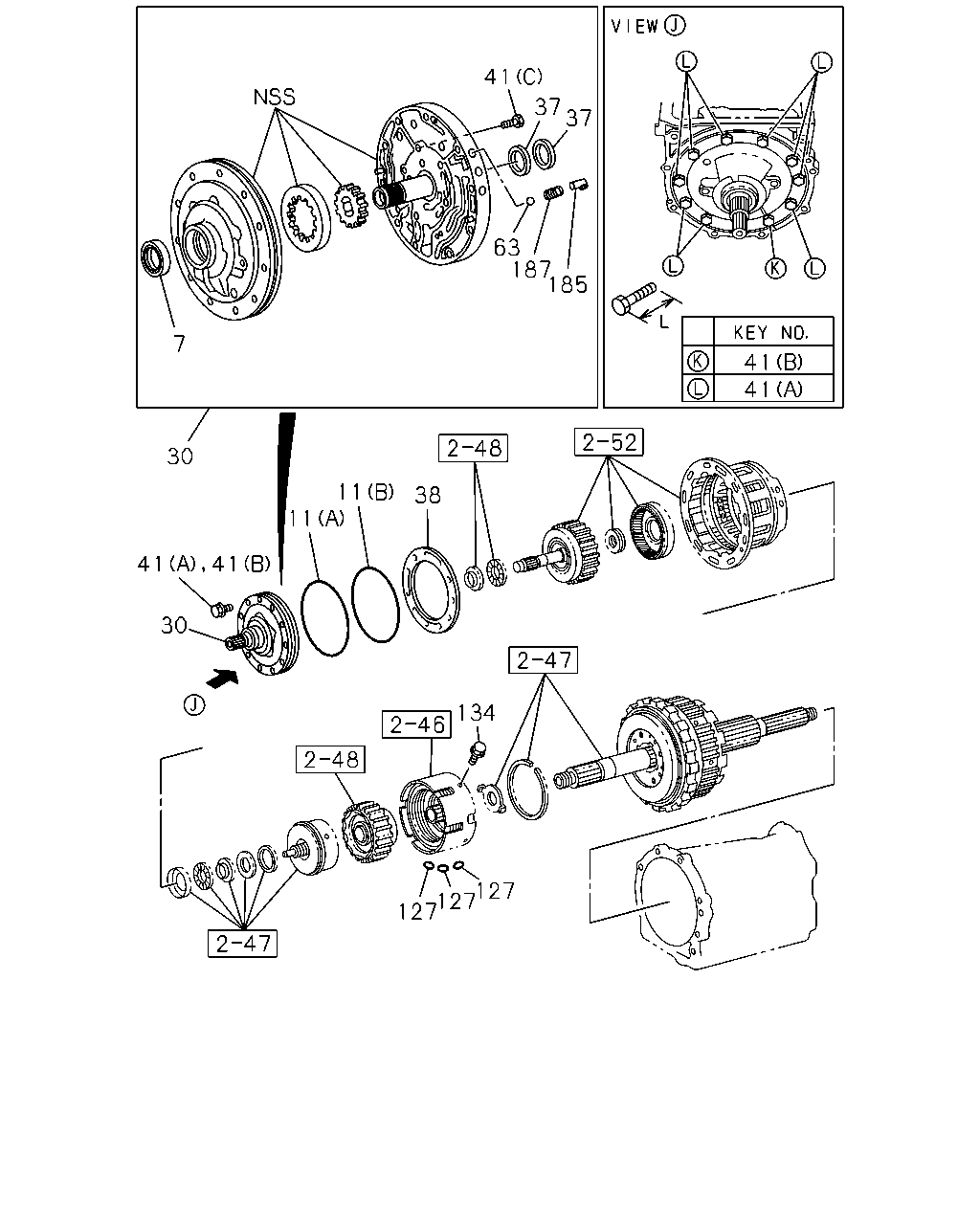

çizim 55369
41 37 37 63 187 185 7 41 41 30 11 38 11 41 41 30 134 127 127 127
BalonParca AdiParca NoAdetTipApplied Date
7 04.226 SEAL; OIL,LIP,A/T 8-97218-280-0 01 1 0211-0501
7 04.226 SEAL; OIL,LIP,A/T 8-97218-280-0 01 1 0510-
11 04.104 RING; SEALING,TRANS CASE
(A) 		8-97256-922-0 01 1 0211-0501
11 04.104 RING; SEALING,TRANS CASE
(B) 		8-97256-923-0 01 1 0211-0501
11 04.104 RING; SEALING,TRANS CASE
(A) 		8-97256-922-0 01 1 0510-
11 04.104 RING; SEALING,TRANS CASE
(B) 		8-97256-923-0 01 1 0510-
30 04.224 PUMP ASM; OIL,A/T 8-97256-916-0 01 1 0211-0501
30 04.224 PUMP ASM; OIL,A/T 8-97256-916-0 01 1 0510-
37 04.226 RING; SEAL,OIL PUMP,A/T 8-97256-917-0 02 1 0211-0501
37 04.226 RING; SEAL,OIL PUMP,A/T 8-97256-917-0 02 1 0510-
38 04.226 GASKET; OIL PUMP,A/T 8-97256-924-0 01 1 0211-0501
38 04.226 GASKET; OIL PUMP,A/T 8-97256-924-0 01 1 0510-
41 04.226 BOLT; OIL PUMP HSG,A/T
(A) 		8-97256-910-0 10 1 0211-0501
41 04.226 BOLT; OIL PUMP HSG,A/T
(B) 		8-97256-911-0 01 1 0211-0501
41 04.226 BOLT; OIL PUMP HSG,A/T
(C) 		8-97256-921-0 07 1 0211-0501
41 04.226 BOLT; OIL PUMP HSG,A/T
(A) 		8-97256-910-0 10 1 0510-
41 04.226 BOLT; OIL PUMP HSG,A/T
(B) 		8-97256-911-0 01 1 0510-
41 04.226 BOLT; OIL PUMP HSG,A/T
(C) 		8-97256-921-0 07 1 0510-
63 04.103 BALL; HSG 8-97256-918-0 01 1 0211-0501
63 04.103 BALL; HSG 8-97256-918-0 01 1 0510-
127 04.103 GASKET; CASE TO COVER
04.166 		8-97256-927-0 03 1 0211-0501
127 04.103 GASKET; CASE TO COVER
04.166 		8-97256-927-0 03 1 0510-
134 04.103 BOLT; COVER TO CASE 8-97256-914-0 03 1 0211-0501
134 04.103 BOLT; COVER TO CASE 8-97256-914-0 03 1 0510-
185 04.205 SEAT; SPR,REG VALVE 8-97256-920-0 01 1 0211-0501
185 04.205 SEAT; SPR,REG VALVE 8-97256-920-0 01 1 0510-
187 04.205 VALVE; PRESSURE REG 8-97256-919-0 01 1 0211-0501
187 04.205 VALVE; PRESSURE REG 8-97256-919-0 01 1 0510-
