Sayfa 2-36 - Isuzu EPC

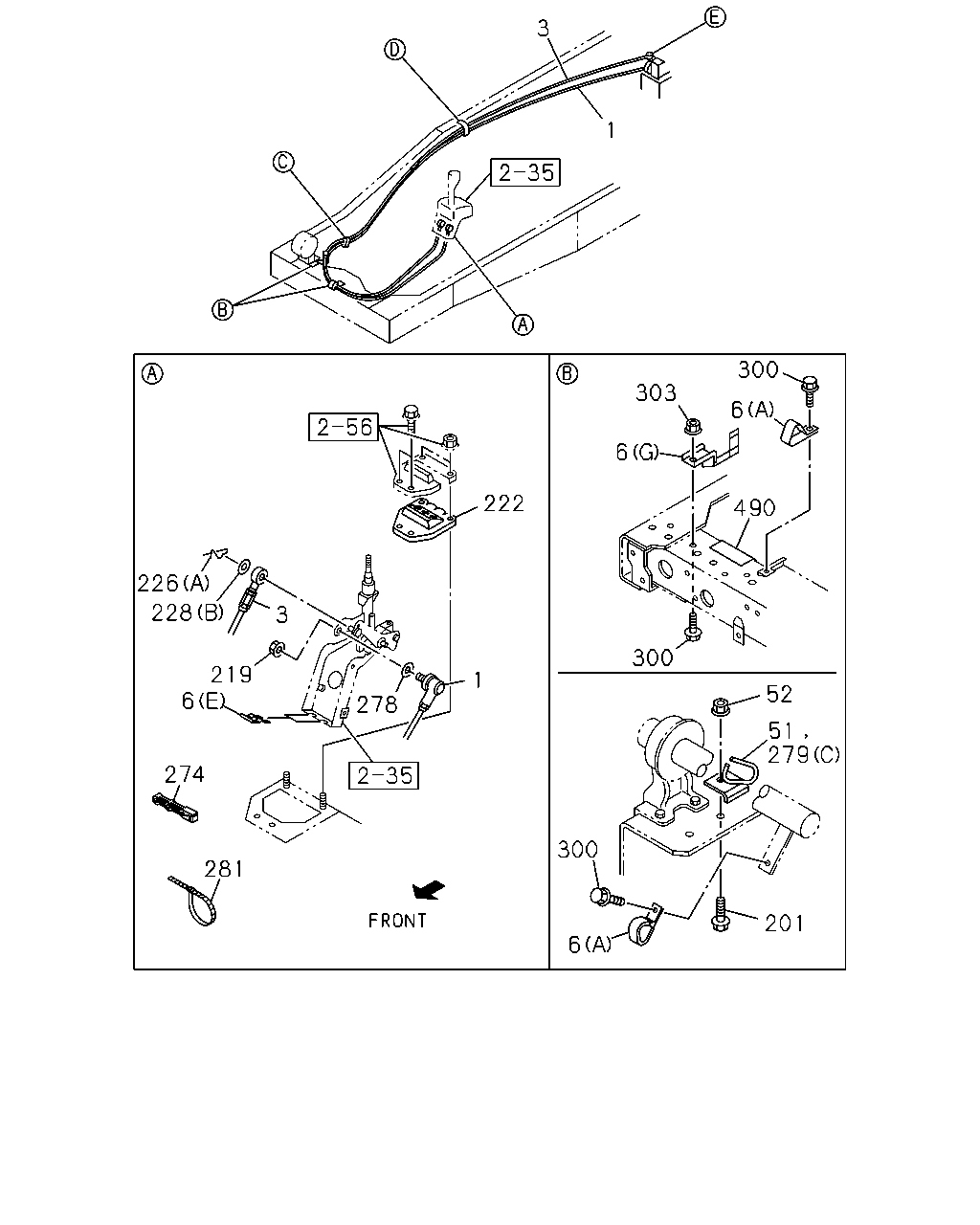

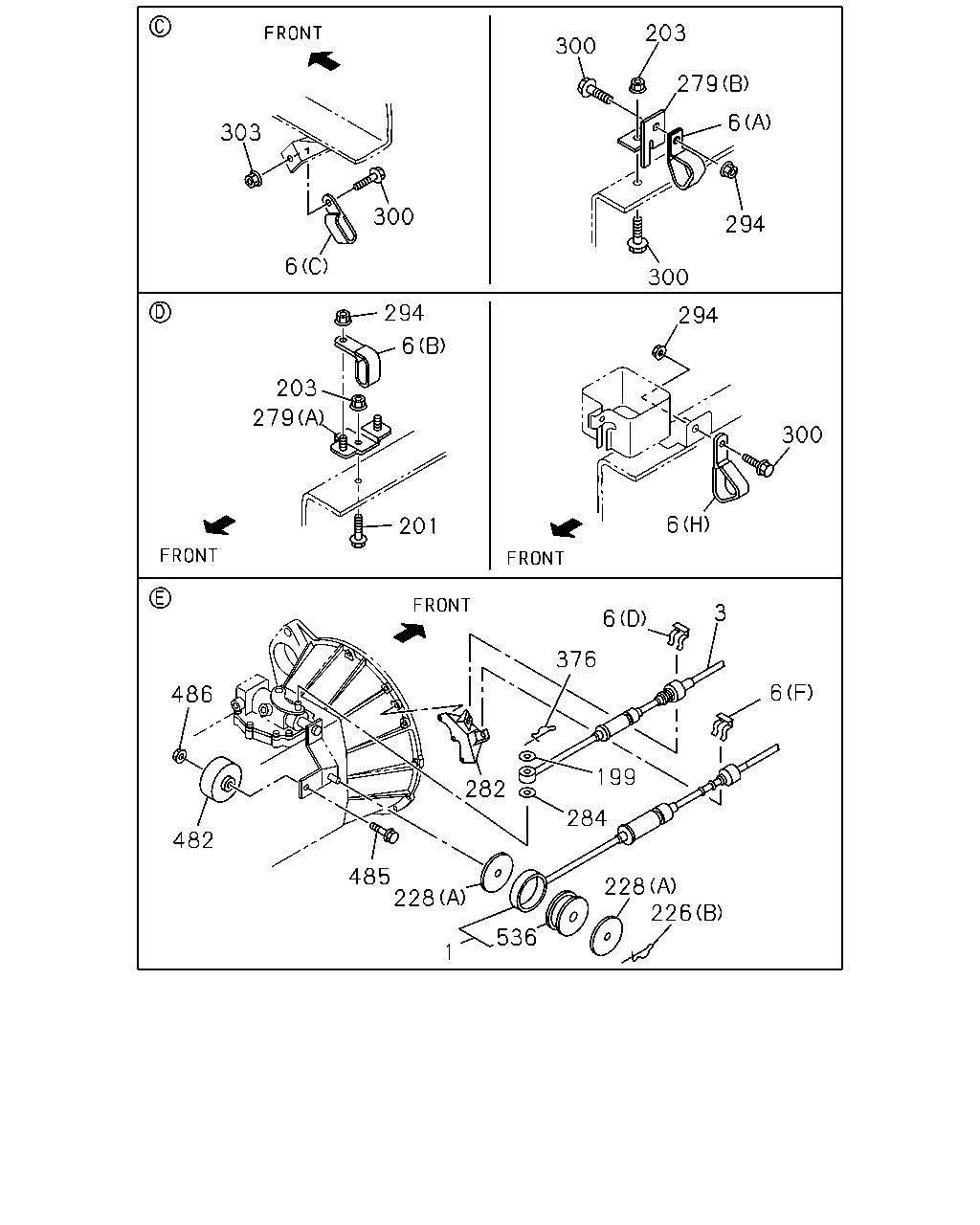

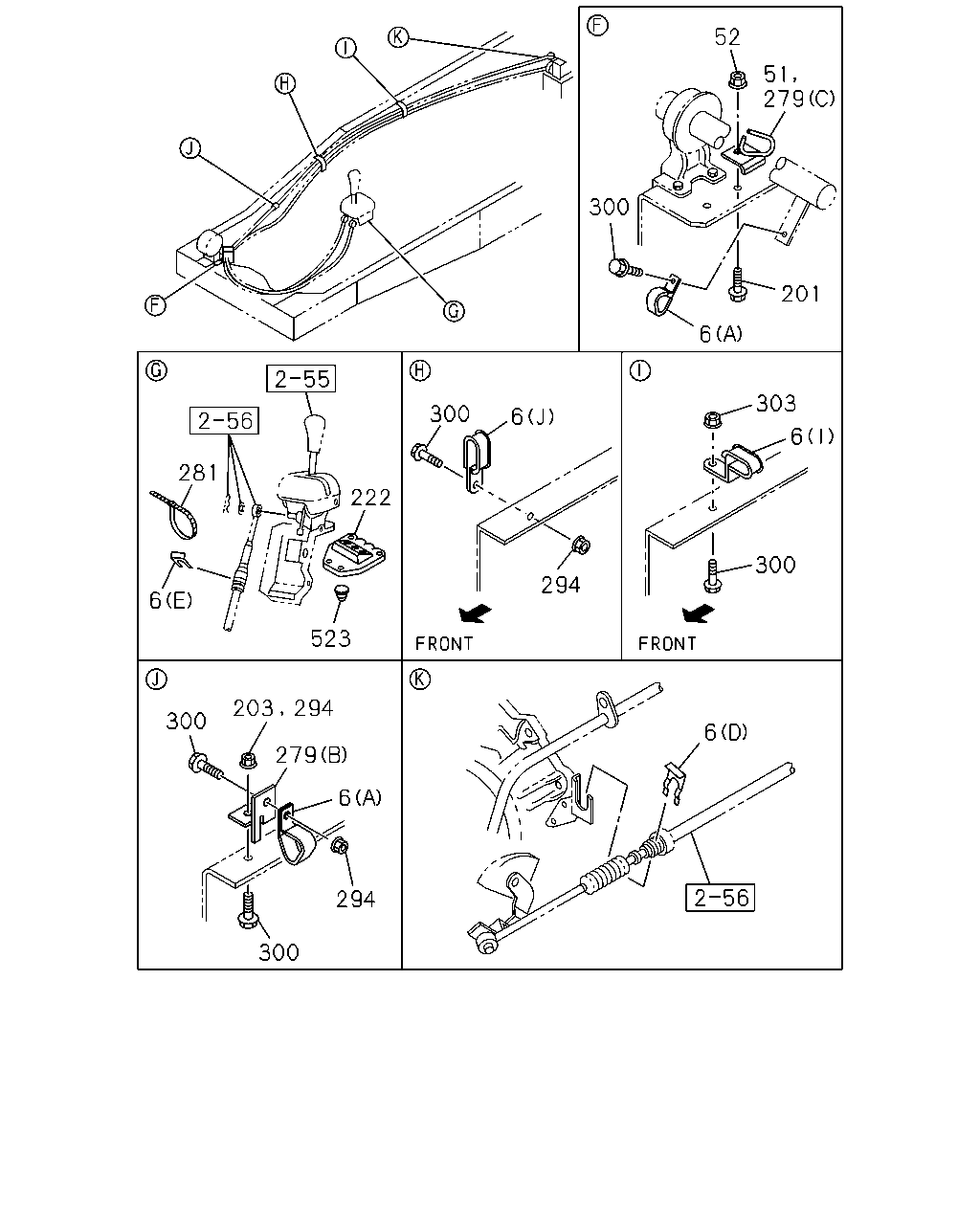

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#45061) — 390 parça

52 51 279 300 6 303 300 6 6 281 222 300 294 6 523 300 6 279 6 294 300 201 203 294

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	04.047 CLIP; CABLE (E)	8-97011-448-0	01	1	0211-	●
6	04.047 CLIP; CABLE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 06.672 (I)	8-94107-545-0	01	1	0211-0501	●
6	04.047 CLIP; CABLE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.785 (J)	8-94458-385-1	01	1	0211-0501	●
6	04.047 CLIP; CABLE 04.785 (J)	8-94458-385-1	01	1	0502-0502	●
6	04.047 CLIP; CABLE 08.846 (J) ID=45X22 L=46	9-09917-380-0	01	1	0502-	●
6	04.047 CLIP; CABLE (D) ID=19.2	8-97211-011-0	01	1	0211-	●	●	●	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (A)	8-97036-333-1	02	1	0211-0501	●	●	●	●
6	04.047 CLIP; CABLE (A)	8-97036-333-1	01	1	0502-0504	●	●	●	●
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (A)	8-97036-333-1	01	1	0502-0504			●	●
6	04.047 CLIP; CABLE (A)	8-97036-333-1	01	1	0505-	●	●	●	●
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (A)	8-97036-333-1	01	1	0505-		●	●	●
6	04.047 CLIP; CABLE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97036-333-1	01	1	0211-0501	●	●	●	●
6	04.047 CLIP; CABLE 4HE1-TCS ENG(RDS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97039-517-1	01	1	0502-0506	●
6	04.047 CLIP; CABLE 4HE1-TCS ENG(RDS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97039-517-1	01	1	0507-0606	●
6	04.047 CLIP; CABLE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97039-517-1	01	1	0507-0606		●
6	04.047 CLIP; CABLE 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97039-517-1	01	1	0607-	●
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97039-517-1	01	1	0607-		●		●
6	04.047 CLIP; CABLE 00.854 (F) ID=22.2	1-09701-209-1	01	1	0211-		●	●	●
6	04.047 CLIP; CABLE (E)	8-97011-448-0	02	1	0211-		●	●	●
6	04.047 CLIP; CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (G)	8-94133-416-2	01	1	0211-0501			●	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (G)	8-94133-416-2	01	1	0502-		●	●	●
6	04.047 CLIP; CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16.5	8-94240-646-1	01	1	0211-0501			●	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16.5	8-94240-646-1	01	1	0502-		●	●	●
6	04.047 CLIP; CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=33X16.5 L=50	5-09700-341-0	01	1	0211-0501			●	●
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=33X16.5 L=50	5-09700-341-0	01	1	0502-			●	●
6	04.047 CLIP; CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (H)	8-97036-332-1	01	1	0211-0501			●	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (H)	8-97036-332-1	01	1	0502-		●	●	●
51	04.010 BRACKET; GEAR CONT FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ>	8-97214-437-0	01	1	0211-0501	●	●	●	●
51	04.010 BRACKET; GEAR CONT FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ>	8-97214-437-0	01	1	0507-	●	●	●	●
51	04.010 BRACKET; GEAR CONT MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 04.047	8-97103-513-1	01	1	0211-0501	●	●	●	●
52	04.047 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●	●	●
52	04.047 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602	●	●	●	●
52	04.047 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●
52	04.047 NUT; BRKT MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	01	1	0211-0602	●	●	●	●
52	04.047 NUT; BRKT MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	01	1	0603-	●	●	●	●
201	04.032 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●	●	●	●
201	04.032 BOLT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501			●	●
201	04.032 BOLT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0506	●	●		●
201	04.032 BOLT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0506			●	●
201	04.032 BOLT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0507	●	●		●
201	04.032 BOLT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0507			●	●
201	04.032 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●	●	●	●
201	04.032 BOLT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●	●		●
201	04.032 BOLT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0512			●	●
201	04.032 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0606	●	●	●	●
201	04.032 BOLT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0606	●	●		●
201	04.032 BOLT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0606			●	●
201	04.032 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-	●	●	●	●
201	04.032 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-	●	●		●
201	04.032 BOLT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-			●	●
201	04.032 BOLT; BRKT MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0211-0501	●	●	●	●
201	04.032 BOLT; BRKT MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0502-0506	●	●	●	●
201	04.032 BOLT; BRKT MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0507-0512	●	●	●	●
201	04.032 BOLT; BRKT MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●	●	●
203	04.032 NUT; BRKT FIX 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●	●	●
203	04.032 NUT; BRKT FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602			●	●
203	04.032 NUT; BRKT FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-			●	●
222	04.010 GROMMET; CABLE	8-97091-890-0	01	1	0211-0501		●	●	●
222	04.010 GROMMET; CABLE	8-97091-890-0	01	1	0502-0506	●	●	●	●
222	04.010 GROMMET; CABLE	8-97091-890-0	01	1	0507-		●	●	●
279	04.047 BRACKET; CABLE TO FRAME 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-S ENG(RLS) MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (C)	8-97103-513-1	01	1	0502-	●	●	●	●
279	04.047 BRACKET; CABLE TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B)	8-97171-065-0	01	1	0211-0501	●	●		●
279	04.047 BRACKET; CABLE TO FRAME 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) FRAME STRAIGHT TYPE<7KJ> (B)	8-97171-065-0	01	1	0502-0506	●	●		●
279	04.047 BRACKET; CABLE TO FRAME 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B)	8-97171-065-0	01	1	0507-0606	●	●	●	●
279	04.047 BRACKET; CABLE TO FRAME 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B)	8-97171-065-0	01	1	0607-	●	●	●	●
279	04.047 BRACKET; CABLE TO FRAME 4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (C)	8-98004-932-0	01	1	0507-0606		●
279	04.047 BRACKET; CABLE TO FRAME 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (C)	8-98004-932-0	01	1	0607-		●		●
279	04.047 BRACKET; CABLE TO FRAME 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97028-496-1	01	1	0211-0501			●	●
279	04.047 BRACKET; CABLE TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97028-496-1	01	1	0502-			●	●
281	04.042 CLIP; BAND 02.559 L=250	5-09707-030-1	01	1	0211-	●	●	●	●
294	00.854 NUT; CLIP 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0309	●	●	●	●
294	00.854 NUT; CLIP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0309	●	●		●
294	00.854 NUT; CLIP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0310-0501	●	●		●
294	00.854 NUT; CLIP 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0506	●	●		●
294	00.854 NUT; CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0506			●	●
294	00.854 NUT; CLIP 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602	●	●		●
294	00.854 NUT; CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602			●	●
294	00.854 NUT; CLIP 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606	●	●		●
294	00.854 NUT; CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606			●	●
294	00.854 NUT; CLIP 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●	●		●
294	00.854 NUT; CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-			●	●
300	00.854 BOLT; CLIP 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●	●	●	●
300	00.854 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●	●
300	00.854 BOLT; CLIP 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●	●	●	●
300	00.854 BOLT; CLIP 4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501			●	●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●	●	●	●
300	00.854 BOLT; CLIP FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512		●	●	●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●
300	00.854 BOLT; CLIP FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-		●	●	●
300	00.854 BOLT; CLIP 4HG1 ENG(RJH),4HF1-S ENG(RLS) 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0211-0501			●	●
300	00.854 BOLT; CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0502-0512			●	●
300	00.854 BOLT; CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0601-			●	●
303	00.855 NUT; CLIP 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●	●	●
303	00.855 NUT; CLIP 4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501			●	●
303	00.855 NUT; CLIP FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602	●	●	●	●
303	00.855 NUT; CLIP FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602		●	●	●
303	00.855 NUT; CLIP FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●
303	00.855 NUT; CLIP FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-		●	●	●
303	00.855 NUT; CLIP 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M6 FLANGE	0-91150-206-0	01	1	0211-0501			●	●
303	00.855 NUT; CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M6 FLANGE	0-91150-206-0	01	1	0502-0602	●	●	●	●
303	00.855 NUT; CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 01.540 M6 FLANGE	0-91180-206-0	01	1	0603-	●	●	●	●
523	04.010 CAP; GROMMET	8-97371-108-0	01	1	0502-0504	●

203 300 279 6 303 300 294 6 300 294 294 6 203 279 300 6 201 3 6 376 6 486 199 282 284 482 485 228 228 226 536 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3123	8-97307-916-1	01	1	0211-0501		●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3134	8-97357-181-3	01	1	0502-0506		●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3134	8-97357-181-3	01	1	0507-0606		●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3134	8-97357-181-3	01	1	0607-0911		●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3134	8-98146-850-0	01	1	0912-		●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3021	8-97350-440-0	01	1	0211-0501		●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3108	8-97350-438-1	01	1	0211-0501			●	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1-TCN ENG(RDR) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3108	8-97350-438-1	01	1	0502-0502				●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1-TCN ENG(RDR) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3108	8-98009-296-1	01	1	0502-0506				●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3108	8-98009-296-1	01	1	0507-0606			●	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3108	8-98009-296-1	01	1	0607-0911			●	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3108	8-98146-853-0	01	1	0912-			●	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3006	8-97350-435-1	01	1	0211-0501			●	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3006	8-97350-435-1	01	1	0502-0911			●	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3006	8-98146-848-0	01	1	0912-			●	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> L=3006	8-97350-433-1	01	1	0211-0501			●	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3006	8-97350-433-1	01	1	0502-0911				●
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3006	8-98146-847-0	01	1	0912-				●
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=3021	8-97350-429-1	01	1	0211-0501				●
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=3021	8-97350-429-1	01	1	0502-				●
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ> L=3021	8-97350-427-1	01	1	0211-0501				●
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=3021	8-97350-427-1	01	1	0502-0911				●
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=3021	8-98146-842-0	01	1	0912-				●
3	00.852 CABLE; SELECT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3202	8-97307-881-2	01	1	0211-0501		●
3	00.852 CABLE; SELECT,TRANS CONT 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3217	8-97357-182-4	01	1	0502-0506		●
3	00.852 CABLE; SELECT,TRANS CONT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3217	8-97357-182-4	01	1	0507-0606		●
3	00.852 CABLE; SELECT,TRANS CONT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3217	8-97357-182-4	01	1	0607-		●
3	00.852 CABLE; SELECT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3100	8-97350-441-0	01	1	0211-0501		●
3	00.852 CABLE; SELECT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3165	8-97350-439-0	01	1	0211-0501			●	●
3	00.852 CABLE; SELECT,TRANS CONT 4HE1-TCN ENG(RDR) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3165	8-97350-439-0	01	1	0502-0502				●
3	00.852 CABLE; SELECT,TRANS CONT 4HE1-TCN ENG(RDR) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3165	8-98009-286-1	01	1	0502-0506				●
3	00.852 CABLE; SELECT,TRANS CONT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3165	8-98009-286-1	01	1	0507-0606			●	●
3	00.852 CABLE; SELECT,TRANS CONT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3165	8-98009-286-1	01	1	0607-			●	●
3	00.852 CABLE; SELECT,TRANS CONT 4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3063	8-97350-436-0	01	1	0211-0501			●	●
3	00.852 CABLE; SELECT,TRANS CONT 4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3063	8-97350-436-0	01	1	0502-			●	●
3	00.852 CABLE; SELECT,TRANS CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> L=3063	8-97350-434-0	01	1	0211-0501			●	●
3	00.852 CABLE; SELECT,TRANS CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3063	8-97350-434-0	01	1	0502-				●
3	00.852 CABLE; SELECT,TRANS CONT 4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=3074	8-97350-430-0	01	1	0211-0501				●
3	00.852 CABLE; SELECT,TRANS CONT 4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=3074	8-97350-430-0	01	1	0502-				●
3	00.852 CABLE; SELECT,TRANS CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ> L=3074	8-97350-428-0	01	1	0211-0501				●
3	00.852 CABLE; SELECT,TRANS CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=3074	8-97350-428-0	01	1	0502-				●
6	04.047 CLIP; CABLE (E)	8-97011-448-0	01	1	0211-	●
6	04.047 CLIP; CABLE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 06.672 (I)	8-94107-545-0	01	1	0211-0501	●
6	04.047 CLIP; CABLE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.785 (J)	8-94458-385-1	01	1	0211-0501	●
6	04.047 CLIP; CABLE 04.785 (J)	8-94458-385-1	01	1	0502-0502	●
6	04.047 CLIP; CABLE 08.846 (J) ID=45X22 L=46	9-09917-380-0	01	1	0502-	●
6	04.047 CLIP; CABLE (D) ID=19.2	8-97211-011-0	01	1	0211-	●	●	●	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (A)	8-97036-333-1	02	1	0211-0501	●	●	●	●
6	04.047 CLIP; CABLE (A)	8-97036-333-1	01	1	0502-0504	●	●	●	●
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (A)	8-97036-333-1	01	1	0502-0504			●	●
6	04.047 CLIP; CABLE (A)	8-97036-333-1	01	1	0505-	●	●	●	●
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (A)	8-97036-333-1	01	1	0505-		●	●	●
6	04.047 CLIP; CABLE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97036-333-1	01	1	0211-0501	●	●	●	●
6	04.047 CLIP; CABLE 4HE1-TCS ENG(RDS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97039-517-1	01	1	0502-0506	●
6	04.047 CLIP; CABLE 4HE1-TCS ENG(RDS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97039-517-1	01	1	0507-0606	●
6	04.047 CLIP; CABLE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97039-517-1	01	1	0507-0606		●
6	04.047 CLIP; CABLE 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97039-517-1	01	1	0607-	●
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97039-517-1	01	1	0607-		●		●
6	04.047 CLIP; CABLE 00.854 (F) ID=22.2	1-09701-209-1	01	1	0211-		●	●	●
6	04.047 CLIP; CABLE (E)	8-97011-448-0	02	1	0211-		●	●	●
6	04.047 CLIP; CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (G)	8-94133-416-2	01	1	0211-0501			●	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (G)	8-94133-416-2	01	1	0502-		●	●	●
6	04.047 CLIP; CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16.5	8-94240-646-1	01	1	0211-0501			●	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16.5	8-94240-646-1	01	1	0502-		●	●	●
6	04.047 CLIP; CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=33X16.5 L=50	5-09700-341-0	01	1	0211-0501			●	●
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=33X16.5 L=50	5-09700-341-0	01	1	0502-			●	●
6	04.047 CLIP; CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (H)	8-97036-332-1	01	1	0211-0501			●	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (H)	8-97036-332-1	01	1	0502-		●	●	●
199	04.012 WASHER; PL,SELECT 16.674 ID=8.4	9-09160-508-0	01	1	0211-0605		●	●	●
199	04.012 WASHER; PL,SELECT 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	0606-		●	●	●
201	04.032 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●	●	●	●
201	04.032 BOLT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501			●	●
201	04.032 BOLT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0506	●	●		●
201	04.032 BOLT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0506			●	●
201	04.032 BOLT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0507	●	●		●
201	04.032 BOLT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0507			●	●
201	04.032 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●	●	●	●
201	04.032 BOLT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●	●		●
201	04.032 BOLT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0512			●	●
201	04.032 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0606	●	●	●	●
201	04.032 BOLT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0606	●	●		●
201	04.032 BOLT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0606			●	●
201	04.032 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-	●	●	●	●
201	04.032 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-	●	●		●
201	04.032 BOLT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-			●	●
201	04.032 BOLT; BRKT MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0211-0501	●	●	●	●
201	04.032 BOLT; BRKT MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0502-0506	●	●	●	●
201	04.032 BOLT; BRKT MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0507-0512	●	●	●	●
201	04.032 BOLT; BRKT MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●	●	●
203	04.032 NUT; BRKT FIX 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●	●	●
203	04.032 NUT; BRKT FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602			●	●
203	04.032 NUT; BRKT FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-			●	●
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	0211-		●	●	●
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0211-		●	●	●
228	04.047 WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0211-		●	●	●
228	04.047 WASHER; PL,SHIFT CABLE 00.206 (B) ID=8.4	9-09164-508-0	01	1	0211-0605		●	●	●
228	04.047 WASHER; PL,SHIFT CABLE 06.056 (B) ID=8.4 OD=16	0-91614-508-0	01	1	0606-		●	●	●
279	04.047 BRACKET; CABLE TO FRAME 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-S ENG(RLS) MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (C)	8-97103-513-1	01	1	0502-	●	●	●	●
279	04.047 BRACKET; CABLE TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B)	8-97171-065-0	01	1	0211-0501	●	●		●
279	04.047 BRACKET; CABLE TO FRAME 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) FRAME STRAIGHT TYPE<7KJ> (B)	8-97171-065-0	01	1	0502-0506	●	●		●
279	04.047 BRACKET; CABLE TO FRAME 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B)	8-97171-065-0	01	1	0507-0606	●	●	●	●
279	04.047 BRACKET; CABLE TO FRAME 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B)	8-97171-065-0	01	1	0607-	●	●	●	●
279	04.047 BRACKET; CABLE TO FRAME 4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (C)	8-98004-932-0	01	1	0507-0606		●
279	04.047 BRACKET; CABLE TO FRAME 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (C)	8-98004-932-0	01	1	0607-		●		●
279	04.047 BRACKET; CABLE TO FRAME 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97028-496-1	01	1	0211-0501			●	●
279	04.047 BRACKET; CABLE TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97028-496-1	01	1	0502-			●	●
282	04.010 BRACKET; TRANS SIDE FLOOR REMOTE SHIFT<M11>	8-97311-442-1	01	1	0211-0501		●
282	04.010 BRACKET; TRANS SIDE	8-97311-442-1	01	1	0502-		●
282	04.010 BRACKET; TRANS SIDE 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97311-441-1	01	1	0211-0501			●	●
282	04.010 BRACKET; TRANS SIDE 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11>	8-97311-441-1	01	1	0502-0506			●	●
282	04.010 BRACKET; TRANS SIDE 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11>	8-97311-441-1	01	1	0507-0606			●	●
282	04.010 BRACKET; TRANS SIDE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11>	8-97311-441-1	01	1	0607-			●	●
284	00.854 WASHER; WAVE,SELECT CABLE,CAB ID=8.4 OD=14	5-09550-002-0	01	1	0211-		●	●	●
294	00.854 NUT; CLIP 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0309	●	●	●	●
294	00.854 NUT; CLIP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0309	●	●		●
294	00.854 NUT; CLIP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0310-0501	●	●		●
294	00.854 NUT; CLIP 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0506	●	●		●
294	00.854 NUT; CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0506			●	●
294	00.854 NUT; CLIP 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602	●	●		●
294	00.854 NUT; CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602			●	●
294	00.854 NUT; CLIP 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606	●	●		●
294	00.854 NUT; CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606			●	●
294	00.854 NUT; CLIP 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●	●		●
294	00.854 NUT; CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-			●	●
300	00.854 BOLT; CLIP 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●	●	●	●
300	00.854 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●	●
300	00.854 BOLT; CLIP 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●	●	●	●
300	00.854 BOLT; CLIP 4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501			●	●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●	●	●	●
300	00.854 BOLT; CLIP FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512		●	●	●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●
300	00.854 BOLT; CLIP FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-		●	●	●
300	00.854 BOLT; CLIP 4HG1 ENG(RJH),4HF1-S ENG(RLS) 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0211-0501			●	●
300	00.854 BOLT; CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0502-0512			●	●
300	00.854 BOLT; CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0601-			●	●
303	00.855 NUT; CLIP 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●	●	●
303	00.855 NUT; CLIP 4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501			●	●
303	00.855 NUT; CLIP FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602	●	●	●	●
303	00.855 NUT; CLIP FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602		●	●	●
303	00.855 NUT; CLIP FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●
303	00.855 NUT; CLIP FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-		●	●	●
303	00.855 NUT; CLIP 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M6 FLANGE	0-91150-206-0	01	1	0211-0501			●	●
303	00.855 NUT; CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M6 FLANGE	0-91150-206-0	01	1	0502-0602	●	●	●	●
303	00.855 NUT; CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 01.540 M6 FLANGE	0-91180-206-0	01	1	0603-	●	●	●	●
376	04.047 PIN; SNAP,SELECT CABLE L=23	8-94170-378-0	01	1	0211-		●	●	●
482	04.047 WEIGHT; SHIFT CABLE	8-97066-730-2	01	1	0211-0305		●	●	●
485	04.047 BOLT; WEIGHT M12X60 FLANGE	0-28091-260-0	01	1	0211-0305		●	●	●
486	04.047 NUT; WEIGHT 06.509 M12 FLANGE	8-94436-194-0	01	1	0211-0305		●	●	●
536	00.854 DAMPER; CABLE FLOOR REMOTE SHIFT<M11>	8-98097-681-0	01	1	0211-		●	●	●

3 1 300 303 6 6 222 490 226 228 3 300 219 6 1 52 278 51 279 274 300 281 201 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3123	8-97307-916-1	01	1	0211-0501		●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3134	8-97357-181-3	01	1	0502-0506		●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3134	8-97357-181-3	01	1	0507-0606		●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3134	8-97357-181-3	01	1	0607-0911		●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3134	8-98146-850-0	01	1	0912-		●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3021	8-97350-440-0	01	1	0211-0501		●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3108	8-97350-438-1	01	1	0211-0501			●	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1-TCN ENG(RDR) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3108	8-97350-438-1	01	1	0502-0502				●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1-TCN ENG(RDR) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3108	8-98009-296-1	01	1	0502-0506				●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3108	8-98009-296-1	01	1	0507-0606			●	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3108	8-98009-296-1	01	1	0607-0911			●	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3108	8-98146-853-0	01	1	0912-			●	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3006	8-97350-435-1	01	1	0211-0501			●	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3006	8-97350-435-1	01	1	0502-0911			●	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3006	8-98146-848-0	01	1	0912-			●	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> L=3006	8-97350-433-1	01	1	0211-0501			●	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3006	8-97350-433-1	01	1	0502-0911				●
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3006	8-98146-847-0	01	1	0912-				●
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=3021	8-97350-429-1	01	1	0211-0501				●
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=3021	8-97350-429-1	01	1	0502-				●
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ> L=3021	8-97350-427-1	01	1	0211-0501				●
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=3021	8-97350-427-1	01	1	0502-0911				●
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=3021	8-98146-842-0	01	1	0912-				●
3	00.852 CABLE; SELECT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3202	8-97307-881-2	01	1	0211-0501		●
3	00.852 CABLE; SELECT,TRANS CONT 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3217	8-97357-182-4	01	1	0502-0506		●
3	00.852 CABLE; SELECT,TRANS CONT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3217	8-97357-182-4	01	1	0507-0606		●
3	00.852 CABLE; SELECT,TRANS CONT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3217	8-97357-182-4	01	1	0607-		●
3	00.852 CABLE; SELECT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3100	8-97350-441-0	01	1	0211-0501		●
3	00.852 CABLE; SELECT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3165	8-97350-439-0	01	1	0211-0501			●	●
3	00.852 CABLE; SELECT,TRANS CONT 4HE1-TCN ENG(RDR) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3165	8-97350-439-0	01	1	0502-0502				●
3	00.852 CABLE; SELECT,TRANS CONT 4HE1-TCN ENG(RDR) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3165	8-98009-286-1	01	1	0502-0506				●
3	00.852 CABLE; SELECT,TRANS CONT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3165	8-98009-286-1	01	1	0507-0606			●	●
3	00.852 CABLE; SELECT,TRANS CONT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3165	8-98009-286-1	01	1	0607-			●	●
3	00.852 CABLE; SELECT,TRANS CONT 4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3063	8-97350-436-0	01	1	0211-0501			●	●
3	00.852 CABLE; SELECT,TRANS CONT 4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3063	8-97350-436-0	01	1	0502-			●	●
3	00.852 CABLE; SELECT,TRANS CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> L=3063	8-97350-434-0	01	1	0211-0501			●	●
3	00.852 CABLE; SELECT,TRANS CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3063	8-97350-434-0	01	1	0502-				●
3	00.852 CABLE; SELECT,TRANS CONT 4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=3074	8-97350-430-0	01	1	0211-0501				●
3	00.852 CABLE; SELECT,TRANS CONT 4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=3074	8-97350-430-0	01	1	0502-				●
3	00.852 CABLE; SELECT,TRANS CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),FRAME STRAIGHT TYPE<7KJ> L=3074	8-97350-428-0	01	1	0211-0501				●
3	00.852 CABLE; SELECT,TRANS CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=3074	8-97350-428-0	01	1	0502-				●
6	04.047 CLIP; CABLE (E)	8-97011-448-0	01	1	0211-	●
6	04.047 CLIP; CABLE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 06.672 (I)	8-94107-545-0	01	1	0211-0501	●
6	04.047 CLIP; CABLE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.785 (J)	8-94458-385-1	01	1	0211-0501	●
6	04.047 CLIP; CABLE 04.785 (J)	8-94458-385-1	01	1	0502-0502	●
6	04.047 CLIP; CABLE 08.846 (J) ID=45X22 L=46	9-09917-380-0	01	1	0502-	●
6	04.047 CLIP; CABLE (D) ID=19.2	8-97211-011-0	01	1	0211-	●	●	●	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (A)	8-97036-333-1	02	1	0211-0501	●	●	●	●
6	04.047 CLIP; CABLE (A)	8-97036-333-1	01	1	0502-0504	●	●	●	●
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (A)	8-97036-333-1	01	1	0502-0504			●	●
6	04.047 CLIP; CABLE (A)	8-97036-333-1	01	1	0505-	●	●	●	●
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (A)	8-97036-333-1	01	1	0505-		●	●	●
6	04.047 CLIP; CABLE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97036-333-1	01	1	0211-0501	●	●	●	●
6	04.047 CLIP; CABLE 4HE1-TCS ENG(RDS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97039-517-1	01	1	0502-0506	●
6	04.047 CLIP; CABLE 4HE1-TCS ENG(RDS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97039-517-1	01	1	0507-0606	●
6	04.047 CLIP; CABLE 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97039-517-1	01	1	0507-0606		●
6	04.047 CLIP; CABLE 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97039-517-1	01	1	0607-	●
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97039-517-1	01	1	0607-		●		●
6	04.047 CLIP; CABLE 00.854 (F) ID=22.2	1-09701-209-1	01	1	0211-		●	●	●
6	04.047 CLIP; CABLE (E)	8-97011-448-0	02	1	0211-		●	●	●
6	04.047 CLIP; CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (G)	8-94133-416-2	01	1	0211-0501			●	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (G)	8-94133-416-2	01	1	0502-		●	●	●
6	04.047 CLIP; CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16.5	8-94240-646-1	01	1	0211-0501			●	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16.5	8-94240-646-1	01	1	0502-		●	●	●
6	04.047 CLIP; CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=33X16.5 L=50	5-09700-341-0	01	1	0211-0501			●	●
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=33X16.5 L=50	5-09700-341-0	01	1	0502-			●	●
6	04.047 CLIP; CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (H)	8-97036-332-1	01	1	0211-0501			●	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (H)	8-97036-332-1	01	1	0502-		●	●	●
51	04.010 BRACKET; GEAR CONT FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ>	8-97214-437-0	01	1	0211-0501	●	●	●	●
51	04.010 BRACKET; GEAR CONT FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ>	8-97214-437-0	01	1	0507-	●	●	●	●
51	04.010 BRACKET; GEAR CONT MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 04.047	8-97103-513-1	01	1	0211-0501	●	●	●	●
52	04.047 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●	●	●
52	04.047 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602	●	●	●	●
52	04.047 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●
52	04.047 NUT; BRKT MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	01	1	0211-0602	●	●	●	●
52	04.047 NUT; BRKT MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	01	1	0603-	●	●	●	●
201	04.032 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●	●	●	●
201	04.032 BOLT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501			●	●
201	04.032 BOLT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0506	●	●		●
201	04.032 BOLT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0506			●	●
201	04.032 BOLT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0507	●	●		●
201	04.032 BOLT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0507			●	●
201	04.032 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●	●	●	●
201	04.032 BOLT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●	●		●
201	04.032 BOLT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0512			●	●
201	04.032 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0606	●	●	●	●
201	04.032 BOLT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0606	●	●		●
201	04.032 BOLT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0606			●	●
201	04.032 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-	●	●	●	●
201	04.032 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-	●	●		●
201	04.032 BOLT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-			●	●
201	04.032 BOLT; BRKT MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0211-0501	●	●	●	●
201	04.032 BOLT; BRKT MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0502-0506	●	●	●	●
201	04.032 BOLT; BRKT MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0507-0512	●	●	●	●
201	04.032 BOLT; BRKT MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●	●	●
219	04.047 NUT; FLANGE,SHAFT CABLE 04.037 M8 T=8.0	8-94363-045-0	01	1	0211-		●	●	●
222	04.010 GROMMET; CABLE	8-97091-890-0	01	1	0211-0501		●	●	●
222	04.010 GROMMET; CABLE	8-97091-890-0	01	1	0502-0506	●	●	●	●
222	04.010 GROMMET; CABLE	8-97091-890-0	01	1	0507-		●	●	●
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	0211-		●	●	●
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0211-		●	●	●
228	04.047 WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0211-		●	●	●
228	04.047 WASHER; PL,SHIFT CABLE 00.206 (B) ID=8.4	9-09164-508-0	01	1	0211-0605		●	●	●
228	04.047 WASHER; PL,SHIFT CABLE 06.056 (B) ID=8.4 OD=16	0-91614-508-0	01	1	0606-		●	●	●
274	04.008 CLIP; CONT CABLE FLOOR REMOTE SHIFT<M11> EXC. MANUAL TILT CAB<RWZ>	8-97093-491-1	01	1	0211-		●	●	●
278	00.854 WASHER; LK,SHIFT WIRE 01.276 ID=8.4 TOOTH LK INT	9-09151-208-0	01	1	0211-0604		●	●	●
278	00.854 WASHER; LK,SHIFT WIRE ID=8.4 TOOTH LK INT	0-91541-208-0	01	1	0605-		●	●	●
279	04.047 BRACKET; CABLE TO FRAME 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-S ENG(RLS) MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (C)	8-97103-513-1	01	1	0502-	●	●	●	●
279	04.047 BRACKET; CABLE TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B)	8-97171-065-0	01	1	0211-0501	●	●		●
279	04.047 BRACKET; CABLE TO FRAME 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) FRAME STRAIGHT TYPE<7KJ> (B)	8-97171-065-0	01	1	0502-0506	●	●		●
279	04.047 BRACKET; CABLE TO FRAME 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B)	8-97171-065-0	01	1	0507-0606	●	●	●	●
279	04.047 BRACKET; CABLE TO FRAME 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B)	8-97171-065-0	01	1	0607-	●	●	●	●
279	04.047 BRACKET; CABLE TO FRAME 4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (C)	8-98004-932-0	01	1	0507-0606		●
279	04.047 BRACKET; CABLE TO FRAME 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (C)	8-98004-932-0	01	1	0607-		●		●
279	04.047 BRACKET; CABLE TO FRAME 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97028-496-1	01	1	0211-0501			●	●
279	04.047 BRACKET; CABLE TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97028-496-1	01	1	0502-			●	●
281	04.042 CLIP; BAND 02.559 L=250	5-09707-030-1	01	1	0211-	●	●	●	●
300	00.854 BOLT; CLIP 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●	●	●	●
300	00.854 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●	●
300	00.854 BOLT; CLIP 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●	●	●	●
300	00.854 BOLT; CLIP 4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501			●	●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●	●	●	●
300	00.854 BOLT; CLIP FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512		●	●	●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●
300	00.854 BOLT; CLIP FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-		●	●	●
300	00.854 BOLT; CLIP 4HG1 ENG(RJH),4HF1-S ENG(RLS) 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0211-0501			●	●
300	00.854 BOLT; CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0502-0512			●	●
300	00.854 BOLT; CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0601-			●	●
303	00.855 NUT; CLIP 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●	●	●
303	00.855 NUT; CLIP 4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501			●	●
303	00.855 NUT; CLIP FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602	●	●	●	●
303	00.855 NUT; CLIP FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602		●	●	●
303	00.855 NUT; CLIP FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●
303	00.855 NUT; CLIP FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-		●	●	●
303	00.855 NUT; CLIP 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M6 FLANGE	0-91150-206-0	01	1	0211-0501			●	●
303	00.855 NUT; CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M6 FLANGE	0-91150-206-0	01	1	0502-0602	●	●	●	●
303	00.855 NUT; CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 01.540 M6 FLANGE	0-91180-206-0	01	1	0603-	●	●	●	●
490	04.010 PROTECTOR; EDGE 4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 L=200	8-97096-423-0	01	1	0211-0501			●	●
490	04.010 PROTECTOR; EDGE FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 L=200	8-97096-423-0	01	1	0502-		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
