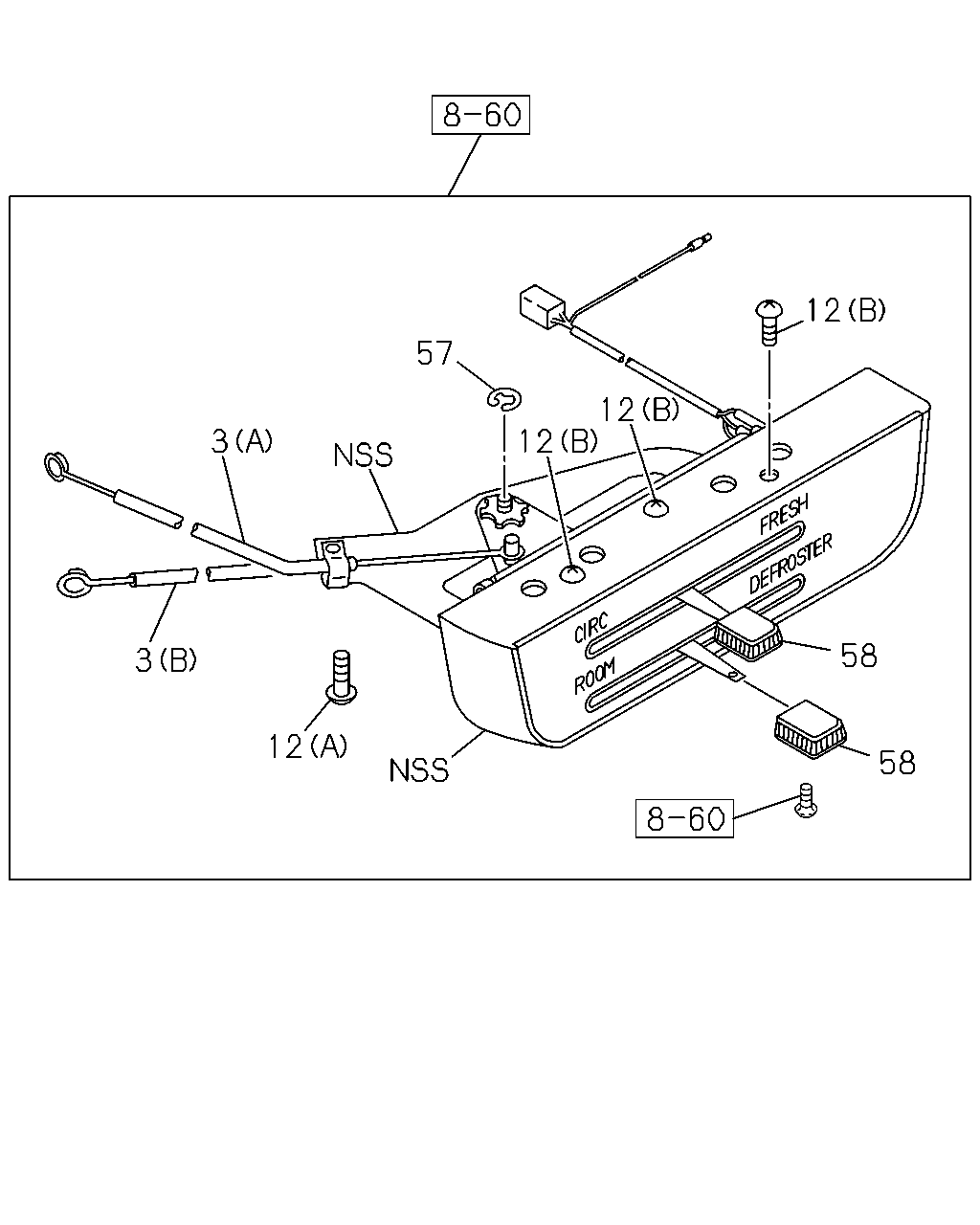

8-65 — CONTROL LEVER; HEATER AND AIR CON (#4506) — 22 parça

12 57 12 12 3 58 3 12 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	CABLE; HTR CONT LVR HEATER & DEFROSTER<C41> (A) FRESH	1-83569-125-0	01	1	9101-	●
3	CABLE; HTR CONT LVR HEATER & DEFROSTER<C41> (B) DEFROSTER	1-83569-126-0	01	1	9101-	●
3	CABLE; HTR CONT LVR HEATER & DEFROSTER<C41> (A) FRESH	1-83579-471-0	01	1	9101-9504		●
3	CABLE; HTR CONT LVR AUXILIARY HEATER<C36>,HEATER & DEFROSTER<C41> (A) FRESH	1-83579-471-0	01	1	9505-0203		●
3	CABLE; HTR CONT LVR HEATER & DEFROSTER<C41> (A) FRESH	1-83579-471-0	01	1	0204-		●
3	CABLE; HTR CONT LVR HEATER & DEFROSTER<C41> (B) DEFROSTER	1-83579-472-0	01	1	9101-9504		●
3	CABLE; HTR CONT LVR AUXILIARY HEATER<C36>,HEATER & DEFROSTER<C41> (B) DEFROSTER	1-83579-472-0	01	1	9505-0203		●
3	CABLE; HTR CONT LVR HEATER & DEFROSTER<C41> (B) DEFROSTER	1-83579-472-0	01	1	0204-		●
12	SCREW; CABLE CLIP,HTR CONT LVR HEATER & DEFROSTER<C41> (A) M5X12 W/LK WASHER	9-03910-512-0	01	1	9101-9504	●	●
12	SCREW; CABLE CLIP,HTR CONT LVR HEATER & DEFROSTER<C41> (A) M5X12 W/LK WASHER	9-03910-512-0	01	1	9505-0203	●
12	SCREW; CABLE CLIP,HTR CONT LVR AUXILIARY HEATER<C36>,HEATER & DEFROSTER<C41> (A) M5X12 W/LK WASHER	9-03910-512-0	01	1	9505-0203		●
12	SCREW; CABLE CLIP,HTR CONT LVR HEATER & DEFROSTER<C41> (A) M5X12 W/LK WASHER	9-03910-512-0	01	1	0204-	●	●
12	SCREW; CABLE CLIP,HTR CONT LVR HEATER & DEFROSTER<C41> (B) M4X10	9-93490-410-0	03	1	9101-9504	●	●
12	SCREW; CABLE CLIP,HTR CONT LVR HEATER & DEFROSTER<C41> (B) M4X10	9-93490-410-0	03	1	9505-	●
57	RING; SNAP,HTR CONT LVR HEATER & DEFROSTER<C41>	9-88410-199-0	02	1	9101-9504	●	●
57	RING; SNAP,HTR CONT LVR HEATER & DEFROSTER<C41>	9-88410-199-0	02	1	9505-0203	●
57	RING; SNAP,HTR CONT LVR AUXILIARY HEATER<C36>,HEATER & DEFROSTER<C41>	9-88410-199-0	02	1	9505-0203		●
57	RING; SNAP,HTR CONT LVR HEATER & DEFROSTER<C41>	9-88410-199-0	02	1	0204-	●	●
58	KNOB; LVR,HTR CONT LVR HEATER & DEFROSTER<C41>	9-83652-838-0	02	1	9101-9504	●	●
58	KNOB; LVR,HTR CONT LVR HEATER & DEFROSTER<C41>	9-83652-838-0	02	1	9505-0203	●
58	KNOB; LVR,HTR CONT LVR AUXILIARY HEATER<C36>,HEATER & DEFROSTER<C41>	9-83652-838-0	02	1	9505-0203		●
58	KNOB; LVR,HTR CONT LVR HEATER & DEFROSTER<C41>	9-83652-838-0	02	1	0204-	●	●
