2-30 — GEAR SHIFTER AND QUADRANT BOX (#45059) — 331 parça

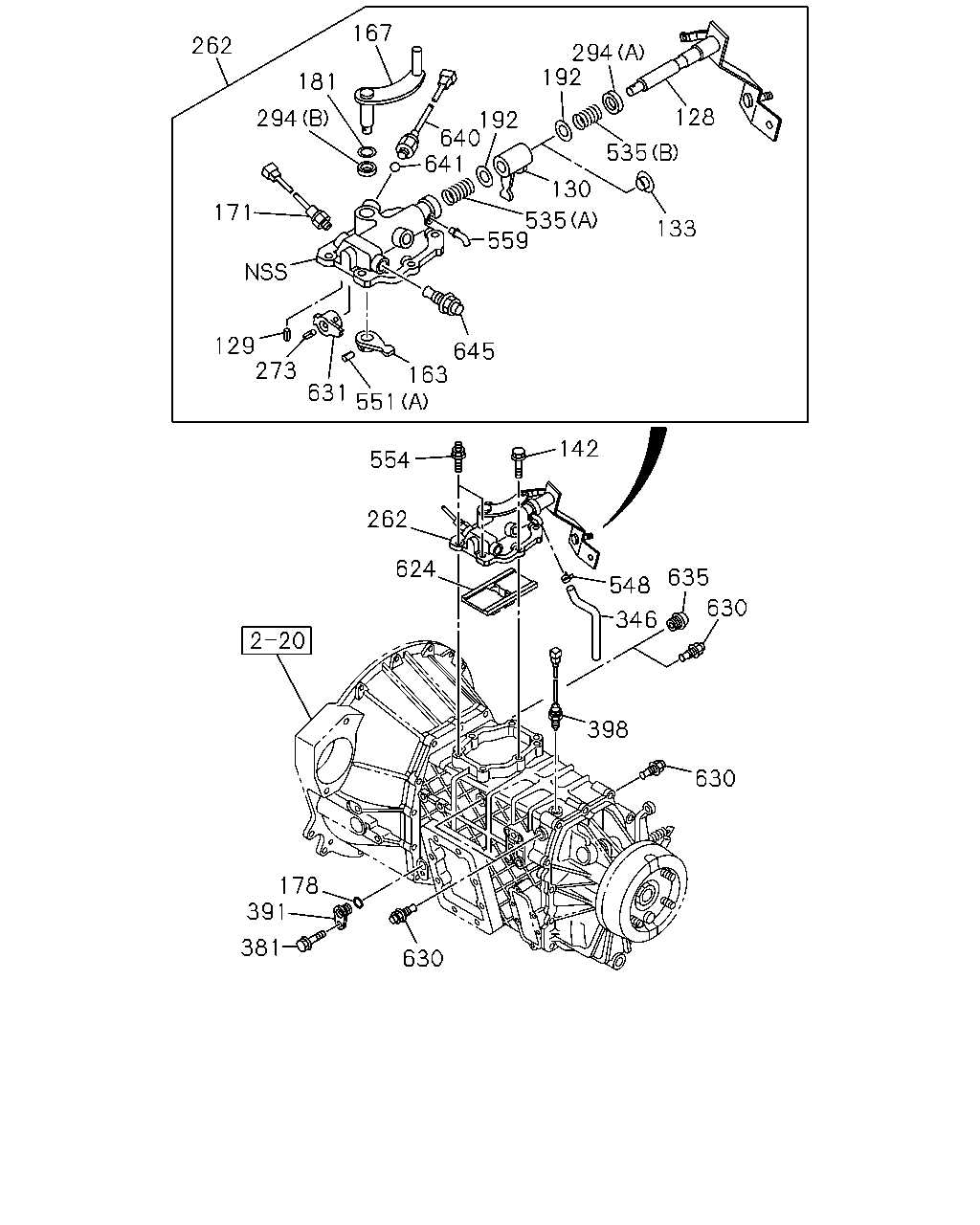

çizim 12072
167 262 294 192 181 128 294 192 640 641 535 130 171 535 559 133 129 273 645 163 551 631 142 554 262 624 635 548 630 346 398 630 178 391 381 630
BalonParca AdiParca NoAdetTipApplied Date A B C
128 04.030 LEVER; SHIFT,EXTERNAL 8-97305-725-0 01 1 0211-0303 ● ●
128 04.030 LEVER; SHIFT,EXTERNAL
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97305-725-0 01 1 0211-0303 ●
128 04.030 LEVER; SHIFT,EXTERNAL 8-97363-226-0 01 1 0304- ● ●
128 04.030 LEVER; SHIFT,EXTERNAL
4HE1 ENG(RLY) 		8-97305-658-0 01 1 0211-0303 ●
128 04.030 LEVER; SHIFT,EXTERNAL 8-97305-725-0 01 1 0304- ●
129 04.027 PIN; SPR,SHIFT
L=30 OD=4 		1-09748-031-0 01 1 0211- ● ● ●
130 04.302 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 0211-0303 ● ●
130 04.302 LEVER; SHIFT,INTERNAL
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97306-647-0 01 1 0211-0303 ●
130 04.302 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 0304- ● ● ●
130 04.302 LEVER; SHIFT,INTERNAL
4HE1 ENG(RLY) 		8-97305-657-0 01 1 0211-0303 ●
133 04.027 SEAT; SPR 8-97305-667-0 01 1 0211- ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-94448-815-3 04 1 0211-0604 ● ● ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-97365-376-0 04 1 0605- ● ● ●
163 04.302 LEVER; SELECT,INTERNAL 8-97305-663-0 01 1 0211- ● ● ●
167 04.302 LEVER; SELECT,EXTERNAL
EURO3 SPECIFICATION(NT3) 		8-97305-665-0 01 1 0211-0501 ●
167 04.302 LEVER; SELECT,EXTERNAL
4HE1 ENG(RLY) 		8-97305-665-0 01 1 0211-0501 ●
167 04.302 LEVER; SELECT,EXTERNAL
4HE1-TCN ENG(RDR) 		8-97305-665-0 01 1 0502-0506 ●
167 04.302 LEVER; SELECT,EXTERNAL
EURO3 SPECIFICATION(NT3) 		8-97305-665-0 01 1 0507-0611 ●
167 04.302 LEVER; SELECT,EXTERNAL
4HE1-TCN ENG(RDR) 		8-97305-665-0 01 1 0507-0611 ●
167 04.302 LEVER; SELECT,EXTERNAL
4HE1-TCS ENG(RDS) EURO3 SPECIFICATION(NT3) 		8-97305-665-0 01 1 0612- ●
167 04.302 LEVER; SELECT,EXTERNAL
EXC. EURO3 SPECIFICATION(NT3) 		8-97306-648-0 01 1 0211-0501 ●
167 04.302 LEVER; SELECT,EXTERNAL
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97306-648-0 01 1 0211-0501 ● ●
167 04.302 LEVER; SELECT,EXTERNAL 8-97306-648-0 01 1 0502-0506 ●
167 04.302 LEVER; SELECT,EXTERNAL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97306-648-0 01 1 0502-0506 ● ●
167 04.302 LEVER; SELECT,EXTERNAL
EXC. EURO3 SPECIFICATION(NT3) 		8-97306-648-0 01 1 0507-0606 ●
167 04.302 LEVER; SELECT,EXTERNAL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97306-648-0 01 1 0507-0606 ● ●
167 04.302 LEVER; SELECT,EXTERNAL
EXC. EURO3 SPECIFICATION(NT3) 		8-97306-648-0 01 1 0607-0611 ●
167 04.302 LEVER; SELECT,EXTERNAL
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97306-648-0 01 1 0607-0611 ● ●
167 04.302 LEVER; SELECT,EXTERNAL
EXC. EURO3 SPECIFICATION(NT3) 		8-98039-434-0 01 1 0612- ●
167 04.302 LEVER; SELECT,EXTERNAL
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-98039-434-0 01 1 0612- ● ●
167 04.302 LEVER; SELECT,EXTERNAL
4HE1-TCN ENG(RDR) 		8-98039-435-0 01 1 0612- ●
171 04.054 SWITCH; NEUTRAL
4HE1-TCS ENG(RDS) EURO3 SPECIFICATION(NT3) 02.698 		8-98023-050-0 01 1 0605-0611 ●
171 04.054 SWITCH; NEUTRAL
02.698 		8-98023-050-0 01 1 0612-1312 ● ● ●
171 04.054 SWITCH; NEUTRAL 8-98242-172-1 01 1 1401-1509 ● ● ●
171 04.054 SWITCH; NEUTRAL 8-98324-878-0 01 1 1510- ● ● ●
171 04.054 SWITCH; NEUTRAL 8-97316-688-1 01 1 0211-0604 ● ● ●
171 04.054 SWITCH; NEUTRAL
4HE1-TCS ENG(RDS) EXC. EURO3 SPECIFICATION(NT3) 		8-97316-688-1 01 1 0605-0611 ●
171 04.054 SWITCH; NEUTRAL
4HK1-TCS ENG(RJS) 		8-97316-688-1 01 1 0605-0611 ●
171 04.054 SWITCH; NEUTRAL 8-97316-688-1 01 1 0605-0611 ● ●
178 04.307 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		9-09567-113-0 01 1 0211- ● ● ●
181 04.302 WASHER; PL,SELECT LEVER 1-09503-280-0 01 1 0211-0303 ● ● ●
181 04.302 WASHER; PL,SELECT LEVER 8-97367-327-0 01 1 0304- ● ● ●
192 04.309 WASHER; PL 8-97305-661-0 02 1 0304- ● ●
192 04.309 WASHER; PL 8-97305-661-0 02 1 0211-0303 ● ● ●
192 04.309 WASHER; PL 8-97305-661-0 01 1 0304- ●
262 04.105 BOX ASM; SHIFT CONT
EURO3 SPECIFICATION(NT3) 		8-97329-083-1 01 1 0211-0501 ●
262 04.105 BOX ASM; SHIFT CONT
EXC. EURO3 SPECIFICATION(NT3) 		8-97256-823-8 01 1 0211-0501 ●
262 04.105 BOX ASM; SHIFT CONT
4HE1-TCS ENG(RDS) 		8-97256-823-9 01 1 0502-0506 ●
262 04.105 BOX ASM; SHIFT CONT
4HE1-TCS ENG(RDS) EXC. EURO3 SPECIFICATION(NT3) 		8-97256-823-9 01 1 0507-0611 ●
262 04.105 BOX ASM; SHIFT CONT
4HK1-TCS ENG(RJS) 		8-97256-823-9 01 1 0507-0611 ●
262 04.105 BOX ASM; SHIFT CONT
4HE1-TCS ENG(RDS) EXC. EURO3 SPECIFICATION(NT3) 		8-98039-441-0 01 1 0612-1312 ●
262 04.105 BOX ASM; SHIFT CONT
4HK1-TCS ENG(RJS) 		8-98039-441-0 01 1 0612-1312 ●
262 04.105 BOX ASM; SHIFT CONT
4HE1-TCS ENG(RDS) EXC. EURO3 SPECIFICATION(NT3) 		8-98240-996-2 01 1 1401- ●
262 04.105 BOX ASM; SHIFT CONT
4HK1-TCS ENG(RJS) 		8-98240-996-2 01 1 1401- ●
262 04.105 BOX ASM; SHIFT CONT
4HE1-TCS ENG(RDS) EURO3 SPECIFICATION(NT3) 		8-97329-083-2 01 1 0507-1312 ●
262 04.105 BOX ASM; SHIFT CONT
4HE1-TCS ENG(RDS) EURO3 SPECIFICATION(NT3) 		8-98241-022-2 01 1 1401- ●
262 04.105 BOX ASM; SHIFT CONT
4HE1 ENG(RLY) 		8-97362-749-0 01 1 0405-0501 ●
262 04.105 BOX ASM; SHIFT CONT
4HG1 ENG(RJH) 		8-97362-744-0 01 1 0405-0501 ●
262 04.105 BOX ASM; SHIFT CONT 8-97362-744-2 01 1 0502-1312 ●
262 04.105 BOX ASM; SHIFT CONT 8-98240-992-2 01 1 1401- ●
262 04.105 BOX ASM; SHIFT CONT
4HE1 ENG(RLY) 		8-97329-084-1 01 1 0211-0404 ●
262 04.105 BOX ASM; SHIFT CONT
4HE1 ENG(RLY) 		8-97362-751-0 01 1 0405-0501 ●
262 04.105 BOX ASM; SHIFT CONT
4HE1-TCN ENG(RDR) 		8-97362-751-2 01 1 0502-1312 ●
262 04.105 BOX ASM; SHIFT CONT
4HE1-TCN ENG(RDR) 		8-98241-000-2 01 1 1401- ●
262 04.105 BOX ASM; SHIFT CONT
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97256-825-7 01 1 0211-0404 ●
262 04.105 BOX ASM; SHIFT CONT
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97362-750-0 01 1 0405-0501 ●
262 04.105 BOX ASM; SHIFT CONT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97362-750-1 01 1 0502-0606 ●
262 04.105 BOX ASM; SHIFT CONT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97362-750-2 01 1 0607-1312 ●
262 04.105 BOX ASM; SHIFT CONT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-98240-999-2 01 1 1401- ●
273 04.309 PIN; SPR,STOPPER
04.307 D=4.2 L=25 		8-97103-142-0 01 1 0211- ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-09625-599-0 01 1 0211-0303 ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97363-225-0 01 1 0304- ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97305-662-0 01 1 0211- ● ● ●
346 04.545 HOSE; AIR 8-97309-855-0 01 1 0211- ● ● ●
381 04.105 BOLT
04.439 M6X16 FLANGE 		0-28680-616-0 01 1 0211-0512 ● ● ●
381 04.105 BOLT
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 0601- ● ● ●
391 04.104 PLUG; SW HOLE 8-97300-273-1 01 1 0211- ● ● ●
398 02.698 SWITCH; REV LAMP
04.054 		8-97316-688-1 01 1 0211-0604 ● ● ●
398 02.698 SWITCH; REV LAMP 8-98023-050-0 01 1 0605-1312 ● ● ●
398 02.698 SWITCH; REV LAMP 8-98242-173-1 01 1 1401- ● ● ●
535 04.302 SPRING; LEVER
(A) 		8-97305-659-0 01 1 0211- ● ●
535 04.302 SPRING; LEVER
(B) 		8-97305-660-0 01 1 0211- ● ●
535 04.302 SPRING; LEVER
(A) 		8-97323-771-0 01 1 0211- ●
535 04.302 SPRING; LEVER
(B) 		8-97323-772-0 01 1 0211- ●
548 04.457 CLIP; HOSE
03.278 		8-97031-674-0 01 1 0211- ● ● ●
551 04.303 PIN; SPRING
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 04.302 (B) L=32 		8-97011-596-2 05 1 0508- ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 0211- ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 0211-0507 ● ● ●
551 04.303 PIN; SPRING
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.302 (B) L=32 		8-97011-596-2 04 1 0508-0606 ● ●
551 04.303 PIN; SPRING
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.302 (B) L=32 		8-97011-596-2 04 1 0607- ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 0211- ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 01 1 0405- ●
554 04.302 STUD; CONT BOX
M8X15,M8X25 L=49 		8-97352-677-0 02 1 0211-0604 ● ● ●
554 04.302 STUD; CONT BOX
M8X15,M8X25 L=49 		8-97365-378-0 02 1 0605- ● ● ●
559 04.302 PIPE; BREATHER
4HE1-TCS ENG(RDS) 		8-97305-517-0 03 1 0502-0506 ●
559 04.302 PIPE; BREATHER
4HE1-TCS ENG(RDS) EXC. EURO3 SPECIFICATION(NT3) 		8-97305-517-0 03 1 0507-0507 ●
559 04.302 PIPE; BREATHER
4HK1-TCS ENG(RJS) 		8-97305-517-0 03 1 0507-0507 ●
559 04.302 PIPE; BREATHER 8-97305-517-0 01 1 0211-0501 ● ● ●
559 04.302 PIPE; BREATHER
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97305-517-0 01 1 0502-0506 ● ●
559 04.302 PIPE; BREATHER
4HE1-TCS ENG(RDS) EURO3 SPECIFICATION(NT3) 		8-97305-517-0 01 1 0507-0507 ●
559 04.302 PIPE; BREATHER
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97305-517-0 01 1 0507-0507 ● ●
559 04.302 PIPE; BREATHER 8-97305-517-0 01 1 0508-0604 ● ● ●
559 04.302 PIPE; BREATHER
04.510 		8-97358-318-0 01 1 0605- ● ● ●
624 04.105 PLATE; INTER LOCK 8-97241-317-3 01 1 0211- ● ● ●
630 04.307 DETENT ASM 8-97241-341-0 04 1 0211-0604 ● ●
630 04.307 DETENT ASM 8-98019-536-0 04 1 0605- ● ●
630 04.307 DETENT ASM 8-97241-341-0 03 1 0211-0604 ●
630 04.307 DETENT ASM 8-98019-536-0 03 1 0605- ●
631 04.105 STOPPER; SPRING 8-97305-666-0 01 1 0211- ● ● ●
635 04.309 PLUG; DETENT
00.206 		8-97229-313-2 01 1 0211-0611 ●
635 04.309 PLUG; DETENT
00.206 		8-97380-892-0 01 1 0612- ●
640 04.054 SWITCH; SELECT
EURO3 SPECIFICATION(NT3) 		8-97316-687-1 01 1 0211-0501 ●
640 04.054 SWITCH; SELECT
4HE1 ENG(RLY) 		8-97316-687-1 01 1 0211-0501 ●
640 04.054 SWITCH; SELECT
4HE1-TCN ENG(RDR) 		8-97316-687-1 01 1 0502-0506 ●
640 04.054 SWITCH; SELECT
EURO3 SPECIFICATION(NT3) 		8-97316-687-1 01 1 0507-0604 ●
640 04.054 SWITCH; SELECT
4HE1-TCN ENG(RDR) 		8-97316-687-1 01 1 0507-0604 ●
640 04.054 SWITCH; SELECT
4HE1-TCN ENG(RDR) 		8-97316-687-1 01 1 0605-0611 ●
640 04.054 SWITCH; SELECT
4HE1-TCS ENG(RDS) EURO3 SPECIFICATION(NT3) 		8-98023-051-0 01 1 0605-0611 ●
640 04.054 SWITCH; SELECT
EURO3 SPECIFICATION(NT3) 		8-98023-051-0 01 1 0612- ●
640 04.054 SWITCH; SELECT
4HE1-TCN ENG(RDR) 		8-98023-051-0 01 1 0612- ●
641 04.311 BALL
EURO3 SPECIFICATION(NT3) 		8-97305-668-0 01 1 0211-0501 ●
641 04.311 BALL
4HE1 ENG(RLY) 		8-97305-668-0 01 1 0211-0501 ●
641 04.311 BALL
4HE1-TCN ENG(RDR) 		8-97305-668-0 01 1 0502-0506 ●
641 04.311 BALL
EURO3 SPECIFICATION(NT3) 		8-97305-668-0 01 1 0507- ●
641 04.311 BALL
4HE1-TCN ENG(RDR) 		8-97305-668-0 01 1 0507- ●
645 04.311 DETENT ASM
04.307 		8-97241-341-0 01 1 0405-0604 ● ●
645 04.311 DETENT ASM
04.307 		8-98019-536-0 01 1 0605- ● ●

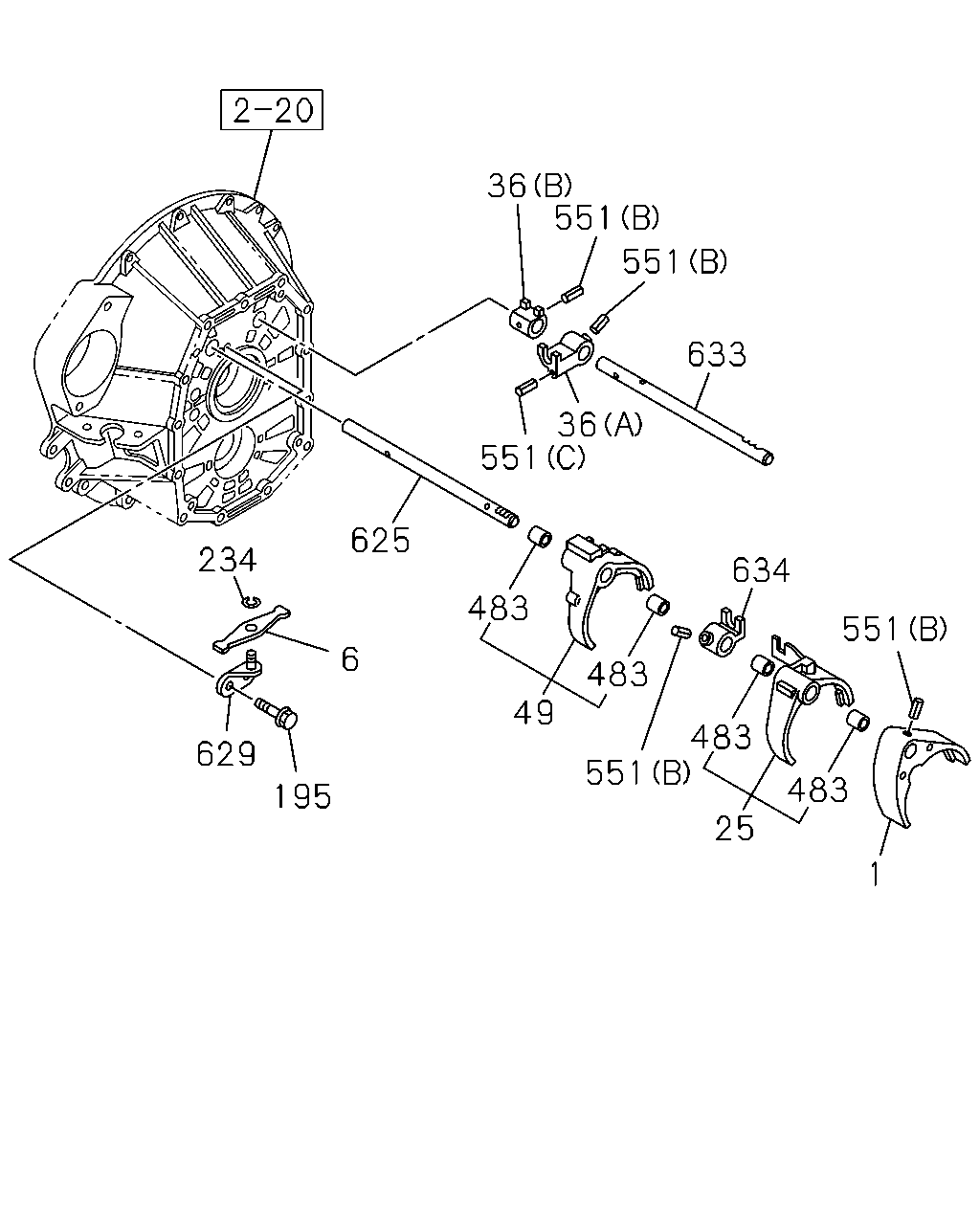

çizim 54733
36 551 551 633 36 551 625 234 634 483 551 6 483 49 483 551 629 483 195 25 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.302 ARM; SHIFT,1ST & REV 8-97241-319-2 01 1 0211-0501 ●
1 04.302 ARM; SHIFT,1ST & REV
4HE1-TCS ENG(RDS) 		8-97241-319-2 01 1 0502-0506 ●
1 04.302 ARM; SHIFT,1ST & REV
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 		8-97241-319-2 01 1 0507- ●
1 04.302 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 0211-0501 ● ●
1 04.302 ARM; SHIFT,1ST & REV
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97241-320-2 01 1 0502-0606 ● ●
1 04.302 ARM; SHIFT,1ST & REV
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97241-320-2 01 1 0607- ● ●
6 04.302 LEVER; RELAY 8-97241-344-0 01 1 0211- ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97258-708-1 01 1 0211-0501 ●
25 04.302 ARM; SHIFT,2ND & 3RD
4HE1-TCS ENG(RDS) 		8-97258-708-1 01 1 0502-0506 ●
25 04.302 ARM; SHIFT,2ND & 3RD
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 		8-97258-708-1 01 1 0507-0507 ●
25 04.302 ARM; SHIFT,2ND & 3RD
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 		8-97362-737-1 01 1 0508- ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97355-690-0 01 1 0211-0404 ● ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97362-731-1 01 1 0405-0501 ● ●
25 04.302 ARM; SHIFT,2ND & 3RD
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97362-731-1 01 1 0502-0606 ● ●
25 04.302 ARM; SHIFT,2ND & 3RD
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97362-731-2 01 1 0607-1407 ● ●
25 04.302 ARM; SHIFT,2ND & 3RD
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-98255-926-1 01 1 1408- ● ●
36 04.303 BLOCK; SHIFT,4TH & 5TH
(A) 		8-97241-329-1 01 1 0211- ●
36 04.303 BLOCK; SHIFT,4TH & 5TH
(B) 		8-97241-330-0 01 1 0211- ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97258-709-2 01 1 0211-0501 ●
49 04.302 ARM; SHIFT,4TH & 5TH
4HE1-TCS ENG(RDS) 		8-97258-709-2 01 1 0502-0506 ●
49 04.302 ARM; SHIFT,4TH & 5TH
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 		8-97258-709-2 01 1 0507-0507 ●
49 04.302 ARM; SHIFT,4TH & 5TH
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 		8-97362-738-1 01 1 0508- ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97258-711-1 01 1 0211-0404 ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97362-732-1 01 1 0405- ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97258-716-0 01 1 0211- ●
195 04.105 BOLT
04.012 M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0211-0604 ● ● ●
195 04.105 BOLT
M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0605- ● ● ●
234 04.311 RING; SNAP
ID=16.5 		9-09180-418-0 02 1 0405-0501 ●
234 04.311 RING; SNAP
4HE1-TCS ENG(RDS) ID=16.5 		9-09180-418-0 02 1 0502-0506 ●
234 04.311 RING; SNAP
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=16.5 		9-09180-418-0 02 1 0507-0507 ●
234 04.311 RING; SNAP
ID=16.5 		9-09180-418-0 02 1 0211-0404 ● ●
234 04.311 RING; SNAP
ID=16.5 		9-09180-418-0 01 1 0405-0507 ●
234 04.311 RING; SNAP
ID=16.5 		9-09180-418-0 01 1 0508-0604 ● ●
234 04.311 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 0605- ● ●
234 04.311 RING; SNAP
04.307 ID=12 		8-94460-357-0 01 1 0211- ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 04 1 0211-0501 ●
483 04.419 BUSHING; SHIFT ARM
4HE1-TCS ENG(RDS) 00.683 		8-97241-326-2 04 1 0502-0506 ●
483 04.419 BUSHING; SHIFT ARM
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 00.683 		8-97241-326-2 04 1 0507- ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 0211- ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 0211- ● ●
551 04.303 PIN; SPRING
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 04.302 (B) L=32 		8-97011-596-2 05 1 0508- ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 0211- ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 0211-0507 ● ● ●
551 04.303 PIN; SPRING
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.302 (B) L=32 		8-97011-596-2 04 1 0508-0606 ● ●
551 04.303 PIN; SPRING
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.302 (B) L=32 		8-97011-596-2 04 1 0607- ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 0211- ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 01 1 0405- ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97241-332-2 01 1 0211-0501 ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R
4HE1-TCS ENG(RDS) 		8-97241-332-2 01 1 0502-0506 ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 		8-97241-332-2 01 1 0507-0507 ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 		8-97362-735-0 01 1 0508- ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97241-333-3 01 1 0211-0404 ● ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-741-0 01 1 0405-0501 ● ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97362-741-0 01 1 0502-0606 ● ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97362-741-0 01 1 0607- ● ●
629 04.555 BRIDGE; LEVER 8-97241-345-1 01 1 0211- ● ●
629 04.555 BRIDGE; LEVER 8-97237-107-1 01 1 0211- ●
633 04.309 ROD; GEAR SHIFT,4TH,5TH 8-97358-832-0 01 1 0211-0404 ●
633 04.309 ROD; GEAR SHIFT,4TH,5TH 8-97362-743-0 01 1 0405- ●
634 04.303 BLOCK; SHIFT,LOW,REV 8-97241-327-1 01 1 0211- ●

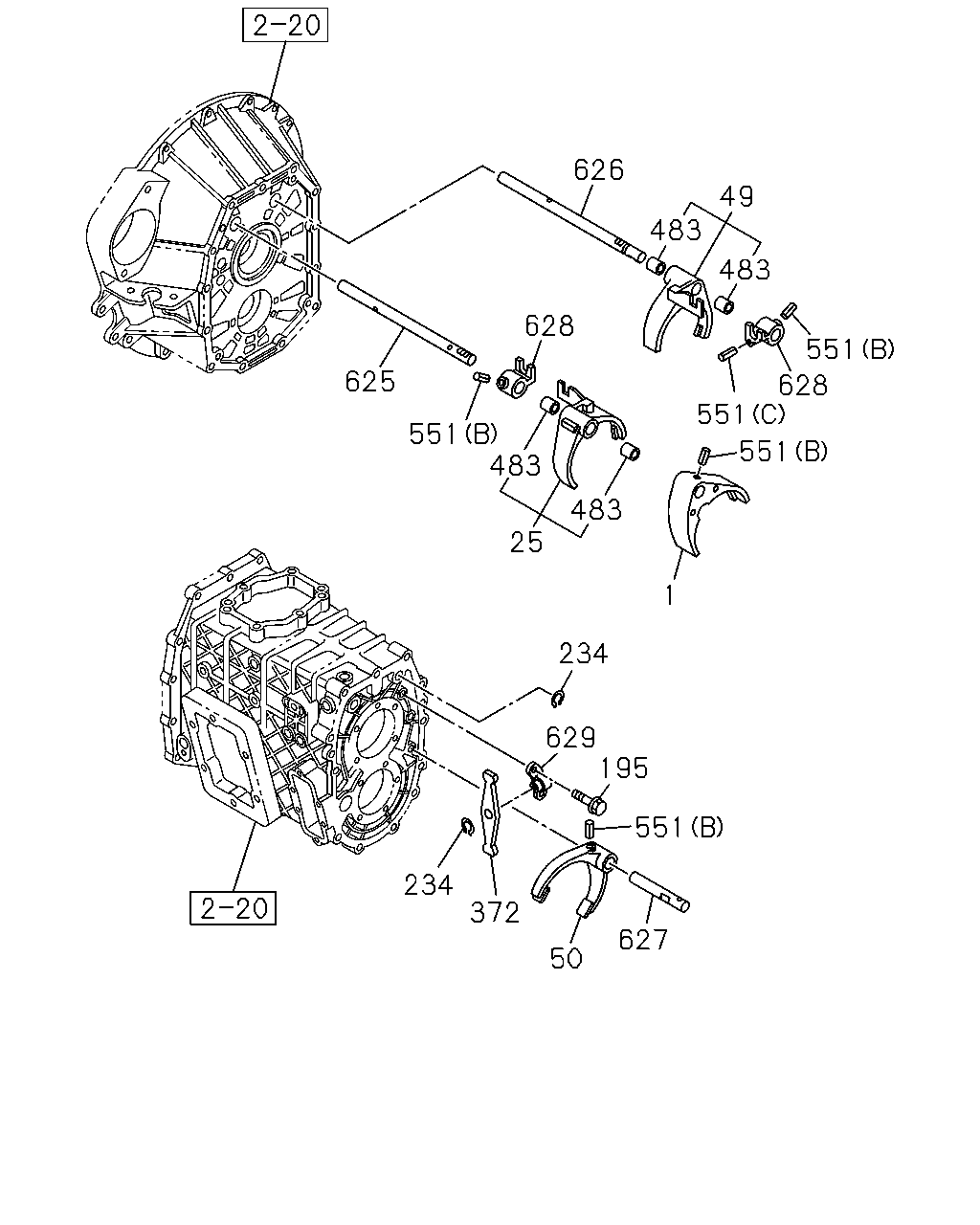

çizim 54844
626 49 483 483 628 551 625 628 551 551 483 551 483 25 1 234 629 195 551 234 372 627 50
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.302 ARM; SHIFT,1ST & REV 8-97241-319-2 01 1 0211-0501 ●
1 04.302 ARM; SHIFT,1ST & REV
4HE1-TCS ENG(RDS) 		8-97241-319-2 01 1 0502-0506 ●
1 04.302 ARM; SHIFT,1ST & REV
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 		8-97241-319-2 01 1 0507- ●
1 04.302 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 0211-0501 ● ●
1 04.302 ARM; SHIFT,1ST & REV
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97241-320-2 01 1 0502-0606 ● ●
1 04.302 ARM; SHIFT,1ST & REV
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97241-320-2 01 1 0607- ● ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97258-708-1 01 1 0211-0501 ●
25 04.302 ARM; SHIFT,2ND & 3RD
4HE1-TCS ENG(RDS) 		8-97258-708-1 01 1 0502-0506 ●
25 04.302 ARM; SHIFT,2ND & 3RD
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 		8-97258-708-1 01 1 0507-0507 ●
25 04.302 ARM; SHIFT,2ND & 3RD
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 		8-97362-737-1 01 1 0508- ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97355-690-0 01 1 0211-0404 ● ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97362-731-1 01 1 0405-0501 ● ●
25 04.302 ARM; SHIFT,2ND & 3RD
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97362-731-1 01 1 0502-0606 ● ●
25 04.302 ARM; SHIFT,2ND & 3RD
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97362-731-2 01 1 0607-1407 ● ●
25 04.302 ARM; SHIFT,2ND & 3RD
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-98255-926-1 01 1 1408- ● ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97258-709-2 01 1 0211-0501 ●
49 04.302 ARM; SHIFT,4TH & 5TH
4HE1-TCS ENG(RDS) 		8-97258-709-2 01 1 0502-0506 ●
49 04.302 ARM; SHIFT,4TH & 5TH
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 		8-97258-709-2 01 1 0507-0507 ●
49 04.302 ARM; SHIFT,4TH & 5TH
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 		8-97362-738-1 01 1 0508- ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97258-711-1 01 1 0211-0404 ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97362-732-1 01 1 0405- ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97258-716-0 01 1 0211- ●
50 04.302 ARM; SHIFT,6TH 8-97241-324-1 01 1 0211-0501 ●
50 04.302 ARM; SHIFT,6TH
4HE1-TCS ENG(RDS) 		8-97241-324-1 01 1 0502-0506 ●
50 04.302 ARM; SHIFT,6TH
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 		8-97241-324-1 01 1 0507- ●
50 04.302 ARM; SHIFT,6TH 8-97241-325-1 01 1 0211- ●
195 04.105 BOLT
04.012 M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0211-0604 ● ● ●
195 04.105 BOLT
M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0605- ● ● ●
234 04.311 RING; SNAP
ID=16.5 		9-09180-418-0 02 1 0405-0501 ●
234 04.311 RING; SNAP
4HE1-TCS ENG(RDS) ID=16.5 		9-09180-418-0 02 1 0502-0506 ●
234 04.311 RING; SNAP
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=16.5 		9-09180-418-0 02 1 0507-0507 ●
234 04.311 RING; SNAP
ID=16.5 		9-09180-418-0 02 1 0211-0404 ● ●
234 04.311 RING; SNAP
ID=16.5 		9-09180-418-0 01 1 0405-0507 ●
234 04.311 RING; SNAP
ID=16.5 		9-09180-418-0 01 1 0508-0604 ● ●
234 04.311 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 0605- ● ●
234 04.311 RING; SNAP
04.307 ID=12 		8-94460-357-0 01 1 0211- ●
372 04.302 LEVER; RELAY,6TH 8-97241-342-0 01 1 0211-0501 ●
372 04.302 LEVER; RELAY,6TH
4HE1-TCS ENG(RDS) 		8-97241-342-0 01 1 0502-0506 ●
372 04.302 LEVER; RELAY,6TH
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 		8-97241-342-0 01 1 0507- ●
372 04.302 LEVER; RELAY,6TH 8-97241-343-0 01 1 0211- ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 04 1 0211-0501 ●
483 04.419 BUSHING; SHIFT ARM
4HE1-TCS ENG(RDS) 00.683 		8-97241-326-2 04 1 0502-0506 ●
483 04.419 BUSHING; SHIFT ARM
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 00.683 		8-97241-326-2 04 1 0507- ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 0211- ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 0211- ● ●
551 04.303 PIN; SPRING
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 04.302 (B) L=32 		8-97011-596-2 05 1 0508- ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 0211- ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 0211-0507 ● ● ●
551 04.303 PIN; SPRING
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.302 (B) L=32 		8-97011-596-2 04 1 0508-0606 ● ●
551 04.303 PIN; SPRING
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.302 (B) L=32 		8-97011-596-2 04 1 0607- ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 0211- ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 01 1 0405- ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97241-332-2 01 1 0211-0501 ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R
4HE1-TCS ENG(RDS) 		8-97241-332-2 01 1 0502-0506 ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 		8-97241-332-2 01 1 0507-0507 ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 		8-97362-735-0 01 1 0508- ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97241-333-3 01 1 0211-0404 ● ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-741-0 01 1 0405-0501 ● ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97362-741-0 01 1 0502-0606 ● ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97362-741-0 01 1 0607- ● ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH 8-97241-334-1 01 1 0211-0501 ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH
4HE1-TCS ENG(RDS) 		8-97241-334-1 01 1 0502-0506 ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 		8-97241-334-1 01 1 0507-0507 ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 		8-97383-754-0 01 1 0508-0801 ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 		8-98107-548-0 01 1 0802- ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH 8-97241-335-2 01 1 0211-0404 ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH 8-97366-024-1 01 1 0405- ●
627 04.309 ROD; GEAR SHIFT,6TH SUB 8-97241-339-0 01 1 0211-0805 ● ●
627 04.309 ROD; GEAR SHIFT,6TH SUB 8-98119-293-0 01 1 0806- ● ●
628 04.303 BLOCK; SHIFT,LOW,REV & 6TH 8-97241-327-1 02 1 0211- ● ●
629 04.555 BRIDGE; LEVER 8-97241-345-1 01 1 0211- ● ●
629 04.555 BRIDGE; LEVER 8-97237-107-1 01 1 0211- ●

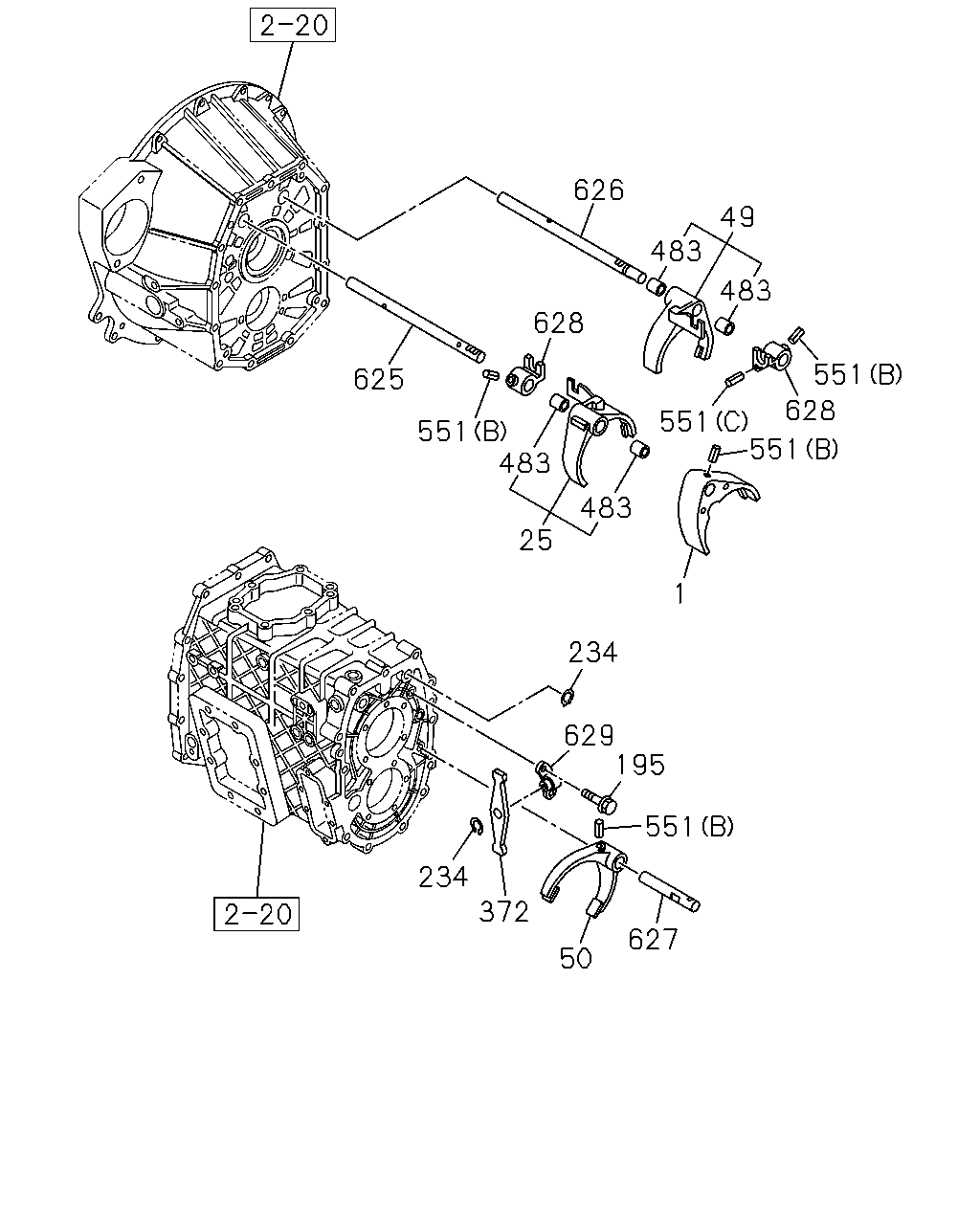

çizim 54901
626 49 483 483 628 551 625 628 551 551 551 483 483 25 1 234 629 195 551 234 372 627 50
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.302 ARM; SHIFT,1ST & REV 8-97241-319-2 01 1 0211-0501 ●
1 04.302 ARM; SHIFT,1ST & REV
4HE1-TCS ENG(RDS) 		8-97241-319-2 01 1 0502-0506 ●
1 04.302 ARM; SHIFT,1ST & REV
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 		8-97241-319-2 01 1 0507- ●
1 04.302 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 0211-0501 ● ●
1 04.302 ARM; SHIFT,1ST & REV
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97241-320-2 01 1 0502-0606 ● ●
1 04.302 ARM; SHIFT,1ST & REV
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97241-320-2 01 1 0607- ● ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97258-708-1 01 1 0211-0501 ●
25 04.302 ARM; SHIFT,2ND & 3RD
4HE1-TCS ENG(RDS) 		8-97258-708-1 01 1 0502-0506 ●
25 04.302 ARM; SHIFT,2ND & 3RD
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 		8-97258-708-1 01 1 0507-0507 ●
25 04.302 ARM; SHIFT,2ND & 3RD
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 		8-97362-737-1 01 1 0508- ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97355-690-0 01 1 0211-0404 ● ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97362-731-1 01 1 0405-0501 ● ●
25 04.302 ARM; SHIFT,2ND & 3RD
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97362-731-1 01 1 0502-0606 ● ●
25 04.302 ARM; SHIFT,2ND & 3RD
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97362-731-2 01 1 0607-1407 ● ●
25 04.302 ARM; SHIFT,2ND & 3RD
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-98255-926-1 01 1 1408- ● ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97258-709-2 01 1 0211-0501 ●
49 04.302 ARM; SHIFT,4TH & 5TH
4HE1-TCS ENG(RDS) 		8-97258-709-2 01 1 0502-0506 ●
49 04.302 ARM; SHIFT,4TH & 5TH
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 		8-97258-709-2 01 1 0507-0507 ●
49 04.302 ARM; SHIFT,4TH & 5TH
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 		8-97362-738-1 01 1 0508- ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97258-711-1 01 1 0211-0404 ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97362-732-1 01 1 0405- ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97258-716-0 01 1 0211- ●
50 04.302 ARM; SHIFT,6TH 8-97241-324-1 01 1 0211-0501 ●
50 04.302 ARM; SHIFT,6TH
4HE1-TCS ENG(RDS) 		8-97241-324-1 01 1 0502-0506 ●
50 04.302 ARM; SHIFT,6TH
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 		8-97241-324-1 01 1 0507- ●
50 04.302 ARM; SHIFT,6TH 8-97241-325-1 01 1 0211- ●
195 04.105 BOLT
04.012 M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0211-0604 ● ● ●
195 04.105 BOLT
M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0605- ● ● ●
234 04.311 RING; SNAP
ID=16.5 		9-09180-418-0 02 1 0405-0501 ●
234 04.311 RING; SNAP
4HE1-TCS ENG(RDS) ID=16.5 		9-09180-418-0 02 1 0502-0506 ●
234 04.311 RING; SNAP
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=16.5 		9-09180-418-0 02 1 0507-0507 ●
234 04.311 RING; SNAP
ID=16.5 		9-09180-418-0 02 1 0211-0404 ● ●
234 04.311 RING; SNAP
ID=16.5 		9-09180-418-0 01 1 0405-0507 ●
234 04.311 RING; SNAP
ID=16.5 		9-09180-418-0 01 1 0508-0604 ● ●
234 04.311 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 0605- ● ●
234 04.311 RING; SNAP
04.307 ID=12 		8-94460-357-0 01 1 0211- ●
372 04.302 LEVER; RELAY,6TH 8-97241-342-0 01 1 0211-0501 ●
372 04.302 LEVER; RELAY,6TH
4HE1-TCS ENG(RDS) 		8-97241-342-0 01 1 0502-0506 ●
372 04.302 LEVER; RELAY,6TH
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 		8-97241-342-0 01 1 0507- ●
372 04.302 LEVER; RELAY,6TH 8-97241-343-0 01 1 0211- ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 04 1 0211-0501 ●
483 04.419 BUSHING; SHIFT ARM
4HE1-TCS ENG(RDS) 00.683 		8-97241-326-2 04 1 0502-0506 ●
483 04.419 BUSHING; SHIFT ARM
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 00.683 		8-97241-326-2 04 1 0507- ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 0211- ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 0211- ● ●
551 04.303 PIN; SPRING
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 04.302 (B) L=32 		8-97011-596-2 05 1 0508- ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 0211- ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 0211-0507 ● ● ●
551 04.303 PIN; SPRING
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.302 (B) L=32 		8-97011-596-2 04 1 0508-0606 ● ●
551 04.303 PIN; SPRING
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.302 (B) L=32 		8-97011-596-2 04 1 0607- ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 0211- ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 01 1 0405- ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97241-332-2 01 1 0211-0501 ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R
4HE1-TCS ENG(RDS) 		8-97241-332-2 01 1 0502-0506 ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 		8-97241-332-2 01 1 0507-0507 ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 		8-97362-735-0 01 1 0508- ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97241-333-3 01 1 0211-0404 ● ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-741-0 01 1 0405-0501 ● ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97362-741-0 01 1 0502-0606 ● ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97362-741-0 01 1 0607- ● ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH 8-97241-334-1 01 1 0211-0501 ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH
4HE1-TCS ENG(RDS) 		8-97241-334-1 01 1 0502-0506 ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 		8-97241-334-1 01 1 0507-0507 ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 		8-97383-754-0 01 1 0508-0801 ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 		8-98107-548-0 01 1 0802- ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH 8-97241-335-2 01 1 0211-0404 ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH 8-97366-024-1 01 1 0405- ●
627 04.309 ROD; GEAR SHIFT,6TH SUB 8-97241-339-0 01 1 0211-0805 ● ●
627 04.309 ROD; GEAR SHIFT,6TH SUB 8-98119-293-0 01 1 0806- ● ●
628 04.303 BLOCK; SHIFT,LOW,REV & 6TH 8-97241-327-1 02 1 0211- ● ●
629 04.555 BRIDGE; LEVER 8-97241-345-1 01 1 0211- ● ●
629 04.555 BRIDGE; LEVER 8-97237-107-1 01 1 0211- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
