Sayfa 2-26 - Isuzu EPC

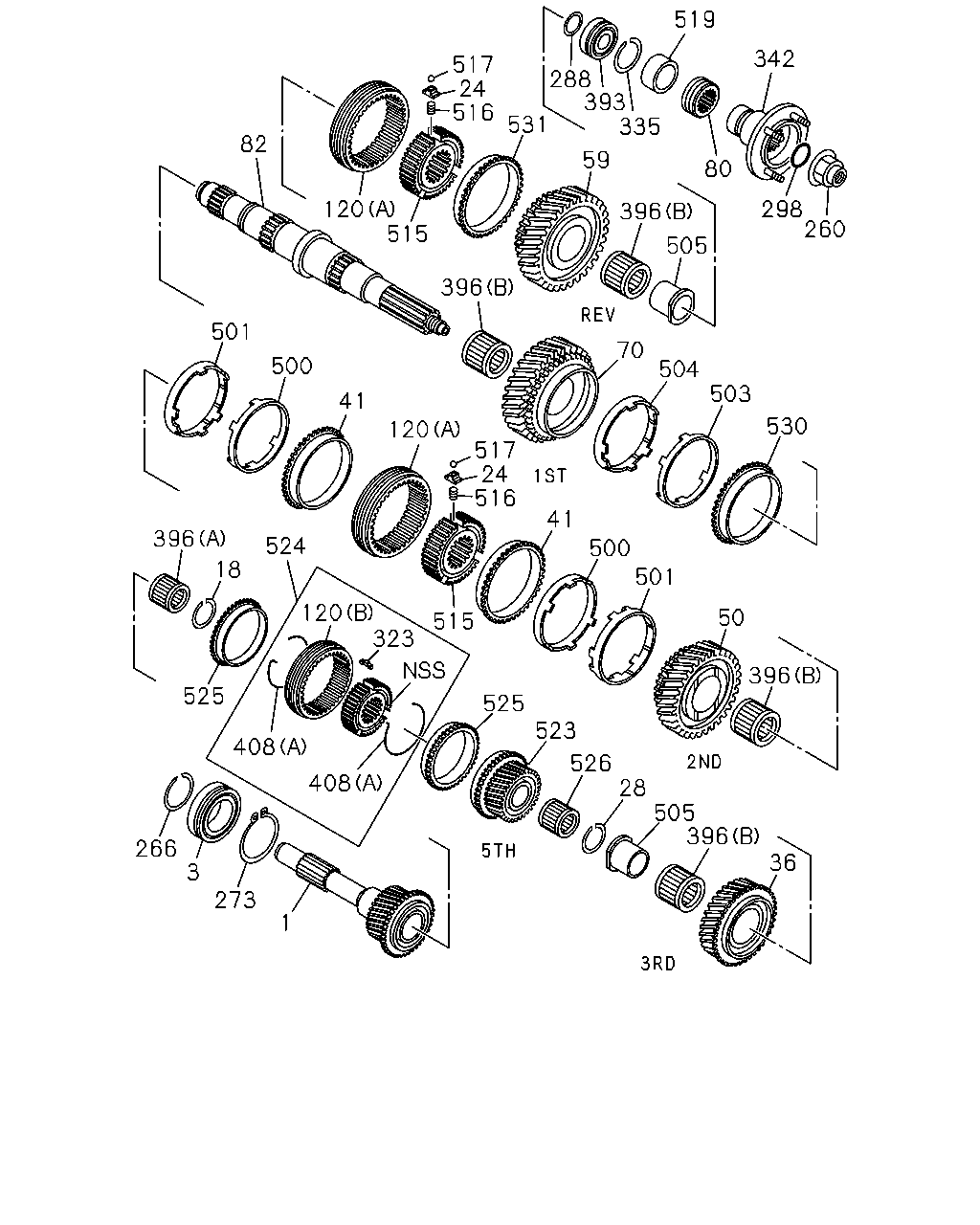

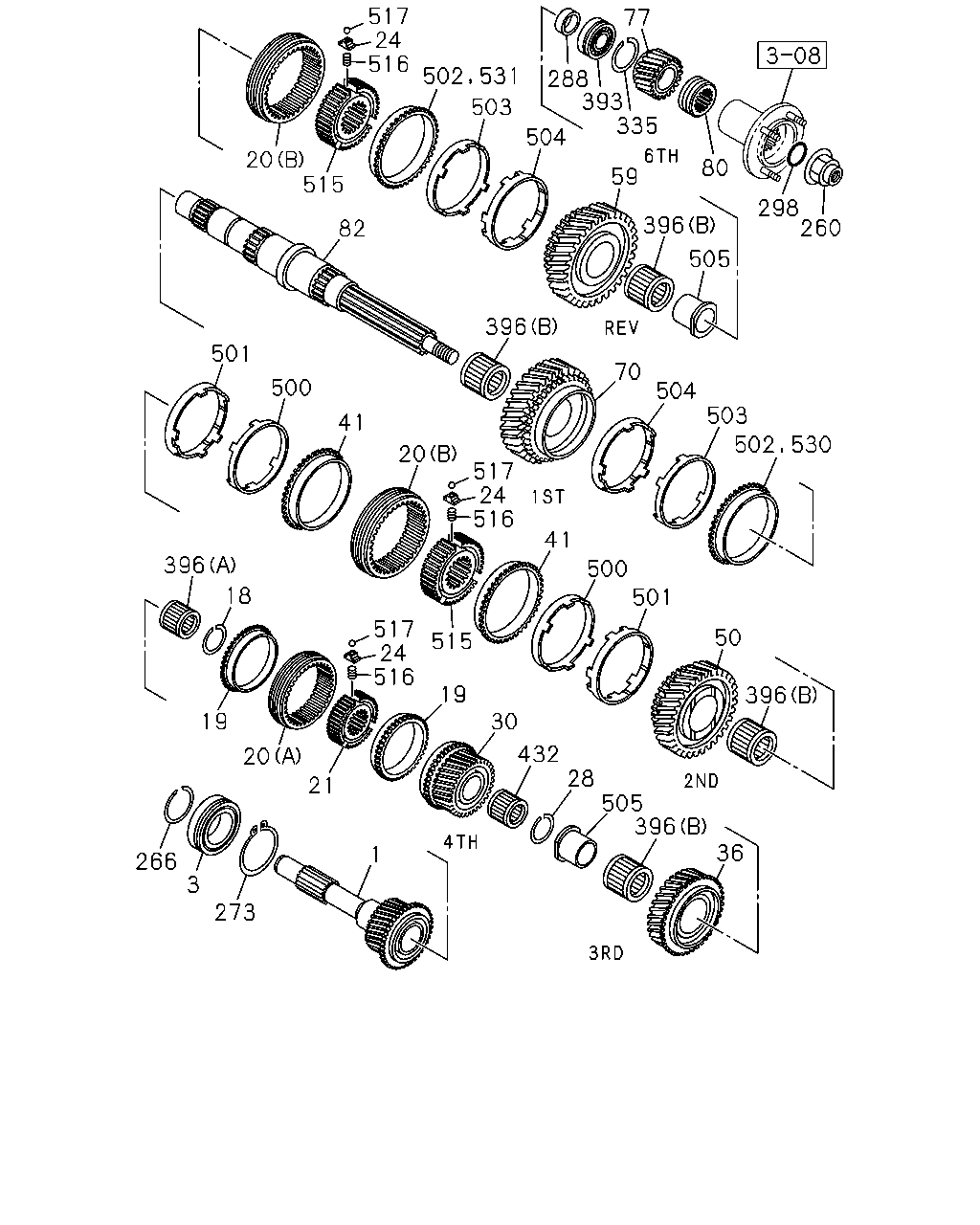

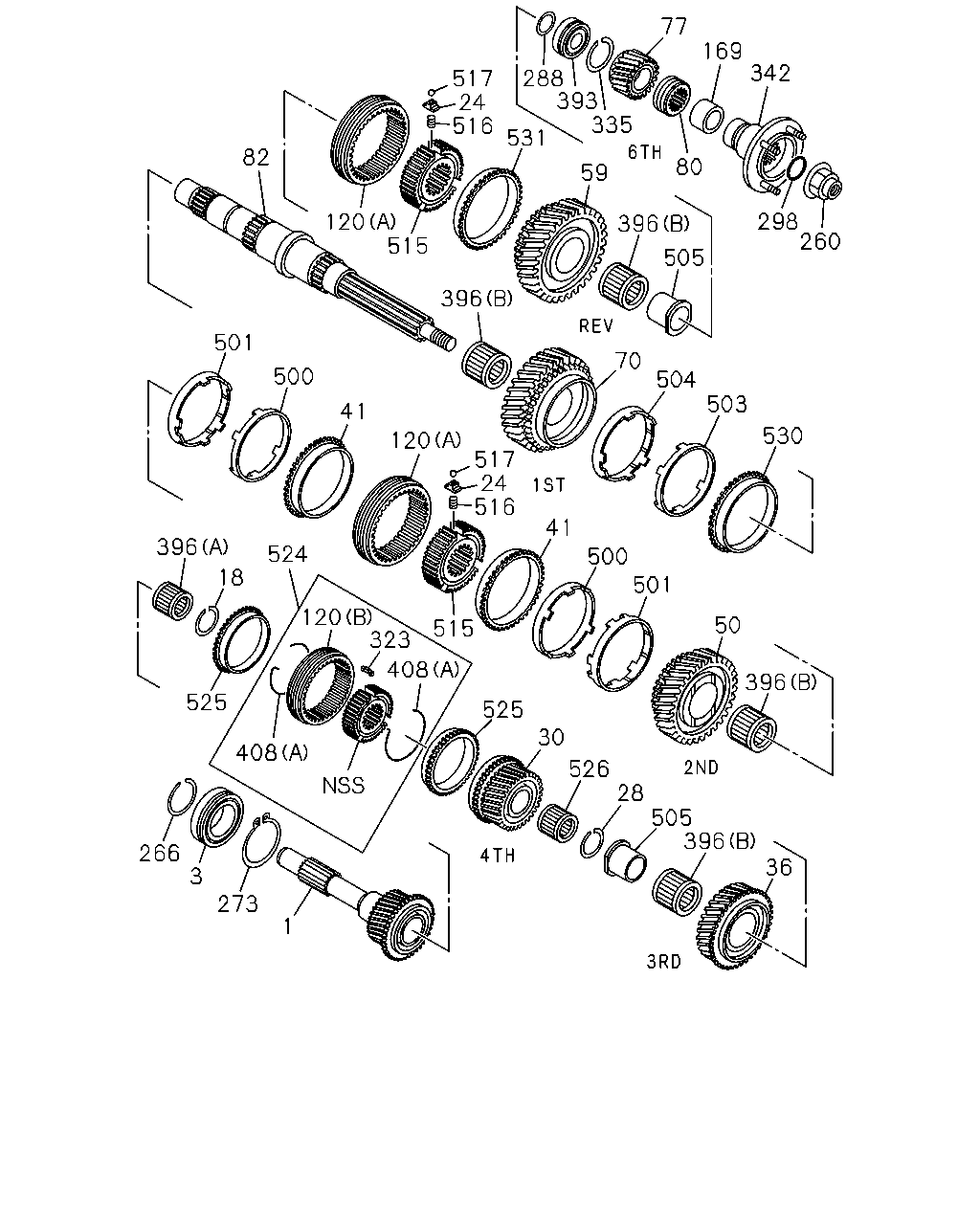

2-26 — MANUAL TRANSMISSION GEAR (#45058) — 1143 parça

77 169 342 288 393 335 517 24 516 531 82 80 59 298 260 120 515 396 505 396 501 70 500 504 503 41 530 120 517 24 516 41 396 524 500 18 501 120 323 50 515 396 408 525 525 30 408 526 28 505 396 36 266 3 273 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-97252-922-1	01	1	0211-0308	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-97372-362-0	01	1	0309-0501	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1-TCS ENG(RDS) Z=25	8-97372-362-0	01	1	0502-0506	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=25	8-97372-362-0	01	1	0507-0507	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=25	8-97371-090-0	01	1	0507-	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=26	8-97252-923-1	01	1	0211-0404		●
1	04.351 SHAFT; TOP GEAR,TRANS Z=26	8-97350-006-0	01	1	0405-		●
1	04.351 SHAFT; TOP GEAR,TRANS Z=28	8-97252-924-1	01	1	0211-			●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-097-1	01	1	0211-0501	●
3	04.403 BEARING; TOP GEAR SHAFT 4HE1-TCS ENG(RDS) NSK	8-97253-097-1	01	1	0502-0506	●
3	04.403 BEARING; TOP GEAR SHAFT 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) NSK	8-97253-097-1	01	1	0507-	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	0211-0501		●	●
3	04.403 BEARING; TOP GEAR SHAFT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) NSK	8-97253-098-1	01	1	0502-0606		●	●
3	04.403 BEARING; TOP GEAR SHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) NSK	8-97253-098-1	01	1	0607-		●	●
18	04.384 RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	0211-0501	●
18	04.384 RING; SNAP,CLU HUB 4HE1-TCS ENG(RDS) ID=35.7 T=1.8	8-97256-855-0	01	1	0502-0506	●
18	04.384 RING; SNAP,CLU HUB 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=35.7 T=1.8	8-97256-855-0	01	1	0507-	●
18	04.384 RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	0211-0501		●	●
18	04.384 RING; SNAP,CLU HUB 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=30.7 T=1.8	8-97254-728-0	01	1	0502-0606		●	●
18	04.384 RING; SNAP,CLU HUB 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=30.7 T=1.8	8-97254-728-0	01	1	0607-		●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	12	1	0211-0501	●
24	04.383 BLOCK; INDEX,SYN 4HE1-TCS ENG(RDS)	8-97241-313-1	12	1	0502-0506	●
24	04.383 BLOCK; INDEX,SYN 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97241-313-1	12	1	0507-	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	06	1	0211-0501		●	●
24	04.383 BLOCK; INDEX,SYN 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97241-313-1	06	1	0502-0606		●	●
24	04.383 BLOCK; INDEX,SYN 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97241-313-1	06	1	0607-		●	●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	0211-	●	●	●
30	04.415 GEAR; 4TH,MAINSHAFT Z=29	8-97241-228-0	01	1	0211-0501	●
30	04.415 GEAR; 4TH,MAINSHAFT 4HE1-TCS ENG(RDS) Z=29	8-97241-228-0	01	1	0502-0506	●
30	04.415 GEAR; 4TH,MAINSHAFT 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=29	8-97241-228-0	01	1	0507-	●
30	04.415 GEAR; 4TH,MAINSHAFT Z=28	8-97241-230-0	01	1	0211-		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-233-1	01	1	0211-0501	●
36	04.415 GEAR; 3RD,MAINSHAFT 4HE1-TCS ENG(RDS) Z=34	8-97241-233-1	01	1	0502-0506	●
36	04.415 GEAR; 3RD,MAINSHAFT 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=34	8-97241-233-1	01	1	0507-	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	0211-0501		●	●
36	04.415 GEAR; 3RD,MAINSHAFT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=34	8-97241-234-0	01	1	0502-0606		●	●
36	04.415 GEAR; 3RD,MAINSHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=34	8-97241-234-0	01	1	0607-		●	●
41	04.383 RING; BLOCK,2ND & 3RD Z=54	8-97241-305-2	02	1	0211-0501	●
41	04.383 RING; BLOCK,2ND & 3RD 4HE1-TCS ENG(RDS) Z=54	8-97241-305-2	02	1	0502-0506	●
41	04.383 RING; BLOCK,2ND & 3RD 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=54	8-97241-305-2	02	1	0507-	●
41	04.383 RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	0211-0501		●	●
41	04.383 RING; BLOCK,2ND & 3RD 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=45	8-97241-306-1	02	1	0502-0606		●	●
41	04.383 RING; BLOCK,2ND & 3RD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=45	8-97241-306-1	02	1	0607-		●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=43	8-97241-236-1	01	1	0211-0501	●
50	04.395 GEAR; 2ND,MAINSHAFT 4HE1-TCS ENG(RDS) Z=43	8-97241-236-1	01	1	0502-0506	●
50	04.395 GEAR; 2ND,MAINSHAFT 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=43	8-97241-236-1	01	1	0507-	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	0211-0501		●	●
50	04.395 GEAR; 2ND,MAINSHAFT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=38	8-97241-237-1	01	1	0502-0606		●	●
50	04.395 GEAR; 2ND,MAINSHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=38	8-97241-237-1	01	1	0607-		●	●
59	04.417 GEAR; REV MAINSHAFT Z=45	8-97241-243-0	01	1	0211-0501	●
59	04.417 GEAR; REV MAINSHAFT 4HE1-TCS ENG(RDS) Z=45	8-97241-243-0	01	1	0502-0506	●
59	04.417 GEAR; REV MAINSHAFT 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=45	8-97241-243-0	01	1	0507-	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	0211-0501		●	●
59	04.417 GEAR; REV MAINSHAFT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=41	8-97241-244-0	01	1	0502-		●	●
59	04.417 GEAR; REV MAINSHAFT 4HK1-TCN ENG(RDQ) Z=41	8-97350-011-0	01	1	0607-		●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97241-241-0	01	1	0211-0501	●
70	04.417 GEAR; 1ST,MAINSHAFT 4HE1-TCS ENG(RDS) Z=45	8-97241-241-0	01	1	0502-0506	●
70	04.417 GEAR; 1ST,MAINSHAFT 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=45	8-97241-241-0	01	1	0507-	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97241-242-1	01	1	0211-0404		●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	0405-0501		●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=43	8-97350-010-0	01	1	0502-0606		●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=43	8-97350-010-0	01	1	0607-		●	●
77	04.421 GEAR; 6TH,MAINSHAFT Z=20	8-97252-634-0	01	1	0211-0501	●
77	04.421 GEAR; 6TH,MAINSHAFT 4HE1-TCS ENG(RDS) Z=20	8-97252-634-0	01	1	0502-0506	●
77	04.421 GEAR; 6TH,MAINSHAFT 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=20	8-97252-634-0	01	1	0507-	●
77	04.421 GEAR; 6TH,MAINSHAFT Z=21	8-97241-266-1	01	1	0211-		●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-555-0	01	1	0211-0501	●
80	04.343 GEAR; SPD DRIVE 4HE1-TCS ENG(RDS) Z=4	8-97253-555-0	01	1	0502-0506	●
80	04.343 GEAR; SPD DRIVE 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=4	8-97253-555-0	01	1	0507-	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	0211-0501		●	●
80	04.343 GEAR; SPD DRIVE 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=4	8-97253-556-0	01	1	0502-0606		●	●
80	04.343 GEAR; SPD DRIVE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=4	8-97253-556-0	01	1	0607-		●	●
82	04.403 SHAFT; MAIN,TRANS Z=26-42-23	8-97253-115-3	01	1	0211-0501	●
82	04.403 SHAFT; MAIN,TRANS 4HE1-TCS ENG(RDS) Z=26-42-23	8-97253-115-3	01	1	0502-0506	●
82	04.403 SHAFT; MAIN,TRANS 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=26-42-23	8-97253-115-3	01	1	0507-	●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-116-3	01	1	0211-		●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-117-3	01	1	0211-			●
120	04.383 SLEEVE 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.535 (B) Z=45	8-94421-871-1	01	1	0211-0606		●	●
120	04.383 SLEEVE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.535 (B) Z=45	8-94421-871-1	01	1	0607-		●	●
120	04.383 SLEEVE (A) Z=45	8-97241-296-1	02	1	0211-0501		●	●
120	04.383 SLEEVE 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) Z=45	8-97241-296-1	02	1	0502-0606		●	●
120	04.383 SLEEVE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) Z=45	8-97241-296-1	02	1	0607-1311		●	●
120	04.383 SLEEVE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) Z=45	8-98258-279-0	02	1	1312-		●	●
169	04.419 COLLAR; MAINSHAFT	8-97252-937-1	01	1	0211-		●
260	04.412 NUT; MAINSHAFT END M27 H=25	8-97253-126-0	01	1	0211-0604	●	●	●
260	04.412 NUT; MAINSHAFT END 04.525 M27 H=25	8-97360-410-0	01	1	0605-	●	●	●
266	04.525 RING; SNAP,BRG INNER	8-97286-915-0	01	1	0211-0501	●
266	04.525 RING; SNAP,BRG INNER 4HE1-TCS ENG(RDS)	8-97286-915-0	01	1	0502-0506	●
266	04.525 RING; SNAP,BRG INNER 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97286-915-0	01	1	0507-	●
266	04.525 RING; SNAP,BRG INNER	8-97286-916-0	01	1	0211-0501		●	●
266	04.525 RING; SNAP,BRG INNER 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97286-916-0	01	1	0502-0606		●	●
266	04.525 RING; SNAP,BRG INNER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97286-916-0	01	1	0607-		●	●
273	04.525 RING; SNAP,BRG OUTER	8-97254-609-0	01	1	0211-0501	●
273	04.525 RING; SNAP,BRG OUTER 4HE1-TCS ENG(RDS)	8-97254-609-0	01	1	0502-0506	●
273	04.525 RING; SNAP,BRG OUTER 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97254-609-0	01	1	0507-	●
273	04.525 RING; SNAP,BRG OUTER	8-97254-610-0	01	1	0211-0501		●	●
273	04.525 RING; SNAP,BRG OUTER 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97254-610-0	01	1	0502-0606		●	●
273	04.525 RING; SNAP,BRG OUTER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97254-610-0	01	1	0607-		●	●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-941-0	01	1	0211-0501	●
288	04.399 SPACER; BRG,MAINSHAFT 4HE1-TCS ENG(RDS)	8-97252-941-0	01	1	0502-0506	●
288	04.399 SPACER; BRG,MAINSHAFT 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97252-941-0	01	1	0507-	●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	0211-0501		●	●
288	04.399 SPACER; BRG,MAINSHAFT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97252-942-0	01	1	0502-0606		●	●
288	04.399 SPACER; BRG,MAINSHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97252-942-0	01	1	0607-		●	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 05.595 ID=35.7 T=5	1-09623-379-0	01	1	0211-0501	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG(RDS) 05.595 ID=35.7 T=5	1-09623-379-0	01	1	0502-0506	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 05.595 ID=35.7 T=5	1-09623-379-0	01	1	0507-	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 04.164 ID=30.6 T=5.7	8-94481-411-0	01	1	0211-0501		●	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.164 ID=30.6 T=5.7	8-94481-411-0	01	1	0502-0507		●	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=30.6 T=5.7	8-98028-226-0	01	1	0508-0606		●	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=30.6 T=5.7	8-98028-226-0	01	1	0607-		●	●
323	04.384 INSERT	8-94448-202-2	03	1	0211-0501		●	●
323	04.384 INSERT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-94448-202-2	03	1	0502-0606		●	●
323	04.384 INSERT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-94448-202-2	03	1	0607-		●	●
335	04.383 RING; SNAP,BEARING	8-97254-720-0	01	1	0211-0501	●
335	04.383 RING; SNAP,BEARING 4HE1-TCS ENG(RDS)	8-97254-720-0	01	1	0502-0506	●
335	04.383 RING; SNAP,BEARING 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97254-720-0	01	1	0507-	●
335	04.383 RING; SNAP,BEARING	8-97254-722-0	01	1	0211-0501		●	●
335	04.383 RING; SNAP,BEARING 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97254-722-0	01	1	0502-0606		●	●
335	04.383 RING; SNAP,BEARING 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97254-722-0	01	1	0607-		●	●
342	05.545 FLANGE; OUTPUT	8-97252-814-1	01	1	0211-0501		●	●
342	05.545 FLANGE; OUTPUT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97252-814-1	01	1	0502-0604		●	●
342	05.545 FLANGE; OUTPUT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-98031-640-0	01	1	0605-		●	●
342	05.545 FLANGE; OUTPUT 4HK1-TCN ENG(RDQ)	8-97350-014-0	01	1	0607-0610		●	●
342	05.545 FLANGE; OUTPUT 4HK1-TCN ENG(RDQ)	8-98031-862-0	01	1	0611-		●	●
393	04.352 BEARING; MAINSHAFT END	8-97253-104-0	01	1	0211-0501	●
393	04.352 BEARING; MAINSHAFT END 4HE1-TCS ENG(RDS)	8-97253-104-0	01	1	0502-0506	●
393	04.352 BEARING; MAINSHAFT END 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97253-104-0	01	1	0507-	●
393	04.352 BEARING; MAINSHAFT END	8-97253-105-1	01	1	0211-0501		●	●
393	04.352 BEARING; MAINSHAFT END 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97253-105-1	01	1	0502-0606		●	●
393	04.352 BEARING; MAINSHAFT END 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97253-105-1	01	1	0607-		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-099-1	01	1	0211-0501	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HE1-TCS ENG(RDS) (A)	8-97253-099-1	01	1	0502-0506	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) (A)	8-97253-099-1	01	1	0507-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	0211-	●	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	0211-0501		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A)	8-97253-102-1	01	1	0502-0606		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A)	8-97253-102-1	01	1	0607-		●	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	0211-0404	●	●	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	0405-		●	●
408	04.384 SPRING (A)	8-94422-075-0	02	1	0211-0404		●	●
408	04.384 SPRING (A)	8-94422-075-0	02	1	0211-0404		●
408	04.384 SPRING (A)	8-97366-040-1	02	1	0405-		●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	0405-		●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-307-1	02	1	0211-0501	●
500	04.383 RING; OUTSIDE,3RD & 2ND 4HE1-TCS ENG(RDS)	8-97241-307-1	02	1	0502-0506	●
500	04.383 RING; OUTSIDE,3RD & 2ND 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97241-307-1	02	1	0507-	●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	0211-0501		●	●
500	04.383 RING; OUTSIDE,3RD & 2ND 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97241-309-1	02	1	0502-0606		●	●
500	04.383 RING; OUTSIDE,3RD & 2ND 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97241-309-1	02	1	0607-		●	●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-311-1	02	1	0211-0501	●
501	04.383 RING; INSIDE,3RD & 2ND 4HE1-TCS ENG(RDS)	8-97241-311-1	02	1	0502-0506	●
501	04.383 RING; INSIDE,3RD & 2ND 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97241-311-1	02	1	0507-	●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	0211-0501		●	●
501	04.383 RING; INSIDE,3RD & 2ND 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97241-312-1	02	1	0502-0606		●	●
501	04.383 RING; INSIDE,3RD & 2ND 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97241-312-1	02	1	0607-		●	●
503	04.383 RING; OUTSIDE,LOW & REV	8-97241-307-1	02	1	0211-0501	●
503	04.383 RING; OUTSIDE,LOW & REV 4HE1-TCS ENG(RDS)	8-97241-307-1	02	1	0502-0506	●
503	04.383 RING; OUTSIDE,LOW & REV 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97241-307-1	02	1	0507-	●
503	04.383 RING; OUTSIDE,LOW & REV	8-97241-309-1	01	1	0211-0501		●	●
503	04.383 RING; OUTSIDE,LOW & REV 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97241-309-1	01	1	0502-		●	●
503	04.383 RING; OUTSIDE,LOW & REV 4HK1-TCN ENG(RDQ)	8-97241-309-1	02	1	0607-		●	●
504	04.383 RING; INSIDE,LOW & REV	8-97241-311-1	02	1	0211-0501	●
504	04.383 RING; INSIDE,LOW & REV 4HE1-TCS ENG(RDS)	8-97241-311-1	02	1	0502-0506	●
504	04.383 RING; INSIDE,LOW & REV 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97241-311-1	02	1	0507-	●
504	04.383 RING; INSIDE,LOW & REV	8-97241-312-1	01	1	0211-0501		●	●
504	04.383 RING; INSIDE,LOW & REV 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97241-312-1	01	1	0502-		●	●
504	04.383 RING; INSIDE,LOW & REV 4HK1-TCN ENG(RDQ)	8-97241-312-1	02	1	0607-		●	●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	0211-	●	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	02	1	0211-0501	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD 4HE1-TCS ENG(RDS)	8-97239-155-2	02	1	0502-0506	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97239-155-2	02	1	0507-	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-2	02	1	0211-0501		●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97241-298-2	02	1	0502-0606		●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97241-298-3	02	1	0607-		●	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97305-803-1	12	1	0211-0501	●
516	04.384 SPRING; SYNCHRO,INDEX 4HE1-TCS ENG(RDS)	8-97305-803-1	12	1	0502-0506	●
516	04.384 SPRING; SYNCHRO,INDEX 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97305-803-1	12	1	0507-	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	06	1	0211-0501		●	●
516	04.384 SPRING; SYNCHRO,INDEX 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97254-835-0	06	1	0502-0606		●	●
516	04.384 SPRING; SYNCHRO,INDEX 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97254-835-0	06	1	0607-		●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	12	1	0211-0501	●
517	04.384 BALL; SYNCHRO,INDEX 4HE1-TCS ENG(RDS)	8-97252-935-0	12	1	0502-0506	●
517	04.384 BALL; SYNCHRO,INDEX 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97252-935-0	12	1	0507-	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	06	1	0211-0501		●	●
517	04.384 BALL; SYNCHRO,INDEX 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97252-935-0	06	1	0502-0606		●	●
517	04.384 BALL; SYNCHRO,INDEX 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97252-935-0	06	1	0607-		●	●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD	8-97300-195-0	01	1	0211-0404		●	●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD	8-97366-526-0	01	1	0405-0501		●	●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97366-526-0	01	1	0502-0606		●	●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97366-526-0	01	1	0607-		●	●
525	04.395 RING; BLOCK,TOP & 4TH,OD Z=45	8-97309-532-0	02	1	0211-0501		●	●
525	04.395 RING; BLOCK,TOP & 4TH,OD 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=45	8-97309-532-0	02	1	0502-0606		●	●
525	04.395 RING; BLOCK,TOP & 4TH,OD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=45	8-97309-532-0	02	1	0607-		●	●
526	04.352 BEARING; NEEDLE,4TH & 5TH	8-97253-112-0	01	1	0211-0501		●	●
526	04.352 BEARING; NEEDLE,4TH & 5TH 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97253-112-0	01	1	0502-0606		●	●
526	04.352 BEARING; NEEDLE,4TH & 5TH 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97253-112-0	01	1	0607-		●	●
530	04.383 RING; BLOCK,LOW Z=54	8-97241-305-2	01	1	0403-0501	●
530	04.383 RING; BLOCK,LOW 4HE1-TCS ENG(RDS) Z=54	8-97241-305-2	01	1	0502-0506	●
530	04.383 RING; BLOCK,LOW 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=54	8-97241-305-2	01	1	0507-	●
530	04.383 RING; BLOCK,LOW Z=45	8-97241-306-1	01	1	0211-0501		●	●
530	04.383 RING; BLOCK,LOW 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=45	8-97241-306-1	01	1	0502-0606		●	●
530	04.383 RING; BLOCK,LOW 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=45	8-97241-306-1	01	1	0607-		●	●
531	04.383 RING; BLOCK,REV Z=54	8-97241-305-2	01	1	0403-0501	●
531	04.383 RING; BLOCK,REV 4HE1-TCS ENG(RDS) Z=54	8-97241-305-2	01	1	0502-0506	●
531	04.383 RING; BLOCK,REV 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=54	8-97241-305-2	01	1	0507-	●
531	04.383 RING; BLOCK,REV Z=45	8-97328-151-1	01	1	0211-0305		●	●
531	04.383 RING; BLOCK,REV Z=45	8-97368-343-0	01	1	0306-0501		●	●
531	04.383 RING; BLOCK,REV 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=45	8-97368-343-0	01	1	0502-		●	●
531	04.383 RING; BLOCK,REV 4HK1-TCN ENG(RDQ) Z=45	8-97241-306-1	01	1	0607-		●	●

519 342 517 24 516 288 393 335 531 82 59 80 120 298 260 515 396 505 396 501 70 500 504 503 41 530 120 517 24 516 41 396 524 500 18 501 120 323 50 515 396 525 525 523 408 526 28 505 396 36 408 266 3 273 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-97252-922-1	01	1	0211-0308	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-97372-362-0	01	1	0309-0501	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1-TCS ENG(RDS) Z=25	8-97372-362-0	01	1	0502-0506	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=25	8-97372-362-0	01	1	0507-0507	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=25	8-97371-090-0	01	1	0507-	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=26	8-97252-923-1	01	1	0211-0404		●
1	04.351 SHAFT; TOP GEAR,TRANS Z=26	8-97350-006-0	01	1	0405-		●
1	04.351 SHAFT; TOP GEAR,TRANS Z=28	8-97252-924-1	01	1	0211-			●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-097-1	01	1	0211-0501	●
3	04.403 BEARING; TOP GEAR SHAFT 4HE1-TCS ENG(RDS) NSK	8-97253-097-1	01	1	0502-0506	●
3	04.403 BEARING; TOP GEAR SHAFT 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) NSK	8-97253-097-1	01	1	0507-	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	0211-0501		●	●
3	04.403 BEARING; TOP GEAR SHAFT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) NSK	8-97253-098-1	01	1	0502-0606		●	●
3	04.403 BEARING; TOP GEAR SHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) NSK	8-97253-098-1	01	1	0607-		●	●
18	04.384 RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	0211-0501	●
18	04.384 RING; SNAP,CLU HUB 4HE1-TCS ENG(RDS) ID=35.7 T=1.8	8-97256-855-0	01	1	0502-0506	●
18	04.384 RING; SNAP,CLU HUB 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=35.7 T=1.8	8-97256-855-0	01	1	0507-	●
18	04.384 RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	0211-0501		●	●
18	04.384 RING; SNAP,CLU HUB 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=30.7 T=1.8	8-97254-728-0	01	1	0502-0606		●	●
18	04.384 RING; SNAP,CLU HUB 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=30.7 T=1.8	8-97254-728-0	01	1	0607-		●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	12	1	0211-0501	●
24	04.383 BLOCK; INDEX,SYN 4HE1-TCS ENG(RDS)	8-97241-313-1	12	1	0502-0506	●
24	04.383 BLOCK; INDEX,SYN 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97241-313-1	12	1	0507-	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	06	1	0211-0501		●	●
24	04.383 BLOCK; INDEX,SYN 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97241-313-1	06	1	0502-0606		●	●
24	04.383 BLOCK; INDEX,SYN 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97241-313-1	06	1	0607-		●	●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	0211-	●	●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-233-1	01	1	0211-0501	●
36	04.415 GEAR; 3RD,MAINSHAFT 4HE1-TCS ENG(RDS) Z=34	8-97241-233-1	01	1	0502-0506	●
36	04.415 GEAR; 3RD,MAINSHAFT 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=34	8-97241-233-1	01	1	0507-	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	0211-0501		●	●
36	04.415 GEAR; 3RD,MAINSHAFT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=34	8-97241-234-0	01	1	0502-0606		●	●
36	04.415 GEAR; 3RD,MAINSHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=34	8-97241-234-0	01	1	0607-		●	●
41	04.383 RING; BLOCK,2ND & 3RD Z=54	8-97241-305-2	02	1	0211-0501	●
41	04.383 RING; BLOCK,2ND & 3RD 4HE1-TCS ENG(RDS) Z=54	8-97241-305-2	02	1	0502-0506	●
41	04.383 RING; BLOCK,2ND & 3RD 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=54	8-97241-305-2	02	1	0507-	●
41	04.383 RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	0211-0501		●	●
41	04.383 RING; BLOCK,2ND & 3RD 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=45	8-97241-306-1	02	1	0502-0606		●	●
41	04.383 RING; BLOCK,2ND & 3RD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=45	8-97241-306-1	02	1	0607-		●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=43	8-97241-236-1	01	1	0211-0501	●
50	04.395 GEAR; 2ND,MAINSHAFT 4HE1-TCS ENG(RDS) Z=43	8-97241-236-1	01	1	0502-0506	●
50	04.395 GEAR; 2ND,MAINSHAFT 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=43	8-97241-236-1	01	1	0507-	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	0211-0501		●	●
50	04.395 GEAR; 2ND,MAINSHAFT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=38	8-97241-237-1	01	1	0502-0606		●	●
50	04.395 GEAR; 2ND,MAINSHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=38	8-97241-237-1	01	1	0607-		●	●
59	04.417 GEAR; REV MAINSHAFT Z=45	8-97241-243-0	01	1	0211-0501	●
59	04.417 GEAR; REV MAINSHAFT 4HE1-TCS ENG(RDS) Z=45	8-97241-243-0	01	1	0502-0506	●
59	04.417 GEAR; REV MAINSHAFT 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=45	8-97241-243-0	01	1	0507-	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	0211-0501		●	●
59	04.417 GEAR; REV MAINSHAFT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=41	8-97241-244-0	01	1	0502-		●	●
59	04.417 GEAR; REV MAINSHAFT 4HK1-TCN ENG(RDQ) Z=41	8-97350-011-0	01	1	0607-		●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97241-241-0	01	1	0211-0501	●
70	04.417 GEAR; 1ST,MAINSHAFT 4HE1-TCS ENG(RDS) Z=45	8-97241-241-0	01	1	0502-0506	●
70	04.417 GEAR; 1ST,MAINSHAFT 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=45	8-97241-241-0	01	1	0507-	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97241-242-1	01	1	0211-0404		●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	0405-0501		●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=43	8-97350-010-0	01	1	0502-0606		●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=43	8-97350-010-0	01	1	0607-		●	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-555-0	01	1	0211-0501	●
80	04.343 GEAR; SPD DRIVE 4HE1-TCS ENG(RDS) Z=4	8-97253-555-0	01	1	0502-0506	●
80	04.343 GEAR; SPD DRIVE 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=4	8-97253-555-0	01	1	0507-	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	0211-0501		●	●
80	04.343 GEAR; SPD DRIVE 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=4	8-97253-556-0	01	1	0502-0606		●	●
80	04.343 GEAR; SPD DRIVE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=4	8-97253-556-0	01	1	0607-		●	●
82	04.403 SHAFT; MAIN,TRANS Z=26-42-23	8-97253-115-3	01	1	0211-0501	●
82	04.403 SHAFT; MAIN,TRANS 4HE1-TCS ENG(RDS) Z=26-42-23	8-97253-115-3	01	1	0502-0506	●
82	04.403 SHAFT; MAIN,TRANS 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=26-42-23	8-97253-115-3	01	1	0507-	●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-116-3	01	1	0211-		●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-117-3	01	1	0211-			●
120	04.383 SLEEVE 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.535 (B) Z=45	8-94421-871-1	01	1	0211-0606		●	●
120	04.383 SLEEVE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.535 (B) Z=45	8-94421-871-1	01	1	0607-		●	●
120	04.383 SLEEVE (A) Z=45	8-97241-296-1	02	1	0211-0501		●	●
120	04.383 SLEEVE 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) Z=45	8-97241-296-1	02	1	0502-0606		●	●
120	04.383 SLEEVE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) Z=45	8-97241-296-1	02	1	0607-1311		●	●
120	04.383 SLEEVE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) Z=45	8-98258-279-0	02	1	1312-		●	●
260	04.412 NUT; MAINSHAFT END M27 H=25	8-97253-126-0	01	1	0211-0604	●	●	●
260	04.412 NUT; MAINSHAFT END 04.525 M27 H=25	8-97360-410-0	01	1	0605-	●	●	●
266	04.525 RING; SNAP,BRG INNER	8-97286-915-0	01	1	0211-0501	●
266	04.525 RING; SNAP,BRG INNER 4HE1-TCS ENG(RDS)	8-97286-915-0	01	1	0502-0506	●
266	04.525 RING; SNAP,BRG INNER 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97286-915-0	01	1	0507-	●
266	04.525 RING; SNAP,BRG INNER	8-97286-916-0	01	1	0211-0501		●	●
266	04.525 RING; SNAP,BRG INNER 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97286-916-0	01	1	0502-0606		●	●
266	04.525 RING; SNAP,BRG INNER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97286-916-0	01	1	0607-		●	●
273	04.525 RING; SNAP,BRG OUTER	8-97254-609-0	01	1	0211-0501	●
273	04.525 RING; SNAP,BRG OUTER 4HE1-TCS ENG(RDS)	8-97254-609-0	01	1	0502-0506	●
273	04.525 RING; SNAP,BRG OUTER 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97254-609-0	01	1	0507-	●
273	04.525 RING; SNAP,BRG OUTER	8-97254-610-0	01	1	0211-0501		●	●
273	04.525 RING; SNAP,BRG OUTER 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97254-610-0	01	1	0502-0606		●	●
273	04.525 RING; SNAP,BRG OUTER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97254-610-0	01	1	0607-		●	●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-941-0	01	1	0211-0501	●
288	04.399 SPACER; BRG,MAINSHAFT 4HE1-TCS ENG(RDS)	8-97252-941-0	01	1	0502-0506	●
288	04.399 SPACER; BRG,MAINSHAFT 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97252-941-0	01	1	0507-	●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	0211-0501		●	●
288	04.399 SPACER; BRG,MAINSHAFT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97252-942-0	01	1	0502-0606		●	●
288	04.399 SPACER; BRG,MAINSHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97252-942-0	01	1	0607-		●	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 05.595 ID=35.7 T=5	1-09623-379-0	01	1	0211-0501	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG(RDS) 05.595 ID=35.7 T=5	1-09623-379-0	01	1	0502-0506	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 05.595 ID=35.7 T=5	1-09623-379-0	01	1	0507-	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 04.164 ID=30.6 T=5.7	8-94481-411-0	01	1	0211-0501		●	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.164 ID=30.6 T=5.7	8-94481-411-0	01	1	0502-0507		●	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=30.6 T=5.7	8-98028-226-0	01	1	0508-0606		●	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=30.6 T=5.7	8-98028-226-0	01	1	0607-		●	●
323	04.384 INSERT	8-94448-202-2	03	1	0211-0501		●	●
323	04.384 INSERT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-94448-202-2	03	1	0502-0606		●	●
323	04.384 INSERT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-94448-202-2	03	1	0607-		●	●
335	04.383 RING; SNAP,BEARING	8-97254-720-0	01	1	0211-0501	●
335	04.383 RING; SNAP,BEARING 4HE1-TCS ENG(RDS)	8-97254-720-0	01	1	0502-0506	●
335	04.383 RING; SNAP,BEARING 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97254-720-0	01	1	0507-	●
335	04.383 RING; SNAP,BEARING	8-97254-722-0	01	1	0211-0501		●	●
335	04.383 RING; SNAP,BEARING 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97254-722-0	01	1	0502-0606		●	●
335	04.383 RING; SNAP,BEARING 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97254-722-0	01	1	0607-		●	●
342	05.545 FLANGE; OUTPUT	8-97252-814-1	01	1	0211-0501		●	●
342	05.545 FLANGE; OUTPUT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97252-814-1	01	1	0502-0604		●	●
342	05.545 FLANGE; OUTPUT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-98031-640-0	01	1	0605-		●	●
342	05.545 FLANGE; OUTPUT 4HK1-TCN ENG(RDQ)	8-97350-014-0	01	1	0607-0610		●	●
342	05.545 FLANGE; OUTPUT 4HK1-TCN ENG(RDQ)	8-98031-862-0	01	1	0611-		●	●
393	04.352 BEARING; MAINSHAFT END	8-97253-104-0	01	1	0211-0501	●
393	04.352 BEARING; MAINSHAFT END 4HE1-TCS ENG(RDS)	8-97253-104-0	01	1	0502-0506	●
393	04.352 BEARING; MAINSHAFT END 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97253-104-0	01	1	0507-	●
393	04.352 BEARING; MAINSHAFT END	8-97253-105-1	01	1	0211-0501		●	●
393	04.352 BEARING; MAINSHAFT END 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97253-105-1	01	1	0502-0606		●	●
393	04.352 BEARING; MAINSHAFT END 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97253-105-1	01	1	0607-		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-099-1	01	1	0211-0501	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HE1-TCS ENG(RDS) (A)	8-97253-099-1	01	1	0502-0506	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) (A)	8-97253-099-1	01	1	0507-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	0211-	●	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	0211-0501		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A)	8-97253-102-1	01	1	0502-0606		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A)	8-97253-102-1	01	1	0607-		●	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	0211-0404	●	●	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	0405-		●	●
408	04.384 SPRING (A)	8-94422-075-0	02	1	0211-0404		●	●
408	04.384 SPRING (A)	8-94422-075-0	02	1	0211-0404		●
408	04.384 SPRING (A)	8-97366-040-1	02	1	0405-		●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	0405-		●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-307-1	02	1	0211-0501	●
500	04.383 RING; OUTSIDE,3RD & 2ND 4HE1-TCS ENG(RDS)	8-97241-307-1	02	1	0502-0506	●
500	04.383 RING; OUTSIDE,3RD & 2ND 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97241-307-1	02	1	0507-	●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	0211-0501		●	●
500	04.383 RING; OUTSIDE,3RD & 2ND 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97241-309-1	02	1	0502-0606		●	●
500	04.383 RING; OUTSIDE,3RD & 2ND 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97241-309-1	02	1	0607-		●	●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-311-1	02	1	0211-0501	●
501	04.383 RING; INSIDE,3RD & 2ND 4HE1-TCS ENG(RDS)	8-97241-311-1	02	1	0502-0506	●
501	04.383 RING; INSIDE,3RD & 2ND 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97241-311-1	02	1	0507-	●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	0211-0501		●	●
501	04.383 RING; INSIDE,3RD & 2ND 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97241-312-1	02	1	0502-0606		●	●
501	04.383 RING; INSIDE,3RD & 2ND 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97241-312-1	02	1	0607-		●	●
503	04.383 RING; OUTSIDE,LOW & REV	8-97241-307-1	02	1	0211-0501	●
503	04.383 RING; OUTSIDE,LOW & REV 4HE1-TCS ENG(RDS)	8-97241-307-1	02	1	0502-0506	●
503	04.383 RING; OUTSIDE,LOW & REV 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97241-307-1	02	1	0507-	●
503	04.383 RING; OUTSIDE,LOW & REV	8-97241-309-1	01	1	0211-0501		●	●
503	04.383 RING; OUTSIDE,LOW & REV 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97241-309-1	01	1	0502-		●	●
503	04.383 RING; OUTSIDE,LOW & REV 4HK1-TCN ENG(RDQ)	8-97241-309-1	02	1	0607-		●	●
504	04.383 RING; INSIDE,LOW & REV	8-97241-311-1	02	1	0211-0501	●
504	04.383 RING; INSIDE,LOW & REV 4HE1-TCS ENG(RDS)	8-97241-311-1	02	1	0502-0506	●
504	04.383 RING; INSIDE,LOW & REV 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97241-311-1	02	1	0507-	●
504	04.383 RING; INSIDE,LOW & REV	8-97241-312-1	01	1	0211-0501		●	●
504	04.383 RING; INSIDE,LOW & REV 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97241-312-1	01	1	0502-		●	●
504	04.383 RING; INSIDE,LOW & REV 4HK1-TCN ENG(RDQ)	8-97241-312-1	02	1	0607-		●	●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	0211-	●	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	02	1	0211-0501	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD 4HE1-TCS ENG(RDS)	8-97239-155-2	02	1	0502-0506	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97239-155-2	02	1	0507-	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-2	02	1	0211-0501		●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97241-298-2	02	1	0502-0606		●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97241-298-3	02	1	0607-		●	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97305-803-1	12	1	0211-0501	●
516	04.384 SPRING; SYNCHRO,INDEX 4HE1-TCS ENG(RDS)	8-97305-803-1	12	1	0502-0506	●
516	04.384 SPRING; SYNCHRO,INDEX 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97305-803-1	12	1	0507-	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	06	1	0211-0501		●	●
516	04.384 SPRING; SYNCHRO,INDEX 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97254-835-0	06	1	0502-0606		●	●
516	04.384 SPRING; SYNCHRO,INDEX 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97254-835-0	06	1	0607-		●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	12	1	0211-0501	●
517	04.384 BALL; SYNCHRO,INDEX 4HE1-TCS ENG(RDS)	8-97252-935-0	12	1	0502-0506	●
517	04.384 BALL; SYNCHRO,INDEX 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97252-935-0	12	1	0507-	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	06	1	0211-0501		●	●
517	04.384 BALL; SYNCHRO,INDEX 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97252-935-0	06	1	0502-0606		●	●
517	04.384 BALL; SYNCHRO,INDEX 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97252-935-0	06	1	0607-		●	●
519	04.419 COLLAR; MAINSHAFT END,5TH 04.415	8-97252-940-0	01	1	0211-			●
523	04.395 GEAR; OD,MAINSHAFT Z=22	8-97241-231-0	01	1	0211-			●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD	8-97300-195-0	01	1	0211-0404		●	●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD	8-97366-526-0	01	1	0405-0501		●	●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97366-526-0	01	1	0502-0606		●	●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97366-526-0	01	1	0607-		●	●
525	04.395 RING; BLOCK,TOP & 4TH,OD Z=45	8-97309-532-0	02	1	0211-0501		●	●
525	04.395 RING; BLOCK,TOP & 4TH,OD 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=45	8-97309-532-0	02	1	0502-0606		●	●
525	04.395 RING; BLOCK,TOP & 4TH,OD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=45	8-97309-532-0	02	1	0607-		●	●
526	04.352 BEARING; NEEDLE,4TH & 5TH	8-97253-112-0	01	1	0211-0501		●	●
526	04.352 BEARING; NEEDLE,4TH & 5TH 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97253-112-0	01	1	0502-0606		●	●
526	04.352 BEARING; NEEDLE,4TH & 5TH 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97253-112-0	01	1	0607-		●	●
530	04.383 RING; BLOCK,LOW Z=54	8-97241-305-2	01	1	0403-0501	●
530	04.383 RING; BLOCK,LOW 4HE1-TCS ENG(RDS) Z=54	8-97241-305-2	01	1	0502-0506	●
530	04.383 RING; BLOCK,LOW 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=54	8-97241-305-2	01	1	0507-	●
530	04.383 RING; BLOCK,LOW Z=45	8-97241-306-1	01	1	0211-0501		●	●
530	04.383 RING; BLOCK,LOW 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=45	8-97241-306-1	01	1	0502-0606		●	●
530	04.383 RING; BLOCK,LOW 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=45	8-97241-306-1	01	1	0607-		●	●
531	04.383 RING; BLOCK,REV Z=54	8-97241-305-2	01	1	0403-0501	●
531	04.383 RING; BLOCK,REV 4HE1-TCS ENG(RDS) Z=54	8-97241-305-2	01	1	0502-0506	●
531	04.383 RING; BLOCK,REV 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=54	8-97241-305-2	01	1	0507-	●
531	04.383 RING; BLOCK,REV Z=45	8-97328-151-1	01	1	0211-0305		●	●
531	04.383 RING; BLOCK,REV Z=45	8-97368-343-0	01	1	0306-0501		●	●
531	04.383 RING; BLOCK,REV 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=45	8-97368-343-0	01	1	0502-		●	●
531	04.383 RING; BLOCK,REV 4HK1-TCN ENG(RDQ) Z=45	8-97241-306-1	01	1	0607-		●	●

517 24 516 77 288 393 335 503 504 59 20 515 80 298 260 396 82 505 396 501 70 500 504 503 41 20 517 24 516 41 396 500 18 501 517 24 516 50 515 396 19 19 30 432 28 505 396 36 20 21 1 266 3 273 502 531 502 530

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-97252-922-1	01	1	0211-0308	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-97372-362-0	01	1	0309-0501	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1-TCS ENG(RDS) Z=25	8-97372-362-0	01	1	0502-0506	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=25	8-97372-362-0	01	1	0507-0507	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=25	8-97371-090-0	01	1	0507-	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=26	8-97252-923-1	01	1	0211-0404		●
1	04.351 SHAFT; TOP GEAR,TRANS Z=26	8-97350-006-0	01	1	0405-		●
1	04.351 SHAFT; TOP GEAR,TRANS Z=28	8-97252-924-1	01	1	0211-			●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-097-1	01	1	0211-0501	●
3	04.403 BEARING; TOP GEAR SHAFT 4HE1-TCS ENG(RDS) NSK	8-97253-097-1	01	1	0502-0506	●
3	04.403 BEARING; TOP GEAR SHAFT 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) NSK	8-97253-097-1	01	1	0507-	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	0211-0501		●	●
3	04.403 BEARING; TOP GEAR SHAFT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) NSK	8-97253-098-1	01	1	0502-0606		●	●
3	04.403 BEARING; TOP GEAR SHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) NSK	8-97253-098-1	01	1	0607-		●	●
18	04.384 RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	0211-0501	●
18	04.384 RING; SNAP,CLU HUB 4HE1-TCS ENG(RDS) ID=35.7 T=1.8	8-97256-855-0	01	1	0502-0506	●
18	04.384 RING; SNAP,CLU HUB 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=35.7 T=1.8	8-97256-855-0	01	1	0507-	●
18	04.384 RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	0211-0501		●	●
18	04.384 RING; SNAP,CLU HUB 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=30.7 T=1.8	8-97254-728-0	01	1	0502-0606		●	●
18	04.384 RING; SNAP,CLU HUB 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=30.7 T=1.8	8-97254-728-0	01	1	0607-		●	●
19	04.383 RING; BLOCK,4TH & 5TH Z=45	8-97241-306-1	02	1	0211-0501	●
19	04.383 RING; BLOCK,4TH & 5TH 4HE1-TCS ENG(RDS) Z=45	8-97241-306-1	02	1	0502-0506	●
19	04.383 RING; BLOCK,4TH & 5TH 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=45	8-97241-306-1	02	1	0507-	●
20	04.383 SLEEVE (B) Z=54	8-97241-295-2	02	1	0211-0501	●
20	04.383 SLEEVE 4HE1-TCS ENG(RDS) (B) Z=54	8-97241-295-2	02	1	0502-0506	●
20	04.383 SLEEVE 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) (B) Z=54	8-97241-295-2	02	1	0507-	●
20	04.383 SLEEVE (A) Z=45	8-97241-296-1	02	1	0211-0501	●
20	04.383 SLEEVE 4HE1-TCS ENG(RDS) (A) Z=45	8-97241-296-1	02	1	0502-0506	●
20	04.383 SLEEVE 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) (A) Z=45	8-97241-296-1	02	1	0507-1311	●
20	04.383 SLEEVE 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) (A) Z=45	8-98258-279-0	02	1	1312-	●
21	04.384 HUB; CLU,4TH & 5TH	8-97241-299-2	01	1	0211-0501	●
21	04.384 HUB; CLU,4TH & 5TH 4HE1-TCS ENG(RDS)	8-97241-299-2	01	1	0502-0506	●
21	04.384 HUB; CLU,4TH & 5TH 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97241-299-3	01	1	0507-	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	12	1	0211-0501	●
24	04.383 BLOCK; INDEX,SYN 4HE1-TCS ENG(RDS)	8-97241-313-1	12	1	0502-0506	●
24	04.383 BLOCK; INDEX,SYN 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97241-313-1	12	1	0507-	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	06	1	0211-0501		●	●
24	04.383 BLOCK; INDEX,SYN 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97241-313-1	06	1	0502-0606		●	●
24	04.383 BLOCK; INDEX,SYN 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97241-313-1	06	1	0607-		●	●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	0211-	●	●	●
30	04.415 GEAR; 4TH,MAINSHAFT Z=29	8-97241-228-0	01	1	0211-0501	●
30	04.415 GEAR; 4TH,MAINSHAFT 4HE1-TCS ENG(RDS) Z=29	8-97241-228-0	01	1	0502-0506	●
30	04.415 GEAR; 4TH,MAINSHAFT 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=29	8-97241-228-0	01	1	0507-	●
30	04.415 GEAR; 4TH,MAINSHAFT Z=28	8-97241-230-0	01	1	0211-		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-233-1	01	1	0211-0501	●
36	04.415 GEAR; 3RD,MAINSHAFT 4HE1-TCS ENG(RDS) Z=34	8-97241-233-1	01	1	0502-0506	●
36	04.415 GEAR; 3RD,MAINSHAFT 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=34	8-97241-233-1	01	1	0507-	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	0211-0501		●	●
36	04.415 GEAR; 3RD,MAINSHAFT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=34	8-97241-234-0	01	1	0502-0606		●	●
36	04.415 GEAR; 3RD,MAINSHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=34	8-97241-234-0	01	1	0607-		●	●
41	04.383 RING; BLOCK,2ND & 3RD Z=54	8-97241-305-2	02	1	0211-0501	●
41	04.383 RING; BLOCK,2ND & 3RD 4HE1-TCS ENG(RDS) Z=54	8-97241-305-2	02	1	0502-0506	●
41	04.383 RING; BLOCK,2ND & 3RD 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=54	8-97241-305-2	02	1	0507-	●
41	04.383 RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	0211-0501		●	●
41	04.383 RING; BLOCK,2ND & 3RD 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=45	8-97241-306-1	02	1	0502-0606		●	●
41	04.383 RING; BLOCK,2ND & 3RD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=45	8-97241-306-1	02	1	0607-		●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=43	8-97241-236-1	01	1	0211-0501	●
50	04.395 GEAR; 2ND,MAINSHAFT 4HE1-TCS ENG(RDS) Z=43	8-97241-236-1	01	1	0502-0506	●
50	04.395 GEAR; 2ND,MAINSHAFT 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=43	8-97241-236-1	01	1	0507-	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	0211-0501		●	●
50	04.395 GEAR; 2ND,MAINSHAFT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=38	8-97241-237-1	01	1	0502-0606		●	●
50	04.395 GEAR; 2ND,MAINSHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=38	8-97241-237-1	01	1	0607-		●	●
59	04.417 GEAR; REV MAINSHAFT Z=45	8-97241-243-0	01	1	0211-0501	●
59	04.417 GEAR; REV MAINSHAFT 4HE1-TCS ENG(RDS) Z=45	8-97241-243-0	01	1	0502-0506	●
59	04.417 GEAR; REV MAINSHAFT 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=45	8-97241-243-0	01	1	0507-	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	0211-0501		●	●
59	04.417 GEAR; REV MAINSHAFT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=41	8-97241-244-0	01	1	0502-		●	●
59	04.417 GEAR; REV MAINSHAFT 4HK1-TCN ENG(RDQ) Z=41	8-97350-011-0	01	1	0607-		●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97241-241-0	01	1	0211-0501	●
70	04.417 GEAR; 1ST,MAINSHAFT 4HE1-TCS ENG(RDS) Z=45	8-97241-241-0	01	1	0502-0506	●
70	04.417 GEAR; 1ST,MAINSHAFT 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=45	8-97241-241-0	01	1	0507-	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97241-242-1	01	1	0211-0404		●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	0405-0501		●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=43	8-97350-010-0	01	1	0502-0606		●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=43	8-97350-010-0	01	1	0607-		●	●
77	04.421 GEAR; 6TH,MAINSHAFT Z=20	8-97252-634-0	01	1	0211-0501	●
77	04.421 GEAR; 6TH,MAINSHAFT 4HE1-TCS ENG(RDS) Z=20	8-97252-634-0	01	1	0502-0506	●
77	04.421 GEAR; 6TH,MAINSHAFT 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=20	8-97252-634-0	01	1	0507-	●
77	04.421 GEAR; 6TH,MAINSHAFT Z=21	8-97241-266-1	01	1	0211-		●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-555-0	01	1	0211-0501	●
80	04.343 GEAR; SPD DRIVE 4HE1-TCS ENG(RDS) Z=4	8-97253-555-0	01	1	0502-0506	●
80	04.343 GEAR; SPD DRIVE 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=4	8-97253-555-0	01	1	0507-	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	0211-0501		●	●
80	04.343 GEAR; SPD DRIVE 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=4	8-97253-556-0	01	1	0502-0606		●	●
80	04.343 GEAR; SPD DRIVE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=4	8-97253-556-0	01	1	0607-		●	●
82	04.403 SHAFT; MAIN,TRANS Z=26-42-23	8-97253-115-3	01	1	0211-0501	●
82	04.403 SHAFT; MAIN,TRANS 4HE1-TCS ENG(RDS) Z=26-42-23	8-97253-115-3	01	1	0502-0506	●
82	04.403 SHAFT; MAIN,TRANS 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=26-42-23	8-97253-115-3	01	1	0507-	●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-116-3	01	1	0211-		●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-117-3	01	1	0211-			●
260	04.412 NUT; MAINSHAFT END M27 H=25	8-97253-126-0	01	1	0211-0604	●	●	●
260	04.412 NUT; MAINSHAFT END 04.525 M27 H=25	8-97360-410-0	01	1	0605-	●	●	●
266	04.525 RING; SNAP,BRG INNER	8-97286-915-0	01	1	0211-0501	●
266	04.525 RING; SNAP,BRG INNER 4HE1-TCS ENG(RDS)	8-97286-915-0	01	1	0502-0506	●
266	04.525 RING; SNAP,BRG INNER 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97286-915-0	01	1	0507-	●
266	04.525 RING; SNAP,BRG INNER	8-97286-916-0	01	1	0211-0501		●	●
266	04.525 RING; SNAP,BRG INNER 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97286-916-0	01	1	0502-0606		●	●
266	04.525 RING; SNAP,BRG INNER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97286-916-0	01	1	0607-		●	●
273	04.525 RING; SNAP,BRG OUTER	8-97254-609-0	01	1	0211-0501	●
273	04.525 RING; SNAP,BRG OUTER 4HE1-TCS ENG(RDS)	8-97254-609-0	01	1	0502-0506	●
273	04.525 RING; SNAP,BRG OUTER 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97254-609-0	01	1	0507-	●
273	04.525 RING; SNAP,BRG OUTER	8-97254-610-0	01	1	0211-0501		●	●
273	04.525 RING; SNAP,BRG OUTER 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97254-610-0	01	1	0502-0606		●	●
273	04.525 RING; SNAP,BRG OUTER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97254-610-0	01	1	0607-		●	●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-941-0	01	1	0211-0501	●
288	04.399 SPACER; BRG,MAINSHAFT 4HE1-TCS ENG(RDS)	8-97252-941-0	01	1	0502-0506	●
288	04.399 SPACER; BRG,MAINSHAFT 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97252-941-0	01	1	0507-	●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	0211-0501		●	●
288	04.399 SPACER; BRG,MAINSHAFT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97252-942-0	01	1	0502-0606		●	●
288	04.399 SPACER; BRG,MAINSHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97252-942-0	01	1	0607-		●	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 05.595 ID=35.7 T=5	1-09623-379-0	01	1	0211-0501	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG(RDS) 05.595 ID=35.7 T=5	1-09623-379-0	01	1	0502-0506	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 05.595 ID=35.7 T=5	1-09623-379-0	01	1	0507-	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 04.164 ID=30.6 T=5.7	8-94481-411-0	01	1	0211-0501		●	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.164 ID=30.6 T=5.7	8-94481-411-0	01	1	0502-0507		●	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=30.6 T=5.7	8-98028-226-0	01	1	0508-0606		●	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=30.6 T=5.7	8-98028-226-0	01	1	0607-		●	●
335	04.383 RING; SNAP,BEARING	8-97254-720-0	01	1	0211-0501	●
335	04.383 RING; SNAP,BEARING 4HE1-TCS ENG(RDS)	8-97254-720-0	01	1	0502-0506	●
335	04.383 RING; SNAP,BEARING 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97254-720-0	01	1	0507-	●
335	04.383 RING; SNAP,BEARING	8-97254-722-0	01	1	0211-0501		●	●
335	04.383 RING; SNAP,BEARING 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97254-722-0	01	1	0502-0606		●	●
335	04.383 RING; SNAP,BEARING 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97254-722-0	01	1	0607-		●	●
393	04.352 BEARING; MAINSHAFT END	8-97253-104-0	01	1	0211-0501	●
393	04.352 BEARING; MAINSHAFT END 4HE1-TCS ENG(RDS)	8-97253-104-0	01	1	0502-0506	●
393	04.352 BEARING; MAINSHAFT END 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97253-104-0	01	1	0507-	●
393	04.352 BEARING; MAINSHAFT END	8-97253-105-1	01	1	0211-0501		●	●
393	04.352 BEARING; MAINSHAFT END 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97253-105-1	01	1	0502-0606		●	●
393	04.352 BEARING; MAINSHAFT END 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97253-105-1	01	1	0607-		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-099-1	01	1	0211-0501	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HE1-TCS ENG(RDS) (A)	8-97253-099-1	01	1	0502-0506	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) (A)	8-97253-099-1	01	1	0507-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	0211-	●	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	0211-0501		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A)	8-97253-102-1	01	1	0502-0606		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A)	8-97253-102-1	01	1	0607-		●	●
432	04.419 BEARING; NEEDLE,4TH NSK	8-97253-111-0	01	1	0211-0501	●
432	04.419 BEARING; NEEDLE,4TH 4HE1-TCS ENG(RDS) NSK	8-97253-111-0	01	1	0502-0506	●
432	04.419 BEARING; NEEDLE,4TH 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) NSK	8-97253-111-0	01	1	0507-	●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-307-1	02	1	0211-0501	●
500	04.383 RING; OUTSIDE,3RD & 2ND 4HE1-TCS ENG(RDS)	8-97241-307-1	02	1	0502-0506	●
500	04.383 RING; OUTSIDE,3RD & 2ND 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97241-307-1	02	1	0507-	●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	0211-0501		●	●
500	04.383 RING; OUTSIDE,3RD & 2ND 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97241-309-1	02	1	0502-0606		●	●
500	04.383 RING; OUTSIDE,3RD & 2ND 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97241-309-1	02	1	0607-		●	●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-311-1	02	1	0211-0501	●
501	04.383 RING; INSIDE,3RD & 2ND 4HE1-TCS ENG(RDS)	8-97241-311-1	02	1	0502-0506	●
501	04.383 RING; INSIDE,3RD & 2ND 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97241-311-1	02	1	0507-	●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	0211-0501		●	●
501	04.383 RING; INSIDE,3RD & 2ND 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97241-312-1	02	1	0502-0606		●	●
501	04.383 RING; INSIDE,3RD & 2ND 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97241-312-1	02	1	0607-		●	●
502	04.383 RING; BLOCK,LOW & REV Z=54	8-97241-305-2	02	1	0211-0402	●
503	04.383 RING; OUTSIDE,LOW & REV	8-97241-307-1	02	1	0211-0501	●
503	04.383 RING; OUTSIDE,LOW & REV 4HE1-TCS ENG(RDS)	8-97241-307-1	02	1	0502-0506	●
503	04.383 RING; OUTSIDE,LOW & REV 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97241-307-1	02	1	0507-	●
503	04.383 RING; OUTSIDE,LOW & REV	8-97241-309-1	01	1	0211-0501		●	●
503	04.383 RING; OUTSIDE,LOW & REV 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97241-309-1	01	1	0502-		●	●
503	04.383 RING; OUTSIDE,LOW & REV 4HK1-TCN ENG(RDQ)	8-97241-309-1	02	1	0607-		●	●
504	04.383 RING; INSIDE,LOW & REV	8-97241-311-1	02	1	0211-0501	●
504	04.383 RING; INSIDE,LOW & REV 4HE1-TCS ENG(RDS)	8-97241-311-1	02	1	0502-0506	●
504	04.383 RING; INSIDE,LOW & REV 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97241-311-1	02	1	0507-	●
504	04.383 RING; INSIDE,LOW & REV	8-97241-312-1	01	1	0211-0501		●	●
504	04.383 RING; INSIDE,LOW & REV 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97241-312-1	01	1	0502-		●	●
504	04.383 RING; INSIDE,LOW & REV 4HK1-TCN ENG(RDQ)	8-97241-312-1	02	1	0607-		●	●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	0211-	●	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	02	1	0211-0501	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD 4HE1-TCS ENG(RDS)	8-97239-155-2	02	1	0502-0506	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97239-155-2	02	1	0507-	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-2	02	1	0211-0501		●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97241-298-2	02	1	0502-0606		●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97241-298-3	02	1	0607-		●	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97305-803-1	12	1	0211-0501	●
516	04.384 SPRING; SYNCHRO,INDEX 4HE1-TCS ENG(RDS)	8-97305-803-1	12	1	0502-0506	●
516	04.384 SPRING; SYNCHRO,INDEX 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97305-803-1	12	1	0507-	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	06	1	0211-0501		●	●
516	04.384 SPRING; SYNCHRO,INDEX 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97254-835-0	06	1	0502-0606		●	●
516	04.384 SPRING; SYNCHRO,INDEX 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97254-835-0	06	1	0607-		●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	12	1	0211-0501	●
517	04.384 BALL; SYNCHRO,INDEX 4HE1-TCS ENG(RDS)	8-97252-935-0	12	1	0502-0506	●
517	04.384 BALL; SYNCHRO,INDEX 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97252-935-0	12	1	0507-	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	06	1	0211-0501		●	●
517	04.384 BALL; SYNCHRO,INDEX 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97252-935-0	06	1	0502-0606		●	●
517	04.384 BALL; SYNCHRO,INDEX 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97252-935-0	06	1	0607-		●	●
530	04.383 RING; BLOCK,LOW Z=54	8-97241-305-2	01	1	0403-0501	●
530	04.383 RING; BLOCK,LOW 4HE1-TCS ENG(RDS) Z=54	8-97241-305-2	01	1	0502-0506	●
530	04.383 RING; BLOCK,LOW 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=54	8-97241-305-2	01	1	0507-	●
530	04.383 RING; BLOCK,LOW Z=45	8-97241-306-1	01	1	0211-0501		●	●
530	04.383 RING; BLOCK,LOW 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=45	8-97241-306-1	01	1	0502-0606		●	●
530	04.383 RING; BLOCK,LOW 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=45	8-97241-306-1	01	1	0607-		●	●
531	04.383 RING; BLOCK,REV Z=54	8-97241-305-2	01	1	0403-0501	●
531	04.383 RING; BLOCK,REV 4HE1-TCS ENG(RDS) Z=54	8-97241-305-2	01	1	0502-0506	●
531	04.383 RING; BLOCK,REV 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=54	8-97241-305-2	01	1	0507-	●
531	04.383 RING; BLOCK,REV Z=45	8-97328-151-1	01	1	0211-0305		●	●
531	04.383 RING; BLOCK,REV Z=45	8-97368-343-0	01	1	0306-0501		●	●
531	04.383 RING; BLOCK,REV 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=45	8-97368-343-0	01	1	0502-		●	●
531	04.383 RING; BLOCK,REV 4HK1-TCN ENG(RDQ) Z=45	8-97241-306-1	01	1	0607-		●	●

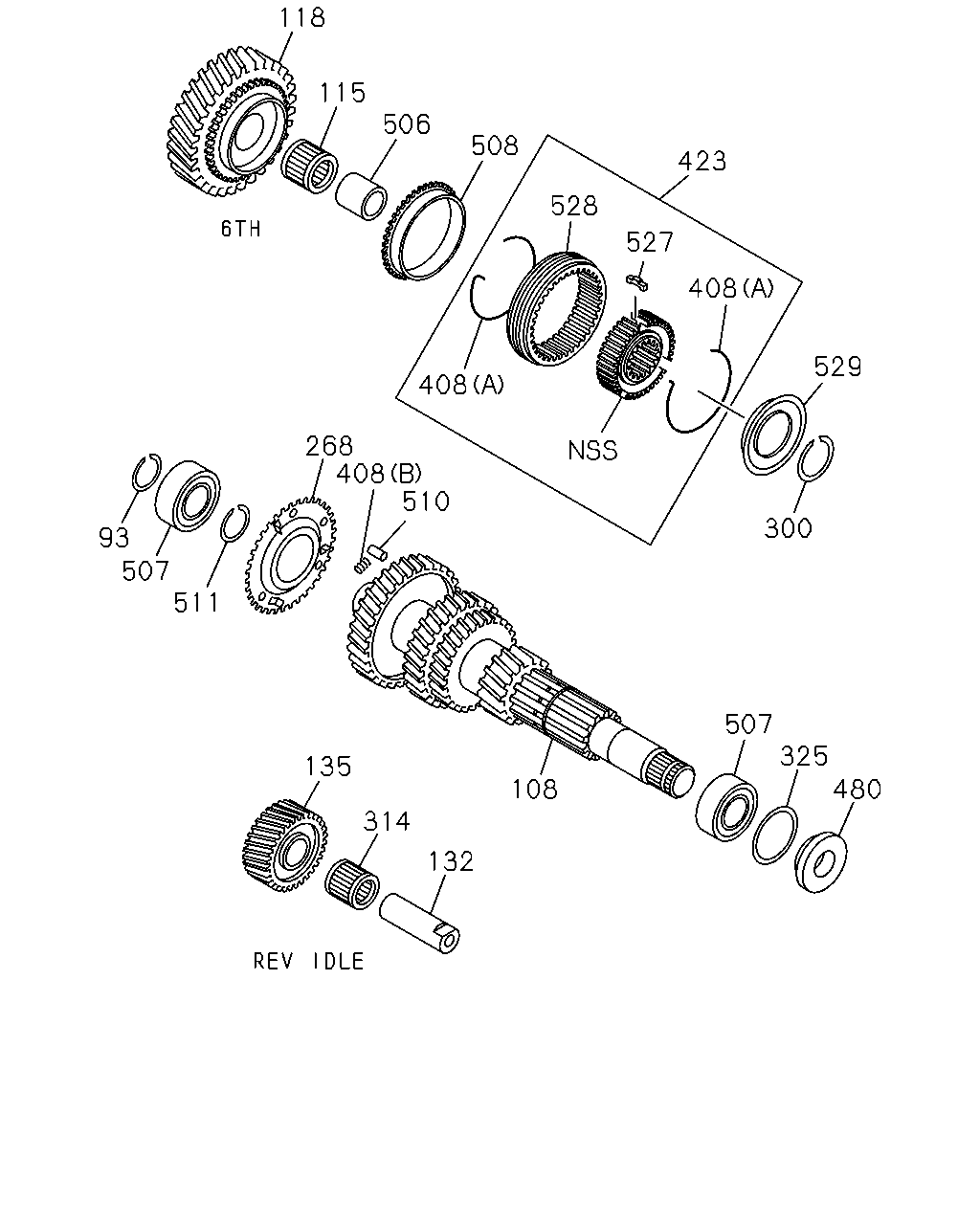

118 115 506 508 423 528 527 408 529 408 268 408 510 300 93 507 511 507 325 135 480 108 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9	8-97254-735-0	01	1	0211-0501	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1-TCS ENG(RDS) ID=34.4 T=1.9	8-97254-735-0	01	1	0502-0506	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=34.4 T=1.9	8-97254-735-0	01	1	0507-	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1	8-97254-738-0	01	1	0211-0501	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1-TCS ENG(RDS) ID=34.4 T=2.1	8-97254-738-0	01	1	0502-0506	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=34.4 T=2.1	8-97254-738-0	01	1	0507-	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3	8-97254-741-0	01	1	0211-0501	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1-TCS ENG(RDS) ID=34.4 T=2.3	8-97254-741-0	01	1	0502-0506	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=34.4 T=2.3	8-97254-741-0	01	1	0507-	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	0211-0501		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=30.7 T=1.9	8-97254-734-0	01	1	0502-0606		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=30.7 T=1.9	8-97254-734-0	01	1	0607-		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	0211-0501		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=30.7 T=2.1	8-97254-740-0	01	1	0502-0606		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=30.7 T=2.1	8-97254-740-0	01	1	0607-		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	0211-0501		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=30.7 T=2.3	8-97254-742-0	01	1	0502-0606		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=30.7 T=2.3	8-97254-742-0	01	1	0607-		●	●
108	04.428 SHAFT; COUNTER Z=46-37-28-21	8-97252-636-0	01	1	0211-0501	●
108	04.428 SHAFT; COUNTER 4HE1-TCS ENG(RDS) Z=46-37-28-21	8-97252-636-0	01	1	0502-0506	●
108	04.428 SHAFT; COUNTER 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=46-37-28-21	8-97252-636-0	01	1	0507-0910	●
108	04.428 SHAFT; COUNTER 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=46-37-28-21	8-98113-220-0	01	1	0911-1308	●
108	04.428 SHAFT; COUNTER 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=46-37-28-21	8-98249-484-0	01	1	1309-	●
108	04.428 SHAFT; COUNTER Z=47-39-33-20	8-97252-639-0	01	1	0211-0404		●
108	04.428 SHAFT; COUNTER Z=47-39-33-20	8-97380-627-1	01	1	0405-		●
108	04.428 SHAFT; COUNTER Z=45-49-33-20	8-97326-590-0	01	1	0211-0404			●
108	04.428 SHAFT; COUNTER Z=45-49-33-20	8-97380-630-1	01	1	0405-			●
115	04.352 BEARING; NEEDLE,6TH,COUNTER OD=49.8	8-98286-084-0	01	1	1411-	●	●
115	04.352 BEARING; NEEDLE,6TH,COUNTER OD=49.75	8-97253-113-0	01	1	0211-	●	●
118	04.421 GEAR; 6TH,COUNTER Z=47	8-97241-246-0	01	1	0211-0501	●
118	04.421 GEAR; 6TH,COUNTER 4HE1-TCS ENG(RDS) Z=47	8-97241-246-0	01	1	0502-0506	●
118	04.421 GEAR; 6TH,COUNTER 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=47	8-97241-246-0	01	1	0507-	●
118	04.421 GEAR; 6TH,COUNTER Z=49	8-97241-247-0	01	1	0211-		●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	0211-	●	●	●
135	04.430 GEAR; REV IDLER Z=26	8-97241-292-1	01	1	0211-0501	●
135	04.430 GEAR; REV IDLER 4HE1-TCS ENG(RDS) Z=26	8-97241-292-1	01	1	0502-0506	●
135	04.430 GEAR; REV IDLER 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=26	8-97241-292-2	01	1	0507-	●
135	04.430 GEAR; REV IDLER Z=25	8-97241-293-0	01	1	0211-0501		●	●
135	04.430 GEAR; REV IDLER 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=25	8-97241-293-0	01	1	0502-0512		●	●
135	04.430 GEAR; REV IDLER 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=25	8-98031-869-0	01	1	0601-0606		●	●
135	04.430 GEAR; REV IDLER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=25	8-98031-869-1	01	1	0607-		●	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97252-683-1	01	1	0211-0404	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97252-684-1	01	1	0211-		●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97257-300-1	01	1	0211-			●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.7	8-97288-618-0	01	1	0211-0501	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HE1-TCS ENG(RDS) ID=33.2 T=1.7	8-97288-618-0	01	1	0502-0506	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=33.2 T=1.7	8-97288-618-0	01	1	0507-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.8	8-97288-619-0	01	1	0211-0501	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HE1-TCS ENG(RDS) ID=33.2 T=1.8	8-97288-619-0	01	1	0502-0506	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=33.2 T=1.8	8-97288-619-0	01	1	0507-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.9	8-97288-620-0	01	1	0211-0501	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HE1-TCS ENG(RDS) ID=33.2 T=1.9	8-97288-620-0	01	1	0502-0506	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=33.2 T=1.9	8-97288-620-0	01	1	0507-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.6	8-97365-616-0	01	1	0304-0501	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HE1-TCS ENG(RDS) ID=33.2 T=1.6	8-97365-616-0	01	1	0502-0506	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=33.2 T=1.6	8-97365-616-0	01	1	0507-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.7	8-97254-727-0	01	1	0211-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 04.384 ID=30.7 T=1.8	8-97254-728-0	01	1	0211-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.9	8-97254-734-0	01	1	0211-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.6	8-97365-617-0	01	1	0304-		●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0211-	●	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.38	8-97252-656-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.38	8-97252-656-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.38	8-97252-656-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.44	8-97252-657-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.44	8-97252-657-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.44	8-97252-657-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.50	8-97252-658-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.50	8-97252-658-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.50	8-97252-658-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.56	8-97252-659-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.56	8-97252-659-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.56	8-97252-659-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.62	8-97252-660-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.62	8-97252-660-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.62	8-97252-660-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.68	8-97252-661-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.68	8-97252-661-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.68	8-97252-661-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.74	8-97252-662-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.74	8-97252-662-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.74	8-97252-662-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.80	8-97252-663-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.80	8-97252-663-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.80	8-97252-663-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.86	8-97252-664-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.86	8-97252-664-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.86	8-97252-664-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.92	8-97252-665-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.92	8-97252-665-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.92	8-97252-665-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.98	8-97257-621-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.98	8-97257-621-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.98	8-97257-621-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.20	8-97306-185-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.20	8-97306-185-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.20	8-97306-185-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.26	8-97306-186-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.26	8-97306-186-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.26	8-97306-186-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.32	8-97306-187-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.32	8-97306-187-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.32	8-97306-187-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	0211-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.41	8-97252-668-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.41	8-97252-668-0	01	1	0607-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	0211-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.47	8-97252-669-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.47	8-97252-669-0	01	1	0607-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	0211-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.53	8-97252-670-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.53	8-97252-670-0	01	1	0607-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	0211-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.59	8-97252-671-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.59	8-97252-671-0	01	1	0607-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	0211-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.65	8-97252-672-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.65	8-97252-672-0	01	1	0607-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	0211-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.71	8-97252-673-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.71	8-97252-673-0	01	1	0607-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	0211-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.77	8-97252-674-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.77	8-97252-674-0	01	1	0607-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	0211-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.83	8-97252-675-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.83	8-97252-675-0	01	1	0607-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	0211-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.89	8-97257-622-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.89	8-97257-622-0	01	1	0607-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.95	8-97320-549-0	01	1	0211-0404		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	0405-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.29	8-97252-666-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.29	8-97252-666-0	01	1	0607-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=3.01	8-97320-550-0	01	1	0211-0404		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	0405-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.35	8-97252-667-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.35	8-97252-667-0	01	1	0607-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=3.07	8-97320-551-0	01	1	0211-0404		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	0405-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.11	8-97306-188-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.11	8-97306-188-0	01	1	0607-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=3.13	8-97320-552-0	01	1	0211-0404		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	0405-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.17	8-97306-189-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.17	8-97306-189-0	01	1	0607-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=3.19	8-97320-553-0	01	1	0211-0404		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	0405-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.23	8-97306-190-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.23	8-97306-190-0	01	1	0607-		●	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	0211-0404	●	●	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	0405-		●	●
408	04.384 SPRING (A)	8-94422-075-0	02	1	0211-0404		●	●
408	04.384 SPRING (A)	8-94422-075-0	02	1	0211-0404		●
408	04.384 SPRING (A)	8-97366-040-1	02	1	0405-		●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	0405-		●
423	04.384 SLEEVE & HUB ASM; 6TH	8-97300-196-0	01	1	0211-0404		●
423	04.384 SLEEVE & HUB ASM; 6TH	8-97367-022-0	01	1	0405-		●
480	04.419 WASHER; THRUST,6TH	8-97253-122-0	01	1	0211-0501	●
480	04.419 WASHER; THRUST,6TH 4HE1-TCS ENG(RDS)	8-97253-122-0	01	1	0502-0506	●
480	04.419 WASHER; THRUST,6TH 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97253-122-1	01	1	0507-	●
480	04.419 WASHER; THRUST,6TH	8-97253-123-1	01	1	0211-		●
506	04.419 COLLAR; 6TH,COUNTER	8-97253-120-1	01	1	0211-0501	●
506	04.419 COLLAR; 6TH,COUNTER 4HE1-TCS ENG(RDS)	8-97253-120-1	01	1	0502-0506	●
506	04.419 COLLAR; 6TH,COUNTER 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97253-120-1	01	1	0507-	●
506	04.419 COLLAR; 6TH,COUNTER	8-97253-121-1	01	1	0211-		●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-106-0	02	1	0211-0501	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4HE1-TCS ENG(RDS)	8-97253-106-0	02	1	0502-0506	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97253-106-0	02	1	0507-	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	0211-0501		●	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97253-107-0	02	1	0502-0606		●	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97253-107-0	02	1	0607-		●	●
508	04.383 RING; BLOCK,6TH Z=45	8-97241-306-1	01	1	0211-0501	●
508	04.383 RING; BLOCK,6TH 4HE1-TCS ENG(RDS) Z=45	8-97241-306-1	01	1	0502-0506	●
508	04.383 RING; BLOCK,6TH 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=45	8-97241-306-1	01	1	0507-	●
508	04.383 RING; BLOCK,6TH 04.395 Z=45	8-97309-532-0	01	1	0211-		●
510	04.540 PIN; STRAIGHT,ANTI LASH 00.862	9-08160-825-0	03	1	0211-0404	●	●	●
510	04.540 PIN; STRAIGHT,ANTI LASH 00.862	9-08160-825-0	03	1	0405-		●	●
511	04.416 RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	0211-0404	●	●	●
511	04.416 RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	0405-		●	●
527	04.384 INSERT; 6TH	8-94448-202-2	03	1	0211-		●
528	04.384 SLEEVE; 6TH 04.535 Z=45	8-94421-871-1	01	1	0502-		●
529	04.384 PLATE; STOPPER,6TH	8-97248-952-0	01	1	0211-		●

268 408 510 93 108 507 511 507 325 135 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9	8-97254-735-0	01	1	0211-0501	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1-TCS ENG(RDS) ID=34.4 T=1.9	8-97254-735-0	01	1	0502-0506	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=34.4 T=1.9	8-97254-735-0	01	1	0507-	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1	8-97254-738-0	01	1	0211-0501	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1-TCS ENG(RDS) ID=34.4 T=2.1	8-97254-738-0	01	1	0502-0506	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=34.4 T=2.1	8-97254-738-0	01	1	0507-	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3	8-97254-741-0	01	1	0211-0501	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1-TCS ENG(RDS) ID=34.4 T=2.3	8-97254-741-0	01	1	0502-0506	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=34.4 T=2.3	8-97254-741-0	01	1	0507-	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	0211-0501		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=30.7 T=1.9	8-97254-734-0	01	1	0502-0606		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=30.7 T=1.9	8-97254-734-0	01	1	0607-		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	0211-0501		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=30.7 T=2.1	8-97254-740-0	01	1	0502-0606		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=30.7 T=2.1	8-97254-740-0	01	1	0607-		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	0211-0501		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=30.7 T=2.3	8-97254-742-0	01	1	0502-0606		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=30.7 T=2.3	8-97254-742-0	01	1	0607-		●	●
108	04.428 SHAFT; COUNTER Z=46-37-28-21	8-97252-636-0	01	1	0211-0501	●
108	04.428 SHAFT; COUNTER 4HE1-TCS ENG(RDS) Z=46-37-28-21	8-97252-636-0	01	1	0502-0506	●
108	04.428 SHAFT; COUNTER 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=46-37-28-21	8-97252-636-0	01	1	0507-0910	●
108	04.428 SHAFT; COUNTER 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=46-37-28-21	8-98113-220-0	01	1	0911-1308	●
108	04.428 SHAFT; COUNTER 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=46-37-28-21	8-98249-484-0	01	1	1309-	●
108	04.428 SHAFT; COUNTER Z=47-39-33-20	8-97252-639-0	01	1	0211-0404		●
108	04.428 SHAFT; COUNTER Z=47-39-33-20	8-97380-627-1	01	1	0405-		●
108	04.428 SHAFT; COUNTER Z=45-49-33-20	8-97326-590-0	01	1	0211-0404			●
108	04.428 SHAFT; COUNTER Z=45-49-33-20	8-97380-630-1	01	1	0405-			●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	0211-	●	●	●
135	04.430 GEAR; REV IDLER Z=26	8-97241-292-1	01	1	0211-0501	●
135	04.430 GEAR; REV IDLER 4HE1-TCS ENG(RDS) Z=26	8-97241-292-1	01	1	0502-0506	●
135	04.430 GEAR; REV IDLER 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=26	8-97241-292-2	01	1	0507-	●
135	04.430 GEAR; REV IDLER Z=25	8-97241-293-0	01	1	0211-0501		●	●
135	04.430 GEAR; REV IDLER 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=25	8-97241-293-0	01	1	0502-0512		●	●
135	04.430 GEAR; REV IDLER 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=25	8-98031-869-0	01	1	0601-0606		●	●
135	04.430 GEAR; REV IDLER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=25	8-98031-869-1	01	1	0607-		●	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97252-683-1	01	1	0211-0404	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97252-684-1	01	1	0211-		●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97257-300-1	01	1	0211-			●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0211-	●	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.38	8-97252-656-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.38	8-97252-656-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.38	8-97252-656-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.44	8-97252-657-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.44	8-97252-657-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.44	8-97252-657-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.50	8-97252-658-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.50	8-97252-658-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.50	8-97252-658-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.56	8-97252-659-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.56	8-97252-659-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.56	8-97252-659-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.62	8-97252-660-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.62	8-97252-660-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.62	8-97252-660-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.68	8-97252-661-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.68	8-97252-661-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.68	8-97252-661-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.74	8-97252-662-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.74	8-97252-662-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.74	8-97252-662-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.80	8-97252-663-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.80	8-97252-663-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.80	8-97252-663-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.86	8-97252-664-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.86	8-97252-664-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.86	8-97252-664-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.92	8-97252-665-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.92	8-97252-665-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.92	8-97252-665-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.98	8-97257-621-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.98	8-97257-621-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.98	8-97257-621-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.20	8-97306-185-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.20	8-97306-185-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.20	8-97306-185-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.26	8-97306-186-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.26	8-97306-186-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.26	8-97306-186-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.32	8-97306-187-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.32	8-97306-187-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.32	8-97306-187-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	0211-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.41	8-97252-668-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.41	8-97252-668-0	01	1	0607-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	0211-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.47	8-97252-669-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.47	8-97252-669-0	01	1	0607-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	0211-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.53	8-97252-670-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.53	8-97252-670-0	01	1	0607-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	0211-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.59	8-97252-671-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.59	8-97252-671-0	01	1	0607-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	0211-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.65	8-97252-672-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.65	8-97252-672-0	01	1	0607-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	0211-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.71	8-97252-673-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.71	8-97252-673-0	01	1	0607-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	0211-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.77	8-97252-674-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.77	8-97252-674-0	01	1	0607-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	0211-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.83	8-97252-675-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.83	8-97252-675-0	01	1	0607-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	0211-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.89	8-97257-622-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.89	8-97257-622-0	01	1	0607-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.95	8-97320-549-0	01	1	0211-0404		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	0405-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.29	8-97252-666-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.29	8-97252-666-0	01	1	0607-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=3.01	8-97320-550-0	01	1	0211-0404		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	0405-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.35	8-97252-667-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.35	8-97252-667-0	01	1	0607-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=3.07	8-97320-551-0	01	1	0211-0404		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	0405-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.11	8-97306-188-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.11	8-97306-188-0	01	1	0607-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=3.13	8-97320-552-0	01	1	0211-0404		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	0405-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.17	8-97306-189-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.17	8-97306-189-0	01	1	0607-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=3.19	8-97320-553-0	01	1	0211-0404		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	0405-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.23	8-97306-190-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.23	8-97306-190-0	01	1	0607-		●	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	0211-0404	●	●	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	0405-		●	●
408	04.384 SPRING (A)	8-94422-075-0	02	1	0211-0404		●	●
408	04.384 SPRING (A)	8-94422-075-0	02	1	0211-0404		●
408	04.384 SPRING (A)	8-97366-040-1	02	1	0405-		●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	0405-		●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-106-0	02	1	0211-0501	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4HE1-TCS ENG(RDS)	8-97253-106-0	02	1	0502-0506	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97253-106-0	02	1	0507-	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	0211-0501		●	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97253-107-0	02	1	0502-0606		●	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97253-107-0	02	1	0607-		●	●
510	04.540 PIN; STRAIGHT,ANTI LASH 00.862	9-08160-825-0	03	1	0211-0404	●	●	●
510	04.540 PIN; STRAIGHT,ANTI LASH 00.862	9-08160-825-0	03	1	0405-		●	●
511	04.416 RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	0211-0404	●	●	●
511	04.416 RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	0405-		●	●

118 115 506 508 517 24 516 20 121 300 268 408 510 93 507 511 507 325 509 108 480 135 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
20	04.383 SLEEVE (B) Z=54	8-97241-295-2	02	1	0211-0501	●
20	04.383 SLEEVE 4HE1-TCS ENG(RDS) (B) Z=54	8-97241-295-2	02	1	0502-0506	●
20	04.383 SLEEVE 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) (B) Z=54	8-97241-295-2	02	1	0507-	●
20	04.383 SLEEVE (A) Z=45	8-97241-296-1	02	1	0211-0501	●
20	04.383 SLEEVE 4HE1-TCS ENG(RDS) (A) Z=45	8-97241-296-1	02	1	0502-0506	●
20	04.383 SLEEVE 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) (A) Z=45	8-97241-296-1	02	1	0507-1311	●
20	04.383 SLEEVE 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) (A) Z=45	8-98258-279-0	02	1	1312-	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	12	1	0211-0501	●
24	04.383 BLOCK; INDEX,SYN 4HE1-TCS ENG(RDS)	8-97241-313-1	12	1	0502-0506	●
24	04.383 BLOCK; INDEX,SYN 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97241-313-1	12	1	0507-	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	06	1	0211-0501		●	●
24	04.383 BLOCK; INDEX,SYN 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97241-313-1	06	1	0502-0606		●	●
24	04.383 BLOCK; INDEX,SYN 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97241-313-1	06	1	0607-		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9	8-97254-735-0	01	1	0211-0501	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1-TCS ENG(RDS) ID=34.4 T=1.9	8-97254-735-0	01	1	0502-0506	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=34.4 T=1.9	8-97254-735-0	01	1	0507-	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1	8-97254-738-0	01	1	0211-0501	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1-TCS ENG(RDS) ID=34.4 T=2.1	8-97254-738-0	01	1	0502-0506	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=34.4 T=2.1	8-97254-738-0	01	1	0507-	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3	8-97254-741-0	01	1	0211-0501	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1-TCS ENG(RDS) ID=34.4 T=2.3	8-97254-741-0	01	1	0502-0506	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=34.4 T=2.3	8-97254-741-0	01	1	0507-	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	0211-0501		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=30.7 T=1.9	8-97254-734-0	01	1	0502-0606		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=30.7 T=1.9	8-97254-734-0	01	1	0607-		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	0211-0501		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=30.7 T=2.1	8-97254-740-0	01	1	0502-0606		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=30.7 T=2.1	8-97254-740-0	01	1	0607-		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	0211-0501		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=30.7 T=2.3	8-97254-742-0	01	1	0502-0606		●	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=30.7 T=2.3	8-97254-742-0	01	1	0607-		●	●
108	04.428 SHAFT; COUNTER Z=46-37-28-21	8-97252-636-0	01	1	0211-0501	●
108	04.428 SHAFT; COUNTER 4HE1-TCS ENG(RDS) Z=46-37-28-21	8-97252-636-0	01	1	0502-0506	●
108	04.428 SHAFT; COUNTER 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=46-37-28-21	8-97252-636-0	01	1	0507-0910	●
108	04.428 SHAFT; COUNTER 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=46-37-28-21	8-98113-220-0	01	1	0911-1308	●
108	04.428 SHAFT; COUNTER 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=46-37-28-21	8-98249-484-0	01	1	1309-	●
108	04.428 SHAFT; COUNTER Z=47-39-33-20	8-97252-639-0	01	1	0211-0404		●
108	04.428 SHAFT; COUNTER Z=47-39-33-20	8-97380-627-1	01	1	0405-		●
108	04.428 SHAFT; COUNTER Z=45-49-33-20	8-97326-590-0	01	1	0211-0404			●
108	04.428 SHAFT; COUNTER Z=45-49-33-20	8-97380-630-1	01	1	0405-			●
115	04.352 BEARING; NEEDLE,6TH,COUNTER OD=49.8	8-98286-084-0	01	1	1411-	●	●
115	04.352 BEARING; NEEDLE,6TH,COUNTER OD=49.75	8-97253-113-0	01	1	0211-	●	●
118	04.421 GEAR; 6TH,COUNTER Z=47	8-97241-246-0	01	1	0211-0501	●
118	04.421 GEAR; 6TH,COUNTER 4HE1-TCS ENG(RDS) Z=47	8-97241-246-0	01	1	0502-0506	●
118	04.421 GEAR; 6TH,COUNTER 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=47	8-97241-246-0	01	1	0507-	●
118	04.421 GEAR; 6TH,COUNTER Z=49	8-97241-247-0	01	1	0211-		●
121	04.384 HUB; CLU,6TH	8-97241-301-2	01	1	0211-0501	●
121	04.384 HUB; CLU,6TH 4HE1-TCS ENG(RDS)	8-97241-301-2	01	1	0502-0506	●
121	04.384 HUB; CLU,6TH 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97241-301-2	01	1	0507-	●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	0211-	●	●	●
135	04.430 GEAR; REV IDLER Z=26	8-97241-292-1	01	1	0211-0501	●
135	04.430 GEAR; REV IDLER 4HE1-TCS ENG(RDS) Z=26	8-97241-292-1	01	1	0502-0506	●
135	04.430 GEAR; REV IDLER 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=26	8-97241-292-2	01	1	0507-	●
135	04.430 GEAR; REV IDLER Z=25	8-97241-293-0	01	1	0211-0501		●	●
135	04.430 GEAR; REV IDLER 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=25	8-97241-293-0	01	1	0502-0512		●	●
135	04.430 GEAR; REV IDLER 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=25	8-98031-869-0	01	1	0601-0606		●	●
135	04.430 GEAR; REV IDLER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) Z=25	8-98031-869-1	01	1	0607-		●	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97252-683-1	01	1	0211-0404	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97252-684-1	01	1	0211-		●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97257-300-1	01	1	0211-			●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.7	8-97288-618-0	01	1	0211-0501	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HE1-TCS ENG(RDS) ID=33.2 T=1.7	8-97288-618-0	01	1	0502-0506	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=33.2 T=1.7	8-97288-618-0	01	1	0507-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.8	8-97288-619-0	01	1	0211-0501	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HE1-TCS ENG(RDS) ID=33.2 T=1.8	8-97288-619-0	01	1	0502-0506	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=33.2 T=1.8	8-97288-619-0	01	1	0507-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.9	8-97288-620-0	01	1	0211-0501	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HE1-TCS ENG(RDS) ID=33.2 T=1.9	8-97288-620-0	01	1	0502-0506	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=33.2 T=1.9	8-97288-620-0	01	1	0507-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.6	8-97365-616-0	01	1	0304-0501	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HE1-TCS ENG(RDS) ID=33.2 T=1.6	8-97365-616-0	01	1	0502-0506	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=33.2 T=1.6	8-97365-616-0	01	1	0507-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.7	8-97254-727-0	01	1	0211-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 04.384 ID=30.7 T=1.8	8-97254-728-0	01	1	0211-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.9	8-97254-734-0	01	1	0211-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.6	8-97365-617-0	01	1	0304-		●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0211-	●	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.38	8-97252-656-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.38	8-97252-656-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.38	8-97252-656-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.44	8-97252-657-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.44	8-97252-657-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.44	8-97252-657-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.50	8-97252-658-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.50	8-97252-658-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.50	8-97252-658-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.56	8-97252-659-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.56	8-97252-659-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.56	8-97252-659-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.62	8-97252-660-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.62	8-97252-660-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.62	8-97252-660-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.68	8-97252-661-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.68	8-97252-661-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.68	8-97252-661-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.74	8-97252-662-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.74	8-97252-662-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.74	8-97252-662-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.80	8-97252-663-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.80	8-97252-663-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.80	8-97252-663-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.86	8-97252-664-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.86	8-97252-664-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.86	8-97252-664-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.92	8-97252-665-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.92	8-97252-665-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.92	8-97252-665-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.98	8-97257-621-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.98	8-97257-621-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.98	8-97257-621-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.20	8-97306-185-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.20	8-97306-185-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.20	8-97306-185-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.26	8-97306-186-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.26	8-97306-186-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.26	8-97306-186-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.32	8-97306-187-0	01	1	0211-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.32	8-97306-187-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) ID=70 T=1.32	8-97306-187-0	01	1	0507-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	0211-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.41	8-97252-668-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.41	8-97252-668-0	01	1	0607-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	0211-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.47	8-97252-669-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.47	8-97252-669-0	01	1	0607-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	0211-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.53	8-97252-670-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.53	8-97252-670-0	01	1	0607-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	0211-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.59	8-97252-671-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.59	8-97252-671-0	01	1	0607-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	0211-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.65	8-97252-672-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.65	8-97252-672-0	01	1	0607-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	0211-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.71	8-97252-673-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.71	8-97252-673-0	01	1	0607-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	0211-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.77	8-97252-674-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.77	8-97252-674-0	01	1	0607-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	0211-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.83	8-97252-675-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.83	8-97252-675-0	01	1	0607-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	0211-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.89	8-97257-622-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.89	8-97257-622-0	01	1	0607-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.95	8-97320-549-0	01	1	0211-0404		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	0405-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.29	8-97252-666-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.29	8-97252-666-0	01	1	0607-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=3.01	8-97320-550-0	01	1	0211-0404		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	0405-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.35	8-97252-667-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.35	8-97252-667-0	01	1	0607-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=3.07	8-97320-551-0	01	1	0211-0404		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	0405-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.11	8-97306-188-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.11	8-97306-188-0	01	1	0607-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=3.13	8-97320-552-0	01	1	0211-0404		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	0405-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.17	8-97306-189-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.17	8-97306-189-0	01	1	0607-		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=3.19	8-97320-553-0	01	1	0211-0404		●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	0405-0501		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.23	8-97306-190-0	01	1	0502-0606		●	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=62.7 T=2.23	8-97306-190-0	01	1	0607-		●	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	0211-0404	●	●	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	0405-		●	●
408	04.384 SPRING (A)	8-94422-075-0	02	1	0211-0404		●	●
408	04.384 SPRING (A)	8-94422-075-0	02	1	0211-0404		●
408	04.384 SPRING (A)	8-97366-040-1	02	1	0405-		●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	0405-		●
480	04.419 WASHER; THRUST,6TH	8-97253-122-0	01	1	0211-0501	●
480	04.419 WASHER; THRUST,6TH 4HE1-TCS ENG(RDS)	8-97253-122-0	01	1	0502-0506	●
480	04.419 WASHER; THRUST,6TH 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97253-122-1	01	1	0507-	●
480	04.419 WASHER; THRUST,6TH	8-97253-123-1	01	1	0211-		●
506	04.419 COLLAR; 6TH,COUNTER	8-97253-120-1	01	1	0211-0501	●
506	04.419 COLLAR; 6TH,COUNTER 4HE1-TCS ENG(RDS)	8-97253-120-1	01	1	0502-0506	●
506	04.419 COLLAR; 6TH,COUNTER 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97253-120-1	01	1	0507-	●
506	04.419 COLLAR; 6TH,COUNTER	8-97253-121-1	01	1	0211-		●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-106-0	02	1	0211-0501	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4HE1-TCS ENG(RDS)	8-97253-106-0	02	1	0502-0506	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97253-106-0	02	1	0507-	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	0211-0501		●	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97253-107-0	02	1	0502-0606		●	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97253-107-0	02	1	0607-		●	●
508	04.383 RING; BLOCK,6TH Z=45	8-97241-306-1	01	1	0211-0501	●
508	04.383 RING; BLOCK,6TH 4HE1-TCS ENG(RDS) Z=45	8-97241-306-1	01	1	0502-0506	●
508	04.383 RING; BLOCK,6TH 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) Z=45	8-97241-306-1	01	1	0507-	●
508	04.383 RING; BLOCK,6TH 04.395 Z=45	8-97309-532-0	01	1	0211-		●
509	04.417 SLINGER; OIL,REV IDLE	8-97252-682-0	01	1	0211-0302	●
510	04.540 PIN; STRAIGHT,ANTI LASH 00.862	9-08160-825-0	03	1	0211-0404	●	●	●
510	04.540 PIN; STRAIGHT,ANTI LASH 00.862	9-08160-825-0	03	1	0405-		●	●
511	04.416 RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	0211-0404	●	●	●
511	04.416 RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	0405-		●	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97305-803-1	12	1	0211-0501	●
516	04.384 SPRING; SYNCHRO,INDEX 4HE1-TCS ENG(RDS)	8-97305-803-1	12	1	0502-0506	●
516	04.384 SPRING; SYNCHRO,INDEX 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97305-803-1	12	1	0507-	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	06	1	0211-0501		●	●
516	04.384 SPRING; SYNCHRO,INDEX 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97254-835-0	06	1	0502-0606		●	●
516	04.384 SPRING; SYNCHRO,INDEX 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97254-835-0	06	1	0607-		●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	12	1	0211-0501	●
517	04.384 BALL; SYNCHRO,INDEX 4HE1-TCS ENG(RDS)	8-97252-935-0	12	1	0502-0506	●
517	04.384 BALL; SYNCHRO,INDEX 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97252-935-0	12	1	0507-	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	06	1	0211-0501		●	●
517	04.384 BALL; SYNCHRO,INDEX 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97252-935-0	06	1	0502-0606		●	●
517	04.384 BALL; SYNCHRO,INDEX 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97252-935-0	06	1	0607-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
