Sayfa 2-20 - Isuzu EPC

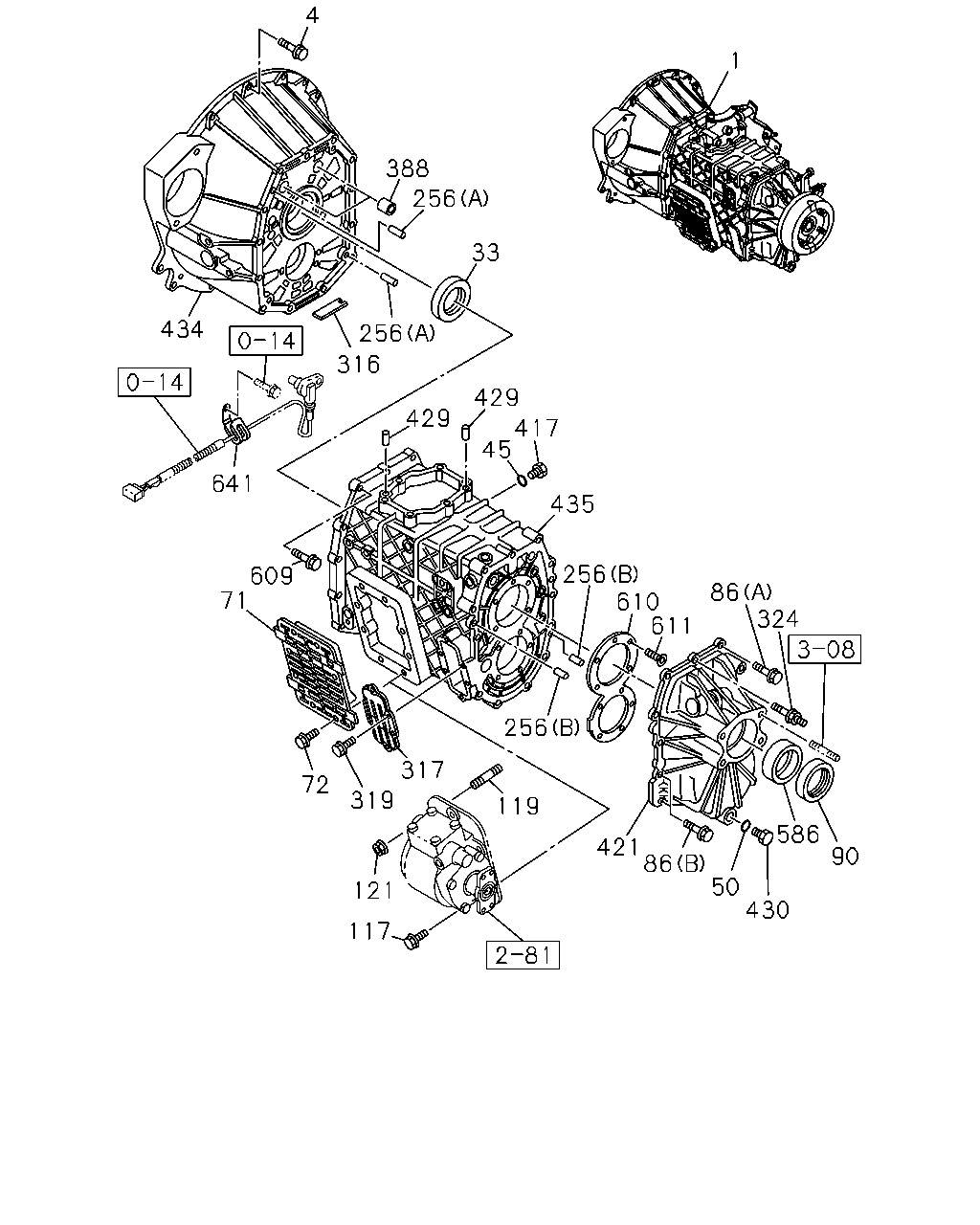

2-20 — MANUAL TRANSMISSION ASM AND CASE (#45056) — 354 parça

4 1 388 256 33 434 256 316 429 429 417 45 641 435 256 610 611 609 71 86 324 256 317 72 319 119 586 421 86 50 430 90 121 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) EURO3 SPECIFICATION(NT3) PTO TRANSMISSION SIDE(V66)	8-97329-049-0	01	1	0211-0501	●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) EURO3 SPECIFICATION(NT3) EXC. PTO TRANSMISSION SIDE(V66)	8-97329-049-0	01	1	0211-0501	●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) EXC. EURO3 SPECIFICATION(NT3),PTO TRANSMISSION SIDE(V66)	8-97307-744-0	01	1	0211-0501	●
1	04.003 TRANSMISSION ASM; MANUAL EXC. PTO TRANSMISSION SIDE(V66)	8-97307-744-0	01	1	0502-0506	●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1-TCS ENG(RDS) EXC. EURO3 SPECIFICATION(NT3),PTO TRANSMISSION SIDE(V66)	8-97307-744-0	01	1	0507-	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) EXC. PTO TRANSMISSION SIDE(V66)	8-97307-744-0	01	1	0507-	●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) EXC. EURO3 SPECIFICATION(NT3)	8-97307-744-0	01	1	0211-0501	●
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66)	8-97307-744-0	01	1	0502-0506	●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1-TCS ENG(RDS) PTO TRANSMISSION SIDE(V66) EXC. EURO3 SPECIFICATION(NT3)	8-97307-744-0	01	1	0507-	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66)	8-97307-744-0	01	1	0507-	●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1-TCS ENG(RDS) EURO3 SPECIFICATION(NT3) PTO TRANSMISSION SIDE(V66)	8-97329-049-0	01	1	0507-	●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1-TCS ENG(RDS) EURO3 SPECIFICATION(NT3) EXC. PTO TRANSMISSION SIDE(V66)	8-97329-049-0	01	1	0507-	●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	8-97350-615-0	01	1	0211-0404		●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	8-97373-901-0	01	1	0405-0501		●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1-T ENG(RDP) PTO TRANSMISSION SIDE(V66)	8-97373-898-0	01	1	0502-		●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66)	8-97350-615-0	01	1	0211-0404		●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66)	8-97373-901-0	01	1	0405-0501		●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1-T ENG(RDP) EXC. PTO TRANSMISSION SIDE(V66)	8-97373-898-0	01	1	0502-		●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1 ENG(RJH) PTO TRANSMISSION SIDE(V66)	8-97350-613-0	01	1	0211-0404		●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1 ENG(RJH) PTO TRANSMISSION SIDE(V66)	8-97373-898-0	01	1	0405-0501		●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1 ENG(RJH) EXC. PTO TRANSMISSION SIDE(V66)	8-97350-613-0	01	1	0211-0404		●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1 ENG(RJH) EXC. PTO TRANSMISSION SIDE(V66)	8-97373-898-0	01	1	0405-0501		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66)	8-98001-213-0	01	1	0607-		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) EXC. PTO TRANSMISSION SIDE(V66)	8-98001-213-0	01	1	0607-		●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	8-97350-619-0	01	1	0211-0404			●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	8-97373-917-0	01	1	0405-0501			●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66)	8-97373-917-0	01	1	0502-			●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66)	8-97350-619-0	01	1	0211-0404			●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66)	8-97373-917-0	01	1	0405-0501			●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1-TCN ENG(RDR) EXC. PTO TRANSMISSION SIDE(V66)	8-97373-917-0	01	1	0502-			●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1 ENG(RJH),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97350-617-0	01	1	0211-0404			●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1 ENG(RJH),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97373-914-0	01	1	0405-0501			●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97373-914-0	01	1	0502-			●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66)	8-97350-617-0	01	1	0211-0404			●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66)	8-97373-914-0	01	1	0405-0501			●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66)	8-97373-914-0	01	1	0502-			●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66)	8-98001-216-0	01	1	0607-			●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) EXC. PTO TRANSMISSION SIDE(V66)	8-98001-216-0	01	1	0607-			●
4	00.683 BOLT; FLYWHEEL HSG 4HE1 ENG(RLY) 08.900 M10X50 FLANGE	0-28181-050-0	05	1	0211-0501				●
4	00.683 BOLT; FLYWHEEL HSG NQR EXTEND LONG(NP***N) 4HG1 ENG(RJH) 08.900 M10X50 FLANGE	0-28181-050-0	05	1	0510-0512				●
4	00.683 BOLT; FLYWHEEL HSG NQR EXTEND LONG(NP***N) 4HG1 ENG(RJH) 02.042 M10X50 FLANGE	0-28151-050-0	05	1	0601-				●
4	00.683 BOLT; FLYWHEEL HSG 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M10X55 FLANGE	8-94399-863-1	02	1	0211-0501	●	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M10X55 FLANGE	8-94399-863-1	02	1	0502-0506	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M10X55 FLANGE	8-94399-863-1	02	1	0507-0606	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ) ,4HF1-S ENG(RLS) M10X55 FLANGE	8-94399-863-1	02	1	0607-0611	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ) ,4HF1-S ENG(RLS) M10X55 FLANGE	8-97365-449-0	02	1	0612-	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0211-0501	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HE1 ENG(RLY) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0211-0501	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0211-0501		●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0502-0506	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0502-0506	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0502-0506		●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0507-0512	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0507-0512	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0507-0512		●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0601-0606	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0601-0606	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0601-0606		●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ) ,4HF1-S ENG(RLS) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0607-	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0607-	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0607-		●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0211-0501	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0502-0506	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0507-0512	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.670 M10X35 FLANGE	0-28151-035-0	03	1	0601-0606	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ) ,4HF1-S ENG(RLS) 03.670 M10X35 FLANGE	0-28151-035-0	03	1	0607-	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 04.510 M10X35 FLANGE	0-28181-035-0	02	1	0211-0501		●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) 04.510 M10X35 FLANGE	0-28181-035-0	02	1	0502-0512		●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) 03.670 M10X35 FLANGE	0-28151-035-0	02	1	0601-0606		●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) 03.670 M10X35 FLANGE	0-28151-035-0	02	1	0607-		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	0211-	●	●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0211-	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0211-	●	●	●
71	04.439 COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66)	8-97252-624-2	01	1	0211-	●
71	04.439 COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66)	8-97252-625-0	01	1	0211-		●	●
72	04.439 BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66) 00.206 M10X20 FLANGE	8-97254-833-0	08	1	0211-0604	●
72	04.439 BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66) 00.206 M10X20 FLANGE	8-98014-142-0	08	1	0605-	●
72	04.439 BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66) 00.206 M10X20 FLANGE	8-97254-833-0	06	1	0211-0604		●	●
72	04.439 BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66) 00.206 M10X20 FLANGE	8-98014-142-0	06	1	0605-		●	●
86	04.317 BOLT; RR COVER 04.510 (A) M10X40 FLANGE	0-28181-040-0	10	1	0211-0512	●	●	●
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	10	1	0601-	●	●	●
86	04.317 BOLT; RR COVER (B) M10X40 FLANGE	8-97305-392-0	02	1	0211-0604	●	●	●
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	8-97365-377-0	02	1	0605-	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-551-1	01	1	0211-0501	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG(RDS) NOK	8-97253-551-1	01	1	0502-0506	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) NOK	8-97253-551-1	01	1	0507-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	0211-		●	●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 00.685 M10X28 FLANGE	0-28181-028-0	06	1	0211-0706	●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) M10X28 FLANGE	8-98044-944-0	06	1	0707-	●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 08.900 M10X30 FLANGE	0-28781-030-0	03	1	0211-0512		●	●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 00.780 M10X30 FLANGE	0-28751-030-0	03	1	0601-		●	●
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) 03.275 M10X25 L=40	9-04411-025-0	02	1	0211-0604	●
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) 03.342 M10X25 L=40	0-44011-025-0	02	1	0605-	●
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) 03.275 M10X25 L=40	9-04411-025-0	03	1	0211-0604		●	●
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) 03.342 M10X25 L=40	0-44011-025-0	03	1	0605-		●	●
121	04.439 NUT; PTO FIX PTO TRANSMISSION SIDE(V66) 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0602	●
121	04.439 NUT; PTO FIX PTO TRANSMISSION SIDE(V66) 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-	●
121	04.439 NUT; PTO FIX PTO TRANSMISSION SIDE(V66) 08.917 M10 FLANGE	0-91150-210-0	03	1	0211-0602		●	●
121	04.439 NUT; PTO FIX PTO TRANSMISSION SIDE(V66) 04.085 M10 FLANGE	0-91180-210-0	03	1	0603-		●	●
256	04.317 PIN; KNOCK 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	0211-	●	●	●
256	04.317 PIN; KNOCK 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	0211-	●	●	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	0211-	●	●	●
317	04.109 COVER; CASE	8-97252-626-0	01	1	0211-	●	●	●
319	04.109 BOLT; COVER 07.010 M8X20 FLANGE	0-28080-820-0	06	1	0211-0512	●	●	●
319	04.109 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	06	1	0601-	●	●	●
324	04.319 STUD; RR COVER M10X15,M10X40 L=65	8-97309-013-0	01	1	0211-0604	●	●	●
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	0605-	●	●	●
388	00.683 BUSHING; CLU HSG	8-97241-326-2	02	1	0211-	●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 08.971	8-94310-917-0	01	1	0211-0604	●	●	●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	0605-	●	●	●
421	04.317 COVER; RR,TRANS	8-97238-934-2	01	1	0211-0501	●
421	04.317 COVER; RR,TRANS 4HE1-TCS ENG(RDS)	8-97238-934-2	01	1	0502-0506	●
421	04.317 COVER; RR,TRANS 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97238-934-5	01	1	0507-	●
421	04.317 COVER; RR,TRANS	8-97252-620-0	01	1	0211-0507		●
421	04.317 COVER; RR,TRANS	8-98020-028-0	01	1	0508-		●
421	04.317 COVER; RR,TRANS	8-97252-621-0	01	1	0211-0507			●
421	04.317 COVER; RR,TRANS	8-98020-029-0	01	1	0508-			●
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	0211-	●	●	●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	0211-0604	●	●	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	0605-	●	●	●
434	00.683 HOUSING; CLU	8-97238-930-4	01	1	0211-0501	●
434	00.683 HOUSING; CLU 4HE1-TCS ENG(RDS)	8-97238-930-4	01	1	0502-0506	●
434	00.683 HOUSING; CLU 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97238-930-4	01	1	0507-	●
434	00.683 HOUSING; CLU	8-97237-099-5	01	1	0211-0501		●	●
434	00.683 HOUSING; CLU 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97237-099-5	01	1	0502-0606		●	●
434	00.683 HOUSING; CLU 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97237-099-5	01	1	0607-		●	●
435	04.103 CASE; TRANS	8-97252-622-5	01	1	0211-0408	●
435	04.103 CASE; TRANS	8-97382-868-0	01	1	0409-0501	●
435	04.103 CASE; TRANS 4HE1-TCS ENG(RDS)	8-97382-868-1	01	1	0502-0506	●
435	04.103 CASE; TRANS 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97382-868-1	01	1	0507-	●
435	04.103 CASE; TRANS	8-97237-102-7	01	1	0211-0403		●
435	04.103 CASE; TRANS	8-97379-374-0	01	1	0404-		●
435	04.103 CASE; TRANS	8-97252-623-7	01	1	0211-0403			●
435	04.103 CASE; TRANS	8-97379-375-0	01	1	0404-			●
586	00.683 BEARING; NEEDLE	8-97253-108-0	01	1	0211-0501	●
586	00.683 BEARING; NEEDLE 4HE1-TCS ENG(RDS)	8-97253-108-0	01	1	0502-0506	●
586	00.683 BEARING; NEEDLE 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97253-108-0	01	1	0507-	●
586	00.683 BEARING; NEEDLE	8-97253-109-0	01	1	0211-		●
609	04.104 BOLT; HSG TO CASE 04.510 M10X40 FLANGE	0-28181-040-0	13	1	0211-0512	●	●	●
609	04.104 BOLT; HSG TO CASE 09.171 M10X40 FLANGE	0-28151-040-0	13	1	0601-	●	●	●
610	04.412 RETAINER; BRG	8-97241-314-2	01	1	0211-0501	●
610	04.412 RETAINER; BRG 4HE1-TCS ENG(RDS)	8-97241-314-2	01	1	0502-0506	●
610	04.412 RETAINER; BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97241-314-2	01	1	0507-	●
610	04.412 RETAINER; BRG	8-97241-315-1	01	1	0211-0501		●	●
610	04.412 RETAINER; BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97241-315-1	01	1	0502-0606		●	●
610	04.412 RETAINER; BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97241-315-1	01	1	0607-		●	●
611	04.104 SCREW M10X27	8-97254-834-2	10	1	0211-0501	●
611	04.104 SCREW 4HE1-TCS ENG(RDS) M10X27	8-97254-834-2	10	1	0502-0506	●
611	04.104 SCREW 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) M10X27	8-97254-834-2	10	1	0507-0604	●
611	04.104 SCREW 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) M10X27 TORQUES	8-97365-354-0	10	1	0605-	●
611	04.104 SCREW M10X27	8-97254-834-2	11	1	0211-0501		●	●
611	04.104 SCREW 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M10X27	8-97254-834-2	11	1	0502-0604		●	●
611	04.104 SCREW 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M10X27 TORQUES	8-97365-354-0	11	1	0605-0606		●	●
611	04.104 SCREW 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M10X27 TORQUES	8-97365-354-0	11	1	0607-		●	●
641	04.710 CLIP; CAM SENSOR 4HK1-TCS ENG(RJS) 02.698 ID=8	8-94107-659-0	01	1	0507-0606	●
641	04.710 CLIP; CAM SENSOR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.698 ID=8	8-94107-659-0	01	1	0607-	●		●

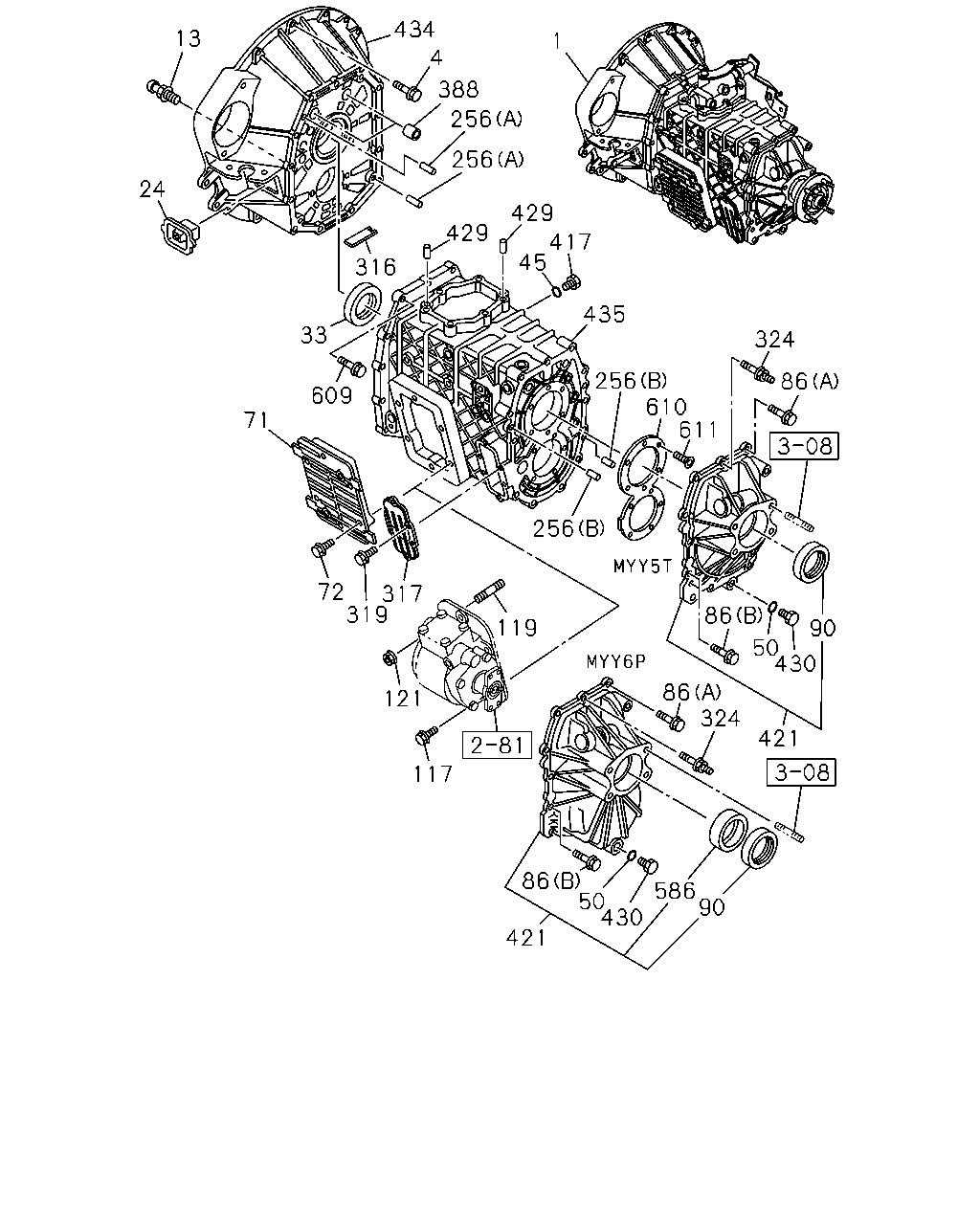

434 13 1 4 388 256 256 24 429 429 417 45 316 435 33 324 256 610 611 86 609 71 256 86 319 119 90 50 430 86 324 121 421 117 86 50 430 586 90 421 72 317

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) EURO3 SPECIFICATION(NT3) PTO TRANSMISSION SIDE(V66)	8-97329-049-0	01	1	0211-0501	●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) EURO3 SPECIFICATION(NT3) EXC. PTO TRANSMISSION SIDE(V66)	8-97329-049-0	01	1	0211-0501	●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) EXC. EURO3 SPECIFICATION(NT3),PTO TRANSMISSION SIDE(V66)	8-97307-744-0	01	1	0211-0501	●
1	04.003 TRANSMISSION ASM; MANUAL EXC. PTO TRANSMISSION SIDE(V66)	8-97307-744-0	01	1	0502-0506	●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1-TCS ENG(RDS) EXC. EURO3 SPECIFICATION(NT3),PTO TRANSMISSION SIDE(V66)	8-97307-744-0	01	1	0507-	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) EXC. PTO TRANSMISSION SIDE(V66)	8-97307-744-0	01	1	0507-	●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) EXC. EURO3 SPECIFICATION(NT3)	8-97307-744-0	01	1	0211-0501	●
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66)	8-97307-744-0	01	1	0502-0506	●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1-TCS ENG(RDS) PTO TRANSMISSION SIDE(V66) EXC. EURO3 SPECIFICATION(NT3)	8-97307-744-0	01	1	0507-	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66)	8-97307-744-0	01	1	0507-	●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1-TCS ENG(RDS) EURO3 SPECIFICATION(NT3) PTO TRANSMISSION SIDE(V66)	8-97329-049-0	01	1	0507-	●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1-TCS ENG(RDS) EURO3 SPECIFICATION(NT3) EXC. PTO TRANSMISSION SIDE(V66)	8-97329-049-0	01	1	0507-	●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	8-97350-615-0	01	1	0211-0404		●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	8-97373-901-0	01	1	0405-0501		●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1-T ENG(RDP) PTO TRANSMISSION SIDE(V66)	8-97373-898-0	01	1	0502-		●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66)	8-97350-615-0	01	1	0211-0404		●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66)	8-97373-901-0	01	1	0405-0501		●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1-T ENG(RDP) EXC. PTO TRANSMISSION SIDE(V66)	8-97373-898-0	01	1	0502-		●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1 ENG(RJH) PTO TRANSMISSION SIDE(V66)	8-97350-613-0	01	1	0211-0404		●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1 ENG(RJH) PTO TRANSMISSION SIDE(V66)	8-97373-898-0	01	1	0405-0501		●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1 ENG(RJH) EXC. PTO TRANSMISSION SIDE(V66)	8-97350-613-0	01	1	0211-0404		●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1 ENG(RJH) EXC. PTO TRANSMISSION SIDE(V66)	8-97373-898-0	01	1	0405-0501		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66)	8-98001-213-0	01	1	0607-		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) EXC. PTO TRANSMISSION SIDE(V66)	8-98001-213-0	01	1	0607-		●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	8-97350-619-0	01	1	0211-0404			●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66)	8-97373-917-0	01	1	0405-0501			●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66)	8-97373-917-0	01	1	0502-			●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66)	8-97350-619-0	01	1	0211-0404			●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66)	8-97373-917-0	01	1	0405-0501			●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1-TCN ENG(RDR) EXC. PTO TRANSMISSION SIDE(V66)	8-97373-917-0	01	1	0502-			●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1 ENG(RJH),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97350-617-0	01	1	0211-0404			●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1 ENG(RJH),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97373-914-0	01	1	0405-0501			●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97373-914-0	01	1	0502-			●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66)	8-97350-617-0	01	1	0211-0404			●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66)	8-97373-914-0	01	1	0405-0501			●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66)	8-97373-914-0	01	1	0502-			●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66)	8-98001-216-0	01	1	0607-			●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) EXC. PTO TRANSMISSION SIDE(V66)	8-98001-216-0	01	1	0607-			●
4	00.683 BOLT; FLYWHEEL HSG 4HE1 ENG(RLY) 08.900 M10X50 FLANGE	0-28181-050-0	05	1	0211-0501				●
4	00.683 BOLT; FLYWHEEL HSG NQR EXTEND LONG(NP***N) 4HG1 ENG(RJH) 08.900 M10X50 FLANGE	0-28181-050-0	05	1	0510-0512				●
4	00.683 BOLT; FLYWHEEL HSG NQR EXTEND LONG(NP***N) 4HG1 ENG(RJH) 02.042 M10X50 FLANGE	0-28151-050-0	05	1	0601-				●
4	00.683 BOLT; FLYWHEEL HSG 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M10X55 FLANGE	8-94399-863-1	02	1	0211-0501	●	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M10X55 FLANGE	8-94399-863-1	02	1	0502-0506	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M10X55 FLANGE	8-94399-863-1	02	1	0507-0606	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ) ,4HF1-S ENG(RLS) M10X55 FLANGE	8-94399-863-1	02	1	0607-0611	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ) ,4HF1-S ENG(RLS) M10X55 FLANGE	8-97365-449-0	02	1	0612-	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0211-0501	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HE1 ENG(RLY) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0211-0501	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0211-0501		●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0502-0506	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0502-0506	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0502-0506		●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0507-0512	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0507-0512	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0507-0512		●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0601-0606	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0601-0606	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0601-0606		●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ) ,4HF1-S ENG(RLS) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0607-	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0607-	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0607-		●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0211-0501	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0502-0506	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0507-0512	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.670 M10X35 FLANGE	0-28151-035-0	03	1	0601-0606	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ) ,4HF1-S ENG(RLS) 03.670 M10X35 FLANGE	0-28151-035-0	03	1	0607-	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 04.510 M10X35 FLANGE	0-28181-035-0	02	1	0211-0501		●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) 04.510 M10X35 FLANGE	0-28181-035-0	02	1	0502-0512		●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) 03.670 M10X35 FLANGE	0-28151-035-0	02	1	0601-0606		●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) 03.670 M10X35 FLANGE	0-28151-035-0	02	1	0607-		●	●
13	04.302 SUPPORT; SHIFT FORK	8-97255-384-1	01	1	0211-0501		●	●
13	04.302 SUPPORT; SHIFT FORK 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97255-384-1	01	1	0502-		●	●
13	04.302 SUPPORT; SHIFT FORK 4HK1-TCN ENG(RDQ)	8-97255-385-1	01	1	0607-		●	●
24	00.797 COVER; CHECK HOLE,DUST	8-97255-201-0	01	1	0211-0501		●	●
24	00.797 COVER; CHECK HOLE,DUST 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97255-201-0	01	1	0502-0606		●	●
24	00.797 COVER; CHECK HOLE,DUST 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97255-201-0	01	1	0607-		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	0211-	●	●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0211-	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0211-	●	●	●
71	04.439 COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66)	8-97252-624-2	01	1	0211-	●
71	04.439 COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66)	8-97252-625-0	01	1	0211-		●	●
72	04.439 BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66) 00.206 M10X20 FLANGE	8-97254-833-0	08	1	0211-0604	●
72	04.439 BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66) 00.206 M10X20 FLANGE	8-98014-142-0	08	1	0605-	●
72	04.439 BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66) 00.206 M10X20 FLANGE	8-97254-833-0	06	1	0211-0604		●	●
72	04.439 BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66) 00.206 M10X20 FLANGE	8-98014-142-0	06	1	0605-		●	●
86	04.317 BOLT; RR COVER 04.510 (A) M10X40 FLANGE	0-28181-040-0	10	1	0211-0512	●	●	●
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	10	1	0601-	●	●	●
86	04.317 BOLT; RR COVER (B) M10X40 FLANGE	8-97305-392-0	02	1	0211-0604	●	●	●
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	8-97365-377-0	02	1	0605-	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-551-1	01	1	0211-0501	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG(RDS) NOK	8-97253-551-1	01	1	0502-0506	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) NOK	8-97253-551-1	01	1	0507-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	0211-		●	●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 00.685 M10X28 FLANGE	0-28181-028-0	06	1	0211-0706	●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) M10X28 FLANGE	8-98044-944-0	06	1	0707-	●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 08.900 M10X30 FLANGE	0-28781-030-0	03	1	0211-0512		●	●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 00.780 M10X30 FLANGE	0-28751-030-0	03	1	0601-		●	●
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) 03.275 M10X25 L=40	9-04411-025-0	02	1	0211-0604	●
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) 03.342 M10X25 L=40	0-44011-025-0	02	1	0605-	●
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) 03.275 M10X25 L=40	9-04411-025-0	03	1	0211-0604		●	●
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) 03.342 M10X25 L=40	0-44011-025-0	03	1	0605-		●	●
121	04.439 NUT; PTO FIX PTO TRANSMISSION SIDE(V66) 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0602	●
121	04.439 NUT; PTO FIX PTO TRANSMISSION SIDE(V66) 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-	●
121	04.439 NUT; PTO FIX PTO TRANSMISSION SIDE(V66) 08.917 M10 FLANGE	0-91150-210-0	03	1	0211-0602		●	●
121	04.439 NUT; PTO FIX PTO TRANSMISSION SIDE(V66) 04.085 M10 FLANGE	0-91180-210-0	03	1	0603-		●	●
256	04.317 PIN; KNOCK 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	0211-	●	●	●
256	04.317 PIN; KNOCK 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	0211-	●	●	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	0211-	●	●	●
317	04.109 COVER; CASE	8-97252-626-0	01	1	0211-	●	●	●
319	04.109 BOLT; COVER 07.010 M8X20 FLANGE	0-28080-820-0	06	1	0211-0512	●	●	●
319	04.109 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	06	1	0601-	●	●	●
324	04.319 STUD; RR COVER M10X15,M10X40 L=65	8-97309-013-0	01	1	0211-0604	●	●	●
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	0605-	●	●	●
388	00.683 BUSHING; CLU HSG	8-97241-326-2	02	1	0211-	●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 08.971	8-94310-917-0	01	1	0211-0604	●	●	●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	0605-	●	●	●
421	04.317 COVER; RR,TRANS	8-97238-934-2	01	1	0211-0501	●
421	04.317 COVER; RR,TRANS 4HE1-TCS ENG(RDS)	8-97238-934-2	01	1	0502-0506	●
421	04.317 COVER; RR,TRANS 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97238-934-5	01	1	0507-	●
421	04.317 COVER; RR,TRANS	8-97252-620-0	01	1	0211-0507		●
421	04.317 COVER; RR,TRANS	8-98020-028-0	01	1	0508-		●
421	04.317 COVER; RR,TRANS	8-97252-621-0	01	1	0211-0507			●
421	04.317 COVER; RR,TRANS	8-98020-029-0	01	1	0508-			●
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	0211-	●	●	●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	0211-0604	●	●	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	0605-	●	●	●
434	00.683 HOUSING; CLU	8-97238-930-4	01	1	0211-0501	●
434	00.683 HOUSING; CLU 4HE1-TCS ENG(RDS)	8-97238-930-4	01	1	0502-0506	●
434	00.683 HOUSING; CLU 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97238-930-4	01	1	0507-	●
434	00.683 HOUSING; CLU	8-97237-099-5	01	1	0211-0501		●	●
434	00.683 HOUSING; CLU 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97237-099-5	01	1	0502-0606		●	●
434	00.683 HOUSING; CLU 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97237-099-5	01	1	0607-		●	●
435	04.103 CASE; TRANS	8-97252-622-5	01	1	0211-0408	●
435	04.103 CASE; TRANS	8-97382-868-0	01	1	0409-0501	●
435	04.103 CASE; TRANS 4HE1-TCS ENG(RDS)	8-97382-868-1	01	1	0502-0506	●
435	04.103 CASE; TRANS 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97382-868-1	01	1	0507-	●
435	04.103 CASE; TRANS	8-97237-102-7	01	1	0211-0403		●
435	04.103 CASE; TRANS	8-97379-374-0	01	1	0404-		●
435	04.103 CASE; TRANS	8-97252-623-7	01	1	0211-0403			●
435	04.103 CASE; TRANS	8-97379-375-0	01	1	0404-			●
586	00.683 BEARING; NEEDLE	8-97253-108-0	01	1	0211-0501	●
586	00.683 BEARING; NEEDLE 4HE1-TCS ENG(RDS)	8-97253-108-0	01	1	0502-0506	●
586	00.683 BEARING; NEEDLE 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97253-108-0	01	1	0507-	●
586	00.683 BEARING; NEEDLE	8-97253-109-0	01	1	0211-		●
609	04.104 BOLT; HSG TO CASE 04.510 M10X40 FLANGE	0-28181-040-0	13	1	0211-0512	●	●	●
609	04.104 BOLT; HSG TO CASE 09.171 M10X40 FLANGE	0-28151-040-0	13	1	0601-	●	●	●
610	04.412 RETAINER; BRG	8-97241-314-2	01	1	0211-0501	●
610	04.412 RETAINER; BRG 4HE1-TCS ENG(RDS)	8-97241-314-2	01	1	0502-0506	●
610	04.412 RETAINER; BRG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)	8-97241-314-2	01	1	0507-	●
610	04.412 RETAINER; BRG	8-97241-315-1	01	1	0211-0501		●	●
610	04.412 RETAINER; BRG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97241-315-1	01	1	0502-0606		●	●
610	04.412 RETAINER; BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97241-315-1	01	1	0607-		●	●
611	04.104 SCREW M10X27	8-97254-834-2	10	1	0211-0501	●
611	04.104 SCREW 4HE1-TCS ENG(RDS) M10X27	8-97254-834-2	10	1	0502-0506	●
611	04.104 SCREW 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) M10X27	8-97254-834-2	10	1	0507-0604	●
611	04.104 SCREW 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) M10X27 TORQUES	8-97365-354-0	10	1	0605-	●
611	04.104 SCREW M10X27	8-97254-834-2	11	1	0211-0501		●	●
611	04.104 SCREW 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M10X27	8-97254-834-2	11	1	0502-0604		●	●
611	04.104 SCREW 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M10X27 TORQUES	8-97365-354-0	11	1	0605-0606		●	●
611	04.104 SCREW 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M10X27 TORQUES	8-97365-354-0	11	1	0607-		●	●

454 453 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
4	00.683 BOLT; FLYWHEEL HSG 4HE1 ENG(RLY) 08.900 M10X50 FLANGE	0-28181-050-0	05	1	0211-0501				●
4	00.683 BOLT; FLYWHEEL HSG NQR EXTEND LONG(NP***N) 4HG1 ENG(RJH) 08.900 M10X50 FLANGE	0-28181-050-0	05	1	0510-0512				●
4	00.683 BOLT; FLYWHEEL HSG NQR EXTEND LONG(NP***N) 4HG1 ENG(RJH) 02.042 M10X50 FLANGE	0-28151-050-0	05	1	0601-				●
4	00.683 BOLT; FLYWHEEL HSG 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M10X55 FLANGE	8-94399-863-1	02	1	0211-0501	●	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M10X55 FLANGE	8-94399-863-1	02	1	0502-0506	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M10X55 FLANGE	8-94399-863-1	02	1	0507-0606	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ) ,4HF1-S ENG(RLS) M10X55 FLANGE	8-94399-863-1	02	1	0607-0611	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ) ,4HF1-S ENG(RLS) M10X55 FLANGE	8-97365-449-0	02	1	0612-	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0211-0501	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HE1 ENG(RLY) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0211-0501	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0211-0501		●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0502-0506	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0502-0506	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0502-0506		●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0507-0512	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0507-0512	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0507-0512		●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0601-0606	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0601-0606	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0601-0606		●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ) ,4HF1-S ENG(RLS) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0607-	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0607-	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0607-		●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0211-0501	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0502-0506	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0507-0512	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.670 M10X35 FLANGE	0-28151-035-0	03	1	0601-0606	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ) ,4HF1-S ENG(RLS) 03.670 M10X35 FLANGE	0-28151-035-0	03	1	0607-	●	●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 04.510 M10X35 FLANGE	0-28181-035-0	02	1	0211-0501		●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) 04.510 M10X35 FLANGE	0-28181-035-0	02	1	0502-0512		●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) 03.670 M10X35 FLANGE	0-28151-035-0	02	1	0601-0606		●	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) 03.670 M10X35 FLANGE	0-28151-035-0	02	1	0607-		●	●
453	00.683 NUT; CLU HSG 4HE1 ENG(RLY) 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0501				●
453	00.683 NUT; CLU HSG NQR EXTEND LONG(NP***N) 4HG1 ENG(RJH) 08.917 M10 FLANGE	0-91150-210-0	02	1	0510-0602				●
453	00.683 NUT; CLU HSG NQR EXTEND LONG(NP***N) 4HG1 ENG(RJH) 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-				●
454	00.683 STUD; CLU HSG 4HE1 ENG(RLY)	0-49841-050-0	02	1	0211-0501				●
454	00.683 STUD; CLU HSG NQR EXTEND LONG(NP***N) 4HG1 ENG(RJH)	0-49841-050-0	02	1	0510-0512				●
454	00.683 STUD; CLU HSG NQR EXTEND LONG(NP***N) 4HG1 ENG(RJH) M10X50 L=99	0-49241-050-0	02	1	0601-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
