◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50947 - NPR/NQR LHDEXC.EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-10 - REPAIR KIT; TRANSMISSION OVERHAUL ▶
2-10 — REPAIR KIT; TRANSMISSION OVERHAUL (#45055) — 16 parça

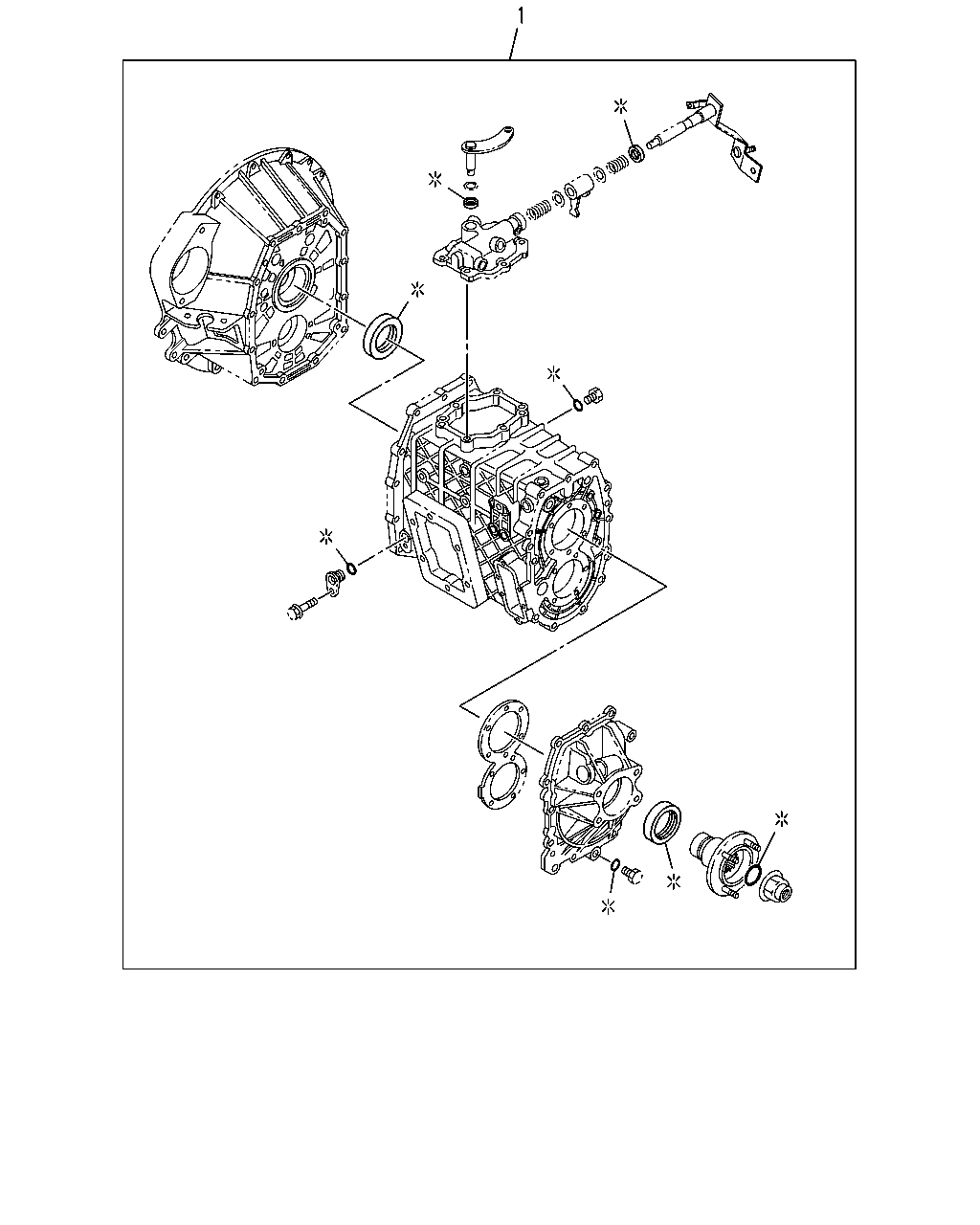

çizim 12279
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.005 GASKET SET; TRANS OVERHAUL 5-87832-028-0 01 1 0211-0303 ●
1 04.005 GASKET SET; TRANS OVERHAUL 5-87832-126-0 01 1 0304-0501 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4HE1-TCS ENG(RDS) 		5-87832-126-1 01 1 0502-0506 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 		5-87832-126-1 01 1 0507- ●
1 04.005 GASKET SET; TRANS OVERHAUL 5-87832-033-0 01 1 0211-0303 ● ●
1 04.005 GASKET SET; TRANS OVERHAUL 5-87832-128-0 01 1 0304-0501 ● ●
1 04.005 GASKET SET; TRANS OVERHAUL
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		5-87832-128-2 01 1 0502-0606 ● ●
1 04.005 GASKET SET; TRANS OVERHAUL
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		5-87832-128-2 01 1 0607- ● ●

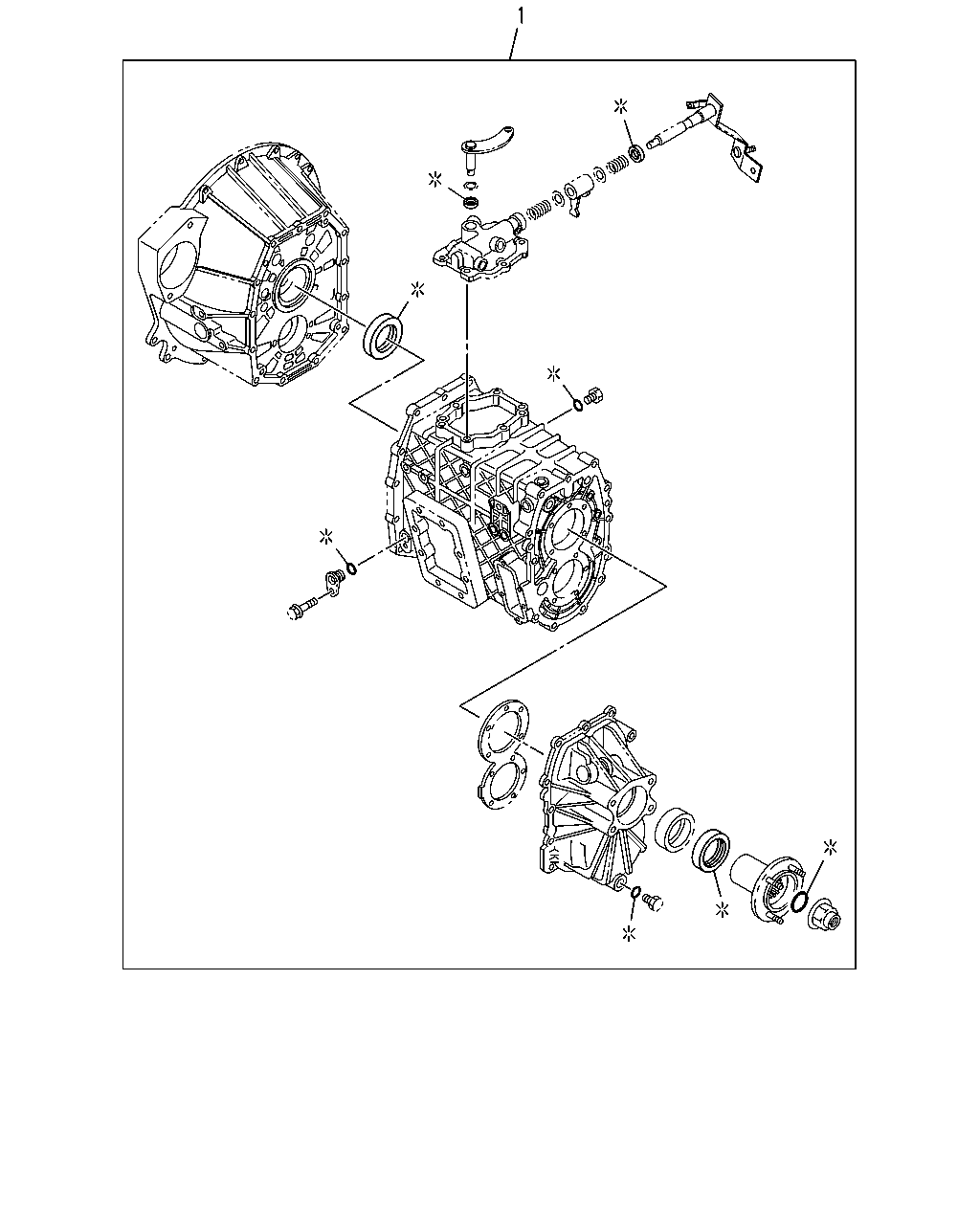

çizim 12553
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.005 GASKET SET; TRANS OVERHAUL 5-87832-028-0 01 1 0211-0303 ●
1 04.005 GASKET SET; TRANS OVERHAUL 5-87832-126-0 01 1 0304-0501 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4HE1-TCS ENG(RDS) 		5-87832-126-1 01 1 0502-0506 ●
1 04.005 GASKET SET; TRANS OVERHAUL
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 		5-87832-126-1 01 1 0507- ●
1 04.005 GASKET SET; TRANS OVERHAUL 5-87832-033-0 01 1 0211-0303 ● ●
1 04.005 GASKET SET; TRANS OVERHAUL 5-87832-128-0 01 1 0304-0501 ● ●
1 04.005 GASKET SET; TRANS OVERHAUL
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		5-87832-128-2 01 1 0502-0606 ● ●
1 04.005 GASKET SET; TRANS OVERHAUL
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		5-87832-128-2 01 1 0607- ● ●
