◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50947 - NPR/NQR LHDEXC.EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07 - CLUTCH BOOSTER; MINIPACK ▶
2-07 — CLUTCH BOOSTER; MINIPACK (#45053) — 9 parça

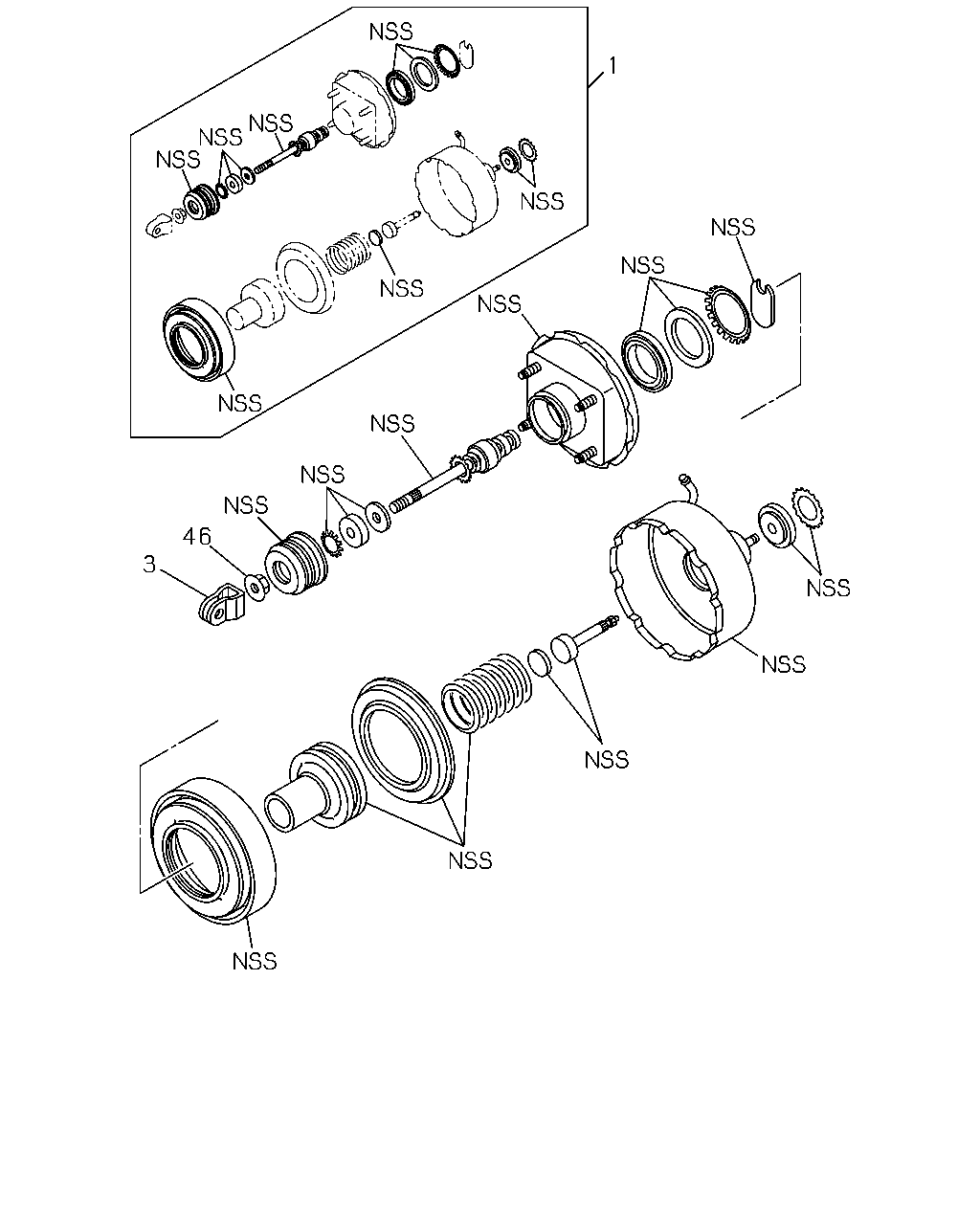

çizim 11341
1 46 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.775 REPAIR KIT; CLU BOOSTER
4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T) 		8-97174-151-0 01 1 0211-0501 ● ●
1 00.775 REPAIR KIT; CLU BOOSTER
4HG1 ENG(RJH) TURBOCHARGER(K51) POWER ASSIST CLUTCH(S2T) 		8-97174-151-0 01 1 0211-0501 ● ●
1 00.775 REPAIR KIT; CLU BOOSTER
4HE1-TCS ENG(RDS) POWER ASSIST CLUTCH(S2T) 		8-97174-151-0 01 1 0502-0506 ●
1 00.775 REPAIR KIT; CLU BOOSTER
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) POWER ASSIST CLUTCH(S2T) 		8-97174-151-0 01 1 0507-0606 ●
1 00.775 REPAIR KIT; CLU BOOSTER
4HK1-TCN ENG(RDQ),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) POWER ASSIST CLUTCH(S2T) 		8-97174-151-0 01 1 0607- ●
1 00.775 REPAIR KIT; CLU BOOSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) POWER ASSIST CLUTCH(S2T) EXC. TURBOCHARGER(K51) 		8-97174-145-0 01 1 0211-0501 ● ●
1 00.775 REPAIR KIT; CLU BOOSTER
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) POWER ASSIST CLUTCH(S2T) 		8-97174-145-0 01 1 0502- ● ●
3 00.787 CLEVIS; PUSH ROD,CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97174-147-0 01 1 0211- ● ● ●
46 00.787 NUT; PUSH ROD,CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97174-148-0 01 1 0211- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
