2-05 — CLUTCH PIPING (#45051) — 118 parça

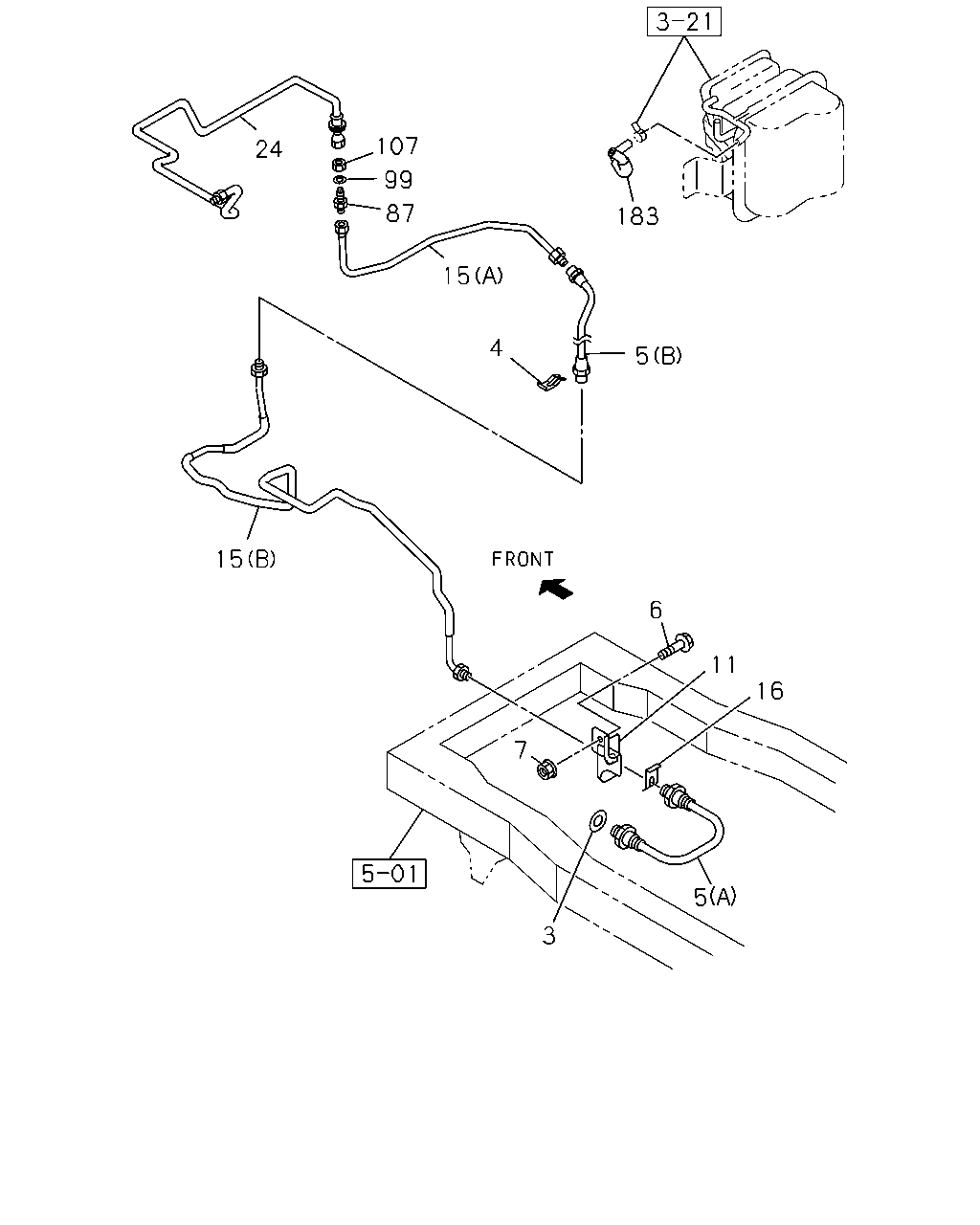

çizim 53664
107 24 99 87 183 15 4 5 15 6 11 16 7 5 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 00.785 GASKET; FLEX HOSE,CLU
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 		9-09920-873-1 01 1 0211-0501 ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		9-09920-873-1 01 1 0502-0506 ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		9-09920-873-1 01 1 0507-0606 ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ) ,4HF1-S ENG(RLS) 		9-09920-873-1 01 1 0607- ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0211-0610 ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 02 1 0611- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-94377-793-1 01 1 0211-0501 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1-TCS ENG(RDS) (A) 		8-94377-793-1 01 1 0502-0506 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) (A) 		8-98020-158-0 01 1 0507- ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (A) 		8-97148-640-0 01 1 0211-0501 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1-TCN ENG(RDR) (A) 		8-97148-640-0 01 1 0502-0606 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR) (A) 		8-97148-640-0 01 1 0607- ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0211-0609 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98004-775-0 01 1 0610-0706 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98090-655-0 01 1 0707- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-94108-360-2 01 1 0211-0501 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) 		8-97064-108-1 01 1 0211-0501 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97064-108-1 01 1 0502- ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0506 ● ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ● ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ) ,4HF1-S ENG(RLS) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0506 ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ) ,4HF1-S ENG(RLS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0607- ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 		8-97126-875-0 01 1 0211-0305 ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 		8-97365-305-0 01 1 0306-0501 ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HE1-TCS ENG(RDS) 		8-97365-305-0 01 1 0502-0502 ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97365-305-0 01 1 0502-0506 ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97365-305-0 01 1 0507-0606 ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ) ,4HF1-S ENG(RLS) 		8-97365-305-0 01 1 0607- ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-94366-288-0 01 1 0502-0502 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 0211- ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97325-816-2 01 1 0211-0303 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97365-467-0 01 1 0304- ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> (A) 		8-97129-538-0 01 1 0211-0501 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> (A) 		8-97328-482-0 01 1 0211-0501 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (A) 		8-97328-482-0 01 1 0502- ● ● ●
16 00.785 CLIP; FLEX HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 		8-94167-006-0 01 1 0211-0501 ● ● ●
16 00.785 CLIP; FLEX HOSE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-94167-006-0 01 1 0502-0506 ● ● ●
16 00.785 CLIP; FLEX HOSE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-94167-006-0 01 1 0507-0606 ● ● ●
16 00.785 CLIP; FLEX HOSE
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ) ,4HF1-S ENG(RLS) 		8-94167-006-0 01 1 0607-0610 ● ● ●
16 00.785 CLIP; FLEX HOSE
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ) ,4HF1-S ENG(RLS) 04.681 		8-97365-304-0 01 1 0611- ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> EXC. POWER ASSIST CLUTCH(S2T) 		8-97129-536-0 01 1 0211-0501 ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) HYDRO MASTER<7LT> 		8-97217-337-0 01 1 0211-0501 ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT> 		8-97118-570-0 01 1 0211-0501 ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97118-570-0 01 1 0502- ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T),HYDRO MASTER<7LT> 		8-97070-293-3 01 1 0211-0501 ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97070-293-3 01 1 0502- ● ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> M12 2WAY 		1-09654-257-1 01 1 0211-0501 ● ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> M12 STRAIGHT 		9-99227-006-0 01 1 0211-0501 ● ● ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0502-0607 ● ● ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		0-92107-006-0 01 1 0608- ● ● ●
99 00.785 WASHER; LK,UNION,OIL PIPE
FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> 04.634 ID=12.2 		9-09150-512-0 01 1 0211-0501 ● ● ●
107 00.785 NUT; UNION,OIL PIPE
FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> 04.686 M12 		9-09840-280-0 01 1 0211-0501 ● ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-97093-993-1 01 1 0211-0501 ● ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-98009-419-0 01 1 0502- ● ● ●

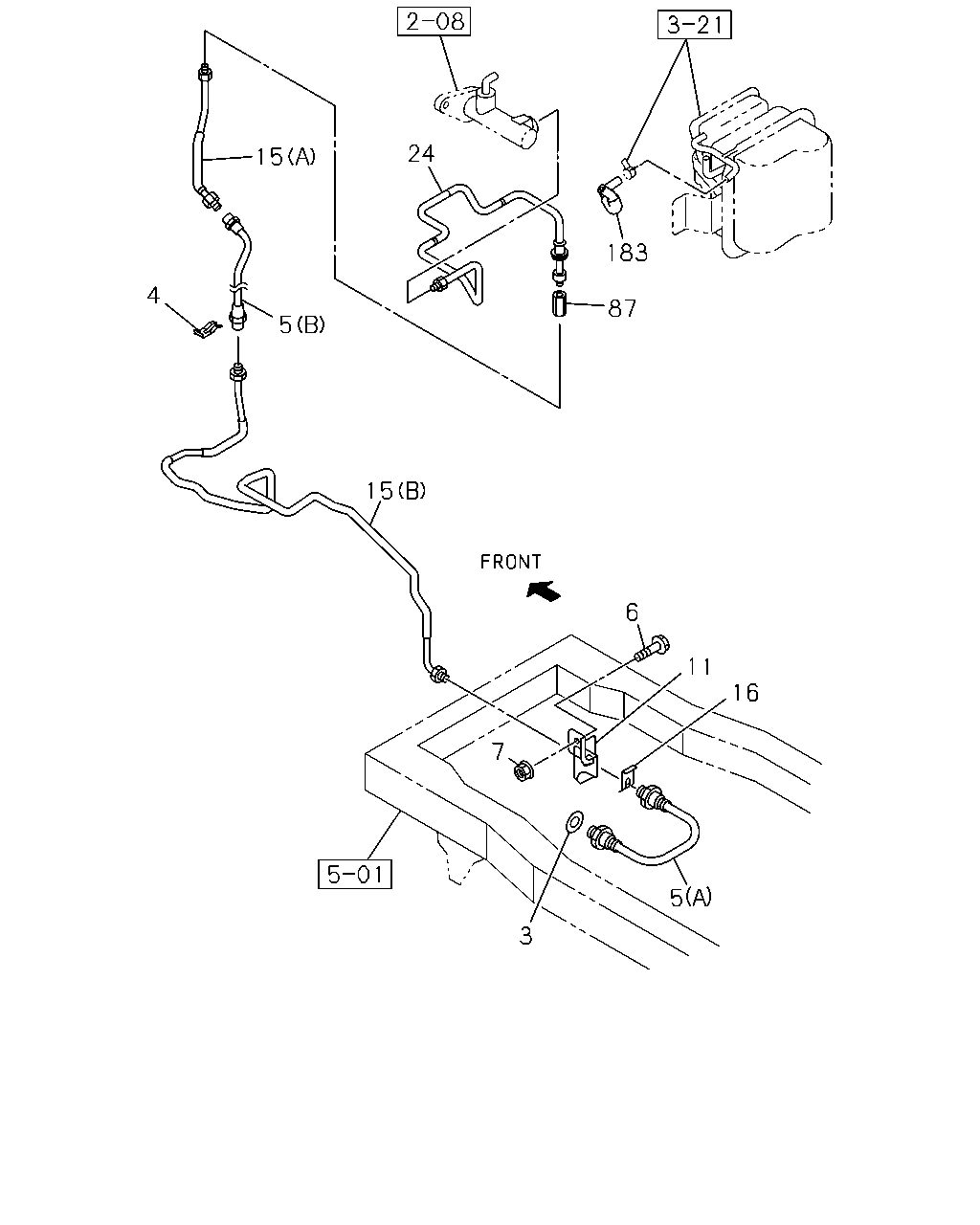

çizim 53956
24 15 183 4 87 5 15 6 11 16 7 5 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 00.785 GASKET; FLEX HOSE,CLU
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 		9-09920-873-1 01 1 0211-0501 ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		9-09920-873-1 01 1 0502-0506 ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		9-09920-873-1 01 1 0507-0606 ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ) ,4HF1-S ENG(RLS) 		9-09920-873-1 01 1 0607- ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0211-0610 ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 02 1 0611- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-94377-793-1 01 1 0211-0501 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1-TCS ENG(RDS) (A) 		8-94377-793-1 01 1 0502-0506 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) (A) 		8-98020-158-0 01 1 0507- ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (A) 		8-97148-640-0 01 1 0211-0501 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1-TCN ENG(RDR) (A) 		8-97148-640-0 01 1 0502-0606 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR) (A) 		8-97148-640-0 01 1 0607- ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0211-0609 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98004-775-0 01 1 0610-0706 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98090-655-0 01 1 0707- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-94108-360-2 01 1 0211-0501 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) 		8-97064-108-1 01 1 0211-0501 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97064-108-1 01 1 0502- ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0506 ● ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ● ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ) ,4HF1-S ENG(RLS) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0506 ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ) ,4HF1-S ENG(RLS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0607- ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 		8-97126-875-0 01 1 0211-0305 ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 		8-97365-305-0 01 1 0306-0501 ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HE1-TCS ENG(RDS) 		8-97365-305-0 01 1 0502-0502 ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97365-305-0 01 1 0502-0506 ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97365-305-0 01 1 0507-0606 ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ) ,4HF1-S ENG(RLS) 		8-97365-305-0 01 1 0607- ● ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-94366-288-0 01 1 0502-0502 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 0211- ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97325-816-2 01 1 0211-0303 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97365-467-0 01 1 0304- ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> (A) 		8-97129-538-0 01 1 0211-0501 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> (A) 		8-97328-482-0 01 1 0211-0501 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (A) 		8-97328-482-0 01 1 0502- ● ● ●
16 00.785 CLIP; FLEX HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 		8-94167-006-0 01 1 0211-0501 ● ● ●
16 00.785 CLIP; FLEX HOSE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-94167-006-0 01 1 0502-0506 ● ● ●
16 00.785 CLIP; FLEX HOSE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-94167-006-0 01 1 0507-0606 ● ● ●
16 00.785 CLIP; FLEX HOSE
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ) ,4HF1-S ENG(RLS) 		8-94167-006-0 01 1 0607-0610 ● ● ●
16 00.785 CLIP; FLEX HOSE
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ) ,4HF1-S ENG(RLS) 04.681 		8-97365-304-0 01 1 0611- ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> EXC. POWER ASSIST CLUTCH(S2T) 		8-97129-536-0 01 1 0211-0501 ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) HYDRO MASTER<7LT> 		8-97217-337-0 01 1 0211-0501 ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT> 		8-97118-570-0 01 1 0211-0501 ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97118-570-0 01 1 0502- ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T),HYDRO MASTER<7LT> 		8-97070-293-3 01 1 0211-0501 ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97070-293-3 01 1 0502- ● ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> M12 2WAY 		1-09654-257-1 01 1 0211-0501 ● ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> M12 STRAIGHT 		9-99227-006-0 01 1 0211-0501 ● ● ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0502-0607 ● ● ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		0-92107-006-0 01 1 0608- ● ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-97093-993-1 01 1 0211-0501 ● ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-98009-419-0 01 1 0502- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
