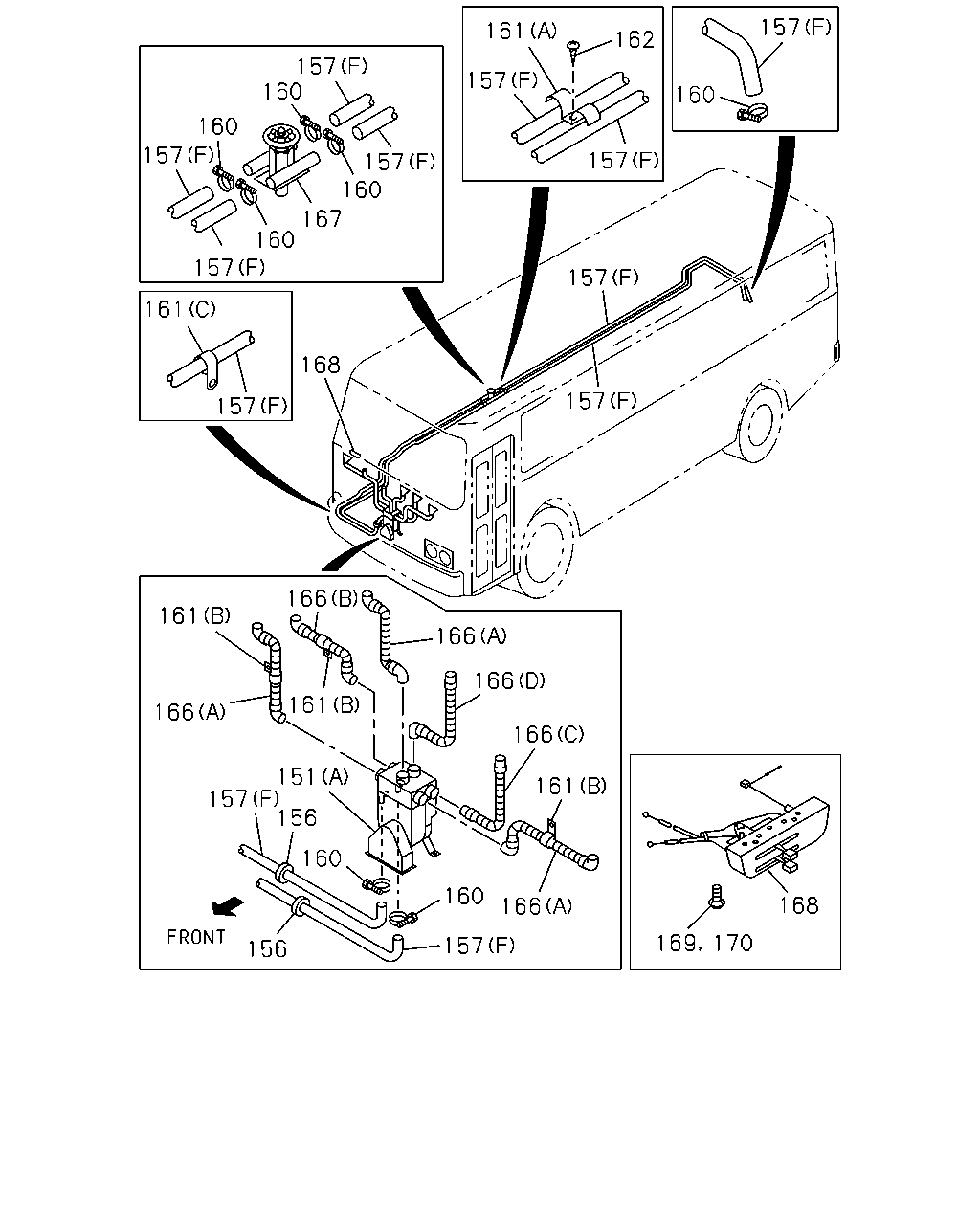

8-60 — HEATER UNIT; FRONT (#4505) — 105 parça

157 161 162 157 160 157 160 160 157 157 157 160 167 160 157 157 161 168 157 157 166 161 166 166 161 166 166 151 157 156 161 160 160 168 166 169 170 157 156

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
151	HEATER UNIT; HTR KIT AUXILIARY HEATER<C36> (A)	9-83611-603-0	01	1	9101-0203	●
151	HEATER UNIT; HTR KIT HEATER & DEFROSTER<C41> (A)	1-83511-111-0	01	1	9101-	●
151	HEATER UNIT; HTR KIT HEATER & DEFROSTER<C41> (B)	1-83511-118-0	02	1	9101-9504	●	●
151	HEATER UNIT; HTR KIT HEATER & DEFROSTER<C41> (B)	1-83511-118-0	02	1	9505-9805	●
151	HEATER UNIT; HTR KIT HEATER & DEFROSTER<C41> (B)	1-83511-118-0	03	1	9806-	●
151	HEATER UNIT; HTR KIT AUXILIARY HEATER<C36>,HEATER & DEFROSTER<C41> (A)	1-83511-071-0	01	1	9101-0203		●
151	HEATER UNIT; HTR KIT HEATER & DEFROSTER<C41> (A)	1-83511-071-0	01	1	0204-		●
151	HEATER UNIT; HTR KIT HEATER & DEFROSTER<C41> (B)	1-83511-118-0	02	1	9505-		●
156	GROMMET; HTR KIT AUXILIARY HEATER<C36>,HEATER & DEFROSTER<C41>	9-09956-292-0	02	1	9101-0203	●	●
156	GROMMET; HTR KIT HEATER & DEFROSTER<C41>	9-09956-292-0	02	1	0204-	●	●
157	HOSE; WATER,HTR KIT AUXILIARY HEATER<C36> (F)	1-09360-565-0	02	1	9101-0203	●	●
157	HOSE; WATER,HTR KIT HEATER & DEFROSTER<C41> (A) L=2000	1-83565-083-0	01	1	9101-	●	●
157	HOSE; WATER,HTR KIT HEATER & DEFROSTER<C41> (B) LTYPE L=60+60	1-83565-102-0	06	1	9101-9504	●	●
157	HOSE; WATER,HTR KIT HEATER & DEFROSTER<C41> (B) LTYPE L=60+60	1-83565-102-0	06	1	9505-	●
157	HOSE; WATER,HTR KIT HEATER & DEFROSTER<C41> (C) L=15,000	9-09912-957-0	01	1	9101-	●	●
157	HOSE; WATER,HTR KIT HEATER & DEFROSTER<C41> (D) L=5000	9-09912-958-0	01	1	9101-	●	●
157	HOSE; WATER,HTR KIT HEATER & DEFROSTER<C41> (E) L=10,000	9-09912-960-0	01	1	9101-	●	●
157	HOSE; WATER,HTR KIT HEATER & DEFROSTER<C41> (B) LTYPE L=60+60	1-83565-102-0	04	1	9505-		●
160	CLAMP; HOSE,HTR KIT AUXILIARY HEATER<C36> ID=25	9-09915-642-0	08	1	9101-0203	●	●
160	CLAMP; HOSE,HTR KIT HEATER & DEFROSTER<C41> ID=25	9-09915-642-2	48	1	9101-9504	●	●
160	CLAMP; HOSE,HTR KIT HEATER & DEFROSTER<C41> ID=25	9-09915-642-2	48	1	9505-9805	●
160	CLAMP; HOSE,HTR KIT HEATER & DEFROSTER<C41> ID=25	9-09915-642-2	52	1	9806-	●
160	CLAMP; HOSE,HTR KIT HEATER & DEFROSTER<C41> ID=25	9-09915-642-2	48	1	9505-		●
161	CLIP; HOSE FIX AUXILIARY HEATER<C36> (A)	9-09915-664-0	24	1	9101-0203	●	●
161	CLIP; HOSE FIX AUXILIARY HEATER<C36>,HEATER & DEFROSTER<C41> (B)	9-09915-526-0	03	1	9101-0203	●	●
161	CLIP; HOSE FIX HEATER & DEFROSTER<C41> (B)	9-09915-526-0	03	1	0204-	●	●
161	CLIP; HOSE FIX AUXILIARY HEATER<C36>,HEATER & DEFROSTER<C41> (C) ID=22	9-09915-660-0	01	1	9101-0203	●	●
161	CLIP; HOSE FIX HEATER & DEFROSTER<C41> (C) ID=22	9-09915-660-0	01	1	0204-	●	●
161	CLIP; HOSE FIX HEATER & DEFROSTER<C41> (A)	9-09915-664-0	23	1	9101-	●	●
162	SCREW; CLIP FIX AUXILIARY HEATER<C36>	9-83651-988-0	13	1	9101-0203	●
162	SCREW; CLIP FIX HEATER & DEFROSTER<C41>	9-83651-988-0	23	1	9101-	●	●
162	SCREW; CLIP FIX AUXILIARY HEATER<C36>	9-83651-988-0	24	1	9101-0203		●
166	HOSE; AIR,HTR KIT AUXILIARY HEATER<C36>,HEATER & DEFROSTER<C41> (C) L=410	9-83653-201-0	01	1	9101-0203	●	●
166	HOSE; AIR,HTR KIT HEATER & DEFROSTER<C41> (C) L=410	9-83653-201-0	01	1	0204-	●	●
166	HOSE; AIR,HTR KIT AUXILIARY HEATER<C36>,HEATER & DEFROSTER<C41> (A) L=1000	9-83653-231-0	03	1	9101-0203	●	●
166	HOSE; AIR,HTR KIT AUXILIARY HEATER<C36>,HEATER & DEFROSTER<C41> (B) L=500	9-83653-232-0	01	1	9101-0203	●	●
166	HOSE; AIR,HTR KIT HEATER & DEFROSTER<C41> (B) L=500	9-83653-232-0	01	1	0204-	●	●
166	HOSE; AIR,HTR KIT AUXILIARY HEATER<C36>,HEATER & DEFROSTER<C41> (D) L=500	9-83653-233-0	01	1	9101-0203	●	●
166	HOSE; AIR,HTR KIT HEATER & DEFROSTER<C41> (D) L=500	9-83653-233-0	01	1	0204-	●	●
166	HOSE; AIR,HTR KIT HEATER & DEFROSTER<C41> (A) L=1000 L=1000	9-83653-231-0	03	1	0204-	●	●
167	COCK ASM; DRAIN,HTR KIT AUXILIARY HEATER<C36>	9-09904-202-0	01	1	9101-0203	●	●
167	COCK ASM; DRAIN,HTR KIT HEATER & DEFROSTER<C41>	9-09904-202-0	02	1	9101-	●	●
168	LEVER ASM; CONT,HTR KIT AUXILIARY HEATER<C36>	1-83543-009-1	01	1	9101-0203	●
168	LEVER ASM; CONT,HTR KIT HEATER & DEFROSTER<C41>	1-83543-015-0	01	1	9101-	●
168	LEVER ASM; CONT,HTR KIT AUXILIARY HEATER<C36>,HEATER & DEFROSTER<C41>	1-83513-076-0	01	1	9101-0203		●
168	LEVER ASM; CONT,HTR KIT HEATER & DEFROSTER<C41>	1-83513-076-0	01	1	0204-		●
169	SCREW; PANEL,HTR CONT LVR AUXILIARY HEATER<C36>,HEATER & DEFROSTER<C41> M4X10	9-93490-410-0	03	1	9505-0203		●
169	SCREW; PANEL,HTR CONT LVR HEATER & DEFROSTER<C41> M4X10	9-93490-410-0	03	1	0204-		●
170	SCREW; LVR KNOB,HTR CONT LVR HEATER & DEFROSTER<C41>	9-09810-051-0	02	1	9101-9504	●	●
170	SCREW; LVR KNOB,HTR CONT LVR AUXILIARY HEATER<C36>,HEATER & DEFROSTER<C41>	9-09810-051-0	02	1	9505-0203	●	●
170	SCREW; LVR KNOB,HTR CONT LVR HEATER & DEFROSTER<C41>	9-09810-051-0	02	1	0204-	●	●

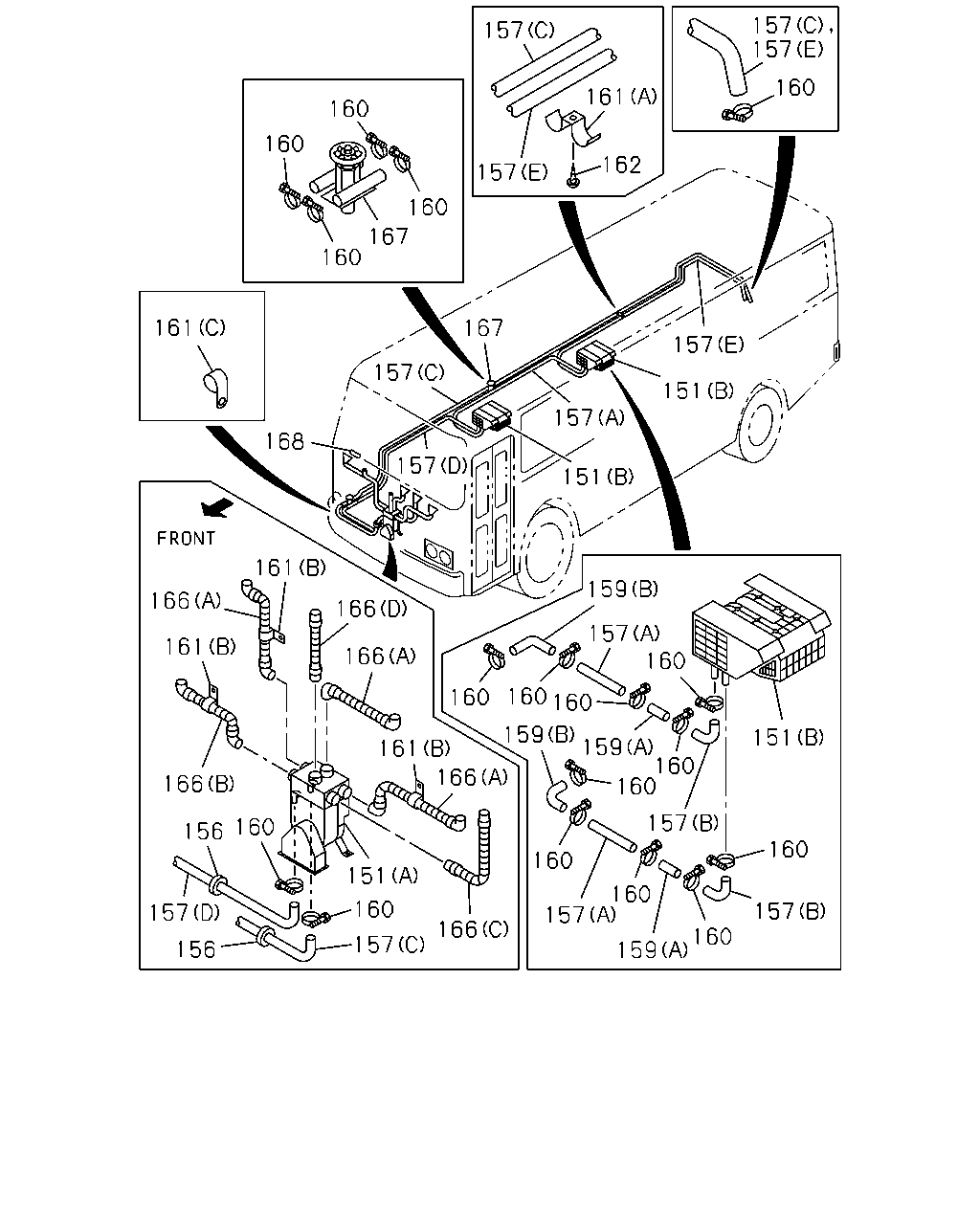

157 157 157 160 161 160 160 162 157 160 167 160 161 167 157 157 151 157 168 157 151 161 159 166 166 157 160 161 166 160 160 160 159 159 151 160 160 161 166 166 157 160 156 160 160 151 160 160 157 157 157 166 160 157 156 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
151	HEATER UNIT; HTR KIT AUXILIARY HEATER<C36> (A)	9-83611-603-0	01	1	9101-0203	●
151	HEATER UNIT; HTR KIT HEATER & DEFROSTER<C41> (A)	1-83511-111-0	01	1	9101-	●
151	HEATER UNIT; HTR KIT HEATER & DEFROSTER<C41> (B)	1-83511-118-0	02	1	9101-9504	●	●
151	HEATER UNIT; HTR KIT HEATER & DEFROSTER<C41> (B)	1-83511-118-0	02	1	9505-9805	●
151	HEATER UNIT; HTR KIT HEATER & DEFROSTER<C41> (B)	1-83511-118-0	03	1	9806-	●
151	HEATER UNIT; HTR KIT AUXILIARY HEATER<C36>,HEATER & DEFROSTER<C41> (A)	1-83511-071-0	01	1	9101-0203		●
151	HEATER UNIT; HTR KIT HEATER & DEFROSTER<C41> (A)	1-83511-071-0	01	1	0204-		●
151	HEATER UNIT; HTR KIT HEATER & DEFROSTER<C41> (B)	1-83511-118-0	02	1	9505-		●
156	GROMMET; HTR KIT AUXILIARY HEATER<C36>,HEATER & DEFROSTER<C41>	9-09956-292-0	02	1	9101-0203	●	●
156	GROMMET; HTR KIT HEATER & DEFROSTER<C41>	9-09956-292-0	02	1	0204-	●	●
157	HOSE; WATER,HTR KIT AUXILIARY HEATER<C36> (F)	1-09360-565-0	02	1	9101-0203	●	●
157	HOSE; WATER,HTR KIT HEATER & DEFROSTER<C41> (A) L=2000	1-83565-083-0	01	1	9101-	●	●
157	HOSE; WATER,HTR KIT HEATER & DEFROSTER<C41> (B) LTYPE L=60+60	1-83565-102-0	06	1	9101-9504	●	●
157	HOSE; WATER,HTR KIT HEATER & DEFROSTER<C41> (B) LTYPE L=60+60	1-83565-102-0	06	1	9505-	●
157	HOSE; WATER,HTR KIT HEATER & DEFROSTER<C41> (C) L=15,000	9-09912-957-0	01	1	9101-	●	●
157	HOSE; WATER,HTR KIT HEATER & DEFROSTER<C41> (D) L=5000	9-09912-958-0	01	1	9101-	●	●
157	HOSE; WATER,HTR KIT HEATER & DEFROSTER<C41> (E) L=10,000	9-09912-960-0	01	1	9101-	●	●
157	HOSE; WATER,HTR KIT HEATER & DEFROSTER<C41> (B) LTYPE L=60+60	1-83565-102-0	04	1	9505-		●
159	CONNECTOR; HOSE,HTR KIT HEATER & DEFROSTER<C41> (A)	1-83575-019-0	04	1	9101-9504	●	●
159	CONNECTOR; HOSE,HTR KIT HEATER & DEFROSTER<C41> (A)	1-83575-019-0	04	1	9505-9805	●
159	CONNECTOR; HOSE,HTR KIT HEATER & DEFROSTER<C41> (A)	1-83575-019-0	06	1	9806-	●
159	CONNECTOR; HOSE,HTR KIT HEATER & DEFROSTER<C41> (B)	9-09903-482-0	04	1	9101-9504	●	●
159	CONNECTOR; HOSE,HTR KIT HEATER & DEFROSTER<C41> (B)	9-09903-482-0	04	1	9505-9805	●
159	CONNECTOR; HOSE,HTR KIT HEATER & DEFROSTER<C41> (B)	9-09903-482-0	06	1	9806-	●
159	CONNECTOR; HOSE,HTR KIT HEATER & DEFROSTER<C41> (A)	1-83575-019-0	04	1	9505-		●
159	CONNECTOR; HOSE,HTR KIT HEATER & DEFROSTER<C41> (B)	9-09903-482-0	04	1	9505-		●
160	CLAMP; HOSE,HTR KIT AUXILIARY HEATER<C36> ID=25	9-09915-642-0	08	1	9101-0203	●	●
160	CLAMP; HOSE,HTR KIT HEATER & DEFROSTER<C41> ID=25	9-09915-642-2	48	1	9101-9504	●	●
160	CLAMP; HOSE,HTR KIT HEATER & DEFROSTER<C41> ID=25	9-09915-642-2	48	1	9505-9805	●
160	CLAMP; HOSE,HTR KIT HEATER & DEFROSTER<C41> ID=25	9-09915-642-2	52	1	9806-	●
160	CLAMP; HOSE,HTR KIT HEATER & DEFROSTER<C41> ID=25	9-09915-642-2	48	1	9505-		●
161	CLIP; HOSE FIX AUXILIARY HEATER<C36> (A)	9-09915-664-0	24	1	9101-0203	●	●
161	CLIP; HOSE FIX AUXILIARY HEATER<C36>,HEATER & DEFROSTER<C41> (B)	9-09915-526-0	03	1	9101-0203	●	●
161	CLIP; HOSE FIX HEATER & DEFROSTER<C41> (B)	9-09915-526-0	03	1	0204-	●	●
161	CLIP; HOSE FIX AUXILIARY HEATER<C36>,HEATER & DEFROSTER<C41> (C) ID=22	9-09915-660-0	01	1	9101-0203	●	●
161	CLIP; HOSE FIX HEATER & DEFROSTER<C41> (C) ID=22	9-09915-660-0	01	1	0204-	●	●
161	CLIP; HOSE FIX HEATER & DEFROSTER<C41> (A)	9-09915-664-0	23	1	9101-	●	●
162	SCREW; CLIP FIX AUXILIARY HEATER<C36>	9-83651-988-0	13	1	9101-0203	●
162	SCREW; CLIP FIX HEATER & DEFROSTER<C41>	9-83651-988-0	23	1	9101-	●	●
162	SCREW; CLIP FIX AUXILIARY HEATER<C36>	9-83651-988-0	24	1	9101-0203		●
166	HOSE; AIR,HTR KIT AUXILIARY HEATER<C36>,HEATER & DEFROSTER<C41> (C) L=410	9-83653-201-0	01	1	9101-0203	●	●
166	HOSE; AIR,HTR KIT HEATER & DEFROSTER<C41> (C) L=410	9-83653-201-0	01	1	0204-	●	●
166	HOSE; AIR,HTR KIT AUXILIARY HEATER<C36>,HEATER & DEFROSTER<C41> (A) L=1000	9-83653-231-0	03	1	9101-0203	●	●
166	HOSE; AIR,HTR KIT AUXILIARY HEATER<C36>,HEATER & DEFROSTER<C41> (B) L=500	9-83653-232-0	01	1	9101-0203	●	●
166	HOSE; AIR,HTR KIT HEATER & DEFROSTER<C41> (B) L=500	9-83653-232-0	01	1	0204-	●	●
166	HOSE; AIR,HTR KIT AUXILIARY HEATER<C36>,HEATER & DEFROSTER<C41> (D) L=500	9-83653-233-0	01	1	9101-0203	●	●
166	HOSE; AIR,HTR KIT HEATER & DEFROSTER<C41> (D) L=500	9-83653-233-0	01	1	0204-	●	●
166	HOSE; AIR,HTR KIT HEATER & DEFROSTER<C41> (A) L=1000 L=1000	9-83653-231-0	03	1	0204-	●	●
167	COCK ASM; DRAIN,HTR KIT AUXILIARY HEATER<C36>	9-09904-202-0	01	1	9101-0203	●	●
167	COCK ASM; DRAIN,HTR KIT HEATER & DEFROSTER<C41>	9-09904-202-0	02	1	9101-	●	●
168	LEVER ASM; CONT,HTR KIT AUXILIARY HEATER<C36>	1-83543-009-1	01	1	9101-0203	●
168	LEVER ASM; CONT,HTR KIT HEATER & DEFROSTER<C41>	1-83543-015-0	01	1	9101-	●
168	LEVER ASM; CONT,HTR KIT AUXILIARY HEATER<C36>,HEATER & DEFROSTER<C41>	1-83513-076-0	01	1	9101-0203		●
168	LEVER ASM; CONT,HTR KIT HEATER & DEFROSTER<C41>	1-83513-076-0	01	1	0204-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
