1 |

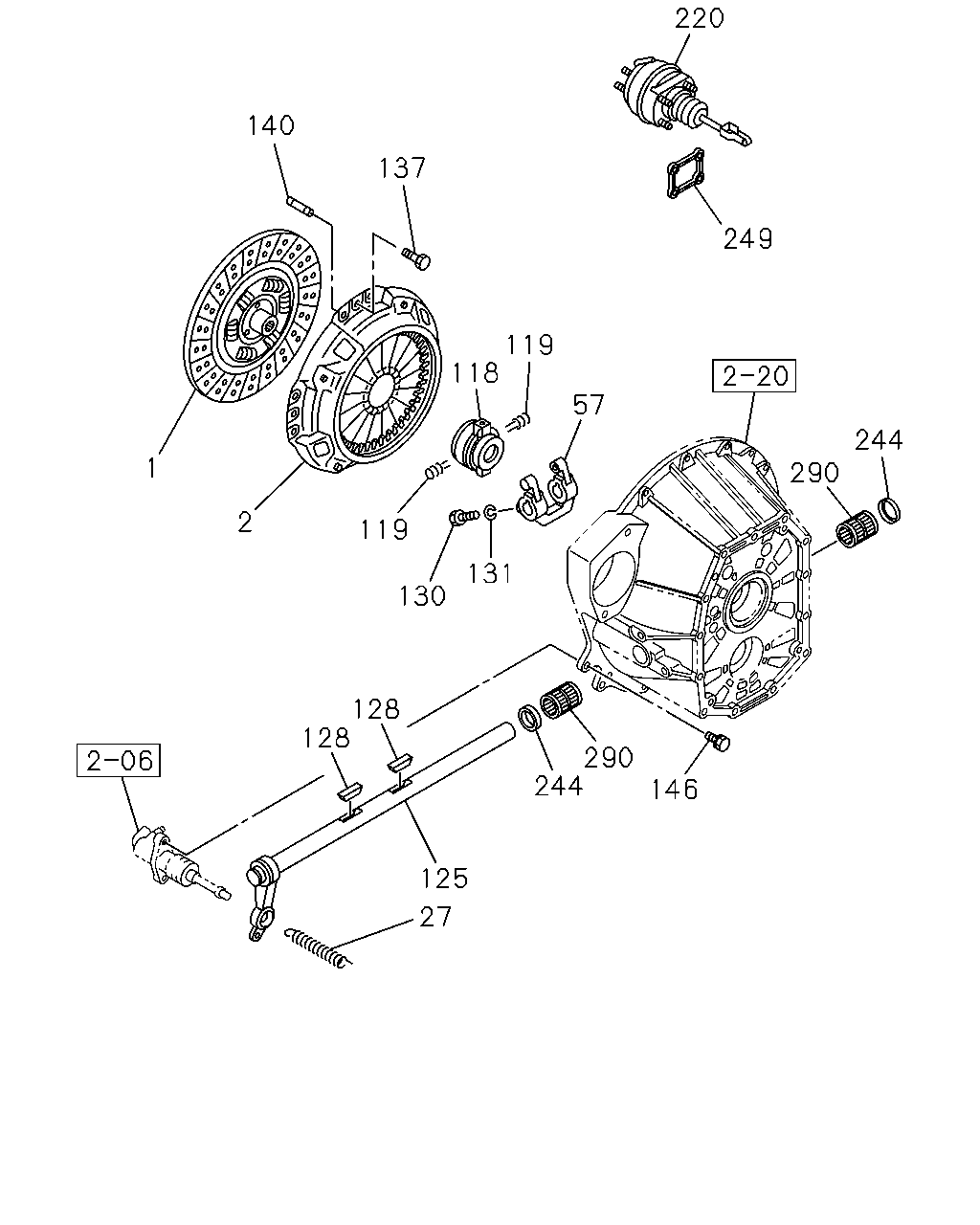

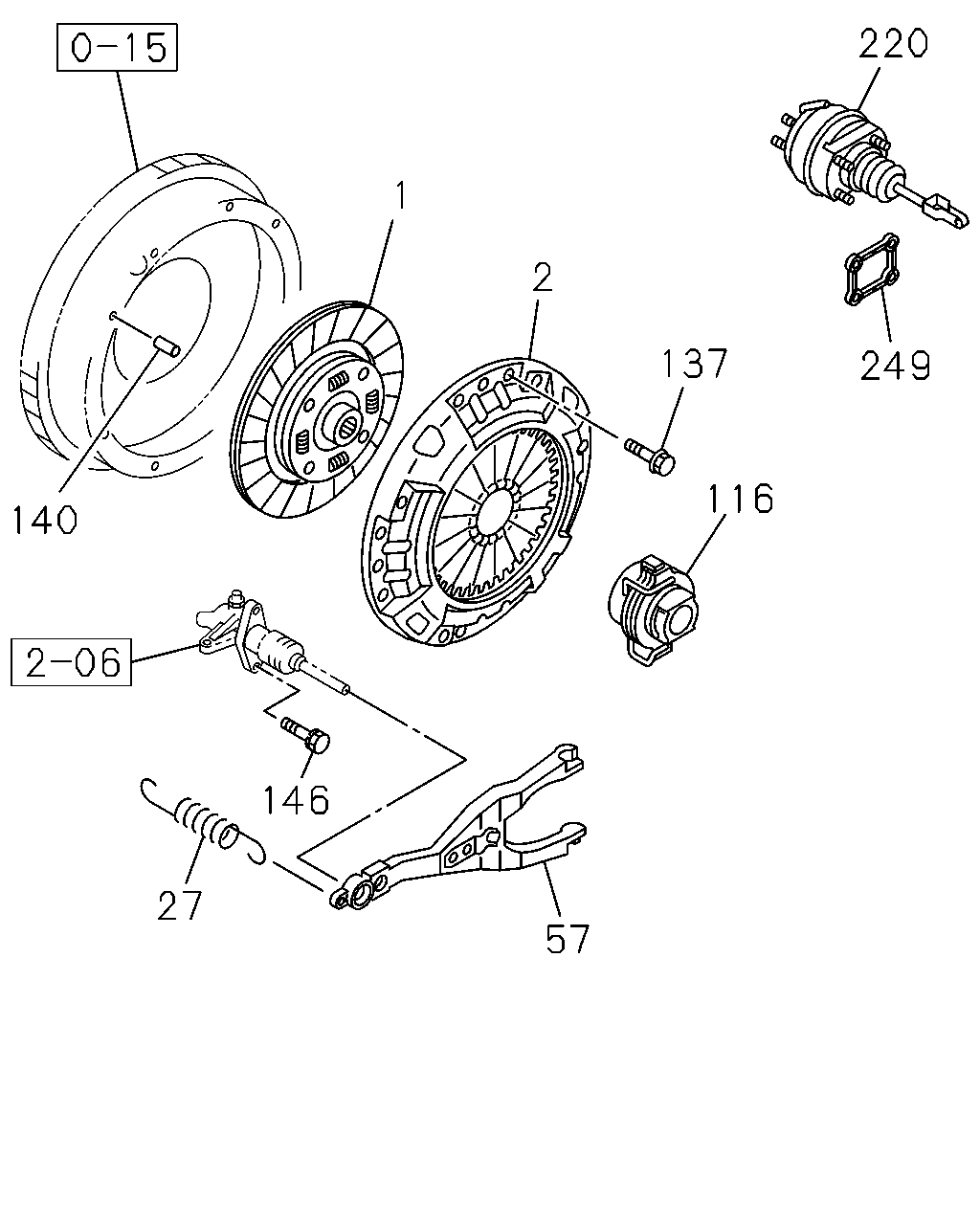

00.886 DISC; CLUTCH
4HE1 ENG(RLY)
VOLTAGE 24V<7AE>
EXC. ENGINE POWER N-SPEC(7QV)
|
8-97259-940-0 |
01 |
1 |
0211-0308 |
● |
|
|
| |
1 |
00.886 DISC; CLUTCH
4HE1 ENG(RLY)
VOLTAGE 24V<7AE>
EXC. ENGINE POWER N-SPEC(7QV)
|
8-97367-795-0 |
01 |
1 |
0309-0501 |
● |
|
|
| |
1 |
00.886 DISC; CLUTCH
4HE1 ENG(RLY)
EXC. VOLTAGE 24V<7AE>,ENGINE POWER
N-SPEC(7QV)
|
8-97307-712-0 |
01 |
1 |
0211-0404 |
● |
|
|
| |
1 |
00.886 DISC; CLUTCH
4HE1 ENG(RLY)
EXC. VOLTAGE 24V<7AE>,ENGINE POWER
N-SPEC(7QV)
|
8-97380-142-0 |
01 |
1 |
0405-0501 |
● |
|
|
| |
1 |
00.886 DISC; CLUTCH
4HE1-TCS ENG(RDS)
|
8-97367-795-0 |
01 |
1 |
0502-0506 |
● |
|
|
| |
1 |
00.886 DISC; CLUTCH
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)
|
8-97367-795-0 |
01 |
1 |
0507-0606 |
● |
● |
|
| |
1 |
00.886 DISC; CLUTCH
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)
|
8-97367-795-0 |
01 |
1 |
0607-1007 |
● |
|
|
| |
1 |
00.886 DISC; CLUTCH
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)
|
8-98164-917-1 |
01 |
1 |
1008- |
● |
|
|
| |
1 |
00.886 DISC; CLUTCH
4HG1 ENG(RJH),4HF1-S ENG(RLS)
|
8-97320-355-0 |
01 |
1 |
0211-0412 |
|
● |
● |
| |
1 |
00.886 DISC; CLUTCH
4HE1 ENG(RLY)
ENGINE POWER N-SPEC(7QV)
|
8-97320-355-0 |
01 |
1 |
0211-0412 |
|
● |
|
| |
1 |
00.886 DISC; CLUTCH
4HG1 ENG(RJH),4HF1-S ENG(RLS)
|
8-97377-149-0 |
01 |
1 |
0501-0501 |
|
● |
● |
| |
1 |
00.886 DISC; CLUTCH
4HE1 ENG(RLY)
ENGINE POWER N-SPEC(7QV)
|
8-97377-149-0 |
01 |
1 |
0501-0501 |
|
● |
|
| |
1 |
00.886 DISC; CLUTCH
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1
ENG(RJH),4HF1-N ENG(RJZ),4HF1-S
ENG(RLS)
|
8-97377-149-0 |
01 |
1 |
0502-1402 |
|
● |
● |
| |
1 |
00.886 DISC; CLUTCH
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1
ENG(RJH),4HF1-N ENG(RJZ),4HF1-S
ENG(RLS)
|
8-98255-959-1 |
01 |
1 |
1403- |
|
● |
● |
| |
1 |
00.886 DISC; CLUTCH
4HK1-TCN ENG(RDQ)
|
8-97362-235-1 |
01 |
1 |
0607-1402 |
|
● |
|
| |
1 |
00.886 DISC; CLUTCH
4HK1-TCN ENG(RDQ)
|
8-98255-140-1 |
01 |
1 |
1403- |
|
● |
|
| |
1 |
00.886 DISC; CLUTCH
4HG1 ENG(RJH),4HF1-S ENG(RLS)
BEST VALUE PARTS
|
5-87610-049-0 |
01 |
1 |
0501-0501 |
|
● |
● |
| |
1 |
00.886 DISC; CLUTCH
4HE1 ENG(RLY)
ENGINE POWER N-SPEC(7QV)
BEST VALUE PARTS
|
5-87610-049-0 |
01 |
1 |
0501-0501 |
|
● |
|
| |
1 |
00.886 DISC; CLUTCH
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1
ENG(RJH),4HF1-N ENG(RJZ),4HF1-S
ENG(RLS)
BEST VALUE PARTS
|
5-87610-049-2 |
01 |
1 |
0502- |
|
● |
● |
| |
1 |
00.886 DISC; CLUTCH
4HK1-TCN ENG(RDQ)
BEST VALUE PARTS
|
5-87610-080-0 |
01 |
1 |
0607-1402 |
|
● |
|
| |
1 |
00.886 DISC; CLUTCH
4HK1-TCN ENG(RDQ)
BEST VALUE PARTS
|
5-87610-080-1 |
01 |
1 |
1502- |
|
● |
|
| |
1 |
00.886 DISC; CLUTCH
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)
BEST VALUE PARTS
|
5-87610-092-0 |
01 |
1 |
1104- |
● |
|
|
| |
2 |
00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY)
|
8-97038-831-2 |
01 |
1 |
0211-0302 |
● |
|
|
| |
2 |
00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY)
08.859
|
8-97351-794-0 |
01 |
1 |
0303-0303 |
● |
|
|
| |
2 |
00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY)
VOLTAGE 24V<7AE>
EXC. ENGINE POWER N-SPEC(7QV)
08.859
|
8-97351-794-0 |
01 |
1 |
0304-0501 |
● |
|
|
| |
2 |
00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY)
EXC. VOLTAGE 24V<7AE>,ENGINE POWER
N-SPEC(7QV)
|
8-97038-831-2 |
01 |
1 |
0304-0501 |
● |
|
|
| |
2 |
00.859 PLATE ASM; PRESSURE,CLU
4HE1-TCS ENG(RDS)
08.859
|
8-97351-794-0 |
01 |
1 |
0502-0506 |
● |
|
|
| |
2 |
00.859 PLATE ASM; PRESSURE,CLU
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)
08.859
|
8-97351-794-0 |
01 |
1 |
0507-0606 |
● |
● |
|
| |
2 |
00.859 PLATE ASM; PRESSURE,CLU
4HK1-TCN ENG(RDQ),4HE1-TCS ENG(RDS),
4HK1-TCS ENG(RJS)
08.859
|
8-97351-794-0 |
01 |
1 |
0607-1405 |
● |
● |
|
| |
2 |
00.859 PLATE ASM; PRESSURE,CLU
4HK1-TCN ENG(RDQ),4HE1-TCS ENG(RDS),
4HK1-TCS ENG(RJS)
|
8-97038-831-2 |
01 |
1 |
1406- |
● |
● |
|
| |
2 |
00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH)
TURBOCHARGER(K51)
|
8-97169-534-0 |
01 |
1 |
0211-0308 |
|
● |
● |
| |
2 |
00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY)
|
8-97169-534-0 |
01 |
1 |
0211-0308 |
|
● |
|
| |
2 |
00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH)
TURBOCHARGER(K51)
|
8-97169-534-0 |
01 |
1 |
0309-0501 |
|
● |
● |
| |
2 |
00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY)
ENGINE POWER N-SPEC(7QV)
|
8-97169-534-0 |
01 |
1 |
0309-0501 |
|
● |
|
| |
2 |
00.859 PLATE ASM; PRESSURE,CLU
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR)
|
8-97169-534-0 |
01 |
1 |
0502- |
|
● |
● |
| |
2 |
00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH),4HF1-S ENG(RLS)
EXC. TURBOCHARGER(K51)
|
8-97310-796-0 |
01 |
1 |
0211-0302 |
|
● |
|
| |
2 |
00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH),4HF1-S ENG(RLS)
EXC. TURBOCHARGER(K51)
|
8-97351-833-0 |
01 |
1 |
0303-0412 |
|
● |
|
| |
2 |
00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH),4HF1-S ENG(RLS)
EXC. TURBOCHARGER(K51)
|
8-97310-796-0 |
01 |
1 |
0501-0501 |
|
● |
|
| |
2 |
00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S
ENG(RLS)
|
8-97310-796-0 |
01 |
1 |
0502- |
|
● |
|
| |
2 |
00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY)
BEST VALUE PARTS
|
5-87610-104-0 |
01 |
1 |
0211-0302 |
● |
|
|
| |
2 |
00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY)
BEST VALUE PARTS
|
5-87610-081-0 |
01 |
1 |
0303-0303 |
● |
|
|
| |
2 |
00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY)
EXC. VOLTAGE 24V<7AE>,ENGINE POWER
N-SPEC(7QV)
BEST VALUE PARTS
|
5-87610-104-0 |
01 |
1 |
0304-0501 |
● |
|
|
| |
2 |
00.859 PLATE ASM; PRESSURE,CLU
4HE1-TCS ENG(RDS)
BEST VALUE PARTS
|
5-87610-081-0 |
01 |
1 |
0502-0506 |
● |
|
|
| |
2 |
00.859 PLATE ASM; PRESSURE,CLU
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)
BEST VALUE PARTS
|
5-87610-081-0 |
01 |
1 |
0507-0606 |
● |
● |
|
| |
2 |
00.859 PLATE ASM; PRESSURE,CLU
4HK1-TCN ENG(RDQ),4HE1-TCS ENG(RDS),
4HK1-TCS ENG(RJS)
BEST VALUE PARTS
|
5-87610-081-0 |
01 |
1 |
0607-1405 |
● |
● |
|
| |
2 |
00.859 PLATE ASM; PRESSURE,CLU
4HK1-TCN ENG(RDQ),4HE1-TCS ENG(RDS),
4HK1-TCS ENG(RJS)
BEST VALUE PARTS
|
5-87610-104-0 |
01 |
1 |
1406- |
● |
● |
|
| |
2 |
00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH)
TURBOCHARGER(K51)
BEST VALUE PARTS
|
5-87610-079-0 |
01 |
1 |
0211-0308 |
|
● |
● |
| |
2 |
00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY)
BEST VALUE PARTS
|
5-87610-079-0 |
01 |
1 |
0211-0308 |
|
● |
|
| |
2 |
00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH)
TURBOCHARGER(K51)
BEST VALUE PARTS
|
5-87610-079-0 |
01 |
1 |
0309-0501 |
|
● |
● |
| |
2 |
00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY)
ENGINE POWER N-SPEC(7QV)
BEST VALUE PARTS
|
5-87610-079-0 |
01 |
1 |
0309-0501 |
|
● |
|
| |
2 |
00.859 PLATE ASM; PRESSURE,CLU
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR)
BEST VALUE PARTS
|
5-87610-079-0 |
01 |
1 |
0502- |
|
● |
● |
| |
2 |
00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH),4HF1-S ENG(RLS)
EXC. TURBOCHARGER(K51)
BEST VALUE PARTS
|
5-87610-050-1 |
01 |
1 |
0211-0501 |
|
● |
|
| |
2 |
00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S
ENG(RLS)
BEST VALUE PARTS
|
5-87610-050-1 |
01 |
1 |
0502- |
|
● |
|
| |
27 |
00.837 SPRING; RETURN,SHIFT FORK
4HE1 ENG(RLY)
|
8-97184-358-0 |
01 |
1 |
0211-0501 |
● |
|
|
| |
27 |
00.837 SPRING; RETURN,SHIFT FORK
4HE1-TCS ENG(RDS)
|
8-97184-358-0 |
01 |
1 |
0502-0506 |
● |
|
|
| |
27 |
00.837 SPRING; RETURN,SHIFT FORK
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)
|
8-97184-358-0 |
01 |
1 |
0507-0812 |
● |
|
|
| |
27 |
00.837 SPRING; RETURN,SHIFT FORK
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)
|
8-98025-314-0 |
01 |
1 |
0901- |
● |
|
|
| |
27 |
00.837 SPRING; RETURN,SHIFT FORK
4HG1 ENG(RJH),4HF1-S ENG(RLS)
|
8-97184-359-0 |
01 |
1 |
0211-0501 |
|
|
● |
| |
27 |
00.837 SPRING; RETURN,SHIFT FORK
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
|
8-97184-359-0 |
01 |
1 |
0211-0501 |
|
● |
|
| |
27 |
00.837 SPRING; RETURN,SHIFT FORK
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1
ENG(RJH),4HF1-N ENG(RJZ),4HF1-S
ENG(RLS)
|
8-97184-359-0 |
01 |
1 |
0502-0606 |
|
● |
● |
| |
27 |
00.837 SPRING; RETURN,SHIFT FORK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),
4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
|
8-97184-359-0 |
01 |
1 |
0607-0812 |
|
● |
● |
| |
27 |
00.837 SPRING; RETURN,SHIFT FORK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),
4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
|
8-98025-313-0 |
01 |
1 |
0901- |
|
● |
● |
| |
57 |
00.795 FORK; SHIFT,CLU
|
8-97310-456-1 |
01 |
1 |
0211-0501 |
● |
|
|
| |
57 |
00.795 FORK; SHIFT,CLU
4HE1-TCS ENG(RDS)
|
8-97310-456-1 |
01 |
1 |
0502-0506 |
● |
|
|
| |
57 |
00.795 FORK; SHIFT,CLU
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)
|
8-97310-456-1 |
01 |
1 |
0507- |
● |
|
|
| |
57 |
00.795 FORK; SHIFT,CLU
|
8-97255-303-0 |
01 |
1 |
0211-0501 |
|
● |
● |
| |
57 |
00.795 FORK; SHIFT,CLU
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1
ENG(RJH),4HF1-N ENG(RJZ),4HF1-S
ENG(RLS)
|
8-97255-303-0 |
01 |
1 |
0502-0606 |
|
● |
● |
| |
57 |
00.795 FORK; SHIFT,CLU
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),
4HE1-TCN ENG(RDR),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
|
8-97255-303-0 |
01 |
1 |
0607- |
|
● |
● |
| |
118 |
00.799 BEARING; CLU RELEASE
|
1-31310-012-0 |
01 |
1 |
0211-0501 |
● |
|
|
| |
118 |
00.799 BEARING; CLU RELEASE
4HE1-TCS ENG(RDS)
|
1-31310-012-0 |
01 |
1 |
0502-0506 |
● |
|
|
| |
118 |
00.799 BEARING; CLU RELEASE
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)
|
1-31310-012-0 |
01 |
1 |
0507- |
● |
|
|
| |
118 |
00.799 BEARING; CLU RELEASE
BEST VALUE PARTS
|
1-87610-110-0 |
01 |
1 |
0211-0501 |
● |
|
|
| |
118 |
00.799 BEARING; CLU RELEASE
4HE1-TCS ENG(RDS)
BEST VALUE PARTS
|
1-87610-110-0 |
01 |
1 |
0502-0506 |
● |
|
|
| |
118 |
00.799 BEARING; CLU RELEASE
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)
BEST VALUE PARTS
|
1-87610-110-0 |
01 |
1 |
0507- |
● |
|
|
| |
119 |
00.797 SPRING; SHIFT FORK
|
1-31329-024-0 |
02 |
1 |
0211-0501 |
● |
|
|
| |
119 |
00.797 SPRING; SHIFT FORK
4HE1-TCS ENG(RDS)
|
1-31329-024-0 |
02 |
1 |
0502-0506 |
● |
|
|
| |
119 |
00.797 SPRING; SHIFT FORK
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)
|
1-31329-024-0 |
02 |
1 |
0507- |
● |
|
|
| |
125 |
00.805 SHAFT; CLU
|
8-97310-435-0 |
01 |
1 |
0211-0501 |
● |
|
|
| |
125 |
00.805 SHAFT; CLU
4HE1-TCS ENG(RDS)
|
8-97310-435-0 |
01 |
1 |
0502-0506 |
● |
|
|
| |
125 |
00.805 SHAFT; CLU
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)
|
8-97310-435-0 |
01 |
1 |
0507- |
● |
|
|
| |
128 |
00.833 KEY; FEATHER,CLU SHAFT
|
9-09867-008-0 |
02 |
1 |
0211-0501 |
● |
|
|
| |
128 |
00.833 KEY; FEATHER,CLU SHAFT
4HE1-TCS ENG(RDS)
|
9-09867-008-0 |
02 |
1 |
0502-0506 |
● |
|
|
| |
128 |
00.833 KEY; FEATHER,CLU SHAFT
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)
|
9-09867-008-0 |
02 |
1 |
0507- |
● |
|
|
| |
130 |
00.833 SCREW; SHIFT FORK
08.977
M8X14
|
9-06120-814-0 |
01 |
1 |
0211-0501 |
● |
|
|
| |
130 |
00.833 SCREW; SHIFT FORK
4HE1-TCS ENG(RDS)
08.977
M8X14
|
9-06120-814-0 |
01 |
1 |
0502-0506 |
● |
|
|
| |
130 |
00.833 SCREW; SHIFT FORK
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)
08.977
M8X14
|
9-06120-814-0 |
01 |
1 |
0507-0512 |
● |
|
|
| |
130 |
00.833 SCREW; SHIFT FORK
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)
M8X14
|
0-61200-814-0 |
01 |
1 |
0601- |
● |
|
|
| |
131 |
00.833 WASHER; LK,SHIFT FORK
00.002
ID=8.2
|
9-09150-508-0 |
01 |
1 |
0211-0501 |
● |
|
|
| |
131 |
00.833 WASHER; LK,SHIFT FORK
4HE1-TCS ENG(RDS)
00.002
ID=8.2
|
9-09150-508-0 |
01 |
1 |
0502-0506 |
● |
|
|
| |
131 |
00.833 WASHER; LK,SHIFT FORK
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)
00.002
ID=8.2
|
9-09150-508-0 |
01 |
1 |
0507-0603 |
● |
|
|
| |
131 |
00.833 WASHER; LK,SHIFT FORK
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)
04.439
ID=8.2
|
0-91510-508-0 |
01 |
1 |
0604- |
● |
|
|
| |
137 |
00.862 BOLT; CLU COVER
02.559
M10X16 FLANGE
|
0-28081-016-0 |
10 |
1 |
0211-0512 |
● |
● |
● |
| |
137 |
00.862 BOLT; CLU COVER
02.483
M10X16 FLANGE
|
0-28051-016-0 |
10 |
1 |
0601- |
● |
● |
● |
| |
140 |
00.862 PIN; STRAIGHT
L=25
|
8-94410-361-0 |
02 |
1 |
0211- |
● |
● |
● |
| |
146 |
00.780 BOLT; SLAVE CYL TO TRANS CASE
04.686
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
0211-0512 |
● |
● |
● |
| |
146 |
00.780 BOLT; SLAVE CYL TO TRANS CASE
03.403
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0601- |
● |
● |
● |
| |
220 |
00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
4HE1 ENG(RLY)
POWER ASSIST CLUTCH(S2T)
|
8-97166-854-1 |
01 |
1 |
0211-0501 |
● |
● |
|
| |
220 |
00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER ASSIST CLUTCH(S2T)
|
8-97166-854-1 |
01 |
1 |
0211-0501 |
|
● |
● |
| |
220 |
00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
4HE1-TCS ENG(RDS)
POWER ASSIST CLUTCH(S2T)
|
8-97166-854-1 |
01 |
1 |
0502-0506 |
● |
|
|
| |
220 |
00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)
POWER ASSIST CLUTCH(S2T)
|
8-97166-854-1 |
01 |
1 |
0507-0606 |
● |
|
|
| |
220 |
00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
4HK1-TCN ENG(RDQ),4HE1-TCS ENG(RDS),
4HK1-TCS ENG(RJS)
POWER ASSIST CLUTCH(S2T)
|
8-97166-854-1 |
01 |
1 |
0607- |
● |
|
|
| |
220 |
00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
4HG1 ENG(RJH),4HF1-S ENG(RLS)
POWER ASSIST CLUTCH(S2T)
EXC. TURBOCHARGER(K51)
|
8-97162-962-1 |
01 |
1 |
0211-0501 |
|
● |
● |
| |
220 |
00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),4HG1
ENG(RJH),4HF1-N ENG(RJZ),4HF1-S
ENG(RLS)
POWER ASSIST CLUTCH(S2T)
|
8-97162-962-1 |
01 |
1 |
0502- |
|
● |
● |
| |
244 |
00.805 SEAL; DUST
ALSO INCLUDED IN GASKET SET(M/T).
00.797
|
1-09625-002-0 |
02 |
1 |
0211-0501 |
● |
|
|
| |
244 |
00.805 SEAL; DUST
ALSO INCLUDED IN GASKET SET(M/T).
4HE1-TCS ENG(RDS)
00.797
|
1-09625-002-0 |
02 |
1 |
0502-0506 |
● |
|
|
| |
244 |
00.805 SEAL; DUST
ALSO INCLUDED IN GASKET SET(M/T).
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)
00.797
|
1-09625-002-0 |
02 |
1 |
0507- |
● |
|
|
| |
249 |
00.864 SPACER; CLU BOOSTER
POWER ASSIST CLUTCH(S2T)
|
8-97167-489-0 |
01 |
1 |
0211- |
● |
● |
● |
| |
290 |
00.862 BEARING; NEEDLE
00.683
NTN
|
1-09811-002-1 |
02 |
1 |
0211-0501 |
● |
|
|
| |
290 |
00.862 BEARING; NEEDLE
4HE1-TCS ENG(RDS)
00.683
NTN
|
1-09811-002-1 |
02 |
1 |
0502-0506 |
● |
|
|
| |
290 |
00.862 BEARING; NEEDLE
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)
00.683
NTN
|
1-09811-002-1 |
02 |
1 |
0507- |
● |
|
|
