1-45 — WATER SEDIMENTER; FUEL (#45045) — 1105 parça

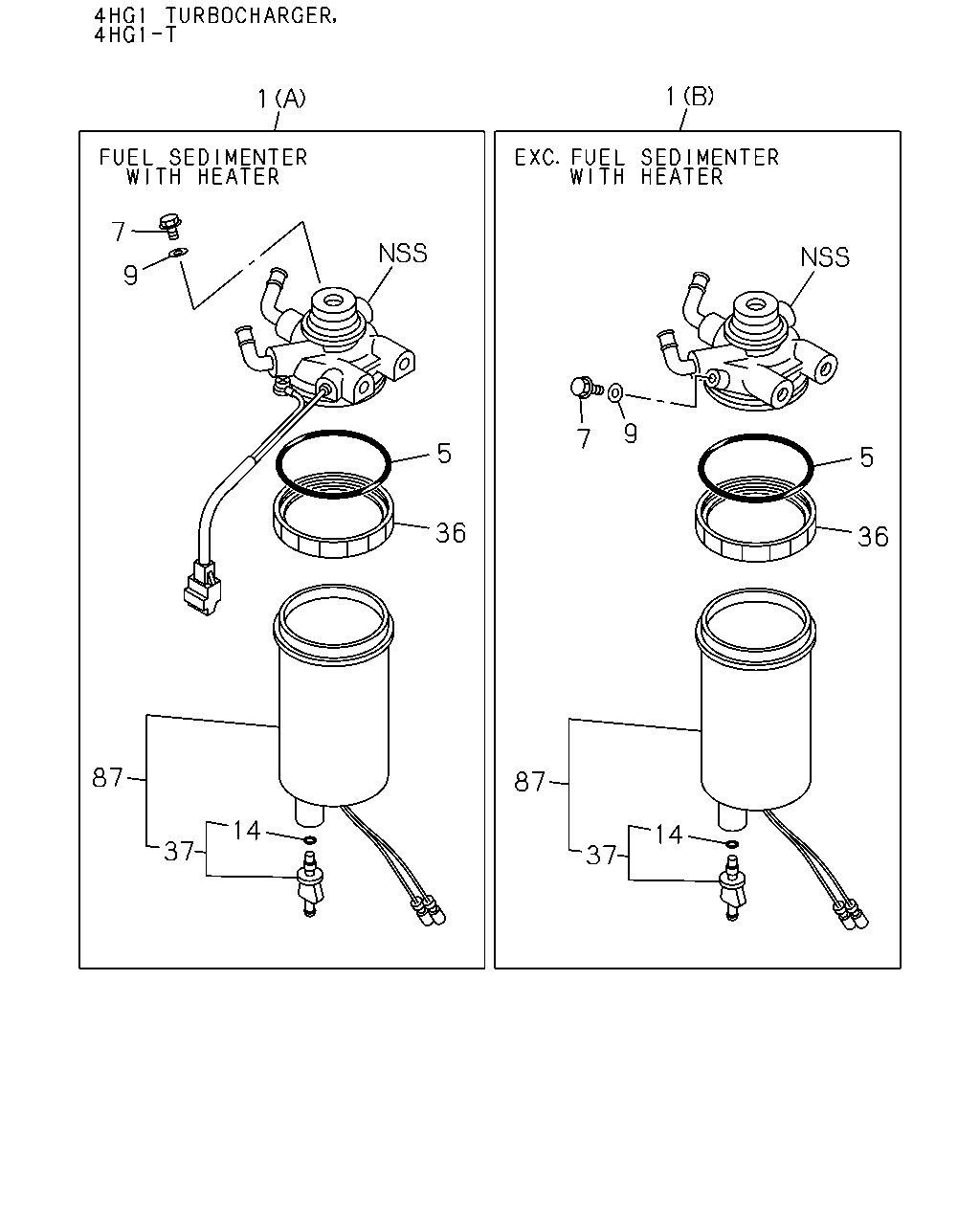

çizim 12933
1 1 7 9 9 7 5 5 36 36 87 87 14 14 37 37
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.890 SEDIMENTER; FUEL
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D) 		8-97207-734-1 01 1 0211-0501 ● ● ●
1 03.890 SEDIMENTER; FUEL
4HF1-N ENG(RJZ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D) 		8-97207-734-1 01 1 0502- ● ● ●
1 03.890 SEDIMENTER; FUEL
4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> ENGINE POWER N-SPEC(7QV) (C) 		8-97207-735-1 01 1 0211-0501 ● ● ●
1 03.890 SEDIMENTER; FUEL
4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU> (C) 		8-97207-735-1 01 1 0502- ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (G) 		8-97188-042-0 01 1 0211-0501 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
(G) 		8-97188-042-0 01 1 0211-0501 ●
1 03.890 SEDIMENTER; FUEL
4HE1-TCN ENG(RDR) (G) 		8-97188-042-1 01 1 0502- ●
1 03.890 SEDIMENTER; FUEL
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) (G) 		8-97188-042-1 01 1 0502- ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (E) 		8-94311-522-2 01 1 0211-0501 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> (E) 		8-94311-522-2 01 1 0211-0501 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> (E) 		8-94311-522-3 01 1 0502- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-SPEC(7QV) (F) 		8-94144-933-3 01 1 0211-0501 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,CHARGE AIR COOLER<6PL> (F) 		8-94144-933-3 01 1 0211-0501 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (F) 		8-94144-933-4 01 1 0502- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH) TURBOCHARGER(K51) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-97081-815-1 01 1 0211-0501 ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1-T ENG(RDP) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-97081-815-3 01 1 0502-0612 ● ●
1 03.890 SEDIMENTER; FUEL
4HG1-T ENG(RDP) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-97081-815-3 01 1 0701- ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-97081-814-2 01 1 0211-0501 ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1-T ENG(RDP) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-97081-814-3 01 1 0502-0612 ● ●
1 03.890 SEDIMENTER; FUEL
4HG1-T ENG(RDP) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-97081-814-3 01 1 0701- ● ● ●
1 03.890 SEDIMENTER; FUEL
4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> (H) 		8-98008-066-2 01 1 0507-0606 ●
1 03.890 SEDIMENTER; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> (H) 		8-98008-066-2 01 1 0607- ● ●
1 03.890 SEDIMENTER; FUEL
4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (H) 		8-98017-806-2 01 1 0507-0606 ●
1 03.890 SEDIMENTER; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (H) 		8-98017-806-2 01 1 0607- ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-09623-491-0 01 1 0211-0501 ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER 1-09623-491-0 01 1 0211-0501 ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1-TCN ENG(RDR) 		1-09623-491-0 01 1 0502- ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 		1-09623-491-0 01 1 0502- ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		5-09623-075-0 01 1 0211-0501 ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-09623-075-0 01 1 0211-0501 ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		5-09623-075-0 01 1 0211-0501 ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) 		5-09623-075-0 01 1 0502-0612 ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HF1-S ENG(RLS) 		5-09623-075-0 01 1 0701- ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) 		5-09623-075-0 01 1 0701- ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		5-09623-075-0 01 1 0701- ●
5 03.890 GASKET; UPR COVER,SEDIMENTER 5-09623-075-0 01 1 0701- ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		9-13219-070-0 01 1 0211-0501 ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER 9-13219-070-0 01 1 0211-0501 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1-TCN ENG(RDR) 		9-13219-070-0 01 1 0502- ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 		9-13219-070-0 01 1 0502- ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94132-674-0 01 1 0211-0501 ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-94132-674-0 01 1 0211-0501 ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94132-674-0 01 1 0211-0501 ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94132-674-0 01 1 0211-0501 ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-94132-674-0 01 1 0502-0612 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-94132-674-0 01 1 0502-0612 ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH) 		8-94132-674-0 01 1 0502-0612 ●
7 03.890 PLUG; DRAIN,SEDIMENTER 8-94132-674-0 01 1 0502-0612 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-94132-674-0 01 1 0701- ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-94132-674-0 01 1 0701- ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-94132-674-0 01 1 0701- ●
7 03.890 PLUG; DRAIN,SEDIMENTER 8-94132-674-0 01 1 0701- ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HK1-TCS ENG(RJS) 		8-97172-546-1 01 1 0507-0606 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97172-546-1 01 1 0607- ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0211-0501 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0211-0501 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1-TCN ENG(RDR) 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0502- ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0502- ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94132-675-0 01 1 0211-0501 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 0211-0501 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 0211-0501 ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94132-675-0 01 1 0211-0501 ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 0502- ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) 		8-94132-675-0 01 1 0502- ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-SPEC(7QV) 03.895 		9-09571-406-0 01 1 0211-0501 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,CHARGE AIR COOLER<6PL> 03.895 		9-09571-406-0 01 1 0211-0501 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 0502- ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94416-377-0 01 1 0211-0501 ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94416-377-0 01 1 0211-0501 ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94416-377-0 01 1 0502-0712 ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-SPEC(7QV) 		8-94447-156-0 01 1 0211-0501 ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,CHARGE AIR COOLER<6PL> 		8-94447-156-0 01 1 0211-0501 ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94447-156-0 01 1 0211-0501 ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94447-156-0 01 1 0502-0712 ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) 		8-94447-156-0 01 1 0502-0712 ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-94447-156-0 01 1 0801- ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-94447-156-0 01 1 0801- ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-94447-156-0 01 1 0801- ●
14 03.890 GASKET; SENSOR TO CENTER BOLT 8-94447-156-0 01 1 0801- ●
36 03.890 RING; BODY TO CASE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-13219-226-0 01 1 0211-0501 ● ● ● ● ●
36 03.890 RING; BODY TO CASE 1-13219-226-0 01 1 0211-0501 ●
36 03.890 RING; BODY TO CASE
4HE1-TCN ENG(RDR) 		1-13219-226-0 01 1 0502- ●
36 03.890 RING; BODY TO CASE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 		1-13219-226-0 01 1 0502- ● ● ●
36 03.890 RING; BODY TO CASE
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		5-13234-001-0 01 1 0211-0501 ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-13234-001-0 01 1 0211-0501 ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HG1 ENG(RJH) TURBOCHARGER(K51) 		5-13234-001-0 01 1 0211-0501 ● ● ●
36 03.890 RING; BODY TO CASE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) 		5-13234-001-0 01 1 0502-0612 ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HF1-S ENG(RLS) 		5-13234-001-0 01 1 0701- ●
36 03.890 RING; BODY TO CASE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) 		5-13234-001-0 01 1 0701- ● ●
36 03.890 RING; BODY TO CASE
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		5-13234-001-0 01 1 0701- ●
36 03.890 RING; BODY TO CASE 5-13234-001-0 01 1 0701- ●
37 03.890 PLUG; SENSOR
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97123-549-0 01 1 0211-0501 ● ● ●
37 03.890 PLUG; SENSOR
4HF1-N ENG(RJZ) 		8-97123-549-0 01 1 0502- ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94416-376-0 01 1 0211-0501 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94416-376-0 01 1 0211-0501 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94416-376-0 01 1 0502-0712 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-SPEC(7QV) 		8-94453-746-0 01 1 0211-0501 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,CHARGE AIR COOLER<6PL> 		8-94453-746-0 01 1 0211-0501 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94453-746-0 01 1 0211-0501 ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94453-746-0 01 1 0502-0712 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1-T ENG(RDP) 		8-94453-746-0 01 1 0502-0712 ● ●
37 03.890 PLUG; SENSOR
4HF1-S ENG(RLS) 		8-94453-746-0 01 1 0801- ●
37 03.890 PLUG; SENSOR
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-94453-746-0 01 1 0801- ● ●
37 03.890 PLUG; SENSOR
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-94453-746-0 01 1 0801- ●
37 03.890 PLUG; SENSOR 8-94453-746-0 01 1 0801- ●
37 03.890 PLUG; SENSOR
4HK1-TCS ENG(RJS) 		8-98004-899-0 01 1 0507-0606 ●
37 03.890 PLUG; SENSOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98004-899-0 01 1 0607- ● ●
87 03.890 CASE ASM; SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-SPEC(7QV) 		8-97219-363-0 01 1 0211-0501 ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,CHARGE AIR COOLER<6PL> 		8-97219-363-0 01 1 0211-0501 ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97219-363-0 01 1 0211-0501 ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97219-363-0 01 1 0502-0712 ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HG1-T ENG(RDP) 		8-97219-363-0 01 1 0502-0712 ● ●
87 03.890 CASE ASM; SEDIMENTER
4HF1-S ENG(RLS) 		8-97219-363-1 01 1 0801- ●
87 03.890 CASE ASM; SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97219-363-1 01 1 0801- ● ●
87 03.890 CASE ASM; SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-97219-363-1 01 1 0801- ●
87 03.890 CASE ASM; SEDIMENTER 8-97219-363-1 01 1 0801- ●

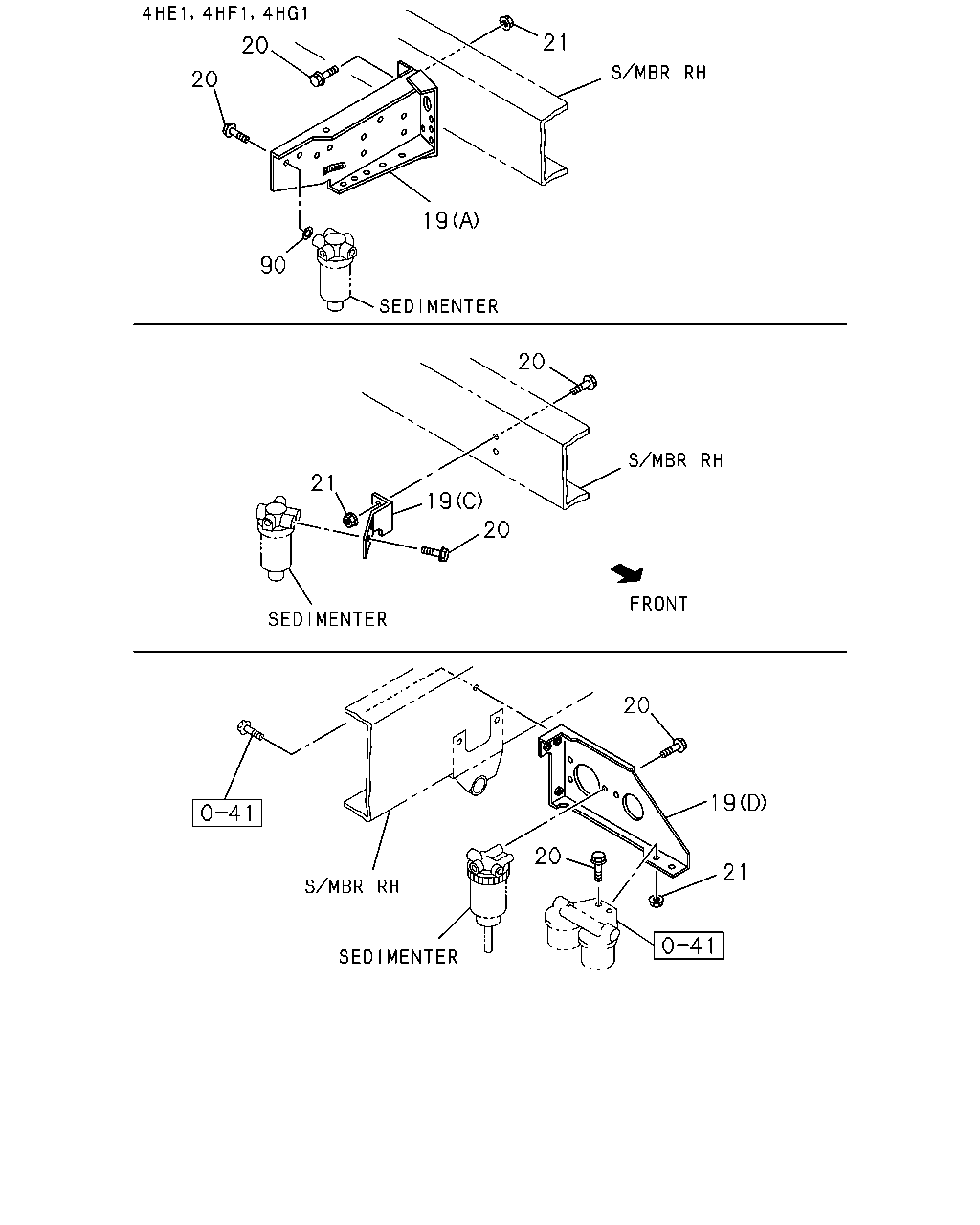

çizim 52481
21 20 20 19 90 20 21 19 20 20 19 20 21
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
19 03.890 BRACKET; FUEL SEDIMENTER
4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-298-2 01 1 0211-0306 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),CHARGE AIRCOOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-298-2 01 1 0211-0306 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),CHARGE AIRCOOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-298-2 01 1 0211-0306 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-97370-092-0 01 1 0307-0501 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),CHARGE AIRCOOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-97370-092-0 01 1 0307-0501 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),CHARGE AIRCOOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-97370-092-0 01 1 0307-0501 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97370-092-0 01 1 0502-0612 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> (A) 		8-97370-092-0 01 1 0502-0612 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> (A) 		8-97370-092-0 01 1 0502-0612 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> (A) 		8-97370-092-0 01 1 0701- ● ● ● ●

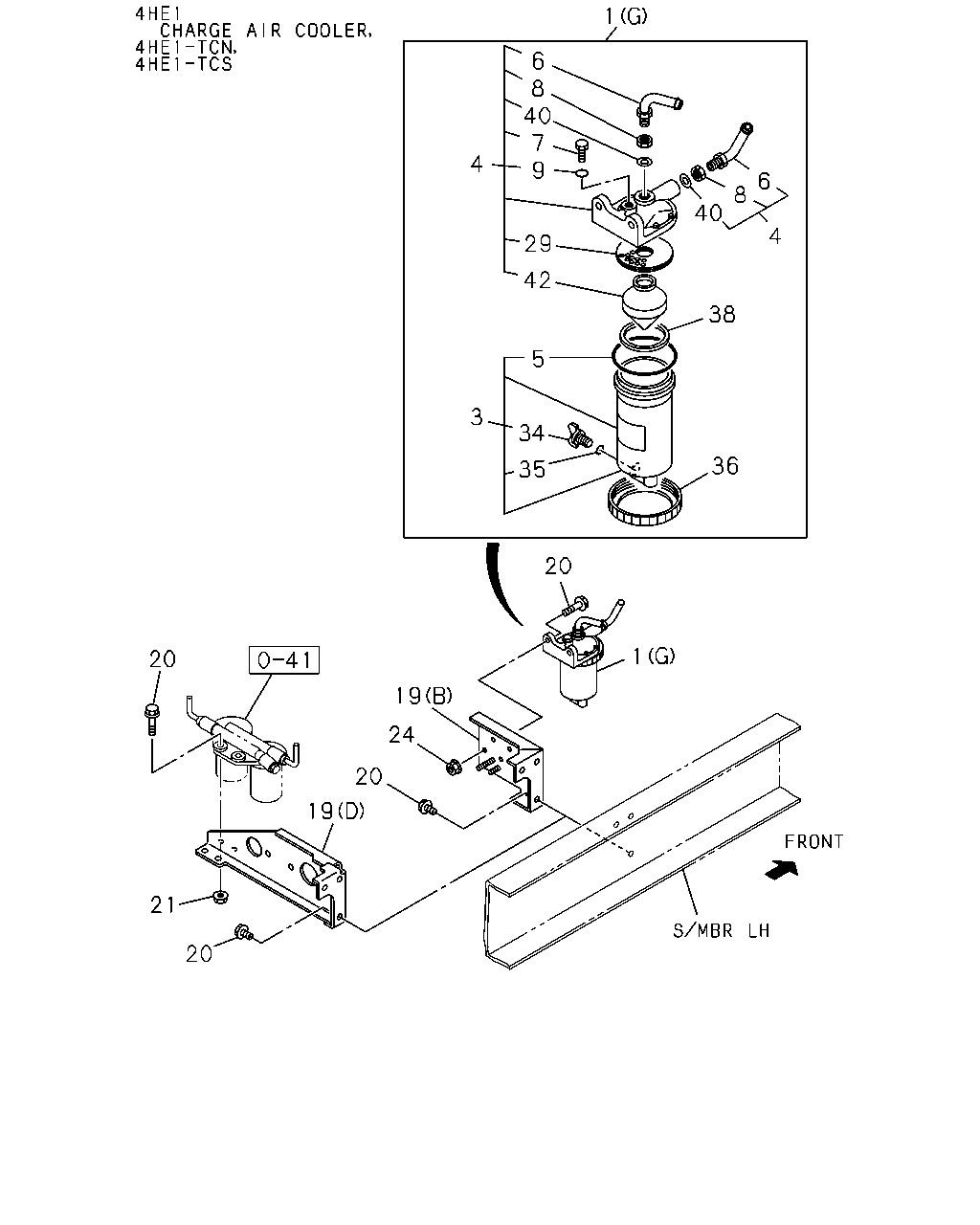

19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FUEL FILTER DUAL(S6B) (B) 		8-97182-048-2 01 1 0211-0309 ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
EXC. FUEL FILTER DUAL(S6B) (B) 		8-97182-048-2 01 1 0211-0309 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) 		8-97182-048-2 01 1 0211-0309 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FUEL FILTER DUAL(S6B) (B) 		8-97372-020-0 01 1 0310-0310 ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
EXC. FUEL FILTER DUAL(S6B) (B) 		8-97372-020-0 01 1 0310-0310 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) 		8-97372-020-0 01 1 0310-0310 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FUEL FILTER DUAL(S6B) (B) 		8-97182-048-2 01 1 0311-0501 ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
EXC. FUEL FILTER DUAL(S6B) (B) 		8-97182-048-2 01 1 0311-0501 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) 		8-97182-048-2 01 1 0311-0501 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1-TCN ENG(RDR) EXC. FUEL FILTER DUAL(S6B) (B) 		8-97182-048-2 01 1 0502- ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. FUEL FILTER DUAL(S6B) (B) 		8-97182-048-2 01 1 0502- ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) CHARGE AIR COOLER<6PL> (D) 		8-97148-721-1 01 1 0211-0212 ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
FUEL FILTER DUAL(S6B) (D) 		8-97148-721-1 01 1 0211-0212 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) CHARGE AIR COOLER<6PL> (D) 		8-97363-088-0 01 1 0301-0501 ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
FUEL FILTER DUAL(S6B) (D) 		8-97363-088-0 01 1 0301-0501 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1-TCN ENG(RDR) FUEL FILTER DUAL(S6B) (D) 		8-97363-088-0 01 1 0502- ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) FUEL FILTER DUAL(S6B) (D) 		8-97363-088-0 01 1 0502- ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (D) 		8-97189-165-0 01 1 0211-0212 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (D) 		8-97189-165-0 01 1 0211-0212 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (D) 		8-97363-089-0 01 1 0301-0501 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (D) 		8-97363-089-0 01 1 0301-0501 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (D) 		8-97363-089-0 01 1 0502- ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> (C) 		8-94366-685-0 01 1 0211-0501 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> (C) 		8-94366-685-0 01 1 0502- ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-295-0 01 1 0211-0501 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-295-0 01 1 0211-0501 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-295-0 01 1 0502- ● ● ●

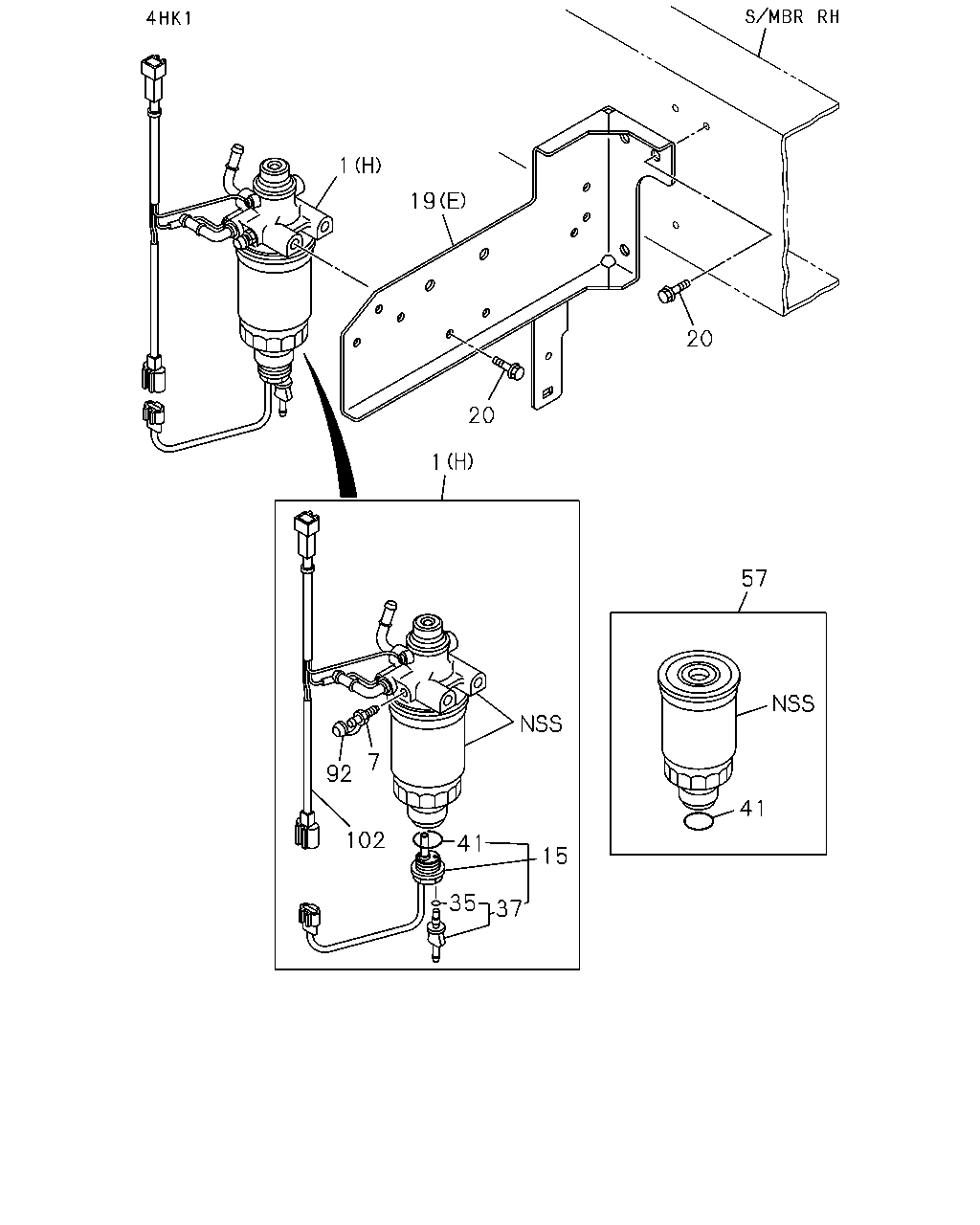

19 03.890 BRACKET; FUEL SEDIMENTER
4HK1-TCS ENG(RJS) (E) 		8-97368-101-5 01 1 0507-0606 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (E) 		8-97368-101-5 01 1 0607- ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0211-0302 ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0211-0302 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0211-0302 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0303-0501 ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0303-0501 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0502-0512 ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0502-0512 ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) M10X30 FLANGE 		0-28051-030-0 02 1 0601- ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) M10X30 FLANGE 		0-28051-030-0 02 1 0601- ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0211-0501 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0211-0501 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR) 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0502-0502 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0502-0502 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR) 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0503-0506 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4> 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0503-0506 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0503-0506 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR) 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4> 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4> 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR) 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4> 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4> 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR) 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 0607- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4> 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 0607- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4> 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 0607- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 0607- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0211-0501 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-S ENG(RLS) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0211-0501 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0211-0501 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0211-0501 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0502-0506 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0502-0506 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0502-0506 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0502-0506 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0607-0612 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0607-0612 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0607-0612 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0607-0612 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0607-0612 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0701- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0701- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0701- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0701- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0701- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 0211-0501 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 0211-0501 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 0502-0512 ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE 		0-28051-030-0 03 1 0601- ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 0211-0501 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 0502-0506 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 0507-0512 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HK1-TCS ENG(RJS) EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
03.275 M8X30 FLANGE 		0-28080-830-0 02 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ> 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0601-0606 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HK1-TCS ENG(RJS) EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ> 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0607-0612 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0607-0612 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0607-0612 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0607-0612 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0607-0612 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ> 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0701- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0701- ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0701- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0701- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0701- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 0211-0310 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 0211-0310 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 0311-0501 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 0311-0501 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 0311-0501 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 0502-0512 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 0502-0512 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 0502-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE 		0-28051-030-0 04 1 0601-0612 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE 		0-28051-030-0 04 1 0601-0612 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE 		0-28051-030-0 04 1 0601-0612 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE 		0-28051-030-0 04 1 0701- ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE 		0-28051-030-0 04 1 0701- ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE 		0-28051-030-0 04 1 0701- ●
21 03.890 NUT; BRKT TO FRAME
4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0211-0302 ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0211-0302 ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0211-0302 ●
21 03.890 NUT; BRKT TO FRAME
FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0211-0302 ●
21 03.890 NUT; BRKT TO FRAME
CHINA EQUIPMENT(YT2) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0303-0303 ● ●
21 03.890 NUT; BRKT TO FRAME
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0311-0501 ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0311-0501 ●
21 03.890 NUT; BRKT TO FRAME
4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) MINI BUS CHASSIS(V4B) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0311-0501 ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0311-0501 ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0311-0501 ●
21 03.890 NUT; BRKT TO FRAME
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0502-0506 ●
21 03.890 NUT; BRKT TO FRAME
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0502-0506 ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0502-0506 ●
21 03.890 NUT; BRKT TO FRAME
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0507-0602 ●
21 03.890 NUT; BRKT TO FRAME
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0507-0602 ● ●
21 03.890 NUT; BRKT TO FRAME
4HK1-TCS ENG(RJS) FUEL FILTER DUAL(S6B) MINI BUS CHASSIS(V4B) 04.785 M10 FLANGE 		0-91150-110-0 03 1 0507-0602 ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0507-0602 ●
21 03.890 NUT; BRKT TO FRAME
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 03 1 0603-0606 ●
21 03.890 NUT; BRKT TO FRAME
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 03 1 0603-0606 ● ●
21 03.890 NUT; BRKT TO FRAME
4HK1-TCS ENG(RJS) FUEL FILTER DUAL(S6B) MINI BUS CHASSIS(V4B) 03.162 M10 FLANGE 		0-91180-110-0 03 1 0603-0606 ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 03 1 0603-0606 ●
21 03.890 NUT; BRKT TO FRAME
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 03 1 0607-0612 ●
21 03.890 NUT; BRKT TO FRAME
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 03 1 0607-0612 ● ●
21 03.890 NUT; BRKT TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL FILTER DUAL(S6B) MINI BUS CHASSIS(V4B) 03.162 M10 FLANGE 		0-91180-110-0 03 1 0607-0612 ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 03 1 0607-0612 ●
21 03.890 NUT; BRKT TO FRAME
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 03 1 0701- ●
21 03.890 NUT; BRKT TO FRAME
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 03 1 0701- ● ●
21 03.890 NUT; BRKT TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL FILTER DUAL(S6B) MINI BUS CHASSIS(V4B) 03.162 M10 FLANGE 		0-91180-110-0 03 1 0701- ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1-T ENG(RDP),4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 03 1 0701- ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0211-0302 ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0211-0302 ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
CHINA EQUIPMENT(YT2) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0211-0302 ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0303-0310 ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0303-0310 ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0303-0310 ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) MINI BUS CHASSIS(V4B) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0303-0310 ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0311-0501 ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0502-0602 ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0603- ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HF1-S ENG(RLS) MINI BUS CHASSIS(V4B) 04.785 M10 FLANGE 		0-91150-110-0 04 1 0211-0602 ● ●
21 03.890 NUT; BRKT TO FRAME
4HF1-S ENG(RLS) MINI BUS CHASSIS(V4B) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0603- ● ●
90 03.890 WASHER
4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 ID=8.4 OD=26 		9-09164-808-0 02 1 0306-0501 ● ● ●
90 03.890 WASHER
4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 ID=8.4 OD=26 		9-09164-808-0 02 1 0502-0605 ● ● ●
90 03.890 WASHER
4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> 03.706 ID=8.4 OD=26 		0-91614-808-0 02 1 0606- ● ● ●

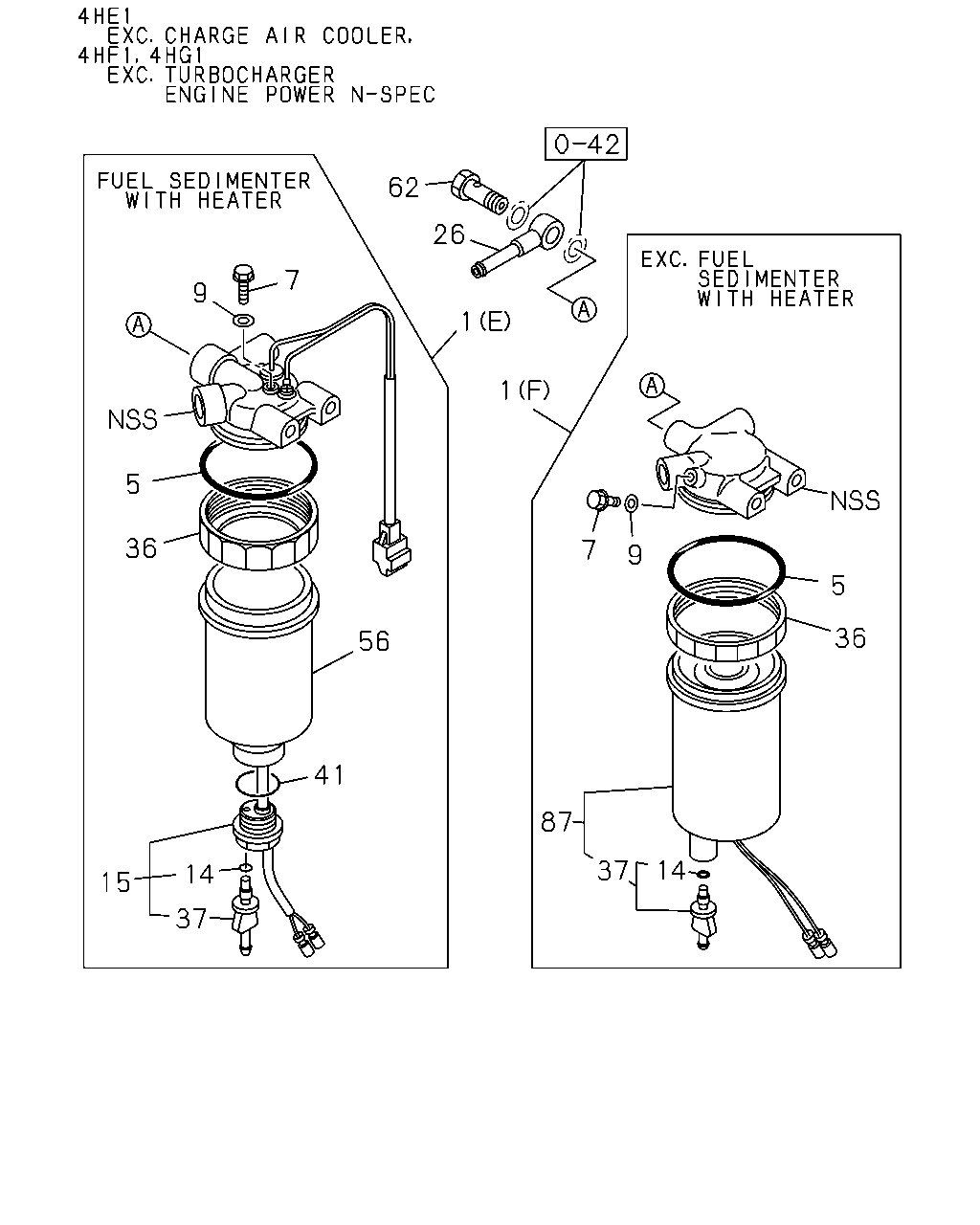

çizim 52497
62 26 7 9 1 1 5 36 7 9 5 36 56 41 87 37 14 14 15 37
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.890 SEDIMENTER; FUEL
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D) 		8-97207-734-1 01 1 0211-0501 ● ● ●
1 03.890 SEDIMENTER; FUEL
4HF1-N ENG(RJZ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D) 		8-97207-734-1 01 1 0502- ● ● ●
1 03.890 SEDIMENTER; FUEL
4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> ENGINE POWER N-SPEC(7QV) (C) 		8-97207-735-1 01 1 0211-0501 ● ● ●
1 03.890 SEDIMENTER; FUEL
4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU> (C) 		8-97207-735-1 01 1 0502- ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (G) 		8-97188-042-0 01 1 0211-0501 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
(G) 		8-97188-042-0 01 1 0211-0501 ●
1 03.890 SEDIMENTER; FUEL
4HE1-TCN ENG(RDR) (G) 		8-97188-042-1 01 1 0502- ●
1 03.890 SEDIMENTER; FUEL
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) (G) 		8-97188-042-1 01 1 0502- ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (E) 		8-94311-522-2 01 1 0211-0501 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> (E) 		8-94311-522-2 01 1 0211-0501 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> (E) 		8-94311-522-3 01 1 0502- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-SPEC(7QV) (F) 		8-94144-933-3 01 1 0211-0501 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,CHARGE AIR COOLER<6PL> (F) 		8-94144-933-3 01 1 0211-0501 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (F) 		8-94144-933-4 01 1 0502- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH) TURBOCHARGER(K51) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-97081-815-1 01 1 0211-0501 ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1-T ENG(RDP) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-97081-815-3 01 1 0502-0612 ● ●
1 03.890 SEDIMENTER; FUEL
4HG1-T ENG(RDP) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-97081-815-3 01 1 0701- ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-97081-814-2 01 1 0211-0501 ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1-T ENG(RDP) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-97081-814-3 01 1 0502-0612 ● ●
1 03.890 SEDIMENTER; FUEL
4HG1-T ENG(RDP) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-97081-814-3 01 1 0701- ● ● ●
1 03.890 SEDIMENTER; FUEL
4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> (H) 		8-98008-066-2 01 1 0507-0606 ●
1 03.890 SEDIMENTER; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> (H) 		8-98008-066-2 01 1 0607- ● ●
1 03.890 SEDIMENTER; FUEL
4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (H) 		8-98017-806-2 01 1 0507-0606 ●
1 03.890 SEDIMENTER; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (H) 		8-98017-806-2 01 1 0607- ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-09623-491-0 01 1 0211-0501 ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER 1-09623-491-0 01 1 0211-0501 ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1-TCN ENG(RDR) 		1-09623-491-0 01 1 0502- ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 		1-09623-491-0 01 1 0502- ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		5-09623-075-0 01 1 0211-0501 ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-09623-075-0 01 1 0211-0501 ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		5-09623-075-0 01 1 0211-0501 ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) 		5-09623-075-0 01 1 0502-0612 ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HF1-S ENG(RLS) 		5-09623-075-0 01 1 0701- ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) 		5-09623-075-0 01 1 0701- ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		5-09623-075-0 01 1 0701- ●
5 03.890 GASKET; UPR COVER,SEDIMENTER 5-09623-075-0 01 1 0701- ●

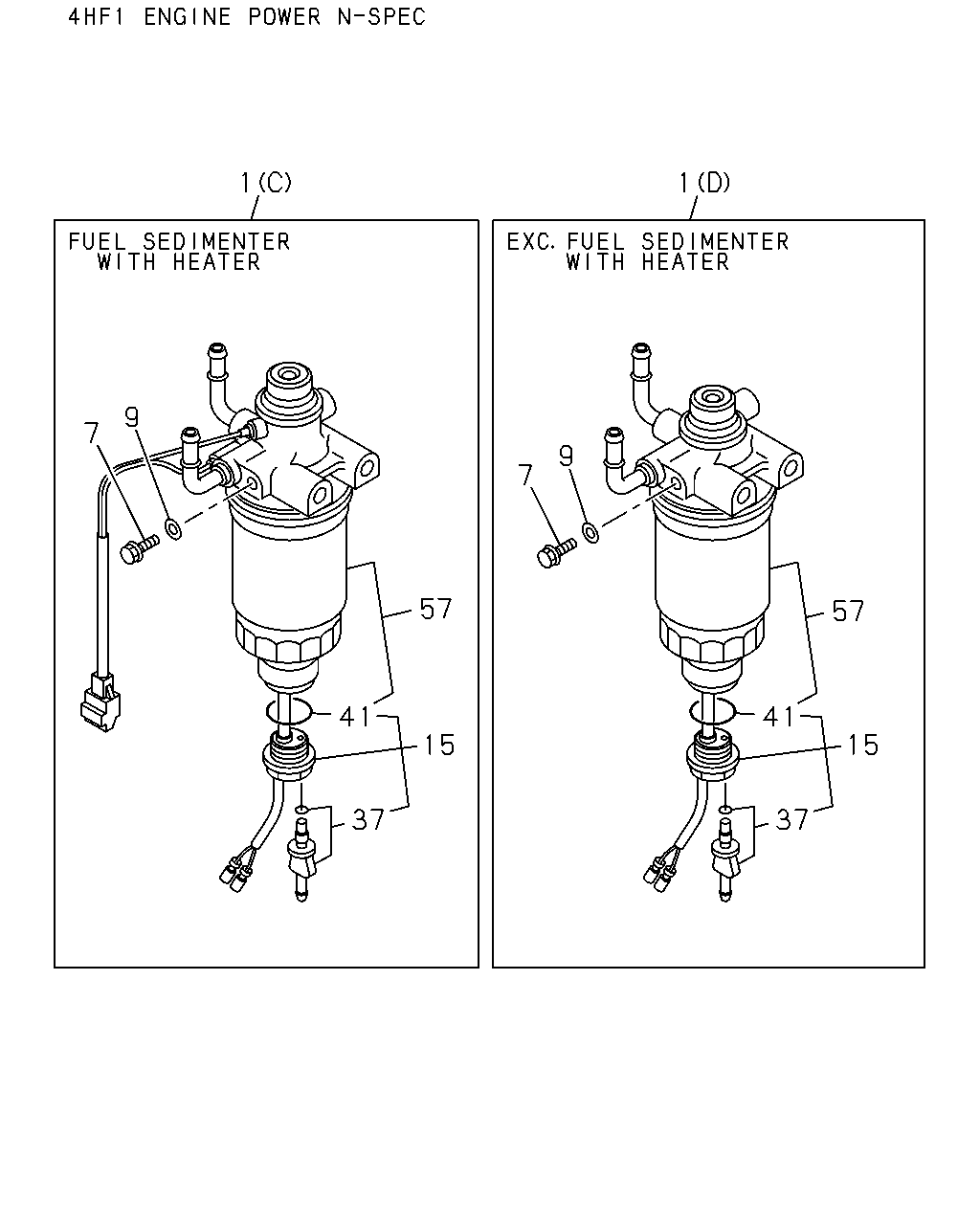

7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		9-13219-070-0 01 1 0211-0501 ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER 9-13219-070-0 01 1 0211-0501 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1-TCN ENG(RDR) 		9-13219-070-0 01 1 0502- ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 		9-13219-070-0 01 1 0502- ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94132-674-0 01 1 0211-0501 ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-94132-674-0 01 1 0211-0501 ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94132-674-0 01 1 0211-0501 ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94132-674-0 01 1 0211-0501 ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-94132-674-0 01 1 0502-0612 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-94132-674-0 01 1 0502-0612 ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH) 		8-94132-674-0 01 1 0502-0612 ●
7 03.890 PLUG; DRAIN,SEDIMENTER 8-94132-674-0 01 1 0502-0612 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-94132-674-0 01 1 0701- ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-94132-674-0 01 1 0701- ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-94132-674-0 01 1 0701- ●
7 03.890 PLUG; DRAIN,SEDIMENTER 8-94132-674-0 01 1 0701- ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HK1-TCS ENG(RJS) 		8-97172-546-1 01 1 0507-0606 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97172-546-1 01 1 0607- ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0211-0501 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0211-0501 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1-TCN ENG(RDR) 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0502- ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0502- ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94132-675-0 01 1 0211-0501 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 0211-0501 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 0211-0501 ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94132-675-0 01 1 0211-0501 ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 0502- ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) 		8-94132-675-0 01 1 0502- ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-SPEC(7QV) 03.895 		9-09571-406-0 01 1 0211-0501 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,CHARGE AIR COOLER<6PL> 03.895 		9-09571-406-0 01 1 0211-0501 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 0502- ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94416-377-0 01 1 0211-0501 ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94416-377-0 01 1 0211-0501 ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94416-377-0 01 1 0502-0712 ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-SPEC(7QV) 		8-94447-156-0 01 1 0211-0501 ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,CHARGE AIR COOLER<6PL> 		8-94447-156-0 01 1 0211-0501 ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94447-156-0 01 1 0211-0501 ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94447-156-0 01 1 0502-0712 ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) 		8-94447-156-0 01 1 0502-0712 ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-94447-156-0 01 1 0801- ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-94447-156-0 01 1 0801- ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-94447-156-0 01 1 0801- ●
14 03.890 GASKET; SENSOR TO CENTER BOLT 8-94447-156-0 01 1 0801- ●
15 03.890 SENSOR ASM; SEDIMENTER
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97079-821-0 01 1 0211-0501 ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HF1-N ENG(RJZ) 		8-97079-821-0 01 1 0502- ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94153-430-0 01 1 0211-0501 ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94153-430-0 01 1 0211-0501 ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94153-430-0 01 1 0502-0712 ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-98004-758-0 01 1 0507-0606 ●
15 03.890 SENSOR ASM; SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-98004-758-0 01 1 0607- ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98009-886-0 01 1 0507-0606 ●
15 03.890 SENSOR ASM; SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98009-886-0 01 1 0607- ● ●
26 03.163 PIPE; FUEL,IN & OUT
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		5-15411-223-1 02 1 0211-0501 ● ● ● ● ●
26 03.163 PIPE; FUEL,IN & OUT
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-15411-223-1 02 1 0211-0501 ● ● ● ● ●
26 03.163 PIPE; FUEL,IN & OUT
4HF1-S ENG(RLS) 		5-15411-223-1 02 1 0502- ●
26 03.163 PIPE; FUEL,IN & OUT
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		5-15411-223-1 02 1 0502- ● ●
26 03.163 PIPE; FUEL,IN & OUT
4HG1 ENG(RJH) 		5-15411-223-1 02 1 0502- ●
26 03.163 PIPE; FUEL,IN & OUT 5-15411-223-1 02 1 0502- ●
36 03.890 RING; BODY TO CASE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-13219-226-0 01 1 0211-0501 ● ● ● ● ●
36 03.890 RING; BODY TO CASE 1-13219-226-0 01 1 0211-0501 ●
36 03.890 RING; BODY TO CASE
4HE1-TCN ENG(RDR) 		1-13219-226-0 01 1 0502- ●
36 03.890 RING; BODY TO CASE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 		1-13219-226-0 01 1 0502- ● ● ●
36 03.890 RING; BODY TO CASE
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		5-13234-001-0 01 1 0211-0501 ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-13234-001-0 01 1 0211-0501 ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HG1 ENG(RJH) TURBOCHARGER(K51) 		5-13234-001-0 01 1 0211-0501 ● ● ●
36 03.890 RING; BODY TO CASE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) 		5-13234-001-0 01 1 0502-0612 ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HF1-S ENG(RLS) 		5-13234-001-0 01 1 0701- ●
36 03.890 RING; BODY TO CASE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) 		5-13234-001-0 01 1 0701- ● ●
36 03.890 RING; BODY TO CASE
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		5-13234-001-0 01 1 0701- ●
36 03.890 RING; BODY TO CASE 5-13234-001-0 01 1 0701- ●
37 03.890 PLUG; SENSOR
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97123-549-0 01 1 0211-0501 ● ● ●
37 03.890 PLUG; SENSOR
4HF1-N ENG(RJZ) 		8-97123-549-0 01 1 0502- ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94416-376-0 01 1 0211-0501 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94416-376-0 01 1 0211-0501 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94416-376-0 01 1 0502-0712 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-SPEC(7QV) 		8-94453-746-0 01 1 0211-0501 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,CHARGE AIR COOLER<6PL> 		8-94453-746-0 01 1 0211-0501 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94453-746-0 01 1 0211-0501 ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94453-746-0 01 1 0502-0712 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1-T ENG(RDP) 		8-94453-746-0 01 1 0502-0712 ● ●
37 03.890 PLUG; SENSOR
4HF1-S ENG(RLS) 		8-94453-746-0 01 1 0801- ●
37 03.890 PLUG; SENSOR
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-94453-746-0 01 1 0801- ● ●
37 03.890 PLUG; SENSOR
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-94453-746-0 01 1 0801- ●
37 03.890 PLUG; SENSOR 8-94453-746-0 01 1 0801- ●
37 03.890 PLUG; SENSOR
4HK1-TCS ENG(RJS) 		8-98004-899-0 01 1 0507-0606 ●
37 03.890 PLUG; SENSOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98004-899-0 01 1 0607- ● ●
41 03.890 GASKET; SENSOR TO CASE
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 08.927 		9-09563-334-0 01 1 0211-0501 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 08.927 		9-09563-334-0 01 1 0211-0501 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 08.927 		9-09563-334-0 01 1 0211-0501 ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 0502-0506 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HF1-N ENG(RJZ) 08.927 		9-09563-334-0 01 1 0502-0506 ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 0507-0606 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HF1-N ENG(RJZ) 08.927 		9-09563-334-0 01 1 0507-0606 ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 0507-0606 ●
41 03.890 GASKET; SENSOR TO CASE
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 0607-0611 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HF1-N ENG(RJZ) 08.927 		9-09563-334-0 01 1 0607-0611 ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 0607-0611 ● ●
41 03.890 GASKET; SENSOR TO CASE
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 0612-0712 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HF1-N ENG(RJZ) 08.927 		9-09563-334-0 01 1 0612-0712 ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HF1-N ENG(RJZ) 08.927 		9-09563-334-0 01 1 0801- ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> 03.417 		1-09623-649-0 01 1 0507-0606 ●
41 03.890 GASKET; SENSOR TO CASE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> 03.417 		1-09623-649-0 01 1 0607-0611 ● ●
41 03.890 GASKET; SENSOR TO CASE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.417 		1-09623-649-0 01 1 0612- ● ●
56 03.890 CASE; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		5-13211-030-1 01 1 0211-0501 ● ● ● ● ●
56 03.890 CASE; FUEL SEDIMENTER
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		5-13211-030-1 01 1 0211-0501 ● ● ● ● ●
56 03.890 CASE; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		5-13211-030-1 01 1 0502-0712 ● ● ● ● ●
62 03.162 BOLT; EYE,FUEL FILTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) M14X29 EYE-BOLT 		9-09906-325-1 02 1 0211-0501 ● ● ● ● ●
62 03.162 BOLT; EYE,FUEL FILTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> M14X29 EYE-BOLT 		9-09906-325-1 02 1 0211-0501 ● ● ● ● ●
62 03.162 BOLT; EYE,FUEL FILTER
4HF1-S ENG(RLS) M14X29 EYE-BOLT 		9-09906-325-1 02 1 0502- ●
62 03.162 BOLT; EYE,FUEL FILTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) M14X29 EYE-BOLT 		9-09906-325-1 02 1 0502- ● ●
62 03.162 BOLT; EYE,FUEL FILTER
4HG1 ENG(RJH) M14X29 EYE-BOLT 		9-09906-325-1 02 1 0502- ●
62 03.162 BOLT; EYE,FUEL FILTER
M14X29 EYE-BOLT 		9-09906-325-1 02 1 0502- ●
87 03.890 CASE ASM; SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-SPEC(7QV) 		8-97219-363-0 01 1 0211-0501 ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,CHARGE AIR COOLER<6PL> 		8-97219-363-0 01 1 0211-0501 ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97219-363-0 01 1 0211-0501 ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97219-363-0 01 1 0502-0712 ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
4HG1-T ENG(RDP) 		8-97219-363-0 01 1 0502-0712 ● ●
87 03.890 CASE ASM; SEDIMENTER
4HF1-S ENG(RLS) 		8-97219-363-1 01 1 0801- ●
87 03.890 CASE ASM; SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97219-363-1 01 1 0801- ● ●
87 03.890 CASE ASM; SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-97219-363-1 01 1 0801- ●
87 03.890 CASE ASM; SEDIMENTER 8-97219-363-1 01 1 0801- ●
çizim 53635
1 1 9 7 9 7 57 57 41 41 15 15 37 37
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.890 SEDIMENTER; FUEL
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D) 		8-97207-734-1 01 1 0211-0501 ● ● ●
1 03.890 SEDIMENTER; FUEL
4HF1-N ENG(RJZ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D) 		8-97207-734-1 01 1 0502- ● ● ●
1 03.890 SEDIMENTER; FUEL
4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> ENGINE POWER N-SPEC(7QV) (C) 		8-97207-735-1 01 1 0211-0501 ● ● ●
1 03.890 SEDIMENTER; FUEL
4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU> (C) 		8-97207-735-1 01 1 0502- ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (G) 		8-97188-042-0 01 1 0211-0501 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
(G) 		8-97188-042-0 01 1 0211-0501 ●
1 03.890 SEDIMENTER; FUEL
4HE1-TCN ENG(RDR) (G) 		8-97188-042-1 01 1 0502- ●
1 03.890 SEDIMENTER; FUEL
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) (G) 		8-97188-042-1 01 1 0502- ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (E) 		8-94311-522-2 01 1 0211-0501 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> (E) 		8-94311-522-2 01 1 0211-0501 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> (E) 		8-94311-522-3 01 1 0502- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-SPEC(7QV) (F) 		8-94144-933-3 01 1 0211-0501 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,CHARGE AIR COOLER<6PL> (F) 		8-94144-933-3 01 1 0211-0501 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (F) 		8-94144-933-4 01 1 0502- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH) TURBOCHARGER(K51) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-97081-815-1 01 1 0211-0501 ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1-T ENG(RDP) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-97081-815-3 01 1 0502-0612 ● ●
1 03.890 SEDIMENTER; FUEL
4HG1-T ENG(RDP) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-97081-815-3 01 1 0701- ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-97081-814-2 01 1 0211-0501 ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1-T ENG(RDP) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-97081-814-3 01 1 0502-0612 ● ●
1 03.890 SEDIMENTER; FUEL
4HG1-T ENG(RDP) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-97081-814-3 01 1 0701- ● ● ●
1 03.890 SEDIMENTER; FUEL
4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> (H) 		8-98008-066-2 01 1 0507-0606 ●
1 03.890 SEDIMENTER; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> (H) 		8-98008-066-2 01 1 0607- ● ●
1 03.890 SEDIMENTER; FUEL
4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (H) 		8-98017-806-2 01 1 0507-0606 ●
1 03.890 SEDIMENTER; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (H) 		8-98017-806-2 01 1 0607- ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		9-13219-070-0 01 1 0211-0501 ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER 9-13219-070-0 01 1 0211-0501 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1-TCN ENG(RDR) 		9-13219-070-0 01 1 0502- ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 		9-13219-070-0 01 1 0502- ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94132-674-0 01 1 0211-0501 ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-94132-674-0 01 1 0211-0501 ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94132-674-0 01 1 0211-0501 ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94132-674-0 01 1 0211-0501 ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-94132-674-0 01 1 0502-0612 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-94132-674-0 01 1 0502-0612 ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH) 		8-94132-674-0 01 1 0502-0612 ●
7 03.890 PLUG; DRAIN,SEDIMENTER 8-94132-674-0 01 1 0502-0612 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-94132-674-0 01 1 0701- ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-94132-674-0 01 1 0701- ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-94132-674-0 01 1 0701- ●
7 03.890 PLUG; DRAIN,SEDIMENTER 8-94132-674-0 01 1 0701- ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HK1-TCS ENG(RJS) 		8-97172-546-1 01 1 0507-0606 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97172-546-1 01 1 0607- ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0211-0501 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0211-0501 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1-TCN ENG(RDR) 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0502- ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0502- ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94132-675-0 01 1 0211-0501 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 0211-0501 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 0211-0501 ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94132-675-0 01 1 0211-0501 ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 0502- ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) 		8-94132-675-0 01 1 0502- ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-SPEC(7QV) 03.895 		9-09571-406-0 01 1 0211-0501 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,CHARGE AIR COOLER<6PL> 03.895 		9-09571-406-0 01 1 0211-0501 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 0502- ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97079-821-0 01 1 0211-0501 ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HF1-N ENG(RJZ) 		8-97079-821-0 01 1 0502- ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94153-430-0 01 1 0211-0501 ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94153-430-0 01 1 0211-0501 ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94153-430-0 01 1 0502-0712 ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-98004-758-0 01 1 0507-0606 ●
15 03.890 SENSOR ASM; SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-98004-758-0 01 1 0607- ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98009-886-0 01 1 0507-0606 ●
15 03.890 SENSOR ASM; SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98009-886-0 01 1 0607- ● ●
37 03.890 PLUG; SENSOR
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97123-549-0 01 1 0211-0501 ● ● ●
37 03.890 PLUG; SENSOR
4HF1-N ENG(RJZ) 		8-97123-549-0 01 1 0502- ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94416-376-0 01 1 0211-0501 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94416-376-0 01 1 0211-0501 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94416-376-0 01 1 0502-0712 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-SPEC(7QV) 		8-94453-746-0 01 1 0211-0501 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,CHARGE AIR COOLER<6PL> 		8-94453-746-0 01 1 0211-0501 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94453-746-0 01 1 0211-0501 ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94453-746-0 01 1 0502-0712 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1-T ENG(RDP) 		8-94453-746-0 01 1 0502-0712 ● ●
37 03.890 PLUG; SENSOR
4HF1-S ENG(RLS) 		8-94453-746-0 01 1 0801- ●
37 03.890 PLUG; SENSOR
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-94453-746-0 01 1 0801- ● ●
37 03.890 PLUG; SENSOR
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-94453-746-0 01 1 0801- ●
37 03.890 PLUG; SENSOR 8-94453-746-0 01 1 0801- ●
37 03.890 PLUG; SENSOR
4HK1-TCS ENG(RJS) 		8-98004-899-0 01 1 0507-0606 ●
37 03.890 PLUG; SENSOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98004-899-0 01 1 0607- ● ●
41 03.890 GASKET; SENSOR TO CASE
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 08.927 		9-09563-334-0 01 1 0211-0501 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 08.927 		9-09563-334-0 01 1 0211-0501 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 08.927 		9-09563-334-0 01 1 0211-0501 ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 0502-0506 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HF1-N ENG(RJZ) 08.927 		9-09563-334-0 01 1 0502-0506 ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 0507-0606 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HF1-N ENG(RJZ) 08.927 		9-09563-334-0 01 1 0507-0606 ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 0507-0606 ●
41 03.890 GASKET; SENSOR TO CASE
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 0607-0611 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HF1-N ENG(RJZ) 08.927 		9-09563-334-0 01 1 0607-0611 ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 0607-0611 ● ●
41 03.890 GASKET; SENSOR TO CASE
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 0612-0712 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HF1-N ENG(RJZ) 08.927 		9-09563-334-0 01 1 0612-0712 ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HF1-N ENG(RJZ) 08.927 		9-09563-334-0 01 1 0801- ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> 03.417 		1-09623-649-0 01 1 0507-0606 ●
41 03.890 GASKET; SENSOR TO CASE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> 03.417 		1-09623-649-0 01 1 0607-0611 ● ●
41 03.890 GASKET; SENSOR TO CASE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.417 		1-09623-649-0 01 1 0612- ● ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94369-299-3 01 1 0211-0501 ● ● ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4HF1-N ENG(RJZ) 		8-94369-299-3 01 1 0502- ● ● ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4HK1-TCS ENG(RJS) 		8-98021-811-0 01 1 0507-0511 ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4HK1-TCS ENG(RJS) 		8-98031-847-0 01 1 0512-0606 ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98031-847-0 01 1 0607-0611 ● ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98037-481-0 01 1 0612- ● ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4HK1-TCS ENG(RJS) BEST VALUE PARTS 		5-87610-157-0 01 1 0507-0511 ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4HK1-TCS ENG(RJS) BEST VALUE PARTS 		5-87610-157-0 01 1 0512-0606 ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) BEST VALUE PARTS 		5-87610-157-0 01 1 0607- ● ●
çizim 55241
1 6 8 40 7 9 4 6 8 40 4 29 42 38 5 3 34 36 35 20 1 20 19 24 20 19 21 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.890 SEDIMENTER; FUEL
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D) 		8-97207-734-1 01 1 0211-0501 ● ● ●
1 03.890 SEDIMENTER; FUEL
4HF1-N ENG(RJZ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D) 		8-97207-734-1 01 1 0502- ● ● ●
1 03.890 SEDIMENTER; FUEL
4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> ENGINE POWER N-SPEC(7QV) (C) 		8-97207-735-1 01 1 0211-0501 ● ● ●
1 03.890 SEDIMENTER; FUEL
4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU> (C) 		8-97207-735-1 01 1 0502- ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (G) 		8-97188-042-0 01 1 0211-0501 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
(G) 		8-97188-042-0 01 1 0211-0501 ●
1 03.890 SEDIMENTER; FUEL
4HE1-TCN ENG(RDR) (G) 		8-97188-042-1 01 1 0502- ●
1 03.890 SEDIMENTER; FUEL
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) (G) 		8-97188-042-1 01 1 0502- ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (E) 		8-94311-522-2 01 1 0211-0501 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> (E) 		8-94311-522-2 01 1 0211-0501 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> (E) 		8-94311-522-3 01 1 0502- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-SPEC(7QV) (F) 		8-94144-933-3 01 1 0211-0501 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,CHARGE AIR COOLER<6PL> (F) 		8-94144-933-3 01 1 0211-0501 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (F) 		8-94144-933-4 01 1 0502- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH) TURBOCHARGER(K51) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-97081-815-1 01 1 0211-0501 ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1-T ENG(RDP) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-97081-815-3 01 1 0502-0612 ● ●
1 03.890 SEDIMENTER; FUEL
4HG1-T ENG(RDP) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-97081-815-3 01 1 0701- ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-97081-814-2 01 1 0211-0501 ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1-T ENG(RDP) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-97081-814-3 01 1 0502-0612 ● ●
1 03.890 SEDIMENTER; FUEL
4HG1-T ENG(RDP) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-97081-814-3 01 1 0701- ● ● ●
1 03.890 SEDIMENTER; FUEL
4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> (H) 		8-98008-066-2 01 1 0507-0606 ●
1 03.890 SEDIMENTER; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> (H) 		8-98008-066-2 01 1 0607- ● ●
1 03.890 SEDIMENTER; FUEL
4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (H) 		8-98017-806-2 01 1 0507-0606 ●
1 03.890 SEDIMENTER; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (H) 		8-98017-806-2 01 1 0607- ● ●
3 03.890 BODY ASM; SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-13211-192-0 01 1 0211-0501 ● ● ● ● ●
3 03.890 BODY ASM; SEDIMENTER 1-13211-192-0 01 1 0211-0501 ●
3 03.890 BODY ASM; SEDIMENTER
4HE1-TCN ENG(RDR) 		1-13211-192-0 01 1 0502- ●
3 03.890 BODY ASM; SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 		1-13211-192-0 01 1 0502- ● ● ●
4 03.890 COVER; UPR,SEDIMENTER ASM
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-13212-146-0 01 1 0211-0501 ● ● ● ● ●
4 03.890 COVER; UPR,SEDIMENTER ASM 1-13212-146-0 01 1 0211-0501 ●
4 03.890 COVER; UPR,SEDIMENTER ASM
4HE1-TCN ENG(RDR) 		1-13212-146-0 01 1 0502- ●
4 03.890 COVER; UPR,SEDIMENTER ASM
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 		1-13212-146-0 01 1 0502- ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-09623-491-0 01 1 0211-0501 ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER 1-09623-491-0 01 1 0211-0501 ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1-TCN ENG(RDR) 		1-09623-491-0 01 1 0502- ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 		1-09623-491-0 01 1 0502- ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		5-09623-075-0 01 1 0211-0501 ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-09623-075-0 01 1 0211-0501 ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		5-09623-075-0 01 1 0211-0501 ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) 		5-09623-075-0 01 1 0502-0612 ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HF1-S ENG(RLS) 		5-09623-075-0 01 1 0701- ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) 		5-09623-075-0 01 1 0701- ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		5-09623-075-0 01 1 0701- ●
5 03.890 GASKET; UPR COVER,SEDIMENTER 5-09623-075-0 01 1 0701- ●
6 03.890 CONNECTOR ASM; SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-13229-002-0 02 1 0211-0501 ● ● ● ● ●
6 03.890 CONNECTOR ASM; SEDIMENTER 1-13229-002-0 02 1 0211-0501 ●
6 03.890 CONNECTOR ASM; SEDIMENTER
4HE1-TCN ENG(RDR) 		1-13229-002-0 02 1 0502- ●
6 03.890 CONNECTOR ASM; SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 		1-13229-002-0 02 1 0502- ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		9-13219-070-0 01 1 0211-0501 ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER 9-13219-070-0 01 1 0211-0501 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1-TCN ENG(RDR) 		9-13219-070-0 01 1 0502- ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 		9-13219-070-0 01 1 0502- ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94132-674-0 01 1 0211-0501 ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-94132-674-0 01 1 0211-0501 ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94132-674-0 01 1 0211-0501 ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94132-674-0 01 1 0211-0501 ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-94132-674-0 01 1 0502-0612 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-94132-674-0 01 1 0502-0612 ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH) 		8-94132-674-0 01 1 0502-0612 ●
7 03.890 PLUG; DRAIN,SEDIMENTER 8-94132-674-0 01 1 0502-0612 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-94132-674-0 01 1 0701- ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-94132-674-0 01 1 0701- ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-94132-674-0 01 1 0701- ●
7 03.890 PLUG; DRAIN,SEDIMENTER 8-94132-674-0 01 1 0701- ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HK1-TCS ENG(RJS) 		8-97172-546-1 01 1 0507-0606 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97172-546-1 01 1 0607- ● ●
8 03.890 STOPPER; CONN,SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-13229-001-0 02 1 0211-0501 ● ● ● ● ●
8 03.890 STOPPER; CONN,SEDIMENTER 1-13229-001-0 02 1 0211-0501 ●
8 03.890 STOPPER; CONN,SEDIMENTER
4HE1-TCN ENG(RDR) 		1-13229-001-0 02 1 0502- ●
8 03.890 STOPPER; CONN,SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 		1-13229-001-0 02 1 0502- ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0211-0501 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0211-0501 ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1-TCN ENG(RDR) 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0502- ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0502- ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94132-675-0 01 1 0211-0501 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 0211-0501 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94132-675-0 01 1 0211-0501 ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94132-675-0 01 1 0211-0501 ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 0502- ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1-T ENG(RDP),4HF1-N ENG(RJZ) 		8-94132-675-0 01 1 0502- ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-SPEC(7QV) 03.895 		9-09571-406-0 01 1 0211-0501 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,CHARGE AIR COOLER<6PL> 03.895 		9-09571-406-0 01 1 0211-0501 ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 0502- ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-298-2 01 1 0211-0306 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),CHARGE AIRCOOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-298-2 01 1 0211-0306 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),CHARGE AIRCOOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-298-2 01 1 0211-0306 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-97370-092-0 01 1 0307-0501 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),CHARGE AIRCOOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-97370-092-0 01 1 0307-0501 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),CHARGE AIRCOOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-97370-092-0 01 1 0307-0501 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97370-092-0 01 1 0502-0612 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> (A) 		8-97370-092-0 01 1 0502-0612 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> (A) 		8-97370-092-0 01 1 0502-0612 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> (A) 		8-97370-092-0 01 1 0701- ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FUEL FILTER DUAL(S6B) (B) 		8-97182-048-2 01 1 0211-0309 ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
EXC. FUEL FILTER DUAL(S6B) (B) 		8-97182-048-2 01 1 0211-0309 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) 		8-97182-048-2 01 1 0211-0309 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FUEL FILTER DUAL(S6B) (B) 		8-97372-020-0 01 1 0310-0310 ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
EXC. FUEL FILTER DUAL(S6B) (B) 		8-97372-020-0 01 1 0310-0310 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) 		8-97372-020-0 01 1 0310-0310 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FUEL FILTER DUAL(S6B) (B) 		8-97182-048-2 01 1 0311-0501 ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
EXC. FUEL FILTER DUAL(S6B) (B) 		8-97182-048-2 01 1 0311-0501 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) 		8-97182-048-2 01 1 0311-0501 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1-TCN ENG(RDR) EXC. FUEL FILTER DUAL(S6B) (B) 		8-97182-048-2 01 1 0502- ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. FUEL FILTER DUAL(S6B) (B) 		8-97182-048-2 01 1 0502- ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) CHARGE AIR COOLER<6PL> (D) 		8-97148-721-1 01 1 0211-0212 ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
FUEL FILTER DUAL(S6B) (D) 		8-97148-721-1 01 1 0211-0212 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) CHARGE AIR COOLER<6PL> (D) 		8-97363-088-0 01 1 0301-0501 ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
FUEL FILTER DUAL(S6B) (D) 		8-97363-088-0 01 1 0301-0501 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1-TCN ENG(RDR) FUEL FILTER DUAL(S6B) (D) 		8-97363-088-0 01 1 0502- ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) FUEL FILTER DUAL(S6B) (D) 		8-97363-088-0 01 1 0502- ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (D) 		8-97189-165-0 01 1 0211-0212 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (D) 		8-97189-165-0 01 1 0211-0212 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (D) 		8-97363-089-0 01 1 0301-0501 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (D) 		8-97363-089-0 01 1 0301-0501 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (D) 		8-97363-089-0 01 1 0502- ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> (C) 		8-94366-685-0 01 1 0211-0501 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> (C) 		8-94366-685-0 01 1 0502- ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-295-0 01 1 0211-0501 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-295-0 01 1 0211-0501 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-295-0 01 1 0502- ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HK1-TCS ENG(RJS) (E) 		8-97368-101-5 01 1 0507-0606 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (E) 		8-97368-101-5 01 1 0607- ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0211-0302 ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0211-0302 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0211-0302 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0303-0501 ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0303-0501 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0502-0512 ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0502-0512 ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) M10X30 FLANGE 		0-28051-030-0 02 1 0601- ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) M10X30 FLANGE 		0-28051-030-0 02 1 0601- ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0211-0501 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0211-0501 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR) 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0502-0502 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0502-0502 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR) 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0503-0506 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4> 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0503-0506 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0503-0506 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR) 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4> 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4> 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR) 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4> 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4> 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR) 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 0607- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4> 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 0607- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4> 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 0607- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 0607- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0211-0501 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-S ENG(RLS) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0211-0501 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0211-0501 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0211-0501 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0502-0506 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0502-0506 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0502-0506 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0502-0506 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0607-0612 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0607-0612 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0607-0612 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0607-0612 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0607-0612 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0701- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0701- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0701- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0701- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0701- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 0211-0501 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 0211-0501 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 0502-0512 ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE 		0-28051-030-0 03 1 0601- ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 0211-0501 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 0502-0506 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 0507-0512 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HK1-TCS ENG(RJS) EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
03.275 M8X30 FLANGE 		0-28080-830-0 02 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ> 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0601-0606 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HK1-TCS ENG(RJS) EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ> 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0607-0612 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0607-0612 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0607-0612 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0607-0612 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0607-0612 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ> 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0701- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0701- ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0701- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0701- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0701- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 0211-0310 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 0211-0310 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 0311-0501 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 0311-0501 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 0311-0501 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 0502-0512 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 0502-0512 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 0502-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE 		0-28051-030-0 04 1 0601-0612 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE 		0-28051-030-0 04 1 0601-0612 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE 		0-28051-030-0 04 1 0601-0612 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE 		0-28051-030-0 04 1 0701- ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE 		0-28051-030-0 04 1 0701- ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE 		0-28051-030-0 04 1 0701- ●
21 03.890 NUT; BRKT TO FRAME
4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0211-0302 ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0211-0302 ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0211-0302 ●
21 03.890 NUT; BRKT TO FRAME
FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0211-0302 ●
21 03.890 NUT; BRKT TO FRAME
CHINA EQUIPMENT(YT2) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0303-0303 ● ●
21 03.890 NUT; BRKT TO FRAME
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0311-0501 ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0311-0501 ●
21 03.890 NUT; BRKT TO FRAME
4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) MINI BUS CHASSIS(V4B) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0311-0501 ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0311-0501 ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0311-0501 ●
21 03.890 NUT; BRKT TO FRAME
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0502-0506 ●
21 03.890 NUT; BRKT TO FRAME
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0502-0506 ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0502-0506 ●
21 03.890 NUT; BRKT TO FRAME
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0507-0602 ●
21 03.890 NUT; BRKT TO FRAME
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0507-0602 ● ●
21 03.890 NUT; BRKT TO FRAME
4HK1-TCS ENG(RJS) FUEL FILTER DUAL(S6B) MINI BUS CHASSIS(V4B) 04.785 M10 FLANGE 		0-91150-110-0 03 1 0507-0602 ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0507-0602 ●
21 03.890 NUT; BRKT TO FRAME
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 03 1 0603-0606 ●
21 03.890 NUT; BRKT TO FRAME
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 03 1 0603-0606 ● ●
21 03.890 NUT; BRKT TO FRAME
4HK1-TCS ENG(RJS) FUEL FILTER DUAL(S6B) MINI BUS CHASSIS(V4B) 03.162 M10 FLANGE 		0-91180-110-0 03 1 0603-0606 ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 03 1 0603-0606 ●
21 03.890 NUT; BRKT TO FRAME
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 03 1 0607-0612 ●
21 03.890 NUT; BRKT TO FRAME
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 03 1 0607-0612 ● ●
21 03.890 NUT; BRKT TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL FILTER DUAL(S6B) MINI BUS CHASSIS(V4B) 03.162 M10 FLANGE 		0-91180-110-0 03 1 0607-0612 ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 03 1 0607-0612 ●
21 03.890 NUT; BRKT TO FRAME
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 03 1 0701- ●
21 03.890 NUT; BRKT TO FRAME
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 03 1 0701- ● ●
21 03.890 NUT; BRKT TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL FILTER DUAL(S6B) MINI BUS CHASSIS(V4B) 03.162 M10 FLANGE 		0-91180-110-0 03 1 0701- ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1-T ENG(RDP),4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 03 1 0701- ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0211-0302 ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0211-0302 ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
CHINA EQUIPMENT(YT2) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0211-0302 ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0303-0310 ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0303-0310 ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0303-0310 ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) MINI BUS CHASSIS(V4B) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 03 1 0303-0310 ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0311-0501 ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0502-0602 ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0603- ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ● ●
21 03.890 NUT; BRKT TO FRAME
4HF1-S ENG(RLS) MINI BUS CHASSIS(V4B) 04.785 M10 FLANGE 		0-91150-110-0 04 1 0211-0602 ● ●
21 03.890 NUT; BRKT TO FRAME
4HF1-S ENG(RLS) MINI BUS CHASSIS(V4B) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0603- ● ●
24 03.890 NUT; SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 08.917 M10 FLANGE 		0-91150-210-0 02 1 0211-0501 ● ● ● ● ●
24 03.890 NUT; SEDIMENTER
08.917 M10 FLANGE 		0-91150-210-0 02 1 0211-0501 ●
24 03.890 NUT; SEDIMENTER
4HE1-TCN ENG(RDR) 08.917 M10 FLANGE 		0-91150-210-0 02 1 0502-0602 ●
24 03.890 NUT; SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 08.917 M10 FLANGE 		0-91150-210-0 02 1 0502-0602 ● ● ●
24 03.890 NUT; SEDIMENTER
4HE1-TCN ENG(RDR) 04.085 M10 FLANGE 		0-91180-210-0 02 1 0603- ●
24 03.890 NUT; SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 04.085 M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ●
29 03.890 SCREEN ASM; SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-13219-228-0 01 1 0211-0501 ● ● ● ● ●
29 03.890 SCREEN ASM; SEDIMENTER 1-13219-228-0 01 1 0211-0501 ●
29 03.890 SCREEN ASM; SEDIMENTER
4HE1-TCN ENG(RDR) 		1-13219-228-0 01 1 0502- ●
29 03.890 SCREEN ASM; SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 		1-13219-228-0 01 1 0502- ● ● ●
34 03.890 PLUG; DRAIN,FUEL FILTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-13219-225-0 01 1 0211-0501 ● ● ● ● ●
34 03.890 PLUG; DRAIN,FUEL FILTER 1-13219-225-0 01 1 0211-0501 ●
34 03.890 PLUG; DRAIN,FUEL FILTER
4HE1-TCN ENG(RDR) 		1-13219-225-0 01 1 0502- ●
34 03.890 PLUG; DRAIN,FUEL FILTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 		1-13219-225-0 01 1 0502- ● ● ●
35 03.890 GASKET; DRAIN PLUG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-09623-490-0 01 1 0211-0501 ● ● ● ● ●
35 03.890 GASKET; DRAIN PLUG 1-09623-490-0 01 1 0211-0501 ●
35 03.890 GASKET; DRAIN PLUG
4HE1-TCN ENG(RDR) 		1-09623-490-0 01 1 0502- ●
35 03.890 GASKET; DRAIN PLUG
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 		1-09623-490-0 01 1 0502- ● ● ●
35 03.890 GASKET; DRAIN PLUG
4HK1-TCS ENG(RJS) 		8-98004-898-0 01 1 0507-0606 ●
35 03.890 GASKET; DRAIN PLUG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98004-898-0 01 1 0607- ● ●
36 03.890 RING; BODY TO CASE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-13219-226-0 01 1 0211-0501 ● ● ● ● ●
36 03.890 RING; BODY TO CASE 1-13219-226-0 01 1 0211-0501 ●
36 03.890 RING; BODY TO CASE
4HE1-TCN ENG(RDR) 		1-13219-226-0 01 1 0502- ●
36 03.890 RING; BODY TO CASE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 		1-13219-226-0 01 1 0502- ● ● ●
36 03.890 RING; BODY TO CASE
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		5-13234-001-0 01 1 0211-0501 ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		5-13234-001-0 01 1 0211-0501 ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HG1 ENG(RJH) TURBOCHARGER(K51) 		5-13234-001-0 01 1 0211-0501 ● ● ●
36 03.890 RING; BODY TO CASE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) 		5-13234-001-0 01 1 0502-0612 ● ● ● ● ●
36 03.890 RING; BODY TO CASE
4HF1-S ENG(RLS) 		5-13234-001-0 01 1 0701- ●
36 03.890 RING; BODY TO CASE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) 		5-13234-001-0 01 1 0701- ● ●
36 03.890 RING; BODY TO CASE
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		5-13234-001-0 01 1 0701- ●
36 03.890 RING; BODY TO CASE 5-13234-001-0 01 1 0701- ●
38 03.890 FLOAT; SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-13219-227-0 01 1 0211-0501 ● ● ● ● ●
38 03.890 FLOAT; SEDIMENTER 1-13219-227-0 01 1 0211-0501 ●
38 03.890 FLOAT; SEDIMENTER
4HE1-TCN ENG(RDR) 		1-13219-227-0 01 1 0502- ●
38 03.890 FLOAT; SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 		1-13219-227-0 01 1 0502- ● ● ●
40 03.890 GASKET; CONNECTOR TO COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2 		1-09630-085-0 02 1 0211-0501 ● ● ● ● ●
40 03.890 GASKET; CONNECTOR TO COVER
03.163 ID=14.2 OD=19.2 		1-09630-085-0 02 1 0211-0501 ●
40 03.890 GASKET; CONNECTOR TO COVER
4HE1-TCN ENG(RDR) 03.163 ID=14.2 OD=19.2 		1-09630-085-0 02 1 0502- ●
40 03.890 GASKET; CONNECTOR TO COVER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 03.163 ID=14.2 OD=19.2 		1-09630-085-0 02 1 0502- ● ● ●
42 03.890 PLATE; BAFFLE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-13219-229-0 01 1 0211-0501 ● ● ● ● ●
42 03.890 PLATE; BAFFLE 1-13219-229-0 01 1 0211-0501 ●
42 03.890 PLATE; BAFFLE
4HE1-TCN ENG(RDR) 		1-13219-229-0 01 1 0502- ●
42 03.890 PLATE; BAFFLE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 		1-13219-229-0 01 1 0502- ● ● ●
çizim 56098
1 19 20 20 1 57 7 92 41 102 41 15 35 37
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.890 SEDIMENTER; FUEL
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D) 		8-97207-734-1 01 1 0211-0501 ● ● ●
1 03.890 SEDIMENTER; FUEL
4HF1-N ENG(RJZ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D) 		8-97207-734-1 01 1 0502- ● ● ●
1 03.890 SEDIMENTER; FUEL
4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> ENGINE POWER N-SPEC(7QV) (C) 		8-97207-735-1 01 1 0211-0501 ● ● ●
1 03.890 SEDIMENTER; FUEL
4HF1-N ENG(RJZ) FUEL SEDIMENTER WITH HEATER<6HU> (C) 		8-97207-735-1 01 1 0502- ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (G) 		8-97188-042-0 01 1 0211-0501 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
(G) 		8-97188-042-0 01 1 0211-0501 ●
1 03.890 SEDIMENTER; FUEL
4HE1-TCN ENG(RDR) (G) 		8-97188-042-1 01 1 0502- ●
1 03.890 SEDIMENTER; FUEL
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) (G) 		8-97188-042-1 01 1 0502- ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (E) 		8-94311-522-2 01 1 0211-0501 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> (E) 		8-94311-522-2 01 1 0211-0501 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> (E) 		8-94311-522-3 01 1 0502- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-SPEC(7QV) (F) 		8-94144-933-3 01 1 0211-0501 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,CHARGE AIR COOLER<6PL> (F) 		8-94144-933-3 01 1 0211-0501 ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (F) 		8-94144-933-4 01 1 0502- ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH) TURBOCHARGER(K51) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-97081-815-1 01 1 0211-0501 ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1-T ENG(RDP) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-97081-815-3 01 1 0502-0612 ● ●
1 03.890 SEDIMENTER; FUEL
4HG1-T ENG(RDP) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-97081-815-3 01 1 0701- ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-97081-814-2 01 1 0211-0501 ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1-T ENG(RDP) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-97081-814-3 01 1 0502-0612 ● ●
1 03.890 SEDIMENTER; FUEL
4HG1-T ENG(RDP) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-97081-814-3 01 1 0701- ● ● ●
1 03.890 SEDIMENTER; FUEL
4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> (H) 		8-98008-066-2 01 1 0507-0606 ●
1 03.890 SEDIMENTER; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> (H) 		8-98008-066-2 01 1 0607- ● ●
1 03.890 SEDIMENTER; FUEL
4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (H) 		8-98017-806-2 01 1 0507-0606 ●
1 03.890 SEDIMENTER; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (H) 		8-98017-806-2 01 1 0607- ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		9-13219-070-0 01 1 0211-0501 ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER 9-13219-070-0 01 1 0211-0501 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1-TCN ENG(RDR) 		9-13219-070-0 01 1 0502- ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 		9-13219-070-0 01 1 0502- ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94132-674-0 01 1 0211-0501 ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-94132-674-0 01 1 0211-0501 ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94132-674-0 01 1 0211-0501 ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94132-674-0 01 1 0211-0501 ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-94132-674-0 01 1 0502-0612 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-94132-674-0 01 1 0502-0612 ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH) 		8-94132-674-0 01 1 0502-0612 ●
7 03.890 PLUG; DRAIN,SEDIMENTER 8-94132-674-0 01 1 0502-0612 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-94132-674-0 01 1 0701- ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-94132-674-0 01 1 0701- ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-94132-674-0 01 1 0701- ●
7 03.890 PLUG; DRAIN,SEDIMENTER 8-94132-674-0 01 1 0701- ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HK1-TCS ENG(RJS) 		8-97172-546-1 01 1 0507-0606 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97172-546-1 01 1 0607- ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97079-821-0 01 1 0211-0501 ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HF1-N ENG(RJZ) 		8-97079-821-0 01 1 0502- ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94153-430-0 01 1 0211-0501 ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94153-430-0 01 1 0211-0501 ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94153-430-0 01 1 0502-0712 ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-98004-758-0 01 1 0507-0606 ●
15 03.890 SENSOR ASM; SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-98004-758-0 01 1 0607- ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98009-886-0 01 1 0507-0606 ●
15 03.890 SENSOR ASM; SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98009-886-0 01 1 0607- ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-298-2 01 1 0211-0306 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),CHARGE AIRCOOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-298-2 01 1 0211-0306 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),CHARGE AIRCOOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-298-2 01 1 0211-0306 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-97370-092-0 01 1 0307-0501 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),CHARGE AIRCOOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-97370-092-0 01 1 0307-0501 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),CHARGE AIRCOOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-97370-092-0 01 1 0307-0501 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97370-092-0 01 1 0502-0612 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> (A) 		8-97370-092-0 01 1 0502-0612 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> (A) 		8-97370-092-0 01 1 0502-0612 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> (A) 		8-97370-092-0 01 1 0701- ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FUEL FILTER DUAL(S6B) (B) 		8-97182-048-2 01 1 0211-0309 ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
EXC. FUEL FILTER DUAL(S6B) (B) 		8-97182-048-2 01 1 0211-0309 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) 		8-97182-048-2 01 1 0211-0309 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FUEL FILTER DUAL(S6B) (B) 		8-97372-020-0 01 1 0310-0310 ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
EXC. FUEL FILTER DUAL(S6B) (B) 		8-97372-020-0 01 1 0310-0310 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) 		8-97372-020-0 01 1 0310-0310 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FUEL FILTER DUAL(S6B) (B) 		8-97182-048-2 01 1 0311-0501 ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
EXC. FUEL FILTER DUAL(S6B) (B) 		8-97182-048-2 01 1 0311-0501 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) 		8-97182-048-2 01 1 0311-0501 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1-TCN ENG(RDR) EXC. FUEL FILTER DUAL(S6B) (B) 		8-97182-048-2 01 1 0502- ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. FUEL FILTER DUAL(S6B) (B) 		8-97182-048-2 01 1 0502- ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) CHARGE AIR COOLER<6PL> (D) 		8-97148-721-1 01 1 0211-0212 ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
FUEL FILTER DUAL(S6B) (D) 		8-97148-721-1 01 1 0211-0212 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) CHARGE AIR COOLER<6PL> (D) 		8-97363-088-0 01 1 0301-0501 ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
FUEL FILTER DUAL(S6B) (D) 		8-97363-088-0 01 1 0301-0501 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1-TCN ENG(RDR) FUEL FILTER DUAL(S6B) (D) 		8-97363-088-0 01 1 0502- ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) FUEL FILTER DUAL(S6B) (D) 		8-97363-088-0 01 1 0502- ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (D) 		8-97189-165-0 01 1 0211-0212 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (D) 		8-97189-165-0 01 1 0211-0212 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (D) 		8-97363-089-0 01 1 0301-0501 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (D) 		8-97363-089-0 01 1 0301-0501 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (D) 		8-97363-089-0 01 1 0502- ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> (C) 		8-94366-685-0 01 1 0211-0501 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> (C) 		8-94366-685-0 01 1 0502- ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-295-0 01 1 0211-0501 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1 ENG(RJH) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-295-0 01 1 0211-0501 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97090-295-0 01 1 0502- ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HK1-TCS ENG(RJS) (E) 		8-97368-101-5 01 1 0507-0606 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (E) 		8-97368-101-5 01 1 0607- ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0211-0302 ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0211-0302 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0211-0302 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0303-0501 ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0303-0501 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0502-0512 ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0502-0512 ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) M10X30 FLANGE 		0-28051-030-0 02 1 0601- ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) M10X30 FLANGE 		0-28051-030-0 02 1 0601- ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0211-0501 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0211-0501 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR) 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0502-0502 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0502-0502 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR) 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0503-0506 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4> 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0503-0506 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0503-0506 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR) 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4> 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4> 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR) 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4> 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4> 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR) 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 0607- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4> 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 0607- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) EXC. EXH SYSTEM CHROME SINGLE VERTICA L TAIL PIPE<NC4> 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 0607- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 0607- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0211-0501 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-S ENG(RLS) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0211-0501 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0211-0501 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0211-0501 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0502-0506 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0502-0506 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0502-0506 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0502-0506 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0607-0612 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0607-0612 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0607-0612 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0607-0612 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0607-0612 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0701- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0701- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0701- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0701- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0701- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 0211-0501 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 0211-0501 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 03 1 0502-0512 ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE 		0-28051-030-0 03 1 0601- ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 0211-0501 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 0502-0506 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 0507-0512 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HK1-TCS ENG(RJS) EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
03.275 M8X30 FLANGE 		0-28080-830-0 02 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ> 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0601-0606 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HK1-TCS ENG(RJS) EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ> 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0607-0612 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0607-0612 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0607-0612 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0607-0612 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0607-0612 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ> 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0701- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0701- ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0701- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0701- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
00.206 M8X30 FLANGE 		0-28050-830-0 02 1 0701- ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 0211-0310 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 0211-0310 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 0311-0501 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 0311-0501 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 0311-0501 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 0502-0512 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 0502-0512 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 0502-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE 		0-28051-030-0 04 1 0601-0612 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE 		0-28051-030-0 04 1 0601-0612 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1 ENG(RJH) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE 		0-28051-030-0 04 1 0601-0612 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE 		0-28051-030-0 04 1 0701- ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE 		0-28051-030-0 04 1 0701- ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE 		0-28051-030-0 04 1 0701- ●
35 03.890 GASKET; DRAIN PLUG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-09623-490-0 01 1 0211-0501 ● ● ● ● ●
35 03.890 GASKET; DRAIN PLUG 1-09623-490-0 01 1 0211-0501 ●
35 03.890 GASKET; DRAIN PLUG
4HE1-TCN ENG(RDR) 		1-09623-490-0 01 1 0502- ●
35 03.890 GASKET; DRAIN PLUG
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 		1-09623-490-0 01 1 0502- ● ● ●
35 03.890 GASKET; DRAIN PLUG
4HK1-TCS ENG(RJS) 		8-98004-898-0 01 1 0507-0606 ●
35 03.890 GASKET; DRAIN PLUG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98004-898-0 01 1 0607- ● ●
37 03.890 PLUG; SENSOR
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97123-549-0 01 1 0211-0501 ● ● ●
37 03.890 PLUG; SENSOR
4HF1-N ENG(RJZ) 		8-97123-549-0 01 1 0502- ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-94416-376-0 01 1 0211-0501 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 		8-94416-376-0 01 1 0211-0501 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94416-376-0 01 1 0502-0712 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>,ENGINE POWER N-SPEC(7QV) 		8-94453-746-0 01 1 0211-0501 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,CHARGE AIR COOLER<6PL> 		8-94453-746-0 01 1 0211-0501 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-94453-746-0 01 1 0211-0501 ● ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94453-746-0 01 1 0502-0712 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4HG1-T ENG(RDP) 		8-94453-746-0 01 1 0502-0712 ● ●
37 03.890 PLUG; SENSOR
4HF1-S ENG(RLS) 		8-94453-746-0 01 1 0801- ●
37 03.890 PLUG; SENSOR
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-94453-746-0 01 1 0801- ● ●
37 03.890 PLUG; SENSOR
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-94453-746-0 01 1 0801- ●
37 03.890 PLUG; SENSOR 8-94453-746-0 01 1 0801- ●
37 03.890 PLUG; SENSOR
4HK1-TCS ENG(RJS) 		8-98004-899-0 01 1 0507-0606 ●
37 03.890 PLUG; SENSOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98004-899-0 01 1 0607- ● ●
41 03.890 GASKET; SENSOR TO CASE
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 08.927 		9-09563-334-0 01 1 0211-0501 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 08.927 		9-09563-334-0 01 1 0211-0501 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 08.927 		9-09563-334-0 01 1 0211-0501 ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 0502-0506 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HF1-N ENG(RJZ) 08.927 		9-09563-334-0 01 1 0502-0506 ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 0507-0606 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HF1-N ENG(RJZ) 08.927 		9-09563-334-0 01 1 0507-0606 ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 0507-0606 ●
41 03.890 GASKET; SENSOR TO CASE
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 0607-0611 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HF1-N ENG(RJZ) 08.927 		9-09563-334-0 01 1 0607-0611 ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 0607-0611 ● ●
41 03.890 GASKET; SENSOR TO CASE
4HG1 ENG(RJH),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 0612-0712 ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HF1-N ENG(RJZ) 08.927 		9-09563-334-0 01 1 0612-0712 ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HF1-N ENG(RJZ) 08.927 		9-09563-334-0 01 1 0801- ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> 03.417 		1-09623-649-0 01 1 0507-0606 ●
41 03.890 GASKET; SENSOR TO CASE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> 03.417 		1-09623-649-0 01 1 0607-0611 ● ●
41 03.890 GASKET; SENSOR TO CASE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.417 		1-09623-649-0 01 1 0612- ● ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-94369-299-3 01 1 0211-0501 ● ● ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4HF1-N ENG(RJZ) 		8-94369-299-3 01 1 0502- ● ● ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4HK1-TCS ENG(RJS) 		8-98021-811-0 01 1 0507-0511 ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4HK1-TCS ENG(RJS) 		8-98031-847-0 01 1 0512-0606 ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98031-847-0 01 1 0607-0611 ● ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98037-481-0 01 1 0612- ● ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4HK1-TCS ENG(RJS) BEST VALUE PARTS 		5-87610-157-0 01 1 0507-0511 ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4HK1-TCS ENG(RJS) BEST VALUE PARTS 		5-87610-157-0 01 1 0512-0606 ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) BEST VALUE PARTS 		5-87610-157-0 01 1 0607- ● ●
92 01.203 CAP; DRAIN
4HK1-TCS ENG(RJS) 03.417 		8-97172-548-0 01 1 0507-0606 ●
92 01.203 CAP; DRAIN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.417 		8-97172-548-0 01 1 0607- ● ●
102 02.480 HARNESS; SEDIMENTER
4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97372-339-0 01 1 0507-0606 ●
102 02.480 HARNESS; SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97372-339-0 01 1 0607- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
