8 |
03.162 RUBBER; MTG
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
(B)
OD=15 L=50
|
8-97077-629-0 |
03 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
8 |
03.162 RUBBER; MTG
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
(B)
OD=15 L=50
|
8-97077-629-0 |
03 |
1 |
0211-0501 |
|
● |
● |
● |
|
|
| |
8 |
03.162 RUBBER; MTG
(B)
OD=15 L=50
|
8-97077-629-0 |
03 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
8 |
03.162 RUBBER; MTG
4HE1-TCN ENG(RDR)
FRAME STRAIGHT TYPE<7KJ>
(B)
OD=15 L=50
|
8-97077-629-0 |
03 |
1 |
0502- |
● |
|
|
|
|
|
| |
8 |
03.162 RUBBER; MTG
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
FRAME STRAIGHT TYPE<7KJ>
(B)
OD=15 L=50
|
8-97077-629-0 |
03 |
1 |
0502- |
|
● |
● |
● |
|
|
| |
8 |
03.162 RUBBER; MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
OD=15 L=50
|
8-97077-629-0 |
01 |
1 |
0211-0212 |
● |
● |
● |
|
|
● |
| |
8 |
03.162 RUBBER; MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),CHARGE
AIRCOOLER<6PL>
(B)
OD=15 L=50
|
8-97077-629-0 |
01 |
1 |
0211-0212 |
|
● |
● |
● |
|
|
| |
8 |
03.162 RUBBER; MTG
4HE1 ENG(RLY)
MINI BUS CHASSIS(V4B)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
(B)
OD=15 L=50
|
8-97077-629-0 |
01 |
1 |
0211-0212 |
|
● |
● |
● |
|
|
| |
8 |
03.162 RUBBER; MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
OD=15 L=50
|
8-97077-629-0 |
01 |
1 |
0301-0501 |
● |
● |
● |
● |
|
● |
| |
8 |
03.162 RUBBER; MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),CHARGE
AIRCOOLER<6PL>
(B)
OD=15 L=50
|
8-97077-629-0 |
01 |
1 |
0301-0501 |
|
● |
● |
● |
|
|
| |
8 |
03.162 RUBBER; MTG
4HE1 ENG(RLY)
MINI BUS CHASSIS(V4B)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
(B)
OD=15 L=50
|
8-97077-629-0 |
01 |
1 |
0301-0501 |
|
● |
● |
● |
|
|
| |
8 |
03.162 RUBBER; MTG
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
OD=15 L=50
|
8-97077-629-0 |
01 |
1 |
0502- |
● |
● |
● |
● |
|
● |
| |
8 |
03.162 RUBBER; MTG
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
(B)
OD=15 L=50
|
8-97077-629-0 |
01 |
1 |
0502- |
|
● |
● |
● |
|
|
| |
8 |
03.162 RUBBER; MTG
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
(B)
OD=15 L=50
|
8-97077-629-0 |
01 |
1 |
0502- |
|
● |
● |
● |
|
|
| |
8 |
03.162 RUBBER; MTG
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
OD=17 L=50
|
8-94157-054-1 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
● |
| |
8 |
03.162 RUBBER; MTG
4HF1-S ENG(RLS),4HE1 ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
(A)
OD=17 L=50
|
8-94157-054-1 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
8 |
03.162 RUBBER; MTG
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
(A)
OD=17 L=50
|
8-94157-054-1 |
01 |
1 |
0211-0501 |
|
● |
● |
● |
|
|
| |
8 |
03.162 RUBBER; MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
(A)
OD=17 L=50
|
8-94157-054-1 |
01 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
8 |
03.162 RUBBER; MTG
4HE1 ENG(RLY)
MINI BUS CHASSIS(V4B)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
(A)
OD=17 L=50
|
8-94157-054-1 |
01 |
1 |
0211-0501 |
|
|
● |
● |
|
|
| |
8 |
03.162 RUBBER; MTG
4HG1 ENG(RJH),4HE1 ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
(A)
OD=17 L=50
|
8-94157-054-1 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
8 |
03.162 RUBBER; MTG
(A)
OD=17 L=50
|
8-94157-054-1 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
8 |
03.162 RUBBER; MTG
(A)
OD=17 L=50
|
8-94157-054-1 |
01 |
1 |
0502- |
● |
|
|
|
|
● |
| |
8 |
03.162 RUBBER; MTG
EXC. MINI BUS CHASSIS(V4B)
(A)
OD=17 L=50
|
8-94157-054-1 |
01 |
1 |
0502- |
|
● |
● |
● |
|
|
| |
8 |
03.162 RUBBER; MTG
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
(A)
OD=17 L=50
|
8-94157-054-1 |
01 |
1 |
0502- |
|
|
● |
● |
|
|
| |
8 |
03.162 RUBBER; MTG
4HK1-TCS ENG(RJS)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FRAME STRAIGHT TYPE<7KJ>
(C)
OD=16.5 L=50
|
8-97214-235-0 |
03 |
1 |
0507-0606 |
|
|
● |
|
|
|
| |
8 |
03.162 RUBBER; MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FRAME STRAIGHT TYPE<7KJ>
(C)
OD=16.5 L=50
|
8-97214-235-0 |
03 |
1 |
0607- |
|
|
● |
|
|
|
| |
8 |
03.162 RUBBER; MTG
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>
(C)
OD=16.5 L=50
|
8-97214-235-0 |
02 |
1 |
0507-0606 |
|
|
● |
|
|
|
| |
8 |
03.162 RUBBER; MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>
(C)
OD=16.5 L=50
|
8-97214-235-0 |
02 |
1 |
0607- |
|
|
● |
|
|
|
| |
8 |
03.162 RUBBER; MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
(C)
OD=16.5 L=50
|
8-97214-235-0 |
02 |
1 |
0607- |
|
|
|
● |
|
|
| |
8 |
03.162 RUBBER; MTG
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
(B)
OD=15 L=50
|
8-97077-629-0 |
02 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
15 |

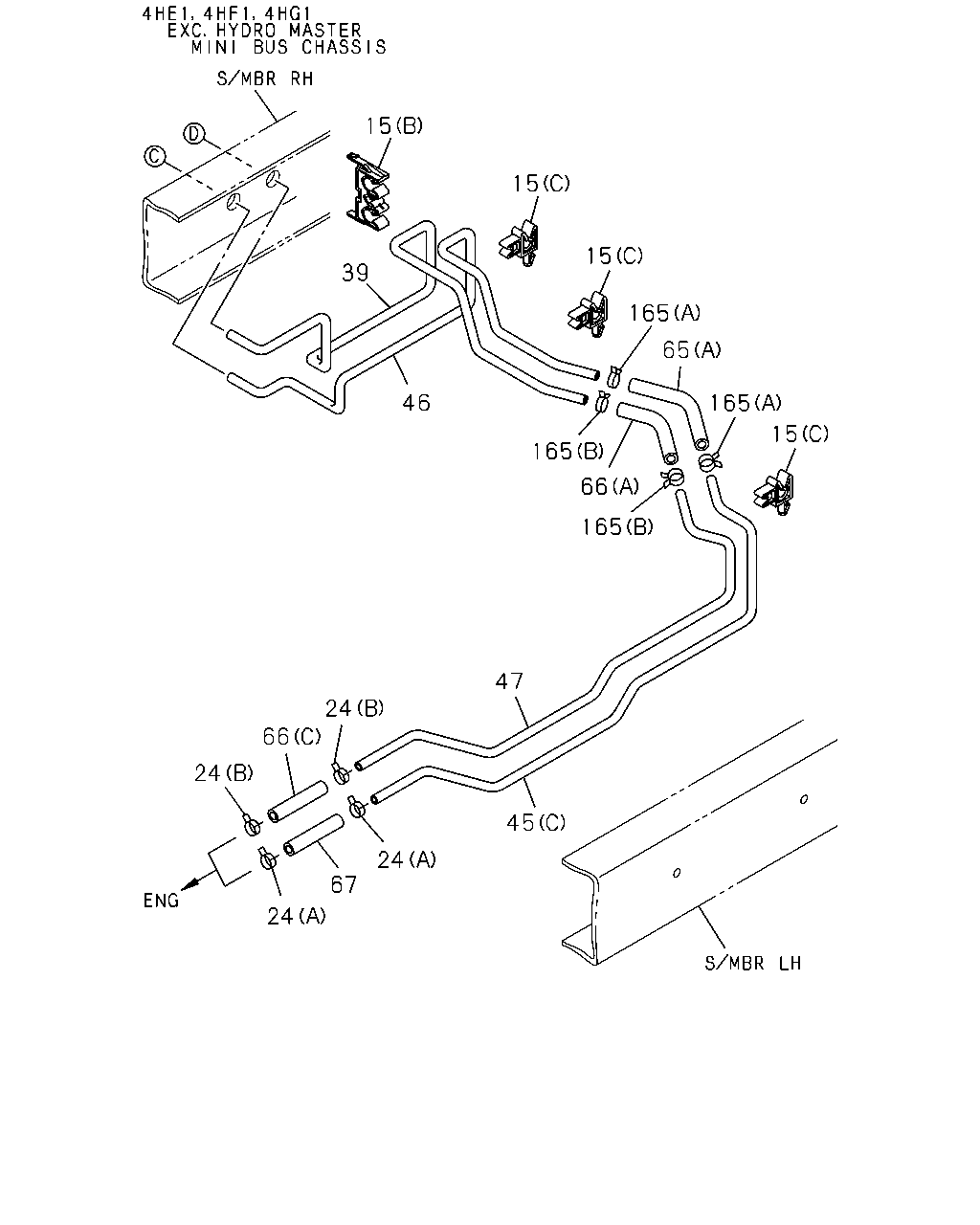

03.162 CLIP; FUEL PIPE
04.930
(B)
ID=10X2 OR 12X2 & 6.35
|
8-97326-157-1 |
01 |
1 |
0211-0501 |
● |
|
|
|
● |
|
| |
15 |
03.162 CLIP; FUEL PIPE
EXC. MINI BUS CHASSIS(V4B)
04.930
(B)
ID=10X2 OR 12X2 & 6.35
|
8-97326-157-1 |
01 |
1 |
0211-0501 |
|
● |
● |
● |
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(B)
ID=10X2 OR 12X2 & 6.35
|
8-97326-157-1 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
15 |
03.162 CLIP; FUEL PIPE
04.930
(B)
ID=10X2 OR 12X2 & 6.35
|
8-97326-157-1 |
01 |
1 |
0502- |
● |
|
|
|
|
● |
| |
15 |
03.162 CLIP; FUEL PIPE
EXC. MINI BUS CHASSIS(V4B)
04.930
(B)
ID=10X2 OR 12X2 & 6.35
|
8-97326-157-1 |
01 |
1 |
0502- |
|
● |
● |
● |
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
ID=12 & 6.35
|
8-97215-437-0 |
03 |
1 |
0211-0501 |
● |
|
|
|
|
● |
| |
15 |
03.162 CLIP; FUEL PIPE
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
(C)
ID=12 & 6.35
|
8-97215-437-0 |
03 |
1 |
0211-0501 |
|
● |
● |
● |
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
ID=12 & 6.35
|
8-97215-437-0 |
03 |
1 |
0502- |
● |
|
|
|
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
(C)
ID=12 & 6.35
|
8-97215-437-0 |
03 |
1 |
0502- |
|
● |
● |
● |
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
(C)
ID=12 & 6.35
|
8-97215-437-0 |
03 |
1 |
0502- |
|
|
|
|
|
● |
| |
15 |
03.162 CLIP; FUEL PIPE
MINI BUS CHASSIS(V4B)
EXC. FRAME STRAIGHT TYPE<7KJ>
(D)
ID=10 OR 12 & 6.35X2 & 4.76
|
8-97326-156-2 |
02 |
1 |
0211-0501 |
|
● |
|
|
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
4HE1 ENG(RLY)
MINI BUS CHASSIS(V4B)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
(D)
ID=10 OR 12 & 6.35X2 & 4.76
|
8-97326-156-2 |
02 |
1 |
0211-0501 |
|
● |
|
|
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
MINI BUS CHASSIS(V4B)
AIR INTAKE SYSTEM FRONT<6PC>
FRAME STRAIGHT TYPE<7KJ>
EXC. CHARGE AIR COOLER<6PL>,HYDRO
MASTER<7LT>
(D)
ID=10 OR 12 & 6.35X2 & 4.76
|
8-97326-156-2 |
02 |
1 |
0211-0501 |
|
● |
|
|
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
4HG1 ENG(RJH),4HE1 ENG(RLY)
MINI BUS CHASSIS(V4B)
AIR INTAKE SYSTEM FRONT<6PC>
FRAME STRAIGHT TYPE<7KJ>
EXC. EGYPT EQUIPMENT(YJ4),CHARGE AIR
COOLER<6PL>,HYDRO MASTER<7LT>
(D)
ID=10 OR 12 & 6.35X2 & 4.76
|
8-97326-156-2 |
02 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
MINI BUS CHASSIS(V4B)
EXC. FRAME STRAIGHT TYPE<7KJ>
(D)
ID=10 OR 12 & 6.35X2 & 4.76
|
8-97326-156-2 |
02 |
1 |
0502-0606 |
|
● |
|
|
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
MINI BUS CHASSIS(V4B)
AIR INTAKE SYSTEM FRONT<6PC>
FRAME STRAIGHT TYPE<7KJ>
EXC. EGYPT EQUIPMENT(YJ4)
(D)
ID=10 OR 12 & 6.35X2 & 4.76
|
8-97326-156-2 |
02 |
1 |
0502-0606 |
|
● |
|
|
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
(D)
ID=10 OR 12 & 6.35X2 & 4.76
|
8-97326-156-2 |
02 |
1 |
0502-0606 |
|
● |
|
|
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
4HG1 ENG(RJH)
MINI BUS CHASSIS(V4B)
AIR INTAKE SYSTEM FRONT<6PC>
FRAME STRAIGHT TYPE<7KJ>
EXC. EGYPT EQUIPMENT(YJ4)
(D)
ID=10 OR 12 & 6.35X2 & 4.76
|
8-97326-156-2 |
02 |
1 |
0502-0606 |
|
|
|
● |
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
MINI BUS CHASSIS(V4B)
AIR INTAKE SYSTEM FRONT<6PC>
FRAME STRAIGHT TYPE<7KJ>
EXC. EGYPT EQUIPMENT(YJ4)
(D)
ID=10 OR 12 & 6.35X2 & 4.76
|
8-97326-156-2 |
02 |
1 |
0607- |
|
● |
|
● |
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
MINI BUS CHASSIS(V4B)
EXC. FRAME STRAIGHT TYPE<7KJ>
(D)
ID=10 OR 12 & 6.35X2 & 4.76
|
8-97326-156-2 |
02 |
1 |
0607- |
|
● |
|
|
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
(D)
ID=10 OR 12 & 6.35X2 & 4.76
|
8-97326-156-2 |
02 |
1 |
0607- |
|
● |
|
|
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
AIR INTAKE REAR VERTICAL<KJ3>
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. CHARGE AIR COOLER<6PL>,HYDRO
MASTER<7LT>
(D)
ID=10 OR 12 & 6.35X2 & 4.76
|
8-97326-156-2 |
04 |
1 |
0211-0501 |
|
● |
● |
● |
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
MINI BUS CHASSIS(V4B)
EGYPT EQUIPMENT(YJ4)
AIR INTAKE SYSTEM FRONT<6PC>
FRAME STRAIGHT TYPE<7KJ>
EXC. CHARGE AIR COOLER<6PL>,HYDRO
MASTER<7LT>
(D)
ID=10 OR 12 & 6.35X2 & 4.76
|
8-97326-156-2 |
04 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
(D)
ID=10 OR 12 & 6.35X2 & 4.76
|
8-97326-156-2 |
04 |
1 |
0502- |
|
● |
● |
● |
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
MINI BUS CHASSIS(V4B)
EGYPT EQUIPMENT(YJ4)
AIR INTAKE SYSTEM FRONT<6PC>
FRAME STRAIGHT TYPE<7KJ>
(D)
ID=10 OR 12 & 6.35X2 & 4.76
|
8-97326-156-2 |
04 |
1 |
0502- |
|
● |
|
● |
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
4HE1 ENG(RLY)
MINI BUS CHASSIS(V4B)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
(D)
ID=10 OR 12 & 6.35X2 & 4.76
|
8-97326-156-2 |
03 |
1 |
0211-0501 |
|
|
● |
● |
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
(D)
ID=10 OR 12 & 6.35X2 & 4.76
|
8-97326-156-2 |
03 |
1 |
0502- |
|
|
● |
● |
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
04.686
(A)
ID=10 & 6.4
|
8-97074-832-0 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
24 |
03.162 CLIP; FUEL HOSE
4HF1-S ENG(RLS),4HE1 ENG(RLY)
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0211-0501 |
● |
|
|
|
|
● |
| |
24 |
03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH),4HE1 ENG(RLY)
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ),
4HF1-S ENG(RLS)
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0502-0612 |
● |
|
|
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0502-0612 |
|
● |
● |
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),
4HG1 ENG(RJH)
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0502-0612 |
|
|
|
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0502-0612 |
|
|
|
|
|
● |
| |
24 |
03.162 CLIP; FUEL HOSE
4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ),
4HF1-S ENG(RLS)
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0701-0911 |
● |
|
|
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0701-0911 |
|
● |
● |
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH)
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0701-0911 |
|
|
|
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0701-0911 |
|
|
|
|
|
● |
| |
24 |
03.162 CLIP; FUEL HOSE
4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ),
4HF1-S ENG(RLS)
(A)
ID=16
|
8-98008-098-0 |
02 |
1 |
0912- |
● |
|
|
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
(A)
ID=16
|
8-98008-098-0 |
02 |
1 |
0912- |
|
● |
● |
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH)
(A)
ID=16
|
8-98008-098-0 |
02 |
1 |
0912- |
|
|
|
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
(A)
ID=16
|
8-98008-098-0 |
02 |
1 |
0912- |
|
|
|
|
|
● |
| |
24 |
03.162 CLIP; FUEL HOSE
4HF1-S ENG(RLS),4HE1 ENG(RLY)
01.219
(B)
ID=13
|
8-94238-571-0 |
02 |
1 |
0211-0501 |
● |
|
|
|
|
● |
| |
24 |
03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
01.219
(B)
ID=13
|
8-94238-571-0 |
02 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH),4HE1 ENG(RLY)
01.219
(B)
ID=13
|
8-94238-571-0 |
02 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
01.219
(B)
ID=13
|
8-94238-571-0 |
02 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ),
4HF1-S ENG(RLS)
01.219
(B)
ID=13
|
8-94238-571-0 |
02 |
1 |
0502-0612 |
● |
|
|
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
01.219
(B)
ID=13
|
8-94238-571-0 |
02 |
1 |
0502-0612 |
|
● |
● |
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),
4HG1 ENG(RJH)
01.219
(B)
ID=13
|
8-94238-571-0 |
02 |
1 |
0502-0612 |
|
|
|
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
01.219
(B)
ID=13
|
8-94238-571-0 |
02 |
1 |
0502-0612 |
|
|
|
|
|
● |
| |
24 |
03.162 CLIP; FUEL HOSE
4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ),
4HF1-S ENG(RLS)
01.219
(B)
ID=13
|
8-94238-571-0 |
02 |
1 |
0701-0911 |
● |
|
|
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
01.219
(B)
ID=13
|
8-94238-571-0 |
02 |
1 |
0701-0911 |
|
● |
● |
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH)
01.219
(B)
ID=13
|
8-94238-571-0 |
02 |
1 |
0701-0911 |
|
|
|
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
01.219
(B)
ID=13
|
8-94238-571-0 |
02 |
1 |
0701-0911 |
|
|
|
|
|
● |
| |
24 |
03.162 CLIP; FUEL HOSE
4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ),
4HF1-S ENG(RLS)
(B)
ID=13
|
8-98150-357-0 |
02 |
1 |
0912- |
● |
|
|
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
(B)
ID=13
|
8-98150-357-0 |
02 |
1 |
0912- |
|
● |
● |
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH)
(B)
ID=13
|
8-98150-357-0 |
02 |
1 |
0912- |
|
|
|
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
(B)
ID=13
|
8-98150-357-0 |
02 |
1 |
0912- |
|
|
|
|
|
● |
| |
24 |
03.162 CLIP; FUEL HOSE
4HK1-TCS ENG(RJS)
01.762
(C)
ID=19
|
8-94238-569-0 |
02 |
1 |
0507-0606 |
|
|
● |
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
01.762
(C)
ID=19
|
8-94238-569-0 |
02 |
1 |
0607-0911 |
|
|
● |
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
(C)
ID=19
|
8-98150-356-0 |
02 |
1 |
0912- |
|
|
● |
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
4HK1-TCS ENG(RJS)
01.219
(C)
ID=12
|
8-94238-610-0 |
02 |
1 |
0507-0606 |
|
|
● |
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
01.219
(C)
ID=12
|
8-94238-610-0 |
02 |
1 |
0607-0911 |
|
|
● |
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
01.240
(C)
ID=12
|
8-98150-358-0 |
02 |
1 |
0912- |
|
|
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HF1-S ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
03.003
(C)
L=880
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0212 |
● |
|
|
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,MINI BUS
CHASSIS(V4B),HYDRO MASTER<7LT>
03.003
(C)
L=880
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0212 |
|
● |
|
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,FUEL TANK 125L,
33GAL<NL7>,MINI BUS CHASSIS(V4B),HYDRO MAS
TER<7LT>
03.003
(C)
L=880
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0212 |
|
|
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),HYDRO
MASTER<7LT>
03.003
(C)
L=880
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0212 |
|
|
|
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,FUEL TANK 125L,
33GAL<NL7>,FUEL TANK 100 LITTER "NON BOX T
YPE"<N02>,MINI BUS CHASSIS(V4B),
HYDROMASTER<7LT>
03.003
(C)
L=880
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0501 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,FUEL TANK 100
LITTER"NON BOX TYPE"<N02>,MINI BUS CHASSIS
(V4B)
03.003
(C)
L=880
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502-0506 |
● |
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,FUEL TANK 125L,
33GAL<NL7>,FUEL TANK 100 LITTER "NON BOX T
YPE"<N02>,MINI BUS CHASSIS(V4B)
03.003
(C)
L=880
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0507- |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL FILTER DUAL(S6B),MINI BUS
CHASSIS(V4B)
03.003
(A)
L=180
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0501 |
● |
● |
|
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,FUEL FILTER
DUAL(S6B)
03.003
(A)
L=180
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0501 |
|
|
● |
● |
● |
|
| |
29 |
03.163 HOSE; FUEL
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
03.003
(A)
L=180
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
29 |
03.163 HOSE; FUEL
4HE1-TCN ENG(RDR)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL FILTER DUAL(S6B)
03.003
(A)
L=180
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502- |
● |
|
|
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL FILTER DUAL(S6B)
03.003
(A)
L=180
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502- |
|
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HF1-S ENG(RLS)
FUEL FILTER DUAL(S6B)
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.003
(B)
L=450
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0212 |
● |
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HF1-S ENG(RLS)
FUEL FILTER DUAL(S6B)
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.003
(B)
L=450
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0301 |
● |
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HE1 ENG(RLY)
FUEL TANK 125L,33GAL<NL7>
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),CHARGE
AIRCOOLER<6PL>,HYDRO MASTER<7LT>
03.003
(B)
L=450
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0301 |
|
|
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HF1-S ENG(RLS)
FUEL FILTER DUAL(S6B)
ENGINE POWER N-SPEC(7QV)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,FRAME STRAIGHT TYPE<7KJ>
03.003
(B)
L=450
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0501 |
● |
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HE1 ENG(RLY)
FUEL TANK 125L,33GAL<NL7>
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),CHARGE
AIRCOOLER<6PL>,HYDRO MASTER<7LT>
03.003
(B)
L=450
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0501 |
|
|
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HF1-N ENG(RJZ)
FUEL FILTER DUAL(S6B)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,FRAME STRAIGHT TYPE<7KJ>
03.003
(B)
L=450
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502- |
● |
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HF1-S ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
ENGINE POWER N-SPEC(7QV)
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
(C)
L=380
|
8-97353-524-0 |
01 |
1 |
0301-0501 |
● |
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH)
TURBOCHARGER(K51)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>,ENGINE POWER
N-SPEC(7QV)
(C)
L=380
|
8-97353-524-0 |
01 |
1 |
0301-0501 |
|
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
(C)
L=380
|
8-97353-524-0 |
01 |
1 |
0301-0501 |
|
● |
|
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HF1-N ENG(RJZ)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
L=380
|
8-97353-524-0 |
01 |
1 |
0502-0612 |
● |
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1-T ENG(RDP)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
(C)
L=380
|
8-97353-524-0 |
01 |
1 |
0502-0612 |
|
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HF1-N ENG(RJZ)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
L=380
|
8-97353-524-0 |
01 |
1 |
0701- |
● |
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1-T ENG(RDP)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
(C)
L=380
|
8-97353-524-0 |
01 |
1 |
0701- |
|
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
FUEL FILTER DUAL(S6B)
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
03.003
(A),(D)
L=340
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0212 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
EXC. FUEL FILTER DUAL(S6B),CHARGE
AIRCOOLER<6PL>
03.003
(A),(D)
L=340
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0212 |
|
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL
FILTER DUAL(S6B),MINI BUS CHASSIS(V4B)
,CHARGE AIR COOLER<6PL>,HYDRO
MASTER<7LT>
03.003
(A),(D)
L=340
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0212 |
|
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
FUEL TANK 125L,33GAL<NL7>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL FILTER DUAL(S6B),CHARGE
AIRCOOLER<6PL>
03.003
(A),(D)
L=340
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0212 |
|
|
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
FUEL FILTER DUAL(S6B)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
03.003
(A),(D)
L=340
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0501 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
EXC. FUEL FILTER DUAL(S6B),CHARGE
AIRCOOLER<6PL>
03.003
(A),(D)
L=340
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0501 |
|
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL
FILTER DUAL(S6B),MINI BUS CHASSIS(V4B)
,CHARGE AIR COOLER<6PL>,HYDRO
MASTER<7LT>
03.003
(A),(D)
L=340
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0501 |
|
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
FUEL TANK 125L,33GAL<NL7>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL FILTER DUAL(S6B),CHARGE
AIRCOOLER<6PL>
03.003
(A),(D)
L=340
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0501 |
|
|
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
FUEL FILTER DUAL(S6B)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,FRAME STRAIGHT TYPE<7KJ>
03.003
(A),(D)
L=340
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502- |
● |
|
|
|
|
|
| |
29 |
03.163 HOSE; FUEL
FUEL FILTER DUAL(S6B)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
03.003
(A),(D)
L=340
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502- |
|
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1-T ENG(RDP)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL FILTER DUAL(S6B),MINI BUS
CHASSIS(V4B)
03.003
(A),(D)
L=340
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502- |
|
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
03.003
(D)
L=200
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301- |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HE1 ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,FUEL TANK 125L,
33GAL<NL7>,CHARGE AIR COOLER<6PL>,HYDRO MA
STER<7LT>
03.003
(C)
L=540
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0212 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
MINI BUS CHASSIS(V4B)
AIR INTAKE SYSTEM FRONT<6PC>
FRAME STRAIGHT TYPE<7KJ>
EXC. EGYPT EQUIPMENT(YJ4),HYDRO
MASTER<7LT>
03.003
(C)
L=540
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0212 |
|
● |
|
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HE1 ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. CHARGE AIR COOLER<6PL>
03.003
(C)
L=540
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0301 |
● |
|
|
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HE1 ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,CHARGE AIR
COOLER<6PL>,HYDRO MASTER<7LT>
03.003
(C)
L=540
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0301 |
|
● |
|
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HE1 ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,FUEL TANK 125L,
33GAL<NL7>,CHARGE AIR COOLER<6PL>,HYDRO MA
STER<7LT>
03.003
(C)
L=540
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0301 |
|
|
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HE1 ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. CHARGE AIR COOLER<6PL>,HYDRO
MASTER<7LT>
03.003
(C)
L=540
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0301 |
|
|
|
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HE1 ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,CHARGE AIR COOLER<6PL>
03.003
(C)
L=540
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0501 |
● |
|
|
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HE1 ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,FUEL TANK 100
LITTER"NON BOX TYPE"<N02>,CHARGE AIR COOLE
R<6PL>,HYDRO MASTER<7LT>
03.003
(C)
L=540
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0501 |
|
● |
|
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HE1 ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,FUEL TANK 125L,
33GAL<NL7>,FUEL TANK 100 LITTER "NON BOX T
YPE"<N02>,CHARGE AIR COOLER<6PL>,
HYDRO MASTER<7LT>
03.003
(C)
L=540
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0501 |
|
|
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HE1 ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,CHARGE AIR COOLER<6PL>,
HYDROMASTER<7LT>
03.003
(C)
L=540
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0501 |
|
|
|
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HE1 ENG(RLY)
FUEL FILTER DUAL(S6B)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
03.003
(B)
L=550
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0301 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
FUEL FILTER DUAL(S6B)
03.003
(B)
L=550
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0301 |
|
|
|
|
● |
|
| |
29 |
03.163 HOSE; FUEL
4HE1 ENG(RLY)
FUEL FILTER DUAL(S6B)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
03.003
(B)
L=550
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0302-0501 |
● |
● |
● |
● |
● |
|
| |
29 |
03.163 HOSE; FUEL
4HE1 ENG(RLY)
FUEL FILTER DUAL(S6B)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>
03.003
(B)
L=550
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0302-0501 |
● |
● |
● |
● |
● |
|
| |
29 |
03.163 HOSE; FUEL
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
03.003
(B)
L=550
SERVICED BY L=3000
|
0-01259-300-0 |
02 |
1 |
0502- |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
FUEL FILTER DUAL(S6B)
MINI BUS CHASSIS(V4B)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,FRAME STRAIGHT TYPE<7KJ>
03.003
(B)
L=550
SERVICED BY L=3000
|
0-01259-300-0 |
02 |
1 |
0502- |
|
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HE1 ENG(RLY)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,CHARGE AIR
COOLER<6PL>,HYDRO MASTER<7LT>
(C)
L=250
|
8-97363-054-0 |
01 |
1 |
0301-0501 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH)
TURBOCHARGER(K51)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
EXC. FUEL FILTER DUAL(S6B),MINI BUS
CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ>,
ENGINE POWER N-SPEC(7QV)
(C)
L=250
|
8-97363-054-0 |
01 |
1 |
0301-0501 |
|
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1-T ENG(RDP)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
EXC. FUEL FILTER DUAL(S6B),MINI BUS
CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ>
(C)
L=250
|
8-97363-054-0 |
01 |
1 |
0502-0612 |
|
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1-T ENG(RDP)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
EXC. FUEL FILTER DUAL(S6B),MINI BUS
CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ>
(C)
L=250
|
8-97363-054-0 |
01 |
1 |
0701- |
|
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,MINI BUS
CHASSIS(V4B),HYDRO MASTER<7LT>
(C)
L=580
|
8-97363-057-0 |
01 |
1 |
0301-0501 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,MINI BUS
CHASSIS(V4B)
(C)
L=580
|
8-97363-057-0 |
01 |
1 |
0502- |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
EXC. TURBOCHARGER(K51),MINI BUS
CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ>,ENGI
NE POWER N-SPEC(7QV)
(C)
L=290
|
8-97353-522-0 |
01 |
1 |
0301-0501 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HF1-S ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
ENGINE POWER N-SPEC(7QV)
EXC. FUEL FILTER DUAL(S6B),MINI BUS
CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ>
(C)
L=290
|
8-97353-522-0 |
01 |
1 |
0301-0501 |
● |
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),CHARGE
AIRCOOLER<6PL>,HYDRO MASTER<7LT>
(C)
L=290
|
8-97353-522-0 |
01 |
1 |
0301-0501 |
|
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
(C)
L=290
|
8-97353-522-0 |
01 |
1 |
0502- |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HF1-N ENG(RJZ)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
EXC. FUEL FILTER DUAL(S6B),MINI BUS
CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ>
(C)
L=290
|
8-97353-522-0 |
01 |
1 |
0502- |
● |
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1-T ENG(RDP)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
(C)
L=290
|
8-97353-522-0 |
01 |
1 |
0502- |
|
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
EXC. TURBOCHARGER(K51),MINI BUS
CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ>,ENGI
NE POWER N-SPEC(7QV)
03.003
(C)
L=600
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0212 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HF1-S ENG(RLS)
ENGINE POWER N-SPEC(7QV)
EXC. FUEL FILTER DUAL(S6B),MINI BUS
CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ>
03.003
(C)
L=600
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0212 |
● |
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH)
TURBOCHARGER(K51)
EXC. FUEL FILTER DUAL(S6B),MINI BUS
CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ>,
ENGINE POWER N-SPEC(7QV)
03.003
(C)
L=600
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0212 |
|
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 125L,33GAL<NL7>,MINI
BUS CHASSIS(V4B),CHARGE AIR
COOLER<6PL>,HYDRO MASTER<7LT>
03.003
(C)
L=600
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0212 |
|
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
EXC. TURBOCHARGER(K51),MINI BUS
CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ>,ENGI
NE POWER N-SPEC(7QV)
03.003
(C),(D)
L=600
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0301 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HF1-S ENG(RLS)
ENGINE POWER N-SPEC(7QV)
EXC. FUEL FILTER DUAL(S6B),MINI BUS
CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ>
03.003
(C),(D)
L=600
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0301 |
● |
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH)
TURBOCHARGER(K51)
EXC. FUEL FILTER DUAL(S6B),MINI BUS
CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ>,
ENGINE POWER N-SPEC(7QV)
03.003
(C),(D)
L=600
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0301 |
|
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 125L,33GAL<NL7>,MINI
BUS CHASSIS(V4B),CHARGE AIR
COOLER<6PL>,HYDRO MASTER<7LT>
03.003
(C),(D)
L=600
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0301 |
|
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HE1 ENG(RLY)
FUEL TANK 125L,33GAL<NL7>
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),CHARGE
AIRCOOLER<6PL>,HYDRO MASTER<7LT>
03.003
(C),(D)
L=600
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0301 |
|
|
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
EXC. TURBOCHARGER(K51),FUEL TANK 100
LITTER "NON BOX TYPE"<N02>,MINI BUS
CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ>,
ENGINE POWER N-SPEC(7QV)
03.003
(C),(D)
L=600
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0302 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),HYDRO
MASTER<7LT>
03.003
(C),(D)
L=600
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0302 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HE1 ENG(RLY)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),CHARGE
AIRCOOLER<6PL>,IDENTIFICATION LABEL FOR
KD<6UT>,HYDRO MASTER<7LT>
03.003
(C),(D)
L=600
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0302 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HF1-S ENG(RLS)
ENGINE POWER N-SPEC(7QV)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,FUEL FILTER DUAL(S6B),MINI
BUS CHASSIS(V4B),FRAME STRAIGHT
TYPE<7KJ>
03.003
(C),(D)
L=600
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0302 |
● |
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH)
TURBOCHARGER(K51)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,FUEL FILTER DUAL(S6B),MINI
BUS CHASSIS(V4B),FRAME STRAIGHT
TYPE<7KJ>,ENGINE POWER N-SPEC(7QV)
03.003
(C),(D)
L=600
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0302 |
|
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
03.003
(C),(D)
L=600
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0302 |
|
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL
TANK 100 LITTER "NON BOX TYPE"<N02>,MI
NI BUS CHASSIS(V4B),CHARGE AIR
COOLER<6PL>,HYDRO MASTER<7LT>
03.003
(C),(D)
L=600
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0302 |
|
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HE1 ENG(RLY)
FUEL TANK 125L,33GAL<NL7>
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),CHARGE
AIRCOOLER<6PL>,HYDRO MASTER<7LT>
03.003
(C),(D)
L=600
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0302 |
|
|
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
EXC. TURBOCHARGER(K51),FUEL TANK 100
LITTER "NON BOX TYPE"<N02>,MINI BUS
CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ>,
ENGINE POWER N-SPEC(7QV)
03.003
(C),(D)
L=600
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0303-0501 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HF1-S ENG(RLS)
ENGINE POWER N-SPEC(7QV)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,FUEL FILTER DUAL(S6B),MINI
BUS CHASSIS(V4B),FRAME STRAIGHT
TYPE<7KJ>
03.003
(C),(D)
L=600
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0303-0501 |
● |
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH)
TURBOCHARGER(K51)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,FUEL FILTER DUAL(S6B),MINI
BUS CHASSIS(V4B),FRAME STRAIGHT
TYPE<7KJ>,ENGINE POWER N-SPEC(7QV)
03.003
(C),(D)
L=600
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0303-0501 |
|
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL
TANK 100 LITTER "NON BOX TYPE"<N02>,MI
NI BUS CHASSIS(V4B),CHARGE AIR
COOLER<6PL>,HYDRO MASTER<7LT>
03.003
(C),(D)
L=600
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0303-0501 |
|
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HE1 ENG(RLY)
FUEL TANK 125L,33GAL<NL7>
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),CHARGE
AIRCOOLER<6PL>,HYDRO MASTER<7LT>
03.003
(C),(D)
L=600
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0303-0501 |
|
|
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
03.003
(C),(D)
L=600
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502- |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
03.003
(C),(D)
L=600
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502- |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HF1-N ENG(RJZ)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,FUEL FILTER DUAL(S6B),MINI
BUS CHASSIS(V4B),FRAME STRAIGHT
TYPE<7KJ>
03.003
(C),(D)
L=600
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502- |
● |
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1-T ENG(RDP)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,MINI BUS CHASSIS(V4B)
03.003
(C),(D)
L=600
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502- |
|
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
EXC. CHARGE AIR COOLER<6PL>
03.003
(B)
L=500
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0212 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
FUEL FILTER DUAL(S6B)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
03.003
(B)
L=500
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0212 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,CHARGE AIR COOLER<6PL>
03.003
(B)
L=500
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0301 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
FUEL FILTER DUAL(S6B)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,FRAME STRAIGHT TYPE<7KJ>,
ENGINE POWER N-SPEC(7QV)
03.003
(B)
L=500
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0301 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
EXC. CHARGE AIR COOLER<6PL>,
IDENTIFICATION LABEL FOR KD<6UT>
03.003
(B)
L=500
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0301 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,CHARGE AIR COOLER<6PL>
03.003
(B)
L=500
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0301 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
FUEL FILTER DUAL(S6B)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,FRAME STRAIGHT TYPE<7KJ>,
ENGINE POWER N-SPEC(7QV)
03.003
(B)
L=500
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0301 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HE1 ENG(RLY)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
EXC. CHARGE AIR COOLER<6PL>,
IDENTIFICATION LABEL FOR KD<6UT>
03.003
(B)
L=500
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0301 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
FUEL FILTER DUAL(S6B)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>,ENGINE POWER
N-SPEC(7QV)
03.003
(B)
L=500
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0302-0501 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HE1 ENG(RLY)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
EXC. CHARGE AIR COOLER<6PL>,
IDENTIFICATION LABEL FOR KD<6UT>
03.003
(B)
L=500
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0302-0501 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
FUEL FILTER DUAL(S6B)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
03.003
(B)
L=500
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502- |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,CHARGE AIR COOLER<6PL>
(B)
L=440
|
0-01209-440-0 |
01 |
1 |
0302-0501 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>
(B)
L=440
|
0-01209-440-0 |
01 |
1 |
0502- |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HE1 ENG(RLY)
FUEL FILTER DUAL(S6B)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>
03.003
(D)
L=420
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0212 |
● |
● |
● |
● |
● |
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),CHARGE
AIRCOOLER<6PL>,HYDRO MASTER<7LT>
03.003
(D)
L=420
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0212 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HE1 ENG(RLY)
FUEL FILTER DUAL(S6B)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>
03.003
(B)
L=420
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0301 |
● |
● |
● |
● |
● |
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
IDENTIFICATION LABEL FOR KD<6UT>
FRAME STRAIGHT TYPE<7KJ>
EXC. CHARGE AIR COOLER<6PL>
03.003
(B)
L=420
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0301 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
03.003
(B)
L=420
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0301 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,MINI BUS CHASSIS(V4B),
CHARGEAIR COOLER<6PL>,HYDRO MASTER<7LT>
03.003
(B)
L=420
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0301 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HE1 ENG(RLY)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
IDENTIFICATION LABEL FOR KD<6UT>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),CHARGE
AIRCOOLER<6PL>,HYDRO MASTER<7LT>
03.003
(B)
L=420
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0301 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HF1-S ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.003
(B)
L=420
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0301 |
|
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HE1 ENG(RLY)
FUEL FILTER DUAL(S6B)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>
03.003
(B)
L=420
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0301 |
● |
● |
● |
● |
● |
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
03.003
(B)
L=420
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0301 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,MINI BUS CHASSIS(V4B),
CHARGEAIR COOLER<6PL>,HYDRO MASTER<7LT>
03.003
(B)
L=420
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0301 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HE1 ENG(RLY)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
IDENTIFICATION LABEL FOR KD<6UT>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),CHARGE
AIRCOOLER<6PL>,HYDRO MASTER<7LT>
03.003
(B)
L=420
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0301 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HE1 ENG(RLY)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
IDENTIFICATION LABEL FOR KD<6UT>
FRAME STRAIGHT TYPE<7KJ>
EXC. CHARGE AIR COOLER<6PL>
03.003
(B)
L=420
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0301 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
EXC. CHARGE AIR COOLER<6PL>
03.003
(B)
L=420
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0301 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HF1-S ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.003
(B)
L=420
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0301 |
|
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
03.003
(B),(D)
L=420
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0302-0302 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,MINI BUS CHASSIS(V4B),
CHARGEAIR COOLER<6PL>,HYDRO MASTER<7LT>
03.003
(B),(D)
L=420
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0302-0302 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HE1 ENG(RLY)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
IDENTIFICATION LABEL FOR KD<6UT>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),CHARGE
AIRCOOLER<6PL>,HYDRO MASTER<7LT>
03.003
(B),(D)
L=420
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0302-0302 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HE1 ENG(RLY)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
IDENTIFICATION LABEL FOR KD<6UT>
FRAME STRAIGHT TYPE<7KJ>
EXC. CHARGE AIR COOLER<6PL>
03.003
(B),(D)
L=420
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0302-0302 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
EXC. CHARGE AIR COOLER<6PL>
03.003
(B),(D)
L=420
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0302-0302 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HF1-S ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.003
(B),(D)
L=420
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0302-0302 |
|
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
03.003
(B),(D)
L=420
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0303-0501 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,MINI BUS CHASSIS(V4B),
CHARGEAIR COOLER<6PL>,HYDRO MASTER<7LT>
03.003
(B),(D)
L=420
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0303-0501 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HE1 ENG(RLY)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),CHARGE
AIRCOOLER<6PL>,IDENTIFICATION LABEL FOR
KD<6UT>,HYDRO MASTER<7LT>
03.003
(B),(D)
L=420
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0303-0501 |
|
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HE1 ENG(RLY)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
IDENTIFICATION LABEL FOR KD<6UT>
FRAME STRAIGHT TYPE<7KJ>
EXC. CHARGE AIR COOLER<6PL>
03.003
(B),(D)
L=420
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0303-0501 |
|
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
EXC. CHARGE AIR COOLER<6PL>
03.003
(B),(D)
L=420
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0303-0501 |
|
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HF1-S ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.003
(B),(D)
L=420
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0303-0501 |
|
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,MINI BUS CHASSIS(V4B)
03.003
(B),(D)
L=420
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502- |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.003
(B),(D)
L=420
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502- |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
03.003
(B),(D)
L=420
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502- |
|
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HE1 ENG(RLY)
FUEL FILTER DUAL(S6B)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
03.003
(B)
L=640
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0212 |
● |
● |
● |
● |
● |
|
| |
29 |
03.163 HOSE; FUEL
4HF1-S ENG(RLS)
FUEL FILTER DUAL(S6B)
ENGINE POWER N-SPEC(7QV)
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
03.003
(B)
L=640
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0212 |
● |
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
03.003
(B)
L=640
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0212 |
|
|
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
03.003
(B)
L=640
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0212 |
|
|
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH)
MINI BUS CHASSIS(V4B)
EGYPT EQUIPMENT(YJ4)
AIR INTAKE SYSTEM FRONT<6PC>
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
03.003
(B)
L=640
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0212 |
|
|
|
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HF1-S ENG(RLS)
FUEL FILTER DUAL(S6B)
ENGINE POWER N-SPEC(7QV)
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
03.003
(C)
L=640
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0309 |
● |
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
03.003
(C)
L=640
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0309 |
|
|
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
03.003
(C)
L=640
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0309 |
|
|
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH)
MINI BUS CHASSIS(V4B)
EGYPT EQUIPMENT(YJ4)
AIR INTAKE SYSTEM FRONT<6PC>
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
03.003
(C)
L=640
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0309 |
|
|
|
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HF1-S ENG(RLS)
FUEL FILTER DUAL(S6B)
ENGINE POWER N-SPEC(7QV)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
03.003
(C)
L=640
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0310-0501 |
● |
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>
03.003
(C)
L=640
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0310-0501 |
|
|
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,HYDRO MASTER<7LT>
03.003
(C)
L=640
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0310-0501 |
|
|
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH)
MINI BUS CHASSIS(V4B)
EGYPT EQUIPMENT(YJ4)
AIR INTAKE SYSTEM FRONT<6PC>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,HYDRO MASTER<7LT>
03.003
(C)
L=640
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0310-0501 |
|
|
|
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HF1-N ENG(RJZ)
FUEL FILTER DUAL(S6B)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
03.003
(C)
L=640
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502- |
● |
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>
03.003
(C)
L=640
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502- |
|
|
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
MINI BUS CHASSIS(V4B)
EGYPT EQUIPMENT(YJ4)
AIR INTAKE SYSTEM FRONT<6PC>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>
03.003
(C)
L=640
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502- |
|
|
|
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
EXC. FUEL FILTER DUAL(S6B),MINI BUS
CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ>
03.003
(A)
L=300
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
|
● |
| |
29 |
03.163 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,FUEL TANK 125L,
33GAL<NL7>,FUEL FILTER DUAL(S6B),MINI BUS
CHASSIS(V4B),CHARGE AIR COOLER<6PL>,
HYDRO MASTER<7LT>
03.003
(A)
L=300
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
EXC. FUEL FILTER DUAL(S6B),MINI BUS
CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ>
03.003
(A)
L=300
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502- |
● |
● |
● |
● |
|
● |
| |
29 |
03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,FUEL FILTER
DUAL(S6B),MINI BUS CHASSIS(V4B)
03.003
(A)
L=300
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502- |
● |
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HE1 ENG(RLY)
MINI BUS CHASSIS(V4B)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL FILTER DUAL(S6B)
03.003
(A)
L=220
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL FILTER DUAL(S6B)
03.003
(A)
L=220
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502- |
|
● |
|
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HF1-S ENG(RLS)
MINI BUS CHASSIS(V4B)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.003
(A),(C)
L=700
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0212 |
|
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH)
TURBOCHARGER(K51)
FUEL FILTER DUAL(S6B)
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>,ENGINE POWER
N-SPEC(7QV)
03.003
(A),(C)
L=700
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0212 |
|
● |
|
● |
|
|
| |
29 |
03.163 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
03.003
(A),(C)
L=700
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0212 |
|
● |
|
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH)
TURBOCHARGER(K51)
FUEL FILTER DUAL(S6B)
EXC. FUEL TANK 125L,33GAL<NL7>,MINI
BUS CHASSIS(V4B),FRAME STRAIGHT
TYPE<7KJ>,ENGINE POWER N-SPEC(7QV)
03.003
(A),(C)
L=700
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0212 |
|
|
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH)
TURBOCHARGER(K51)
FUEL FILTER DUAL(S6B)
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL
TANK 100 LITTER "NON BOX TYPE"<N02>,MI
NI BUS CHASSIS(V4B),FRAME STRAIGHT
TYPE<7KJ>,ENGINE POWER N-SPEC(7QV)
03.003
(A),(C)
L=700
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0501 |
|
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HF1-S ENG(RLS)
MINI BUS CHASSIS(V4B)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.003
(A),(C)
L=700
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0501 |
|
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>
03.003
(A),(C)
L=700
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0501 |
|
● |
|
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
MINI BUS CHASSIS(V4B)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.003
(A),(C)
L=700
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502-0606 |
|
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1-T ENG(RDP)
FUEL FILTER DUAL(S6B)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
03.003
(A),(C)
L=700
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502-0606 |
|
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH)
MINI BUS CHASSIS(V4B)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.003
(A),(C)
L=700
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502-0606 |
|
|
|
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
MINI BUS CHASSIS(V4B)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.003
(A),(C)
L=700
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0607- |
|
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1-T ENG(RDP)
FUEL FILTER DUAL(S6B)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
03.003
(A),(C)
L=700
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0607- |
|
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
03.003
(D)
L=400
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0212 |
|
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>
03.003
(D)
L=400
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0501 |
|
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
FUEL FILTER DUAL(S6B)
MINI BUS CHASSIS(V4B)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,FRAME STRAIGHT TYPE<7KJ>
03.003
(B)
L=550
SERVICED BY L=3000
|
0-01259-300-0 |
02 |
1 |
0302-0501 |
|
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
MINI BUS CHASSIS(V4B)
EXC. FUEL FILTER DUAL(S6B),FRAME
STRAIGHT TYPE<7KJ>
03.003
(A)
L=115
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0212 |
|
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL FILTER DUAL(S6B),HYDRO
MASTER<7LT>
03.003
(A)
L=115
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0212 |
|
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL FILTER DUAL(S6B),HYDRO
MASTER<7LT>
03.003
(A)
L=115
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0212 |
|
|
|
● |
|
|
| |
29 |
03.163 HOSE; FUEL
MINI BUS CHASSIS(V4B)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,FUEL FILTER DUAL(S6B),FRAME
STRAIGHT TYPE<7KJ>
03.003
(A)
L=115
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0301 |
|
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL FILTER DUAL(S6B),HYDRO
MASTER<7LT>
03.003
(A)
L=115
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0301 |
|
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL FILTER DUAL(S6B),HYDRO
MASTER<7LT>
03.003
(A)
L=115
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0301 |
|
|
|
● |
|
|
| |
29 |
03.163 HOSE; FUEL
MINI BUS CHASSIS(V4B)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,FRAME STRAIGHT TYPE<7KJ>
03.003
(A)
L=115
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0302-0501 |
|
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL FILTER DUAL(S6B),HYDRO
MASTER<7LT>
03.003
(A)
L=115
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0302-0501 |
|
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL FILTER DUAL(S6B),HYDRO
MASTER<7LT>
03.003
(A)
L=115
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0302-0501 |
|
|
|
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL FILTER DUAL(S6B)
03.003
(A)
L=115
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502-0606 |
|
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
MINI BUS CHASSIS(V4B)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,FRAME STRAIGHT TYPE<7KJ>
03.003
(A)
L=115
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502-0606 |
|
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL FILTER DUAL(S6B)
03.003
(A)
L=115
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502-0606 |
|
|
|
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH)
MINI BUS CHASSIS(V4B)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,FRAME STRAIGHT TYPE<7KJ>
03.003
(A)
L=115
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502-0606 |
|
|
|
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL FILTER DUAL(S6B)
03.003
(A)
L=115
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0607- |
|
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
MINI BUS CHASSIS(V4B)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,FRAME STRAIGHT TYPE<7KJ>
03.003
(A)
L=115
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0607- |
|
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HE1 ENG(RLY)
MINI BUS CHASSIS(V4B)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
03.003
(C)
L=680
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0212 |
|
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HE1 ENG(RLY)
MINI BUS CHASSIS(V4B)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>
03.003
(C)
L=680
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0501 |
|
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>
03.003
(C)
L=680
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502- |
|
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
FUEL FILTER DUAL(S6B)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
03.003
(C)
L=140
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0212 |
|
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HF1-S ENG(RLS)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.003
(C)
L=140
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0212 |
|
|
|
|
|
● |
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
FUEL FILTER DUAL(S6B)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,HYDRO MASTER<7LT>
03.003
(C)
L=140
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0501 |
|
● |
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HF1-S ENG(RLS)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,FRAME STRAIGHT TYPE<7KJ>
03.003
(C)
L=140
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0501 |
|
|
|
|
|
● |
| |
29 |
03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
FUEL FILTER DUAL(S6B)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>
03.003
(C)
L=140
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502-0612 |
|
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1 ENG(RJH)
FUEL FILTER DUAL(S6B)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>
03.003
(C)
L=140
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502-0612 |
|
|
|
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
FUEL FILTER DUAL(S6B)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>
03.003
(C)
L=140
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0701- |
|
● |
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH)
FUEL FILTER DUAL(S6B)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>
03.003
(C)
L=140
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0701- |
|
|
|
● |
|
|
| |
29 |
03.163 HOSE; FUEL
FUEL TANK 125L,33GAL<NL7>
FRAME STRAIGHT TYPE<7KJ>
EXC. CHARGE AIR COOLER<6PL>
(C)
L=720
|
8-97092-062-1 |
01 |
1 |
0211-0212 |
|
|
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HE1 ENG(RLY)
FUEL TANK 125L,33GAL<NL7>
FRAME STRAIGHT TYPE<7KJ>
EXC. CHARGE AIR COOLER<6PL>
(C)
L=720
|
8-97092-062-1 |
01 |
1 |
0301-0501 |
|
|
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HK1-TCS ENG(RJS)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98011-395-0 |
01 |
1 |
0507-0606 |
|
|
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98011-395-0 |
01 |
1 |
0607- |
|
|
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>
(A)
|
8-97365-798-2 |
01 |
1 |
0507-0606 |
|
|
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>
(A)
|
8-97365-798-2 |
01 |
1 |
0607- |
|
|
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97365-798-2 |
01 |
1 |
0607- |
|
|
|
● |
|
|
| |
29 |
03.163 HOSE; FUEL
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
(C)
L=320
|
8-97363-055-0 |
01 |
1 |
0301-0501 |
|
|
● |
● |
|
|
| |
29 |
03.163 HOSE; FUEL
4HF1-S ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
EXC. FRAME STRAIGHT TYPE<7KJ>
(E)
L=1100
|
8-97363-058-0 |
01 |
1 |
0301-0501 |
|
|
|
|
|
● |
| |
29 |
03.163 HOSE; FUEL
(E)
L=1100
|
8-97363-058-1 |
01 |
1 |
0502- |
|
|
|
|
|
● |
| |
39 |
03.163 PIPE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
M/T MYY6P(RSJ),M/T MYY5T(RSM)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),HYDRO
MASTER<7LT>
|
8-97171-014-1 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
|
|
| |
39 |
03.163 PIPE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
|
8-97171-014-1 |
01 |
1 |
0502- |
● |
● |
● |
● |
|
|
| |
39 |
03.163 PIPE; FUEL
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
|
8-97171-015-1 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
● |
|
| |
39 |
03.163 PIPE; FUEL
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
|
8-97171-015-1 |
01 |
1 |
0502- |
● |
● |
● |
● |
|
|
| |
39 |
03.163 PIPE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
M/T MYY6P(RSJ),M/T MYY5T(RSM)
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
|
8-97325-839-1 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
|
● |
| |
39 |
03.163 PIPE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
|
8-97325-839-1 |
01 |
1 |
0502- |
● |
● |
● |
● |
|
● |
| |
39 |
03.163 PIPE; FUEL
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
|
8-98024-010-0 |
01 |
1 |
0507-0606 |
|
|
● |
|
|
|
| |
39 |
03.163 PIPE; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
|
8-98024-010-0 |
01 |
1 |
0607- |
|
|
● |
● |
|
|
| |
39 |
03.163 PIPE; FUEL
4HE1 ENG(RLY)
M/T MZZ6U(RSF)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),CHARGE
AIRCOOLER<6PL>,HYDRO MASTER<7LT>
|
8-97327-180-0 |
01 |
1 |
0211-0501 |
|
|
● |
● |
|
|
| |
41 |
03.162 CLIP; FUEL PIPE,FUEL TANK
4HF1-S ENG(RLS),4HE1 ENG(RLY)
01.219
ID=13
|
8-94238-571-0 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
● |
| |
41 |
03.162 CLIP; FUEL PIPE,FUEL TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
01.219
ID=13
|
8-94238-571-0 |
01 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
41 |
03.162 CLIP; FUEL PIPE,FUEL TANK
4HG1 ENG(RJH),4HE1 ENG(RLY)
01.219
ID=13
|
8-94238-571-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
41 |
03.162 CLIP; FUEL PIPE,FUEL TANK
01.219
ID=13
|
8-94238-571-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
41 |
03.162 CLIP; FUEL PIPE,FUEL TANK
4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ),
4HF1-S ENG(RLS)
01.219
ID=13
|
8-94238-571-0 |
01 |
1 |
0502-0612 |
● |
|
|
|
|
|
| |
41 |
03.162 CLIP; FUEL PIPE,FUEL TANK
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
01.219
ID=13
|
8-94238-571-0 |
01 |
1 |
0502-0612 |
|
● |
● |
|
|
|
| |
41 |
03.162 CLIP; FUEL PIPE,FUEL TANK
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),
4HG1 ENG(RJH)
01.219
ID=13
|
8-94238-571-0 |
01 |
1 |
0502-0612 |
|
|
|
● |
|
|
| |
41 |
03.162 CLIP; FUEL PIPE,FUEL TANK
01.219
ID=13
|
8-94238-571-0 |
01 |
1 |
0502-0612 |
|
|
|
|
|
● |
| |
41 |
03.162 CLIP; FUEL PIPE,FUEL TANK
4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ),
4HF1-S ENG(RLS)
01.219
ID=13
|
8-94238-571-0 |
01 |
1 |
0701-0911 |
● |
|
|
|
|
|
| |
41 |
03.162 CLIP; FUEL PIPE,FUEL TANK
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
01.219
ID=13
|
8-94238-571-0 |
01 |
1 |
0701-0911 |
|
● |
● |
|
|
|
| |
41 |
03.162 CLIP; FUEL PIPE,FUEL TANK
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH)
01.219
ID=13
|
8-94238-571-0 |
01 |
1 |
0701-0911 |
|
|
|
● |
|
|
| |
41 |
03.162 CLIP; FUEL PIPE,FUEL TANK
01.219
ID=13
|
8-94238-571-0 |
01 |
1 |
0701-0911 |
|
|
|
|
|
● |
| |
41 |
03.162 CLIP; FUEL PIPE,FUEL TANK
4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ),
4HF1-S ENG(RLS)
ID=13
|
8-98150-357-0 |
01 |
1 |
0912- |
● |
|
|
|
|
|
| |
41 |
03.162 CLIP; FUEL PIPE,FUEL TANK
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
ID=13
|
8-98150-357-0 |
01 |
1 |
0912- |
|
● |
● |
|
|
|
| |
41 |
03.162 CLIP; FUEL PIPE,FUEL TANK
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH)
ID=13
|
8-98150-357-0 |
01 |
1 |
0912- |
|
|
|
● |
|
|
| |
41 |
03.162 CLIP; FUEL PIPE,FUEL TANK
ID=13
|
8-98150-357-0 |
01 |
1 |
0912- |
|
|
|
|
|
● |
| |
41 |
03.162 CLIP; FUEL PIPE,FUEL TANK
4HK1-TCS ENG(RJS)
01.219
ID=12
|
8-94238-610-0 |
01 |
1 |
0507-0606 |
|
|
● |
|
|
|
| |
41 |
03.162 CLIP; FUEL PIPE,FUEL TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
01.219
ID=12
|
8-94238-610-0 |
01 |
1 |
0607-0911 |
|
|
● |
● |
|
|
| |
41 |
03.162 CLIP; FUEL PIPE,FUEL TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
01.240
ID=12
|
8-98150-358-0 |
01 |
1 |
0912- |
|
|
● |
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HF1-S ENG(RLS)
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-97325-825-1 |
01 |
1 |
0211-0303 |
● |
|
|
|
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HF1-S ENG(RLS)
M/T MYY6P(RSJ),M/T MYY5T(RSM)
ENGINE POWER N-SPEC(7QV)
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
(C)
|
8-97325-825-1 |
01 |
1 |
0211-0303 |
|
● |
● |
|
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HF1-S ENG(RLS)
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-97365-728-0 |
01 |
1 |
0304-0304 |
● |
|
|
|
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HF1-S ENG(RLS)
M/T MYY6P(RSJ),M/T MYY5T(RSM)
ENGINE POWER N-SPEC(7QV)
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
(C)
|
8-97365-728-0 |
01 |
1 |
0304-0304 |
|
● |
● |
|
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HF1-S ENG(RLS)
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-97367-392-0 |
01 |
1 |
0305-0501 |
● |
|
|
|
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HF1-S ENG(RLS)
M/T MYY6P(RSJ),M/T MYY5T(RSM)
ENGINE POWER N-SPEC(7QV)
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
(C)
|
8-97367-392-0 |
01 |
1 |
0305-0501 |
|
● |
● |
|
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HF1-N ENG(RJZ)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-97367-392-0 |
01 |
1 |
0502- |
● |
|
|
|
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HF1-N ENG(RJZ)
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
(C)
|
8-97367-392-0 |
01 |
1 |
0502- |
|
● |
● |
|
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1-S ENG(RLS)
M/T MYY6P(RSJ),M/T MYY5T(RSM)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),HYDRO
MASTER<7LT>
(C)
|
8-97325-827-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
(C)
|
8-97325-827-0 |
01 |
1 |
0502- |
● |
● |
● |
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,MINI BUS
CHASSIS(V4B)
(B)
|
8-97148-811-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
● |
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-97148-811-0 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,MINI BUS
CHASSIS(V4B)
(B)
|
8-97148-811-0 |
01 |
1 |
0502- |
● |
● |
● |
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,MINI BUS
CHASSIS(V4B)
(A)
|
8-97171-009-3 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
● |
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,MINI BUS
CHASSIS(V4B)
(A)
|
8-97171-009-3 |
01 |
1 |
0502- |
● |
● |
● |
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1-S ENG(RLS)
M/T MYY6P(RSJ),M/T MYY5T(RSM)
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>,ENGINE POWER
N-SPEC(7QV)
(C)
|
8-97325-824-1 |
01 |
1 |
0211-0303 |
● |
● |
● |
● |
|
● |
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1-S ENG(RLS)
M/T MYY6P(RSJ),M/T MYY5T(RSM)
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>,ENGINE POWER
N-SPEC(7QV)
(C)
|
8-97365-727-0 |
01 |
1 |
0304-0501 |
● |
● |
● |
● |
|
● |
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
(C)
|
8-97365-727-0 |
01 |
1 |
0502- |
● |
● |
● |
● |
|
● |
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1-S ENG(RLS)
MINI BUS CHASSIS(V4B)
AIR INTAKE SYSTEM FRONT<6PC>
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
(D)
|
8-97146-410-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH)
MINI BUS CHASSIS(V4B)
AIR INTAKE SYSTEM FRONT<6PC>
FRAME STRAIGHT TYPE<7KJ>
EXC. EGYPT EQUIPMENT(YJ4),HYDRO
MASTER<7LT>
(D)
|
8-97146-410-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
MINI BUS CHASSIS(V4B)
AIR INTAKE SYSTEM FRONT<6PC>
FRAME STRAIGHT TYPE<7KJ>
EXC. EGYPT EQUIPMENT(YJ4)
(D)
|
8-97146-410-0 |
01 |
1 |
0502-0612 |
|
● |
|
|
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH)
MINI BUS CHASSIS(V4B)
AIR INTAKE SYSTEM FRONT<6PC>
FRAME STRAIGHT TYPE<7KJ>
EXC. EGYPT EQUIPMENT(YJ4)
(D)
|
8-97146-410-0 |
01 |
1 |
0502-0612 |
|
|
|
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
MINI BUS CHASSIS(V4B)
AIR INTAKE SYSTEM FRONT<6PC>
FRAME STRAIGHT TYPE<7KJ>
EXC. EGYPT EQUIPMENT(YJ4)
(D)
|
8-97146-410-0 |
01 |
1 |
0701- |
|
● |
|
|
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HG1-T ENG(RDP),4HG1 ENG(RJH)
MINI BUS CHASSIS(V4B)
AIR INTAKE SYSTEM FRONT<6PC>
FRAME STRAIGHT TYPE<7KJ>
EXC. EGYPT EQUIPMENT(YJ4)
(D)
|
8-97146-410-0 |
01 |
1 |
0701- |
|
|
|
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1-S ENG(RLS)
M/T MYY6P(RSJ),M/T MYY5T(RSM)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
(E)
|
8-97349-241-0 |
01 |
1 |
0211-0406 |
|
● |
● |
|
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH)
M/T MYY5T(RSM)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
(E)
|
8-97349-241-0 |
01 |
1 |
0211-0406 |
|
|
|
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1-S ENG(RLS)
M/T MYY6P(RSJ),M/T MYY5T(RSM)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
(E)
|
8-97385-721-0 |
01 |
1 |
0407-0501 |
|
● |
● |
|
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH)
M/T MYY5T(RSM)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
(E)
|
8-97385-721-0 |
01 |
1 |
0407-0501 |
|
|
|
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1-S ENG(RLS)
MINI BUS CHASSIS(V4B)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
(D)
|
8-97325-823-0 |
01 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH)
MINI BUS CHASSIS(V4B)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
(D)
|
8-97325-823-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1-S ENG(RLS)
MINI BUS CHASSIS(V4B)
EXC. FRAME STRAIGHT TYPE<7KJ>
(D)
|
8-97325-823-0 |
01 |
1 |
0502- |
|
● |
● |
|
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH)
MINI BUS CHASSIS(V4B)
EXC. FRAME STRAIGHT TYPE<7KJ>
(D)
|
8-97325-823-0 |
01 |
1 |
0502- |
|
|
|
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY)
MINI BUS CHASSIS(V4B)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
(D)
|
8-97202-609-0 |
01 |
1 |
0211-0501 |
|
● |
● |
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
(D)
|
8-97202-609-0 |
01 |
1 |
0502- |
|
|
● |
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HK1-TCS ENG(RJS)
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,MINI BUS
CHASSIS(V4B)
(F)
|
8-97330-392-3 |
01 |
1 |
0507-0606 |
|
|
● |
|
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,MINI BUS
CHASSIS(V4B)
(F)
|
8-97330-392-3 |
01 |
1 |
0607- |
|
|
● |
|
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
EXC. MINI BUS CHASSIS(V4B)
(F)
|
8-97330-392-3 |
01 |
1 |
0607- |
|
|
|
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>
(G)
|
8-97330-391-4 |
01 |
1 |
0507-0606 |
|
|
● |
|
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>
(G)
|
8-97330-391-4 |
01 |
1 |
0607- |
|
|
● |
|
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
(G)
|
8-97330-391-4 |
01 |
1 |
0607- |
|
|
|
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY)
M/T MZZ6U(RSF)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),CHARGE
AIRCOOLER<6PL>,HYDRO MASTER<7LT>
(C)
|
8-97327-176-0 |
01 |
1 |
0211-0501 |
|
|
● |
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1-S ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
(D)
|
8-97219-274-0 |
01 |
1 |
0211-0501 |
|
|
● |
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH)
MINI BUS CHASSIS(V4B)
EGYPT EQUIPMENT(YJ4)
AIR INTAKE SYSTEM FRONT<6PC>
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
(D)
|
8-97219-274-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
(D)
|
8-97219-274-0 |
01 |
1 |
0502- |
|
|
● |
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HG1 ENG(RJH)
MINI BUS CHASSIS(V4B)
EGYPT EQUIPMENT(YJ4)
AIR INTAKE SYSTEM FRONT<6PC>
FRAME STRAIGHT TYPE<7KJ>
(D)
|
8-97219-274-0 |
01 |
1 |
0502- |
|
|
|
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
4HE1 ENG(RLY)
A/T 4 SPEED-AISIN(RNJ),M/T MYY5T(RSM)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97229-732-0 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
4HF1-S ENG(RLS)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97325-835-2 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
4HG1 ENG(RJH),4HF1-S ENG(RLS)
M/T MYY6P(RSJ),M/T MYY5T(RSM)
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
|
8-97325-835-2 |
01 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
4HG1 ENG(RJH)
M/T MYY5T(RSM)
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
|
8-97325-835-2 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
4HF1-S ENG(RLS)
M/T MYY5T(RSM)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97325-835-2 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
4HF1-N ENG(RJZ),4HF1-S ENG(RLS)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97325-835-2 |
01 |
1 |
0502-0606 |
● |
|
|
|
|
|
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
|
8-97325-835-2 |
01 |
1 |
0502-0606 |
|
● |
● |
|
|
|
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
4HG1 ENG(RJH)
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
|
8-97325-835-2 |
01 |
1 |
0502-0606 |
|
|
|
● |
|
|
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
|
8-97325-835-2 |
01 |
1 |
0502-0606 |
|
|
|
|
|
● |
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
|
8-97325-835-2 |
01 |
1 |
0607- |
● |
● |
● |
● |
|
● |
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
4HG1 ENG(RJH),4HF1-S ENG(RLS)
M/T MYY6P(RSJ),M/T MYY5T(RSM)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),HYDRO
MASTER<7LT>
|
8-97325-837-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
|
|
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
|
8-97325-837-0 |
01 |
1 |
0502- |
● |
● |
● |
● |
|
|
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
|
8-97171-011-1 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
● |
|
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
4HE1-TCN ENG(RDR)
FRAME STRAIGHT TYPE<7KJ>
|
8-97171-011-1 |
01 |
1 |
0502- |
● |
|
|
|
|
|
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
FRAME STRAIGHT TYPE<7KJ>
|
8-97171-011-1 |
01 |
1 |
0502- |
|
● |
● |
● |
|
|
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
|
8-97330-394-2 |
01 |
1 |
0507-0606 |
|
|
● |
|
|
|
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
|
8-97330-394-2 |
01 |
1 |
0607- |
|
|
● |
● |
|
|
| |
46 |
03.163 PIPE; FUEL,TANK SIDE
4HE1 ENG(RLY)
M/T MZZ6U(RSF)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),CHARGE
AIRCOOLER<6PL>,HYDRO MASTER<7LT>
|
8-97327-179-0 |
01 |
1 |
0211-0501 |
|
|
● |
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HF1-S ENG(RLS)
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97325-831-1 |
01 |
1 |
0211-0303 |
● |
|
|
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HF1-S ENG(RLS)
M/T MYY6P(RSJ),M/T MYY5T(RSM)
ENGINE POWER N-SPEC(7QV)
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
|
8-97325-831-1 |
01 |
1 |
0211-0303 |
|
● |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HF1-S ENG(RLS)
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97365-731-0 |
01 |
1 |
0304-0304 |
● |
|
|
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HF1-S ENG(RLS)
M/T MYY6P(RSJ),M/T MYY5T(RSM)
ENGINE POWER N-SPEC(7QV)
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
|
8-97365-731-0 |
01 |
1 |
0304-0304 |
|
● |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HF1-S ENG(RLS)
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97367-393-0 |
01 |
1 |
0305-0501 |
● |
|
|
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HF1-S ENG(RLS)
M/T MYY6P(RSJ),M/T MYY5T(RSM)
ENGINE POWER N-SPEC(7QV)
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
|
8-97367-393-0 |
01 |
1 |
0305-0501 |
|
● |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HF1-N ENG(RJZ)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97367-393-0 |
01 |
1 |
0502- |
● |
|
|
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HF1-N ENG(RJZ)
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
|
8-97367-393-0 |
01 |
1 |
0502- |
|
● |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1-S ENG(RLS)
M/T MYY6P(RSJ),M/T MYY5T(RSM)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),HYDRO
MASTER<7LT>
|
8-97325-833-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
|
8-97325-833-0 |
01 |
1 |
0502- |
● |
● |
● |
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
|
8-97171-013-1 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
● |
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
|
8-97171-013-1 |
01 |
1 |
0502- |
● |
● |
● |
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1-S ENG(RLS)
M/T MYY6P(RSJ),M/T MYY5T(RSM)
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>,ENGINE POWER
N-SPEC(7QV)
|
8-97325-830-1 |
01 |
1 |
0211-0303 |
● |
● |
● |
● |
|
● |
| |
47 |
03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1-S ENG(RLS)
M/T MYY6P(RSJ),M/T MYY5T(RSM)
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>,ENGINE POWER
N-SPEC(7QV)
|
8-97365-730-0 |
01 |
1 |
0304-0501 |
● |
● |
● |
● |
|
● |
| |
47 |
03.163 PIPE; FUEL,RETURN
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
|
8-97365-730-0 |
01 |
1 |
0502- |
● |
● |
● |
● |
|
● |
| |
47 |
03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY)
MINI BUS CHASSIS(V4B)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
|
8-97220-014-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
|
8-97220-014-0 |
01 |
1 |
0502- |
|
● |
|
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1-S ENG(RLS)
MINI BUS CHASSIS(V4B)
AIR INTAKE SYSTEM FRONT<6PC>
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
|
8-97146-411-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH)
MINI BUS CHASSIS(V4B)
AIR INTAKE SYSTEM FRONT<6PC>
FRAME STRAIGHT TYPE<7KJ>
EXC. EGYPT EQUIPMENT(YJ4),HYDRO
MASTER<7LT>
|
8-97146-411-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
MINI BUS CHASSIS(V4B)
AIR INTAKE SYSTEM FRONT<6PC>
FRAME STRAIGHT TYPE<7KJ>
EXC. EGYPT EQUIPMENT(YJ4)
|
8-97146-411-0 |
01 |
1 |
0502-0612 |
|
● |
|
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH)
MINI BUS CHASSIS(V4B)
AIR INTAKE SYSTEM FRONT<6PC>
FRAME STRAIGHT TYPE<7KJ>
EXC. EGYPT EQUIPMENT(YJ4)
|
8-97146-411-0 |
01 |
1 |
0502-0612 |
|
|
|
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
MINI BUS CHASSIS(V4B)
AIR INTAKE SYSTEM FRONT<6PC>
FRAME STRAIGHT TYPE<7KJ>
EXC. EGYPT EQUIPMENT(YJ4)
|
8-97146-411-0 |
01 |
1 |
0701- |
|
● |
|
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HG1-T ENG(RDP),4HG1 ENG(RJH)
MINI BUS CHASSIS(V4B)
AIR INTAKE SYSTEM FRONT<6PC>
FRAME STRAIGHT TYPE<7KJ>
EXC. EGYPT EQUIPMENT(YJ4)
|
8-97146-411-0 |
01 |
1 |
0701- |
|
|
|
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1-S ENG(RLS)
M/T MYY6P(RSJ),M/T MYY5T(RSM)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
|
8-97349-240-0 |
01 |
1 |
0211-0406 |
|
● |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH)
M/T MYY5T(RSM)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
|
8-97349-240-0 |
01 |
1 |
0211-0406 |
|
|
|
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1-S ENG(RLS)
M/T MYY6P(RSJ),M/T MYY5T(RSM)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
|
8-97385-722-0 |
01 |
1 |
0407-0501 |
|
● |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH)
M/T MYY5T(RSM)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
|
8-97385-722-0 |
01 |
1 |
0407-0501 |
|
|
|
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
MINI BUS CHASSIS(V4B)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
|
8-97325-829-0 |
01 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HE1 ENG(RLY)
MINI BUS CHASSIS(V4B)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
|
8-97325-829-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1-S ENG(RLS)
MINI BUS CHASSIS(V4B)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97325-829-0 |
01 |
1 |
0502- |
|
● |
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH)
MINI BUS CHASSIS(V4B)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97325-829-0 |
01 |
1 |
0502- |
|
|
|
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,MINI BUS
CHASSIS(V4B)
|
8-98006-312-0 |
01 |
1 |
0507-0606 |
|
|
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,MINI BUS
CHASSIS(V4B)
|
8-98006-312-0 |
01 |
1 |
0607- |
|
|
● |
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
|
8-98006-312-0 |
01 |
1 |
0607- |
|
|
|
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY)
M/T MZZ6U(RSF)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),CHARGE
AIRCOOLER<6PL>,HYDRO MASTER<7LT>
|
8-97327-177-0 |
01 |
1 |
0211-0501 |
|
|
● |
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY)
MINI BUS CHASSIS(V4B)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
|
8-97202-610-1 |
01 |
1 |
0211-0501 |
|
|
● |
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
|
8-97202-610-1 |
01 |
1 |
0502- |
|
|
● |
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH),4HF1-S ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
|
8-97219-275-0 |
01 |
1 |
0211-0501 |
|
|
● |
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH)
MINI BUS CHASSIS(V4B)
EGYPT EQUIPMENT(YJ4)
AIR INTAKE SYSTEM FRONT<6PC>
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
|
8-97219-275-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
|
8-97219-275-0 |
01 |
1 |
0502- |
|
|
● |
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HG1 ENG(RJH)
MINI BUS CHASSIS(V4B)
EGYPT EQUIPMENT(YJ4)
AIR INTAKE SYSTEM FRONT<6PC>
FRAME STRAIGHT TYPE<7KJ>
|
8-97219-275-0 |
01 |
1 |
0502- |
|
|
|
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
4HE1 ENG(RLY)
A/T 4 SPEED-AISIN(RNJ),M/T MYY5T(RSM)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
|
8-97229-735-0 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
61 |
03.162 GROMMET; PIPE TO FRAME
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
02.343
ID=17
|
8-94128-319-2 |
04 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
02.343
ID=17
|
8-94128-319-2 |
04 |
1 |
0211-0501 |
|
● |
● |
● |
|
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
02.343
ID=17
|
8-94128-319-2 |
04 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
02.343
ID=17
|
8-94128-319-2 |
02 |
1 |
0502- |
● |
● |
● |
● |
|
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
02.343
ID=17
|
8-94128-319-2 |
02 |
1 |
0502- |
● |
● |
● |
|
|
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
02.343
ID=17
|
8-94128-319-2 |
02 |
1 |
0502- |
|
|
● |
● |
|
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
02.343
ID=17
|
8-94128-319-2 |
02 |
1 |
0502- |
|
|
|
|
|
● |
| |
61 |
03.162 GROMMET; PIPE TO FRAME
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
02.343
ID=17
|
8-94128-319-2 |
02 |
1 |
0211-0501 |
● |
● |
● |
● |
|
● |
| |
61 |
03.162 GROMMET; PIPE TO FRAME
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),CHARGE
AIRCOOLER<6PL>
02.343
ID=17
|
8-94128-319-2 |
02 |
1 |
0211-0501 |
● |
● |
● |
● |
|
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
4HE1 ENG(RLY)
MINI BUS CHASSIS(V4B)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
02.343
ID=17
|
8-94128-319-2 |
02 |
1 |
0211-0501 |
|
|
● |
● |
|
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
02.343
ID=17
|
8-94128-319-2 |
02 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
61 |
03.162 GROMMET; PIPE TO FRAME
MINI BUS CHASSIS(V4B)
EXC. FRAME STRAIGHT TYPE<7KJ>
02.343
ID=17
|
8-94128-319-2 |
01 |
1 |
0211-0501 |
|
● |
● |
● |
|
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
4HE1 ENG(RLY)
MINI BUS CHASSIS(V4B)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
02.343
ID=17
|
8-94128-319-2 |
01 |
1 |
0211-0501 |
|
● |
|
|
|
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
MINI BUS CHASSIS(V4B)
EXC. FRAME STRAIGHT TYPE<7KJ>
02.343
ID=17
|
8-94128-319-2 |
01 |
1 |
0502- |
|
● |
● |
● |
|
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
02.343
ID=17
|
8-94128-319-2 |
01 |
1 |
0502- |
|
● |
|
|
|
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
4HK1-TCS ENG(RJS)
02.343
ID=17
|
8-94128-319-2 |
04 |
1 |
0507-0507 |
|
|
● |
|
|
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
4HE1-TCN ENG(RDR)
02.343
ID=17
|
8-94128-319-2 |
04 |
1 |
0507-0606 |
● |
|
|
|
|
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
02.343
ID=17
|
8-94128-319-2 |
04 |
1 |
0507-0606 |
|
● |
|
● |
|
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),
4HK1-TCS ENG(RJS)
02.343
ID=17
|
8-94128-319-2 |
04 |
1 |
0507-0606 |
|
|
● |
|
|
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
4HE1-TCN ENG(RDR)
02.343
ID=17
|
8-94128-319-2 |
04 |
1 |
0607- |
● |
|
|
|
|
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
02.343
ID=17
|
8-94128-319-2 |
04 |
1 |
0607- |
|
● |
|
|
|
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)
02.343
ID=17
|
8-94128-319-2 |
04 |
1 |
0607- |
|
|
● |
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
03.003
(C)
L=700
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0301 |
● |
|
|
|
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>
03.003
(C)
L=700
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0302-0501 |
● |
|
|
|
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HE1-TCN ENG(RDR)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>
03.003
(C)
L=700
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502- |
● |
|
|
|
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
(C)
L=400
|
8-97363-056-0 |
01 |
1 |
0302-0501 |
● |
|
|
|
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HE1-TCN ENG(RDR)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
(C)
L=400
|
8-97363-056-0 |
01 |
1 |
0502- |
● |
|
|
|
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HF1-S ENG(RLS),4HE1 ENG(RLY)
03.003
(A)
L=140
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
EXC. MINI BUS CHASSIS(V4B),HYDRO
MASTER<7LT>
03.003
(A)
L=140
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HG1 ENG(RJH),4HE1 ENG(RLY)
EXC. MINI BUS CHASSIS(V4B),HYDRO
MASTER<7LT>
03.003
(A)
L=140
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
03.003
(A)
L=140
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HF1-S ENG(RLS)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.003
(A)
L=140
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ),
4HF1-S ENG(RLS)
03.003
(A)
L=140
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502-0612 |
● |
|
|
|
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
EXC. MINI BUS CHASSIS(V4B)
03.003
(A)
L=140
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502-0612 |
|
● |
● |
|
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),
4HG1 ENG(RJH)
EXC. MINI BUS CHASSIS(V4B)
03.003
(A)
L=140
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502-0612 |
|
|
|
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
03.003
(A)
L=140
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502-0612 |
|
|
|
|
|
● |
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ),
4HF1-S ENG(RLS)
03.003
(A)
L=140
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0701- |
● |
|
|
|
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
EXC. MINI BUS CHASSIS(V4B)
03.003
(A)
L=140
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0701- |
|
● |
● |
|
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH)
EXC. MINI BUS CHASSIS(V4B)
03.003
(A)
L=140
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0701- |
|
|
|
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
03.003
(A)
L=140
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0701- |
|
|
|
|
|
● |
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,MINI BUS
CHASSIS(V4B)
03.003
(B)
L=250
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0212 |
● |
● |
● |
● |
● |
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
03.003
(B)
L=250
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0212 |
|
|
|
|
|
● |
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
03.003
(B)
L=240
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0501 |
● |
|
|
|
|
● |
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
03.003
(B)
L=240
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0501 |
|
● |
● |
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
03.003
(B)
L=240
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0301-0501 |
|
|
|
|
● |
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HE1-TCN ENG(RDR)
FRAME STRAIGHT TYPE<7KJ>
03.003
(B)
L=240
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502- |
● |
|
|
|
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
FRAME STRAIGHT TYPE<7KJ>
03.003
(B)
L=240
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502- |
|
● |
● |
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
(C)
L=500
|
8-97353-527-0 |
01 |
1 |
0302-0501 |
|
● |
● |
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
(C)
L=500
|
8-97353-527-0 |
01 |
1 |
0502- |
|
● |
● |
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
03.003
(C)
L=840
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0301 |
|
● |
|
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 125L,33GAL<NL7>,MINI
BUS CHASSIS(V4B)
03.003
(C)
L=840
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0301 |
|
|
● |
|
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
03.003
(C)
L=840
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0301 |
|
|
|
|
● |
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,MINI BUS CHASSIS(V4B)
03.003
(C)
L=840
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0302-0501 |
|
● |
|
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL
TANK 100 LITTER "NON BOX TYPE"<N02>,MI
NI BUS CHASSIS(V4B)
03.003
(C)
L=840
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0302-0501 |
|
|
● |
|
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
03.003
(C)
L=840
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0302-0501 |
|
|
|
|
● |
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>
03.003
(C)
L=840
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502- |
|
● |
● |
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>
(F)
|
8-97365-797-2 |
01 |
1 |
0507-0606 |
|
|
● |
|
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>
(F)
|
8-97365-797-2 |
01 |
1 |
0607- |
|
|
● |
|
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
(F)
|
8-97365-797-2 |
01 |
1 |
0607- |
|
|
|
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HK1-TCS ENG(RJS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
(E)
L=500
SERVICED BY L=3000
|
0-01262-300-0 |
01 |
1 |
0507-0606 |
|
|
● |
|
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
(E)
L=500
SERVICED BY L=3000
|
0-01262-300-0 |
01 |
1 |
0607- |
|
|
● |
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HK1-TCS ENG(RJS)
EXC. MINI BUS CHASSIS(V4B)
(D)
L=140
SERVICED BY L=3000
|
0-01262-300-0 |
01 |
1 |
0507-0606 |
|
|
● |
|
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
EXC. MINI BUS CHASSIS(V4B)
(D)
L=140
SERVICED BY L=3000
|
0-01262-300-0 |
01 |
1 |
0607- |
|
|
● |
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
03.003
(C)
L=760
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0301 |
|
|
|
|
|
● |
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>
03.003
(C)
L=760
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0302-0501 |
|
|
|
|
|
● |
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
4HE1 ENG(RLY)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
(C)
L=435
|
8-97363-060-0 |
01 |
1 |
0302-0501 |
|
|
|
|
|
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
(B)
L=400
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0301-0501 |
● |
|
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HE1-TCN ENG(RDR)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
(B)
L=400
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0502- |
● |
|
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HF1-S ENG(RLS)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
(C)
L=270
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
(C)
L=270
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
(C)
L=270
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HF1-S ENG(RLS)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
L=270
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HF1-S ENG(RLS)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
L=270
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0502-0612 |
● |
|
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
L=270
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0502-0612 |
|
● |
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
L=270
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0502-0612 |
|
|
|
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
(C)
L=270
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0502-0612 |
|
|
|
|
|
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
L=270
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0701- |
● |
● |
● |
● |
|
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HF1-S ENG(RLS),4HE1 ENG(RLY)
EXC. FUEL FILTER DUAL(S6B),FRAME
STRAIGHT TYPE<7KJ>
(B)
L=320
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0211-0212 |
● |
|
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
EXC. FUEL FILTER DUAL(S6B),MINI BUS
CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ>
(B)
L=320
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0211-0212 |
|
● |
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4HE1 ENG(RLY)
EXC. FUEL FILTER DUAL(S6B),MINI BUS
CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ>
(B)
L=320
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0211-0212 |
|
|
|
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,FUEL FILTER DUAL(S6B),MINI
BUS CHASSIS(V4B),FRAME STRAIGHT
TYPE<7KJ>
(B)
L=320
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0301-0501 |
● |
● |
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,CHARGE AIR
COOLER<6PL>,HYDRO MASTER<7LT>
(B)
L=320
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0301-0501 |
● |
● |
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HF1-N ENG(RJZ),4HF1-S ENG(RLS)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,FUEL FILTER DUAL(S6B),FRAME
STRAIGHT TYPE<7KJ>
(B)
L=320
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0502-0612 |
● |
|
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,FUEL FILTER DUAL(S6B),MINI
BUS CHASSIS(V4B),FRAME STRAIGHT
TYPE<7KJ>
(B)
L=320
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0502-0612 |
|
● |
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,FUEL FILTER DUAL(S6B),MINI
BUS CHASSIS(V4B),FRAME STRAIGHT
TYPE<7KJ>
(B)
L=320
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0502-0612 |
|
|
|
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HF1-N ENG(RJZ),4HF1-S ENG(RLS)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,FUEL FILTER DUAL(S6B),FRAME
STRAIGHT TYPE<7KJ>
(B)
L=320
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0701- |
● |
|
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,FUEL FILTER DUAL(S6B),MINI
BUS CHASSIS(V4B),FRAME STRAIGHT
TYPE<7KJ>
(B)
L=320
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0701- |
|
● |
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,FUEL FILTER DUAL(S6B),MINI
BUS CHASSIS(V4B),FRAME STRAIGHT
TYPE<7KJ>
(B)
L=320
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0701- |
|
|
|
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HF1-S ENG(RLS),4HE1 ENG(RLY)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
L=380
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0301-0501 |
● |
|
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
(B)
L=380
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0301-0501 |
|
● |
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4HE1 ENG(RLY)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
(B)
L=380
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0301-0501 |
|
|
|
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HF1-N ENG(RJZ),4HF1-S ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
L=380
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0502-0612 |
● |
|
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
(B)
L=380
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0502-0612 |
|
● |
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
(B)
L=380
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0502-0612 |
|
|
|
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HF1-N ENG(RJZ),4HF1-S ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
L=380
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0701- |
● |
|
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
(B)
L=380
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0701- |
|
● |
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
(B)
L=380
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0701- |
|
|
|
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,FUEL TANK 125L,
33GAL<NL7>,CHARGE AIR COOLER<6PL>,HYDRO MA
STER<7LT>
(C)
L=250
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0211-0212 |
● |
● |
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HF1-S ENG(RLS)
ENGINE POWER N-SPEC(7QV)
EXC. HIGH ALTITUDE COMPENSATOR(EE2),
FRAME STRAIGHT TYPE<7KJ>
(C)
L=250
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0211-0212 |
● |
● |
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,FUEL TANK 125L,
33GAL<NL7>,FUEL TANK 100 LITTER "NON BOX T
YPE"<N02>,CHARGE AIR COOLER<6PL>,
HYDRO MASTER<7LT>
(C)
L=250
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0301-0501 |
● |
● |
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HF1-S ENG(RLS)
ENGINE POWER N-SPEC(7QV)
EXC. HIGH ALTITUDE COMPENSATOR(EE2),
FRAME STRAIGHT TYPE<7KJ>
(C)
L=250
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0301-0501 |
● |
● |
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HF1-N ENG(RJZ)
EXC. HIGH ALTITUDE COMPENSATOR(EE2),
FRAME STRAIGHT TYPE<7KJ>
(C)
L=250
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0502- |
● |
● |
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,MINI BUS
CHASSIS(V4B),HYDRO MASTER<7LT>
(B)
L=500
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0211-0212 |
● |
● |
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 125L,33GAL<NL7>,MINI
BUS CHASSIS(V4B)
(B)
L=500
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0211-0212 |
|
● |
● |
● |
● |
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY)
MINI BUS CHASSIS(V4B)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
(B)
L=500
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0211-0212 |
|
|
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,FUEL TANK 100
LITTER"NON BOX TYPE"<N02>,MINI BUS CHASSIS
(V4B),HYDRO MASTER<7LT>
(B)
L=500
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0301-0501 |
● |
● |
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL
TANK 100 LITTER "NON BOX TYPE"<N02>,MI
NI BUS CHASSIS(V4B)
(B)
L=500
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0301-0501 |
|
● |
● |
● |
● |
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
(B)
L=500
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0301-0501 |
|
● |
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY)
MINI BUS CHASSIS(V4B)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>
(B)
L=500
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0301-0501 |
|
|
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,FUEL TANK 100
LITTER"NON BOX TYPE"<N02>,MINI BUS CHASSIS
(V4B)
(B)
L=500
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0502-0504 |
● |
● |
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,FUEL TANK 100 LITTER "NON
BOX TYPE"<N02>,MINI BUS CHASSIS(V4B)
(B)
L=500
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0502-0504 |
|
● |
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,FUEL TANK 100 LITTER "NON
BOX TYPE"<N02>
(B)
L=500
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0502-0504 |
|
|
|
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,FUEL TANK 100
LITTER"NON BOX TYPE"<N02>,MINI BUS CHASSIS
(V4B)
(B)
L=500
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0505- |
● |
● |
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,MINI BUS CHASSIS(V4B)
(B)
L=500
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0505- |
|
● |
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
FUEL FILTER DUAL(S6B)
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
(B)
L=420
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0211-0212 |
● |
● |
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
(B)
L=420
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0211-0212 |
● |
|
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
(B)
L=420
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0211-0212 |
|
● |
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
FUEL FILTER DUAL(S6B)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
(B)
L=420
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0301-0501 |
● |
● |
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL
TANK 100 LITTER "NON BOX TYPE"<N02>,MI
NI BUS CHASSIS(V4B)
(B)
L=420
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0301-0501 |
● |
|
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>
(B)
L=420
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0301-0501 |
|
● |
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
(B)
L=420
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0301-0501 |
|
|
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
FUEL FILTER DUAL(S6B)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
(B)
L=420
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0502- |
● |
● |
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HE1-TCN ENG(RDR)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>
(B)
L=420
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0502- |
● |
|
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-97174-761-1 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
|
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
(C)
|
8-97174-761-1 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HE1-TCN ENG(RDR)
FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-97174-761-1 |
01 |
1 |
0502- |
● |
|
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-97174-761-1 |
01 |
1 |
0502- |
|
● |
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
(B)
L=550
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0301-0301 |
● |
● |
● |
● |
|
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,MINI BUS
CHASSIS(V4B),HYDRO MASTER<7LT>
(B)
L=550
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0301-0301 |
|
● |
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),CHARGE
AIRCOOLER<6PL>,HYDRO MASTER<7LT>
(B)
L=550
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0301-0301 |
|
● |
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,MINI BUS
CHASSIS(V4B),HYDRO MASTER<7LT>
(B)
L=550
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0301-0501 |
● |
● |
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
(B)
L=550
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0301-0501 |
|
● |
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),CHARGE
AIRCOOLER<6PL>,HYDRO MASTER<7LT>
(B)
L=550
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0301-0501 |
|
● |
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,MINI BUS
CHASSIS(V4B)
(B)
L=550
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0502- |
● |
● |
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1-T ENG(RDP)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
(B)
L=550
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0502- |
|
● |
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
(B)
L=550
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0502- |
|
● |
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. CHARGE AIR COOLER<6PL>
(C)
L=290
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
|
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HF1-S ENG(RLS)
HIGH ALTITUDE COMPENSATOR(EE2)
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
L=290
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
(C)
L=290
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0502- |
● |
● |
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HF1-N ENG(RJZ)
HIGH ALTITUDE COMPENSATOR(EE2)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
L=290
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0502- |
● |
● |
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
(A)
L=140
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0211-0501 |
● |
|
|
|
● |
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
EXC. MINI BUS CHASSIS(V4B),HYDRO
MASTER<7LT>
(A)
L=140
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0211-0501 |
|
● |
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
L=140
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ),
4HF1-S ENG(RLS)
(A)
L=140
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0502-0612 |
● |
|
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
EXC. MINI BUS CHASSIS(V4B)
(A)
L=140
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0502-0612 |
|
● |
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),
4HG1 ENG(RJH)
EXC. MINI BUS CHASSIS(V4B)
(A)
L=140
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0502-0612 |
|
|
|
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
(A)
L=140
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0502-0612 |
|
|
|
|
|
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ),
4HF1-S ENG(RLS)
(A)
L=140
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0701- |
● |
|
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
EXC. MINI BUS CHASSIS(V4B)
(A)
L=140
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0701- |
|
● |
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH)
EXC. MINI BUS CHASSIS(V4B)
(A)
L=140
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0701- |
|
|
|
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
(A)
L=140
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0701- |
|
|
|
|
|
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. TURBOCHARGER(K51),HYDRO
MASTER<7LT>
(B)
L=1100
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0211-0212 |
|
● |
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY)
MINI BUS CHASSIS(V4B)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
(B)
L=1100
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0211-0212 |
|
● |
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH)
MINI BUS CHASSIS(V4B)
AIR INTAKE SYSTEM FRONT<6PC>
FRAME STRAIGHT TYPE<7KJ>
EXC. EGYPT EQUIPMENT(YJ4),HYDRO
MASTER<7LT>
(B)
L=1100
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0211-0212 |
|
|
|
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
L=1100
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0211-0212 |
|
|
|
|
|
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. TURBOCHARGER(K51),HYDRO
MASTER<7LT>
(B)
L=1100
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0301-0501 |
|
● |
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY)
MINI BUS CHASSIS(V4B)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
(B)
L=1100
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0301-0501 |
|
● |
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH)
MINI BUS CHASSIS(V4B)
AIR INTAKE SYSTEM FRONT<6PC>
FRAME STRAIGHT TYPE<7KJ>
EXC. EGYPT EQUIPMENT(YJ4),HYDRO
MASTER<7LT>
(B)
L=1100
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0301-0501 |
|
|
|
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,FRAME STRAIGHT TYPE<7KJ>
(B)
L=1100
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0301-0501 |
|
|
|
|
|
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),
4HG1 ENG(RJH),4HF1-S ENG(RLS)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
(B)
L=1100
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0502-0612 |
|
● |
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH)
MINI BUS CHASSIS(V4B)
AIR INTAKE SYSTEM FRONT<6PC>
FRAME STRAIGHT TYPE<7KJ>
EXC. EGYPT EQUIPMENT(YJ4)
(B)
L=1100
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0502-0612 |
|
|
|
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),
4HG1 ENG(RJH),4HF1-S ENG(RLS)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
(B)
L=1100
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0701- |
|
● |
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH)
MINI BUS CHASSIS(V4B)
AIR INTAKE SYSTEM FRONT<6PC>
FRAME STRAIGHT TYPE<7KJ>
EXC. EGYPT EQUIPMENT(YJ4)
(B)
L=1100
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0701- |
|
|
|
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),CHARGE
AIRCOOLER<6PL>,HYDRO MASTER<7LT>
(B)
L=440
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0211-0212 |
|
● |
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 125L,33GAL<NL7>,MINI
BUS CHASSIS(V4B),CHARGE AIR
COOLER<6PL>,HYDRO MASTER<7LT>
(B)
L=440
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0211-0212 |
|
|
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,MINI BUS CHASSIS(V4B),
CHARGEAIR COOLER<6PL>,HYDRO MASTER<7LT>
(B)
L=440
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0301-0501 |
|
● |
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL
TANK 100 LITTER "NON BOX TYPE"<N02>,MI
NI BUS CHASSIS(V4B),CHARGE AIR
COOLER<6PL>,HYDRO MASTER<7LT>
(B)
L=440
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0301-0501 |
|
|
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1-T ENG(RDP)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,MINI BUS CHASSIS(V4B)
(B)
L=440
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0502- |
|
● |
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
MINI BUS CHASSIS(V4B)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
L=330
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0211-0212 |
|
● |
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
MINI BUS CHASSIS(V4B)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,FRAME STRAIGHT TYPE<7KJ>
(B)
L=330
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0301- |
|
● |
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 125L,33GAL<NL7>
FRAME STRAIGHT TYPE<7KJ>
(B)
L=940
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0211-0212 |
|
|
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY)
FUEL TANK 125L,33GAL<NL7>
FRAME STRAIGHT TYPE<7KJ>
(B)
L=940
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0301-0501 |
|
|
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
(D)
|
8-97367-176-2 |
01 |
1 |
0507-0606 |
|
|
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
(D)
|
8-97367-176-2 |
01 |
1 |
0607- |
|
|
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HK1-TCS ENG(RJS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
(B)
L=550
SERVICED BY L=3000
|
0-01755-300-0 |
01 |
1 |
0507-0606 |
|
|
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
(B)
L=550
SERVICED BY L=3000
|
0-01755-300-0 |
01 |
1 |
0607- |
|
|
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HK1-TCS ENG(RJS)
FUEL TANK 125L,33GAL<NL7>
FRAME STRAIGHT TYPE<7KJ>
(B)
L=1200
SERVICED BY L=3000
|
0-01755-300-0 |
01 |
1 |
0507-0606 |
|
|
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
FUEL TANK 125L,33GAL<NL7>
FRAME STRAIGHT TYPE<7KJ>
(B)
L=1200
SERVICED BY L=3000
|
0-01755-300-0 |
01 |
1 |
0607- |
|
|
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HK1-TCS ENG(RJS)
MINI BUS CHASSIS(V4B)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>
(B)
L=370
SERVICED BY L=3000
|
0-01755-300-0 |
01 |
1 |
0507-0606 |
|
|
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
MINI BUS CHASSIS(V4B)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>
(B)
L=370
SERVICED BY L=3000
|
0-01755-300-0 |
01 |
1 |
0607- |
|
|
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HK1-TCS ENG(RJS)
EXC. MINI BUS CHASSIS(V4B)
(E)
L=140
SERVICED BY L=3000
|
0-01755-300-0 |
01 |
1 |
0507-0606 |
|
|
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
EXC. MINI BUS CHASSIS(V4B)
(E)
L=140
SERVICED BY L=3000
|
0-01755-300-0 |
01 |
1 |
0607- |
|
|
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
(B)
L=370
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0211-0212 |
|
|
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>
(B)
L=370
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0301-0501 |
|
|
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
(B)
L=130
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0211-0212 |
|
|
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH)
MINI BUS CHASSIS(V4B)
EGYPT EQUIPMENT(YJ4)
AIR INTAKE SYSTEM FRONT<6PC>
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>
(B)
L=130
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0211-0212 |
|
|
|
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,HYDRO MASTER<7LT>
(B)
L=130
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0301-0501 |
|
|
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH)
MINI BUS CHASSIS(V4B)
EGYPT EQUIPMENT(YJ4)
AIR INTAKE SYSTEM FRONT<6PC>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,HYDRO MASTER<7LT>
(B)
L=130
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0301-0501 |
|
|
|
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>
(B)
L=130
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0502- |
|
|
● |
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HG1 ENG(RJH)
MINI BUS CHASSIS(V4B)
EGYPT EQUIPMENT(YJ4)
AIR INTAKE SYSTEM FRONT<6PC>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>
(B)
L=130
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0502- |
|
|
|
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
L=1215
|
8-97363-050-0 |
01 |
1 |
0301-0501 |
|
|
|
|
|
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
(B)
L=1215
|
8-97363-050-0 |
01 |
1 |
0502- |
|
|
|
|
|
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4HE1 ENG(RLY)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-97363-049-0 |
01 |
1 |
0301-0501 |
|
|
|
|
|
● |
| |
67 |
03.163 HOSE; FUEL,DELIVERY
4HF1-S ENG(RLS)
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.003
L=180
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
| |
67 |
03.163 HOSE; FUEL,DELIVERY
4HF1-N ENG(RJZ)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.003
L=180
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502- |
● |
● |
● |
|
|
|
| |
67 |
03.163 HOSE; FUEL,DELIVERY
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
|
8-97174-760-2 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
|
● |
| |
67 |
03.163 HOSE; FUEL,DELIVERY
|
8-97174-760-2 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
67 |
03.163 HOSE; FUEL,DELIVERY
4HE1-TCN ENG(RDR)
FRAME STRAIGHT TYPE<7KJ>
|
8-97174-760-2 |
01 |
1 |
0502- |
● |
|
|
|
|
|
| |
67 |
03.163 HOSE; FUEL,DELIVERY
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
FRAME STRAIGHT TYPE<7KJ>
|
8-97174-760-2 |
01 |
1 |
0502- |
|
● |
● |
● |
|
|
| |
67 |
03.163 HOSE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1-S ENG(RLS)
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE
POWER N-SPEC(7QV)
03.003
L=300
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
|
● |
| |
67 |
03.163 HOSE; FUEL,DELIVERY
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
EXC. CHARGE AIR COOLER<6PL>
03.003
L=300
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
|
● |
| |
67 |
03.163 HOSE; FUEL,DELIVERY
4HF1-S ENG(RLS)
03.003
L=300
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502-0612 |
● |
|
|
|
|
|
| |
67 |
03.163 HOSE; FUEL,DELIVERY
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
03.003
L=300
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502-0612 |
|
● |
● |
|
|
|
| |
67 |
03.163 HOSE; FUEL,DELIVERY
4HG1 ENG(RJH)
03.003
L=300
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502-0612 |
|
|
|
● |
|
|
| |
67 |
03.163 HOSE; FUEL,DELIVERY
03.003
L=300
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0502-0612 |
|
|
|
|
|
● |
| |
67 |
03.163 HOSE; FUEL,DELIVERY
4HF1-S ENG(RLS)
03.003
L=300
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0701- |
● |
|
|
|
|
|
| |
67 |
03.163 HOSE; FUEL,DELIVERY
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
03.003
L=300
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0701- |
|
● |
● |
|
|
|
| |
67 |
03.163 HOSE; FUEL,DELIVERY
4HG1-T ENG(RDP),4HG1 ENG(RJH)
03.003
L=300
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0701- |
|
|
|
● |
|
|
| |
67 |
03.163 HOSE; FUEL,DELIVERY
03.003
L=300
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0701- |
|
|
|
|
|
● |
| |
67 |
03.163 HOSE; FUEL,DELIVERY
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
|
8-97358-767-3 |
01 |
1 |
0507-0606 |
|
|
● |
|
|
|
| |
67 |
03.163 HOSE; FUEL,DELIVERY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
|
8-97358-767-3 |
01 |
1 |
0607- |
|
|
● |
● |
|
|
| |
106 |
03.162 NUT; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ>
04.594
M6 FLANGE
|
0-91150-106-0 |
03 |
1 |
0211-0501 |
● |
|
|
|
|
● |
| |
106 |
03.162 NUT; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
04.594
M6 FLANGE
|
0-91150-106-0 |
03 |
1 |
0211-0501 |
|
● |
● |
● |
|
|
| |
106 |
03.162 NUT; FUEL PIPE
04.594
M6 FLANGE
|
0-91150-106-0 |
03 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
106 |
03.162 NUT; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ>
04.594
M6 FLANGE
|
0-91150-106-0 |
03 |
1 |
0502-0602 |
● |
|
|
|
|
|
| |
106 |
03.162 NUT; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
04.594
M6 FLANGE
|
0-91150-106-0 |
03 |
1 |
0502-0602 |
|
● |
● |
● |
|
|
| |
106 |
03.162 NUT; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ>
01.062
M6 FLANGE
|
0-91180-106-0 |
03 |
1 |
0603- |
● |
|
|
|
|
|
| |
106 |
03.162 NUT; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
01.062
M6 FLANGE
|
0-91180-106-0 |
03 |
1 |
0603- |
|
● |
● |
● |
|
|
| |
106 |
03.162 NUT; FUEL PIPE
MINI BUS CHASSIS(V4B)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.594
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
0211-0501 |
|
● |
● |
● |
|
|
| |
106 |
03.162 NUT; FUEL PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS)
MINI BUS CHASSIS(V4B)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.594
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
0502-0602 |
|
● |
● |
|
|
|
| |
106 |
03.162 NUT; FUEL PIPE
4HG1 ENG(RJH)
MINI BUS CHASSIS(V4B)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.594
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
0502-0602 |
|
|
|
● |
|
|
| |
106 |
03.162 NUT; FUEL PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS)
MINI BUS CHASSIS(V4B)
EXC. FRAME STRAIGHT TYPE<7KJ>
01.062
M6 FLANGE
|
0-91180-106-0 |
01 |
1 |
0603- |
|
● |
● |
|
|
|
| |
106 |
03.162 NUT; FUEL PIPE
4HG1 ENG(RJH)
MINI BUS CHASSIS(V4B)
EXC. FRAME STRAIGHT TYPE<7KJ>
01.062
M6 FLANGE
|
0-91180-106-0 |
01 |
1 |
0603- |
|
|
|
● |
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
FRAME STRAIGHT TYPE<7KJ>
00.785
(A)
ID=11 & 7 L=15 & 15
|
1-09700-071-0 |
03 |
1 |
0211-0501 |
● |
|
|
|
|
● |
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
00.785
(A)
ID=11 & 7 L=15 & 15
|
1-09700-071-0 |
03 |
1 |
0211-0501 |
|
● |
● |
● |
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
00.785
(A)
ID=11 & 7 L=15 & 15
|
1-09700-071-0 |
03 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HE1-TCN ENG(RDR),4HF1-S ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
00.785
(A)
ID=11 & 7 L=15 & 15
|
1-09700-071-0 |
03 |
1 |
0502-1410 |
● |
|
|
|
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
00.785
(A)
ID=11 & 7 L=15 & 15
|
1-09700-071-0 |
03 |
1 |
0502-1410 |
|
● |
● |
● |
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HE1-TCN ENG(RDR),4HF1-S ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
(A)
ID=11 & 7 L=15 & 15
|
8-98289-347-0 |
03 |
1 |
1411- |
● |
|
|
|
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
(A)
ID=11 & 7 L=15 & 15
|
8-98289-347-0 |
03 |
1 |
1411- |
|
● |
● |
● |
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
MINI BUS CHASSIS(V4B)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
ID=13 & 9 L=18 & 17
|
1-09700-075-0 |
01 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HG1 ENG(RJH),4HE1 ENG(RLY)
MINI BUS CHASSIS(V4B)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
ID=13 & 9 L=18 & 17
|
1-09700-075-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HG1 ENG(RJH),4HF1-S ENG(RLS)
MINI BUS CHASSIS(V4B)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
ID=13 & 9 L=18 & 17
|
1-09700-075-0 |
01 |
1 |
0502- |
|
● |
● |
|
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HG1 ENG(RJH)
MINI BUS CHASSIS(V4B)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
ID=13 & 9 L=18 & 17
|
1-09700-075-0 |
01 |
1 |
0502- |
|
|
|
● |
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HK1-TCS ENG(RJS)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FRAME STRAIGHT TYPE<7KJ>
04.686
(C)
ID=13 & 7 L=16 & 14
|
1-09700-070-0 |
02 |
1 |
0507-0606 |
|
|
● |
|
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FRAME STRAIGHT TYPE<7KJ>
04.686
(C)
ID=13 & 7 L=16 & 14
|
1-09700-070-0 |
02 |
1 |
0607- |
|
|
● |
|
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,MINI BUS
CHASSIS(V4B)
04.686
(C)
ID=13 & 7 L=16 & 14
|
1-09700-070-0 |
03 |
1 |
0507-0606 |
|
|
● |
|
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,MINI BUS
CHASSIS(V4B)
04.686
(C)
ID=13 & 7 L=16 & 14
|
1-09700-070-0 |
03 |
1 |
0607- |
|
|
● |
|
|
|
| |
118 |
03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B)
04.686
(C)
ID=13 & 7 L=16 & 14
|
1-09700-070-0 |
03 |
1 |
0607- |
|
|
|
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
FUEL FILTER DUAL(S6B)
(A)
ID=16
|
8-98008-098-0 |
02 |
1 |
0912-1005 |
● |
● |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
FUEL FILTER DUAL(S6B)
(A)
ID=16
|
8-98008-098-0 |
02 |
1 |
1006- |
● |
● |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
(A)
ID=16
|
8-98008-098-0 |
02 |
1 |
1006- |
|
|
|
|
|
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HF1-S ENG(RLS),4HE1 ENG(RLY)
FUEL FILTER DUAL(S6B)
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0211-0305 |
● |
|
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
FUEL FILTER DUAL(S6B)
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0211-0305 |
|
● |
● |
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HG1 ENG(RJH),4HE1 ENG(RLY)
FUEL FILTER DUAL(S6B)
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0211-0305 |
|
|
|
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
FUEL FILTER DUAL(S6B)
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0211-0305 |
|
|
|
|
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HF1-S ENG(RLS),4HE1 ENG(RLY)
FUEL FILTER DUAL(S6B)
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0306-0501 |
● |
|
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
FUEL FILTER DUAL(S6B)
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0306-0501 |
|
● |
● |
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HG1 ENG(RJH),4HE1 ENG(RLY)
FUEL FILTER DUAL(S6B)
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0306-0501 |
|
|
|
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
FUEL FILTER DUAL(S6B)
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0306-0501 |
|
|
|
|
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HF1-S ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0306-0501 |
|
|
|
|
|
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
FUEL FILTER DUAL(S6B)
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0502-0911 |
● |
● |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0502-0911 |
|
|
|
|
|
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0912-1005 |
|
|
|
|
|
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
04 |
1 |
0211-0501 |
● |
|
|
|
|
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),HYDRO
MASTER<7LT>
04.930
(A)
ID=16
|
8-94238-568-0 |
04 |
1 |
0211-0501 |
|
● |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
04.930
(A)
ID=16
|
8-94238-568-0 |
04 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HE1-TCN ENG(RDR)
FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
05 |
1 |
0502-0911 |
● |
|
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
05 |
1 |
0502-0911 |
|
● |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HE1-TCN ENG(RDR)
FRAME STRAIGHT TYPE<7KJ>
(A)
ID=16
|
8-98008-098-0 |
05 |
1 |
0912- |
● |
|
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
FRAME STRAIGHT TYPE<7KJ>
(A)
ID=16
|
8-98008-098-0 |
05 |
1 |
0912- |
|
● |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HF1-S ENG(RLS),4HE1 ENG(RLY)
04.930
(A)
ID=16
|
8-94238-568-0 |
01 |
1 |
0211-0212 |
● |
|
|
|
|
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HE1 ENG(RLY)
TURBOCHARGER(K51)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
01 |
1 |
0211-0212 |
● |
|
|
|
|
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HE1 ENG(RLY)
TURBOCHARGER(K51)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),HYDRO
MASTER<7LT>
04.930
(A)
ID=16
|
8-94238-568-0 |
01 |
1 |
0211-0212 |
|
● |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
04.930
(A)
ID=16
|
8-94238-568-0 |
01 |
1 |
0211-0212 |
|
● |
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
EXC. FUEL TANK 125L,33GAL<NL7>
04.930
(A)
ID=16
|
8-94238-568-0 |
01 |
1 |
0211-0212 |
|
|
● |
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HG1 ENG(RJH),4HE1 ENG(RLY)
04.930
(A)
ID=16
|
8-94238-568-0 |
01 |
1 |
0211-0212 |
|
|
|
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
04.930
(A)
ID=16
|
8-94238-568-0 |
01 |
1 |
0211-0212 |
|
|
|
|
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
04.930
(A)
ID=16
|
8-94238-568-0 |
01 |
1 |
0211-0212 |
|
|
|
|
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HE1 ENG(RLY)
TURBOCHARGER(K51)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
01 |
1 |
0301-0501 |
● |
|
|
|
|
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HF1-S ENG(RLS),4HE1 ENG(RLY)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>
04.930
(A)
ID=16
|
8-94238-568-0 |
01 |
1 |
0301-0501 |
● |
|
|
|
|
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HE1 ENG(RLY)
TURBOCHARGER(K51)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),HYDRO
MASTER<7LT>
04.930
(A)
ID=16
|
8-94238-568-0 |
01 |
1 |
0301-0501 |
|
● |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>
04.930
(A)
ID=16
|
8-94238-568-0 |
01 |
1 |
0301-0501 |
|
● |
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL
TANK 100 LITTER "NON BOX TYPE"<N02>
04.930
(A)
ID=16
|
8-94238-568-0 |
01 |
1 |
0301-0501 |
|
|
● |
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HG1 ENG(RJH),4HE1 ENG(RLY)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>
04.930
(A)
ID=16
|
8-94238-568-0 |
01 |
1 |
0301-0501 |
|
|
|
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
04.930
(A)
ID=16
|
8-94238-568-0 |
01 |
1 |
0301-0501 |
|
|
|
|
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
04.930
(A)
ID=16
|
8-94238-568-0 |
01 |
1 |
0301-0501 |
|
|
|
|
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ),
4HF1-S ENG(RLS)
04.930
(A)
ID=16
|
8-94238-568-0 |
03 |
1 |
0502-0612 |
● |
|
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
03 |
1 |
0502-0612 |
|
● |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
04.930
(A)
ID=16
|
8-94238-568-0 |
03 |
1 |
0502-0612 |
|
● |
● |
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),
4HG1 ENG(RJH)
04.930
(A)
ID=16
|
8-94238-568-0 |
03 |
1 |
0502-0612 |
|
|
|
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
04.930
(A)
ID=16
|
8-94238-568-0 |
03 |
1 |
0502-0612 |
|
|
|
|
|
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ),
4HF1-S ENG(RLS)
04.930
(A)
ID=16
|
8-94238-568-0 |
03 |
1 |
0701-0911 |
● |
|
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
03 |
1 |
0701-0911 |
|
● |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
04.930
(A)
ID=16
|
8-94238-568-0 |
03 |
1 |
0701-0911 |
|
● |
● |
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH)
04.930
(A)
ID=16
|
8-94238-568-0 |
03 |
1 |
0701-0911 |
|
|
|
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
04.930
(A)
ID=16
|
8-94238-568-0 |
03 |
1 |
0701-0911 |
|
|
|
|
|
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ),
4HF1-S ENG(RLS)
(A)
ID=16
|
8-98008-098-0 |
03 |
1 |
0912- |
● |
|
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
(A)
ID=16
|
8-98008-098-0 |
03 |
1 |
0912- |
|
● |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
(A)
ID=16
|
8-98008-098-0 |
03 |
1 |
0912- |
|
● |
● |
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH)
(A)
ID=16
|
8-98008-098-0 |
03 |
1 |
0912- |
|
|
|
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
(A)
ID=16
|
8-98008-098-0 |
03 |
1 |
0912- |
|
|
|
|
|
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HF1-S ENG(RLS),4HE1 ENG(RLY)
01.219
(B)
ID=13
|
8-94238-571-0 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
01.219
(B)
ID=13
|
8-94238-571-0 |
01 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HG1 ENG(RJH),4HE1 ENG(RLY)
01.219
(B)
ID=13
|
8-94238-571-0 |
01 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
01.219
(B)
ID=13
|
8-94238-571-0 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ),
4HF1-S ENG(RLS)
01.219
(B)
ID=13
|
8-94238-571-0 |
01 |
1 |
0502-0612 |
● |
|
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
01.219
(B)
ID=13
|
8-94238-571-0 |
01 |
1 |
0502-0612 |
|
● |
● |
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),
4HG1 ENG(RJH)
01.219
(B)
ID=13
|
8-94238-571-0 |
01 |
1 |
0502-0612 |
|
|
|
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
01.219
(B)
ID=13
|
8-94238-571-0 |
01 |
1 |
0502-0612 |
|
|
|
|
|
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ),
4HF1-S ENG(RLS)
01.219
(B)
ID=13
|
8-94238-571-0 |
01 |
1 |
0701-0911 |
● |
|
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
01.219
(B)
ID=13
|
8-94238-571-0 |
01 |
1 |
0701-0911 |
|
● |
● |
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH)
01.219
(B)
ID=13
|
8-94238-571-0 |
01 |
1 |
0701-0911 |
|
|
|
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
01.219
(B)
ID=13
|
8-94238-571-0 |
01 |
1 |
0701-0911 |
|
|
|
|
|
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ),
4HF1-S ENG(RLS)
(B)
ID=13
|
8-98150-357-0 |
01 |
1 |
0912- |
● |
|
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
(B)
ID=13
|
8-98150-357-0 |
01 |
1 |
0912- |
|
● |
● |
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH)
(B)
ID=13
|
8-98150-357-0 |
01 |
1 |
0912- |
|
|
|
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
(B)
ID=13
|
8-98150-357-0 |
01 |
1 |
0912- |
|
|
|
|
|
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HF1-S ENG(RLS),4HE1 ENG(RLY)
EXC. CHARGE AIR COOLER<6PL>
04.930
(A)
ID=16
|
8-94238-568-0 |
03 |
1 |
0211-0501 |
● |
|
|
|
|
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HE1 ENG(RLY)
MINI BUS CHASSIS(V4B)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
03 |
1 |
0211-0501 |
|
● |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
04.930
(A)
ID=16
|
8-94238-568-0 |
03 |
1 |
0211-0501 |
|
● |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
EXC. CHARGE AIR COOLER<6PL>
04.930
(A)
ID=16
|
8-94238-568-0 |
03 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HG1 ENG(RJH),4HE1 ENG(RLY)
EXC. CHARGE AIR COOLER<6PL>
04.930
(A)
ID=16
|
8-94238-568-0 |
03 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>
04.930
(A)
ID=16
|
8-94238-568-0 |
01 |
1 |
0502-0506 |
● |
● |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>
04.930
(A)
ID=16
|
8-94238-568-0 |
01 |
1 |
0507-0911 |
● |
● |
|
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL
TANK 100 LITTER "NON BOX TYPE"<N02>
04.930
(A)
ID=16
|
8-94238-568-0 |
01 |
1 |
0507-0911 |
|
|
● |
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>
(A)
ID=16
|
8-98008-098-0 |
01 |
1 |
0912- |
● |
● |
|
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
EXC. FUEL TANK 125L,33GAL<NL7>,FUEL
TANK 100 LITTER "NON BOX TYPE"<N02>
(A)
ID=16
|
8-98008-098-0 |
01 |
1 |
0912- |
|
|
● |
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HF1-S ENG(RLS),4HE1 ENG(RLY)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
01.762
(C)
ID=19
|
8-94238-569-0 |
01 |
1 |
0301-0501 |
● |
|
|
|
|
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
01.762
(C)
ID=19
|
8-94238-569-0 |
01 |
1 |
0301-0501 |
|
● |
● |
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HG1 ENG(RJH),4HE1 ENG(RLY)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
01.762
(C)
ID=19
|
8-94238-569-0 |
01 |
1 |
0301-0501 |
|
|
|
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
01.762
(C)
ID=19
|
8-94238-569-0 |
01 |
1 |
0502-0506 |
● |
● |
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
01.762
(C)
ID=19
|
8-94238-569-0 |
01 |
1 |
0502-0506 |
|
|
|
|
|
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
01.762
(C)
ID=19
|
8-94238-569-0 |
01 |
1 |
0507-0911 |
● |
● |
|
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
FUEL TANK 125L,33GAL<NL7>,FUEL TANK
100 LITTER "NON BOX TYPE"<N02>
01.762
(C)
ID=19
|
8-94238-569-0 |
01 |
1 |
0507-0911 |
|
|
● |
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
01.762
(C)
ID=19
|
8-94238-569-0 |
01 |
1 |
0507-0911 |
|
|
|
|
|
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
(C)
ID=19
|
8-98150-356-0 |
01 |
1 |
0912- |
● |
● |
|
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
FUEL TANK 125L,33GAL<NL7>,FUEL TANK
100 LITTER "NON BOX TYPE"<N02>
(C)
ID=19
|
8-98150-356-0 |
01 |
1 |
0912- |
|
|
● |
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
(C)
ID=19
|
8-98150-356-0 |
01 |
1 |
0912- |
|
|
|
|
|
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
FUEL TANK 125L,33GAL<NL7>
01.166
(A)
ID=14
|
8-94238-572-0 |
01 |
1 |
0211-0501 |
|
|
● |
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HK1-TCS ENG(RJS)
01.762
(C)
ID=19
|
8-94238-569-0 |
05 |
1 |
0507-0606 |
|
|
● |
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
01.762
(C)
ID=19
|
8-94238-569-0 |
05 |
1 |
0607-0911 |
|
|
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
(C)
ID=19
|
8-98150-356-0 |
05 |
1 |
0912- |
|
|
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HK1-TCS ENG(RJS)
01.219
(D)
ID=12
|
8-94238-610-0 |
01 |
1 |
0507-0606 |
|
|
● |
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
01.219
(D)
ID=12
|
8-94238-610-0 |
01 |
1 |
0607-0911 |
|
|
● |
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
01.240
(D)
ID=12
|
8-98150-358-0 |
01 |
1 |
0912- |
|
|
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HF1-S ENG(RLS),4HE1 ENG(RLY)
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
EXC. MINI BUS CHASSIS(V4B),HYDRO
MASTER<7LT>
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH),4HE1 ENG(RLY)
EXC. MINI BUS CHASSIS(V4B),HYDRO
MASTER<7LT>
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HF1-S ENG(RLS),4HE1 ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
165 |
03.162 CLIP; FUEL HOSE
4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ),
4HF1-S ENG(RLS)
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0502-0612 |
● |
|
|
|
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
EXC. MINI BUS CHASSIS(V4B)
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0502-0612 |
|
● |
● |
|
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),
4HG1 ENG(RJH)
EXC. MINI BUS CHASSIS(V4B)
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0502-0612 |
|
|
|
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0502-0612 |
|
|
|
|
|
● |
| |
165 |
03.162 CLIP; FUEL HOSE
4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ),
4HF1-S ENG(RLS)
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0701-0911 |
● |
|
|
|
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
EXC. MINI BUS CHASSIS(V4B)
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0701-0911 |
|
● |
● |
|
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH)
EXC. MINI BUS CHASSIS(V4B)
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0701-0911 |
|
|
|
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0701-0911 |
|
|
|
|
|
● |
| |
165 |
03.162 CLIP; FUEL HOSE
4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ),
4HF1-S ENG(RLS)
(A)
ID=16
|
8-98008-098-0 |
02 |
1 |
0912- |
● |
|
|
|
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
EXC. MINI BUS CHASSIS(V4B)
(A)
ID=16
|
8-98008-098-0 |
02 |
1 |
0912- |
|
● |
● |
|
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH)
EXC. MINI BUS CHASSIS(V4B)
(A)
ID=16
|
8-98008-098-0 |
02 |
1 |
0912- |
|
|
|
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
(A)
ID=16
|
8-98008-098-0 |
02 |
1 |
0912- |
|
|
|
|
|
● |
| |
165 |
03.162 CLIP; FUEL HOSE
4HF1-S ENG(RLS),4HE1 ENG(RLY)
01.219
(B)
ID=13
|
8-94238-571-0 |
02 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
EXC. MINI BUS CHASSIS(V4B),HYDRO
MASTER<7LT>
01.219
(B)
ID=13
|
8-94238-571-0 |
02 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH),4HE1 ENG(RLY)
EXC. MINI BUS CHASSIS(V4B),HYDRO
MASTER<7LT>
01.219
(B)
ID=13
|
8-94238-571-0 |
02 |
1 |
0211-0501 |
|
|
|
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
01.219
(B)
ID=13
|
8-94238-571-0 |
02 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HF1-S ENG(RLS),4HE1 ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
01.219
(B)
ID=13
|
8-94238-571-0 |
02 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
EXC. MINI BUS CHASSIS(V4B)
01.219
(B)
ID=13
|
8-94238-571-0 |
02 |
1 |
0502-0911 |
● |
● |
● |
● |
|
● |
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
EXC. MINI BUS CHASSIS(V4B)
(B)
ID=13
|
8-98150-357-0 |
02 |
1 |
0912- |
● |
● |
● |
● |
|
● |
| |
165 |
03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0211-0301 |
● |
● |
● |
● |
● |
● |
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
FUEL FILTER DUAL(S6B)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0211-0301 |
● |
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0211-0301 |
|
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0211-0301 |
|
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,FUEL FILTER
DUAL(S6B)
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0302-0302 |
● |
● |
● |
● |
● |
● |
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>,ENGINE POWER
N-SPEC(7QV)
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0302-0302 |
● |
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL FILTER DUAL(S6B),HYDRO
MASTER<7LT>,ENGINE POWER N-SPEC(7QV)
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0302-0302 |
● |
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
EXC. CHARGE AIR COOLER<6PL>
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0302-0302 |
● |
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL FILTER DUAL(S6B),CHARGE
AIRCOOLER<6PL>
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0302-0302 |
● |
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0302-0302 |
● |
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0302-0302 |
|
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0302-0302 |
|
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0302-0302 |
|
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0302-0302 |
|
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH)
TURBOCHARGER(K51)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0302-0302 |
|
● |
● |
|
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH)
TURBOCHARGER(K51)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL FILTER DUAL(S6B)
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0302-0302 |
|
● |
● |
|
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0302-0302 |
|
● |
● |
|
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FUEL FILTER DUAL(S6B)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0302-0302 |
|
● |
● |
|
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HF1-S ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0302-0302 |
|
|
|
|
|
● |
| |
165 |
03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,FUEL FILTER
DUAL(S6B)
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0303-0501 |
● |
● |
● |
● |
● |
● |
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>,ENGINE POWER
N-SPEC(7QV)
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0303-0501 |
● |
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL FILTER DUAL(S6B),HYDRO
MASTER<7LT>,ENGINE POWER N-SPEC(7QV)
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0303-0501 |
● |
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
EXC. CHARGE AIR COOLER<6PL>
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0303-0501 |
● |
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL FILTER DUAL(S6B),CHARGE
AIRCOOLER<6PL>
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0303-0501 |
● |
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0303-0501 |
● |
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0303-0501 |
|
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0303-0501 |
|
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0303-0501 |
|
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0303-0501 |
|
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH)
TURBOCHARGER(K51)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0303-0501 |
|
● |
● |
|
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH)
TURBOCHARGER(K51)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL FILTER DUAL(S6B)
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0303-0501 |
|
● |
● |
|
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0303-0501 |
|
● |
● |
|
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FUEL FILTER DUAL(S6B)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0303-0501 |
|
● |
● |
|
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HF1-S ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0303-0501 |
|
|
|
|
|
● |
| |
165 |
03.162 CLIP; FUEL HOSE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
FRAME STRAIGHT TYPE<7KJ>
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0502-0506 |
● |
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL FILTER DUAL(S6B)
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0502-0506 |
● |
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0502-0506 |
● |
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL FILTER DUAL(S6B)
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0502-0506 |
● |
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1-T ENG(RDP)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0502-0506 |
|
● |
● |
|
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1-T ENG(RDP)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL FILTER DUAL(S6B)
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0502-0506 |
|
● |
● |
|
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0502-0506 |
|
|
|
|
|
● |
| |
165 |
03.162 CLIP; FUEL HOSE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),
4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0507-0606 |
● |
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL FILTER DUAL(S6B)
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0507-0606 |
● |
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0507-0606 |
● |
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL FILTER DUAL(S6B)
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0507-0606 |
● |
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1-T ENG(RDP)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0507-0606 |
|
● |
● |
|
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1-T ENG(RDP)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL FILTER DUAL(S6B)
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0507-0606 |
|
● |
● |
|
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0507-0606 |
|
|
|
|
|
● |
| |
165 |
03.162 CLIP; FUEL HOSE
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)
FRAME STRAIGHT TYPE<7KJ>
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0607- |
● |
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0607- |
● |
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL FILTER DUAL(S6B)
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0607- |
● |
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL FILTER DUAL(S6B)
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0607- |
● |
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1-T ENG(RDP)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0607- |
|
● |
● |
|
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1-T ENG(RDP)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
EXC. FUEL FILTER DUAL(S6B)
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0607- |
|
● |
● |
|
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0607- |
|
|
|
|
|
● |
| |
165 |
03.162 CLIP; FUEL HOSE
4HF1-S ENG(RLS),4HE1 ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
(C)
L=250
|
5-09707-030-1 |
01 |
1 |
0211-0301 |
● |
|
|
|
|
● |
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
(C)
L=250
|
5-09707-030-1 |
01 |
1 |
0211-0301 |
|
● |
● |
|
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH),4HE1 ENG(RLY)
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
(C)
L=250
|
5-09707-030-1 |
01 |
1 |
0211-0301 |
|
|
|
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,FRAME STRAIGHT TYPE<7KJ>
02.559
(C)
L=250
|
5-09707-030-1 |
01 |
1 |
0302-0501 |
● |
● |
● |
● |
|
● |
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
EXC. TURBOCHARGER(K51),FRAME
STRAIGHTTYPE<7KJ>,ENGINE POWER N-SPEC(7QV)
02.559
(C)
L=250
|
5-09707-030-1 |
01 |
1 |
0302-0501 |
● |
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
EXC. HYDRO MASTER<7LT>,ENGINE POWER
N-SPEC(7QV)
02.559
(C)
L=250
|
5-09707-030-1 |
01 |
1 |
0302-0501 |
● |
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
EXC. CHARGE AIR COOLER<6PL>
02.559
(C)
L=250
|
5-09707-030-1 |
01 |
1 |
0302-0501 |
● |
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HE1 ENG(RLY)
FUEL FILTER DUAL(S6B)
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>
02.559
(C)
L=250
|
5-09707-030-1 |
01 |
1 |
0302-0501 |
● |
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FRAME STRAIGHT TYPE<7KJ>
HYDRO MASTER<7LT>
02.559
(C)
L=250
|
5-09707-030-1 |
01 |
1 |
0302-0501 |
|
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH)
TURBOCHARGER(K51)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
02.559
(C)
L=250
|
5-09707-030-1 |
01 |
1 |
0302-0501 |
|
● |
● |
|
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1
ENG(RLY)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,FRAME STRAIGHT TYPE<7KJ>
02.559
(C)
L=250
|
5-09707-030-1 |
01 |
1 |
0302-0501 |
|
|
|
|
|
● |
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
(C)
L=250
|
5-09707-030-1 |
01 |
1 |
0502- |
● |
● |
● |
● |
|
● |
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S
ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
02.559
(C)
L=250
|
5-09707-030-1 |
01 |
1 |
0502- |
● |
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
02.559
(C)
L=250
|
5-09707-030-1 |
01 |
1 |
0502- |
● |
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,FRAME STRAIGHT TYPE<7KJ>
02.559
(C)
L=250
|
5-09707-030-1 |
01 |
1 |
0502- |
● |
● |
● |
|
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1-T ENG(RDP)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
FUEL FILTER DUAL(S6B)
FRAME STRAIGHT TYPE<7KJ>
02.559
(C)
L=250
|
5-09707-030-1 |
01 |
1 |
0502- |
|
● |
● |
|
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HK1-TCS ENG(RJS)
EXC. MINI BUS CHASSIS(V4B)
01.762
(D)
ID=19
|
8-94238-569-0 |
02 |
1 |
0507-0606 |
|
|
● |
|
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
EXC. MINI BUS CHASSIS(V4B)
01.762
(D)
ID=19
|
8-94238-569-0 |
02 |
1 |
0607-0911 |
|
|
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
EXC. MINI BUS CHASSIS(V4B)
(D)
ID=19
|
8-98150-356-0 |
02 |
1 |
0912- |
|
|
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HK1-TCS ENG(RJS)
EXC. MINI BUS CHASSIS(V4B)
01.219
(E)
ID=12
|
8-94238-610-0 |
02 |
1 |
0507-0606 |
|
|
● |
|
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
EXC. MINI BUS CHASSIS(V4B)
01.219
(E)
ID=12
|
8-94238-610-0 |
02 |
1 |
0607-0911 |
|
|
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
EXC. MINI BUS CHASSIS(V4B)
01.240
(E)
ID=12
|
8-98150-358-0 |
02 |
1 |
0912- |
|
|
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
L=140
|
5-09707-031-1 |
02 |
1 |
0211-0301 |
|
|
|
|
|
● |
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1 ENG(RJH),4HF1-S ENG(RLS)
TURBOCHARGER(K51)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
L=140
|
5-09707-031-1 |
02 |
1 |
0302-0501 |
● |
● |
● |
● |
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HF1-S ENG(RLS)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
ENGINE POWER N-SPEC(7QV)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
L=140
|
5-09707-031-1 |
02 |
1 |
0302-0501 |
● |
● |
● |
|
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
EXC. FUEL TANK 100 LITTER "NON BOX TY
PE"<N02>,FRAME STRAIGHT TYPE<7KJ>
(C)
L=140
|
5-09707-031-1 |
02 |
1 |
0302-0501 |
|
|
|
|
|
● |
| |
165 |
03.162 CLIP; FUEL HOSE
4HF1-N ENG(RJZ)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
L=140
|
5-09707-031-1 |
02 |
1 |
0502-0612 |
● |
|
|
|
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1-T ENG(RDP),4HF1-N ENG(RJZ)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
L=140
|
5-09707-031-1 |
02 |
1 |
0502-0612 |
|
● |
● |
|
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HF1-N ENG(RJZ)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
L=140
|
5-09707-031-1 |
02 |
1 |
0701- |
● |
|
|
|
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1-T ENG(RDP),4HF1-N ENG(RJZ)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
L=140
|
5-09707-031-1 |
02 |
1 |
0701- |
|
● |
● |
|
|
|
| |
165 |
03.162 CLIP; FUEL HOSE
4HG1-T ENG(RDP)
FUEL TANK 100 LITTER "NON BOX
TYPE"<N02>
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
L=140
|
5-09707-031-1 |
02 |
1 |
0701- |
|
|
|
● |
|
|
