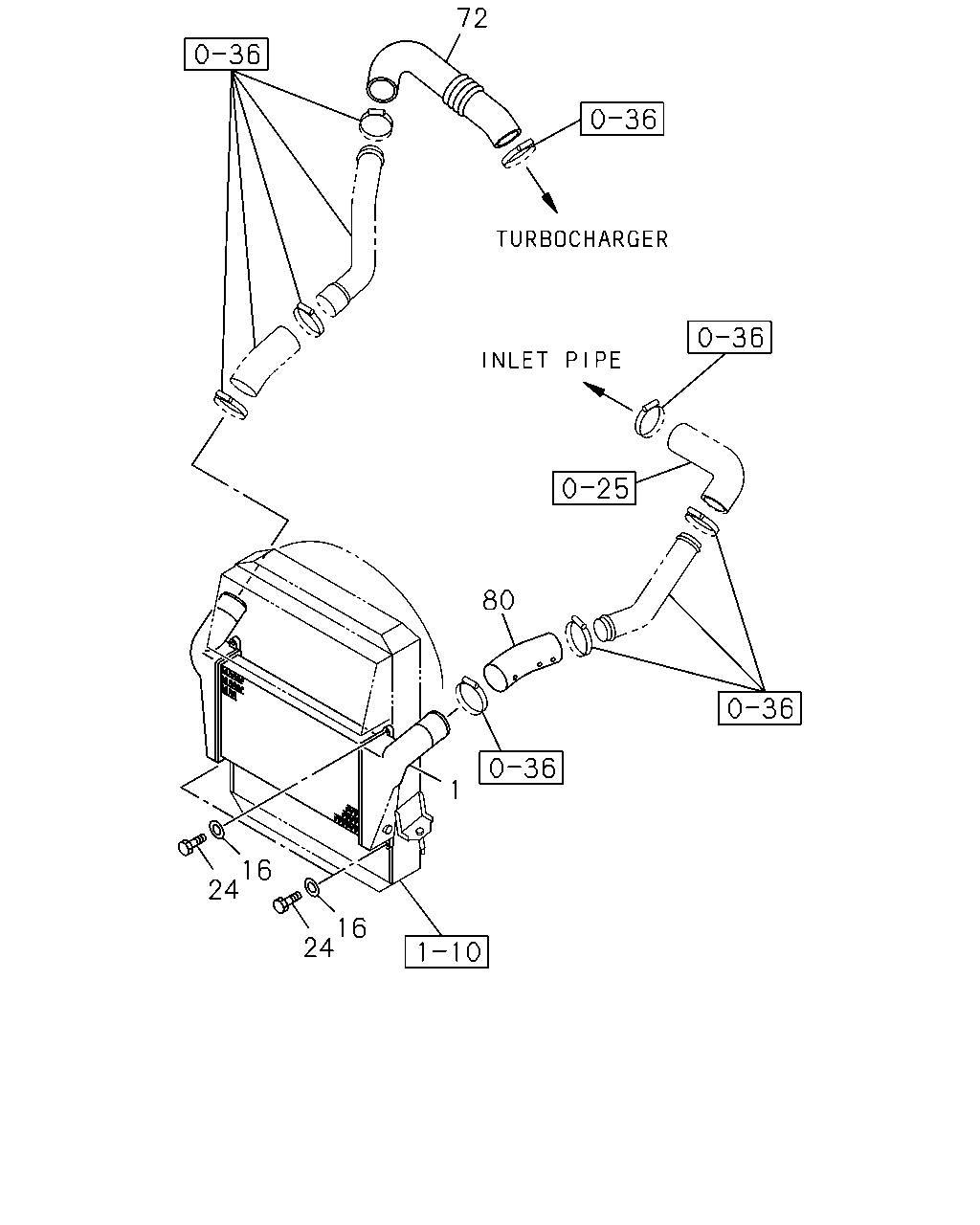

1-35 — CHARGE AIR COOLER (#45042) — 52 parça

72 80 1 16 24 16 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.374 COOLER; CHARGE AIR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97218-394-4	01	1	0211-0501	●	●	●	●	●
1	03.374 COOLER; CHARGE AIR	8-97218-394-4	01	1	0211-0501						●
1	03.374 COOLER; CHARGE AIR 4HE1-TCN ENG(RDR) FLOOR REMOTE SHIFT<M11>	8-97218-394-4	01	1	0502-0606	●
1	03.374 COOLER; CHARGE AIR 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11>	8-97218-394-4	01	1	0502-0606		●	●	●
1	03.374 COOLER; CHARGE AIR 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) A/T 4 SPEED-AISIN(RNJ)	8-97218-394-4	01	1	0502-0606				●
1	03.374 COOLER; CHARGE AIR 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11>	8-97218-394-4	01	1	0607-	●	●	●	●	●
1	03.374 COOLER; CHARGE AIR 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) A/T 4 SPEED-AISIN(RNJ)	8-97218-394-4	01	1	0607-				●
1	03.374 COOLER; CHARGE AIR 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11>	8-97333-362-1	01	1	0507-0606			●
1	03.374 COOLER; CHARGE AIR 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11>	8-97333-362-1	01	1	0607-			●	●
16	03.374 WASHER; PL,CHARGE AIR COOLER 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> 03.417 ID=8.4 OD=16	0-91610-508-0	04	1	0507-0606			●
16	03.374 WASHER; PL,CHARGE AIR COOLER 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> 03.417 ID=8.4 OD=16	0-91610-508-0	04	1	0607-1103			●	●
16	03.374 WASHER; PL,CHARGE AIR COOLER 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> 03.417 ID=8.4 OD=16	0-91610-508-0	04	1	1104-	●	●	●	●	●
16	03.374 WASHER; PL,CHARGE AIR COOLER 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) A/T 4 SPEED-AISIN(RNJ) 03.417 ID=8.4 OD=16	0-91610-508-0	04	1	1104-				●
16	03.374 WASHER; PL,CHARGE AIR COOLER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 16.674 ID=8.4	9-09160-508-0	04	1	0211-0501	●	●	●	●	●
16	03.374 WASHER; PL,CHARGE AIR COOLER 16.674 ID=8.4	9-09160-508-0	04	1	0211-0501						●
16	03.374 WASHER; PL,CHARGE AIR COOLER 4HE1-TCN ENG(RDR) FLOOR REMOTE SHIFT<M11> 16.674 ID=8.4	9-09160-508-0	04	1	0502-0606	●
16	03.374 WASHER; PL,CHARGE AIR COOLER 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> 16.674 ID=8.4	9-09160-508-0	04	1	0502-0606		●	●	●
16	03.374 WASHER; PL,CHARGE AIR COOLER 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) A/T 4 SPEED-AISIN(RNJ) 16.674 ID=8.4	9-09160-508-0	04	1	0502-0606				●
16	03.374 WASHER; PL,CHARGE AIR COOLER 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> 16.674 ID=8.4	9-09160-508-0	04	1	0607-1103	●	●	●	●	●
16	03.374 WASHER; PL,CHARGE AIR COOLER 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) A/T 4 SPEED-AISIN(RNJ) 16.674 ID=8.4	9-09160-508-0	04	1	0607-1103				●
24	03.374 BOLT; COOLER TO RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> M8X26	8-97173-439-0	04	1	0211-0501	●	●	●	●	●
24	03.374 BOLT; COOLER TO RAD M8X26	8-97173-439-0	04	1	0211-0501						●
24	03.374 BOLT; COOLER TO RAD 4HE1-TCN ENG(RDR) FLOOR REMOTE SHIFT<M11> 01.531 M8X25 FLANGE	0-28080-825-0	04	1	0502-0606	●
24	03.374 BOLT; COOLER TO RAD 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> 01.531 M8X25 FLANGE	0-28080-825-0	04	1	0502-0606		●	●	●
24	03.374 BOLT; COOLER TO RAD 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) A/T 4 SPEED-AISIN(RNJ) 01.531 M8X25 FLANGE	0-28080-825-0	04	1	0502-0606				●
24	03.374 BOLT; COOLER TO RAD 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> 01.531 M8X25 FLANGE	0-28080-825-0	04	1	0607-	●	●	●	●	●
24	03.374 BOLT; COOLER TO RAD 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) A/T 4 SPEED-AISIN(RNJ) 01.531 M8X25 FLANGE	0-28080-825-0	04	1	0607-				●
24	03.374 BOLT; COOLER TO RAD 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> M8X26	8-97173-439-0	04	1	0507-0606			●
24	03.374 BOLT; COOLER TO RAD 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> M8X26	8-97173-439-0	04	1	0607-			●	●
72	01.540 HOSE; CONN,INL PIPE TO DUCT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97203-993-1	01	1	0211-0501	●	●	●	●	●
72	01.540 HOSE; CONN,INL PIPE TO DUCT	8-97203-993-1	01	1	0211-0501						●
72	01.540 HOSE; CONN,INL PIPE TO DUCT 4HE1-TCN ENG(RDR)	8-97203-993-2	01	1	0502-0506	●
72	01.540 HOSE; CONN,INL PIPE TO DUCT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3>	8-97203-993-2	01	1	0502-0506		●		●
72	01.540 HOSE; CONN,INL PIPE TO DUCT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)	8-97203-993-2	01	1	0502-0506			●
72	01.540 HOSE; CONN,INL PIPE TO DUCT 4HE1-TCN ENG(RDR)	8-97203-993-2	01	1	0507-0606	●
72	01.540 HOSE; CONN,INL PIPE TO DUCT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3>	8-97203-993-2	01	1	0507-0606		●		●
72	01.540 HOSE; CONN,INL PIPE TO DUCT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS)	8-97203-993-2	01	1	0507-0606			●
72	01.540 HOSE; CONN,INL PIPE TO DUCT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3>	8-97203-993-2	01	1	0607-	●	●	●	●
80	01.540 HOSE; CONN,CHARGE AIR COOLER TO 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97233-792-0	01	1	0211-0501	●	●	●	●	●
80	01.540 HOSE; CONN,CHARGE AIR COOLER TO	8-97233-792-0	01	1	0211-0501						●
80	01.540 HOSE; CONN,CHARGE AIR COOLER TO 4HE1-TCN ENG(RDR)	8-97233-792-1	01	1	0502-0606	●
80	01.540 HOSE; CONN,CHARGE AIR COOLER TO 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3>	8-97233-792-1	01	1	0502-0606		●		●
80	01.540 HOSE; CONN,CHARGE AIR COOLER TO 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)	8-97233-792-1	01	1	0502-0606			●
80	01.540 HOSE; CONN,CHARGE AIR COOLER TO 4HE1-TCN ENG(RDR)	8-97233-792-1	01	1	0607-	●
80	01.540 HOSE; CONN,CHARGE AIR COOLER TO 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3>	8-97233-792-1	01	1	0607-		●
80	01.540 HOSE; CONN,CHARGE AIR COOLER TO 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS)	8-97233-792-1	01	1	0607-			●
80	01.540 HOSE; CONN,CHARGE AIR COOLER TO 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3>	8-97233-792-1	01	1	0607-				●
80	01.540 HOSE; CONN,CHARGE AIR COOLER TO 4HK1-TCS ENG(RJS)	8-98011-904-2	01	1	0507-0606			●
80	01.540 HOSE; CONN,CHARGE AIR COOLER TO 4HK1-TCS ENG(RJS)	8-98011-904-2	01	1	0607-0608			●
80	01.540 HOSE; CONN,CHARGE AIR COOLER TO 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3>	8-98011-904-2	01	1	0607-0608				●
80	01.540 HOSE; CONN,CHARGE AIR COOLER TO 4HK1-TCS ENG(RJS)	8-98053-760-0	01	1	0609-			●
80	01.540 HOSE; CONN,CHARGE AIR COOLER TO 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3>	8-98053-760-0	01	1	0609-				●
