Sayfa 1-31 - Isuzu EPC

1-31 — AIR DUCT (#45041) — 1002 parça

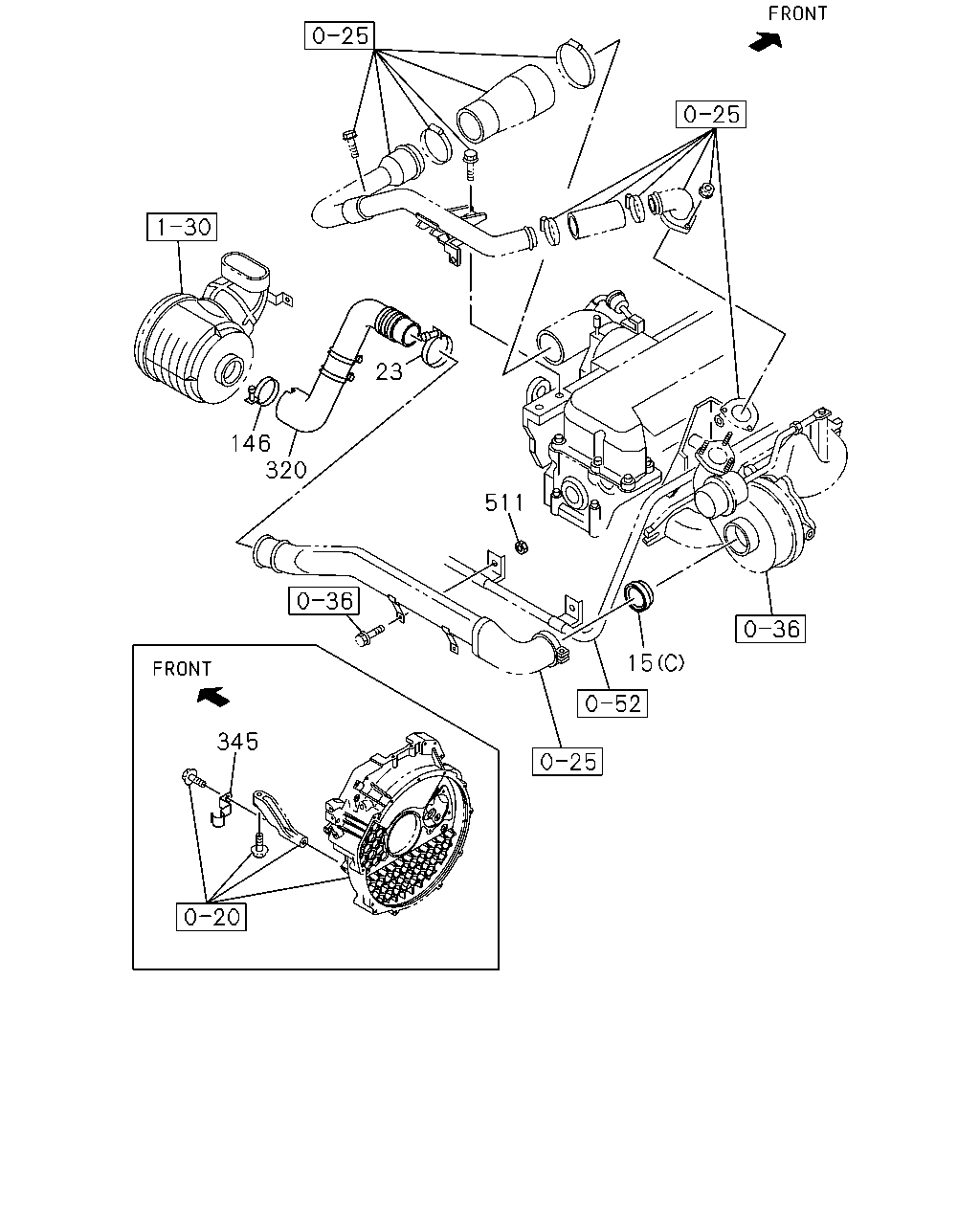

23 146 320 511 15 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
15	03.417 INSULATOR 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) 03.407 (C)	8-94454-802-0	01	1	0211-0501	●	●
15	03.417 INSULATOR 4HG1 ENG(RJH) TURBOCHARGER(K51) 03.407 (C)	8-94454-802-0	01	1	0211-0501			●
15	03.417 INSULATOR 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3> 03.407 (C)	8-94454-802-0	01	1	0502-0612	●
15	03.417 INSULATOR 4HG1-T ENG(RDP) 03.407 (C)	8-94454-802-0	01	1	0502-0612			●
15	03.417 INSULATOR 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3> 03.407 (C)	8-94454-802-0	01	1	0701-	●	●	●
15	03.417 INSULATOR 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) (A)	8-94338-739-0	01	1	0211-0501	●	●		●
15	03.417 INSULATOR 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-94338-739-0	01	1	0502-	●	●		●
15	03.417 INSULATOR 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> (B)	8-97356-230-0	01	1	0211-0501	●	●		●
15	03.417 INSULATOR 4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97356-230-0	01	1	0502-	●			●
23	03.417 CLIP; HOSE 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) 03.407 ID=87	8-97087-432-0	01	1	0211-0501	●	●
23	03.417 CLIP; HOSE 4HG1 ENG(RJH) TURBOCHARGER(K51) 03.407 ID=87	8-97087-432-0	01	1	0211-0501			●
23	03.417 CLIP; HOSE 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=87	8-97087-432-0	01	1	0502-0612	●
23	03.417 CLIP; HOSE 4HG1-T ENG(RDP) 03.407 ID=87	8-97087-432-0	01	1	0502-0612			●
23	03.417 CLIP; HOSE 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=87	8-97087-432-0	01	1	0701-	●	●	●
146	03.417 CLIP; HOSE,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.407 ID=117	9-09915-075-1	01	1	0211-0501	●	●	●		●
146	03.417 CLIP; HOSE,ACL 4HG1 ENG(RJH) TURBOCHARGER(K51) 03.407 ID=117	9-09915-075-1	01	1	0211-0501	●	●	●
146	03.417 CLIP; HOSE,ACL 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=117	9-09915-075-1	01	1	0502-0612	●
146	03.417 CLIP; HOSE,ACL 4HG1-T ENG(RDP) 03.407 ID=117	9-09915-075-1	01	1	0502-0612			●
146	03.417 CLIP; HOSE,ACL 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=117	9-09915-075-1	01	1	0701-	●	●	●
146	03.417 CLIP; HOSE,ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 03.008 ID=95	9-09915-733-1	01	1	0211-0501	●	●	●		●
146	03.417 CLIP; HOSE,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95	9-09915-733-1	01	1	0502-0504	●	●	●
146	03.417 CLIP; HOSE,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95	9-09915-733-1	01	1	0505-	●	●	●		●
146	03.417 CLIP; HOSE,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.407 ID=112	9-09915-074-1	01	1	0211-0501	●	●	●	●	●	●
146	03.417 CLIP; HOSE,ACL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=112	9-09915-074-1	01	1	0502-0506	●	●	●		●
146	03.417 CLIP; HOSE,ACL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=112	9-09915-074-1	01	1	0507-0606	●	●	●		●
146	03.417 CLIP; HOSE,ACL 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=112	9-09915-074-1	01	1	0607-	●	●	●		●
320	03.417 HOSE; CONN,ACL 4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51)	8-97103-346-2	01	1	0211-0501					●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51)	8-97103-346-2	01	1	0211-0501	●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51)	8-97103-346-2	01	1	0211-0501			●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51)	8-97103-346-2	01	1	0211-0501		●
320	03.417 HOSE; CONN,ACL 4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97103-346-3	01	1	0502-0606					●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97103-346-3	01	1	0502-0606	●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97103-346-3	01	1	0502-0606			●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3>	8-97103-346-3	01	1	0502-0606		●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97103-346-3	01	1	0607-	●	●	●		●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-97209-707-0	01	1	0211-0501	●	●	●		●	●
320	03.417 HOSE; CONN,ACL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3>	8-97209-707-0	01	1	0502-	●	●	●		●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-97104-782-2	01	1	0211-0501			●		●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-97104-782-2	01	1	0211-0501	●	●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ>	8-97223-572-0	01	1	0211-0501	●	●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97223-572-0	01	1	0211-0501	●	●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97223-572-0	01	1	0211-0501			●
320	03.417 HOSE; CONN,ACL 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3>	8-97223-572-1	01	1	0502-0612	●
320	03.417 HOSE; CONN,ACL 4HG1-T ENG(RDP)	8-97223-572-1	01	1	0502-0612			●
320	03.417 HOSE; CONN,ACL 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3>	8-97223-572-1	01	1	0701-	●	●	●
320	03.417 HOSE; CONN,ACL 4HK1-TCS ENG(RJS)	8-98000-873-1	01	1	0507-0606			●
320	03.417 HOSE; CONN,ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98000-873-1	01	1	0607-			●
320	03.417 HOSE; CONN,ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3>	8-98000-873-1	01	1	0607-		●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-97211-578-0	01	1	0211-0501				●
345	03.417 CLIP; PCV HOSE 4HE1 ENG(RLY)	8-97066-710-1	01	1	0211-0307	●	●	●	●	●
345	03.417 CLIP; PCV HOSE 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97066-710-1	01	1	0211-0307	●	●	●
345	03.417 CLIP; PCV HOSE	8-97066-710-1	01	1	0211-0307						●
345	03.417 CLIP; PCV HOSE 4HE1 ENG(RLY)	8-97369-959-0	01	1	0308-0501	●	●	●	●	●
345	03.417 CLIP; PCV HOSE 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97369-959-0	01	1	0308-0501	●	●	●
345	03.417 CLIP; PCV HOSE	8-97369-959-0	01	1	0308-0501						●
345	03.417 CLIP; PCV HOSE 4HE1-TCN ENG(RDR)	8-97369-959-0	01	1	0502-0612					●
345	03.417 CLIP; PCV HOSE 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS)	8-97369-959-0	01	1	0502-0612	●		●
345	03.417 CLIP; PCV HOSE 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)	8-97369-959-0	01	1	0502-0612		●
345	03.417 CLIP; PCV HOSE 4HE1-TCN ENG(RDR)	8-97369-959-0	01	1	0701-					●
345	03.417 CLIP; PCV HOSE 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS)	8-97369-959-0	01	1	0701-	●	●	●
345	03.417 CLIP; PCV HOSE 4HK1-TCS ENG(RJS)	8-98020-040-0	01	1	0507-0606			●
345	03.417 CLIP; PCV HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98020-040-0	01	1	0607-		●	●
511	03.417 NUT; PIPE 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501	●	●
511	03.417 NUT; PIPE 4HG1 ENG(RJH) TURBOCHARGER(K51) 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501			●
511	03.417 NUT; PIPE 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602	●
511	03.417 NUT; PIPE 4HG1-T ENG(RDP) 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602			●
511	03.417 NUT; PIPE 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0612	●
511	03.417 NUT; PIPE 4HG1-T ENG(RDP) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0612			●
511	03.417 NUT; PIPE 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3> 01.062 M8 FLANGE	0-91180-108-0	02	1	0701-	●	●	●

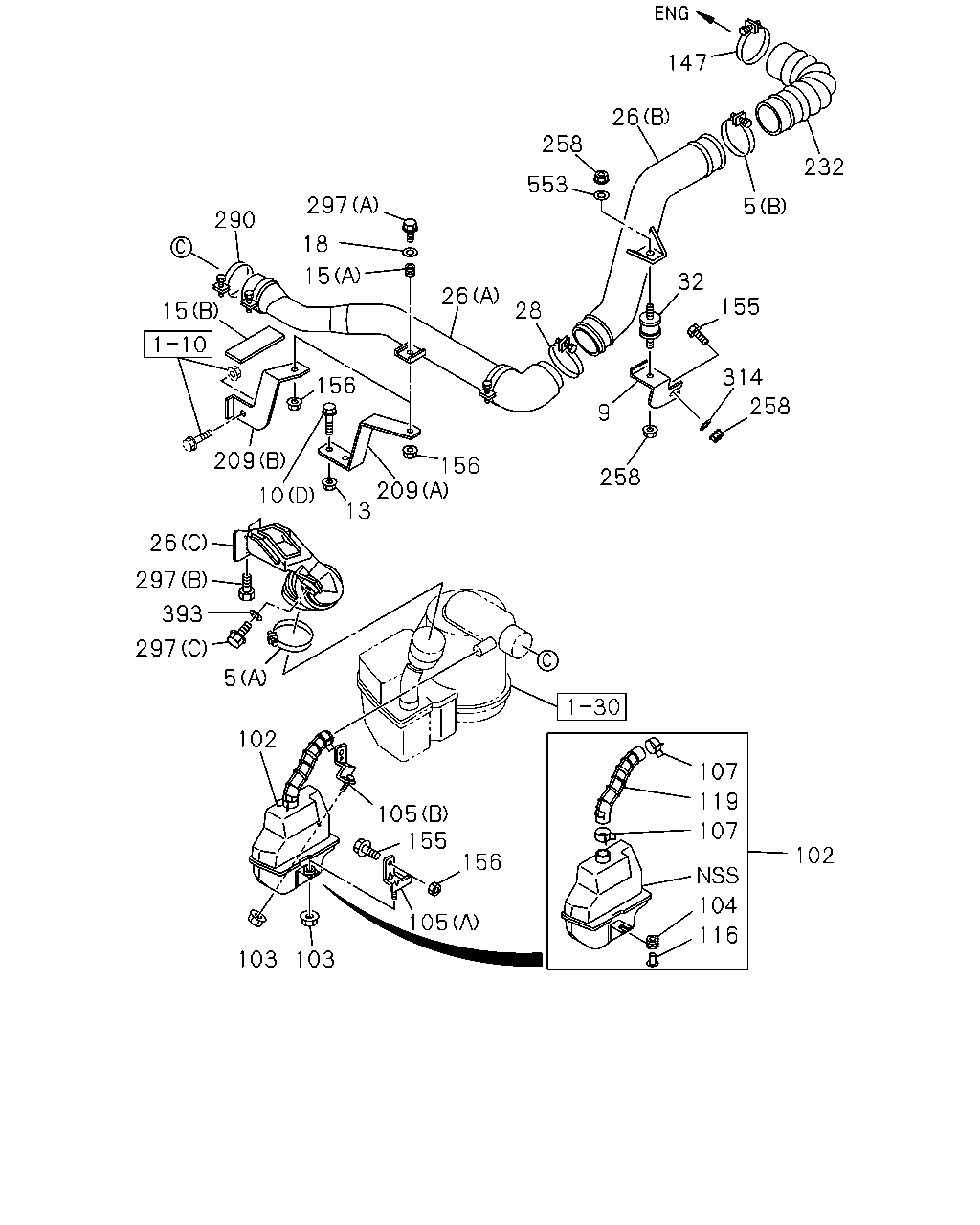

147 26 258 232 553 297 5 290 18 15 32 26 155 28 15 156 314 258 9 209 156 258 209 13 10 26 297 393 297 5 102 107 119 105 155 107 102 156 104 105 116 103 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1002-	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (D) D=101.6	9-09915-502-1	01	1	0211-0501	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D) D=101.6	9-09915-502-1	01	1	0211-0501	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (D) D=101.6	9-09915-502-1	01	1	0502-0504	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (D) D=101.6	9-09915-502-1	01	1	0505-	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) ID=58-79	1-09707-136-0	01	1	0211-0501	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> (C) ID=58-79	1-09707-136-0	01	1	0502-0504	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> (C) ID=68-85	1-09707-202-0	01	1	0505-0506	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> (C) ID=68-85	1-09707-202-0	01	1	0507-0606	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> (C) ID=68-85	1-09707-202-0	01	1	0607-0810	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> (C) ID=65-85	8-98133-350-0	01	1	0811-1001	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1002-	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) (B) ID=92	9-09915-072-1	01	1	0211-0501	●	●		●
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=92	9-09915-072-1	01	1	0502-	●	●		●
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 03.417 (A) ID=82	9-09915-511-1	01	1	0211-0501	●	●		●
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (A) ID=82	9-09915-511-1	01	1	0502-	●	●		●
9	03.417 BRACKET; INT PIPE 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51)	8-97160-413-0	01	1	0211-0501	●	●		●
9	03.417 BRACKET; INT PIPE 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> FRAME STRAIGHT TYPE<7KJ>	8-97160-413-0	01	1	0502-0504	●	●
9	03.417 BRACKET; INT PIPE 4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> FRAME STRAIGHT TYPE<7KJ>	8-97160-413-0	01	1	0505-		●
9	03.417 BRACKET; INT PIPE 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ>	8-97038-294-0	01	1	0211-0312	●	●		●
9	03.417 BRACKET; INT PIPE 4HG1 ENG(RJH),4HF1-S ENG(RLS) MINI BUS CHASSIS(V4B) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51)	8-97038-294-0	01	1	0211-0312	●	●
9	03.417 BRACKET; INT PIPE 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ>	8-97038-294-0	01	1	0401-0405	●	●	●	●	●
9	03.417 BRACKET; INT PIPE 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ>	8-97038-294-0	01	1	0406-0501	●	●		●
9	03.417 BRACKET; INT PIPE 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97038-294-0	01	1	0502-0504	●	●		●
9	03.417 BRACKET; INT PIPE 4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97038-294-0	01	1	0505-	●			●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0501	●	●	●		●	●
10	03.417 BOLT; BRKT FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0502-0502	●	●	●		●
10	03.417 BOLT; BRKT FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0503-0506	●	●	●		●
10	03.417 BOLT; BRKT FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512	●	●	●		●
10	03.417 BOLT; BRKT FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-0606	●	●	●		●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0607-	●	●	●		●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.183 (B) M8X35 FLANGE	0-28680-835-0	01	1	0211-0501	●	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> 02.183 (B) M8X35 FLANGE	0-28680-835-0	01	1	0502-0502	●	●	●		●
10	03.417 BOLT; BRKT FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> 02.183 (B) M8X35 FLANGE	0-28680-835-0	01	1	0503-0506	●	●	●		●
10	03.417 BOLT; BRKT FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 02.183 (B) M8X35 FLANGE	0-28680-835-0	01	1	0507-0512	●	●	●		●
10	03.417 BOLT; BRKT FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0601-0606	●	●	●		●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0607-	●	●	●		●
10	03.417 BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 02.664 (D) M8X20 FLANGE	0-28680-820-0	02	1	0211-0501	●	●		●
10	03.417 BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> FRAME STRAIGHT TYPE<7KJ> 02.664 (D) M8X20 FLANGE	0-28680-820-0	02	1	0502-0504	●	●
10	03.417 BOLT; BRKT FIX 4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> FRAME STRAIGHT TYPE<7KJ> 02.664 (D) M8X20 FLANGE	0-28680-820-0	02	1	0505-0512		●
10	03.417 BOLT; BRKT FIX 4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> FRAME STRAIGHT TYPE<7KJ> 01.531 (D) M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.559 (A) M8X25 FLANGE	0-28680-825-0	04	1	0211-0501				●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.405 (C) M10X30 FLANGE	0-28681-030-0	02	1	0211-0501				●
13	03.417 NUT; BRKT FIX 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●	●	●	●	●
13	03.417 NUT; BRKT FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0502	●	●	●		●
13	03.417 NUT; BRKT FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> 07.633 M8 FLANGE	0-91150-108-0	01	1	0503-0506	●	●	●		●
13	03.417 NUT; BRKT FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602	●	●	●		●
13	03.417 NUT; BRKT FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606	●	●	●		●
13	03.417 NUT; BRKT FIX 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●	●	●		●
13	03.417 NUT; BRKT FIX 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501	●	●		●
13	03.417 NUT; BRKT FIX 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0504	●	●
13	03.417 NUT; BRKT FIX 4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0505-0602		●
13	03.417 NUT; BRKT FIX 4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●
15	03.417 INSULATOR 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) 03.407 (C)	8-94454-802-0	01	1	0211-0501	●	●
15	03.417 INSULATOR 4HG1 ENG(RJH) TURBOCHARGER(K51) 03.407 (C)	8-94454-802-0	01	1	0211-0501			●
15	03.417 INSULATOR 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3> 03.407 (C)	8-94454-802-0	01	1	0502-0612	●
15	03.417 INSULATOR 4HG1-T ENG(RDP) 03.407 (C)	8-94454-802-0	01	1	0502-0612			●
15	03.417 INSULATOR 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3> 03.407 (C)	8-94454-802-0	01	1	0701-	●	●	●
15	03.417 INSULATOR 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) (A)	8-94338-739-0	01	1	0211-0501	●	●		●
15	03.417 INSULATOR 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-94338-739-0	01	1	0502-	●	●		●
15	03.417 INSULATOR 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> (B)	8-97356-230-0	01	1	0211-0501	●	●		●
15	03.417 INSULATOR 4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97356-230-0	01	1	0502-	●			●
18	03.417 WASHER; PL,PIPE 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	0211-0501	●	●		●
18	03.417 WASHER; PL,PIPE 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	0502-0605	●	●		●
18	03.417 WASHER; PL,PIPE 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.706 ID=8.4 OD=26	0-91614-808-0	01	1	0606-	●	●		●
26	03.417 DUCT; AIR INT 4HG1 ENG(RJH),4HF1-S ENG(RLS) MANUAL TILT CAB<RWZ> AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) (C)	8-97069-877-1	01	1	0211-0501	●	●
26	03.417 DUCT; AIR INT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) (A)	8-97147-343-0	01	1	0211-0501	●	●		●
26	03.417 DUCT; AIR INT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97147-343-0	01	1	0502-	●	●		●
26	03.417 DUCT; AIR INT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) (B)	8-97147-344-0	01	1	0211-0501	●	●		●
26	03.417 DUCT; AIR INT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97147-344-0	01	1	0502-	●	●		●
26	03.417 DUCT; AIR INT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51),MANUAL TILT CAB<RWZ> (C)	8-97089-952-1	01	1	0211-0501	●	●		●
26	03.417 DUCT; AIR INT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. MANUAL TILT CAB<RWZ> (C)	8-97089-952-1	01	1	0502-0709	●	●		●
26	03.417 DUCT; AIR INT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97089-952-1	01	1	0710-	●	●		●
28	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 03.008 ID=95	9-09915-733-1	01	1	0211-0501	●	●		●
28	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.008 ID=95	9-09915-733-1	01	1	0502-	●	●		●
32	03.417 RUBBER; AIR DUCT MTG 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 03.405	8-94158-155-1	01	1	0211-0501	●	●		●
32	03.417 RUBBER; AIR DUCT MTG 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.405	8-94158-155-1	01	1	0502-0611	●	●		●
32	03.417 RUBBER; AIR DUCT MTG 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-98036-826-0	01	1	0612-	●	●		●
102	03.402 RESONATOR; AIR INT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51)	8-97091-928-1	01	1	0211-0501	●	●		●
102	03.402 RESONATOR; AIR INT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97091-928-1	01	1	0502-	●	●		●
103	03.402 NUT; RESONATOR 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501	●	●		●
103	03.402 NUT; RESONATOR 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602	●	●		●
103	03.402 NUT; RESONATOR 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●		●
104	03.417 RUBBER; MOUNTING,RESONATOR 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51)	8-97095-600-0	02	1	0211-0501	●	●		●
104	03.417 RUBBER; MOUNTING,RESONATOR 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97095-600-0	02	1	0502-	●	●		●
105	03.403 BRACKET; RESONATOR 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) (B)	8-97091-931-1	01	1	0211-0501	●	●		●
105	03.403 BRACKET; RESONATOR 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97091-931-1	01	1	0502-	●	●		●
105	03.403 BRACKET; RESONATOR 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) (A)	8-97092-824-1	01	1	0211-0501	●	●		●
105	03.403 BRACKET; RESONATOR 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97092-824-1	01	1	0502-	●	●		●
107	03.417 CLIP; PROTECTOR 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51)	8-97095-785-0	02	1	0211-0501	●	●		●
107	03.417 CLIP; PROTECTOR 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97095-785-0	02	1	0502-	●	●		●
116	01.745 RETAINER; RESONATOR 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51)	8-97105-842-0	02	1	0211-0501	●	●		●
116	01.745 RETAINER; RESONATOR 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97105-842-0	02	1	0502-	●	●		●
119	03.403 HOSE; RESONATOR 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51)	8-97105-844-0	01	1	0211-0501	●	●		●
119	03.403 HOSE; RESONATOR 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97105-844-0	01	1	0502-	●	●		●
147	03.417 CLIP; HOSE TO ENG 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95	9-09915-733-1	01	1	0211-0501	●	●	●
147	03.417 CLIP; HOSE TO ENG 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95	9-09915-733-1	01	1	0502-0504	●	●	●		●
147	03.417 CLIP; HOSE TO ENG 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95	9-09915-733-1	01	1	0505-0612	●	●	●		●
147	03.417 CLIP; HOSE TO ENG 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95	9-09915-733-1	01	1	0701-0809	●	●	●		●
147	03.417 CLIP; HOSE TO ENG 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95	9-09915-733-1	01	1	0701-0809	●		●		●
147	03.417 CLIP; HOSE TO ENG 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95	9-09915-733-1	01	1	0810-	●	●	●		●
147	03.417 CLIP; HOSE TO ENG 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 03.407 ID=92	9-09915-072-1	01	1	0211-0501	●	●		●
147	03.417 CLIP; HOSE TO ENG 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92	9-09915-072-1	01	1	0502-	●	●		●
155	03.417 BOLT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●	●		●
155	03.417 BOLT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●	●		●
155	03.417 BOLT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●	●		●
155	03.417 BOLT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●	●		●
155	03.417 BOLT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●		●
155	03.417 BOLT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●		●
156	03.417 NUT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●		●
156	03.417 NUT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●		●
156	03.417 NUT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602	●	●		●
156	03.417 NUT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602	●	●		●
156	03.417 NUT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●	●		●
156	03.417 NUT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●	●		●
209	03.405 BRACKET; ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> (C)	8-97120-080-1	01	1	0211-0501	●	●	●		●
209	03.405 BRACKET; ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> (C)	8-97120-080-1	01	1	0502-	●	●	●		●
209	03.405 BRACKET; ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) (A)	8-97173-701-0	01	1	0211-0501	●	●		●
209	03.405 BRACKET; ACL 4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> FRAME STRAIGHT TYPE<7KJ> (A)	8-97173-701-0	01	1	0502-0504	●	●
209	03.405 BRACKET; ACL 4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> FRAME STRAIGHT TYPE<7KJ> (A)	8-97173-701-0	01	1	0505-		●
209	03.405 BRACKET; ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> (B)	8-97353-909-0	01	1	0211-0501	●	●		●
209	03.405 BRACKET; ACL 4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97353-909-0	01	1	0502-	●			●
232	03.417 HOSE; CONN 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97109-423-0	01	1	0211-0501	●	●	●		●
232	03.417 HOSE; CONN 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-97109-423-0	01	1	0211-0501	●	●	●		●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97109-423-0	01	1	0502-0504	●	●	●		●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97109-423-0	01	1	0505-0802	●	●	●		●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.407	8-98115-594-0	01	1	0803-	●	●	●		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51)	8-97102-361-0	01	1	0211-0501	●	●		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97102-361-1	01	1	0502-	●	●		●
258	03.417 NUT; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●		●
258	03.417 NUT; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE	0-91150-108-0	03	1	0502-0602	●	●		●
258	03.417 NUT; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 01.062 M8 FLANGE	0-91180-108-0	03	1	0603-	●	●		●
258	03.417 NUT; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501	●	●		●
290	03.374 CLIP; ACL TO AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 01.166 ID=76	1-09704-069-0	01	1	0211-0501	●	●		●
290	03.374 CLIP; ACL TO AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 01.166 ID=76	1-09704-069-0	01	1	0502-	●	●		●
297	03.417 BOLT; DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 02.334 (B) M8X40 W/LK&PL WASHER	0-51240-840-0	01	1	0211-0501	●
297	03.417 BOLT; DUCT 4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 02.334 (B) M8X40 W/LK&PL WASHER	0-51240-840-0	01	1	0211-0501		●
297	03.417 BOLT; DUCT 4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 02.334 (B) M8X40 W/LK&PL WASHER	0-51240-840-0	01	1	0211-0501				●
297	03.417 BOLT; DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.334 (B) M8X40 W/LK&PL WASHER	0-51240-840-0	01	1	0502-0512	●	●		●
297	03.417 BOLT; DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B)	0-51640-840-0	01	1	0601-	●	●		●
297	03.417 BOLT; DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	0211-0501	●	●		●
297	03.417 BOLT; DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	0502-0512	●	●		●
297	03.417 BOLT; DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 01.060 (A) M8X35 FLANGE	0-28650-835-0	01	1	0601-	●	●		●
297	03.417 BOLT; DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 16.550 (C) M8X16 W/LK&PL WASHER	8-94310-730-0	01	1	0211-0501	●	●		●
297	03.417 BOLT; DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 16.550 (C) M8X16 W/LK&PL WASHER	8-94310-730-0	01	1	0502-	●	●		●
314	03.417 WASHER; PL,AIR INT DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.335 ID=10.2 T=3.2	8-94279-642-0	03	1	0211-0501	●	●	●		●
314	03.417 WASHER; PL,AIR INT DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 16.335 ID=10.2 T=3.2	8-94279-642-0	03	1	0211-0501	●	●	●		●
314	03.417 WASHER; PL,AIR INT DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.335 ID=10.2 T=3.2	8-94279-642-0	03	1	0502-1204	●	●	●		●
314	03.417 WASHER; PL,AIR INT DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1205-	●	●	●		●
314	03.417 WASHER; PL,AIR INT DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	0211-0501	●	●		●
314	03.417 WASHER; PL,AIR INT DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	0502-0605	●	●		●
314	03.417 WASHER; PL,AIR INT DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.706 ID=8.4 OD=26	0-91614-808-0	01	1	0606-	●	●		●
393	03.417 WASHER; LK,AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 01.270 ID=10.5 OD=36	8-97031-437-0	01	1	0211-0501	●
393	03.417 WASHER; LK,AIR DUCT 4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 01.270 ID=10.5 OD=36	8-97031-437-0	01	1	0211-0501		●
393	03.417 WASHER; LK,AIR DUCT 4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 01.270 ID=10.5 OD=36	8-97031-437-0	01	1	0211-0501				●
393	03.417 WASHER; LK,AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 01.270 ID=10.5 OD=36	8-97031-437-0	01	1	0502-	●	●		●
553	03.417 WASHER; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 04.595 ID=8.4 OD=22	0-91610-708-0	01	1	0610-	●	●		●

399 381 281 60 389 291 209 74 296 391 314 391 192 147 242 389 193 55 281 391 287 314 391 320 17 64 64 146 391 314 391 242 389 232 5 181 281 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1002-	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (D) D=101.6	9-09915-502-1	01	1	0211-0501	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D) D=101.6	9-09915-502-1	01	1	0211-0501	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (D) D=101.6	9-09915-502-1	01	1	0502-0504	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (D) D=101.6	9-09915-502-1	01	1	0505-	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) ID=58-79	1-09707-136-0	01	1	0211-0501	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> (C) ID=58-79	1-09707-136-0	01	1	0502-0504	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> (C) ID=68-85	1-09707-202-0	01	1	0505-0506	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> (C) ID=68-85	1-09707-202-0	01	1	0507-0606	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> (C) ID=68-85	1-09707-202-0	01	1	0607-0810	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> (C) ID=65-85	8-98133-350-0	01	1	0811-1001	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1002-	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) (B) ID=92	9-09915-072-1	01	1	0211-0501	●	●		●
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=92	9-09915-072-1	01	1	0502-	●	●		●
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 03.417 (A) ID=82	9-09915-511-1	01	1	0211-0501	●	●		●
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (A) ID=82	9-09915-511-1	01	1	0502-	●	●		●
17	03.403 GASKET; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97853-699-2	01	1	0211-0501	●	●	●		●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-699-2	01	1	0211-0501	●	●	●		●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A)	8-97853-699-2	01	1	0211-0501				●
17	03.403 GASKET; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97853-699-2	01	1	0502-	●	●	●		●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B)	8-97892-723-0	02	1	0211-0501				●
55	03.402 CLEANER ASM; AIR,PRE 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL>	8-97126-267-0	01	1	0211-0501	●	●	●		●
55	03.402 CLEANER ASM; AIR,PRE 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46>	8-97126-267-0	01	1	0502-	●	●	●		●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97856-957-0	01	1	0211-0501	●	●	●		●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97856-957-1	01	1	0502-	●	●	●		●
60	03.417 BRACKET; AIR DUCT,UPR 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97892-525-4	01	1	0211-0501				●
64	03.417 BOLT; BRKT,AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0211-0501	●	●	●		●
64	03.417 BOLT; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0211-0501	●	●	●		●
64	03.417 BOLT; BRKT,AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0502-	●	●	●		●
74	03.417 WASHER; PL,ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	0211-0501	●	●	●		●
74	03.417 WASHER; PL,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	0502-0605	●	●	●		●
74	03.417 WASHER; PL,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 04.595 ID=8.4 OD=22	0-91610-708-0	02	1	0606-	●	●	●		●
146	03.417 CLIP; HOSE,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.407 ID=117	9-09915-075-1	01	1	0211-0501	●	●	●		●
146	03.417 CLIP; HOSE,ACL 4HG1 ENG(RJH) TURBOCHARGER(K51) 03.407 ID=117	9-09915-075-1	01	1	0211-0501	●	●	●
146	03.417 CLIP; HOSE,ACL 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=117	9-09915-075-1	01	1	0502-0612	●
146	03.417 CLIP; HOSE,ACL 4HG1-T ENG(RDP) 03.407 ID=117	9-09915-075-1	01	1	0502-0612			●
146	03.417 CLIP; HOSE,ACL 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=117	9-09915-075-1	01	1	0701-	●	●	●
146	03.417 CLIP; HOSE,ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 03.008 ID=95	9-09915-733-1	01	1	0211-0501	●	●	●		●
146	03.417 CLIP; HOSE,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95	9-09915-733-1	01	1	0502-0504	●	●	●
146	03.417 CLIP; HOSE,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95	9-09915-733-1	01	1	0505-	●	●	●		●
146	03.417 CLIP; HOSE,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.407 ID=112	9-09915-074-1	01	1	0211-0501	●	●	●	●	●	●
146	03.417 CLIP; HOSE,ACL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=112	9-09915-074-1	01	1	0502-0506	●	●	●		●
146	03.417 CLIP; HOSE,ACL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=112	9-09915-074-1	01	1	0507-0606	●	●	●		●
146	03.417 CLIP; HOSE,ACL 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=112	9-09915-074-1	01	1	0607-	●	●	●		●
147	03.417 CLIP; HOSE TO ENG 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95	9-09915-733-1	01	1	0211-0501	●	●	●
147	03.417 CLIP; HOSE TO ENG 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95	9-09915-733-1	01	1	0502-0504	●	●	●		●
147	03.417 CLIP; HOSE TO ENG 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95	9-09915-733-1	01	1	0505-0612	●	●	●		●
147	03.417 CLIP; HOSE TO ENG 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95	9-09915-733-1	01	1	0701-0809	●	●	●		●
147	03.417 CLIP; HOSE TO ENG 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95	9-09915-733-1	01	1	0701-0809	●		●		●
147	03.417 CLIP; HOSE TO ENG 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95	9-09915-733-1	01	1	0810-	●	●	●		●
147	03.417 CLIP; HOSE TO ENG 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 03.407 ID=92	9-09915-072-1	01	1	0211-0501	●	●		●
147	03.417 CLIP; HOSE TO ENG 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92	9-09915-072-1	01	1	0502-	●	●		●
181	03.407 BOLT; AIR DUCT TO RAD 4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501					●
181	03.407 BOLT; AIR DUCT TO RAD 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●
181	03.407 BOLT; AIR DUCT TO RAD 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501			●
181	03.407 BOLT; AIR DUCT TO RAD 4HG1 ENG(RJH),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501		●
181	03.407 BOLT; AIR DUCT TO RAD 4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501				●
181	03.407 BOLT; AIR DUCT TO RAD 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512					●
181	03.407 BOLT; AIR DUCT TO RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●
181	03.407 BOLT; AIR DUCT TO RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512			●
181	03.407 BOLT; AIR DUCT TO RAD 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512		●
181	03.407 BOLT; AIR DUCT TO RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●		●
192	03.407 CLIP; HOSE 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> ID=87	8-97087-432-0	01	1	0211-0501			●		●
192	03.407 CLIP; HOSE 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> ID=87	8-97087-432-0	01	1	0211-0501	●	●
193	03.417 COVER; DUCT,AIR INT 4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51)	8-97138-604-0	01	1	0211-0501					●
193	03.417 COVER; DUCT,AIR INT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51)	8-97138-604-0	01	1	0211-0501	●
193	03.417 COVER; DUCT,AIR INT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51)	8-97138-604-0	01	1	0211-0501			●
193	03.417 COVER; DUCT,AIR INT 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51)	8-97138-604-0	01	1	0211-0501		●
193	03.417 COVER; DUCT,AIR INT 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>	8-97138-604-1	01	1	0502-					●
193	03.417 COVER; DUCT,AIR INT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>	8-97138-604-1	01	1	0502-	●
193	03.417 COVER; DUCT,AIR INT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>	8-97138-604-1	01	1	0502-			●
193	03.417 COVER; DUCT,AIR INT 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>	8-97138-604-1	01	1	0502-		●
193	03.417 COVER; DUCT,AIR INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL>	8-97044-953-0	01	1	0211-0501	●	●	●		●
193	03.417 COVER; DUCT,AIR INT 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>	8-97044-953-0	01	1	0211-0501	●	●	●
193	03.417 COVER; DUCT,AIR INT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL>	8-97120-078-1	01	1	0211-0501	●	●	●		●
193	03.417 COVER; DUCT,AIR INT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46>	8-97120-078-2	01	1	0502-	●	●	●		●
209	03.405 BRACKET; ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> (C)	8-97120-080-1	01	1	0211-0501	●	●	●		●
209	03.405 BRACKET; ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> (C)	8-97120-080-1	01	1	0502-	●	●	●		●
209	03.405 BRACKET; ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) (A)	8-97173-701-0	01	1	0211-0501	●	●		●
209	03.405 BRACKET; ACL 4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> FRAME STRAIGHT TYPE<7KJ> (A)	8-97173-701-0	01	1	0502-0504	●	●
209	03.405 BRACKET; ACL 4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> FRAME STRAIGHT TYPE<7KJ> (A)	8-97173-701-0	01	1	0505-		●
209	03.405 BRACKET; ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> (B)	8-97353-909-0	01	1	0211-0501	●	●		●
209	03.405 BRACKET; ACL 4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97353-909-0	01	1	0502-	●			●
232	03.417 HOSE; CONN 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97109-423-0	01	1	0211-0501	●	●	●		●
232	03.417 HOSE; CONN 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-97109-423-0	01	1	0211-0501	●	●	●		●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97109-423-0	01	1	0502-0504	●	●	●		●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97109-423-0	01	1	0505-0802	●	●	●		●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.407	8-98115-594-0	01	1	0803-	●	●	●		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51)	8-97102-361-0	01	1	0211-0501	●	●		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97102-361-1	01	1	0502-	●	●		●
242	03.417 BRACKET; AIR DUCT 4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-633-1	01	1	0211-0501					●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-633-1	01	1	0211-0501	●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-633-1	01	1	0211-0501			●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-633-1	01	1	0211-0501		●
242	03.417 BRACKET; AIR DUCT 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A)	8-97853-633-2	01	1	0502-0606					●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97853-633-2	01	1	0502-0606	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A)	8-97853-633-2	01	1	0502-0606			●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97853-633-2	01	1	0502-0606		●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97853-633-2	01	1	0607-	●	●	●		●
242	03.417 BRACKET; AIR DUCT 4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (B)	8-97857-844-0	01	1	0211-0501					●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B)	8-97857-844-0	01	1	0211-0501	●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (B)	8-97857-844-0	01	1	0211-0501			●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B)	8-97857-844-0	01	1	0211-0501		●
242	03.417 BRACKET; AIR DUCT 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (B)	8-97857-844-1	01	1	0502-0606					●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97857-844-1	01	1	0502-0606	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (B)	8-97857-844-1	01	1	0502-0606			●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97857-844-1	01	1	0502-0606		●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97857-844-1	01	1	0607-	●	●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) (C)	8-97161-847-1	01	1	0211-0501					●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) (C)	8-97161-847-1	01	1	0211-0501	●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) (C)	8-97161-847-1	01	1	0211-0501			●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) (C)	8-97161-847-1	01	1	0211-0501		●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> (C)	8-97161-847-2	01	1	0502-					●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46> (C)	8-97161-847-2	01	1	0502-	●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> (C)	8-97161-847-2	01	1	0502-			●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46> (C)	8-97161-847-2	01	1	0502-		●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> (C)	8-97125-174-1	01	1	0211-0501	●	●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46> (C)	8-97125-174-1	01	1	0211-0501	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97125-174-2	01	1	0502-0612	●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP) (C)	8-97125-174-2	01	1	0502-0612			●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97125-174-2	01	1	0701-	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> (D)	8-97120-084-1	01	1	0211-0501	●	●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> (D)	8-97120-084-2	01	1	0502-	●	●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A)	8-97180-995-0	01	1	0211-0501	●	●	●		●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97180-995-0	01	1	0502-0506	●	●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97180-995-0	01	1	0507-0606	●	●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97180-995-0	01	1	0607-	●	●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A)	8-97213-911-2	01	1	0211-0501				●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B)	8-97213-912-2	01	1	0211-0501				●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 03.407 ID=87	9-09915-071-1	01	1	0211-0501	●	●	●		●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 03.407 ID=87	9-09915-071-1	01	1	0502-	●	●	●		●
291	03.405 BOLT; ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 04.686 M8X30 FLANGE	0-28680-830-0	02	1	0211-0501	●	●	●		●
291	03.405 BOLT; ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 04.686 M8X30 FLANGE	0-28680-830-0	02	1	0502-0512	●	●	●		●
291	03.405 BOLT; ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 03.403 M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●	●		●
296	03.405 NUT; ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501	●	●	●		●
296	03.405 NUT; ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602	●	●	●		●
296	03.405 NUT; ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●		●
314	03.417 WASHER; PL,AIR INT DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.335 ID=10.2 T=3.2	8-94279-642-0	03	1	0211-0501	●	●	●		●
314	03.417 WASHER; PL,AIR INT DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 16.335 ID=10.2 T=3.2	8-94279-642-0	03	1	0211-0501	●	●	●		●
314	03.417 WASHER; PL,AIR INT DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.335 ID=10.2 T=3.2	8-94279-642-0	03	1	0502-1204	●	●	●		●
314	03.417 WASHER; PL,AIR INT DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1205-	●	●	●		●
314	03.417 WASHER; PL,AIR INT DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	0211-0501	●	●		●
314	03.417 WASHER; PL,AIR INT DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	0502-0605	●	●		●
314	03.417 WASHER; PL,AIR INT DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.706 ID=8.4 OD=26	0-91614-808-0	01	1	0606-	●	●		●
320	03.417 HOSE; CONN,ACL 4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51)	8-97103-346-2	01	1	0211-0501					●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51)	8-97103-346-2	01	1	0211-0501	●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51)	8-97103-346-2	01	1	0211-0501			●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51)	8-97103-346-2	01	1	0211-0501		●
320	03.417 HOSE; CONN,ACL 4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97103-346-3	01	1	0502-0606					●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97103-346-3	01	1	0502-0606	●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97103-346-3	01	1	0502-0606			●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3>	8-97103-346-3	01	1	0502-0606		●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97103-346-3	01	1	0607-	●	●	●		●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-97209-707-0	01	1	0211-0501	●	●	●		●	●
320	03.417 HOSE; CONN,ACL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3>	8-97209-707-0	01	1	0502-	●	●	●		●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-97104-782-2	01	1	0211-0501			●		●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-97104-782-2	01	1	0211-0501	●	●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ>	8-97223-572-0	01	1	0211-0501	●	●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97223-572-0	01	1	0211-0501	●	●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97223-572-0	01	1	0211-0501			●
320	03.417 HOSE; CONN,ACL 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3>	8-97223-572-1	01	1	0502-0612	●
320	03.417 HOSE; CONN,ACL 4HG1-T ENG(RDP)	8-97223-572-1	01	1	0502-0612			●
320	03.417 HOSE; CONN,ACL 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3>	8-97223-572-1	01	1	0701-	●	●	●
320	03.417 HOSE; CONN,ACL 4HK1-TCS ENG(RJS)	8-98000-873-1	01	1	0507-0606			●
320	03.417 HOSE; CONN,ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98000-873-1	01	1	0607-			●
320	03.417 HOSE; CONN,ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3>	8-98000-873-1	01	1	0607-		●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-97211-578-0	01	1	0211-0501				●
381	03.417 NUT; BRKT,AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE	1-09984-018-0	02	1	0211-0501	●	●	●		●
381	03.417 NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE	1-09984-018-0	02	1	0211-0501	●	●	●		●
381	03.417 NUT; BRKT,AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE	1-09984-018-0	02	1	0502-	●	●	●		●
381	03.417 NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.570 M8 POP NUT	8-94279-538-0	03	1	0211-0501				●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.417 (B)	8-97081-886-0	02	1	0211-0501					●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (B)	8-97081-886-0	02	1	0211-0501	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.417 (B)	8-97081-886-0	02	1	0211-0501			●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG(RJH),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (B)	8-97081-886-0	02	1	0211-0501		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.417 (B)	8-97081-886-0	02	1	0502-0606					●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.417 (B)	8-97081-886-0	02	1	0502-0606	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.417 (B)	8-97081-886-0	02	1	0502-0606			●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> 03.417 (B)	8-97081-886-0	02	1	0502-0606		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.417 (B)	8-97081-886-0	02	1	0607-	●	●	●		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (A)	8-97080-149-0	01	1	0211-0501	●	●	●		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.417 (A)	8-97080-149-0	01	1	0502-0606					●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A)	8-97080-149-0	01	1	0502-0606	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.417 (A)	8-97080-149-0	01	1	0502-0606			●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A)	8-97080-149-0	01	1	0502-0606		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A)	8-97080-149-0	01	1	0607-	●	●	●		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (A)	8-97080-149-0	03	1	0211-0501				●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	06	1	0211-0501	●	●	●		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> M8 FLANGE	8-94279-517-0	06	1	0211-0501	●	●	●		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	06	1	0502-0910	●	●	●		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M8 W/LK WASHER	8-97581-234-0	06	1	0911-	●	●	●		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> M8 FLANGE	8-94279-517-0	03	1	0211-0501				●
399	03.417 CAP; BRKT,AIR DUCT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-94273-605-0	02	1	0211-0501			●		●
399	03.417 CAP; BRKT,AIR DUCT 4HF1-S ENG(RLS)	8-94273-605-0	02	1	0211-0501					●
399	03.417 CAP; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-94273-605-0	02	1	0211-0501	●	●
399	03.417 CAP; BRKT,AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-94273-605-0	02	1	0211-0501	●
399	03.417 CAP; BRKT,AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS)	8-94273-605-0	02	1	0211-0501			●
399	03.417 CAP; BRKT,AIR DUCT 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3>	8-94273-605-0	02	1	0211-0501		●
399	03.417 CAP; BRKT,AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-94273-605-0	02	1	0502-	●	●	●		●

399 381 391 60 281 389 193 147 192 314 391 242 391 389 476 477 320 64 314 391 146 314 391 17 64 232 389 5 181 391 242 281 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1002-	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (D) D=101.6	9-09915-502-1	01	1	0211-0501	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D) D=101.6	9-09915-502-1	01	1	0211-0501	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (D) D=101.6	9-09915-502-1	01	1	0502-0504	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (D) D=101.6	9-09915-502-1	01	1	0505-	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) ID=58-79	1-09707-136-0	01	1	0211-0501	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> (C) ID=58-79	1-09707-136-0	01	1	0502-0504	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> (C) ID=68-85	1-09707-202-0	01	1	0505-0506	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> (C) ID=68-85	1-09707-202-0	01	1	0507-0606	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> (C) ID=68-85	1-09707-202-0	01	1	0607-0810	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> (C) ID=65-85	8-98133-350-0	01	1	0811-1001	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1002-	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) (B) ID=92	9-09915-072-1	01	1	0211-0501	●	●		●
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=92	9-09915-072-1	01	1	0502-	●	●		●
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 03.417 (A) ID=82	9-09915-511-1	01	1	0211-0501	●	●		●
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (A) ID=82	9-09915-511-1	01	1	0502-	●	●		●
17	03.403 GASKET; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97853-699-2	01	1	0211-0501	●	●	●		●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-699-2	01	1	0211-0501	●	●	●		●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A)	8-97853-699-2	01	1	0211-0501				●
17	03.403 GASKET; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97853-699-2	01	1	0502-	●	●	●		●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B)	8-97892-723-0	02	1	0211-0501				●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97856-957-0	01	1	0211-0501	●	●	●		●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97856-957-1	01	1	0502-	●	●	●		●
60	03.417 BRACKET; AIR DUCT,UPR 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97892-525-4	01	1	0211-0501				●
64	03.417 BOLT; BRKT,AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0211-0501	●	●	●		●
64	03.417 BOLT; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0211-0501	●	●	●		●
64	03.417 BOLT; BRKT,AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0502-	●	●	●		●
146	03.417 CLIP; HOSE,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.407 ID=117	9-09915-075-1	01	1	0211-0501	●	●	●		●
146	03.417 CLIP; HOSE,ACL 4HG1 ENG(RJH) TURBOCHARGER(K51) 03.407 ID=117	9-09915-075-1	01	1	0211-0501	●	●	●
146	03.417 CLIP; HOSE,ACL 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=117	9-09915-075-1	01	1	0502-0612	●
146	03.417 CLIP; HOSE,ACL 4HG1-T ENG(RDP) 03.407 ID=117	9-09915-075-1	01	1	0502-0612			●
146	03.417 CLIP; HOSE,ACL 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=117	9-09915-075-1	01	1	0701-	●	●	●
146	03.417 CLIP; HOSE,ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 03.008 ID=95	9-09915-733-1	01	1	0211-0501	●	●	●		●
146	03.417 CLIP; HOSE,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95	9-09915-733-1	01	1	0502-0504	●	●	●
146	03.417 CLIP; HOSE,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95	9-09915-733-1	01	1	0505-	●	●	●		●
146	03.417 CLIP; HOSE,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.407 ID=112	9-09915-074-1	01	1	0211-0501	●	●	●	●	●	●
146	03.417 CLIP; HOSE,ACL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=112	9-09915-074-1	01	1	0502-0506	●	●	●		●
146	03.417 CLIP; HOSE,ACL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=112	9-09915-074-1	01	1	0507-0606	●	●	●		●
146	03.417 CLIP; HOSE,ACL 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=112	9-09915-074-1	01	1	0607-	●	●	●		●
147	03.417 CLIP; HOSE TO ENG 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95	9-09915-733-1	01	1	0211-0501	●	●	●
147	03.417 CLIP; HOSE TO ENG 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95	9-09915-733-1	01	1	0502-0504	●	●	●		●
147	03.417 CLIP; HOSE TO ENG 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95	9-09915-733-1	01	1	0505-0612	●	●	●		●
147	03.417 CLIP; HOSE TO ENG 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95	9-09915-733-1	01	1	0701-0809	●	●	●		●
147	03.417 CLIP; HOSE TO ENG 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95	9-09915-733-1	01	1	0701-0809	●		●		●
147	03.417 CLIP; HOSE TO ENG 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95	9-09915-733-1	01	1	0810-	●	●	●		●
147	03.417 CLIP; HOSE TO ENG 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 03.407 ID=92	9-09915-072-1	01	1	0211-0501	●	●		●
147	03.417 CLIP; HOSE TO ENG 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92	9-09915-072-1	01	1	0502-	●	●		●
181	03.407 BOLT; AIR DUCT TO RAD 4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501					●
181	03.407 BOLT; AIR DUCT TO RAD 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●
181	03.407 BOLT; AIR DUCT TO RAD 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501			●
181	03.407 BOLT; AIR DUCT TO RAD 4HG1 ENG(RJH),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501		●
181	03.407 BOLT; AIR DUCT TO RAD 4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501				●
181	03.407 BOLT; AIR DUCT TO RAD 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512					●
181	03.407 BOLT; AIR DUCT TO RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●
181	03.407 BOLT; AIR DUCT TO RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512			●
181	03.407 BOLT; AIR DUCT TO RAD 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512		●
181	03.407 BOLT; AIR DUCT TO RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●		●
192	03.407 CLIP; HOSE 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> ID=87	8-97087-432-0	01	1	0211-0501			●		●
192	03.407 CLIP; HOSE 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> ID=87	8-97087-432-0	01	1	0211-0501	●	●
193	03.417 COVER; DUCT,AIR INT 4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51)	8-97138-604-0	01	1	0211-0501					●
193	03.417 COVER; DUCT,AIR INT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51)	8-97138-604-0	01	1	0211-0501	●
193	03.417 COVER; DUCT,AIR INT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51)	8-97138-604-0	01	1	0211-0501			●
193	03.417 COVER; DUCT,AIR INT 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51)	8-97138-604-0	01	1	0211-0501		●
193	03.417 COVER; DUCT,AIR INT 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>	8-97138-604-1	01	1	0502-					●
193	03.417 COVER; DUCT,AIR INT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>	8-97138-604-1	01	1	0502-	●
193	03.417 COVER; DUCT,AIR INT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>	8-97138-604-1	01	1	0502-			●
193	03.417 COVER; DUCT,AIR INT 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>	8-97138-604-1	01	1	0502-		●
193	03.417 COVER; DUCT,AIR INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL>	8-97044-953-0	01	1	0211-0501	●	●	●		●
193	03.417 COVER; DUCT,AIR INT 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>	8-97044-953-0	01	1	0211-0501	●	●	●
193	03.417 COVER; DUCT,AIR INT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL>	8-97120-078-1	01	1	0211-0501	●	●	●		●
193	03.417 COVER; DUCT,AIR INT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46>	8-97120-078-2	01	1	0502-	●	●	●		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97109-423-0	01	1	0211-0501	●	●	●		●
232	03.417 HOSE; CONN 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-97109-423-0	01	1	0211-0501	●	●	●		●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97109-423-0	01	1	0502-0504	●	●	●		●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97109-423-0	01	1	0505-0802	●	●	●		●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.407	8-98115-594-0	01	1	0803-	●	●	●		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51)	8-97102-361-0	01	1	0211-0501	●	●		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97102-361-1	01	1	0502-	●	●		●
242	03.417 BRACKET; AIR DUCT 4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-633-1	01	1	0211-0501					●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-633-1	01	1	0211-0501	●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-633-1	01	1	0211-0501			●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-633-1	01	1	0211-0501		●
242	03.417 BRACKET; AIR DUCT 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A)	8-97853-633-2	01	1	0502-0606					●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97853-633-2	01	1	0502-0606	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A)	8-97853-633-2	01	1	0502-0606			●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97853-633-2	01	1	0502-0606		●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97853-633-2	01	1	0607-	●	●	●		●
242	03.417 BRACKET; AIR DUCT 4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (B)	8-97857-844-0	01	1	0211-0501					●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B)	8-97857-844-0	01	1	0211-0501	●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (B)	8-97857-844-0	01	1	0211-0501			●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B)	8-97857-844-0	01	1	0211-0501		●
242	03.417 BRACKET; AIR DUCT 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (B)	8-97857-844-1	01	1	0502-0606					●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97857-844-1	01	1	0502-0606	●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (B)	8-97857-844-1	01	1	0502-0606			●
242	03.417 BRACKET; AIR DUCT 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97857-844-1	01	1	0502-0606		●
242	03.417 BRACKET; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97857-844-1	01	1	0607-	●	●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) (C)	8-97161-847-1	01	1	0211-0501					●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) (C)	8-97161-847-1	01	1	0211-0501	●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) (C)	8-97161-847-1	01	1	0211-0501			●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) (C)	8-97161-847-1	01	1	0211-0501		●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> (C)	8-97161-847-2	01	1	0502-					●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46> (C)	8-97161-847-2	01	1	0502-	●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> (C)	8-97161-847-2	01	1	0502-			●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46> (C)	8-97161-847-2	01	1	0502-		●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> (C)	8-97125-174-1	01	1	0211-0501	●	●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46> (C)	8-97125-174-1	01	1	0211-0501	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97125-174-2	01	1	0502-0612	●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP) (C)	8-97125-174-2	01	1	0502-0612			●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97125-174-2	01	1	0701-	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> (D)	8-97120-084-1	01	1	0211-0501	●	●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> (D)	8-97120-084-2	01	1	0502-	●	●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A)	8-97180-995-0	01	1	0211-0501	●	●	●		●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97180-995-0	01	1	0502-0506	●	●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97180-995-0	01	1	0507-0606	●	●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97180-995-0	01	1	0607-	●	●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A)	8-97213-911-2	01	1	0211-0501				●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B)	8-97213-912-2	01	1	0211-0501				●
314	03.417 WASHER; PL,AIR INT DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.335 ID=10.2 T=3.2	8-94279-642-0	03	1	0211-0501	●	●	●		●
314	03.417 WASHER; PL,AIR INT DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 16.335 ID=10.2 T=3.2	8-94279-642-0	03	1	0211-0501	●	●	●		●
314	03.417 WASHER; PL,AIR INT DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.335 ID=10.2 T=3.2	8-94279-642-0	03	1	0502-1204	●	●	●		●
314	03.417 WASHER; PL,AIR INT DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1205-	●	●	●		●
314	03.417 WASHER; PL,AIR INT DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	0211-0501	●	●		●
314	03.417 WASHER; PL,AIR INT DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	0502-0605	●	●		●
314	03.417 WASHER; PL,AIR INT DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.706 ID=8.4 OD=26	0-91614-808-0	01	1	0606-	●	●		●
320	03.417 HOSE; CONN,ACL 4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51)	8-97103-346-2	01	1	0211-0501					●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51)	8-97103-346-2	01	1	0211-0501	●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51)	8-97103-346-2	01	1	0211-0501			●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51)	8-97103-346-2	01	1	0211-0501		●
320	03.417 HOSE; CONN,ACL 4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97103-346-3	01	1	0502-0606					●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97103-346-3	01	1	0502-0606	●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97103-346-3	01	1	0502-0606			●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3>	8-97103-346-3	01	1	0502-0606		●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97103-346-3	01	1	0607-	●	●	●		●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-97209-707-0	01	1	0211-0501	●	●	●		●	●
320	03.417 HOSE; CONN,ACL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3>	8-97209-707-0	01	1	0502-	●	●	●		●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-97104-782-2	01	1	0211-0501			●		●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-97104-782-2	01	1	0211-0501	●	●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ>	8-97223-572-0	01	1	0211-0501	●	●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97223-572-0	01	1	0211-0501	●	●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97223-572-0	01	1	0211-0501			●
320	03.417 HOSE; CONN,ACL 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3>	8-97223-572-1	01	1	0502-0612	●
320	03.417 HOSE; CONN,ACL 4HG1-T ENG(RDP)	8-97223-572-1	01	1	0502-0612			●
320	03.417 HOSE; CONN,ACL 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3>	8-97223-572-1	01	1	0701-	●	●	●
320	03.417 HOSE; CONN,ACL 4HK1-TCS ENG(RJS)	8-98000-873-1	01	1	0507-0606			●
320	03.417 HOSE; CONN,ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98000-873-1	01	1	0607-			●
320	03.417 HOSE; CONN,ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3>	8-98000-873-1	01	1	0607-		●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-97211-578-0	01	1	0211-0501				●
381	03.417 NUT; BRKT,AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE	1-09984-018-0	02	1	0211-0501	●	●	●		●
381	03.417 NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE	1-09984-018-0	02	1	0211-0501	●	●	●		●
381	03.417 NUT; BRKT,AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE	1-09984-018-0	02	1	0502-	●	●	●		●
381	03.417 NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.570 M8 POP NUT	8-94279-538-0	03	1	0211-0501				●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.417 (B)	8-97081-886-0	02	1	0211-0501					●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (B)	8-97081-886-0	02	1	0211-0501	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.417 (B)	8-97081-886-0	02	1	0211-0501			●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG(RJH),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (B)	8-97081-886-0	02	1	0211-0501		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.417 (B)	8-97081-886-0	02	1	0502-0606					●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.417 (B)	8-97081-886-0	02	1	0502-0606	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.417 (B)	8-97081-886-0	02	1	0502-0606			●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> 03.417 (B)	8-97081-886-0	02	1	0502-0606		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.417 (B)	8-97081-886-0	02	1	0607-	●	●	●		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (A)	8-97080-149-0	01	1	0211-0501	●	●	●		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.417 (A)	8-97080-149-0	01	1	0502-0606					●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A)	8-97080-149-0	01	1	0502-0606	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.417 (A)	8-97080-149-0	01	1	0502-0606			●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A)	8-97080-149-0	01	1	0502-0606		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A)	8-97080-149-0	01	1	0607-	●	●	●		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (A)	8-97080-149-0	03	1	0211-0501				●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	06	1	0211-0501	●	●	●		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> M8 FLANGE	8-94279-517-0	06	1	0211-0501	●	●	●		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	06	1	0502-0910	●	●	●		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M8 W/LK WASHER	8-97581-234-0	06	1	0911-	●	●	●		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> M8 FLANGE	8-94279-517-0	03	1	0211-0501				●
399	03.417 CAP; BRKT,AIR DUCT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-94273-605-0	02	1	0211-0501			●		●
399	03.417 CAP; BRKT,AIR DUCT 4HF1-S ENG(RLS)	8-94273-605-0	02	1	0211-0501					●
399	03.417 CAP; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-94273-605-0	02	1	0211-0501	●	●
399	03.417 CAP; BRKT,AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-94273-605-0	02	1	0211-0501	●
399	03.417 CAP; BRKT,AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS)	8-94273-605-0	02	1	0211-0501			●
399	03.417 CAP; BRKT,AIR DUCT 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3>	8-94273-605-0	02	1	0211-0501		●
399	03.417 CAP; BRKT,AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-94273-605-0	02	1	0502-	●	●	●		●
476	03.417 GROMMET; SCREW,COVER 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 16.445	1-09983-081-0	04	1	0211-0501	●	●	●		●
476	03.417 GROMMET; SCREW,COVER 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46> 16.445	1-09983-081-0	04	1	0211-0501	●	●	●
476	03.417 GROMMET; SCREW,COVER 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3> 16.445	1-09983-081-0	04	1	0502-0612	●
476	03.417 GROMMET; SCREW,COVER 4HG1-T ENG(RDP) 16.445	1-09983-081-0	04	1	0502-0612			●
476	03.417 GROMMET; SCREW,COVER 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3> 16.445	1-09983-081-0	04	1	0701-	●	●	●
477	03.417 SCREW; COVER 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) 16.802 M5X16 TAPPING W/PL WASHER	0-74110-516-0	04	1	0211-0501	●	●	●		●
477	03.417 SCREW; COVER 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> 16.802 M5X16 TAPPING W/PL WASHER	0-74110-516-0	04	1	0211-0501	●	●	●		●
477	03.417 SCREW; COVER 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46> 16.802 M5X16 TAPPING W/PL WASHER	0-74110-516-0	04	1	0211-0501	●	●	●
477	03.417 SCREW; COVER 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46> 16.802 M5X16 TAPPING W/PL WASHER	0-74110-516-0	04	1	0502-0604	●	●	●		●
477	03.417 SCREW; COVER 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3> 16.802 M5X16 TAPPING W/PL WASHER	0-74110-516-0	04	1	0502-0604	●		●
477	03.417 SCREW; COVER 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46> 02.895 M5X16 TAPPING W/PL WASHER	0-74160-516-0	04	1	0605-	●	●	●		●
477	03.417 SCREW; COVER 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3> 02.895 M5X16 TAPPING W/PL WASHER	0-74160-516-0	04	1	0605-	●		●

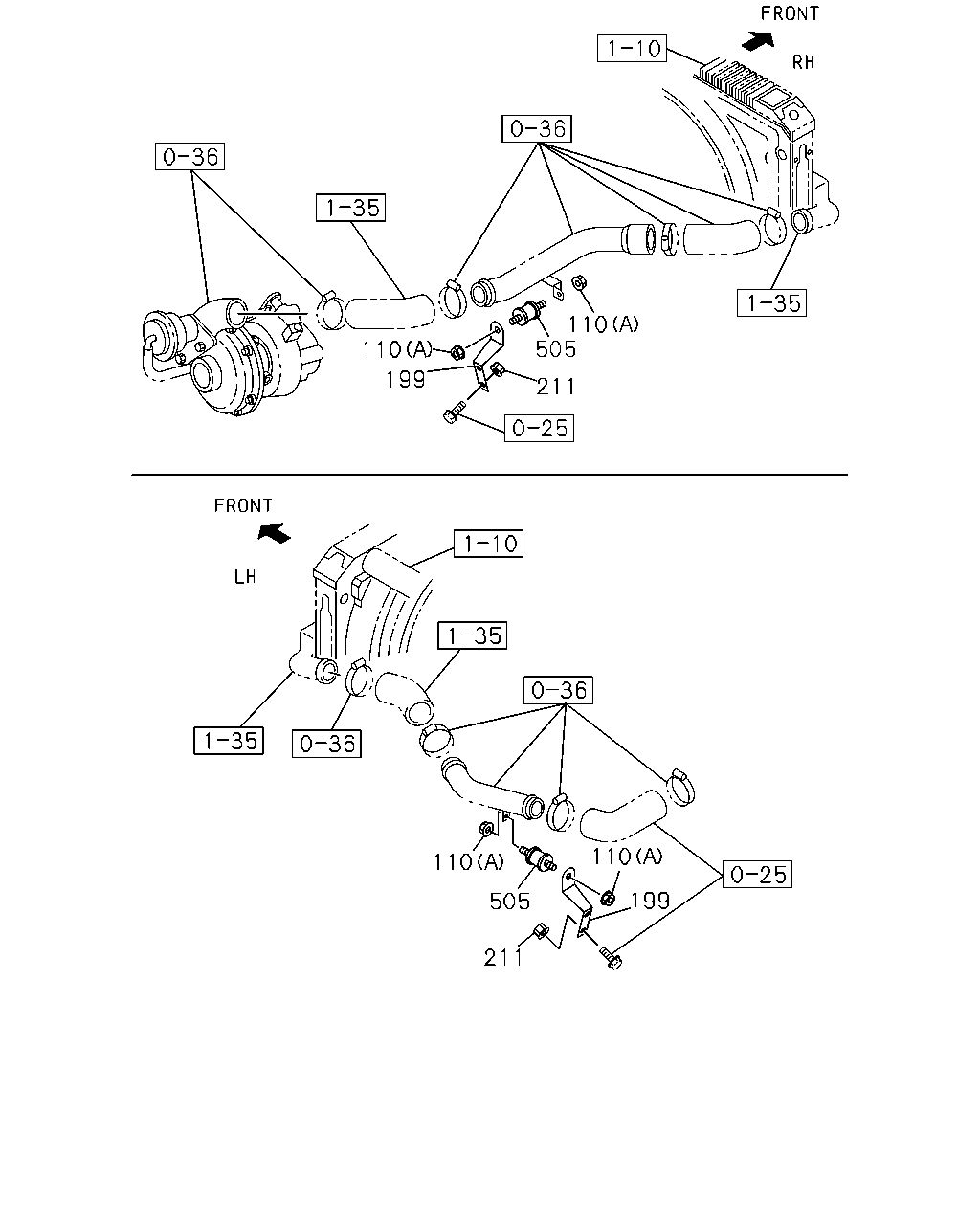

110 505 110 199 211 110 110 199 505 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
110	03.403 NUT; RUBBER MTG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0211-0501	●	●	●	●	●
110	03.403 NUT; RUBBER MTG 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0211-0501						●
110	03.403 NUT; RUBBER MTG 4HE1-TCN ENG(RDR) 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0502-0506					●
110	03.403 NUT; RUBBER MTG 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0502-0506	●	●
110	03.403 NUT; RUBBER MTG 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0502-0506			●
110	03.403 NUT; RUBBER MTG 4HE1-TCN ENG(RDR) 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0507-0602					●
110	03.403 NUT; RUBBER MTG 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0507-0602	●	●
110	03.403 NUT; RUBBER MTG 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0507-0602			●
110	03.403 NUT; RUBBER MTG 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0603-0606	●	●	●		●
110	03.403 NUT; RUBBER MTG 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0607-	●	●	●		●
110	03.403 NUT; RUBBER MTG 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (B) M8 FLANGE	8-94279-517-0	03	1	0211-0501				●
199	03.417 BRACKET; PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97189-604-0	01	1	0211-0501	●	●	●	●	●
199	03.417 BRACKET; PIPE	8-97189-604-0	01	1	0211-0501						●
199	03.417 BRACKET; PIPE 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3>	8-97189-604-0	01	1	0502-0502	●	●	●		●
199	03.417 BRACKET; PIPE 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3>	8-98011-753-1	01	1	0502-0506	●	●	●		●
199	03.417 BRACKET; PIPE 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3>	8-98011-753-1	01	1	0507-0606	●	●	●		●
199	03.417 BRACKET; PIPE 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3>	8-98011-753-1	01	1	0607-	●	●	●		●
199	03.417 BRACKET; PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97189-603-1	01	1	0211-0501	●	●	●	●	●
199	03.417 BRACKET; PIPE	8-97189-603-1	01	1	0211-0501						●
199	03.417 BRACKET; PIPE 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3>	8-97189-603-1	01	1	0502-0502	●	●	●		●
199	03.417 BRACKET; PIPE 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3>	8-98011-752-1	01	1	0502-0506	●	●	●		●
199	03.417 BRACKET; PIPE 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3>	8-98011-752-1	01	1	0507-0606	●	●	●		●
199	03.417 BRACKET; PIPE 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3>	8-98011-752-1	01	1	0607-	●	●	●		●
211	03.405 NUT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> 04.010 M8 FLANGE	8-97046-127-0	02	1	0502-0506	●	●	●		●
211	03.405 NUT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 04.010 M8 FLANGE	8-97046-127-0	02	1	0507-0606	●	●	●		●
211	03.405 NUT; BRKT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 04.010 M8 FLANGE	8-97046-127-0	02	1	0607-0610	●	●	●		●
211	03.405 NUT; BRKT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 01.840 M8 W/DISHED WASHER	8-97329-625-0	02	1	0611-	●	●	●		●
505	03.406 RUBBER; MTG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.405	8-94158-155-1	02	1	0211-0501	●	●	●	●	●
505	03.406 RUBBER; MTG 03.405	8-94158-155-1	02	1	0211-0501						●
505	03.406 RUBBER; MTG 4HE1-TCN ENG(RDR) 03.405	8-94158-155-1	02	1	0502-0506					●
505	03.406 RUBBER; MTG 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> 03.405	8-94158-155-1	02	1	0502-0506	●	●
505	03.406 RUBBER; MTG 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 03.405	8-94158-155-1	02	1	0502-0506			●
505	03.406 RUBBER; MTG 4HE1-TCN ENG(RDR) 03.405	8-94158-155-1	02	1	0507-0606					●
505	03.406 RUBBER; MTG 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> 03.405	8-94158-155-1	02	1	0507-0606	●	●
505	03.406 RUBBER; MTG 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) 03.405	8-94158-155-1	02	1	0507-0606			●
505	03.406 RUBBER; MTG 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 03.405	8-94158-155-1	02	1	0607-0611	●	●	●		●
505	03.406 RUBBER; MTG 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 03.417	8-98036-826-0	02	1	0612-	●	●	●		●

381 17 391 60 389 61 391 63 5 381 17 61 389 61 320 110 146 520 110 13 409 281 10 10 281 10 288 10 288 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1002-	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (D) D=101.6	9-09915-502-1	01	1	0211-0501	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D) D=101.6	9-09915-502-1	01	1	0211-0501	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (D) D=101.6	9-09915-502-1	01	1	0502-0504	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (D) D=101.6	9-09915-502-1	01	1	0505-	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) ID=58-79	1-09707-136-0	01	1	0211-0501	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> (C) ID=58-79	1-09707-136-0	01	1	0502-0504	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> (C) ID=68-85	1-09707-202-0	01	1	0505-0506	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> (C) ID=68-85	1-09707-202-0	01	1	0507-0606	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> (C) ID=68-85	1-09707-202-0	01	1	0607-0810	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> (C) ID=65-85	8-98133-350-0	01	1	0811-1001	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1002-	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) (B) ID=92	9-09915-072-1	01	1	0211-0501	●	●		●
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=92	9-09915-072-1	01	1	0502-	●	●		●
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 03.417 (A) ID=82	9-09915-511-1	01	1	0211-0501	●	●		●
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (A) ID=82	9-09915-511-1	01	1	0502-	●	●		●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0501	●	●	●		●	●
10	03.417 BOLT; BRKT FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0502-0502	●	●	●		●
10	03.417 BOLT; BRKT FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0503-0506	●	●	●		●
10	03.417 BOLT; BRKT FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512	●	●	●		●
10	03.417 BOLT; BRKT FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-0606	●	●	●		●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0607-	●	●	●		●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.183 (B) M8X35 FLANGE	0-28680-835-0	01	1	0211-0501	●	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> 02.183 (B) M8X35 FLANGE	0-28680-835-0	01	1	0502-0502	●	●	●		●
10	03.417 BOLT; BRKT FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> 02.183 (B) M8X35 FLANGE	0-28680-835-0	01	1	0503-0506	●	●	●		●
10	03.417 BOLT; BRKT FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 02.183 (B) M8X35 FLANGE	0-28680-835-0	01	1	0507-0512	●	●	●		●
10	03.417 BOLT; BRKT FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0601-0606	●	●	●		●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0607-	●	●	●		●
10	03.417 BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 02.664 (D) M8X20 FLANGE	0-28680-820-0	02	1	0211-0501	●	●		●
10	03.417 BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> FRAME STRAIGHT TYPE<7KJ> 02.664 (D) M8X20 FLANGE	0-28680-820-0	02	1	0502-0504	●	●
10	03.417 BOLT; BRKT FIX 4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> FRAME STRAIGHT TYPE<7KJ> 02.664 (D) M8X20 FLANGE	0-28680-820-0	02	1	0505-0512		●
10	03.417 BOLT; BRKT FIX 4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> FRAME STRAIGHT TYPE<7KJ> 01.531 (D) M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.559 (A) M8X25 FLANGE	0-28680-825-0	04	1	0211-0501				●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.405 (C) M10X30 FLANGE	0-28681-030-0	02	1	0211-0501				●
13	03.417 NUT; BRKT FIX 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●	●	●	●	●
13	03.417 NUT; BRKT FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0502	●	●	●		●
13	03.417 NUT; BRKT FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> 07.633 M8 FLANGE	0-91150-108-0	01	1	0503-0506	●	●	●		●
13	03.417 NUT; BRKT FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602	●	●	●		●
13	03.417 NUT; BRKT FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606	●	●	●		●
13	03.417 NUT; BRKT FIX 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●	●	●		●
13	03.417 NUT; BRKT FIX 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501	●	●		●
13	03.417 NUT; BRKT FIX 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0504	●	●
13	03.417 NUT; BRKT FIX 4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0505-0602		●
13	03.417 NUT; BRKT FIX 4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●
17	03.403 GASKET; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97853-699-2	01	1	0211-0501	●	●	●		●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97853-699-2	01	1	0211-0501	●	●	●		●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A)	8-97853-699-2	01	1	0211-0501				●
17	03.403 GASKET; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97853-699-2	01	1	0502-	●	●	●		●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B)	8-97892-723-0	02	1	0211-0501				●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-97856-957-0	01	1	0211-0501	●	●	●		●
60	03.417 BRACKET; AIR DUCT,UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97856-957-1	01	1	0502-	●	●	●		●
60	03.417 BRACKET; AIR DUCT,UPR 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97892-525-4	01	1	0211-0501				●
61	03.417 BOLT; BRKT,AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 09.003 M8X20 W/LK&PL WASHER	8-94279-216-0	04	1	0211-0501				●
63	03.417 BRACKET; AIR DUCT,LWR 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97892-526-3	01	1	0211-0501				●
110	03.403 NUT; RUBBER MTG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0211-0501	●	●	●	●	●
110	03.403 NUT; RUBBER MTG 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0211-0501						●
110	03.403 NUT; RUBBER MTG 4HE1-TCN ENG(RDR) 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0502-0506					●
110	03.403 NUT; RUBBER MTG 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0502-0506	●	●
110	03.403 NUT; RUBBER MTG 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0502-0506			●
110	03.403 NUT; RUBBER MTG 4HE1-TCN ENG(RDR) 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0507-0602					●
110	03.403 NUT; RUBBER MTG 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0507-0602	●	●
110	03.403 NUT; RUBBER MTG 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0507-0602			●
110	03.403 NUT; RUBBER MTG 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0603-0606	●	●	●		●
110	03.403 NUT; RUBBER MTG 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0607-	●	●	●		●
110	03.403 NUT; RUBBER MTG 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (B) M8 FLANGE	8-94279-517-0	03	1	0211-0501				●
146	03.417 CLIP; HOSE,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.407 ID=117	9-09915-075-1	01	1	0211-0501	●	●	●		●
146	03.417 CLIP; HOSE,ACL 4HG1 ENG(RJH) TURBOCHARGER(K51) 03.407 ID=117	9-09915-075-1	01	1	0211-0501	●	●	●
146	03.417 CLIP; HOSE,ACL 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=117	9-09915-075-1	01	1	0502-0612	●
146	03.417 CLIP; HOSE,ACL 4HG1-T ENG(RDP) 03.407 ID=117	9-09915-075-1	01	1	0502-0612			●
146	03.417 CLIP; HOSE,ACL 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=117	9-09915-075-1	01	1	0701-	●	●	●
146	03.417 CLIP; HOSE,ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 03.008 ID=95	9-09915-733-1	01	1	0211-0501	●	●	●		●
146	03.417 CLIP; HOSE,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95	9-09915-733-1	01	1	0502-0504	●	●	●
146	03.417 CLIP; HOSE,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95	9-09915-733-1	01	1	0505-	●	●	●		●
146	03.417 CLIP; HOSE,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.407 ID=112	9-09915-074-1	01	1	0211-0501	●	●	●	●	●	●
146	03.417 CLIP; HOSE,ACL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=112	9-09915-074-1	01	1	0502-0506	●	●	●		●
146	03.417 CLIP; HOSE,ACL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=112	9-09915-074-1	01	1	0507-0606	●	●	●		●
146	03.417 CLIP; HOSE,ACL 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=112	9-09915-074-1	01	1	0607-	●	●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) (C)	8-97161-847-1	01	1	0211-0501					●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) (C)	8-97161-847-1	01	1	0211-0501	●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) (C)	8-97161-847-1	01	1	0211-0501			●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) (C)	8-97161-847-1	01	1	0211-0501		●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> (C)	8-97161-847-2	01	1	0502-					●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46> (C)	8-97161-847-2	01	1	0502-	●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> (C)	8-97161-847-2	01	1	0502-			●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46> (C)	8-97161-847-2	01	1	0502-		●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> (C)	8-97125-174-1	01	1	0211-0501	●	●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46> (C)	8-97125-174-1	01	1	0211-0501	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97125-174-2	01	1	0502-0612	●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP) (C)	8-97125-174-2	01	1	0502-0612			●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97125-174-2	01	1	0701-	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> (D)	8-97120-084-1	01	1	0211-0501	●	●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> (D)	8-97120-084-2	01	1	0502-	●	●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A)	8-97180-995-0	01	1	0211-0501	●	●	●		●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97180-995-0	01	1	0502-0506	●	●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97180-995-0	01	1	0507-0606	●	●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97180-995-0	01	1	0607-	●	●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A)	8-97213-911-2	01	1	0211-0501				●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B)	8-97213-912-2	01	1	0211-0501				●
288	03.417 BRACKET; DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A)	8-97183-041-2	01	1	0211-0501	●	●	●		●	●
288	03.417 BRACKET; DUCT 4HE1-TCN ENG(RDR) (A)	8-97183-041-2	01	1	0502-0502					●
288	03.417 BRACKET; DUCT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97183-041-2	01	1	0502-0502	●	●
288	03.417 BRACKET; DUCT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH) (A)	8-97183-041-2	01	1	0502-0502			●
288	03.417 BRACKET; DUCT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97183-041-2	01	1	0503-0506	●	●	●		●
288	03.417 BRACKET; DUCT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97183-041-2	01	1	0507-0606	●	●	●		●
288	03.417 BRACKET; DUCT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97183-041-2	01	1	0607-	●	●	●		●
288	03.417 BRACKET; DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A)	8-97214-827-1	01	1	0211-0501				●
288	03.417 BRACKET; DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.405 (B)	8-97214-828-0	01	1	0211-0501				●
320	03.417 HOSE; CONN,ACL 4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51)	8-97103-346-2	01	1	0211-0501					●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51)	8-97103-346-2	01	1	0211-0501	●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51)	8-97103-346-2	01	1	0211-0501			●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51)	8-97103-346-2	01	1	0211-0501		●
320	03.417 HOSE; CONN,ACL 4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97103-346-3	01	1	0502-0606					●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97103-346-3	01	1	0502-0606	●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97103-346-3	01	1	0502-0606			●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3>	8-97103-346-3	01	1	0502-0606		●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97103-346-3	01	1	0607-	●	●	●		●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-97209-707-0	01	1	0211-0501	●	●	●		●	●
320	03.417 HOSE; CONN,ACL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3>	8-97209-707-0	01	1	0502-	●	●	●		●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-97104-782-2	01	1	0211-0501			●		●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-97104-782-2	01	1	0211-0501	●	●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ>	8-97223-572-0	01	1	0211-0501	●	●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97223-572-0	01	1	0211-0501	●	●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97223-572-0	01	1	0211-0501			●
320	03.417 HOSE; CONN,ACL 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3>	8-97223-572-1	01	1	0502-0612	●
320	03.417 HOSE; CONN,ACL 4HG1-T ENG(RDP)	8-97223-572-1	01	1	0502-0612			●
320	03.417 HOSE; CONN,ACL 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3>	8-97223-572-1	01	1	0701-	●	●	●
320	03.417 HOSE; CONN,ACL 4HK1-TCS ENG(RJS)	8-98000-873-1	01	1	0507-0606			●
320	03.417 HOSE; CONN,ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98000-873-1	01	1	0607-			●
320	03.417 HOSE; CONN,ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3>	8-98000-873-1	01	1	0607-		●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-97211-578-0	01	1	0211-0501				●
381	03.417 NUT; BRKT,AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE	1-09984-018-0	02	1	0211-0501	●	●	●		●
381	03.417 NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 16.800 M6 FLANGE	1-09984-018-0	02	1	0211-0501	●	●	●		●
381	03.417 NUT; BRKT,AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE	1-09984-018-0	02	1	0502-	●	●	●		●
381	03.417 NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.570 M8 POP NUT	8-94279-538-0	03	1	0211-0501				●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.417 (B)	8-97081-886-0	02	1	0211-0501					●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (B)	8-97081-886-0	02	1	0211-0501	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.417 (B)	8-97081-886-0	02	1	0211-0501			●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG(RJH),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (B)	8-97081-886-0	02	1	0211-0501		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.417 (B)	8-97081-886-0	02	1	0502-0606					●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.417 (B)	8-97081-886-0	02	1	0502-0606	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.417 (B)	8-97081-886-0	02	1	0502-0606			●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> 03.417 (B)	8-97081-886-0	02	1	0502-0606		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.417 (B)	8-97081-886-0	02	1	0607-	●	●	●		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.417 (A)	8-97080-149-0	01	1	0211-0501	●	●	●		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.417 (A)	8-97080-149-0	01	1	0502-0606					●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A)	8-97080-149-0	01	1	0502-0606	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.417 (A)	8-97080-149-0	01	1	0502-0606			●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A)	8-97080-149-0	01	1	0502-0606		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A)	8-97080-149-0	01	1	0607-	●	●	●		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.417 (A)	8-97080-149-0	03	1	0211-0501				●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	06	1	0211-0501	●	●	●		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> M8 FLANGE	8-94279-517-0	06	1	0211-0501	●	●	●		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE	8-94279-517-0	06	1	0502-0910	●	●	●		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M8 W/LK WASHER	8-97581-234-0	06	1	0911-	●	●	●		●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> M8 FLANGE	8-94279-517-0	03	1	0211-0501				●
409	03.417 WASHER; PL,BRKT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0211-0501	●	●	●	●	●	●
409	03.417 WASHER; PL,BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0502-0502	●	●	●		●
409	03.417 WASHER; PL,BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0503-0506	●	●	●		●
409	03.417 WASHER; PL,BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0507-0605	●	●	●		●
409	03.417 WASHER; PL,BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 04.595 ID=8.4 OD=22	0-91610-708-0	01	1	0606-0606	●	●	●		●
409	03.417 WASHER; PL,BRKT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 04.595 ID=8.4 OD=22	0-91610-708-0	01	1	0607-	●	●	●		●
520	03.403 WASHER; RUBBER MTG 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	0211-0501				●

281 13 409 320 146 288 10 10 5 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1002-	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (D) D=101.6	9-09915-502-1	01	1	0211-0501	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D) D=101.6	9-09915-502-1	01	1	0211-0501	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (D) D=101.6	9-09915-502-1	01	1	0502-0504	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (D) D=101.6	9-09915-502-1	01	1	0505-	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) ID=58-79	1-09707-136-0	01	1	0211-0501	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> (C) ID=58-79	1-09707-136-0	01	1	0502-0504	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> (C) ID=68-85	1-09707-202-0	01	1	0505-0506	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> (C) ID=68-85	1-09707-202-0	01	1	0507-0606	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> (C) ID=68-85	1-09707-202-0	01	1	0607-0810	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> (C) ID=65-85	8-98133-350-0	01	1	0811-1001	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1002-	●	●	●		●
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) (B) ID=92	9-09915-072-1	01	1	0211-0501	●	●		●
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B) ID=92	9-09915-072-1	01	1	0502-	●	●		●
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER(K51) 03.417 (A) ID=82	9-09915-511-1	01	1	0211-0501	●	●		●
5	03.407 CLIP; AIR DUCT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.417 (A) ID=82	9-09915-511-1	01	1	0502-	●	●		●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0501	●	●	●		●	●
10	03.417 BOLT; BRKT FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0502-0502	●	●	●		●
10	03.417 BOLT; BRKT FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0503-0506	●	●	●		●
10	03.417 BOLT; BRKT FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512	●	●	●		●
10	03.417 BOLT; BRKT FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-0606	●	●	●		●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0607-	●	●	●		●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.183 (B) M8X35 FLANGE	0-28680-835-0	01	1	0211-0501	●	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> 02.183 (B) M8X35 FLANGE	0-28680-835-0	01	1	0502-0502	●	●	●		●
10	03.417 BOLT; BRKT FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> 02.183 (B) M8X35 FLANGE	0-28680-835-0	01	1	0503-0506	●	●	●		●
10	03.417 BOLT; BRKT FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 02.183 (B) M8X35 FLANGE	0-28680-835-0	01	1	0507-0512	●	●	●		●
10	03.417 BOLT; BRKT FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0601-0606	●	●	●		●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0607-	●	●	●		●
10	03.417 BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 02.664 (D) M8X20 FLANGE	0-28680-820-0	02	1	0211-0501	●	●		●
10	03.417 BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> FRAME STRAIGHT TYPE<7KJ> 02.664 (D) M8X20 FLANGE	0-28680-820-0	02	1	0502-0504	●	●
10	03.417 BOLT; BRKT FIX 4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> FRAME STRAIGHT TYPE<7KJ> 02.664 (D) M8X20 FLANGE	0-28680-820-0	02	1	0505-0512		●
10	03.417 BOLT; BRKT FIX 4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> FRAME STRAIGHT TYPE<7KJ> 01.531 (D) M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.559 (A) M8X25 FLANGE	0-28680-825-0	04	1	0211-0501				●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.405 (C) M10X30 FLANGE	0-28681-030-0	02	1	0211-0501				●
13	03.417 NUT; BRKT FIX 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●	●	●	●	●
13	03.417 NUT; BRKT FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0502	●	●	●		●
13	03.417 NUT; BRKT FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> 07.633 M8 FLANGE	0-91150-108-0	01	1	0503-0506	●	●	●		●
13	03.417 NUT; BRKT FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602	●	●	●		●
13	03.417 NUT; BRKT FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606	●	●	●		●
13	03.417 NUT; BRKT FIX 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●	●	●		●
13	03.417 NUT; BRKT FIX 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501	●	●		●
13	03.417 NUT; BRKT FIX 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0504	●	●
13	03.417 NUT; BRKT FIX 4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0505-0602		●
13	03.417 NUT; BRKT FIX 4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●
146	03.417 CLIP; HOSE,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.407 ID=117	9-09915-075-1	01	1	0211-0501	●	●	●		●
146	03.417 CLIP; HOSE,ACL 4HG1 ENG(RJH) TURBOCHARGER(K51) 03.407 ID=117	9-09915-075-1	01	1	0211-0501	●	●	●
146	03.417 CLIP; HOSE,ACL 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=117	9-09915-075-1	01	1	0502-0612	●
146	03.417 CLIP; HOSE,ACL 4HG1-T ENG(RDP) 03.407 ID=117	9-09915-075-1	01	1	0502-0612			●
146	03.417 CLIP; HOSE,ACL 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=117	9-09915-075-1	01	1	0701-	●	●	●
146	03.417 CLIP; HOSE,ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 03.008 ID=95	9-09915-733-1	01	1	0211-0501	●	●	●		●
146	03.417 CLIP; HOSE,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95	9-09915-733-1	01	1	0502-0504	●	●	●
146	03.417 CLIP; HOSE,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95	9-09915-733-1	01	1	0505-	●	●	●		●
146	03.417 CLIP; HOSE,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.407 ID=112	9-09915-074-1	01	1	0211-0501	●	●	●	●	●	●
146	03.417 CLIP; HOSE,ACL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=112	9-09915-074-1	01	1	0502-0506	●	●	●		●
146	03.417 CLIP; HOSE,ACL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=112	9-09915-074-1	01	1	0507-0606	●	●	●		●
146	03.417 CLIP; HOSE,ACL 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=112	9-09915-074-1	01	1	0607-	●	●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) (C)	8-97161-847-1	01	1	0211-0501					●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) (C)	8-97161-847-1	01	1	0211-0501	●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) (C)	8-97161-847-1	01	1	0211-0501			●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46>, TURBOCHARGER(K51) (C)	8-97161-847-1	01	1	0211-0501		●
281	03.417 DUCT; AIR,VERTICAL INT 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> (C)	8-97161-847-2	01	1	0502-					●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46> (C)	8-97161-847-2	01	1	0502-	●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> (C)	8-97161-847-2	01	1	0502-			●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER<K46> (C)	8-97161-847-2	01	1	0502-		●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> (C)	8-97125-174-1	01	1	0211-0501	●	●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. HEAVY DUTY AIR CLEANER<K46> (C)	8-97125-174-1	01	1	0211-0501	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97125-174-2	01	1	0502-0612	●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP) (C)	8-97125-174-2	01	1	0502-0612			●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97125-174-2	01	1	0701-	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> (D)	8-97120-084-1	01	1	0211-0501	●	●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER<K46> (D)	8-97120-084-2	01	1	0502-	●	●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A)	8-97180-995-0	01	1	0211-0501	●	●	●		●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97180-995-0	01	1	0502-0506	●	●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97180-995-0	01	1	0507-0606	●	●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97180-995-0	01	1	0607-	●	●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A)	8-97213-911-2	01	1	0211-0501				●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (B)	8-97213-912-2	01	1	0211-0501				●
288	03.417 BRACKET; DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A)	8-97183-041-2	01	1	0211-0501	●	●	●		●	●
288	03.417 BRACKET; DUCT 4HE1-TCN ENG(RDR) (A)	8-97183-041-2	01	1	0502-0502					●
288	03.417 BRACKET; DUCT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97183-041-2	01	1	0502-0502	●	●
288	03.417 BRACKET; DUCT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH) (A)	8-97183-041-2	01	1	0502-0502			●
288	03.417 BRACKET; DUCT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97183-041-2	01	1	0503-0506	●	●	●		●
288	03.417 BRACKET; DUCT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97183-041-2	01	1	0507-0606	●	●	●		●
288	03.417 BRACKET; DUCT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97183-041-2	01	1	0607-	●	●	●		●
288	03.417 BRACKET; DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (A)	8-97214-827-1	01	1	0211-0501				●
288	03.417 BRACKET; DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.405 (B)	8-97214-828-0	01	1	0211-0501				●
320	03.417 HOSE; CONN,ACL 4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51)	8-97103-346-2	01	1	0211-0501					●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51)	8-97103-346-2	01	1	0211-0501	●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51)	8-97103-346-2	01	1	0211-0501			●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51)	8-97103-346-2	01	1	0211-0501		●
320	03.417 HOSE; CONN,ACL 4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97103-346-3	01	1	0502-0606					●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97103-346-3	01	1	0502-0606	●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97103-346-3	01	1	0502-0606			●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3>	8-97103-346-3	01	1	0502-0606		●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97103-346-3	01	1	0607-	●	●	●		●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-97209-707-0	01	1	0211-0501	●	●	●		●	●
320	03.417 HOSE; CONN,ACL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3>	8-97209-707-0	01	1	0502-	●	●	●		●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-97104-782-2	01	1	0211-0501			●		●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-97104-782-2	01	1	0211-0501	●	●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ>	8-97223-572-0	01	1	0211-0501	●	●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97223-572-0	01	1	0211-0501	●	●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97223-572-0	01	1	0211-0501			●
320	03.417 HOSE; CONN,ACL 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3>	8-97223-572-1	01	1	0502-0612	●
320	03.417 HOSE; CONN,ACL 4HG1-T ENG(RDP)	8-97223-572-1	01	1	0502-0612			●
320	03.417 HOSE; CONN,ACL 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3>	8-97223-572-1	01	1	0701-	●	●	●
320	03.417 HOSE; CONN,ACL 4HK1-TCS ENG(RJS)	8-98000-873-1	01	1	0507-0606			●
320	03.417 HOSE; CONN,ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98000-873-1	01	1	0607-			●
320	03.417 HOSE; CONN,ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3>	8-98000-873-1	01	1	0607-		●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-97211-578-0	01	1	0211-0501				●
345	03.417 CLIP; PCV HOSE 4HE1 ENG(RLY)	8-97066-710-1	01	1	0211-0307	●	●	●	●	●
345	03.417 CLIP; PCV HOSE 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97066-710-1	01	1	0211-0307	●	●	●
345	03.417 CLIP; PCV HOSE	8-97066-710-1	01	1	0211-0307						●
345	03.417 CLIP; PCV HOSE 4HE1 ENG(RLY)	8-97369-959-0	01	1	0308-0501	●	●	●	●	●
345	03.417 CLIP; PCV HOSE 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97369-959-0	01	1	0308-0501	●	●	●
345	03.417 CLIP; PCV HOSE	8-97369-959-0	01	1	0308-0501						●
345	03.417 CLIP; PCV HOSE 4HE1-TCN ENG(RDR)	8-97369-959-0	01	1	0502-0612					●
345	03.417 CLIP; PCV HOSE 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS)	8-97369-959-0	01	1	0502-0612	●		●
345	03.417 CLIP; PCV HOSE 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)	8-97369-959-0	01	1	0502-0612		●
345	03.417 CLIP; PCV HOSE 4HE1-TCN ENG(RDR)	8-97369-959-0	01	1	0701-					●
345	03.417 CLIP; PCV HOSE 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS)	8-97369-959-0	01	1	0701-	●	●	●
345	03.417 CLIP; PCV HOSE 4HK1-TCS ENG(RJS)	8-98020-040-0	01	1	0507-0606			●
345	03.417 CLIP; PCV HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98020-040-0	01	1	0607-		●	●
409	03.417 WASHER; PL,BRKT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0211-0501	●	●	●	●	●	●
409	03.417 WASHER; PL,BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0502-0502	●	●	●		●
409	03.417 WASHER; PL,BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0503-0506	●	●	●		●
409	03.417 WASHER; PL,BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0507-0605	●	●	●		●
409	03.417 WASHER; PL,BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 04.595 ID=8.4 OD=22	0-91610-708-0	01	1	0606-0606	●	●	●		●
409	03.417 WASHER; PL,BRKT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 04.595 ID=8.4 OD=22	0-91610-708-0	01	1	0607-	●	●	●		●

248 474 248 474 146 320 192 474 191 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
146	03.417 CLIP; HOSE,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 03.407 ID=117	9-09915-075-1	01	1	0211-0501	●	●	●		●
146	03.417 CLIP; HOSE,ACL 4HG1 ENG(RJH) TURBOCHARGER(K51) 03.407 ID=117	9-09915-075-1	01	1	0211-0501	●	●	●
146	03.417 CLIP; HOSE,ACL 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=117	9-09915-075-1	01	1	0502-0612	●
146	03.417 CLIP; HOSE,ACL 4HG1-T ENG(RDP) 03.407 ID=117	9-09915-075-1	01	1	0502-0612			●
146	03.417 CLIP; HOSE,ACL 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=117	9-09915-075-1	01	1	0701-	●	●	●
146	03.417 CLIP; HOSE,ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51) 03.008 ID=95	9-09915-733-1	01	1	0211-0501	●	●	●		●
146	03.417 CLIP; HOSE,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95	9-09915-733-1	01	1	0502-0504	●	●	●
146	03.417 CLIP; HOSE,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.008 ID=95	9-09915-733-1	01	1	0505-	●	●	●		●
146	03.417 CLIP; HOSE,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.407 ID=112	9-09915-074-1	01	1	0211-0501	●	●	●	●	●	●
146	03.417 CLIP; HOSE,ACL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=112	9-09915-074-1	01	1	0502-0506	●	●	●		●
146	03.417 CLIP; HOSE,ACL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=112	9-09915-074-1	01	1	0507-0606	●	●	●		●
146	03.417 CLIP; HOSE,ACL 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=112	9-09915-074-1	01	1	0607-	●	●	●		●
191	03.407 RUBBER; SEAL,CONN HOSE,AIR INT 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-94454-802-0	01	1	0211-0501			●		●
191	03.407 RUBBER; SEAL,CONN HOSE,AIR INT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-94454-802-0	01	1	0211-0501	●	●
192	03.407 CLIP; HOSE 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> ID=87	8-97087-432-0	01	1	0211-0501			●		●
192	03.407 CLIP; HOSE 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> ID=87	8-97087-432-0	01	1	0211-0501	●	●
248	03.417 CLIP; RUBBER HOSE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.407 (A) ID=50-69	8-94316-991-0	01	1	0211-0307	●	●	●		●
248	03.417 CLIP; RUBBER HOSE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.407 (A) ID=50-65	1-09707-204-0	01	1	0308-0501	●	●	●		●
248	03.417 CLIP; RUBBER HOSE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.407 (B) ID=68-85	8-94320-428-0	01	1	0211-0307	●	●	●		●
248	03.417 CLIP; RUBBER HOSE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.407 (B) ID=68-85	1-09707-202-0	01	1	0308-0501	●	●	●		●
320	03.417 HOSE; CONN,ACL 4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51)	8-97103-346-2	01	1	0211-0501					●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51)	8-97103-346-2	01	1	0211-0501	●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51)	8-97103-346-2	01	1	0211-0501			●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER(K51)	8-97103-346-2	01	1	0211-0501		●
320	03.417 HOSE; CONN,ACL 4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97103-346-3	01	1	0502-0606					●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97103-346-3	01	1	0502-0606	●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97103-346-3	01	1	0502-0606			●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3>	8-97103-346-3	01	1	0502-0606		●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97103-346-3	01	1	0607-	●	●	●		●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-97209-707-0	01	1	0211-0501	●	●	●		●	●
320	03.417 HOSE; CONN,ACL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3>	8-97209-707-0	01	1	0502-	●	●	●		●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-97104-782-2	01	1	0211-0501			●		●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>	8-97104-782-2	01	1	0211-0501	●	●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ>	8-97223-572-0	01	1	0211-0501	●	●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97223-572-0	01	1	0211-0501	●	●
320	03.417 HOSE; CONN,ACL 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97223-572-0	01	1	0211-0501			●
320	03.417 HOSE; CONN,ACL 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3>	8-97223-572-1	01	1	0502-0612	●
320	03.417 HOSE; CONN,ACL 4HG1-T ENG(RDP)	8-97223-572-1	01	1	0502-0612			●
320	03.417 HOSE; CONN,ACL 4HG1-T ENG(RDP) AIR INTAKE REAR VERTICAL<KJ3>	8-97223-572-1	01	1	0701-	●	●	●
320	03.417 HOSE; CONN,ACL 4HK1-TCS ENG(RJS)	8-98000-873-1	01	1	0507-0606			●
320	03.417 HOSE; CONN,ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98000-873-1	01	1	0607-			●
320	03.417 HOSE; CONN,ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3>	8-98000-873-1	01	1	0607-		●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) CHARGE AIR COOLER<6PL>	8-97211-578-0	01	1	0211-0501				●
345	03.417 CLIP; PCV HOSE 4HE1 ENG(RLY)	8-97066-710-1	01	1	0211-0307	●	●	●	●	●
345	03.417 CLIP; PCV HOSE 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97066-710-1	01	1	0211-0307	●	●	●
345	03.417 CLIP; PCV HOSE	8-97066-710-1	01	1	0211-0307						●
345	03.417 CLIP; PCV HOSE 4HE1 ENG(RLY)	8-97369-959-0	01	1	0308-0501	●	●	●	●	●
345	03.417 CLIP; PCV HOSE 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97369-959-0	01	1	0308-0501	●	●	●
345	03.417 CLIP; PCV HOSE	8-97369-959-0	01	1	0308-0501						●
345	03.417 CLIP; PCV HOSE 4HE1-TCN ENG(RDR)	8-97369-959-0	01	1	0502-0612					●
345	03.417 CLIP; PCV HOSE 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS)	8-97369-959-0	01	1	0502-0612	●		●
345	03.417 CLIP; PCV HOSE 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)	8-97369-959-0	01	1	0502-0612		●
345	03.417 CLIP; PCV HOSE 4HE1-TCN ENG(RDR)	8-97369-959-0	01	1	0701-					●
345	03.417 CLIP; PCV HOSE 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS)	8-97369-959-0	01	1	0701-	●	●	●
345	03.417 CLIP; PCV HOSE 4HK1-TCS ENG(RJS)	8-98020-040-0	01	1	0507-0606			●
345	03.417 CLIP; PCV HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98020-040-0	01	1	0607-		●	●
474	03.417 BOLT; PIPE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.405 (B) M10X25 FLANGE	0-28681-025-0	03	1	0211-0501	●	●	●		●
474	03.417 BOLT; PIPE 4HE1 ENG(RLY) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M10X30 FLANGE	0-28781-030-0	02	1	0211-0501			●		●
474	03.417 BOLT; PIPE 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M10X30 FLANGE	0-28781-030-0	02	1	0211-0501	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
