1 |

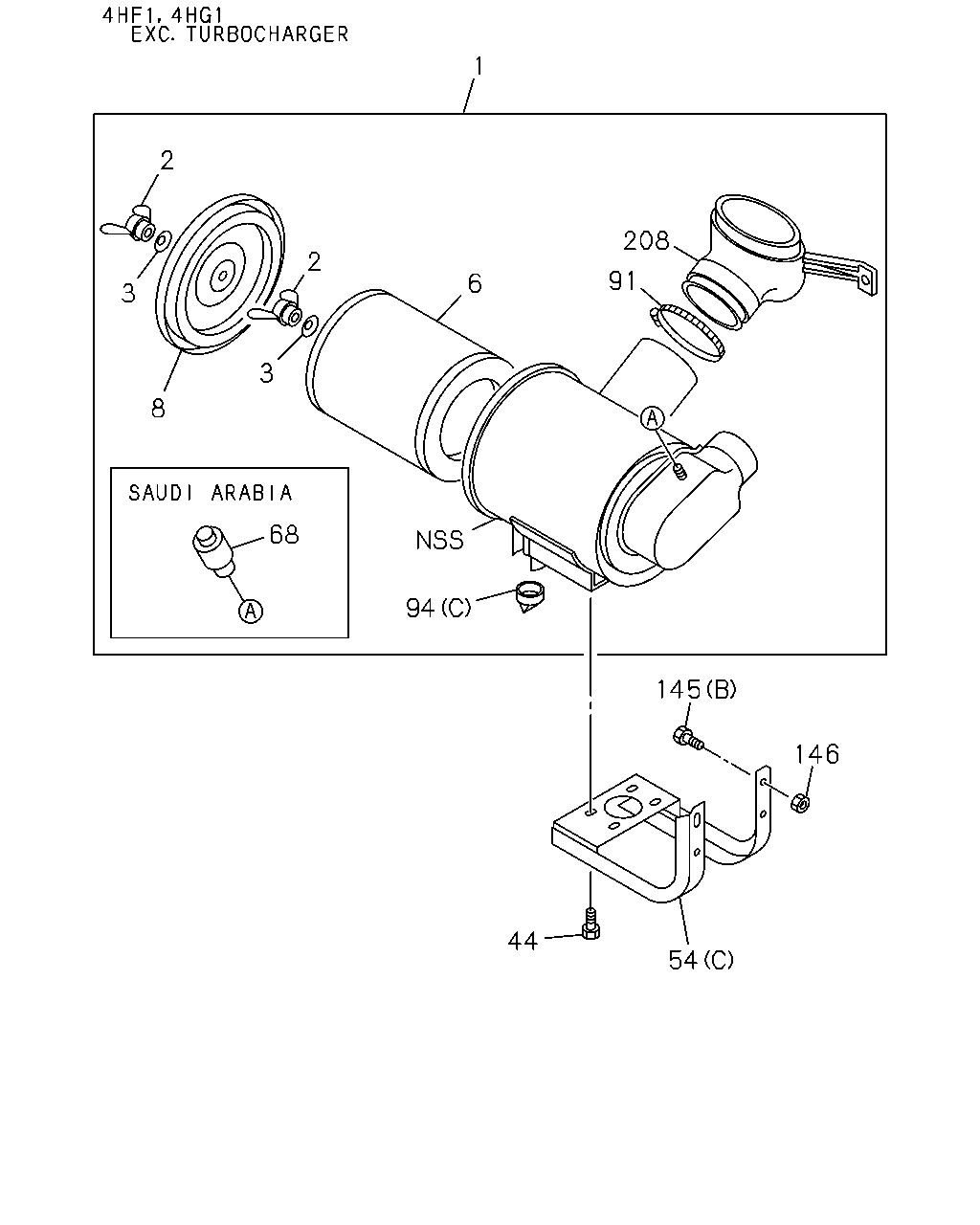

03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1-S ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. SAUDI ARABIA EQUIPMENT(EU2),
TURBOCHARGER(K51),HYDRO MASTER<7LT>
|
8-97162-700-2 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
● |
|
| |
1 |
03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S
ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. SAUDI ARABIA EQUIPMENT(EU2)
|
8-97162-700-2 |
01 |
1 |
0502- |
● |
● |
● |
● |
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HE1 ENG(RLY)
EXC. CHARGE AIR COOLER<6PL>
|
8-97228-084-2 |
01 |
1 |
0211-0501 |
● |
|
● |
|
|
|
| |
1 |

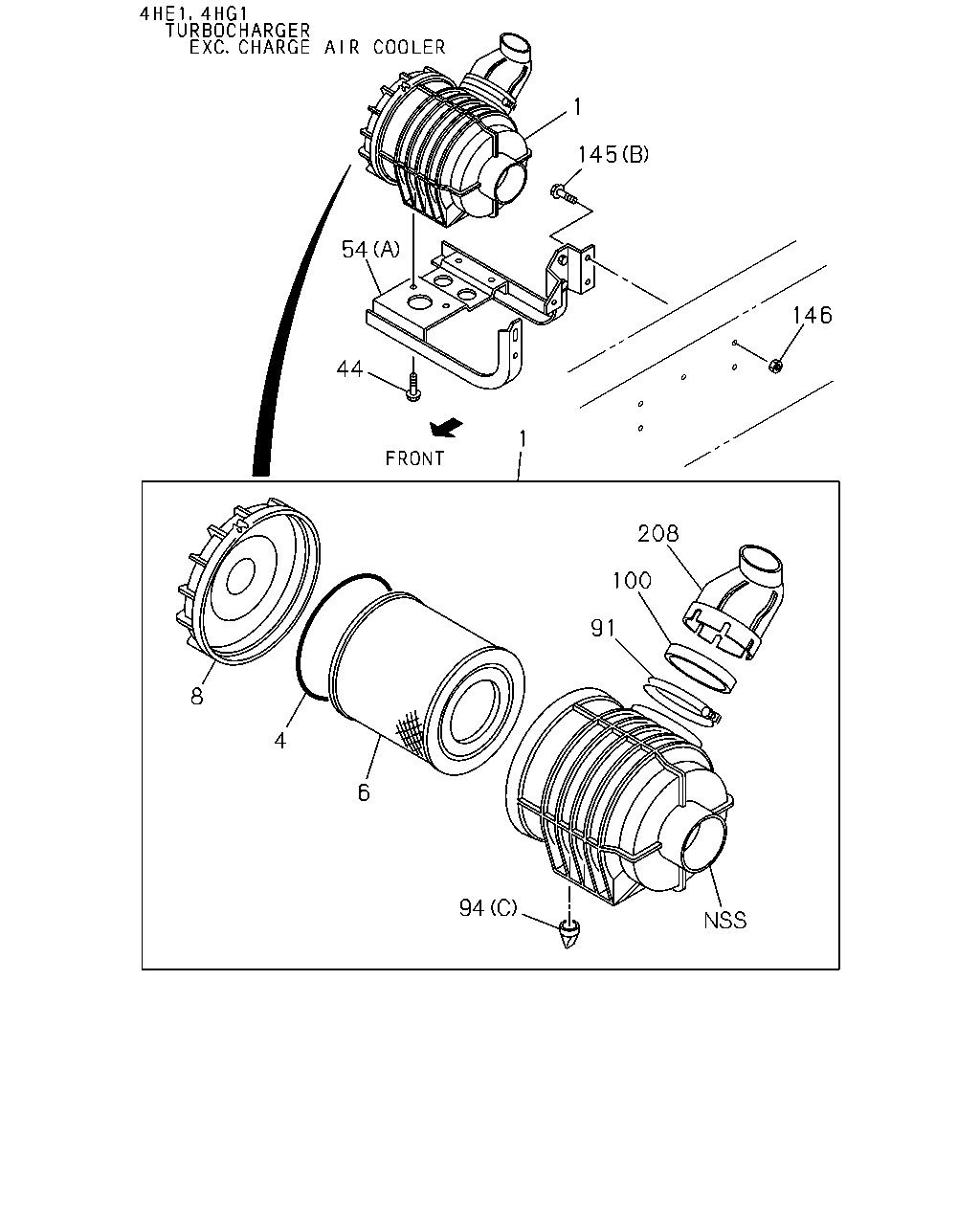

03.402 CLEANER ASM; AIR
4HG1 ENG(RJH)
TURBOCHARGER(K51)
|
8-97228-084-2 |
01 |
1 |
0211-0501 |
|
● |
● |
● |
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HE1 ENG(RLY)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. CHARGE AIR COOLER<6PL>
|
8-97228-084-2 |
01 |
1 |
0211-0501 |
|
● |
|
● |
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HG1-T ENG(RDP)
|
8-97228-084-2 |
01 |
1 |
0502- |
|
● |
● |
● |
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
|
8-97189-262-4 |
01 |
1 |
0211-0501 |
● |
|
|
● |
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
EXC. EURO2 SPECIFICATION(NT2),EURO3
SPECIFICATION(NT3)
|
8-97189-262-4 |
01 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HE1-TCN ENG(RDR)
|
8-97189-262-4 |
01 |
1 |
0502-0506 |
● |
|
|
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
|
8-97189-262-4 |
01 |
1 |
0502-0506 |
|
● |
● |
● |
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HE1-TCN ENG(RDR)
|
8-97189-262-4 |
01 |
1 |
0507-0509 |
● |
|
|
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
|
8-97189-262-4 |
01 |
1 |
0507-0509 |
|
● |
|
● |
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
EXC. EURO3 SPECIFICATION(NT3)
|
8-97189-262-4 |
01 |
1 |
0507-0509 |
|
|
● |
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HE1-TCN ENG(RDR)
|
8-97189-262-5 |
01 |
1 |
0510-0606 |
● |
|
|
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
EXC. EURO2 SPECIFICATION(NT2)
|
8-97189-262-5 |
01 |
1 |
0510-0606 |
|
● |
|
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
EXC. EURO2 SPECIFICATION(NT2),EURO3
SPECIFICATION(NT3)
|
8-97189-262-5 |
01 |
1 |
0510-0606 |
|
|
● |
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
|
8-97189-262-5 |
01 |
1 |
0510-0606 |
|
|
|
● |
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HE1-TCN ENG(RDR)
|
8-97189-262-5 |
01 |
1 |
0607- |
● |
|
|
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
EXC. EURO2 SPECIFICATION(NT2)
|
8-97189-262-5 |
01 |
1 |
0607- |
|
● |
|
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
EXC. EURO2 SPECIFICATION(NT2),EURO3
SPECIFICATION(NT3)
|
8-97189-262-5 |
01 |
1 |
0607- |
|
|
● |
● |
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HE1 ENG(RLY)
EURO2 SPECIFICATION(NT2),EURO3
SPECIFICATION(NT3)
CHARGE AIR COOLER<6PL>
|
8-97189-166-4 |
01 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
|
8-97189-166-4 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
1 |
03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1-S ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
HYDRO MASTER<7LT>
EXC. TURBOCHARGER(K51)
|
8-97162-701-2 |
01 |
1 |
0211-0501 |
|
● |
● |
● |
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1-S ENG(RLS)
SAUDI ARABIA EQUIPMENT(EU2)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. TURBOCHARGER(K51),HYDRO
MASTER<7LT>
|
8-97255-174-2 |
01 |
1 |
0211-0501 |
|
● |
● |
● |
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S
ENG(RLS)
SAUDI ARABIA EQUIPMENT(EU2)
AIR INTAKE REAR VERTICAL<KJ3>
|
8-97255-174-2 |
01 |
1 |
0502- |
● |
● |
● |
● |
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1-S ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
EXC. TURBOCHARGER(K51)
|
8-97102-676-1 |
01 |
1 |
0211-0501 |
|
● |
|
● |
● |
|
| |
1 |
03.402 CLEANER ASM; AIR
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97102-676-1 |
01 |
1 |
0502- |
|
● |
|
● |
● |
|
| |
1 |
03.402 CLEANER ASM; AIR
4HK1-TCS ENG(RJS)
|
8-97189-166-4 |
01 |
1 |
0507-0509 |
|
|
● |
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
EURO3 SPECIFICATION(NT3)
|
8-97189-166-4 |
01 |
1 |
0507-0509 |
|
|
● |
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
EURO2 SPECIFICATION(NT2)
|
8-97189-166-5 |
01 |
1 |
0510-0606 |
|
● |
|
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HK1-TCS ENG(RJS)
|
8-97189-166-5 |
01 |
1 |
0510-0606 |
|
|
● |
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
EURO2 SPECIFICATION(NT2),EURO3
SPECIFICATION(NT3)
|
8-97189-166-5 |
01 |
1 |
0510-0606 |
|
|
● |
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
EURO2 SPECIFICATION(NT2)
|
8-97189-166-5 |
01 |
1 |
0607- |
|
● |
|
|
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
|
8-97189-166-5 |
01 |
1 |
0607- |
|
|
● |
● |
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
EURO2 SPECIFICATION(NT2),EURO3
SPECIFICATION(NT3)
|
8-97189-166-5 |
01 |
1 |
0607- |
|
|
● |
● |
|
|
| |
1 |
03.402 CLEANER ASM; AIR
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
EXC. EURO3 SPECIFICATION(NT3)
|
8-97214-832-3 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
1 |
03.402 CLEANER ASM; AIR
4HE1 ENG(RLY)
EURO3 SPECIFICATION(NT3)
CHARGE AIR COOLER<6PL>
|
8-97214-829-3 |
01 |
1 |
0211-0406 |
|
|
|
|
● |
|
| |
1 |
03.402 CLEANER ASM; AIR
4HE1 ENG(RLY)
EURO3 SPECIFICATION(NT3)
CHARGE AIR COOLER<6PL>
|
8-97378-497-0 |
01 |
1 |
0407-0501 |
|
|
|
|
● |
|
| |
2 |
03.403 NUT; WING,ELEMENT
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
|
8-94447-989-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
● |
|
| |
2 |
03.403 NUT; WING,ELEMENT
|
8-94447-989-0 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
2 |
03.403 NUT; WING,ELEMENT
4HE1-TCN ENG(RDR)
|
8-94447-989-0 |
01 |
1 |
0502-0506 |
● |
|
|
|
|
|
| |
2 |
03.403 NUT; WING,ELEMENT
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
|
8-94447-989-0 |
01 |
1 |
0502-0506 |
|
● |
● |
● |
|
|
| |
2 |
03.403 NUT; WING,ELEMENT
4HE1-TCN ENG(RDR)
|
8-94447-989-0 |
01 |
1 |
0507-0606 |
● |
|
|
|
|
|
| |
2 |
03.403 NUT; WING,ELEMENT
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
|
8-94447-989-0 |
01 |
1 |
0507-0606 |
|
● |
|
● |
|
|
| |
2 |
03.403 NUT; WING,ELEMENT
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),
4HK1-TCS ENG(RJS)
|
8-94447-989-0 |
01 |
1 |
0507-0606 |
|
|
● |
|
|
|
| |
2 |
03.403 NUT; WING,ELEMENT
4HE1-TCN ENG(RDR)
|
8-94447-989-0 |
01 |
1 |
0607- |
● |
|
|
|
|
|
| |
2 |
03.403 NUT; WING,ELEMENT
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
|
8-94447-989-0 |
01 |
1 |
0607- |
|
● |
|
|
|
|
| |
2 |
03.403 NUT; WING,ELEMENT
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)
|
8-94447-989-0 |
01 |
1 |
0607- |
|
|
● |
● |
|
|
| |
2 |
03.403 NUT; WING,ELEMENT
4HG1 ENG(RJH),4HF1-S ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. TURBOCHARGER(K51)
|
1-14217-068-0 |
02 |
1 |
0211-0501 |
● |
● |
● |
● |
● |
|
| |
2 |
03.403 NUT; WING,ELEMENT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S
ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
|
1-14217-068-0 |
02 |
1 |
0502- |
● |
● |
● |
● |
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
|
8-94447-990-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
● |
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
|
8-94447-990-0 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
3 |
03.403 WASHER; SEAL,WING NUT
4HE1-TCN ENG(RDR)
|
8-94447-990-0 |
01 |
1 |
0502-0506 |
● |
|
|
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
|
8-94447-990-0 |
01 |
1 |
0502-0506 |
|
● |
● |
● |
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4HE1-TCN ENG(RDR)
|
8-94447-990-0 |
01 |
1 |
0507-0606 |
● |
|
|
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
|
8-94447-990-0 |
01 |
1 |
0507-0606 |
|
● |
|
● |
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),
4HK1-TCS ENG(RJS)
|
8-94447-990-0 |
01 |
1 |
0507-0606 |
|
|
● |
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4HE1-TCN ENG(RDR)
|
8-94447-990-0 |
01 |
1 |
0607- |
● |
|
|
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
|
8-94447-990-0 |
01 |
1 |
0607- |
|
● |
|
|
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)
|
8-94447-990-0 |
01 |
1 |
0607- |
|
|
● |
● |
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4HG1 ENG(RJH),4HF1-S ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. TURBOCHARGER(K51)
|
1-14219-225-0 |
02 |
1 |
0211-0501 |
● |
● |
● |
● |
● |
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S
ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
|
1-14219-225-0 |
02 |
1 |
0502- |
● |
● |
● |
● |
|
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4HG1 ENG(RJH),4HF1-S ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
EXC. TURBOCHARGER(K51)
|
9-14219-279-0 |
01 |
1 |
0211-0501 |
|
● |
|
● |
● |
|
| |
3 |
03.403 WASHER; SEAL,WING NUT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
9-14219-279-0 |
01 |
1 |
0502- |
|
● |
|
● |
● |
|
| |
6 |
03.410 FILTER; ACL
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
|
8-94430-250-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
● |
|
| |
6 |
03.410 FILTER; ACL
|
8-94430-250-0 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
6 |
03.410 FILTER; ACL
4HE1-TCN ENG(RDR)
|
8-94430-250-0 |
01 |
1 |
0502-0506 |
● |
|
|
|
|
|
| |
6 |
03.410 FILTER; ACL
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
|
8-94430-250-0 |
01 |
1 |
0502-0506 |
|
● |
● |
● |
|
|
| |
6 |
03.410 FILTER; ACL
4HE1-TCN ENG(RDR)
|
8-94430-250-0 |
01 |
1 |
0507-0606 |
● |
|
|
|
|
|
| |
6 |
03.410 FILTER; ACL
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
|
8-94430-250-0 |
01 |
1 |
0507-0606 |
|
● |
|
● |
|
|
| |
6 |
03.410 FILTER; ACL
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),
4HK1-TCS ENG(RJS)
|
8-94430-250-0 |
01 |
1 |
0507-0606 |
|
|
● |
|
|
|
| |
6 |
03.410 FILTER; ACL
4HE1-TCN ENG(RDR)
|
8-94430-250-0 |
01 |
1 |
0607-0708 |
● |
|
|
|
|
|
| |
6 |
03.410 FILTER; ACL
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
|
8-94430-250-0 |
01 |
1 |
0607-0708 |
|
● |
|
|
|
|
| |
6 |
03.410 FILTER; ACL
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)
|
8-94430-250-0 |
01 |
1 |
0607-0708 |
|
|
● |
● |
|
|
| |
6 |
03.410 FILTER; ACL
4HE1-TCN ENG(RDR)
|
8-98091-394-0 |
01 |
1 |
0709- |
● |
|
|
|
|
|
| |
6 |
03.410 FILTER; ACL
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
|
8-98091-394-0 |
01 |
1 |
0709- |
|
● |
|
|
|
|
| |
6 |
03.410 FILTER; ACL
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)
|
8-98091-394-0 |
01 |
1 |
0709- |
|
|
● |
● |
|
|
| |
6 |
03.410 FILTER; ACL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. TURBOCHARGER(K51)
|
8-94156-052-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
● |
|
| |
6 |
03.410 FILTER; ACL
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S
ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
|
8-94156-052-0 |
01 |
1 |
0502- |
● |
● |
● |
● |
|
|
| |
6 |
03.410 FILTER; ACL
4HE1 ENG(RLY)
EXC. CHARGE AIR COOLER<6PL>
|
8-97062-294-0 |
01 |
1 |
0211-0501 |
● |
|
● |
|
|
|
| |
6 |
03.410 FILTER; ACL
4HG1 ENG(RJH)
TURBOCHARGER(K51)
|
8-97062-294-0 |
01 |
1 |
0211-0501 |
|
● |
● |
● |
|
|
| |
6 |
03.410 FILTER; ACL
4HE1 ENG(RLY)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. CHARGE AIR COOLER<6PL>
|
8-97062-294-0 |
01 |
1 |
0211-0501 |
|
● |
|
● |
|
|
| |
6 |
03.410 FILTER; ACL
4HG1-T ENG(RDP)
|
8-97062-294-0 |
01 |
1 |
0502- |
|
● |
● |
● |
|
|
| |
6 |

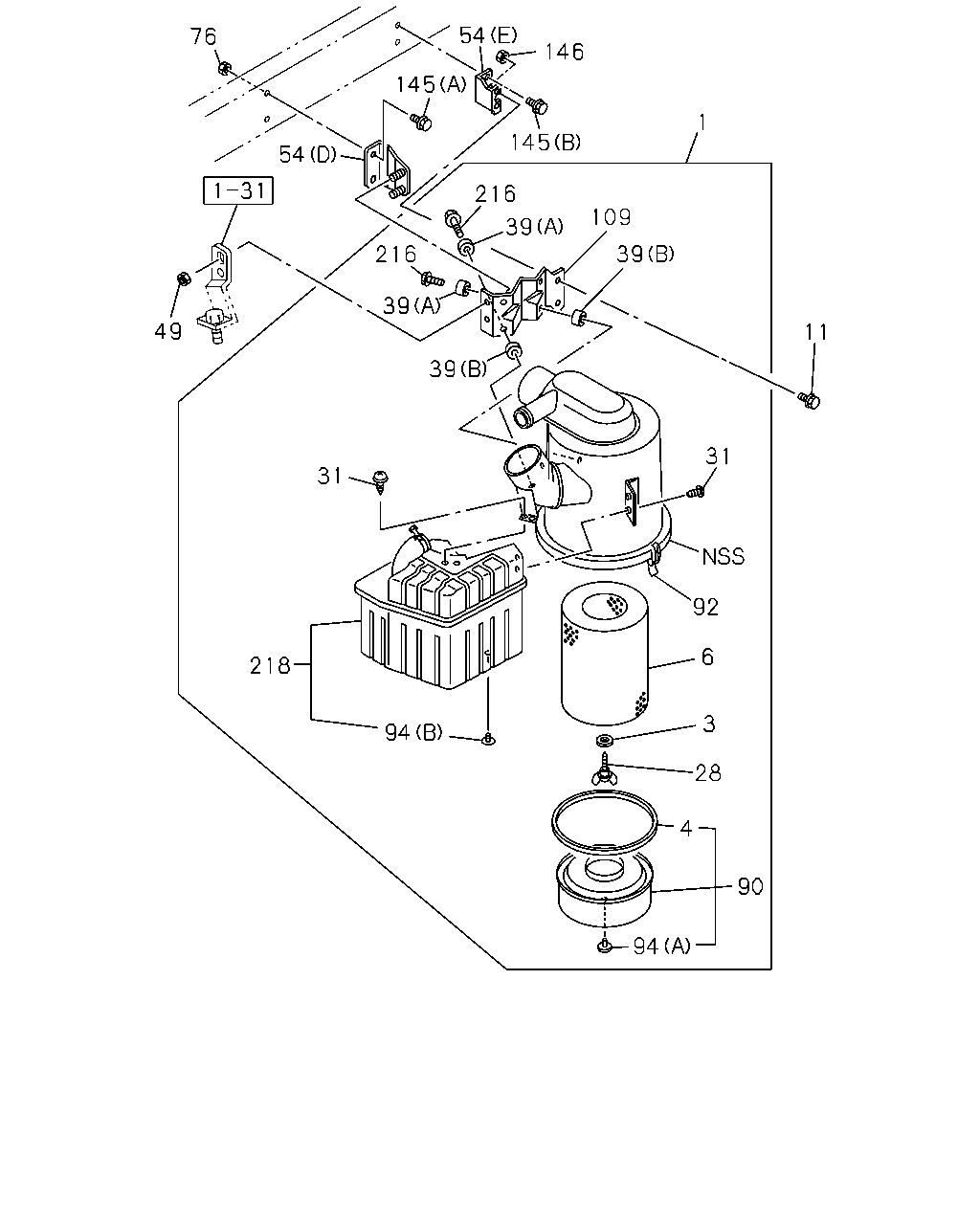

03.410 FILTER; ACL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
EXC. TURBOCHARGER(K51)
|
8-97173-027-0 |
01 |
1 |
0211-0501 |
|
● |
|
● |
● |
|
| |
6 |
03.410 FILTER; ACL
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97173-027-0 |
01 |
1 |
0502- |
|
● |
|
● |
● |
|
| |
6 |
03.410 FILTER; ACL
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
BEST VALUE PARTS
|
5-87610-028-3 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
● |
|
| |
6 |
03.410 FILTER; ACL
BEST VALUE PARTS
|
5-87610-028-3 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
6 |
03.410 FILTER; ACL
4HE1-TCN ENG(RDR)
BEST VALUE PARTS
|
5-87610-028-3 |
01 |
1 |
0502-0506 |
● |
|
|
|
|
|
| |
6 |
03.410 FILTER; ACL
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
BEST VALUE PARTS
|
5-87610-028-3 |
01 |
1 |
0502-0506 |
|
● |
● |
● |
|
|
| |
6 |
03.410 FILTER; ACL
4HE1-TCN ENG(RDR)
BEST VALUE PARTS
|
5-87610-028-3 |
01 |
1 |
0507-0606 |
● |
|
|
|
|
|
| |
6 |
03.410 FILTER; ACL
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
BEST VALUE PARTS
|
5-87610-028-3 |
01 |
1 |
0507-0606 |
|
● |
|
● |
|
|
| |
6 |
03.410 FILTER; ACL
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),
4HK1-TCS ENG(RJS)
BEST VALUE PARTS
|
5-87610-028-3 |
01 |
1 |
0507-0606 |
|
|
● |
|
|
|
| |
6 |
03.410 FILTER; ACL
4HE1-TCN ENG(RDR)
BEST VALUE PARTS
|
5-87610-028-3 |
01 |
1 |
0607- |
● |
|
|
|
|
|
| |
6 |
03.410 FILTER; ACL
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
BEST VALUE PARTS
|
5-87610-028-3 |
01 |
1 |
0607- |
|
● |
|
|
|
|
| |
6 |
03.410 FILTER; ACL
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)
BEST VALUE PARTS
|
5-87610-028-3 |
01 |
1 |
0607- |
|
|
● |
● |
|
|
| |
6 |
03.410 FILTER; ACL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. TURBOCHARGER(K51)
BEST VALUE PARTS
|
5-87610-029-3 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
● |
|
| |
6 |
03.410 FILTER; ACL
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S
ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
BEST VALUE PARTS
|
5-87610-029-3 |
01 |
1 |
0502- |
● |
● |
● |
● |
|
|
| |
6 |
03.410 FILTER; ACL
4HE1 ENG(RLY)
EXC. CHARGE AIR COOLER<6PL>
BEST VALUE PARTS
|
5-87610-020-0 |
01 |
1 |
0211-0501 |
● |
|
● |
|
|
|
| |
6 |
03.410 FILTER; ACL
4HG1 ENG(RJH)
TURBOCHARGER(K51)
BEST VALUE PARTS
|
5-87610-020-0 |
01 |
1 |
0211-0501 |
|
● |
● |
● |
|
|
| |
6 |
03.410 FILTER; ACL
4HE1 ENG(RLY)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. CHARGE AIR COOLER<6PL>
BEST VALUE PARTS
|
5-87610-020-0 |
01 |
1 |
0211-0501 |
|
● |
|
● |
|
|
| |
6 |
03.410 FILTER; ACL
4HG1-T ENG(RDP)
BEST VALUE PARTS
|
5-87610-020-0 |
01 |
1 |
0502- |
|
● |
● |
● |
|
|
| |
50 |
03.403 WASHER; PL,ACL
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
04.085
ID=10.5 OD=22
|
9-09164-610-0 |
04 |
1 |
0211-0501 |
● |
● |
● |
● |
● |
|
| |
50 |
03.403 WASHER; PL,ACL
04.085
ID=10.5 OD=22
|
9-09164-610-0 |
04 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
50 |
03.403 WASHER; PL,ACL
4HE1-TCN ENG(RDR)
04.085
ID=10.5 OD=22
|
9-09164-610-0 |
04 |
1 |
0502-0506 |
● |
|
|
|
|
|
| |
50 |
03.403 WASHER; PL,ACL
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
04.085
ID=10.5 OD=22
|
9-09164-610-0 |
04 |
1 |
0502-0506 |
|
● |
● |
● |
|
|
| |
50 |
03.403 WASHER; PL,ACL
4HE1-TCN ENG(RDR)
04.085
ID=10.5 OD=22
|
9-09164-610-0 |
04 |
1 |
0507-0605 |
● |
|
|
|
|
|
| |
50 |
03.403 WASHER; PL,ACL
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
04.085
ID=10.5 OD=22
|
9-09164-610-0 |
04 |
1 |
0507-0605 |
|
● |
|
● |
|
|
| |
50 |
03.403 WASHER; PL,ACL
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),
4HK1-TCS ENG(RJS)
04.085
ID=10.5 OD=22
|
9-09164-610-0 |
04 |
1 |
0507-0605 |
|
|
● |
|
|
|
| |
50 |
03.403 WASHER; PL,ACL
4HE1-TCN ENG(RDR)
00.002
ID=10.5 OD=22
|
0-91614-610-0 |
04 |
1 |
0606-0606 |
● |
|
|
|
|
|
| |
50 |
03.403 WASHER; PL,ACL
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
00.002
ID=10.5 OD=22
|
0-91614-610-0 |
04 |
1 |
0606-0606 |
|
● |
|
● |
|
|
| |
50 |
03.403 WASHER; PL,ACL
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),
4HK1-TCS ENG(RJS)
00.002
ID=10.5 OD=22
|
0-91614-610-0 |
04 |
1 |
0606-0606 |
|
|
● |
|
|
|
| |
50 |
03.403 WASHER; PL,ACL
4HE1-TCN ENG(RDR)
00.002
ID=10.5 OD=22
|
0-91614-610-0 |
04 |
1 |
0607- |
● |
|
|
|
|
|
| |
50 |
03.403 WASHER; PL,ACL
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
00.002
ID=10.5 OD=22
|
0-91614-610-0 |
04 |
1 |
0607- |
|
● |
|
|
|
|
| |
50 |
03.403 WASHER; PL,ACL
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)
00.002
ID=10.5 OD=22
|
0-91614-610-0 |
04 |
1 |
0607- |
|
|
● |
● |
|
|
| |
54 |
03.405 BRACKET; ACL
4HF1-S ENG(RLS)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-97106-928-0 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HF1-S ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,FRAME STRAIGHT
TYPE<7KJ>
(C)
|
8-97106-928-0 |
01 |
1 |
0211-0501 |
|
● |
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HF1-S ENG(RLS)
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,FRAME STRAIGHT
TYPE<7KJ>
(C)
|
8-97106-928-0 |
01 |
1 |
0211-0501 |
|
|
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HF1-N ENG(RJZ),4HF1-S ENG(RLS)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-97106-928-0 |
01 |
1 |
0502-0504 |
● |
|
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-97106-928-0 |
01 |
1 |
0502-0504 |
|
● |
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-97106-928-0 |
01 |
1 |
0502-0504 |
|
|
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HG1 ENG(RJH)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-97106-928-0 |
01 |
1 |
0502-0504 |
|
|
|
● |
|
|
| |
54 |
03.405 BRACKET; ACL
4HF1-N ENG(RJZ),4HF1-S ENG(RLS)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-97106-928-0 |
01 |
1 |
0505-0709 |
● |
|
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HF1-N ENG(RJZ),4HF1-S ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-97106-928-0 |
01 |
1 |
0505-0709 |
|
● |
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S
ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-97106-928-0 |
01 |
1 |
0710- |
● |
● |
● |
● |
|
|
| |
54 |
03.405 BRACKET; ACL
4HE1 ENG(RLY)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>,CHARGE AIR
COOLER<6PL>
(A)
|
8-97096-710-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
|
|
| |
54 |
03.405 BRACKET; ACL
4HG1 ENG(RJH)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>
(A)
|
8-97096-710-0 |
01 |
1 |
0211-0501 |
|
● |
● |
● |
|
|
| |
54 |
03.405 BRACKET; ACL
4HG1-T ENG(RDP)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>
(A)
|
8-97096-710-0 |
01 |
1 |
0502-0504 |
|
● |
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HG1-T ENG(RDP)
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>
(A)
|
8-97096-710-0 |
01 |
1 |
0502-0504 |
|
|
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HG1-T ENG(RDP)
AIR INTAKE REAR VERTICAL<KJ3>
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>
(A)
|
8-97096-710-0 |
01 |
1 |
0505-0612 |
|
● |
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HG1-T ENG(RDP)
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>
(A)
|
8-97096-710-0 |
01 |
1 |
0505-0612 |
|
|
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HG1-T ENG(RDP)
AIR INTAKE REAR VERTICAL<KJ3>
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>
(A)
|
8-97096-710-0 |
01 |
1 |
0701- |
|
● |
● |
● |
|
|
| |
54 |
03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
FRAME STRAIGHT TYPE<7KJ>
EXC. TURBOCHARGER(K51)
(C)
|
8-97351-163-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
|
|
| |
54 |
03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S
ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-97351-163-0 |
01 |
1 |
0502- |
● |
● |
● |
● |
|
|
| |
54 |
03.405 BRACKET; ACL
4HE1 ENG(RLY)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
CHARGE AIR COOLER<6PL>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>
(B)
|
8-97188-598-1 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
|
● |
| |
54 |
03.405 BRACKET; ACL
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
AIR INTAKE REAR VERTICAL<KJ3>
(B)
|
8-97188-598-1 |
01 |
1 |
0502-0502 |
● |
● |
● |
● |
|
|
| |
54 |
03.405 BRACKET; ACL
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
AIR INTAKE REAR VERTICAL<KJ3>
(B)
|
8-98012-793-0 |
01 |
1 |
0503-0506 |
● |
● |
● |
● |
|
|
| |
54 |
03.405 BRACKET; ACL
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),
4HK1-TCS ENG(RJS)
AIR INTAKE REAR VERTICAL<KJ3>
(B)
|
8-98012-793-0 |
01 |
1 |
0507-0606 |
● |
● |
● |
● |
|
|
| |
54 |
03.405 BRACKET; ACL
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
AIR INTAKE REAR VERTICAL<KJ3>
(B)
|
8-98012-793-0 |
01 |
1 |
0607-0709 |
● |
● |
● |
● |
|
|
| |
54 |
03.405 BRACKET; ACL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>
(B)
|
8-98012-793-0 |
01 |
1 |
0607-0709 |
|
|
● |
● |
|
|
| |
54 |
03.405 BRACKET; ACL
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
AIR INTAKE REAR VERTICAL<KJ3>
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98012-793-0 |
01 |
1 |
0710- |
● |
● |
● |
● |
|
|
| |
54 |
03.405 BRACKET; ACL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
AIR INTAKE REAR VERTICAL<KJ3>
FRAME STRAIGHT TYPE<7KJ>
EXC. EXH SYSTEM CHROME SINGLE VERTICA
L TAIL PIPE<NC4>
(B)
|
8-98012-793-0 |
01 |
1 |
0710- |
|
|
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HG1-T ENG(RDP)
AIR INTAKE REAR VERTICAL<KJ3>
(A)
|
8-97042-040-2 |
01 |
1 |
0505-0612 |
|
● |
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HG1-T ENG(RDP)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97042-040-2 |
01 |
1 |
0701-0910 |
|
● |
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HG1-T ENG(RDP)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97042-040-2 |
01 |
1 |
0911- |
|
● |
|
● |
|
|
| |
54 |
03.405 BRACKET; ACL
4HG1-T ENG(RDP)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97042-040-2 |
01 |
1 |
0911- |
|
|
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HE1 ENG(RLY)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
CHARGE AIR COOLER<6PL>
(B)
|
8-97254-400-0 |
01 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HG1 ENG(RJH)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97164-474-0 |
01 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HE1 ENG(RLY)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
EXC. CHARGE AIR COOLER<6PL>
(A)
|
8-97164-474-0 |
01 |
1 |
0211-0501 |
|
● |
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HG1-T ENG(RDP)
AIR INTAKE REAR VERTICAL<KJ3>
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
(A)
|
8-97164-474-0 |
01 |
1 |
0502-0504 |
|
● |
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HG1-T ENG(RDP)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
(A)
|
8-97164-474-0 |
01 |
1 |
0502-0504 |
|
|
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HG1-T ENG(RDP)
AIR INTAKE REAR VERTICAL<KJ3>
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97164-474-0 |
01 |
1 |
0505- |
|
● |
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HG1-T ENG(RDP)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97164-474-0 |
01 |
1 |
0505- |
|
|
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HG1 ENG(RJH)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97042-040-2 |
01 |
1 |
0211-0501 |
|
● |
● |
● |
|
|
| |
54 |
03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
MINI BUS CHASSIS(V4B)
AIR INTAKE SYSTEM FRONT<6PC>
FRAME STRAIGHT TYPE<7KJ>
EXC. TURBOCHARGER(K51)
(E)
|
8-97146-331-0 |
01 |
1 |
0211-0501 |
|
● |
|
● |
|
|
| |
54 |
03.405 BRACKET; ACL
4HG1 ENG(RJH)
AIR INTAKE SYSTEM FRONT<6PC>
(E)
|
8-97146-331-0 |
01 |
1 |
0502-0504 |
|
● |
|
● |
|
|
| |
54 |
03.405 BRACKET; ACL
4HG1 ENG(RJH)
AIR INTAKE SYSTEM FRONT<6PC>
(E)
|
8-97146-331-0 |
01 |
1 |
0505- |
|
|
|
● |
|
|
| |
54 |
03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
EXC. TURBOCHARGER(K51)
(D)
|
8-97093-583-0 |
01 |
1 |
0211-0501 |
|
● |
|
● |
● |
|
| |
54 |
03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
(D)
|
8-97093-583-0 |
01 |
1 |
0502- |
|
● |
|
● |
● |
|
| |
54 |
03.405 BRACKET; ACL
4HG1 ENG(RJH),4HF1-S ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
EXC. TURBOCHARGER(K51),FRAME
STRAIGHTTYPE<7KJ>
(E)
|
8-97092-941-0 |
01 |
1 |
0211-0501 |
|
● |
|
● |
● |
|
| |
54 |
03.405 BRACKET; ACL
4HF1-S ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
(E)
|
8-97092-941-0 |
01 |
1 |
0502- |
|
● |
|
|
|
|
| |
54 |
03.405 BRACKET; ACL
(E)
|
8-97092-941-0 |
01 |
1 |
0502- |
|
|
|
|
● |
|
| |
54 |
03.405 BRACKET; ACL
4HK1-TCS ENG(RJS)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
(B)
|
8-98012-795-0 |
01 |
1 |
0507-0606 |
|
|
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
(B)
|
8-98012-795-0 |
01 |
1 |
0607-0709 |
|
|
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
EXH SYSTEM CHROME SINGLE VERTICAL TAI
L PIPE<NC4>
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98012-795-0 |
01 |
1 |
0710- |
|
|
● |
|
|
|
| |
54 |
03.405 BRACKET; ACL
4HE1 ENG(RLY)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
CHARGE AIR COOLER<6PL>
(B)
|
8-97214-833-3 |
01 |
1 |
0211-0501 |
|
|
|
|
● |
|
| |
94 |
03.415 VALVE; VACUATOR
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
(C)
|
1-14219-075-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
● |
|
| |
94 |
03.415 VALVE; VACUATOR
(C)
|
1-14219-075-0 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
94 |
03.415 VALVE; VACUATOR
4HE1-TCN ENG(RDR)
(C)
|
1-14219-075-0 |
01 |
1 |
0502-0506 |
● |
|
|
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
(C)
|
1-14219-075-0 |
01 |
1 |
0502-0506 |
|
● |
● |
● |
|
|
| |
94 |
03.415 VALVE; VACUATOR
4HE1-TCN ENG(RDR)
(C)
|
1-14219-075-0 |
01 |
1 |
0507-0606 |
● |
|
|
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
(C)
|
1-14219-075-0 |
01 |
1 |
0507-0606 |
|
● |
|
● |
|
|
| |
94 |
03.415 VALVE; VACUATOR
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),
4HK1-TCS ENG(RJS)
(C)
|
1-14219-075-0 |
01 |
1 |
0507-0606 |
|
|
● |
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
4HE1-TCN ENG(RDR)
(C)
|
1-14219-075-0 |
01 |
1 |
0607- |
● |
|
|
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
(C)
|
1-14219-075-0 |
01 |
1 |
0607- |
|
● |
|
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)
(C)
|
1-14219-075-0 |
01 |
1 |
0607- |
|
|
● |
● |
|
|
| |
94 |
03.415 VALVE; VACUATOR
4HG1 ENG(RJH),4HF1-S ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. TURBOCHARGER(K51)
(C)
|
8-94447-157-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
● |
|
| |
94 |
03.415 VALVE; VACUATOR
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S
ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
(C)
|
8-94447-157-0 |
01 |
1 |
0502- |
● |
● |
● |
● |
|
|
| |
94 |
03.415 VALVE; VACUATOR
4HE1 ENG(RLY)
EXC. CHARGE AIR COOLER<6PL>
(C)
|
8-97093-694-0 |
01 |
1 |
0211-0501 |
● |
|
● |
|
|
|
| |
94 |
03.415 VALVE; VACUATOR
4HG1 ENG(RJH)
TURBOCHARGER(K51)
(C)
|
8-97093-694-0 |
01 |
1 |
0211-0501 |
|
● |
● |
● |
|
|
| |
94 |
03.415 VALVE; VACUATOR
4HE1 ENG(RLY)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. CHARGE AIR COOLER<6PL>
(C)
|
8-97093-694-0 |
01 |
1 |
0211-0501 |
|
● |
|
● |
|
|
| |
94 |
03.415 VALVE; VACUATOR
4HG1-T ENG(RDP)
(C)
|
8-97093-694-0 |
01 |
1 |
0502- |
|
● |
● |
● |
|
|
| |
94 |
03.415 VALVE; VACUATOR
4HG1 ENG(RJH),4HF1-S ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
EXC. TURBOCHARGER(K51)
(A)
|
8-94439-205-0 |
01 |
1 |
0211-0501 |
|
● |
|
● |
● |
|
| |
94 |
03.415 VALVE; VACUATOR
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
(A)
|
8-94439-205-0 |
01 |
1 |
0502- |
|
● |
|
● |
● |
|
| |
94 |
03.415 VALVE; VACUATOR
4HG1 ENG(RJH),4HF1-S ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
EXC. TURBOCHARGER(K51)
(B)
|
8-97148-258-0 |
01 |
1 |
0211-0501 |
|
● |
|
● |
● |
|
| |
94 |
03.415 VALVE; VACUATOR
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S
ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
(B)
|
8-97148-258-0 |
01 |
1 |
0502- |
|
● |
|
● |
● |
|
| |
99 |
03.403 CAP; NIPPLE
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
|
8-94448-008-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
● |
|
| |
99 |
03.403 CAP; NIPPLE
|
8-94448-008-0 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
99 |
03.403 CAP; NIPPLE
4HE1-TCN ENG(RDR)
|
8-94448-008-0 |
01 |
1 |
0502-0506 |
● |
|
|
|
|
|
| |
99 |
03.403 CAP; NIPPLE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
|
8-94448-008-0 |
01 |
1 |
0502-0506 |
|
● |
● |
● |
|
|
| |
99 |
03.403 CAP; NIPPLE
4HE1-TCN ENG(RDR)
|
8-94448-008-0 |
01 |
1 |
0507-0606 |
● |
|
|
|
|
|
| |
99 |
03.403 CAP; NIPPLE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
|
8-94448-008-0 |
01 |
1 |
0507-0606 |
|
● |
|
● |
|
|
| |
99 |
03.403 CAP; NIPPLE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),
4HK1-TCS ENG(RJS)
|
8-94448-008-0 |
01 |
1 |
0507-0606 |
|
|
● |
|
|
|
| |
99 |
03.403 CAP; NIPPLE
4HE1-TCN ENG(RDR)
|
8-94448-008-0 |
01 |
1 |
0607- |
● |
|
|
|
|
|
| |
99 |
03.403 CAP; NIPPLE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
|
8-94448-008-0 |
01 |
1 |
0607- |
|
● |
|
|
|
|
| |
99 |
03.403 CAP; NIPPLE
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)
|
8-94448-008-0 |
01 |
1 |
0607- |
|
|
● |
● |
|
|
| |
100 |
03.417 ADAPTER; ELBOW
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
|
8-94430-259-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
● |
● |
|
| |
100 |
03.417 ADAPTER; ELBOW
|
8-94430-259-0 |
01 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
100 |
03.417 ADAPTER; ELBOW
4HE1-TCN ENG(RDR)
|
8-94430-259-0 |
01 |
1 |
0502-0506 |
● |
|
|
|
|
|
| |
100 |
03.417 ADAPTER; ELBOW
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
|
8-94430-259-0 |
01 |
1 |
0502-0506 |
|
● |
● |
● |
|
|
| |
100 |
03.417 ADAPTER; ELBOW
4HE1-TCN ENG(RDR)
|
8-94430-259-0 |
01 |
1 |
0507-0606 |
● |
|
|
|
|
|
| |
100 |
03.417 ADAPTER; ELBOW
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
|
8-94430-259-0 |
01 |
1 |
0507-0606 |
|
● |
|
● |
|
|
| |
100 |
03.417 ADAPTER; ELBOW
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),
4HK1-TCS ENG(RJS)
|
8-94430-259-0 |
01 |
1 |
0507-0606 |
|
|
● |
|
|
|
| |
100 |
03.417 ADAPTER; ELBOW
4HE1-TCN ENG(RDR)
|
8-94430-259-0 |
01 |
1 |
0607- |
● |
|
|
|
|
|
| |
100 |
03.417 ADAPTER; ELBOW
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
|
8-94430-259-0 |
01 |
1 |
0607- |
|
● |
|
|
|
|
| |
100 |
03.417 ADAPTER; ELBOW
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)
|
8-94430-259-0 |
01 |
1 |
0607- |
|
|
● |
● |
|
|
| |
100 |
03.417 ADAPTER; ELBOW
4HE1 ENG(RLY)
EXC. CHARGE AIR COOLER<6PL>
|
8-97093-075-0 |
01 |
1 |
0211-0501 |
● |
|
● |
|
|
|
| |
100 |
03.417 ADAPTER; ELBOW
4HG1 ENG(RJH)
TURBOCHARGER(K51)
|
8-97093-075-0 |
01 |
1 |
0211-0501 |
|
● |
● |
● |
|
|
| |
100 |
03.417 ADAPTER; ELBOW
4HE1 ENG(RLY)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. CHARGE AIR COOLER<6PL>
|
8-97093-075-0 |
01 |
1 |
0211-0501 |
|
● |
|
● |
|
|
| |
100 |
03.417 ADAPTER; ELBOW
4HG1-T ENG(RDP)
|
8-97093-075-0 |
01 |
1 |
0502- |
|
● |
● |
● |
|
|
| |
130 |
03.405 BOLT; BRKT TO ACL
4HE1 ENG(RLY)
CHARGE AIR COOLER<6PL>
01.062
M8X16 FLANGE
|
0-28080-816-0 |
04 |
1 |
0211-0501 |
● |
● |
● |
● |
● |
|
| |
130 |
03.405 BOLT; BRKT TO ACL
01.062
M8X16 FLANGE
|
0-28080-816-0 |
04 |
1 |
0211-0501 |
|
|
|
|
|
● |
| |
130 |
03.405 BOLT; BRKT TO ACL
4HE1-TCN ENG(RDR)
01.062
M8X16 FLANGE
|
0-28080-816-0 |
04 |
1 |
0502-0506 |
● |
|
|
|
|
|
| |
130 |
03.405 BOLT; BRKT TO ACL
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
01.062
M8X16 FLANGE
|
0-28080-816-0 |
04 |
1 |
0502-0506 |
|
● |
● |
● |
|
|
| |
130 |
03.405 BOLT; BRKT TO ACL
4HE1-TCN ENG(RDR)
01.062
M8X16 FLANGE
|
0-28080-816-0 |
04 |
1 |
0507-0512 |
● |
|
|
|
|
|
| |
130 |
03.405 BOLT; BRKT TO ACL
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
01.062
M8X16 FLANGE
|
0-28080-816-0 |
04 |
1 |
0507-0512 |
|
● |
|
● |
|
|
| |
130 |
03.405 BOLT; BRKT TO ACL
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),
4HK1-TCS ENG(RJS)
01.062
M8X16 FLANGE
|
0-28080-816-0 |
04 |
1 |
0507-0512 |
|
|
● |
|
|
|
| |
130 |
03.405 BOLT; BRKT TO ACL
4HE1-TCN ENG(RDR)
02.343
M8X16 FLANGE
|
0-28050-816-0 |
04 |
1 |
0601-0606 |
● |
|
|
|
|
|
| |
130 |
03.405 BOLT; BRKT TO ACL
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
02.343
M8X16 FLANGE
|
0-28050-816-0 |
04 |
1 |
0601-0606 |
|
● |
|
● |
|
|
| |
130 |
03.405 BOLT; BRKT TO ACL
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),
4HK1-TCS ENG(RJS)
02.343
M8X16 FLANGE
|
0-28050-816-0 |
04 |
1 |
0601-0606 |
|
|
● |
|
|
|
| |
130 |
03.405 BOLT; BRKT TO ACL
4HE1-TCN ENG(RDR)
02.343
M8X16 FLANGE
|
0-28050-816-0 |
04 |
1 |
0607- |
● |
|
|
|
|
|
| |
130 |
03.405 BOLT; BRKT TO ACL
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS)
02.343
M8X16 FLANGE
|
0-28050-816-0 |
04 |
1 |
0607- |
|
● |
|
|
|
|
| |
130 |
03.405 BOLT; BRKT TO ACL
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS)
02.343
M8X16 FLANGE
|
0-28050-816-0 |
04 |
1 |
0607- |
|
|
● |
● |
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4HE1 ENG(RLY)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
EXC. CHARGE AIR COOLER<6PL>
03.162
(B)
M10X35 FLANGE
|
0-28681-035-0 |
05 |
1 |
0211-0501 |
● |
● |
● |
● |
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
FRAME STRAIGHT TYPE<7KJ>
03.162
(B)
M10X35 FLANGE
|
0-28681-035-0 |
05 |
1 |
0211-0501 |
|
● |
● |
● |
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
03.162
(B)
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
0502-0506 |
● |
● |
● |
● |
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),
4HG1 ENG(RJH),4HK1-TCS ENG(RJS),
4HF1-NENG(RJZ),4HF1-S ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
03.162
(B)
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
0507-0512 |
● |
● |
● |
● |
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),
4HG1 ENG(RJH),4HK1-TCS ENG(RJS),
4HF1-NENG(RJZ),4HF1-S ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
02.277
(B)
M10X35 FLANGE
|
0-28651-035-0 |
04 |
1 |
0601-0606 |
● |
● |
● |
● |
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH),
4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S EN
G(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
02.277
(B)
M10X35 FLANGE
|
0-28651-035-0 |
04 |
1 |
0607- |
● |
● |
● |
● |
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4HE1 ENG(RLY)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
CHARGE AIR COOLER<6PL>
03.162
(B)
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
0211-0501 |
● |
● |
● |
● |
● |
● |
| |
145 |
03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1-S ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. TURBOCHARGER(K51)
03.162
(B)
M10X35 FLANGE
|
0-28681-035-0 |
04 |
1 |
0211-0501 |
● |
● |
● |
● |
● |
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4HG1-T ENG(RDP)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. FRAME STRAIGHT TYPE<7KJ>
03.162
(B)
M10X35 FLANGE
|
0-28681-035-0 |
03 |
1 |
0507-0512 |
|
● |
|
|
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4HG1-T ENG(RDP)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. FRAME STRAIGHT TYPE<7KJ>
02.277
(B)
M10X35 FLANGE
|
0-28651-035-0 |
03 |
1 |
0601-0910 |
|
● |
|
|
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4HG1-T ENG(RDP)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. FRAME STRAIGHT TYPE<7KJ>
02.277
(B)
M10X35 FLANGE
|
0-28651-035-0 |
03 |
1 |
0911- |
|
● |
|
● |
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4HG1-T ENG(RDP)
EXC. FRAME STRAIGHT TYPE<7KJ>
02.277
(B)
M10X35 FLANGE
|
0-28651-035-0 |
03 |
1 |
0911- |
|
|
● |
|
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.162
(B)
M10X35 FLANGE
|
0-28681-035-0 |
03 |
1 |
0211-0501 |
|
● |
● |
● |
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4HG1-T ENG(RDP)
AIR INTAKE REAR VERTICAL<KJ3>
FRAME STRAIGHT TYPE<7KJ>
03.162
(B)
M10X35 FLANGE
|
0-28681-035-0 |
05 |
1 |
0502-0512 |
|
● |
|
|
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4HG1-T ENG(RDP)
FRAME STRAIGHT TYPE<7KJ>
03.162
(B)
M10X35 FLANGE
|
0-28681-035-0 |
05 |
1 |
0502-0512 |
|
|
● |
|
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4HG1-T ENG(RDP)
AIR INTAKE REAR VERTICAL<KJ3>
FRAME STRAIGHT TYPE<7KJ>
02.277
(B)
M10X35 FLANGE
|
0-28651-035-0 |
05 |
1 |
0601-0612 |
|
● |
|
|
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4HG1-T ENG(RDP)
FRAME STRAIGHT TYPE<7KJ>
02.277
(B)
M10X35 FLANGE
|
0-28651-035-0 |
05 |
1 |
0601-0612 |
|
|
● |
|
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4HG1-T ENG(RDP)
AIR INTAKE REAR VERTICAL<KJ3>
FRAME STRAIGHT TYPE<7KJ>
02.277
(B)
M10X35 FLANGE
|
0-28651-035-0 |
05 |
1 |
0701- |
|
● |
● |
● |
|
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1-S ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
EXC. TURBOCHARGER(K51)
(A)
M10X25 FLANGE
|
0-28681-025-0 |
02 |
1 |
0211-0501 |
|
● |
|
● |
● |
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1-S ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
(A)
M10X25 FLANGE
|
0-28681-025-0 |
02 |
1 |
0502-0512 |
|
● |
|
● |
● |
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1-S ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
00.029
(A)
M10X25 FLANGE
|
0-28651-025-0 |
02 |
1 |
0601- |
|
● |
|
● |
● |
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1-S ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
EXC. TURBOCHARGER(K51)
03.162
(B)
M10X35 FLANGE
|
0-28681-035-0 |
02 |
1 |
0211-0501 |
|
● |
|
● |
● |
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1-S ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
03.162
(B)
M10X35 FLANGE
|
0-28681-035-0 |
02 |
1 |
0502-0512 |
|
● |
|
● |
● |
|
| |
145 |
03.405 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1-S ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
02.277
(B)
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
0601- |
|
● |
|
● |
● |
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4HE1 ENG(RLY)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
EXC. CHARGE AIR COOLER<6PL>
04.785
M10 FLANGE
|
0-91150-110-0 |
05 |
1 |
0211-0501 |
● |
● |
● |
● |
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
FRAME STRAIGHT TYPE<7KJ>
04.785
M10 FLANGE
|
0-91150-110-0 |
05 |
1 |
0211-0501 |
|
● |
● |
● |
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
0502-0504 |
● |
● |
● |
● |
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N
ENG(RJZ),4HF1-S ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. FRAME STRAIGHT TYPE<7KJ>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
0505-0506 |
● |
● |
● |
● |
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH),
4HK1-TCSENG(RJS),4HF1-N ENG(RJZ),4HF1-S
ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. FRAME STRAIGHT TYPE<7KJ>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
0507-0602 |
● |
● |
● |
● |
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH),
4HK1-TCSENG(RJS),4HF1-N ENG(RJZ),4HF1-S
ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. FRAME STRAIGHT TYPE<7KJ>
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0603-0606 |
● |
● |
● |
● |
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR),
4HE1-TCS ENG(RDS),4HG1 ENG(RJH),
4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S EN
G(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0607- |
● |
● |
● |
● |
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4HG1-T ENG(RDP)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. FRAME STRAIGHT TYPE<7KJ>
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0607- |
|
● |
● |
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4HE1 ENG(RLY)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
CHARGE AIR COOLER<6PL>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
0211-0501 |
● |
● |
● |
● |
● |
● |
| |
146 |
03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1-S ENG(RLS)
AIR INTAKE REAR VERTICAL<KJ3>
EXC. TURBOCHARGER(K51)
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
0211-0501 |
● |
● |
● |
● |
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH)
AIR INTAKE REAR VERTICAL<KJ3>
TURBOCHARGER(K51)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
0211-0501 |
|
● |
● |
● |
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1-S ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0502-0602 |
|
● |
|
● |
● |
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1-S ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0603- |
|
● |
|
● |
● |
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1-S ENG(RLS)
AIR INTAKE SYSTEM FRONT<6PC>
EXC. TURBOCHARGER(K51)
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
0211-0501 |
|
● |
|
● |
● |
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4HG1-T ENG(RDP)
AIR INTAKE REAR VERTICAL<KJ3>
FRAME STRAIGHT TYPE<7KJ>
04.785
M10 FLANGE
|
0-91150-110-0 |
05 |
1 |
0502-0602 |
|
● |
|
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4HG1-T ENG(RDP)
FRAME STRAIGHT TYPE<7KJ>
04.785
M10 FLANGE
|
0-91150-110-0 |
05 |
1 |
0502-0602 |
|
|
● |
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4HG1-T ENG(RDP)
AIR INTAKE REAR VERTICAL<KJ3>
FRAME STRAIGHT TYPE<7KJ>
03.162
M10 FLANGE
|
0-91180-110-0 |
05 |
1 |
0603-0612 |
|
● |
|
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4HG1-T ENG(RDP)
FRAME STRAIGHT TYPE<7KJ>
03.162
M10 FLANGE
|
0-91180-110-0 |
05 |
1 |
0603-0612 |
|
|
● |
|
|
|
| |
146 |
03.405 NUT; BRKT TO FRAME
4HG1-T ENG(RDP)
AIR INTAKE REAR VERTICAL<KJ3>
FRAME STRAIGHT TYPE<7KJ>
03.162
M10 FLANGE
|
0-91180-110-0 |
05 |
1 |
0701- |
|
● |
● |
● |
|
|
