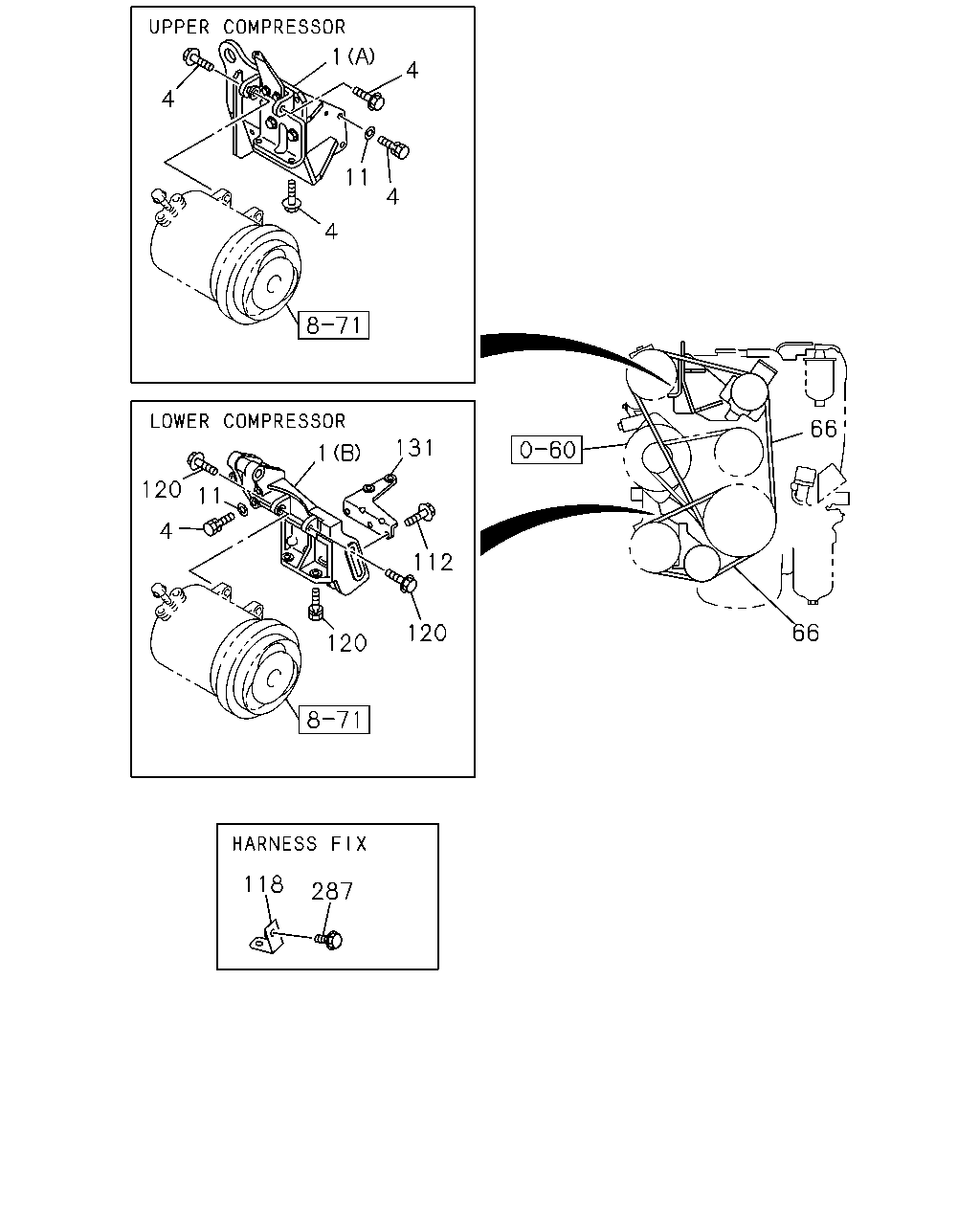

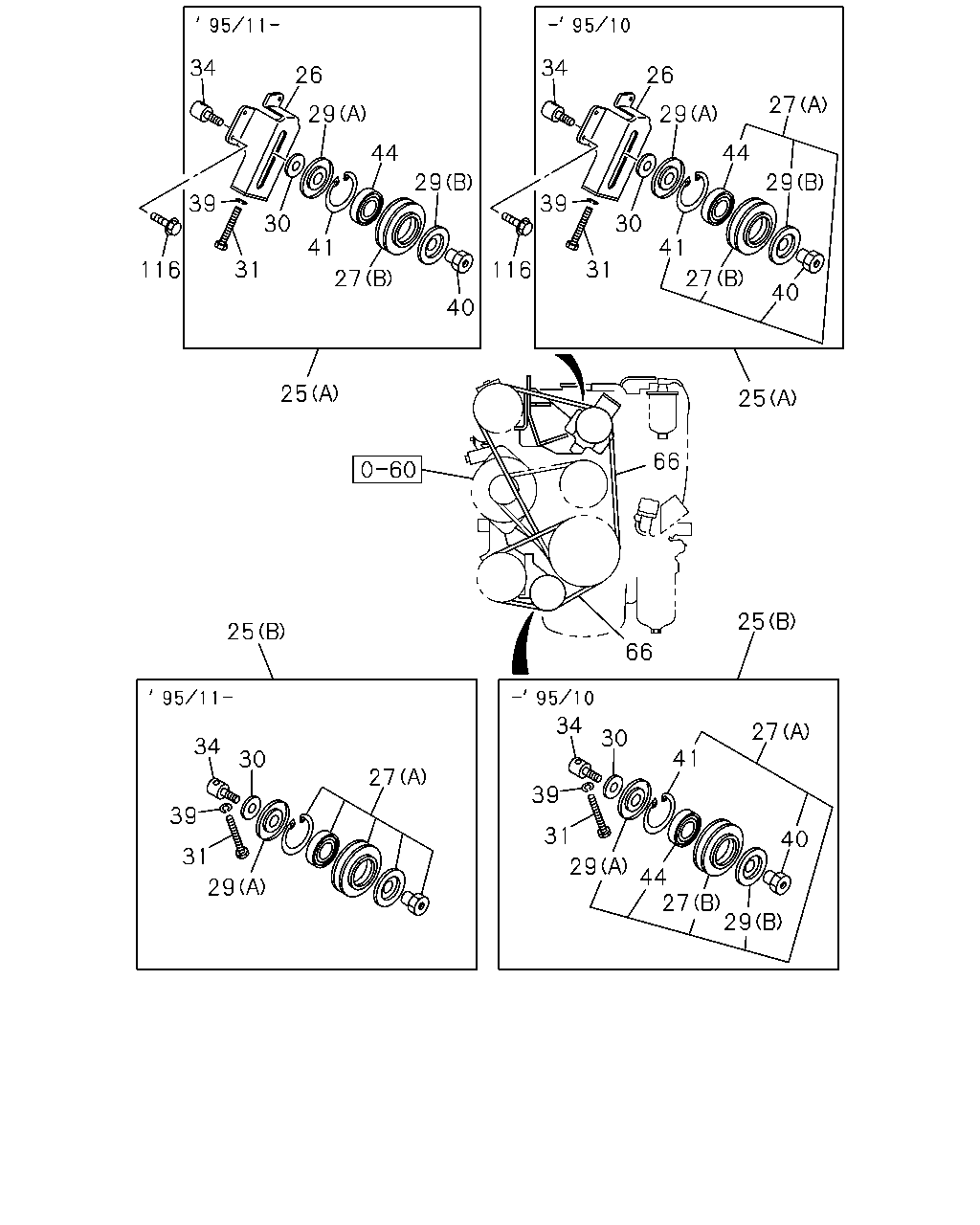

8-50 — AIR CONDITIONING SYSTEM; FRONT (#4504) — 101 parça

34 34 26 26 27 29 29 44 44 29 29 39 39 30 30 41 41 31 31 116 116 27 27 40 40 25 25 66 25 25 66 34 27 30 34 41 30 27 39 39 31 40 31 29 44 27 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	PULLEY ASM; IDLER,CMPR OVERHEAD COOLING SYSTEM<YS9> (B) LOWER	8-94396-213-0	01	1	9505-0203	●	●
25	PULLEY ASM; IDLER,CMPR OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR USER<TGZ> (B) LOWER	8-94396-213-0	01	1	0204-0204	●	●
25	PULLEY ASM; IDLER,CMPR OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR USER<TGZ> (B) LOWER	8-97602-500-0	01	1	0204-	●	●
25	PULLEY ASM; IDLER,CMPR OVERHEAD COOLING SYSTEM<YS9> (A) UPPER	8-94396-528-1	01	1	9505-0203	●	●
25	PULLEY ASM; IDLER,CMPR OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR USER<TGZ> (A) UPPER	8-94396-528-1	01	1	0204-0204	●	●
25	PULLEY ASM; IDLER,CMPR OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR USER<TGZ> (A) UPPER	8-97602-499-0	01	1	0204-	●	●
26	BRACKET; IDLE PULLEY,A/C OVERHEAD COOLING SYSTEM<YS9> UPPER	8-94396-532-0	01	1	9505-0203	●	●
26	BRACKET; IDLE PULLEY,A/C OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR USER<TGZ> UPPER	8-94396-532-0	01	1	0204-	●	●
27	PULLEY; IDLE,A/C OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR USER<TGZ>	1-13660-258-0	02	1	0204-	●	●
27	PULLEY; IDLE,A/C OVERHEAD COOLING SYSTEM<YS9> (A) UPPER,LOWER	1-13660-258-0	02	1	9505-9510	●	●
27	PULLEY; IDLE,A/C OVERHEAD COOLING SYSTEM<YS9> (B) UPPER,LOWER	1-13660-258-0	01	1	9511-0203	●	●
27	PULLEY; IDLE,A/C OVERHEAD COOLING SYSTEM<YS9> (B) UPPER,LOWER	1-13663-074-0	02	1	9505-9510	●	●
27	PULLEY; IDLE,A/C OVERHEAD COOLING SYSTEM<YS9> (B) UPPER	1-13663-074-0	01	1	9511-0203	●	●
29	COVER; DUST,IDLE PULLEY OVERHEAD COOLING SYSTEM<YS9> (B) UPPER,LOWER	1-13664-013-0	02	1	9505-9510	●	●
29	COVER; DUST,IDLE PULLEY OVERHEAD COOLING SYSTEM<YS9> (B) UPPER	1-13664-013-0	01	1	9511-0203	●	●
29	COVER; DUST,IDLE PULLEY OVERHEAD COOLING SYSTEM<YS9> (A) UPPER,LOWER	1-13664-014-0	02	1	9505-0203	●	●
29	COVER; DUST,IDLE PULLEY OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR USER<TGZ> (A) UPPER,LOWER	1-13664-014-0	02	1	0204-	●	●
30	COLLAR; IDLE PULLEY OVERHEAD COOLING SYSTEM<YS9> UPPER,LOWER	1-13666-030-0	02	1	9505-0203	●	●
30	COLLAR; IDLE PULLEY OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR USER<TGZ> UPPER,LOWER	1-13666-030-0	02	1	0204-	●	●
31	BOLT; ADJ,IDLE PULLEY OVERHEAD COOLING SYSTEM<YS9> UPPER,LOWER	1-13669-145-0	02	1	9505-0203	●	●
31	BOLT; ADJ,IDLE PULLEY OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR USER<TGZ> UPPER,LOWER	1-13669-145-0	02	1	0204-	●	●
34	SHAFT; IDLE PULLEY OVERHEAD COOLING SYSTEM<YS9> UPPER,LOWER	1-13665-033-0	02	1	9505-0203	●	●
34	SHAFT; IDLE PULLEY OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR USER<TGZ> UPPER,LOWER	1-13665-033-0	02	1	0204-0204	●	●
34	SHAFT; IDLE PULLEY OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR USER<TGZ> UPPER,LOWER	8-97602-309-0	02	1	0204-	●	●
39	WASHER; LK,ADJ BOLT OVERHEAD COOLING SYSTEM<YS9> UPPER,LOWER ID=10.2	9-09150-510-0	02	1	9505-0203	●	●
39	WASHER; LK,ADJ BOLT OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR USER<TGZ> UPPER,LOWER ID=10.2	9-09150-510-0	02	1	0204-	●	●
40	BUSHING; IDLE PULLEY OVERHEAD COOLING SYSTEM<YS9> UPPER,LOWER	1-13669-144-0	02	1	9505-9510	●	●
40	BUSHING; IDLE PULLEY OVERHEAD COOLING SYSTEM<YS9> UPPER	1-13669-144-0	01	1	9511-0203	●	●
41	RING; SNAP,IDLE PULLEY OVERHEAD COOLING SYSTEM<YS9> UPPER,LOWER	1-13669-143-0	02	1	9505-9510	●	●
41	RING; SNAP,IDLE PULLEY OVERHEAD COOLING SYSTEM<YS9> UPPER	1-13669-143-0	01	1	9511-0203	●	●
44	BEARING; IDLE PULLEY OVERHEAD COOLING SYSTEM<YS9> UPPER,LOWER	1-83576-032-0	02	1	9505-9510	●	●
44	BEARING; IDLE PULLEY OVERHEAD COOLING SYSTEM<YS9> UPPER	1-83576-032-0	01	1	9511-0203	●	●
66	BELT; A/C CMPR OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR DELETE<TEW> LOWER L=1150	1-13671-197-0	01	1	9505-9605	●	●
66	BELT; A/C CMPR OVERHEAD COOLING SYSTEM<YS9> LOWER L=1150	1-13671-197-0	01	1	9606-0203	●	●
66	BELT; A/C CMPR OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR DEALER<TGY>,COOLER COMPRESSOR USER<TGZ> LOWER L=1150	1-13671-197-0	01	1	0204-	●	●
66	BELT; A/C CMPR OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR DELETE<TEW> UPPER L=1791	8-94399-431-0	01	1	9505-9605	●	●
66	BELT; A/C CMPR OVERHEAD COOLING SYSTEM<YS9> UPPER L=1791	8-94399-431-0	01	1	9606-0203	●	●
66	BELT; A/C CMPR OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR DEALER<TGY>,COOLER COMPRESSOR USER<TGZ> UPPER L=1791	8-94399-431-0	01	1	0204-1402	●	●
66	BELT; A/C CMPR OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR DEALER<TGY>,COOLER COMPRESSOR USER<TGZ> UPPER L=1786	8-98253-453-0	01	1	1403-	●	●
116	BOLT; IDLER PULLEY TO TIMING GEAR CASE OVERHEAD COOLING SYSTEM<YS9> M10X20 FLANGE	0-28181-020-0	01	1	9505-0203	●	●
116	BOLT; IDLER PULLEY TO TIMING GEAR CASE OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR USER<TGZ> M10X20 FLANGE	0-28181-020-0	01	1	0204-0512	●	●
116	BOLT; IDLER PULLEY TO TIMING GEAR CASE OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR USER<TGZ> M10X20 FLANGE	0-28151-020-0	01	1	0601-	●	●
116	BOLT; IDLER PULLEY TO TIMING GEAR CASE OVERHEAD COOLING SYSTEM<YS9> M10X30 FLANGE	0-28181-030-0	02	1	9505-0203	●	●
116	BOLT; IDLER PULLEY TO TIMING GEAR CASE OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR USER<TGZ> M10X30 FLANGE	0-28181-030-0	02	1	0204-0512	●	●
116	BOLT; IDLER PULLEY TO TIMING GEAR CASE OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR USER<TGZ> M10X30 FLANGE	0-28151-030-0	02	1	0601-	●	●
116	BOLT; IDLER PULLEY TO TIMING GEAR CASE OVERHEAD COOLING SYSTEM<YS9> M12X40 FLANGE	0-28181-240-0	01	1	9505-0203	●	●
116	BOLT; IDLER PULLEY TO TIMING GEAR CASE OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR USER<TGZ> M12X40 FLANGE	0-28181-240-0	01	1	0204-0804	●	●
116	BOLT; IDLER PULLEY TO TIMING GEAR CASE OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR USER<TGZ> M12X40 FLANGE	0-28151-240-0	01	1	0805-	●	●

1 4 4 11 4 4 66 131 1 120 11 4 112 66 120 120 118 287

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; A/C OVERHEAD COOLING SYSTEM<YS9> (A) UPPER FOR COMP.	8-94394-968-0	01	1	9505-0203	●	●
1	BRACKET; A/C OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR USER<TGZ> (A) UPPER FOR COMP.	8-94394-968-0	01	1	0204-	●	●
1	BRACKET; A/C OVERHEAD COOLING SYSTEM<YS9> (B) LOWER FOR ACG & COMP.	8-94396-215-0	01	1	9505-0203	●	●
1	BRACKET; A/C OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR USER<TGZ> (B) LOWER FOR ACG & COMP.	8-94396-215-0	01	1	0204-	●	●
4	BOLT; A/C CMPR BRKT OVERHEAD COOLING SYSTEM<YS9> UPPER CYL HD-RH SIDE M10X22 FLANGE	0-28181-022-0	02	1	9505-0203	●	●
4	BOLT; A/C CMPR BRKT OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR USER<TGZ> UPPER CYL HD-RH SIDE M10X22 FLANGE	0-28181-022-0	02	1	0204-	●	●
4	BOLT; A/C CMPR BRKT OVERHEAD COOLING SYSTEM<YS9> UPPER CYL HD-FRT SLDE M12X35 FLANGE	0-28181-235-0	02	1	9505-0203	●	●
4	BOLT; A/C CMPR BRKT OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR USER<TGZ> UPPER CYL HD-FRT SLDE M12X35 FLANGE	0-28181-235-0	02	1	0204-0512	●	●
4	BOLT; A/C CMPR BRKT OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR USER<TGZ> UPPER CYL HD-FRT SLDE M12X35 FLANGE	0-28151-235-0	02	1	0601-	●	●
4	BOLT; A/C CMPR BRKT OVERHEAD COOLING SYSTEM<YS9> UPPER CYL HD-RH SIDE M10X55 FLANGE	8-94399-863-1	01	1	9505-0203	●	●
4	BOLT; A/C CMPR BRKT OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR USER<TGZ> UPPER CYL HD-RH SIDE M10X55 FLANGE	8-94399-863-1	01	1	0204-0805	●	●
4	BOLT; A/C CMPR BRKT OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR USER<TGZ> M10X55 FLANGE	8-97365-449-0	01	1	0806-	●	●
4	BOLT; A/C CMPR BRKT OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR DELETE<TEW> UPPER & LOWER M10X40	9-01666-040-0	04	1	9505-9605	●	●
4	BOLT; A/C CMPR BRKT OVERHEAD COOLING SYSTEM<YS9> UPPER & LOWER M10X40	9-01666-040-0	04	1	9606-0203	●	●
4	BOLT; A/C CMPR BRKT OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR DEALER<TGY>,COOLER COMPRESSOR USER<TGZ> UPPER & LOWER M10X40	9-01666-040-0	04	1	0204-0512	●	●
4	BOLT; A/C CMPR BRKT OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR DEALER<TGY>,COOLER COMPRESSOR USER<TGZ> UPPER & LOWER M10X40	0-16956-040-0	04	1	0601-	●	●
4	BOLT; A/C CMPR BRKT OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR DELETE<TEW> UPPER COMPR LOWER M10X20	9-02361-020-0	02	1	9505-9605	●	●
4	BOLT; A/C CMPR BRKT OVERHEAD COOLING SYSTEM<YS9> UPPER COMPR LOWER M10X20	9-02361-020-0	02	1	9606-0203	●	●
4	BOLT; A/C CMPR BRKT OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR DEALER<TGY>,COOLER COMPRESSOR USER<TGZ> UPPER COMPR LOWER M10X20	9-02361-020-0	02	1	0204-	●	●
4	BOLT; A/C CMPR BRKT OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR DELETE<TEW> LOWER COMPR LOWER M10X25	9-02361-025-0	02	1	9505-9605	●	●
4	BOLT; A/C CMPR BRKT OVERHEAD COOLING SYSTEM<YS9> LOWER COMPR LOWER M10X25	9-02361-025-0	02	1	9606-0203	●	●
4	BOLT; A/C CMPR BRKT OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR DEALER<TGY>,COOLER COMPRESSOR USER<TGZ> LOWER COMPR LOWER M10X25	9-02361-025-0	02	1	0204-	●	●
11	WASHER; PL,A/C CMPR BRKT UPPER & LOWER ID=10.5	9-09164-510-0	08	1	9505-9605	●	●
11	WASHER; PL,A/C CMPR BRKT OVERHEAD COOLING SYSTEM<YS9> UPPER & LOWER ID=10.5	9-09164-510-0	08	1	9606-0203	●	●
11	WASHER; PL,A/C CMPR BRKT OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR DEALER<TGY>,COOLER COMPRESSOR USER<TGZ> UPPER & LOWER ID=10.5	9-09164-510-0	08	1	0204-	●	●
66	BELT; A/C CMPR OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR DELETE<TEW> LOWER L=1150	1-13671-197-0	01	1	9505-9605	●	●
66	BELT; A/C CMPR OVERHEAD COOLING SYSTEM<YS9> LOWER L=1150	1-13671-197-0	01	1	9606-0203	●	●
66	BELT; A/C CMPR OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR DEALER<TGY>,COOLER COMPRESSOR USER<TGZ> LOWER L=1150	1-13671-197-0	01	1	0204-	●	●
66	BELT; A/C CMPR OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR DELETE<TEW> UPPER L=1791	8-94399-431-0	01	1	9505-9605	●	●
66	BELT; A/C CMPR OVERHEAD COOLING SYSTEM<YS9> UPPER L=1791	8-94399-431-0	01	1	9606-0203	●	●
66	BELT; A/C CMPR OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR DEALER<TGY>,COOLER COMPRESSOR USER<TGZ> UPPER L=1791	8-94399-431-0	01	1	0204-1402	●	●
66	BELT; A/C CMPR OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR DEALER<TGY>,COOLER COMPRESSOR USER<TGZ> UPPER L=1786	8-98253-453-0	01	1	1403-	●	●
112	BOLT; STAY OVERHEAD COOLING SYSTEM<YS9> M8X16 FLANGE	0-28080-816-0	03	1	9505-0203	●	●
112	BOLT; STAY OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR USER<TGZ> M8X16 FLANGE	0-28080-816-0	03	1	0204-0512	●	●
112	BOLT; STAY OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR USER<TGZ> M8X16 FLANGE	0-28050-816-0	03	1	0601-	●	●
118	BRACKET; HARNESS CLIP,A/C OVERHEAD COOLING SYSTEM<YS9>	8-94393-074-1	01	1	9505-0203	●	●
118	BRACKET; HARNESS CLIP,A/C OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR USER<TGZ>	8-94393-074-1	01	1	0204-	●	●
120	BOLT; BRKT TO CMPR LWR OVERHEAD COOLING SYSTEM<YS9> M8X40 FLANGE	0-28080-840-0	02	1	9505-0203	●	●
120	BOLT; BRKT TO CMPR LWR OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR USER<TGZ> M8X40 FLANGE	0-28080-840-0	02	1	0204-0512	●	●
120	BOLT; BRKT TO CMPR LWR OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR USER<TGZ> M8X40 FLANGE	0-28050-840-0	02	1	0601-	●	●
120	BOLT; BRKT TO CMPR LWR OVERHEAD COOLING SYSTEM<YS9> M10X35 FLANGE	0-28181-035-0	01	1	9505-0203	●	●
120	BOLT; BRKT TO CMPR LWR OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR USER<TGZ> M10X35 FLANGE	0-28181-035-0	01	1	0204-0512	●	●
120	BOLT; BRKT TO CMPR LWR OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR USER<TGZ> M10X35 FLANGE	0-28151-035-0	01	1	0601-	●	●
120	BOLT; BRKT TO CMPR LWR OVERHEAD COOLING SYSTEM<YS9> M10X45 FLANGE	0-28181-045-0	01	1	9505-0203	●	●
120	BOLT; BRKT TO CMPR LWR OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR USER<TGZ> M10X45 FLANGE	0-28181-045-0	01	1	0204-0512	●	●
120	BOLT; BRKT TO CMPR LWR OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR USER<TGZ> M10X45 FLANGE	0-28151-045-0	01	1	0601-	●	●
120	BOLT; BRKT TO CMPR LWR OVERHEAD COOLING SYSTEM<YS9> M10X107 FLANGE	8-94399-488-1	02	1	9505-0203	●	●
120	BOLT; BRKT TO CMPR LWR OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR USER<TGZ> M10X107 FLANGE	8-94399-488-1	02	1	0204-	●	●
131	STAY; CMPR BRKT OVERHEAD COOLING SYSTEM<YS9>	8-94393-121-0	01	1	9505-0203	●	●
131	STAY; CMPR BRKT OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR USER<TGZ>	8-94393-121-0	01	1	0204-	●	●
287	BOLT; BRKT,HARNESS OVERHEAD COOLING SYSTEM<YS9> M8X12 FLANGE	0-28080-812-0	01	1	9505-0203	●	●
287	BOLT; BRKT,HARNESS OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR USER<TGZ> M8X12 FLANGE	0-28080-812-0	01	1	0204-0512	●	●
287	BOLT; BRKT,HARNESS OVERHEAD COOLING SYSTEM<YS9> EXC. COOLER COMPRESSOR USER<TGZ> M8X12 FLANGE	0-28050-812-0	01	1	0601-	●	●
