1-11 — RADIATOR HOSE AND SUB TANK (#45039) — 332 parça
çizim 13137
56 128 56 55 56 128 56 55
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
55 01.173 HOSE; WATER,RAD OUTLET
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97216-029-0 01 1 0211-0501 ● ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET 8-97216-029-0 01 1 0211-0501 ●
55 01.173 HOSE; WATER,RAD OUTLET
4HE1-TCN ENG(RDR) 		8-97216-029-0 01 1 0502- ●
55 01.173 HOSE; WATER,RAD OUTLET
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 		8-97216-029-0 01 1 0502- ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97133-143-0 01 1 0211-0501 ● ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HF1-S ENG(RLS) 		8-97124-743-0 01 1 0211-0501 ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HG1 ENG(RJH) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51) 		8-97124-743-0 01 1 0211-0501 ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HG1 ENG(RJH) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97124-743-0 01 1 0211-0501 ●
55 01.173 HOSE; WATER,RAD OUTLET
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97124-743-0 01 1 0502- ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HG1 ENG(RJH) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4) 		8-97124-743-0 01 1 0502- ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HG1 ENG(RJH) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97124-743-0 01 1 0502- ●
55 01.173 HOSE; WATER,RAD OUTLET 8-97124-743-0 01 1 0502- ●
55 01.173 HOSE; WATER,RAD OUTLET
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97177-372-0 01 1 0211-0501 ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) 		8-97177-372-0 01 1 0211-0501 ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97177-372-0 01 1 0211-0501 ●
55 01.173 HOSE; WATER,RAD OUTLET
4HG1-T ENG(RDP) 		8-97177-372-0 01 1 0502-0612 ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) 		8-97177-372-0 01 1 0502-0612 ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) 		8-97177-372-0 01 1 0502-0612 ●
55 01.173 HOSE; WATER,RAD OUTLET
4HG1-T ENG(RDP) 		8-97177-372-0 01 1 0701- ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) 		8-97177-372-0 01 1 0701- ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) 		8-97177-372-0 01 1 0701- ●
55 01.173 HOSE; WATER,RAD OUTLET
4HK1-TCS ENG(RJS) 		8-97330-530-0 01 1 0507-0606 ●
55 01.173 HOSE; WATER,RAD OUTLET
4HK1-TCS ENG(RJS) 		8-97330-530-0 01 1 0607- ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HK1-TCN ENG(RDQ) 		8-98019-472-0 01 1 0607- ● ●
56 01.166 CLIP; WATER HOSE,RAD
4HF1-S ENG(RLS),4HE1 ENG(RLY) ID=40 		8-97245-216-0 02 1 0211-0501 ● ●
56 01.166 CLIP; WATER HOSE,RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) ID=40 		8-97245-216-0 02 1 0211-0501 ● ●
56 01.166 CLIP; WATER HOSE,RAD
4HG1 ENG(RJH),4HE1 ENG(RLY) ID=40 		8-97245-216-0 02 1 0211-0501 ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40 		8-97245-216-0 02 1 0211-0501 ●
56 01.166 CLIP; WATER HOSE,RAD
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=40 		8-97245-216-0 02 1 0502-0506 ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH), 4HK1-TCSENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=40 		8-97245-216-0 02 1 0507-0606 ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N EN G(RJZ),4HF1-S ENG(RLS) ID=40 		8-97245-216-0 02 1 0607- ● ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97160-257-1 01 1 0211-0501 ● ● ● ● ●
128 01.159 HOSE; WATER,RAD INL 8-97160-257-1 01 1 0211-0501 ●
128 01.159 HOSE; WATER,RAD INL
4HE1-TCN ENG(RDR) 		8-97160-257-1 01 1 0502-0606 ●
128 01.159 HOSE; WATER,RAD INL
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 		8-97160-257-1 01 1 0502-0606 ● ● ●
128 01.159 HOSE; WATER,RAD INL
4HE1-TCN ENG(RDR) 		8-97160-257-1 01 1 0607- ●
128 01.159 HOSE; WATER,RAD INL
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 		8-97160-257-1 01 1 0607- ●
128 01.159 HOSE; WATER,RAD INL
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) 		8-97160-257-1 01 1 0607- ● ●
128 01.159 HOSE; WATER,RAD INL
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97133-142-0 01 1 0211-0501 ● ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4HF1-S ENG(RLS) 		8-97147-472-0 01 1 0211-0501 ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4HG1 ENG(RJH) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51) 		8-97147-472-0 01 1 0211-0501 ● ●
128 01.159 HOSE; WATER,RAD INL
4HG1 ENG(RJH) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER(K51),EGYPT EQUIPMENT(YJ4) 		8-97147-472-0 01 1 0211-0501 ●
128 01.159 HOSE; WATER,RAD INL
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97147-472-0 01 1 0502- ● ● ●
128 01.159 HOSE; WATER,RAD INL
4HG1 ENG(RJH) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4) 		8-97147-472-0 01 1 0502- ● ●
128 01.159 HOSE; WATER,RAD INL
4HG1 ENG(RJH) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97147-472-0 01 1 0502- ●
128 01.159 HOSE; WATER,RAD INL 8-97147-472-0 01 1 0502- ●
128 01.159 HOSE; WATER,RAD INL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97210-676-0 01 1 0211-0501 ● ● ●
128 01.159 HOSE; WATER,RAD INL
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER(K51) 		8-97210-676-0 01 1 0211-0501 ● ●
128 01.159 HOSE; WATER,RAD INL
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. TURBOCHARGER(K51) 		8-97210-676-0 01 1 0211-0501 ●
128 01.159 HOSE; WATER,RAD INL
4HG1-T ENG(RDP) 		8-97210-676-0 01 1 0502-0612 ● ●
128 01.159 HOSE; WATER,RAD INL
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) 		8-97210-676-0 01 1 0502-0612 ● ●
128 01.159 HOSE; WATER,RAD INL
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) 		8-97210-676-0 01 1 0502-0612 ●
128 01.159 HOSE; WATER,RAD INL
4HG1-T ENG(RDP) 		8-97210-676-0 01 1 0701- ● ● ●
128 01.159 HOSE; WATER,RAD INL
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) 		8-97210-676-0 01 1 0701- ● ●
128 01.159 HOSE; WATER,RAD INL
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) 		8-97210-676-0 01 1 0701- ●
128 01.159 HOSE; WATER,RAD INL
4HK1-TCS ENG(RJS) 		8-97330-529-0 01 1 0507-0606 ●
128 01.159 HOSE; WATER,RAD INL
4HK1-TCS ENG(RJS) 		8-97330-529-0 01 1 0607- ● ●
çizim 51263

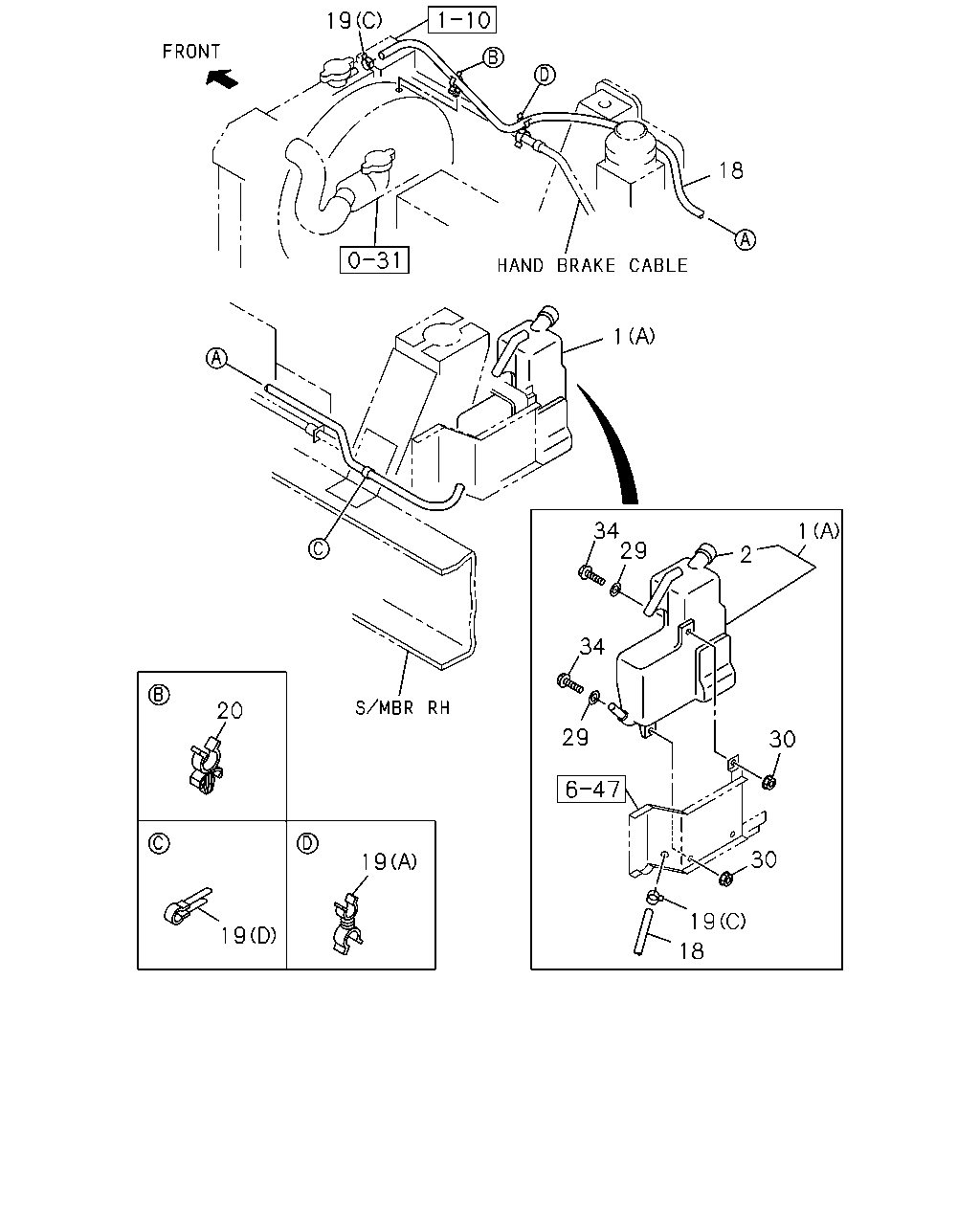

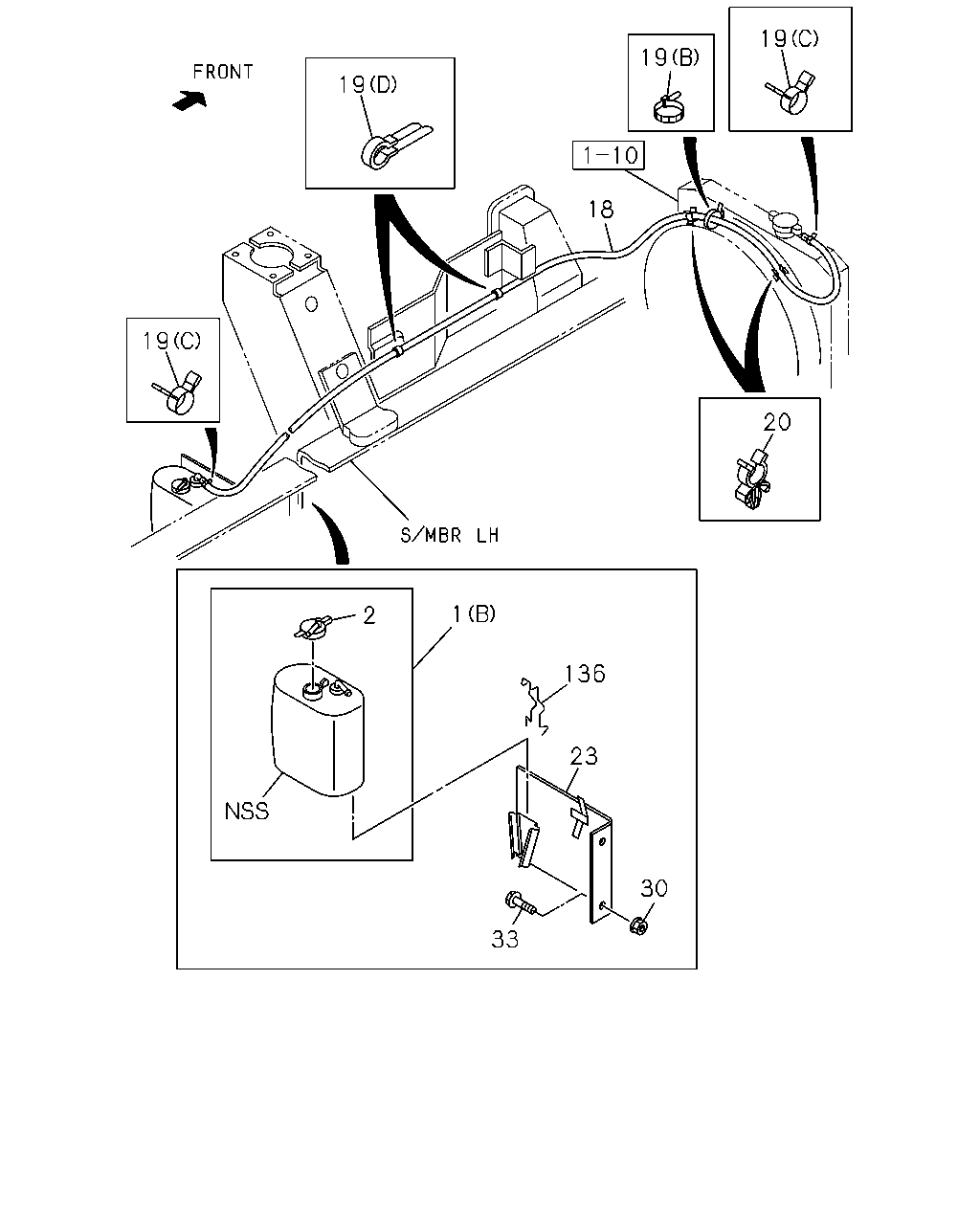

19 19 18 19 2 136 1 23 33 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 TANK; SURGE,RAD
4HF1-S ENG(RLS),4HE1 ENG(RLY) (A) 		8-97210-844-0 01 1 0211-0501 ●
1 01.219 TANK; SURGE,RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) (A) 		8-97210-844-0 01 1 0211-0501 ● ●
1 01.219 TANK; SURGE,RAD
4HG1 ENG(RJH),4HE1 ENG(RLY) (A) 		8-97210-844-0 01 1 0211-0501 ●
1 01.219 TANK; SURGE,RAD
(A) 		8-97210-844-0 01 1 0211-0501 ●
1 01.219 TANK; SURGE,RAD
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97210-844-0 01 1 0502-0506 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH), 4HK1-TCSENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97210-844-0 01 1 0507-0606 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N EN G(RJZ),4HF1-S ENG(RLS) (A) 		8-97210-844-0 01 1 0607-1010 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N EN G(RJZ),4HF1-S ENG(RLS) (A) 		8-98178-177-0 01 1 1011- ● ● ● ●
1 01.219 TANK; SURGE,RAD
4HF1-S ENG(RLS),4HE1 ENG(RLY) (B) 		8-94378-388-1 01 1 0211-0501 ●
1 01.219 TANK; SURGE,RAD
(B) 		8-94378-388-1 01 1 0502- ●
2 01.203 CAP; SURGE TANK
4HF1-S ENG(RLS),4HE1 ENG(RLY) 		8-97217-796-0 01 1 0211-0501 ●
2 01.203 CAP; SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 		8-97217-796-0 01 1 0211-0501 ● ●
2 01.203 CAP; SURGE TANK
4HG1 ENG(RJH),4HE1 ENG(RLY) 		8-97217-796-0 01 1 0211-0501 ●
2 01.203 CAP; SURGE TANK 8-97217-796-0 01 1 0211-0501 ●
2 01.203 CAP; SURGE TANK
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97217-796-0 01 1 0502-0506 ● ● ● ●
2 01.203 CAP; SURGE TANK
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH), 4HK1-TCSENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97217-796-0 01 1 0507-0606 ● ● ● ●
2 01.203 CAP; SURGE TANK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N EN G(RJZ),4HF1-S ENG(RLS) 		8-97217-796-0 01 1 0607-1010 ● ● ● ●
2 01.203 CAP; SURGE TANK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N EN G(RJZ),4HF1-S ENG(RLS) 		8-98178-074-0 01 1 1011- ● ● ● ●
2 01.203 CAP; SURGE TANK
4HF1-S ENG(RLS),4HE1 ENG(RLY) 		8-94449-363-0 01 1 0211-0501 ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 0502- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1-S ENG(RLS) L=1455 		8-97148-535-2 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) L=1455 		8-97148-535-2 01 1 0211-0501 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH) L=1455 		8-97148-535-2 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) L=1455 		8-97148-535-2 01 1 0502-0612 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) L=1455 		8-97148-535-2 01 1 0502-0612 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH) L=1455 		8-97148-535-2 01 1 0502-0612 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) L=1455 		8-97148-535-2 01 1 0701- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) L=1455 		8-97148-535-2 01 1 0701- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH) L=1455 		8-97148-535-2 01 1 0701- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=1450 		8-97218-446-1 01 1 0211-0501 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1450 		8-97218-446-1 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1-TCN ENG(RDR) L=1450 		8-97218-446-1 01 1 0502- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) L=1450 		8-97218-446-1 01 1 0502- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> L=1550 		8-97129-560-2 01 1 0211-0501 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCS ENG(RJS) L=1330 		8-97358-573-0 01 1 0507-0606 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCS ENG(RJS) L=1330 		8-97358-573-0 01 1 0607- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCN ENG(RDQ) L=1280 		8-98008-854-1 01 1 0607- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=2170 		8-97214-383-6 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1-S ENG(RLS) L=680 SERVICED BY L=3000 		0-03457-300-0 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
L=680 SERVICED BY L=3000 		0-03457-300-0 01 1 0502- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-S ENG(RLS),4HE1 ENG(RLY) (D) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) (D) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HE1 ENG(RLY) (D) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
(D) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) (D) ID=14 L=47 		5-09700-319-0 01 1 0502-0606 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (D) ID=14 L=47 		5-09700-319-0 01 1 0502-0606 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH) (D) ID=14 L=47 		5-09700-319-0 01 1 0502-0606 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (D) ID=14 L=47 		5-09700-319-0 01 1 0607- ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-S ENG(RLS),4HE1 ENG(RLY) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0211-0501 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HE1 ENG(RLY) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0502-0506 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH), 4HK1-TCSENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0507-0606 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N EN G(RJZ),4HF1-S ENG(RLS) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0607- ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (C) ID=12 		8-94238-610-0 02 1 0211-0501 ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (C) ID=12 		8-94238-610-0 02 1 0502-0911 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(C) ID=12 		8-98150-358-0 02 1 0912- ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCS ENG(RJS) (D) ID=14 L=47 		5-09700-319-0 02 1 0507-0606 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) ID=14 L=47 		5-09700-319-0 02 1 0607- ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 02 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-S ENG(RLS) 03.164 (B) L=217 		8-94235-793-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
03.164 (B) L=217 		8-94235-793-0 01 1 0502- ●
23 01.219 BRACKET; RESERVE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97214-324-1 01 1 0211-0501 ●
23 01.219 BRACKET; RESERVE TANK
4HF1-S ENG(RLS) 		8-97061-510-0 01 1 0211-0501 ●
23 01.219 BRACKET; RESERVE TANK 8-97061-510-0 01 1 0502- ●
30 01.203 NUT
4HF1-S ENG(RLS),4HE1 ENG(RLY) 04.594 M6 FLANGE 		0-91150-106-0 03 1 0211-0501 ●
30 01.203 NUT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 04.594 M6 FLANGE 		0-91150-106-0 03 1 0211-0501 ● ●
30 01.203 NUT
4HG1 ENG(RJH),4HE1 ENG(RLY) 04.594 M6 FLANGE 		0-91150-106-0 03 1 0211-0501 ●
30 01.203 NUT
04.594 M6 FLANGE 		0-91150-106-0 03 1 0211-0501 ●
30 01.203 NUT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.594 M6 FLANGE 		0-91150-106-0 03 1 0502-0506 ● ● ● ●
30 01.203 NUT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH), 4HK1-TCSENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.594 M6 FLANGE 		0-91150-106-0 03 1 0507-0602 ● ● ● ●
30 01.203 NUT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH), 4HK1-TCSENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.062 M6 FLANGE 		0-91180-106-0 03 1 0603-0606 ● ● ● ●
30 01.203 NUT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N EN G(RJZ),4HF1-S ENG(RLS) 01.062 M6 FLANGE 		0-91180-106-0 03 1 0607- ● ● ● ●
30 01.203 NUT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0211-0501 ●
30 01.203 NUT
4HF1-S ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ●
30 01.203 NUT
07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ●
30 01.203 NUT
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603- ●
33 01.277 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0211-0501 ●
33 01.277 BOLT; BRKT
4HF1-S ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0211-0501 ●
33 01.277 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0502-0512 ●
33 01.277 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
136 01.219 STOPPER; SURGE TANK
4HF1-S ENG(RLS),4HE1 ENG(RLY) 		8-97087-220-0 01 1 0211-0501 ●
136 01.219 STOPPER; SURGE TANK 8-97087-220-0 01 1 0502- ●
çizim 51264
19 18 1 34 29 1 2 34 20 29 30 30 19 19 19 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 TANK; SURGE,RAD
4HF1-S ENG(RLS),4HE1 ENG(RLY) (A) 		8-97210-844-0 01 1 0211-0501 ●
1 01.219 TANK; SURGE,RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) (A) 		8-97210-844-0 01 1 0211-0501 ● ●
1 01.219 TANK; SURGE,RAD
4HG1 ENG(RJH),4HE1 ENG(RLY) (A) 		8-97210-844-0 01 1 0211-0501 ●
1 01.219 TANK; SURGE,RAD
(A) 		8-97210-844-0 01 1 0211-0501 ●
1 01.219 TANK; SURGE,RAD
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97210-844-0 01 1 0502-0506 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH), 4HK1-TCSENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97210-844-0 01 1 0507-0606 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N EN G(RJZ),4HF1-S ENG(RLS) (A) 		8-97210-844-0 01 1 0607-1010 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N EN G(RJZ),4HF1-S ENG(RLS) (A) 		8-98178-177-0 01 1 1011- ● ● ● ●
1 01.219 TANK; SURGE,RAD
4HF1-S ENG(RLS),4HE1 ENG(RLY) (B) 		8-94378-388-1 01 1 0211-0501 ●
1 01.219 TANK; SURGE,RAD
(B) 		8-94378-388-1 01 1 0502- ●
2 01.203 CAP; SURGE TANK
4HF1-S ENG(RLS),4HE1 ENG(RLY) 		8-97217-796-0 01 1 0211-0501 ●
2 01.203 CAP; SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 		8-97217-796-0 01 1 0211-0501 ● ●
2 01.203 CAP; SURGE TANK
4HG1 ENG(RJH),4HE1 ENG(RLY) 		8-97217-796-0 01 1 0211-0501 ●
2 01.203 CAP; SURGE TANK 8-97217-796-0 01 1 0211-0501 ●
2 01.203 CAP; SURGE TANK
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97217-796-0 01 1 0502-0506 ● ● ● ●
2 01.203 CAP; SURGE TANK
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH), 4HK1-TCSENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97217-796-0 01 1 0507-0606 ● ● ● ●
2 01.203 CAP; SURGE TANK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N EN G(RJZ),4HF1-S ENG(RLS) 		8-97217-796-0 01 1 0607-1010 ● ● ● ●
2 01.203 CAP; SURGE TANK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N EN G(RJZ),4HF1-S ENG(RLS) 		8-98178-074-0 01 1 1011- ● ● ● ●
2 01.203 CAP; SURGE TANK
4HF1-S ENG(RLS),4HE1 ENG(RLY) 		8-94449-363-0 01 1 0211-0501 ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 0502- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1-S ENG(RLS) L=1455 		8-97148-535-2 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) L=1455 		8-97148-535-2 01 1 0211-0501 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH) L=1455 		8-97148-535-2 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) L=1455 		8-97148-535-2 01 1 0502-0612 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) L=1455 		8-97148-535-2 01 1 0502-0612 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH) L=1455 		8-97148-535-2 01 1 0502-0612 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) L=1455 		8-97148-535-2 01 1 0701- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) L=1455 		8-97148-535-2 01 1 0701- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH) L=1455 		8-97148-535-2 01 1 0701- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=1450 		8-97218-446-1 01 1 0211-0501 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1450 		8-97218-446-1 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1-TCN ENG(RDR) L=1450 		8-97218-446-1 01 1 0502- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) L=1450 		8-97218-446-1 01 1 0502- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> L=1550 		8-97129-560-2 01 1 0211-0501 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCS ENG(RJS) L=1330 		8-97358-573-0 01 1 0507-0606 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCS ENG(RJS) L=1330 		8-97358-573-0 01 1 0607- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCN ENG(RDQ) L=1280 		8-98008-854-1 01 1 0607- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=2170 		8-97214-383-6 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1-S ENG(RLS) L=680 SERVICED BY L=3000 		0-03457-300-0 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
L=680 SERVICED BY L=3000 		0-03457-300-0 01 1 0502- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-S ENG(RLS),4HE1 ENG(RLY) (D) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) (D) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HE1 ENG(RLY) (D) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
(D) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) (D) ID=14 L=47 		5-09700-319-0 01 1 0502-0606 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (D) ID=14 L=47 		5-09700-319-0 01 1 0502-0606 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH) (D) ID=14 L=47 		5-09700-319-0 01 1 0502-0606 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (D) ID=14 L=47 		5-09700-319-0 01 1 0607- ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-S ENG(RLS),4HE1 ENG(RLY) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0211-0501 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HE1 ENG(RLY) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0502-0506 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH), 4HK1-TCSENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0507-0606 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N EN G(RJZ),4HF1-S ENG(RLS) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0607- ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (C) ID=12 		8-94238-610-0 02 1 0211-0501 ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (C) ID=12 		8-94238-610-0 02 1 0502-0911 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(C) ID=12 		8-98150-358-0 02 1 0912- ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCS ENG(RJS) (D) ID=14 L=47 		5-09700-319-0 02 1 0507-0606 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) ID=14 L=47 		5-09700-319-0 02 1 0607- ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 02 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-S ENG(RLS) 03.164 (B) L=217 		8-94235-793-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
03.164 (B) L=217 		8-94235-793-0 01 1 0502- ●
20 01.166 CLIP; HOSE,RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> ID=10.8 		8-97354-231-0 01 1 0211-0501 ● ● ● ●
20 01.166 CLIP; HOSE,RAD
ID=10.8 		8-97354-231-0 01 1 0211-0501 ●
20 01.166 CLIP; HOSE,RAD
4HE1-TCN ENG(RDR) ID=10.8 		8-97354-231-0 01 1 0502-0606 ●
20 01.166 CLIP; HOSE,RAD
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) ID=10.8 		8-97354-231-0 01 1 0502-0606 ● ● ●
20 01.166 CLIP; HOSE,RAD
4HE1-TCN ENG(RDR) ID=10.8 		8-97354-231-0 01 1 0607- ●
20 01.166 CLIP; HOSE,RAD
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) ID=10.8 		8-97354-231-0 01 1 0607- ●
20 01.166 CLIP; HOSE,RAD
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) ID=10.8 		8-97354-231-0 01 1 0607- ● ●
20 01.166 CLIP; HOSE,RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> ID=10.8 		8-97354-231-0 02 1 0211-0501 ●
29 01.203 WASHER; PL,RESERVE TANK
4HF1-S ENG(RLS),4HE1 ENG(RLY) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0211-0501 ●
29 01.203 WASHER; PL,RESERVE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0211-0501 ● ●
29 01.203 WASHER; PL,RESERVE TANK
4HG1 ENG(RJH),4HE1 ENG(RLY) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0211-0501 ●
29 01.203 WASHER; PL,RESERVE TANK
02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0211-0501 ●
29 01.203 WASHER; PL,RESERVE TANK
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0502-0506 ● ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH), 4HK1-TCSENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0507-0605 ● ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH), 4HK1-TCSENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 00.413 ID=6.4 OD=18 		0-91610-706-0 03 1 0606-0606 ● ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N EN G(RJZ),4HF1-S ENG(RLS) 00.413 ID=6.4 OD=18 		0-91610-706-0 03 1 0607- ● ● ● ●
30 01.203 NUT
4HF1-S ENG(RLS),4HE1 ENG(RLY) 04.594 M6 FLANGE 		0-91150-106-0 03 1 0211-0501 ●
30 01.203 NUT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 04.594 M6 FLANGE 		0-91150-106-0 03 1 0211-0501 ● ●
30 01.203 NUT
4HG1 ENG(RJH),4HE1 ENG(RLY) 04.594 M6 FLANGE 		0-91150-106-0 03 1 0211-0501 ●
30 01.203 NUT
04.594 M6 FLANGE 		0-91150-106-0 03 1 0211-0501 ●
30 01.203 NUT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.594 M6 FLANGE 		0-91150-106-0 03 1 0502-0506 ● ● ● ●
30 01.203 NUT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH), 4HK1-TCSENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.594 M6 FLANGE 		0-91150-106-0 03 1 0507-0602 ● ● ● ●
30 01.203 NUT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH), 4HK1-TCSENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.062 M6 FLANGE 		0-91180-106-0 03 1 0603-0606 ● ● ● ●
30 01.203 NUT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N EN G(RJZ),4HF1-S ENG(RLS) 01.062 M6 FLANGE 		0-91180-106-0 03 1 0607- ● ● ● ●
30 01.203 NUT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0211-0501 ●
30 01.203 NUT
4HF1-S ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ●
30 01.203 NUT
07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ●
30 01.203 NUT
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603- ●
34 01.203 BOLT; RESERVE TANK
4HF1-S ENG(RLS),4HE1 ENG(RLY) 04.930 M6X20 FLANGE 		0-28680-620-0 03 1 0211-0501 ●
34 01.203 BOLT; RESERVE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 04.930 M6X20 FLANGE 		0-28680-620-0 03 1 0211-0501 ● ●
34 01.203 BOLT; RESERVE TANK
4HG1 ENG(RJH),4HE1 ENG(RLY) 04.930 M6X20 FLANGE 		0-28680-620-0 03 1 0211-0501 ●
34 01.203 BOLT; RESERVE TANK
04.930 M6X20 FLANGE 		0-28680-620-0 03 1 0211-0501 ●
34 01.203 BOLT; RESERVE TANK
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.930 M6X20 FLANGE 		0-28680-620-0 03 1 0502-0506 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH), 4HK1-TCSENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.930 M6X20 FLANGE 		0-28680-620-0 03 1 0507-0512 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH), 4HK1-TCSENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.162 M6X20 FLANGE 		0-28650-620-0 03 1 0601-0606 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N EN G(RJZ),4HF1-S ENG(RLS) 03.162 M6X20 FLANGE 		0-28650-620-0 03 1 0607- ● ● ● ●
çizim 53962
19 19 19 18 19 20 1 2 136 23 30 33
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 TANK; SURGE,RAD
4HF1-S ENG(RLS),4HE1 ENG(RLY) (A) 		8-97210-844-0 01 1 0211-0501 ●
1 01.219 TANK; SURGE,RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) (A) 		8-97210-844-0 01 1 0211-0501 ● ●
1 01.219 TANK; SURGE,RAD
4HG1 ENG(RJH),4HE1 ENG(RLY) (A) 		8-97210-844-0 01 1 0211-0501 ●
1 01.219 TANK; SURGE,RAD
(A) 		8-97210-844-0 01 1 0211-0501 ●
1 01.219 TANK; SURGE,RAD
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97210-844-0 01 1 0502-0506 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH), 4HK1-TCSENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97210-844-0 01 1 0507-0606 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N EN G(RJZ),4HF1-S ENG(RLS) (A) 		8-97210-844-0 01 1 0607-1010 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N EN G(RJZ),4HF1-S ENG(RLS) (A) 		8-98178-177-0 01 1 1011- ● ● ● ●
1 01.219 TANK; SURGE,RAD
4HF1-S ENG(RLS),4HE1 ENG(RLY) (B) 		8-94378-388-1 01 1 0211-0501 ●
1 01.219 TANK; SURGE,RAD
(B) 		8-94378-388-1 01 1 0502- ●
2 01.203 CAP; SURGE TANK
4HF1-S ENG(RLS),4HE1 ENG(RLY) 		8-97217-796-0 01 1 0211-0501 ●
2 01.203 CAP; SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 		8-97217-796-0 01 1 0211-0501 ● ●
2 01.203 CAP; SURGE TANK
4HG1 ENG(RJH),4HE1 ENG(RLY) 		8-97217-796-0 01 1 0211-0501 ●
2 01.203 CAP; SURGE TANK 8-97217-796-0 01 1 0211-0501 ●
2 01.203 CAP; SURGE TANK
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97217-796-0 01 1 0502-0506 ● ● ● ●
2 01.203 CAP; SURGE TANK
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH), 4HK1-TCSENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97217-796-0 01 1 0507-0606 ● ● ● ●
2 01.203 CAP; SURGE TANK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N EN G(RJZ),4HF1-S ENG(RLS) 		8-97217-796-0 01 1 0607-1010 ● ● ● ●
2 01.203 CAP; SURGE TANK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N EN G(RJZ),4HF1-S ENG(RLS) 		8-98178-074-0 01 1 1011- ● ● ● ●
2 01.203 CAP; SURGE TANK
4HF1-S ENG(RLS),4HE1 ENG(RLY) 		8-94449-363-0 01 1 0211-0501 ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 0502- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1-S ENG(RLS) L=1455 		8-97148-535-2 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) L=1455 		8-97148-535-2 01 1 0211-0501 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH) L=1455 		8-97148-535-2 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) L=1455 		8-97148-535-2 01 1 0502-0612 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) L=1455 		8-97148-535-2 01 1 0502-0612 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH) L=1455 		8-97148-535-2 01 1 0502-0612 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) L=1455 		8-97148-535-2 01 1 0701- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) L=1455 		8-97148-535-2 01 1 0701- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH) L=1455 		8-97148-535-2 01 1 0701- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=1450 		8-97218-446-1 01 1 0211-0501 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1450 		8-97218-446-1 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1-TCN ENG(RDR) L=1450 		8-97218-446-1 01 1 0502- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) L=1450 		8-97218-446-1 01 1 0502- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> L=1550 		8-97129-560-2 01 1 0211-0501 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCS ENG(RJS) L=1330 		8-97358-573-0 01 1 0507-0606 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCS ENG(RJS) L=1330 		8-97358-573-0 01 1 0607- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCN ENG(RDQ) L=1280 		8-98008-854-1 01 1 0607- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=2170 		8-97214-383-6 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1-S ENG(RLS) L=680 SERVICED BY L=3000 		0-03457-300-0 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
L=680 SERVICED BY L=3000 		0-03457-300-0 01 1 0502- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-S ENG(RLS),4HE1 ENG(RLY) (D) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) (D) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HE1 ENG(RLY) (D) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
(D) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) (D) ID=14 L=47 		5-09700-319-0 01 1 0502-0606 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (D) ID=14 L=47 		5-09700-319-0 01 1 0502-0606 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH) (D) ID=14 L=47 		5-09700-319-0 01 1 0502-0606 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (D) ID=14 L=47 		5-09700-319-0 01 1 0607- ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-S ENG(RLS),4HE1 ENG(RLY) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0211-0501 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HE1 ENG(RLY) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0502-0506 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH), 4HK1-TCSENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0507-0606 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N EN G(RJZ),4HF1-S ENG(RLS) 02.559 (A) ID=10 & 11 		8-94438-996-0 01 1 0607- ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (C) ID=12 		8-94238-610-0 02 1 0211-0501 ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (C) ID=12 		8-94238-610-0 02 1 0502-0911 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(C) ID=12 		8-98150-358-0 02 1 0912- ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCS ENG(RJS) (D) ID=14 L=47 		5-09700-319-0 02 1 0507-0606 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) ID=14 L=47 		5-09700-319-0 02 1 0607- ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D) ID=14 L=47 		5-09700-319-0 02 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-S ENG(RLS) 03.164 (B) L=217 		8-94235-793-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
03.164 (B) L=217 		8-94235-793-0 01 1 0502- ●
20 01.166 CLIP; HOSE,RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> ID=10.8 		8-97354-231-0 01 1 0211-0501 ● ● ● ●
20 01.166 CLIP; HOSE,RAD
ID=10.8 		8-97354-231-0 01 1 0211-0501 ●
20 01.166 CLIP; HOSE,RAD
4HE1-TCN ENG(RDR) ID=10.8 		8-97354-231-0 01 1 0502-0606 ●
20 01.166 CLIP; HOSE,RAD
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) ID=10.8 		8-97354-231-0 01 1 0502-0606 ● ● ●
20 01.166 CLIP; HOSE,RAD
4HE1-TCN ENG(RDR) ID=10.8 		8-97354-231-0 01 1 0607- ●
20 01.166 CLIP; HOSE,RAD
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) ID=10.8 		8-97354-231-0 01 1 0607- ●
20 01.166 CLIP; HOSE,RAD
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) ID=10.8 		8-97354-231-0 01 1 0607- ● ●
20 01.166 CLIP; HOSE,RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> ID=10.8 		8-97354-231-0 02 1 0211-0501 ●
23 01.219 BRACKET; RESERVE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97214-324-1 01 1 0211-0501 ●
23 01.219 BRACKET; RESERVE TANK
4HF1-S ENG(RLS) 		8-97061-510-0 01 1 0211-0501 ●
23 01.219 BRACKET; RESERVE TANK 8-97061-510-0 01 1 0502- ●
30 01.203 NUT
4HF1-S ENG(RLS),4HE1 ENG(RLY) 04.594 M6 FLANGE 		0-91150-106-0 03 1 0211-0501 ●
30 01.203 NUT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 04.594 M6 FLANGE 		0-91150-106-0 03 1 0211-0501 ● ●
30 01.203 NUT
4HG1 ENG(RJH),4HE1 ENG(RLY) 04.594 M6 FLANGE 		0-91150-106-0 03 1 0211-0501 ●
30 01.203 NUT
04.594 M6 FLANGE 		0-91150-106-0 03 1 0211-0501 ●
30 01.203 NUT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.594 M6 FLANGE 		0-91150-106-0 03 1 0502-0506 ● ● ● ●
30 01.203 NUT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH), 4HK1-TCSENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.594 M6 FLANGE 		0-91150-106-0 03 1 0507-0602 ● ● ● ●
30 01.203 NUT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH), 4HK1-TCSENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.062 M6 FLANGE 		0-91180-106-0 03 1 0603-0606 ● ● ● ●
30 01.203 NUT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N EN G(RJZ),4HF1-S ENG(RLS) 01.062 M6 FLANGE 		0-91180-106-0 03 1 0607- ● ● ● ●
30 01.203 NUT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0211-0501 ●
30 01.203 NUT
4HF1-S ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ●
30 01.203 NUT
07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ●
30 01.203 NUT
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603- ●
33 01.277 BOLT; BRKT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0211-0501 ●
33 01.277 BOLT; BRKT
4HF1-S ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0211-0501 ●
33 01.277 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0502-0512 ●
33 01.277 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
136 01.219 STOPPER; SURGE TANK
4HF1-S ENG(RLS),4HE1 ENG(RLY) 		8-97087-220-0 01 1 0211-0501 ●
136 01.219 STOPPER; SURGE TANK 8-97087-220-0 01 1 0502- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
