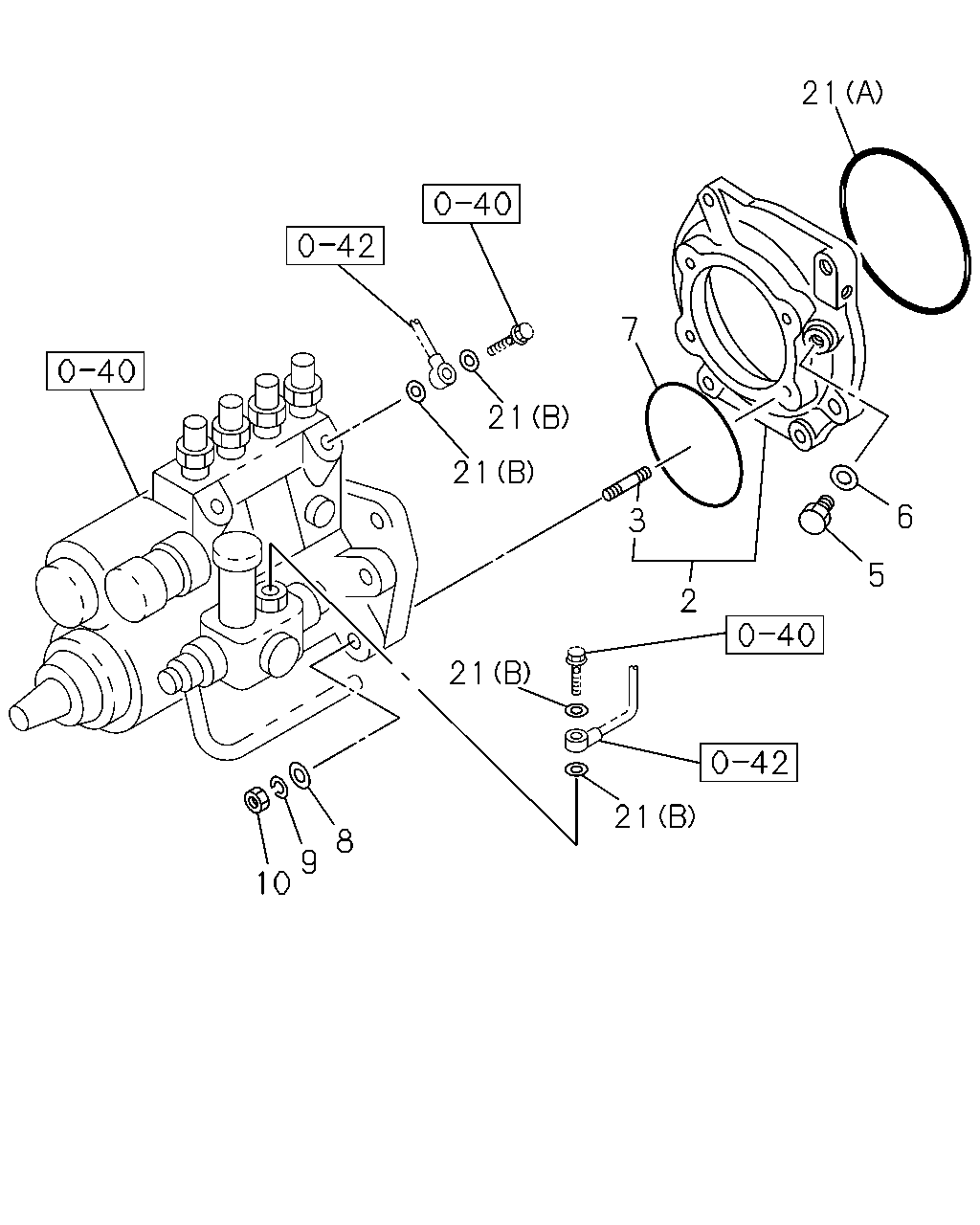

0-86A — MISCELLANEOUS PARTS; INJECTION PUMP (#45034) — 58 parça

21 7 21 21 6 3 5 2 21 21 8 9 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	03.306 BRACKET; HSG & TIMER,INJ PUMP EXC. AIR CONDITIONER MANUAL CONT(C60),TURBOCHARGER(K51)	8-97123-609-0	01	1	0211-0501	●
2	03.306 BRACKET; HSG & TIMER,INJ PUMP TURBOCHARGER(K51) HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97123-609-0	01	1	0211-0501	●
2	03.306 BRACKET; HSG & TIMER,INJ PUMP TURBOCHARGER(K51) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97123-609-0	01	1	0211-0501	●
2	03.306 BRACKET; HSG & TIMER,INJ PUMP	8-97123-609-0	01	1	0502-	●	●
2	03.306 BRACKET; HSG & TIMER,INJ PUMP EXC. ENGINE POWER N-SPEC(7QV)	8-97121-616-0	01	1	0211-0501			●
2	03.306 BRACKET; HSG & TIMER,INJ PUMP	8-97121-616-0	01	1	0502-0508			●	●
2	03.306 BRACKET; HSG & TIMER,INJ PUMP	8-97121-616-0	01	1	0509-			●
2	03.306 BRACKET; HSG & TIMER,INJ PUMP CHARGE AIR COOLER<6PL>	8-97188-880-1	01	1	0211-0501					●
2	03.306 BRACKET; HSG & TIMER,INJ PUMP	8-97188-880-1	01	1	0502-						●	●
2	03.306 BRACKET; HSG & TIMER,INJ PUMP EXC. CHARGE AIR COOLER<6PL>	8-97125-957-0	01	1	0211-0501					●
3	03.330 STUD; HSG BRKT,INJ PUMP EXC. ENGINE POWER N-SPEC(7QV) 08.981 M10X30 L=45	9-04101-030-0	04	1	0211-0501			●
3	03.330 STUD; HSG BRKT,INJ PUMP EXC. AIR CONDITIONER MANUAL CONT(C60),CHARGE AIR COOLER<6PL> 08.981 M10X30 L=45	9-04101-030-0	04	1	0211-0501					●
3	03.330 STUD; HSG BRKT,INJ PUMP 08.981 M10X30 L=45	9-04101-030-0	04	1	0502-0508			●	●
3	03.330 STUD; HSG BRKT,INJ PUMP 08.981 M10X30 L=45	9-04101-030-0	04	1	0509-			●
5	03.306 PLUG; HSG BRKT,INJ PUMP	8-97026-919-0	01	1	0211-0501	●				●
5	03.306 PLUG; HSG BRKT,INJ PUMP EXC. ENGINE POWER N-SPEC(7QV)	8-97026-919-0	01	1	0211-0501			●
5	03.306 PLUG; HSG BRKT,INJ PUMP	8-97026-919-0	01	1	0502-0508	●	●	●	●		●	●
5	03.306 PLUG; HSG BRKT,INJ PUMP	8-97026-919-0	01	1	0509-	●	●	●			●	●
6	03.306 GASKET; PLUG,INJ PUMP BRKT 03.308	1-15729-787-0	01	1	0211-0501	●				●
6	03.306 GASKET; PLUG,INJ PUMP BRKT EXC. ENGINE POWER N-SPEC(7QV) 03.308	1-15729-787-0	01	1	0211-0501			●
6	03.306 GASKET; PLUG,INJ PUMP BRKT 03.308	1-15729-787-0	01	1	0502-0508	●	●	●	●		●	●
6	03.306 GASKET; PLUG,INJ PUMP BRKT 03.308	1-15729-787-0	01	1	0509-	●	●	●			●	●
7	03.306 GASKET; HSG BRKT,ENG SIDE CHARGE AIR COOLER<6PL>	8-97188-881-0	01	1	0211-0501					●
7	03.306 GASKET; HSG BRKT,ENG SIDE	8-97188-881-0	01	1	0502-						●	●
8	03.306 WASHER; PL,HSG BRKT,INJ PUMP 06.896 ID=10.5	9-09164-510-0	04	1	0211-0501	●				●
8	03.306 WASHER; PL,HSG BRKT,INJ PUMP EXC. ENGINE POWER N-SPEC(7QV) 06.896 ID=10.5	9-09164-510-0	04	1	0211-0501			●
8	03.306 WASHER; PL,HSG BRKT,INJ PUMP 06.896 ID=10.5	9-09164-510-0	04	1	0502-0508	●	●	●	●		●	●
8	03.306 WASHER; PL,HSG BRKT,INJ PUMP 06.896 ID=10.5	9-09164-510-0	04	1	0509-	●	●	●			●	●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP 00.002 ID=10.2	9-09150-610-0	04	1	0211-0211	●				●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP 00.002 ID=10.2	9-09150-610-0	04	1	0212-0501	●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP EXC. CHARGE AIR COOLER<6PL> 00.002 ID=10.2	9-09150-610-0	04	1	0212-0501					●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP 00.002 ID=10.2	9-09150-610-0	04	1	0502-0612	●	●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP VOLTAGE 24V<7AE> 00.002 ID=10.2	9-09150-610-0	04	1	0502-0612						●	●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP 00.002 ID=10.2	9-09150-610-0	04	1	0701-1007	●	●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP VOLTAGE 24V<7AE> 00.002 ID=10.2	9-09150-610-0	04	1	0701-1007							●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP 00.002 ID=10.2	9-09150-610-0	04	1	1008-	●	●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> 00.002 ID=10.2	9-09150-610-0	04	1	1008-							●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP CHARGE AIR COOLER<6PL> 00.002 ID=10.2	9-09150-510-0	04	1	0212-0501					●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP 00.002 ID=10.2	9-09150-510-0	04	1	0502-0506						●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP VOLTAGE 24V<7AE> EXC. HYDRO BRAKE BOOSTER<7QQ> 00.002 ID=10.2	9-09150-510-0	04	1	0507-0910						●	●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP EXC. VOLTAGE 24V<7AE> 00.002 ID=10.2	9-09150-510-0	04	1	0507-0910						●	●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) VOLTAGE 24V<7AE> 00.002 ID=10.2	9-09150-510-0	04	1	0911-						●	●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP EXC. VOLTAGE 24V<7AE> 00.002 ID=10.2	9-09150-510-0	04	1	0911-						●	●
10	03.306 NUT; HSG BRKT,INJ PUMP	5-15639-002-0	04	1	0211-0501	●				●
10	03.306 NUT; HSG BRKT,INJ PUMP EXC. ENGINE POWER N-SPEC(7QV)	5-15639-002-0	04	1	0211-0501			●
10	03.306 NUT; HSG BRKT,INJ PUMP	5-15639-002-0	04	1	0502-0508	●	●	●	●		●	●
10	03.306 NUT; HSG BRKT,INJ PUMP	5-15639-002-0	04	1	0509-	●	●	●			●	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	02	1	0211-0501	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	02	1	0211-0501					●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	02	1	0502-		●				●	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER(K51) 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	04	1	0211-0501	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE POWER N-SPEC(7QV) 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	04	1	0211-0501			●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	04	1	0211-0501					●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	04	1	0502-	●		●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97039-200-1	01	1	0211-0501	●		●		●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97039-200-1	01	1	0502-0506	●	●	●	●		●	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97039-200-1	01	1	0507-0606	●	●	●	●		●	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97039-200-1	01	1	0607-	●	●	●	●		●	●
