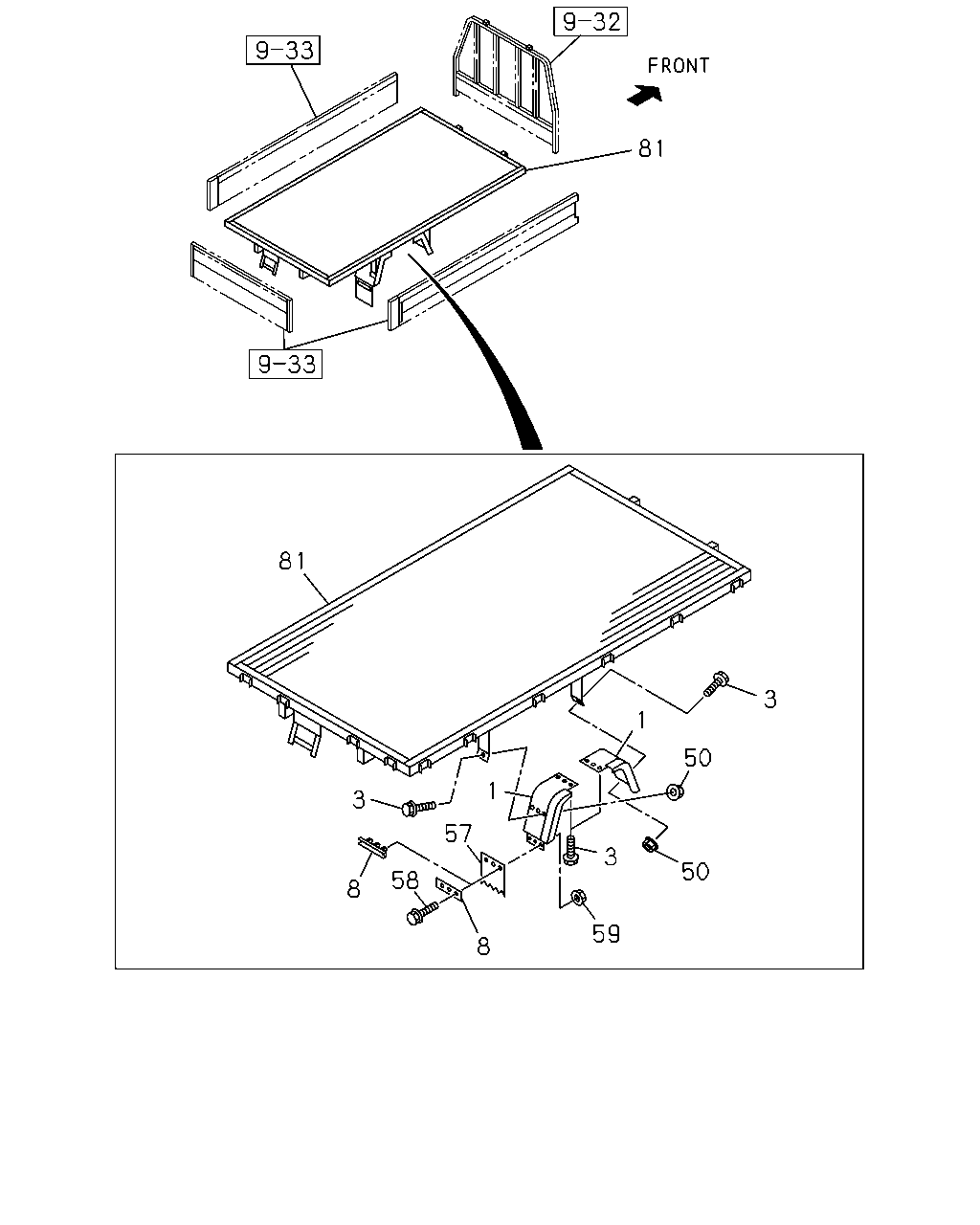

9-31 — REAR BODY; FLOOR AND FENDER (#45030) — 37 parça

81 81 3 1 50 1 3 57 3 50 58 8 59 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED(RS6) FRONT	8-94197-181-0	01	1	0211-	●	●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED(RS6) REAR	8-94197-185-0	01	1	0211-	●	●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED(RS6) FRONT	8-94197-180-0	01	1	0211-	●	●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED(RS6) REAR	8-94197-184-0	01	1	0211-	●	●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED(RS6) FRONT	8-94197-183-0	01	1	0211-			●	●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED(RS6) REAR	8-94197-189-0	01	1	0211-			●	●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED(RS6) FRONT	8-94197-182-0	01	1	0211-			●	●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED(RS6) REAR	8-94197-188-0	01	1	0211-			●	●
3	08.203 BOLT; FENDER TO RR BODY RR BODY FLAT BED(RS6) 17.208 M6X12 W/LK&PL WASHER	8-94197-192-0	16	1	0211-	●	●
3	08.203 BOLT; FENDER TO RR BODY RR BODY FLAT BED(RS6) 17.208 M6X12 W/LK&PL WASHER	8-94197-192-0	22	1	0211-			●	●
8	08.212 HOLDER; FLAP RUBBER RR BODY FLAT BED(RS6)	8-97069-729-0	02	1	0211-	●	●
8	08.212 HOLDER; FLAP RUBBER RR BODY NON FLAT BED(RS5)	8-97069-729-0	02	1	0211-					●	●
8	08.212 HOLDER; FLAP RUBBER RR BODY FLAT BED(RS6)	8-97066-225-0	02	1	0211-			●	●
50	17.447 NUT; RR FENDER RR BODY FLAT BED(RS6) 17.208 M6 FLANGE	8-94197-193-0	08	1	0211-	●	●
50	17.447 NUT; RR FENDER RR BODY FLAT BED(RS6) 17.208 M6 FLANGE	8-94197-193-0	10	1	0211-			●	●
57	08.214 RUBBER; FLAP RR RR BODY FLAT BED(RS6) H=330 B=280	8-97089-827-1	02	1	0211-	●	●
57	08.214 RUBBER; FLAP RR RR BODY NON FLAT BED(RS5) H=330 B=280	8-97089-827-1	02	1	0211-					●	●
57	08.214 RUBBER; FLAP RR RR BODY FLAT BED(RS6) H=270 B=340	8-97089-828-1	02	1	0211-			●	●
58	17.208 BOLT; RUBBER,RR FENDER RR BODY NON FLAT BED(RS5) M6X12 W/LK&PL WASHER	8-94197-192-0	10	1	0211-					●	●
58	17.208 BOLT; RUBBER,RR FENDER RR BODY FLAT BED(RS6) 08.212 M6X16 FLANGE	8-97065-432-2	06	1	0211-0711			●	●
58	17.208 BOLT; RUBBER,RR FENDER RR BODY FLAT BED(RS6) M6X16 FLANGE	8-98098-459-0	06	1	0712-			●	●
59	17.208 NUT; RUBBER,RR FENDER RR BODY NON FLAT BED(RS5) M6 FLANGE	8-94197-193-0	10	1	0211-					●	●
59	17.208 NUT; RUBBER,RR FENDER RR BODY FLAT BED(RS6) 08.212 M6 FLANGE	8-97065-431-0	06	1	0211-			●	●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED(RS6)	8-94197-232-0	01	1	0211-	●	●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED(RS6)	8-94197-234-0	01	1	0211-			●	●

59 37 58 57 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
8	08.212 HOLDER; FLAP RUBBER RR BODY FLAT BED(RS6)	8-97069-729-0	02	1	0211-	●	●
8	08.212 HOLDER; FLAP RUBBER RR BODY NON FLAT BED(RS5)	8-97069-729-0	02	1	0211-					●	●
8	08.212 HOLDER; FLAP RUBBER RR BODY FLAT BED(RS6)	8-97066-225-0	02	1	0211-			●	●
37	08.212 BRACKET; MUD COVER RR BODY NON FLAT BED(RS5)	8-94197-195-0	02	1	0211-					●	●
57	08.214 RUBBER; FLAP RR RR BODY FLAT BED(RS6) H=330 B=280	8-97089-827-1	02	1	0211-	●	●
57	08.214 RUBBER; FLAP RR RR BODY NON FLAT BED(RS5) H=330 B=280	8-97089-827-1	02	1	0211-					●	●
57	08.214 RUBBER; FLAP RR RR BODY FLAT BED(RS6) H=270 B=340	8-97089-828-1	02	1	0211-			●	●
58	17.208 BOLT; RUBBER,RR FENDER RR BODY NON FLAT BED(RS5) M6X12 W/LK&PL WASHER	8-94197-192-0	10	1	0211-					●	●
58	17.208 BOLT; RUBBER,RR FENDER RR BODY FLAT BED(RS6) 08.212 M6X16 FLANGE	8-97065-432-2	06	1	0211-0711			●	●
58	17.208 BOLT; RUBBER,RR FENDER RR BODY FLAT BED(RS6) M6X16 FLANGE	8-98098-459-0	06	1	0712-			●	●
59	17.208 NUT; RUBBER,RR FENDER RR BODY NON FLAT BED(RS5) M6 FLANGE	8-94197-193-0	10	1	0211-					●	●
59	17.208 NUT; RUBBER,RR FENDER RR BODY FLAT BED(RS6) 08.212 M6 FLANGE	8-97065-431-0	06	1	0211-			●	●
