◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10676 - LT 111,112,132,133 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-45 - HEATER PIPING ▶
8-45 — HEATER PIPING (#4503) — 21 parça

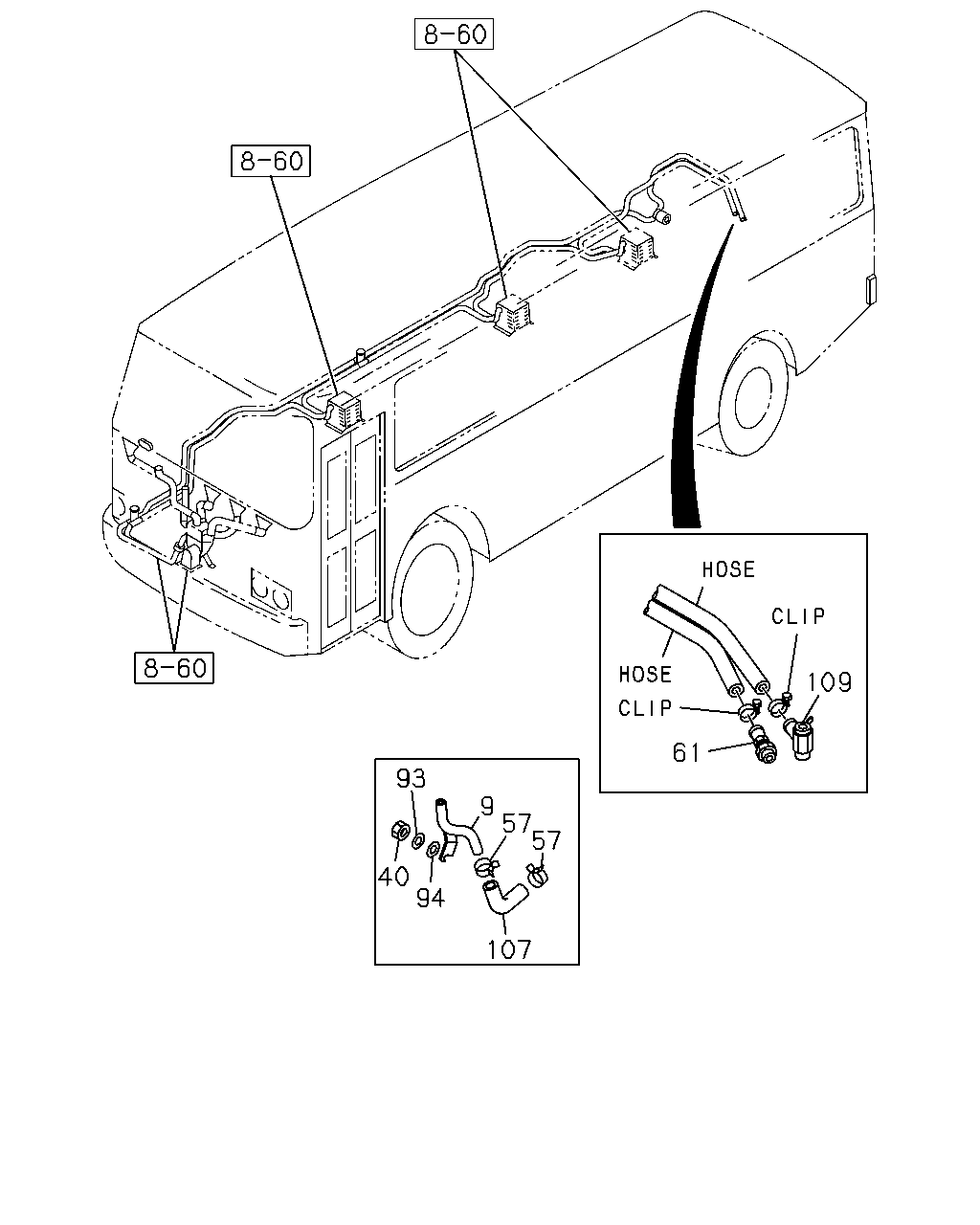

çizim 5676
109 61 93 9 57 57 40 94 107
BalonParca AdiParca NoAdetTipApplied Date A B
9 PIPE; HTR
AUXILIARY HEATER<C36>,HEATER & DEFROSTER<C41> D=18 W/BRACKET 		1-13711-273-1 01 1 9101-0203 ● ●
9 PIPE; HTR
HEATER & DEFROSTER<C41> D=18 W/BRACKET 		1-13711-273-1 01 1 0204- ● ●
40 NUT; CLIP
AUXILIARY HEATER<C36>,HEATER & DEFROSTER<C41> M10 		9-09110-510-0 01 1 9101-9606 ● ●
40 NUT; CLIP
AUXILIARY HEATER<C36>,HEATER & DEFROSTER<C41> M10 FLANGE 		0-91150-210-0 01 1 9607-0203 ● ●
40 NUT; CLIP
HEATER & DEFROSTER<C41> M10 FLANGE 		0-91150-210-0 01 1 0204-0602 ● ●
40 NUT; CLIP
HEATER & DEFROSTER<C41> M10 FLANGE 		0-91180-210-0 01 1 0603- ● ●
57 CLIP; HOSE
AUXILIARY HEATER<C36>,HEATER & DEFROSTER<C41> ID=26 		1-09707-091-0 02 1 9101-0203 ● ●
57 CLIP; HOSE
HEATER & DEFROSTER<C41> ID=26 		1-09707-091-0 02 1 0204- ● ●
61 JOINT; HTR HOSE
AUXILIARY HEATER<C36>,HEATER & DEFROSTER<C41> 		1-13619-042-0 01 1 9101-0203 ● ●
61 JOINT; HTR HOSE
HEATER & DEFROSTER<C41> 		1-13619-042-0 01 1 0204- ● ●
93 WASHER; LK,CLIP
AUXILIARY HEATER<C36>,HEATER & DEFROSTER<C41> ID=10.2 		9-09150-510-0 01 1 9101-0203 ● ●
93 WASHER; LK,CLIP
HEATER & DEFROSTER<C41> ID=10.2 		9-09150-510-0 01 1 0204-0603 ● ●
93 WASHER; LK,CLIP
HEATER & DEFROSTER<C41> ID=10.2 		0-91510-510-0 01 1 0604- ● ●
94 WASHER; PL,CLIP
AUXILIARY HEATER<C36>,HEATER & DEFROSTER<C41> ID=10.5 OD=18 		9-09160-510-0 01 1 9101-0203 ● ●
94 WASHER; PL,CLIP
HEATER & DEFROSTER<C41> ID=10.5 OD=18 		9-09160-510-0 01 1 0204-0605 ● ●
94 WASHER; PL,CLIP
HEATER & DEFROSTER<C41> ID=10.5 		0-91610-510-0 01 1 0606- ● ●
107 HOSE; WATER,HTR
AUXILIARY HEATER<C36>,HEATER & DEFROSTER<C41> 		1-09360-337-0 01 1 9101-0203 ● ●
107 HOSE; WATER,HTR
HEATER & DEFROSTER<C41> 		1-09360-337-0 01 1 0204- ● ●
109 COCK; HTR
AUXILIARY HEATER<C36>,HEATER & DEFROSTER<C41> PT3/4 & OD=18 		9-09904-169-1 01 1 9101-0203 ● ●
109 COCK; HTR
HEATER & DEFROSTER<C41> PT3/4 & OD=18 		9-09904-169-1 01 1 0204-0512 ● ●
109 COCK; HTR
HEATER & DEFROSTER<C41> PT1/2 BEND 		8-94396-509-0 01 1 0601- ● ●
