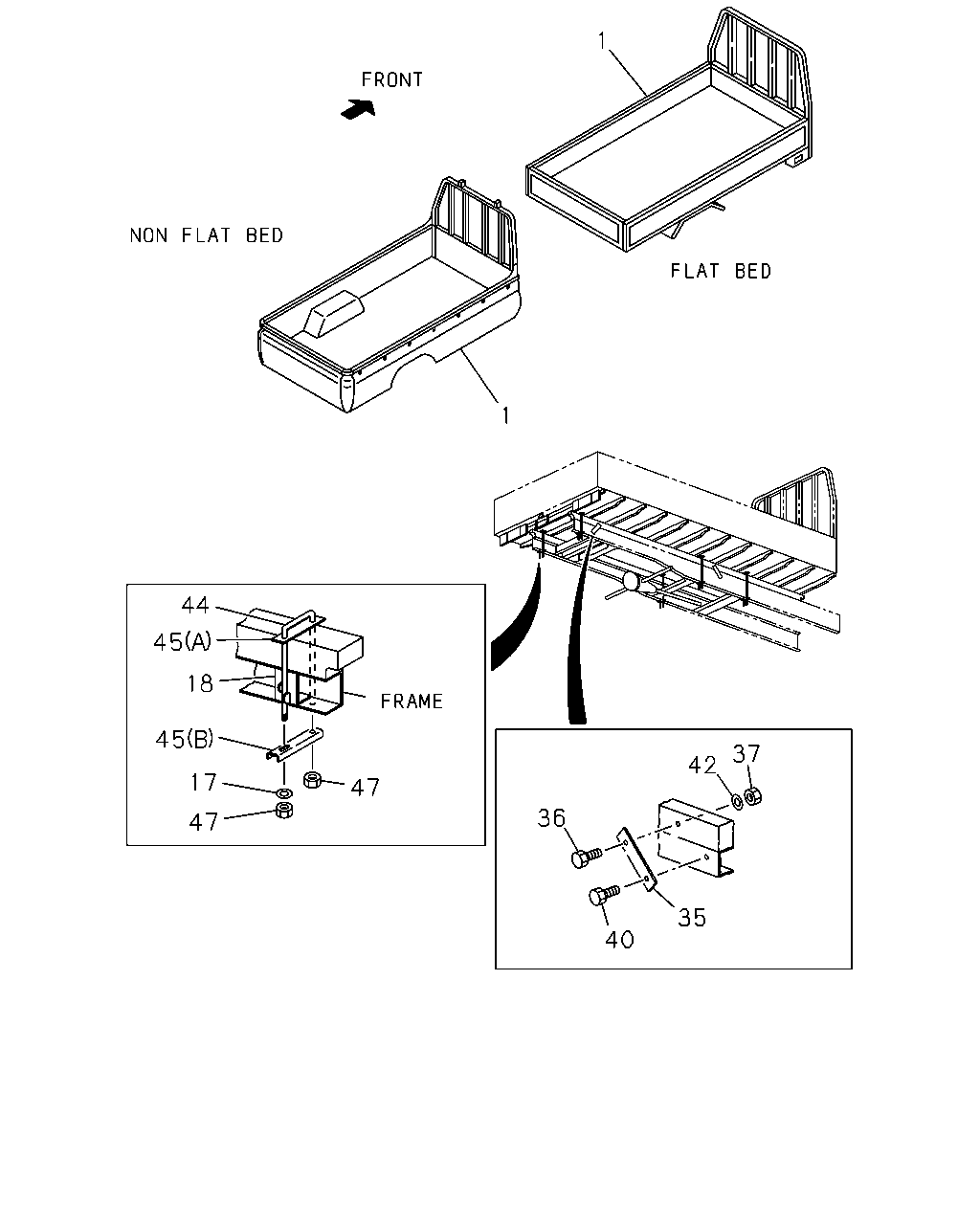

9-30 — REAR BODY ASM AND MOUNTING (#45029) — 46 parça

2 13 14 16 14 15 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	17.185 STEP; RR RR BODY FLAT BED(RS6)	5-66900-333-0	01	1	0211-	●	●
13	09.008 BOLT; RR BODY MTG RR BODY NON FLAT BED(RS5) 09.003 M12X40 FLANGE	0-28681-240-0	08	1	0211-0512			●	●
13	09.008 BOLT; RR BODY MTG RR BODY NON FLAT BED(RS5) 09.003 M12X40 FLANGE	0-28651-240-0	08	1	0601-			●	●
13	09.008 BOLT; RR BODY MTG RR BODY FLAT BED(RS6) 09.003 M12X40 FLANGE	0-28681-240-0	10	1	0211-0512					●	●
13	09.008 BOLT; RR BODY MTG RR BODY FLAT BED(RS6) 09.003 M12X40 FLANGE	0-28651-240-0	10	1	0601-					●	●
14	09.011 WASHER; PL,RR BODY MTG RR BODY FLAT BED(RS6) 04.792 ID=10.5 OD=26	9-09160-710-0	04	1	0211-	●	●
14	09.011 WASHER; PL,RR BODY MTG RR BODY NON FLAT BED(RS5) 07.633 ID=12.5 OD=32	9-09164-712-0	14	1	0211-0605			●	●
14	09.011 WASHER; PL,RR BODY MTG RR BODY NON FLAT BED(RS5) 07.529 ID=12.5 OD=32	0-91614-712-0	14	1	0606-			●	●
14	09.011 WASHER; PL,RR BODY MTG RR BODY FLAT BED(RS6) 07.633 ID=12.5 OD=32	9-09164-712-0	18	1	0211-0605					●	●
14	09.011 WASHER; PL,RR BODY MTG RR BODY FLAT BED(RS6) 07.529 ID=12.5 OD=32	0-91614-712-0	18	1	0606-					●	●
15	09.011 NUT; RR BODY MTG RR BODY NON FLAT BED(RS5) 05.816 M12	9-99110-412-0	16	1	0211-0512			●	●
15	09.011 NUT; RR BODY MTG RR BODY NON FLAT BED(RS5) 05.002 M12	0-91110-512-0	16	1	0601-			●	●
15	09.011 NUT; RR BODY MTG RR BODY FLAT BED(RS6) 05.816 M12	9-99110-412-0	20	1	0211-0512					●	●
15	09.011 NUT; RR BODY MTG RR BODY FLAT BED(RS6) 05.002 M12	0-91110-512-0	20	1	0601-					●	●
16	09.011 WASHER; FRAME END,RR BODY RR BODY NON FLAT BED(RS5) ID=12.5 OD=26	9-09164-612-0	02	1	0211-			●	●
16	09.011 WASHER; FRAME END,RR BODY RR BODY FLAT BED(RS6) ID=12.5 OD=26	9-09164-612-0	02	1	0211-					●	●

1 1 44 45 18 45 37 42 17 47 36 47 35 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729) RR BODY FLAT BED(RS6) WHITE	8-97154-183-0	01	1	0211-	●	●
1	17.090 BODY ASM; REAR BODY COLOR MARINE BLUE(890) RR BODY FLAT BED(RS6) BLUE	8-97154-186-0	01	1	0211-	●	●
1	17.090 BODY ASM; REAR BODY COLOR POLAR SILVER MET(845) RR BODY FLAT BED(RS6) SILVER	8-97296-920-0	01	1	0211-	●	●
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729) RR BODY NON FLAT BED(RS5) WHITE	8-97154-209-0	01	1	0211-			●	●
1	17.090 BODY ASM; REAR BODY COLOR MARINE BLUE(890) RR BODY NON FLAT BED(RS5) BLUE	8-97154-212-0	01	1	0211-			●	●
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729) RR BODY FLAT BED(RS6) CAB-LOW ROOF<6XQ> WHITE	8-97154-190-0	01	1	0211-					●
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729) RR BODY FLAT BED(RS6) EXC. CAB-LOW ROOF<6XQ> WHITE	8-97154-193-0	01	1	0211-					●
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729) RR BODY FLAT BED(RS6) WHITE	8-97154-193-0	01	1	0211-						●
1	17.090 BODY ASM; REAR BODY COLOR MARINE BLUE(890) RR BODY FLAT BED(RS6) CAB-LOW ROOF<6XQ> BLUE	8-97154-192-0	01	1	0211-					●
1	17.090 BODY ASM; REAR BODY COLOR MARINE BLUE(890) RR BODY FLAT BED(RS6) EXC. CAB-LOW ROOF<6XQ> BLUE	8-97154-196-0	01	1	0211-					●
1	17.090 BODY ASM; REAR BODY COLOR MARINE BLUE(890) RR BODY FLAT BED(RS6) BLUE	8-97154-196-0	01	1	0211-						●
1	17.090 BODY ASM; REAR BODY COLOR POLAR SILVER MET(845) RR BODY FLAT BED(RS6) CAB-LOW ROOF<6XQ> SILVER	8-97296-921-0	01	1	0211-0501					●
1	17.090 BODY ASM; REAR BODY COLOR POLAR SILVER MET(845) RR BODY FLAT BED(RS6) EXC. CAB-LOW ROOF<6XQ> SILVER	8-97296-922-0	01	1	0211-					●
1	17.090 BODY ASM; REAR BODY COLOR POLAR SILVER MET(845) RR BODY FLAT BED(RS6) SILVER	8-97296-922-0	01	1	0211-						●
17	17.447 WASHER; PL,U-BOLT RR BODY FLAT BED(RS6) 06.172 ID=12.5	9-09164-512-0	06	1	0211-	●	●
18	17.447 REINFORCEMENT; U-BOLT RR BODY FLAT BED(RS6) H=161 B=50 D=52	5-53119-093-2	04	1	0211-	●	●
18	17.447 REINFORCEMENT; U-BOLT RR BODY FLAT BED(RS6) H=121 B=50 D=47.5	5-53119-094-2	02	1	0211-	●	●
35	17.447 STOPPER; RR BODY RR BODY FLAT BED(RS6) L=191.5	8-94121-666-0	04	1	0211-	●	●
36	17.447 BOLT; FRAME RR BODY FLAT BED(RS6) 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0211-0512	●	●
36	17.447 BOLT; FRAME RR BODY FLAT BED(RS6) 04.439 M10X30 W/LK WASHER	0-50541-030-0	04	1	0601-	●	●
37	17.447 NUT; STOPPER TO FRAME RR BODY FLAT BED(RS6) 08.917 M10 FLANGE	0-91150-210-0	04	1	0211-0602	●	●
37	17.447 NUT; STOPPER TO FRAME RR BODY FLAT BED(RS6) 04.085 M10 FLANGE	0-91180-210-0	04	1	0603-	●	●
40	17.447 BOLT; STOPPER TO RR BODY RR BODY FLAT BED(RS6) 03.405 M10X30 FLANGE	0-28681-030-0	04	1	0211-0512	●	●
40	17.447 BOLT; STOPPER TO RR BODY RR BODY FLAT BED(RS6) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0601-	●	●
42	17.447 WASHER; PL,STOPPER TO RR BODY RR BODY FLAT BED(RS6) 04.792 ID=10.5 OD=26	9-09160-710-0	04	1	0211-	●	●
44	17.447 U-BOLT; FRAME TO RR BODY RR BODY FLAT BED(RS6) L=340	8-94151-369-0	04	1	0211-	●	●
44	17.447 U-BOLT; FRAME TO RR BODY RR BODY FLAT BED(RS6) L=300	8-94151-371-0	02	1	0211-	●	●
45	17.447 PLATE; U-BOLT RR BODY FLAT BED(RS6) (A) L=100 B=30	8-94148-715-0	05	1	0211-	●	●
45	17.447 PLATE; U-BOLT RR BODY FLAT BED(RS6) (B) L=115 B=40	9-61200-629-2	06	1	0211-	●	●
47	17.447 NUT; U-BOLT RR BODY FLAT BED(RS6) M12	9-09130-412-0	12	1	0211-	●	●
