◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50942 - NHR ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#45028) — 27 parça

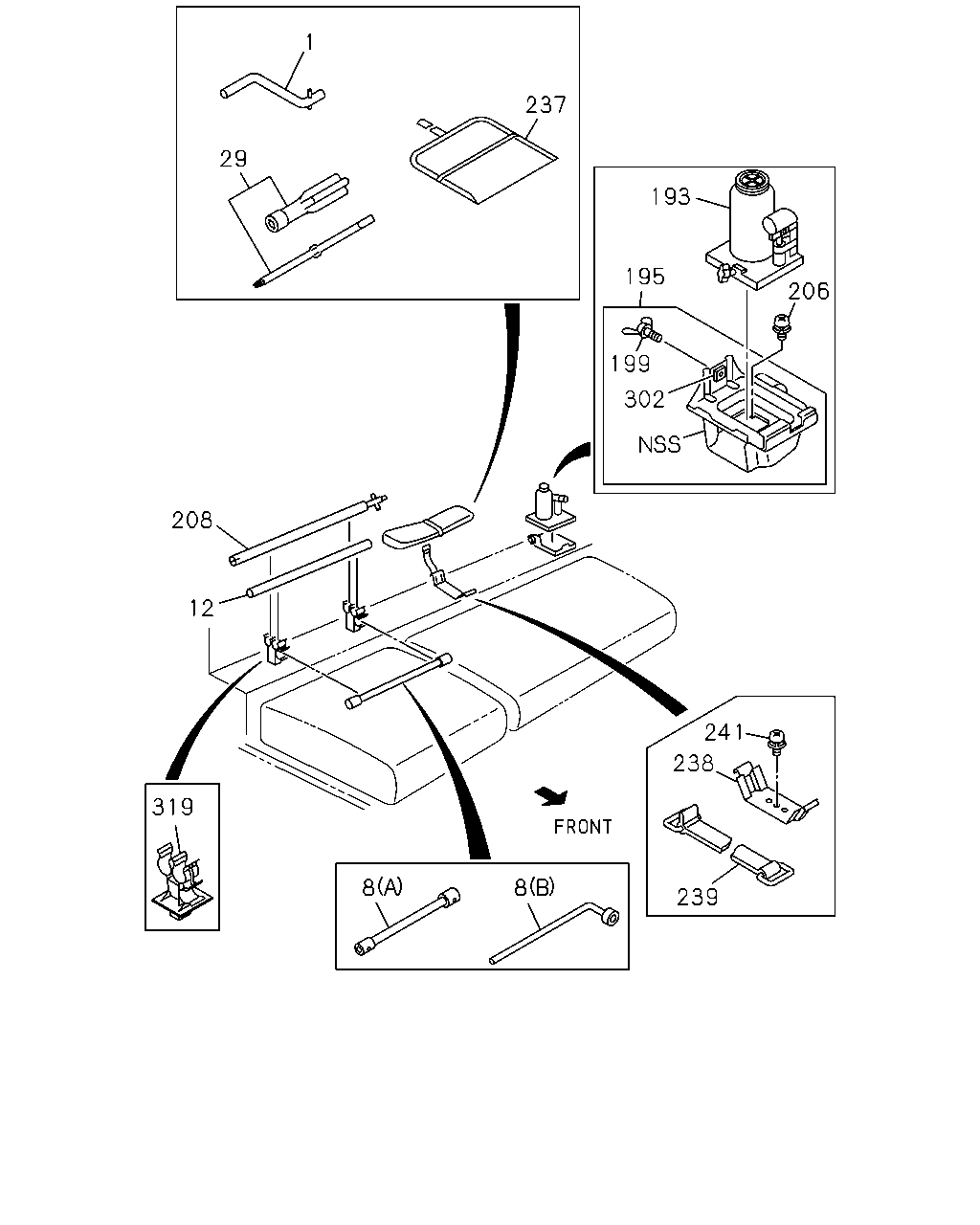

çizim 49350
1 237 29 193 195 206 199 302 208 12 241 238 319 8 8 239
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.629 HANDLE; SPARE TIRE CARRIER 8-97218-985-0 01 1 0211- ● ● ● ● ● ●
8 08.821 WRENCH; WHEEL
(B) B=23 L=300 		9-85113-935-0 01 1 0211- ● ● ● ● ● ●
8 08.821 WRENCH; WHEEL
(A) B=35X17 L=300 		8-94341-283-1 01 1 0211- ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-97332-988-0 01 1 0211-1001 ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
08.820 OD=25 L=480 		1-85116-011-0 01 1 1002-1407 ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		8-98257-407-0 01 1 1408- ● ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 0211- ● ● ● ● ● ●
193 08.820 JACK ASM
4TON 		8-97131-075-2 01 1 0211-0305 ● ● ● ●
193 08.820 JACK ASM
4TON 		8-97371-123-0 01 1 0306-0504 ● ● ● ●
193 08.820 JACK ASM
4TON 		8-98012-285-0 01 1 0505- ● ● ● ●
193 08.820 JACK ASM
3TON 		8-97131-073-2 01 1 0211-0305 ● ●
193 08.820 JACK ASM
3TON 		8-97371-122-0 01 1 0306-0504 ● ●
193 08.820 JACK ASM
3TON 		8-98012-284-0 01 1 0505- ● ●
195 08.820 BRACKET; JACK 8-94262-068-3 01 1 0211- ● ● ● ●
195 08.820 BRACKET; JACK 8-97856-997-4 01 1 0211- ● ●
199 08.820 BOLT; JACK
M8X50 WING 		8-94279-136-0 01 1 0211- ● ● ● ● ● ●
206 08.820 SCREW; OIL JACK BRKT
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 0211-0612 ● ● ● ● ● ●
206 08.820 SCREW; OIL JACK BRKT
16.570 M6X16 		0-38050-616-0 01 1 0701- ● ● ● ● ● ●
208 08.820 HANDLE; JACK
L=642 		8-97217-800-0 01 1 0211-1108 ● ● ● ● ● ●
208 08.820 HANDLE; JACK
L=642 		8-98181-477-0 01 1 1109- ● ● ● ● ● ●
237 08.821 BAG; TOOL 8-97130-903-1 01 1 0211- ● ● ● ● ● ●
238 08.820 SUPPORT; TOOL BAG 8-97994-977-0 01 1 0211- ● ● ● ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 0211- ● ● ● ● ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 0211-0612 ● ● ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16 		0-38050-616-0 01 1 0701- ● ● ● ●
302 08.820 NUT; JACK BRKT 8-94279-522-0 01 1 0211- ● ● ● ● ● ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 0211- ● ● ● ● ● ●
