Sayfa 8-80 - Isuzu EPC

8-80 — WINDSHIELD WIPER AND WASHER (#45026) — 242 parça

27 196 34 25 206 30 25 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
25	16.065 BRACKET; WASHER TANK (B)	8-97855-226-0	01	1	0211-	●	●	●	●	●	●
25	16.065 BRACKET; WASHER TANK (A)	8-97855-023-2	01	1	0211-	●	●			●
25	16.065 BRACKET; WASHER TANK (A)	8-97855-067-0	01	1	0211-			●	●		●
27	16.065 BOLT; WASHER TANK 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	0211-	●	●	●	●	●	●
30	16.065 MOTOR ASM; FRT WASHER TANK	8-97855-138-0	01	1	0211-	●	●	●	●	●	●
34	16.065 CAP; WASHER TANK	8-97855-140-0	01	1	0211-	●	●	●	●	●	●
196	16.065 TANK; WASHER	8-97855-016-8	01	1	0211-	●	●			●
196	16.065 TANK; WASHER	8-97855-065-6	01	1	0211-			●	●		●
201	16.064 LINING; WIPER MOTOR	8-97352-826-0	01	1	0211-	●	●	●	●	●	●
206	16.065 BOLT; BRKT,WASHER TANK 04.439 M6X16 FLANGE	0-28680-616-0	02	1	0211-0512	●	●	●	●	●	●
206	16.065 BOLT; BRKT,WASHER TANK 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0601-	●	●	●	●	●	●

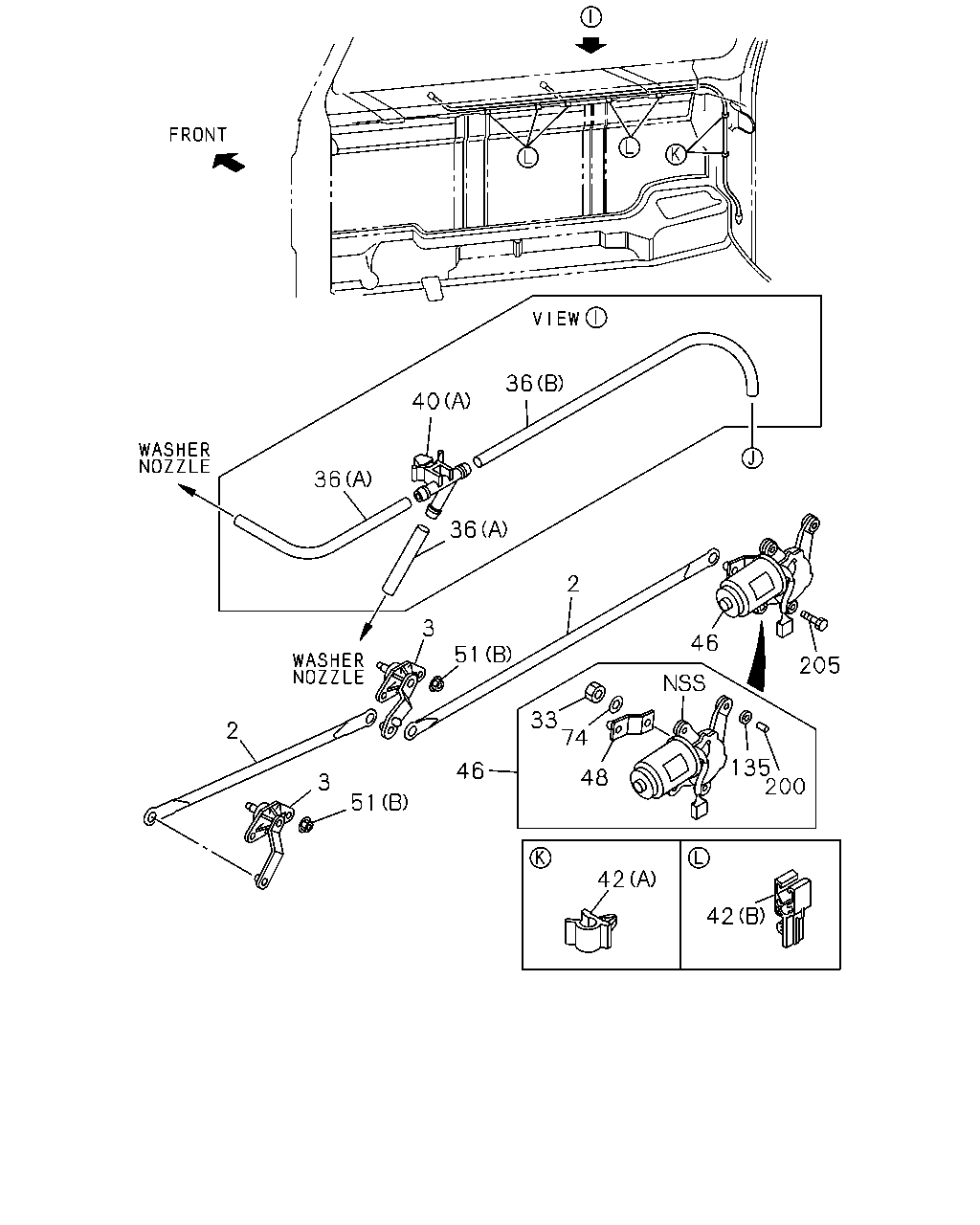

36 40 36 36 2 3 46 51 205 33 74 2 135 200 46 48 3 51 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	16.063 LINK; FRT WIPER PIVOT TO PIVOT L=580 W/CAP	8-97855-153-0	01	1	0211-	●	●	●	●	●	●
2	16.063 LINK; FRT WIPER MOTOR TO PIVOT L=424 W/CAP	8-97855-149-0	01	1	0211-	●	●			●
2	16.063 LINK; FRT WIPER MOTOR TO PIVOT	8-97855-150-0	01	1	0211-			●	●		●
3	16.063 PIVOT ASM; FRT WIPER DRIVER SIDE	8-97855-148-0	01	1	0211-0407	●	●	●	●	●	●
3	16.063 PIVOT ASM; FRT WIPER DRIVER SIDE	8-97855-148-2	01	1	0408-1103	●	●			●
3	16.063 PIVOT ASM; FRT WIPER DRIVER SIDE	8-97855-148-2	01	1	1104-	●	●	●	●	●	●
3	16.063 PIVOT ASM; FRT WIPER CENTER	8-97855-144-2	01	1	0211-	●	●			●
3	16.063 PIVOT ASM; FRT WIPER CENTER	8-97855-145-1	01	1	0211-			●	●		●
3	16.063 PIVOT ASM; FRT WIPER DRIVER SIDE	8-98003-074-0	01	1	0408-1103			●	●		●
33	16.064 NUT; MOTOR TO ARM M8	8-97855-157-0	01	1	0211-	●	●	●	●	●	●
36	16.065 HOSE; WASHER 10.155 (A) SERVICED BY L=10000	8-94389-303-0	01	1	0211-	●	●	●	●	●	●
36	16.065 HOSE; WASHER (C) DRIVER SIDE	8-97216-109-0	01	1	0211-0501	●	●	●	●	●	●
36	16.065 HOSE; WASHER INDONESIA EQUIPMENT(S4S) (C) DRIVER SIDE	8-97216-109-0	01	1	0502-	●
36	16.065 HOSE; WASHER (C) CENTER	8-97216-110-0	01	1	0211-0501	●	●	●	●	●	●
36	16.065 HOSE; WASHER INDONESIA EQUIPMENT(S4S) (C) CENTER	8-97216-110-0	01	1	0502-	●
36	16.065 HOSE; WASHER (B) SERVICED BY L=10000	9-09914-906-0	01	1	0211-			●	●		●
40	16.065 JOINT; WASHER HOSE (D)	8-97216-115-0	02	1	0211-0501	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE INDONESIA EQUIPMENT(S4S) (D)	8-97216-115-0	02	1	0502-	●
40	16.065 JOINT; WASHER HOSE (C)	8-97167-258-0	01	1	0211-0501	●	●			●
40	16.065 JOINT; WASHER HOSE INDONESIA EQUIPMENT(S4S) (C)	8-97167-258-0	01	1	0502-	●
40	16.065 JOINT; WASHER HOSE (E)	8-97307-026-0	01	1	0211-0501	●	●			●
40	16.065 JOINT; WASHER HOSE INDONESIA EQUIPMENT(S4S) (E)	8-97307-026-0	01	1	0502-	●
40	16.065 JOINT; WASHER HOSE (B)	5-83363-006-0	01	1	0211-0501			●	●		●
40	16.065 JOINT; WASHER HOSE EXC. INDONESIA EQUIPMENT(S4S) (B)	5-83363-006-0	01	1	0502-	●
40	16.065 JOINT; WASHER HOSE (B)	5-83363-006-0	01	1	0502-		●	●	●	●	●
40	16.065 JOINT; WASHER HOSE (A)	8-97855-163-0	01	1	0211-0501			●	●		●
40	16.065 JOINT; WASHER HOSE EXC. INDONESIA EQUIPMENT(S4S) (A)	8-97855-163-0	01	1	0502-	●
40	16.065 JOINT; WASHER HOSE (A)	8-97855-163-0	01	1	0502-		●	●	●	●	●
42	16.065 CLIP; WASHER HOSE (A)	8-94144-956-0	02	1	0211-	●	●	●	●	●	●
42	16.065 CLIP; WASHER HOSE (B)	8-94279-819-0	05	1	0211-	●	●	●	●	●	●
42	16.065 CLIP; WASHER HOSE (C)	8-97216-114-0	02	1	0211-0501	●	●	●	●	●	●
42	16.065 CLIP; WASHER HOSE INDONESIA EQUIPMENT(S4S) (C)	8-97216-114-0	02	1	0502-	●
46	16.064 MOTOR ASM; FRT WINDSHIELD WIPER	8-97361-373-2	01	1	0211-	●	●			●
46	16.064 MOTOR ASM; FRT WINDSHIELD WIPER	8-97361-375-2	01	1	0211-			●	●		●
48	16.063 ARM; WIPER MOTOR	8-97218-924-0	01	1	0211-	●	●	●	●	●	●
51	16.063 NUT; WIPER MOTOR LINK 00.854 (B) M8 FLANGE	5-09440-005-0	04	1	0211-0611	●	●	●	●	●	●
51	16.063 NUT; WIPER MOTOR LINK 04.634 (B) M8 FLANGE	8-97581-233-0	04	1	0612-	●	●	●	●	●	●
51	16.063 NUT; WIPER MOTOR LINK (A)	8-97135-435-0	02	1	0211-	●	●	●	●	●	●
74	16.063 WASHER; ARM TO MOTOR ID=8	8-97855-158-0	01	1	0211-	●	●	●	●	●	●
135	16.250 RUBBER; CUSHION,WIPER MOTOR	8-97855-159-0	03	1	0211-	●	●	●	●	●	●
200	16.064 COLLAR; WIPER MOTOR	8-97855-160-0	03	1	0211-	●	●	●	●	●	●
205	16.064 BOLT; WIPER MOTOR 10.152 M6X28 W/PL WASHER	8-94148-420-0	03	1	0211-	●	●	●	●	●	●

27 196 40 34 25 30 206 25 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
25	16.065 BRACKET; WASHER TANK (B)	8-97855-226-0	01	1	0211-	●	●	●	●	●	●
25	16.065 BRACKET; WASHER TANK (A)	8-97855-023-2	01	1	0211-	●	●			●
25	16.065 BRACKET; WASHER TANK (A)	8-97855-067-0	01	1	0211-			●	●		●
27	16.065 BOLT; WASHER TANK 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	0211-	●	●	●	●	●	●
30	16.065 MOTOR ASM; FRT WASHER TANK	8-97855-138-0	01	1	0211-	●	●	●	●	●	●
34	16.065 CAP; WASHER TANK	8-97855-140-0	01	1	0211-	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE (D)	8-97216-115-0	02	1	0211-0501	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE INDONESIA EQUIPMENT(S4S) (D)	8-97216-115-0	02	1	0502-	●
40	16.065 JOINT; WASHER HOSE (C)	8-97167-258-0	01	1	0211-0501	●	●			●
40	16.065 JOINT; WASHER HOSE INDONESIA EQUIPMENT(S4S) (C)	8-97167-258-0	01	1	0502-	●
40	16.065 JOINT; WASHER HOSE (E)	8-97307-026-0	01	1	0211-0501	●	●			●
40	16.065 JOINT; WASHER HOSE INDONESIA EQUIPMENT(S4S) (E)	8-97307-026-0	01	1	0502-	●
40	16.065 JOINT; WASHER HOSE (B)	5-83363-006-0	01	1	0211-0501			●	●		●
40	16.065 JOINT; WASHER HOSE EXC. INDONESIA EQUIPMENT(S4S) (B)	5-83363-006-0	01	1	0502-	●
40	16.065 JOINT; WASHER HOSE (B)	5-83363-006-0	01	1	0502-		●	●	●	●	●
40	16.065 JOINT; WASHER HOSE (A)	8-97855-163-0	01	1	0211-0501			●	●		●
40	16.065 JOINT; WASHER HOSE EXC. INDONESIA EQUIPMENT(S4S) (A)	8-97855-163-0	01	1	0502-	●
40	16.065 JOINT; WASHER HOSE (A)	8-97855-163-0	01	1	0502-		●	●	●	●	●
196	16.065 TANK; WASHER	8-97855-016-8	01	1	0211-	●	●			●
196	16.065 TANK; WASHER	8-97855-065-6	01	1	0211-			●	●		●
201	16.064 LINING; WIPER MOTOR	8-97352-826-0	01	1	0211-	●	●	●	●	●	●
206	16.065 BOLT; BRKT,WASHER TANK 04.439 M6X16 FLANGE	0-28680-616-0	02	1	0211-0512	●	●	●	●	●	●
206	16.065 BOLT; BRKT,WASHER TANK 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0601-	●	●	●	●	●	●

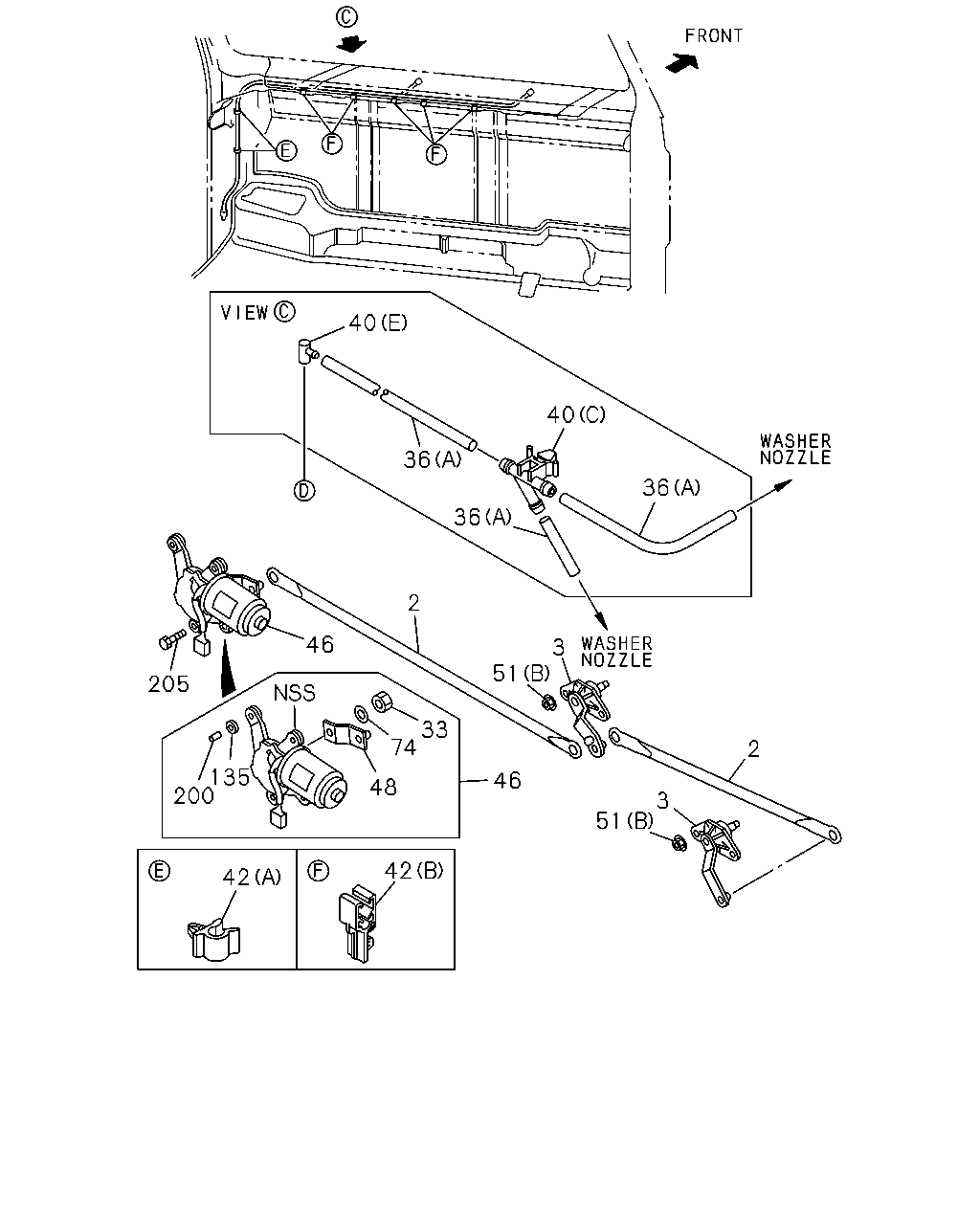

40 40 36 36 36 2 46 3 51 205 33 74 2 135 200 46 48 3 51 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	16.063 LINK; FRT WIPER PIVOT TO PIVOT L=580 W/CAP	8-97855-153-0	01	1	0211-	●	●	●	●	●	●
2	16.063 LINK; FRT WIPER MOTOR TO PIVOT L=424 W/CAP	8-97855-149-0	01	1	0211-	●	●			●
2	16.063 LINK; FRT WIPER MOTOR TO PIVOT	8-97855-150-0	01	1	0211-			●	●		●
3	16.063 PIVOT ASM; FRT WIPER DRIVER SIDE	8-97855-148-0	01	1	0211-0407	●	●	●	●	●	●
3	16.063 PIVOT ASM; FRT WIPER DRIVER SIDE	8-97855-148-2	01	1	0408-1103	●	●			●
3	16.063 PIVOT ASM; FRT WIPER DRIVER SIDE	8-97855-148-2	01	1	1104-	●	●	●	●	●	●
3	16.063 PIVOT ASM; FRT WIPER CENTER	8-97855-144-2	01	1	0211-	●	●			●
3	16.063 PIVOT ASM; FRT WIPER CENTER	8-97855-145-1	01	1	0211-			●	●		●
3	16.063 PIVOT ASM; FRT WIPER DRIVER SIDE	8-98003-074-0	01	1	0408-1103			●	●		●
33	16.064 NUT; MOTOR TO ARM M8	8-97855-157-0	01	1	0211-	●	●	●	●	●	●
36	16.065 HOSE; WASHER 10.155 (A) SERVICED BY L=10000	8-94389-303-0	01	1	0211-	●	●	●	●	●	●
36	16.065 HOSE; WASHER (C) DRIVER SIDE	8-97216-109-0	01	1	0211-0501	●	●	●	●	●	●
36	16.065 HOSE; WASHER INDONESIA EQUIPMENT(S4S) (C) DRIVER SIDE	8-97216-109-0	01	1	0502-	●
36	16.065 HOSE; WASHER (C) CENTER	8-97216-110-0	01	1	0211-0501	●	●	●	●	●	●
36	16.065 HOSE; WASHER INDONESIA EQUIPMENT(S4S) (C) CENTER	8-97216-110-0	01	1	0502-	●
36	16.065 HOSE; WASHER (B) SERVICED BY L=10000	9-09914-906-0	01	1	0211-			●	●		●
40	16.065 JOINT; WASHER HOSE (D)	8-97216-115-0	02	1	0211-0501	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE INDONESIA EQUIPMENT(S4S) (D)	8-97216-115-0	02	1	0502-	●
40	16.065 JOINT; WASHER HOSE (C)	8-97167-258-0	01	1	0211-0501	●	●			●
40	16.065 JOINT; WASHER HOSE INDONESIA EQUIPMENT(S4S) (C)	8-97167-258-0	01	1	0502-	●
40	16.065 JOINT; WASHER HOSE (E)	8-97307-026-0	01	1	0211-0501	●	●			●
40	16.065 JOINT; WASHER HOSE INDONESIA EQUIPMENT(S4S) (E)	8-97307-026-0	01	1	0502-	●
40	16.065 JOINT; WASHER HOSE (B)	5-83363-006-0	01	1	0211-0501			●	●		●
40	16.065 JOINT; WASHER HOSE EXC. INDONESIA EQUIPMENT(S4S) (B)	5-83363-006-0	01	1	0502-	●
40	16.065 JOINT; WASHER HOSE (B)	5-83363-006-0	01	1	0502-		●	●	●	●	●
40	16.065 JOINT; WASHER HOSE (A)	8-97855-163-0	01	1	0211-0501			●	●		●
40	16.065 JOINT; WASHER HOSE EXC. INDONESIA EQUIPMENT(S4S) (A)	8-97855-163-0	01	1	0502-	●
40	16.065 JOINT; WASHER HOSE (A)	8-97855-163-0	01	1	0502-		●	●	●	●	●
42	16.065 CLIP; WASHER HOSE (A)	8-94144-956-0	02	1	0211-	●	●	●	●	●	●
42	16.065 CLIP; WASHER HOSE (B)	8-94279-819-0	05	1	0211-	●	●	●	●	●	●
42	16.065 CLIP; WASHER HOSE (C)	8-97216-114-0	02	1	0211-0501	●	●	●	●	●	●
42	16.065 CLIP; WASHER HOSE INDONESIA EQUIPMENT(S4S) (C)	8-97216-114-0	02	1	0502-	●
46	16.064 MOTOR ASM; FRT WINDSHIELD WIPER	8-97361-373-2	01	1	0211-	●	●			●
46	16.064 MOTOR ASM; FRT WINDSHIELD WIPER	8-97361-375-2	01	1	0211-			●	●		●
48	16.063 ARM; WIPER MOTOR	8-97218-924-0	01	1	0211-	●	●	●	●	●	●
51	16.063 NUT; WIPER MOTOR LINK 00.854 (B) M8 FLANGE	5-09440-005-0	04	1	0211-0611	●	●	●	●	●	●
51	16.063 NUT; WIPER MOTOR LINK 04.634 (B) M8 FLANGE	8-97581-233-0	04	1	0612-	●	●	●	●	●	●
51	16.063 NUT; WIPER MOTOR LINK (A)	8-97135-435-0	02	1	0211-	●	●	●	●	●	●
74	16.063 WASHER; ARM TO MOTOR ID=8	8-97855-158-0	01	1	0211-	●	●	●	●	●	●
135	16.250 RUBBER; CUSHION,WIPER MOTOR	8-97855-159-0	03	1	0211-	●	●	●	●	●	●
200	16.064 COLLAR; WIPER MOTOR	8-97855-160-0	03	1	0211-	●	●	●	●	●	●
205	16.064 BOLT; WIPER MOTOR 10.152 M6X28 W/PL WASHER	8-94148-420-0	03	1	0211-	●	●	●	●	●	●

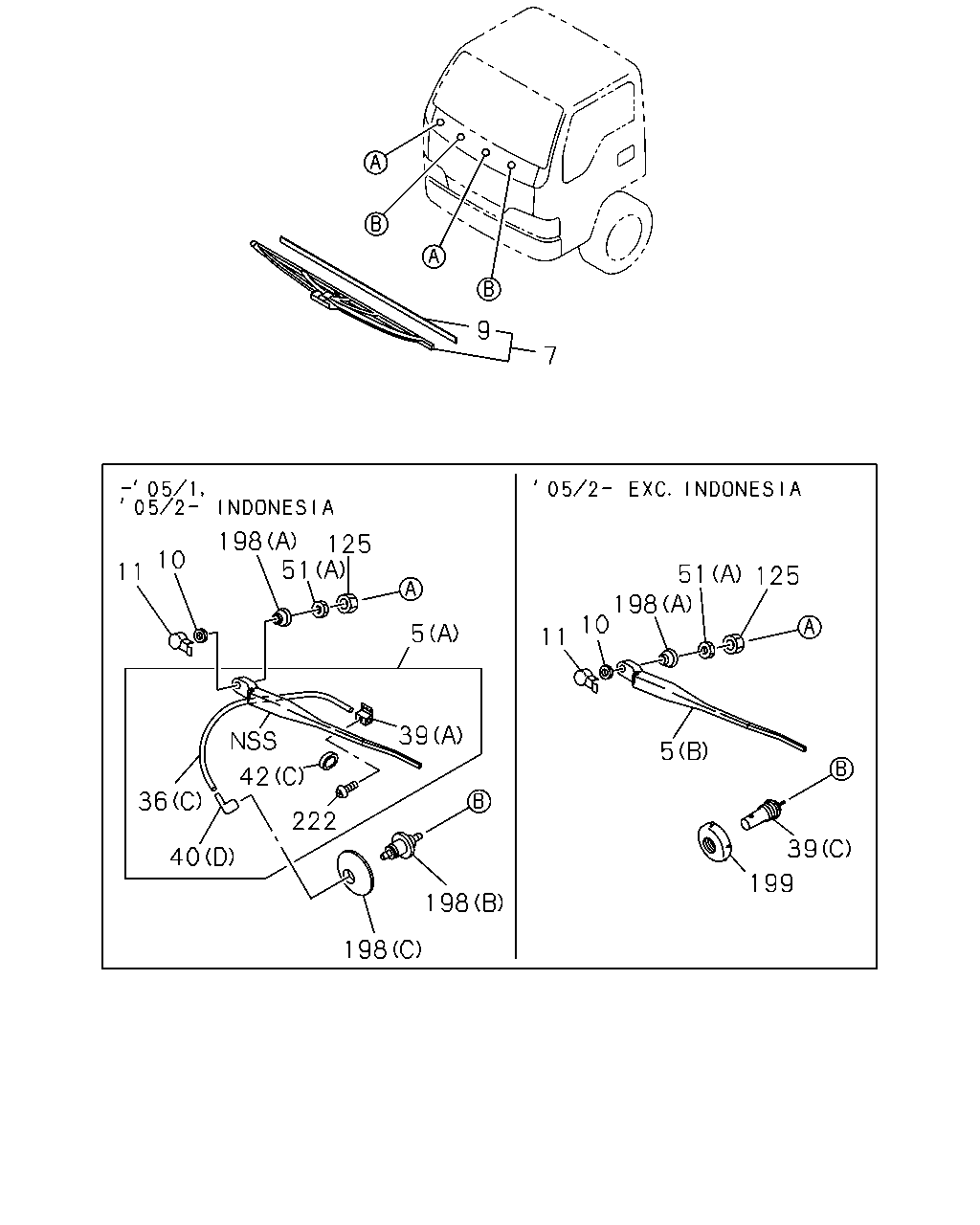

9 7 51 125 198 10 11 198 125 51 10 11 5 39 42 5 222 36 40 39 199 198 198

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
5	16.063 ARM; WIPER EXC. INDONESIA EQUIPMENT(S4S) (B)	8-97223-297-0	01	1	0502-	●
5	16.063 ARM; WIPER (B)	8-97223-297-0	01	1	0502-		●			●
5	16.063 ARM; WIPER EXC. INDONESIA EQUIPMENT(S4S) (B)	8-97223-296-0	01	1	0502-	●
5	16.063 ARM; WIPER (B)	8-97223-296-0	01	1	0502-		●			●
5	16.063 ARM; WIPER (A)	8-97168-984-2	01	1	0211-0501	●	●			●
5	16.063 ARM; WIPER INDONESIA EQUIPMENT(S4S) (A)	8-97168-984-2	01	1	0502-	●
5	16.063 ARM; WIPER (A)	8-97168-982-2	01	1	0211-0501	●	●			●
5	16.063 ARM; WIPER INDONESIA EQUIPMENT(S4S) (A)	8-97168-982-2	01	1	0502-	●
5	16.063 ARM; WIPER (C)	8-97184-555-1	01	1	0211-0501			●	●		●
5	16.063 ARM; WIPER (D)	8-97226-885-0	01	1	0502-			●	●		●
5	16.063 ARM; WIPER (C)	8-97184-556-1	01	1	0211-0501			●	●		●
5	16.063 ARM; WIPER (D)	8-97226-886-0	01	1	0502-			●	●		●
7	16.062 BLADE; WIPER	8-97137-468-2	02	1	0211-	●	●			●
7	16.062 BLADE; WIPER	8-97137-469-2	02	1	0211-			●	●		●
9	16.062 RUBBER; FRT WIPER BLADE L=475	8-97142-093-1	02	1	0211-	●	●	●	●	●	●
10	16.063 NUT; WIPER ARM TO WIPER PIVOT 02.559 M8	9-09110-408-0	02	1	0211-0512	●	●	●	●	●	●
10	16.063 NUT; WIPER ARM TO WIPER PIVOT 02.334 M8	0-91110-508-0	02	1	0601-	●	●	●	●	●	●
11	16.063 COVER; WIPER ARM BLACK	8-94282-851-0	02	1	0211-	●	●	●	●	●	●
36	16.065 HOSE; WASHER 10.155 (A) SERVICED BY L=10000	8-94389-303-0	01	1	0211-	●	●	●	●	●	●
36	16.065 HOSE; WASHER (C) DRIVER SIDE	8-97216-109-0	01	1	0211-0501	●	●	●	●	●	●
36	16.065 HOSE; WASHER INDONESIA EQUIPMENT(S4S) (C) DRIVER SIDE	8-97216-109-0	01	1	0502-	●
36	16.065 HOSE; WASHER (C) CENTER	8-97216-110-0	01	1	0211-0501	●	●	●	●	●	●
36	16.065 HOSE; WASHER INDONESIA EQUIPMENT(S4S) (C) CENTER	8-97216-110-0	01	1	0502-	●
36	16.065 HOSE; WASHER (B) SERVICED BY L=10000	9-09914-906-0	01	1	0211-			●	●		●
39	16.065 NOZZLE; WINDSHIELD WASHER (A)	8-97216-107-1	02	1	0211-0501	●	●			●
39	16.065 NOZZLE; WINDSHIELD WASHER INDONESIA EQUIPMENT(S4S) (A)	8-97216-107-1	02	1	0502-	●
39	16.065 NOZZLE; WINDSHIELD WASHER (B)	8-97216-108-1	02	1	0211-0501			●	●		●
39	16.065 NOZZLE; WINDSHIELD WASHER EXC. INDONESIA EQUIPMENT(S4S) (C)	8-97855-025-2	02	1	0502-0502	●
39	16.065 NOZZLE; WINDSHIELD WASHER (C)	8-97855-025-2	02	1	0502-0502		●	●	●	●	●
39	16.065 NOZZLE; WINDSHIELD WASHER EXC. INDONESIA EQUIPMENT(S4S) (C)	8-98010-172-0	02	1	0502-	●
39	16.065 NOZZLE; WINDSHIELD WASHER (C)	8-98010-172-0	02	1	0502-		●	●	●	●	●
40	16.065 JOINT; WASHER HOSE (D)	8-97216-115-0	02	1	0211-0501	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE INDONESIA EQUIPMENT(S4S) (D)	8-97216-115-0	02	1	0502-	●
40	16.065 JOINT; WASHER HOSE (C)	8-97167-258-0	01	1	0211-0501	●	●			●
40	16.065 JOINT; WASHER HOSE INDONESIA EQUIPMENT(S4S) (C)	8-97167-258-0	01	1	0502-	●
40	16.065 JOINT; WASHER HOSE (E)	8-97307-026-0	01	1	0211-0501	●	●			●
40	16.065 JOINT; WASHER HOSE INDONESIA EQUIPMENT(S4S) (E)	8-97307-026-0	01	1	0502-	●
40	16.065 JOINT; WASHER HOSE (B)	5-83363-006-0	01	1	0211-0501			●	●		●
40	16.065 JOINT; WASHER HOSE EXC. INDONESIA EQUIPMENT(S4S) (B)	5-83363-006-0	01	1	0502-	●
40	16.065 JOINT; WASHER HOSE (B)	5-83363-006-0	01	1	0502-		●	●	●	●	●
40	16.065 JOINT; WASHER HOSE (A)	8-97855-163-0	01	1	0211-0501			●	●		●
40	16.065 JOINT; WASHER HOSE EXC. INDONESIA EQUIPMENT(S4S) (A)	8-97855-163-0	01	1	0502-	●
40	16.065 JOINT; WASHER HOSE (A)	8-97855-163-0	01	1	0502-		●	●	●	●	●
42	16.065 CLIP; WASHER HOSE (A)	8-94144-956-0	02	1	0211-	●	●	●	●	●	●
42	16.065 CLIP; WASHER HOSE (B)	8-94279-819-0	05	1	0211-	●	●	●	●	●	●
42	16.065 CLIP; WASHER HOSE (C)	8-97216-114-0	02	1	0211-0501	●	●	●	●	●	●
42	16.065 CLIP; WASHER HOSE INDONESIA EQUIPMENT(S4S) (C)	8-97216-114-0	02	1	0502-	●
51	16.063 NUT; WIPER MOTOR LINK 00.854 (B) M8 FLANGE	5-09440-005-0	04	1	0211-0611	●	●	●	●	●	●
51	16.063 NUT; WIPER MOTOR LINK 04.634 (B) M8 FLANGE	8-97581-233-0	04	1	0612-	●	●	●	●	●	●
51	16.063 NUT; WIPER MOTOR LINK (A)	8-97135-435-0	02	1	0211-	●	●	●	●	●	●
125	16.065 SPACER; WIPER PIVOT	8-97135-434-0	02	1	0211-	●	●	●	●	●	●
198	16.063 COVER; PIVOT,WIPER (A)	8-97855-021-1	02	1	0211-0305	●	●	●	●	●	●
198	16.063 COVER; PIVOT,WIPER (A)	8-97359-329-0	02	1	0306-	●	●	●	●	●	●
198	16.063 COVER; PIVOT,WIPER (B)	8-97855-134-1	02	1	0211-0501	●	●	●	●	●	●
198	16.063 COVER; PIVOT,WIPER INDONESIA EQUIPMENT(S4S) (B)	8-97855-134-1	02	1	0502-	●
198	16.063 COVER; PIVOT,WIPER (C)	8-97855-135-0	02	1	0211-0501	●	●	●	●	●	●
198	16.063 COVER; PIVOT,WIPER INDONESIA EQUIPMENT(S4S) (C)	8-97855-135-0	02	1	0502-	●
199	16.063 COVER; NOZZLE,WIPER EXC. INDONESIA EQUIPMENT(S4S)	8-97855-022-1	02	1	0502-	●
199	16.063 COVER; NOZZLE,WIPER	8-97855-022-1	02	1	0502-		●	●	●	●	●
222	16.064 SCREW; WASHER NOZZLE	8-97216-113-0	02	1	0211-0501	●	●			●
222	16.064 SCREW; WASHER NOZZLE INDONESIA EQUIPMENT(S4S)	8-97216-113-0	02	1	0502-	●
222	16.064 SCREW; WASHER NOZZLE	8-97216-113-0	04	1	0211-0501			●	●		●

9 7 198 125 51 10 11 51 198 10 125 5 11 39 5 42 36 222 39 40 199 198 198

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
5	16.063 ARM; WIPER EXC. INDONESIA EQUIPMENT(S4S) (B)	8-97223-297-0	01	1	0502-	●
5	16.063 ARM; WIPER (B)	8-97223-297-0	01	1	0502-		●			●
5	16.063 ARM; WIPER EXC. INDONESIA EQUIPMENT(S4S) (B)	8-97223-296-0	01	1	0502-	●
5	16.063 ARM; WIPER (B)	8-97223-296-0	01	1	0502-		●			●
5	16.063 ARM; WIPER (A)	8-97168-984-2	01	1	0211-0501	●	●			●
5	16.063 ARM; WIPER INDONESIA EQUIPMENT(S4S) (A)	8-97168-984-2	01	1	0502-	●
5	16.063 ARM; WIPER (A)	8-97168-982-2	01	1	0211-0501	●	●			●
5	16.063 ARM; WIPER INDONESIA EQUIPMENT(S4S) (A)	8-97168-982-2	01	1	0502-	●
5	16.063 ARM; WIPER (C)	8-97184-555-1	01	1	0211-0501			●	●		●
5	16.063 ARM; WIPER (D)	8-97226-885-0	01	1	0502-			●	●		●
5	16.063 ARM; WIPER (C)	8-97184-556-1	01	1	0211-0501			●	●		●
5	16.063 ARM; WIPER (D)	8-97226-886-0	01	1	0502-			●	●		●
7	16.062 BLADE; WIPER	8-97137-468-2	02	1	0211-	●	●			●
7	16.062 BLADE; WIPER	8-97137-469-2	02	1	0211-			●	●		●
9	16.062 RUBBER; FRT WIPER BLADE L=475	8-97142-093-1	02	1	0211-	●	●	●	●	●	●
10	16.063 NUT; WIPER ARM TO WIPER PIVOT 02.559 M8	9-09110-408-0	02	1	0211-0512	●	●	●	●	●	●
10	16.063 NUT; WIPER ARM TO WIPER PIVOT 02.334 M8	0-91110-508-0	02	1	0601-	●	●	●	●	●	●
11	16.063 COVER; WIPER ARM BLACK	8-94282-851-0	02	1	0211-	●	●	●	●	●	●
36	16.065 HOSE; WASHER 10.155 (A) SERVICED BY L=10000	8-94389-303-0	01	1	0211-	●	●	●	●	●	●
36	16.065 HOSE; WASHER (C) DRIVER SIDE	8-97216-109-0	01	1	0211-0501	●	●	●	●	●	●
36	16.065 HOSE; WASHER INDONESIA EQUIPMENT(S4S) (C) DRIVER SIDE	8-97216-109-0	01	1	0502-	●
36	16.065 HOSE; WASHER (C) CENTER	8-97216-110-0	01	1	0211-0501	●	●	●	●	●	●
36	16.065 HOSE; WASHER INDONESIA EQUIPMENT(S4S) (C) CENTER	8-97216-110-0	01	1	0502-	●
36	16.065 HOSE; WASHER (B) SERVICED BY L=10000	9-09914-906-0	01	1	0211-			●	●		●
39	16.065 NOZZLE; WINDSHIELD WASHER (A)	8-97216-107-1	02	1	0211-0501	●	●			●
39	16.065 NOZZLE; WINDSHIELD WASHER INDONESIA EQUIPMENT(S4S) (A)	8-97216-107-1	02	1	0502-	●
39	16.065 NOZZLE; WINDSHIELD WASHER (B)	8-97216-108-1	02	1	0211-0501			●	●		●
39	16.065 NOZZLE; WINDSHIELD WASHER EXC. INDONESIA EQUIPMENT(S4S) (C)	8-97855-025-2	02	1	0502-0502	●
39	16.065 NOZZLE; WINDSHIELD WASHER (C)	8-97855-025-2	02	1	0502-0502		●	●	●	●	●
39	16.065 NOZZLE; WINDSHIELD WASHER EXC. INDONESIA EQUIPMENT(S4S) (C)	8-98010-172-0	02	1	0502-	●
39	16.065 NOZZLE; WINDSHIELD WASHER (C)	8-98010-172-0	02	1	0502-		●	●	●	●	●
40	16.065 JOINT; WASHER HOSE (D)	8-97216-115-0	02	1	0211-0501	●	●	●	●	●	●
40	16.065 JOINT; WASHER HOSE INDONESIA EQUIPMENT(S4S) (D)	8-97216-115-0	02	1	0502-	●
40	16.065 JOINT; WASHER HOSE (C)	8-97167-258-0	01	1	0211-0501	●	●			●
40	16.065 JOINT; WASHER HOSE INDONESIA EQUIPMENT(S4S) (C)	8-97167-258-0	01	1	0502-	●
40	16.065 JOINT; WASHER HOSE (E)	8-97307-026-0	01	1	0211-0501	●	●			●
40	16.065 JOINT; WASHER HOSE INDONESIA EQUIPMENT(S4S) (E)	8-97307-026-0	01	1	0502-	●
40	16.065 JOINT; WASHER HOSE (B)	5-83363-006-0	01	1	0211-0501			●	●		●
40	16.065 JOINT; WASHER HOSE EXC. INDONESIA EQUIPMENT(S4S) (B)	5-83363-006-0	01	1	0502-	●
40	16.065 JOINT; WASHER HOSE (B)	5-83363-006-0	01	1	0502-		●	●	●	●	●
40	16.065 JOINT; WASHER HOSE (A)	8-97855-163-0	01	1	0211-0501			●	●		●
40	16.065 JOINT; WASHER HOSE EXC. INDONESIA EQUIPMENT(S4S) (A)	8-97855-163-0	01	1	0502-	●
40	16.065 JOINT; WASHER HOSE (A)	8-97855-163-0	01	1	0502-		●	●	●	●	●
42	16.065 CLIP; WASHER HOSE (A)	8-94144-956-0	02	1	0211-	●	●	●	●	●	●
42	16.065 CLIP; WASHER HOSE (B)	8-94279-819-0	05	1	0211-	●	●	●	●	●	●
42	16.065 CLIP; WASHER HOSE (C)	8-97216-114-0	02	1	0211-0501	●	●	●	●	●	●
42	16.065 CLIP; WASHER HOSE INDONESIA EQUIPMENT(S4S) (C)	8-97216-114-0	02	1	0502-	●
51	16.063 NUT; WIPER MOTOR LINK 00.854 (B) M8 FLANGE	5-09440-005-0	04	1	0211-0611	●	●	●	●	●	●
51	16.063 NUT; WIPER MOTOR LINK 04.634 (B) M8 FLANGE	8-97581-233-0	04	1	0612-	●	●	●	●	●	●
51	16.063 NUT; WIPER MOTOR LINK (A)	8-97135-435-0	02	1	0211-	●	●	●	●	●	●
125	16.065 SPACER; WIPER PIVOT	8-97135-434-0	02	1	0211-	●	●	●	●	●	●
198	16.063 COVER; PIVOT,WIPER (A)	8-97855-021-1	02	1	0211-0305	●	●	●	●	●	●
198	16.063 COVER; PIVOT,WIPER (A)	8-97359-329-0	02	1	0306-	●	●	●	●	●	●
198	16.063 COVER; PIVOT,WIPER (B)	8-97855-134-1	02	1	0211-0501	●	●	●	●	●	●
198	16.063 COVER; PIVOT,WIPER INDONESIA EQUIPMENT(S4S) (B)	8-97855-134-1	02	1	0502-	●
198	16.063 COVER; PIVOT,WIPER (C)	8-97855-135-0	02	1	0211-0501	●	●	●	●	●	●
198	16.063 COVER; PIVOT,WIPER INDONESIA EQUIPMENT(S4S) (C)	8-97855-135-0	02	1	0502-	●
199	16.063 COVER; NOZZLE,WIPER EXC. INDONESIA EQUIPMENT(S4S)	8-97855-022-1	02	1	0502-	●
199	16.063 COVER; NOZZLE,WIPER	8-97855-022-1	02	1	0502-		●	●	●	●	●
222	16.064 SCREW; WASHER NOZZLE	8-97216-113-0	02	1	0211-0501	●	●			●
222	16.064 SCREW; WASHER NOZZLE INDONESIA EQUIPMENT(S4S)	8-97216-113-0	02	1	0502-	●
222	16.064 SCREW; WASHER NOZZLE	8-97216-113-0	04	1	0211-0501			●	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
