◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50819 - NPR/NQR(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#45025) — 13 parça

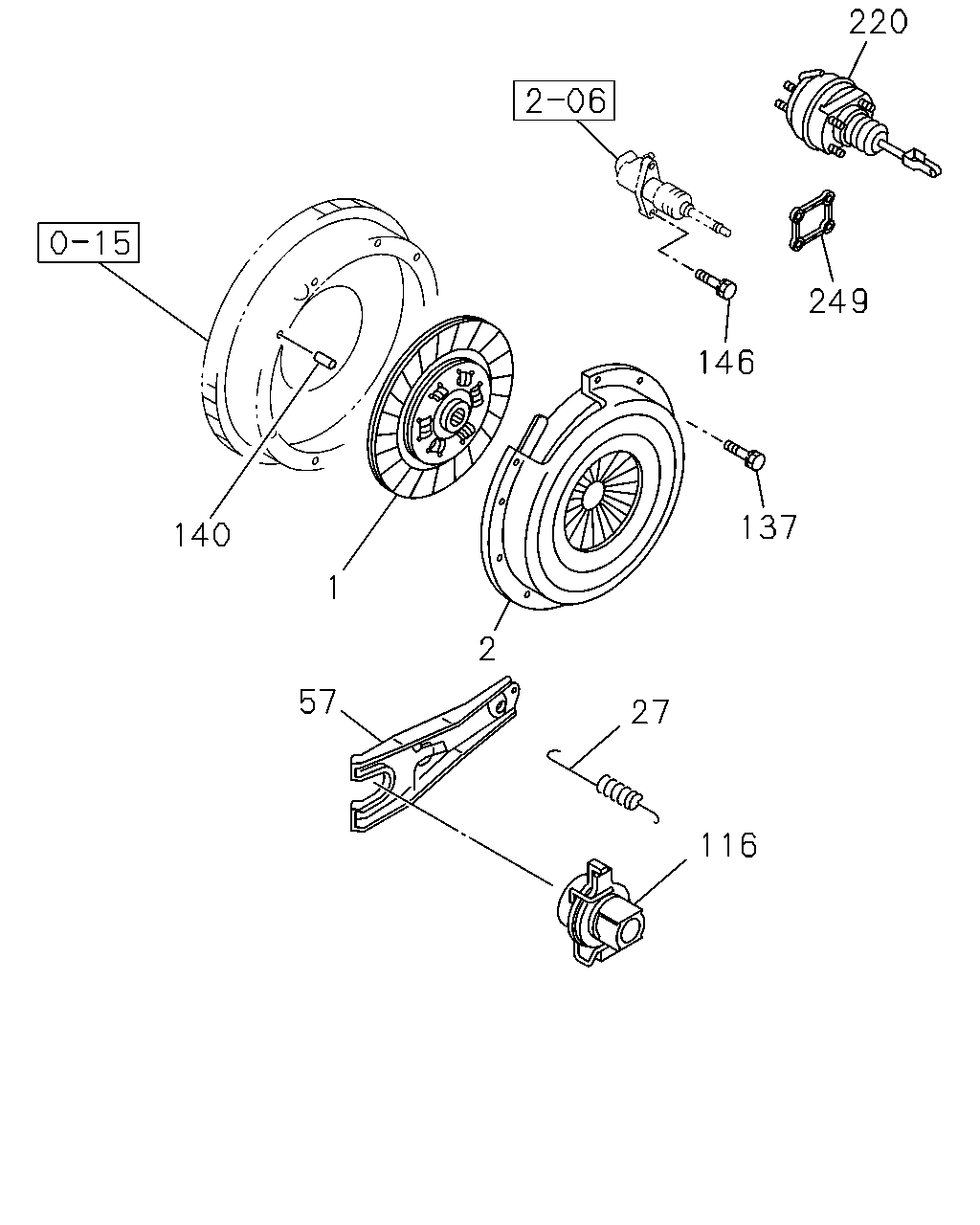

çizim 48269
220 249 146 137 140 1 2 57 27 116
BalonParca AdiParca NoAdetTipApplied Date A B
1 DISC; CLUTCH
THA 		8-97940-396-0 01 1 0009- ● ●
2 PLATE ASM; PRESSURE,CLU 8-97031-757-2 01 1 0009-0103 ● ●
2 PLATE ASM; PRESSURE,CLU 8-97310-796-0 01 1 0104-0302 ● ●
2 PLATE ASM; PRESSURE,CLU 8-97351-833-0 01 1 0303- ● ●
2 PLATE ASM; PRESSURE,CLU 8-97351-833-0 01 1 0303- ● ●
27 SPRING; RETURN,SHIFT FORK 8-97184-359-0 01 1 0009- ● ●
57 FORK; SHIFT,CLU 8-97187-936-0 01 1 0009- ● ●
116 BLOCK; SHIFT,CLU 8-97089-652-0 01 1 0009- ● ●
137 BOLT; CLU COVER
M10X16 FLANGE 		0-28081-016-0 10 1 0009- ● ●
140 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 0009- ● ●
146 BOLT; SLAVE CYL TO TRANS CASE
M8X30 FLANGE 		0-28680-830-0 02 1 0009- ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH<S2T> 		8-97162-962-1 01 1 0009- ● ●
249 SPACER; CLU BOOSTER
POWER ASSIST CLUTCH<S2T> 		8-97167-489-0 01 1 0009- ● ●
