◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50816 - NPR/NQR(EUROPE)-LHD ▶ 3 - Brakes, Brake System ▶ 3-31 - BRAKE MASTER VAC AND BRAKE BOOSTER ▶
3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER (#45021) — 32 parça

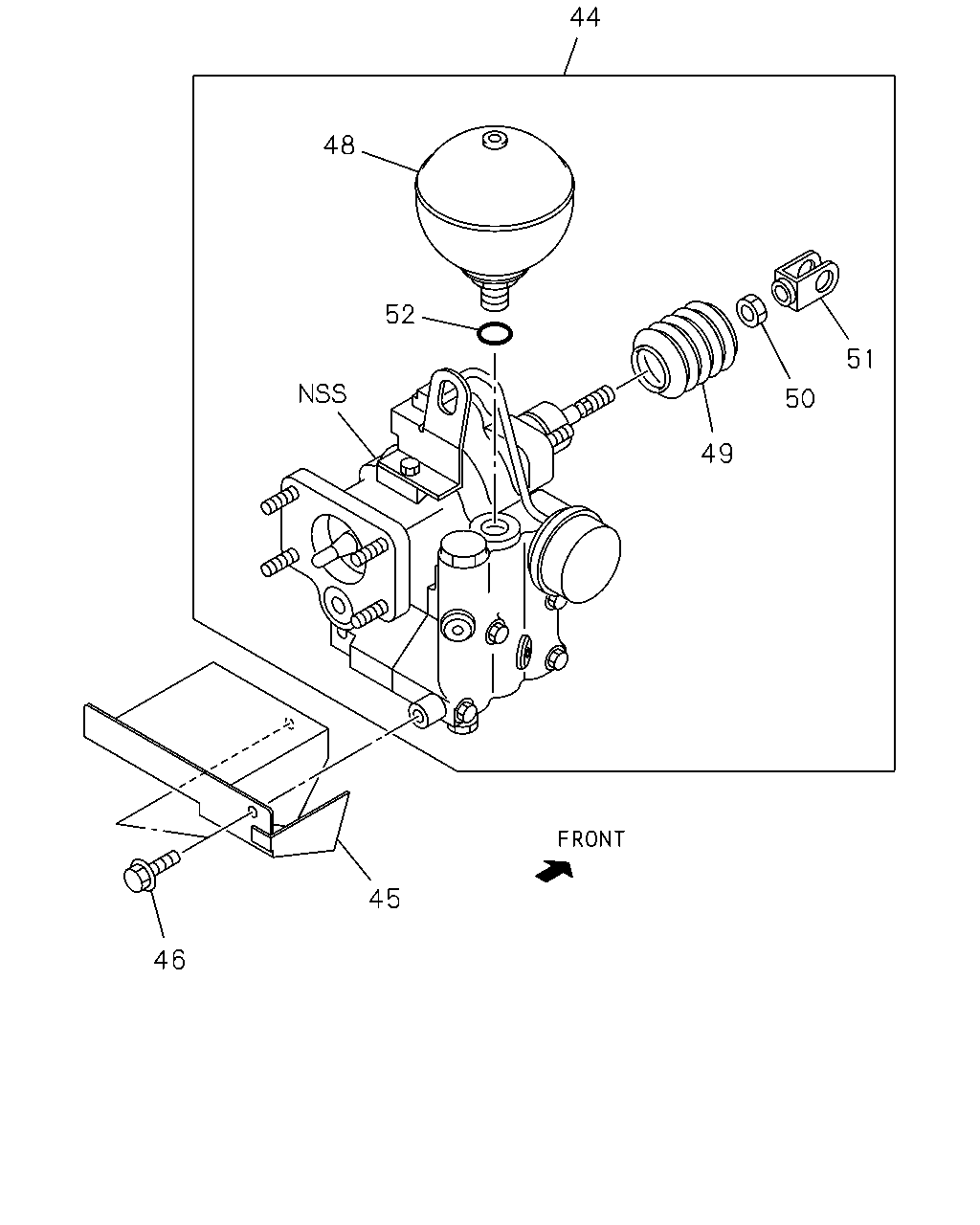

çizim 47750
44 48 52 51 50 49 45 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
44 04.901 BOOSTER; HYDRAULIC BRK
HYDRO BRAKE BOOSTER<7QQ> 		8-97209-212-0 01 1 9812- ● ●
44 04.901 BOOSTER; HYDRAULIC BRK 8-97209-212-0 01 1 9812- ● ● ●
45 04.901 PROTECTOR; HEAT
HYDRO BRAKE BOOSTER<7QQ> 		8-97182-354-1 01 1 9812- ● ●
45 04.901 PROTECTOR; HEAT 8-97182-354-1 01 1 9812- ● ● ●
46 04.901 BOLT; HEAT PROTECTOR
HYDRO BRAKE BOOSTER<7QQ> 02.500 M6X10 FLANGE 		0-28080-610-0 02 1 9812- ● ●
46 04.901 BOLT; HEAT PROTECTOR
02.500 M6X10 FLANGE 		0-28080-610-0 02 1 9812- ● ● ●
48 04.906 ACCUMULATOR; HYDRO BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 		8-97191-040-0 01 1 9812- ● ●
48 04.906 ACCUMULATOR; HYDRO BOOSTER 8-97191-040-0 01 1 9812- ● ● ●
49 04.906 GUARD; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 		8-97191-043-0 01 1 9812- ● ●
49 04.906 GUARD; HYDRO BRK BOOSTER 8-97191-043-0 01 1 9812- ● ● ●
50 04.906 NUT; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 04.662 		8-97191-042-0 01 1 9812- ● ●
50 04.906 NUT; HYDRO BRK BOOSTER
04.662 		8-97191-042-0 01 1 9812- ● ● ●
51 04.906 CLEVIS; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 04.662 		8-97191-041-0 01 1 9812- ● ●
51 04.906 CLEVIS; HYDRO BRK BOOSTER
04.662 		8-97191-041-0 01 1 9812- ● ● ●
52 04.906 GASKET; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 04.910 		8-97191-038-0 01 1 9812- ● ●
52 04.906 GASKET; HYDRO BRK BOOSTER
04.910 		8-97191-038-0 01 1 9812- ● ● ●
çizim 48106
1 17 16 24 15 11 12 11 23 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.901 MASTER VAC ASM; BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97177-974-0 01 1 9812-0109 ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97162-800-1 01 1 0110- ● ● ● ●
3 04.906 RETAINER; FRT SHELL,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		9-83315-319-0 01 1 9812- ● ● ● ●
11 04.906 FILTER; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.913 		9-83345-063-0 02 1 9812-0109 ● ● ● ●
11 04.906 FILTER; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97205-576-0 01 1 0110- ● ● ● ●
12 04.906 SILENCER; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-94465-510-0 01 1 9812-0109 ● ● ● ●
12 04.906 SILENCER; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97205-577-0 01 1 0110- ● ● ● ●
15 04.906 RETAINER; GUARD,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.922 		8-94123-119-0 01 1 9812-0109 ● ● ● ●
15 04.906 RETAINER; GUARD,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-94375-083-0 01 1 0110- ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 06.822 M10 		9-09111-410-0 01 1 9812-0105 ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> M10 		1-52139-008-0 01 1 0106- ● ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		5-47829-011-0 01 1 9812-0109 ● ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97224-610-0 01 1 0110- ● ● ● ●
23 04.910 SEAL; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97079-350-0 01 1 9812- ● ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97079-349-0 01 1 9812-0109 ● ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97205-578-0 01 1 0110- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
