3-15 — ANTILOCK BRAKE SYSTEM(A.B.S.) (#45018) — 36 parça

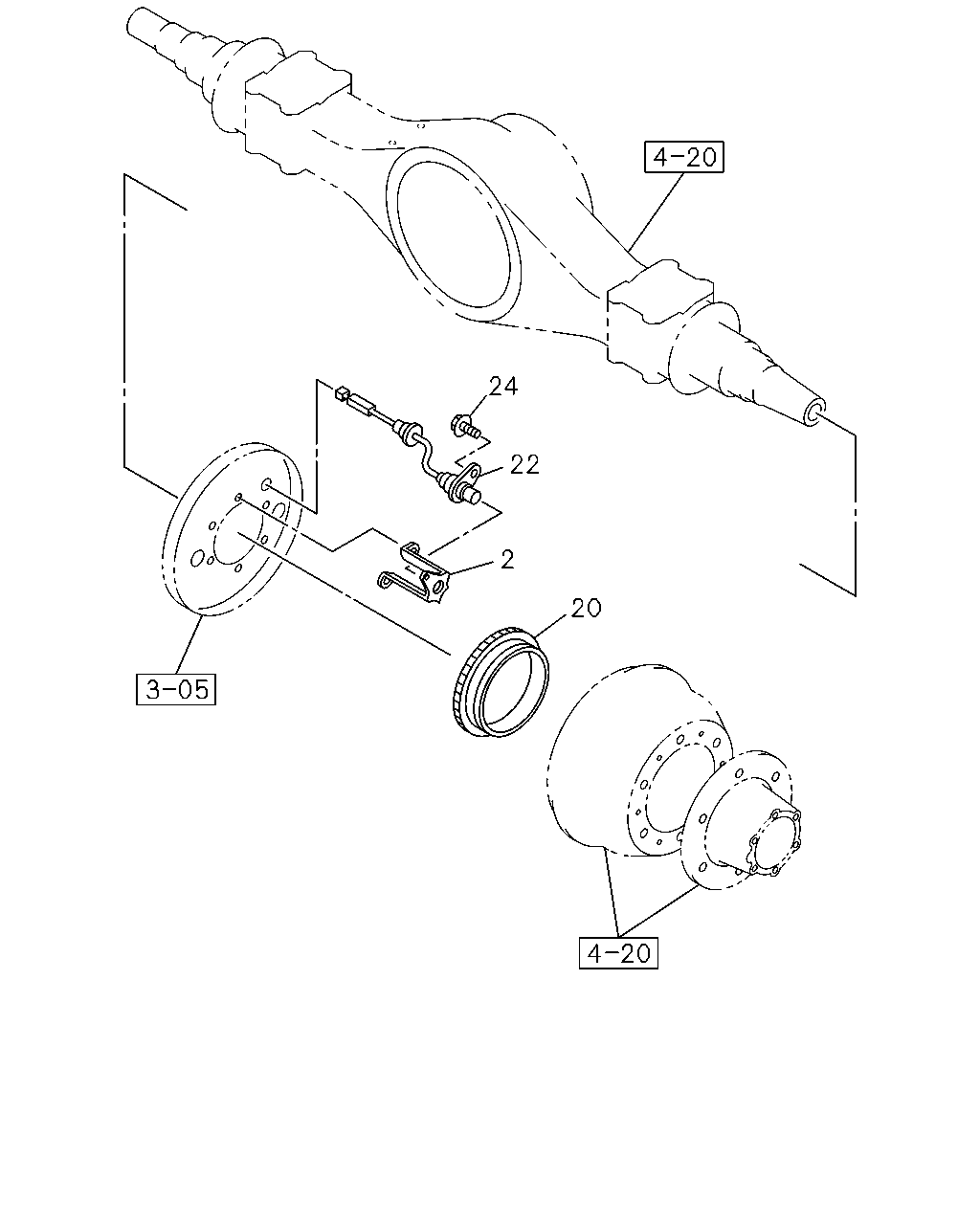

çizim 10857
24 22 2 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 04.730 BRACKET; SENSOR
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/9(HC6) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97222-719-0 02 1 0001-0002 ● ● ● ●
2 04.730 BRACKET; SENSOR
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97222-719-0 02 1 0001-0002 ●
2 04.730 BRACKET; SENSOR
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/9(HC6) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97248-115-0 02 1 0003-0105 ● ● ● ●
2 04.730 BRACKET; SENSOR
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97248-115-0 02 1 0003-0105 ●
2 04.730 BRACKET; SENSOR
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97314-120-0 02 1 0106-0108 ● ● ● ●
2 04.730 BRACKET; SENSOR
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> 		8-97314-120-0 02 1 0106-0108 ● ● ●
2 04.730 BRACKET; SENSOR
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) 		8-97314-120-0 02 1 0109-0212 ● ● ● ●
2 04.730 BRACKET; SENSOR
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97314-120-0 02 1 0109-0212 ● ● ●
2 04.730 BRACKET; SENSOR
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97314-120-0 02 1 0301- ● ● ● ●
2 04.730 BRACKET; SENSOR
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97314-120-0 02 1 0301- ● ● ●
2 04.730 BRACKET; SENSOR
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97206-777-0 02 1 0001-0002 ● ● ● ●
2 04.730 BRACKET; SENSOR
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97248-117-0 02 1 0003-0105 ● ● ● ●
2 04.730 BRACKET; SENSOR
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97248-117-0 02 1 0106- ● ● ● ● ●
20 04.710 ROTOR; SENSOR
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/9(HC6) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97184-315-1 02 1 0001-0008 ● ● ● ●
20 04.710 ROTOR; SENSOR
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/9(HC6) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97206-774-3 02 1 0009-0105 ● ● ● ●
20 04.710 ROTOR; SENSOR
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97206-774-3 02 1 0106- ● ● ● ●
20 04.710 ROTOR; SENSOR
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97234-459-2 02 1 0001-0105 ●
20 04.710 ROTOR; SENSOR
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97234-459-2 02 1 0106-0212 ● ● ●
20 04.710 ROTOR; SENSOR
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97234-459-2 02 1 0301- ● ● ●
20 04.710 ROTOR; SENSOR
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97206-775-3 02 1 0001-0105 ● ● ● ●
20 04.710 ROTOR; SENSOR
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97206-775-3 02 1 0106- ● ● ● ● ●
22 04.710 SENSOR; SPEED
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/9(HC6) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97184-314-1 02 1 0001-0004 ● ● ● ●
22 04.710 SENSOR; SPEED
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97184-314-1 02 1 0001-0004 ● ● ● ●
22 04.710 SENSOR; SPEED
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97184-314-1 02 1 0001-0004 ●
22 04.710 SENSOR; SPEED
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97184-314-2 02 1 0005-0105 ●
22 04.710 SENSOR; SPEED
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97184-314-3 02 1 0106-0212 ● ● ●
22 04.710 SENSOR; SPEED
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97184-314-3 02 1 0301- ● ● ●
22 04.710 SENSOR; SPEED
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/9(HC6) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97206-760-1 02 1 0005-0105 ● ● ● ●
22 04.710 SENSOR; SPEED
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97206-760-1 02 1 0005-0105 ● ● ● ●
22 04.710 SENSOR; SPEED
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97206-760-2 02 1 0106- ● ● ● ● ● ● ●
24 04.730 BOLT; SENSOR
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/9(HC6) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0001-0105 ● ● ● ●
24 04.730 BOLT; SENSOR
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0001-0105 ● ● ● ●
24 04.730 BOLT; SENSOR
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0001-0105 ●
24 04.730 BOLT; SENSOR
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0106-0108 ● ● ● ● ● ● ●
24 04.730 BOLT; SENSOR
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0106-0108 ● ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0109- ● ● ● ● ● ● ●
