◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50816 - NPR/NQR(EUROPE)-LHD ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#45017) — 296 parça

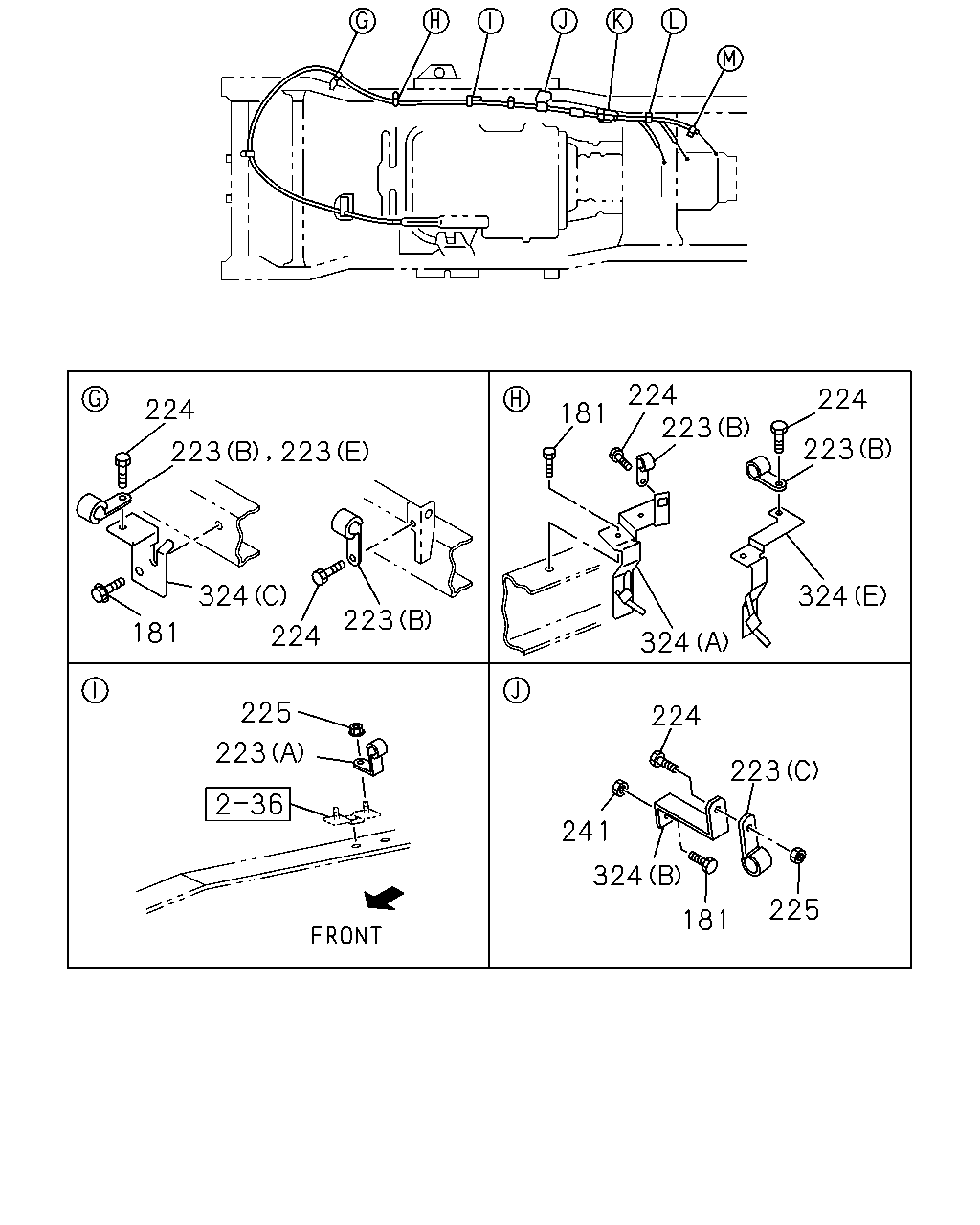

çizim 48105
224 223 224 224 181 223 324 324 223 181 224 324 225 224 223 223 324 241 225 181 223 223
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
181 04.785 BOLT; BRKT
4JG2 ENG(RJC) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-9905 ● ●
181 04.785 BOLT; BRKT
4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-9905 ● ●
181 04.785 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9906-0105 ● ●
181 04.785 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9906-0105 ● ●
181 04.785 BOLT; BRKT
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 01 1 9812-9903 ● ● ● ● ●
181 04.785 BOLT; BRKT
M/T MBP6Q(RNM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 01 1 9812-9903 ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 01 1 9904-0105 ● ● ● ● ● ●
181 04.785 BOLT; BRKT
M/T MBP6Q(RNM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 01 1 9904-0105 ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 01 1 0106- ● ● ●
181 04.785 BOLT; BRKT
03.405 M10X30 FLANGE 		0-28681-030-0 01 1 0106- ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC) (D) ID=13 L=50 		9-09525-286-0 01 1 9812-9905 ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) (D) ID=13 L=50 		9-09525-286-0 01 1 9906-0105 ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JH1 ENG(RJX) (D) ID=14.5 L=20 		1-09701-012-0 01 1 0106- ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC) POWER STEERING<N40> (E) ID=11 L=28 		9-09525-055-0 01 1 9812-9905 ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=11 L=28 		9-09525-055-0 01 1 9906-0105 ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=11 L=28 		9-09525-055-0 01 1 0106-0202 ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=11 L=28 		9-09525-055-0 01 1 0106-0202 ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=11 L=28 		9-09525-055-0 01 1 0203- ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=11 L=28 		9-09525-055-0 01 1 0203- ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC) EXC. POWER STEERING<N40> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 9812-9905 ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC) 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 9812-9905 ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 9906-0105 ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 9906-0105 ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC) EXC. POWER STEERING<N40> (A) ID=16 		1-09701-075-0 01 1 9812-9905 ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		1-09701-075-0 01 1 9906-0012 ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		1-09701-075-0 01 1 0101-0104 ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		1-09701-075-0 01 1 0105-0105 ● ●
223 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> 01.531 (C) ID=16 L=28 		9-09525-556-0 01 1 9812-9903 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> 01.531 (C) ID=16 L=28 		9-09525-556-0 01 1 9904-0105 ● ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> 01.531 (C) ID=16 L=28 		9-09525-556-0 01 1 0106- ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
01.531 (C) ID=16 L=28 		9-09525-556-0 01 1 0106- ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4JG2 ENG(RJC) POWER STEERING<N40> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9812-9905 ● ●
224 04.785 BOLT; CABLE CLIP
4JG2 ENG(RJC) 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9812-9905 ● ●
224 04.785 BOLT; CABLE CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9906-0105 ● ●
224 04.785 BOLT; CABLE CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9906-0105 ● ●
224 04.785 BOLT; CABLE CLIP
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0106- ● ● ●
224 04.785 BOLT; CABLE CLIP
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0106- ● ● ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-9903 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4JG2 ENG(RJC) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-9903 ● ●
224 04.785 BOLT; CABLE CLIP
4JG2 ENG(RJC) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-9903 ● ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6Q(RNM) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-9903 ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6Q(RNM) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-9903 ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-9903 ● ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9904-9905 ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4JG2 ENG(RJC) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9904-9905 ● ●
224 04.785 BOLT; CABLE CLIP
4JG2 ENG(RJC) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9904-9905 ● ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6Q(RNM) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9904-9905 ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6Q(RNM) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9904-9905 ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9904-9905 ● ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9906-0105 ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9906-0105 ● ●
224 04.785 BOLT; CABLE CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9906-0105 ● ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6Q(RNM) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9906-0105 ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6Q(RNM) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9906-0105 ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9906-0105 ● ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6R(RNW) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106-0207 ● ● ●
224 04.785 BOLT; CABLE CLIP
4JH1 ENG(RJX) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106-0207 ● ● ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106-0207 ● ● ●
224 04.785 BOLT; CABLE CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106-0207 ● ● ● ●
224 04.785 BOLT; CABLE CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106-0207 ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4JH1 ENG(RJX) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0208- ● ● ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0208- ● ● ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6R(RNW),M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0208- ● ● ●
224 04.785 BOLT; CABLE CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0208- ● ● ● ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6R(RNW),M/T MZZ6F(RSR) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0208- ● ● ● ●
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-9903 ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4JG2 ENG(RJC) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-9903 ● ●
225 04.785 NUT; CABLE CLIP
4JG2 ENG(RJC) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-9903 ● ●
225 04.785 NUT; CABLE CLIP
M/T MBP6Q(RNM) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-9903 ●
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9904-9905 ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4JG2 ENG(RJC) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9904-9905 ● ●
225 04.785 NUT; CABLE CLIP
4JG2 ENG(RJC) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9904-9905 ● ●
225 04.785 NUT; CABLE CLIP
M/T MBP6Q(RNM) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9904-9905 ●
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9906-0105 ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9906-0105 ● ●
225 04.785 NUT; CABLE CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9906-0105 ● ●
225 04.785 NUT; CABLE CLIP
M/T MBP6Q(RNM) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9906-0105 ●
225 04.785 NUT; CABLE CLIP
4JH1 ENG(RJX) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ●
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ●
225 04.785 NUT; CABLE CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ●
241 04.785 NUT; BRKT
4HE1 ENG(RLY) M/T MXA5R(RMT) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-9903 ● ● ●
241 04.785 NUT; BRKT
4HE1 ENG(RLY) M/T MXA5R(RMT) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9904-0105 ● ● ●
241 04.785 NUT; BRKT
4HE1 ENG(RLY) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9904-0105 ●
241 04.785 NUT; BRKT
4HE1 ENG(RLY) M/T MXA5R(RMT) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> M10 FLANGE 		0-91150-110-0 01 1 9812-9903 ● ● ● ● ●
241 04.785 NUT; BRKT
M/T MBP6Q(RNM) EXC. FRAME STRAIGHT TYPE<7KJ> M10 FLANGE 		0-91150-110-0 01 1 9812-9903 ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> M10 FLANGE 		0-91150-110-0 01 1 9904-0105 ● ● ● ● ● ●
241 04.785 NUT; BRKT
M/T MBP6Q(RNM) EXC. FRAME STRAIGHT TYPE<7KJ> M10 FLANGE 		0-91150-110-0 01 1 9904-0105 ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> M10 FLANGE 		0-91150-110-0 01 1 0106- ● ● ●
241 04.785 NUT; BRKT
M10 FLANGE 		0-91150-110-0 01 1 0106- ● ● ● ●
324 04.785 BRACKET
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97103-822-1 01 1 9812-0105 ● ●
324 04.785 BRACKET
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97103-822-1 01 1 0106- ● ● ●
324 04.785 BRACKET
4JG2 ENG(RJC) (A) 		8-97202-877-0 01 1 9812-9905 ● ●
324 04.785 BRACKET
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97202-877-0 01 1 9906-0105 ● ●
324 04.785 BRACKET
4JH1 ENG(RJX) (E) 		8-97305-650-0 01 1 0106- ● ● ●
324 04.785 BRACKET
4JG2 ENG(RJC) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (C) 		8-97042-771-0 01 1 9812-9905 ● ●
324 04.785 BRACKET
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (C) 		8-97042-771-0 01 1 9906-0105 ● ●
324 04.785 BRACKET
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97188-151-0 01 1 9812-9903 ● ● ● ● ●
324 04.785 BRACKET
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97188-151-0 01 1 9904-0105 ● ● ● ● ● ●
324 04.785 BRACKET
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97188-151-0 01 1 0106- ● ● ●
324 04.785 BRACKET
(A) 		8-97188-151-0 01 1 0106- ●
324 04.785 BRACKET
4HE1 ENG(RLY) (A) 		8-97188-151-0 01 1 0106- ● ● ●
324 04.785 BRACKET
M/T MBP6Q(RNM) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V .W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> (D) 		8-97181-745-0 01 1 9812-0105 ●
324 04.785 BRACKET
M/T MBP6Q(RNM) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> (D) 		8-97181-745-0 01 1 9812-0105 ●
324 04.785 BRACKET
M/T MBP6Q(RNM) EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> (D) 		8-97181-744-0 01 1 9812-0103 ● ● ● ●
324 04.785 BRACKET
M/T MBP6Q(RNM) EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> (F) 		8-97307-640-0 01 1 0104-0105 ● ● ● ●
324 04.785 BRACKET
M/T MBP6R(RNW) (F) 		8-97307-640-0 01 1 0106-0207 ● ● ●
324 04.785 BRACKET
(F) 		8-97307-640-0 01 1 0106-0207 ● ● ● ●
324 04.785 BRACKET
M/T MBP6R(RNW),M/T MZZ6F(RSR) (F) 		8-97307-640-0 01 1 0208- ● ● ● ● ● ● ●

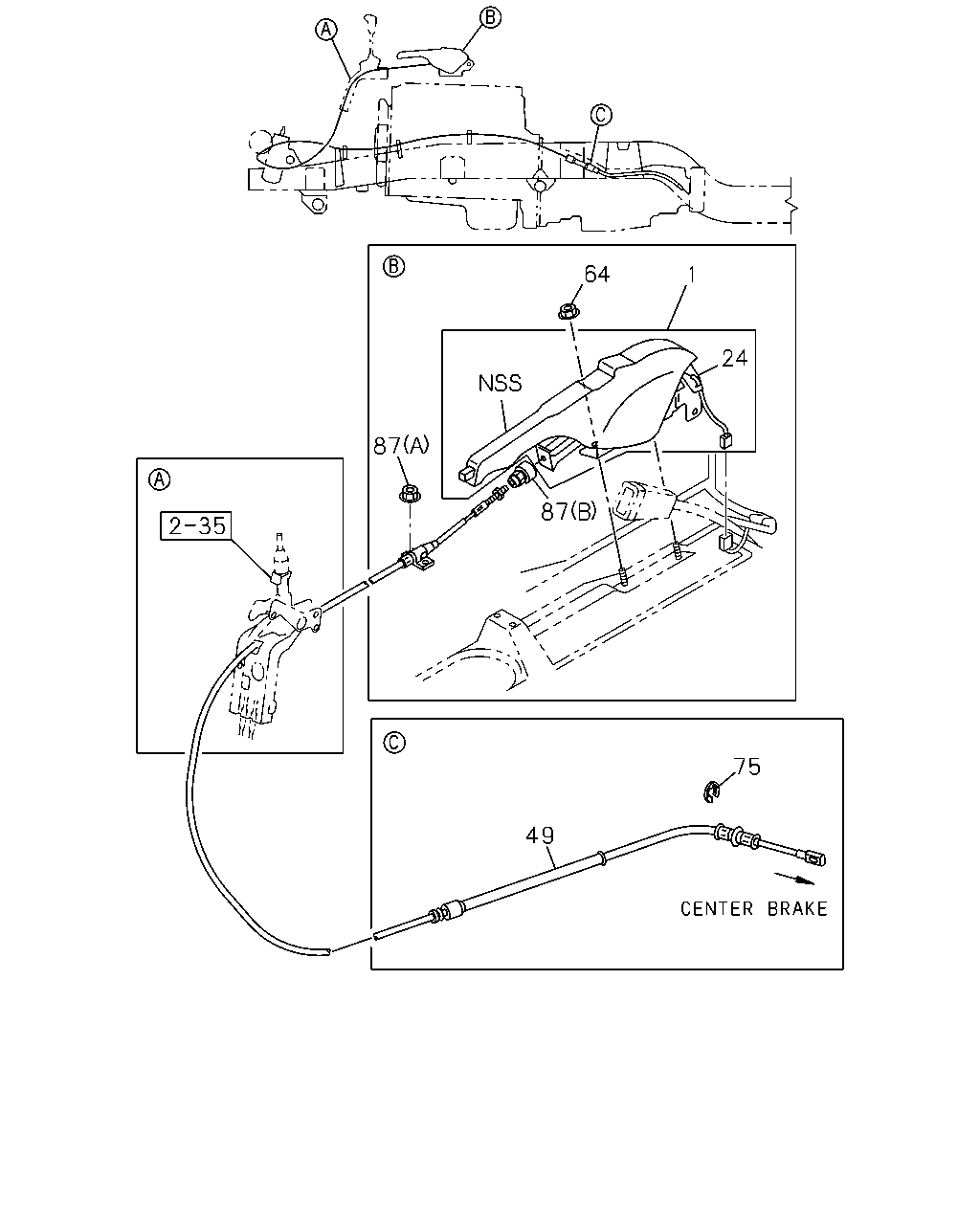

çizim 48764
64 1 24 87 87 75 49
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97890-439-1 01 1 9812-0108 ● ● ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97995-930-0 01 1 0109-0110 ● ● ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97996-543-1 01 1 0111- ● ● ● ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97890-859-0 01 1 9812-0108 ● ● ● ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0109- ● ● ● ● ● ● ●
49 04.779 CABLE; PARKING BRK
M/T MSB5S(R45) 		8-97184-277-2 01 1 9812-9905 ● ●
49 04.779 CABLE; PARKING BRK
M/T MSB5R(RNN),M/T MSB5S(R45) 		8-97184-277-2 01 1 9906-0105 ● ●
49 04.779 CABLE; PARKING BRK
4JH1 ENG(RJX) M/T MXA5R(RMT) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97215-435-2 01 1 0106- ● ● ●
49 04.779 CABLE; PARKING BRK
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> 		8-97215-434-0 01 1 9812-9903 ● ● ●
49 04.779 CABLE; PARKING BRK
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> 		8-97215-434-0 01 1 9904-0105 ● ● ●
49 04.779 CABLE; PARKING BRK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97215-434-0 01 1 9904-0105 ●
49 04.779 CABLE; PARKING BRK
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> 		8-97215-434-0 01 1 0106- ● ● ●
64 04.595 NUT; PARKING BRK
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 9812- ● ● ● ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
4HE1 ENG(RLY) M/T MXA5R(RMT) 04.681 ID=12 		9-09185-412-0 01 1 9812-9903 ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
4JG2 ENG(RJC) 04.681 ID=12 		9-09185-412-0 01 1 9812-9903 ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
4HE1 ENG(RLY) M/T MXA5R(RMT) 04.681 ID=12 		9-09185-412-0 01 1 9904-9905 ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
4JG2 ENG(RJC) 04.681 ID=12 		9-09185-412-0 01 1 9904-9905 ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
4HE1 ENG(RLY) 04.681 ID=12 		9-09185-412-0 01 1 9904-9905 ●
75 04.790 RING; SNAP,HAND BRK CABLE
4HE1 ENG(RLY) M/T MXA5R(RMT) 04.681 ID=12 		9-09185-412-0 01 1 9906-0105 ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) 04.681 ID=12 		9-09185-412-0 01 1 9906-0105 ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
4HE1 ENG(RLY) 04.681 ID=12 		9-09185-412-0 01 1 9906-0105 ●
75 04.790 RING; SNAP,HAND BRK CABLE
4JH1 ENG(RJX) 04.681 ID=12 		9-09185-412-0 01 1 0106- ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
4HE1 ENG(RLY) M/T MXA5R(RMT) 04.681 ID=12 		9-09185-412-0 01 1 0106- ● ● ●
87 04.785 NUT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 9812- ● ● ● ● ● ● ●
87 04.785 NUT
(B) M6 		8-97088-730-1 01 1 9812- ● ● ● ● ● ● ●

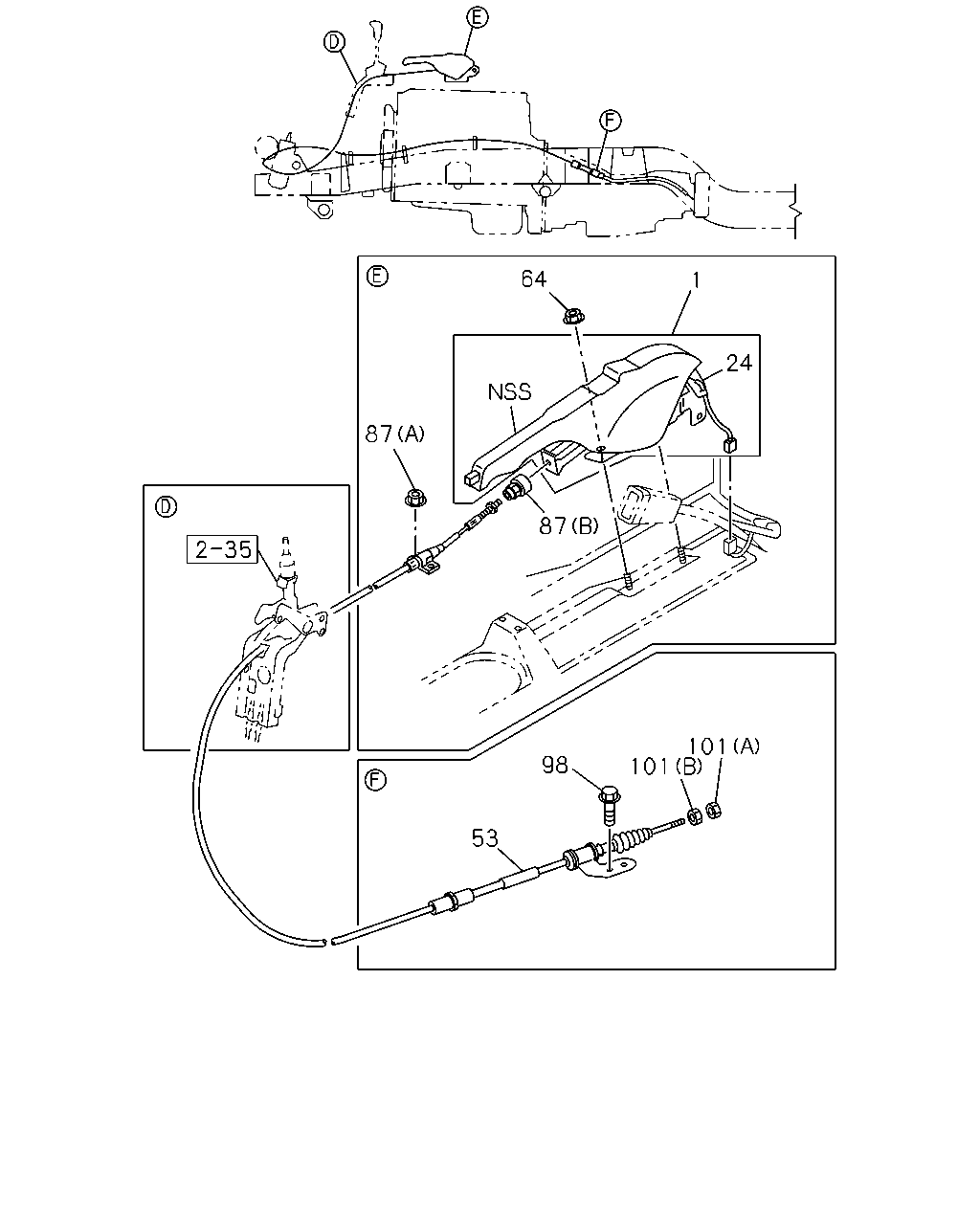

çizim 49217
64 1 24 87 87 101 101 98 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97890-439-1 01 1 9812-0108 ● ● ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97995-930-0 01 1 0109-0110 ● ● ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97996-543-1 01 1 0111- ● ● ● ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97890-859-0 01 1 9812-0108 ● ● ● ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0109- ● ● ● ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6Q(RNM) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V .W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97096-461-3 01 1 9812-0105 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6Q(RNM) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V .W. 7.0-7.5TON(RPX) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97148-609-3 01 1 9812-0105 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6Q(RNM) G.V.W. 6.0-6.5TON(RPV) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97148-609-3 01 1 9812-0105 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6Q(RNM) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97169-969-2 01 1 9812-0105 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6Q(RNM) EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 7.5-8.0TON(RPY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97169-967-4 01 1 9812-0105 ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6R(RNW) 		8-97169-967-4 01 1 0106-0207 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR 8-97169-967-4 01 1 0106-0207 ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6R(RNW),M/T MZZ6F(RSR) 		8-97169-967-4 01 1 0208- ● ● ● ● ● ● ●
64 04.595 NUT; PARKING BRK
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 9812- ● ● ● ● ● ● ●
87 04.785 NUT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 9812- ● ● ● ● ● ● ●
87 04.785 NUT
(B) M6 		8-97088-730-1 01 1 9812- ● ● ● ● ● ● ●
98 04.785 BOLT; RR COVER
M/T MBP6Q(RNM) 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 9812-0105 ● ●
98 04.785 BOLT; RR COVER
03.405 M10X30 FLANGE 		0-28681-030-0 02 1 9812-0105 ● ●
98 04.785 BOLT; RR COVER
M/T MBP6R(RNW) 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0106-0207 ● ● ●
98 04.785 BOLT; RR COVER
03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0106-0207 ● ● ● ●
98 04.785 BOLT; RR COVER
M/T MBP6R(RNW),M/T MZZ6F(RSR) 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0208- ● ● ● ● ● ● ●
101 04.785 NUT; CABLE TO LEVER
M/T MBP6Q(RNM) 02.559 (A) M8 		9-09110-408-0 01 1 9812-0105 ● ●
101 04.785 NUT; CABLE TO LEVER
02.559 (A) M8 		9-09110-408-0 01 1 9812-0105 ● ●
101 04.785 NUT; CABLE TO LEVER
M/T MBP6R(RNW) 02.559 (A) M8 		9-09110-408-0 01 1 0106-0207 ● ● ●
101 04.785 NUT; CABLE TO LEVER
02.559 (A) M8 		9-09110-408-0 01 1 0106-0207 ● ● ● ●
101 04.785 NUT; CABLE TO LEVER
M/T MBP6R(RNW),M/T MZZ6F(RSR) 02.559 (A) M8 		9-09110-408-0 01 1 0208- ● ● ● ● ● ● ●
101 04.785 NUT; CABLE TO LEVER
M/T MBP6Q(RNM) (B) M8 FLANGE 		9-46259-016-0 01 1 9812-0105 ● ●
101 04.785 NUT; CABLE TO LEVER
(B) M8 FLANGE 		9-46259-016-0 01 1 9812-0105 ● ●
101 04.785 NUT; CABLE TO LEVER
M/T MBP6R(RNW) (B) M8 FLANGE 		9-46259-016-0 01 1 0106-0207 ● ● ●
101 04.785 NUT; CABLE TO LEVER
(B) M8 FLANGE 		9-46259-016-0 01 1 0106-0207 ● ● ● ●
101 04.785 NUT; CABLE TO LEVER
M/T MBP6R(RNW),M/T MZZ6F(RSR) (B) M8 FLANGE 		9-46259-016-0 01 1 0208- ● ● ● ● ● ● ●

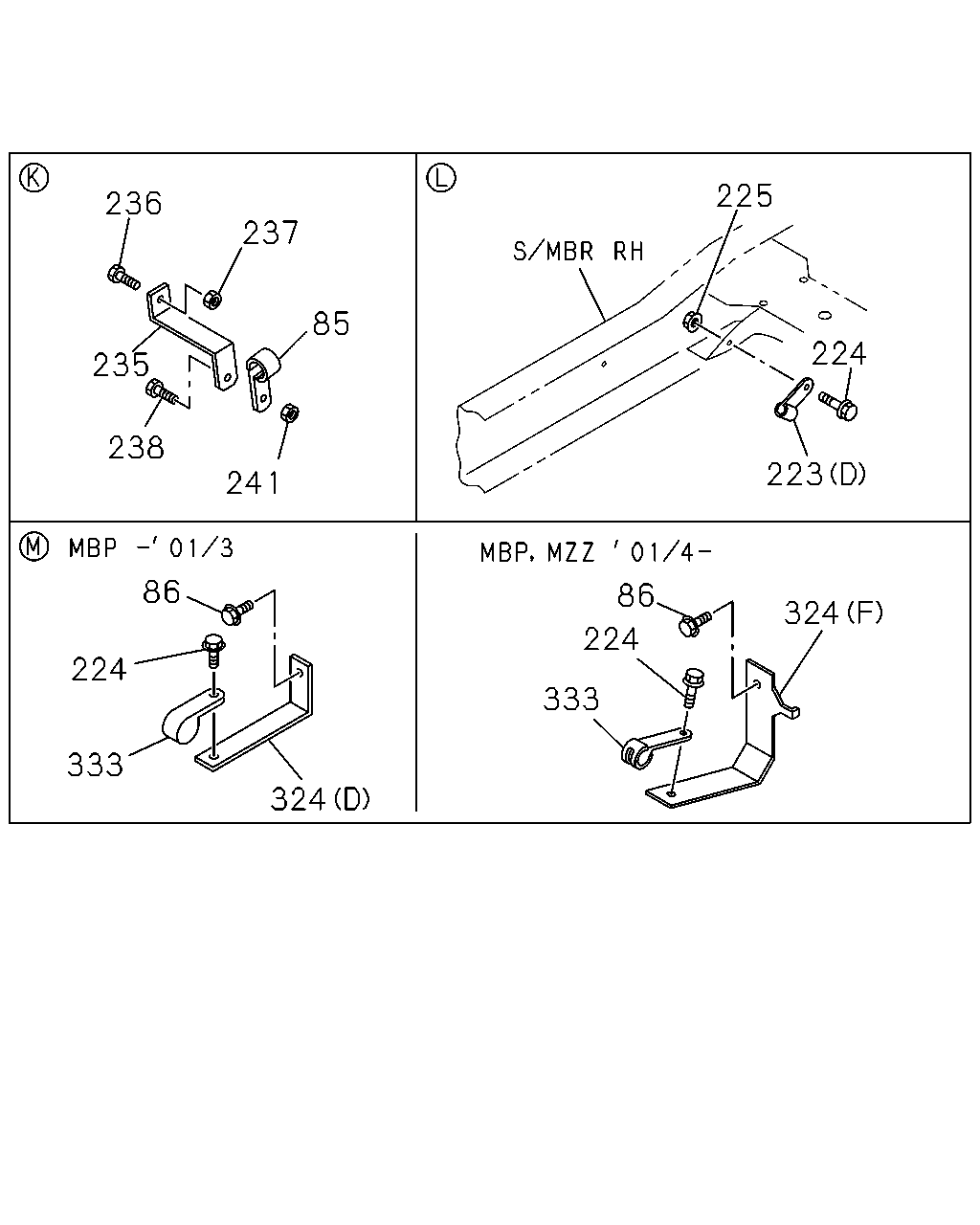

çizim 51193
225 236 237 85 224 235 238 223 241 86 86 324 224 224 333 333 324
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
85 04.785 CLIP; BRKT
4HE1 ENG(RLY) M/T MXA5R(RMT) ID=12 L=70 		1-09700-097-1 01 1 9812-9903 ● ● ●
85 04.785 CLIP; BRKT
4HE1 ENG(RLY) M/T MXA5R(RMT) ID=12 L=70 		1-09700-097-1 01 1 9904-0105 ● ● ●
85 04.785 CLIP; BRKT
4HE1 ENG(RLY) ID=12 L=70 		1-09700-097-1 01 1 9904-0105 ●
85 04.785 CLIP; BRKT
4HE1 ENG(RLY) M/T MXA5R(RMT) ID=12 L=70 		1-09700-097-1 01 1 0106- ● ● ●
86 04.785 BOLT
M/T MBP6Q(RNM) FRAME STRAIGHT TYPE<7KJ> 03.604 M10X16 FLANGE 		0-28181-016-0 01 1 9812-0105 ● ● ● ●
86 04.785 BOLT
M/T MBP6R(RNW) FRAME STRAIGHT TYPE<7KJ> 03.604 M10X16 FLANGE 		0-28181-016-0 01 1 0106-0207 ● ● ●
86 04.785 BOLT
03.604 M10X16 FLANGE 		0-28181-016-0 01 1 0106-0207 ● ● ● ●
86 04.785 BOLT
M/T MBP6R(RNW),M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 03.604 M10X16 FLANGE 		0-28181-016-0 01 1 0208- ● ● ●
86 04.785 BOLT
M/T MBP6R(RNW),M/T MZZ6F(RSR) 03.604 M10X16 FLANGE 		0-28181-016-0 01 1 0208- ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC) (D) ID=13 L=50 		9-09525-286-0 01 1 9812-9905 ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) (D) ID=13 L=50 		9-09525-286-0 01 1 9906-0105 ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JH1 ENG(RJX) (D) ID=14.5 L=20 		1-09701-012-0 01 1 0106- ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC) POWER STEERING<N40> (E) ID=11 L=28 		9-09525-055-0 01 1 9812-9905 ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=11 L=28 		9-09525-055-0 01 1 9906-0105 ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=11 L=28 		9-09525-055-0 01 1 0106-0202 ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=11 L=28 		9-09525-055-0 01 1 0106-0202 ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=11 L=28 		9-09525-055-0 01 1 0203- ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=11 L=28 		9-09525-055-0 01 1 0203- ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC) EXC. POWER STEERING<N40> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 9812-9905 ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC) 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 9812-9905 ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 9906-0105 ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 9906-0105 ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC) EXC. POWER STEERING<N40> (A) ID=16 		1-09701-075-0 01 1 9812-9905 ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		1-09701-075-0 01 1 9906-0012 ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		1-09701-075-0 01 1 0101-0104 ● ●
223 04.785 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		1-09701-075-0 01 1 0105-0105 ● ●
223 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> 01.531 (C) ID=16 L=28 		9-09525-556-0 01 1 9812-9903 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> 01.531 (C) ID=16 L=28 		9-09525-556-0 01 1 9904-0105 ● ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> 01.531 (C) ID=16 L=28 		9-09525-556-0 01 1 0106- ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
01.531 (C) ID=16 L=28 		9-09525-556-0 01 1 0106- ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4JG2 ENG(RJC) POWER STEERING<N40> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9812-9905 ● ●
224 04.785 BOLT; CABLE CLIP
4JG2 ENG(RJC) 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9812-9905 ● ●
224 04.785 BOLT; CABLE CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9906-0105 ● ●
224 04.785 BOLT; CABLE CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9906-0105 ● ●
224 04.785 BOLT; CABLE CLIP
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0106- ● ● ●
224 04.785 BOLT; CABLE CLIP
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0106- ● ● ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-9903 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4JG2 ENG(RJC) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-9903 ● ●
224 04.785 BOLT; CABLE CLIP
4JG2 ENG(RJC) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-9903 ● ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6Q(RNM) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-9903 ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6Q(RNM) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-9903 ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-9903 ● ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9904-9905 ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4JG2 ENG(RJC) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9904-9905 ● ●
224 04.785 BOLT; CABLE CLIP
4JG2 ENG(RJC) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9904-9905 ● ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6Q(RNM) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9904-9905 ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6Q(RNM) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9904-9905 ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9904-9905 ● ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9906-0105 ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9906-0105 ● ●
224 04.785 BOLT; CABLE CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9906-0105 ● ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6Q(RNM) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9906-0105 ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6Q(RNM) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9906-0105 ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9906-0105 ● ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6R(RNW) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106-0207 ● ● ●
224 04.785 BOLT; CABLE CLIP
4JH1 ENG(RJX) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106-0207 ● ● ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106-0207 ● ● ●
224 04.785 BOLT; CABLE CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106-0207 ● ● ● ●
224 04.785 BOLT; CABLE CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106-0207 ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4JH1 ENG(RJX) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0208- ● ● ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0208- ● ● ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6R(RNW),M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0208- ● ● ●
224 04.785 BOLT; CABLE CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0208- ● ● ● ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6R(RNW),M/T MZZ6F(RSR) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0208- ● ● ● ●
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-9903 ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4JG2 ENG(RJC) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-9903 ● ●
225 04.785 NUT; CABLE CLIP
4JG2 ENG(RJC) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-9903 ● ●
225 04.785 NUT; CABLE CLIP
M/T MBP6Q(RNM) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-9903 ●
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9904-9905 ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4JG2 ENG(RJC) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9904-9905 ● ●
225 04.785 NUT; CABLE CLIP
4JG2 ENG(RJC) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9904-9905 ● ●
225 04.785 NUT; CABLE CLIP
M/T MBP6Q(RNM) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9904-9905 ●
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9906-0105 ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9906-0105 ● ●
225 04.785 NUT; CABLE CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9906-0105 ● ●
225 04.785 NUT; CABLE CLIP
M/T MBP6Q(RNM) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9906-0105 ●
225 04.785 NUT; CABLE CLIP
4JH1 ENG(RJX) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ●
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ●
225 04.785 NUT; CABLE CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4HE1 ENG(RLY) M/T MXA5R(RMT) 		8-97148-597-3 01 1 9812-9903 ● ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4HE1 ENG(RLY) M/T MXA5R(RMT) 		8-97148-597-3 01 1 9904-0105 ● ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4HE1 ENG(RLY) 		8-97148-597-3 01 1 9904-0105 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4HE1 ENG(RLY) M/T MXA5R(RMT) 		8-97148-597-3 01 1 0106- ● ● ●
236 04.785 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) M/T MXA5R(RMT) 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 9812-9903 ● ● ●
236 04.785 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) M/T MXA5R(RMT) 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 9904-0105 ● ● ●
236 04.785 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 9904-0105 ●
236 04.785 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) M/T MXA5R(RMT) 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 0106- ● ● ●
237 04.785 NUT; BRKT TO FRAME
4HE1 ENG(RLY) M/T MXA5R(RMT) M10 FLANGE 		0-91150-110-0 01 1 9812-9903 ● ● ●
237 04.785 NUT; BRKT TO FRAME
4HE1 ENG(RLY) M/T MXA5R(RMT) M10 FLANGE 		0-91150-110-0 01 1 9904-0105 ● ● ●
237 04.785 NUT; BRKT TO FRAME
4HE1 ENG(RLY) M10 FLANGE 		0-91150-110-0 01 1 9904-0105 ●
237 04.785 NUT; BRKT TO FRAME
4HE1 ENG(RLY) M/T MXA5R(RMT) M10 FLANGE 		0-91150-110-0 01 1 0106- ● ● ●
238 04.785 BOLT; CLIP TO BRKT
4HE1 ENG(RLY) M/T MXA5R(RMT) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-9903 ● ● ●
238 04.785 BOLT; CLIP TO BRKT
4HE1 ENG(RLY) M/T MXA5R(RMT) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9904-0105 ● ● ●
238 04.785 BOLT; CLIP TO BRKT
4HE1 ENG(RLY) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9904-0105 ●
238 04.785 BOLT; CLIP TO BRKT
4HE1 ENG(RLY) M/T MXA5R(RMT) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ●
241 04.785 NUT; BRKT
4HE1 ENG(RLY) M/T MXA5R(RMT) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-9903 ● ● ●
241 04.785 NUT; BRKT
4HE1 ENG(RLY) M/T MXA5R(RMT) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9904-0105 ● ● ●
241 04.785 NUT; BRKT
4HE1 ENG(RLY) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9904-0105 ●
241 04.785 NUT; BRKT
4HE1 ENG(RLY) M/T MXA5R(RMT) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> M10 FLANGE 		0-91150-110-0 01 1 9812-9903 ● ● ● ● ●
241 04.785 NUT; BRKT
M/T MBP6Q(RNM) EXC. FRAME STRAIGHT TYPE<7KJ> M10 FLANGE 		0-91150-110-0 01 1 9812-9903 ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> M10 FLANGE 		0-91150-110-0 01 1 9904-0105 ● ● ● ● ● ●
241 04.785 NUT; BRKT
M/T MBP6Q(RNM) EXC. FRAME STRAIGHT TYPE<7KJ> M10 FLANGE 		0-91150-110-0 01 1 9904-0105 ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> M10 FLANGE 		0-91150-110-0 01 1 0106- ● ● ●
241 04.785 NUT; BRKT
M10 FLANGE 		0-91150-110-0 01 1 0106- ● ● ● ●
324 04.785 BRACKET
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97103-822-1 01 1 9812-0105 ● ●
324 04.785 BRACKET
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97103-822-1 01 1 0106- ● ● ●
324 04.785 BRACKET
4JG2 ENG(RJC) (A) 		8-97202-877-0 01 1 9812-9905 ● ●
324 04.785 BRACKET
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97202-877-0 01 1 9906-0105 ● ●
324 04.785 BRACKET
4JH1 ENG(RJX) (E) 		8-97305-650-0 01 1 0106- ● ● ●
324 04.785 BRACKET
4JG2 ENG(RJC) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (C) 		8-97042-771-0 01 1 9812-9905 ● ●
324 04.785 BRACKET
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (C) 		8-97042-771-0 01 1 9906-0105 ● ●
324 04.785 BRACKET
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97188-151-0 01 1 9812-9903 ● ● ● ● ●
324 04.785 BRACKET
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97188-151-0 01 1 9904-0105 ● ● ● ● ● ●
324 04.785 BRACKET
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97188-151-0 01 1 0106- ● ● ●
324 04.785 BRACKET
(A) 		8-97188-151-0 01 1 0106- ●
324 04.785 BRACKET
4HE1 ENG(RLY) (A) 		8-97188-151-0 01 1 0106- ● ● ●
324 04.785 BRACKET
M/T MBP6Q(RNM) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V .W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> (D) 		8-97181-745-0 01 1 9812-0105 ●
324 04.785 BRACKET
M/T MBP6Q(RNM) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> (D) 		8-97181-745-0 01 1 9812-0105 ●
324 04.785 BRACKET
M/T MBP6Q(RNM) EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> (D) 		8-97181-744-0 01 1 9812-0103 ● ● ● ●
324 04.785 BRACKET
M/T MBP6Q(RNM) EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> (F) 		8-97307-640-0 01 1 0104-0105 ● ● ● ●
324 04.785 BRACKET
M/T MBP6R(RNW) (F) 		8-97307-640-0 01 1 0106-0207 ● ● ●
324 04.785 BRACKET
(F) 		8-97307-640-0 01 1 0106-0207 ● ● ● ●
324 04.785 BRACKET
M/T MBP6R(RNW),M/T MZZ6F(RSR) (F) 		8-97307-640-0 01 1 0208- ● ● ● ● ● ● ●
333 04.785 CLIP; CABLE
M/T MBP6Q(RNM) FRAME STRAIGHT TYPE<7KJ> ID=11 L=60 		9-09525-096-0 01 1 9812-0105 ● ●
333 04.785 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> ID=11 L=60 		9-09525-096-0 01 1 9812-0105 ● ●
333 04.785 CLIP; CABLE
M/T MBP6R(RNW) FRAME STRAIGHT TYPE<7KJ> ID=11 L=60 		9-09525-096-0 01 1 0106-0207 ● ● ●
333 04.785 CLIP; CABLE
ID=11 L=60 		9-09525-096-0 01 1 0106-0207 ● ● ● ●
333 04.785 CLIP; CABLE
M/T MBP6R(RNW),M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> ID=11 L=60 		9-09525-096-0 01 1 0208- ● ● ●
333 04.785 CLIP; CABLE
M/T MBP6R(RNW),M/T MZZ6F(RSR) ID=11 L=60 		9-09525-096-0 01 1 0208- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
