◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50816 - NPR/NQR(EUROPE)-LHD ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶
3-05 — REAR WHEEL BRAKE (#45014) — 379 parça

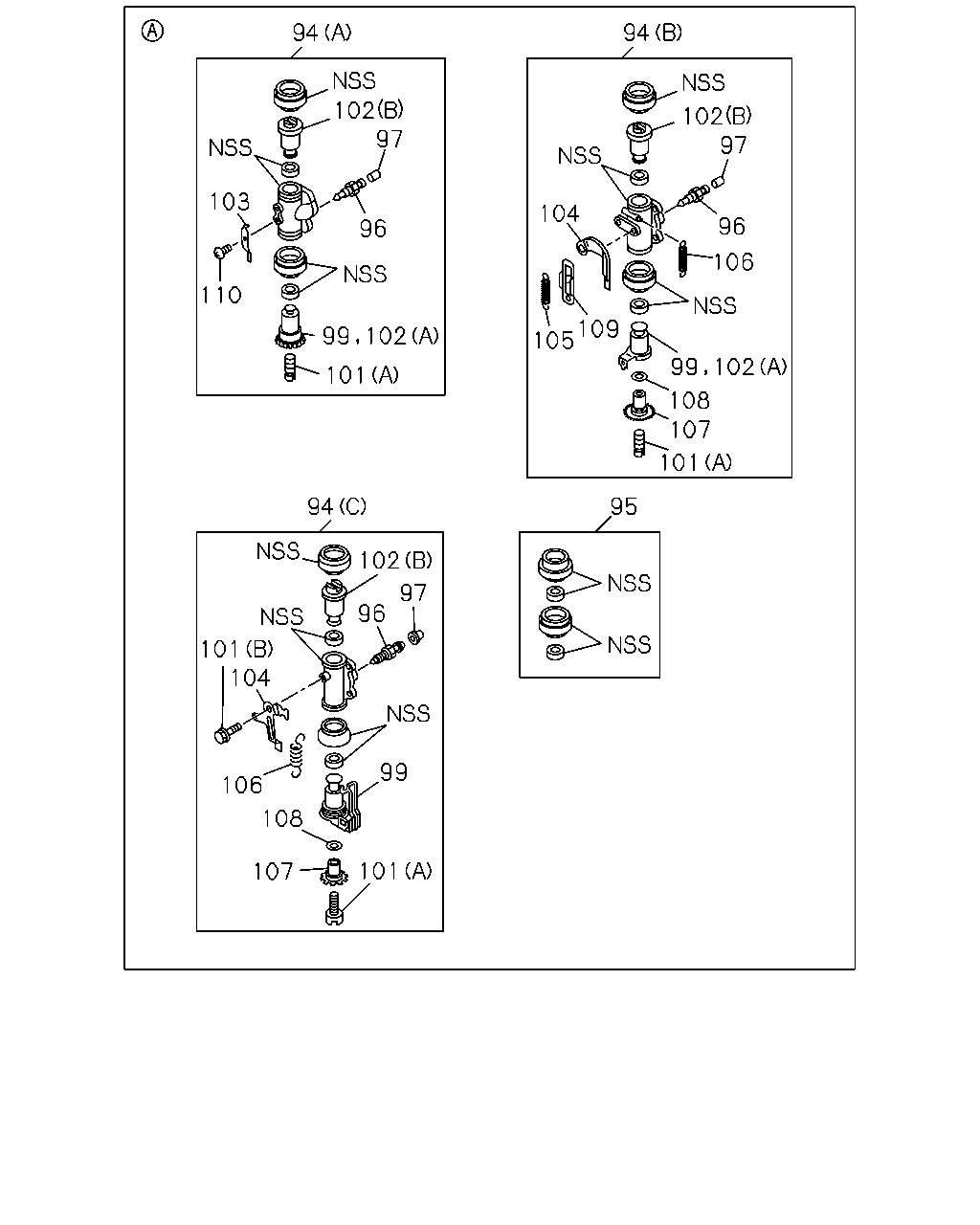

çizim 8702
94 94 102 97 102 97 103 104 96 96 106 110 109 105 101 108 107 101 94 95 102 97 96 101 104 99 106 108 101 107 99 102 99 102
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
94 04.665 CYLINDER; WHEEL,RR BRK
4JG2 ENG(RJC) (B) 		8-97139-850-0 02 1 9812-9905 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) (B) 		8-97139-850-0 02 1 9906-9912 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97139-850-0 02 1 0001-0105 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.0-5.5TON(RPT) (B) 		8-97139-850-0 02 1 0001-0105 ●
94 04.665 CYLINDER; WHEEL,RR BRK
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR 		8-97139-850-0 01 1 0106-0206 ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) FRONT 		8-97349-691-0 01 1 0207-0212 ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) FRONT 		8-97349-691-0 01 1 0301- ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4JG2 ENG(RJC) (B) FRONT 		8-97139-847-0 01 1 9812-9905 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) (B) FRONT 		8-97139-847-0 01 1 9906-0105 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) (B) FRONT 		8-97139-847-0 01 1 0106-0206 ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) (C) REAR 		8-97349-690-0 01 1 0207- ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4JG2 ENG(RJC) (B) REAR 		8-97139-849-0 01 1 9812-9905 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) (B) REAR 		8-97139-849-0 01 1 9906-0105 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) (B) REAR 		8-97139-849-0 01 1 0106-0206 ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) (C) FRONT 		8-97349-692-0 01 1 0207- ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) (B) 		8-97139-853-0 02 1 9812-9903 ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) (B) 		8-97139-853-0 02 1 9904-9912 ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/9(HC6) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97139-853-0 02 1 0001-0105 ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97139-853-0 02 1 0001-0105 ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> (B) 		8-97139-853-0 02 1 0001-0105 ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (B) REAR 		8-97139-853-0 01 1 0106-0206 ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (C) REAR 		8-97349-705-0 01 1 0207- ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) (B) FRONT 		8-97139-851-0 01 1 9812-9903 ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) (B) FRONT 		8-97139-851-0 01 1 9904-0105 ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (B) FRONT 		8-97139-851-0 01 1 0106-0206 ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (C) REAR 		8-97349-706-0 01 1 0207- ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) (B) REAR 		8-97139-852-0 01 1 9812-9903 ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) (B) REAR 		8-97139-852-0 01 1 9904-0105 ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (B) REAR 		8-97139-852-0 01 1 0106-0206 ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (C) FRONT 		8-97349-708-0 01 1 0207- ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/9(HC6) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (B) REAR 		8-97139-853-0 01 1 0001-0105 ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/9(HC6) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (B) FRONT 		8-97191-500-0 01 1 0001-0105 ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (B) FRONT 		8-97191-500-0 01 1 0106-0206 ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (C) FRONT 		8-97349-707-0 01 1 0207- ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97139-825-0 02 1 9812-0105 ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97139-856-0 02 1 9812-0105 ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) FRONT 		8-97139-822-0 01 1 9812-0105 ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) REAR 		8-97139-824-0 01 1 9812-0105 ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) FRONT 		8-97139-854-0 01 1 9812-0105 ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) REAR 		8-97139-855-0 01 1 9812-0105 ●
94 04.665 CYLINDER; WHEEL,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) FRONT 		8-97139-848-0 01 1 0001-0105 ●
94 04.665 CYLINDER; WHEEL,RR BRK
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) FRONT 		8-97139-848-0 01 1 0106-0206 ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) REAR 		8-97349-689-0 01 1 0207-0212 ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) REAR 		8-97349-689-0 01 1 0301- ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR 		8-97139-850-0 01 1 0001-0105 ●
94 04.665 CYLINDER; WHEEL,RR BRK
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/9(S2J) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97139-850-0 02 1 0106-0206 ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/9(S2J) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97349-689-0 02 1 0207-0212 ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97349-689-0 02 1 0301- ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97168-759-0 02 1 9812-9912 ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97168-759-0 02 1 0001-0006 ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) DISC BRAKE FRT<J52> FLOOR REMOTE SHIFT<M11> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97168-759-0 02 1 0007-0105 ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (B) FRONT 		8-97168-755-0 01 1 9812-0105 ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (B) FRONT 		8-97168-755-0 01 1 0106-0203 ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (B) FRONT 		8-97332-037-0 01 1 0204-0206 ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (C) FRONT 		8-97349-697-0 01 1 0207- ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (B) REAR 		8-97168-757-0 01 1 9812-0105 ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (B) REAR 		8-97168-757-0 01 1 0106-0203 ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (B) REAR 		8-97332-038-0 01 1 0204-0206 ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (C) REAR 		8-97349-698-0 01 1 0207- ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (B) FRONT 		8-97168-759-0 01 1 0001-0105 ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (B) FRONT 		8-97168-759-0 01 1 0106-0203 ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (B) FRONT 		8-97332-039-0 01 1 0204-0206 ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (C) REAR 		8-97349-699-0 01 1 0207- ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (B) REAR 		8-97207-162-0 01 1 0001-0105 ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (B) REAR 		8-97207-162-0 01 1 0106-0203 ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (B) REAR 		8-97332-040-0 01 1 0204-0206 ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (C) FRONT 		8-97349-700-0 01 1 0207- ● ● ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
4JG2 ENG(RJC) 		5-87831-622-0 01 1 9812-9905 ● ●
95 04.665 CUP SET; RR WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) 		5-87831-622-0 01 1 9906-0105 ● ●
95 04.665 CUP SET; RR WHEEL CYL
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 		5-87831-622-0 01 1 0106- ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		5-87831-624-0 01 1 9812-9903 ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		5-87831-624-0 01 1 9904-0105 ● ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		5-87831-624-0 01 1 0106-0206 ● ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		5-87832-070-0 01 1 0207- ● ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> 		5-87831-598-0 02 1 9812-0105 ●
95 04.665 CUP SET; RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) 		5-87831-604-0 02 1 9812-0105 ● ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		5-87831-604-0 02 1 0106-0203 ● ● ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		5-87832-051-0 02 1 0204- ● ● ● ● ●
96 04.666 SCREW; BLEEDER,RR BRK 9-47615-027-0 01 1 9812-9912 ● ● ● ● ● ●
96 04.666 SCREW; BLEEDER,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		9-47615-027-0 02 1 0001-0206 ● ● ● ● ● ● ●
96 04.666 SCREW; BLEEDER,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) 		9-47615-027-0 02 1 0207-0212 ● ● ● ●
96 04.666 SCREW; BLEEDER,RR BRK
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> 		9-47615-027-0 02 1 0207-0212 ● ● ●
96 04.666 SCREW; BLEEDER,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		9-47615-027-0 02 1 0301- ● ● ● ●
96 04.666 SCREW; BLEEDER,RR BRK
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> 		9-47615-027-0 02 1 0301- ● ● ●
96 04.666 SCREW; BLEEDER,RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		9-47615-027-0 01 1 0001- ● ● ● ● ● ● ●
96 04.666 SCREW; BLEEDER,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97129-082-0 02 1 0207- ● ● ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 1-47619-009-0 01 1 9812-9912 ● ● ● ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		1-47619-009-0 02 1 0001- ● ● ● ● ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		1-47619-009-0 01 1 0001- ● ● ● ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
4JG2 ENG(RJC) D=25.4 		8-94129-015-1 02 1 9812-9905 ● ●
99 04.668 PISTON; RR WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) D=25.4 		8-94129-015-1 02 1 9906-0105 ● ●
99 04.668 PISTON; RR WHEEL CYL
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) D=25.4 		8-94129-015-1 02 1 0106-0206 ● ● ●
99 04.668 PISTON; RR WHEEL CYL
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 		8-97349-728-0 02 1 0207- ● ● ●
99 04.668 PISTON; RR WHEEL CYL
4JG2 ENG(RJC) D=25.4 		8-94128-538-1 02 1 9812-9905 ● ●
99 04.668 PISTON; RR WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) D=25.4 		8-94128-538-1 02 1 9906-0105 ● ●
99 04.668 PISTON; RR WHEEL CYL
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) D=25.4 		8-94128-538-1 02 1 0106-0206 ● ● ●
99 04.668 PISTON; RR WHEEL CYL
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 		8-97349-727-0 02 1 0207- ● ● ●
99 04.668 PISTON; RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		8-97078-043-0 02 1 9812-9903 ● ● ●
99 04.668 PISTON; RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		8-97078-043-0 02 1 9904-9912 ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/9(HC6) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97078-043-0 02 1 0001-0105 ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97078-043-0 02 1 0001-0105 ● ●
99 04.668 PISTON; RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> 		8-97078-043-0 02 1 0001-0105 ●
99 04.668 PISTON; RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97078-043-0 02 1 0106-0206 ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97349-729-0 02 1 0207- ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		8-97078-044-0 02 1 9812-9903 ● ● ●
99 04.668 PISTON; RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		8-97078-044-0 02 1 9904-9912 ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/9(HC6) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97078-044-0 02 1 0001-0105 ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97078-044-0 02 1 0001-0105 ● ●
99 04.668 PISTON; RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> 		8-97078-044-0 02 1 0001-0105 ●
99 04.668 PISTON; RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97078-044-0 02 1 0106-0206 ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97349-730-0 02 1 0207- ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/9(HC6) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97078-043-0 01 1 0001-0105 ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/9(HC6) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97078-044-0 01 1 0001-0105 ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94414-700-1 02 1 9812-0105 ●
99 04.668 PISTON; RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97038-687-0 02 1 9812-0105 ●
99 04.668 PISTON; RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97168-770-0 02 1 9812-0105 ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97168-770-0 02 1 0106-0203 ● ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97332-041-0 02 1 0204-0206 ● ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97349-731-0 02 1 0207- ● ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97168-771-0 02 1 9812-0105 ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97168-771-0 02 1 0106-0203 ● ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97332-042-0 02 1 0204-0206 ● ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97349-732-0 02 1 0207- ● ● ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) (A) M12X30.2 LH THREAD 		5-47622-004-1 02 1 9812-9903 ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> (A) M12X30.2 LH THREAD 		5-47622-004-1 02 1 9812-9903 ● ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) (A) M12X30.2 LH THREAD 		5-47622-004-1 02 1 9904-0105 ● ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> (A) M12X30.2 LH THREAD 		5-47622-004-1 02 1 9904-0105 ● ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(A) M12X30.2 LH THREAD 		5-47622-004-1 02 1 0106-0206 ● ● ● ● ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) (A) M12X30.2 LH THREAD 		5-47622-004-1 02 1 0207- ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) (A) M12X30.2 RH THREAD 		5-47622-003-1 02 1 9812-9903 ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> (A) M12X30.2 RH THREAD 		5-47622-003-1 02 1 9812-9903 ● ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) (A) M12X30.2 RH THREAD 		5-47622-003-1 02 1 9904-0105 ● ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> (A) M12X30.2 RH THREAD 		5-47622-003-1 02 1 9904-0105 ● ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(A) M12X30.2 RH THREAD 		5-47622-003-1 02 1 0106-0206 ● ● ● ● ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(B) 		8-97349-747-0 04 1 0207- ● ● ● ● ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97349-741-0 02 1 0207- ● ● ● ● ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97349-742-0 02 1 0207- ● ● ● ● ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) (A) M12X30.2 RH THREAD 		5-47622-003-1 02 1 0207- ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94414-702-0 04 1 9812-0105 ●
102 04.668 PISTON; REAR WHEEL CYL
4JG2 ENG(RJC) (B) D=25.4 		8-94128-531-1 04 1 9812-9905 ● ●
102 04.668 PISTON; REAR WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) (B) D=25.4 		8-94128-531-1 04 1 9906-0105 ● ●
102 04.668 PISTON; REAR WHEEL CYL
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) (B) D=25.4 		8-94128-531-1 04 1 0106- ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) (B) 		8-97078-045-0 04 1 9812-9903 ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) (B) 		8-97078-045-0 04 1 9904-0105 ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97078-045-0 04 1 0106- ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/9(HC6) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97078-043-0 01 1 0001-0105 ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/9(HC6) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97078-044-0 01 1 0001-0105 ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94414-700-1 02 1 9812-0105 ●
102 04.668 PISTON; REAR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> (B) D=30.16 		8-94414-701-1 04 1 9812-0105 ●
102 04.668 PISTON; REAR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97038-687-0 02 1 9812-0105 ●
102 04.668 PISTON; REAR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) (B) 		8-97038-686-0 04 1 9812-0105 ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97038-686-0 04 1 0106-0203 ● ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97332-043-0 04 1 0204- ● ● ● ● ●
103 05.107 SPRING; LK,RR WHEEL CYL,ADJ
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94128-486-0 04 1 9812-0105 ●
104 05.103 LEVER; ADJ
4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) 		8-94366-174-0 02 1 9812-9903 ● ● ●
104 05.103 LEVER; ADJ
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 		8-94366-174-0 02 1 9812-9903 ● ● ● ●
104 05.103 LEVER; ADJ
4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) 		8-94366-174-0 02 1 9904-0105 ● ● ● ●
104 05.103 LEVER; ADJ
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 		8-94366-174-0 02 1 9904-0105 ● ● ● ●
104 05.103 LEVER; ADJ 8-94366-174-0 02 1 0106-0206 ● ● ● ● ● ● ●
104 05.103 LEVER; ADJ 8-97349-744-0 02 1 0207- ● ● ● ● ● ● ●
104 05.103 LEVER; ADJ
4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) 		8-94366-173-0 02 1 9812-9903 ● ● ●
104 05.103 LEVER; ADJ
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 		8-94366-173-0 02 1 9812-9903 ● ● ● ●
104 05.103 LEVER; ADJ
4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) 		8-94366-173-0 02 1 9904-0105 ● ● ● ●
104 05.103 LEVER; ADJ
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 		8-94366-173-0 02 1 9904-0105 ● ● ● ●
104 05.103 LEVER; ADJ 8-94366-173-0 02 1 0106-0206 ● ● ● ● ● ● ●
104 05.103 LEVER; ADJ 8-97349-743-0 02 1 0207- ● ● ● ● ● ● ●
105 05.107 SPRING; OVER TRAVEL,ADJ
4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) 		5-09583-110-0 04 1 9812-9903 ● ● ●
105 05.107 SPRING; OVER TRAVEL,ADJ
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 		5-09583-110-0 04 1 9812-9903 ● ● ● ●
105 05.107 SPRING; OVER TRAVEL,ADJ
4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) 		5-09583-110-0 04 1 9904-0105 ● ● ● ●
105 05.107 SPRING; OVER TRAVEL,ADJ
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 		5-09583-110-0 04 1 9904-0105 ● ● ● ●
105 05.107 SPRING; OVER TRAVEL,ADJ 5-09583-110-0 04 1 0106-0206 ● ● ● ● ● ● ●
106 05.107 SPRING; ADJ LEVER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) 		5-09585-045-0 04 1 9812-9903 ● ● ●
106 05.107 SPRING; ADJ LEVER
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 		5-09585-045-0 04 1 9812-9903 ● ● ● ●
106 05.107 SPRING; ADJ LEVER
4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) 		5-09585-045-0 04 1 9904-0105 ● ● ● ●
106 05.107 SPRING; ADJ LEVER
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 		5-09585-045-0 04 1 9904-0105 ● ● ● ●
106 05.107 SPRING; ADJ LEVER 5-09585-045-0 04 1 0106-0206 ● ● ● ● ● ● ●
106 05.107 SPRING; ADJ LEVER 8-97349-745-0 04 1 0207- ● ● ● ● ● ● ●
107 05.110 GEAR; ADJ,RR W/CYL
4JG2 ENG(RJC) 		5-47623-006-0 02 1 9812-9905 ● ●
107 05.110 GEAR; ADJ,RR W/CYL
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) 		5-47623-006-0 02 1 9906-0105 ● ●
107 05.110 GEAR; ADJ,RR W/CYL
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 		5-47623-006-0 02 1 0106-0206 ● ● ●
107 05.110 GEAR; ADJ,RR W/CYL
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 		8-97349-739-0 02 1 0207- ● ● ●
107 05.110 GEAR; ADJ,RR W/CYL
4JG2 ENG(RJC) 		5-47623-005-0 02 1 9812-9905 ● ●
107 05.110 GEAR; ADJ,RR W/CYL
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) 		5-47623-005-0 02 1 9906-0105 ● ●
107 05.110 GEAR; ADJ,RR W/CYL
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 		5-47623-005-0 02 1 0106-0206 ● ● ●
107 05.110 GEAR; ADJ,RR W/CYL
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 		8-97349-737-0 02 1 0207- ● ● ●
107 05.110 GEAR; ADJ,RR W/CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		8-94340-534-0 02 1 9812-9903 ● ● ●
107 05.110 GEAR; ADJ,RR W/CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		8-94340-534-0 02 1 9904-0105 ● ● ● ●
107 05.110 GEAR; ADJ,RR W/CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-94340-534-0 02 1 0106-0206 ● ● ● ●
107 05.110 GEAR; ADJ,RR W/CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97349-738-0 02 1 0207- ● ● ● ● ● ● ●
107 05.110 GEAR; ADJ,RR W/CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		8-94340-533-0 02 1 9812-9903 ● ● ●
107 05.110 GEAR; ADJ,RR W/CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		8-94340-533-0 02 1 9904-0105 ● ● ● ●
107 05.110 GEAR; ADJ,RR W/CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-94340-533-0 02 1 0106-0206 ● ● ● ●
107 05.110 GEAR; ADJ,RR W/CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97349-740-0 02 1 0207- ● ● ● ● ● ● ●
107 05.110 GEAR; ADJ,RR W/CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97168-772-2 02 1 9812-0105 ● ● ● ●
107 05.110 GEAR; ADJ,RR W/CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97168-772-2 02 1 0106-0206 ● ● ● ● ●
107 05.110 GEAR; ADJ,RR W/CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97168-773-2 02 1 9812-0105 ● ● ● ●
107 05.110 GEAR; ADJ,RR W/CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97168-773-2 02 1 0106-0206 ● ● ● ● ●
108 05.110 WASHER; THRUST,GEAR ADJ
4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) 		8-97029-304-0 04 1 9812-9903 ● ● ●
108 05.110 WASHER; THRUST,GEAR ADJ
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 		8-97029-304-0 04 1 9812-9903 ● ● ● ●
108 05.110 WASHER; THRUST,GEAR ADJ
4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) 		8-97029-304-0 04 1 9904-0105 ● ● ● ●
108 05.110 WASHER; THRUST,GEAR ADJ
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 		8-97029-304-0 04 1 9904-0105 ● ● ● ●
108 05.110 WASHER; THRUST,GEAR ADJ 8-97029-304-0 04 1 0106-0206 ● ● ● ● ● ● ●
108 05.110 WASHER; THRUST,GEAR ADJ
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 		8-97029-304-0 04 1 0207- ● ● ●
108 05.110 WASHER; THRUST,GEAR ADJ
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97349-736-0 04 1 0207- ● ● ● ● ● ● ●
109 04.665 FITTING; AUTO ADJ
4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) 		5-47619-042-0 04 1 9812-9903 ● ● ●
109 04.665 FITTING; AUTO ADJ
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 		5-47619-042-0 04 1 9812-9903 ● ● ● ●
109 04.665 FITTING; AUTO ADJ
4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) 		5-47619-042-0 04 1 9904-0105 ● ● ● ●
109 04.665 FITTING; AUTO ADJ
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 		5-47619-042-0 04 1 9904-0105 ● ● ● ●
109 04.665 FITTING; AUTO ADJ 5-47619-042-0 04 1 0106-0206 ● ● ● ● ● ● ●
110 05.107 SCREW; LOCK SPRING,RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94128-727-0 04 1 9812-0105 ●

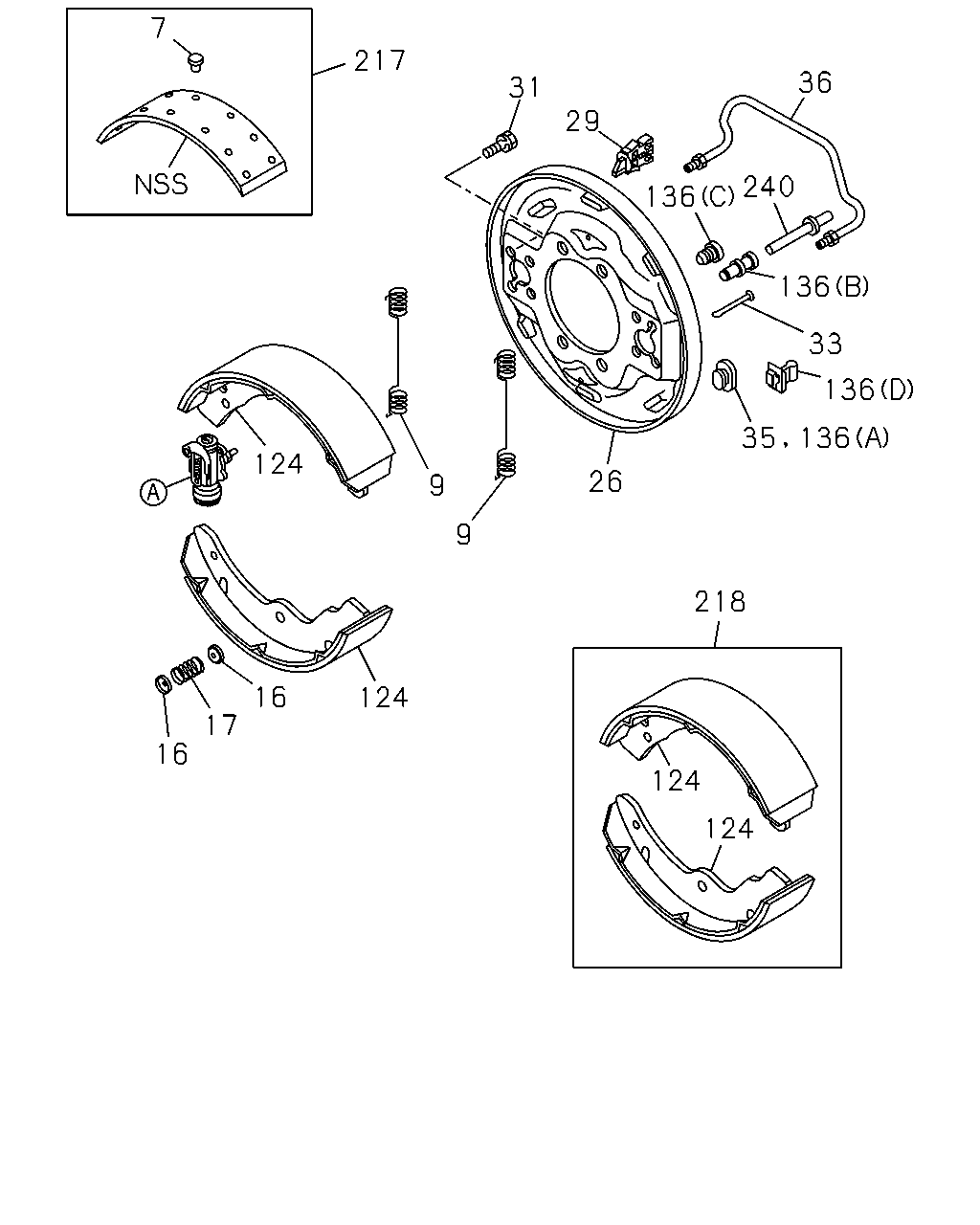

çizim 49181
7 217 36 31 29 240 136 136 33 136 35 136 124 26 9 9 218 16 124 17 16 124 124
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
7 05.019 RIVET; LINING,RR BRK
4JG2 ENG(RJC) 		1-09732-029-0 40 1 9812-9905 ● ●
7 05.019 RIVET; LINING,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) 		1-09732-029-0 40 1 9906-0105 ● ●
7 05.019 RIVET; LINING,RR BRK
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 		1-09732-029-0 40 1 0106- ● ● ●
7 05.019 RIVET; LINING,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		1-09732-029-0 48 1 9812-9903 ● ● ●
7 05.019 RIVET; LINING,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		1-09732-029-0 48 1 9812-9903 ●
7 05.019 RIVET; LINING,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		1-09732-029-0 48 1 9904-0105 ● ● ● ●
7 05.019 RIVET; LINING,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		1-09732-029-0 48 1 9904-0105 ●
7 05.019 RIVET; LINING,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		1-09732-029-0 48 1 0106- ● ● ● ●
7 05.019 RIVET; LINING,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		1-09732-029-0 64 1 9812-0105 ● ● ● ●
7 05.019 RIVET; LINING,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		1-09732-029-0 64 1 0106- ● ● ● ● ●
9 05.026 SPRING; RETURN,BRK SHOE
4JG2 ENG(RJC) 		5-09583-118-0 04 1 9812-9905 ● ●
9 05.026 SPRING; RETURN,BRK SHOE
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) 		5-09583-118-0 04 1 9906-0105 ● ●
9 05.026 SPRING; RETURN,BRK SHOE
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 		5-09583-118-0 04 1 0106- ● ● ●
9 05.026 SPRING; RETURN,BRK SHOE
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		8-97022-087-0 04 1 9812-9903 ● ● ●
9 05.026 SPRING; RETURN,BRK SHOE
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97022-087-0 04 1 9812-9903 ●
9 05.026 SPRING; RETURN,BRK SHOE
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		8-97022-087-0 04 1 9904-0105 ● ● ● ●
9 05.026 SPRING; RETURN,BRK SHOE
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97022-087-0 04 1 9904-0105 ●
9 05.026 SPRING; RETURN,BRK SHOE
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97022-087-0 04 1 0106- ● ● ● ●
9 05.026 SPRING; RETURN,BRK SHOE
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97168-774-0 04 1 9812-0105 ● ● ● ●
9 05.026 SPRING; RETURN,BRK SHOE
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97168-774-0 04 1 0106-0206 ● ● ● ● ●
9 05.026 SPRING; RETURN,BRK SHOE
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97122-869-0 04 1 0207- ● ● ● ● ●
16 05.043 CUP; SHOE HOLDING 9-47165-096-0 08 1 0109- ● ● ● ● ● ● ●
17 04.043 SPRING; SHOE HOLD DOWN
05.043 		5-09580-101-1 04 1 9812- ● ● ● ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
4JG2 ENG(RJC) 		8-97079-849-0 01 1 9812-9905 ● ●
26 05.001 PLATE; BACK,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) 		8-97079-849-0 01 1 9906-9912 ● ●
26 05.001 PLATE; BACK,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97079-849-0 01 1 0001-0105 ● ●
26 05.001 PLATE; BACK,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.0-5.5TON(RPT) 		8-97079-849-0 01 1 0001-0105 ●
26 05.001 PLATE; BACK,RR BRK
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/9(S2J) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97079-849-0 01 1 0106-0212 ● ● ●
26 05.001 PLATE; BACK,RR BRK
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97079-849-0 01 1 0301- ● ● ●
26 05.001 PLATE; BACK,RR BRK
4JG2 ENG(RJC) 		8-97079-848-0 01 1 9812-9905 ● ●
26 05.001 PLATE; BACK,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) 		8-97079-848-0 01 1 9906-9912 ● ●
26 05.001 PLATE; BACK,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97079-848-0 01 1 0001-0105 ● ●
26 05.001 PLATE; BACK,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.0-5.5TON(RPT) 		8-97079-848-0 01 1 0001-0105 ●
26 05.001 PLATE; BACK,RR BRK
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/9(S2J) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97079-848-0 01 1 0106-0212 ● ● ●
26 05.001 PLATE; BACK,RR BRK
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97079-848-0 01 1 0301- ● ● ●
26 05.001 PLATE; BACK,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		8-97191-494-0 01 1 9812-9903 ● ● ●
26 05.001 PLATE; BACK,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		8-97191-494-0 01 1 9904-9912 ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/9(HC6) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97191-494-1 01 1 0001-0105 ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97191-494-1 01 1 0001-0105 ● ●
26 05.001 PLATE; BACK,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> 		8-97191-494-1 01 1 0001-0105 ●
26 05.001 PLATE; BACK,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		8-97191-493-0 01 1 9812-9903 ● ● ●
26 05.001 PLATE; BACK,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		8-97191-493-0 01 1 9904-9912 ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/9(HC6) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97191-493-1 01 1 0001-0105 ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97191-493-1 01 1 0001-0105 ● ●
26 05.001 PLATE; BACK,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> 		8-97191-493-1 01 1 0001-0105 ●
26 05.001 PLATE; BACK,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/9(HC6) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97192-081-0 01 1 0001-0105 ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97192-081-0 01 1 0106- ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/9(HC6) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97192-080-0 01 1 0001-0105 ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97192-080-0 01 1 0106- ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97094-501-0 01 1 9812-0105 ●
26 05.001 PLATE; BACK,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97094-500-0 01 1 9812-0105 ●
26 05.001 PLATE; BACK,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97079-855-0 01 1 0001-0105 ●
26 05.001 PLATE; BACK,RR BRK
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97079-855-0 01 1 0106-0212 ● ● ●
26 05.001 PLATE; BACK,RR BRK
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97079-855-0 01 1 0301- ● ● ●
26 05.001 PLATE; BACK,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97079-854-0 01 1 0001-0105 ●
26 05.001 PLATE; BACK,RR BRK
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97079-854-0 01 1 0106-0212 ● ● ●
26 05.001 PLATE; BACK,RR BRK
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97079-854-0 01 1 0301- ● ● ●
26 05.001 PLATE; BACK,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97168-750-0 01 1 9812-9912 ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97168-750-0 01 1 0001-0006 ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) DISC BRAKE FRT<J52> FLOOR REMOTE SHIFT<M11> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97168-750-0 01 1 0007-0105 ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97168-748-0 01 1 9812-9912 ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97168-748-0 01 1 0001-0006 ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) DISC BRAKE FRT<J52> FLOOR REMOTE SHIFT<M11> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97168-748-0 01 1 0007-0105 ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97207-158-0 01 1 0001-0105 ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97207-158-0 01 1 0106- ● ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97207-157-0 01 1 0001-0105 ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97207-157-0 01 1 0106- ● ● ● ● ●
29 04.685 CLIP; PIPE,BRK
4JG2 ENG(RJC) 		8-94128-306-0 02 1 9812-9905 ● ●
29 04.685 CLIP; PIPE,BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) 		8-94128-306-0 02 1 9906-0105 ● ●
29 04.685 CLIP; PIPE,BRK
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 		8-94128-306-0 02 1 0106- ● ● ●
29 04.685 CLIP; PIPE,BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		8-97022-086-0 02 1 9812-9903 ● ● ●
29 04.685 CLIP; PIPE,BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) 		8-97022-086-0 02 1 9812-9903 ● ● ● ●
29 04.685 CLIP; PIPE,BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		8-97022-086-0 02 1 9904-0105 ● ● ● ●
29 04.685 CLIP; PIPE,BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) 		8-97022-086-0 02 1 9904-0105 ● ● ● ●
29 04.685 CLIP; PIPE,BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97022-086-0 02 1 0106- ● ● ● ● ● ● ●
31 04.665 BOLT; RR WHEEL CYL
4JG2 ENG(RJC) 		5-09030-016-1 16 1 9812-9905 ● ●
31 04.665 BOLT; RR WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) 		5-09030-016-1 16 1 9906-0105 ● ●
31 04.665 BOLT; RR WHEEL CYL
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 		5-09030-016-1 16 1 0106- ● ● ●
31 04.665 BOLT; RR WHEEL CYL
4HE1 ENG(RLY) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) 		8-97022-088-0 16 1 9812-9903 ● ● ●
31 04.665 BOLT; RR WHEEL CYL
4HE1 ENG(RLY) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) 		8-97022-088-0 16 1 9904-0105 ● ● ● ●
31 04.665 BOLT; RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97022-088-0 16 1 0106- ● ● ● ●
31 04.665 BOLT; RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) 		8-97081-305-0 16 1 9812-0105 ● ● ● ●
31 04.665 BOLT; RR WHEEL CYL
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97081-305-0 16 1 0106- ● ● ● ● ●
33 05.043 PIN; SHOE HOLD DOWN
4JG2 ENG(RJC) 		5-47162-001-0 04 1 9812-9905 ● ●
33 05.043 PIN; SHOE HOLD DOWN
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) 		5-47162-001-0 04 1 9906-0105 ● ●
33 05.043 PIN; SHOE HOLD DOWN
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 		5-47162-001-0 04 1 0106- ● ● ●
33 05.043 PIN; SHOE HOLD DOWN
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		8-97022-089-0 04 1 9812-9903 ● ● ●
33 05.043 PIN; SHOE HOLD DOWN
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97022-089-0 04 1 9812-9903 ●
33 05.043 PIN; SHOE HOLD DOWN
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		8-97022-089-0 04 1 9904-0105 ● ● ● ●
33 05.043 PIN; SHOE HOLD DOWN
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97022-089-0 04 1 9904-0105 ●
33 05.043 PIN; SHOE HOLD DOWN
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97022-089-0 04 1 0106- ● ● ● ●
33 05.043 PIN; SHOE HOLD DOWN
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97122-870-0 04 1 9812-0105 ● ● ● ●
33 05.043 PIN; SHOE HOLD DOWN
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97122-870-0 04 1 0106- ● ● ● ● ●
35 05.002 GROMMET; CHECK HOLE
4JG2 ENG(RJC) 		8-94171-287-0 02 1 9812-9905 ● ●
35 05.002 GROMMET; CHECK HOLE
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) 		8-94171-287-0 02 1 9906-0105 ● ●
35 05.002 GROMMET; CHECK HOLE
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 		8-94171-287-0 02 1 0106- ● ● ●
35 05.002 GROMMET; CHECK HOLE
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		8-97017-507-0 02 1 9812-9903 ● ● ●
35 05.002 GROMMET; CHECK HOLE
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97017-507-0 02 1 9812-9903 ●
35 05.002 GROMMET; CHECK HOLE
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		8-97017-507-0 02 1 9904-0105 ● ● ● ●
35 05.002 GROMMET; CHECK HOLE
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97017-507-0 02 1 9904-0105 ●
35 05.002 GROMMET; CHECK HOLE
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97017-507-0 02 1 0106- ● ● ● ●
35 05.002 GROMMET; CHECK HOLE
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97017-507-0 06 1 9812-0105 ● ● ● ●
35 05.002 GROMMET; CHECK HOLE
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97017-507-0 06 1 0106- ● ● ● ● ●
36 04.685 PIPE; OIL,RR BRK
4JG2 ENG(RJC) 		8-94154-916-0 02 1 9812-9905 ● ●
36 04.685 PIPE; OIL,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) 		8-94154-916-0 02 1 9906-0105 ● ●
36 04.685 PIPE; OIL,RR BRK
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 		8-94154-916-0 02 1 0106- ● ● ●
36 04.685 PIPE; OIL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		8-97192-215-0 02 1 9812-9903 ● ● ●
36 04.685 PIPE; OIL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97192-215-0 02 1 9812-9903 ●
36 04.685 PIPE; OIL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		8-97192-215-0 02 1 9904-9912 ● ● ● ●
36 04.685 PIPE; OIL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97192-215-0 02 1 9904-9912 ●
36 04.685 PIPE; OIL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/9(HC6) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97192-215-0 02 1 0001-0105 ● ● ● ●
36 04.685 PIPE; OIL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97192-215-0 02 1 0001-0105 ● ● ● ●
36 04.685 PIPE; OIL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) G.V.W. 6.0-6.5TON(RPV) 		8-97192-215-0 02 1 0001-0105 ●
36 04.685 PIPE; OIL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97192-215-0 02 1 0001-0105 ●
36 04.685 PIPE; OIL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97192-215-0 02 1 0106- ● ● ● ● ● ● ●
36 04.685 PIPE; OIL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97079-847-0 02 1 9812-9912 ● ● ● ●
36 04.685 PIPE; OIL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97079-847-0 02 1 0001-0006 ● ● ● ●
36 04.685 PIPE; OIL,RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) DISC BRAKE FRT<J52> FLOOR REMOTE SHIFT<M11> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97079-847-0 02 1 0007-0105 ● ● ● ●
124 05.017 SHOE ASM; BRK,RR
4JG2 ENG(RJC) 		8-97066-695-0 04 1 9812-9905 ● ●
124 05.017 SHOE ASM; BRK,RR
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) 		8-97066-695-0 04 1 9906-9912 ● ●
124 05.017 SHOE ASM; BRK,RR
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97066-695-0 04 1 0001-0105 ● ●
124 05.017 SHOE ASM; BRK,RR
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.0-5.5TON(RPT) 		8-97066-695-0 04 1 0001-0105 ●
124 05.017 SHOE ASM; BRK,RR
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		8-97201-061-0 04 1 9812-9903 ● ● ●
124 05.017 SHOE ASM; BRK,RR
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97201-061-0 04 1 9812-9903 ●
124 05.017 SHOE ASM; BRK,RR
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		8-97201-061-0 04 1 9904-0105 ● ● ● ●
124 05.017 SHOE ASM; BRK,RR
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97201-061-0 04 1 9904-0105 ●
124 05.017 SHOE ASM; BRK,RR
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97201-061-0 04 1 0106- ● ● ● ●
124 05.017 SHOE ASM; BRK,RR
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97217-754-0 04 1 0001-0009 ●
124 05.017 SHOE ASM; BRK,RR
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97287-778-0 04 1 0010-0105 ●
124 05.017 SHOE ASM; BRK,RR
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 		8-97287-778-0 04 1 0106- ● ● ●
124 05.017 SHOE ASM; BRK,RR
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97188-455-0 04 1 9812-0105 ● ● ● ●
124 05.017 SHOE ASM; BRK,RR
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97188-455-0 04 1 0106- ● ● ● ● ●
136 05.002 GROMMET
4JG2 ENG(RJC) (A) 		8-94171-287-0 04 1 9812-9905 ● ●
136 05.002 GROMMET
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) (A) 		8-94171-287-0 04 1 9906-0105 ● ●
136 05.002 GROMMET
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) (A) 		8-94171-287-0 04 1 0106- ● ● ●
136 05.002 GROMMET
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) (A) 		8-97017-507-0 04 1 9812-9903 ● ● ●
136 05.002 GROMMET
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) (A) 		8-97017-507-0 04 1 9904-0105 ● ● ● ●
136 05.002 GROMMET
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97017-507-0 04 1 0106- ● ● ● ●
136 05.002 GROMMET
4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) (B) 		8-94366-295-0 04 1 9812-9903 ● ● ●
136 05.002 GROMMET
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> (B) 		8-94366-295-0 04 1 9812-9903 ● ● ● ●
136 05.002 GROMMET
4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) (B) 		8-94366-295-0 04 1 9904-0105 ● ● ● ●
136 05.002 GROMMET
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> (B) 		8-94366-295-0 04 1 9904-0105 ● ● ● ●
136 05.002 GROMMET
(B) 		8-94366-295-0 04 1 0106-0206 ● ● ● ● ● ● ●
136 05.002 GROMMET
04.670 (C) 		1-47154-008-0 04 1 0207- ● ● ● ● ● ● ●
136 05.002 GROMMET
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-97044-742-1 04 1 9812-0105 ●
217 05.018 LINING KIT; RR BRK
4JG2 ENG(RJC) 		5-88300-002-0 01 1 9812-9905 ● ●
217 05.018 LINING KIT; RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) 		5-88300-002-0 01 1 9906-9912 ● ●
217 05.018 LINING KIT; RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		5-88300-002-0 01 1 0001-0105 ● ●
217 05.018 LINING KIT; RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.0-5.5TON(RPT) 		5-88300-002-0 01 1 0001-0105 ●
217 05.018 LINING KIT; RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		5-87831-774-0 01 1 9812-9903 ● ● ●
217 05.018 LINING KIT; RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		5-87831-774-0 01 1 9812-9903 ●
217 05.018 LINING KIT; RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		5-87831-774-0 01 1 9904-0105 ● ● ● ●
217 05.018 LINING KIT; RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		5-87831-774-0 01 1 9904-0105 ●
217 05.018 LINING KIT; RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		5-87831-774-0 01 1 0106- ● ● ● ●
217 05.018 LINING KIT; RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) 4 WHEEL ANTI LOCK BRAKE<JE5> 		5-87831-801-0 01 1 0001-0105 ●
217 05.018 LINING KIT; RR BRK
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 		5-87831-801-0 01 1 0106- ● ● ●
217 05.018 LINING KIT; RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		5-87831-692-0 01 1 9812-0105 ● ● ● ●
217 05.018 LINING KIT; RR BRK
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		5-87831-692-0 01 1 0106- ● ● ● ● ●
218 05.017 SHOE KIT; BRK,RR
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		5-87831-775-0 01 1 0204- ● ● ● ●
218 05.017 SHOE KIT; BRK,RR
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		5-87831-693-0 01 1 0204- ● ● ● ● ●
218 05.017 SHOE KIT; BRK,RR
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 		5-87832-047-0 01 1 0204- ● ● ●
240 05.020 PIN; AUTO ADJ
4JG2 ENG(RJC) 		8-97078-700-0 04 1 9812-9905 ● ●
240 05.020 PIN; AUTO ADJ
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) 		8-97078-700-0 04 1 9906-0105 ● ●
240 05.020 PIN; AUTO ADJ
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 		8-97078-700-0 04 1 0106-0206 ● ● ●
240 05.020 PIN; AUTO ADJ
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		8-97078-047-0 04 1 9812-9903 ● ● ●
240 05.020 PIN; AUTO ADJ
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		8-97078-047-0 04 1 9904-0105 ● ● ● ●
240 05.020 PIN; AUTO ADJ
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97078-047-0 04 1 0106-0206 ● ● ● ●
240 05.020 PIN; AUTO ADJ
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97168-792-0 04 1 9812-0105 ● ● ● ●
240 05.020 PIN; AUTO ADJ
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97168-792-0 04 1 0106-0206 ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
