◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50816 - NPR/NQR(EUROPE)-LHD ▶ 3 - Brakes, Brake System ▶ 3-02 - FRONT DISC BRAKE CALIPER ▶

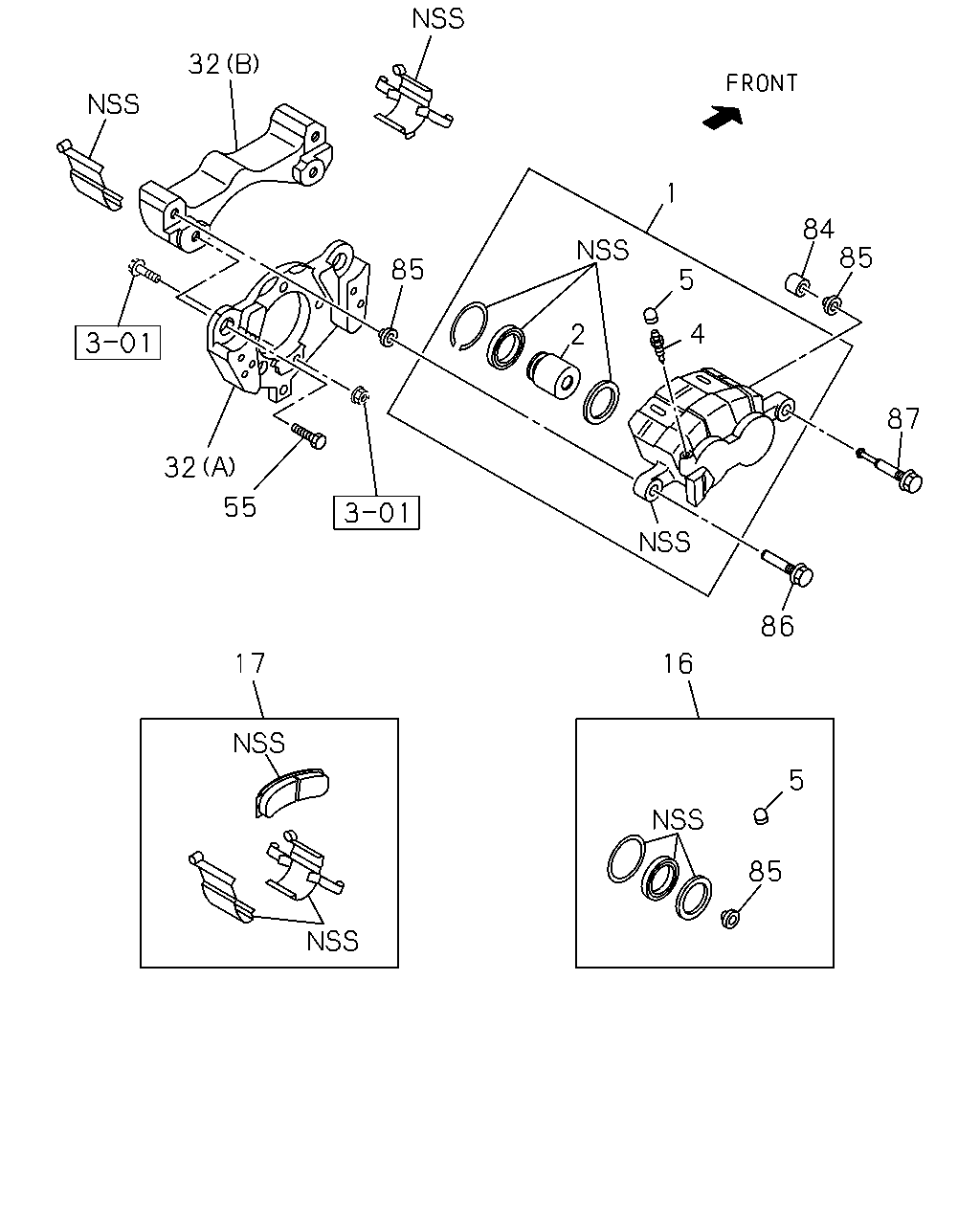

3-02 — FRONT DISC BRAKE CALIPER (#45013) — 93 parça
çizim 44662
32 1 84 85 85 5 2 4 87 32 55 86 17 16 5 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.665 CALIPER; FRT DISC BRK
(AYS),(AYT),(00C),(01C),(02C),(06C), (07C),(08C),(09C),(10C),(11C),(53C), (54C),(55C),(83V) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97168-586-0 01 1 9812-9903 ● ● ●
1 04.665 CALIPER; FRT DISC BRK
(ARN),(BQU),(BQV),(9HY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97168-586-0 01 1 9812-9903 ● ●
1 04.665 CALIPER; FRT DISC BRK
(AYS),(AYT),(BRT),(BRU),(00C),(01C), (02C),(06C),(07C),(08C),(09C),(10C), (11C),(53C),(54C),(55C),(83V) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97168-586-0 01 1 9904-9904 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
(ARN),(BQU),(BQV),(9HY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97168-586-0 01 1 9904-9904 ● ●
1 04.665 CALIPER; FRT DISC BRK
(AYS),(AYT),(BRT),(BRU),(00C),(01C), (02C),(06C),(07C),(08C),(09C),(10C), (11C),(53C),(54C),(55C),(83V) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. AXLE ISUZU PRODUCTION<8BF> 		8-97168-586-0 01 1 9905-9906 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
(ARN),(BQU),(BQV),(9HY) EXC. FRAME STRAIGHT TYPE<7KJ>,AXLE ISUZU PRODUCTION<8BF> 		8-97168-586-0 01 1 9905-9906 ● ●
1 04.665 CALIPER; FRT DISC BRK
(AYS),(AYT),(00C),(01C),(02C),(06C), (07C),(08C),(09C),(10C),(11C),(53C), (54C),(55C),(83V) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97168-585-0 01 1 9812-9903 ● ● ●
1 04.665 CALIPER; FRT DISC BRK
(ARN),(BQU),(BQV),(9HY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97168-585-0 01 1 9812-9903 ● ●
1 04.665 CALIPER; FRT DISC BRK
(AYS),(AYT),(BRT),(BRU),(00C),(01C), (02C),(06C),(07C),(08C),(09C),(10C), (11C),(53C),(54C),(55C),(83V) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97168-585-0 01 1 9904-9904 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
(ARN),(BQU),(BQV),(9HY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97168-585-0 01 1 9904-9904 ● ●
1 04.665 CALIPER; FRT DISC BRK
(AYS),(AYT),(BRT),(BRU),(00C),(01C), (02C),(06C),(07C),(08C),(09C),(10C), (11C),(53C),(54C),(55C),(83V) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. AXLE ISUZU PRODUCTION<8BF> 		8-97168-585-0 01 1 9905-9906 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
(ARN),(BQU),(BQV),(9HY) EXC. FRAME STRAIGHT TYPE<7KJ>,AXLE ISUZU PRODUCTION<8BF> 		8-97168-585-0 01 1 9905-9906 ● ●
1 04.665 CALIPER; FRT DISC BRK
(AYS),(AYT),(BRT),(BRU),(00C),(01C), (02C),(06C),(07C),(08C),(09C),(10C), (11C),(53C),(54C),(55C),(83V) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) AXLE ISUZU PRODUCTION<8BF> FRAME STRAIGHT TYPE<7KJ> 		8-97228-625-0 01 1 9905-9906 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
(ARN),(BQU),(BQV),(9HY) AXLE ISUZU PRODUCTION<8BF> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97228-625-0 01 1 9905-9906 ● ●
1 04.665 CALIPER; FRT DISC BRK
(AYS),(AYT),(BRT),(BRU),(00C),(01C), (02C),(06C),(07C),(08C),(09C),(10C), (11C),(53C),(54C),(55C),(83V) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97228-625-0 01 1 9907-0012 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
(ARN),(BQU),(BQV),(9HY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97228-625-0 01 1 9907-0012 ● ●
1 04.665 CALIPER; FRT DISC BRK
(AYS),(AYT),(BRT),(BRU),(00C),(01C), (02C),(06C),(07C),(08C),(09C),(10C), (11C),(53C),(54C),(55C),(83V) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) AXLE ISUZU PRODUCTION<8BF> FRAME STRAIGHT TYPE<7KJ> 		8-97228-625-0 01 1 0101-0105 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
(ARN),(BQU),(BQV),(9HY) AXLE ISUZU PRODUCTION<8BF> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97228-625-0 01 1 0101-0105 ● ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97228-625-1 01 1 0106- ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97228-625-1 01 1 0106- ● ● ●
1 04.665 CALIPER; FRT DISC BRK
(AYS),(AYT),(BRT),(BRU),(00C),(01C), (02C),(06C),(07C),(08C),(09C),(10C), (11C),(53C),(54C),(55C),(83V) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) AXLE ISUZU PRODUCTION<8BF> FRAME STRAIGHT TYPE<7KJ> 		8-97228-624-0 01 1 9905-9906 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
(ARN),(BQU),(BQV),(9HY) AXLE ISUZU PRODUCTION<8BF> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97228-624-0 01 1 9905-9906 ● ●
1 04.665 CALIPER; FRT DISC BRK
(AYS),(AYT),(BRT),(BRU),(00C),(01C), (02C),(06C),(07C),(08C),(09C),(10C), (11C),(53C),(54C),(55C),(83V) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97228-624-0 01 1 9907-0012 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
(ARN),(BQU),(BQV),(9HY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97228-624-0 01 1 9907-0012 ● ●
1 04.665 CALIPER; FRT DISC BRK
(AYS),(AYT),(BRT),(BRU),(00C),(01C), (02C),(06C),(07C),(08C),(09C),(10C), (11C),(53C),(54C),(55C),(83V) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) AXLE ISUZU PRODUCTION<8BF> FRAME STRAIGHT TYPE<7KJ> 		8-97228-624-0 01 1 0101-0105 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
(ARN),(BQU),(BQV),(9HY) AXLE ISUZU PRODUCTION<8BF> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97228-624-0 01 1 0101-0105 ● ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97228-624-1 01 1 0106- ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97228-624-1 01 1 0106- ● ● ●
1 04.665 CALIPER; FRT DISC BRK
(AUH),(AUJ),(AUS),(AVK) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97168-588-0 01 1 9812-0105 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97168-588-1 01 1 0106- ● ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
(AUH),(AUJ),(AUS),(AVK) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97168-587-0 01 1 9812-0105 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97168-587-1 01 1 0106- ● ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
(AYS),(AYT),(00C),(01C),(02C),(06C), (07C),(08C),(09C),(10C),(11C),(53C), (54C),(55C),(83V) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-94468-350-0 04 1 9812-9903 ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
(ARN),(BQU),(BQV),(9HY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94468-350-0 04 1 9812-9903 ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
(AYS),(AYT),(BRT),(BRU),(00C),(01C), (02C),(06C),(07C),(08C),(09C),(10C), (11C),(53C),(54C),(55C),(83V) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-94468-350-0 04 1 9904-0012 ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
(ARN),(BQU),(BQV),(9HY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94468-350-0 04 1 9904-0012 ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
(AYS),(AYT),(BRT),(BRU),(00C),(01C), (02C),(06C),(07C),(08C),(09C),(10C), (11C),(53C),(54C),(55C),(83V) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) AXLE ISUZU PRODUCTION<8BF> FRAME STRAIGHT TYPE<7KJ> 		8-94468-350-0 04 1 0101-0105 ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
(ARN),(BQU),(BQV),(9HY) AXLE ISUZU PRODUCTION<8BF> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94468-350-0 04 1 0101-0105 ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-94468-350-0 04 1 0106- ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94468-350-0 04 1 0106- ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
(AUH),(AUJ),(AUS),(AVK) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97168-593-0 04 1 9812-0105 ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97168-593-0 04 1 0106- ● ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 1-47615-027-0 02 1 9812- ● ● ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 02 1 9812- ● ● ● ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
(AYS),(AYT),(00C),(01C),(02C),(06C), (07C),(08C),(09C),(10C),(11C),(53C), (54C),(55C),(83V) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97168-635-0 01 1 9812-9903 ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
(ARN),(BQU),(BQV),(9HY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97168-635-0 01 1 9812-9903 ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
(AYS),(AYT),(BRT),(BRU),(00C),(01C), (02C),(06C),(07C),(08C),(09C),(10C), (11C),(53C),(54C),(55C),(83V) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97168-635-0 01 1 9904-0012 ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
(ARN),(BQU),(BQV),(9HY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97168-635-0 01 1 9904-0012 ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
(AYS),(AYT),(BRT),(BRU),(00C),(01C), (02C),(06C),(07C),(08C),(09C),(10C), (11C),(53C),(54C),(55C),(83V) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) AXLE ISUZU PRODUCTION<8BF> FRAME STRAIGHT TYPE<7KJ> 		8-97168-635-0 01 1 0101-0105 ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
(ARN),(BQU),(BQV),(9HY) AXLE ISUZU PRODUCTION<8BF> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97168-635-0 01 1 0101-0105 ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97168-635-0 01 1 0106- ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97168-635-0 01 1 0106- ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
(AUH),(AUJ),(AUS),(AVK) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97168-636-0 01 1 9812-0105 ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97168-636-0 01 1 0106- ● ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(AYS),(AYT),(00C),(01C),(02C),(06C), (07C),(08C),(09C),(10C),(11C),(53C), (54C),(55C),(83V) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97168-633-0 01 1 9812-9903 ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(ARN),(BQU),(BQV),(9HY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97168-633-0 01 1 9812-9903 ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(AYS),(AYT),(BRT),(BRU),(00C),(01C), (02C),(06C),(07C),(08C),(09C),(10C), (11C),(53C),(54C),(55C),(83V) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97168-633-0 01 1 9904-0012 ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(ARN),(BQU),(BQV),(9HY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97168-633-0 01 1 9904-0012 ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(AYS),(AYT),(BRT),(BRU),(00C),(01C), (02C),(06C),(07C),(08C),(09C),(10C), (11C),(53C),(54C),(55C),(83V) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) AXLE ISUZU PRODUCTION<8BF> FRAME STRAIGHT TYPE<7KJ> 		8-97168-633-0 01 1 0101-0105 ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(ARN),(BQU),(BQV),(9HY) AXLE ISUZU PRODUCTION<8BF> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97168-633-0 01 1 0101-0105 ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97168-633-0 01 1 0106-0203 ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97168-633-0 01 1 0106-0203 ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97329-266-0 01 1 0204- ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97329-266-0 01 1 0204- ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
(AUH),(AUJ),(AUS),(AVK) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97168-634-0 01 1 9812-0105 ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97168-634-0 01 1 0106- ● ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
(AYS),(AYT),(00C),(01C),(02C),(06C), (07C),(08C),(09C),(10C),(11C),(53C), (54C),(55C),(83V) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97168-598-0 02 1 9812-9903 ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
(ARN),(BQU),(BQV),(9HY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97168-598-0 02 1 9812-9903 ● ●
32 04.665 SUPPORT; FRT DISC BRK
(AYS),(AYT),(BRT),(BRU),(00C),(01C), (02C),(06C),(07C),(08C),(09C),(10C), (11C),(53C),(54C),(55C),(83V) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97168-598-0 02 1 9904-9904 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
(ARN),(BQU),(BQV),(9HY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97168-598-0 02 1 9904-9904 ● ●
32 04.665 SUPPORT; FRT DISC BRK
(AYS),(AYT),(BRT),(BRU),(00C),(01C), (02C),(06C),(07C),(08C),(09C),(10C), (11C),(53C),(54C),(55C),(83V) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. AXLE ISUZU PRODUCTION<8BF> (B) 		8-97168-598-0 02 1 9905-9906 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
(ARN),(BQU),(BQV),(9HY) EXC. FRAME STRAIGHT TYPE<7KJ>,AXLE ISUZU PRODUCTION<8BF> (B) 		8-97168-598-0 02 1 9905-9906 ● ●
32 04.665 SUPPORT; FRT DISC BRK
(A) 		8-97179-592-0 01 1 9812-9912 ● ● ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97179-592-1 01 1 0001- ● ● ● ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
(A) 		8-97179-591-0 01 1 9812-9912 ● ● ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97179-591-1 01 1 0001- ● ● ● ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97168-584-2 01 1 0001- ● ● ● ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97168-583-2 01 1 0001- ● ● ● ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
(AYS),(AYT),(BRT),(BRU),(00C),(01C), (02C),(06C),(07C),(08C),(09C),(10C), (11C),(53C),(54C),(55C),(83V) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) AXLE ISUZU PRODUCTION<8BF> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97228-630-0 02 1 9905-9906 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
(ARN),(BQU),(BQV),(9HY) AXLE ISUZU PRODUCTION<8BF> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97228-630-0 02 1 9905-9906 ● ●
32 04.665 SUPPORT; FRT DISC BRK
(AYS),(AYT),(BRT),(BRU),(00C),(01C), (02C),(06C),(07C),(08C),(09C),(10C), (11C),(53C),(54C),(55C),(83V) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97228-630-0 02 1 9907-0012 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
(ARN),(BQU),(BQV),(9HY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97228-630-0 02 1 9907-0012 ● ●
32 04.665 SUPPORT; FRT DISC BRK
(AYS),(AYT),(BRT),(BRU),(00C),(01C), (02C),(06C),(07C),(08C),(09C),(10C), (11C),(53C),(54C),(55C),(83V) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) AXLE ISUZU PRODUCTION<8BF> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97228-630-0 02 1 0101-0105 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
(ARN),(BQU),(BQV),(9HY) AXLE ISUZU PRODUCTION<8BF> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97228-630-0 02 1 0101-0105 ● ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97228-630-1 02 1 0106- ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97228-630-1 02 1 0106- ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
(AUH),(AUJ),(AUS),(AVK) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97168-599-0 02 1 9812-0105 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97168-599-1 02 1 0106- ● ● ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK 8-97168-639-0 04 1 9812- ● ● ● ● ● ● ●
84 04.665 BUSHING; LOCK PIN
(AUH),(AUJ),(AUS),(AVK) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97168-615-0 02 1 9812-0104 ● ● ● ●
85 04.665 BOOT; PIN 8-97168-612-0 04 1 9812- ● ● ● ● ● ● ●
86 04.665 PIN; GUIDE 8-97168-609-1 02 1 9812- ● ● ● ● ● ● ●
87 04.665 PIN; LOCK 8-97168-611-1 02 1 9812- ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
