Sayfa 2-85 - Isuzu EPC

2-85 — POWER TAKE OFF CONTROL (#45011) — 166 parça

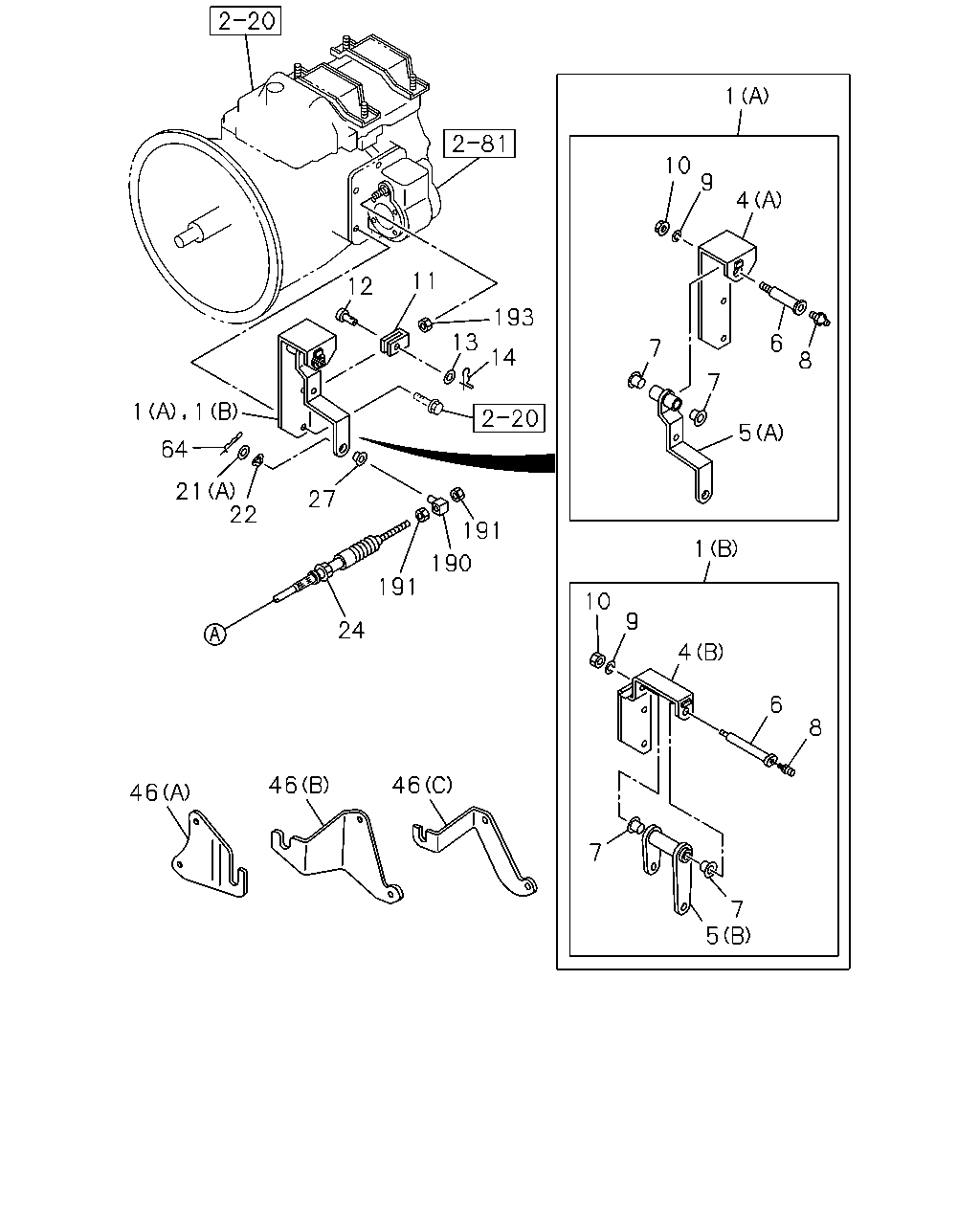

1 10 9 4 12 11 193 13 6 7 14 8 7 1 1 5 64 21 22 27 191 1 190 191 10 9 24 4 6 8 46 46 46 7 7 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) (B)	8-94169-638-3	01	1	9812-0105	●	●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) (A)	8-97017-114-1	01	1	9812-			●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) (B)	8-94169-639-0	01	1	9812-0105	●	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) (A)	8-97019-744-0	01	1	9812-			●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) (B)	8-94147-828-0	01	1	9812-0105	●	●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) (A)	8-97017-115-0	01	1	9812-			●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-94147-829-1	01	1	9812-0105	●	●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-94419-941-1	01	1	9812-			●
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	9812-0105	●	●	●
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	0106-			●
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	9812-0105	●	●	●
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0106-			●
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) 00.002 ID=8.2	9-09150-508-0	01	1	9812-0105	●	●	●
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) 00.002 ID=8.2	9-09150-508-0	01	1	0106-			●
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) 02.559 M8	9-09110-408-0	01	1	9812-0105	●	●	●
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) 02.559 M8	9-09110-408-0	01	1	0106-			●
11	04.439 JOINT; JAW,YOKE PTO TRANSMISSION SIDE(V66)	8-94342-085-0	01	1	9812-0105	●	●	●
11	04.439 JOINT; JAW,YOKE PTO TRANSMISSION SIDE(V66)	8-94342-085-0	01	1	0106-			●
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-94174-099-0	01	1	9812-0105	●	●	●
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-94174-099-0	01	1	0106-			●
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) 03.430 ID=12.5	9-09160-512-0	01	1	9812-0105	●	●	●
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) 03.430 ID=12.5	9-09160-512-0	01	1	0106-			●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) 09.003	1-09987-158-1	01	1	9812-0105	●	●	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) 09.003	1-09987-158-1	01	1	0106-			●
14	04.439 PIN; SPLIT,YOKE 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 08.938 OD=2.8 L=18	9-08113-018-0	01	1	9812-0105				●
14	04.439 PIN; SPLIT,YOKE 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 08.938 OD=2.8 L=18	9-08113-018-0	01	1	0106-					●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 16.674 (A) ID=8.4	9-09160-508-0	01	1	9812-0105	●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 06.760 (B) ID=8.4 OD=22	9-09160-708-0	01	1	9812-0105	●	●	●	●
21	04.439 WASHER; PL,CONT LEVER FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 06.760 (B) ID=8.4 OD=22	9-09160-708-0	01	1	0106-			●		●	●
21	04.439 WASHER; PL,CONT LEVER 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 07.633 (A) ID=8.4 OD=22	9-09164-708-0	01	1	9812-0105			●
21	04.439 WASHER; PL,CONT LEVER 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 07.633 (A) ID=8.4 OD=22	9-09164-708-0	01	1	0106-			●
22	04.439 WASHER; LK,LEVER 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 04.037 ID=8.5 T=0.3	5-09509-001-0	01	1	9812-0105			●
22	04.439 WASHER; LK,LEVER 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 04.037 ID=8.5 T=0.3	5-09509-001-0	01	1	0106-			●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) L=2811	8-97142-486-0	01	1	9812-0105	●	●
24	04.439 CABLE; PTO CONT 4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) L=2977	8-97260-773-0	01	1	0106-			●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. CHARGE AIR COOLER<6PL> L=3077	8-97204-988-0	01	1	9812-0105			●
24	04.439 CABLE; PTO CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3077	8-97204-988-0	01	1	0106-			●
24	04.439 CABLE; PTO CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3107	8-97204-987-0	01	1	9812-			●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. CHARGE AIR COOLER<6PL> L=3208	8-97142-498-1	01	1	9812-0105				●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3208	8-97142-498-1	01	1	0106-					●
24	04.439 CABLE; PTO CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3282	8-97184-373-0	01	1	9812-0105				●
24	04.439 CABLE; PTO CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> CHARGE AIR COOLER<6PL> L=3282	8-97184-373-0	01	1	0106-					●
24	04.439 CABLE; PTO CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3294	8-97329-044-0	01	1	0208-						●
24	04.439 CABLE; PTO CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3340	8-97329-045-1	01	1	0208-						●
27	04.439 BUSHING; LEVER,PTO 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 04.042	8-94367-367-0	01	1	9812-0105			●
27	04.439 BUSHING; LEVER,PTO 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 04.042	8-94367-367-0	01	1	0106-			●
46	04.439 BRACKET; PTO,TRANS SIDE PTO TRANSMISSION SIDE(V66) (A)	8-94157-541-0	01	1	9812-0105	●	●
46	04.439 BRACKET; PTO,TRANS SIDE 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) (B)	8-97022-848-1	01	1	9812-9812			●
46	04.439 BRACKET; PTO,TRANS SIDE 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) (B)	8-97219-994-0	01	1	9901-9910			●
46	04.439 BRACKET; PTO,TRANS SIDE 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) (C)	8-97240-638-0	01	1	9911-0105			●
46	04.439 BRACKET; PTO,TRANS SIDE 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) (C)	8-97240-638-0	01	1	0106-			●
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	9812-0105	●	●	●
64	04.439 PIN; SNAP,CONT CABLE JOINT 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	0106-			●
190	04.439 BOSS; LEVER,PTO 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 04.307	8-94366-842-1	01	1	9812-0105			●
190	04.439 BOSS; LEVER,PTO 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 04.307	8-94366-842-1	01	1	0106-			●
191	04.439 NUT; BOSS 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 00.413 M6	9-09110-506-0	02	1	9812-0105			●
191	04.439 NUT; BOSS 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 00.413 M6	9-09110-506-0	02	1	0106-			●
193	04.439 NUT PTO TRANSMISSION SIDE(V66) 07.347 M12	9-99111-412-0	01	1	9812-0105	●	●	●
193	04.439 NUT PTO TRANSMISSION SIDE(V66) 07.347 M12	9-99111-412-0	01	1	0106-			●

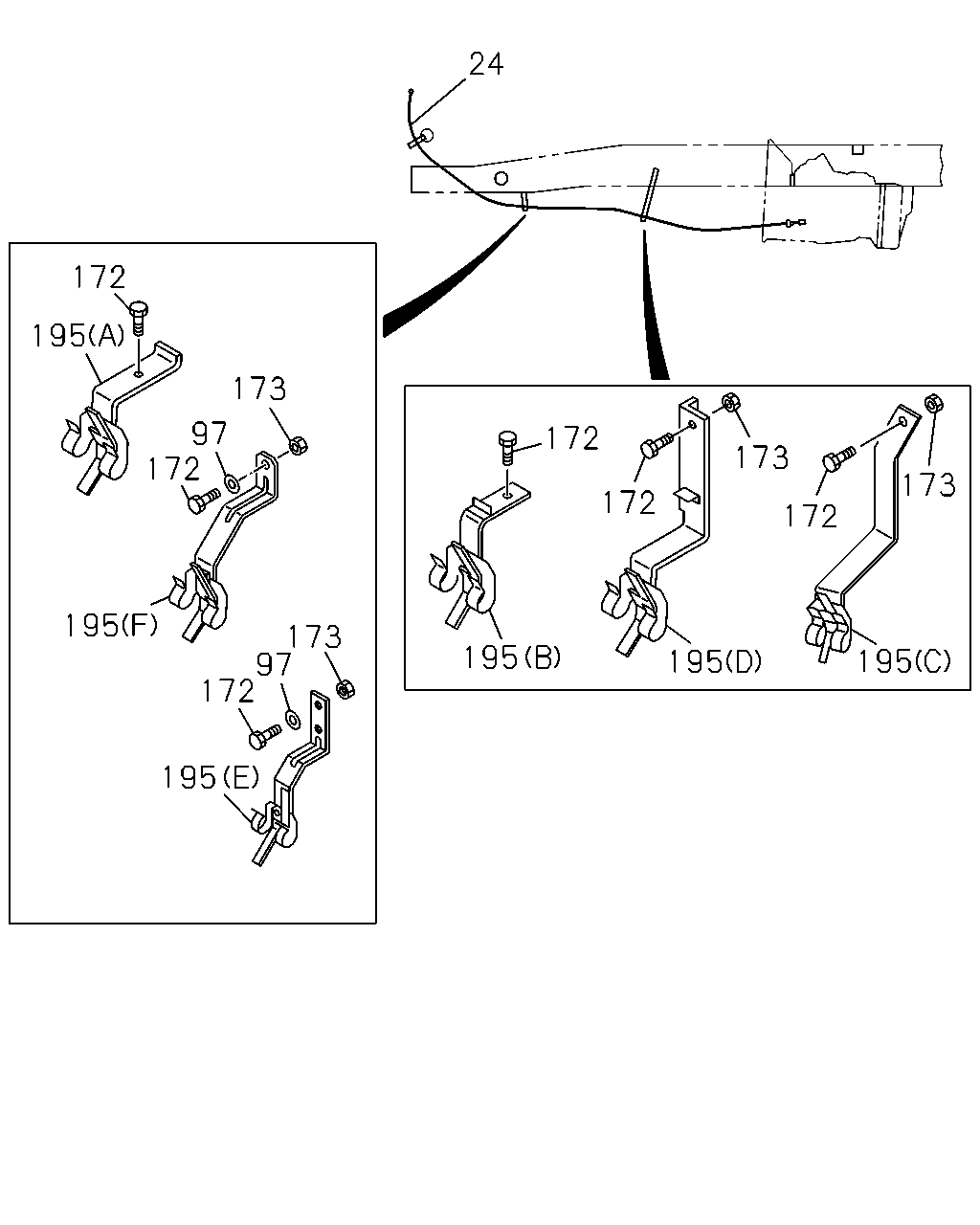

24 172 195 173 97 172 172 173 173 172 172 195 173 97 172 195 195 195 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) L=2811	8-97142-486-0	01	1	9812-0105	●	●
24	04.439 CABLE; PTO CONT 4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) L=2977	8-97260-773-0	01	1	0106-			●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. CHARGE AIR COOLER<6PL> L=3077	8-97204-988-0	01	1	9812-0105			●
24	04.439 CABLE; PTO CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3077	8-97204-988-0	01	1	0106-			●
24	04.439 CABLE; PTO CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3107	8-97204-987-0	01	1	9812-			●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. CHARGE AIR COOLER<6PL> L=3208	8-97142-498-1	01	1	9812-0105				●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3208	8-97142-498-1	01	1	0106-					●
24	04.439 CABLE; PTO CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3282	8-97184-373-0	01	1	9812-0105				●
24	04.439 CABLE; PTO CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> CHARGE AIR COOLER<6PL> L=3282	8-97184-373-0	01	1	0106-					●
24	04.439 CABLE; PTO CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3294	8-97329-044-0	01	1	0208-						●
24	04.439 CABLE; PTO CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3340	8-97329-045-1	01	1	0208-						●
97	04.439 WASHER; LK 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 16.716 ID=8.4 OD=18	9-09160-608-0	01	1	9812-9812			●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9812-0105	●	●
172	04.439 BOLT; BRKT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-					●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9812-0105			●	●
172	04.439 BOLT; BRKT 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0106-			●
172	04.439 BOLT; BRKT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0106-					●
172	04.439 BOLT; BRKT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-0105			●	●
172	04.439 BOLT; BRKT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9812-0105				●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0106-0207					●
172	04.439 BOLT; BRKT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0208-					●	●
173	04.439 NUT; BRKT PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-0105	●	●
173	04.439 NUT; BRKT FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-			●
173	04.439 NUT; BRKT FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-					●	●
173	04.439 NUT; BRKT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-0105			●	●
173	04.439 NUT; BRKT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	01	1	9812-0105				●
173	04.439 NUT; BRKT PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	01	1	0106-0207					●
173	04.439 NUT; BRKT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	01	1	0208-					●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (A)	8-97079-559-2	01	1	9812-0105	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97079-559-2	01	1	0106-			●		●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (D)	8-97079-560-3	01	1	9812-0105	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) EXC. CHARGE AIR COOLER<6PL> (B)	8-97085-695-3	01	1	9812-0105			●	●
195	04.439 BRACKET; CONT CABLE 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97085-695-3	01	1	0106-			●
195	04.439 BRACKET; CONT CABLE 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B)	8-97085-695-3	01	1	0106-					●
195	04.439 BRACKET; CONT CABLE 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (E)	8-97106-210-0	01	1	9812-9812			●	●
195	04.439 BRACKET; CONT CABLE 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (F)	8-97076-428-6	01	1	9901-9904			●	●
195	04.439 BRACKET; CONT CABLE 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (F)	8-97229-563-0	01	1	9905-0105			●	●
195	04.439 BRACKET; CONT CABLE FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> (F)	8-97229-563-0	01	1	0106-					●	●
195	04.439 BRACKET; CONT CABLE 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C)	8-97210-766-0	01	1	9812-9903				●
195	04.439 BRACKET; CONT CABLE 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C)	8-97227-060-0	01	1	9904-9907				●
195	04.439 BRACKET; CONT CABLE 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C)	8-97231-502-0	01	1	9908-0105				●
195	04.439 BRACKET; CONT CABLE 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C)	8-97231-502-0	01	1	0106-					●	●

70 15 71 222 79 245 256 79 121 18 19 83 16 21 172 256 192 24 38 31 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) 09.003	1-09987-158-1	01	1	9812-0105	●	●	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) 09.003	1-09987-158-1	01	1	0106-			●
14	04.439 PIN; SPLIT,YOKE 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 08.938 OD=2.8 L=18	9-08113-018-0	01	1	9812-0105				●
14	04.439 PIN; SPLIT,YOKE 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 08.938 OD=2.8 L=18	9-08113-018-0	01	1	0106-					●	●
15	04.439 LEVER ASM; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97143-217-0	01	1	9812-0105	●	●	●	●
15	04.439 LEVER ASM; PTO CONT FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66)	8-97143-217-1	01	1	0106-			●		●	●
16	04.439 CLIP; CABLE,PTO PTO TRANSMISSION SIDE(V66) 04.027	8-94152-900-0	01	1	9812-0105	●	●	●	●
16	04.439 CLIP; CABLE,PTO FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 04.027	8-94152-900-0	01	1	0106-			●		●	●
18	04.439 PIN; SNAP,PTO CABLE PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	9812-0105	●	●	●	●
18	04.439 PIN; SNAP,PTO CABLE FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	0106-			●		●	●
19	04.439 WASHER; PL,PTO CABLE PTO TRANSMISSION SIDE(V66) 16.674 ID=8.4	9-09160-508-0	01	1	9812-0105	●	●	●	●
19	04.439 WASHER; PL,PTO CABLE FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 16.674 ID=8.4	9-09160-508-0	01	1	0106-			●		●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 16.674 (A) ID=8.4	9-09160-508-0	01	1	9812-0105	●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 06.760 (B) ID=8.4 OD=22	9-09160-708-0	01	1	9812-0105	●	●	●	●
21	04.439 WASHER; PL,CONT LEVER FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 06.760 (B) ID=8.4 OD=22	9-09160-708-0	01	1	0106-			●		●	●
21	04.439 WASHER; PL,CONT LEVER 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 07.633 (A) ID=8.4 OD=22	9-09164-708-0	01	1	9812-0105			●
21	04.439 WASHER; PL,CONT LEVER 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 07.633 (A) ID=8.4 OD=22	9-09164-708-0	01	1	0106-			●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) L=2811	8-97142-486-0	01	1	9812-0105	●	●
24	04.439 CABLE; PTO CONT 4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) L=2977	8-97260-773-0	01	1	0106-			●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. CHARGE AIR COOLER<6PL> L=3077	8-97204-988-0	01	1	9812-0105			●
24	04.439 CABLE; PTO CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3077	8-97204-988-0	01	1	0106-			●
24	04.439 CABLE; PTO CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3107	8-97204-987-0	01	1	9812-			●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. CHARGE AIR COOLER<6PL> L=3208	8-97142-498-1	01	1	9812-0105				●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3208	8-97142-498-1	01	1	0106-					●
24	04.439 CABLE; PTO CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3282	8-97184-373-0	01	1	9812-0105				●
24	04.439 CABLE; PTO CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> CHARGE AIR COOLER<6PL> L=3282	8-97184-373-0	01	1	0106-					●
24	04.439 CABLE; PTO CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3294	8-97329-044-0	01	1	0208-						●
24	04.439 CABLE; PTO CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3340	8-97329-045-1	01	1	0208-						●
31	04.439 CLIP; BAND,CABLE PTO TRANSMISSION SIDE(V66) 02.559 L=250	5-09707-030-1	01	1	9812-0105	●	●	●	●
31	04.439 CLIP; BAND,CABLE FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	0106-			●		●	●
31	04.439 CLIP; BAND,CABLE FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	0106-					●	●
31	04.439 CLIP; BAND,CABLE PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 L=300	1-09707-001-1	01	1	9812-0105	●		●	●
31	04.439 CLIP; BAND,CABLE FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 L=300	1-09707-001-1	01	1	0106-			●		●
38	04.439 PIN; JOINT,CABLE TO LEVER PTO TRANSMISSION SIDE(V66) 04.047	8-94153-035-0	01	1	9812-0105	●	●
70	04.439 KNOB; DUMP CONT PTO TRANSMISSION SIDE(V66)	8-94147-332-1	01	1	9812-0105	●	●	●	●
70	04.439 KNOB; DUMP CONT FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66)	8-94147-332-1	01	1	0106-			●		●	●
71	04.439 LEVER; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97143-218-0	01	1	9812-0105	●	●	●	●
71	04.439 LEVER; PTO CONT FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66)	8-97143-218-0	01	1	0106-			●		●	●
79	04.439 BUSHING; CONT LEVER PTO TRANSMISSION SIDE(V66) 04.008 ID=14 OD=16	8-94252-671-0	02	1	9812-0105	●	●	●	●
79	04.439 BUSHING; CONT LEVER PTO TRANSMISSION SIDE(V66) 04.008 ID=14 OD=16	8-94252-671-0	02	1	0106-0204			●		●
79	04.439 BUSHING; CONT LEVER FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 04.792	8-94238-596-0	02	1	0205-			●		●	●
83	04.439 BRACKET; CONT LEVER PTO TRANSMISSION SIDE(V66)	8-97118-977-0	01	1	9812-0105	●	●	●	●
83	04.439 BRACKET; CONT LEVER FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66)	8-97118-977-0	01	1	0106-			●		●	●
121	04.439 RING; SNAP PTO TRANSMISSION SIDE(V66) 08.934 ID=10	9-09185-410-0	01	1	9812-0105	●	●	●	●
121	04.439 RING; SNAP FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 08.934 ID=10	9-09185-410-0	01	1	0106-			●		●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9812-0105	●	●
172	04.439 BOLT; BRKT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-					●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9812-0105			●	●
172	04.439 BOLT; BRKT 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0106-			●
172	04.439 BOLT; BRKT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0106-					●
172	04.439 BOLT; BRKT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-0105			●	●
172	04.439 BOLT; BRKT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9812-0105				●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0106-0207					●
172	04.439 BOLT; BRKT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0208-					●	●
192	04.439 BOLT; PTO BRKT PTO TRANSMISSION SIDE(V66) M6X16 FLANGE	0-28680-616-0	01	1	9812-0105	●	●	●	●
192	04.439 BOLT; PTO BRKT FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) M6X16 FLANGE	0-28680-616-0	01	1	0106-			●		●	●
222	04.439 BOLT; LEVER PTO TRANSMISSION SIDE(V66) 00.662 M8X14 FLANGE	0-28080-814-0	03	1	9812-0010	●	●	●	●
222	04.439 BOLT; LEVER PTO TRANSMISSION SIDE(V66) 00.662 M8X14 FLANGE	0-28080-814-0	02	1	0011-0105	●	●	●	●
222	04.439 BOLT; LEVER FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 00.662 M8X14 FLANGE	0-28080-814-0	02	1	0106-			●		●	●
245	04.439 SCREW; COVER,CONT LEVER BRKT PTO TRANSMISSION SIDE(V66) 03.320 M4X10 W/LK&PL WASHER	9-03920-410-0	01	1	9812-0105	●	●	●	●
245	04.439 SCREW; COVER,CONT LEVER BRKT FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 03.320 M4X10 W/LK&PL WASHER	9-03920-410-0	01	1	0106-			●		●	●
256	04.439 PLATE; LOCK PTO TRANSMISSION SIDE(V66) (B)	8-97118-983-0	01	1	9812-0105	●	●	●	●
256	04.439 PLATE; LOCK FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) (B)	8-97118-983-0	01	1	0106-			●		●	●
256	04.439 PLATE; LOCK PTO TRANSMISSION SIDE(V66) (A)	8-97142-947-0	01	1	9812-0105	●	●	●	●
256	04.439 PLATE; LOCK FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) (A)	8-97142-947-0	01	1	0106-			●		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
