Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#4501) — 349 parça

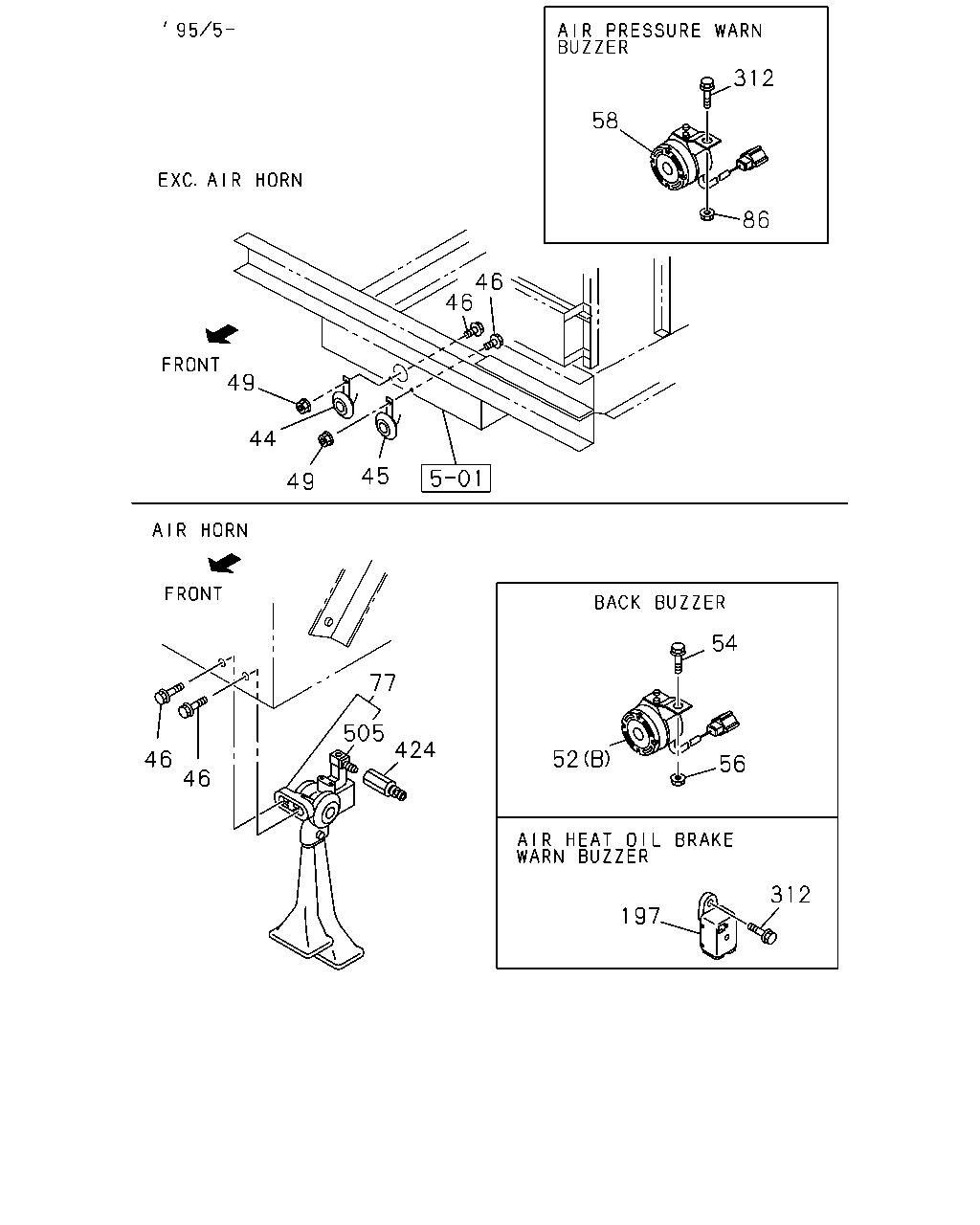

79 188 78 77 80 46 46 49 44 45 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	HORN; HIGH NOTE EXC. AIR HORN(WB8)	1-83410-037-0	01	1	9101-9303	●	●
44	HORN; HIGH NOTE EXC. AIR HORN(WB8)	1-83410-057-1	01	1	9304-0211	●	●
44	HORN; HIGH NOTE EXC. AIR HORN(WB8)	1-83410-065-1	01	1	0212-	●	●
45	HORN; LOW NOTE EXC. AIR HORN(WB8)	1-83410-038-0	01	1	9101-9303	●	●
45	HORN; LOW NOTE EXC. AIR HORN(WB8)	1-83410-058-1	01	1	9304-0211	●	●
45	HORN; LOW NOTE EXC. AIR HORN(WB8)	1-83410-064-1	01	1	0212-	●	●
46	BOLT; HORN TO BODY EXC. AIR HORN(WB8) M8X16 W/LK WASHER	9-01900-816-0	02	1	9101-9204	●	●
46	BOLT; HORN TO BODY EXC. AIR HORN(WB8) M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9504	●	●
46	BOLT; HORN TO BODY M8X20 FLANGE	0-28080-820-0	02	1	9505-9606	●	●
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28680-825-0	02	1	9607-0512	●	●
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
49	NUT; HORN TO BODY EXC. AIR HORN(WB8) M8	9-09110-408-0	02	1	9101-9606	●	●
49	NUT; HORN TO BODY EXC. AIR HORN(WB8) M8 FLANGE	0-91150-108-0	02	1	9607-0602	●	●
49	NUT; HORN TO BODY EXC. AIR HORN(WB8) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
77	HORN ASM AIR HORN(WB8)	1-83430-028-1	01	1	9101-9504	●	●
77	HORN ASM AIR HORN(WB8)	1-83430-036-0	01	1	9505-9601	●	●
77	HORN ASM AIR HORN(WB8)	1-83430-038-3	01	1	9602-	●	●
78	BOLT; AIR HORN AIR HORN(WB8) M10X20 W/LK WASHER	9-01901-020-0	02	1	9101-9204	●	●
78	BOLT; AIR HORN AIR HORN(WB8) M10X20 W/LK WASHER	0-50041-020-0	02	1	9205-9504	●	●
79	BOLT; MAG VLV AIR HORN(WB8) M8X18 W/LK WASHER	9-01900-818-0	02	1	9101-9204	●	●
79	BOLT; MAG VLV AIR HORN(WB8) M8X18 W/LK WASHER	0-50040-818-0	02	1	9205-9504	●	●
80	NUT; MAG VLV AIR HORN(WB8) M8	9-09110-408-0	02	1	9101-9504	●	●
188	NUT; AIR HORN AIR HORN(WB8) M10	9-09110-410-0	02	1	9101-9504	●	●

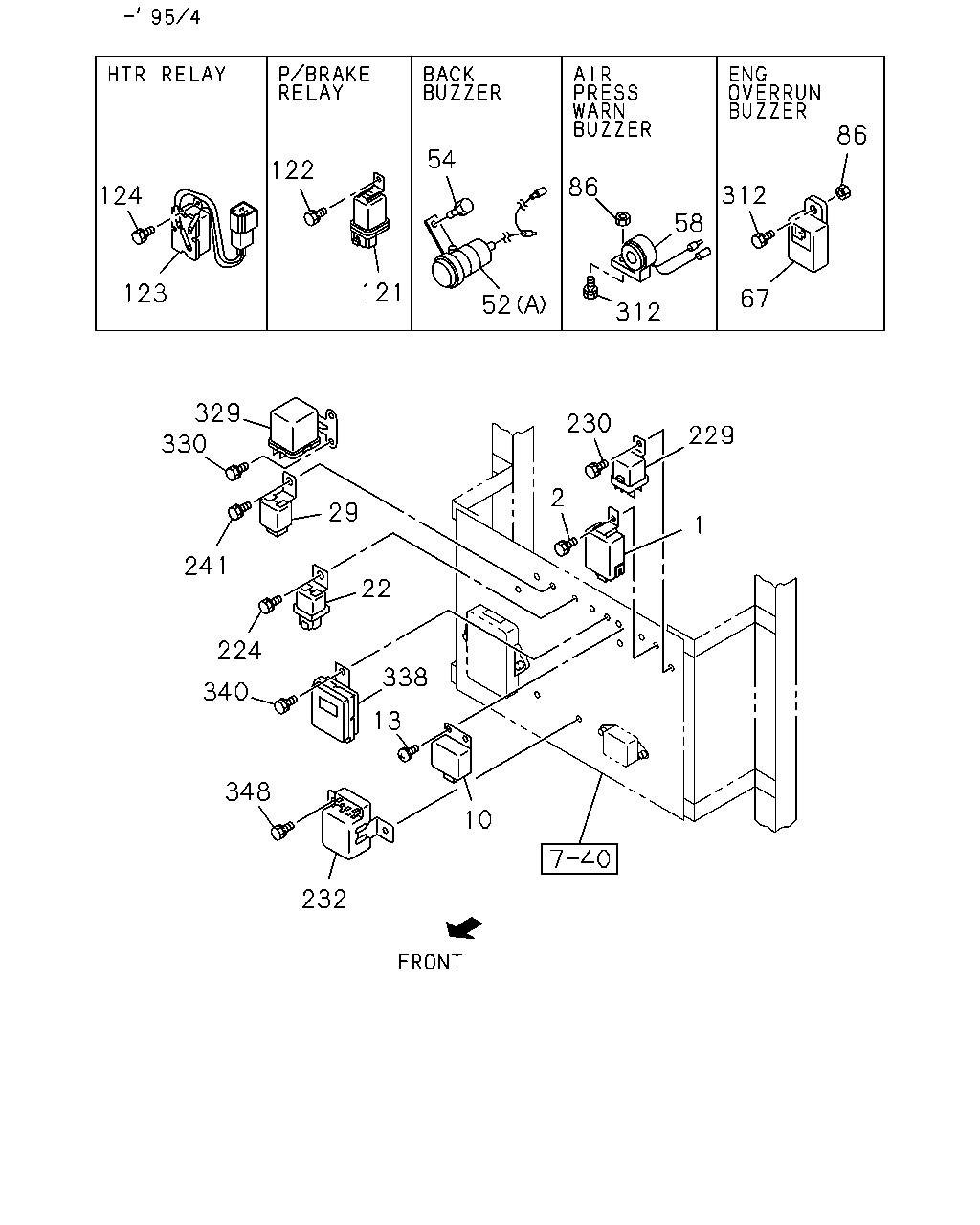

86 54 122 86 312 124 58 121 123 67 52 312 329 330 230 229 2 29 1 241 22 224 338 340 13 348 10 232

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1>	1-83470-032-0	01	1	9101-9504	●
1	UNIT; FLASHER EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>, SIDETURN SIGNAL LAMP<TEL>	1-83470-055-0	01	1	9505-	●	●
1	UNIT; FLASHER HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> SIDE TURN SIGNAL LAMP<TEL>	1-83470-055-0	01	1	9505-	●
1	UNIT; FLASHER EXC. AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1>	1-83470-034-1	01	1	9101-9504	●
1	UNIT; FLASHER	1-83470-034-1	01	1	9101-9504		●
1	UNIT; FLASHER HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. SIDE TURN SIGNAL LAMP<TEL>	1-83470-057-0	01	1	9505-	●
1	UNIT; FLASHER SIDE TURN SIGNAL LAMP<TEL> EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-83470-058-0	01	1	9505-	●	●
2	BOLT; FLASHER UNIT M6X12 W/LK WASHER	9-01900-612-0	01	1	9101-9204	●	●
2	BOLT; FLASHER UNIT M6X12 W/LK WASHER	0-50040-612-0	01	1	9205-9504	●	●
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28080-616-0	01	1	9505-9606	●	●
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28680-616-0	01	1	9607-0512	●	●
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	01	1	0601-	●	●
10	DETECTOR ASM; FUEL	1-81553-001-0	01	1	9101-9504	●	●
13	BOLT; FUEL DETECTOR M6X12 W/LK WASHER	9-01900-612-0	02	1	9101-9204	●	●
13	BOLT; FUEL DETECTOR M6X12 W/LK WASHER	0-50040-612-0	02	1	9205-9504	●	●
22	RELAY; STOP LAMP 24V	1-82550-176-0	01	1	9101-9504	●	●
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9505-0111	●	●
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●
29	RELAY; HORN EXC. AIR HORN(WB8)	1-83420-001-0	01	1	9101-9504	●	●
29	RELAY; HORN EXC. AIR HORN(WB8) 24V 12.5A MITUBA	8-97062-815-1	01	1	9505-0111	●	●
29	RELAY; HORN EXC. AIR HORN(WB8) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> (A) NIKKO	1-83460-010-0	01	1	9101-9112	●	●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> (A) NIKKO	8-97061-718-0	01	1	9201-9504	●	●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> (B) NIKKO	1-83460-052-0	01	1	9505-1308	●	●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> (B) METRO DENSO	8-98069-867-0	01	1	1309-	●	●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> (B) METRO DENSO	1-83460-088-0	01	1	9904-9907	●	●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. NIKKO<Y70> (B) METRO DENSO	1-83460-088-1	01	1	9908-0203	●	●
54	BOLT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10X25 W/LK WASHER	9-01901-025-0	01	1	9101-9204	●	●
54	BOLT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10X25 W/LK WASHER	0-50041-025-0	01	1	9205-9504	●	●
54	BOLT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10X25 FLANGE	0-28081-025-0	01	1	9505-9606	●	●
54	BOLT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10X30 FLANGE	0-28681-030-0	01	1	9607-0512	●	●
54	BOLT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10X30 FLANGE	0-28651-030-0	01	1	0601-	●	●
58	BUZZER; AIR PRESSURE WARNING	1-83460-022-0	01	1	9101-9504	●	●
58	BUZZER; AIR PRESSURE WARNING NIKKO	1-83460-056-0	01	1	9505-1308	●	●
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	8-98069-865-0	01	1	1309-	●	●
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-0	01	1	9904-9907	●	●
58	BUZZER; AIR PRESSURE WARNING EXC. NIKKO<Y70> METRO DENSO	1-83460-074-1	01	1	9908-0203	●	●
67	BUZZER; ENG OVERRUN ENG OVERRUN BUZZER<SK4> 12V	5-83460-004-1	01	1	9101-9504	●	●
86	NUT; BUZZER M6	9-09110-406-0	01	1	9101-9504	●	●
86	NUT; BUZZER ENG OVERRUN BUZZER<SK4> M6	9-09110-406-0	01	1	9101-9504	●	●
86	NUT; BUZZER M6	9-09110-406-0	01	1	9505-9606	●	●
86	NUT; BUZZER M6 FLANGE	0-91150-106-0	01	1	9607-0602	●	●
86	NUT; BUZZER M6 FLANGE	0-91180-106-0	01	1	0603-	●	●
121	RELAY; PARKING BRK BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 24V 12.5A MITUBA	1-82550-197-0	01	1	9101-9504	●	●
121	RELAY; PARKING BRK BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 24V 12.5A MITUBA	8-97062-815-1	01	1	9505-0111	●	●
121	RELAY; PARKING BRK BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0203	●	●
121	RELAY; PARKING BRK 24V 12.5A PANASONIC	8-97262-933-0	01	1	0204-	●	●
122	SCREW; PARKING BRK RELAY BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6X12 W/LK WASHER	9-01900-612-0	01	1	9101-9204	●	●
122	SCREW; PARKING BRK RELAY BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6X12 W/LK WASHER	0-50040-612-0	01	1	9205-9504	●	●
123	RELAY; HTR AUTO DRAIN W/HEATER<JR4>	1-82550-120-0	01	1	9101-9504	●	●
124	SCREW; SET,HTR RELAY AUTO DRAIN W/HEATER<JR4> M6X12 W/LK WASHER	9-01900-612-0	01	1	9101-9204	●	●
124	SCREW; SET,HTR RELAY AUTO DRAIN W/HEATER<JR4> M6X12 W/LK WASHER	0-50040-612-0	01	1	9205-9504	●	●
224	BOLT; STOP LAMP RELAY M6X12 W/LK WASHER	9-01900-612-0	01	1	9101-9204	●	●
224	BOLT; STOP LAMP RELAY M6X12 W/LK WASHER	0-50040-612-0	01	1	9205-9504	●	●
229	RELAY; BRAKE WARNING AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> 24V	1-82550-176-0	01	1	9101-9504	●
229	RELAY; BRAKE WARNING BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	5-82550-046-0	01	1	9101-9504	●	●
230	BOLT; BRAKE WARNING RELAY BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M6X12 W/LK WASHER	9-01900-612-0	01	1	9101-9109	●	●
230	BOLT; BRAKE WARNING RELAY AUSTRALIA EQUIPMENT<RR3> M6X12 W/LK WASHER	9-01900-612-0	01	1	9101-9109	●
230	BOLT; BRAKE WARNING RELAY BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M6X12 W/LK WASHER	9-01900-612-0	01	1	9110-9204	●	●
230	BOLT; BRAKE WARNING RELAY AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> M6X12 W/LK WASHER	9-01900-612-0	01	1	9110-9204	●
230	BOLT; BRAKE WARNING RELAY BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M6X12 W/LK WASHER	0-50040-612-0	01	1	9205-9504	●	●
230	BOLT; BRAKE WARNING RELAY AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> M6X12 W/LK WASHER	0-50040-612-0	01	1	9205-9504	●
232	RELAY; WARNING BUZZER INDICATOR WARNING BUZZER<WF9>	1-82550-119-1	01	1	9101-9504	●	●
232	RELAY; WARNING BUZZER ENG OVERRUN BUZZER<SK4> EXC. INDICATOR WARNING BUZZER<WF9>	1-82550-119-1	01	1	9505-	●	●
232	RELAY; WARNING BUZZER INDICATOR WARNING BUZZER<WF9>	1-82550-119-1	01	1	9505-	●	●
241	BOLT; HORN RELAY EXC. AIR HORN(WB8) M6X12 W/LK WASHER	9-01900-612-0	01	1	9101-9204	●	●
241	BOLT; HORN RELAY EXC. AIR HORN(WB8) M6X12 W/LK WASHER	0-50040-612-0	01	1	9205-9504	●	●
312	BOLT; BUZZER M6X14 W/LK WASHER	9-01900-614-0	01	1	9101-9204	●	●
312	BOLT; BUZZER ENG OVERRUN BUZZER<SK4> M6X14 W/LK WASHER	9-01900-614-0	01	1	9101-9204	●	●
312	BOLT; BUZZER M6X14 W/LK WASHER	0-50040-614-0	01	1	9205-9504	●	●
312	BOLT; BUZZER ENG OVERRUN BUZZER<SK4> M6X14 W/LK WASHER	0-50040-614-0	01	1	9205-9504	●	●
312	BOLT; BUZZER M6X16 FLANGE	0-28080-616-0	01	1	9505-9606	●	●
312	BOLT; BUZZER ENG OVERRUN BUZZER<SK4> EXC. INDICATOR WARNING BUZZER<WF9> M6X16 FLANGE	0-28080-616-0	01	1	9505-9606	●	●
312	BOLT; BUZZER INDICATOR WARNING BUZZER<WF9> M6X16 FLANGE	0-28080-616-0	01	1	9505-9606	●	●
312	BOLT; BUZZER M6X16 FLANGE	0-28680-616-0	01	1	9607-0512	●	●
312	BOLT; BUZZER ENG OVERRUN BUZZER<SK4> EXC. INDICATOR WARNING BUZZER<WF9> M6X16 FLANGE	0-28680-616-0	01	1	9607-0512	●	●
312	BOLT; BUZZER INDICATOR WARNING BUZZER<WF9> M6X16 FLANGE	0-28680-616-0	01	1	9607-0512	●	●
312	BOLT; BUZZER M6X16 FLANGE	0-28650-616-0	01	1	0601-	●	●
312	BOLT; BUZZER ENG OVERRUN BUZZER<SK4> EXC. INDICATOR WARNING BUZZER<WF9> M6X16 FLANGE	0-28650-616-0	01	1	0601-	●	●
312	BOLT; BUZZER INDICATOR WARNING BUZZER<WF9> M6X16 FLANGE	0-28650-616-0	01	1	0601-	●	●
329	RELAY; BACK LAMP AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1>	1-82550-070-0	01	1	9101-9403	●
329	RELAY; BACK LAMP AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> 24V	1-82550-176-0	01	1	9404-9504	●
329	RELAY; BACK LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9505-0111	●	●
329	RELAY; BACK LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●
329	RELAY; BACK LAMP AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> 24V 12.5A MITUBA	1-82550-197-0	01	1	9404-9504	●
330	SCREW; BACK LAMP RELAY AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> M6X12 W/LK WASHER	9-01900-612-0	01	1	9101-9204	●
330	SCREW; BACK LAMP RELAY AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> M6X12 W/LK WASHER	0-50040-612-0	01	1	9205-9504	●
338	RELAY; ENG OVERRUN ENG OVERRUN BUZZER<SK4>	1-82550-175-0	01	1	9101-9504	●	●
340	SCREW; RELAY ENG OVERRUN BUZZER<SK4> M6X12 W/LK WASHER	9-01900-612-0	01	1	9101-9204	●	●
340	SCREW; RELAY ENG OVERRUN BUZZER<SK4> M6X12 W/LK WASHER	0-50040-612-0	01	1	9205-9504	●	●
348	SCREW; LAMP FAILURE RELAY M6X16 FLANGE	0-28080-616-0	01	1	9505-9606	●	●
348	SCREW; LAMP FAILURE RELAY M6X16 FLANGE	0-28680-616-0	01	1	9607-0512	●	●
348	SCREW; LAMP FAILURE RELAY M6X16 FLANGE	0-28650-616-0	01	1	0601-	●	●
348	SCREW; LAMP FAILURE RELAY INDICATOR WARNING BUZZER<WF9> M6X12 W/LK WASHER	9-01900-612-0	02	1	9101-9204	●	●
348	SCREW; LAMP FAILURE RELAY INDICATOR WARNING BUZZER<WF9> M6X12 W/LK WASHER	0-50040-612-0	02	1	9205-9504	●	●
348	SCREW; LAMP FAILURE RELAY ENG OVERRUN BUZZER<SK4> EXC. INDICATOR WARNING BUZZER<WF9> M6X16 FLANGE	0-28080-616-0	02	1	9505-9606	●	●
348	SCREW; LAMP FAILURE RELAY INDICATOR WARNING BUZZER<WF9> M6X16 FLANGE	0-28080-616-0	02	1	9505-9606	●	●
348	SCREW; LAMP FAILURE RELAY ENG OVERRUN BUZZER<SK4> EXC. INDICATOR WARNING BUZZER<WF9> M6X16 FLANGE	0-28680-616-0	02	1	9607-0512	●	●
348	SCREW; LAMP FAILURE RELAY INDICATOR WARNING BUZZER<WF9> M6X16 FLANGE	0-28680-616-0	02	1	9607-0512	●	●
348	SCREW; LAMP FAILURE RELAY ENG OVERRUN BUZZER<SK4> EXC. INDICATOR WARNING BUZZER<WF9> M6X16 FLANGE	0-28650-616-0	02	1	0601-	●	●
348	SCREW; LAMP FAILURE RELAY INDICATOR WARNING BUZZER<WF9> M6X16 FLANGE	0-28650-616-0	02	1	0601-	●	●

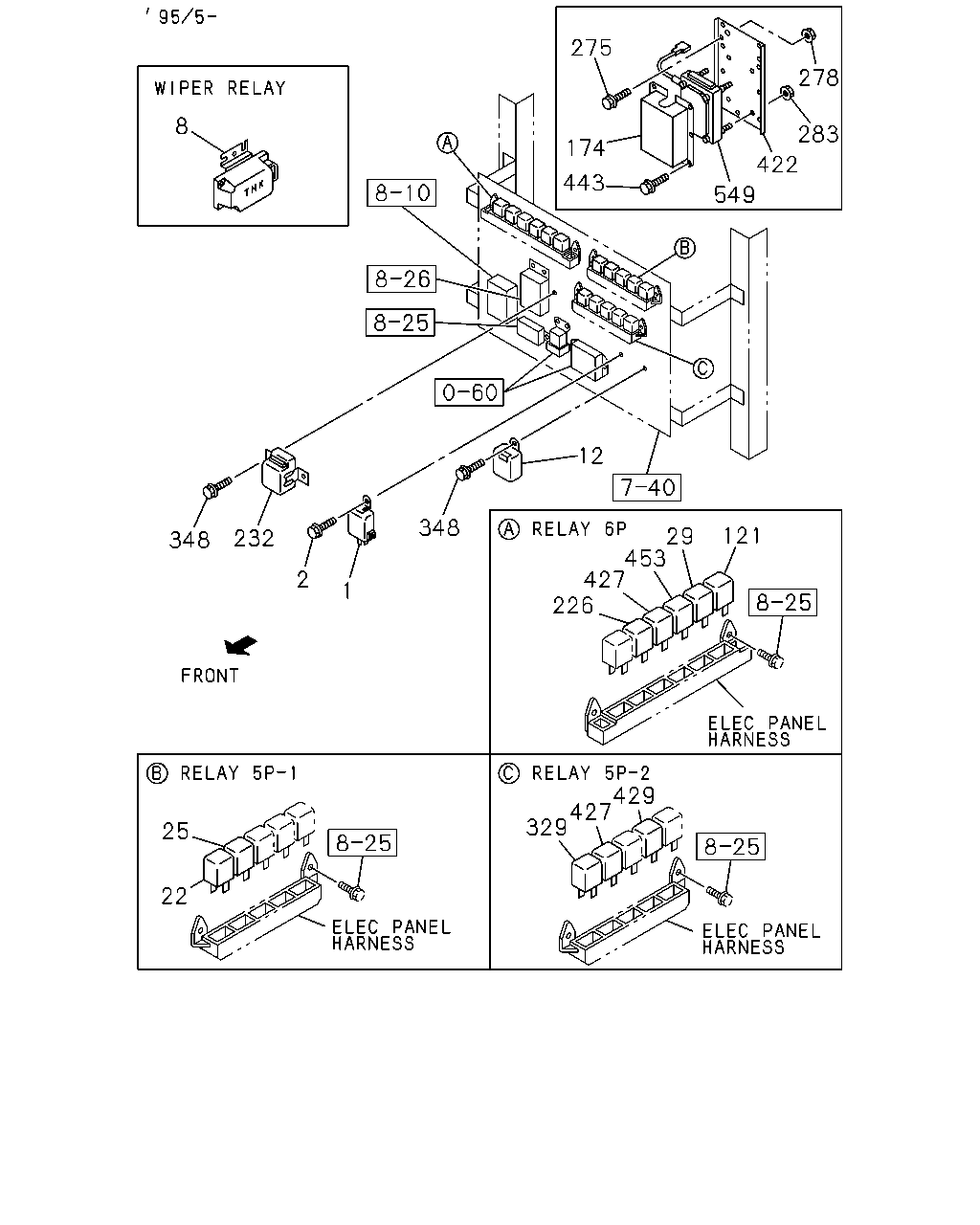

275 278 8 283 174 422 443 549 12 348 121 29 453 427 226 232 348 2 1 429 427 329 25 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1>	1-83470-032-0	01	1	9101-9504	●
1	UNIT; FLASHER EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>, SIDETURN SIGNAL LAMP<TEL>	1-83470-055-0	01	1	9505-	●	●
1	UNIT; FLASHER HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> SIDE TURN SIGNAL LAMP<TEL>	1-83470-055-0	01	1	9505-	●
1	UNIT; FLASHER EXC. AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1>	1-83470-034-1	01	1	9101-9504	●
1	UNIT; FLASHER	1-83470-034-1	01	1	9101-9504		●
1	UNIT; FLASHER HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. SIDE TURN SIGNAL LAMP<TEL>	1-83470-057-0	01	1	9505-	●
1	UNIT; FLASHER SIDE TURN SIGNAL LAMP<TEL> EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-83470-058-0	01	1	9505-	●	●
2	BOLT; FLASHER UNIT M6X12 W/LK WASHER	9-01900-612-0	01	1	9101-9204	●	●
2	BOLT; FLASHER UNIT M6X12 W/LK WASHER	0-50040-612-0	01	1	9205-9504	●	●
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28080-616-0	01	1	9505-9606	●	●
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28680-616-0	01	1	9607-0512	●	●
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	01	1	0601-	●	●
8	RELAY; WIPER PARALLEL WIPER<SBT> WIPER MOTOR KIT<ST7> ASMO	1-82550-169-0	01	1	9505-	●	●
12	RELAY; LAMP,FAILURE INDICATOR	1-82550-143-2	01	1	9505-	●	●
22	RELAY; STOP LAMP 24V	1-82550-176-0	01	1	9101-9504	●	●
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9505-0111	●	●
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●
25	RELAY; TAIL LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9505-0111	●	●
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●
29	RELAY; HORN EXC. AIR HORN(WB8)	1-83420-001-0	01	1	9101-9504	●	●
29	RELAY; HORN EXC. AIR HORN(WB8) 24V 12.5A MITUBA	8-97062-815-1	01	1	9505-0111	●	●
29	RELAY; HORN EXC. AIR HORN(WB8) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●
121	RELAY; PARKING BRK BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 24V 12.5A MITUBA	1-82550-197-0	01	1	9101-9504	●	●
121	RELAY; PARKING BRK BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 24V 12.5A MITUBA	8-97062-815-1	01	1	9505-0111	●	●
121	RELAY; PARKING BRK BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0203	●	●
121	RELAY; PARKING BRK 24V 12.5A PANASONIC	8-97262-933-0	01	1	0204-	●	●
174	COVER 6HE1 TCC ENG(76L)	1-82699-985-1	01	1	9702-9709	●	●
174	COVER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L)	1-82699-985-1	01	1	9710-	●	●
226	RELAY; EXH BRK ISUZU M/T<X9A> 24V 12.5A MITUBA	8-97062-815-0	01	1	9505-9708	●	●
226	RELAY; EXH BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	9709-9805	●	●
226	RELAY; EXH BRK MT643 A/T ALLISON(PR7) 24V 12.5A MITUBA	8-97062-815-1	01	1	9709-9805		●
226	RELAY; EXH BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	9806-0111	●	●
226	RELAY; EXH BRK 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-1211	●	●
226	RELAY; EXH BRK 24V 12.5A PANASONIC	8-97262-933-0	02	1	1212-	●	●
232	RELAY; WARNING BUZZER INDICATOR WARNING BUZZER<WF9>	1-82550-119-1	01	1	9101-9504	●	●
232	RELAY; WARNING BUZZER ENG OVERRUN BUZZER<SK4> EXC. INDICATOR WARNING BUZZER<WF9>	1-82550-119-1	01	1	9505-	●	●
232	RELAY; WARNING BUZZER INDICATOR WARNING BUZZER<WF9>	1-82550-119-1	01	1	9505-	●	●
275	BOLT; BRKT 6HE1 TCC ENG(76L) M8X20 FLANGE	0-28680-820-0	04	1	9702-9705	●	●
275	BOLT; BRKT 6HE1 TCC ENG(76L) M8X25 FLANGE	0-28680-825-0	04	1	9706-9706	●	●
275	BOLT; BRKT 6HE1 TCC ENG(76L) M8X35 FLANGE	0-28680-835-0	04	1	9707-9709	●	●
275	BOLT; BRKT 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M8X35 FLANGE	0-28680-835-0	04	1	9710-0512	●	●
275	BOLT; BRKT 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M8X35 FLANGE	0-28650-835-0	04	1	0601-	●	●
278	NUT; CONT UNIT 6HE1 TCC ENG(76L) M6 FLANGE W/RUBBER	1-09984-180-0	04	1	9702-9709	●	●
278	NUT; CONT UNIT 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M6 FLANGE W/RUBBER	1-09984-180-0	04	1	9710-	●	●
283	NUT; BRKT 6HE1 TCC ENG(76L) M8 FLANGE	0-91150-108-0	04	1	9702-9709	●	●
283	NUT; BRKT 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M8 FLANGE	0-91150-108-0	04	1	9710-0602	●	●
283	NUT; BRKT 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
329	RELAY; BACK LAMP AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1>	1-82550-070-0	01	1	9101-9403	●
329	RELAY; BACK LAMP AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> 24V	1-82550-176-0	01	1	9404-9504	●
329	RELAY; BACK LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9505-0111	●	●
329	RELAY; BACK LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●
329	RELAY; BACK LAMP AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> 24V 12.5A MITUBA	1-82550-197-0	01	1	9404-9504	●
348	SCREW; LAMP FAILURE RELAY M6X16 FLANGE	0-28080-616-0	01	1	9505-9606	●	●
348	SCREW; LAMP FAILURE RELAY M6X16 FLANGE	0-28680-616-0	01	1	9607-0512	●	●
348	SCREW; LAMP FAILURE RELAY M6X16 FLANGE	0-28650-616-0	01	1	0601-	●	●
348	SCREW; LAMP FAILURE RELAY INDICATOR WARNING BUZZER<WF9> M6X12 W/LK WASHER	9-01900-612-0	02	1	9101-9204	●	●
348	SCREW; LAMP FAILURE RELAY INDICATOR WARNING BUZZER<WF9> M6X12 W/LK WASHER	0-50040-612-0	02	1	9205-9504	●	●
348	SCREW; LAMP FAILURE RELAY ENG OVERRUN BUZZER<SK4> EXC. INDICATOR WARNING BUZZER<WF9> M6X16 FLANGE	0-28080-616-0	02	1	9505-9606	●	●
348	SCREW; LAMP FAILURE RELAY INDICATOR WARNING BUZZER<WF9> M6X16 FLANGE	0-28080-616-0	02	1	9505-9606	●	●
348	SCREW; LAMP FAILURE RELAY ENG OVERRUN BUZZER<SK4> EXC. INDICATOR WARNING BUZZER<WF9> M6X16 FLANGE	0-28680-616-0	02	1	9607-0512	●	●
348	SCREW; LAMP FAILURE RELAY INDICATOR WARNING BUZZER<WF9> M6X16 FLANGE	0-28680-616-0	02	1	9607-0512	●	●
348	SCREW; LAMP FAILURE RELAY ENG OVERRUN BUZZER<SK4> EXC. INDICATOR WARNING BUZZER<WF9> M6X16 FLANGE	0-28650-616-0	02	1	0601-	●	●
348	SCREW; LAMP FAILURE RELAY INDICATOR WARNING BUZZER<WF9> M6X16 FLANGE	0-28650-616-0	02	1	0601-	●	●
422	BRACKET; CONT UNIT 6HE1 TCC ENG(76L)	1-82699-986-1	01	1	9702-9709	●	●
422	BRACKET; CONT UNIT 6HE1 TC ENG(57L),6HE1 TCC ENG(76L)	1-82699-986-1	01	1	9710-	●	●
427	RELAY; RETARDER RETARDER BRK<RE2> 24V 12.5A MITUBA	8-97062-815-1	02	1	9505-0111	●	●
427	RELAY; RETARDER RETARDER BRK<RE2> 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-1211	●	●
427	RELAY; RETARDER RETARDER BRK<RE2> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1212-	●	●
429	RELAY; POWER CUT EURO2 SPECIFICATION<THN> 24V 12.5A MITUBA	8-97062-815-1	01	1	9702-9802	●	●
429	RELAY; POWER CUT EMISSION PARTS<TCA>,EURO2 SPECIFICATION<THN> 24V 12.5A MITUBA	8-97062-815-1	01	1	9803-0111	●	●
429	RELAY; POWER CUT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0203	●	●
429	RELAY; POWER CUT EURO2 SPECIFICATION<THN> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0204-	●	●
443	BOLT; COVER 6HE1 TCC ENG(76L) M8X20 FLANGE	0-28680-820-0	07	1	9702-9709	●	●
443	BOLT; COVER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M8X20 FLANGE	0-28680-820-0	07	1	9710-0512	●	●
443	BOLT; COVER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M8X20 FLANGE	0-28650-820-0	07	1	0601-	●	●
453	RELAY; LOCK UP MT643 A/T ALLISON(PR7) 24V 12.5A MITUBA	8-97062-815-1	01	1	9709-9805		●
549	CONTROL UNIT; ENGINE 6HE1 TC ENG(57L) EMISSION PARTS<TCA>	8-94392-440-1	01	1	9803-0203	●	●
549	CONTROL UNIT; ENGINE 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN>	1-80110-178-0	01	1	9711-	●	●
549	CONTROL UNIT; ENGINE 6HE1 TCC ENG(76L)	1-80110-179-0	01	1	9702-	●	●

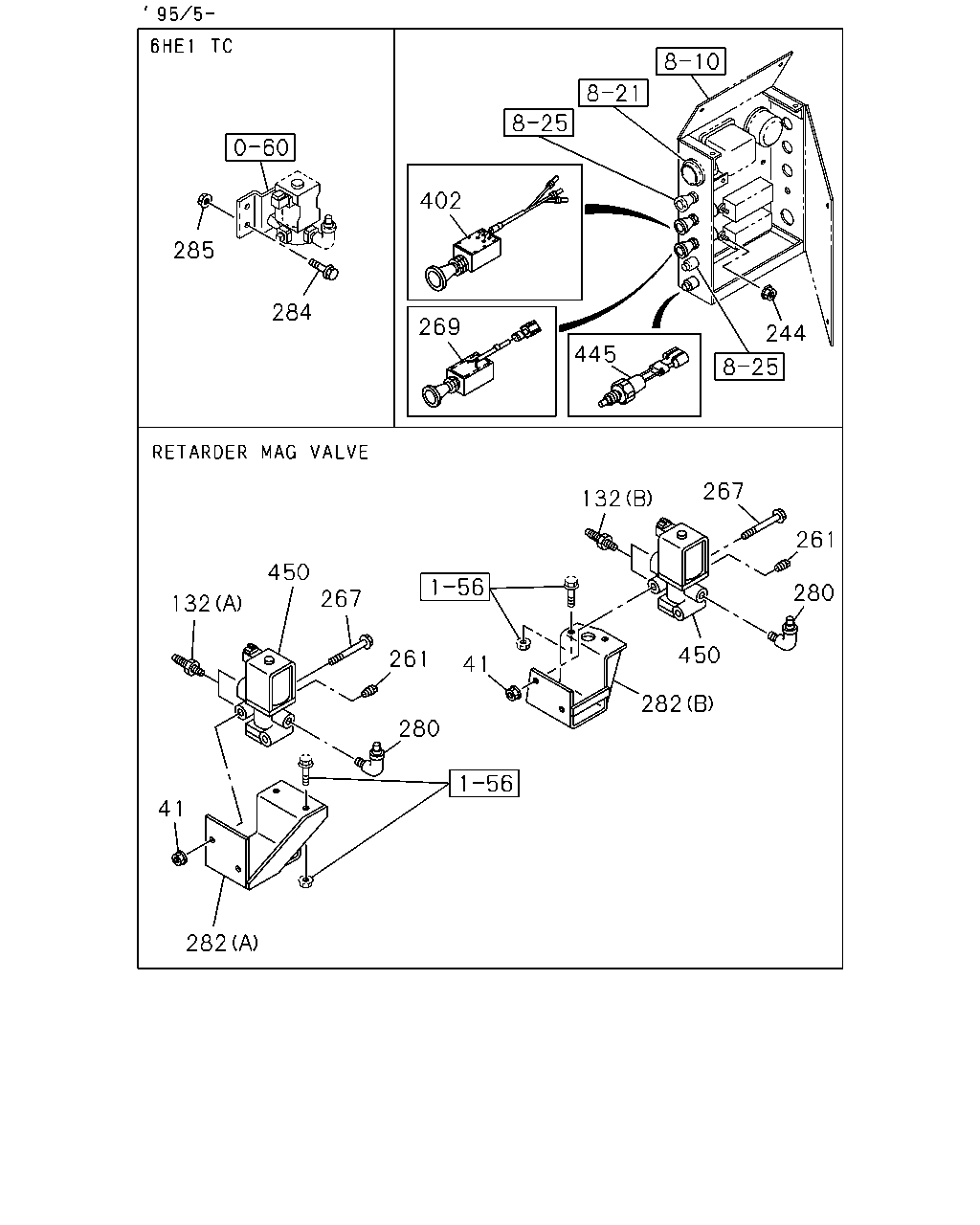

402 285 284 269 244 445 267 132 261 450 280 267 132 450 261 41 282 280 41 282

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	NUT; BRKT,MAG VLV RETARDER BRK<RE2> M8	9-09110-408-0	02	1	9505-9701	●	●
41	NUT; BRKT,MAG VLV 6HE1 TCC ENG(76L) M8	9-09110-408-0	02	1	9702-9705	●	●
41	NUT; BRKT,MAG VLV 6HH1 STD ENG(65L) RETARDER BRK<RE2> M8	9-09110-408-0	02	1	9702-9705	●	●
41	NUT; BRKT,MAG VLV 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> M8	9-09110-408-0	02	1	9706-9706	●	●
41	NUT; BRKT,MAG VLV 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> M8 FLANGE	0-91150-108-0	02	1	9707-9709	●
41	NUT; BRKT,MAG VLV 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	9707-9709		●
41	NUT; BRKT,MAG VLV RETARDER BRK<RE2> M8 FLANGE	0-91150-108-0	02	1	9710-0602	●	●
41	NUT; BRKT,MAG VLV RETARDER BRK<RE2> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
132	CONNECTOR; OUTLET,MAG VLV 6HH1 STD ENG(65L) RETARDER BRK<RE2> ISUZU M/T<X9A> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0709-	●	●
132	CONNECTOR; OUTLET,MAG VLV RETARDER BRK<RE2> (B) M20 & PT1/4	9-09902-386-0	02	1	9505-9701	●	●
132	CONNECTOR; OUTLET,MAG VLV 6HH1 STD ENG(65L) RETARDER BRK<RE2> (B) M20 & PT1/4	9-09902-386-0	02	1	9702-9706	●	●
132	CONNECTOR; OUTLET,MAG VLV 6HH1 STD ENG(65L) RETARDER BRK<RE2> (B) M20 & PT1/4	9-09902-386-0	02	1	9707-0203	●
132	CONNECTOR; OUTLET,MAG VLV 6HH1 STD ENG(65L) RETARDER BRK<RE2> ISUZU M/T<X9A> (B) M20 & PT1/4	9-09902-386-0	02	1	9707-0203		●
132	CONNECTOR; OUTLET,MAG VLV 6HH1 STD ENG(65L) RETARDER BRK<RE2> ISUZU M/T<X9A> (B) M20 & PT1/4	9-09902-386-0	02	1	0204-0708	●	●
132	CONNECTOR; OUTLET,MAG VLV 6HH1 STD ENG(65L) RETARDER BRK<RE2> ISUZU M/T<X9A> (B) M20 & PT1/4	9-09902-386-0	01	1	0709-	●	●
132	CONNECTOR; OUTLET,MAG VLV 6HE1 TCC ENG(76L) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9702-9705	●	●
132	CONNECTOR; OUTLET,MAG VLV 6HE1 TCC ENG(76L) RETARDER BRK<RE2> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9706-9706	●	●
132	CONNECTOR; OUTLET,MAG VLV 6HE1 TCC ENG(76L) RETARDER BRK<RE2> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9707-9709	●
132	CONNECTOR; OUTLET,MAG VLV 6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9707-9709		●
132	CONNECTOR; OUTLET,MAG VLV 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9710-0203	●
132	CONNECTOR; OUTLET,MAG VLV 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9710-0203		●
132	CONNECTOR; OUTLET,MAG VLV 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0204-	●	●
244	NUT; FUSE BOX GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) M6 FLANGE	0-91150-106-0	02	1	9908-0203	●	●
244	NUT; FUSE BOX GENERATOR NIKKO 24V-110A 3KW(PU1) EMISSION PARTS<TCA> M6 FLANGE	0-91150-106-0	02	1	9908-0203	●	●
244	NUT; FUSE BOX OVERHEAD COOLING SYSTEM<YS9> M6 FLANGE	0-91150-106-0	02	1	9908-0203	●	●
244	NUT; FUSE BOX OVERHEAD COOLING SYSTEM<YS9> M6 FLANGE	0-91150-106-0	02	1	0204-0602	●	●
244	NUT; FUSE BOX GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) M6 FLANGE	0-91150-106-0	02	1	0204-0602	●	●
244	NUT; FUSE BOX OVERHEAD COOLING SYSTEM<YS9> M6 FLANGE	0-91180-106-0	02	1	0603-	●	●
244	NUT; FUSE BOX GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) M6 FLANGE	0-91180-106-0	02	1	0603-	●	●
261	PLUG; MAG VLV RETARDER BRK<RE2> PT1/4	9-99204-513-0	01	1	9505-9701	●	●
261	PLUG; MAG VLV 6HE1 TCC ENG(76L) PT1/4	9-99204-513-0	01	1	9702-9705	●	●
261	PLUG; MAG VLV 6HH1 STD ENG(65L) RETARDER BRK<RE2> PT1/4	9-99204-513-0	01	1	9702-9705	●	●
261	PLUG; MAG VLV 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> PT1/4	9-99204-513-0	01	1	9706-9706	●	●
261	PLUG; MAG VLV 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> PT1/4	9-99204-513-0	01	1	9707-9709	●
261	PLUG; MAG VLV 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> PT1/4	9-99204-513-0	01	1	9707-9709		●
261	PLUG; MAG VLV RETARDER BRK<RE2> PT1/4	9-99204-513-0	01	1	9710-	●	●
267	BOLT; VLV TO BRKT RETARDER BRK<RE2> M8X60 FLANGE	0-28080-860-0	02	1	9505-9701	●	●
267	BOLT; VLV TO BRKT 6HE1 TCC ENG(76L) M8X60 FLANGE	0-28080-860-0	02	1	9702-9705	●	●
267	BOLT; VLV TO BRKT 6HH1 STD ENG(65L) RETARDER BRK<RE2> M8X60 FLANGE	0-28080-860-0	02	1	9702-9705	●	●
267	BOLT; VLV TO BRKT 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> M8X60 FLANGE	0-28080-860-0	02	1	9706-9706	●	●
267	BOLT; VLV TO BRKT 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> M8X60 FLANGE	0-28080-860-0	02	1	9707-9709	●
267	BOLT; VLV TO BRKT 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> M8X60 FLANGE	0-28080-860-0	02	1	9707-9709		●
267	BOLT; VLV TO BRKT RETARDER BRK<RE2> M8X60 FLANGE	0-28080-860-0	02	1	9710-0512	●	●
267	BOLT; VLV TO BRKT RETARDER BRK<RE2> M8X60 FLANGE	0-28050-860-0	02	1	0601-	●	●
269	SWITCH; BATTERY,ENG ROOM ENG ROOM SW BOX<TEK>	1-82340-358-1	01	1	9505-0706	●	●
269	SWITCH; BATTERY,ENG ROOM ENG ROOM SW BOX<TEK>	8-97621-398-0	01	1	0707-	●	●
280	CONNECTOR; IN,MAG VLV 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0307-0708	●	●
280	CONNECTOR; IN,MAG VLV RETARDER BRK<RE2> DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0709-	●	●
280	CONNECTOR; IN,MAG VLV RETARDER BRK<RE2> DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9505-9701	●	●
280	CONNECTOR; IN,MAG VLV 6HE1 TCC ENG(76L) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9702-9705	●	●
280	CONNECTOR; IN,MAG VLV 6HH1 STD ENG(65L) RETARDER BRK<RE2> DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9702-9705	●	●
280	CONNECTOR; IN,MAG VLV 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9706-9706	●	●
280	CONNECTOR; IN,MAG VLV 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9707-9709	●
280	CONNECTOR; IN,MAG VLV 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9707-9709		●
280	CONNECTOR; IN,MAG VLV RETARDER BRK<RE2> DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9710-0306	●	●
280	CONNECTOR; IN,MAG VLV 6HH1 STD ENG(65L) RETARDER BRK<RE2> ISUZU M/T<X9A> DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	0307-0708	●	●
282	BRACKET; MAG VLV RETARDER BRK<RE2> (B)	1-47477-488-1	01	1	9505-9507	●	●
282	BRACKET; MAG VLV RETARDER BRK<RE2> (B)	1-47477-627-0	01	1	9508-9701	●	●
282	BRACKET; MAG VLV 6HH1 STD ENG(65L) RETARDER BRK<RE2> (B)	1-47477-627-1	01	1	9702-9706	●	●
282	BRACKET; MAG VLV 6HH1 STD ENG(65L) RETARDER BRK<RE2> (B)	1-47477-627-1	01	1	9707-0203	●
282	BRACKET; MAG VLV 6HH1 STD ENG(65L) RETARDER BRK<RE2> ISUZU M/T<X9A> (B)	1-47477-627-1	01	1	9707-0203		●
282	BRACKET; MAG VLV 6HH1 STD ENG(65L) RETARDER BRK<RE2> ISUZU M/T<X9A> (B)	1-47477-627-1	01	1	0204-	●	●
282	BRACKET; MAG VLV 6HE1 TCC ENG(76L) (A)	1-47477-864-0	01	1	9702-9705	●	●
282	BRACKET; MAG VLV 6HE1 TCC ENG(76L) RETARDER BRK<RE2> (A)	1-47477-864-1	01	1	9706-9706	●	●
282	BRACKET; MAG VLV 6HE1 TCC ENG(76L) RETARDER BRK<RE2> (A)	1-47477-864-1	01	1	9707-9709	●
282	BRACKET; MAG VLV 6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> (A)	1-47477-864-1	01	1	9707-9709		●
282	BRACKET; MAG VLV 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> (A)	1-47477-864-1	01	1	9710-0203	●
282	BRACKET; MAG VLV 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> (A)	1-47477-864-1	01	1	9710-0203		●
282	BRACKET; MAG VLV 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A> (A)	1-47477-864-1	01	1	0204-	●	●
284	BOLT; MAG VLV 6HE1 TC ENG(57L) M8X30 FLANGE	0-28680-830-0	02	1	9710-0512	●	●
284	BOLT; MAG VLV 6HE1 TC ENG(57L) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
285	NUT; MAG VLV 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	02	1	9710-0602	●	●
285	NUT; MAG VLV 6HE1 TC ENG(57L) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
402	SWITCH; IGNITION SAFETY ENG ROOM SW BOX<TEK>	1-82340-382-1	01	1	9505-0706	●	●
402	SWITCH; IGNITION SAFETY ENG ROOM SW BOX<TEK>	8-97621-399-0	01	1	0707-	●	●
445	SWITCH; ENG STOP ENG ROOM SW BOX<TEK>	1-82380-107-1	01	1	9505-9509	●	●
445	SWITCH; ENG STOP ENG ROOM SW BOX<TEK>	1-82380-107-1	01	1	9510-0203	●	●
445	SWITCH; ENG STOP HONG KONG EQUIPMENT<PQ1> BUS BODY MAKER FUJIJUKO<Y07>	1-82380-107-1	01	1	9510-0203	●
445	SWITCH; ENG STOP ENG ROOM SW BOX<TEK>	1-82380-107-1	01	1	0204-	●	●
450	VALVE; MAG RETARDER BRK<RE2>	1-82563-597-2	01	1	9505-9701	●	●
450	VALVE; MAG 6HE1 TCC ENG(76L)	1-82563-597-3	01	1	9702-9705	●	●
450	VALVE; MAG 6HH1 STD ENG(65L) RETARDER BRK<RE2>	1-82563-597-3	01	1	9702-9705	●	●
450	VALVE; MAG 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2>	1-82563-597-3	01	1	9706-9706	●	●
450	VALVE; MAG 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2>	1-82563-597-3	01	1	9707-9709	●
450	VALVE; MAG 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) RETARDER BRK<RE2> ISUZU M/T<X9A>	1-82563-597-3	01	1	9707-9709		●
450	VALVE; MAG RETARDER BRK<RE2>	1-82563-597-5	01	1	9710-	●	●

312 58 86 46 46 49 44 45 49 54 77 505 424 52 46 56 46 312 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	HORN; HIGH NOTE EXC. AIR HORN(WB8)	1-83410-037-0	01	1	9101-9303	●	●
44	HORN; HIGH NOTE EXC. AIR HORN(WB8)	1-83410-057-1	01	1	9304-0211	●	●
44	HORN; HIGH NOTE EXC. AIR HORN(WB8)	1-83410-065-1	01	1	0212-	●	●
45	HORN; LOW NOTE EXC. AIR HORN(WB8)	1-83410-038-0	01	1	9101-9303	●	●
45	HORN; LOW NOTE EXC. AIR HORN(WB8)	1-83410-058-1	01	1	9304-0211	●	●
45	HORN; LOW NOTE EXC. AIR HORN(WB8)	1-83410-064-1	01	1	0212-	●	●
46	BOLT; HORN TO BODY EXC. AIR HORN(WB8) M8X16 W/LK WASHER	9-01900-816-0	02	1	9101-9204	●	●
46	BOLT; HORN TO BODY EXC. AIR HORN(WB8) M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9504	●	●
46	BOLT; HORN TO BODY M8X20 FLANGE	0-28080-820-0	02	1	9505-9606	●	●
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28680-825-0	02	1	9607-0512	●	●
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
49	NUT; HORN TO BODY EXC. AIR HORN(WB8) M8	9-09110-408-0	02	1	9101-9606	●	●
49	NUT; HORN TO BODY EXC. AIR HORN(WB8) M8 FLANGE	0-91150-108-0	02	1	9607-0602	●	●
49	NUT; HORN TO BODY EXC. AIR HORN(WB8) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> (A) NIKKO	1-83460-010-0	01	1	9101-9112	●	●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> (A) NIKKO	8-97061-718-0	01	1	9201-9504	●	●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> (B) NIKKO	1-83460-052-0	01	1	9505-1308	●	●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> (B) METRO DENSO	8-98069-867-0	01	1	1309-	●	●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> (B) METRO DENSO	1-83460-088-0	01	1	9904-9907	●	●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. NIKKO<Y70> (B) METRO DENSO	1-83460-088-1	01	1	9908-0203	●	●
54	BOLT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10X25 W/LK WASHER	9-01901-025-0	01	1	9101-9204	●	●
54	BOLT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10X25 W/LK WASHER	0-50041-025-0	01	1	9205-9504	●	●
54	BOLT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10X25 FLANGE	0-28081-025-0	01	1	9505-9606	●	●
54	BOLT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10X30 FLANGE	0-28681-030-0	01	1	9607-0512	●	●
54	BOLT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10X30 FLANGE	0-28651-030-0	01	1	0601-	●	●
56	NUT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10	9-09110-410-0	01	1	9505-9606	●	●
56	NUT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10 FLANGE	0-91150-210-0	01	1	9607-0602	●	●
56	NUT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10 FLANGE	0-91180-210-0	01	1	0603-	●	●
58	BUZZER; AIR PRESSURE WARNING	1-83460-022-0	01	1	9101-9504	●	●
58	BUZZER; AIR PRESSURE WARNING NIKKO	1-83460-056-0	01	1	9505-1308	●	●
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	8-98069-865-0	01	1	1309-	●	●
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-0	01	1	9904-9907	●	●
58	BUZZER; AIR PRESSURE WARNING EXC. NIKKO<Y70> METRO DENSO	1-83460-074-1	01	1	9908-0203	●	●
77	HORN ASM AIR HORN(WB8)	1-83430-028-1	01	1	9101-9504	●	●
77	HORN ASM AIR HORN(WB8)	1-83430-036-0	01	1	9505-9601	●	●
77	HORN ASM AIR HORN(WB8)	1-83430-038-3	01	1	9602-	●	●
86	NUT; BUZZER M6	9-09110-406-0	01	1	9101-9504	●	●
86	NUT; BUZZER ENG OVERRUN BUZZER<SK4> M6	9-09110-406-0	01	1	9101-9504	●	●
86	NUT; BUZZER M6	9-09110-406-0	01	1	9505-9606	●	●
86	NUT; BUZZER M6 FLANGE	0-91150-106-0	01	1	9607-0602	●	●
86	NUT; BUZZER M6 FLANGE	0-91180-106-0	01	1	0603-	●	●
197	BUZZER; WARNING,AIR HEAT OIL BRK ENG OVERRUN BUZZER<SK4> EXC. INDICATOR WARNING BUZZER<WF9>	1-83460-051-1	01	1	9505-	●	●
197	BUZZER; WARNING,AIR HEAT OIL BRK INDICATOR WARNING BUZZER<WF9>	1-83460-051-1	01	1	9505-	●	●
312	BOLT; BUZZER M6X14 W/LK WASHER	9-01900-614-0	01	1	9101-9204	●	●
312	BOLT; BUZZER ENG OVERRUN BUZZER<SK4> M6X14 W/LK WASHER	9-01900-614-0	01	1	9101-9204	●	●
312	BOLT; BUZZER M6X14 W/LK WASHER	0-50040-614-0	01	1	9205-9504	●	●
312	BOLT; BUZZER ENG OVERRUN BUZZER<SK4> M6X14 W/LK WASHER	0-50040-614-0	01	1	9205-9504	●	●
312	BOLT; BUZZER M6X16 FLANGE	0-28080-616-0	01	1	9505-9606	●	●
312	BOLT; BUZZER ENG OVERRUN BUZZER<SK4> EXC. INDICATOR WARNING BUZZER<WF9> M6X16 FLANGE	0-28080-616-0	01	1	9505-9606	●	●
312	BOLT; BUZZER INDICATOR WARNING BUZZER<WF9> M6X16 FLANGE	0-28080-616-0	01	1	9505-9606	●	●
312	BOLT; BUZZER M6X16 FLANGE	0-28680-616-0	01	1	9607-0512	●	●
312	BOLT; BUZZER ENG OVERRUN BUZZER<SK4> EXC. INDICATOR WARNING BUZZER<WF9> M6X16 FLANGE	0-28680-616-0	01	1	9607-0512	●	●
312	BOLT; BUZZER INDICATOR WARNING BUZZER<WF9> M6X16 FLANGE	0-28680-616-0	01	1	9607-0512	●	●
312	BOLT; BUZZER M6X16 FLANGE	0-28650-616-0	01	1	0601-	●	●
312	BOLT; BUZZER ENG OVERRUN BUZZER<SK4> EXC. INDICATOR WARNING BUZZER<WF9> M6X16 FLANGE	0-28650-616-0	01	1	0601-	●	●
312	BOLT; BUZZER INDICATOR WARNING BUZZER<WF9> M6X16 FLANGE	0-28650-616-0	01	1	0601-	●	●
424	ADAPTER AIR HORN(WB8)	1-09660-662-1	01	1	9505-9506	●	●
424	ADAPTER AIR HORN(WB8) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9507-	●	●
505	JOINT; AIR HORN AIR HORN(WB8)	1-83439-006-0	01	1	0204-	●	●
505	JOINT; AIR HORN AIR HORN(WB8)	1-83439-005-0	01	1	9709-0203	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
