◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50816 - NPR/NQR(EUROPE)-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶

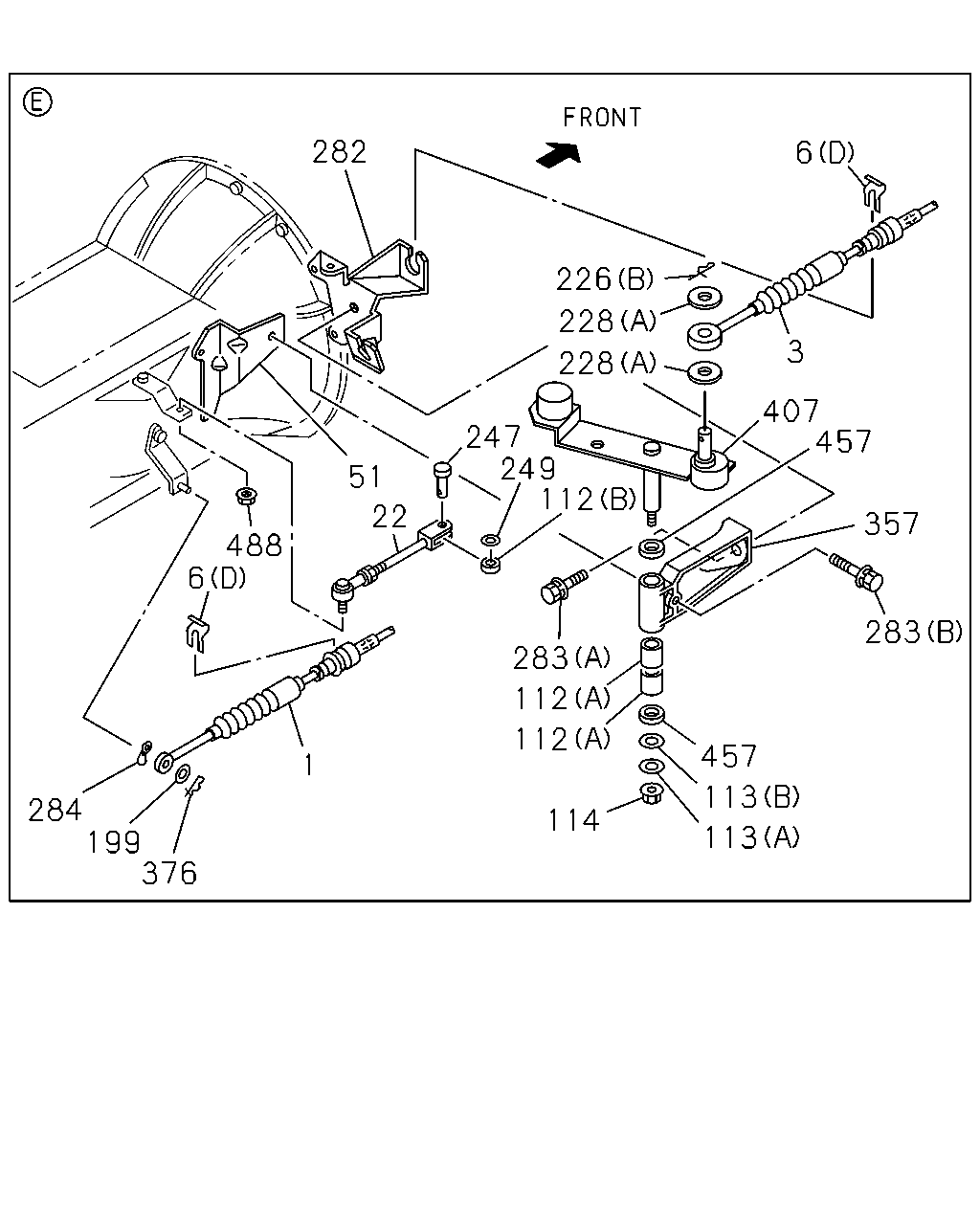

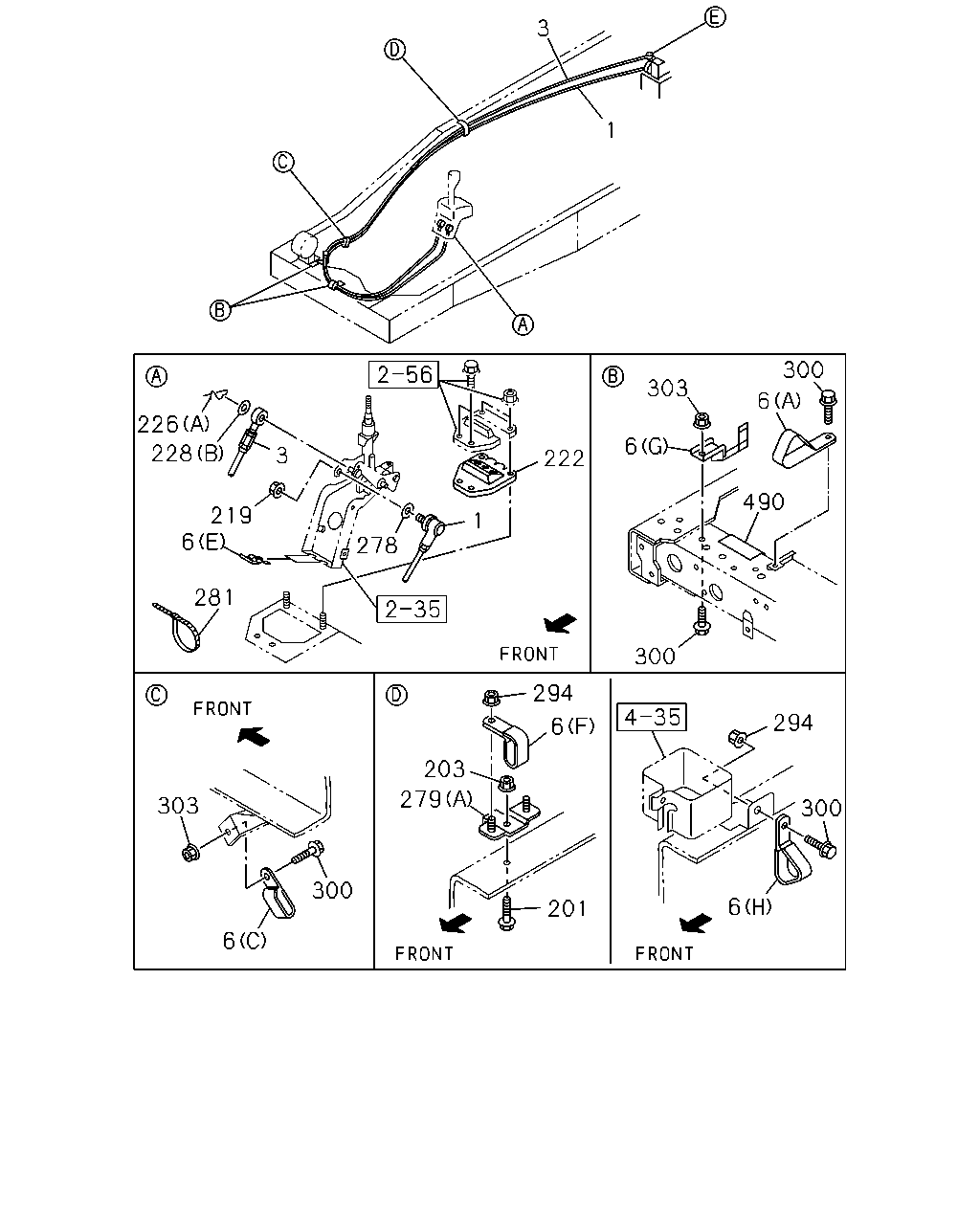

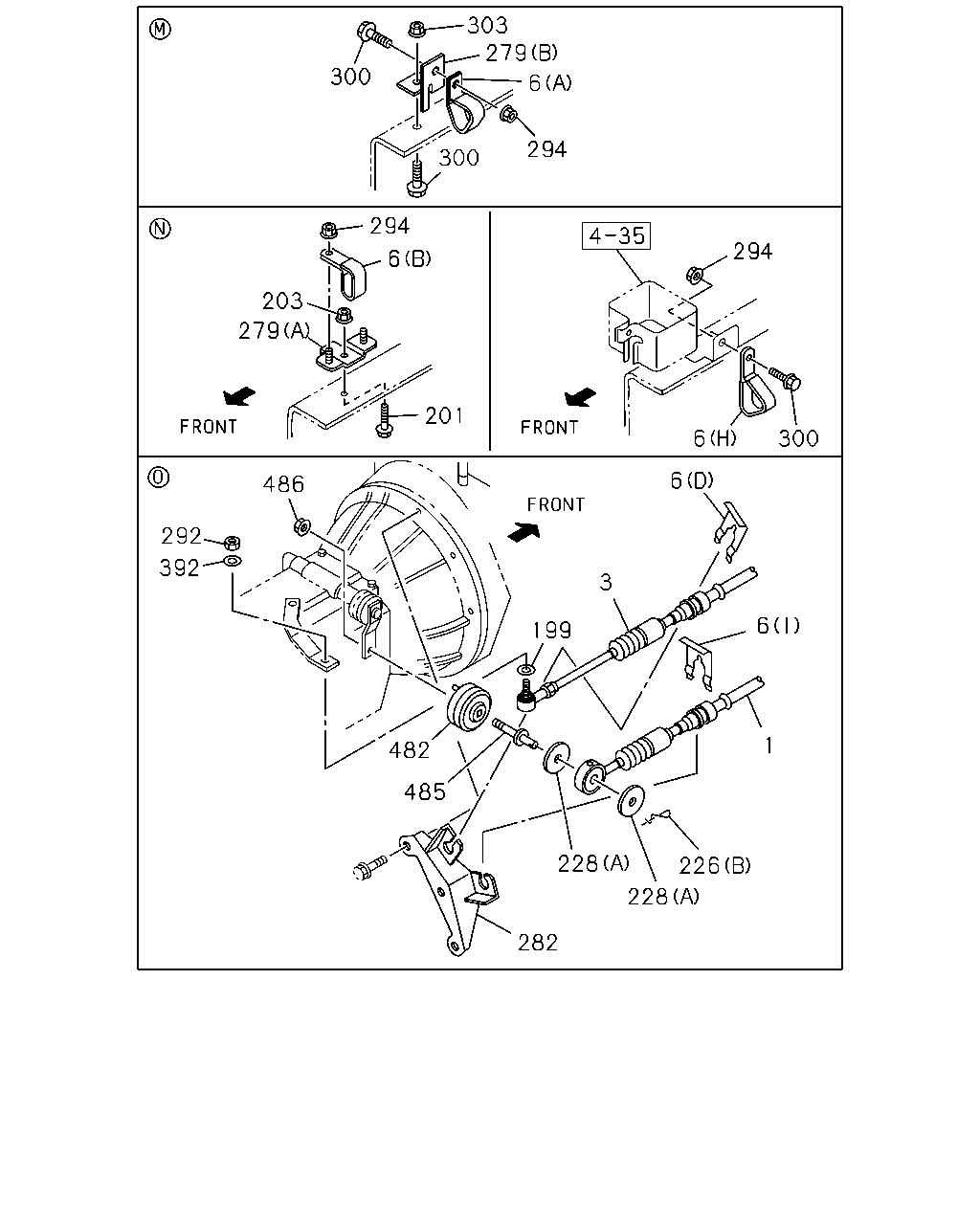

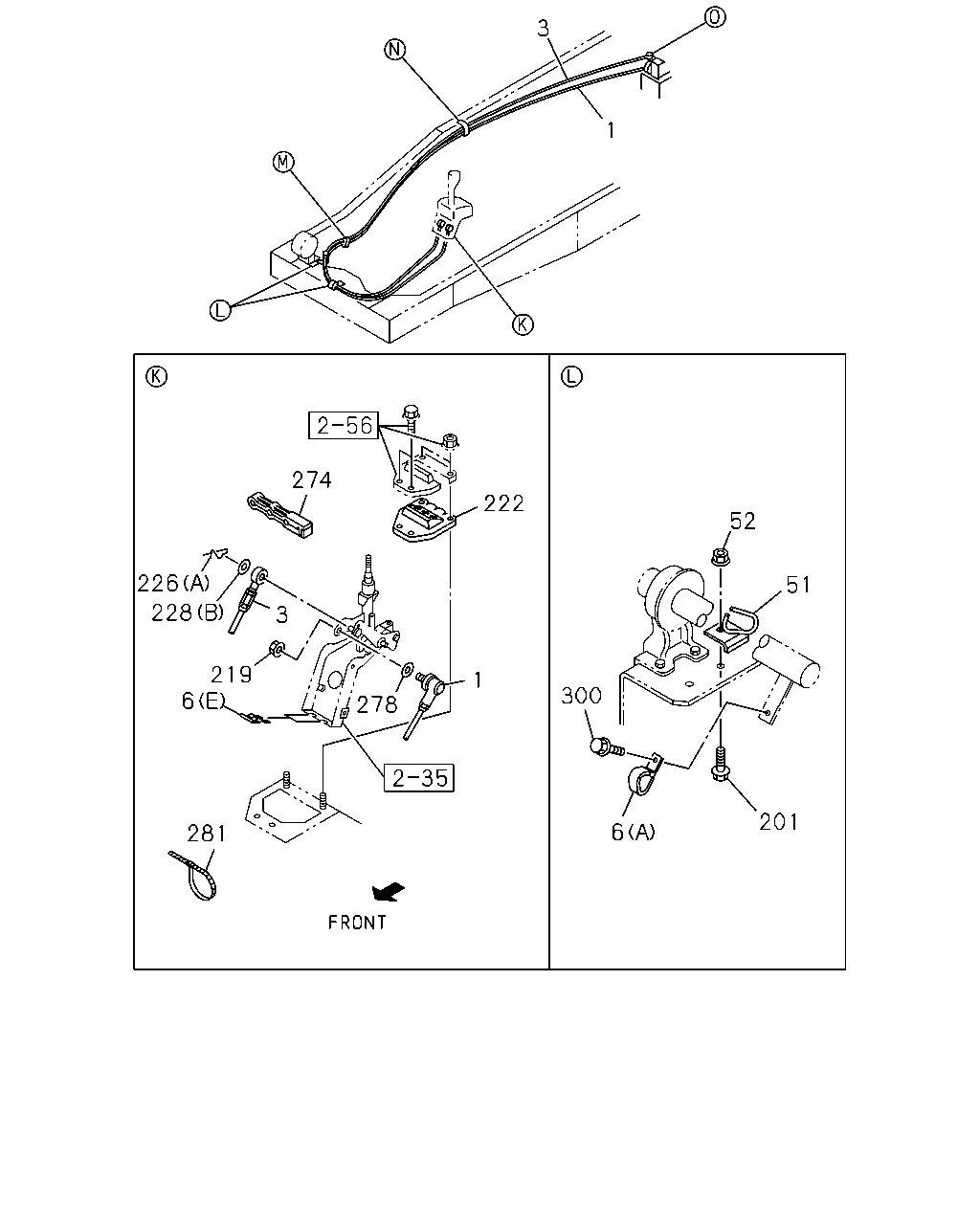

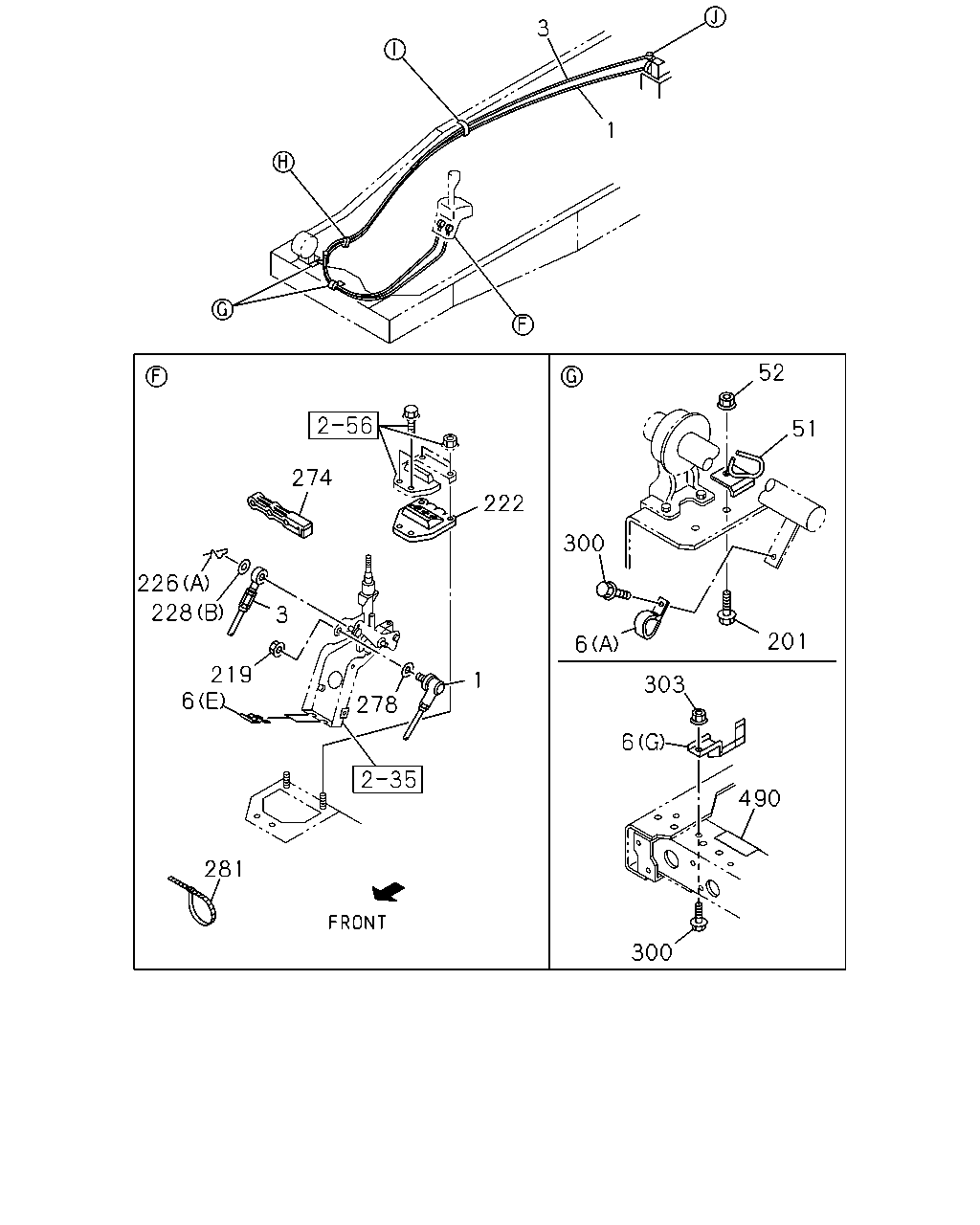

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#45008) — 640 parça

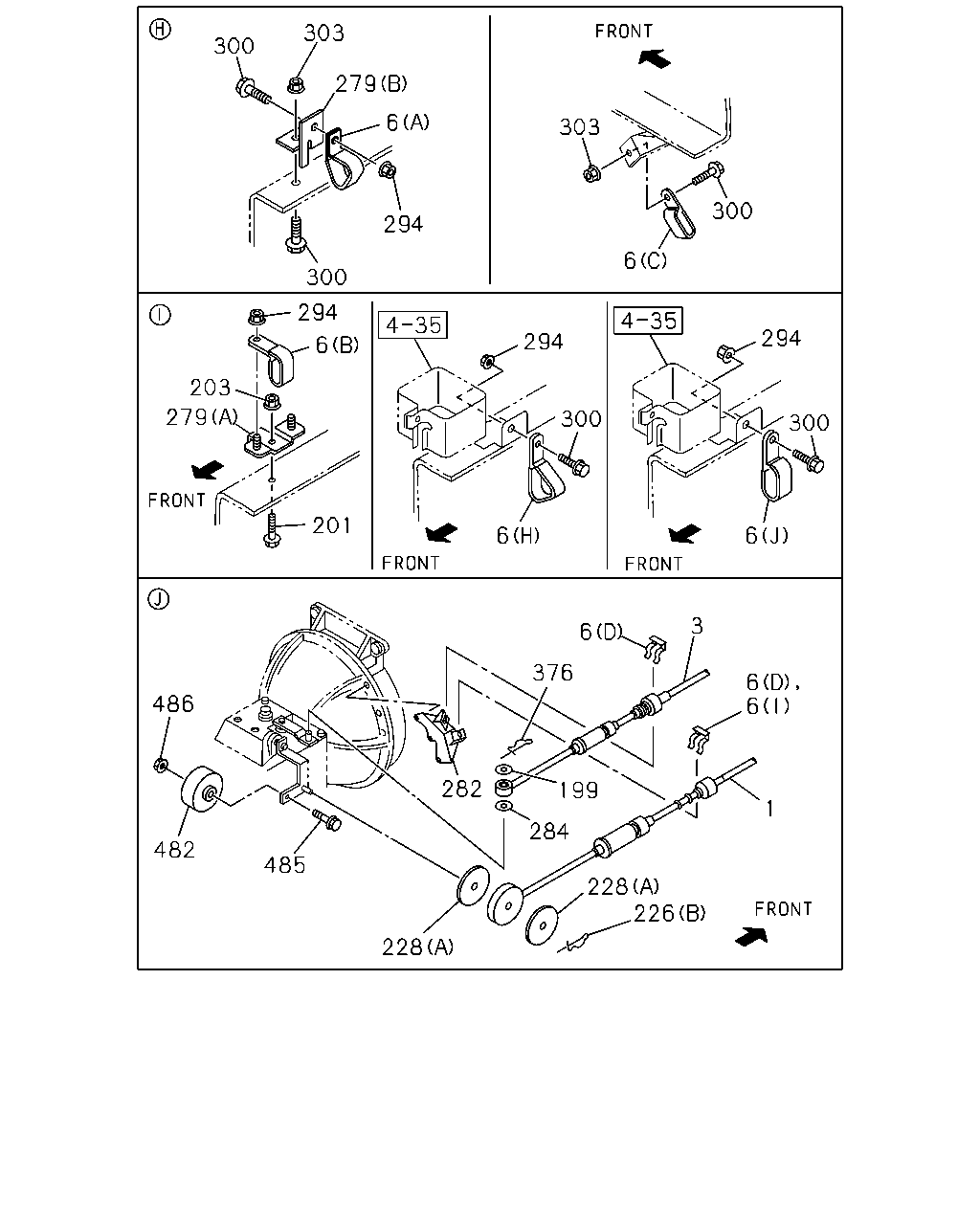

çizim 9996
303 300 279 6 303 300 294 6 300 294 294 294 6 203 279 300 300 201 6 6 3 6 376 6 6 486 282 199 1 284 482 485 228 226 228
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.854 CABLE; SHIFT,TRANS CONT
L=2845 		8-97094-248-2 01 1 9812-0105 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=2990 		8-97289-652-1 01 1 0106- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3077 		8-97202-563-1 01 1 9812-0203 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3077 		8-97351-346-0 01 1 0204- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3123 		8-97202-562-0 01 1 9812-0105 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> CHARGE AIR COOLER<6PL> L=3123 		8-97202-562-0 01 1 0106- ●
1 00.854 CABLE; SHIFT,TRANS CONT
NPR/NQR SGL CAB&MIDDLE(NP**SF) 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3021 		8-97096-509-1 01 1 9812-0105 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3021 		8-97096-509-1 01 1 0106-0203 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3021 		8-97351-347-0 01 1 0204- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3123 		8-97307-916-1 01 1 0208- ●
3 00.852 CABLE; SELECT,TRANS CONT
L=3034 		8-97094-250-1 01 1 9812-0105 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=3065 		8-97289-617-0 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=2658 		8-97202-560-0 01 1 9812-0105 ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=2658 		8-97202-560-1 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3259 		8-97202-561-0 01 1 9812-0105 ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> CHARGE AIR COOLER<6PL> L=3259 		8-97202-561-0 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
NPR/NQR SGL CAB&MIDDLE(NP**SF) 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3157 		8-97096-504-1 01 1 9812-0105 ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3157 		8-97096-504-1 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3202 		8-97307-881-2 01 1 0208- ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (G) 		8-94133-416-2 01 1 9812-0105 ● ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (G) 		8-94133-416-2 01 1 0106- ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16.5 		8-94240-646-1 01 1 9812-0105 ● ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16.5 		8-94240-646-1 01 1 0106- ●
6 04.047 CLIP; CABLE
EXC. POWER STEERING<N40> (F) 		8-97028-508-2 01 1 9812-9905 ●
6 04.047 CLIP; CABLE
EXC. POWER STEERING<N40> (F) 		8-97028-508-2 01 1 9906-0105 ● ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) (J) 		8-97137-589-0 01 1 0106- ●
6 04.047 CLIP; CABLE
EXC. POWER STEERING<N40> (H) 		8-97036-332-1 01 1 9812-9901 ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-97036-332-1 01 1 9812-9901 ● ●
6 04.047 CLIP; CABLE
POWER STEERING<N40> (H) 		8-97036-332-1 01 1 9902-9905 ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (H) 		8-97036-332-1 01 1 9902-9905 ● ●
6 04.047 CLIP; CABLE
POWER STEERING<N40> (H) 		8-97036-332-1 01 1 9906-0105 ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (H) 		8-97036-332-1 01 1 9906-0105 ● ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (H) 		8-97036-332-1 01 1 0106-0207 ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (H) 		8-97036-332-1 01 1 0208- ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (D) ID=19.2 		8-97211-011-0 02 1 9812-0105 ● ● ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> (D) ID=19.2 		8-97211-011-0 02 1 0106- ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (E) 		8-97011-448-0 02 1 9812-0105 ● ● ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (E) 		8-97011-448-0 02 1 0106- ● ● ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 01 1 9902-0105 ● ● ● ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 01 1 0106- ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 02 1 9812-0105 ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 02 1 0106- ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=33X16.5 L=50 		5-09700-341-0 01 1 9812-0105 ● ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=33X16.5 L=50 		5-09700-341-0 01 1 0106- ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 00.854 (I) ID=22.2 		1-09701-209-1 01 1 9812-0105 ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 00.854 (I) ID=22.2 		1-09701-209-1 01 1 0106- ● ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (D) ID=19.2 		8-97211-011-0 01 1 9812-0105 ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (D) ID=19.2 		8-97211-011-0 01 1 0106- ● ●
199 04.012 WASHER; PL,SELECT
FLOOR REMOTE SHIFT<M11> 16.674 ID=8.4 		9-09160-508-0 01 1 9812-0105 ● ● ● ●
199 04.012 WASHER; PL,SELECT
FLOOR REMOTE SHIFT<M11> 16.674 ID=8.4 		9-09160-508-0 01 1 0106-0112 ● ●
199 04.012 WASHER; PL,SELECT
16.674 ID=8.4 		9-09160-508-0 01 1 0201-0207 ●
199 04.012 WASHER; PL,SELECT
16.674 ID=8.4 		9-09160-508-0 01 1 0208- ● ●
201 04.032 BOLT; BRKT
EXC. POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-9905 ●
201 04.032 BOLT; BRKT
EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9906-0007 ● ●
201 04.032 BOLT; BRKT
EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0008-0105 ● ●
201 04.032 BOLT; BRKT
NPR DBL CAB&MIDDLE(NP**WF) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0008-0105 ●
201 04.032 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ●
201 04.032 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 9812-0007 ● ●
201 04.032 BOLT; BRKT
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0008-0105 ● ●
201 04.032 BOLT; BRKT
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0106- ●
203 04.032 NUT; BRKT FIX
EXC. POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-9905 ●
203 04.032 NUT; BRKT FIX
EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9906-0105 ● ●
226 04.047 PIN; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 00.833 (A) L=27.7 		8-94111-137-0 01 1 9812-0105 ● ● ● ●
226 04.047 PIN; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 00.833 (A) L=27.7 		8-94111-137-0 01 1 0106- ● ● ●
226 04.047 PIN; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> (B) L=23 		8-94170-378-0 01 1 9812-0105 ● ● ● ●
226 04.047 PIN; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> (B) L=23 		8-94170-378-0 01 1 0106- ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
FLOOR REMOTE SHIFT<M11> (A) ID=8.2 OD=40 		8-97182-975-0 02 1 9812-0105 ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
FLOOR REMOTE SHIFT<M11> (A) ID=8.2 OD=40 		8-97182-975-0 02 1 0106- ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 00.206 (B) ID=8.4 		9-09164-508-0 01 1 9812-0105 ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 00.206 (B) ID=8.4 		9-09164-508-0 01 1 0106- ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
EXC. POWER STEERING<N40> (A) 		8-97028-496-1 01 1 9812-0105 ● ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97171-065-0 01 1 9812-0105 ● ●
279 04.047 BRACKET; CABLE TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97171-065-0 01 1 0106- ●
282 04.010 BRACKET; TRANS SIDE 8-97034-142-1 01 1 9812-0105 ● ●
282 04.010 BRACKET; TRANS SIDE
4JH1 ENG(RJX) 		8-97260-120-0 01 1 0106- ●
282 04.010 BRACKET; TRANS SIDE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 		8-97182-260-0 01 1 9812- ●
282 04.010 BRACKET; TRANS SIDE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 		8-97040-198-1 01 1 9812-0105 ●
282 04.010 BRACKET; TRANS SIDE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 		8-97040-198-1 01 1 0106- ●
282 04.010 BRACKET; TRANS SIDE
FLOOR REMOTE SHIFT<M11> 		8-97311-442-1 01 1 0208- ●
284 00.854 WASHER; WAVE,SELECT CABLE,CAB
FLOOR REMOTE SHIFT<M11> ID=8.4 OD=14 		5-09550-002-0 01 1 9812-0105 ● ● ● ●
284 00.854 WASHER; WAVE,SELECT CABLE,CAB
FLOOR REMOTE SHIFT<M11> ID=8.4 OD=14 		5-09550-002-0 01 1 0106-0112 ● ●
284 00.854 WASHER; WAVE,SELECT CABLE,CAB
ID=8.4 OD=14 		5-09550-002-0 01 1 0201-0207 ●
284 00.854 WASHER; WAVE,SELECT CABLE,CAB
ID=8.4 OD=14 		5-09550-002-0 01 1 0208- ● ●
294 00.854 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-0105 ● ● ● ●
294 00.854 NUT; CLIP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-0105 ● ●
294 00.854 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ●
294 00.854 NUT; CLIP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ●
294 00.854 NUT; CLIP
4JH1 ENG(RJX) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0106- ●
300 00.854 BOLT; CLIP
04.930 M6X20 FLANGE 		0-28680-620-0 01 1 9812-0105 ● ●
300 00.854 BOLT; CLIP
04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0106- ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-0105 ● ●
300 00.854 BOLT; CLIP
POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-0105 ● ●
300 00.854 BOLT; CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-0105 ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ●
300 00.854 BOLT; CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9812-9903 ● ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9904-0105 ● ● ● ●
300 00.854 BOLT; CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9904-0105 ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0106- ● ●
303 00.855 NUT; CLIP
01.062 M6 FLANGE 		0-91150-206-0 01 1 9812-9905 ●
303 00.855 NUT; CLIP
01.062 M6 FLANGE 		0-91150-206-0 01 1 9906-0105 ● ●
303 00.855 NUT; CLIP
01.062 M6 FLANGE 		0-91150-206-0 01 1 0106- ●
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-9903 ● ● ●
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9904-0105 ● ●
303 00.855 NUT; CLIP
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9904-0105 ● ●
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ●
303 00.855 NUT; CLIP
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ●
376 04.047 PIN; SNAP,SELECT CABLE
FLOOR REMOTE SHIFT<M11> L=23 		8-94170-378-0 01 1 9812-0105 ● ● ● ●
376 04.047 PIN; SNAP,SELECT CABLE
FLOOR REMOTE SHIFT<M11> L=23 		8-94170-378-0 01 1 0106-0112 ● ●
376 04.047 PIN; SNAP,SELECT CABLE
L=23 		8-94170-378-0 01 1 0201- ● ●
482 04.047 WEIGHT; SHIFT CABLE
EUROPEAN BASIC EQUIPMENT(EK4) FLOOR REMOTE SHIFT<M11> 		8-97066-730-1 01 1 9812-0105 ●
482 04.047 WEIGHT; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 		8-97066-730-2 01 1 0106- ● ●
482 04.047 WEIGHT; SHIFT CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 		8-97079-982-1 01 1 9812-0105 ●
482 04.047 WEIGHT; SHIFT CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 		8-97079-982-2 01 1 0106- ●
485 04.047 BOLT; WEIGHT
EUROPEAN BASIC EQUIPMENT(EK4) FLOOR REMOTE SHIFT<M11> M12X60 FLANGE 		0-28091-260-0 01 1 9812-0105 ●
485 04.047 BOLT; WEIGHT
FLOOR REMOTE SHIFT<M11> M12X60 FLANGE 		0-28091-260-0 01 1 0106- ● ●
485 04.047 BOLT; WEIGHT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> L=88 		8-97017-375-0 01 1 9812-0105 ●
485 04.047 BOLT; WEIGHT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> L=88 		8-97017-375-0 01 1 0106- ●
486 04.047 NUT; WEIGHT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 06.509 M12 FLANGE 		8-94436-194-0 01 1 9812-0105 ● ●
486 04.047 NUT; WEIGHT
FLOOR REMOTE SHIFT<M11> 06.509 M12 FLANGE 		8-94436-194-0 01 1 0106- ● ●
çizim 47705
3 1 274 222 52 226 51 228 3 219 6 1 300 278 201 6 281
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.854 CABLE; SHIFT,TRANS CONT
L=2845 		8-97094-248-2 01 1 9812-0105 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=2990 		8-97289-652-1 01 1 0106- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3077 		8-97202-563-1 01 1 9812-0203 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3077 		8-97351-346-0 01 1 0204- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3123 		8-97202-562-0 01 1 9812-0105 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> CHARGE AIR COOLER<6PL> L=3123 		8-97202-562-0 01 1 0106- ●
1 00.854 CABLE; SHIFT,TRANS CONT
NPR/NQR SGL CAB&MIDDLE(NP**SF) 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3021 		8-97096-509-1 01 1 9812-0105 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3021 		8-97096-509-1 01 1 0106-0203 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3021 		8-97351-347-0 01 1 0204- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3123 		8-97307-916-1 01 1 0208- ●
3 00.852 CABLE; SELECT,TRANS CONT
L=3034 		8-97094-250-1 01 1 9812-0105 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=3065 		8-97289-617-0 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=2658 		8-97202-560-0 01 1 9812-0105 ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=2658 		8-97202-560-1 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3259 		8-97202-561-0 01 1 9812-0105 ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> CHARGE AIR COOLER<6PL> L=3259 		8-97202-561-0 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
NPR/NQR SGL CAB&MIDDLE(NP**SF) 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3157 		8-97096-504-1 01 1 9812-0105 ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3157 		8-97096-504-1 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3202 		8-97307-881-2 01 1 0208- ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (G) 		8-94133-416-2 01 1 9812-0105 ● ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (G) 		8-94133-416-2 01 1 0106- ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16.5 		8-94240-646-1 01 1 9812-0105 ● ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16.5 		8-94240-646-1 01 1 0106- ●
6 04.047 CLIP; CABLE
EXC. POWER STEERING<N40> (F) 		8-97028-508-2 01 1 9812-9905 ●
6 04.047 CLIP; CABLE
EXC. POWER STEERING<N40> (F) 		8-97028-508-2 01 1 9906-0105 ● ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) (J) 		8-97137-589-0 01 1 0106- ●
6 04.047 CLIP; CABLE
EXC. POWER STEERING<N40> (H) 		8-97036-332-1 01 1 9812-9901 ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-97036-332-1 01 1 9812-9901 ● ●
6 04.047 CLIP; CABLE
POWER STEERING<N40> (H) 		8-97036-332-1 01 1 9902-9905 ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (H) 		8-97036-332-1 01 1 9902-9905 ● ●
6 04.047 CLIP; CABLE
POWER STEERING<N40> (H) 		8-97036-332-1 01 1 9906-0105 ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (H) 		8-97036-332-1 01 1 9906-0105 ● ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (H) 		8-97036-332-1 01 1 0106-0207 ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (H) 		8-97036-332-1 01 1 0208- ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (D) ID=19.2 		8-97211-011-0 02 1 9812-0105 ● ● ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> (D) ID=19.2 		8-97211-011-0 02 1 0106- ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (E) 		8-97011-448-0 02 1 9812-0105 ● ● ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (E) 		8-97011-448-0 02 1 0106- ● ● ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 01 1 9902-0105 ● ● ● ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 01 1 0106- ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 02 1 9812-0105 ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 02 1 0106- ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=33X16.5 L=50 		5-09700-341-0 01 1 9812-0105 ● ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=33X16.5 L=50 		5-09700-341-0 01 1 0106- ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 00.854 (I) ID=22.2 		1-09701-209-1 01 1 9812-0105 ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 00.854 (I) ID=22.2 		1-09701-209-1 01 1 0106- ● ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (D) ID=19.2 		8-97211-011-0 01 1 9812-0105 ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (D) ID=19.2 		8-97211-011-0 01 1 0106- ● ●
51 04.010 BRACKET; GEAR CONT 8-97029-286-0 01 1 9812-0105 ● ●
51 04.010 BRACKET; GEAR CONT
NPR DBL CAB(NP**W*) FRAME STRAIGHT TYPE<7KJ> 		8-97214-437-0 01 1 9904-9908 ●
51 04.010 BRACKET; GEAR CONT
FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> 		8-97214-437-0 01 1 9909-0105 ●
51 04.010 BRACKET; GEAR CONT
FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> 		8-97214-437-0 01 1 0106- ●
51 04.010 BRACKET; GEAR CONT
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 04.047 		8-97103-513-1 01 1 9812-0105 ● ●
51 04.010 BRACKET; GEAR CONT
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 04.047 		8-97103-513-1 01 1 0106- ●
52 04.047 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0008-0105 ●
52 04.047 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ●
52 04.047 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE 		0-91150-210-0 01 1 9812-0007 ● ●
52 04.047 NUT; BRKT
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE 		0-91150-210-0 01 1 0008-0105 ● ●
52 04.047 NUT; BRKT
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE 		0-91150-210-0 01 1 0106- ●
201 04.032 BOLT; BRKT
EXC. POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-9905 ●
201 04.032 BOLT; BRKT
EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9906-0007 ● ●
201 04.032 BOLT; BRKT
EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0008-0105 ● ●
201 04.032 BOLT; BRKT
NPR DBL CAB&MIDDLE(NP**WF) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0008-0105 ●
201 04.032 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ●
201 04.032 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 9812-0007 ● ●
201 04.032 BOLT; BRKT
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0008-0105 ● ●
201 04.032 BOLT; BRKT
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0106- ●
219 04.047 NUT; FLANGE,SHAFT CABLE
FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-9905 ● ● ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
FLOOR REMOTE SHIFT<M11> 04.037 M8 T=8.0 		8-94363-045-0 01 1 9906-0105 ● ● ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
FLOOR REMOTE SHIFT<M11> 04.037 M8 T=8.0 		8-94363-045-0 01 1 0106- ● ● ●
222 04.010 GROMMET; CABLE 8-97091-890-0 01 1 9812-0105 ● ● ● ●
222 04.010 GROMMET; CABLE
FLOOR REMOTE SHIFT<M11> 		8-97091-890-0 01 1 0106- ● ● ●
226 04.047 PIN; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 00.833 (A) L=27.7 		8-94111-137-0 01 1 9812-0105 ● ● ● ●
226 04.047 PIN; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 00.833 (A) L=27.7 		8-94111-137-0 01 1 0106- ● ● ●
226 04.047 PIN; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> (B) L=23 		8-94170-378-0 01 1 9812-0105 ● ● ● ●
226 04.047 PIN; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> (B) L=23 		8-94170-378-0 01 1 0106- ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
FLOOR REMOTE SHIFT<M11> (A) ID=8.2 OD=40 		8-97182-975-0 02 1 9812-0105 ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
FLOOR REMOTE SHIFT<M11> (A) ID=8.2 OD=40 		8-97182-975-0 02 1 0106- ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 00.206 (B) ID=8.4 		9-09164-508-0 01 1 9812-0105 ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 00.206 (B) ID=8.4 		9-09164-508-0 01 1 0106- ● ● ●
274 04.008 CLIP; CONT CABLE
NPR DBL CAB(NP**W*) 		8-97093-491-1 01 1 9904-0105 ●
274 04.008 CLIP; CONT CABLE
FLOOR REMOTE SHIFT<M11> EXC. MANUAL TILT CAB<RWZ> 		8-97093-491-1 01 1 0106- ● ● ●
278 00.854 WASHER; LK,SHIFT WIRE
FLOOR REMOTE SHIFT<M11> 01.276 ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 9812-0105 ● ● ● ●
278 00.854 WASHER; LK,SHIFT WIRE
FLOOR REMOTE SHIFT<M11> 01.276 ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 0106- ● ● ●
281 04.042 CLIP; BAND
02.559 L=250 		5-09707-030-1 01 1 9812-0105 ● ● ● ●
281 04.042 CLIP; BAND
02.559 L=250 		5-09707-030-1 01 1 0106- ● ●
300 00.854 BOLT; CLIP
04.930 M6X20 FLANGE 		0-28680-620-0 01 1 9812-0105 ● ●
300 00.854 BOLT; CLIP
04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0106- ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-0105 ● ●
300 00.854 BOLT; CLIP
POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-0105 ● ●
300 00.854 BOLT; CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-0105 ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ●
300 00.854 BOLT; CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9812-9903 ● ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9904-0105 ● ● ● ●
300 00.854 BOLT; CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9904-0105 ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0106- ● ●
çizim 48132
282 6 226 228 3 228 407 457 247 249 112 51 22 357 488 6 283 283 112 112 457 1 113 284 199 376 114 113
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.854 CABLE; SHIFT,TRANS CONT
L=2845 		8-97094-248-2 01 1 9812-0105 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=2990 		8-97289-652-1 01 1 0106- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3077 		8-97202-563-1 01 1 9812-0203 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3077 		8-97351-346-0 01 1 0204- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3123 		8-97202-562-0 01 1 9812-0105 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> CHARGE AIR COOLER<6PL> L=3123 		8-97202-562-0 01 1 0106- ●
1 00.854 CABLE; SHIFT,TRANS CONT
NPR/NQR SGL CAB&MIDDLE(NP**SF) 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3021 		8-97096-509-1 01 1 9812-0105 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3021 		8-97096-509-1 01 1 0106-0203 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3021 		8-97351-347-0 01 1 0204- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3123 		8-97307-916-1 01 1 0208- ●
3 00.852 CABLE; SELECT,TRANS CONT
L=3034 		8-97094-250-1 01 1 9812-0105 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=3065 		8-97289-617-0 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=2658 		8-97202-560-0 01 1 9812-0105 ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=2658 		8-97202-560-1 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3259 		8-97202-561-0 01 1 9812-0105 ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> CHARGE AIR COOLER<6PL> L=3259 		8-97202-561-0 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
NPR/NQR SGL CAB&MIDDLE(NP**SF) 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3157 		8-97096-504-1 01 1 9812-0105 ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3157 		8-97096-504-1 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3202 		8-97307-881-2 01 1 0208- ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (G) 		8-94133-416-2 01 1 9812-0105 ● ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (G) 		8-94133-416-2 01 1 0106- ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16.5 		8-94240-646-1 01 1 9812-0105 ● ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16.5 		8-94240-646-1 01 1 0106- ●
6 04.047 CLIP; CABLE
EXC. POWER STEERING<N40> (F) 		8-97028-508-2 01 1 9812-9905 ●
6 04.047 CLIP; CABLE
EXC. POWER STEERING<N40> (F) 		8-97028-508-2 01 1 9906-0105 ● ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) (J) 		8-97137-589-0 01 1 0106- ●
6 04.047 CLIP; CABLE
EXC. POWER STEERING<N40> (H) 		8-97036-332-1 01 1 9812-9901 ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-97036-332-1 01 1 9812-9901 ● ●
6 04.047 CLIP; CABLE
POWER STEERING<N40> (H) 		8-97036-332-1 01 1 9902-9905 ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (H) 		8-97036-332-1 01 1 9902-9905 ● ●
6 04.047 CLIP; CABLE
POWER STEERING<N40> (H) 		8-97036-332-1 01 1 9906-0105 ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (H) 		8-97036-332-1 01 1 9906-0105 ● ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (H) 		8-97036-332-1 01 1 0106-0207 ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (H) 		8-97036-332-1 01 1 0208- ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (D) ID=19.2 		8-97211-011-0 02 1 9812-0105 ● ● ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> (D) ID=19.2 		8-97211-011-0 02 1 0106- ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (E) 		8-97011-448-0 02 1 9812-0105 ● ● ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (E) 		8-97011-448-0 02 1 0106- ● ● ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 01 1 9902-0105 ● ● ● ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 01 1 0106- ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 02 1 9812-0105 ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 02 1 0106- ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=33X16.5 L=50 		5-09700-341-0 01 1 9812-0105 ● ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=33X16.5 L=50 		5-09700-341-0 01 1 0106- ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 00.854 (I) ID=22.2 		1-09701-209-1 01 1 9812-0105 ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 00.854 (I) ID=22.2 		1-09701-209-1 01 1 0106- ● ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (D) ID=19.2 		8-97211-011-0 01 1 9812-0105 ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (D) ID=19.2 		8-97211-011-0 01 1 0106- ● ●
22 04.035 ROD; CONT,SHIFT 8-97174-058-0 01 1 9812-0105 ● ●
51 04.010 BRACKET; GEAR CONT 8-97029-286-0 01 1 9812-0105 ● ●
51 04.010 BRACKET; GEAR CONT
NPR DBL CAB(NP**W*) FRAME STRAIGHT TYPE<7KJ> 		8-97214-437-0 01 1 9904-9908 ●
51 04.010 BRACKET; GEAR CONT
FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> 		8-97214-437-0 01 1 9909-0105 ●
51 04.010 BRACKET; GEAR CONT
FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> 		8-97214-437-0 01 1 0106- ●
51 04.010 BRACKET; GEAR CONT
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 04.047 		8-97103-513-1 01 1 9812-0105 ● ●
51 04.010 BRACKET; GEAR CONT
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 04.047 		8-97103-513-1 01 1 0106- ●
112 04.046 BUSHING; RELAY LEVER
(A) 		8-97174-057-0 02 1 9812-0105 ● ●
112 04.046 BUSHING; RELAY LEVER
(B) 		8-97174-060-0 01 1 9812-0105 ● ●
113 04.046 WASHER; RELAY LEVER
16.682 (A) ID=10.5 OD=22 		9-09160-610-0 02 1 9812-0105 ● ●
113 04.046 WASHER; RELAY LEVER
08.929 (B) ID=15 OD=36 		9-09164-714-0 01 1 9812-0105 ● ●
114 04.037 NUT; RELAY LEVER
04.785 M10 FLANGE 		0-91150-110-0 01 1 9812-0105 ● ●
199 04.012 WASHER; PL,SELECT
FLOOR REMOTE SHIFT<M11> 16.674 ID=8.4 		9-09160-508-0 01 1 9812-0105 ● ● ● ●
199 04.012 WASHER; PL,SELECT
FLOOR REMOTE SHIFT<M11> 16.674 ID=8.4 		9-09160-508-0 01 1 0106-0112 ● ●
199 04.012 WASHER; PL,SELECT
16.674 ID=8.4 		9-09160-508-0 01 1 0201-0207 ●
199 04.012 WASHER; PL,SELECT
16.674 ID=8.4 		9-09160-508-0 01 1 0208- ● ●
226 04.047 PIN; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 00.833 (A) L=27.7 		8-94111-137-0 01 1 9812-0105 ● ● ● ●
226 04.047 PIN; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 00.833 (A) L=27.7 		8-94111-137-0 01 1 0106- ● ● ●
226 04.047 PIN; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> (B) L=23 		8-94170-378-0 01 1 9812-0105 ● ● ● ●
226 04.047 PIN; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> (B) L=23 		8-94170-378-0 01 1 0106- ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
FLOOR REMOTE SHIFT<M11> (A) ID=8.2 OD=40 		8-97182-975-0 02 1 9812-0105 ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
FLOOR REMOTE SHIFT<M11> (A) ID=8.2 OD=40 		8-97182-975-0 02 1 0106- ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 00.206 (B) ID=8.4 		9-09164-508-0 01 1 9812-0105 ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 00.206 (B) ID=8.4 		9-09164-508-0 01 1 0106- ● ● ●
247 04.010 PIN; CONT ROD TO LEVER
04.037 		9-09876-059-1 01 1 9812-0105 ● ●
249 04.010 WASHER; RUBBER,CONT ROD TO LEVER
04.037 ID=8.5 T=1.5 		9-09851-889-0 01 1 9812-0105 ● ●
282 04.010 BRACKET; TRANS SIDE 8-97034-142-1 01 1 9812-0105 ● ●
282 04.010 BRACKET; TRANS SIDE
4JH1 ENG(RJX) 		8-97260-120-0 01 1 0106- ●
282 04.010 BRACKET; TRANS SIDE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 		8-97182-260-0 01 1 9812- ●
282 04.010 BRACKET; TRANS SIDE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 		8-97040-198-1 01 1 9812-0105 ●
282 04.010 BRACKET; TRANS SIDE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 		8-97040-198-1 01 1 0106- ●
282 04.010 BRACKET; TRANS SIDE
FLOOR REMOTE SHIFT<M11> 		8-97311-442-1 01 1 0208- ●
283 04.037 BOLT; RELAY LEVER
03.405 (A) M10X25 FLANGE 		0-28681-025-0 01 1 9812-0105 ● ●
283 04.037 BOLT; RELAY LEVER
03.162 (B) M10X35 FLANGE 		0-28681-035-0 01 1 9812-0105 ● ●
284 00.854 WASHER; WAVE,SELECT CABLE,CAB
FLOOR REMOTE SHIFT<M11> ID=8.4 OD=14 		5-09550-002-0 01 1 9812-0105 ● ● ● ●
284 00.854 WASHER; WAVE,SELECT CABLE,CAB
FLOOR REMOTE SHIFT<M11> ID=8.4 OD=14 		5-09550-002-0 01 1 0106-0112 ● ●
284 00.854 WASHER; WAVE,SELECT CABLE,CAB
ID=8.4 OD=14 		5-09550-002-0 01 1 0201-0207 ●
284 00.854 WASHER; WAVE,SELECT CABLE,CAB
ID=8.4 OD=14 		5-09550-002-0 01 1 0208- ● ●
357 04.010 BRACKET; RELAY LEVER 8-97182-166-0 01 1 9812-0105 ● ●
376 04.047 PIN; SNAP,SELECT CABLE
FLOOR REMOTE SHIFT<M11> L=23 		8-94170-378-0 01 1 9812-0105 ● ● ● ●
376 04.047 PIN; SNAP,SELECT CABLE
FLOOR REMOTE SHIFT<M11> L=23 		8-94170-378-0 01 1 0106-0112 ● ●
376 04.047 PIN; SNAP,SELECT CABLE
L=23 		8-94170-378-0 01 1 0201- ● ●
407 04.030 LEVER; RELAY,SHIFT 8-97174-055-1 01 1 9812-0105 ● ●
457 04.010 GASKET
ID=13.8 		9-09561-114-0 02 1 9812-0105 ● ●
488 04.047 NUT; CABLE
07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-9905 ●
488 04.047 NUT; CABLE
04.037 M8 T=8.0 		8-94363-045-0 01 1 9906-0105 ● ●
çizim 48696
3 1 300 303 6 226 6 228 3 222 490 219 6 1 278 281 300 294 294 6 203 279 303 300 6 201 6 300
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.854 CABLE; SHIFT,TRANS CONT
L=2845 		8-97094-248-2 01 1 9812-0105 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=2990 		8-97289-652-1 01 1 0106- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3077 		8-97202-563-1 01 1 9812-0203 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3077 		8-97351-346-0 01 1 0204- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3123 		8-97202-562-0 01 1 9812-0105 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> CHARGE AIR COOLER<6PL> L=3123 		8-97202-562-0 01 1 0106- ●
1 00.854 CABLE; SHIFT,TRANS CONT
NPR/NQR SGL CAB&MIDDLE(NP**SF) 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3021 		8-97096-509-1 01 1 9812-0105 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3021 		8-97096-509-1 01 1 0106-0203 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3021 		8-97351-347-0 01 1 0204- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3123 		8-97307-916-1 01 1 0208- ●
3 00.852 CABLE; SELECT,TRANS CONT
L=3034 		8-97094-250-1 01 1 9812-0105 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=3065 		8-97289-617-0 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=2658 		8-97202-560-0 01 1 9812-0105 ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=2658 		8-97202-560-1 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3259 		8-97202-561-0 01 1 9812-0105 ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> CHARGE AIR COOLER<6PL> L=3259 		8-97202-561-0 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
NPR/NQR SGL CAB&MIDDLE(NP**SF) 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3157 		8-97096-504-1 01 1 9812-0105 ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3157 		8-97096-504-1 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3202 		8-97307-881-2 01 1 0208- ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (G) 		8-94133-416-2 01 1 9812-0105 ● ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (G) 		8-94133-416-2 01 1 0106- ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16.5 		8-94240-646-1 01 1 9812-0105 ● ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16.5 		8-94240-646-1 01 1 0106- ●
6 04.047 CLIP; CABLE
EXC. POWER STEERING<N40> (F) 		8-97028-508-2 01 1 9812-9905 ●
6 04.047 CLIP; CABLE
EXC. POWER STEERING<N40> (F) 		8-97028-508-2 01 1 9906-0105 ● ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) (J) 		8-97137-589-0 01 1 0106- ●
6 04.047 CLIP; CABLE
EXC. POWER STEERING<N40> (H) 		8-97036-332-1 01 1 9812-9901 ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-97036-332-1 01 1 9812-9901 ● ●
6 04.047 CLIP; CABLE
POWER STEERING<N40> (H) 		8-97036-332-1 01 1 9902-9905 ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (H) 		8-97036-332-1 01 1 9902-9905 ● ●
6 04.047 CLIP; CABLE
POWER STEERING<N40> (H) 		8-97036-332-1 01 1 9906-0105 ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (H) 		8-97036-332-1 01 1 9906-0105 ● ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (H) 		8-97036-332-1 01 1 0106-0207 ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (H) 		8-97036-332-1 01 1 0208- ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (D) ID=19.2 		8-97211-011-0 02 1 9812-0105 ● ● ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> (D) ID=19.2 		8-97211-011-0 02 1 0106- ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (E) 		8-97011-448-0 02 1 9812-0105 ● ● ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (E) 		8-97011-448-0 02 1 0106- ● ● ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 01 1 9902-0105 ● ● ● ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 01 1 0106- ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 02 1 9812-0105 ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 02 1 0106- ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=33X16.5 L=50 		5-09700-341-0 01 1 9812-0105 ● ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=33X16.5 L=50 		5-09700-341-0 01 1 0106- ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 00.854 (I) ID=22.2 		1-09701-209-1 01 1 9812-0105 ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 00.854 (I) ID=22.2 		1-09701-209-1 01 1 0106- ● ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (D) ID=19.2 		8-97211-011-0 01 1 9812-0105 ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (D) ID=19.2 		8-97211-011-0 01 1 0106- ● ●
201 04.032 BOLT; BRKT
EXC. POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-9905 ●
201 04.032 BOLT; BRKT
EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9906-0007 ● ●
201 04.032 BOLT; BRKT
EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0008-0105 ● ●
201 04.032 BOLT; BRKT
NPR DBL CAB&MIDDLE(NP**WF) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0008-0105 ●
201 04.032 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ●
201 04.032 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 9812-0007 ● ●
201 04.032 BOLT; BRKT
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0008-0105 ● ●
201 04.032 BOLT; BRKT
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0106- ●
203 04.032 NUT; BRKT FIX
EXC. POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-9905 ●
203 04.032 NUT; BRKT FIX
EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9906-0105 ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-9905 ● ● ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
FLOOR REMOTE SHIFT<M11> 04.037 M8 T=8.0 		8-94363-045-0 01 1 9906-0105 ● ● ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
FLOOR REMOTE SHIFT<M11> 04.037 M8 T=8.0 		8-94363-045-0 01 1 0106- ● ● ●
222 04.010 GROMMET; CABLE 8-97091-890-0 01 1 9812-0105 ● ● ● ●
222 04.010 GROMMET; CABLE
FLOOR REMOTE SHIFT<M11> 		8-97091-890-0 01 1 0106- ● ● ●
226 04.047 PIN; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 00.833 (A) L=27.7 		8-94111-137-0 01 1 9812-0105 ● ● ● ●
226 04.047 PIN; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 00.833 (A) L=27.7 		8-94111-137-0 01 1 0106- ● ● ●
226 04.047 PIN; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> (B) L=23 		8-94170-378-0 01 1 9812-0105 ● ● ● ●
226 04.047 PIN; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> (B) L=23 		8-94170-378-0 01 1 0106- ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
FLOOR REMOTE SHIFT<M11> (A) ID=8.2 OD=40 		8-97182-975-0 02 1 9812-0105 ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
FLOOR REMOTE SHIFT<M11> (A) ID=8.2 OD=40 		8-97182-975-0 02 1 0106- ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 00.206 (B) ID=8.4 		9-09164-508-0 01 1 9812-0105 ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 00.206 (B) ID=8.4 		9-09164-508-0 01 1 0106- ● ● ●
278 00.854 WASHER; LK,SHIFT WIRE
FLOOR REMOTE SHIFT<M11> 01.276 ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 9812-0105 ● ● ● ●
278 00.854 WASHER; LK,SHIFT WIRE
FLOOR REMOTE SHIFT<M11> 01.276 ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 0106- ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
EXC. POWER STEERING<N40> (A) 		8-97028-496-1 01 1 9812-0105 ● ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97171-065-0 01 1 9812-0105 ● ●
279 04.047 BRACKET; CABLE TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97171-065-0 01 1 0106- ●
281 04.042 CLIP; BAND
02.559 L=250 		5-09707-030-1 01 1 9812-0105 ● ● ● ●
281 04.042 CLIP; BAND
02.559 L=250 		5-09707-030-1 01 1 0106- ● ●
294 00.854 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-0105 ● ● ● ●
294 00.854 NUT; CLIP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-0105 ● ●
294 00.854 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ●
294 00.854 NUT; CLIP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ●
294 00.854 NUT; CLIP
4JH1 ENG(RJX) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0106- ●
300 00.854 BOLT; CLIP
04.930 M6X20 FLANGE 		0-28680-620-0 01 1 9812-0105 ● ●
300 00.854 BOLT; CLIP
04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0106- ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-0105 ● ●
300 00.854 BOLT; CLIP
POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-0105 ● ●
300 00.854 BOLT; CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-0105 ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ●
300 00.854 BOLT; CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9812-9903 ● ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9904-0105 ● ● ● ●
300 00.854 BOLT; CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9904-0105 ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0106- ● ●
303 00.855 NUT; CLIP
01.062 M6 FLANGE 		0-91150-206-0 01 1 9812-9905 ●
303 00.855 NUT; CLIP
01.062 M6 FLANGE 		0-91150-206-0 01 1 9906-0105 ● ●
303 00.855 NUT; CLIP
01.062 M6 FLANGE 		0-91150-206-0 01 1 0106- ●
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-9903 ● ● ●
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9904-0105 ● ●
303 00.855 NUT; CLIP
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9904-0105 ● ●
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ●
303 00.855 NUT; CLIP
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ●
490 04.010 PROTECTOR; EDGE
EXC. FRAME STRAIGHT TYPE<7KJ> 16.225 L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9812-0105 ● ●
490 04.010 PROTECTOR; EDGE
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 L=200 		8-97096-423-0 01 1 0106- ●
çizim 48698
303 279 300 6 300 294 294 294 6 203 279 201 300 6 6 486 292 392 3 6 199 482 1 485 228 226 228 282
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.854 CABLE; SHIFT,TRANS CONT
L=2845 		8-97094-248-2 01 1 9812-0105 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=2990 		8-97289-652-1 01 1 0106- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3077 		8-97202-563-1 01 1 9812-0203 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3077 		8-97351-346-0 01 1 0204- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3123 		8-97202-562-0 01 1 9812-0105 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> CHARGE AIR COOLER<6PL> L=3123 		8-97202-562-0 01 1 0106- ●
1 00.854 CABLE; SHIFT,TRANS CONT
NPR/NQR SGL CAB&MIDDLE(NP**SF) 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3021 		8-97096-509-1 01 1 9812-0105 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3021 		8-97096-509-1 01 1 0106-0203 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3021 		8-97351-347-0 01 1 0204- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3123 		8-97307-916-1 01 1 0208- ●
3 00.852 CABLE; SELECT,TRANS CONT
L=3034 		8-97094-250-1 01 1 9812-0105 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=3065 		8-97289-617-0 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=2658 		8-97202-560-0 01 1 9812-0105 ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=2658 		8-97202-560-1 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3259 		8-97202-561-0 01 1 9812-0105 ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> CHARGE AIR COOLER<6PL> L=3259 		8-97202-561-0 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
NPR/NQR SGL CAB&MIDDLE(NP**SF) 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3157 		8-97096-504-1 01 1 9812-0105 ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3157 		8-97096-504-1 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3202 		8-97307-881-2 01 1 0208- ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (G) 		8-94133-416-2 01 1 9812-0105 ● ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (G) 		8-94133-416-2 01 1 0106- ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16.5 		8-94240-646-1 01 1 9812-0105 ● ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16.5 		8-94240-646-1 01 1 0106- ●
6 04.047 CLIP; CABLE
EXC. POWER STEERING<N40> (F) 		8-97028-508-2 01 1 9812-9905 ●
6 04.047 CLIP; CABLE
EXC. POWER STEERING<N40> (F) 		8-97028-508-2 01 1 9906-0105 ● ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) (J) 		8-97137-589-0 01 1 0106- ●
6 04.047 CLIP; CABLE
EXC. POWER STEERING<N40> (H) 		8-97036-332-1 01 1 9812-9901 ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-97036-332-1 01 1 9812-9901 ● ●
6 04.047 CLIP; CABLE
POWER STEERING<N40> (H) 		8-97036-332-1 01 1 9902-9905 ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (H) 		8-97036-332-1 01 1 9902-9905 ● ●
6 04.047 CLIP; CABLE
POWER STEERING<N40> (H) 		8-97036-332-1 01 1 9906-0105 ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (H) 		8-97036-332-1 01 1 9906-0105 ● ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (H) 		8-97036-332-1 01 1 0106-0207 ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (H) 		8-97036-332-1 01 1 0208- ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (D) ID=19.2 		8-97211-011-0 02 1 9812-0105 ● ● ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> (D) ID=19.2 		8-97211-011-0 02 1 0106- ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (E) 		8-97011-448-0 02 1 9812-0105 ● ● ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (E) 		8-97011-448-0 02 1 0106- ● ● ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 01 1 9902-0105 ● ● ● ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 01 1 0106- ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 02 1 9812-0105 ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 02 1 0106- ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=33X16.5 L=50 		5-09700-341-0 01 1 9812-0105 ● ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=33X16.5 L=50 		5-09700-341-0 01 1 0106- ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 00.854 (I) ID=22.2 		1-09701-209-1 01 1 9812-0105 ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 00.854 (I) ID=22.2 		1-09701-209-1 01 1 0106- ● ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (D) ID=19.2 		8-97211-011-0 01 1 9812-0105 ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (D) ID=19.2 		8-97211-011-0 01 1 0106- ● ●
199 04.012 WASHER; PL,SELECT
FLOOR REMOTE SHIFT<M11> 16.674 ID=8.4 		9-09160-508-0 01 1 9812-0105 ● ● ● ●
199 04.012 WASHER; PL,SELECT
FLOOR REMOTE SHIFT<M11> 16.674 ID=8.4 		9-09160-508-0 01 1 0106-0112 ● ●
199 04.012 WASHER; PL,SELECT
16.674 ID=8.4 		9-09160-508-0 01 1 0201-0207 ●
199 04.012 WASHER; PL,SELECT
16.674 ID=8.4 		9-09160-508-0 01 1 0208- ● ●
201 04.032 BOLT; BRKT
EXC. POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-9905 ●
201 04.032 BOLT; BRKT
EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9906-0007 ● ●
201 04.032 BOLT; BRKT
EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0008-0105 ● ●
201 04.032 BOLT; BRKT
NPR DBL CAB&MIDDLE(NP**WF) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0008-0105 ●
201 04.032 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ●
201 04.032 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 9812-0007 ● ●
201 04.032 BOLT; BRKT
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0008-0105 ● ●
201 04.032 BOLT; BRKT
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0106- ●
203 04.032 NUT; BRKT FIX
EXC. POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-9905 ●
203 04.032 NUT; BRKT FIX
EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9906-0105 ● ●
226 04.047 PIN; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 00.833 (A) L=27.7 		8-94111-137-0 01 1 9812-0105 ● ● ● ●
226 04.047 PIN; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 00.833 (A) L=27.7 		8-94111-137-0 01 1 0106- ● ● ●
226 04.047 PIN; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> (B) L=23 		8-94170-378-0 01 1 9812-0105 ● ● ● ●
226 04.047 PIN; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> (B) L=23 		8-94170-378-0 01 1 0106- ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
FLOOR REMOTE SHIFT<M11> (A) ID=8.2 OD=40 		8-97182-975-0 02 1 9812-0105 ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
FLOOR REMOTE SHIFT<M11> (A) ID=8.2 OD=40 		8-97182-975-0 02 1 0106- ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 00.206 (B) ID=8.4 		9-09164-508-0 01 1 9812-0105 ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 00.206 (B) ID=8.4 		9-09164-508-0 01 1 0106- ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
EXC. POWER STEERING<N40> (A) 		8-97028-496-1 01 1 9812-0105 ● ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97171-065-0 01 1 9812-0105 ● ●
279 04.047 BRACKET; CABLE TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97171-065-0 01 1 0106- ●
282 04.010 BRACKET; TRANS SIDE 8-97034-142-1 01 1 9812-0105 ● ●
282 04.010 BRACKET; TRANS SIDE
4JH1 ENG(RJX) 		8-97260-120-0 01 1 0106- ●
282 04.010 BRACKET; TRANS SIDE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 		8-97182-260-0 01 1 9812- ●
282 04.010 BRACKET; TRANS SIDE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 		8-97040-198-1 01 1 9812-0105 ●
282 04.010 BRACKET; TRANS SIDE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 		8-97040-198-1 01 1 0106- ●
282 04.010 BRACKET; TRANS SIDE
FLOOR REMOTE SHIFT<M11> 		8-97311-442-1 01 1 0208- ●
292 04.047 NUT; CABLE TO RELAY LEVER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-9905 ●
292 04.047 NUT; CABLE TO RELAY LEVER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 04.037 M8 T=8.0 		8-94363-045-0 01 1 9906-0105 ●
292 04.047 NUT; CABLE TO RELAY LEVER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 04.037 M8 T=8.0 		8-94363-045-0 01 1 0106- ●
294 00.854 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-0105 ● ● ● ●
294 00.854 NUT; CLIP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-0105 ● ●
294 00.854 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ●
294 00.854 NUT; CLIP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ●
294 00.854 NUT; CLIP
4JH1 ENG(RJX) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0106- ●
300 00.854 BOLT; CLIP
04.930 M6X20 FLANGE 		0-28680-620-0 01 1 9812-0105 ● ●
300 00.854 BOLT; CLIP
04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0106- ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-0105 ● ●
300 00.854 BOLT; CLIP
POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-0105 ● ●
300 00.854 BOLT; CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-0105 ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ●
300 00.854 BOLT; CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9812-9903 ● ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9904-0105 ● ● ● ●
300 00.854 BOLT; CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9904-0105 ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0106- ● ●
303 00.855 NUT; CLIP
01.062 M6 FLANGE 		0-91150-206-0 01 1 9812-9905 ●
303 00.855 NUT; CLIP
01.062 M6 FLANGE 		0-91150-206-0 01 1 9906-0105 ● ●
303 00.855 NUT; CLIP
01.062 M6 FLANGE 		0-91150-206-0 01 1 0106- ●
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-9903 ● ● ●
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9904-0105 ● ●
303 00.855 NUT; CLIP
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9904-0105 ● ●
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ●
303 00.855 NUT; CLIP
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ●
392 00.854 WASHER; LK,SELECT CABLE,CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 01.276 ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 9812-0105 ●
392 00.854 WASHER; LK,SELECT CABLE,CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 01.276 ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 0106- ●
482 04.047 WEIGHT; SHIFT CABLE
EUROPEAN BASIC EQUIPMENT(EK4) FLOOR REMOTE SHIFT<M11> 		8-97066-730-1 01 1 9812-0105 ●
482 04.047 WEIGHT; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 		8-97066-730-2 01 1 0106- ● ●
482 04.047 WEIGHT; SHIFT CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 		8-97079-982-1 01 1 9812-0105 ●
482 04.047 WEIGHT; SHIFT CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 		8-97079-982-2 01 1 0106- ●
485 04.047 BOLT; WEIGHT
EUROPEAN BASIC EQUIPMENT(EK4) FLOOR REMOTE SHIFT<M11> M12X60 FLANGE 		0-28091-260-0 01 1 9812-0105 ●
485 04.047 BOLT; WEIGHT
FLOOR REMOTE SHIFT<M11> M12X60 FLANGE 		0-28091-260-0 01 1 0106- ● ●
485 04.047 BOLT; WEIGHT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> L=88 		8-97017-375-0 01 1 9812-0105 ●
485 04.047 BOLT; WEIGHT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> L=88 		8-97017-375-0 01 1 0106- ●
486 04.047 NUT; WEIGHT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 06.509 M12 FLANGE 		8-94436-194-0 01 1 9812-0105 ● ●
486 04.047 NUT; WEIGHT
FLOOR REMOTE SHIFT<M11> 06.509 M12 FLANGE 		8-94436-194-0 01 1 0106- ● ●
çizim 51773
3 1 52 51 274 222 300 226 228 3 201 6 219 6 1 303 278 6 490 281 300
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.854 CABLE; SHIFT,TRANS CONT
L=2845 		8-97094-248-2 01 1 9812-0105 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=2990 		8-97289-652-1 01 1 0106- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3077 		8-97202-563-1 01 1 9812-0203 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3077 		8-97351-346-0 01 1 0204- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3123 		8-97202-562-0 01 1 9812-0105 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> CHARGE AIR COOLER<6PL> L=3123 		8-97202-562-0 01 1 0106- ●
1 00.854 CABLE; SHIFT,TRANS CONT
NPR/NQR SGL CAB&MIDDLE(NP**SF) 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3021 		8-97096-509-1 01 1 9812-0105 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3021 		8-97096-509-1 01 1 0106-0203 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3021 		8-97351-347-0 01 1 0204- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3123 		8-97307-916-1 01 1 0208- ●
3 00.852 CABLE; SELECT,TRANS CONT
L=3034 		8-97094-250-1 01 1 9812-0105 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> L=3065 		8-97289-617-0 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=2658 		8-97202-560-0 01 1 9812-0105 ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=2658 		8-97202-560-1 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3259 		8-97202-561-0 01 1 9812-0105 ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> CHARGE AIR COOLER<6PL> L=3259 		8-97202-561-0 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
NPR/NQR SGL CAB&MIDDLE(NP**SF) 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3157 		8-97096-504-1 01 1 9812-0105 ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3157 		8-97096-504-1 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3202 		8-97307-881-2 01 1 0208- ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (G) 		8-94133-416-2 01 1 9812-0105 ● ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (G) 		8-94133-416-2 01 1 0106- ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16.5 		8-94240-646-1 01 1 9812-0105 ● ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16.5 		8-94240-646-1 01 1 0106- ●
6 04.047 CLIP; CABLE
EXC. POWER STEERING<N40> (F) 		8-97028-508-2 01 1 9812-9905 ●
6 04.047 CLIP; CABLE
EXC. POWER STEERING<N40> (F) 		8-97028-508-2 01 1 9906-0105 ● ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) (J) 		8-97137-589-0 01 1 0106- ●
6 04.047 CLIP; CABLE
EXC. POWER STEERING<N40> (H) 		8-97036-332-1 01 1 9812-9901 ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-97036-332-1 01 1 9812-9901 ● ●
6 04.047 CLIP; CABLE
POWER STEERING<N40> (H) 		8-97036-332-1 01 1 9902-9905 ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (H) 		8-97036-332-1 01 1 9902-9905 ● ●
6 04.047 CLIP; CABLE
POWER STEERING<N40> (H) 		8-97036-332-1 01 1 9906-0105 ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (H) 		8-97036-332-1 01 1 9906-0105 ● ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (H) 		8-97036-332-1 01 1 0106-0207 ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (H) 		8-97036-332-1 01 1 0208- ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (D) ID=19.2 		8-97211-011-0 02 1 9812-0105 ● ● ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> (D) ID=19.2 		8-97211-011-0 02 1 0106- ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (E) 		8-97011-448-0 02 1 9812-0105 ● ● ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (E) 		8-97011-448-0 02 1 0106- ● ● ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 01 1 9902-0105 ● ● ● ●
6 04.047 CLIP; CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 01 1 0106- ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 02 1 9812-0105 ● ●
6 04.047 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 02 1 0106- ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=33X16.5 L=50 		5-09700-341-0 01 1 9812-0105 ● ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=33X16.5 L=50 		5-09700-341-0 01 1 0106- ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 00.854 (I) ID=22.2 		1-09701-209-1 01 1 9812-0105 ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 00.854 (I) ID=22.2 		1-09701-209-1 01 1 0106- ● ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (D) ID=19.2 		8-97211-011-0 01 1 9812-0105 ●
6 04.047 CLIP; CABLE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (D) ID=19.2 		8-97211-011-0 01 1 0106- ● ●
51 04.010 BRACKET; GEAR CONT 8-97029-286-0 01 1 9812-0105 ● ●
51 04.010 BRACKET; GEAR CONT
NPR DBL CAB(NP**W*) FRAME STRAIGHT TYPE<7KJ> 		8-97214-437-0 01 1 9904-9908 ●
51 04.010 BRACKET; GEAR CONT
FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> 		8-97214-437-0 01 1 9909-0105 ●
51 04.010 BRACKET; GEAR CONT
FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> 		8-97214-437-0 01 1 0106- ●
51 04.010 BRACKET; GEAR CONT
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 04.047 		8-97103-513-1 01 1 9812-0105 ● ●
51 04.010 BRACKET; GEAR CONT
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 04.047 		8-97103-513-1 01 1 0106- ●
52 04.047 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0008-0105 ●
52 04.047 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ●
52 04.047 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE 		0-91150-210-0 01 1 9812-0007 ● ●
52 04.047 NUT; BRKT
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE 		0-91150-210-0 01 1 0008-0105 ● ●
52 04.047 NUT; BRKT
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE 		0-91150-210-0 01 1 0106- ●
201 04.032 BOLT; BRKT
EXC. POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-9905 ●
201 04.032 BOLT; BRKT
EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9906-0007 ● ●
201 04.032 BOLT; BRKT
EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0008-0105 ● ●
201 04.032 BOLT; BRKT
NPR DBL CAB&MIDDLE(NP**WF) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0008-0105 ●
201 04.032 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ●
201 04.032 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 9812-0007 ● ●
201 04.032 BOLT; BRKT
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0008-0105 ● ●
201 04.032 BOLT; BRKT
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0106- ●
219 04.047 NUT; FLANGE,SHAFT CABLE
FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-9905 ● ● ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
FLOOR REMOTE SHIFT<M11> 04.037 M8 T=8.0 		8-94363-045-0 01 1 9906-0105 ● ● ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
FLOOR REMOTE SHIFT<M11> 04.037 M8 T=8.0 		8-94363-045-0 01 1 0106- ● ● ●
222 04.010 GROMMET; CABLE 8-97091-890-0 01 1 9812-0105 ● ● ● ●
222 04.010 GROMMET; CABLE
FLOOR REMOTE SHIFT<M11> 		8-97091-890-0 01 1 0106- ● ● ●
226 04.047 PIN; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 00.833 (A) L=27.7 		8-94111-137-0 01 1 9812-0105 ● ● ● ●
226 04.047 PIN; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 00.833 (A) L=27.7 		8-94111-137-0 01 1 0106- ● ● ●
226 04.047 PIN; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> (B) L=23 		8-94170-378-0 01 1 9812-0105 ● ● ● ●
226 04.047 PIN; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> (B) L=23 		8-94170-378-0 01 1 0106- ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
FLOOR REMOTE SHIFT<M11> (A) ID=8.2 OD=40 		8-97182-975-0 02 1 9812-0105 ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
FLOOR REMOTE SHIFT<M11> (A) ID=8.2 OD=40 		8-97182-975-0 02 1 0106- ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 00.206 (B) ID=8.4 		9-09164-508-0 01 1 9812-0105 ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 00.206 (B) ID=8.4 		9-09164-508-0 01 1 0106- ● ● ●
274 04.008 CLIP; CONT CABLE
NPR DBL CAB(NP**W*) 		8-97093-491-1 01 1 9904-0105 ●
274 04.008 CLIP; CONT CABLE
FLOOR REMOTE SHIFT<M11> EXC. MANUAL TILT CAB<RWZ> 		8-97093-491-1 01 1 0106- ● ● ●
278 00.854 WASHER; LK,SHIFT WIRE
FLOOR REMOTE SHIFT<M11> 01.276 ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 9812-0105 ● ● ● ●
278 00.854 WASHER; LK,SHIFT WIRE
FLOOR REMOTE SHIFT<M11> 01.276 ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 0106- ● ● ●
281 04.042 CLIP; BAND
02.559 L=250 		5-09707-030-1 01 1 9812-0105 ● ● ● ●
281 04.042 CLIP; BAND
02.559 L=250 		5-09707-030-1 01 1 0106- ● ●
300 00.854 BOLT; CLIP
04.930 M6X20 FLANGE 		0-28680-620-0 01 1 9812-0105 ● ●
300 00.854 BOLT; CLIP
04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0106- ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-0105 ● ●
300 00.854 BOLT; CLIP
POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-0105 ● ●
300 00.854 BOLT; CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-0105 ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ●
300 00.854 BOLT; CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9812-9903 ● ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9904-0105 ● ● ● ●
300 00.854 BOLT; CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9904-0105 ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0106- ● ●
303 00.855 NUT; CLIP
01.062 M6 FLANGE 		0-91150-206-0 01 1 9812-9905 ●
303 00.855 NUT; CLIP
01.062 M6 FLANGE 		0-91150-206-0 01 1 9906-0105 ● ●
303 00.855 NUT; CLIP
01.062 M6 FLANGE 		0-91150-206-0 01 1 0106- ●
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-9903 ● ● ●
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9904-0105 ● ●
303 00.855 NUT; CLIP
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9904-0105 ● ●
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ●
303 00.855 NUT; CLIP
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ●
490 04.010 PROTECTOR; EDGE
EXC. FRAME STRAIGHT TYPE<7KJ> 16.225 L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9812-0105 ● ●
490 04.010 PROTECTOR; EDGE
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 L=200 		8-97096-423-0 01 1 0106- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
