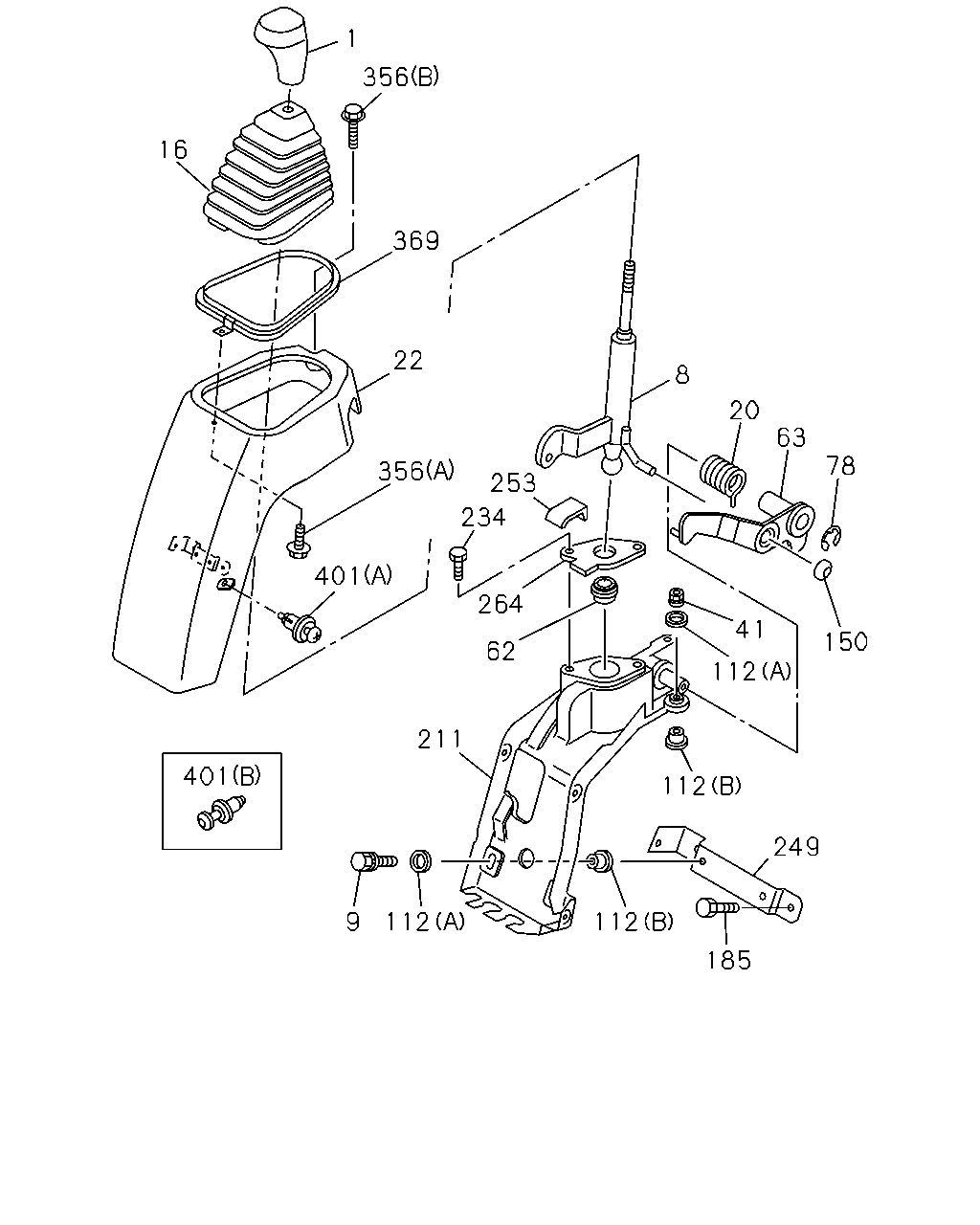

2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#45007) — 59 parça

1 356 16 369 22 8 20 63 253 78 356 234 401 264 41 150 62 112 211 401 112 249 9 112 112 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.006 KNOB; CHANGE LEVER DARK GRAY	8-97155-173-0	01	1	9812-0105	●	●
1	04.006 KNOB; CHANGE LEVER FLOOR REMOTE SHIFT<M11> DARK GRAY	8-97155-986-0	01	1	0106-			●	●
1	04.006 KNOB; CHANGE LEVER FLOOR REMOTE SHIFT<M11> DARK GRAY	8-97098-657-0	01	1	9812-0105					●
1	04.006 KNOB; CHANGE LEVER 4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> DARK GRAY	8-97298-717-0	01	1	0106-0206					●
1	04.006 KNOB; CHANGE LEVER 4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> BLACK	8-97306-545-0	01	1	0207-					●
1	04.006 KNOB; CHANGE LEVER FLOOR REMOTE SHIFT<M11> DARK GRAY	8-97155-986-0	01	1	9812-0105						●
8	04.006 LEVER; CHANGE FLOOR REMOTE SHIFT<M11>	8-97204-506-0	01	1	9812-0105	●	●			●
8	04.006 LEVER; CHANGE FLOOR REMOTE SHIFT<M11>	8-97204-506-0	01	1	0106-0207					●
8	04.006 LEVER; CHANGE FLOOR REMOTE SHIFT<M11>	8-97204-506-0	01	1	0208-0212				●	●
8	04.006 LEVER; CHANGE FLOOR REMOTE SHIFT<M11>	8-97204-506-0	01	1	0301-			●	●	●
8	04.006 LEVER; CHANGE FLOOR REMOTE SHIFT<M11>	8-97204-508-0	01	1	9812-0105						●
8	04.006 LEVER; CHANGE FLOOR REMOTE SHIFT<M11>	8-97204-508-0	01	1	0106-0212			●
9	04.012 BOLT; CHANGE LEVER FLOOR REMOTE SHIFT<M11> 07.633 M8X28 W/LK&PL WASHER	8-94438-324-1	02	1	9812-0105	●	●			●	●
9	04.012 BOLT; CHANGE LEVER FLOOR REMOTE SHIFT<M11> 07.633 M8X28 W/LK&PL WASHER	8-94438-324-1	02	1	0106-			●	●	●
16	04.015 BOOT; CHANGE LEVER	8-97066-287-1	01	1	9812-0105	●	●			●	●
16	04.015 BOOT; CHANGE LEVER FLOOR REMOTE SHIFT<M11>	8-97066-287-1	01	1	0106-			●	●	●
20	04.012 SPRING; CHANGE LEVER FLOOR REMOTE SHIFT<M11>	8-97204-514-0	01	1	9812-0105	●	●			●	●
20	04.012 SPRING; CHANGE LEVER FLOOR REMOTE SHIFT<M11>	8-97204-514-0	01	1	0106-			●	●	●
22	04.015 COVER; DUST,CHANGE LEVER DARK GRAY	8-97098-666-3	01	1	9812-0105	●	●			●	●
22	04.015 COVER; DUST,CHANGE LEVER FLOOR REMOTE SHIFT<M11> DARK GRAY	8-97098-666-3	01	1	0106-			●	●	●
41	04.012 NUT; CHANGE LEVER FLOOR REMOTE SHIFT<M11> 09.011 M8 W/LK WASHER	8-97065-435-0	02	1	9812-0105	●	●			●	●
41	04.012 NUT; CHANGE LEVER FLOOR REMOTE SHIFT<M11> 09.011 M8 W/LK WASHER	8-97065-435-0	02	1	0106-0110			●	●	●
41	04.012 NUT; CHANGE LEVER FLOOR REMOTE SHIFT<M11> 04.010 M8 FLANGE	8-97046-127-0	02	1	0111-			●	●	●
62	04.012 SEAT; BALL,CHANGE LEVER FLOOR REMOTE SHIFT<M11>	8-97011-895-1	01	1	9812-0105	●	●			●	●
62	04.012 SEAT; BALL,CHANGE LEVER FLOOR REMOTE SHIFT<M11>	8-97011-895-1	01	1	0106-			●	●	●
63	04.006 LEVER; RELAY,SELECT FLOOR REMOTE SHIFT<M11>	8-97143-199-0	01	1	9812-0105	●	●			●
63	04.006 LEVER; RELAY,SELECT FLOOR REMOTE SHIFT<M11>	8-97143-199-0	01	1	0106-					●
63	04.006 LEVER; RELAY,SELECT FLOOR REMOTE SHIFT<M11>	8-97163-768-0	01	1	9812-0105						●
63	04.006 LEVER; RELAY,SELECT FLOOR REMOTE SHIFT<M11>	8-97163-768-0	01	1	0106-			●	●
78	04.008 RING; SNAP,CHANGE LEVER FLOOR REMOTE SHIFT<M11> 08.934 ID=10	9-09185-410-0	01	1	9812-0105	●	●			●	●
78	04.008 RING; SNAP,CHANGE LEVER FLOOR REMOTE SHIFT<M11> 08.934 ID=10	9-09185-410-0	01	1	0106-			●	●	●
112	04.012 RUBBER; CUSHION FLOOR REMOTE SHIFT<M11> (A)	8-97091-426-0	04	1	9812-0105	●	●			●	●
112	04.012 RUBBER; CUSHION FLOOR REMOTE SHIFT<M11> (A)	8-97091-426-0	04	1	0106-			●	●	●
112	04.012 RUBBER; CUSHION FLOOR REMOTE SHIFT<M11> (B)	8-97091-427-0	04	1	9812-0105	●	●			●	●
112	04.012 RUBBER; CUSHION FLOOR REMOTE SHIFT<M11> (B)	8-97091-427-0	04	1	0106-			●	●	●
150	04.008 BALL; DETENT,CONT LEVER FLOOR REMOTE SHIFT<M11>	8-97049-147-0	01	1	9812-0105	●	●			●	●
150	04.008 BALL; DETENT,CONT LEVER FLOOR REMOTE SHIFT<M11>	8-97049-147-0	01	1	0106-			●	●	●
185	04.012 BOLT; BRKT,COVER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9812-0105	●	●			●	●
185	04.012 BOLT; BRKT,COVER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0106-			●	●	●
211	04.010 BRACKET; CHANGE LEVER FLOOR REMOTE SHIFT<M11>	8-97204-505-0	01	1	9812-0105	●	●			●	●
211	04.010 BRACKET; CHANGE LEVER FLOOR REMOTE SHIFT<M11>	8-97204-505-0	01	1	0106-			●	●	●
234	04.010 BOLT; BRKT FLOOR REMOTE SHIFT<M11>	8-97204-512-0	02	1	9812-0105	●	●			●	●
234	04.010 BOLT; BRKT FLOOR REMOTE SHIFT<M11>	8-97204-512-0	02	1	0106-			●	●	●
249	04.012 BRACKET; COVER	8-97091-820-3	01	1	9812-0105	●	●			●	●
249	04.012 BRACKET; COVER	8-97091-820-3	01	1	0106-			●	●	●
253	04.012 STOPPER; CHANGE LEVER FLOOR REMOTE SHIFT<M11>	8-97204-510-0	01	1	9812-0105	●	●			●	●
253	04.012 STOPPER; CHANGE LEVER FLOOR REMOTE SHIFT<M11>	8-97204-510-0	01	1	0106-			●	●	●
264	04.015 PLATE; COVER FLOOR REMOTE SHIFT<M11>	8-97204-511-0	01	1	9812-0105	●	●			●	●
264	04.015 PLATE; COVER FLOOR REMOTE SHIFT<M11>	8-97204-511-0	01	1	0106-			●	●	●
356	04.012 SCREW; COVER 02.510 (A) M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9812-0105	●	●			●	●
356	04.012 SCREW; COVER FLOOR REMOTE SHIFT<M11> 02.510 (A) M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	0106-			●	●	●
356	04.012 SCREW; COVER (B) M6X12	8-97094-854-0	01	1	9812-0105	●	●			●	●
356	04.012 SCREW; COVER (B) M6X12	8-97094-854-0	01	1	0106-			●	●	●
369	04.012 RETAINER; REINF	8-97066-288-0	01	1	9812-0105	●	●			●	●
369	04.012 RETAINER; REINF FLOOR REMOTE SHIFT<M11>	8-97066-288-0	01	1	0106-			●	●	●
401	04.012 CLIP; COVER (A) DARK GRAY	8-97098-523-0	02	1	9812-0105	●	●			●	●
401	04.012 CLIP; COVER (A) DARK GRAY	8-97098-523-0	02	1	0106-			●	●	●
401	04.012 CLIP; COVER (B) DARK GRAY	8-97098-524-0	01	1	9812-0105	●	●			●	●
401	04.012 CLIP; COVER (B) DARK GRAY	8-97098-524-0	01	1	0106-			●	●	●
