Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#45006) — 542 parça

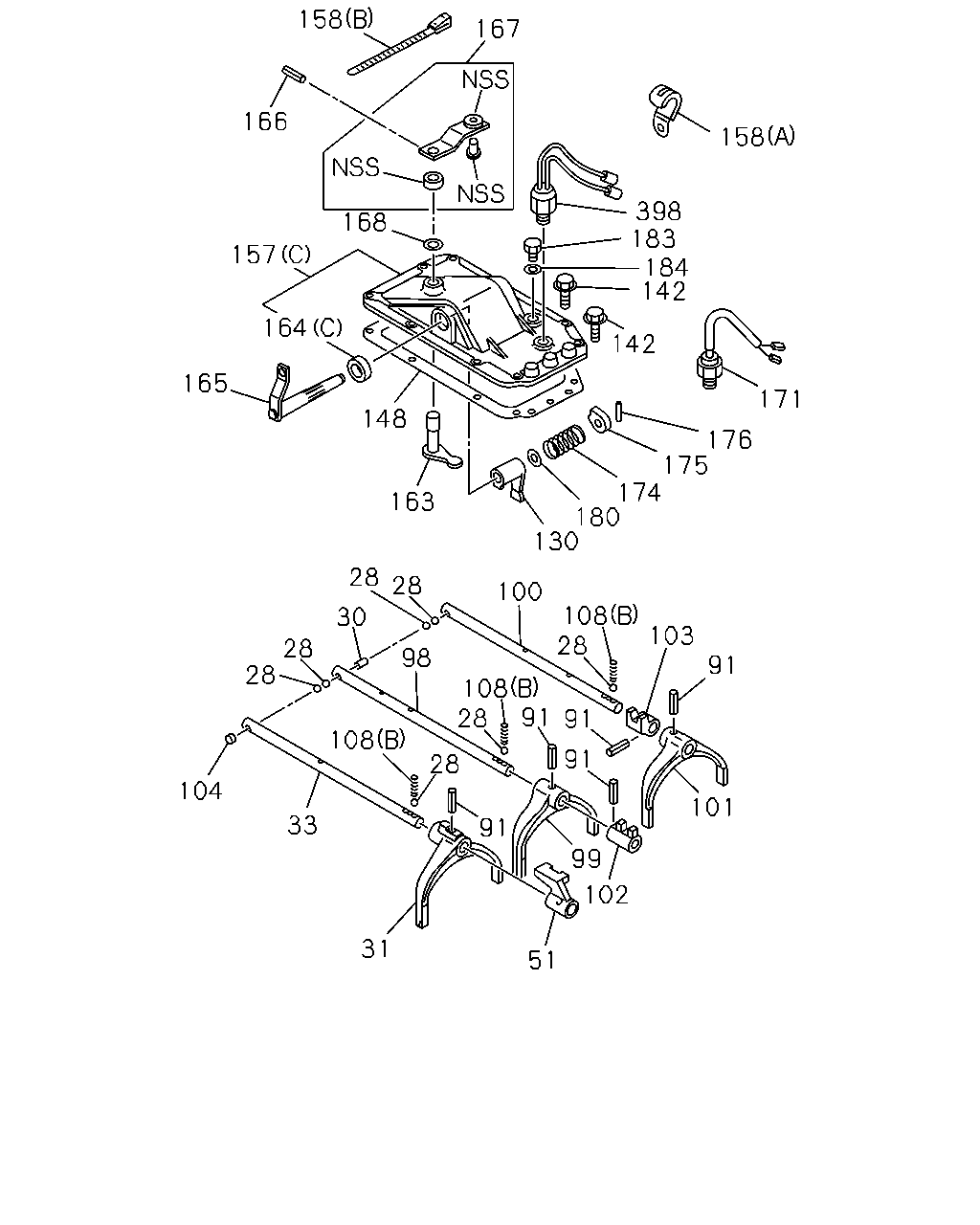

158 167 166 158 398 183 184 142 168 157 164 142 165 171 148 176 175 174 180 130 163 28 28 100 108 28 30 103 28 28 98 91 108 91 108 91 28 104 101 99 33 91 102 31 51 28 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
28	04.311 BALL; INTER LK 4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY)	9-00097-010-0	07	1	9812-0105	●	●	●	●
28	04.311 BALL; INTER LK	9-00097-010-0	07	1	0106-		●			●
30	04.307 PIN; INTER LK 04.311	5-33534-001-0	01	1	9812-0105	●			●
30	04.307 PIN; INTER LK 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97035-041-0	01	1	9812-0105		●
30	04.307 PIN; INTER LK 4JH1 ENG(RJX)	8-97035-041-0	01	1	0106-		●
30	04.307 PIN; INTER LK	1-33534-002-0	03	1	9812-0105			●
30	04.307 PIN; INTER LK 4HE1 ENG(RLY)	1-33534-002-0	03	1	0106-					●
31	04.302 ARM; SHIFT,LOW & 2ND	8-97011-365-1	01	1	9812-0105	●			●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97011-370-1	01	1	9812-0105	●			●
51	04.303 BLOCK; SHIFT,1ST & 2ND	8-97022-837-2	01	1	9812-0105	●			●
91	04.302 PIN; SPR,SHIFT ARM 04.303 L=25 OD=5	8-94135-771-0	06	1	9812-0105	●			●
91	04.302 PIN; SPR,SHIFT ARM 4JH1 ENG(RJX) 04.303 L=25 OD=5	8-94135-771-0	03	1	0106-		●
91	04.302 PIN; SPR,SHIFT ARM 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.303 L=25 OD=5	8-94135-771-0	03	1	9812-0105		●
91	04.302 PIN; SPR,SHIFT ARM 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) L=32	8-97011-596-2	02	1	9812-0105		●
91	04.302 PIN; SPR,SHIFT ARM 4JH1 ENG(RJX) L=32	8-97011-596-2	02	1	0106-		●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97011-371-1	01	1	9812-0105	●			●
99	04.302 ARM; SHIFT,4TH & 3RD	8-97011-366-1	01	1	9812-0105	●			●
100	04.309 ROD; SHIFT,REV & 5TH	8-94316-923-0	01	1	9812-0105	●			●
101	04.302 ARM; SHIFT,REV & 5TH	8-97107-545-0	01	1	9812-0105	●			●
102	04.303 BLOCK; SHIFT,3RD & 4TH	8-97017-573-1	01	1	9812-0105	●			●
103	04.303 BLOCK; SHIFT,REV TO OD	8-94135-719-4	01	1	9812-0105	●			●
104	04.311 PLUG; PLATE 04.105 OD=16	9-09201-316-0	01	1	9812-9905	●
104	04.311 PLUG; PLATE 04.105 OD=16	9-09201-316-0	01	1	9906-0105				●
108	04.311 SPRING; LOCK BALL 4JG2 ENG(RJC),4JB1 ENG(RLF) (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9812-0105	●			●
108	04.311 SPRING; LOCK BALL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9812-0105		●
108	04.311 SPRING; LOCK BALL 4JH1 ENG(RJX) (B) OD=6.8 L=31.6	9-09740-114-0	03	1	0106-		●
108	04.311 SPRING; LOCK BALL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (A)	8-97035-053-0	01	1	9812-0105		●
108	04.311 SPRING; LOCK BALL 4JH1 ENG(RJX) (A)	8-97035-053-0	01	1	0106-		●
130	04.302 LEVER; SHIFT,INTERNAL	8-94105-141-2	01	1	9812-0105	●			●
130	04.302 LEVER; SHIFT,INTERNAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94340-131-2	01	1	9812-0105		●
130	04.302 LEVER; SHIFT,INTERNAL 4JH1 ENG(RJX)	8-94340-131-2	01	1	0106-		●
130	04.302 LEVER; SHIFT,INTERNAL	1-33521-131-1	01	1	9812-0105			●
130	04.302 LEVER; SHIFT,INTERNAL 4HE1 ENG(RLY)	1-33521-131-1	01	1	0106-					●
130	04.302 LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	0208-						●
142	04.012 BOLT; QUAD BOX 04.105 M8X25	8-94128-786-0	08	1	9812-0105	●			●
142	04.012 BOLT; QUAD BOX 04.105 M8X30	8-97029-705-0	02	1	9812-0105	●			●
142	04.012 BOLT; QUAD BOX 00.685 M10X28 FLANGE	0-28181-028-0	15	1	9812-0105			●
142	04.012 BOLT; QUAD BOX 4HE1 ENG(RLY) 00.685 M10X28 FLANGE	0-28181-028-0	15	1	0106-					●
142	04.012 BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-1	02	1	9812-0105			●
142	04.012 BOLT; QUAD BOX 4HE1 ENG(RLY) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0106-					●
142	04.012 BOLT; QUAD BOX 08.900 M10X20,M10X26 L=56	1-09049-014-1	01	1	9812-0105			●
142	04.012 BOLT; QUAD BOX 4HE1 ENG(RLY) 08.900 M10X20,M10X26 L=56	1-09049-014-1	01	1	0106-					●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0208-						●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 04.012	8-94257-162-0	01	1	9812-0105	●			●
157	04.105 BOX; QUAD,TRANS (C)	8-94340-145-0	01	1	9812-0105	●			●
157	04.105 BOX; QUAD,TRANS 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (C)	8-97177-066-0	01	1	9812-0105		●
157	04.105 BOX; QUAD,TRANS 4JH1 ENG(RJX) (C)	8-97249-547-0	01	1	0106-		●
157	04.105 BOX; QUAD,TRANS (A)	1-33541-465-1	01	1	9812-0105			●
157	04.105 BOX; QUAD,TRANS 4HE1 ENG(RLY) (A)	1-33541-521-0	01	1	0106-					●
157	04.105 BOX; QUAD,TRANS (B)	1-33541-503-0	01	1	9812-9903			●
157	04.105 BOX; QUAD,TRANS (B)	1-33541-512-0	01	1	9904-0105			●
157	04.105 BOX; QUAD,TRANS 4HE1 ENG(RLY) (B)	1-33541-512-0	01	1	0106-					●
158	04.105 CLIP; HARNESS 01.152 (A) ID=8.5	5-09700-275-0	01	1	9812-0105	●			●
158	04.105 CLIP; HARNESS 4JH1 ENG(RJX) (C)	8-97300-317-0	01	1	0106-		●
158	04.105 CLIP; HARNESS 03.162 (B) L=140	5-09707-031-1	01	1	9812-0105	●			●
158	04.105 CLIP; HARNESS 04.342 (D)	9-09716-059-0	02	1	9812-0105			●
158	04.105 CLIP; HARNESS 4HE1 ENG(RLY) 04.342 (D)	9-09716-059-0	03	1	0106-					●
163	04.302 LEVER; SELECT,INTERNAL	8-94159-268-1	01	1	9812-0105	●			●
163	04.302 LEVER; SELECT,INTERNAL 4JH1 ENG(RJX)	8-97034-886-0	01	1	0106-		●
163	04.302 LEVER; SELECT,INTERNAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97177-068-1	01	1	9812-0105		●
163	04.302 LEVER; SELECT,INTERNAL	1-33522-130-0	01	1	9812-0105			●
163	04.302 LEVER; SELECT,INTERNAL 4HE1 ENG(RLY)	1-33522-130-0	01	1	0106-					●
163	04.302 LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	0208-						●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 04.309 (C) OD=27	8-94128-784-0	02	1	9812-0011	●			●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (C) OD=27	8-97304-068-0	02	1	0012-0105	●			●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.309 (A) OD=27	8-94128-784-0	01	1	9812-0011		●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (A) OD=27	8-97304-068-0	01	1	0012-0105		●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) (A) OD=27	8-97304-068-0	01	1	0106-		●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (B) OD=32	8-94462-019-0	01	1	9812-0011		●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (B) OD=32	8-97304-066-0	01	1	0012-0105		●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) (B) OD=32	8-97304-066-0	01	1	0106-		●
165	04.302 LEVER; SHIFT	8-97036-221-0	01	1	9812-0105	●			●
165	04.302 LEVER; SHIFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97034-816-0	01	1	9812-0105		●
165	04.302 LEVER; SHIFT 4JH1 ENG(RJX)	8-97034-816-0	01	1	0106-		●
166	04.302 PIN; SPR,SELECT LEVER 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.303 L=25 OD=5	8-94135-771-0	01	1	9812-0105	●			●
166	04.302 PIN; SPR,SELECT LEVER 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.303 L=25 OD=5	8-94135-771-0	01	1	9812-0105		●
166	04.302 PIN; SPR,SELECT LEVER 4JH1 ENG(RJX) 04.303 L=25 OD=5	8-94135-771-0	01	1	0106-		●
167	04.302 LEVER; SELECT,EXTERNAL	8-97035-560-1	01	1	9812-0105	●			●
167	04.302 LEVER; SELECT,EXTERNAL 4JH1 ENG(RJX)	8-97262-957-0	01	1	0106-		●
167	04.302 LEVER; SELECT,EXTERNAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97035-558-1	01	1	9812-0105		●
167	04.302 LEVER; SELECT,EXTERNAL	1-33521-137-1	01	1	9812-0105			●
167	04.302 LEVER; SELECT,EXTERNAL 4HE1 ENG(RLY)	1-33521-137-1	01	1	0106-					●
167	04.302 LEVER; SELECT,EXTERNAL	8-97305-665-0	01	1	0208-						●
168	04.302 WASHER; LK,SELECT LEVER 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94249-250-1	01	1	9812-0105	●			●
168	04.302 WASHER; LK,SELECT LEVER 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94249-250-1	01	1	9812-0105		●
168	04.302 WASHER; LK,SELECT LEVER 4JH1 ENG(RJX)	8-94249-250-1	01	1	0106-		●
171	04.054 SWITCH; NEUTRAL 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97165-946-1	01	1	9812-0105	●			●
171	04.054 SWITCH; NEUTRAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97165-946-1	01	1	9812-0105		●
171	04.054 SWITCH; NEUTRAL 4JH1 ENG(RJX)	8-97165-946-1	01	1	0106-		●
171	04.054 SWITCH; NEUTRAL	1-82340-534-0	01	1	9812-0105			●
171	04.054 SWITCH; NEUTRAL 4HE1 ENG(RLY)	1-82340-534-0	01	1	0106-					●
171	04.054 SWITCH; NEUTRAL	8-97316-688-1	01	1	0208-						●
174	04.307 SPRING; REV	8-97031-927-0	01	1	9812-0105	●			●
174	04.307 SPRING; REV 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97035-052-0	01	1	9812-0105		●
174	04.307 SPRING; REV 4JH1 ENG(RJX)	8-97035-052-0	01	1	0106-		●
175	04.302 RING; STOPPER,SHIFT LEVER	8-94249-048-2	01	1	9812-0105	●			●
175	04.302 RING; STOPPER,SHIFT LEVER 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97034-819-0	01	1	9812-0105		●
175	04.302 RING; STOPPER,SHIFT LEVER 4JH1 ENG(RJX)	8-97034-819-0	01	1	0106-		●
176	04.302 PIN; SPR,STOPPER 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.555 L=30 OD=4	9-09678-549-0	02	1	9812-0105	●			●
176	04.302 PIN; SPR,STOPPER 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.555 L=30 OD=4	9-09678-549-0	02	1	9812-0105		●
176	04.302 PIN; SPR,STOPPER 4JH1 ENG(RJX) 04.555 L=30 OD=4	9-09678-549-0	02	1	0106-		●
180	04.302 WASHER; REV STOP SPRING 04.307	8-94249-244-0	01	1	9812-0105	●			●
183	04.105 PLUG; SCREW,OIL FILTER M18	8-94337-946-1	01	1	9812-0105	●			●
184	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 04.422 ID=15.3	8-94336-511-0	01	1	9812-0105	●			●
398	02.698 SWITCH; REV LAMP 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97165-947-1	01	1	9812-0105	●			●
398	02.698 SWITCH; REV LAMP 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97165-947-1	01	1	9812-0105		●
398	02.698 SWITCH; REV LAMP 4JH1 ENG(RJX)	8-97165-947-1	01	1	0106-		●
398	02.698 SWITCH; REV LAMP	1-82440-083-2	01	1	9812-0105			●
398	02.698 SWITCH; REV LAMP 4HE1 ENG(RLY)	1-82440-083-3	01	1	0106-					●
398	02.698 SWITCH; REV LAMP 04.054	8-97316-688-1	01	1	0208-						●

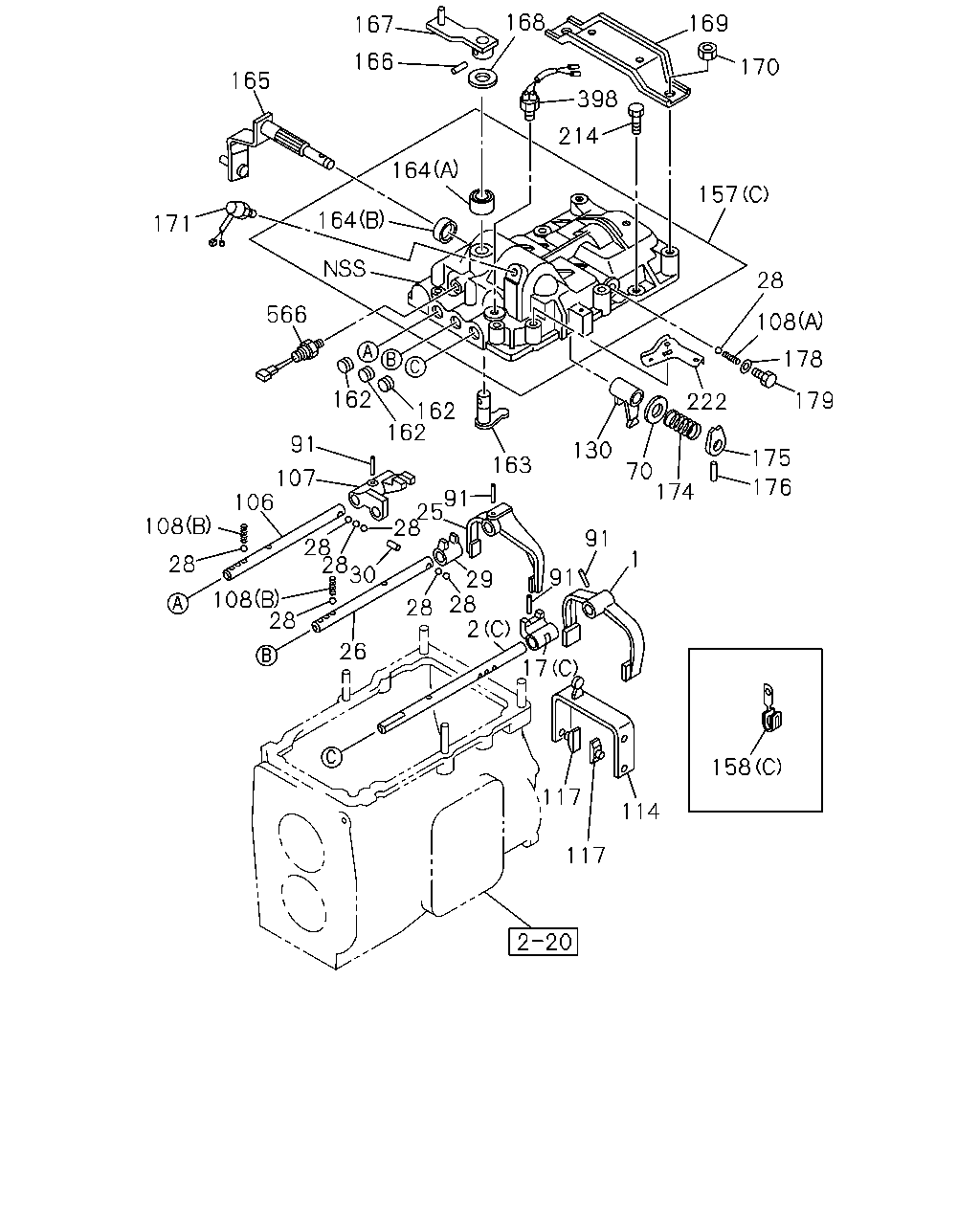

168 169 167 166 170 165 398 214 164 157 164 171 28 566 108 178 162 179 222 162 162 91 130 175 163 70 174 107 106 176 91 25 28 108 91 28 28 30 1 28 91 29 28 2 108 28 28 17 26 158 117 114 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.302 ARM; SHIFT,1ST & REV 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97034-825-1	01	1	9812-0105		●
1	04.302 ARM; SHIFT,1ST & REV 4JH1 ENG(RJX)	8-97034-825-1	01	1	0106-		●
1	04.302 ARM; SHIFT,1ST & REV	1-33511-502-1	01	1	9812-0105			●
1	04.302 ARM; SHIFT,1ST & REV 4HE1 ENG(RLY)	1-33511-502-1	01	1	0106-					●
1	04.302 ARM; SHIFT,1ST & REV	8-97241-319-2	01	1	0208-						●
2	04.309 ROD; SHIFT,1ST & REV 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (C)	8-97034-820-0	01	1	9812-0105		●
2	04.309 ROD; SHIFT,1ST & REV 4JH1 ENG(RJX) (C)	8-97034-820-0	01	1	0106-		●
2	04.309 ROD; SHIFT,1ST & REV (A)	1-33531-360-1	01	1	9812-0105			●
2	04.309 ROD; SHIFT,1ST & REV 4HE1 ENG(RLY) (A)	1-33531-360-1	01	1	0106-					●
2	04.309 ROD; SHIFT,1ST & REV (B)	1-33531-361-1	01	1	9812-0105			●
2	04.309 ROD; SHIFT,1ST & REV 4HE1 ENG(RLY) (B)	1-33531-361-1	01	1	0106-					●
17	04.303 BLOCK; SHIFT,1ST & REV 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (C)	8-97034-829-1	01	1	9812-0105		●
17	04.303 BLOCK; SHIFT,1ST & REV 4JH1 ENG(RJX) (C)	8-97034-829-1	01	1	0106-		●
17	04.303 BLOCK; SHIFT,1ST & REV (B)	1-33511-432-1	01	1	9812-0105			●
17	04.303 BLOCK; SHIFT,1ST & REV 4HE1 ENG(RLY) (B)	1-33511-432-1	01	1	0106-					●
17	04.303 BLOCK; SHIFT,1ST & REV (A)	1-33511-578-1	01	1	9812-0105			●
17	04.303 BLOCK; SHIFT,1ST & REV 4HE1 ENG(RLY) (A)	1-33511-578-1	01	1	0106-					●
25	04.302 ARM; SHIFT,2ND & 3RD 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97034-826-2	01	1	9812-0105		●
25	04.302 ARM; SHIFT,2ND & 3RD 4JH1 ENG(RJX)	8-97034-826-2	01	1	0106-		●
25	04.302 ARM; SHIFT,2ND & 3RD	1-33511-580-1	01	1	9812-0105			●
25	04.302 ARM; SHIFT,2ND & 3RD 4HE1 ENG(RLY)	1-33511-580-1	01	1	0106-					●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97258-708-1	01	1	0208-						●
26	04.309 ROD; SHIFT,2ND & 3RD 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97129-493-0	01	1	9812-0105		●
26	04.309 ROD; SHIFT,2ND & 3RD 4JH1 ENG(RJX)	8-97129-493-0	01	1	0106-		●
26	04.309 ROD; SHIFT,2ND & 3RD	1-33531-384-0	01	1	9812-0105			●
26	04.309 ROD; SHIFT,2ND & 3RD 4HE1 ENG(RLY)	1-33531-384-0	01	1	0106-					●
28	04.311 BALL; INTER LK 4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY)	9-00097-010-0	07	1	9812-0105	●	●	●	●
28	04.311 BALL; INTER LK	9-00097-010-0	07	1	0106-		●			●
29	04.303 BLOCK; SHIFT,2ND & 3RD 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97034-830-0	01	1	9812-0105		●
29	04.303 BLOCK; SHIFT,2ND & 3RD 4JH1 ENG(RJX)	8-97034-830-0	01	1	0106-		●
30	04.307 PIN; INTER LK 04.311	5-33534-001-0	01	1	9812-0105	●			●
30	04.307 PIN; INTER LK 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97035-041-0	01	1	9812-0105		●
30	04.307 PIN; INTER LK 4JH1 ENG(RJX)	8-97035-041-0	01	1	0106-		●
30	04.307 PIN; INTER LK	1-33534-002-0	03	1	9812-0105			●
30	04.307 PIN; INTER LK 4HE1 ENG(RLY)	1-33534-002-0	03	1	0106-					●
70	04.302 WASHER; PL,SHIFT LEVER 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94461-345-0	01	1	9812-0105		●
70	04.302 WASHER; PL,SHIFT LEVER 4JH1 ENG(RJX)	8-94461-345-0	01	1	0106-		●
91	04.302 PIN; SPR,SHIFT ARM 04.303 L=25 OD=5	8-94135-771-0	06	1	9812-0105	●			●
91	04.302 PIN; SPR,SHIFT ARM 4JH1 ENG(RJX) 04.303 L=25 OD=5	8-94135-771-0	03	1	0106-		●
91	04.302 PIN; SPR,SHIFT ARM 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.303 L=25 OD=5	8-94135-771-0	03	1	9812-0105		●
91	04.302 PIN; SPR,SHIFT ARM 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) L=32	8-97011-596-2	02	1	9812-0105		●
91	04.302 PIN; SPR,SHIFT ARM 4JH1 ENG(RJX) L=32	8-97011-596-2	02	1	0106-		●
106	04.309 ROD; SHIFT,OD TO TOP 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97166-578-0	01	1	9812-0105		●
106	04.309 ROD; SHIFT,OD TO TOP 4JH1 ENG(RJX)	8-97166-578-0	01	1	0106-		●
107	04.303 BLOCK; SHIFT,OD TO TOP 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97034-832-0	01	1	9812-0105		●
107	04.303 BLOCK; SHIFT,OD TO TOP 4JH1 ENG(RJX)	8-97034-832-0	01	1	0106-		●
108	04.311 SPRING; LOCK BALL 4JG2 ENG(RJC),4JB1 ENG(RLF) (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9812-0105	●			●
108	04.311 SPRING; LOCK BALL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9812-0105		●
108	04.311 SPRING; LOCK BALL 4JH1 ENG(RJX) (B) OD=6.8 L=31.6	9-09740-114-0	03	1	0106-		●
108	04.311 SPRING; LOCK BALL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (A)	8-97035-053-0	01	1	9812-0105		●
108	04.311 SPRING; LOCK BALL 4JH1 ENG(RJX) (A)	8-97035-053-0	01	1	0106-		●
114	04.302 ARM; SHIFT,OD TO TOP 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97034-827-1	01	1	9812-0105		●
114	04.302 ARM; SHIFT,OD TO TOP 4JH1 ENG(RJX)	8-97034-827-1	01	1	0106-		●
117	04.302 PIECE; SHIFT,OD TO TOP 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94316-996-0	02	1	9812-0105		●
117	04.302 PIECE; SHIFT,OD TO TOP 4JH1 ENG(RJX)	8-94316-996-0	02	1	0106-		●
130	04.302 LEVER; SHIFT,INTERNAL	8-94105-141-2	01	1	9812-0105	●			●
130	04.302 LEVER; SHIFT,INTERNAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94340-131-2	01	1	9812-0105		●
130	04.302 LEVER; SHIFT,INTERNAL 4JH1 ENG(RJX)	8-94340-131-2	01	1	0106-		●
130	04.302 LEVER; SHIFT,INTERNAL	1-33521-131-1	01	1	9812-0105			●
130	04.302 LEVER; SHIFT,INTERNAL 4HE1 ENG(RLY)	1-33521-131-1	01	1	0106-					●
130	04.302 LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	0208-						●
157	04.105 BOX; QUAD,TRANS (C)	8-94340-145-0	01	1	9812-0105	●			●
157	04.105 BOX; QUAD,TRANS 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (C)	8-97177-066-0	01	1	9812-0105		●
157	04.105 BOX; QUAD,TRANS 4JH1 ENG(RJX) (C)	8-97249-547-0	01	1	0106-		●
157	04.105 BOX; QUAD,TRANS (A)	1-33541-465-1	01	1	9812-0105			●
157	04.105 BOX; QUAD,TRANS 4HE1 ENG(RLY) (A)	1-33541-521-0	01	1	0106-					●
157	04.105 BOX; QUAD,TRANS (B)	1-33541-503-0	01	1	9812-9903			●
157	04.105 BOX; QUAD,TRANS (B)	1-33541-512-0	01	1	9904-0105			●
157	04.105 BOX; QUAD,TRANS 4HE1 ENG(RLY) (B)	1-33541-512-0	01	1	0106-					●
158	04.105 CLIP; HARNESS 01.152 (A) ID=8.5	5-09700-275-0	01	1	9812-0105	●			●
158	04.105 CLIP; HARNESS 4JH1 ENG(RJX) (C)	8-97300-317-0	01	1	0106-		●
158	04.105 CLIP; HARNESS 03.162 (B) L=140	5-09707-031-1	01	1	9812-0105	●			●
158	04.105 CLIP; HARNESS 04.342 (D)	9-09716-059-0	02	1	9812-0105			●
158	04.105 CLIP; HARNESS 4HE1 ENG(RLY) 04.342 (D)	9-09716-059-0	03	1	0106-					●
162	04.105 COVER; SHIFT ROD,QUAD BOX 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94101-319-0	04	1	9812-0105		●
162	04.105 COVER; SHIFT ROD,QUAD BOX 4JH1 ENG(RJX)	8-94101-319-0	04	1	0106-		●
163	04.302 LEVER; SELECT,INTERNAL	8-94159-268-1	01	1	9812-0105	●			●
163	04.302 LEVER; SELECT,INTERNAL 4JH1 ENG(RJX)	8-97034-886-0	01	1	0106-		●
163	04.302 LEVER; SELECT,INTERNAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97177-068-1	01	1	9812-0105		●
163	04.302 LEVER; SELECT,INTERNAL	1-33522-130-0	01	1	9812-0105			●
163	04.302 LEVER; SELECT,INTERNAL 4HE1 ENG(RLY)	1-33522-130-0	01	1	0106-					●
163	04.302 LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	0208-						●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 04.309 (C) OD=27	8-94128-784-0	02	1	9812-0011	●			●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (C) OD=27	8-97304-068-0	02	1	0012-0105	●			●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.309 (A) OD=27	8-94128-784-0	01	1	9812-0011		●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (A) OD=27	8-97304-068-0	01	1	0012-0105		●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) (A) OD=27	8-97304-068-0	01	1	0106-		●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (B) OD=32	8-94462-019-0	01	1	9812-0011		●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (B) OD=32	8-97304-066-0	01	1	0012-0105		●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) (B) OD=32	8-97304-066-0	01	1	0106-		●
165	04.302 LEVER; SHIFT	8-97036-221-0	01	1	9812-0105	●			●
165	04.302 LEVER; SHIFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97034-816-0	01	1	9812-0105		●
165	04.302 LEVER; SHIFT 4JH1 ENG(RJX)	8-97034-816-0	01	1	0106-		●
166	04.302 PIN; SPR,SELECT LEVER 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.303 L=25 OD=5	8-94135-771-0	01	1	9812-0105	●			●
166	04.302 PIN; SPR,SELECT LEVER 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.303 L=25 OD=5	8-94135-771-0	01	1	9812-0105		●
166	04.302 PIN; SPR,SELECT LEVER 4JH1 ENG(RJX) 04.303 L=25 OD=5	8-94135-771-0	01	1	0106-		●
167	04.302 LEVER; SELECT,EXTERNAL	8-97035-560-1	01	1	9812-0105	●			●
167	04.302 LEVER; SELECT,EXTERNAL 4JH1 ENG(RJX)	8-97262-957-0	01	1	0106-		●
167	04.302 LEVER; SELECT,EXTERNAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97035-558-1	01	1	9812-0105		●
167	04.302 LEVER; SELECT,EXTERNAL	1-33521-137-1	01	1	9812-0105			●
167	04.302 LEVER; SELECT,EXTERNAL 4HE1 ENG(RLY)	1-33521-137-1	01	1	0106-					●
167	04.302 LEVER; SELECT,EXTERNAL	8-97305-665-0	01	1	0208-						●
168	04.302 WASHER; LK,SELECT LEVER 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94249-250-1	01	1	9812-0105	●			●
168	04.302 WASHER; LK,SELECT LEVER 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94249-250-1	01	1	9812-0105		●
168	04.302 WASHER; LK,SELECT LEVER 4JH1 ENG(RJX)	8-94249-250-1	01	1	0106-		●
169	00.029 BRACKET; ENG MTG TO TRANS 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94112-892-2	02	1	9812-0105		●
169	00.029 BRACKET; ENG MTG TO TRANS 4JH1 ENG(RJX)	8-94112-892-2	02	1	0106-		●
170	04.105 NUT; CONT BOX 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) M12 FLANGE	8-94249-242-0	04	1	9812-0105		●
170	04.105 NUT; CONT BOX 4JH1 ENG(RJX) M12 FLANGE	8-94249-242-0	04	1	0106-		●
171	04.054 SWITCH; NEUTRAL 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97165-946-1	01	1	9812-0105	●			●
171	04.054 SWITCH; NEUTRAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97165-946-1	01	1	9812-0105		●
171	04.054 SWITCH; NEUTRAL 4JH1 ENG(RJX)	8-97165-946-1	01	1	0106-		●
171	04.054 SWITCH; NEUTRAL	1-82340-534-0	01	1	9812-0105			●
171	04.054 SWITCH; NEUTRAL 4HE1 ENG(RLY)	1-82340-534-0	01	1	0106-					●
171	04.054 SWITCH; NEUTRAL	8-97316-688-1	01	1	0208-						●
174	04.307 SPRING; REV	8-97031-927-0	01	1	9812-0105	●			●
174	04.307 SPRING; REV 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97035-052-0	01	1	9812-0105		●
174	04.307 SPRING; REV 4JH1 ENG(RJX)	8-97035-052-0	01	1	0106-		●
175	04.302 RING; STOPPER,SHIFT LEVER	8-94249-048-2	01	1	9812-0105	●			●
175	04.302 RING; STOPPER,SHIFT LEVER 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97034-819-0	01	1	9812-0105		●
175	04.302 RING; STOPPER,SHIFT LEVER 4JH1 ENG(RJX)	8-97034-819-0	01	1	0106-		●
176	04.302 PIN; SPR,STOPPER 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.555 L=30 OD=4	9-09678-549-0	02	1	9812-0105	●			●
176	04.302 PIN; SPR,STOPPER 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.555 L=30 OD=4	9-09678-549-0	02	1	9812-0105		●
176	04.302 PIN; SPR,STOPPER 4JH1 ENG(RJX) 04.555 L=30 OD=4	9-09678-549-0	02	1	0106-		●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 08.929	9-09571-612-0	01	1	9812-0105		●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) 08.929	9-09571-612-0	01	1	0106-		●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	0208-						●
179	04.311 PLUG; LOCK BALL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97031-668-0	01	1	9812-0105		●
179	04.311 PLUG; LOCK BALL 4JH1 ENG(RJX)	8-97031-668-0	01	1	0106-		●
214	04.510 BOLT; CONT BOX,SUB TRANS 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.105 M8X25	8-94128-786-0	04	1	9812-0105		●
214	04.510 BOLT; CONT BOX,SUB TRANS 4JH1 ENG(RJX) 04.105 M8X25	8-94128-786-0	04	1	0106-		●
214	04.510 BOLT; CONT BOX,SUB TRANS 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.105 M8X45	8-94132-164-0	06	1	9812-0105		●
214	04.510 BOLT; CONT BOX,SUB TRANS 4JH1 ENG(RJX) 04.105 M8X45	8-94132-164-0	06	1	0106-		●
222	04.057 BRACKET; CLIP 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97061-051-0	01	1	9812-0105		●
222	04.057 BRACKET; CLIP 4JH1 ENG(RJX)	8-97061-051-0	01	1	0106-		●
398	02.698 SWITCH; REV LAMP 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97165-947-1	01	1	9812-0105	●			●
398	02.698 SWITCH; REV LAMP 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97165-947-1	01	1	9812-0105		●
398	02.698 SWITCH; REV LAMP 4JH1 ENG(RJX)	8-97165-947-1	01	1	0106-		●
398	02.698 SWITCH; REV LAMP	1-82440-083-2	01	1	9812-0105			●
398	02.698 SWITCH; REV LAMP 4HE1 ENG(RLY)	1-82440-083-3	01	1	0106-					●
398	02.698 SWITCH; REV LAMP 04.054	8-97316-688-1	01	1	0208-						●
566	04.054 SWITCH; SELECT,LOW REV 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.052	8-97177-088-0	01	1	9812-0105		●
566	04.054 SWITCH; SELECT,LOW REV 4HE1 ENG(RLY)	8-97313-465-0	01	1	0106-					●

298 167 293 566 289 390 171 188 374 187 30 30 30 181 289 285 393 28 305 142 271 274 271 157 28 28 28 28 158 28 42 28 42 42 42 221 142 398 157 223 411 38 38 38 339 42 142 38 39 39 39 39 522 163 219 15 227 20 22 130 18 11 272 2 34 26 17 49 13 15 5 2 382 383 1 52 6 52 9 11 25 12 17 52 4 52 7 521 10 217 52 50 4

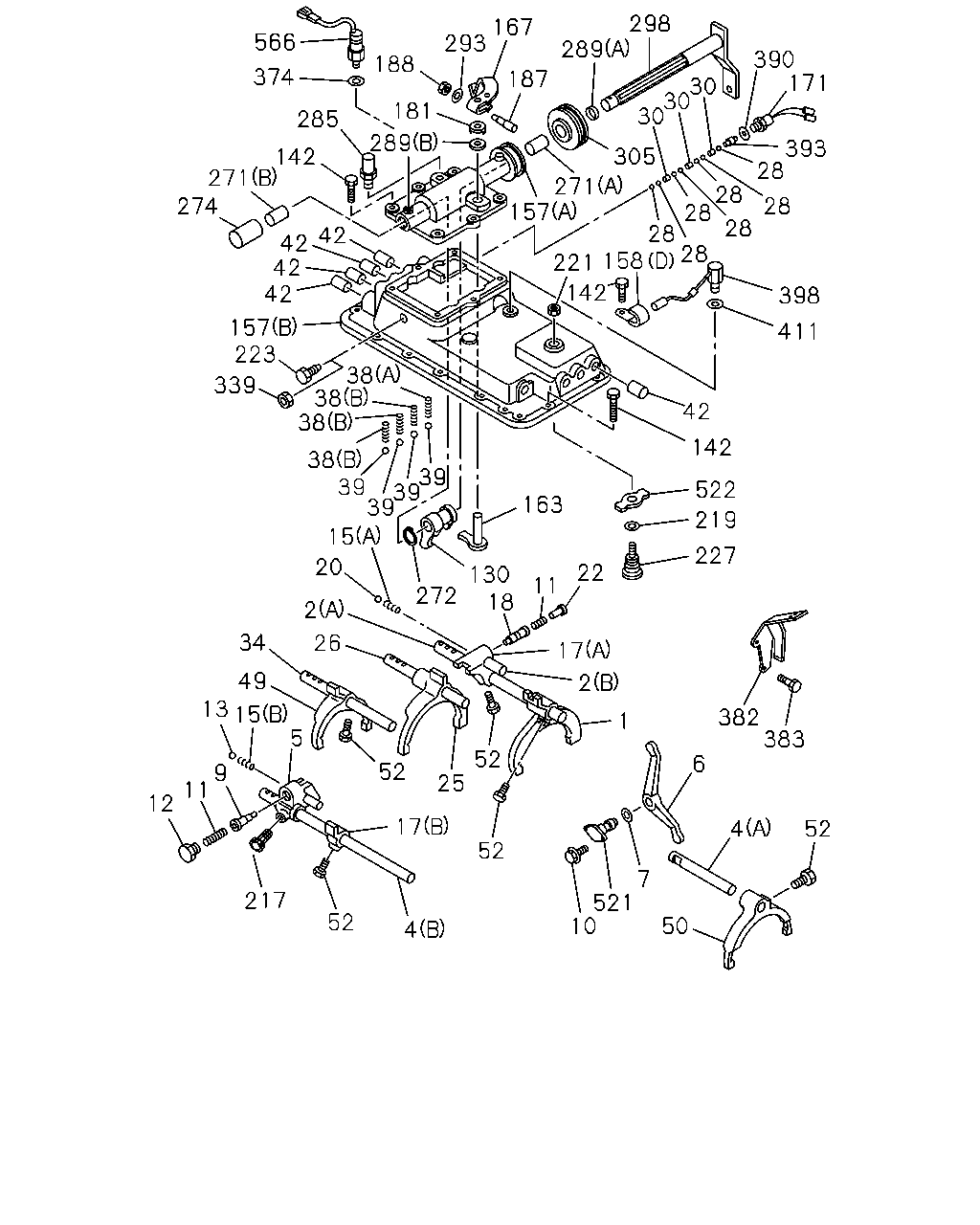

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.302 ARM; SHIFT,1ST & REV 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97034-825-1	01	1	9812-0105		●
1	04.302 ARM; SHIFT,1ST & REV 4JH1 ENG(RJX)	8-97034-825-1	01	1	0106-		●
1	04.302 ARM; SHIFT,1ST & REV	1-33511-502-1	01	1	9812-0105			●
1	04.302 ARM; SHIFT,1ST & REV 4HE1 ENG(RLY)	1-33511-502-1	01	1	0106-					●
1	04.302 ARM; SHIFT,1ST & REV	8-97241-319-2	01	1	0208-						●
2	04.309 ROD; SHIFT,1ST & REV 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (C)	8-97034-820-0	01	1	9812-0105		●
2	04.309 ROD; SHIFT,1ST & REV 4JH1 ENG(RJX) (C)	8-97034-820-0	01	1	0106-		●
2	04.309 ROD; SHIFT,1ST & REV (A)	1-33531-360-1	01	1	9812-0105			●
2	04.309 ROD; SHIFT,1ST & REV 4HE1 ENG(RLY) (A)	1-33531-360-1	01	1	0106-					●
2	04.309 ROD; SHIFT,1ST & REV (B)	1-33531-361-1	01	1	9812-0105			●
2	04.309 ROD; SHIFT,1ST & REV 4HE1 ENG(RLY) (B)	1-33531-361-1	01	1	0106-					●
4	04.309 ROD; SHIFT,6TH (B)	1-33531-341-1	01	1	9812-0105			●
4	04.309 ROD; SHIFT,6TH 4HE1 ENG(RLY) (B)	1-33531-341-1	01	1	0106-					●
4	04.309 ROD; SHIFT,6TH (A)	1-33531-387-0	01	1	9812-0105			●
4	04.309 ROD; SHIFT,6TH 4HE1 ENG(RLY) (A)	1-33531-387-0	01	1	0106-					●
5	04.303 BLOCK; SHIFT,6TH	1-33511-326-1	01	1	9812-0105			●
5	04.303 BLOCK; SHIFT,6TH 4HE1 ENG(RLY)	1-33511-326-1	01	1	0106-					●
6	04.302 LEVER; RELAY	1-33511-462-0	01	1	9812-0005			●
6	04.302 LEVER; RELAY	1-33511-574-0	01	1	0006-0105			●
6	04.302 LEVER; RELAY 4HE1 ENG(RLY)	1-33511-574-0	01	1	0106-					●
7	04.302 GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). 01.456 ID=24.4	1-09623-183-0	01	1	9812-9908			●
7	04.302 GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). 01.456 ID=24.4	1-09623-057-0	01	1	9909-0105			●
7	04.302 GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) 01.456 ID=24.4	1-09623-057-0	01	1	0106-					●
9	04.307 SLEEVE; 6TH,SHIFT BLOCK	1-33516-029-0	01	1	9812-0105			●
9	04.307 SLEEVE; 6TH,SHIFT BLOCK 4HE1 ENG(RLY)	1-33516-029-0	01	1	0106-					●
10	04.302 BOLT; SPINDLE 09.171 M14X20	1-09044-078-0	02	1	9812-0105			●
10	04.302 BOLT; SPINDLE 4HE1 ENG(RLY) 09.171 M14X20	1-09044-078-0	02	1	0106-					●
11	04.307 SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	02	1	9812-0105			●
11	04.307 SPRING; RETURN,SHIFT SLEEVE 4HE1 ENG(RLY)	9-09941-160-0	02	1	0106-					●
12	04.307 CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9812-0105			●
12	04.307 CAP; RETURN SPR,SHIFT BLOCK 4HE1 ENG(RLY)	9-33516-060-1	01	1	0106-					●
13	04.311 BALL; LK,SHIFT SLEEVE	9-00097-009-0	01	1	9812-0105			●
13	04.311 BALL; LK,SHIFT SLEEVE 4HE1 ENG(RLY)	9-00097-009-0	01	1	0106-					●
15	04.307 SPRING; LK,SHIFT SLEEVE (A)	1-09580-445-0	01	1	9812-0105			●
15	04.307 SPRING; LK,SHIFT SLEEVE 4HE1 ENG(RLY) (A)	1-09580-445-0	01	1	0106-					●
15	04.307 SPRING; LK,SHIFT SLEEVE (B)	1-09580-526-0	01	1	9812-0105			●
15	04.307 SPRING; LK,SHIFT SLEEVE 4HE1 ENG(RLY) (B)	1-09580-526-0	01	1	0106-					●
17	04.303 BLOCK; SHIFT,1ST & REV 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (C)	8-97034-829-1	01	1	9812-0105		●
17	04.303 BLOCK; SHIFT,1ST & REV 4JH1 ENG(RJX) (C)	8-97034-829-1	01	1	0106-		●
17	04.303 BLOCK; SHIFT,1ST & REV (B)	1-33511-432-1	01	1	9812-0105			●
17	04.303 BLOCK; SHIFT,1ST & REV 4HE1 ENG(RLY) (B)	1-33511-432-1	01	1	0106-					●
17	04.303 BLOCK; SHIFT,1ST & REV (A)	1-33511-578-1	01	1	9812-0105			●
17	04.303 BLOCK; SHIFT,1ST & REV 4HE1 ENG(RLY) (A)	1-33511-578-1	01	1	0106-					●
18	04.307 SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-029-0	01	1	9812-0105			●
18	04.307 SLEEVE; 1ST & REV,SHIFT BLOCK 4HE1 ENG(RLY)	1-33516-029-0	01	1	0106-					●
20	04.311 BALL; DETENT SLEEVE	9-00097-009-0	01	1	9812-0105			●
20	04.311 BALL; DETENT SLEEVE 4HE1 ENG(RLY)	9-00097-009-0	01	1	0106-					●
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9812-0105			●
22	04.307 CAP; RETURN SPR,SHIFT BLOCK 4HE1 ENG(RLY)	9-33516-060-1	01	1	0106-					●
25	04.302 ARM; SHIFT,2ND & 3RD 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97034-826-2	01	1	9812-0105		●
25	04.302 ARM; SHIFT,2ND & 3RD 4JH1 ENG(RJX)	8-97034-826-2	01	1	0106-		●
25	04.302 ARM; SHIFT,2ND & 3RD	1-33511-580-1	01	1	9812-0105			●
25	04.302 ARM; SHIFT,2ND & 3RD 4HE1 ENG(RLY)	1-33511-580-1	01	1	0106-					●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97258-708-1	01	1	0208-						●
26	04.309 ROD; SHIFT,2ND & 3RD 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97129-493-0	01	1	9812-0105		●
26	04.309 ROD; SHIFT,2ND & 3RD 4JH1 ENG(RJX)	8-97129-493-0	01	1	0106-		●
26	04.309 ROD; SHIFT,2ND & 3RD	1-33531-384-0	01	1	9812-0105			●
26	04.309 ROD; SHIFT,2ND & 3RD 4HE1 ENG(RLY)	1-33531-384-0	01	1	0106-					●
28	04.311 BALL; INTER LK 4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY)	9-00097-010-0	07	1	9812-0105	●	●	●	●
28	04.311 BALL; INTER LK	9-00097-010-0	07	1	0106-		●			●
30	04.307 PIN; INTER LK 04.311	5-33534-001-0	01	1	9812-0105	●			●
30	04.307 PIN; INTER LK 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97035-041-0	01	1	9812-0105		●
30	04.307 PIN; INTER LK 4JH1 ENG(RJX)	8-97035-041-0	01	1	0106-		●
30	04.307 PIN; INTER LK	1-33534-002-0	03	1	9812-0105			●
30	04.307 PIN; INTER LK 4HE1 ENG(RLY)	1-33534-002-0	03	1	0106-					●
34	04.309 ROD; SHIFT,4TH & 5TH ARM	1-33531-385-0	01	1	9812-0105			●
34	04.309 ROD; SHIFT,4TH & 5TH ARM 4HE1 ENG(RLY)	1-33531-385-0	01	1	0106-					●
38	04.311 SPRING; DETENT (A)	1-09580-374-0	01	1	9812-0105			●
38	04.311 SPRING; DETENT 4HE1 ENG(RLY) (A)	1-09580-374-0	01	1	0106-					●
38	04.311 SPRING; DETENT (B)	1-09580-548-0	03	1	9812-0105			●
38	04.311 SPRING; DETENT 4HE1 ENG(RLY) (B)	1-09580-548-0	03	1	0106-					●
39	04.307 BALL; DETENT	9-00097-013-0	04	1	9812-0105			●
39	04.307 BALL; DETENT 4HE1 ENG(RLY)	9-00097-013-0	04	1	0106-					●
42	04.105 CAP; QUAD BOX OD=20	1-33545-002-1	08	1	9812-0105			●
42	04.105 CAP; QUAD BOX 4HE1 ENG(RLY) OD=20	1-33545-002-1	08	1	0106-					●
49	04.302 ARM; SHIFT,4TH & 5TH	1-33511-581-1	01	1	9812-0105			●
49	04.302 ARM; SHIFT,4TH & 5TH 4HE1 ENG(RLY)	1-33511-581-1	01	1	0106-					●
49	04.302 ARM; SHIFT,4TH & 5TH	8-97258-709-2	01	1	0208-						●
50	04.302 ARM; SHIFT,6TH	1-33511-477-0	01	1	9812-0105			●
50	04.302 ARM; SHIFT,6TH 4HE1 ENG(RLY)	1-33511-477-0	01	1	0106-					●
50	04.302 ARM; SHIFT,6TH	8-97241-324-1	01	1	0208-						●
52	04.302 BOLT; SHIFT ARM	1-09052-034-2	07	1	9812-0105			●
52	04.302 BOLT; SHIFT ARM 4HE1 ENG(RLY)	1-09052-034-2	07	1	0106-					●
130	04.302 LEVER; SHIFT,INTERNAL	8-94105-141-2	01	1	9812-0105	●			●
130	04.302 LEVER; SHIFT,INTERNAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94340-131-2	01	1	9812-0105		●
130	04.302 LEVER; SHIFT,INTERNAL 4JH1 ENG(RJX)	8-94340-131-2	01	1	0106-		●
130	04.302 LEVER; SHIFT,INTERNAL	1-33521-131-1	01	1	9812-0105			●
130	04.302 LEVER; SHIFT,INTERNAL 4HE1 ENG(RLY)	1-33521-131-1	01	1	0106-					●
130	04.302 LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	0208-						●
142	04.012 BOLT; QUAD BOX 04.105 M8X25	8-94128-786-0	08	1	9812-0105	●			●
142	04.012 BOLT; QUAD BOX 04.105 M8X30	8-97029-705-0	02	1	9812-0105	●			●
142	04.012 BOLT; QUAD BOX 00.685 M10X28 FLANGE	0-28181-028-0	15	1	9812-0105			●
142	04.012 BOLT; QUAD BOX 4HE1 ENG(RLY) 00.685 M10X28 FLANGE	0-28181-028-0	15	1	0106-					●
142	04.012 BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-1	02	1	9812-0105			●
142	04.012 BOLT; QUAD BOX 4HE1 ENG(RLY) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0106-					●
142	04.012 BOLT; QUAD BOX 08.900 M10X20,M10X26 L=56	1-09049-014-1	01	1	9812-0105			●
142	04.012 BOLT; QUAD BOX 4HE1 ENG(RLY) 08.900 M10X20,M10X26 L=56	1-09049-014-1	01	1	0106-					●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0208-						●
157	04.105 BOX; QUAD,TRANS (C)	8-94340-145-0	01	1	9812-0105	●			●
157	04.105 BOX; QUAD,TRANS 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (C)	8-97177-066-0	01	1	9812-0105		●
157	04.105 BOX; QUAD,TRANS 4JH1 ENG(RJX) (C)	8-97249-547-0	01	1	0106-		●
157	04.105 BOX; QUAD,TRANS (A)	1-33541-465-1	01	1	9812-0105			●
157	04.105 BOX; QUAD,TRANS 4HE1 ENG(RLY) (A)	1-33541-521-0	01	1	0106-					●
157	04.105 BOX; QUAD,TRANS (B)	1-33541-503-0	01	1	9812-9903			●
157	04.105 BOX; QUAD,TRANS (B)	1-33541-512-0	01	1	9904-0105			●
157	04.105 BOX; QUAD,TRANS 4HE1 ENG(RLY) (B)	1-33541-512-0	01	1	0106-					●
158	04.105 CLIP; HARNESS 01.152 (A) ID=8.5	5-09700-275-0	01	1	9812-0105	●			●
158	04.105 CLIP; HARNESS 4JH1 ENG(RJX) (C)	8-97300-317-0	01	1	0106-		●
158	04.105 CLIP; HARNESS 03.162 (B) L=140	5-09707-031-1	01	1	9812-0105	●			●
158	04.105 CLIP; HARNESS 04.342 (D)	9-09716-059-0	02	1	9812-0105			●
158	04.105 CLIP; HARNESS 4HE1 ENG(RLY) 04.342 (D)	9-09716-059-0	03	1	0106-					●
163	04.302 LEVER; SELECT,INTERNAL	8-94159-268-1	01	1	9812-0105	●			●
163	04.302 LEVER; SELECT,INTERNAL 4JH1 ENG(RJX)	8-97034-886-0	01	1	0106-		●
163	04.302 LEVER; SELECT,INTERNAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97177-068-1	01	1	9812-0105		●
163	04.302 LEVER; SELECT,INTERNAL	1-33522-130-0	01	1	9812-0105			●
163	04.302 LEVER; SELECT,INTERNAL 4HE1 ENG(RLY)	1-33522-130-0	01	1	0106-					●
163	04.302 LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	0208-						●
167	04.302 LEVER; SELECT,EXTERNAL	8-97035-560-1	01	1	9812-0105	●			●
167	04.302 LEVER; SELECT,EXTERNAL 4JH1 ENG(RJX)	8-97262-957-0	01	1	0106-		●
167	04.302 LEVER; SELECT,EXTERNAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97035-558-1	01	1	9812-0105		●
167	04.302 LEVER; SELECT,EXTERNAL	1-33521-137-1	01	1	9812-0105			●
167	04.302 LEVER; SELECT,EXTERNAL 4HE1 ENG(RLY)	1-33521-137-1	01	1	0106-					●
167	04.302 LEVER; SELECT,EXTERNAL	8-97305-665-0	01	1	0208-						●
171	04.054 SWITCH; NEUTRAL 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97165-946-1	01	1	9812-0105	●			●
171	04.054 SWITCH; NEUTRAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97165-946-1	01	1	9812-0105		●
171	04.054 SWITCH; NEUTRAL 4JH1 ENG(RJX)	8-97165-946-1	01	1	0106-		●
171	04.054 SWITCH; NEUTRAL	1-82340-534-0	01	1	9812-0105			●
171	04.054 SWITCH; NEUTRAL 4HE1 ENG(RLY)	1-82340-534-0	01	1	0106-					●
171	04.054 SWITCH; NEUTRAL	8-97316-688-1	01	1	0208-						●
181	04.302 WASHER; PL,SELECT LEVER OD=37	1-09532-007-0	01	1	9812-0105			●
181	04.302 WASHER; PL,SELECT LEVER 4HE1 ENG(RLY) OD=37	1-09532-007-0	01	1	0106-					●
181	04.302 WASHER; PL,SELECT LEVER	1-09503-280-0	01	1	0208-						●
187	04.302 BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9812-0105			●
187	04.302 BOLT; SELECT LEVER 4HE1 ENG(RLY) M8X42	1-33659-045-0	01	1	0106-					●
188	04.302 NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	9812-0105			●
188	04.302 NUT; SELECT LEVER 4HE1 ENG(RLY) M8 FLANGE	1-09440-062-1	01	1	0106-					●
217	04.312 SCREW; SET,6TH SHIFT BLOCK M8X12.5	9-09814-533-0	01	1	9812-0105			●
217	04.312 SCREW; SET,6TH SHIFT BLOCK 4HE1 ENG(RLY) M8X12.5	9-09814-533-0	01	1	0106-					●
219	04.302 WASHER; PL,SPINDLE ID=14	9-09851-275-0	01	1	9812-0105			●
219	04.302 WASHER; PL,SPINDLE 4HE1 ENG(RLY) ID=14	9-09851-275-0	01	1	0106-					●
221	04.302 NUT; SPINDLE 04.785 M10 FLANGE	0-91150-110-0	01	1	9812-0105			●
221	04.302 NUT; SPINDLE 4HE1 ENG(RLY) 04.785 M10 FLANGE	0-91150-110-0	01	1	0106-					●
223	04.105 SCREW; SET,QUAD BOX 04.312 M8X12.5	9-09814-533-0	01	1	9812-9902			●
223	04.105 SCREW; SET,QUAD BOX 02.183 M8X35 FLANGE	0-28680-835-0	01	1	9903-9903			●
223	04.105 SCREW; SET,QUAD BOX 04.312 M8X12.5	9-09814-533-0	01	1	9904-0105			●
223	04.105 SCREW; SET,QUAD BOX 4HE1 ENG(RLY) 04.312 M8X12.5	9-09814-533-0	01	1	0106-					●
227	04.302 SPINDLE; 1ST & REV	1-33519-130-0	01	1	9812-0105			●
227	04.302 SPINDLE; 1ST & REV 4HE1 ENG(RLY)	1-33519-130-0	01	1	0106-					●
271	04.105 BUSHING; QUAD BOX (A) ID=25 OD=28	1-33549-107-0	01	1	9812-0105			●
271	04.105 BUSHING; QUAD BOX 4HE1 ENG(RLY) (A) ID=25 OD=28	1-33549-107-0	01	1	0106-					●
271	04.105 BUSHING; QUAD BOX (B) ID=17 OD=19	1-33549-108-0	01	1	9812-0105			●
271	04.105 BUSHING; QUAD BOX 4HE1 ENG(RLY) (B) ID=17 OD=19	1-33549-108-0	01	1	0106-					●
272	04.027 RING; SNAP,QUAD BOX 04.302	1-09588-174-0	01	1	9812-0105			●
272	04.027 RING; SNAP,QUAD BOX 4HE1 ENG(RLY) 04.302	1-09588-174-0	01	1	0106-					●
274	04.105 COVER; SHAFT,QUAD BOX OD=24 L=31	9-33545-011-1	01	1	9812-0105			●
274	04.105 COVER; SHAFT,QUAD BOX 4HE1 ENG(RLY) OD=24 L=31	9-33545-011-1	01	1	0106-					●
285	04.104 BREATHER; AIR,QUAD BOX 05.387	1-33149-003-0	01	1	9812-0105			●
285	04.104 BREATHER; AIR,QUAD BOX 4HE1 ENG(RLY) 05.387	1-33149-003-0	01	1	0106-					●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-269-0	01	1	9812-0105			●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) (A)	1-09625-269-0	01	1	0106-					●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09625-369-0	01	1	9812-0105			●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) (B)	1-09625-369-0	01	1	0106-					●
293	04.302 WASHER; PL,TAPER BOLT 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	9812-0105			●
293	04.302 WASHER; PL,TAPER BOLT 4HE1 ENG(RLY) 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0106-					●
298	04.309 SHAFT; SHIFT LEVER	1-33522-115-1	01	1	9812-0105			●
298	04.309 SHAFT; SHIFT LEVER 4HE1 ENG(RLY)	1-33522-176-0	01	1	0106-					●
305	04.107 BOOT; LEVER SHAFT	1-33529-051-0	01	1	9812-0105			●
305	04.107 BOOT; LEVER SHAFT 4HE1 ENG(RLY)	1-33529-051-0	01	1	0106-					●
339	04.105 NUT; QUAD BOX 01.540 M8 FLANGE	0-91150-208-0	01	1	9903-9903			●
374	04.107 GASKET ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) 04.075 ID=14.2	8-94462-114-0	01	1	0106-					●
382	04.105 BRACKET; PARKING BRK CONT CABLE	8-97177-321-1	01	1	9812-0105			●
382	04.105 BRACKET; PARKING BRK CONT CABLE 4HE1 ENG(RLY)	8-97177-321-1	01	1	0106-					●
383	04.105 BOLT; BRKT,PARK BRAKE 03.604 M10X16 FLANGE	0-28181-016-0	01	1	9812-0105			●
383	04.105 BOLT; BRKT,PARK BRAKE 4HE1 ENG(RLY) 03.604 M10X16 FLANGE	0-28181-016-0	01	1	0106-					●
390	04.075 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9812-0105			●
390	04.075 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ID=14.2	8-94462-114-0	01	1	0106-					●
393	02.698 PIN; SW 04.307	1-33534-003-0	01	1	9812-0105			●
393	02.698 PIN; SW 4HE1 ENG(RLY) 04.307	1-33534-003-0	01	1	0106-					●
398	02.698 SWITCH; REV LAMP 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97165-947-1	01	1	9812-0105	●			●
398	02.698 SWITCH; REV LAMP 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97165-947-1	01	1	9812-0105		●
398	02.698 SWITCH; REV LAMP 4JH1 ENG(RJX)	8-97165-947-1	01	1	0106-		●
398	02.698 SWITCH; REV LAMP	1-82440-083-2	01	1	9812-0105			●
398	02.698 SWITCH; REV LAMP 4HE1 ENG(RLY)	1-82440-083-3	01	1	0106-					●
398	02.698 SWITCH; REV LAMP 04.054	8-97316-688-1	01	1	0208-						●
411	02.698 GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	9812-0105			●
411	02.698 GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) 04.075 ID=14.2	8-94462-114-0	01	1	0106-					●
521	04.309 SPINDLE; 6TH	1-33519-008-1	01	1	9812-0105			●
521	04.309 SPINDLE; 6TH 4HE1 ENG(RLY)	1-33519-008-1	01	1	0106-					●
522	16.069 LEVER; SHIFT,1-REV	1-33521-135-0	01	1	9812-0105			●
522	16.069 LEVER; SHIFT,1-REV 4HE1 ENG(RLY)	1-33521-135-0	01	1	0106-					●
566	04.054 SWITCH; SELECT,LOW REV 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.052	8-97177-088-0	01	1	9812-0105		●
566	04.054 SWITCH; SELECT,LOW REV 4HE1 ENG(RLY)	8-97313-465-0	01	1	0106-					●

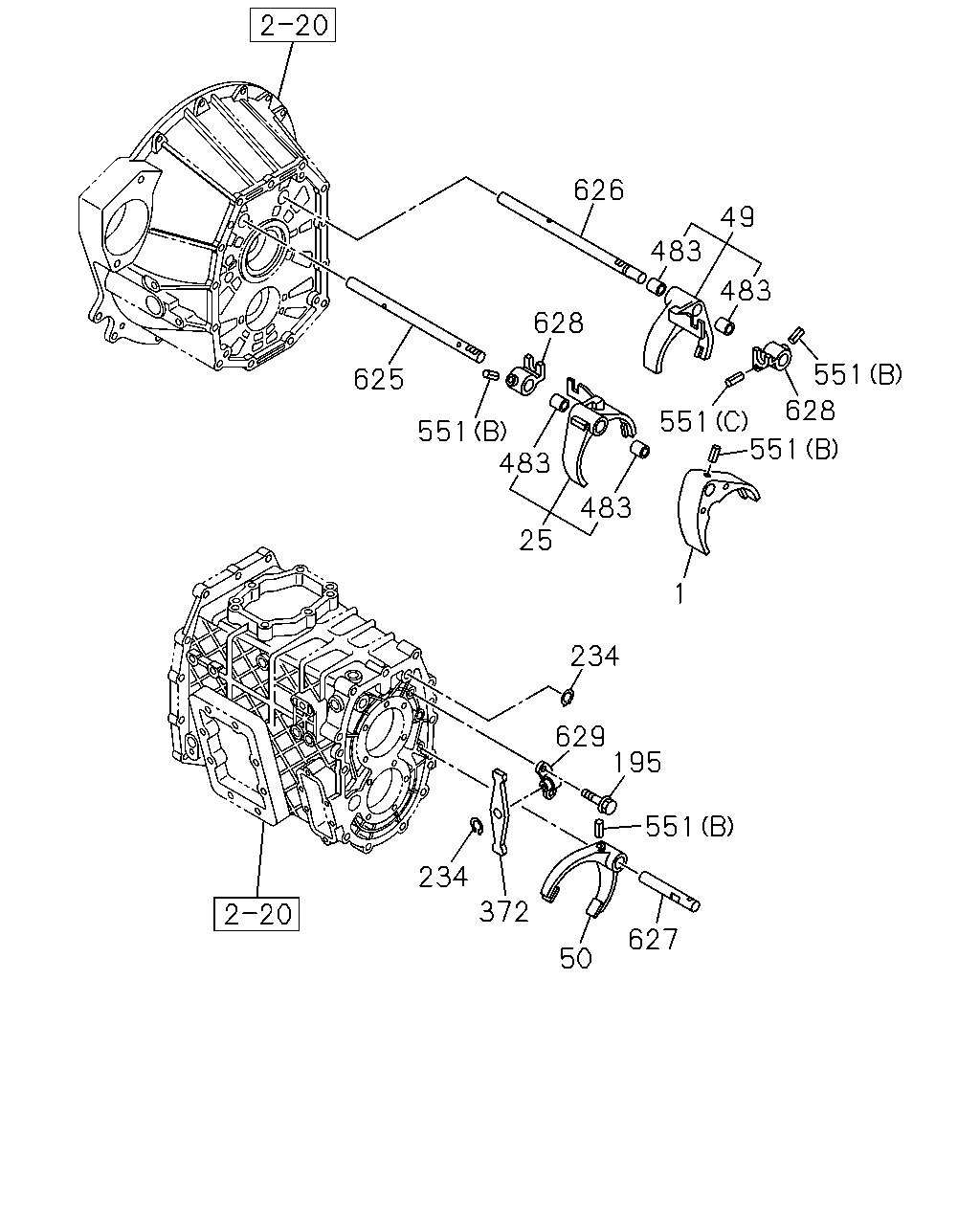

626 49 483 483 628 551 625 628 551 551 551 483 483 25 1 234 629 195 551 234 372 627 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	E	F
1	04.302 ARM; SHIFT,1ST & REV 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97034-825-1	01	1	9812-0105	●
1	04.302 ARM; SHIFT,1ST & REV 4JH1 ENG(RJX)	8-97034-825-1	01	1	0106-	●
1	04.302 ARM; SHIFT,1ST & REV	1-33511-502-1	01	1	9812-0105		●
1	04.302 ARM; SHIFT,1ST & REV 4HE1 ENG(RLY)	1-33511-502-1	01	1	0106-			●
1	04.302 ARM; SHIFT,1ST & REV	8-97241-319-2	01	1	0208-				●
25	04.302 ARM; SHIFT,2ND & 3RD 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97034-826-2	01	1	9812-0105	●
25	04.302 ARM; SHIFT,2ND & 3RD 4JH1 ENG(RJX)	8-97034-826-2	01	1	0106-	●
25	04.302 ARM; SHIFT,2ND & 3RD	1-33511-580-1	01	1	9812-0105		●
25	04.302 ARM; SHIFT,2ND & 3RD 4HE1 ENG(RLY)	1-33511-580-1	01	1	0106-			●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97258-708-1	01	1	0208-				●
49	04.302 ARM; SHIFT,4TH & 5TH	1-33511-581-1	01	1	9812-0105		●
49	04.302 ARM; SHIFT,4TH & 5TH 4HE1 ENG(RLY)	1-33511-581-1	01	1	0106-			●
49	04.302 ARM; SHIFT,4TH & 5TH	8-97258-709-2	01	1	0208-				●
50	04.302 ARM; SHIFT,6TH	1-33511-477-0	01	1	9812-0105		●
50	04.302 ARM; SHIFT,6TH 4HE1 ENG(RLY)	1-33511-477-0	01	1	0106-			●
50	04.302 ARM; SHIFT,6TH	8-97241-324-1	01	1	0208-				●
195	04.105 BOLT 04.012 M10X28 FLANGE REAMER	1-09040-089-1	02	1	0208-				●
234	04.311 RING; SNAP ID=16.5	9-09180-418-0	02	1	0208-				●
372	04.302 LEVER; RELAY,6TH	8-97241-342-0	01	1	0208-				●
483	04.419 BUSHING; SHIFT ARM 00.683	8-97241-326-1	04	1	0208-				●
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	0208-				●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	04	1	0208-				●
551	04.303 PIN; SPRING 04.307 (D) D=4.2 L=25	8-97103-142-0	01	1	0208-				●
551	04.303 PIN; SPRING (C) L=20	8-97241-340-0	01	1	0208-				●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R	8-97241-332-2	01	1	0208-				●
626	04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH	8-97241-334-1	01	1	0208-				●
627	04.309 ROD; GEAR SHIFT,6TH SUB	8-97241-339-0	01	1	0208-				●
628	04.303 BLOCK; SHIFT,LOW,REV & 6TH	8-97241-327-1	02	1	0208-				●
629	04.555 BRIDGE; LEVER	8-97241-345-1	01	1	0208-				●

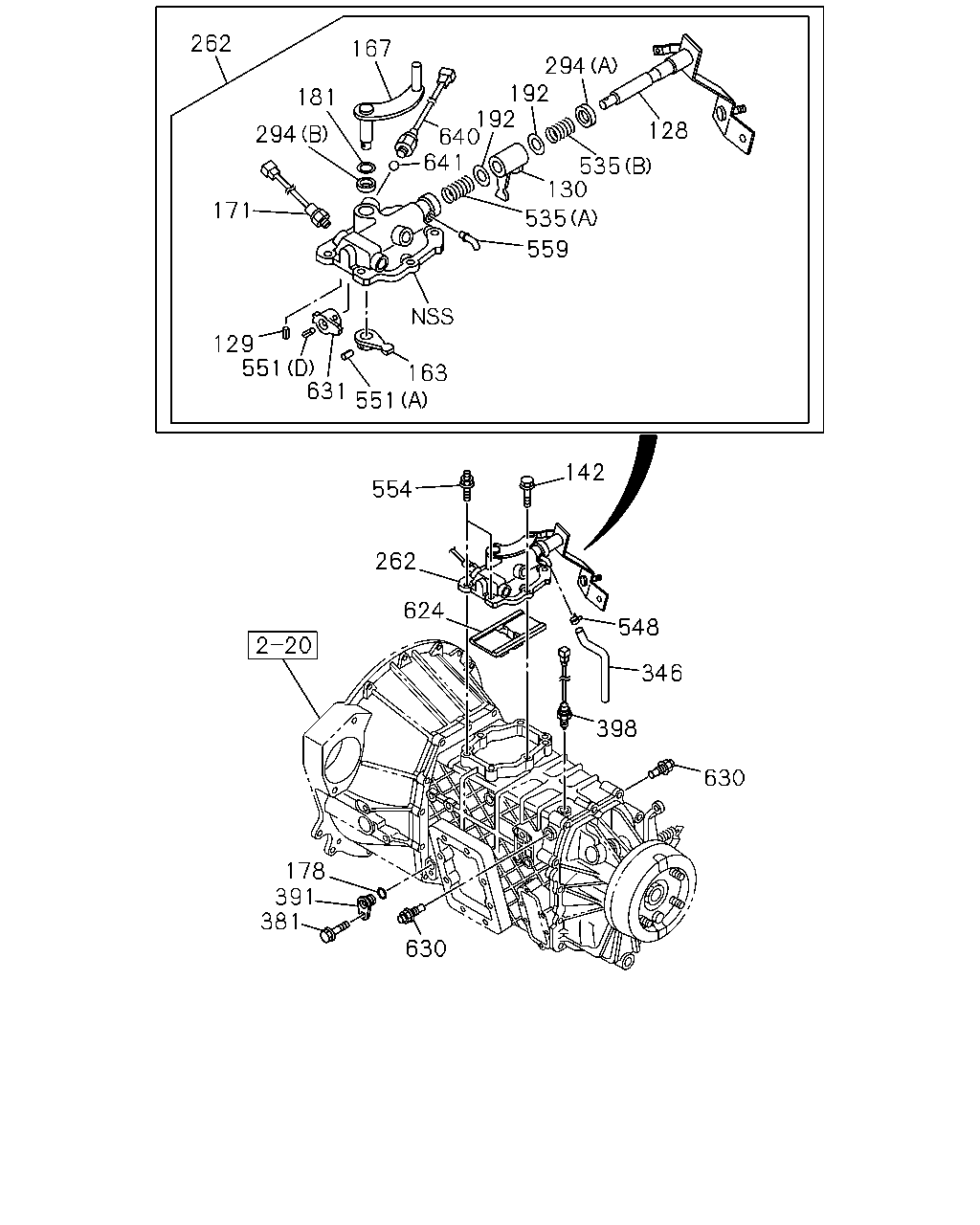

262 167 294 192 192 640 641 181 128 294 535 130 171 535 559 129 551 631 163 551 142 554 262 624 548 346 398 630 178 391 381 630

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
128	04.030 LEVER; SHIFT,EXTERNAL	8-97305-725-0	01	1	0208-						●
129	04.027 PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	0208-						●
130	04.302 LEVER; SHIFT,INTERNAL	8-94105-141-2	01	1	9812-0105	●			●
130	04.302 LEVER; SHIFT,INTERNAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94340-131-2	01	1	9812-0105		●
130	04.302 LEVER; SHIFT,INTERNAL 4JH1 ENG(RJX)	8-94340-131-2	01	1	0106-		●
130	04.302 LEVER; SHIFT,INTERNAL	1-33521-131-1	01	1	9812-0105			●
130	04.302 LEVER; SHIFT,INTERNAL 4HE1 ENG(RLY)	1-33521-131-1	01	1	0106-					●
130	04.302 LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	0208-						●
142	04.012 BOLT; QUAD BOX 04.105 M8X25	8-94128-786-0	08	1	9812-0105	●			●
142	04.012 BOLT; QUAD BOX 04.105 M8X30	8-97029-705-0	02	1	9812-0105	●			●
142	04.012 BOLT; QUAD BOX 00.685 M10X28 FLANGE	0-28181-028-0	15	1	9812-0105			●
142	04.012 BOLT; QUAD BOX 4HE1 ENG(RLY) 00.685 M10X28 FLANGE	0-28181-028-0	15	1	0106-					●
142	04.012 BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-1	02	1	9812-0105			●
142	04.012 BOLT; QUAD BOX 4HE1 ENG(RLY) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0106-					●
142	04.012 BOLT; QUAD BOX 08.900 M10X20,M10X26 L=56	1-09049-014-1	01	1	9812-0105			●
142	04.012 BOLT; QUAD BOX 4HE1 ENG(RLY) 08.900 M10X20,M10X26 L=56	1-09049-014-1	01	1	0106-					●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0208-						●
163	04.302 LEVER; SELECT,INTERNAL	8-94159-268-1	01	1	9812-0105	●			●
163	04.302 LEVER; SELECT,INTERNAL 4JH1 ENG(RJX)	8-97034-886-0	01	1	0106-		●
163	04.302 LEVER; SELECT,INTERNAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97177-068-1	01	1	9812-0105		●
163	04.302 LEVER; SELECT,INTERNAL	1-33522-130-0	01	1	9812-0105			●
163	04.302 LEVER; SELECT,INTERNAL 4HE1 ENG(RLY)	1-33522-130-0	01	1	0106-					●
163	04.302 LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	0208-						●
167	04.302 LEVER; SELECT,EXTERNAL	8-97035-560-1	01	1	9812-0105	●			●
167	04.302 LEVER; SELECT,EXTERNAL 4JH1 ENG(RJX)	8-97262-957-0	01	1	0106-		●
167	04.302 LEVER; SELECT,EXTERNAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97035-558-1	01	1	9812-0105		●
167	04.302 LEVER; SELECT,EXTERNAL	1-33521-137-1	01	1	9812-0105			●
167	04.302 LEVER; SELECT,EXTERNAL 4HE1 ENG(RLY)	1-33521-137-1	01	1	0106-					●
167	04.302 LEVER; SELECT,EXTERNAL	8-97305-665-0	01	1	0208-						●
171	04.054 SWITCH; NEUTRAL 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97165-946-1	01	1	9812-0105	●			●
171	04.054 SWITCH; NEUTRAL 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97165-946-1	01	1	9812-0105		●
171	04.054 SWITCH; NEUTRAL 4JH1 ENG(RJX)	8-97165-946-1	01	1	0106-		●
171	04.054 SWITCH; NEUTRAL	1-82340-534-0	01	1	9812-0105			●
171	04.054 SWITCH; NEUTRAL 4HE1 ENG(RLY)	1-82340-534-0	01	1	0106-					●
171	04.054 SWITCH; NEUTRAL	8-97316-688-1	01	1	0208-						●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 08.929	9-09571-612-0	01	1	9812-0105		●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) 08.929	9-09571-612-0	01	1	0106-		●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	0208-						●
181	04.302 WASHER; PL,SELECT LEVER OD=37	1-09532-007-0	01	1	9812-0105			●
181	04.302 WASHER; PL,SELECT LEVER 4HE1 ENG(RLY) OD=37	1-09532-007-0	01	1	0106-					●
181	04.302 WASHER; PL,SELECT LEVER	1-09503-280-0	01	1	0208-						●
192	04.309 WASHER; PL	8-97305-661-0	02	1	0208-						●
262	04.105 BOX ASM; SHIFT CONT	8-97329-083-1	01	1	0208-						●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-599-0	01	1	0208-						●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97305-662-0	01	1	0208-						●
346	04.545 HOSE; AIR	8-97309-855-0	01	1	0208-						●
381	04.105 BOLT 04.439 M6X16 FLANGE	0-28680-616-0	01	1	0208-						●
391	04.104 PLUG; SW HOLE	8-97300-273-1	01	1	0208-						●
398	02.698 SWITCH; REV LAMP 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97165-947-1	01	1	9812-0105	●			●
398	02.698 SWITCH; REV LAMP 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97165-947-1	01	1	9812-0105		●
398	02.698 SWITCH; REV LAMP 4JH1 ENG(RJX)	8-97165-947-1	01	1	0106-		●
398	02.698 SWITCH; REV LAMP	1-82440-083-2	01	1	9812-0105			●
398	02.698 SWITCH; REV LAMP 4HE1 ENG(RLY)	1-82440-083-3	01	1	0106-					●
398	02.698 SWITCH; REV LAMP 04.054	8-97316-688-1	01	1	0208-						●
535	04.302 SPRING; LEVER (A)	8-97305-659-0	01	1	0208-						●
535	04.302 SPRING; LEVER (B)	8-97305-660-0	01	1	0208-						●
548	04.457 CLIP; HOSE 03.278	8-97031-674-0	01	1	0208-						●
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	0208-						●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	04	1	0208-						●
551	04.303 PIN; SPRING 04.307 (D) D=4.2 L=25	8-97103-142-0	01	1	0208-						●
551	04.303 PIN; SPRING (C) L=20	8-97241-340-0	01	1	0208-						●
554	04.302 STUD; CONT BOX M8X15,M8X25 L=49	8-97352-677-0	02	1	0208-						●
559	04.302 PIPE; BREATHER	8-97305-517-0	01	1	0208-						●
624	04.105 PLATE; INTER LOCK	8-97241-317-2	01	1	0208-						●
630	04.307 DETENT ASM	8-97241-341-0	04	1	0208-						●
631	04.105 STOPPER; SPRING	8-97305-666-0	01	1	0208-						●
640	04.054 SWITCH; SELECT	8-97316-687-1	01	1	0208-						●
641	04.311 BALL	8-97305-668-0	01	1	0208-						●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
