Sayfa 2-26 - Isuzu EPC

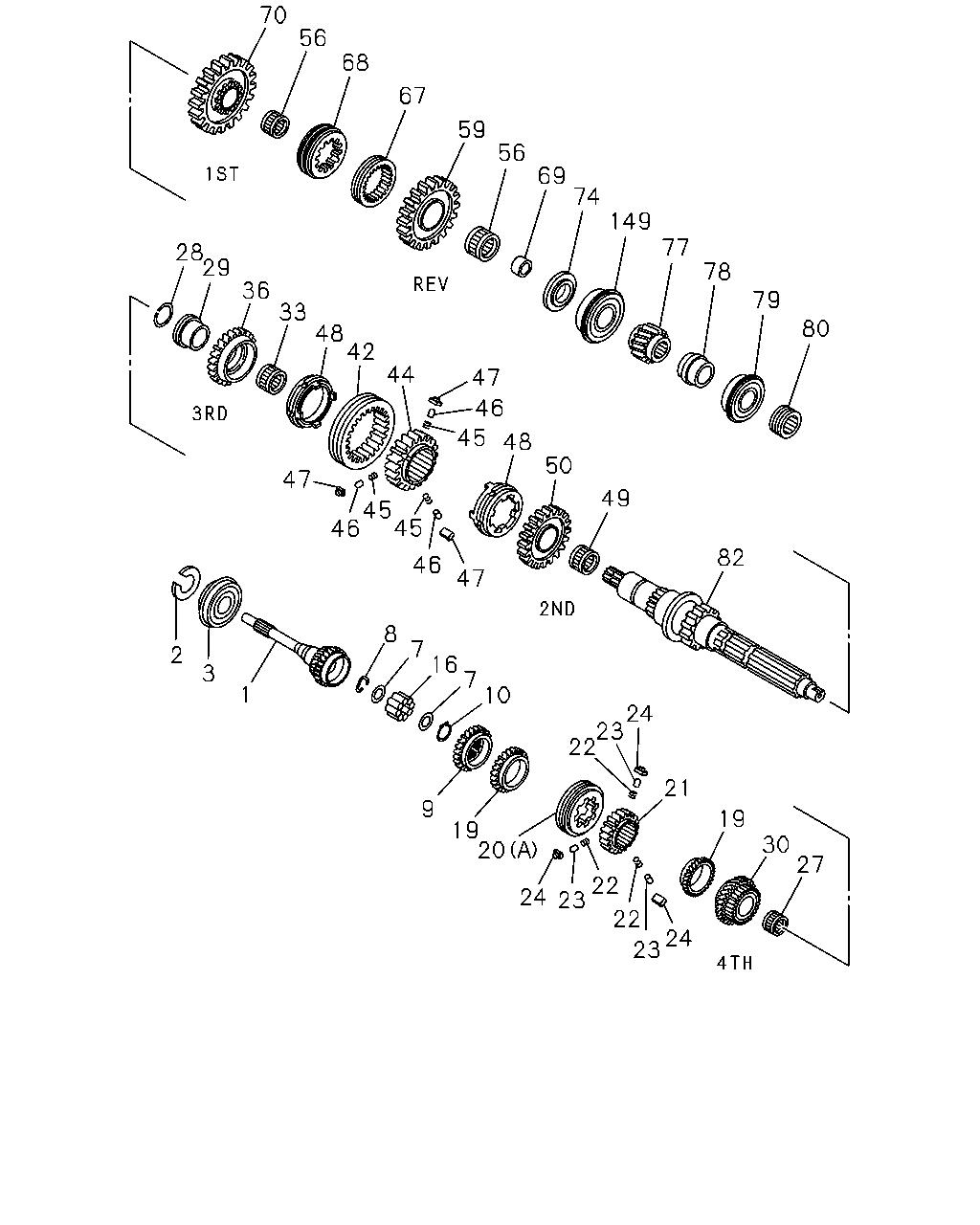

2-26 — MANUAL TRANSMISSION GEAR (#45005) — 917 parça

70 56 68 67 59 56 69 74 149 77 28 29 78 36 33 48 42 79 80 44 47 46 30 45 48 50 47 49 45 82 46 47 8 7 16 7 10 2 3 1 24 23 22 21 9 19 19 20 30 27 22 23 24 22 24 23 46 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.351 SHAFT; TOP GEAR,TRANS Z=30	8-97103-632-0	01	1	9812-0105	●	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=29	8-97183-680-0	01	1	9812-0105			●
1	04.351 SHAFT; TOP GEAR,TRANS 4JH1 ENG(RJX) Z=29	8-97168-980-0	01	1	0106-			●
1	04.351 SHAFT; TOP GEAR,TRANS Z=20	1-33211-916-0	01	1	9812-0105				●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1 ENG(RLY) Z=20	1-33211-916-0	01	1	0106-					●
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-97252-922-1	01	1	0208-						●
2	04.353 RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9812-0105				●
2	04.353 RING; SNAP,TOP GEAR SHAFT 4HE1 ENG(RLY) ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	0106-					●
2	04.353 RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9812-0105				●
2	04.353 RING; SNAP,TOP GEAR SHAFT 4HE1 ENG(RLY) ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	0106-					●
2	04.353 RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9812-0105				●
2	04.353 RING; SNAP,TOP GEAR SHAFT 4HE1 ENG(RLY) ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	0106-					●
2	04.353 RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9812-0105				●
2	04.353 RING; SNAP,TOP GEAR SHAFT 4HE1 ENG(RLY) ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	0106-					●
3	04.403 BEARING; TOP GEAR SHAFT 04.408 NSK	8-94178-732-1	01	1	9812-0105	●	●
3	04.403 BEARING; TOP GEAR SHAFT 04.352 JTEKT	8-94462-615-0	01	1	9812-0105	●	●
3	04.403 BEARING; TOP GEAR SHAFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97035-047-0	01	1	9812-0105			●
3	04.403 BEARING; TOP GEAR SHAFT 4JH1 ENG(RJX)	8-97035-047-0	01	1	0106-			●
3	04.403 BEARING; TOP GEAR SHAFT NSK	1-09810-235-0	01	1	9812-9909				●
3	04.403 BEARING; TOP GEAR SHAFT NSK	1-09810-275-0	01	1	9910-0105				●
3	04.403 BEARING; TOP GEAR SHAFT 4HE1 ENG(RLY) NSK	1-09810-275-0	01	1	0106-0109					●
3	04.403 BEARING; TOP GEAR SHAFT 4HE1 ENG(RLY)	1-09810-280-0	01	1	0110-					●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-097-1	01	1	0208-						●
7	04.384 WASHER; THRUST,MAINSHAFT	1-33239-059-0	02	1	9812-0105				●
7	04.384 WASHER; THRUST,MAINSHAFT 4HE1 ENG(RLY)	1-33239-059-0	02	1	0106-					●
8	04.353 CLIP; DOG CLU	1-33219-020-0	01	1	9812-0105				●
8	04.353 CLIP; DOG CLU 4HE1 ENG(RLY)	1-33219-020-0	01	1	0106-					●
9	04.351 CLUTCH; DOG,TOP GEAR Z=45	1-33265-413-1	01	1	9812-0105				●
9	04.351 CLUTCH; DOG,TOP GEAR 4HE1 ENG(RLY) Z=45	1-33265-413-1	01	1	0106-					●
10	04.412 RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	9812-0105				●
10	04.412 RING; SNAP,PILOT BRG 4HE1 ENG(RLY) OD=50.5	9-09180-147-0	01	1	0106-					●
16	04.399 BEARING; PILOT,MAINSHAFT NSK	1-09844-021-0	14	1	9812-0105				●
16	04.399 BEARING; PILOT,MAINSHAFT 4HE1 ENG(RLY) NSK	1-09844-021-0	14	1	0106-					●
16	04.399 BEARING; PILOT,MAINSHAFT NTN	1-09844-022-0	14	1	9812-0105				●
16	04.399 BEARING; PILOT,MAINSHAFT 4HE1 ENG(RLY) NTN	1-09844-022-0	14	1	0106-					●
16	04.399 BEARING; PILOT,MAINSHAFT JTEKT	1-09844-023-0	14	1	9812-0105				●
16	04.399 BEARING; PILOT,MAINSHAFT 4HE1 ENG(RLY) JTEKT	1-09844-023-0	14	1	0106-					●
19	04.383 RING; BLOCK,4TH & 5TH Z=45	1-33265-414-0	02	1	9812-0105				●
19	04.383 RING; BLOCK,4TH & 5TH 4HE1 ENG(RLY) Z=45	1-33265-414-0	02	1	0106-					●
19	04.383 RING; BLOCK,4TH & 5TH Z=45	8-97241-306-1	02	1	0208-						●
20	04.383 SLEEVE (A)	1-33262-167-0	01	1	9812-0105				●
20	04.383 SLEEVE 4HE1 ENG(RLY) (A)	1-33262-167-0	01	1	0106-					●
20	04.383 SLEEVE (B) Z=54	8-97241-295-1	02	1	0208-						●
20	04.383 SLEEVE (C) Z=45	8-97241-296-0	02	1	0208-						●
21	04.384 HUB; CLU,4TH & 5TH	1-33261-210-0	01	1	9812-9812				●
21	04.384 HUB; CLU,4TH & 5TH	1-33261-258-0	01	1	9812-0105				●
21	04.384 HUB; CLU,4TH & 5TH 4HE1 ENG(RLY)	1-33261-258-0	01	1	0106-					●
21	04.384 HUB; CLU,4TH & 5TH	8-97241-299-2	01	1	0208-						●
22	04.384 SPRING; BLOCK,INSERT D=3.8	1-09580-395-0	03	1	9812-0105				●
22	04.384 SPRING; BLOCK,INSERT 4HE1 ENG(RLY) D=3.8	1-09580-395-0	03	1	0106-					●
23	04.384 PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9812-0105				●
23	04.384 PLUNGER; DETENT,SYN 4HE1 ENG(RLY)	1-33269-037-1	03	1	0106-					●
24	04.383 BLOCK; INDEX,SYN	1-33269-035-1	03	1	9812-0105				●
24	04.383 BLOCK; INDEX,SYN 4HE1 ENG(RLY)	1-33269-035-1	03	1	0106-					●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	12	1	0208-						●
27	04.408 BEARING; 4TH GEAR NSK	1-09811-372-0	01	1	9812-0105				●
27	04.408 BEARING; 4TH GEAR 4HE1 ENG(RLY) NSK	1-09811-372-0	01	1	0106-					●
27	04.408 BEARING; 4TH GEAR NTN	1-09811-386-0	01	1	9812-0105				●
27	04.408 BEARING; 4TH GEAR 4HE1 ENG(RLY) NTN	1-09811-386-0	01	1	0106-					●
28	04.416 RING; SNAP,3RD GEAR	1-09588-195-0	01	1	9812-0105				●
28	04.416 RING; SNAP,3RD GEAR 4HE1 ENG(RLY)	1-09588-195-0	01	1	0106-					●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	0208-						●
29	04.416 COLLAR; 3RD GEAR	1-33234-076-0	01	1	9812-0105				●
29	04.416 COLLAR; 3RD GEAR 4HE1 ENG(RLY)	1-33234-076-0	01	1	0106-					●
30	04.415 GEAR; 4TH,MAINSHAFT Z=25	1-33253-557-0	01	1	9812-0105				●
30	04.415 GEAR; 4TH,MAINSHAFT 4HE1 ENG(RLY) Z=25	1-33253-557-0	01	1	0106-					●
30	04.415 GEAR; 4TH,MAINSHAFT Z=28	8-97252-628-0	01	1	0208-						●
33	04.352 BEARING; NEEDLE,3RD GEAR	8-94317-158-0	01	1	9812-0105	●	●
33	04.352 BEARING; NEEDLE,3RD GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.419 NTN	8-97201-005-0	01	1	9812-0105			●
33	04.352 BEARING; NEEDLE,3RD GEAR 4JH1 ENG(RJX) 04.419 NTN	8-97201-005-0	01	1	0106-			●
33	04.352 BEARING; NEEDLE,3RD GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) NSK	9-00096-638-0	01	1	9812-0105			●
33	04.352 BEARING; NEEDLE,3RD GEAR 4JH1 ENG(RJX) NSK	9-00096-638-0	01	1	0106-			●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-370-0	01	1	9812-0105				●
33	04.352 BEARING; NEEDLE,3RD GEAR 4HE1 ENG(RLY) 04.419 NSK	1-09811-370-0	01	1	0106-					●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 JTEKT	1-09811-387-1	01	1	9812-0105				●
33	04.352 BEARING; NEEDLE,3RD GEAR 4HE1 ENG(RLY) 04.419 JTEKT	1-09811-387-1	01	1	0106-					●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NTN	1-09811-414-0	01	1	9812-0105				●
33	04.352 BEARING; NEEDLE,3RD GEAR 4HE1 ENG(RLY) 04.419 NTN	1-09811-414-0	01	1	0106-					●
36	04.415 GEAR; 3RD,MAINSHAFT Z=33	8-94316-761-2	01	1	9812-0105	●
36	04.415 GEAR; 3RD,MAINSHAFT 4JH1 ENG(RJX) Z=37	8-97034-854-1	01	1	0106-			●
36	04.415 GEAR; 3RD,MAINSHAFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=37	8-97205-048-0	01	1	9812-0105			●
36	04.415 GEAR; 3RD,MAINSHAFT Z=31	1-33252-432-0	01	1	9812-0105				●
36	04.415 GEAR; 3RD,MAINSHAFT 4HE1 ENG(RLY) Z=31	1-33252-432-0	01	1	0106-					●
36	04.415 GEAR; 3RD,MAINSHAFT Z=31	8-94316-760-2	01	1	9906-0105		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=31	8-97252-630-1	01	1	0208-						●
42	04.383 SLEEVE Z=45	1-33262-162-0	01	1	9812-0105				●
42	04.383 SLEEVE 4HE1 ENG(RLY) Z=45	1-33262-162-0	01	1	0106-					●
44	04.384 HUB; CLU,2ND & 3RD,MAIN	1-33261-193-0	01	1	9812-0105				●
44	04.384 HUB; CLU,2ND & 3RD,MAIN 4HE1 ENG(RLY)	1-33261-193-0	01	1	0106-					●
45	04.384 SPRING; BLOCK INSERT D=3.8	1-09580-395-0	03	1	9812-0105				●
45	04.384 SPRING; BLOCK INSERT 4HE1 ENG(RLY) D=3.8	1-09580-395-0	03	1	0106-					●
46	04.384 PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9812-0105				●
46	04.384 PLUNGER; DETENT,SYN 4HE1 ENG(RLY)	1-33269-037-1	03	1	0106-					●
47	04.383 BLOCK; INDEX,SYN	1-33269-035-1	03	1	9812-0105				●
47	04.383 BLOCK; INDEX,SYN 4HE1 ENG(RLY)	1-33269-035-1	03	1	0106-					●
48	04.380 SYNCHRONIZER ASM; 2ND & 3RD	1-33265-409-0	02	1	9812-0105				●
48	04.380 SYNCHRONIZER ASM; 2ND & 3RD 4HE1 ENG(RLY)	1-33265-409-0	02	1	0106-					●
49	04.352 BEARING; NEEDLE,2ND GEAR 04.419 NSK	5-09811-014-0	01	1	9812-0105	●	●
49	04.352 BEARING; NEEDLE,2ND GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.419 NTN	8-97201-005-0	01	1	9812-0105			●
49	04.352 BEARING; NEEDLE,2ND GEAR 4JH1 ENG(RJX) 04.419 NTN	8-97201-005-0	01	1	0106-			●
49	04.352 BEARING; NEEDLE,2ND GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) NSK	9-00096-638-0	01	1	9812-0105			●
49	04.352 BEARING; NEEDLE,2ND GEAR 4JH1 ENG(RJX) NSK	9-00096-638-0	01	1	0106-			●
49	04.352 BEARING; NEEDLE,2ND GEAR NSK	1-09811-371-0	02	1	9812-0105				●
49	04.352 BEARING; NEEDLE,2ND GEAR 4HE1 ENG(RLY) NSK	1-09811-371-0	02	1	0106-					●
49	04.352 BEARING; NEEDLE,2ND GEAR JTEKT	1-09811-373-0	02	1	9812-0105				●
49	04.352 BEARING; NEEDLE,2ND GEAR 4HE1 ENG(RLY) JTEKT	1-09811-373-0	02	1	0106-					●
50	04.395 GEAR; 2ND,MAINSHAFT Z=36	8-94316-766-3	01	1	9812-0105	●	●
50	04.395 GEAR; 2ND,MAINSHAFT 4JH1 ENG(RJX) Z=37	8-97262-951-0	01	1	0106-			●
50	04.395 GEAR; 2ND,MAINSHAFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=37	8-94178-506-4	01	1	9812-0105			●
50	04.395 GEAR; 2ND,MAINSHAFT Z=42	1-33251-381-0	01	1	9812-0105				●
50	04.395 GEAR; 2ND,MAINSHAFT 4HE1 ENG(RLY) Z=42	1-33251-345-0	01	1	0106-					●
50	04.395 GEAR; 2ND,MAINSHAFT Z=43	8-97241-236-1	01	1	0208-						●
56	04.419 BEARING; NEEDLE,1ST,REV NSK	1-09811-370-0	02	1	9812-0105				●
56	04.419 BEARING; NEEDLE,1ST,REV 4HE1 ENG(RLY) NSK	1-09811-370-0	02	1	0106-					●
56	04.419 BEARING; NEEDLE,1ST,REV JTEKT	1-09811-387-1	02	1	9812-0105				●
56	04.419 BEARING; NEEDLE,1ST,REV 4HE1 ENG(RLY) JTEKT	1-09811-387-1	02	1	0106-					●
56	04.419 BEARING; NEEDLE,1ST,REV NTN	1-09811-414-0	02	1	9812-0105				●
56	04.419 BEARING; NEEDLE,1ST,REV 4HE1 ENG(RLY) NTN	1-09811-414-0	02	1	0106-					●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97115-777-0	01	1	9812-9905	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97206-006-0	01	1	9906-0105	●	●
59	04.417 GEAR; REV MAINSHAFT 4JH1 ENG(RJX) Z=40	8-97094-821-1	01	1	0106-			●
59	04.417 GEAR; REV MAINSHAFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=40	8-94317-146-2	01	1	9812-0105			●
59	04.417 GEAR; REV MAINSHAFT Z=45	1-33257-072-0	01	1	9812-0105				●
59	04.417 GEAR; REV MAINSHAFT 4HE1 ENG(RLY) Z=45	1-33257-072-0	01	1	0106-					●
59	04.417 GEAR; REV MAINSHAFT Z=45	8-97241-243-0	01	1	0208-						●
67	04.384 HUB; CLU,1ST TO REV	1-33261-192-0	01	1	9812-0105				●
67	04.384 HUB; CLU,1ST TO REV 4HE1 ENG(RLY)	1-33261-192-0	01	1	0106-					●
68	04.419 SLEEVE; 1ST TO REV	1-33262-175-1	01	1	9812-0105				●
68	04.419 SLEEVE; 1ST TO REV 4HE1 ENG(RLY)	1-33262-175-1	01	1	0106-					●
69	04.417 COLLAR; 1ST GEAR MAIN	1-33234-073-0	01	1	9812-0105				●
69	04.417 COLLAR; 1ST GEAR MAIN 4HE1 ENG(RLY)	1-33234-073-0	01	1	0106-					●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97014-033-3	01	1	9812-0105	●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=45	8-97084-377-1	01	1	9812-0105			●
70	04.417 GEAR; 1ST,MAINSHAFT 4JH1 ENG(RJX) Z=45	8-97084-377-1	01	1	0106-			●
70	04.417 GEAR; 1ST,MAINSHAFT Z=47	1-33255-069-0	01	1	9812-0105				●
70	04.417 GEAR; 1ST,MAINSHAFT 4HE1 ENG(RLY) Z=47	1-33255-069-0	01	1	0106-					●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97241-241-0	01	1	0208-						●
74	04.419 WASHER; THRUST,REV GEAR	9-33271-607-1	01	1	9812-9905	●
74	04.419 WASHER; THRUST,REV GEAR	8-97207-176-0	01	1	9906-0105	●	●
74	04.419 WASHER; THRUST,REV GEAR	1-33239-147-0	01	1	9812-0105				●
74	04.419 WASHER; THRUST,REV GEAR 4HE1 ENG(RLY)	1-33239-147-0	01	1	0106-					●
77	04.421 GEAR; 6TH,MAINSHAFT Z=17	1-33253-543-0	01	1	9812-0105				●
77	04.421 GEAR; 6TH,MAINSHAFT 4HE1 ENG(RLY) Z=17	1-33253-543-0	01	1	0106-					●
77	04.421 GEAR; 6TH,MAINSHAFT Z=20	8-97252-634-0	01	1	0208-						●
78	04.419 COLLAR; DIST,MAINSHAFT BRG	1-33235-099-0	01	1	9812-0105				●
78	04.419 COLLAR; DIST,MAINSHAFT BRG 4HE1 ENG(RLY)	1-33235-099-0	01	1	0106-					●
79	04.408 BEARING; BALL,MAINSHAFT NSK	1-09800-019-0	01	1	9812-9902				●
79	04.408 BEARING; BALL,MAINSHAFT NSK	1-09800-287-0	01	1	9903-0105				●
79	04.408 BEARING; BALL,MAINSHAFT 4HE1 ENG(RLY) NSK	1-09800-287-0	01	1	0106-					●
79	04.408 BEARING; BALL,MAINSHAFT JTEKT	1-09800-120-1	01	1	9812-0105				●
79	04.408 BEARING; BALL,MAINSHAFT 4HE1 ENG(RLY) JTEKT	1-09800-120-1	01	1	0106-					●
80	04.343 GEAR; SPD DRIVE Z=4	8-97011-350-0	01	1	9812-9905	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97207-146-0	01	1	9906-0105	●	●
80	04.343 GEAR; SPD DRIVE 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=4	8-97011-348-0	01	1	9812-0105			●
80	04.343 GEAR; SPD DRIVE 4JH1 ENG(RJX) Z=4	8-97011-348-0	01	1	0106-			●
80	04.343 GEAR; SPD DRIVE Z=6	1-33371-053-1	01	1	9812-0105				●
80	04.343 GEAR; SPD DRIVE 4HE1 ENG(RLY) Z=6	1-33371-053-1	01	1	0106-					●
80	04.343 GEAR; SPD DRIVE Z=6	8-97327-118-0	01	1	0208-						●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-31-24	8-97045-932-1	01	1	9812-9905	●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-37-27	8-97207-119-0	01	1	9906-9911	●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-37-27	8-97207-119-0	01	1	9906-0105	●	●
82	04.403 SHAFT; MAIN,TRANS 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=27-40-40-28	8-97034-847-2	01	1	9812-0105			●
82	04.403 SHAFT; MAIN,TRANS 4JH1 ENG(RJX) Z=27-40-40-28	8-97034-847-2	01	1	0106-			●
82	04.403 SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-263-0	01	1	9812-9909				●
82	04.403 SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-312-0	01	1	9910-0105				●
82	04.403 SHAFT; MAIN,TRANS 4HE1 ENG(RLY) Z=25-24-24-16	1-33231-312-0	01	1	0106-					●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-31-24	8-97045-932-1	01	1	9906-9911		●
82	04.403 SHAFT; MAIN,TRANS Z=26-42-23	8-97253-115-3	01	1	0208-						●
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR NSK	1-09810-215-0	01	1	9812-0105				●
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR 4HE1 ENG(RLY) NSK	1-09810-215-0	01	1	0106-					●
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR JTEKT	1-09810-216-0	01	1	9812-0105				●
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR 4HE1 ENG(RLY) JTEKT	1-09810-216-0	01	1	0106-					●

517 24 516 77 502 288 393 335 503 504 59 20 515 80 298 260 396 82 505 396 501 70 500 504 503 41 502 20 517 24 516 41 396 500 18 501 517 24 516 50 515 396 19 19 30 432 28 505 396 36 20 21 1 266 3 273 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.351 SHAFT; TOP GEAR,TRANS Z=30	8-97103-632-0	01	1	9812-0105	●	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=29	8-97183-680-0	01	1	9812-0105			●
1	04.351 SHAFT; TOP GEAR,TRANS 4JH1 ENG(RJX) Z=29	8-97168-980-0	01	1	0106-			●
1	04.351 SHAFT; TOP GEAR,TRANS Z=20	1-33211-916-0	01	1	9812-0105				●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1 ENG(RLY) Z=20	1-33211-916-0	01	1	0106-					●
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-97252-922-1	01	1	0208-						●
3	04.403 BEARING; TOP GEAR SHAFT 04.408 NSK	8-94178-732-1	01	1	9812-0105	●	●
3	04.403 BEARING; TOP GEAR SHAFT 04.352 JTEKT	8-94462-615-0	01	1	9812-0105	●	●
3	04.403 BEARING; TOP GEAR SHAFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97035-047-0	01	1	9812-0105			●
3	04.403 BEARING; TOP GEAR SHAFT 4JH1 ENG(RJX)	8-97035-047-0	01	1	0106-			●
3	04.403 BEARING; TOP GEAR SHAFT NSK	1-09810-235-0	01	1	9812-9909				●
3	04.403 BEARING; TOP GEAR SHAFT NSK	1-09810-275-0	01	1	9910-0105				●
3	04.403 BEARING; TOP GEAR SHAFT 4HE1 ENG(RLY) NSK	1-09810-275-0	01	1	0106-0109					●
3	04.403 BEARING; TOP GEAR SHAFT 4HE1 ENG(RLY)	1-09810-280-0	01	1	0110-					●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-097-1	01	1	0208-						●
18	04.384 RING; SNAP,CLU HUB T=1.75	1-09588-196-0	01	1	9812-0105				●
18	04.384 RING; SNAP,CLU HUB 4HE1 ENG(RLY) T=1.75	1-09588-196-0	01	1	0106-					●
18	04.384 RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	0208-						●
19	04.383 RING; BLOCK,4TH & 5TH Z=45	1-33265-414-0	02	1	9812-0105				●
19	04.383 RING; BLOCK,4TH & 5TH 4HE1 ENG(RLY) Z=45	1-33265-414-0	02	1	0106-					●
19	04.383 RING; BLOCK,4TH & 5TH Z=45	8-97241-306-1	02	1	0208-						●
20	04.383 SLEEVE (A)	1-33262-167-0	01	1	9812-0105				●
20	04.383 SLEEVE 4HE1 ENG(RLY) (A)	1-33262-167-0	01	1	0106-					●
20	04.383 SLEEVE (B) Z=54	8-97241-295-1	02	1	0208-						●
20	04.383 SLEEVE (C) Z=45	8-97241-296-0	02	1	0208-						●
21	04.384 HUB; CLU,4TH & 5TH	1-33261-210-0	01	1	9812-9812				●
21	04.384 HUB; CLU,4TH & 5TH	1-33261-258-0	01	1	9812-0105				●
21	04.384 HUB; CLU,4TH & 5TH 4HE1 ENG(RLY)	1-33261-258-0	01	1	0106-					●
21	04.384 HUB; CLU,4TH & 5TH	8-97241-299-2	01	1	0208-						●
24	04.383 BLOCK; INDEX,SYN	1-33269-035-1	03	1	9812-0105				●
24	04.383 BLOCK; INDEX,SYN 4HE1 ENG(RLY)	1-33269-035-1	03	1	0106-					●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	12	1	0208-						●
28	04.416 RING; SNAP,3RD GEAR	1-09588-195-0	01	1	9812-0105				●
28	04.416 RING; SNAP,3RD GEAR 4HE1 ENG(RLY)	1-09588-195-0	01	1	0106-					●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	0208-						●
30	04.415 GEAR; 4TH,MAINSHAFT Z=25	1-33253-557-0	01	1	9812-0105				●
30	04.415 GEAR; 4TH,MAINSHAFT 4HE1 ENG(RLY) Z=25	1-33253-557-0	01	1	0106-					●
30	04.415 GEAR; 4TH,MAINSHAFT Z=28	8-97252-628-0	01	1	0208-						●
36	04.415 GEAR; 3RD,MAINSHAFT Z=33	8-94316-761-2	01	1	9812-0105	●
36	04.415 GEAR; 3RD,MAINSHAFT 4JH1 ENG(RJX) Z=37	8-97034-854-1	01	1	0106-			●
36	04.415 GEAR; 3RD,MAINSHAFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=37	8-97205-048-0	01	1	9812-0105			●
36	04.415 GEAR; 3RD,MAINSHAFT Z=31	1-33252-432-0	01	1	9812-0105				●
36	04.415 GEAR; 3RD,MAINSHAFT 4HE1 ENG(RLY) Z=31	1-33252-432-0	01	1	0106-					●
36	04.415 GEAR; 3RD,MAINSHAFT Z=31	8-94316-760-2	01	1	9906-0105		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=31	8-97252-630-1	01	1	0208-						●
41	04.383 RING; BLOCK,2ND & 3RD Z=54	8-97241-305-2	02	1	0208-						●
50	04.395 GEAR; 2ND,MAINSHAFT Z=36	8-94316-766-3	01	1	9812-0105	●	●
50	04.395 GEAR; 2ND,MAINSHAFT 4JH1 ENG(RJX) Z=37	8-97262-951-0	01	1	0106-			●
50	04.395 GEAR; 2ND,MAINSHAFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=37	8-94178-506-4	01	1	9812-0105			●
50	04.395 GEAR; 2ND,MAINSHAFT Z=42	1-33251-381-0	01	1	9812-0105				●
50	04.395 GEAR; 2ND,MAINSHAFT 4HE1 ENG(RLY) Z=42	1-33251-345-0	01	1	0106-					●
50	04.395 GEAR; 2ND,MAINSHAFT Z=43	8-97241-236-1	01	1	0208-						●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97115-777-0	01	1	9812-9905	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97206-006-0	01	1	9906-0105	●	●
59	04.417 GEAR; REV MAINSHAFT 4JH1 ENG(RJX) Z=40	8-97094-821-1	01	1	0106-			●
59	04.417 GEAR; REV MAINSHAFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=40	8-94317-146-2	01	1	9812-0105			●
59	04.417 GEAR; REV MAINSHAFT Z=45	1-33257-072-0	01	1	9812-0105				●
59	04.417 GEAR; REV MAINSHAFT 4HE1 ENG(RLY) Z=45	1-33257-072-0	01	1	0106-					●
59	04.417 GEAR; REV MAINSHAFT Z=45	8-97241-243-0	01	1	0208-						●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97014-033-3	01	1	9812-0105	●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=45	8-97084-377-1	01	1	9812-0105			●
70	04.417 GEAR; 1ST,MAINSHAFT 4JH1 ENG(RJX) Z=45	8-97084-377-1	01	1	0106-			●
70	04.417 GEAR; 1ST,MAINSHAFT Z=47	1-33255-069-0	01	1	9812-0105				●
70	04.417 GEAR; 1ST,MAINSHAFT 4HE1 ENG(RLY) Z=47	1-33255-069-0	01	1	0106-					●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97241-241-0	01	1	0208-						●
77	04.421 GEAR; 6TH,MAINSHAFT Z=17	1-33253-543-0	01	1	9812-0105				●
77	04.421 GEAR; 6TH,MAINSHAFT 4HE1 ENG(RLY) Z=17	1-33253-543-0	01	1	0106-					●
77	04.421 GEAR; 6TH,MAINSHAFT Z=20	8-97252-634-0	01	1	0208-						●
80	04.343 GEAR; SPD DRIVE Z=4	8-97011-350-0	01	1	9812-9905	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97207-146-0	01	1	9906-0105	●	●
80	04.343 GEAR; SPD DRIVE 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=4	8-97011-348-0	01	1	9812-0105			●
80	04.343 GEAR; SPD DRIVE 4JH1 ENG(RJX) Z=4	8-97011-348-0	01	1	0106-			●
80	04.343 GEAR; SPD DRIVE Z=6	1-33371-053-1	01	1	9812-0105				●
80	04.343 GEAR; SPD DRIVE 4HE1 ENG(RLY) Z=6	1-33371-053-1	01	1	0106-					●
80	04.343 GEAR; SPD DRIVE Z=6	8-97327-118-0	01	1	0208-						●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-31-24	8-97045-932-1	01	1	9812-9905	●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-37-27	8-97207-119-0	01	1	9906-9911	●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-37-27	8-97207-119-0	01	1	9906-0105	●	●
82	04.403 SHAFT; MAIN,TRANS 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=27-40-40-28	8-97034-847-2	01	1	9812-0105			●
82	04.403 SHAFT; MAIN,TRANS 4JH1 ENG(RJX) Z=27-40-40-28	8-97034-847-2	01	1	0106-			●
82	04.403 SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-263-0	01	1	9812-9909				●
82	04.403 SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-312-0	01	1	9910-0105				●
82	04.403 SHAFT; MAIN,TRANS 4HE1 ENG(RLY) Z=25-24-24-16	1-33231-312-0	01	1	0106-					●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-31-24	8-97045-932-1	01	1	9906-9911		●
82	04.403 SHAFT; MAIN,TRANS Z=26-42-23	8-97253-115-3	01	1	0208-						●
260	04.412 NUT; MAINSHAFT END M27 H=25	8-97253-126-0	01	1	0208-						●
266	04.525 RING; SNAP,BRG INNER	8-97286-915-0	01	1	0208-						●
273	04.525 RING; SNAP,BRG OUTER	8-97254-609-0	01	1	0208-						●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-941-0	01	1	0208-						●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 05.595 ID=35.7 T=5	1-09623-379-0	01	1	0208-						●
335	04.383 RING; SNAP,BEARING	8-97254-720-0	01	1	0208-						●
393	04.352 BEARING; MAINSHAFT END 04.422	8-97095-913-0	01	1	9812-9905	●
393	04.352 BEARING; MAINSHAFT END	8-97207-512-0	01	1	9906-0105	●	●
393	04.352 BEARING; MAINSHAFT END 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.355	8-94178-731-0	01	1	9812-0105			●
393	04.352 BEARING; MAINSHAFT END 4JH1 ENG(RJX) 04.355	8-94178-731-0	01	1	0106-			●
393	04.352 BEARING; MAINSHAFT END	8-97253-104-0	01	1	0208-						●
396	04.352 BEARING; NEEDLE,MAINSHAFT 04.520 (A)	9-00096-606-0	01	1	9812-0105	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (A)	8-97035-050-0	01	1	9812-9904			●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (A)	8-97228-274-0	01	1	9905-0105			●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JH1 ENG(RJX) (A)	8-97228-274-0	01	1	0106-			●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97161-658-0	01	1	9906-0105		●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-099-1	01	1	0208-						●
396	04.352 BEARING; NEEDLE,MAINSHAFT (C)	8-97253-110-0	04	1	0208-						●
432	04.419 BEARING; NEEDLE,4TH NSK	8-97253-111-0	01	1	0208-						●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-307-1	02	1	0208-						●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-311-1	02	1	0208-						●
502	04.383 RING; BLOCK,LOW & REV Z=54	8-97241-305-2	02	1	0208-						●
503	04.383 RING; OUTSIDE,LOW & REV	8-97241-307-1	02	1	0208-						●
504	04.383 RING; INSIDE,LOW & REV	8-97241-311-1	02	1	0208-						●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	0208-						●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	02	1	0208-						●
516	04.384 SPRING; SYNCHRO,INDEX	8-97305-803-1	12	1	0208-						●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	12	1	0208-						●

61 62 63 62 66 173 13 74 393 35 36 50 276 80 38 33 390 281 40 405 49 51 51 313 70 40 177 82 314 4 180 84 34 59 3 172 397 387 1 180 182 396 35 287 398 184 183 397 185 97 109 132 136 408 135 186 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.351 SHAFT; TOP GEAR,TRANS Z=30	8-97103-632-0	01	1	9812-0105	●	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=29	8-97183-680-0	01	1	9812-0105			●
1	04.351 SHAFT; TOP GEAR,TRANS 4JH1 ENG(RJX) Z=29	8-97168-980-0	01	1	0106-			●
1	04.351 SHAFT; TOP GEAR,TRANS Z=20	1-33211-916-0	01	1	9812-0105				●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1 ENG(RLY) Z=20	1-33211-916-0	01	1	0106-					●
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-97252-922-1	01	1	0208-						●
3	04.403 BEARING; TOP GEAR SHAFT 04.408 NSK	8-94178-732-1	01	1	9812-0105	●	●
3	04.403 BEARING; TOP GEAR SHAFT 04.352 JTEKT	8-94462-615-0	01	1	9812-0105	●	●
3	04.403 BEARING; TOP GEAR SHAFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97035-047-0	01	1	9812-0105			●
3	04.403 BEARING; TOP GEAR SHAFT 4JH1 ENG(RJX)	8-97035-047-0	01	1	0106-			●
3	04.403 BEARING; TOP GEAR SHAFT NSK	1-09810-235-0	01	1	9812-9909				●
3	04.403 BEARING; TOP GEAR SHAFT NSK	1-09810-275-0	01	1	9910-0105				●
3	04.403 BEARING; TOP GEAR SHAFT 4HE1 ENG(RLY) NSK	1-09810-275-0	01	1	0106-0109					●
3	04.403 BEARING; TOP GEAR SHAFT 4HE1 ENG(RLY)	1-09810-280-0	01	1	0110-					●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-097-1	01	1	0208-						●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 08.934 ID=37.0	9-09180-040-0	01	1	9812-0105	●	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97035-040-0	01	1	9812-0105			●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 4JH1 ENG(RJX)	8-97035-040-0	01	1	0106-			●
13	04.415 GEAR; 5TH,MAINSHAFT Z=25	8-97147-817-0	01	1	9812-9905	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=25	8-97206-012-0	01	1	9906-0105	●	●
13	04.415 GEAR; 5TH,MAINSHAFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=23	8-97034-856-0	01	1	9812-0105			●
13	04.415 GEAR; 5TH,MAINSHAFT 4JH1 ENG(RJX) Z=23	8-97034-856-0	01	1	0106-			●
33	04.352 BEARING; NEEDLE,3RD GEAR	8-94317-158-0	01	1	9812-0105	●	●
33	04.352 BEARING; NEEDLE,3RD GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.419 NTN	8-97201-005-0	01	1	9812-0105			●
33	04.352 BEARING; NEEDLE,3RD GEAR 4JH1 ENG(RJX) 04.419 NTN	8-97201-005-0	01	1	0106-			●
33	04.352 BEARING; NEEDLE,3RD GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) NSK	9-00096-638-0	01	1	9812-0105			●
33	04.352 BEARING; NEEDLE,3RD GEAR 4JH1 ENG(RJX) NSK	9-00096-638-0	01	1	0106-			●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-370-0	01	1	9812-0105				●
33	04.352 BEARING; NEEDLE,3RD GEAR 4HE1 ENG(RLY) 04.419 NSK	1-09811-370-0	01	1	0106-					●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 JTEKT	1-09811-387-1	01	1	9812-0105				●
33	04.352 BEARING; NEEDLE,3RD GEAR 4HE1 ENG(RLY) 04.419 JTEKT	1-09811-387-1	01	1	0106-					●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NTN	1-09811-414-0	01	1	9812-0105				●
33	04.352 BEARING; NEEDLE,3RD GEAR 4HE1 ENG(RLY) 04.419 NTN	1-09811-414-0	01	1	0106-					●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97048-745-2	01	1	9812-0105	●	●
35	04.383 RING; BLOCK,4TH & 3RD 4JG2 ENG(RJC),4JB1 ENG(RLF) Z=36	8-94128-775-2	02	1	9812-0105	●	●
35	04.383 RING; BLOCK,4TH & 3RD 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=36	8-94128-775-2	02	1	9812-0105			●
35	04.383 RING; BLOCK,4TH & 3RD 4JH1 ENG(RJX) Z=36	8-94128-775-2	02	1	0106-			●
36	04.415 GEAR; 3RD,MAINSHAFT Z=33	8-94316-761-2	01	1	9812-0105	●
36	04.415 GEAR; 3RD,MAINSHAFT 4JH1 ENG(RJX) Z=37	8-97034-854-1	01	1	0106-			●
36	04.415 GEAR; 3RD,MAINSHAFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=37	8-97205-048-0	01	1	9812-0105			●
36	04.415 GEAR; 3RD,MAINSHAFT Z=31	1-33252-432-0	01	1	9812-0105				●
36	04.415 GEAR; 3RD,MAINSHAFT 4HE1 ENG(RLY) Z=31	1-33252-432-0	01	1	0106-					●
36	04.415 GEAR; 3RD,MAINSHAFT Z=31	8-94316-760-2	01	1	9906-0105		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=31	8-97252-630-1	01	1	0208-						●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-97048-748-0	01	1	9812-0105	●	●
40	04.384 SPRING; INSERT,LOW & 2ND 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97023-708-0	02	1	9812-0105	●	●
40	04.384 SPRING; INSERT,LOW & 2ND 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97023-708-0	02	1	9812-0105			●
40	04.384 SPRING; INSERT,LOW & 2ND 4JH1 ENG(RJX)	8-97023-708-0	02	1	0106-			●
49	04.352 BEARING; NEEDLE,2ND GEAR 04.419 NSK	5-09811-014-0	01	1	9812-0105	●	●
49	04.352 BEARING; NEEDLE,2ND GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.419 NTN	8-97201-005-0	01	1	9812-0105			●
49	04.352 BEARING; NEEDLE,2ND GEAR 4JH1 ENG(RJX) 04.419 NTN	8-97201-005-0	01	1	0106-			●
49	04.352 BEARING; NEEDLE,2ND GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) NSK	9-00096-638-0	01	1	9812-0105			●
49	04.352 BEARING; NEEDLE,2ND GEAR 4JH1 ENG(RJX) NSK	9-00096-638-0	01	1	0106-			●
49	04.352 BEARING; NEEDLE,2ND GEAR NSK	1-09811-371-0	02	1	9812-0105				●
49	04.352 BEARING; NEEDLE,2ND GEAR 4HE1 ENG(RLY) NSK	1-09811-371-0	02	1	0106-					●
49	04.352 BEARING; NEEDLE,2ND GEAR JTEKT	1-09811-373-0	02	1	9812-0105				●
49	04.352 BEARING; NEEDLE,2ND GEAR 4HE1 ENG(RLY) JTEKT	1-09811-373-0	02	1	0106-					●
50	04.395 GEAR; 2ND,MAINSHAFT Z=36	8-94316-766-3	01	1	9812-0105	●	●
50	04.395 GEAR; 2ND,MAINSHAFT 4JH1 ENG(RJX) Z=37	8-97262-951-0	01	1	0106-			●
50	04.395 GEAR; 2ND,MAINSHAFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=37	8-94178-506-4	01	1	9812-0105			●
50	04.395 GEAR; 2ND,MAINSHAFT Z=42	1-33251-381-0	01	1	9812-0105				●
50	04.395 GEAR; 2ND,MAINSHAFT 4HE1 ENG(RLY) Z=42	1-33251-345-0	01	1	0106-					●
50	04.395 GEAR; 2ND,MAINSHAFT Z=43	8-97241-236-1	01	1	0208-						●
51	04.383 RING; BLOCK,LOW & 2ND 4JG2 ENG(RJC),4JB1 ENG(RLF) Z=42	8-97074-619-2	02	1	9812-0105	●	●
51	04.383 RING; BLOCK,LOW & 2ND 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=42	8-97074-619-2	02	1	9812-0105			●
51	04.383 RING; BLOCK,LOW & 2ND 4JH1 ENG(RJX) Z=42	8-97074-619-3	02	1	0106-			●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97115-777-0	01	1	9812-9905	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97206-006-0	01	1	9906-0105	●	●
59	04.417 GEAR; REV MAINSHAFT 4JH1 ENG(RJX) Z=40	8-97094-821-1	01	1	0106-			●
59	04.417 GEAR; REV MAINSHAFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=40	8-94317-146-2	01	1	9812-0105			●
59	04.417 GEAR; REV MAINSHAFT Z=45	1-33257-072-0	01	1	9812-0105				●
59	04.417 GEAR; REV MAINSHAFT 4HE1 ENG(RLY) Z=45	1-33257-072-0	01	1	0106-					●
59	04.417 GEAR; REV MAINSHAFT Z=45	8-97241-243-0	01	1	0208-						●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97048-750-0	01	1	9812-9905	●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97206-010-0	01	1	9906-0105	●	●
62	04.384 SPRING; INSERT,REV & 5TH	8-97023-710-0	02	1	9812-0105	●	●
62	04.384 SPRING; INSERT,REV & 5TH 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97023-709-0	02	1	9812-0105			●
62	04.384 SPRING; INSERT,REV & 5TH 4JH1 ENG(RJX)	8-97023-709-0	02	1	0106-			●
63	04.384 INSERT; SYN,REV & 5TH 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-33263-613-0	03	1	9812-0105	●	●
63	04.384 INSERT; SYN,REV & 5TH 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	9-33263-613-0	03	1	9812-0105			●
63	04.384 INSERT; SYN,REV & 5TH 4JH1 ENG(RJX)	5-33263-001-0	03	1	0106-			●
66	04.383 RING; BLOCK,SYN 4JH1 ENG(RJX) (D) OUTER	8-94316-749-0	02	1	0106-			●
66	04.383 RING; BLOCK,SYN 4JH1 ENG(RJX) (D) INNER	8-97248-220-0	02	1	0106-			●
66	04.383 RING; BLOCK,SYN (C) Z=36	8-94128-775-2	01	1	9812-0105	●	●
66	04.383 RING; BLOCK,SYN 4JH1 ENG(RJX) (B) Z=30	8-97034-840-1	01	1	0106-			●
66	04.383 RING; BLOCK,SYN 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (A) Z=45	8-97061-752-0	01	1	9812-0105			●
66	04.383 RING; BLOCK,SYN 4JH1 ENG(RJX) (A) Z=45	8-97061-752-0	01	1	0106-			●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97014-033-3	01	1	9812-0105	●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=45	8-97084-377-1	01	1	9812-0105			●
70	04.417 GEAR; 1ST,MAINSHAFT 4JH1 ENG(RJX) Z=45	8-97084-377-1	01	1	0106-			●
70	04.417 GEAR; 1ST,MAINSHAFT Z=47	1-33255-069-0	01	1	9812-0105				●
70	04.417 GEAR; 1ST,MAINSHAFT 4HE1 ENG(RLY) Z=47	1-33255-069-0	01	1	0106-					●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97241-241-0	01	1	0208-						●
74	04.419 WASHER; THRUST,REV GEAR	9-33271-607-1	01	1	9812-9905	●
74	04.419 WASHER; THRUST,REV GEAR	8-97207-176-0	01	1	9906-0105	●	●
74	04.419 WASHER; THRUST,REV GEAR	1-33239-147-0	01	1	9812-0105				●
74	04.419 WASHER; THRUST,REV GEAR 4HE1 ENG(RLY)	1-33239-147-0	01	1	0106-					●
80	04.343 GEAR; SPD DRIVE Z=4	8-97011-350-0	01	1	9812-9905	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97207-146-0	01	1	9906-0105	●	●
80	04.343 GEAR; SPD DRIVE 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=4	8-97011-348-0	01	1	9812-0105			●
80	04.343 GEAR; SPD DRIVE 4JH1 ENG(RJX) Z=4	8-97011-348-0	01	1	0106-			●
80	04.343 GEAR; SPD DRIVE Z=6	1-33371-053-1	01	1	9812-0105				●
80	04.343 GEAR; SPD DRIVE 4HE1 ENG(RLY) Z=6	1-33371-053-1	01	1	0106-					●
80	04.343 GEAR; SPD DRIVE Z=6	8-97327-118-0	01	1	0208-						●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-31-24	8-97045-932-1	01	1	9812-9905	●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-37-27	8-97207-119-0	01	1	9906-9911	●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-37-27	8-97207-119-0	01	1	9906-0105	●	●
82	04.403 SHAFT; MAIN,TRANS 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=27-40-40-28	8-97034-847-2	01	1	9812-0105			●
82	04.403 SHAFT; MAIN,TRANS 4JH1 ENG(RJX) Z=27-40-40-28	8-97034-847-2	01	1	0106-			●
82	04.403 SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-263-0	01	1	9812-9909				●
82	04.403 SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-312-0	01	1	9910-0105				●
82	04.403 SHAFT; MAIN,TRANS 4HE1 ENG(RLY) Z=25-24-24-16	1-33231-312-0	01	1	0106-					●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-31-24	8-97045-932-1	01	1	9906-9911		●
82	04.403 SHAFT; MAIN,TRANS Z=26-42-23	8-97253-115-3	01	1	0208-						●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK	5-09800-062-1	01	1	9812-0105	●	●
84	04.422 BEARING; COUNTER SHAFT,FRT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) NSK	8-97035-048-0	01	1	9812-0105			●
84	04.422 BEARING; COUNTER SHAFT,FRT 4JH1 ENG(RJX) NSK	8-97035-048-0	01	1	0106-			●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK	1-09810-209-0	01	1	9812-0105				●
84	04.422 BEARING; COUNTER SHAFT,FRT 4HE1 ENG(RLY) NSK	1-09810-209-0	01	1	0106-					●
84	04.422 BEARING; COUNTER SHAFT,FRT JTEKT	1-09810-210-0	01	1	9812-0105				●
84	04.422 BEARING; COUNTER SHAFT,FRT 4HE1 ENG(RLY) JTEKT	1-09810-210-0	01	1	0106-					●
97	04.415 GEAR; 5TH,COUNTER Z=53	8-97077-341-1	01	1	9812-0105	●	●
109	04.422 BEARING; COUNTER SHAFT,RR	8-97095-913-0	01	1	9812-0105	●	●
109	04.422 BEARING; COUNTER SHAFT,RR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97035-049-0	01	1	9812-0105			●
109	04.422 BEARING; COUNTER SHAFT,RR 4JH1 ENG(RJX)	8-97035-049-0	01	1	0106-			●
109	04.422 BEARING; COUNTER SHAFT,RR NSK	1-09810-211-0	01	1	9812-0105				●
109	04.422 BEARING; COUNTER SHAFT,RR 4HE1 ENG(RLY) NSK	1-09810-211-0	01	1	0106-					●
109	04.422 BEARING; COUNTER SHAFT,RR JTEKT	1-09810-212-0	01	1	9812-0105				●
109	04.422 BEARING; COUNTER SHAFT,RR 4HE1 ENG(RLY) JTEKT	1-09810-212-0	01	1	0106-					●
132	04.433 SHAFT; REV	9-33351-604-1	01	1	9812-0105	●	●
132	04.433 SHAFT; REV 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94415-162-1	01	1	9812-0105			●
132	04.433 SHAFT; REV 4JH1 ENG(RJX)	8-94415-162-1	01	1	0106-			●
132	04.433 SHAFT; REV	1-33351-023-1	01	1	9812-0105				●
132	04.433 SHAFT; REV 4HE1 ENG(RLY)	1-33351-023-1	01	1	0106-					●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	0208-						●
135	04.430 GEAR; REV IDLER Z=29	8-97081-539-3	01	1	9812-0105	●	●
135	04.430 GEAR; REV IDLER 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=27	5-33361-042-2	01	1	9812-0105			●
135	04.430 GEAR; REV IDLER 4JH1 ENG(RJX) Z=27	5-33361-042-2	01	1	0106-			●
135	04.430 GEAR; REV IDLER Z=27	1-33361-073-0	01	1	9812-0105				●
135	04.430 GEAR; REV IDLER 4HE1 ENG(RLY) Z=27	1-33361-073-0	01	1	0106-					●
135	04.430 GEAR; REV IDLER Z=26	8-97241-292-1	01	1	0208-						●
136	04.437 WASHER; THRUST,REV IDLE,RR	8-97081-579-2	01	1	9812-0105	●	●
172	04.412 RING; SNAP,CLU HUB 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.384 T=1.75	8-94402-405-0	01	1	9812-0105	●	●
172	04.412 RING; SNAP,CLU HUB 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.384 T=1.75	8-94402-405-0	01	1	9812-0105			●
172	04.412 RING; SNAP,CLU HUB 4JH1 ENG(RJX) 04.384 T=1.75	8-94402-405-0	01	1	0106-			●
172	04.412 RING; SNAP,CLU HUB 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.384 T=1.80	8-94402-406-0	01	1	9812-0105	●	●
172	04.412 RING; SNAP,CLU HUB 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.384 T=1.80	8-94402-406-0	01	1	9812-0105			●
172	04.412 RING; SNAP,CLU HUB 4JH1 ENG(RJX) 04.384 T=1.80	8-94402-406-0	01	1	0106-			●
172	04.412 RING; SNAP,CLU HUB 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.384 T=1.85	8-94402-407-0	01	1	9812-0105	●	●
172	04.412 RING; SNAP,CLU HUB 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.384 T=1.85	8-94402-407-0	01	1	9812-0105			●
172	04.412 RING; SNAP,CLU HUB 4JH1 ENG(RJX) 04.384 T=1.85	8-94402-407-0	01	1	0106-			●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF) T=1.85	8-94151-522-0	01	1	9812-0105	●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) T=1.85	8-94151-522-0	01	1	9812-0105			●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JH1 ENG(RJX) T=1.85	8-94151-522-0	01	1	0106-			●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF) T=1.90	8-94151-523-0	01	1	9812-0105	●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) T=1.90	8-94151-523-0	01	1	9812-0105			●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JH1 ENG(RJX) T=1.90	8-94151-523-0	01	1	0106-			●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF) T=1.95	8-94151-524-0	01	1	9812-0105	●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) T=1.95	8-94151-524-0	01	1	9812-0105			●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JH1 ENG(RJX) T=1.95	8-94151-524-0	01	1	0106-			●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF) T=2.00	8-94157-747-0	01	1	9812-0105	●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) T=2.00	8-94157-747-0	01	1	9812-0105			●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JH1 ENG(RJX) T=2.00	8-94157-747-0	01	1	0106-			●
177	04.384 RING; SNAP,CLU HUB T=1.75	8-94402-405-0	01	1	9812-9905	●
177	04.384 RING; SNAP,CLU HUB 04.422 ID=44.5	5-09589-010-0	01	1	9906-0105	●	●
177	04.384 RING; SNAP,CLU HUB T=1.80	8-94402-406-0	01	1	9812-9905	●
177	04.384 RING; SNAP,CLU HUB T=1.85	8-94402-407-0	01	1	9812-9905	●
180	04.422 RING; SNAP,CLUSTER GEAR (B) ID=38.5	8-94146-483-0	01	1	9812-0105	●	●
180	04.422 RING; SNAP,CLUSTER GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF) 08.934 (A) ID=32.2	9-09180-035-0	01	1	9812-0105	●	●
180	04.422 RING; SNAP,CLUSTER GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 08.934 (A) ID=32.2	9-09180-035-0	01	1	9812-0105			●
180	04.422 RING; SNAP,CLUSTER GEAR 4JH1 ENG(RJX) 08.934 (A) ID=32.2	9-09180-035-0	01	1	0106-			●
180	04.422 RING; SNAP,CLUSTER GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (B) ID=44.5	5-09589-010-0	01	1	9812-0105			●
180	04.422 RING; SNAP,CLUSTER GEAR 4JH1 ENG(RJX) (B) ID=44.5	5-09589-010-0	01	1	0106-			●
182	04.422 PLATE; CLUSTER GEAR	8-97095-984-0	01	1	9812-0105	●	●
182	04.422 PLATE; CLUSTER GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94131-924-1	01	1	9812-0105			●
182	04.422 PLATE; CLUSTER GEAR 4JH1 ENG(RJX)	8-94131-924-1	01	1	0106-			●
183	04.422 SPRING; PLATE,CLUSTER GEAR	8-94132-168-0	03	1	9812-0105	●	●
183	04.422 SPRING; PLATE,CLUSTER GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94148-196-0	03	1	9812-0105			●
183	04.422 SPRING; PLATE,CLUSTER GEAR 4JH1 ENG(RJX)	8-94148-196-0	03	1	0106-			●
184	04.422 SPRING; CLUSTER GEAR	8-94128-790-1	01	1	9812-0105	●	●
184	04.422 SPRING; CLUSTER GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94101-320-0	01	1	9812-0105			●
184	04.422 SPRING; CLUSTER GEAR 4JH1 ENG(RJX)	8-94101-320-0	01	1	0106-			●
185	04.422 RING; SNAP,CLUSTER GEAR ID=41.5	9-09180-045-0	01	1	9812-0105	●	●
186	04.422 RING; SNAP,CLUSTER GEAR ID=29.6	9-09180-032-0	01	1	9812-0105	●	●
186	04.422 RING; SNAP,CLUSTER GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 08.934 ID=32.2	9-09180-035-0	01	1	9812-0105			●
186	04.422 RING; SNAP,CLUSTER GEAR 4JH1 ENG(RJX) 08.934 ID=32.2	9-09180-035-0	01	1	0106-			●
276	04.419 SPACER; BRG TO DRIVE GEAR	9-33235-606-1	01	1	9812-9905	●
276	04.419 SPACER; BRG TO DRIVE GEAR	8-97207-175-0	01	1	9906-0105	●	●
276	04.419 SPACER; BRG TO DRIVE GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97034-876-0	01	1	9812-0105			●
276	04.419 SPACER; BRG TO DRIVE GEAR 4JH1 ENG(RJX)	8-97034-876-0	01	1	0106-			●
281	04.419 WASHER; THRUST,MAINSHAFT	5-33271-007-0	01	1	9812-0105	●	●
287	04.422 PIN; COUNTER GEAR	8-94402-462-0	01	1	9812-0105	●	●
287	04.422 PIN; COUNTER GEAR 4JH1 ENG(RJX)	8-94402-462-0	03	1	0106-			●
287	04.422 PIN; COUNTER GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94402-462-0	03	1	9812-0105			●
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	8-94317-161-0	01	1	9812-0105	●	●
313	04.419 BEARING; NEEDLE,LOW GEAR JTEKT	8-97010-547-0	01	1	9812-0105	●	●
313	04.419 BEARING; NEEDLE,LOW GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) NTN	8-97201-005-0	01	1	9812-0105			●
313	04.419 BEARING; NEEDLE,LOW GEAR 4JH1 ENG(RJX) NTN	8-97201-005-0	01	1	0106-			●
313	04.419 BEARING; NEEDLE,LOW GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.352 NSK	9-00096-638-0	01	1	9812-0105			●
313	04.419 BEARING; NEEDLE,LOW GEAR 4JH1 ENG(RJX) 04.352 NSK	9-00096-638-0	01	1	0106-			●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	5-09811-014-0	01	1	9812-9905	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97207-174-0	01	1	9906-0105	●	●
314	04.419 BEARING; NEEDLE,REV GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) NTN	8-97201-005-0	01	1	9812-0105			●
314	04.419 BEARING; NEEDLE,REV GEAR 4JH1 ENG(RJX) NTN	8-97201-005-0	01	1	0106-			●
314	04.419 BEARING; NEEDLE,REV GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.352 NSK	9-00096-638-0	01	1	9812-0105			●
314	04.419 BEARING; NEEDLE,REV GEAR 4JH1 ENG(RJX) 04.352 NSK	9-00096-638-0	01	1	0106-			●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0208-						●
386	04.435 PIN; REV SHAFT	8-94128-794-0	01	1	9812-0105	●	●
387	04.384 INSERT; SYN,4TH & 3RD 4JG2 ENG(RJC),4JB1 ENG(RLF)	5-33263-001-0	03	1	9812-0105	●	●
387	04.384 INSERT; SYN,4TH & 3RD 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	5-33263-001-0	03	1	9812-0105			●
387	04.384 INSERT; SYN,4TH & 3RD 4JH1 ENG(RJX)	5-33263-001-0	03	1	0106-			●
390	04.383 RING; SNAP,CLU HUB 04.384 T=1.75	8-94151-520-0	01	1	9812-0105	●	●
390	04.383 RING; SNAP,CLU HUB 04.384 T=1.80	8-94151-521-0	01	1	9812-0105	●	●
390	04.383 RING; SNAP,CLU HUB 04.416 T=1.85	8-94151-522-0	01	1	9812-0105	●	●
393	04.352 BEARING; MAINSHAFT END 04.422	8-97095-913-0	01	1	9812-9905	●
393	04.352 BEARING; MAINSHAFT END	8-97207-512-0	01	1	9906-0105	●	●
393	04.352 BEARING; MAINSHAFT END 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.355	8-94178-731-0	01	1	9812-0105			●
393	04.352 BEARING; MAINSHAFT END 4JH1 ENG(RJX) 04.355	8-94178-731-0	01	1	0106-			●
393	04.352 BEARING; MAINSHAFT END	8-97253-104-0	01	1	0208-						●
396	04.352 BEARING; NEEDLE,MAINSHAFT 04.520 (A)	9-00096-606-0	01	1	9812-0105	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (A)	8-97035-050-0	01	1	9812-9904			●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (A)	8-97228-274-0	01	1	9905-0105			●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JH1 ENG(RJX) (A)	8-97228-274-0	01	1	0106-			●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97161-658-0	01	1	9906-0105		●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-099-1	01	1	0208-						●
396	04.352 BEARING; NEEDLE,MAINSHAFT (C)	8-97253-110-0	04	1	0208-						●
397	04.384 SPRING; INSERT,4TH & 3RD 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97023-710-0	02	1	9812-0105	●	●
397	04.384 SPRING; INSERT,4TH & 3RD 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97023-710-0	02	1	9812-0105			●
397	04.384 SPRING; INSERT,4TH & 3RD 4JH1 ENG(RJX)	8-97023-710-0	02	1	0106-			●
398	04.421 GEAR; COUNTER Z=49-34-22-14	8-97077-337-0	01	1	9812-0105	●
398	04.421 GEAR; COUNTER 4JH1 ENG(RJX) Z=45-49-36-20-14-13	8-97075-976-0	01	1	0106-			●
398	04.421 GEAR; COUNTER 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=45-49-36-20-14-13	8-97205-051-0	01	1	9812-0105			●
398	04.421 GEAR; COUNTER Z=49-34-22-14	8-97205-081-0	01	1	9906-0105		●
405	04.384 INSERT; SYN,LOW & 2ND 4JG2 ENG(RJC),4JB1 ENG(RLF)	5-33263-001-0	03	1	9812-0105	●	●
405	04.384 INSERT; SYN,LOW & 2ND 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	5-33263-001-0	03	1	9812-0105			●
405	04.384 INSERT; SYN,LOW & 2ND 4JH1 ENG(RJX)	5-33263-001-0	03	1	0106-			●
408	04.384 SPRING	8-97081-577-0	01	1	9812-0105	●	●
408	04.384 SPRING 04.422	8-94148-196-0	03	1	0208-						●

314 318 393 276 80 49 82 313 70 66 62 175 234 397 387 63 62 397 14 35 13 173 66 59 36 51 66 174 405 4 32 33 40 3 66 35 180 1 396 180 172 182 40 287 51 398 50 84 184 109 186 183 190 132 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.351 SHAFT; TOP GEAR,TRANS Z=30	8-97103-632-0	01	1	9812-0105	●	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=29	8-97183-680-0	01	1	9812-0105			●
1	04.351 SHAFT; TOP GEAR,TRANS 4JH1 ENG(RJX) Z=29	8-97168-980-0	01	1	0106-			●
1	04.351 SHAFT; TOP GEAR,TRANS Z=20	1-33211-916-0	01	1	9812-0105				●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1 ENG(RLY) Z=20	1-33211-916-0	01	1	0106-					●
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-97252-922-1	01	1	0208-						●
3	04.403 BEARING; TOP GEAR SHAFT 04.408 NSK	8-94178-732-1	01	1	9812-0105	●	●
3	04.403 BEARING; TOP GEAR SHAFT 04.352 JTEKT	8-94462-615-0	01	1	9812-0105	●	●
3	04.403 BEARING; TOP GEAR SHAFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97035-047-0	01	1	9812-0105			●
3	04.403 BEARING; TOP GEAR SHAFT 4JH1 ENG(RJX)	8-97035-047-0	01	1	0106-			●
3	04.403 BEARING; TOP GEAR SHAFT NSK	1-09810-235-0	01	1	9812-9909				●
3	04.403 BEARING; TOP GEAR SHAFT NSK	1-09810-275-0	01	1	9910-0105				●
3	04.403 BEARING; TOP GEAR SHAFT 4HE1 ENG(RLY) NSK	1-09810-275-0	01	1	0106-0109					●
3	04.403 BEARING; TOP GEAR SHAFT 4HE1 ENG(RLY)	1-09810-280-0	01	1	0110-					●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-097-1	01	1	0208-						●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 08.934 ID=37.0	9-09180-040-0	01	1	9812-0105	●	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97035-040-0	01	1	9812-0105			●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 4JH1 ENG(RJX)	8-97035-040-0	01	1	0106-			●
13	04.415 GEAR; 5TH,MAINSHAFT Z=25	8-97147-817-0	01	1	9812-9905	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=25	8-97206-012-0	01	1	9906-0105	●	●
13	04.415 GEAR; 5TH,MAINSHAFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=23	8-97034-856-0	01	1	9812-0105			●
13	04.415 GEAR; 5TH,MAINSHAFT 4JH1 ENG(RJX) Z=23	8-97034-856-0	01	1	0106-			●
14	04.419 BEARING; NEEDLE,5TH 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97147-572-0	01	1	9812-0105			●
14	04.419 BEARING; NEEDLE,5TH 4JH1 ENG(RJX)	8-97147-572-0	01	1	0106-			●
32	04.415 COLLAR; 3RD GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94178-500-2	01	1	9812-0105			●
32	04.415 COLLAR; 3RD GEAR 4JH1 ENG(RJX)	8-94178-500-2	01	1	0106-			●
33	04.352 BEARING; NEEDLE,3RD GEAR	8-94317-158-0	01	1	9812-0105	●	●
33	04.352 BEARING; NEEDLE,3RD GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.419 NTN	8-97201-005-0	01	1	9812-0105			●
33	04.352 BEARING; NEEDLE,3RD GEAR 4JH1 ENG(RJX) 04.419 NTN	8-97201-005-0	01	1	0106-			●
33	04.352 BEARING; NEEDLE,3RD GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) NSK	9-00096-638-0	01	1	9812-0105			●
33	04.352 BEARING; NEEDLE,3RD GEAR 4JH1 ENG(RJX) NSK	9-00096-638-0	01	1	0106-			●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-370-0	01	1	9812-0105				●
33	04.352 BEARING; NEEDLE,3RD GEAR 4HE1 ENG(RLY) 04.419 NSK	1-09811-370-0	01	1	0106-					●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 JTEKT	1-09811-387-1	01	1	9812-0105				●
33	04.352 BEARING; NEEDLE,3RD GEAR 4HE1 ENG(RLY) 04.419 JTEKT	1-09811-387-1	01	1	0106-					●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NTN	1-09811-414-0	01	1	9812-0105				●
33	04.352 BEARING; NEEDLE,3RD GEAR 4HE1 ENG(RLY) 04.419 NTN	1-09811-414-0	01	1	0106-					●
35	04.383 RING; BLOCK,4TH & 3RD 4JG2 ENG(RJC),4JB1 ENG(RLF) Z=36	8-94128-775-2	02	1	9812-0105	●	●
35	04.383 RING; BLOCK,4TH & 3RD 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=36	8-94128-775-2	02	1	9812-0105			●
35	04.383 RING; BLOCK,4TH & 3RD 4JH1 ENG(RJX) Z=36	8-94128-775-2	02	1	0106-			●
36	04.415 GEAR; 3RD,MAINSHAFT Z=33	8-94316-761-2	01	1	9812-0105	●
36	04.415 GEAR; 3RD,MAINSHAFT 4JH1 ENG(RJX) Z=37	8-97034-854-1	01	1	0106-			●
36	04.415 GEAR; 3RD,MAINSHAFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=37	8-97205-048-0	01	1	9812-0105			●
36	04.415 GEAR; 3RD,MAINSHAFT Z=31	1-33252-432-0	01	1	9812-0105				●
36	04.415 GEAR; 3RD,MAINSHAFT 4HE1 ENG(RLY) Z=31	1-33252-432-0	01	1	0106-					●
36	04.415 GEAR; 3RD,MAINSHAFT Z=31	8-94316-760-2	01	1	9906-0105		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=31	8-97252-630-1	01	1	0208-						●
40	04.384 SPRING; INSERT,LOW & 2ND 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97023-708-0	02	1	9812-0105	●	●
40	04.384 SPRING; INSERT,LOW & 2ND 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97023-708-0	02	1	9812-0105			●
40	04.384 SPRING; INSERT,LOW & 2ND 4JH1 ENG(RJX)	8-97023-708-0	02	1	0106-			●
49	04.352 BEARING; NEEDLE,2ND GEAR 04.419 NSK	5-09811-014-0	01	1	9812-0105	●	●
49	04.352 BEARING; NEEDLE,2ND GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.419 NTN	8-97201-005-0	01	1	9812-0105			●
49	04.352 BEARING; NEEDLE,2ND GEAR 4JH1 ENG(RJX) 04.419 NTN	8-97201-005-0	01	1	0106-			●
49	04.352 BEARING; NEEDLE,2ND GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) NSK	9-00096-638-0	01	1	9812-0105			●
49	04.352 BEARING; NEEDLE,2ND GEAR 4JH1 ENG(RJX) NSK	9-00096-638-0	01	1	0106-			●
49	04.352 BEARING; NEEDLE,2ND GEAR NSK	1-09811-371-0	02	1	9812-0105				●
49	04.352 BEARING; NEEDLE,2ND GEAR 4HE1 ENG(RLY) NSK	1-09811-371-0	02	1	0106-					●
49	04.352 BEARING; NEEDLE,2ND GEAR JTEKT	1-09811-373-0	02	1	9812-0105				●
49	04.352 BEARING; NEEDLE,2ND GEAR 4HE1 ENG(RLY) JTEKT	1-09811-373-0	02	1	0106-					●
50	04.395 GEAR; 2ND,MAINSHAFT Z=36	8-94316-766-3	01	1	9812-0105	●	●
50	04.395 GEAR; 2ND,MAINSHAFT 4JH1 ENG(RJX) Z=37	8-97262-951-0	01	1	0106-			●
50	04.395 GEAR; 2ND,MAINSHAFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=37	8-94178-506-4	01	1	9812-0105			●
50	04.395 GEAR; 2ND,MAINSHAFT Z=42	1-33251-381-0	01	1	9812-0105				●
50	04.395 GEAR; 2ND,MAINSHAFT 4HE1 ENG(RLY) Z=42	1-33251-345-0	01	1	0106-					●
50	04.395 GEAR; 2ND,MAINSHAFT Z=43	8-97241-236-1	01	1	0208-						●
51	04.383 RING; BLOCK,LOW & 2ND 4JG2 ENG(RJC),4JB1 ENG(RLF) Z=42	8-97074-619-2	02	1	9812-0105	●	●
51	04.383 RING; BLOCK,LOW & 2ND 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=42	8-97074-619-2	02	1	9812-0105			●
51	04.383 RING; BLOCK,LOW & 2ND 4JH1 ENG(RJX) Z=42	8-97074-619-3	02	1	0106-			●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97115-777-0	01	1	9812-9905	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97206-006-0	01	1	9906-0105	●	●
59	04.417 GEAR; REV MAINSHAFT 4JH1 ENG(RJX) Z=40	8-97094-821-1	01	1	0106-			●
59	04.417 GEAR; REV MAINSHAFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=40	8-94317-146-2	01	1	9812-0105			●
59	04.417 GEAR; REV MAINSHAFT Z=45	1-33257-072-0	01	1	9812-0105				●
59	04.417 GEAR; REV MAINSHAFT 4HE1 ENG(RLY) Z=45	1-33257-072-0	01	1	0106-					●
59	04.417 GEAR; REV MAINSHAFT Z=45	8-97241-243-0	01	1	0208-						●
62	04.384 SPRING; INSERT,REV & 5TH	8-97023-710-0	02	1	9812-0105	●	●
62	04.384 SPRING; INSERT,REV & 5TH 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97023-709-0	02	1	9812-0105			●
62	04.384 SPRING; INSERT,REV & 5TH 4JH1 ENG(RJX)	8-97023-709-0	02	1	0106-			●
63	04.384 INSERT; SYN,REV & 5TH 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-33263-613-0	03	1	9812-0105	●	●
63	04.384 INSERT; SYN,REV & 5TH 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	9-33263-613-0	03	1	9812-0105			●
63	04.384 INSERT; SYN,REV & 5TH 4JH1 ENG(RJX)	5-33263-001-0	03	1	0106-			●
66	04.383 RING; BLOCK,SYN 4JH1 ENG(RJX) (D) OUTER	8-94316-749-0	02	1	0106-			●
66	04.383 RING; BLOCK,SYN 4JH1 ENG(RJX) (D) INNER	8-97248-220-0	02	1	0106-			●
66	04.383 RING; BLOCK,SYN (C) Z=36	8-94128-775-2	01	1	9812-0105	●	●
66	04.383 RING; BLOCK,SYN 4JH1 ENG(RJX) (B) Z=30	8-97034-840-1	01	1	0106-			●
66	04.383 RING; BLOCK,SYN 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (A) Z=45	8-97061-752-0	01	1	9812-0105			●
66	04.383 RING; BLOCK,SYN 4JH1 ENG(RJX) (A) Z=45	8-97061-752-0	01	1	0106-			●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97014-033-3	01	1	9812-0105	●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=45	8-97084-377-1	01	1	9812-0105			●
70	04.417 GEAR; 1ST,MAINSHAFT 4JH1 ENG(RJX) Z=45	8-97084-377-1	01	1	0106-			●
70	04.417 GEAR; 1ST,MAINSHAFT Z=47	1-33255-069-0	01	1	9812-0105				●
70	04.417 GEAR; 1ST,MAINSHAFT 4HE1 ENG(RLY) Z=47	1-33255-069-0	01	1	0106-					●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97241-241-0	01	1	0208-						●
80	04.343 GEAR; SPD DRIVE Z=4	8-97011-350-0	01	1	9812-9905	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97207-146-0	01	1	9906-0105	●	●
80	04.343 GEAR; SPD DRIVE 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=4	8-97011-348-0	01	1	9812-0105			●
80	04.343 GEAR; SPD DRIVE 4JH1 ENG(RJX) Z=4	8-97011-348-0	01	1	0106-			●
80	04.343 GEAR; SPD DRIVE Z=6	1-33371-053-1	01	1	9812-0105				●
80	04.343 GEAR; SPD DRIVE 4HE1 ENG(RLY) Z=6	1-33371-053-1	01	1	0106-					●
80	04.343 GEAR; SPD DRIVE Z=6	8-97327-118-0	01	1	0208-						●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-31-24	8-97045-932-1	01	1	9812-9905	●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-37-27	8-97207-119-0	01	1	9906-9911	●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-37-27	8-97207-119-0	01	1	9906-0105	●	●
82	04.403 SHAFT; MAIN,TRANS 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=27-40-40-28	8-97034-847-2	01	1	9812-0105			●
82	04.403 SHAFT; MAIN,TRANS 4JH1 ENG(RJX) Z=27-40-40-28	8-97034-847-2	01	1	0106-			●
82	04.403 SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-263-0	01	1	9812-9909				●
82	04.403 SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-312-0	01	1	9910-0105				●
82	04.403 SHAFT; MAIN,TRANS 4HE1 ENG(RLY) Z=25-24-24-16	1-33231-312-0	01	1	0106-					●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-31-24	8-97045-932-1	01	1	9906-9911		●
82	04.403 SHAFT; MAIN,TRANS Z=26-42-23	8-97253-115-3	01	1	0208-						●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK	5-09800-062-1	01	1	9812-0105	●	●
84	04.422 BEARING; COUNTER SHAFT,FRT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) NSK	8-97035-048-0	01	1	9812-0105			●
84	04.422 BEARING; COUNTER SHAFT,FRT 4JH1 ENG(RJX) NSK	8-97035-048-0	01	1	0106-			●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK	1-09810-209-0	01	1	9812-0105				●
84	04.422 BEARING; COUNTER SHAFT,FRT 4HE1 ENG(RLY) NSK	1-09810-209-0	01	1	0106-					●
84	04.422 BEARING; COUNTER SHAFT,FRT JTEKT	1-09810-210-0	01	1	9812-0105				●
84	04.422 BEARING; COUNTER SHAFT,FRT 4HE1 ENG(RLY) JTEKT	1-09810-210-0	01	1	0106-					●
109	04.422 BEARING; COUNTER SHAFT,RR	8-97095-913-0	01	1	9812-0105	●	●
109	04.422 BEARING; COUNTER SHAFT,RR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97035-049-0	01	1	9812-0105			●
109	04.422 BEARING; COUNTER SHAFT,RR 4JH1 ENG(RJX)	8-97035-049-0	01	1	0106-			●
109	04.422 BEARING; COUNTER SHAFT,RR NSK	1-09810-211-0	01	1	9812-0105				●
109	04.422 BEARING; COUNTER SHAFT,RR 4HE1 ENG(RLY) NSK	1-09810-211-0	01	1	0106-					●
109	04.422 BEARING; COUNTER SHAFT,RR JTEKT	1-09810-212-0	01	1	9812-0105				●
109	04.422 BEARING; COUNTER SHAFT,RR 4HE1 ENG(RLY) JTEKT	1-09810-212-0	01	1	0106-					●
132	04.433 SHAFT; REV	9-33351-604-1	01	1	9812-0105	●	●
132	04.433 SHAFT; REV 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94415-162-1	01	1	9812-0105			●
132	04.433 SHAFT; REV 4JH1 ENG(RJX)	8-94415-162-1	01	1	0106-			●
132	04.433 SHAFT; REV	1-33351-023-1	01	1	9812-0105				●
132	04.433 SHAFT; REV 4HE1 ENG(RLY)	1-33351-023-1	01	1	0106-					●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	0208-						●
135	04.430 GEAR; REV IDLER Z=29	8-97081-539-3	01	1	9812-0105	●	●
135	04.430 GEAR; REV IDLER 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=27	5-33361-042-2	01	1	9812-0105			●
135	04.430 GEAR; REV IDLER 4JH1 ENG(RJX) Z=27	5-33361-042-2	01	1	0106-			●
135	04.430 GEAR; REV IDLER Z=27	1-33361-073-0	01	1	9812-0105				●
135	04.430 GEAR; REV IDLER 4HE1 ENG(RLY) Z=27	1-33361-073-0	01	1	0106-					●
135	04.430 GEAR; REV IDLER Z=26	8-97241-292-1	01	1	0208-						●
172	04.412 RING; SNAP,CLU HUB 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.384 T=1.75	8-94402-405-0	01	1	9812-0105	●	●
172	04.412 RING; SNAP,CLU HUB 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.384 T=1.75	8-94402-405-0	01	1	9812-0105			●
172	04.412 RING; SNAP,CLU HUB 4JH1 ENG(RJX) 04.384 T=1.75	8-94402-405-0	01	1	0106-			●
172	04.412 RING; SNAP,CLU HUB 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.384 T=1.80	8-94402-406-0	01	1	9812-0105	●	●
172	04.412 RING; SNAP,CLU HUB 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.384 T=1.80	8-94402-406-0	01	1	9812-0105			●
172	04.412 RING; SNAP,CLU HUB 4JH1 ENG(RJX) 04.384 T=1.80	8-94402-406-0	01	1	0106-			●
172	04.412 RING; SNAP,CLU HUB 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.384 T=1.85	8-94402-407-0	01	1	9812-0105	●	●
172	04.412 RING; SNAP,CLU HUB 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.384 T=1.85	8-94402-407-0	01	1	9812-0105			●
172	04.412 RING; SNAP,CLU HUB 4JH1 ENG(RJX) 04.384 T=1.85	8-94402-407-0	01	1	0106-			●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF) T=1.85	8-94151-522-0	01	1	9812-0105	●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) T=1.85	8-94151-522-0	01	1	9812-0105			●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JH1 ENG(RJX) T=1.85	8-94151-522-0	01	1	0106-			●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF) T=1.90	8-94151-523-0	01	1	9812-0105	●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) T=1.90	8-94151-523-0	01	1	9812-0105			●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JH1 ENG(RJX) T=1.90	8-94151-523-0	01	1	0106-			●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF) T=1.95	8-94151-524-0	01	1	9812-0105	●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) T=1.95	8-94151-524-0	01	1	9812-0105			●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JH1 ENG(RJX) T=1.95	8-94151-524-0	01	1	0106-			●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF) T=2.00	8-94157-747-0	01	1	9812-0105	●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) T=2.00	8-94157-747-0	01	1	9812-0105			●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JH1 ENG(RJX) T=2.00	8-94157-747-0	01	1	0106-			●
174	04.380 SYNCHRONIZER ASM; 2ND-3RD 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97190-992-0	01	1	9812-0105			●
174	04.380 SYNCHRONIZER ASM; 2ND-3RD 4JH1 ENG(RJX)	8-97190-991-0	01	1	0106-			●
175	04.380 SYNCHRONIZER; LOW-REV 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97091-434-0	01	1	9812-0105			●
175	04.380 SYNCHRONIZER; LOW-REV 4JH1 ENG(RJX)	8-97048-738-0	01	1	0106-			●
180	04.422 RING; SNAP,CLUSTER GEAR (B) ID=38.5	8-94146-483-0	01	1	9812-0105	●	●
180	04.422 RING; SNAP,CLUSTER GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF) 08.934 (A) ID=32.2	9-09180-035-0	01	1	9812-0105	●	●
180	04.422 RING; SNAP,CLUSTER GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 08.934 (A) ID=32.2	9-09180-035-0	01	1	9812-0105			●
180	04.422 RING; SNAP,CLUSTER GEAR 4JH1 ENG(RJX) 08.934 (A) ID=32.2	9-09180-035-0	01	1	0106-			●
180	04.422 RING; SNAP,CLUSTER GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (B) ID=44.5	5-09589-010-0	01	1	9812-0105			●
180	04.422 RING; SNAP,CLUSTER GEAR 4JH1 ENG(RJX) (B) ID=44.5	5-09589-010-0	01	1	0106-			●
182	04.422 PLATE; CLUSTER GEAR	8-97095-984-0	01	1	9812-0105	●	●
182	04.422 PLATE; CLUSTER GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94131-924-1	01	1	9812-0105			●
182	04.422 PLATE; CLUSTER GEAR 4JH1 ENG(RJX)	8-94131-924-1	01	1	0106-			●
183	04.422 SPRING; PLATE,CLUSTER GEAR	8-94132-168-0	03	1	9812-0105	●	●
183	04.422 SPRING; PLATE,CLUSTER GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94148-196-0	03	1	9812-0105			●
183	04.422 SPRING; PLATE,CLUSTER GEAR 4JH1 ENG(RJX)	8-94148-196-0	03	1	0106-			●
184	04.422 SPRING; CLUSTER GEAR	8-94128-790-1	01	1	9812-0105	●	●
184	04.422 SPRING; CLUSTER GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94101-320-0	01	1	9812-0105			●
184	04.422 SPRING; CLUSTER GEAR 4JH1 ENG(RJX)	8-94101-320-0	01	1	0106-			●
186	04.422 RING; SNAP,CLUSTER GEAR ID=29.6	9-09180-032-0	01	1	9812-0105	●	●
186	04.422 RING; SNAP,CLUSTER GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 08.934 ID=32.2	9-09180-035-0	01	1	9812-0105			●
186	04.422 RING; SNAP,CLUSTER GEAR 4JH1 ENG(RJX) 08.934 ID=32.2	9-09180-035-0	01	1	0106-			●
190	04.435 BALL; LK,REV SHAFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.311	9-00097-509-0	01	1	9812-0105			●
190	04.435 BALL; LK,REV SHAFT 4JH1 ENG(RJX) 04.311	9-00097-509-0	01	1	0106-			●
234	04.380 SYNCHRONIZER ASM; 4TH TO 5TH 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97034-841-1	01	1	9812-0105			●
234	04.380 SYNCHRONIZER ASM; 4TH TO 5TH 4JH1 ENG(RJX)	8-97034-841-1	01	1	0106-			●
276	04.419 SPACER; BRG TO DRIVE GEAR	9-33235-606-1	01	1	9812-9905	●
276	04.419 SPACER; BRG TO DRIVE GEAR	8-97207-175-0	01	1	9906-0105	●	●
276	04.419 SPACER; BRG TO DRIVE GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97034-876-0	01	1	9812-0105			●
276	04.419 SPACER; BRG TO DRIVE GEAR 4JH1 ENG(RJX)	8-97034-876-0	01	1	0106-			●
287	04.422 PIN; COUNTER GEAR	8-94402-462-0	01	1	9812-0105	●	●
287	04.422 PIN; COUNTER GEAR 4JH1 ENG(RJX)	8-94402-462-0	03	1	0106-			●
287	04.422 PIN; COUNTER GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94402-462-0	03	1	9812-0105			●
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	8-94317-161-0	01	1	9812-0105	●	●
313	04.419 BEARING; NEEDLE,LOW GEAR JTEKT	8-97010-547-0	01	1	9812-0105	●	●
313	04.419 BEARING; NEEDLE,LOW GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) NTN	8-97201-005-0	01	1	9812-0105			●
313	04.419 BEARING; NEEDLE,LOW GEAR 4JH1 ENG(RJX) NTN	8-97201-005-0	01	1	0106-			●
313	04.419 BEARING; NEEDLE,LOW GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.352 NSK	9-00096-638-0	01	1	9812-0105			●
313	04.419 BEARING; NEEDLE,LOW GEAR 4JH1 ENG(RJX) 04.352 NSK	9-00096-638-0	01	1	0106-			●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	5-09811-014-0	01	1	9812-9905	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97207-174-0	01	1	9906-0105	●	●
314	04.419 BEARING; NEEDLE,REV GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) NTN	8-97201-005-0	01	1	9812-0105			●
314	04.419 BEARING; NEEDLE,REV GEAR 4JH1 ENG(RJX) NTN	8-97201-005-0	01	1	0106-			●
314	04.419 BEARING; NEEDLE,REV GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.352 NSK	9-00096-638-0	01	1	9812-0105			●
314	04.419 BEARING; NEEDLE,REV GEAR 4JH1 ENG(RJX) 04.352 NSK	9-00096-638-0	01	1	0106-			●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0208-						●
318	04.419 COLLAR; DIST,REV GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97076-908-0	01	1	9812-0105			●
318	04.419 COLLAR; DIST,REV GEAR 4JH1 ENG(RJX)	8-97076-908-0	01	1	0106-			●
387	04.384 INSERT; SYN,4TH & 3RD 4JG2 ENG(RJC),4JB1 ENG(RLF)	5-33263-001-0	03	1	9812-0105	●	●
387	04.384 INSERT; SYN,4TH & 3RD 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	5-33263-001-0	03	1	9812-0105			●
387	04.384 INSERT; SYN,4TH & 3RD 4JH1 ENG(RJX)	5-33263-001-0	03	1	0106-			●
393	04.352 BEARING; MAINSHAFT END 04.422	8-97095-913-0	01	1	9812-9905	●
393	04.352 BEARING; MAINSHAFT END	8-97207-512-0	01	1	9906-0105	●	●
393	04.352 BEARING; MAINSHAFT END 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.355	8-94178-731-0	01	1	9812-0105			●
393	04.352 BEARING; MAINSHAFT END 4JH1 ENG(RJX) 04.355	8-94178-731-0	01	1	0106-			●
393	04.352 BEARING; MAINSHAFT END	8-97253-104-0	01	1	0208-						●
396	04.352 BEARING; NEEDLE,MAINSHAFT 04.520 (A)	9-00096-606-0	01	1	9812-0105	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (A)	8-97035-050-0	01	1	9812-9904			●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (A)	8-97228-274-0	01	1	9905-0105			●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JH1 ENG(RJX) (A)	8-97228-274-0	01	1	0106-			●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97161-658-0	01	1	9906-0105		●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-099-1	01	1	0208-						●
396	04.352 BEARING; NEEDLE,MAINSHAFT (C)	8-97253-110-0	04	1	0208-						●
397	04.384 SPRING; INSERT,4TH & 3RD 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97023-710-0	02	1	9812-0105	●	●
397	04.384 SPRING; INSERT,4TH & 3RD 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97023-710-0	02	1	9812-0105			●
397	04.384 SPRING; INSERT,4TH & 3RD 4JH1 ENG(RJX)	8-97023-710-0	02	1	0106-			●
398	04.421 GEAR; COUNTER Z=49-34-22-14	8-97077-337-0	01	1	9812-0105	●
398	04.421 GEAR; COUNTER 4JH1 ENG(RJX) Z=45-49-36-20-14-13	8-97075-976-0	01	1	0106-			●
398	04.421 GEAR; COUNTER 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=45-49-36-20-14-13	8-97205-051-0	01	1	9812-0105			●
398	04.421 GEAR; COUNTER Z=49-34-22-14	8-97205-081-0	01	1	9906-0105		●
405	04.384 INSERT; SYN,LOW & 2ND 4JG2 ENG(RJC),4JB1 ENG(RLF)	5-33263-001-0	03	1	9812-0105	●	●
405	04.384 INSERT; SYN,LOW & 2ND 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	5-33263-001-0	03	1	9812-0105			●
405	04.384 INSERT; SYN,LOW & 2ND 4JH1 ENG(RJX)	5-33263-001-0	03	1	0106-			●

115 118 119 18 120 123 122 26 123 122 26 121 84 26 122 123 93 96 126 126 104 94 94 108 109 110 127 135 129 130 129 128 132 138 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
18	04.384 RING; SNAP,CLU HUB T=1.75	1-09588-196-0	01	1	9812-0105				●
18	04.384 RING; SNAP,CLU HUB 4HE1 ENG(RLY) T=1.75	1-09588-196-0	01	1	0106-					●
18	04.384 RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	0208-						●
26	04.384 SPRING; BLOCK,INSERT	1-09580-373-0	03	1	9812-0105				●
26	04.384 SPRING; BLOCK,INSERT 4HE1 ENG(RLY)	1-09580-373-0	03	1	0106-					●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK	5-09800-062-1	01	1	9812-0105	●	●
84	04.422 BEARING; COUNTER SHAFT,FRT 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) NSK	8-97035-048-0	01	1	9812-0105			●
84	04.422 BEARING; COUNTER SHAFT,FRT 4JH1 ENG(RJX) NSK	8-97035-048-0	01	1	0106-			●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK	1-09810-209-0	01	1	9812-0105				●
84	04.422 BEARING; COUNTER SHAFT,FRT 4HE1 ENG(RLY) NSK	1-09810-209-0	01	1	0106-					●
84	04.422 BEARING; COUNTER SHAFT,FRT JTEKT	1-09810-210-0	01	1	9812-0105				●
84	04.422 BEARING; COUNTER SHAFT,FRT 4HE1 ENG(RLY) JTEKT	1-09810-210-0	01	1	0106-					●
93	04.422 RING; SNAP,COUNTER FRT BRG	1-09588-091-0	01	1	9812-0105				●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1 ENG(RLY)	1-09588-091-0	01	1	0106-					●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9	8-97254-735-0	01	1	0208-						●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1	8-97254-738-0	01	1	0208-						●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3	8-97254-741-0	01	1	0208-						●
94	04.422 KEY; FEATHER,COUNTER SHAFT L=41	1-09735-021-0	01	1	9812-0105				●
94	04.422 KEY; FEATHER,COUNTER SHAFT 4HE1 ENG(RLY) L=41	1-09735-021-0	01	1	0106-					●
94	04.422 KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	01	1	9812-0105				●
94	04.422 KEY; FEATHER,COUNTER SHAFT 4HE1 ENG(RLY) L=47	1-09735-022-1	01	1	0106-					●
96	04.421 GEAR; COUNTER DRIVE Z=38	1-33331-222-0	01	1	9812-0105				●
96	04.421 GEAR; COUNTER DRIVE 4HE1 ENG(RLY) Z=38	1-33331-222-0	01	1	0106-					●
104	04.415 GEAR; 4TH,COUNTER Z=35	1-33332-111-0	01	1	9812-0105				●
104	04.415 GEAR; 4TH,COUNTER 4HE1 ENG(RLY) Z=35	1-33332-111-0	01	1	0106-					●
108	04.428 SHAFT; COUNTER Z=30-23-14	1-33311-301-0	01	1	9812-0105				●
108	04.428 SHAFT; COUNTER 4HE1 ENG(RLY) Z=30-22-14	1-33311-321-0	01	1	0106-					●
108	04.428 SHAFT; COUNTER Z=46-38-29-21	8-97349-881-0	01	1	0208-						●
109	04.422 BEARING; COUNTER SHAFT,RR	8-97095-913-0	01	1	9812-0105	●	●
109	04.422 BEARING; COUNTER SHAFT,RR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-97035-049-0	01	1	9812-0105			●
109	04.422 BEARING; COUNTER SHAFT,RR 4JH1 ENG(RJX)	8-97035-049-0	01	1	0106-			●
109	04.422 BEARING; COUNTER SHAFT,RR NSK	1-09810-211-0	01	1	9812-0105				●
109	04.422 BEARING; COUNTER SHAFT,RR 4HE1 ENG(RLY) NSK	1-09810-211-0	01	1	0106-					●
109	04.422 BEARING; COUNTER SHAFT,RR JTEKT	1-09810-212-0	01	1	9812-0105				●
109	04.422 BEARING; COUNTER SHAFT,RR 4HE1 ENG(RLY) JTEKT	1-09810-212-0	01	1	0106-					●
110	04.422 RING; SNAP,COUNTER BRG ID=41.9	1-09588-075-1	01	1	9812-0105				●
110	04.422 RING; SNAP,COUNTER BRG 4HE1 ENG(RLY) ID=41.9	1-09588-075-1	01	1	0106-					●
115	04.352 BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-267-0	01	1	9812-0105				●
115	04.352 BEARING; NEEDLE,6TH,COUNTER 4HE1 ENG(RLY) NSK	1-09811-267-0	01	1	0106-					●
115	04.352 BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-268-0	01	1	9812-0105				●
115	04.352 BEARING; NEEDLE,6TH,COUNTER 4HE1 ENG(RLY) NTN	1-09811-268-0	01	1	0106-					●
115	04.352 BEARING; NEEDLE,6TH,COUNTER JTEKT	1-09811-269-0	01	1	9812-0105				●
115	04.352 BEARING; NEEDLE,6TH,COUNTER 4HE1 ENG(RLY) JTEKT	1-09811-269-0	01	1	0106-					●
115	04.352 BEARING; NEEDLE,6TH,COUNTER OD=49.75	8-97253-113-0	01	1	0208-						●
118	04.421 GEAR; 6TH,COUNTER Z=41	1-33338-273-0	01	1	9812-0105				●
118	04.421 GEAR; 6TH,COUNTER 4HE1 ENG(RLY) Z=41	1-33338-273-0	01	1	0106-					●
118	04.421 GEAR; 6TH,COUNTER Z=47	8-97241-246-0	01	1	0208-						●
119	04.383 RING; BLOCK,6TH SYN Z=39	1-33265-408-0	01	1	9812-0105				●
119	04.383 RING; BLOCK,6TH SYN 4HE1 ENG(RLY) Z=39	1-33265-408-0	01	1	0106-					●
120	04.383 SLEEVE	1-33262-095-0	01	1	9812-0105				●
120	04.383 SLEEVE 4HE1 ENG(RLY)	1-33262-095-0	01	1	0106-					●
121	04.384 HUB; CLU,6TH	1-33261-143-1	01	1	9812-0105				●
121	04.384 HUB; CLU,6TH 4HE1 ENG(RLY)	1-33261-143-1	01	1	0106-					●
121	04.384 HUB; CLU,6TH	8-97241-301-2	01	1	0208-						●
122	04.384 PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9812-0105				●
122	04.384 PLUNGER; DETENT,SYN 4HE1 ENG(RLY)	1-33269-037-1	03	1	0106-					●
123	04.383 BLOCK; INDEX,SYN	1-33269-035-1	03	1	9812-0105				●
123	04.383 BLOCK; INDEX,SYN 4HE1 ENG(RLY)	1-33269-035-1	03	1	0106-					●
126	04.422 RING; SNAP,CLU HUB (A) OD=100 T=2	1-09587-032-0	01	1	9812-0105				●
126	04.422 RING; SNAP,CLU HUB 4HE1 ENG(RLY) (A) OD=100 T=2	1-09587-032-0	01	1	0106-					●
126	04.422 RING; SNAP,CLU HUB 04.384 (B) ID=46.3 T=1.75	1-09588-121-1	01	1	9812-0105				●
126	04.422 RING; SNAP,CLU HUB 4HE1 ENG(RLY) 04.384 (B) ID=46.3 T=1.75	1-09588-121-1	01	1	0106-					●
127	04.431 COLLAR; THRUST,REV SHAFT	1-33363-029-0	01	1	9812-0105				●
127	04.431 COLLAR; THRUST,REV SHAFT 4HE1 ENG(RLY)	1-33363-029-0	01	1	0106-					●
128	04.437 WASHER; THRUST,REV SHAFT D=62 T=6.0	1-33363-028-0	01	1	9812-0105				●
128	04.437 WASHER; THRUST,REV SHAFT 4HE1 ENG(RLY) D=62 T=6.0	1-33363-028-0	01	1	0106-					●
129	04.431 BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	9812-0105				●
129	04.431 BEARING; NEEDLE,IDLER 4HE1 ENG(RLY) NSK	1-09811-016-0	02	1	0106-					●
129	04.431 BEARING; NEEDLE,IDLER JTEKT	1-09811-017-0	02	1	9812-0105				●
129	04.431 BEARING; NEEDLE,IDLER 4HE1 ENG(RLY) JTEKT	1-09811-017-0	02	1	0106-					●
130	04.353 COLLAR; DIST,NEEDLE BRG	1-33363-031-0	01	1	9812-0105				●
130	04.353 COLLAR; DIST,NEEDLE BRG 4HE1 ENG(RLY)	1-33363-031-0	01	1	0106-					●
132	04.433 SHAFT; REV	9-33351-604-1	01	1	9812-0105	●	●
132	04.433 SHAFT; REV 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94415-162-1	01	1	9812-0105			●
132	04.433 SHAFT; REV 4JH1 ENG(RJX)	8-94415-162-1	01	1	0106-			●
132	04.433 SHAFT; REV	1-33351-023-1	01	1	9812-0105				●
132	04.433 SHAFT; REV 4HE1 ENG(RLY)	1-33351-023-1	01	1	0106-					●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	0208-						●
135	04.430 GEAR; REV IDLER Z=29	8-97081-539-3	01	1	9812-0105	●	●
135	04.430 GEAR; REV IDLER 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=27	5-33361-042-2	01	1	9812-0105			●
135	04.430 GEAR; REV IDLER 4JH1 ENG(RJX) Z=27	5-33361-042-2	01	1	0106-			●
135	04.430 GEAR; REV IDLER Z=27	1-33361-073-0	01	1	9812-0105				●
135	04.430 GEAR; REV IDLER 4HE1 ENG(RLY) Z=27	1-33361-073-0	01	1	0106-					●
135	04.430 GEAR; REV IDLER Z=26	8-97241-292-1	01	1	0208-						●
138	04.435 PIECE; LK,REV SHAFT	9-33354-007-0	01	1	9812-0105				●
138	04.435 PIECE; LK,REV SHAFT 4HE1 ENG(RLY)	9-33354-007-0	01	1	0106-					●
140	04.435 BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	9812-0105				●
140	04.435 BOLT; LK PIECE 4HE1 ENG(RLY) M10X15 FLANGE	1-09049-019-0	01	1	0106-					●

118 115 506 508 517 24 516 20 121 300 268 408 510 93 507 511 507 325 509 108 480 135 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
20	04.383 SLEEVE (A)	1-33262-167-0	01	1	9812-0105				●
20	04.383 SLEEVE 4HE1 ENG(RLY) (A)	1-33262-167-0	01	1	0106-					●
20	04.383 SLEEVE (B) Z=54	8-97241-295-1	02	1	0208-						●
20	04.383 SLEEVE (C) Z=45	8-97241-296-0	02	1	0208-						●
24	04.383 BLOCK; INDEX,SYN	1-33269-035-1	03	1	9812-0105				●
24	04.383 BLOCK; INDEX,SYN 4HE1 ENG(RLY)	1-33269-035-1	03	1	0106-					●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	12	1	0208-						●
93	04.422 RING; SNAP,COUNTER FRT BRG	1-09588-091-0	01	1	9812-0105				●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1 ENG(RLY)	1-09588-091-0	01	1	0106-					●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9	8-97254-735-0	01	1	0208-						●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1	8-97254-738-0	01	1	0208-						●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3	8-97254-741-0	01	1	0208-						●
108	04.428 SHAFT; COUNTER Z=30-23-14	1-33311-301-0	01	1	9812-0105				●
108	04.428 SHAFT; COUNTER 4HE1 ENG(RLY) Z=30-22-14	1-33311-321-0	01	1	0106-					●
108	04.428 SHAFT; COUNTER Z=46-38-29-21	8-97349-881-0	01	1	0208-						●
115	04.352 BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-267-0	01	1	9812-0105				●
115	04.352 BEARING; NEEDLE,6TH,COUNTER 4HE1 ENG(RLY) NSK	1-09811-267-0	01	1	0106-					●
115	04.352 BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-268-0	01	1	9812-0105				●
115	04.352 BEARING; NEEDLE,6TH,COUNTER 4HE1 ENG(RLY) NTN	1-09811-268-0	01	1	0106-					●
115	04.352 BEARING; NEEDLE,6TH,COUNTER JTEKT	1-09811-269-0	01	1	9812-0105				●
115	04.352 BEARING; NEEDLE,6TH,COUNTER 4HE1 ENG(RLY) JTEKT	1-09811-269-0	01	1	0106-					●
115	04.352 BEARING; NEEDLE,6TH,COUNTER OD=49.75	8-97253-113-0	01	1	0208-						●
118	04.421 GEAR; 6TH,COUNTER Z=41	1-33338-273-0	01	1	9812-0105				●
118	04.421 GEAR; 6TH,COUNTER 4HE1 ENG(RLY) Z=41	1-33338-273-0	01	1	0106-					●
118	04.421 GEAR; 6TH,COUNTER Z=47	8-97241-246-0	01	1	0208-						●
121	04.384 HUB; CLU,6TH	1-33261-143-1	01	1	9812-0105				●
121	04.384 HUB; CLU,6TH 4HE1 ENG(RLY)	1-33261-143-1	01	1	0106-					●
121	04.384 HUB; CLU,6TH	8-97241-301-2	01	1	0208-						●
132	04.433 SHAFT; REV	9-33351-604-1	01	1	9812-0105	●	●
132	04.433 SHAFT; REV 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV)	8-94415-162-1	01	1	9812-0105			●
132	04.433 SHAFT; REV 4JH1 ENG(RJX)	8-94415-162-1	01	1	0106-			●
132	04.433 SHAFT; REV	1-33351-023-1	01	1	9812-0105				●
132	04.433 SHAFT; REV 4HE1 ENG(RLY)	1-33351-023-1	01	1	0106-					●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	0208-						●
135	04.430 GEAR; REV IDLER Z=29	8-97081-539-3	01	1	9812-0105	●	●
135	04.430 GEAR; REV IDLER 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) Z=27	5-33361-042-2	01	1	9812-0105			●
135	04.430 GEAR; REV IDLER 4JH1 ENG(RJX) Z=27	5-33361-042-2	01	1	0106-			●
135	04.430 GEAR; REV IDLER Z=27	1-33361-073-0	01	1	9812-0105				●
135	04.430 GEAR; REV IDLER 4HE1 ENG(RLY) Z=27	1-33361-073-0	01	1	0106-					●
135	04.430 GEAR; REV IDLER Z=26	8-97241-292-1	01	1	0208-						●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97252-683-1	01	1	0208-						●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.7	8-97288-618-0	01	1	0208-						●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.8	8-97288-619-0	01	1	0208-						●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.9	8-97288-620-0	01	1	0208-						●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	5-09811-014-0	01	1	9812-9905	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97207-174-0	01	1	9906-0105	●	●
314	04.419 BEARING; NEEDLE,REV GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) NTN	8-97201-005-0	01	1	9812-0105			●
314	04.419 BEARING; NEEDLE,REV GEAR 4JH1 ENG(RJX) NTN	8-97201-005-0	01	1	0106-			●
314	04.419 BEARING; NEEDLE,REV GEAR 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.352 NSK	9-00096-638-0	01	1	9812-0105			●
314	04.419 BEARING; NEEDLE,REV GEAR 4JH1 ENG(RJX) 04.352 NSK	9-00096-638-0	01	1	0106-			●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0208-						●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.38	8-97252-656-0	01	1	0208-						●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.44	8-97252-657-0	01	1	0208-						●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.50	8-97252-658-0	01	1	0208-						●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.56	8-97252-659-0	01	1	0208-						●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.62	8-97252-660-0	01	1	0208-						●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.68	8-97252-661-0	01	1	0208-						●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.74	8-97252-662-0	01	1	0208-						●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.80	8-97252-663-0	01	1	0208-						●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.86	8-97252-664-0	01	1	0208-						●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.92	8-97252-665-0	01	1	0208-						●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.98	8-97257-621-0	01	1	0208-						●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.20	8-97306-185-0	01	1	0208-						●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.26	8-97306-186-0	01	1	0208-						●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.32	8-97306-187-0	01	1	0208-						●
408	04.384 SPRING	8-97081-577-0	01	1	9812-0105	●	●
408	04.384 SPRING 04.422	8-94148-196-0	03	1	0208-						●
480	04.419 WASHER; THRUST,6TH	8-97253-122-0	01	1	0208-						●
506	04.419 COLLAR; 6TH,COUNTER	8-97253-120-1	01	1	0208-						●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-106-0	02	1	0208-						●
508	04.383 RING; BLOCK,6TH Z=45	8-97241-306-1	01	1	0208-						●
509	04.417 SLINGER; OIL,REV IDLE	8-97252-682-0	01	1	0208-						●
510	04.540 PIN; STRAIGHT,ANTI LASH 00.862	9-08160-825-0	03	1	0208-						●
511	04.416 RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	0208-						●
516	04.384 SPRING; SYNCHRO,INDEX	8-97305-803-1	12	1	0208-						●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	12	1	0208-						●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
