2-25 — SPEEDOMETER DRIVEN GEAR (#45004) — 127 parça

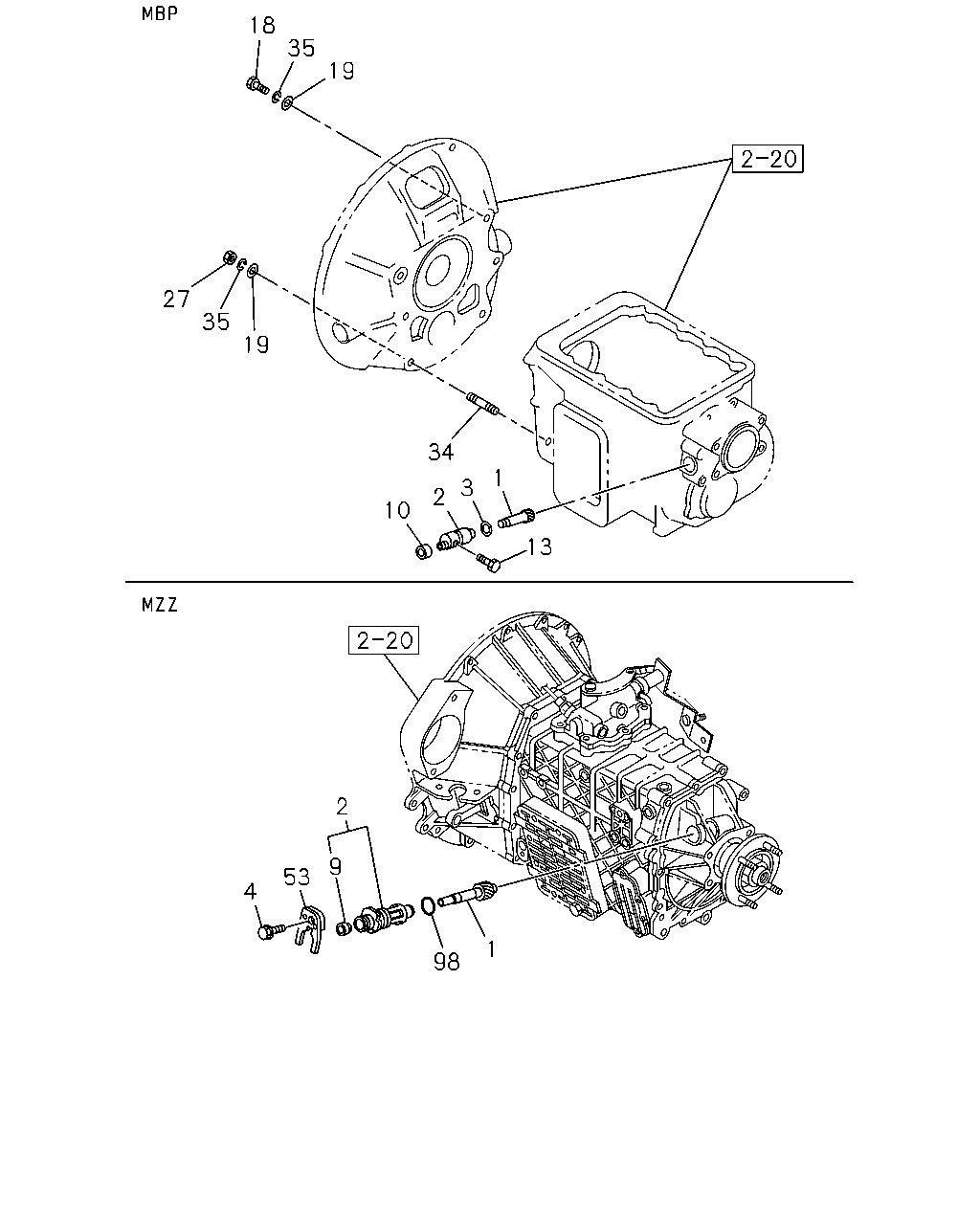

çizim 47745
18 35 19 27 35 19 34 1 3 2 10 13 2 9 53 4 1 98
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.337 GEAR; DRIVEN,SPD
M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 39/7(GV1) (ARN),(BQU),(BQV),(9HY) Z=16 		8-94249-064-0 01 1 9812-0105 ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 41/7(R41) (ARN),(AYS),(AYT),(BQU),(BQV),(BRT), (BRU),(9HY) Z=16 		8-94249-064-0 01 1 9812-0105 ●
1 04.337 GEAR; DRIVEN,SPD
4HE1 ENG(RLY) M/T MBP6R(RNW) FINAL GEAR RATIO 41/10(GT5) (AUH),(AUJ),(AUS),(AVK) Z=16 		1-33372-119-4 01 1 0106- ● ● ● ● ● ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 39/7(GV1) (AUS),(00C),(01C),(02C),(06C),(07C), (08C),(09C),(10C),(11C),(53C),(54C), (55C),(83V) Z=14 		8-94249-062-0 01 1 9812-0105 ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MXA5R(RMT) FINAL GEAR RATIO 43/9(S2J) (ARN),(BQU),(BQV),(9HY) Z=14 		8-94249-062-0 01 1 0106- ● ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 41/9(HC6) (ARN),(BQU),(BQV),(9HY) Z=13 		8-94119-854-0 01 1 9812-0105 ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MXA5R(RMT),M/T MSB5S(R45) FINAL GEAR RATIO 41/9(HC6) (AYS),(AYT),(06C),(07C),(08C),(09C), (10C),(11C),(53C),(54C) Z=12 		8-94249-943-0 01 1 9812-9903 ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MXA5R(RMT),M/T MSB5S(R45) FINAL GEAR RATIO 43/10(S7C) (AYS),(AYT) Z=12 		8-94249-943-0 01 1 9812-9903 ●
1 04.337 GEAR; DRIVEN,SPD
M/T MXA5R(RMT) FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) (AYS),(AYT) Z=12 		8-94249-943-0 01 1 9812-9903 ●
1 04.337 GEAR; DRIVEN,SPD
M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 41/9(HC6) (AYS),(AYT),(BRT),(BRU),(06C),(07C), (08C),(09C),(10C),(11C),(53C),(54C) Z=12 		8-94249-943-0 01 1 9904-0105 ● ● ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 43/10(S7C) (AYS),(AYT),(BRT),(BRU) Z=12 		8-94249-943-0 01 1 9904-0105 ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MZZ6F(RSR) FINAL GEAR RATIO 43/9(S2J) (06C),(07C),(09C),(10C),(53C),(54C) Z=13 		8-97253-562-1 01 1 0208-0212 ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MZZ6F(RSR) FINAL GEAR RATIO 41/8(RU1) (AUH),(AUJ),(AUS),(AVK),(00C),(01C), (02C),(03C),(04C),(05C),(06C),(07C), (08C),(09C),(10C),(11C),(53C),(54C), (55C),(83V),(9BP),(95V),(97V) Z=13 		8-97253-562-1 01 1 0208-0212 ●
1 04.337 GEAR; DRIVEN,SPD
M/T MZZ6F(RSR) FINAL GEAR RATIO 41/8(RU1) (AUH),(AUJ),(AUS),(AVK),(00C),(01C), (02C),(03C),(04C),(05C),(06C),(07C), (08C),(09C),(10C),(11C),(53C),(54C), (55C),(83V),(9BP),(95V),(97V) Z=13 		8-97253-562-1 01 1 0301- ● ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MZZ6F(RSR) FINAL GEAR RATIO 43/9(S2J) (06C),(07C),(09C),(10C),(53C),(54C) Z=13 		8-97253-562-1 01 1 0301- ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MZZ6F(RSR) FINAL GEAR RATIO 41/10(GT5) (AUH),(AUJ),(AUS),(AVK) Z=16 		8-97329-097-1 01 1 0208- ● ● ● ● ● ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MZZ6F(RSR) FINAL GEAR RATIO 41/10(GT5) (AYS),(AYT),(BRT),(BRU) Z=17 		8-97327-119-1 01 1 0208- ● ● ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MZZ6F(RSR) FINAL GEAR RATIO 43/9(S2J) (AUH),(AUJ),(AUS),(AVK),(00C),(01C), (02C),(03C),(04C),(05C),(08C),(11C), (55C),(83V),(9BP),(95V),(97V) Z=12 		8-97253-563-1 01 1 0208- ● ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MZZ6F(RSR) FINAL GEAR RATIO 41/8(RU1) (9ZM),(9ZP),(9ZQ) Z=12 		8-97253-563-1 01 1 0208- ●
1 04.337 GEAR; DRIVEN,SPD
M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 41/7(R41) (AUS),(00C),(01C),(02C),(06C),(07C), (08C),(09C),(10C),(11C),(53C),(54C), (55C),(83V) Z=15 		8-94249-063-0 01 1 9812-0105 ●
1 04.337 GEAR; DRIVEN,SPD
M/T MXA5R(RMT) FINAL GEAR RATIO 41/8(RU1) (ARN),(BQU),(BQV),(9HY) Z=15 		8-94249-063-0 01 1 0106-0212 ●
1 04.337 GEAR; DRIVEN,SPD
M/T MXA5R(RMT) FINAL GEAR RATIO 41/8(RU1) (ARN),(BQU),(BQV),(9HY) Z=15 		8-94249-063-0 01 1 0301- ● ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MZZ6F(RSR) FINAL GEAR RATIO 43/9(S2J) (9ZM),(9ZP),(9ZQ) Z=11 		8-97253-559-1 01 1 0208- ●
1 04.337 GEAR; DRIVEN,SPD
M/T MBP6Q(RNM) Z=17 		1-33372-120-4 01 1 9812-0105 ● ● ● ●
1 04.337 GEAR; DRIVEN,SPD
4HE1 ENG(RLY) M/T MBP6R(RNW) FINAL GEAR RATIO 41/10(GT5) Z=17 		1-33372-120-4 01 1 0106-0207 ● ● ● ● ● ● ●
1 04.337 GEAR; DRIVEN,SPD
4HE1 ENG(RLY) M/T MBP6R(RNW) FINAL GEAR RATIO 41/10(GT5) (AYS),(AYT),(BRU) Z=17 		1-33372-120-4 01 1 0208- ● ● ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 39/7(GV1) (ARN),(BQU),(BQV),(9HY) 04.338 Z=16 MARK "6" 		8-97080-362-1 01 1 9812-0105 ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 41/7(R41) (ARN),(AYS),(AYT),(BQU),(BQV),(BRT), (BRU),(9HY) 04.338 Z=16 MARK "6" 		8-97080-362-1 01 1 9812-0105 ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 39/7(GV1) (AUS),(00C),(01C),(02C),(06C),(07C), (08C),(09C),(10C),(11C),(53C),(54C), (55C),(83V) 04.338 Z=14 MARK "4" 		8-97080-360-1 01 1 9812-0105 ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MXA5R(RMT) FINAL GEAR RATIO 43/9(S2J) (ARN),(BQU),(BQV),(9HY) 04.338 Z=14 MARK "4" 		8-97080-360-1 01 1 0106- ● ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 41/9(HC6) (ARN),(BQU),(BQV),(9HY) 04.338 Z=13 MARK "3" 		8-97080-359-1 01 1 9812-0105 ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MXA5R(RMT),M/T MSB5S(R45) FINAL GEAR RATIO 41/9(HC6) (AYS),(AYT),(06C),(07C),(08C),(09C), (10C),(11C),(53C),(54C) 04.338 Z=12 MARK "2" 		8-97080-358-1 01 1 9812-9903 ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MXA5R(RMT),M/T MSB5S(R45) FINAL GEAR RATIO 43/10(S7C) (AYS),(AYT) 04.338 Z=12 MARK "2" 		8-97080-358-1 01 1 9812-9903 ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MXA5R(RMT) FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) (AYS),(AYT) 04.338 Z=12 MARK "2" 		8-97080-358-1 01 1 9812-9903 ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 41/9(HC6) (AYS),(AYT),(BRT),(BRU),(06C),(07C), (08C),(09C),(10C),(11C),(53C),(54C) 04.338 Z=12 MARK "2" 		8-97080-358-1 01 1 9904-0105 ● ● ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 43/10(S7C) (AYS),(AYT),(BRT),(BRU) 04.338 Z=12 MARK "2" 		8-97080-358-1 01 1 9904-0105 ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MZZ6F(RSR) FINAL GEAR RATIO 41/10(GT5) (AUH),(AUJ),(AUS),(AVK),(AYS),(AYT), (BRT),(BRU) MARK "10,11,16,17" 		8-97253-124-0 01 1 0208- ● ● ● ● ● ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MZZ6F(RSR) FINAL GEAR RATIO 43/9(S2J) (9ZM),(9ZP),(9ZQ) MARK "10,11,16,17" 		8-97253-124-0 01 1 0208- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MZZ6F(RSR) FINAL GEAR RATIO 43/9(S2J) (AUH),(AUJ),(AUS),(AVK),(00C),(01C), (02C),(03C),(04C),(05C),(06C),(07C), (08C),(09C),(10C),(11C),(53C),(54C), (55C),(83V),(9BP),(95V),(97V) MARK "12,13,14,15" 		8-97253-125-0 01 1 0208-0212 ● ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MZZ6F(RSR) FINAL GEAR RATIO 41/8(RU1) (AUH),(AUJ),(AUS),(AVK),(00C),(01C), (02C),(03C),(04C),(05C),(06C),(07C), (08C),(09C),(10C),(11C),(53C),(54C), (55C),(83V),(9BP),(9ZM),(9ZP),(9ZQ), (95V),(97V) MARK "12,13,14,15" 		8-97253-125-0 01 1 0208-0212 ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MZZ6F(RSR) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) (AUH),(AUJ),(AUS),(AVK),(00C),(01C), (02C),(03C),(04C),(05C),(06C),(07C), (08C),(09C),(10C),(11C),(53C),(54C), (55C),(83V),(9BP),(95V),(97V) MARK "12,13,14,15" 		8-97253-125-0 01 1 0301- ● ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 41/7(R41) (AUS),(00C),(01C),(02C),(06C),(07C), (08C),(09C),(10C),(11C),(53C),(54C), (55C),(83V) 04.338 Z=15 MARK "5" 		8-97080-361-1 01 1 9909-0105 ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MXA5R(RMT) FINAL GEAR RATIO 41/8(RU1) (ARN),(BQU),(BQV),(9HY) 04.338 Z=15 MARK "5" 		8-97080-361-1 01 1 0106-0212 ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MXA5R(RMT) FINAL GEAR RATIO 41/8(RU1) (ARN),(BQU),(BQV),(9HY) 04.338 Z=15 MARK "5" 		8-97080-361-1 01 1 0301- ● ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MBP6R(RNW) 04.338 		1-33373-039-1 01 1 9812- ● ● ● ● ● ● ●
3 04.338 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) 		9-09920-852-0 01 1 9812-0105 ● ● ● ●
3 04.338 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). M/T MXA5R(RMT) FINAL GEAR RATIO 43/9(S2J) 		9-09920-852-0 01 1 0106-0212 ● ●
3 04.338 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). M/T MXA5R(RMT) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 		9-09920-852-0 01 1 0106-0212 ●
3 04.338 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). M/T MXA5R(RMT) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) (ARN),(BQU),(BQV),(9HY) 		9-09920-852-0 01 1 0301- ● ● ●
3 04.338 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). M/T MBP6R(RNW) 		1-09623-370-0 01 1 9812- ● ● ● ● ● ● ●
4 04.338 BOLT; RET,DRIVEN GEAR
M/T MZZ6F(RSR) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0208- ● ● ● ● ● ● ●
9 04.338 SEAL; OIL,DRIVEN GEAR
M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) NOK 		8-97080-507-0 01 1 9812-0105 ● ● ● ●
9 04.338 SEAL; OIL,DRIVEN GEAR
M/T MXA5R(RMT) FINAL GEAR RATIO 43/9(S2J) NOK 		8-97080-507-0 01 1 0106-0212 ● ●
9 04.338 SEAL; OIL,DRIVEN GEAR
M/T MXA5R(RMT) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) NOK 		8-97080-507-0 01 1 0106-0212 ●
9 04.338 SEAL; OIL,DRIVEN GEAR
M/T MXA5R(RMT) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) (ARN),(BQU),(BQV),(9HY) NOK 		8-97080-507-0 01 1 0301- ● ● ●
9 04.338 SEAL; OIL,DRIVEN GEAR
M/T MZZ6F(RSR) NOK 		8-97131-328-1 01 1 0208- ● ● ● ● ● ● ●
10 04.338 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). M/T MBP6R(RNW) NOK 		1-09625-510-0 01 1 9812- ● ● ● ● ● ● ●
13 04.338 SCREW; BUSHING,DRIVEN GEAR
M/T MBP6R(RNW) M6X12.5 FLANGE 		1-09044-063-0 01 1 9812- ● ● ● ● ● ● ●
18 00.685 BOLT; CLU HSG TO TRANS
M/T MBP6R(RNW) M14X40 W/LK&PL WASHER 		0-50151-440-0 05 1 9812- ● ● ● ● ● ● ●
19 04.104 WASHER; PL,CLU HSG TO TRANS
M/T MBP6R(RNW) 02.575 ID=15 		9-09160-514-0 01 1 9812- ● ● ● ● ● ● ●
27 00.685 NUT; CLU HSG TO TRANS
M/T MBP6R(RNW) 07.529 M14 		9-99110-514-0 01 1 9812- ● ● ● ● ● ● ●
34 00.683 STUD; CLU HSG
M/T MBP6R(RNW) M14X39 L=57 		1-09302-145-1 01 1 9812- ● ● ● ● ● ● ●
35 00.685 WASHER; LK,CLU HSG TO TRANS
M/T MBP6R(RNW) 00.796 ID=14.2 		9-09150-514-0 01 1 9812- ● ● ● ● ● ● ●
53 04.338 PLATE; LOCK,DRIVEN GEAR
M/T MZZ6F(RSR) 		8-97252-679-2 01 1 0208- ● ● ● ● ● ● ●
98 04.338 SEAL; OIL,BUSH
M/T MZZ6F(RSR) 04.439 		9-09561-324-0 01 1 0208- ● ● ● ● ● ● ●

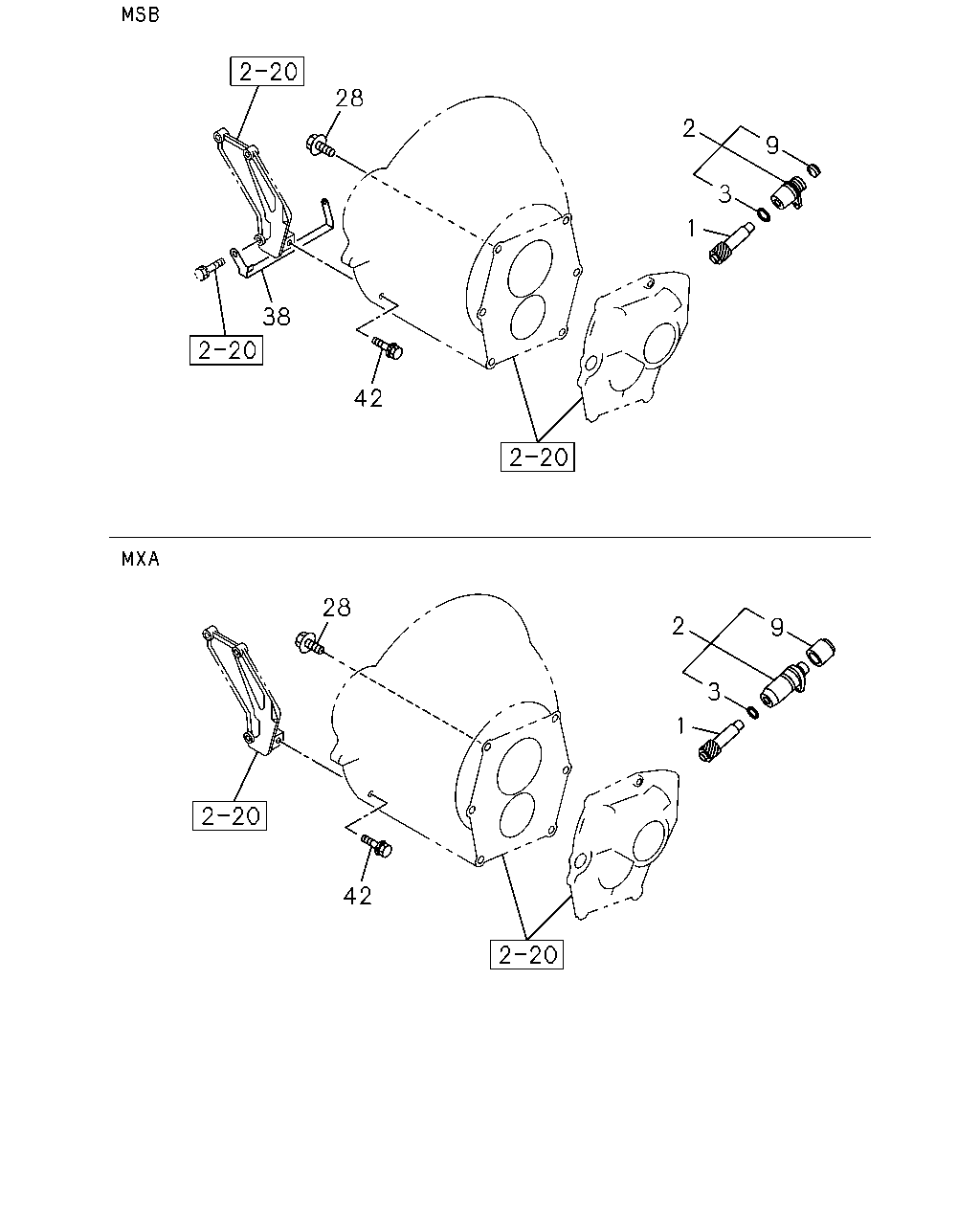

çizim 47866
28 2 9 3 1 38 42 28 2 9 3 1 42
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.337 GEAR; DRIVEN,SPD
M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 39/7(GV1) (ARN),(BQU),(BQV),(9HY) Z=16 		8-94249-064-0 01 1 9812-0105 ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 41/7(R41) (ARN),(AYS),(AYT),(BQU),(BQV),(BRT), (BRU),(9HY) Z=16 		8-94249-064-0 01 1 9812-0105 ●
1 04.337 GEAR; DRIVEN,SPD
4HE1 ENG(RLY) M/T MBP6R(RNW) FINAL GEAR RATIO 41/10(GT5) (AUH),(AUJ),(AUS),(AVK) Z=16 		1-33372-119-4 01 1 0106- ● ● ● ● ● ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 39/7(GV1) (AUS),(00C),(01C),(02C),(06C),(07C), (08C),(09C),(10C),(11C),(53C),(54C), (55C),(83V) Z=14 		8-94249-062-0 01 1 9812-0105 ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MXA5R(RMT) FINAL GEAR RATIO 43/9(S2J) (ARN),(BQU),(BQV),(9HY) Z=14 		8-94249-062-0 01 1 0106- ● ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 41/9(HC6) (ARN),(BQU),(BQV),(9HY) Z=13 		8-94119-854-0 01 1 9812-0105 ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MXA5R(RMT),M/T MSB5S(R45) FINAL GEAR RATIO 41/9(HC6) (AYS),(AYT),(06C),(07C),(08C),(09C), (10C),(11C),(53C),(54C) Z=12 		8-94249-943-0 01 1 9812-9903 ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MXA5R(RMT),M/T MSB5S(R45) FINAL GEAR RATIO 43/10(S7C) (AYS),(AYT) Z=12 		8-94249-943-0 01 1 9812-9903 ●
1 04.337 GEAR; DRIVEN,SPD
M/T MXA5R(RMT) FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) (AYS),(AYT) Z=12 		8-94249-943-0 01 1 9812-9903 ●
1 04.337 GEAR; DRIVEN,SPD
M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 41/9(HC6) (AYS),(AYT),(BRT),(BRU),(06C),(07C), (08C),(09C),(10C),(11C),(53C),(54C) Z=12 		8-94249-943-0 01 1 9904-0105 ● ● ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 43/10(S7C) (AYS),(AYT),(BRT),(BRU) Z=12 		8-94249-943-0 01 1 9904-0105 ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MZZ6F(RSR) FINAL GEAR RATIO 43/9(S2J) (06C),(07C),(09C),(10C),(53C),(54C) Z=13 		8-97253-562-1 01 1 0208-0212 ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MZZ6F(RSR) FINAL GEAR RATIO 41/8(RU1) (AUH),(AUJ),(AUS),(AVK),(00C),(01C), (02C),(03C),(04C),(05C),(06C),(07C), (08C),(09C),(10C),(11C),(53C),(54C), (55C),(83V),(9BP),(95V),(97V) Z=13 		8-97253-562-1 01 1 0208-0212 ●
1 04.337 GEAR; DRIVEN,SPD
M/T MZZ6F(RSR) FINAL GEAR RATIO 41/8(RU1) (AUH),(AUJ),(AUS),(AVK),(00C),(01C), (02C),(03C),(04C),(05C),(06C),(07C), (08C),(09C),(10C),(11C),(53C),(54C), (55C),(83V),(9BP),(95V),(97V) Z=13 		8-97253-562-1 01 1 0301- ● ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MZZ6F(RSR) FINAL GEAR RATIO 43/9(S2J) (06C),(07C),(09C),(10C),(53C),(54C) Z=13 		8-97253-562-1 01 1 0301- ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MZZ6F(RSR) FINAL GEAR RATIO 41/10(GT5) (AUH),(AUJ),(AUS),(AVK) Z=16 		8-97329-097-1 01 1 0208- ● ● ● ● ● ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MZZ6F(RSR) FINAL GEAR RATIO 41/10(GT5) (AYS),(AYT),(BRT),(BRU) Z=17 		8-97327-119-1 01 1 0208- ● ● ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MZZ6F(RSR) FINAL GEAR RATIO 43/9(S2J) (AUH),(AUJ),(AUS),(AVK),(00C),(01C), (02C),(03C),(04C),(05C),(08C),(11C), (55C),(83V),(9BP),(95V),(97V) Z=12 		8-97253-563-1 01 1 0208- ● ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MZZ6F(RSR) FINAL GEAR RATIO 41/8(RU1) (9ZM),(9ZP),(9ZQ) Z=12 		8-97253-563-1 01 1 0208- ●
1 04.337 GEAR; DRIVEN,SPD
M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 41/7(R41) (AUS),(00C),(01C),(02C),(06C),(07C), (08C),(09C),(10C),(11C),(53C),(54C), (55C),(83V) Z=15 		8-94249-063-0 01 1 9812-0105 ●
1 04.337 GEAR; DRIVEN,SPD
M/T MXA5R(RMT) FINAL GEAR RATIO 41/8(RU1) (ARN),(BQU),(BQV),(9HY) Z=15 		8-94249-063-0 01 1 0106-0212 ●
1 04.337 GEAR; DRIVEN,SPD
M/T MXA5R(RMT) FINAL GEAR RATIO 41/8(RU1) (ARN),(BQU),(BQV),(9HY) Z=15 		8-94249-063-0 01 1 0301- ● ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MZZ6F(RSR) FINAL GEAR RATIO 43/9(S2J) (9ZM),(9ZP),(9ZQ) Z=11 		8-97253-559-1 01 1 0208- ●
1 04.337 GEAR; DRIVEN,SPD
M/T MBP6Q(RNM) Z=17 		1-33372-120-4 01 1 9812-0105 ● ● ● ●
1 04.337 GEAR; DRIVEN,SPD
4HE1 ENG(RLY) M/T MBP6R(RNW) FINAL GEAR RATIO 41/10(GT5) Z=17 		1-33372-120-4 01 1 0106-0207 ● ● ● ● ● ● ●
1 04.337 GEAR; DRIVEN,SPD
4HE1 ENG(RLY) M/T MBP6R(RNW) FINAL GEAR RATIO 41/10(GT5) (AYS),(AYT),(BRU) Z=17 		1-33372-120-4 01 1 0208- ● ● ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 39/7(GV1) (ARN),(BQU),(BQV),(9HY) 04.338 Z=16 MARK "6" 		8-97080-362-1 01 1 9812-0105 ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 41/7(R41) (ARN),(AYS),(AYT),(BQU),(BQV),(BRT), (BRU),(9HY) 04.338 Z=16 MARK "6" 		8-97080-362-1 01 1 9812-0105 ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 39/7(GV1) (AUS),(00C),(01C),(02C),(06C),(07C), (08C),(09C),(10C),(11C),(53C),(54C), (55C),(83V) 04.338 Z=14 MARK "4" 		8-97080-360-1 01 1 9812-0105 ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MXA5R(RMT) FINAL GEAR RATIO 43/9(S2J) (ARN),(BQU),(BQV),(9HY) 04.338 Z=14 MARK "4" 		8-97080-360-1 01 1 0106- ● ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 41/9(HC6) (ARN),(BQU),(BQV),(9HY) 04.338 Z=13 MARK "3" 		8-97080-359-1 01 1 9812-0105 ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MXA5R(RMT),M/T MSB5S(R45) FINAL GEAR RATIO 41/9(HC6) (AYS),(AYT),(06C),(07C),(08C),(09C), (10C),(11C),(53C),(54C) 04.338 Z=12 MARK "2" 		8-97080-358-1 01 1 9812-9903 ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MXA5R(RMT),M/T MSB5S(R45) FINAL GEAR RATIO 43/10(S7C) (AYS),(AYT) 04.338 Z=12 MARK "2" 		8-97080-358-1 01 1 9812-9903 ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MXA5R(RMT) FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) (AYS),(AYT) 04.338 Z=12 MARK "2" 		8-97080-358-1 01 1 9812-9903 ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 41/9(HC6) (AYS),(AYT),(BRT),(BRU),(06C),(07C), (08C),(09C),(10C),(11C),(53C),(54C) 04.338 Z=12 MARK "2" 		8-97080-358-1 01 1 9904-0105 ● ● ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 43/10(S7C) (AYS),(AYT),(BRT),(BRU) 04.338 Z=12 MARK "2" 		8-97080-358-1 01 1 9904-0105 ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MZZ6F(RSR) FINAL GEAR RATIO 41/10(GT5) (AUH),(AUJ),(AUS),(AVK),(AYS),(AYT), (BRT),(BRU) MARK "10,11,16,17" 		8-97253-124-0 01 1 0208- ● ● ● ● ● ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MZZ6F(RSR) FINAL GEAR RATIO 43/9(S2J) (9ZM),(9ZP),(9ZQ) MARK "10,11,16,17" 		8-97253-124-0 01 1 0208- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MZZ6F(RSR) FINAL GEAR RATIO 43/9(S2J) (AUH),(AUJ),(AUS),(AVK),(00C),(01C), (02C),(03C),(04C),(05C),(06C),(07C), (08C),(09C),(10C),(11C),(53C),(54C), (55C),(83V),(9BP),(95V),(97V) MARK "12,13,14,15" 		8-97253-125-0 01 1 0208-0212 ● ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MZZ6F(RSR) FINAL GEAR RATIO 41/8(RU1) (AUH),(AUJ),(AUS),(AVK),(00C),(01C), (02C),(03C),(04C),(05C),(06C),(07C), (08C),(09C),(10C),(11C),(53C),(54C), (55C),(83V),(9BP),(9ZM),(9ZP),(9ZQ), (95V),(97V) MARK "12,13,14,15" 		8-97253-125-0 01 1 0208-0212 ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MZZ6F(RSR) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) (AUH),(AUJ),(AUS),(AVK),(00C),(01C), (02C),(03C),(04C),(05C),(06C),(07C), (08C),(09C),(10C),(11C),(53C),(54C), (55C),(83V),(9BP),(95V),(97V) MARK "12,13,14,15" 		8-97253-125-0 01 1 0301- ● ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) FINAL GEAR RATIO 41/7(R41) (AUS),(00C),(01C),(02C),(06C),(07C), (08C),(09C),(10C),(11C),(53C),(54C), (55C),(83V) 04.338 Z=15 MARK "5" 		8-97080-361-1 01 1 9909-0105 ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MXA5R(RMT) FINAL GEAR RATIO 41/8(RU1) (ARN),(BQU),(BQV),(9HY) 04.338 Z=15 MARK "5" 		8-97080-361-1 01 1 0106-0212 ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MXA5R(RMT) FINAL GEAR RATIO 41/8(RU1) (ARN),(BQU),(BQV),(9HY) 04.338 Z=15 MARK "5" 		8-97080-361-1 01 1 0301- ● ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MBP6R(RNW) 04.338 		1-33373-039-1 01 1 9812- ● ● ● ● ● ● ●
3 04.338 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) 		9-09920-852-0 01 1 9812-0105 ● ● ● ●
3 04.338 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). M/T MXA5R(RMT) FINAL GEAR RATIO 43/9(S2J) 		9-09920-852-0 01 1 0106-0212 ● ●
3 04.338 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). M/T MXA5R(RMT) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 		9-09920-852-0 01 1 0106-0212 ●
3 04.338 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). M/T MXA5R(RMT) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) (ARN),(BQU),(BQV),(9HY) 		9-09920-852-0 01 1 0301- ● ● ●
3 04.338 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). M/T MBP6R(RNW) 		1-09623-370-0 01 1 9812- ● ● ● ● ● ● ●
9 04.338 SEAL; OIL,DRIVEN GEAR
M/T MXA5R(RMT),M/T MSB5R(RNN),M/T MSB5S(R45) NOK 		8-97080-507-0 01 1 9812-0105 ● ● ● ●
9 04.338 SEAL; OIL,DRIVEN GEAR
M/T MXA5R(RMT) FINAL GEAR RATIO 43/9(S2J) NOK 		8-97080-507-0 01 1 0106-0212 ● ●
9 04.338 SEAL; OIL,DRIVEN GEAR
M/T MXA5R(RMT) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) NOK 		8-97080-507-0 01 1 0106-0212 ●
9 04.338 SEAL; OIL,DRIVEN GEAR
M/T MXA5R(RMT) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) (ARN),(BQU),(BQV),(9HY) NOK 		8-97080-507-0 01 1 0301- ● ● ●
9 04.338 SEAL; OIL,DRIVEN GEAR
M/T MZZ6F(RSR) NOK 		8-97131-328-1 01 1 0208- ● ● ● ● ● ● ●
28 00.685 BOLT; TRANS CASE TO HSG
4HE1 ENG(RLY) M/T MXA5R(RMT) ENGINE POWER N-SPEC(7QV) 00.683 M12X35 FLANGE 		8-94249-246-0 06 1 9812-0105 ● ● ● ●
28 00.685 BOLT; TRANS CASE TO HSG
4JB1 ENG(RLF) M/T MSB5R(RNN) 00.683 M12X35 FLANGE 		8-94249-246-0 06 1 9812-0105 ● ●
28 00.685 BOLT; TRANS CASE TO HSG
4JG2 ENG(RJC) M/T MSB5S(R45) 00.683 M12X35 FLANGE 		8-94249-246-0 06 1 9812-0105 ● ●
28 00.685 BOLT; TRANS CASE TO HSG
4JH1 ENG(RJX) M/T MXA5R(RMT) 00.683 M12X35 FLANGE 		8-94249-246-0 06 1 0106- ● ● ●
38 00.679 BRACKET; SPACE RUBBER
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97095-937-1 01 1 9812-0105 ● ●
42 00.685 BOLT; TRANS CASE TO STIFFENER
4JG2 ENG(RJC),4JB1 ENG(RLF) 03.613 M10X40 FLANGE 		0-28681-040-0 04 1 9812-0105 ● ●
42 00.685 BOLT; TRANS CASE TO STIFFENER
4JH1 ENG(RJX) 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0106- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
