2-20 — MANUAL TRANSMISSION ASM AND CASE (#45003) — 645 parça

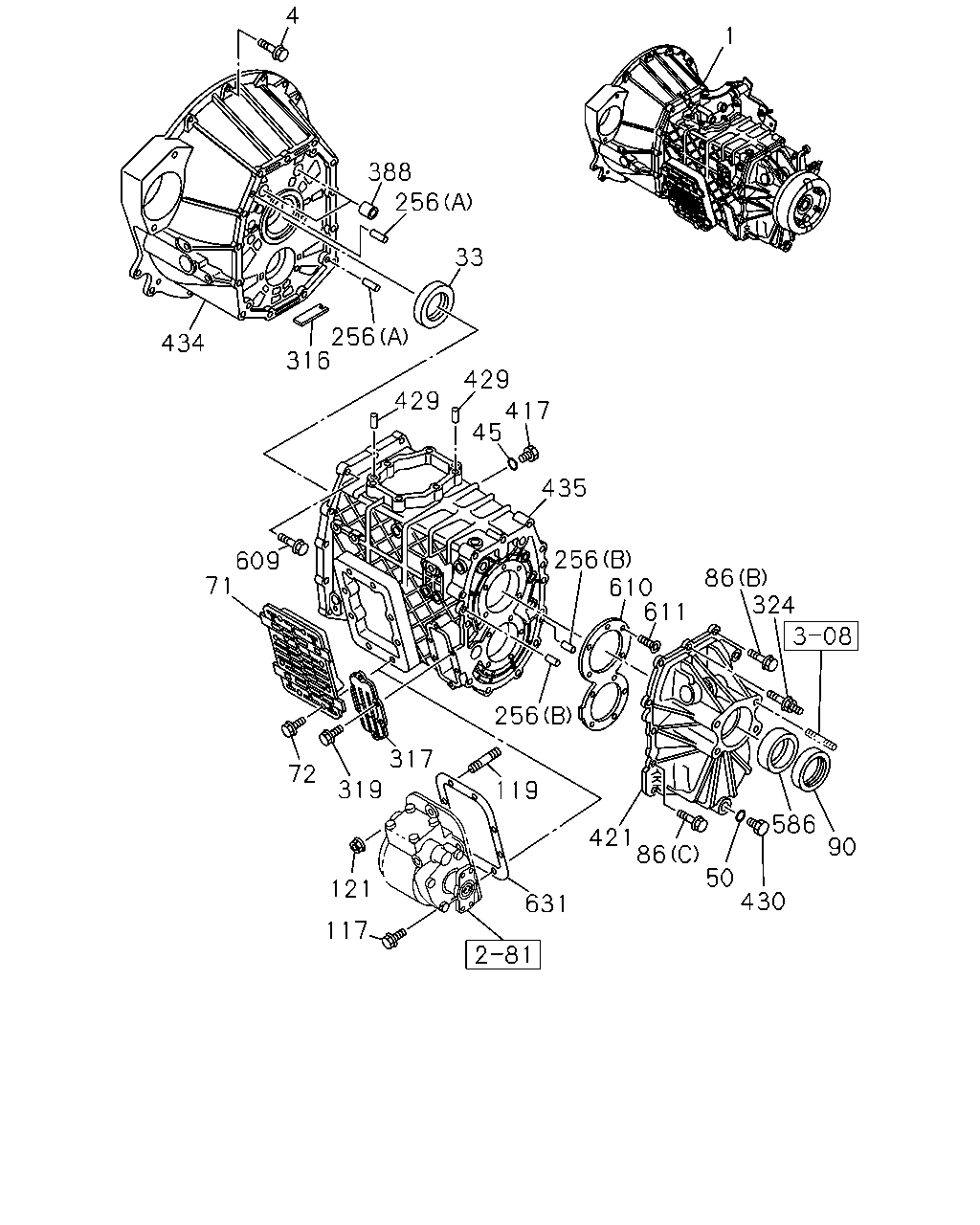

çizim 9801
4 1 388 256 33 256 316 434 429 429 417 45 435 256 610 611 609 71 86 324 256 317 72 319 119 586 421 86 50 430 90 121 631 117
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.003 TRANSMISSION ASM; MANUAL 8-97106-340-0 01 1 9812-9905 ●
1 04.003 TRANSMISSION ASM; MANUAL 8-97204-113-0 01 1 9906-0105 ●
1 04.003 TRANSMISSION ASM; MANUAL
FINAL GEAR RATIO 41/10(GT5) (AYS),(AYT),(BRU) EXC. PTO TRANSMISSION SIDE(V66) 		1-33043-138-0 01 1 0106- ●
1 04.003 TRANSMISSION ASM; MANUAL
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97205-037-1 01 1 9812-0105 ●
1 04.003 TRANSMISSION ASM; MANUAL
FINAL GEAR RATIO 41/10(GT5) (AUH),(AUJ),(AUS),(AVK) PTO TRANSMISSION SIDE(V66) 		1-33043-137-0 01 1 0106- ●
1 04.003 TRANSMISSION ASM; MANUAL
4HE1 ENG(RLY) FINAL GEAR RATIO 43/10(S7C) (AUH),(AUJ),(AUS),(AVK) PTO TRANSMISSION SIDE(V66) EXC. ENGINE POWER N-SPEC(7QV) 		1-33041-840-0 01 1 9812-0105 ●
1 04.003 TRANSMISSION ASM; MANUAL
FINAL GEAR RATIO 41/10(GT5) (AUH),(AUJ),(AUS),(AVK) EXC. PTO TRANSMISSION SIDE(V66) 		1-33043-137-0 01 1 0106- ●
1 04.003 TRANSMISSION ASM; MANUAL
4HE1 ENG(RLY) FINAL GEAR RATIO 43/10(S7C) (AUH),(AUJ),(AUS),(AVK) EXC. PTO TRANSMISSION SIDE(V66), ENGINE POWER N-SPEC(7QV) 		1-33041-840-0 01 1 9812-0105 ●
1 04.003 TRANSMISSION ASM; MANUAL
4HE1 ENG(RLY) FINAL GEAR RATIO 41/10(GT5) (AYS),(AYT),(BRU) PTO TRANSMISSION SIDE(V66) 		1-33043-138-0 01 1 0106- ●
1 04.003 TRANSMISSION ASM; MANUAL 8-97205-047-1 01 1 9906-0105 ●
1 04.003 TRANSMISSION ASM; MANUAL
4JH1 ENG(RJX) 		8-97260-325-0 01 1 0106- ●
1 04.003 TRANSMISSION ASM; MANUAL
PTO TRANSMISSION SIDE(V66) 		8-97329-057-0 01 1 0208- ●
1 04.003 TRANSMISSION ASM; MANUAL
EXC. PTO TRANSMISSION SIDE(V66) 		8-97329-057-0 01 1 0208- ●
4 00.683 BOLT; FLYWHEEL HSG
00.685 M10X35 FLANGE 		0-28081-035-0 01 1 9812-0105 ● ●
4 00.683 BOLT; FLYWHEEL HSG
00.685 M10X35 FLANGE 		0-28081-035-0 01 1 9812-0105 ● ●
4 00.683 BOLT; FLYWHEEL HSG
4JH1 ENG(RJX) M10X140 FLANGE 		0-28186-014-0 02 1 0106- ●
4 00.683 BOLT; FLYWHEEL HSG
04.525 M10X40 FLANGE 		0-28081-040-0 01 1 9812-0105 ● ●
4 00.683 BOLT; FLYWHEEL HSG
4JH1 ENG(RJX) 02.559 M10X16 FLANGE 		0-28081-016-0 01 1 0106- ●
4 00.683 BOLT; FLYWHEEL HSG
4JG2 ENG(RJC),4JB1 ENG(RLF) 00.685 M10X45 FLANGE 		0-28081-045-0 01 1 9909-0105 ● ●
4 00.683 BOLT; FLYWHEEL HSG
4JH1 ENG(RJX) M14X60 FLANGE 		0-28981-460-0 02 1 0106- ●
4 00.683 BOLT; FLYWHEEL HSG
PTO TRANSMISSION SIDE(V66) M10X130 FLANGE 		0-28186-013-0 02 1 0106- ●
4 00.683 BOLT; FLYWHEEL HSG
EXC. PTO TRANSMISSION SIDE(V66) 02.277 M10X120 FLANGE 		0-28186-012-0 02 1 0106- ●
4 00.683 BOLT; FLYWHEEL HSG
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 04.510 M10X35 FLANGE 		0-28181-035-0 02 1 9812- ●
4 00.683 BOLT; FLYWHEEL HSG
4HE1 ENG(RLY) 04.525 M10X30 FLANGE 		0-28181-030-0 02 1 9812-0105 ● ●
4 00.683 BOLT; FLYWHEEL HSG
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 04.525 M10X30 FLANGE 		0-28181-030-0 02 1 9812-0105 ● ●
4 00.683 BOLT; FLYWHEEL HSG
4JH1 ENG(RJX),4HE1 ENG(RLY) 04.525 M10X30 FLANGE 		0-28181-030-0 02 1 0106- ● ● ●
4 00.683 BOLT; FLYWHEEL HSG
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 04.525 M10X30 FLANGE 		0-28181-030-0 02 1 0106- ●
4 00.683 BOLT; FLYWHEEL HSG
4HE1 ENG(RLY) 04.525 M10X30 FLANGE 		0-28181-030-0 02 1 0106- ● ●
4 00.683 BOLT; FLYWHEEL HSG
4HE1 ENG(RLY) 04.510 M10X35 FLANGE 		0-28181-035-0 03 1 9812-0105 ● ●
4 00.683 BOLT; FLYWHEEL HSG
4JH1 ENG(RJX),4HE1 ENG(RLY) 04.510 M10X35 FLANGE 		0-28181-035-0 03 1 0106- ● ● ●
4 00.683 BOLT; FLYWHEEL HSG
4HE1 ENG(RLY) M10X55 FLANGE 		8-94399-863-1 02 1 9812-0105 ● ●
4 00.683 BOLT; FLYWHEEL HSG
4HE1 ENG(RLY) M10X55 FLANGE 		8-94399-863-1 02 1 0106- ● ● ●
33 04.318 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-565-1 01 1 9812-0105 ●
33 04.318 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) 		1-09625-565-1 01 1 0106- ●
33 04.318 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		8-97253-550-0 01 1 0208- ●
45 04.105 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.422 ID=15.3 		8-94336-511-0 01 1 9812-0105 ●
45 04.105 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) 04.422 ID=15.3 		8-94336-511-0 01 1 0106- ●
45 04.105 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). 04.109 ID=26.8 		1-09623-058-0 01 1 9812-0105 ●
45 04.105 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) 04.109 ID=26.8 		1-09623-058-0 01 1 0106- ●
45 04.105 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17 		8-97115-712-0 01 1 0208- ●
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.422 ID=15.3 		8-94336-511-0 01 1 9812-0105 ● ●
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.422 ID=15.3 		8-94336-511-0 01 1 9812-0105 ●
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) 04.422 ID=15.3 		8-94336-511-0 01 1 0106- ●
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 04.109 ID=26.8 		1-09623-058-0 01 1 9812-0105 ●
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) 04.109 ID=26.8 		1-09623-058-0 01 1 0106- ●
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17 		8-97115-712-0 01 1 0208- ●
71 04.439 COVER; SIDE,TRANS CASE 8-97106-371-0 01 1 9812-9903 ●
71 04.439 COVER; SIDE,TRANS CASE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		9-33141-601-2 01 1 9812-9903 ●
71 04.439 COVER; SIDE,TRANS CASE
4JG2 ENG(RJC),4JB1 ENG(RLF) 		9-33141-601-2 01 1 9904-0105 ● ●
71 04.439 COVER; SIDE,TRANS CASE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		9-33141-601-2 01 1 9904-0105 ●
71 04.439 COVER; SIDE,TRANS CASE
4JH1 ENG(RJX) 		9-33141-601-2 01 1 0106- ●
71 04.439 COVER; SIDE,TRANS CASE
4HE1 ENG(RLY) FINAL GEAR RATIO 43/10(S7C) (AUH),(AUJ),(AUS),(AVK) EXC. PTO TRANSMISSION SIDE(V66), ENGINE POWER N-SPEC(7QV) 		1-33141-028-0 01 1 9812-0105 ●
71 04.439 COVER; SIDE,TRANS CASE
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		1-33141-028-0 01 1 0106- ●
71 04.439 COVER; SIDE,TRANS CASE
EXC. PTO TRANSMISSION SIDE(V66) 		8-97252-624-0 01 1 0208- ●
72 04.439 BOLT; SIDE COVER
09.008 M10X20 FLANGE 		0-28081-020-0 06 1 9812-0105 ●
72 04.439 BOLT; SIDE COVER
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.105 M10X12 FLANGE 		8-94128-791-0 06 1 9812-9903 ●
72 04.439 BOLT; SIDE COVER
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.105 M10X12 FLANGE 		8-94128-791-0 06 1 9904-0105 ●
72 04.439 BOLT; SIDE COVER
4JB1 ENG(RLF) 04.105 M10X12 FLANGE 		8-94128-791-0 06 1 9904-0105 ●
72 04.439 BOLT; SIDE COVER
4JH1 ENG(RJX) 04.105 M10X12 FLANGE 		8-94128-791-0 06 1 0106- ●
72 04.439 BOLT; SIDE COVER
4HE1 ENG(RLY) FINAL GEAR RATIO 43/10(S7C) (AUH),(AUJ),(AUS),(AVK) EXC. PTO TRANSMISSION SIDE(V66), ENGINE POWER N-SPEC(7QV) 03.604 M10X16 FLANGE 		0-28181-016-0 08 1 9812-0105 ●
72 04.439 BOLT; SIDE COVER
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 03.604 M10X16 FLANGE 		0-28181-016-0 08 1 0106- ●
72 04.439 BOLT; SIDE COVER
EXC. PTO TRANSMISSION SIDE(V66) 00.206 M10X20 FLANGE 		8-97254-833-0 08 1 0208- ●
86 04.317 BOLT; RR COVER
04.105 (A) M8X25 		8-94128-786-0 07 1 9812-0105 ● ●
86 04.317 BOLT; RR COVER
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.104 (A) M10X50 		8-94318-782-0 01 1 9812-0105 ●
86 04.317 BOLT; RR COVER
4JH1 ENG(RJX) 04.104 (A) M10X50 		8-94318-782-0 01 1 0106- ●
86 04.317 BOLT; RR COVER
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (A) M10X30 FLANGE 		8-94482-338-0 06 1 9812-0105 ●
86 04.317 BOLT; RR COVER
4JH1 ENG(RJX) (A) M10X30 FLANGE 		8-94482-338-0 06 1 0106- ●
86 04.317 BOLT; RR COVER
(A) M10X25 		1-09044-080-0 08 1 9812-0105 ●
86 04.317 BOLT; RR COVER
4HE1 ENG(RLY) (A) M10X25 		1-09044-080-0 08 1 0106- ●
86 04.317 BOLT; RR COVER
(A) M10X55 		1-09044-083-0 03 1 9812-0105 ●
86 04.317 BOLT; RR COVER
4HE1 ENG(RLY) (A) M10X55 		1-09044-083-0 03 1 0106- ●
86 04.317 BOLT; RR COVER
04.510 (B) M10X40 FLANGE 		0-28181-040-0 10 1 0208- ●
86 04.317 BOLT; RR COVER
(C) M10X40 FLANGE 		8-97305-392-0 02 1 0208- ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),4JB1 ENG(RLF) NOK 		8-97074-651-0 01 1 9812-0008 ● ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) NOK 		8-97074-651-0 01 1 9812-0008 ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),4JB1 ENG(RLF) NOK 		8-97257-296-0 01 1 0009-0105 ● ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) NOK 		8-97257-296-0 01 1 0009-0105 ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) NOK 		8-97257-296-0 01 1 0106- ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-505-0 01 1 9812-0105 ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) NOK 		1-09625-505-0 01 1 0106- ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-97253-551-1 01 1 0208- ●
117 04.439 BOLT; PTO FIX
PTO TRANSMISSION SIDE(V66) 01.652 M10X25 W/LK WASHER 		0-50041-025-0 04 1 9812-0105 ● ● ●
117 04.439 BOLT; PTO FIX
PTO TRANSMISSION SIDE(V66) 01.652 M10X25 W/LK WASHER 		0-50041-025-0 04 1 0106- ●
117 04.439 BOLT; PTO FIX
PTO TRANSMISSION SIDE(V66) 09.171 M10X30 W/LK WASHER 		0-50041-030-0 02 1 9812-0105 ● ● ●
117 04.439 BOLT; PTO FIX
PTO TRANSMISSION SIDE(V66) 09.171 M10X30 W/LK WASHER 		0-50041-030-0 02 1 0106- ●
117 04.439 BOLT; PTO FIX
4HE1 ENG(RLY) FINAL GEAR RATIO 43/10(S7C) (AUH),(AUJ),(AUS),(AVK) PTO TRANSMISSION SIDE(V66) EXC. ENGINE POWER N-SPEC(7QV) 00.685 M10X28 FLANGE 		0-28181-028-0 06 1 9812-0105 ●
117 04.439 BOLT; PTO FIX
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 00.685 M10X28 FLANGE 		0-28181-028-0 06 1 0106- ● ●
119 04.439 STUD; PTO FIX
4HE1 ENG(RLY) FINAL GEAR RATIO 43/10(S7C) (AUH),(AUJ),(AUS),(AVK) PTO TRANSMISSION SIDE(V66) EXC. ENGINE POWER N-SPEC(7QV) 04.502 M10X30 L=45 		9-04411-030-0 02 1 9812-0105 ●
119 04.439 STUD; PTO FIX
PTO TRANSMISSION SIDE(V66) 03.275 M10X25 L=40 		9-04411-025-0 02 1 0208- ●
121 04.439 NUT; PTO FIX
4HE1 ENG(RLY) FINAL GEAR RATIO 43/10(S7C) (AUH),(AUJ),(AUS),(AVK) PTO TRANSMISSION SIDE(V66) EXC. ENGINE POWER N-SPEC(7QV) 08.917 M10 FLANGE 		0-91150-210-0 02 1 9812-0105 ●
121 04.439 NUT; PTO FIX
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 08.917 M10 FLANGE 		0-91150-210-0 02 1 0106- ● ●
256 04.317 PIN; KNOCK
04.510 (A) OD=10 L=20 		8-97135-423-0 02 1 0208- ●
256 04.317 PIN; KNOCK
00.862 (B) ID=6 L=12 		9-08160-612-0 02 1 0208- ●
316 04.105 MAGNET; TRANS CASE 8-94249-524-2 01 1 0208- ●
317 04.109 COVER; CASE 8-97252-626-0 01 1 0208- ●
319 04.109 BOLT; COVER
07.010 M8X20 FLANGE 		0-28080-820-0 06 1 0208- ●
324 04.319 STUD; RR COVER
M10X15,M10X40 L=65 		8-97309-013-0 01 1 0208- ●
388 00.683 BUSHING; CLU HSG 8-97241-326-1 02 1 0208- ●
417 04.105 PLUG; OIL FILLER,TRANS
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) M18 		8-94337-946-1 01 1 9812-0105 ●
417 04.105 PLUG; OIL FILLER,TRANS
4JH1 ENG(RJX) M18 		8-94337-946-1 01 1 0106- ●
417 04.105 PLUG; OIL FILLER,TRANS
01.453 M24X17 FLANGE 		1-09604-064-1 01 1 9812-0105 ●
417 04.105 PLUG; OIL FILLER,TRANS
4HE1 ENG(RLY) 01.453 M24X17 FLANGE 		1-09604-064-1 01 1 0106-0201 ●
417 04.105 PLUG; OIL FILLER,TRANS
4HE1 ENG(RLY) 05.400 M24X17 FLANGE 		1-09604-022-0 01 1 0202- ●
417 04.105 PLUG; OIL FILLER,TRANS
08.971 		8-94310-917-0 01 1 0208- ●
421 04.317 COVER; RR,TRANS 8-97112-986-2 01 1 9812-0105 ● ●
421 04.317 COVER; RR,TRANS
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97034-809-0 01 1 9812-0008 ●
421 04.317 COVER; RR,TRANS
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97249-001-1 01 1 0009-0105 ●
421 04.317 COVER; RR,TRANS
4JH1 ENG(RJX) 		8-97249-001-1 01 1 0106- ●
421 04.317 COVER; RR,TRANS 1-33131-173-2 01 1 9812-0105 ●
421 04.317 COVER; RR,TRANS
4HE1 ENG(RLY) 		1-33131-173-2 01 1 0106- ●
421 04.317 COVER; RR,TRANS 8-97238-934-2 01 1 0208- ●
429 04.105 PIN; STRAIGHT
08.939 OD=10 L=18 		9-08151-018-0 02 1 9812-0105 ●
429 04.105 PIN; STRAIGHT
4HE1 ENG(RLY) 08.939 OD=10 L=18 		9-08151-018-0 02 1 0106- ●
429 04.105 PIN; STRAIGHT
04.510 OD=10 L=20 		8-97135-423-0 02 1 0208- ●
430 04.105 PLUG; OIL DRAIN
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-94336-512-1 01 1 9812-0105 ● ●
430 04.105 PLUG; OIL DRAIN
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-94336-512-1 01 1 9812-0105 ●
430 04.105 PLUG; OIL DRAIN
4JH1 ENG(RJX) 		8-94336-512-1 01 1 0106- ●
430 04.105 PLUG; OIL DRAIN
05.400 M24X17 FLANGE 		1-09604-023-0 01 1 9812-0105 ●
430 04.105 PLUG; OIL DRAIN
4HE1 ENG(RLY) 05.400 M24X17 FLANGE 		1-09604-023-0 01 1 0106- ●
430 04.105 PLUG; OIL DRAIN 9-09662-004-0 01 1 0208- ●
434 00.683 HOUSING; CLU 8-97034-879-2 01 1 9812-0105 ● ●
434 00.683 HOUSING; CLU
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97034-801-2 01 1 9812-0105 ●
434 00.683 HOUSING; CLU
4JH1 ENG(RJX) 		8-97034-801-2 01 1 0106- ●
434 00.683 HOUSING; CLU 1-31110-152-2 01 1 9812-0105 ●
434 00.683 HOUSING; CLU
4HE1 ENG(RLY) 		1-31110-152-2 01 1 0106- ●
434 00.683 HOUSING; CLU 8-97238-930-4 01 1 0208- ●
435 04.103 CASE; TRANS 8-97072-004-0 01 1 9812-9905 ●
435 04.103 CASE; TRANS 8-97206-005-0 01 1 9906-0105 ● ●
435 04.103 CASE; TRANS
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97034-803-2 01 1 9812-9903 ●
435 04.103 CASE; TRANS
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97204-132-1 01 1 9904-0105 ●
435 04.103 CASE; TRANS
4JH1 ENG(RJX) 		8-97204-132-1 01 1 0106- ●
435 04.103 CASE; TRANS 1-33111-243-1 01 1 9812-0105 ●
435 04.103 CASE; TRANS
4HE1 ENG(RLY) 		1-33111-243-1 01 1 0106- ●
435 04.103 CASE; TRANS 8-97252-622-5 01 1 0208- ●
586 00.683 BEARING; NEEDLE 8-97253-108-0 01 1 0208- ●
609 04.104 BOLT; HSG TO CASE
04.510 M10X40 FLANGE 		0-28181-040-0 13 1 0208- ●
610 04.412 RETAINER; BRG 8-97241-314-2 01 1 0208- ●
611 04.104 SCREW
M10X27 		8-97254-834-1 10 1 0208- ●
631 04.439 SPACER; PTO
PTO TRANSMISSION SIDE(V66) 		8-97328-662-0 01 1 0208- ●

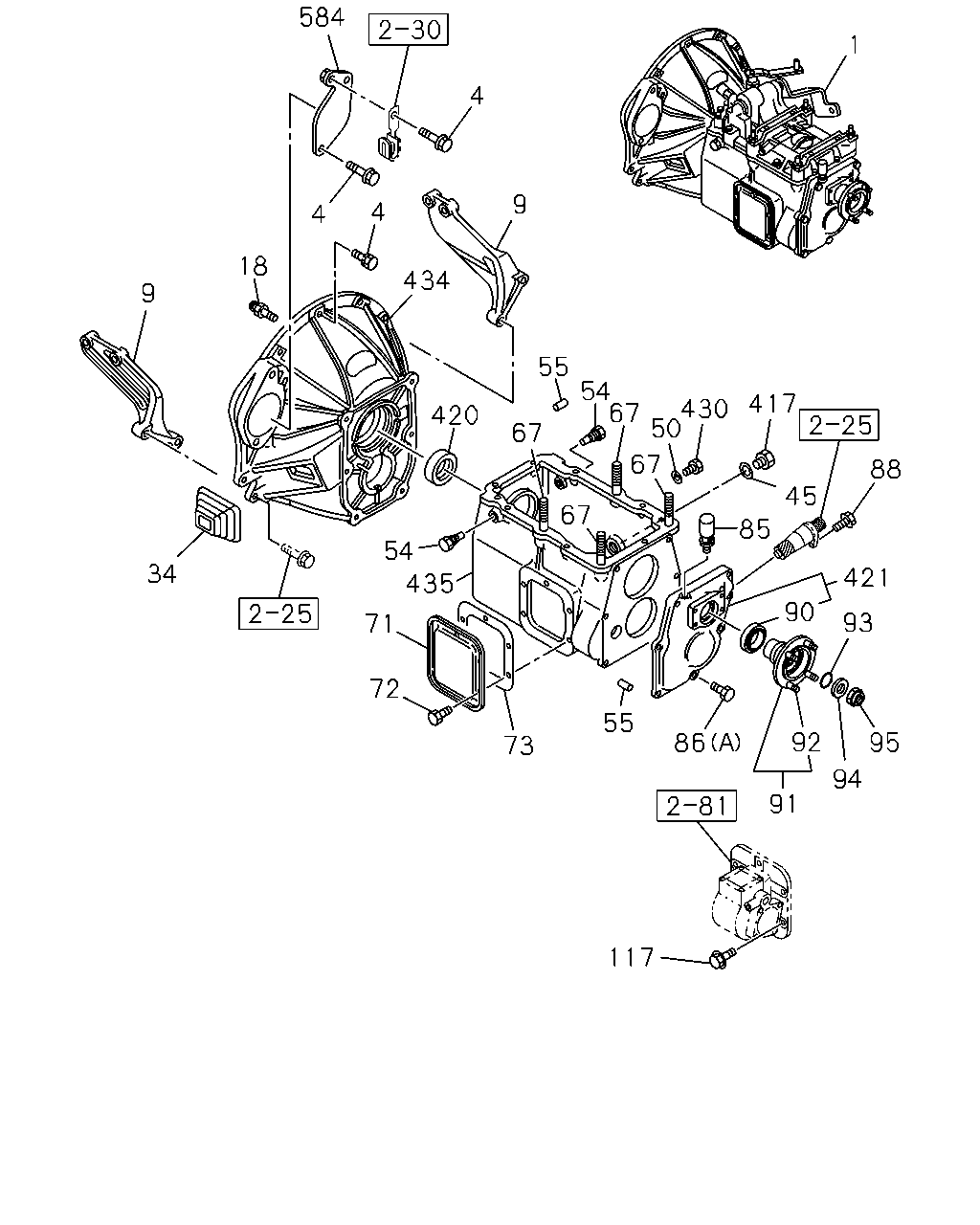

çizim 10449
584 1 4 9 4 4 18 434 9 55 54 67 417 430 50 420 67 67 45 67 85 54 34 421 435 90 93 71 72 55 92 95 86 73 94 91 117 88
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.003 TRANSMISSION ASM; MANUAL 8-97106-340-0 01 1 9812-9905 ●
1 04.003 TRANSMISSION ASM; MANUAL 8-97204-113-0 01 1 9906-0105 ●
1 04.003 TRANSMISSION ASM; MANUAL
FINAL GEAR RATIO 41/10(GT5) (AYS),(AYT),(BRU) EXC. PTO TRANSMISSION SIDE(V66) 		1-33043-138-0 01 1 0106- ●
1 04.003 TRANSMISSION ASM; MANUAL
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97205-037-1 01 1 9812-0105 ●
1 04.003 TRANSMISSION ASM; MANUAL
FINAL GEAR RATIO 41/10(GT5) (AUH),(AUJ),(AUS),(AVK) PTO TRANSMISSION SIDE(V66) 		1-33043-137-0 01 1 0106- ●
1 04.003 TRANSMISSION ASM; MANUAL
4HE1 ENG(RLY) FINAL GEAR RATIO 43/10(S7C) (AUH),(AUJ),(AUS),(AVK) PTO TRANSMISSION SIDE(V66) EXC. ENGINE POWER N-SPEC(7QV) 		1-33041-840-0 01 1 9812-0105 ●
1 04.003 TRANSMISSION ASM; MANUAL
FINAL GEAR RATIO 41/10(GT5) (AUH),(AUJ),(AUS),(AVK) EXC. PTO TRANSMISSION SIDE(V66) 		1-33043-137-0 01 1 0106- ●
1 04.003 TRANSMISSION ASM; MANUAL
4HE1 ENG(RLY) FINAL GEAR RATIO 43/10(S7C) (AUH),(AUJ),(AUS),(AVK) EXC. PTO TRANSMISSION SIDE(V66), ENGINE POWER N-SPEC(7QV) 		1-33041-840-0 01 1 9812-0105 ●
1 04.003 TRANSMISSION ASM; MANUAL
4HE1 ENG(RLY) FINAL GEAR RATIO 41/10(GT5) (AYS),(AYT),(BRU) PTO TRANSMISSION SIDE(V66) 		1-33043-138-0 01 1 0106- ●
1 04.003 TRANSMISSION ASM; MANUAL 8-97205-047-1 01 1 9906-0105 ●
1 04.003 TRANSMISSION ASM; MANUAL
4JH1 ENG(RJX) 		8-97260-325-0 01 1 0106- ●
1 04.003 TRANSMISSION ASM; MANUAL
PTO TRANSMISSION SIDE(V66) 		8-97329-057-0 01 1 0208- ●
1 04.003 TRANSMISSION ASM; MANUAL
EXC. PTO TRANSMISSION SIDE(V66) 		8-97329-057-0 01 1 0208- ●
4 00.683 BOLT; FLYWHEEL HSG
00.685 M10X35 FLANGE 		0-28081-035-0 01 1 9812-0105 ● ●
4 00.683 BOLT; FLYWHEEL HSG
00.685 M10X35 FLANGE 		0-28081-035-0 01 1 9812-0105 ● ●
4 00.683 BOLT; FLYWHEEL HSG
4JH1 ENG(RJX) M10X140 FLANGE 		0-28186-014-0 02 1 0106- ●
4 00.683 BOLT; FLYWHEEL HSG
04.525 M10X40 FLANGE 		0-28081-040-0 01 1 9812-0105 ● ●
4 00.683 BOLT; FLYWHEEL HSG
4JH1 ENG(RJX) 02.559 M10X16 FLANGE 		0-28081-016-0 01 1 0106- ●
4 00.683 BOLT; FLYWHEEL HSG
4JG2 ENG(RJC),4JB1 ENG(RLF) 00.685 M10X45 FLANGE 		0-28081-045-0 01 1 9909-0105 ● ●
4 00.683 BOLT; FLYWHEEL HSG
4JH1 ENG(RJX) M14X60 FLANGE 		0-28981-460-0 02 1 0106- ●
4 00.683 BOLT; FLYWHEEL HSG
PTO TRANSMISSION SIDE(V66) M10X130 FLANGE 		0-28186-013-0 02 1 0106- ●
4 00.683 BOLT; FLYWHEEL HSG
EXC. PTO TRANSMISSION SIDE(V66) 02.277 M10X120 FLANGE 		0-28186-012-0 02 1 0106- ●
4 00.683 BOLT; FLYWHEEL HSG
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 04.510 M10X35 FLANGE 		0-28181-035-0 02 1 9812- ●
4 00.683 BOLT; FLYWHEEL HSG
4HE1 ENG(RLY) 04.525 M10X30 FLANGE 		0-28181-030-0 02 1 9812-0105 ● ●
4 00.683 BOLT; FLYWHEEL HSG
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 04.525 M10X30 FLANGE 		0-28181-030-0 02 1 9812-0105 ● ●
4 00.683 BOLT; FLYWHEEL HSG
4JH1 ENG(RJX),4HE1 ENG(RLY) 04.525 M10X30 FLANGE 		0-28181-030-0 02 1 0106- ● ● ●
4 00.683 BOLT; FLYWHEEL HSG
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 04.525 M10X30 FLANGE 		0-28181-030-0 02 1 0106- ●
4 00.683 BOLT; FLYWHEEL HSG
4HE1 ENG(RLY) 04.525 M10X30 FLANGE 		0-28181-030-0 02 1 0106- ● ●
4 00.683 BOLT; FLYWHEEL HSG
4HE1 ENG(RLY) 04.510 M10X35 FLANGE 		0-28181-035-0 03 1 9812-0105 ● ●
4 00.683 BOLT; FLYWHEEL HSG
4JH1 ENG(RJX),4HE1 ENG(RLY) 04.510 M10X35 FLANGE 		0-28181-035-0 03 1 0106- ● ● ●
4 00.683 BOLT; FLYWHEEL HSG
4HE1 ENG(RLY) M10X55 FLANGE 		8-94399-863-1 02 1 9812-0105 ● ●
4 00.683 BOLT; FLYWHEEL HSG
4HE1 ENG(RLY) M10X55 FLANGE 		8-94399-863-1 02 1 0106- ● ● ●
9 04.083 STIFFENER; C/BL 8-97074-108-3 01 1 9812-0105 ● ●
9 04.083 STIFFENER; C/BL
4JH1 ENG(RJX) 		8-97240-036-0 01 1 0106- ●
9 04.083 STIFFENER; C/BL 8-97084-390-2 01 1 9812-0105 ● ●
9 04.083 STIFFENER; C/BL
4JH1 ENG(RJX) 		8-97240-035-0 01 1 0106- ●
18 00.683 SUPPORT; DRAW LEVER
4JG2 ENG(RJC) 00.796 L=47.5 		5-31345-002-1 01 1 9812-9903 ●
18 00.683 SUPPORT; DRAW LEVER
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 00.796 L=47.5 		5-31345-002-1 01 1 9812-9903 ●
18 00.683 SUPPORT; DRAW LEVER
4JG2 ENG(RJC),4JB1 ENG(RLF) L=47.5 		8-97225-469-1 01 1 9904-0105 ● ●
18 00.683 SUPPORT; DRAW LEVER
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) L=47.5 		8-97225-469-1 01 1 9904-0105 ●
18 00.683 SUPPORT; DRAW LEVER
4JH1 ENG(RJX) L=47.5 		8-97225-469-1 01 1 0106- ●
34 00.686 COVER; DUST,SHIFT FORK 8-97034-880-0 01 1 9812-0105 ● ●
34 00.686 COVER; DUST,SHIFT FORK
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97017-333-0 01 1 9812-0105 ●
34 00.686 COVER; DUST,SHIFT FORK
4JH1 ENG(RJX) 		8-97017-333-0 01 1 0106- ●
45 04.105 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.422 ID=15.3 		8-94336-511-0 01 1 9812-0105 ●
45 04.105 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) 04.422 ID=15.3 		8-94336-511-0 01 1 0106- ●
45 04.105 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). 04.109 ID=26.8 		1-09623-058-0 01 1 9812-0105 ●
45 04.105 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) 04.109 ID=26.8 		1-09623-058-0 01 1 0106- ●
45 04.105 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17 		8-97115-712-0 01 1 0208- ●
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.422 ID=15.3 		8-94336-511-0 01 1 9812-0105 ● ●
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.422 ID=15.3 		8-94336-511-0 01 1 9812-0105 ●
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) 04.422 ID=15.3 		8-94336-511-0 01 1 0106- ●
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 04.109 ID=26.8 		1-09623-058-0 01 1 9812-0105 ●
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) 04.109 ID=26.8 		1-09623-058-0 01 1 0106- ●
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17 		8-97115-712-0 01 1 0208- ●
54 04.105 BOLT; FULCRUM
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97171-503-0 02 1 9812-0105 ●
54 04.105 BOLT; FULCRUM
4JH1 ENG(RJX) 		8-97171-503-0 02 1 0106- ●
55 04.105 PIN; KNOCK,CASE,TRANS
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		9-08161-016-0 02 1 9812-9905 ●
55 04.105 PIN; KNOCK,CASE,TRANS
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97229-245-0 02 1 9906-9907 ●
55 04.105 PIN; KNOCK,CASE,TRANS
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		9-08161-016-0 02 1 9908-0105 ●
55 04.105 PIN; KNOCK,CASE,TRANS
4JH1 ENG(RJX) 		9-08161-016-0 02 1 0106- ●
67 04.105 STUD; CASE TRANS 9-09631-004-0 06 1 9812-0105 ● ●
67 04.105 STUD; CASE TRANS
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		5-09302-011-0 04 1 9812-0105 ●
67 04.105 STUD; CASE TRANS
4JH1 ENG(RJX) 		5-09302-011-0 04 1 0106- ●
71 04.439 COVER; SIDE,TRANS CASE 8-97106-371-0 01 1 9812-9903 ●
71 04.439 COVER; SIDE,TRANS CASE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		9-33141-601-2 01 1 9812-9903 ●
71 04.439 COVER; SIDE,TRANS CASE
4JG2 ENG(RJC),4JB1 ENG(RLF) 		9-33141-601-2 01 1 9904-0105 ● ●
71 04.439 COVER; SIDE,TRANS CASE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		9-33141-601-2 01 1 9904-0105 ●
71 04.439 COVER; SIDE,TRANS CASE
4JH1 ENG(RJX) 		9-33141-601-2 01 1 0106- ●
71 04.439 COVER; SIDE,TRANS CASE
4HE1 ENG(RLY) FINAL GEAR RATIO 43/10(S7C) (AUH),(AUJ),(AUS),(AVK) EXC. PTO TRANSMISSION SIDE(V66), ENGINE POWER N-SPEC(7QV) 		1-33141-028-0 01 1 9812-0105 ●
71 04.439 COVER; SIDE,TRANS CASE
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		1-33141-028-0 01 1 0106- ●
71 04.439 COVER; SIDE,TRANS CASE
EXC. PTO TRANSMISSION SIDE(V66) 		8-97252-624-0 01 1 0208- ●
72 04.439 BOLT; SIDE COVER
09.008 M10X20 FLANGE 		0-28081-020-0 06 1 9812-0105 ●
72 04.439 BOLT; SIDE COVER
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.105 M10X12 FLANGE 		8-94128-791-0 06 1 9812-9903 ●
72 04.439 BOLT; SIDE COVER
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.105 M10X12 FLANGE 		8-94128-791-0 06 1 9904-0105 ●
72 04.439 BOLT; SIDE COVER
4JB1 ENG(RLF) 04.105 M10X12 FLANGE 		8-94128-791-0 06 1 9904-0105 ●
72 04.439 BOLT; SIDE COVER
4JH1 ENG(RJX) 04.105 M10X12 FLANGE 		8-94128-791-0 06 1 0106- ●
72 04.439 BOLT; SIDE COVER
4HE1 ENG(RLY) FINAL GEAR RATIO 43/10(S7C) (AUH),(AUJ),(AUS),(AVK) EXC. PTO TRANSMISSION SIDE(V66), ENGINE POWER N-SPEC(7QV) 03.604 M10X16 FLANGE 		0-28181-016-0 08 1 9812-0105 ●
72 04.439 BOLT; SIDE COVER
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 03.604 M10X16 FLANGE 		0-28181-016-0 08 1 0106- ●
72 04.439 BOLT; SIDE COVER
EXC. PTO TRANSMISSION SIDE(V66) 00.206 M10X20 FLANGE 		8-97254-833-0 08 1 0208- ●
73 04.109 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),4JB1 ENG(RLF) 		9-33142-601-0 01 1 9812-0105 ● ●
73 04.109 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		9-33142-601-0 01 1 9812-0105 ●
73 04.109 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) 		9-33142-601-0 01 1 0106- ●
73 04.109 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) FINAL GEAR RATIO 43/10(S7C) (AUH),(AUJ),(AUS),(AVK) EXC. PTO TRANSMISSION SIDE(V66), ENGINE POWER N-SPEC(7QV) 		1-33142-036-0 01 1 9812-0105 ●
73 04.109 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		1-33142-036-0 01 1 0106- ●
85 04.104 BREATHER; RR COVER
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97165-939-0 01 1 9812-0105 ● ●
85 04.104 BREATHER; RR COVER
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97165-939-0 01 1 9812-0105 ●
85 04.104 BREATHER; RR COVER
4JH1 ENG(RJX) 		8-97165-939-0 01 1 0106- ●
86 04.317 BOLT; RR COVER
04.105 (A) M8X25 		8-94128-786-0 07 1 9812-0105 ● ●
86 04.317 BOLT; RR COVER
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.104 (A) M10X50 		8-94318-782-0 01 1 9812-0105 ●
86 04.317 BOLT; RR COVER
4JH1 ENG(RJX) 04.104 (A) M10X50 		8-94318-782-0 01 1 0106- ●
86 04.317 BOLT; RR COVER
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (A) M10X30 FLANGE 		8-94482-338-0 06 1 9812-0105 ●
86 04.317 BOLT; RR COVER
4JH1 ENG(RJX) (A) M10X30 FLANGE 		8-94482-338-0 06 1 0106- ●
86 04.317 BOLT; RR COVER
(A) M10X25 		1-09044-080-0 08 1 9812-0105 ●
86 04.317 BOLT; RR COVER
4HE1 ENG(RLY) (A) M10X25 		1-09044-080-0 08 1 0106- ●
86 04.317 BOLT; RR COVER
(A) M10X55 		1-09044-083-0 03 1 9812-0105 ●
86 04.317 BOLT; RR COVER
4HE1 ENG(RLY) (A) M10X55 		1-09044-083-0 03 1 0106- ●
86 04.317 BOLT; RR COVER
04.510 (B) M10X40 FLANGE 		0-28181-040-0 10 1 0208- ●
86 04.317 BOLT; RR COVER
(C) M10X40 FLANGE 		8-97305-392-0 02 1 0208- ●
88 04.338 SCREW; SPEEDOMETER BUSHING
4JG2 ENG(RJC),4JB1 ENG(RLF) M8X12 		8-94128-785-0 01 1 9812-0105 ● ●
88 04.338 SCREW; SPEEDOMETER BUSHING
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) M8X12 		8-94128-785-0 01 1 9812-0105 ●
88 04.338 SCREW; SPEEDOMETER BUSHING
4JH1 ENG(RJX) M8X12 		8-94128-785-0 01 1 0106- ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),4JB1 ENG(RLF) NOK 		8-97074-651-0 01 1 9812-0008 ● ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) NOK 		8-97074-651-0 01 1 9812-0008 ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),4JB1 ENG(RLF) NOK 		8-97257-296-0 01 1 0009-0105 ● ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) NOK 		8-97257-296-0 01 1 0009-0105 ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) NOK 		8-97257-296-0 01 1 0106- ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-505-0 01 1 9812-0105 ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) NOK 		1-09625-505-0 01 1 0106- ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-97253-551-1 01 1 0208- ●
91 05.605 DRIVER; COUPLING 8-97011-346-2 01 1 9812-9905 ●
91 05.605 DRIVER; COUPLING 8-97207-215-0 01 1 9906-0105 ● ●
91 05.605 DRIVER; COUPLING
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97011-344-2 01 1 9812-0005 ●
91 05.605 DRIVER; COUPLING
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97212-108-0 01 1 0006-0105 ●
91 05.605 DRIVER; COUPLING
4JH1 ENG(RJX) 		8-97212-108-0 01 1 0106- ●
92 05.605 BOLT; COUPLING DRIVER
M10X33 		8-97109-696-1 04 1 9812-0105 ● ●
92 05.605 BOLT; COUPLING DRIVER
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97109-697-1 04 1 9812-0105 ●
92 05.605 BOLT; COUPLING DRIVER
4JH1 ENG(RJX) 		8-97109-697-1 04 1 0106- ●
93 05.595 GASKET; COUPLING DRIVER
ALSO INCLUDED IN GASKET SET(M/T). 		8-94421-576-0 01 1 9812-9905 ●
93 05.595 GASKET; COUPLING DRIVER
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-94178-725-0 01 1 9812-9905 ●
93 05.595 GASKET; COUPLING DRIVER
ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-94178-725-0 01 1 9906-0105 ● ●
93 05.595 GASKET; COUPLING DRIVER
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-94178-725-0 01 1 9906-0105 ●
93 05.595 GASKET; COUPLING DRIVER
ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) 		8-94178-725-0 01 1 0106- ●
94 05.595 WASHER; COUPLING DRIVER
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-94249-240-0 01 1 9812-0105 ● ●
94 05.595 WASHER; COUPLING DRIVER
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-94249-240-0 01 1 9812-0105 ●
94 05.595 WASHER; COUPLING DRIVER
4JH1 ENG(RJX) 		8-94249-240-0 01 1 0106- ●
95 05.595 NUT; MAINSHAFT
4JG2 ENG(RJC),4JB1 ENG(RLF) 04.162 M24 FLANGE 		8-97087-750-0 01 1 9812-0105 ● ●
95 05.595 NUT; MAINSHAFT
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.162 M24 FLANGE 		8-97087-750-0 01 1 9812-0105 ●
95 05.595 NUT; MAINSHAFT
4JH1 ENG(RJX) 04.162 M24 FLANGE 		8-97087-750-0 01 1 0106- ●
117 04.439 BOLT; PTO FIX
PTO TRANSMISSION SIDE(V66) 01.652 M10X25 W/LK WASHER 		0-50041-025-0 04 1 9812-0105 ● ● ●
117 04.439 BOLT; PTO FIX
PTO TRANSMISSION SIDE(V66) 01.652 M10X25 W/LK WASHER 		0-50041-025-0 04 1 0106- ●
117 04.439 BOLT; PTO FIX
PTO TRANSMISSION SIDE(V66) 09.171 M10X30 W/LK WASHER 		0-50041-030-0 02 1 9812-0105 ● ● ●
117 04.439 BOLT; PTO FIX
PTO TRANSMISSION SIDE(V66) 09.171 M10X30 W/LK WASHER 		0-50041-030-0 02 1 0106- ●
117 04.439 BOLT; PTO FIX
4HE1 ENG(RLY) FINAL GEAR RATIO 43/10(S7C) (AUH),(AUJ),(AUS),(AVK) PTO TRANSMISSION SIDE(V66) EXC. ENGINE POWER N-SPEC(7QV) 00.685 M10X28 FLANGE 		0-28181-028-0 06 1 9812-0105 ●
117 04.439 BOLT; PTO FIX
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 00.685 M10X28 FLANGE 		0-28181-028-0 06 1 0106- ● ●
417 04.105 PLUG; OIL FILLER,TRANS
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) M18 		8-94337-946-1 01 1 9812-0105 ●
417 04.105 PLUG; OIL FILLER,TRANS
4JH1 ENG(RJX) M18 		8-94337-946-1 01 1 0106- ●
417 04.105 PLUG; OIL FILLER,TRANS
01.453 M24X17 FLANGE 		1-09604-064-1 01 1 9812-0105 ●
417 04.105 PLUG; OIL FILLER,TRANS
4HE1 ENG(RLY) 01.453 M24X17 FLANGE 		1-09604-064-1 01 1 0106-0201 ●
417 04.105 PLUG; OIL FILLER,TRANS
4HE1 ENG(RLY) 05.400 M24X17 FLANGE 		1-09604-022-0 01 1 0202- ●
417 04.105 PLUG; OIL FILLER,TRANS
08.971 		8-94310-917-0 01 1 0208- ●
420 04.354 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-94326-441-0 01 1 9812-0105 ● ●
420 04.354 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) NOK 		8-97017-350-0 01 1 9812-0105 ●
420 04.354 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) NOK 		8-97017-350-0 01 1 0106- ●
421 04.317 COVER; RR,TRANS 8-97112-986-2 01 1 9812-0105 ● ●
421 04.317 COVER; RR,TRANS
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97034-809-0 01 1 9812-0008 ●
421 04.317 COVER; RR,TRANS
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97249-001-1 01 1 0009-0105 ●
421 04.317 COVER; RR,TRANS
4JH1 ENG(RJX) 		8-97249-001-1 01 1 0106- ●
421 04.317 COVER; RR,TRANS 1-33131-173-2 01 1 9812-0105 ●
421 04.317 COVER; RR,TRANS
4HE1 ENG(RLY) 		1-33131-173-2 01 1 0106- ●
421 04.317 COVER; RR,TRANS 8-97238-934-2 01 1 0208- ●
430 04.105 PLUG; OIL DRAIN
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-94336-512-1 01 1 9812-0105 ● ●
430 04.105 PLUG; OIL DRAIN
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-94336-512-1 01 1 9812-0105 ●
430 04.105 PLUG; OIL DRAIN
4JH1 ENG(RJX) 		8-94336-512-1 01 1 0106- ●
430 04.105 PLUG; OIL DRAIN
05.400 M24X17 FLANGE 		1-09604-023-0 01 1 9812-0105 ●
430 04.105 PLUG; OIL DRAIN
4HE1 ENG(RLY) 05.400 M24X17 FLANGE 		1-09604-023-0 01 1 0106- ●
430 04.105 PLUG; OIL DRAIN 9-09662-004-0 01 1 0208- ●
434 00.683 HOUSING; CLU 8-97034-879-2 01 1 9812-0105 ● ●
434 00.683 HOUSING; CLU
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97034-801-2 01 1 9812-0105 ●
434 00.683 HOUSING; CLU
4JH1 ENG(RJX) 		8-97034-801-2 01 1 0106- ●
434 00.683 HOUSING; CLU 1-31110-152-2 01 1 9812-0105 ●
434 00.683 HOUSING; CLU
4HE1 ENG(RLY) 		1-31110-152-2 01 1 0106- ●
434 00.683 HOUSING; CLU 8-97238-930-4 01 1 0208- ●
435 04.103 CASE; TRANS 8-97072-004-0 01 1 9812-9905 ●
435 04.103 CASE; TRANS 8-97206-005-0 01 1 9906-0105 ● ●
435 04.103 CASE; TRANS
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97034-803-2 01 1 9812-9903 ●
435 04.103 CASE; TRANS
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97204-132-1 01 1 9904-0105 ●
435 04.103 CASE; TRANS
4JH1 ENG(RJX) 		8-97204-132-1 01 1 0106- ●
435 04.103 CASE; TRANS 1-33111-243-1 01 1 9812-0105 ●
435 04.103 CASE; TRANS
4HE1 ENG(RLY) 		1-33111-243-1 01 1 0106- ●
435 04.103 CASE; TRANS 8-97252-622-5 01 1 0208- ●
584 04.317 COVER; STARTER HOLE
4JH1 ENG(RJX) 		8-97260-364-1 01 1 0106- ●

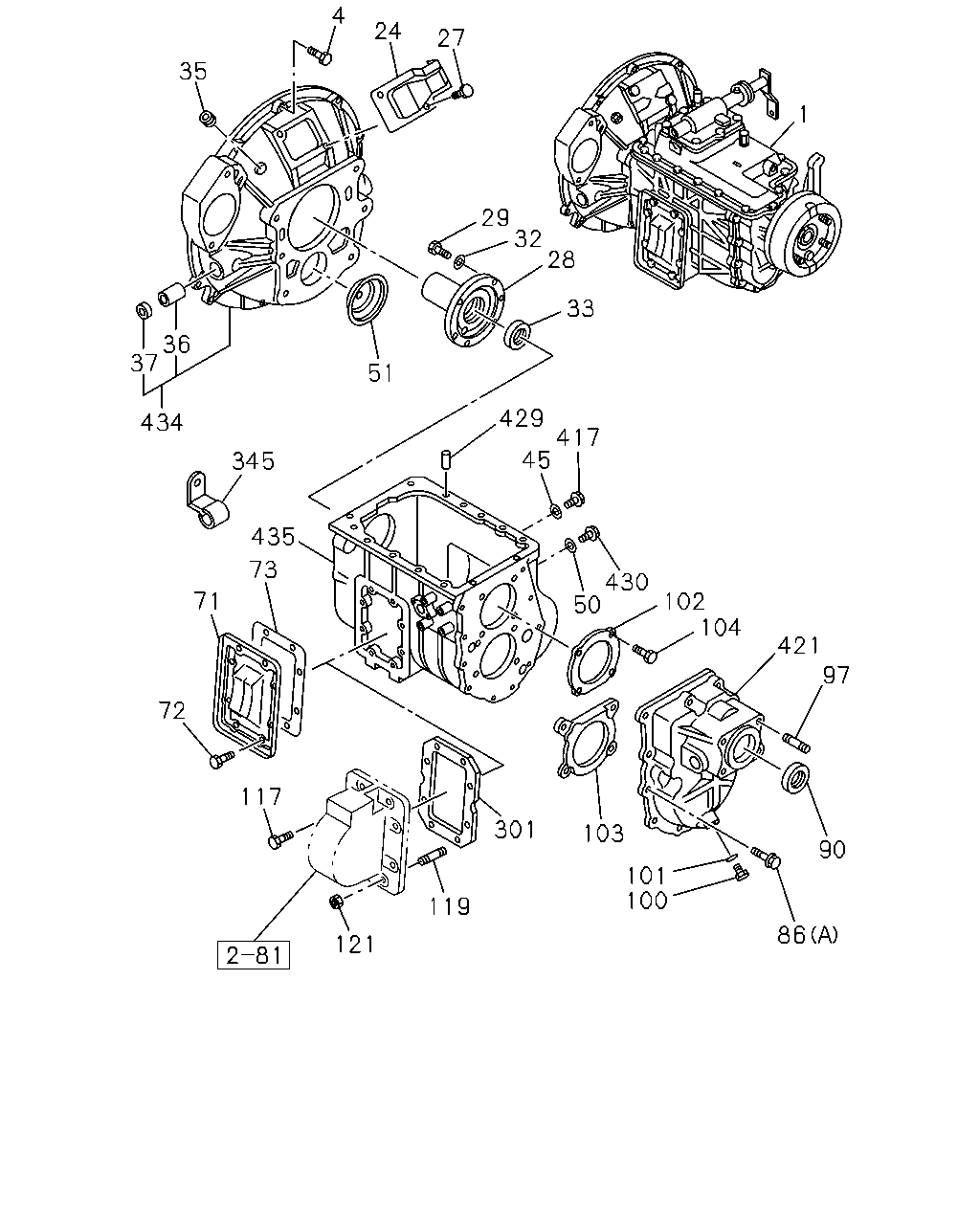

çizim 11065
4 24 27 35 1 29 32 28 33 36 37 51 429 434 417 45 345 435 73 430 50 71 102 104 421 97 72 117 301 103 90 101 100 119 86 121
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.003 TRANSMISSION ASM; MANUAL 8-97106-340-0 01 1 9812-9905 ●
1 04.003 TRANSMISSION ASM; MANUAL 8-97204-113-0 01 1 9906-0105 ●
1 04.003 TRANSMISSION ASM; MANUAL
FINAL GEAR RATIO 41/10(GT5) (AYS),(AYT),(BRU) EXC. PTO TRANSMISSION SIDE(V66) 		1-33043-138-0 01 1 0106- ●
1 04.003 TRANSMISSION ASM; MANUAL
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97205-037-1 01 1 9812-0105 ●
1 04.003 TRANSMISSION ASM; MANUAL
FINAL GEAR RATIO 41/10(GT5) (AUH),(AUJ),(AUS),(AVK) PTO TRANSMISSION SIDE(V66) 		1-33043-137-0 01 1 0106- ●
1 04.003 TRANSMISSION ASM; MANUAL
4HE1 ENG(RLY) FINAL GEAR RATIO 43/10(S7C) (AUH),(AUJ),(AUS),(AVK) PTO TRANSMISSION SIDE(V66) EXC. ENGINE POWER N-SPEC(7QV) 		1-33041-840-0 01 1 9812-0105 ●
1 04.003 TRANSMISSION ASM; MANUAL
FINAL GEAR RATIO 41/10(GT5) (AUH),(AUJ),(AUS),(AVK) EXC. PTO TRANSMISSION SIDE(V66) 		1-33043-137-0 01 1 0106- ●
1 04.003 TRANSMISSION ASM; MANUAL
4HE1 ENG(RLY) FINAL GEAR RATIO 43/10(S7C) (AUH),(AUJ),(AUS),(AVK) EXC. PTO TRANSMISSION SIDE(V66), ENGINE POWER N-SPEC(7QV) 		1-33041-840-0 01 1 9812-0105 ●
1 04.003 TRANSMISSION ASM; MANUAL
4HE1 ENG(RLY) FINAL GEAR RATIO 41/10(GT5) (AYS),(AYT),(BRU) PTO TRANSMISSION SIDE(V66) 		1-33043-138-0 01 1 0106- ●
1 04.003 TRANSMISSION ASM; MANUAL 8-97205-047-1 01 1 9906-0105 ●
1 04.003 TRANSMISSION ASM; MANUAL
4JH1 ENG(RJX) 		8-97260-325-0 01 1 0106- ●
1 04.003 TRANSMISSION ASM; MANUAL
PTO TRANSMISSION SIDE(V66) 		8-97329-057-0 01 1 0208- ●
1 04.003 TRANSMISSION ASM; MANUAL
EXC. PTO TRANSMISSION SIDE(V66) 		8-97329-057-0 01 1 0208- ●
4 00.683 BOLT; FLYWHEEL HSG
00.685 M10X35 FLANGE 		0-28081-035-0 01 1 9812-0105 ● ●
4 00.683 BOLT; FLYWHEEL HSG
00.685 M10X35 FLANGE 		0-28081-035-0 01 1 9812-0105 ● ●
4 00.683 BOLT; FLYWHEEL HSG
4JH1 ENG(RJX) M10X140 FLANGE 		0-28186-014-0 02 1 0106- ●
4 00.683 BOLT; FLYWHEEL HSG
04.525 M10X40 FLANGE 		0-28081-040-0 01 1 9812-0105 ● ●
4 00.683 BOLT; FLYWHEEL HSG
4JH1 ENG(RJX) 02.559 M10X16 FLANGE 		0-28081-016-0 01 1 0106- ●
4 00.683 BOLT; FLYWHEEL HSG
4JG2 ENG(RJC),4JB1 ENG(RLF) 00.685 M10X45 FLANGE 		0-28081-045-0 01 1 9909-0105 ● ●
4 00.683 BOLT; FLYWHEEL HSG
4JH1 ENG(RJX) M14X60 FLANGE 		0-28981-460-0 02 1 0106- ●
4 00.683 BOLT; FLYWHEEL HSG
PTO TRANSMISSION SIDE(V66) M10X130 FLANGE 		0-28186-013-0 02 1 0106- ●
4 00.683 BOLT; FLYWHEEL HSG
EXC. PTO TRANSMISSION SIDE(V66) 02.277 M10X120 FLANGE 		0-28186-012-0 02 1 0106- ●
4 00.683 BOLT; FLYWHEEL HSG
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 04.510 M10X35 FLANGE 		0-28181-035-0 02 1 9812- ●
4 00.683 BOLT; FLYWHEEL HSG
4HE1 ENG(RLY) 04.525 M10X30 FLANGE 		0-28181-030-0 02 1 9812-0105 ● ●
4 00.683 BOLT; FLYWHEEL HSG
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 04.525 M10X30 FLANGE 		0-28181-030-0 02 1 9812-0105 ● ●
4 00.683 BOLT; FLYWHEEL HSG
4JH1 ENG(RJX),4HE1 ENG(RLY) 04.525 M10X30 FLANGE 		0-28181-030-0 02 1 0106- ● ● ●
4 00.683 BOLT; FLYWHEEL HSG
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 04.525 M10X30 FLANGE 		0-28181-030-0 02 1 0106- ●
4 00.683 BOLT; FLYWHEEL HSG
4HE1 ENG(RLY) 04.525 M10X30 FLANGE 		0-28181-030-0 02 1 0106- ● ●
4 00.683 BOLT; FLYWHEEL HSG
4HE1 ENG(RLY) 04.510 M10X35 FLANGE 		0-28181-035-0 03 1 9812-0105 ● ●
4 00.683 BOLT; FLYWHEEL HSG
4JH1 ENG(RJX),4HE1 ENG(RLY) 04.510 M10X35 FLANGE 		0-28181-035-0 03 1 0106- ● ● ●
4 00.683 BOLT; FLYWHEEL HSG
4HE1 ENG(RLY) M10X55 FLANGE 		8-94399-863-1 02 1 9812-0105 ● ●
4 00.683 BOLT; FLYWHEEL HSG
4HE1 ENG(RLY) M10X55 FLANGE 		8-94399-863-1 02 1 0106- ● ● ●
24 00.797 COVER; CHECK HOLE,DUST 1-31131-041-0 01 1 9812-0105 ●
24 00.797 COVER; CHECK HOLE,DUST
4HE1 ENG(RLY) 		1-31131-041-0 01 1 0106- ●
27 00.686 BOLT; COVER TO CLU HSG
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9812-0104 ●
27 00.686 BOLT; COVER TO CLU HSG
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0105-0105 ●
27 00.686 BOLT; COVER TO CLU HSG
4HE1 ENG(RLY) 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0106- ●
28 04.356 COVER; FRT,TRANS CASE 1-33121-133-1 01 1 9812-0105 ●
28 04.356 COVER; FRT,TRANS CASE
4HE1 ENG(RLY) 		1-33121-133-1 01 1 0106- ●
29 04.356 BOLT; FRT COVER
04.012 M10X28 FLANGE REAMER 		1-09040-089-1 04 1 9812-0105 ●
29 04.356 BOLT; FRT COVER
4HE1 ENG(RLY) 04.012 M10X28 FLANGE REAMER 		1-09040-089-1 04 1 0106- ●
32 04.358 GASKET; BOLT,FRT COVER
ALSO INCLUDED IN GASKET SET(M/T). ID=10 		1-09623-369-0 04 1 9812-0105 ●
32 04.358 GASKET; BOLT,FRT COVER
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ID=10 		1-09623-369-0 04 1 0106- ●
33 04.318 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-565-1 01 1 9812-0105 ●
33 04.318 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) 		1-09625-565-1 01 1 0106- ●
33 04.318 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		8-97253-550-0 01 1 0208- ●
35 00.797 GROMMET; CLU HSG
OD=45 		9-31139-007-0 01 1 9812-0105 ●
35 00.797 GROMMET; CLU HSG
4HE1 ENG(RLY) OD=45 		9-31139-007-0 01 1 0106- ●
36 00.683 BEARING; NEEDLE,CLU HSG
NTN 		1-09811-002-1 02 1 9812-0105 ●
36 00.683 BEARING; NEEDLE,CLU HSG
4HE1 ENG(RLY) NTN 		1-09811-002-1 02 1 0106- ●
37 04.422 SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T). 00.797 		1-09625-002-0 02 1 9812-0105 ●
37 04.422 SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) 00.797 		1-09625-002-0 02 1 0106- ●
45 04.105 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.422 ID=15.3 		8-94336-511-0 01 1 9812-0105 ●
45 04.105 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) 04.422 ID=15.3 		8-94336-511-0 01 1 0106- ●
45 04.105 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). 04.109 ID=26.8 		1-09623-058-0 01 1 9812-0105 ●
45 04.105 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) 04.109 ID=26.8 		1-09623-058-0 01 1 0106- ●
45 04.105 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17 		8-97115-712-0 01 1 0208- ●
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.422 ID=15.3 		8-94336-511-0 01 1 9812-0105 ● ●
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.422 ID=15.3 		8-94336-511-0 01 1 9812-0105 ●
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) 04.422 ID=15.3 		8-94336-511-0 01 1 0106- ●
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 04.109 ID=26.8 		1-09623-058-0 01 1 9812-0105 ●
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) 04.109 ID=26.8 		1-09623-058-0 01 1 0106- ●
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17 		8-97115-712-0 01 1 0208- ●
51 04.422 COVER; SEAL,COUNTER,FRT 1-33319-056-0 01 1 9812-0105 ●
51 04.422 COVER; SEAL,COUNTER,FRT
4HE1 ENG(RLY) 		1-33319-056-0 01 1 0106- ●
71 04.439 COVER; SIDE,TRANS CASE 8-97106-371-0 01 1 9812-9903 ●
71 04.439 COVER; SIDE,TRANS CASE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		9-33141-601-2 01 1 9812-9903 ●
71 04.439 COVER; SIDE,TRANS CASE
4JG2 ENG(RJC),4JB1 ENG(RLF) 		9-33141-601-2 01 1 9904-0105 ● ●
71 04.439 COVER; SIDE,TRANS CASE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		9-33141-601-2 01 1 9904-0105 ●
71 04.439 COVER; SIDE,TRANS CASE
4JH1 ENG(RJX) 		9-33141-601-2 01 1 0106- ●
71 04.439 COVER; SIDE,TRANS CASE
4HE1 ENG(RLY) FINAL GEAR RATIO 43/10(S7C) (AUH),(AUJ),(AUS),(AVK) EXC. PTO TRANSMISSION SIDE(V66), ENGINE POWER N-SPEC(7QV) 		1-33141-028-0 01 1 9812-0105 ●
71 04.439 COVER; SIDE,TRANS CASE
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		1-33141-028-0 01 1 0106- ●
71 04.439 COVER; SIDE,TRANS CASE
EXC. PTO TRANSMISSION SIDE(V66) 		8-97252-624-0 01 1 0208- ●
72 04.439 BOLT; SIDE COVER
09.008 M10X20 FLANGE 		0-28081-020-0 06 1 9812-0105 ●
72 04.439 BOLT; SIDE COVER
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.105 M10X12 FLANGE 		8-94128-791-0 06 1 9812-9903 ●
72 04.439 BOLT; SIDE COVER
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.105 M10X12 FLANGE 		8-94128-791-0 06 1 9904-0105 ●
72 04.439 BOLT; SIDE COVER
4JB1 ENG(RLF) 04.105 M10X12 FLANGE 		8-94128-791-0 06 1 9904-0105 ●
72 04.439 BOLT; SIDE COVER
4JH1 ENG(RJX) 04.105 M10X12 FLANGE 		8-94128-791-0 06 1 0106- ●
72 04.439 BOLT; SIDE COVER
4HE1 ENG(RLY) FINAL GEAR RATIO 43/10(S7C) (AUH),(AUJ),(AUS),(AVK) EXC. PTO TRANSMISSION SIDE(V66), ENGINE POWER N-SPEC(7QV) 03.604 M10X16 FLANGE 		0-28181-016-0 08 1 9812-0105 ●
72 04.439 BOLT; SIDE COVER
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 03.604 M10X16 FLANGE 		0-28181-016-0 08 1 0106- ●
72 04.439 BOLT; SIDE COVER
EXC. PTO TRANSMISSION SIDE(V66) 00.206 M10X20 FLANGE 		8-97254-833-0 08 1 0208- ●
73 04.109 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),4JB1 ENG(RLF) 		9-33142-601-0 01 1 9812-0105 ● ●
73 04.109 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		9-33142-601-0 01 1 9812-0105 ●
73 04.109 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) 		9-33142-601-0 01 1 0106- ●
73 04.109 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) FINAL GEAR RATIO 43/10(S7C) (AUH),(AUJ),(AUS),(AVK) EXC. PTO TRANSMISSION SIDE(V66), ENGINE POWER N-SPEC(7QV) 		1-33142-036-0 01 1 9812-0105 ●
73 04.109 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		1-33142-036-0 01 1 0106- ●
86 04.317 BOLT; RR COVER
04.105 (A) M8X25 		8-94128-786-0 07 1 9812-0105 ● ●
86 04.317 BOLT; RR COVER
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.104 (A) M10X50 		8-94318-782-0 01 1 9812-0105 ●
86 04.317 BOLT; RR COVER
4JH1 ENG(RJX) 04.104 (A) M10X50 		8-94318-782-0 01 1 0106- ●
86 04.317 BOLT; RR COVER
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (A) M10X30 FLANGE 		8-94482-338-0 06 1 9812-0105 ●
86 04.317 BOLT; RR COVER
4JH1 ENG(RJX) (A) M10X30 FLANGE 		8-94482-338-0 06 1 0106- ●
86 04.317 BOLT; RR COVER
(A) M10X25 		1-09044-080-0 08 1 9812-0105 ●
86 04.317 BOLT; RR COVER
4HE1 ENG(RLY) (A) M10X25 		1-09044-080-0 08 1 0106- ●
86 04.317 BOLT; RR COVER
(A) M10X55 		1-09044-083-0 03 1 9812-0105 ●
86 04.317 BOLT; RR COVER
4HE1 ENG(RLY) (A) M10X55 		1-09044-083-0 03 1 0106- ●
86 04.317 BOLT; RR COVER
04.510 (B) M10X40 FLANGE 		0-28181-040-0 10 1 0208- ●
86 04.317 BOLT; RR COVER
(C) M10X40 FLANGE 		8-97305-392-0 02 1 0208- ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),4JB1 ENG(RLF) NOK 		8-97074-651-0 01 1 9812-0008 ● ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) NOK 		8-97074-651-0 01 1 9812-0008 ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),4JB1 ENG(RLF) NOK 		8-97257-296-0 01 1 0009-0105 ● ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) NOK 		8-97257-296-0 01 1 0009-0105 ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) NOK 		8-97257-296-0 01 1 0106- ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-505-0 01 1 9812-0105 ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) NOK 		1-09625-505-0 01 1 0106- ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-97253-551-1 01 1 0208- ●
97 04.519 STUD; PARKING BRK
M14X22.5 L=42.5 		1-09302-138-1 03 1 9812-0105 ●
97 04.519 STUD; PARKING BRK
4HE1 ENG(RLY) M14X22.5 L=42.5 		1-09302-138-1 03 1 0106- ●
97 04.519 STUD; PARKING BRK
M14X22.5 L=42.5 		1-09302-138-1 01 1 9812-0105 ●
97 04.519 STUD; PARKING BRK
4HE1 ENG(RLY) M14X22.5 L=42.5 		1-09302-138-1 01 1 0106- ●
100 04.105 PLUG; DRAIN RR COVER
05.400 M24X17 FLANGE 		1-09604-023-0 01 1 9812-0105 ●
100 04.105 PLUG; DRAIN RR COVER
4HE1 ENG(RLY) 05.400 M24X17 FLANGE 		1-09604-023-0 01 1 0106- ●
101 04.105 GASKET; DRAIN RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 04.109 ID=26.8 		1-09623-058-0 01 1 9812-0105 ●
101 04.105 GASKET; DRAIN RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) 04.109 ID=26.8 		1-09623-058-0 01 1 0106- ●
102 04.412 RETAINER; BRG UPR,MAINSHAFT 1-33151-050-0 01 1 9812-0105 ●
102 04.412 RETAINER; BRG UPR,MAINSHAFT
4HE1 ENG(RLY) 		1-33151-050-0 01 1 0106- ●
103 04.412 RETAINER; BRG 1-33151-051-0 01 1 9812-0105 ●
103 04.412 RETAINER; BRG
4HE1 ENG(RLY) 		1-33151-051-0 01 1 0106- ●
104 04.412 BOLT; BRG RET
M10X25 		1-09049-006-1 08 1 9812-0105 ●
104 04.412 BOLT; BRG RET
4HE1 ENG(RLY) M10X25 		1-09049-006-1 08 1 0106- ●
117 04.439 BOLT; PTO FIX
PTO TRANSMISSION SIDE(V66) 01.652 M10X25 W/LK WASHER 		0-50041-025-0 04 1 9812-0105 ● ● ●
117 04.439 BOLT; PTO FIX
PTO TRANSMISSION SIDE(V66) 01.652 M10X25 W/LK WASHER 		0-50041-025-0 04 1 0106- ●
117 04.439 BOLT; PTO FIX
PTO TRANSMISSION SIDE(V66) 09.171 M10X30 W/LK WASHER 		0-50041-030-0 02 1 9812-0105 ● ● ●
117 04.439 BOLT; PTO FIX
PTO TRANSMISSION SIDE(V66) 09.171 M10X30 W/LK WASHER 		0-50041-030-0 02 1 0106- ●
117 04.439 BOLT; PTO FIX
4HE1 ENG(RLY) FINAL GEAR RATIO 43/10(S7C) (AUH),(AUJ),(AUS),(AVK) PTO TRANSMISSION SIDE(V66) EXC. ENGINE POWER N-SPEC(7QV) 00.685 M10X28 FLANGE 		0-28181-028-0 06 1 9812-0105 ●
117 04.439 BOLT; PTO FIX
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 00.685 M10X28 FLANGE 		0-28181-028-0 06 1 0106- ● ●
119 04.439 STUD; PTO FIX
4HE1 ENG(RLY) FINAL GEAR RATIO 43/10(S7C) (AUH),(AUJ),(AUS),(AVK) PTO TRANSMISSION SIDE(V66) EXC. ENGINE POWER N-SPEC(7QV) 04.502 M10X30 L=45 		9-04411-030-0 02 1 9812-0105 ●
119 04.439 STUD; PTO FIX
PTO TRANSMISSION SIDE(V66) 03.275 M10X25 L=40 		9-04411-025-0 02 1 0208- ●
121 04.439 NUT; PTO FIX
4HE1 ENG(RLY) FINAL GEAR RATIO 43/10(S7C) (AUH),(AUJ),(AUS),(AVK) PTO TRANSMISSION SIDE(V66) EXC. ENGINE POWER N-SPEC(7QV) 08.917 M10 FLANGE 		0-91150-210-0 02 1 9812-0105 ●
121 04.439 NUT; PTO FIX
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 08.917 M10 FLANGE 		0-91150-210-0 02 1 0106- ● ●
301 04.439 PLATE; DIST,PTO TO TRANS
4HE1 ENG(RLY) FINAL GEAR RATIO 43/10(S7C) (AUH),(AUJ),(AUS),(AVK) PTO TRANSMISSION SIDE(V66) EXC. ENGINE POWER N-SPEC(7QV) 		1-38119-038-0 01 1 9812-0105 ●
345 00.799 CLIP; FLEX TUBE
4HE1 ENG(RLY) ID=15.5 		1-09700-814-1 03 1 9812-0105 ●
345 00.799 CLIP; FLEX TUBE
4HE1 ENG(RLY) ID=15.5 		1-09700-814-1 03 1 0106- ●
417 04.105 PLUG; OIL FILLER,TRANS
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) M18 		8-94337-946-1 01 1 9812-0105 ●
417 04.105 PLUG; OIL FILLER,TRANS
4JH1 ENG(RJX) M18 		8-94337-946-1 01 1 0106- ●
417 04.105 PLUG; OIL FILLER,TRANS
01.453 M24X17 FLANGE 		1-09604-064-1 01 1 9812-0105 ●
417 04.105 PLUG; OIL FILLER,TRANS
4HE1 ENG(RLY) 01.453 M24X17 FLANGE 		1-09604-064-1 01 1 0106-0201 ●
417 04.105 PLUG; OIL FILLER,TRANS
4HE1 ENG(RLY) 05.400 M24X17 FLANGE 		1-09604-022-0 01 1 0202- ●
417 04.105 PLUG; OIL FILLER,TRANS
08.971 		8-94310-917-0 01 1 0208- ●
421 04.317 COVER; RR,TRANS 8-97112-986-2 01 1 9812-0105 ● ●
421 04.317 COVER; RR,TRANS
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97034-809-0 01 1 9812-0008 ●
421 04.317 COVER; RR,TRANS
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97249-001-1 01 1 0009-0105 ●
421 04.317 COVER; RR,TRANS
4JH1 ENG(RJX) 		8-97249-001-1 01 1 0106- ●
421 04.317 COVER; RR,TRANS 1-33131-173-2 01 1 9812-0105 ●
421 04.317 COVER; RR,TRANS
4HE1 ENG(RLY) 		1-33131-173-2 01 1 0106- ●
421 04.317 COVER; RR,TRANS 8-97238-934-2 01 1 0208- ●
429 04.105 PIN; STRAIGHT
08.939 OD=10 L=18 		9-08151-018-0 02 1 9812-0105 ●
429 04.105 PIN; STRAIGHT
4HE1 ENG(RLY) 08.939 OD=10 L=18 		9-08151-018-0 02 1 0106- ●
429 04.105 PIN; STRAIGHT
04.510 OD=10 L=20 		8-97135-423-0 02 1 0208- ●
430 04.105 PLUG; OIL DRAIN
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-94336-512-1 01 1 9812-0105 ● ●
430 04.105 PLUG; OIL DRAIN
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-94336-512-1 01 1 9812-0105 ●
430 04.105 PLUG; OIL DRAIN
4JH1 ENG(RJX) 		8-94336-512-1 01 1 0106- ●
430 04.105 PLUG; OIL DRAIN
05.400 M24X17 FLANGE 		1-09604-023-0 01 1 9812-0105 ●
430 04.105 PLUG; OIL DRAIN
4HE1 ENG(RLY) 05.400 M24X17 FLANGE 		1-09604-023-0 01 1 0106- ●
430 04.105 PLUG; OIL DRAIN 9-09662-004-0 01 1 0208- ●
434 00.683 HOUSING; CLU 8-97034-879-2 01 1 9812-0105 ● ●
434 00.683 HOUSING; CLU
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97034-801-2 01 1 9812-0105 ●
434 00.683 HOUSING; CLU
4JH1 ENG(RJX) 		8-97034-801-2 01 1 0106- ●
434 00.683 HOUSING; CLU 1-31110-152-2 01 1 9812-0105 ●
434 00.683 HOUSING; CLU
4HE1 ENG(RLY) 		1-31110-152-2 01 1 0106- ●
434 00.683 HOUSING; CLU 8-97238-930-4 01 1 0208- ●
435 04.103 CASE; TRANS 8-97072-004-0 01 1 9812-9905 ●
435 04.103 CASE; TRANS 8-97206-005-0 01 1 9906-0105 ● ●
435 04.103 CASE; TRANS
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97034-803-2 01 1 9812-9903 ●
435 04.103 CASE; TRANS
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97204-132-1 01 1 9904-0105 ●
435 04.103 CASE; TRANS
4JH1 ENG(RJX) 		8-97204-132-1 01 1 0106- ●
435 04.103 CASE; TRANS 1-33111-243-1 01 1 9812-0105 ●
435 04.103 CASE; TRANS
4HE1 ENG(RLY) 		1-33111-243-1 01 1 0106- ●
435 04.103 CASE; TRANS 8-97252-622-5 01 1 0208- ●

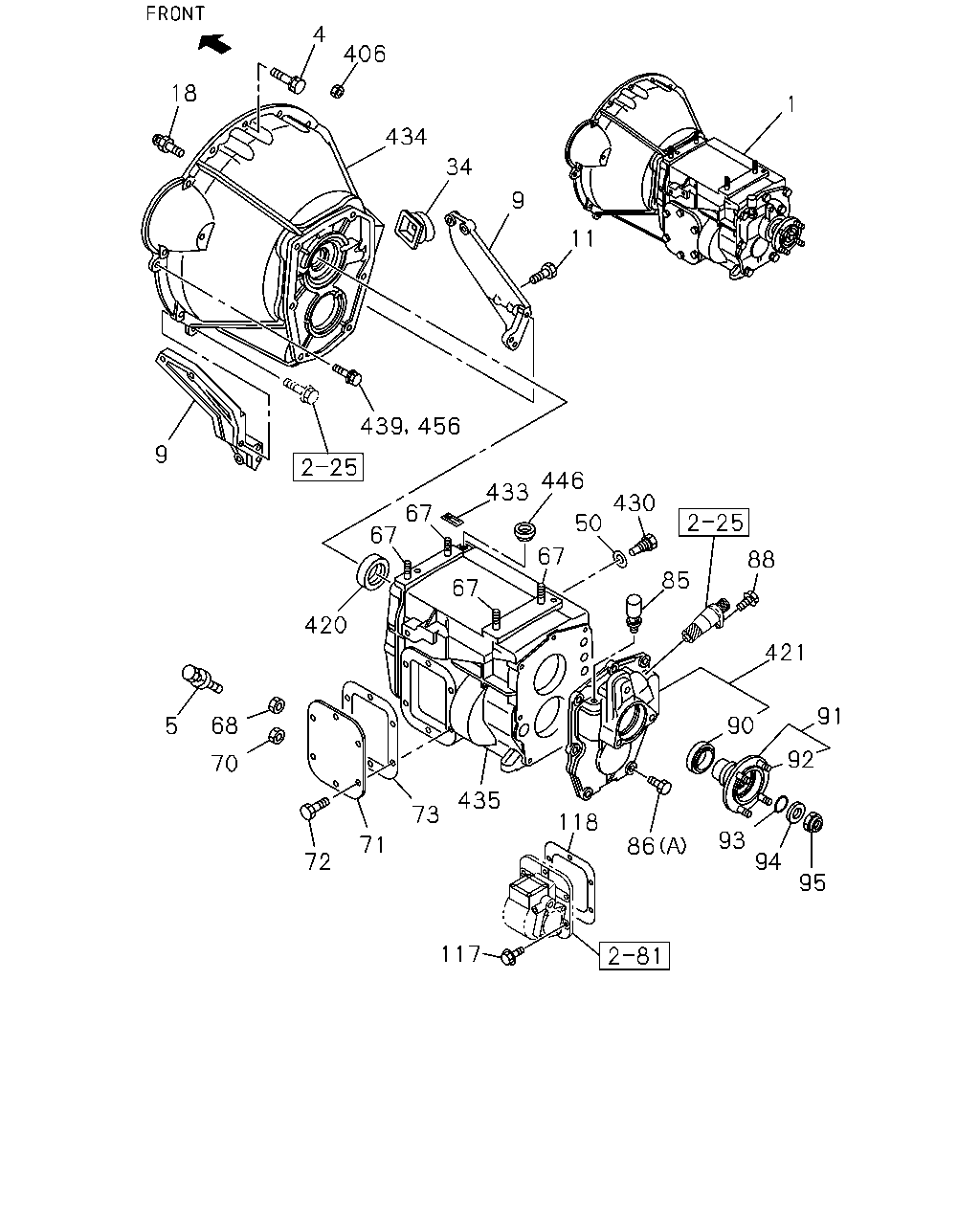

çizim 11074
4 406 18 1 434 34 9 11 9 446 433 430 67 67 50 67 88 85 67 420 421 91 90 68 5 92 70 435 73 118 93 71 86 94 72 95 117 439 456
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.003 TRANSMISSION ASM; MANUAL 8-97106-340-0 01 1 9812-9905 ●
1 04.003 TRANSMISSION ASM; MANUAL 8-97204-113-0 01 1 9906-0105 ●
1 04.003 TRANSMISSION ASM; MANUAL
FINAL GEAR RATIO 41/10(GT5) (AYS),(AYT),(BRU) EXC. PTO TRANSMISSION SIDE(V66) 		1-33043-138-0 01 1 0106- ●
1 04.003 TRANSMISSION ASM; MANUAL
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97205-037-1 01 1 9812-0105 ●
1 04.003 TRANSMISSION ASM; MANUAL
FINAL GEAR RATIO 41/10(GT5) (AUH),(AUJ),(AUS),(AVK) PTO TRANSMISSION SIDE(V66) 		1-33043-137-0 01 1 0106- ●
1 04.003 TRANSMISSION ASM; MANUAL
4HE1 ENG(RLY) FINAL GEAR RATIO 43/10(S7C) (AUH),(AUJ),(AUS),(AVK) PTO TRANSMISSION SIDE(V66) EXC. ENGINE POWER N-SPEC(7QV) 		1-33041-840-0 01 1 9812-0105 ●
1 04.003 TRANSMISSION ASM; MANUAL
FINAL GEAR RATIO 41/10(GT5) (AUH),(AUJ),(AUS),(AVK) EXC. PTO TRANSMISSION SIDE(V66) 		1-33043-137-0 01 1 0106- ●
1 04.003 TRANSMISSION ASM; MANUAL
4HE1 ENG(RLY) FINAL GEAR RATIO 43/10(S7C) (AUH),(AUJ),(AUS),(AVK) EXC. PTO TRANSMISSION SIDE(V66), ENGINE POWER N-SPEC(7QV) 		1-33041-840-0 01 1 9812-0105 ●
1 04.003 TRANSMISSION ASM; MANUAL
4HE1 ENG(RLY) FINAL GEAR RATIO 41/10(GT5) (AYS),(AYT),(BRU) PTO TRANSMISSION SIDE(V66) 		1-33043-138-0 01 1 0106- ●
1 04.003 TRANSMISSION ASM; MANUAL 8-97205-047-1 01 1 9906-0105 ●
1 04.003 TRANSMISSION ASM; MANUAL
4JH1 ENG(RJX) 		8-97260-325-0 01 1 0106- ●
1 04.003 TRANSMISSION ASM; MANUAL
PTO TRANSMISSION SIDE(V66) 		8-97329-057-0 01 1 0208- ●
1 04.003 TRANSMISSION ASM; MANUAL
EXC. PTO TRANSMISSION SIDE(V66) 		8-97329-057-0 01 1 0208- ●
4 00.683 BOLT; FLYWHEEL HSG
00.685 M10X35 FLANGE 		0-28081-035-0 01 1 9812-0105 ● ●
4 00.683 BOLT; FLYWHEEL HSG
00.685 M10X35 FLANGE 		0-28081-035-0 01 1 9812-0105 ● ●
4 00.683 BOLT; FLYWHEEL HSG
4JH1 ENG(RJX) M10X140 FLANGE 		0-28186-014-0 02 1 0106- ●
4 00.683 BOLT; FLYWHEEL HSG
04.525 M10X40 FLANGE 		0-28081-040-0 01 1 9812-0105 ● ●
4 00.683 BOLT; FLYWHEEL HSG
4JH1 ENG(RJX) 02.559 M10X16 FLANGE 		0-28081-016-0 01 1 0106- ●
4 00.683 BOLT; FLYWHEEL HSG
4JG2 ENG(RJC),4JB1 ENG(RLF) 00.685 M10X45 FLANGE 		0-28081-045-0 01 1 9909-0105 ● ●
4 00.683 BOLT; FLYWHEEL HSG
4JH1 ENG(RJX) M14X60 FLANGE 		0-28981-460-0 02 1 0106- ●
4 00.683 BOLT; FLYWHEEL HSG
PTO TRANSMISSION SIDE(V66) M10X130 FLANGE 		0-28186-013-0 02 1 0106- ●
4 00.683 BOLT; FLYWHEEL HSG
EXC. PTO TRANSMISSION SIDE(V66) 02.277 M10X120 FLANGE 		0-28186-012-0 02 1 0106- ●
4 00.683 BOLT; FLYWHEEL HSG
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 04.510 M10X35 FLANGE 		0-28181-035-0 02 1 9812- ●
4 00.683 BOLT; FLYWHEEL HSG
4HE1 ENG(RLY) 04.525 M10X30 FLANGE 		0-28181-030-0 02 1 9812-0105 ● ●
4 00.683 BOLT; FLYWHEEL HSG
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 04.525 M10X30 FLANGE 		0-28181-030-0 02 1 9812-0105 ● ●
4 00.683 BOLT; FLYWHEEL HSG
4JH1 ENG(RJX),4HE1 ENG(RLY) 04.525 M10X30 FLANGE 		0-28181-030-0 02 1 0106- ● ● ●
4 00.683 BOLT; FLYWHEEL HSG
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 04.525 M10X30 FLANGE 		0-28181-030-0 02 1 0106- ●
4 00.683 BOLT; FLYWHEEL HSG
4HE1 ENG(RLY) 04.525 M10X30 FLANGE 		0-28181-030-0 02 1 0106- ● ●
4 00.683 BOLT; FLYWHEEL HSG
4HE1 ENG(RLY) 04.510 M10X35 FLANGE 		0-28181-035-0 03 1 9812-0105 ● ●
4 00.683 BOLT; FLYWHEEL HSG
4JH1 ENG(RJX),4HE1 ENG(RLY) 04.510 M10X35 FLANGE 		0-28181-035-0 03 1 0106- ● ● ●
4 00.683 BOLT; FLYWHEEL HSG
4HE1 ENG(RLY) M10X55 FLANGE 		8-94399-863-1 02 1 9812-0105 ● ●
4 00.683 BOLT; FLYWHEEL HSG
4HE1 ENG(RLY) M10X55 FLANGE 		8-94399-863-1 02 1 0106- ● ● ●
5 00.683 BOLT; REAR PLATE
00.685 M10X35 FLANGE 		0-28081-035-0 01 1 9812-0105 ● ●
9 04.083 STIFFENER; C/BL 8-97074-108-3 01 1 9812-0105 ● ●
9 04.083 STIFFENER; C/BL
4JH1 ENG(RJX) 		8-97240-036-0 01 1 0106- ●
9 04.083 STIFFENER; C/BL 8-97084-390-2 01 1 9812-0105 ● ●
9 04.083 STIFFENER; C/BL
4JH1 ENG(RJX) 		8-97240-035-0 01 1 0106- ●
11 04.085 BOLT; BRKT
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9812-0105 ● ●
18 00.683 SUPPORT; DRAW LEVER
4JG2 ENG(RJC) 00.796 L=47.5 		5-31345-002-1 01 1 9812-9903 ●
18 00.683 SUPPORT; DRAW LEVER
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 00.796 L=47.5 		5-31345-002-1 01 1 9812-9903 ●
18 00.683 SUPPORT; DRAW LEVER
4JG2 ENG(RJC),4JB1 ENG(RLF) L=47.5 		8-97225-469-1 01 1 9904-0105 ● ●
18 00.683 SUPPORT; DRAW LEVER
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) L=47.5 		8-97225-469-1 01 1 9904-0105 ●
18 00.683 SUPPORT; DRAW LEVER
4JH1 ENG(RJX) L=47.5 		8-97225-469-1 01 1 0106- ●
34 00.686 COVER; DUST,SHIFT FORK 8-97034-880-0 01 1 9812-0105 ● ●
34 00.686 COVER; DUST,SHIFT FORK
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97017-333-0 01 1 9812-0105 ●
34 00.686 COVER; DUST,SHIFT FORK
4JH1 ENG(RJX) 		8-97017-333-0 01 1 0106- ●
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.422 ID=15.3 		8-94336-511-0 01 1 9812-0105 ● ●
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.422 ID=15.3 		8-94336-511-0 01 1 9812-0105 ●
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) 04.422 ID=15.3 		8-94336-511-0 01 1 0106- ●
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 04.109 ID=26.8 		1-09623-058-0 01 1 9812-0105 ●
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) 04.109 ID=26.8 		1-09623-058-0 01 1 0106- ●
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17 		8-97115-712-0 01 1 0208- ●
67 04.105 STUD; CASE TRANS 9-09631-004-0 06 1 9812-0105 ● ●
67 04.105 STUD; CASE TRANS
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		5-09302-011-0 04 1 9812-0105 ●
67 04.105 STUD; CASE TRANS
4JH1 ENG(RJX) 		5-09302-011-0 04 1 0106- ●
68 00.683 NUT; REAR PLATE
04.785 M10 FLANGE 		0-91150-110-0 01 1 9812-0105 ● ●
70 00.683 NUT; REAMER BOLT
04.785 M10 FLANGE 		0-91150-110-0 01 1 9812-0105 ● ●
71 04.439 COVER; SIDE,TRANS CASE 8-97106-371-0 01 1 9812-9903 ●
71 04.439 COVER; SIDE,TRANS CASE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		9-33141-601-2 01 1 9812-9903 ●
71 04.439 COVER; SIDE,TRANS CASE
4JG2 ENG(RJC),4JB1 ENG(RLF) 		9-33141-601-2 01 1 9904-0105 ● ●
71 04.439 COVER; SIDE,TRANS CASE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		9-33141-601-2 01 1 9904-0105 ●
71 04.439 COVER; SIDE,TRANS CASE
4JH1 ENG(RJX) 		9-33141-601-2 01 1 0106- ●
71 04.439 COVER; SIDE,TRANS CASE
4HE1 ENG(RLY) FINAL GEAR RATIO 43/10(S7C) (AUH),(AUJ),(AUS),(AVK) EXC. PTO TRANSMISSION SIDE(V66), ENGINE POWER N-SPEC(7QV) 		1-33141-028-0 01 1 9812-0105 ●
71 04.439 COVER; SIDE,TRANS CASE
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		1-33141-028-0 01 1 0106- ●
71 04.439 COVER; SIDE,TRANS CASE
EXC. PTO TRANSMISSION SIDE(V66) 		8-97252-624-0 01 1 0208- ●
72 04.439 BOLT; SIDE COVER
09.008 M10X20 FLANGE 		0-28081-020-0 06 1 9812-0105 ●
72 04.439 BOLT; SIDE COVER
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.105 M10X12 FLANGE 		8-94128-791-0 06 1 9812-9903 ●
72 04.439 BOLT; SIDE COVER
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.105 M10X12 FLANGE 		8-94128-791-0 06 1 9904-0105 ●
72 04.439 BOLT; SIDE COVER
4JB1 ENG(RLF) 04.105 M10X12 FLANGE 		8-94128-791-0 06 1 9904-0105 ●
72 04.439 BOLT; SIDE COVER
4JH1 ENG(RJX) 04.105 M10X12 FLANGE 		8-94128-791-0 06 1 0106- ●
72 04.439 BOLT; SIDE COVER
4HE1 ENG(RLY) FINAL GEAR RATIO 43/10(S7C) (AUH),(AUJ),(AUS),(AVK) EXC. PTO TRANSMISSION SIDE(V66), ENGINE POWER N-SPEC(7QV) 03.604 M10X16 FLANGE 		0-28181-016-0 08 1 9812-0105 ●
72 04.439 BOLT; SIDE COVER
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 03.604 M10X16 FLANGE 		0-28181-016-0 08 1 0106- ●
72 04.439 BOLT; SIDE COVER
EXC. PTO TRANSMISSION SIDE(V66) 00.206 M10X20 FLANGE 		8-97254-833-0 08 1 0208- ●
73 04.109 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),4JB1 ENG(RLF) 		9-33142-601-0 01 1 9812-0105 ● ●
73 04.109 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		9-33142-601-0 01 1 9812-0105 ●
73 04.109 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) 		9-33142-601-0 01 1 0106- ●
73 04.109 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) FINAL GEAR RATIO 43/10(S7C) (AUH),(AUJ),(AUS),(AVK) EXC. PTO TRANSMISSION SIDE(V66), ENGINE POWER N-SPEC(7QV) 		1-33142-036-0 01 1 9812-0105 ●
73 04.109 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		1-33142-036-0 01 1 0106- ●
85 04.104 BREATHER; RR COVER
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97165-939-0 01 1 9812-0105 ● ●
85 04.104 BREATHER; RR COVER
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97165-939-0 01 1 9812-0105 ●
85 04.104 BREATHER; RR COVER
4JH1 ENG(RJX) 		8-97165-939-0 01 1 0106- ●
86 04.317 BOLT; RR COVER
04.105 (A) M8X25 		8-94128-786-0 07 1 9812-0105 ● ●
86 04.317 BOLT; RR COVER
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.104 (A) M10X50 		8-94318-782-0 01 1 9812-0105 ●
86 04.317 BOLT; RR COVER
4JH1 ENG(RJX) 04.104 (A) M10X50 		8-94318-782-0 01 1 0106- ●
86 04.317 BOLT; RR COVER
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (A) M10X30 FLANGE 		8-94482-338-0 06 1 9812-0105 ●
86 04.317 BOLT; RR COVER
4JH1 ENG(RJX) (A) M10X30 FLANGE 		8-94482-338-0 06 1 0106- ●
86 04.317 BOLT; RR COVER
(A) M10X25 		1-09044-080-0 08 1 9812-0105 ●
86 04.317 BOLT; RR COVER
4HE1 ENG(RLY) (A) M10X25 		1-09044-080-0 08 1 0106- ●
86 04.317 BOLT; RR COVER
(A) M10X55 		1-09044-083-0 03 1 9812-0105 ●
86 04.317 BOLT; RR COVER
4HE1 ENG(RLY) (A) M10X55 		1-09044-083-0 03 1 0106- ●
86 04.317 BOLT; RR COVER
04.510 (B) M10X40 FLANGE 		0-28181-040-0 10 1 0208- ●
86 04.317 BOLT; RR COVER
(C) M10X40 FLANGE 		8-97305-392-0 02 1 0208- ●
88 04.338 SCREW; SPEEDOMETER BUSHING
4JG2 ENG(RJC),4JB1 ENG(RLF) M8X12 		8-94128-785-0 01 1 9812-0105 ● ●
88 04.338 SCREW; SPEEDOMETER BUSHING
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) M8X12 		8-94128-785-0 01 1 9812-0105 ●
88 04.338 SCREW; SPEEDOMETER BUSHING
4JH1 ENG(RJX) M8X12 		8-94128-785-0 01 1 0106- ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),4JB1 ENG(RLF) NOK 		8-97074-651-0 01 1 9812-0008 ● ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) NOK 		8-97074-651-0 01 1 9812-0008 ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),4JB1 ENG(RLF) NOK 		8-97257-296-0 01 1 0009-0105 ● ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) NOK 		8-97257-296-0 01 1 0009-0105 ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) NOK 		8-97257-296-0 01 1 0106- ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-505-0 01 1 9812-0105 ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) NOK 		1-09625-505-0 01 1 0106- ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-97253-551-1 01 1 0208- ●
91 05.605 DRIVER; COUPLING 8-97011-346-2 01 1 9812-9905 ●
91 05.605 DRIVER; COUPLING 8-97207-215-0 01 1 9906-0105 ● ●
91 05.605 DRIVER; COUPLING
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97011-344-2 01 1 9812-0005 ●
91 05.605 DRIVER; COUPLING
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97212-108-0 01 1 0006-0105 ●
91 05.605 DRIVER; COUPLING
4JH1 ENG(RJX) 		8-97212-108-0 01 1 0106- ●
92 05.605 BOLT; COUPLING DRIVER
M10X33 		8-97109-696-1 04 1 9812-0105 ● ●
92 05.605 BOLT; COUPLING DRIVER
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97109-697-1 04 1 9812-0105 ●
92 05.605 BOLT; COUPLING DRIVER
4JH1 ENG(RJX) 		8-97109-697-1 04 1 0106- ●
93 05.595 GASKET; COUPLING DRIVER
ALSO INCLUDED IN GASKET SET(M/T). 		8-94421-576-0 01 1 9812-9905 ●
93 05.595 GASKET; COUPLING DRIVER
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-94178-725-0 01 1 9812-9905 ●
93 05.595 GASKET; COUPLING DRIVER
ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-94178-725-0 01 1 9906-0105 ● ●
93 05.595 GASKET; COUPLING DRIVER
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-94178-725-0 01 1 9906-0105 ●
93 05.595 GASKET; COUPLING DRIVER
ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) 		8-94178-725-0 01 1 0106- ●
94 05.595 WASHER; COUPLING DRIVER
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-94249-240-0 01 1 9812-0105 ● ●
94 05.595 WASHER; COUPLING DRIVER
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-94249-240-0 01 1 9812-0105 ●
94 05.595 WASHER; COUPLING DRIVER
4JH1 ENG(RJX) 		8-94249-240-0 01 1 0106- ●
95 05.595 NUT; MAINSHAFT
4JG2 ENG(RJC),4JB1 ENG(RLF) 04.162 M24 FLANGE 		8-97087-750-0 01 1 9812-0105 ● ●
95 05.595 NUT; MAINSHAFT
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 04.162 M24 FLANGE 		8-97087-750-0 01 1 9812-0105 ●
95 05.595 NUT; MAINSHAFT
4JH1 ENG(RJX) 04.162 M24 FLANGE 		8-97087-750-0 01 1 0106- ●
117 04.439 BOLT; PTO FIX
PTO TRANSMISSION SIDE(V66) 01.652 M10X25 W/LK WASHER 		0-50041-025-0 04 1 9812-0105 ● ● ●
117 04.439 BOLT; PTO FIX
PTO TRANSMISSION SIDE(V66) 01.652 M10X25 W/LK WASHER 		0-50041-025-0 04 1 0106- ●
117 04.439 BOLT; PTO FIX
PTO TRANSMISSION SIDE(V66) 09.171 M10X30 W/LK WASHER 		0-50041-030-0 02 1 9812-0105 ● ● ●
117 04.439 BOLT; PTO FIX
PTO TRANSMISSION SIDE(V66) 09.171 M10X30 W/LK WASHER 		0-50041-030-0 02 1 0106- ●
117 04.439 BOLT; PTO FIX
4HE1 ENG(RLY) FINAL GEAR RATIO 43/10(S7C) (AUH),(AUJ),(AUS),(AVK) PTO TRANSMISSION SIDE(V66) EXC. ENGINE POWER N-SPEC(7QV) 00.685 M10X28 FLANGE 		0-28181-028-0 06 1 9812-0105 ●
117 04.439 BOLT; PTO FIX
4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) 00.685 M10X28 FLANGE 		0-28181-028-0 06 1 0106- ● ●
118 04.439 GASKET; PTO TO TRANS
PTO TRANSMISSION SIDE(V66) 		9-38113-603-0 01 1 9812-0105 ● ●
406 04.510 NUT; BRKT
PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-0105 ● ●
420 04.354 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-94326-441-0 01 1 9812-0105 ● ●
420 04.354 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) NOK 		8-97017-350-0 01 1 9812-0105 ●
420 04.354 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) NOK 		8-97017-350-0 01 1 0106- ●
421 04.317 COVER; RR,TRANS 8-97112-986-2 01 1 9812-0105 ● ●
421 04.317 COVER; RR,TRANS
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97034-809-0 01 1 9812-0008 ●
421 04.317 COVER; RR,TRANS
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97249-001-1 01 1 0009-0105 ●
421 04.317 COVER; RR,TRANS
4JH1 ENG(RJX) 		8-97249-001-1 01 1 0106- ●
421 04.317 COVER; RR,TRANS 1-33131-173-2 01 1 9812-0105 ●
421 04.317 COVER; RR,TRANS
4HE1 ENG(RLY) 		1-33131-173-2 01 1 0106- ●
421 04.317 COVER; RR,TRANS 8-97238-934-2 01 1 0208- ●
430 04.105 PLUG; OIL DRAIN
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-94336-512-1 01 1 9812-0105 ● ●
430 04.105 PLUG; OIL DRAIN
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-94336-512-1 01 1 9812-0105 ●
430 04.105 PLUG; OIL DRAIN
4JH1 ENG(RJX) 		8-94336-512-1 01 1 0106- ●
430 04.105 PLUG; OIL DRAIN
05.400 M24X17 FLANGE 		1-09604-023-0 01 1 9812-0105 ●
430 04.105 PLUG; OIL DRAIN
4HE1 ENG(RLY) 05.400 M24X17 FLANGE 		1-09604-023-0 01 1 0106- ●
430 04.105 PLUG; OIL DRAIN 9-09662-004-0 01 1 0208- ●
433 04.105 LABEL; TRANS 8-97076-909-0 01 1 9812-0105 ●
434 00.683 HOUSING; CLU 8-97034-879-2 01 1 9812-0105 ● ●
434 00.683 HOUSING; CLU
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97034-801-2 01 1 9812-0105 ●
434 00.683 HOUSING; CLU
4JH1 ENG(RJX) 		8-97034-801-2 01 1 0106- ●
434 00.683 HOUSING; CLU 1-31110-152-2 01 1 9812-0105 ●
434 00.683 HOUSING; CLU
4HE1 ENG(RLY) 		1-31110-152-2 01 1 0106- ●
434 00.683 HOUSING; CLU 8-97238-930-4 01 1 0208- ●
435 04.103 CASE; TRANS 8-97072-004-0 01 1 9812-9905 ●
435 04.103 CASE; TRANS 8-97206-005-0 01 1 9906-0105 ● ●
435 04.103 CASE; TRANS
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97034-803-2 01 1 9812-9903 ●
435 04.103 CASE; TRANS
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97204-132-1 01 1 9904-0105 ●
435 04.103 CASE; TRANS
4JH1 ENG(RJX) 		8-97204-132-1 01 1 0106- ●
435 04.103 CASE; TRANS 1-33111-243-1 01 1 9812-0105 ●
435 04.103 CASE; TRANS
4HE1 ENG(RLY) 		1-33111-243-1 01 1 0106- ●
435 04.103 CASE; TRANS 8-97252-622-5 01 1 0208- ●
439 04.105 BOLT; BRKT
PTO TRANSMISSION SIDE(V66) 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 9812-0105 ● ●
446 04.105 PLUG; CASE,TRANS
OD=16 		9-09201-316-0 01 1 9906-0105 ●
456 04.085 BOLT; STIFFENER
PTO TRANSMISSION SIDE(V66) 07.068 M12X35 FLANGE 		0-28081-235-0 03 1 9812-0105 ● ●
456 04.085 BOLT; STIFFENER
PTO TRANSMISSION SIDE(V66) 09.171 M12X40 FLANGE 		0-28081-240-0 01 1 9812-0105 ● ●
456 04.085 BOLT; STIFFENER
EXC. PTO TRANSMISSION SIDE(V66) 07.068 M12X35 FLANGE 		0-28081-235-0 04 1 9812-0105 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
