◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50816 - NPR/NQR(EUROPE)-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#45001) — 68 parça

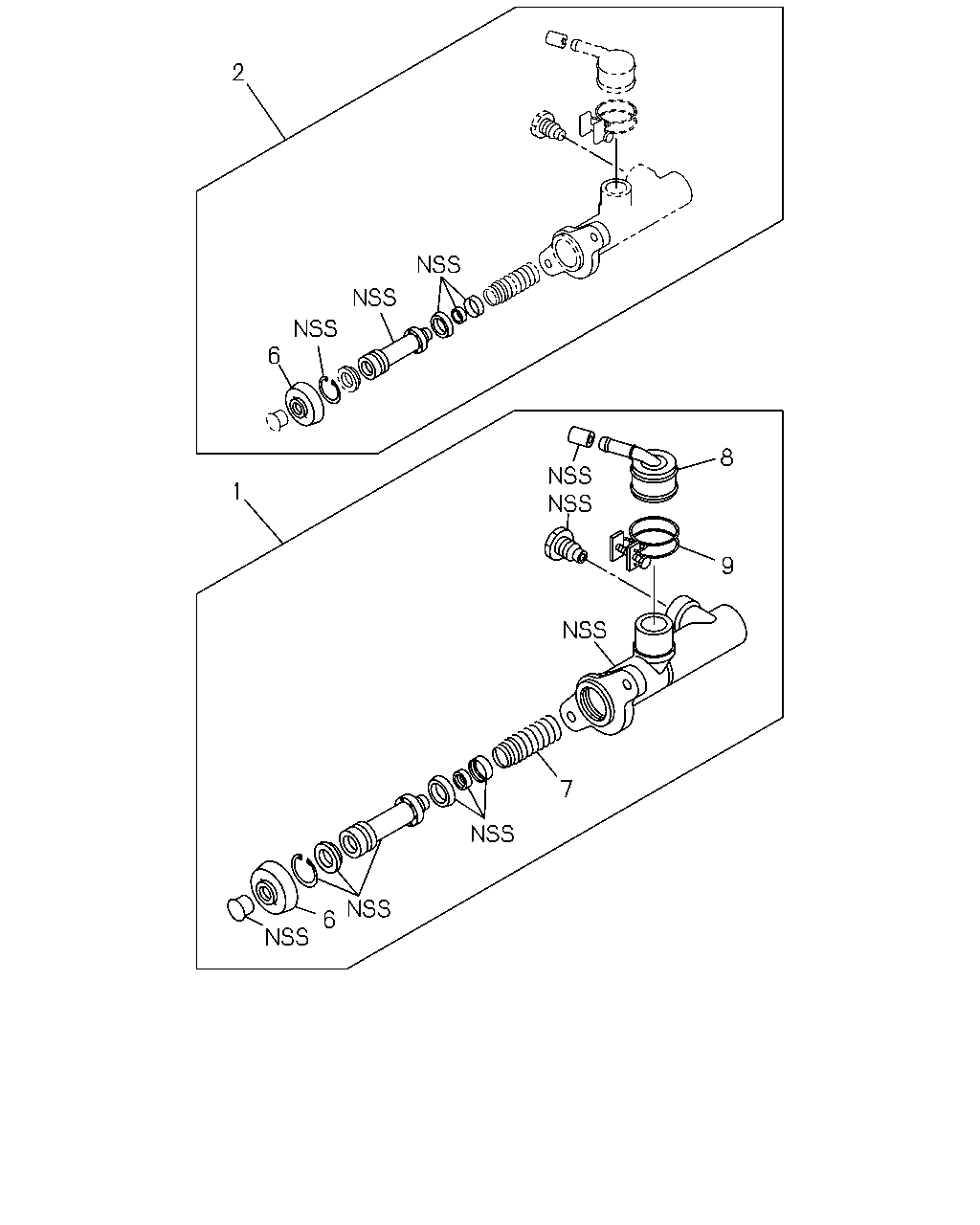

çizim 47751
2 6 8 1 9 7 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-406-0 01 1 9812-0105 ● ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-406-0 01 1 0106-0207 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-406-0 01 1 0208- ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JH1 ENG(RJX) EXC. POWER ASSIST CLUTCH(S2T) 		8-97300-211-0 01 1 0106- ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-97167-404-0 01 1 9812-9902 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-97210-748-1 01 1 9903-0105 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-97210-748-1 01 1 0106- ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87831-597-0 01 1 9812-0105 ● ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		5-87831-597-0 01 1 0106-0207 ● ●
2 00.775 REPAIR KIT; CLU M/CYL
4JH1 ENG(RJX),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		5-87831-597-0 01 1 0208- ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87831-617-0 01 1 9812-0105 ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87831-617-0 01 1 0106- ●
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 9812-0105 ● ● ● ●
6 00.775 BOOT; CLU M/CYL
4JH1 ENG(RJX),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 0106- ● ● ●
6 00.775 BOOT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-153-0 01 1 9812-0105 ● ●
6 00.775 BOOT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-153-0 01 1 0106- ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 9812-0105 ● ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
4JH1 ENG(RJX),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0106- ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-148-0 01 1 9812-0105 ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-148-0 01 1 0106- ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-766-0 01 1 9812-0105 ● ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
4JH1 ENG(RJX),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-766-0 01 1 0106- ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-190-0 01 1 9812-0105 ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-190-0 01 1 0106- ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 9812-0105 ● ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
4JH1 ENG(RJX),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0106- ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-143-0 01 1 9812-0105 ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-143-0 01 1 0106- ●

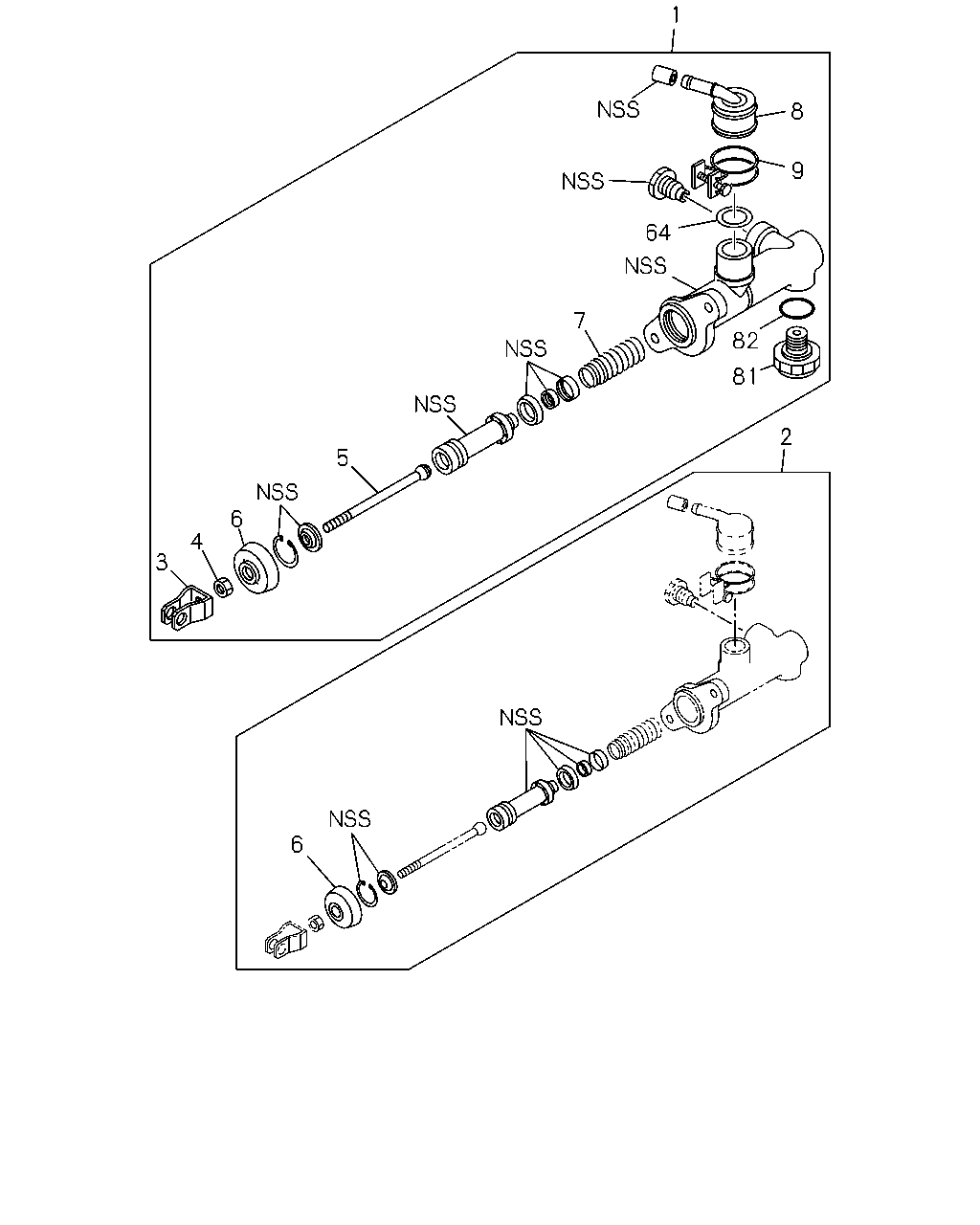

çizim 48068
1 8 9 64 7 82 81 2 5 6 4 3 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-406-0 01 1 9812-0105 ● ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-406-0 01 1 0106-0207 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-406-0 01 1 0208- ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JH1 ENG(RJX) EXC. POWER ASSIST CLUTCH(S2T) 		8-97300-211-0 01 1 0106- ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-97167-404-0 01 1 9812-9902 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-97210-748-1 01 1 9903-0105 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-97210-748-1 01 1 0106- ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87831-597-0 01 1 9812-0105 ● ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		5-87831-597-0 01 1 0106-0207 ● ●
2 00.775 REPAIR KIT; CLU M/CYL
4JH1 ENG(RJX),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		5-87831-597-0 01 1 0208- ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87831-617-0 01 1 9812-0105 ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87831-617-0 01 1 0106- ●
3 00.777 JOINT; JAW,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-770-0 01 1 9812-0105 ● ● ● ●
3 00.777 JOINT; JAW,CLU M/CYL
4JH1 ENG(RJX),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-770-0 01 1 0106- ● ● ●
4 00.777 NUT; JAW JOINT
EXC. POWER ASSIST CLUTCH(S2T) 00.787 M8 		9-09111-408-0 01 1 9812-0105 ● ● ● ●
4 00.777 NUT; JAW JOINT
4JH1 ENG(RJX),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 00.787 M8 		9-09111-408-0 01 1 0106- ● ● ●
5 00.775 ROD; PUSH,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-768-0 01 1 9812-0105 ● ● ● ●
5 00.775 ROD; PUSH,CLU M/CYL
4JH1 ENG(RJX),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-768-0 01 1 0106- ● ● ●
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 9812-0105 ● ● ● ●
6 00.775 BOOT; CLU M/CYL
4JH1 ENG(RJX),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 0106- ● ● ●
6 00.775 BOOT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-153-0 01 1 9812-0105 ● ●
6 00.775 BOOT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-153-0 01 1 0106- ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 9812-0105 ● ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
4JH1 ENG(RJX),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0106- ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-148-0 01 1 9812-0105 ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-148-0 01 1 0106- ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-766-0 01 1 9812-0105 ● ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
4JH1 ENG(RJX),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-766-0 01 1 0106- ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-190-0 01 1 9812-0105 ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-190-0 01 1 0106- ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 9812-0105 ● ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
4JH1 ENG(RJX),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0106- ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-143-0 01 1 9812-0105 ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-143-0 01 1 0106- ●
64 00.777 GASKET; CONNECTOR
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-767-0 01 1 9812-0105 ● ● ● ●
64 00.777 GASKET; CONNECTOR
4JH1 ENG(RJX),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-767-0 01 1 0106- ● ● ●
81 00.777 DAMPER; MASTER CYL
4JH1 ENG(RJX) 		8-97190-913-0 01 1 0106-0109 ●
81 00.777 DAMPER; MASTER CYL
4JH1 ENG(RJX) EXC. POWER ASSIST CLUTCH(S2T) 		8-97190-913-0 01 1 0110- ●
82 00.777 GASKET; DAMPER
4JH1 ENG(RJX) 		8-97191-396-0 01 1 0106-0109 ●
82 00.777 GASKET; DAMPER
4JH1 ENG(RJX) EXC. POWER ASSIST CLUTCH(S2T) 		8-97191-396-0 01 1 0110- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
