8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#4500) — 83 parça
çizim 5627
86 465 688 688 465 688 86 230 688 37
BalonParca AdiParca NoAdetTipApplied Date A B
37 BOLT; BRKT FIX
EXH BRK<NF8> (A) M6X20 W/LK WASHER 		9-01900-620-0 02 1 9101-9204 ● ●
37 BOLT; BRKT FIX
EXH BRK<NF8> (A) M6X20 W/LK WASHER 		0-50040-620-0 02 1 9205-9504 ● ●
37 BOLT; BRKT FIX
(B) M6X16 FLANGE 		0-28080-616-0 02 1 9505-9606 ● ●
37 BOLT; BRKT FIX
(B) M6X16 FLANGE 		0-28680-616-0 02 1 9607-0512 ● ●
37 BOLT; BRKT FIX
(B) M6X16 FLANGE 		0-28650-616-0 02 1 0601- ● ●
37 BOLT; BRKT FIX
6HH1 STD ENG(65L) (C) M10X20 FLANGE 		0-28081-020-0 02 1 0105-0512 ● ●
37 BOLT; BRKT FIX
6HH1 STD ENG(65L) (C) M10X20 FLANGE 		0-28051-020-0 02 1 0601- ● ●
86 NUT; CLIP FIX
M8 FLANGE 		0-91150-108-0 01 1 0105-0602 ● ●
86 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
230 BRACKET; ENG STOP ACTUATOR
6HH1 STD ENG(65L) 		1-47479-245-0 01 1 0105- ● ●
465 BOLT; CLIP
M8X12 FLANGE 		0-28080-812-0 02 1 9505-9705 ● ●
465 BOLT; CLIP
6HH1 STD ENG(65L) M8X12 FLANGE 		0-28080-812-0 02 1 9706-0512 ● ●
465 BOLT; CLIP
6HH1 STD ENG(65L) M8X12 FLANGE 		0-28050-812-0 02 1 0601- ● ●
465 BOLT; CLIP
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M8X25 FLANGE 		0-28680-825-0 01 1 0105-0512 ● ●
465 BOLT; CLIP
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
465 BOLT; CLIP
6HE1 TCC ENG(76L) M8X16 FLANGE 		0-28080-816-0 02 1 9706-9709 ● ●
465 BOLT; CLIP
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M8X16 FLANGE 		0-28080-816-0 02 1 9710-9909 ● ●
465 BOLT; CLIP
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M8X20 FLANGE 		0-28680-820-0 02 1 9910-0512 ● ●
465 BOLT; CLIP
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
465 BOLT; CLIP
6HH1 STD ENG(65L) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512 ● ●
465 BOLT; CLIP
6HH1 STD ENG(65L) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
688 CLIP; CABLE
(A) ID=6-10 & 10-14 		1-09709-201-1 01 1 0105- ● ●
688 CLIP; CABLE
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (B) ID=18 L=54 		1-09701-068-0 01 1 0105- ● ●
688 CLIP; CABLE
6HH1 STD ENG(65L) (C) ID=7 L=20 		9-09524-635-0 01 1 0105-0606 ● ●
688 CLIP; CABLE
6HH1 STD ENG(65L) (C) ID=7 L=20 		0-95234-635-0 01 1 0607- ● ●

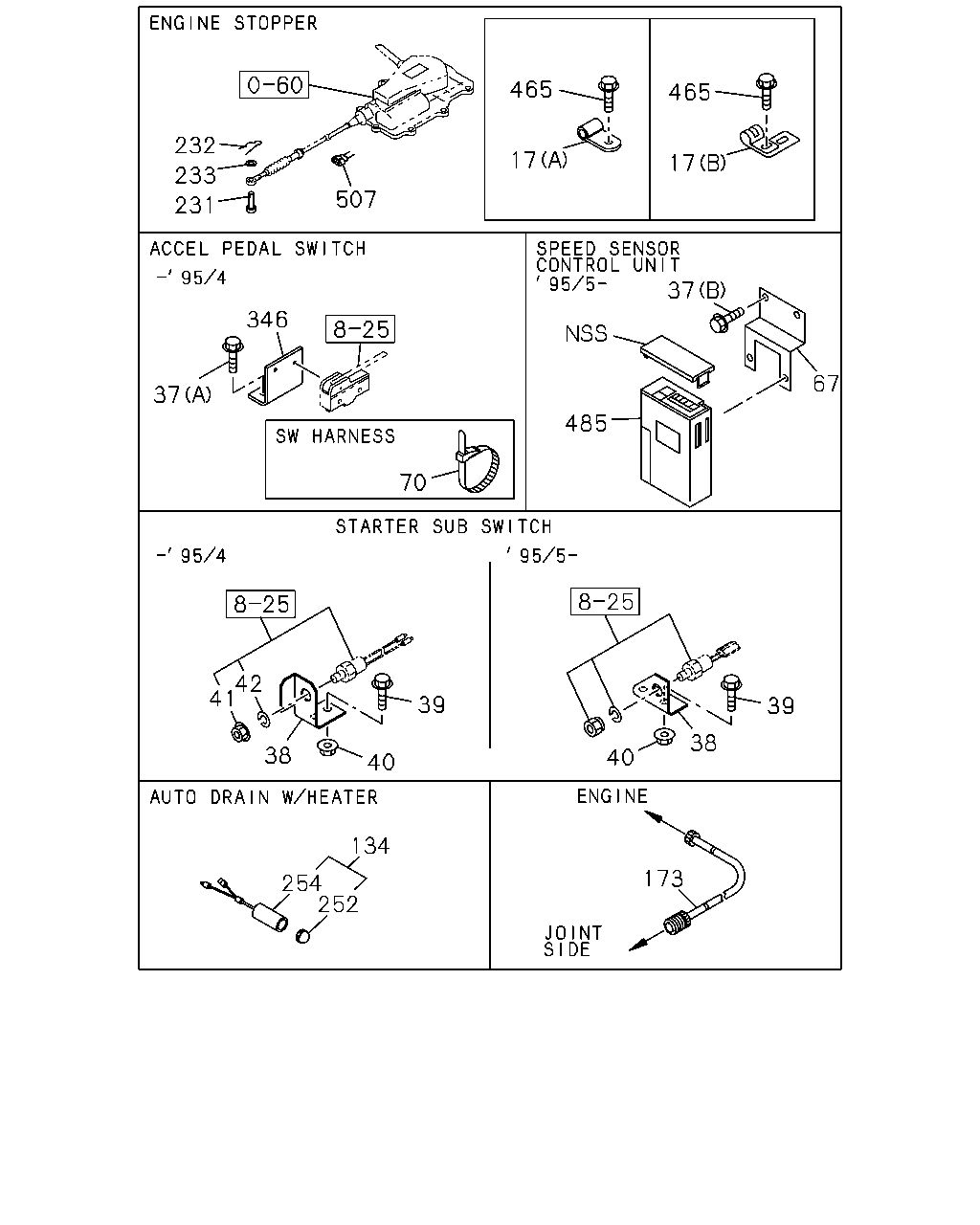

çizim 39073
465 465 232 17 17 233 231 37 346 67 37 485 70 42 41 39 39 38 38 40 40 134 173 254 252 507
BalonParca AdiParca NoAdetTipApplied Date A B
17 CLIP; ACTUATOR TO HARNESS
(A) 		1-09700-579-1 01 1 9505-9510 ● ●
17 CLIP; ACTUATOR TO HARNESS
(B) 		1-23219-004-2 01 1 9505- ● ●
37 BOLT; BRKT FIX
EXH BRK<NF8> (A) M6X20 W/LK WASHER 		9-01900-620-0 02 1 9101-9204 ● ●
37 BOLT; BRKT FIX
EXH BRK<NF8> (A) M6X20 W/LK WASHER 		0-50040-620-0 02 1 9205-9504 ● ●
37 BOLT; BRKT FIX
(B) M6X16 FLANGE 		0-28080-616-0 02 1 9505-9606 ● ●
37 BOLT; BRKT FIX
(B) M6X16 FLANGE 		0-28680-616-0 02 1 9607-0512 ● ●
37 BOLT; BRKT FIX
(B) M6X16 FLANGE 		0-28650-616-0 02 1 0601- ● ●
37 BOLT; BRKT FIX
6HH1 STD ENG(65L) (C) M10X20 FLANGE 		0-28081-020-0 02 1 0105-0512 ● ●
37 BOLT; BRKT FIX
6HH1 STD ENG(65L) (C) M10X20 FLANGE 		0-28051-020-0 02 1 0601- ● ●
38 BRACKET; SW,STARTER SUB 1-53616-056-0 01 1 9101-9504 ● ●
38 BRACKET; SW,STARTER SUB
EXC. ENG ROOM SW BOX<TEK> 		1-82699-351-0 01 1 9505- ● ●
39 BOLT; BRKT,STARTER SUB SW
M6X20 W/LK WASHER 		9-01900-620-0 02 1 9101-9204 ● ●
39 BOLT; BRKT,STARTER SUB SW
M6X20 W/LK WASHER 		0-50040-620-0 02 1 9205-9504 ● ●
39 BOLT; BRKT,STARTER SUB SW
EXC. ENG ROOM SW BOX<TEK> M8X20 FLANGE 		0-28080-820-0 01 1 9505-9606 ● ●
39 BOLT; BRKT,STARTER SUB SW
EXC. ENG ROOM SW BOX<TEK> M8X20 FLANGE 		0-28680-820-0 01 1 9607-0512 ● ●
39 BOLT; BRKT,STARTER SUB SW
EXC. ENG ROOM SW BOX<TEK> M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
40 NUT; BRKT,STARTER SUB SWITCH
M6 		9-09110-406-0 02 1 9101-9504 ● ●
40 NUT; BRKT,STARTER SUB SWITCH
EXC. ENG ROOM SW BOX<TEK> M8 		9-09110-408-0 02 1 9505-9606 ● ●
40 NUT; BRKT,STARTER SUB SWITCH
EXC. ENG ROOM SW BOX<TEK> M8 FLANGE 		0-91150-108-0 02 1 9607-0302 ● ●
40 NUT; BRKT,STARTER SUB SWITCH
EXC. ENG ROOM SW BOX<TEK> M8 FLANGE 		0-91150-108-0 01 1 0303-0602 ● ●
40 NUT; BRKT,STARTER SUB SWITCH
EXC. ENG ROOM SW BOX<TEK> M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
41 NUT; SUB STARTER SW
M14 		9-82755-020-0 01 1 9101-9504 ● ●
42 WASHER; LK,SUB STARTER SW
M14 		9-09150-514-0 01 1 9101-9504 ● ●
67 BRACKET; CONT UNIT 1-82699-720-0 01 1 9505- ● ●
70 CLIP; BAND
EXH BRK<NF8> L=100 		5-09707-036-0 01 1 9101-9504 ● ●
134 LAMP; PILOT,FUEL PUMP
AUTO DRAIN W/HEATER<JR4> 		1-82240-016-0 01 1 9101-9504 ● ●
173 SHAFT; FLEX,TRANS SENSOR
MLD6A M/T(X5N),MLD6F M/T(X7K),MLD6S M/T(X7W) EXC. TACHOGRAPH 120KM/H<SM8> L=1030 		1-83123-438-0 01 1 9202-9504 ● ●
173 SHAFT; FLEX,TRANS SENSOR
EXC. TACHOGRAPH 120KM/H<SM8> L=550 		1-83123-507-0 01 1 9101-9201 ● ●
173 SHAFT; FLEX,TRANS SENSOR
MT643 A/T ALLISON(PR7),MBG5B M/T(X4K),MBG6P M/T(X4L),MBG6R M/T(X4N),MBG6S M/T(X5D) EXC. TACHOGRAPH 120KM/H<SM8> L=550 		1-83123-507-0 01 1 9202-9504 ● ●
231 PIN; JOINT,ENG STOP ACTUATOR
OD=5 L=16 		1-09744-118-0 01 1 9505-9901 ● ●
231 PIN; JOINT,ENG STOP ACTUATOR
6HH1 STD ENG(65L) 		1-09744-118-0 01 1 0011- ● ●
232 PIN; COTTER,ENG STOP ACTUATOR
L=17.9 		1-09747-002-0 01 1 9505-0310 ● ●
232 PIN; COTTER,ENG STOP ACTUATOR
L=17.9 		1-09747-015-0 01 1 0311- ● ●
233 WASHER; PL,ENG STOP ACTUATOR
M5 		9-09160-505-0 01 1 9505-9907 ● ●
233 WASHER; PL,ENG STOP ACTUATOR
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) ID=5.3 		9-09160-505-0 01 1 9908-0605 ● ●
233 WASHER; PL,ENG STOP ACTUATOR
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) ID=5.3 		0-91610-505-0 01 1 0606- ● ●
233 WASHER; PL,ENG STOP ACTUATOR
6HH1 STD ENG(65L) ID=5.3 		9-09160-505-0 02 1 9908-0605 ● ●
233 WASHER; PL,ENG STOP ACTUATOR
6HH1 STD ENG(65L) ID=5.3 		0-91610-505-0 02 1 0606- ● ●
252 LENS & RIM ASM; PILOT LAMP
AUTO DRAIN W/HEATER<JR4> 		1-82245-006-0 01 1 9101-9504 ● ●
254 BULB; PILOT LAMP
AUTO DRAIN W/HEATER<JR4> 24V 3W 		9-82691-367-0 01 1 9101-9504 ● ●
346 BRACKET; ACCEL SW
EXH BRK<NF8> 		1-23249-010-0 01 1 9101-9504 ● ●
465 BOLT; CLIP
M8X12 FLANGE 		0-28080-812-0 02 1 9505-9705 ● ●
465 BOLT; CLIP
6HH1 STD ENG(65L) M8X12 FLANGE 		0-28080-812-0 02 1 9706-0512 ● ●
465 BOLT; CLIP
6HH1 STD ENG(65L) M8X12 FLANGE 		0-28050-812-0 02 1 0601- ● ●
465 BOLT; CLIP
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M8X25 FLANGE 		0-28680-825-0 01 1 0105-0512 ● ●
465 BOLT; CLIP
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
465 BOLT; CLIP
6HE1 TCC ENG(76L) M8X16 FLANGE 		0-28080-816-0 02 1 9706-9709 ● ●
465 BOLT; CLIP
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M8X16 FLANGE 		0-28080-816-0 02 1 9710-9909 ● ●
465 BOLT; CLIP
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M8X20 FLANGE 		0-28680-820-0 02 1 9910-0512 ● ●
465 BOLT; CLIP
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
465 BOLT; CLIP
6HH1 STD ENG(65L) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512 ● ●
465 BOLT; CLIP
6HH1 STD ENG(65L) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
485 CONTROL UNIT; SPEED SENSOR 1-82540-065-0 01 1 9505- ● ●
507 CONNECTOR
ISUZU M/T<X9A> 		1-82690-974-0 01 1 9510-9701 ● ●
507 CONNECTOR
6HH1 STD ENG(65L) 		1-82690-974-0 01 1 9702-9710 ● ●
507 CONNECTOR
6HH1 STD ENG(65L),6HE1 TCC ENG(76L) ISUZU M/T<X9A> 		1-82690-974-0 01 1 9711-9712 ● ●
507 CONNECTOR
ISUZU M/T<X9A> 		1-82690-974-0 01 1 9801-9805 ● ●
507 CONNECTOR 1-82690-974-0 01 1 9806- ● ●
