◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10624 - FSR-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-11 - FRONT HUB AND DRUM OR ROTOR ▶
4-11 — FRONT HUB AND DRUM OR ROTOR (#45) — 64 parça

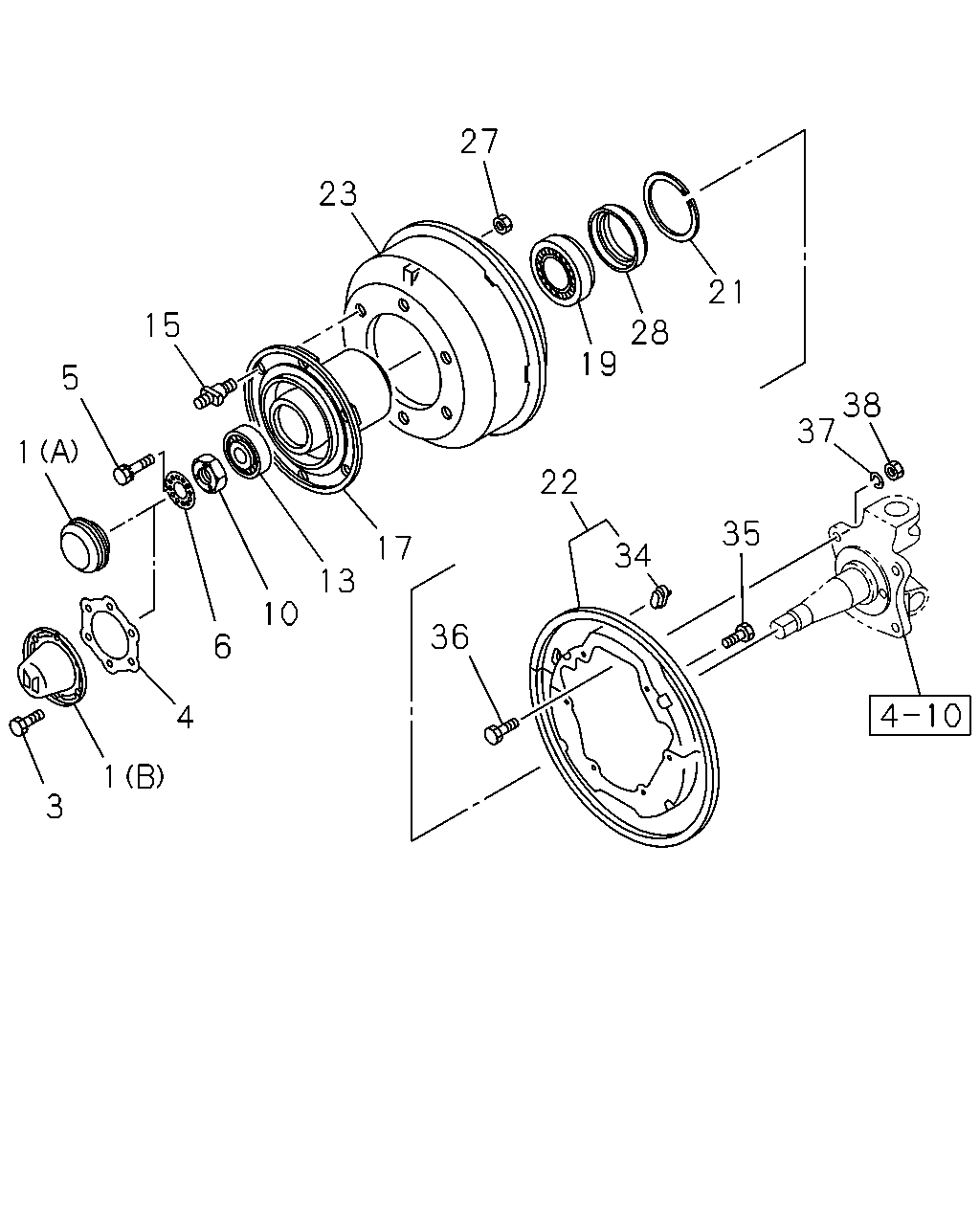

çizim 93456
27 23 21 15 28 19 5 38 37 1 22 35 17 34 13 10 36 6 4 1 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAP; HUB,FRT AXLE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) OD=90 		1-42313-019-1 02 1 9202- ● ●
1 CAP; HUB,FRT AXLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) OD=90 		1-42313-019-1 02 1 9202- ● ●
1 CAP; HUB,FRT AXLE
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) 0D=136 		1-42313-007-1 02 1 9202- ● ●
3 BOLT; HUB CAP,FRT WHEEL
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X14 W/LK WASHER 		9-01900-814-0 12 1 9202-9204 ● ●
3 BOLT; HUB CAP,FRT WHEEL
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X14 W/LK WASHER 		0-50040-814-0 12 1 9205- ● ●
4 GASKET; HUB CAP,FRT WHEEL
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-42319-028-0 02 1 9202- ● ●
5 BOLT; LK WASHER
M6X16 W/LK WASHER 		0-50040-616-0 04 1 9202- ● ●
6 WASHER; LK,FRT HUB
ID=39 		1-09841-003-0 02 1 9202- ● ●
10 NUT; FRT HUB BRG
M39 		1-09840-019-1 02 1 9202- ● ●
13 BEARING; HUB OUTER,FRT AXLE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> NSK 		1-09812-064-0 02 1 9202- ● ●
13 BEARING; HUB OUTER,FRT AXLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) NSK 		1-09812-064-0 02 1 9202- ● ●
13 BEARING; HUB OUTER,FRT AXLE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> KOYO 		1-09812-065-0 02 1 9202- ● ●
13 BEARING; HUB OUTER,FRT AXLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) KOYO 		1-09812-065-0 02 1 9202- ● ●
13 BEARING; HUB OUTER,FRT AXLE
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) NSK 		9-00093-146-0 02 1 9202- ● ●
13 BEARING; HUB OUTER,FRT AXLE
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) KOYO 		9-00093-147-1 02 1 9202- ● ●
15 PIN; WHEEL,FRT AXLE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M24X37.5 LH THREAD,M22X55.5 RH THREAD 		1-42332-132-0 08 1 9202- ● ●
15 PIN; WHEEL,FRT AXLE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M24X37.5,M22X55.5 RH THREAD 		1-42331-132-0 08 1 9202- ● ●
15 PIN; WHEEL,FRT AXLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M24X37.5 LH THREAD,M22X51.5 RH THREAD 		1-42332-112-0 06 1 9202- ● ●
15 PIN; WHEEL,FRT AXLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M24X37.5,M22X51.5 RH THREAD 		1-42331-112-0 06 1 9202- ● ●
15 PIN; WHEEL,FRT AXLE
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M24X37.5 LH THREAD,M22X51.5 RH THREAD 		1-42332-112-0 08 1 9202- ● ●
15 PIN; WHEEL,FRT AXLE
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M24X37.5,M22X51.5 RH THREAD 		1-42331-112-0 08 1 9202- ● ●
17 HUB; FRT AXLE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-42312-036-1 02 1 9202- ● ●
17 HUB; FRT AXLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-42312-087-0 02 1 9202-9304 ● ●
17 HUB; FRT AXLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-42312-117-3 02 1 9305- ● ●
17 HUB; FRT AXLE
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-42312-037-1 02 1 9202-9211 ● ●
17 HUB; FRT AXLE
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-42312-113-0 02 1 9212- ● ●
19 BEARING; HUB INNER,FRT AXLE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> NSK 		9-00093-031-1 02 1 9202- ● ●
19 BEARING; HUB INNER,FRT AXLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) NSK 		9-00093-031-1 02 1 9202- ● ●
19 BEARING; HUB INNER,FRT AXLE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> KOYO 		9-00093-205-1 02 1 9202- ● ●
19 BEARING; HUB INNER,FRT AXLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) KOYO 		9-00093-205-1 02 1 9202- ● ●
19 BEARING; HUB INNER,FRT AXLE
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) KOYO 		9-00093-114-0 02 1 9202- ● ●
21 RING; SNAP,HUB
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> OD=117 		1-09587-001-0 02 1 9202- ● ●
21 RING; SNAP,HUB
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) OD=117 		1-09587-001-0 02 1 9202- ● ●
21 RING; SNAP,HUB
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) OD=132 		9-09950-164-0 02 1 9202- ● ●
22 COVER SET; FRT BRK DRUM
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-47151-458-1 02 1 9202- ● ●
23 DRUM; BRK,FRT
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-42315-278-1 02 1 9202- ● ●
23 DRUM; BRK,FRT
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-42315-326-1 02 1 9202-9304 ● ●
23 DRUM; BRK,FRT
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-42315-338-2 02 1 9305- ● ●
23 DRUM; BRK,FRT
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) H=195 		1-42315-208-1 02 1 9202- ● ●
27 NUT; WHEEL PIN,FRT AXLE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M22 		9-09110-522-0 16 1 9202- ● ●
27 NUT; WHEEL PIN,FRT AXLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M22 		9-09110-522-0 12 1 9202- ● ●
28 SEAL; OIL,FRT HUB
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> OD=112 		1-09625-006-0 02 1 9202-9306 ● ●
28 SEAL; OIL,FRT HUB
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) OD=112 		1-09625-006-0 02 1 9202-9306 ● ●
28 SEAL; OIL,FRT HUB
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> OD=112 		1-09625-568-0 02 1 9307- ● ●
28 SEAL; OIL,FRT HUB
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) OD=112 		1-09625-568-0 02 1 9307- ● ●
28 SEAL; OIL,FRT HUB
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) OD=128 		1-09625-129-0 02 1 9202- ● ●
34 COVER; CHECK HOLE,DRUM COVER
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-09333-095-0 04 1 9202-9501 ● ●
34 COVER; CHECK HOLE,DRUM COVER
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-09333-151-0 04 1 9502- ● ●
35 BOLT; DRUM COVER
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X16 W/LK WASHER 		9-01901-016-0 12 1 9202-9204 ● ●
35 BOLT; DRUM COVER
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X16 FLANGE 		0-28081-016-0 12 1 9405-9410 ● ●
35 BOLT; DRUM COVER
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X16 W/LK WASHER 		0-50041-016-0 12 1 9410- ● ●
36 BOLT; BACK PLATE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		9-92061-445-0 08 1 9202- ● ●
36 BOLT; BACK PLATE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M14X45 		0-20801-445-0 08 1 9202- ● ●
36 BOLT; BACK PLATE
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M16X61 		1-09040-058-1 04 1 9202- ● ●
36 BOLT; BACK PLATE
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M16X52 		1-09044-001-1 04 1 9202- ● ●
37 WASHER; LK,BACK PLATE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2 		9-09150-614-0 08 1 9202-9401 ● ●
37 WASHER; LK,BACK PLATE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=14.2 		9-09150-614-0 08 1 9202-9401 ● ●
37 WASHER; LK,BACK PLATE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2 		9-09150-814-0 08 1 9402- ● ●
37 WASHER; LK,BACK PLATE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=14.2 		9-09150-814-0 08 1 9402- ● ●
37 WASHER; LK,BACK PLATE
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=16.2 		9-09150-616-0 08 1 9202-9401 ● ●
37 WASHER; LK,BACK PLATE
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=16.2 		9-09150-816-0 08 1 9402- ● ●
38 NUT; BACK PLATE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 08 1 9202- ● ●
38 NUT; BACK PLATE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M14 		9-99110-514-0 08 1 9202- ● ●
38 NUT; BACK PLATE
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M16 		9-99110-416-0 08 1 9202- ● ●
