◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50816 - NPR/NQR(EUROPE)-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#44998) — 195 parça
çizim 9361
24 87 15 4 5 15 6 11 16 92 7 5 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 9812-0105 ● ●
3 00.785 GASKET; FLEX HOSE,CLU
4JH1 ENG(RJX) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0106- ●
3 00.785 GASKET; FLEX HOSE,CLU
4HE1 ENG(RLY) 		9-09920-873-1 01 1 0106- ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 		8-94167-006-0 02 1 9812-0105 ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 		8-94167-006-0 02 1 0106- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-97070-114-1 01 1 9812-0105 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JH1 ENG(RJX) (C) 		8-97304-980-1 01 1 0106- ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (B) 		8-94248-702-2 01 1 9812-0105 ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (B) 		8-94248-702-2 01 1 0106- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-94108-360-2 01 1 9812-0105 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-94108-360-2 01 1 0106- ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (A) 		8-97148-640-0 01 1 9812-9903 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 9904-0105 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 9904-0105 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 0106- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97047-058-1 01 1 9904-0105 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-94377-793-1 01 1 9812-9903 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV),CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-94377-793-1 01 1 9904-0105 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-94377-793-1 01 1 0106- ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9812-0105 ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-0105 ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HE1 ENG(RLY) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-0105 ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HE1 ENG(RLY) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97091-929-0 01 1 9812-0105 ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HE1 ENG(RLY) 		8-97126-875-0 01 1 0106- ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HE1 ENG(RLY) 		8-97126-875-0 01 1 9812-0011 ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HE1 ENG(RLY) 		8-94366-288-0 01 1 0012-0101 ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HE1 ENG(RLY) 		8-97126-875-0 01 1 0102-0105 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-97091-940-2 01 1 9812-9910 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-97239-833-0 01 1 9911-0105 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JH1 ENG(RJX) (B) 		8-97259-587-1 01 1 0106- ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (A) 		8-97073-074-2 01 1 9812-0105 ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (A) 		8-97073-074-2 01 1 0106-0111 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (A) 		8-97328-482-0 01 1 0112- ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 9812-0105 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 0106-0207 ●
15 00.785 PIPE; CLU,FLEX HOSE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 0208- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97065-312-5 01 1 9812-0105 ● ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 02 1 9812-0105 ● ●
16 00.785 CLIP; FLEX HOSE
4HE1 ENG(RLY) 		8-94167-006-0 01 1 0106- ● ● ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 9812-0105 ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97118-570-0 01 1 9812-0105 ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97118-570-0 01 1 0106- ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97070-293-3 01 1 9812-0105 ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97070-293-3 01 1 0106- ● ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> M12 STRAIGHT 		9-99227-006-0 01 1 9812-0105 ● ● ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> M12 STRAIGHT 		9-99227-006-0 01 1 0106- ● ● ●
92 00.785 CLIP; OIL PIPE
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 02 1 9812-0105 ● ●
92 00.785 CLIP; OIL PIPE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 02 1 0106- ● ●

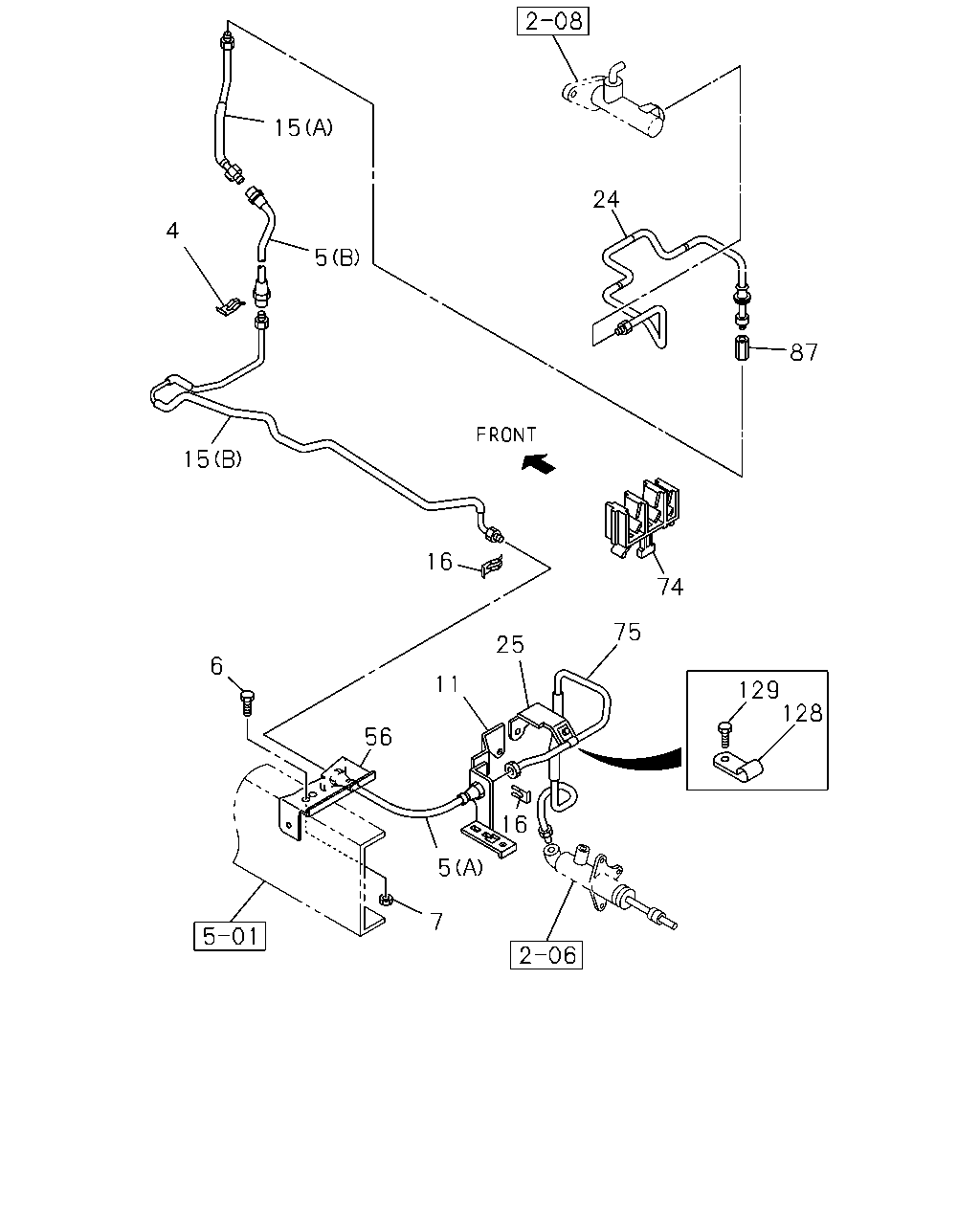

çizim 46083
15 24 4 5 87 15 16 74 75 25 6 11 129 128 56 16 5 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 00.785 CLIP; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 		8-94167-006-0 02 1 9812-0105 ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 		8-94167-006-0 02 1 0106- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-97070-114-1 01 1 9812-0105 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JH1 ENG(RJX) (C) 		8-97304-980-1 01 1 0106- ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (B) 		8-94248-702-2 01 1 9812-0105 ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (B) 		8-94248-702-2 01 1 0106- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-94108-360-2 01 1 9812-0105 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-94108-360-2 01 1 0106- ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (A) 		8-97148-640-0 01 1 9812-9903 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 9904-0105 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 9904-0105 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 0106- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97047-058-1 01 1 9904-0105 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-94377-793-1 01 1 9812-9903 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV),CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-94377-793-1 01 1 9904-0105 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-94377-793-1 01 1 0106- ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9812-0105 ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-0105 ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HE1 ENG(RLY) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-0105 ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HE1 ENG(RLY) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97091-929-0 01 1 9812-0105 ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HE1 ENG(RLY) 		8-97126-875-0 01 1 0106- ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HE1 ENG(RLY) 		8-97126-875-0 01 1 9812-0011 ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HE1 ENG(RLY) 		8-94366-288-0 01 1 0012-0101 ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HE1 ENG(RLY) 		8-97126-875-0 01 1 0102-0105 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-97091-940-2 01 1 9812-9910 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-97239-833-0 01 1 9911-0105 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JH1 ENG(RJX) (B) 		8-97259-587-1 01 1 0106- ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (A) 		8-97073-074-2 01 1 9812-0105 ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (A) 		8-97073-074-2 01 1 0106-0111 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (A) 		8-97328-482-0 01 1 0112- ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 9812-0105 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 0106-0207 ●
15 00.785 PIPE; CLU,FLEX HOSE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 0208- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97065-312-5 01 1 9812-0105 ● ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 02 1 9812-0105 ● ●
16 00.785 CLIP; FLEX HOSE
4HE1 ENG(RLY) 		8-94167-006-0 01 1 0106- ● ● ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 9812-0105 ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97118-570-0 01 1 9812-0105 ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97118-570-0 01 1 0106- ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97070-293-3 01 1 9812-0105 ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97070-293-3 01 1 0106- ● ● ●
25 00.785 BRACKET; OIL PIPE 8-97013-211-1 01 1 9812-0105 ● ●
56 00.785 BRACKET; FLEX HOSE 8-97090-299-0 01 1 9812-0105 ● ●
74 00.785 CLIP; CLU OIL PIPE
04.686 ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9812-0105 ● ●
74 00.785 CLIP; CLU OIL PIPE
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 01 1 0106- ●
75 00.785 PIPE ASM; CLU,HSG 8-97063-756-2 01 1 9812-0105 ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> M12 STRAIGHT 		9-99227-006-0 01 1 9812-0105 ● ● ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> M12 STRAIGHT 		9-99227-006-0 01 1 0106- ● ● ●
128 00.785 CLIP; AIR PIPE
03.145 ID=7 L=16 		9-09524-622-0 02 1 9812-0105 ● ●
129 00.785 BOLT; PIPE CLIP
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9812-0105 ● ●

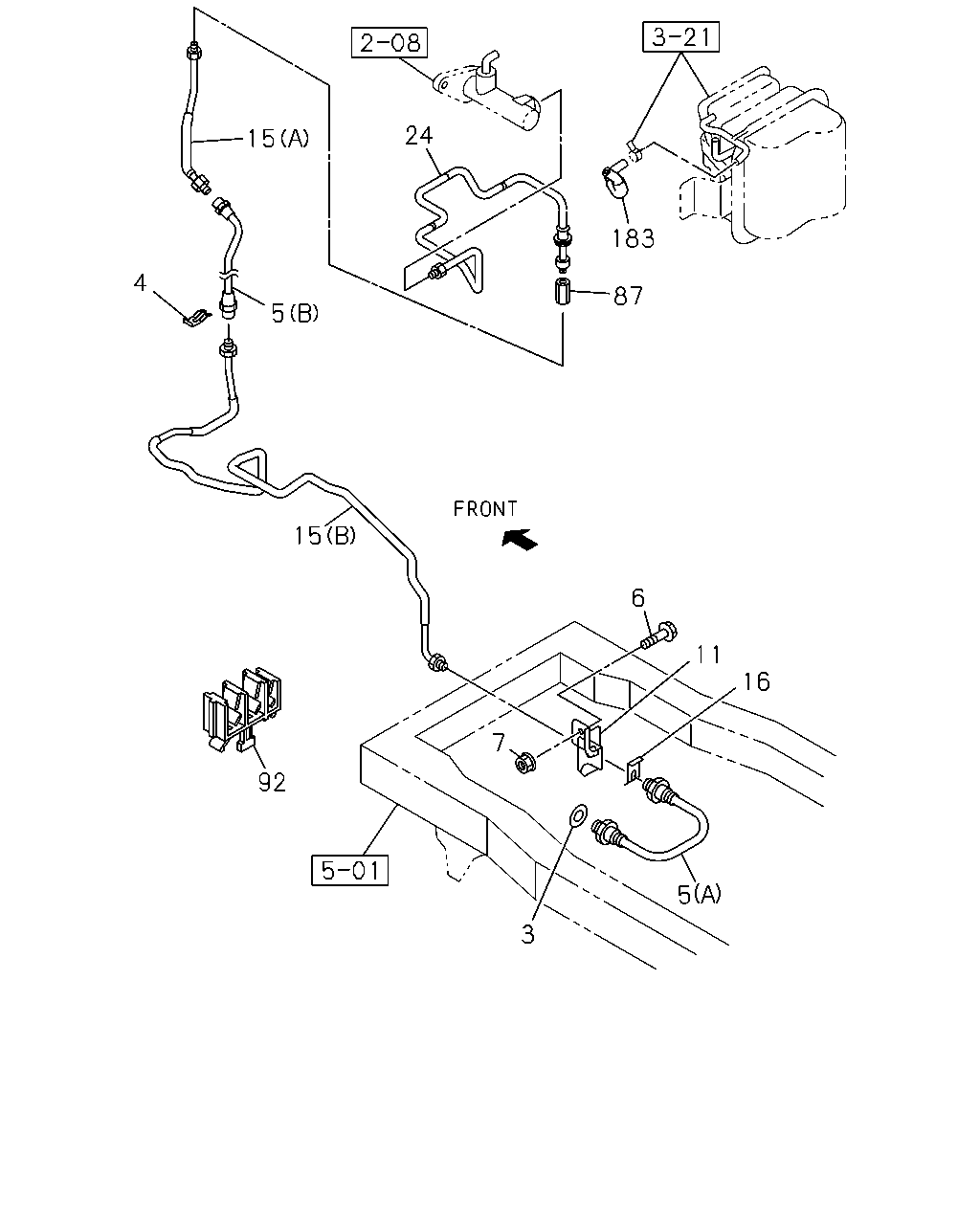

çizim 48651
24 15 183 4 87 5 15 6 11 16 7 92 5 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 9812-0105 ● ●
3 00.785 GASKET; FLEX HOSE,CLU
4JH1 ENG(RJX) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0106- ●
3 00.785 GASKET; FLEX HOSE,CLU
4HE1 ENG(RLY) 		9-09920-873-1 01 1 0106- ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 		8-94167-006-0 02 1 9812-0105 ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 		8-94167-006-0 02 1 0106- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-97070-114-1 01 1 9812-0105 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JH1 ENG(RJX) (C) 		8-97304-980-1 01 1 0106- ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (B) 		8-94248-702-2 01 1 9812-0105 ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (B) 		8-94248-702-2 01 1 0106- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-94108-360-2 01 1 9812-0105 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-94108-360-2 01 1 0106- ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (A) 		8-97148-640-0 01 1 9812-9903 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 9904-0105 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 9904-0105 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 0106- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97047-058-1 01 1 9904-0105 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-94377-793-1 01 1 9812-9903 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV),CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-94377-793-1 01 1 9904-0105 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-94377-793-1 01 1 0106- ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9812-0105 ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-0105 ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HE1 ENG(RLY) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-0105 ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HE1 ENG(RLY) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97091-929-0 01 1 9812-0105 ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HE1 ENG(RLY) 		8-97126-875-0 01 1 0106- ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HE1 ENG(RLY) 		8-97126-875-0 01 1 9812-0011 ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HE1 ENG(RLY) 		8-94366-288-0 01 1 0012-0101 ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HE1 ENG(RLY) 		8-97126-875-0 01 1 0102-0105 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-97091-940-2 01 1 9812-9910 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-97239-833-0 01 1 9911-0105 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JH1 ENG(RJX) (B) 		8-97259-587-1 01 1 0106- ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (A) 		8-97073-074-2 01 1 9812-0105 ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (A) 		8-97073-074-2 01 1 0106-0111 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (A) 		8-97328-482-0 01 1 0112- ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 9812-0105 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 0106-0207 ●
15 00.785 PIPE; CLU,FLEX HOSE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 0208- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97065-312-5 01 1 9812-0105 ● ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 02 1 9812-0105 ● ●
16 00.785 CLIP; FLEX HOSE
4HE1 ENG(RLY) 		8-94167-006-0 01 1 0106- ● ● ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 9812-0105 ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97118-570-0 01 1 9812-0105 ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97118-570-0 01 1 0106- ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97070-293-3 01 1 9812-0105 ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97070-293-3 01 1 0106- ● ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> M12 STRAIGHT 		9-99227-006-0 01 1 9812-0105 ● ● ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> M12 STRAIGHT 		9-99227-006-0 01 1 0106- ● ● ●
92 00.785 CLIP; OIL PIPE
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 02 1 9812-0105 ● ●
92 00.785 CLIP; OIL PIPE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 02 1 0106- ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-97093-993-1 01 1 9812-0105 ● ● ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-97093-993-1 01 1 0106- ●
çizim 49039
15 24 4 5 87 15 74 19 20 18 177 3 3 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 9812-0105 ● ●
3 00.785 GASKET; FLEX HOSE,CLU
4JH1 ENG(RJX) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0106- ●
3 00.785 GASKET; FLEX HOSE,CLU
4HE1 ENG(RLY) 		9-09920-873-1 01 1 0106- ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 		8-94167-006-0 02 1 9812-0105 ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 		8-94167-006-0 02 1 0106- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-97070-114-1 01 1 9812-0105 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JH1 ENG(RJX) (C) 		8-97304-980-1 01 1 0106- ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (B) 		8-94248-702-2 01 1 9812-0105 ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (B) 		8-94248-702-2 01 1 0106- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-94108-360-2 01 1 9812-0105 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-94108-360-2 01 1 0106- ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) (A) 		8-97148-640-0 01 1 9812-9903 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 9904-0105 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 9904-0105 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 0106- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97047-058-1 01 1 9904-0105 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-94377-793-1 01 1 9812-9903 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV),CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-94377-793-1 01 1 9904-0105 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-94377-793-1 01 1 0106- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-97091-940-2 01 1 9812-9910 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-97239-833-0 01 1 9911-0105 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JH1 ENG(RJX) (B) 		8-97259-587-1 01 1 0106- ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (A) 		8-97073-074-2 01 1 9812-0105 ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (A) 		8-97073-074-2 01 1 0106-0111 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> (A) 		8-97328-482-0 01 1 0112- ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 9812-0105 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 0106-0207 ●
15 00.785 PIPE; CLU,FLEX HOSE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 0208- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97065-312-5 01 1 9812-0105 ● ●
18 00.830 DAMPER ASM; CLU OIL
4JH1 ENG(RJX) 		8-97304-972-0 01 1 0106- ●
19 00.837 BOLT; CLU DAMPER
4JH1 ENG(RJX) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0106- ●
20 00.837 NUT; CLU OIL DAMPER
4JH1 ENG(RJX) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97118-570-0 01 1 9812-0105 ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97118-570-0 01 1 0106- ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97070-293-3 01 1 9812-0105 ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97070-293-3 01 1 0106- ● ● ●
74 00.785 CLIP; CLU OIL PIPE
04.686 ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9812-0105 ● ●
74 00.785 CLIP; CLU OIL PIPE
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 01 1 0106- ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> M12 STRAIGHT 		9-99227-006-0 01 1 9812-0105 ● ● ● ●
87 00.785 UNION; OIL PIPE
FLOOR REMOTE SHIFT<M11> M12 STRAIGHT 		9-99227-006-0 01 1 0106- ● ● ●
177 00.777 BOLT; EYE,FLEX HOSE TO M/CYL
4JH1 ENG(RJX) 04.665 M10X22 		5-09675-017-0 01 1 0106- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
