◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50816 - NPR/NQR(EUROPE)-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#44996) — 204 parça

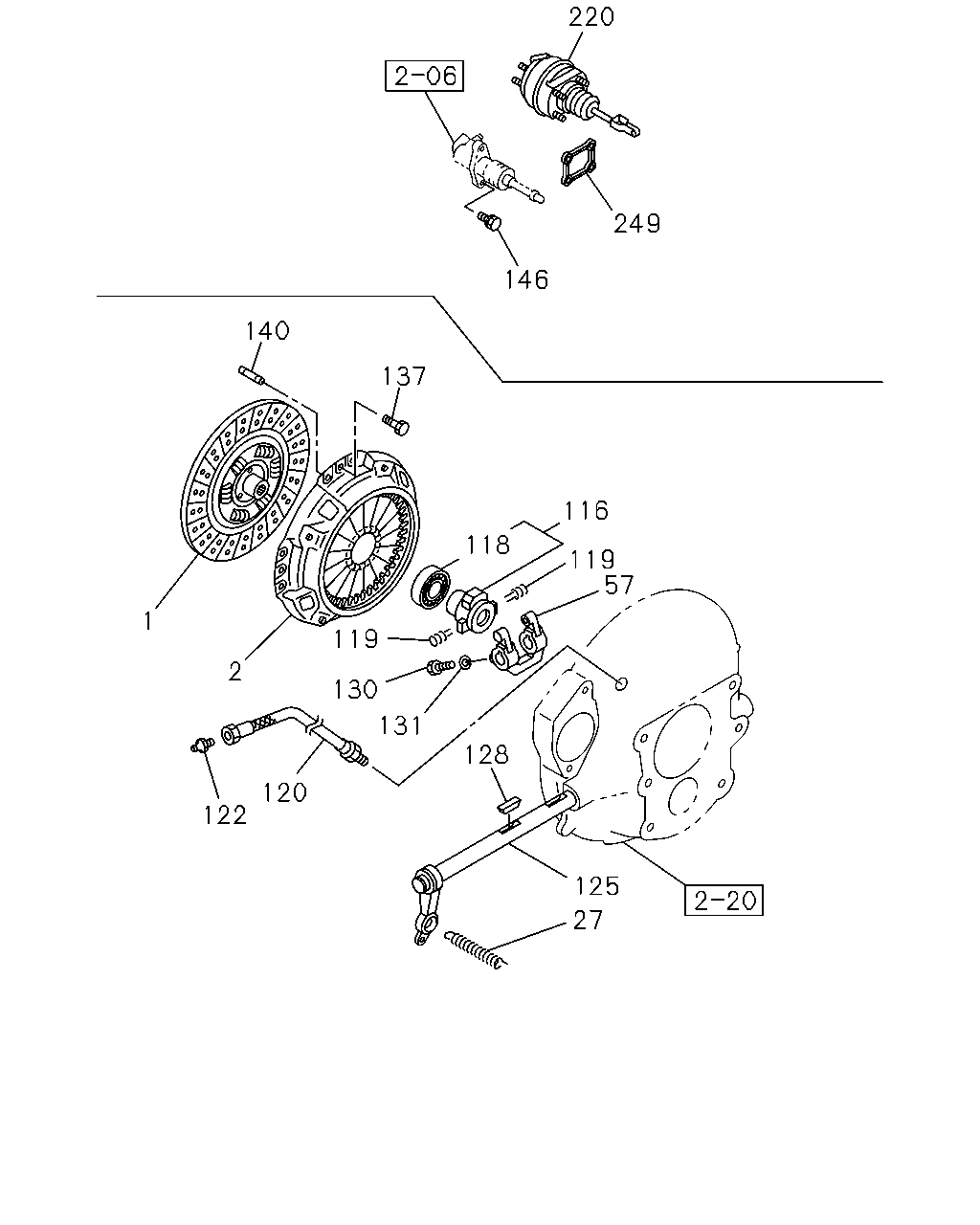

çizim 47744
220 249 146 140 137 116 118 119 57 1 119 2 130 131 128 120 122 125 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.886 DISC; CLUTCH
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97217-985-0 01 1 9812-0008 ● ●
1 00.886 DISC; CLUTCH
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97257-124-0 01 1 0009-0105 ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97173-595-1 01 1 9812-9905 ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97173-595-1 01 1 9812-9905 ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97229-241-0 01 1 9906-0105 ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97229-241-0 01 1 9906-0105 ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) 		8-97229-241-0 01 1 0106-0207 ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97229-241-0 01 1 0208- ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL> 		8-97229-241-0 01 1 0208- ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97166-390-1 01 1 9812-0105 ● ●
1 00.886 DISC; CLUTCH
4JH1 ENG(RJX) 		8-97166-390-1 01 1 0106- ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) 		8-97259-940-0 01 1 0208- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97109-246-0 01 1 9812-0105 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JH1 ENG(RJX) 		8-97259-693-0 01 1 0106- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97038-831-2 01 1 9812-0105 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97038-831-2 01 1 9812-0105 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) 		8-97038-831-2 01 1 0106- ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97169-534-0 01 1 9812-0105 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JG2 ENG(RJC),4HE1 ENG(RLY) 		8-97184-358-0 01 1 9812-9903 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JG2 ENG(RJC),4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-358-0 01 1 9904-9905 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-358-0 01 1 9906-0105 ● ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-358-0 01 1 0106-0207 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-358-0 01 1 0208- ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HE1 ENG(RLY) 		8-97184-359-0 01 1 9812-9903 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-359-0 01 1 9904-0105 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JH1 ENG(RJX) 		8-97184-359-0 01 1 0106- ●
57 00.795 FORK; SHIFT,CLU 8-97033-701-0 01 1 9812-0105 ● ●
57 00.795 FORK; SHIFT,CLU
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97187-936-0 01 1 9812-0105 ●
57 00.795 FORK; SHIFT,CLU
4JH1 ENG(RJX) 		8-97187-936-0 01 1 0106- ●
57 00.795 FORK; SHIFT,CLU 1-31341-028-0 01 1 9812-0105 ●
57 00.795 FORK; SHIFT,CLU
4HE1 ENG(RLY) 		1-31341-028-0 01 1 0106- ●
57 00.795 FORK; SHIFT,CLU 8-97310-456-1 01 1 0208- ●
116 00.799 BLOCK; SHIFT,CLU 8-97033-699-0 01 1 9812-0105 ● ●
116 00.799 BLOCK; SHIFT,CLU
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97089-652-0 01 1 9812-0105 ●
116 00.799 BLOCK; SHIFT,CLU
4JH1 ENG(RJX) 		8-97089-652-0 01 1 0106- ●
116 00.799 BLOCK; SHIFT,CLU 1-31320-034-0 01 1 9812-0105 ●
116 00.799 BLOCK; SHIFT,CLU
4HE1 ENG(RLY) 		1-31320-034-0 01 1 0106- ●
118 00.799 BEARING; CLU RELEASE
JTEKT 		8-94379-499-0 01 1 9812-0105 ● ●
118 00.799 BEARING; CLU RELEASE 1-09820-078-0 01 1 9812-0105 ●
118 00.799 BEARING; CLU RELEASE
4HE1 ENG(RLY) 		1-09820-078-0 01 1 0106-0111 ●
118 00.799 BEARING; CLU RELEASE
4HE1 ENG(RLY) 		1-09820-115-0 01 1 0112- ●
118 00.799 BEARING; CLU RELEASE 1-31310-012-0 01 1 0208- ●
119 00.797 SPRING; SHIFT FORK
00.844 		1-31329-015-0 01 1 9812-0105 ●
119 00.797 SPRING; SHIFT FORK
4HE1 ENG(RLY) 00.844 		1-31329-015-0 01 1 0106- ●
119 00.797 SPRING; SHIFT FORK
00.844 		1-31329-014-0 01 1 9812-0105 ●
119 00.797 SPRING; SHIFT FORK
4HE1 ENG(RLY) 00.844 		1-31329-014-0 01 1 0106- ●
119 00.797 SPRING; SHIFT FORK 1-31329-024-0 02 1 0208- ●
120 00.799 HOSE; FLEX,SHIFT BLOCK,CLU
L=705 		1-09364-850-0 01 1 9812-0105 ●
120 00.799 HOSE; FLEX,SHIFT BLOCK,CLU
4HE1 ENG(RLY) L=705 		1-09364-850-0 01 1 0106- ●
122 00.799 NIPPLE; GREASE,FLEX HOSE,SHIFT B
08.984 PT1/8 STRAIGHT 		9-09031-010-0 01 1 9812-0105 ●
122 00.799 NIPPLE; GREASE,FLEX HOSE,SHIFT B
4HE1 ENG(RLY) 08.984 PT1/8 STRAIGHT 		9-09031-010-0 01 1 0106- ●
125 00.805 SHAFT; CLU 8-97038-833-1 01 1 9812-0105 ●
125 00.805 SHAFT; CLU
4HE1 ENG(RLY) 		8-97038-833-1 01 1 0106- ●
125 00.805 SHAFT; CLU 8-97310-435-0 01 1 0208- ●
128 00.833 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 9812-0105 ●
128 00.833 KEY; FEATHER,CLU SHAFT
4HE1 ENG(RLY) 		9-09867-008-0 02 1 0106- ● ●
130 00.833 SCREW; SHIFT FORK
08.977 M8X14 		9-06120-814-0 01 1 9812-0105 ●
130 00.833 SCREW; SHIFT FORK
4HE1 ENG(RLY) 08.977 M8X14 		9-06120-814-0 01 1 0106- ● ●
131 00.833 WASHER; LK,SHIFT FORK
00.002 ID=8.2 		9-09150-508-0 01 1 9812-0105 ●
131 00.833 WASHER; LK,SHIFT FORK
4HE1 ENG(RLY) 00.002 ID=8.2 		9-09150-508-0 01 1 0106- ● ●
137 00.862 BOLT; CLU COVER
4JG2 ENG(RJC),4JB1 ENG(RLF) 01.062 M8X16 FLANGE 		0-28080-816-0 06 1 9812-0105 ● ●
137 00.862 BOLT; CLU COVER
4HE1 ENG(RLY) 02.559 M10X16 FLANGE 		0-28081-016-0 10 1 9812-0105 ● ●
137 00.862 BOLT; CLU COVER
4JH1 ENG(RJX),4HE1 ENG(RLY) 02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0106-0207 ● ●
137 00.862 BOLT; CLU COVER
4JH1 ENG(RJX) 02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0208- ●
137 00.862 BOLT; CLU COVER
4HE1 ENG(RLY) 02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0208- ● ●
140 00.862 PIN; STRAIGHT
4JG2 ENG(RJC),4JB1 ENG(RLF) OD=6 L=24 		9-09878-532-0 02 1 9812-0105 ● ●
140 00.862 PIN; STRAIGHT
4HE1 ENG(RLY) L=25 		8-94410-361-0 02 1 9812-0105 ● ●
140 00.862 PIN; STRAIGHT
4JH1 ENG(RJX),4HE1 ENG(RLY) L=25 		8-94410-361-0 02 1 0106-0207 ● ●
140 00.862 PIN; STRAIGHT
4JH1 ENG(RJX) L=25 		8-94410-361-0 02 1 0208- ●
140 00.862 PIN; STRAIGHT
4HE1 ENG(RLY) L=25 		8-94410-361-0 02 1 0208- ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
FLOOR REMOTE SHIFT<M11> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9812-0105 ● ● ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
FLOOR REMOTE SHIFT<M11> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0106- ● ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) 		8-97166-854-1 01 1 9812-0105 ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) 		8-97166-854-1 01 1 0106- ● ●
249 00.864 SPACER; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97167-489-0 01 1 9812-0105 ● ●
249 00.864 SPACER; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97167-489-0 01 1 0106- ● ●

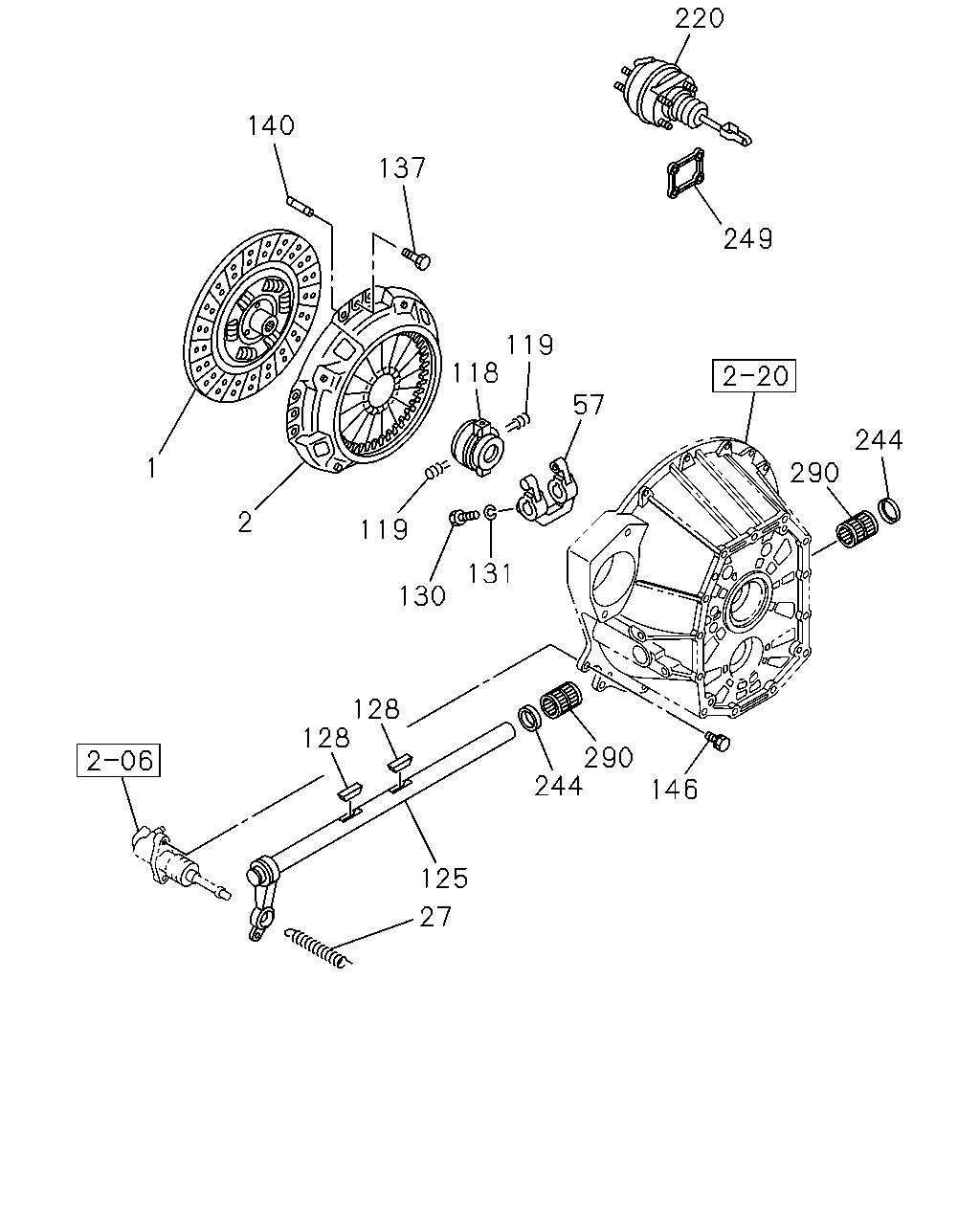

çizim 48169
220 140 137 249 119 118 57 244 1 290 2 119 131 130 128 128 290 244 146 125 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.886 DISC; CLUTCH
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97217-985-0 01 1 9812-0008 ● ●
1 00.886 DISC; CLUTCH
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97257-124-0 01 1 0009-0105 ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97173-595-1 01 1 9812-9905 ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97173-595-1 01 1 9812-9905 ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97229-241-0 01 1 9906-0105 ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97229-241-0 01 1 9906-0105 ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) 		8-97229-241-0 01 1 0106-0207 ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97229-241-0 01 1 0208- ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL> 		8-97229-241-0 01 1 0208- ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97166-390-1 01 1 9812-0105 ● ●
1 00.886 DISC; CLUTCH
4JH1 ENG(RJX) 		8-97166-390-1 01 1 0106- ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) 		8-97259-940-0 01 1 0208- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97109-246-0 01 1 9812-0105 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JH1 ENG(RJX) 		8-97259-693-0 01 1 0106- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97038-831-2 01 1 9812-0105 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97038-831-2 01 1 9812-0105 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) 		8-97038-831-2 01 1 0106- ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97169-534-0 01 1 9812-0105 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JG2 ENG(RJC),4HE1 ENG(RLY) 		8-97184-358-0 01 1 9812-9903 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JG2 ENG(RJC),4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-358-0 01 1 9904-9905 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-358-0 01 1 9906-0105 ● ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-358-0 01 1 0106-0207 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-358-0 01 1 0208- ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HE1 ENG(RLY) 		8-97184-359-0 01 1 9812-9903 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-359-0 01 1 9904-0105 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JH1 ENG(RJX) 		8-97184-359-0 01 1 0106- ●
57 00.795 FORK; SHIFT,CLU 8-97033-701-0 01 1 9812-0105 ● ●
57 00.795 FORK; SHIFT,CLU
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97187-936-0 01 1 9812-0105 ●
57 00.795 FORK; SHIFT,CLU
4JH1 ENG(RJX) 		8-97187-936-0 01 1 0106- ●
57 00.795 FORK; SHIFT,CLU 1-31341-028-0 01 1 9812-0105 ●
57 00.795 FORK; SHIFT,CLU
4HE1 ENG(RLY) 		1-31341-028-0 01 1 0106- ●
57 00.795 FORK; SHIFT,CLU 8-97310-456-1 01 1 0208- ●
118 00.799 BEARING; CLU RELEASE
JTEKT 		8-94379-499-0 01 1 9812-0105 ● ●
118 00.799 BEARING; CLU RELEASE 1-09820-078-0 01 1 9812-0105 ●
118 00.799 BEARING; CLU RELEASE
4HE1 ENG(RLY) 		1-09820-078-0 01 1 0106-0111 ●
118 00.799 BEARING; CLU RELEASE
4HE1 ENG(RLY) 		1-09820-115-0 01 1 0112- ●
118 00.799 BEARING; CLU RELEASE 1-31310-012-0 01 1 0208- ●
119 00.797 SPRING; SHIFT FORK
00.844 		1-31329-015-0 01 1 9812-0105 ●
119 00.797 SPRING; SHIFT FORK
4HE1 ENG(RLY) 00.844 		1-31329-015-0 01 1 0106- ●
119 00.797 SPRING; SHIFT FORK
00.844 		1-31329-014-0 01 1 9812-0105 ●
119 00.797 SPRING; SHIFT FORK
4HE1 ENG(RLY) 00.844 		1-31329-014-0 01 1 0106- ●
119 00.797 SPRING; SHIFT FORK 1-31329-024-0 02 1 0208- ●
125 00.805 SHAFT; CLU 8-97038-833-1 01 1 9812-0105 ●
125 00.805 SHAFT; CLU
4HE1 ENG(RLY) 		8-97038-833-1 01 1 0106- ●
125 00.805 SHAFT; CLU 8-97310-435-0 01 1 0208- ●
128 00.833 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 9812-0105 ●
128 00.833 KEY; FEATHER,CLU SHAFT
4HE1 ENG(RLY) 		9-09867-008-0 02 1 0106- ● ●
130 00.833 SCREW; SHIFT FORK
08.977 M8X14 		9-06120-814-0 01 1 9812-0105 ●
130 00.833 SCREW; SHIFT FORK
4HE1 ENG(RLY) 08.977 M8X14 		9-06120-814-0 01 1 0106- ● ●
131 00.833 WASHER; LK,SHIFT FORK
00.002 ID=8.2 		9-09150-508-0 01 1 9812-0105 ●
131 00.833 WASHER; LK,SHIFT FORK
4HE1 ENG(RLY) 00.002 ID=8.2 		9-09150-508-0 01 1 0106- ● ●
137 00.862 BOLT; CLU COVER
4JG2 ENG(RJC),4JB1 ENG(RLF) 01.062 M8X16 FLANGE 		0-28080-816-0 06 1 9812-0105 ● ●
137 00.862 BOLT; CLU COVER
4HE1 ENG(RLY) 02.559 M10X16 FLANGE 		0-28081-016-0 10 1 9812-0105 ● ●
137 00.862 BOLT; CLU COVER
4JH1 ENG(RJX),4HE1 ENG(RLY) 02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0106-0207 ● ●
137 00.862 BOLT; CLU COVER
4JH1 ENG(RJX) 02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0208- ●
137 00.862 BOLT; CLU COVER
4HE1 ENG(RLY) 02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0208- ● ●
140 00.862 PIN; STRAIGHT
4JG2 ENG(RJC),4JB1 ENG(RLF) OD=6 L=24 		9-09878-532-0 02 1 9812-0105 ● ●
140 00.862 PIN; STRAIGHT
4HE1 ENG(RLY) L=25 		8-94410-361-0 02 1 9812-0105 ● ●
140 00.862 PIN; STRAIGHT
4JH1 ENG(RJX),4HE1 ENG(RLY) L=25 		8-94410-361-0 02 1 0106-0207 ● ●
140 00.862 PIN; STRAIGHT
4JH1 ENG(RJX) L=25 		8-94410-361-0 02 1 0208- ●
140 00.862 PIN; STRAIGHT
4HE1 ENG(RLY) L=25 		8-94410-361-0 02 1 0208- ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
FLOOR REMOTE SHIFT<M11> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9812-0105 ● ● ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
FLOOR REMOTE SHIFT<M11> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0106- ● ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) 		8-97166-854-1 01 1 9812-0105 ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) 		8-97166-854-1 01 1 0106- ● ●
244 00.805 SEAL; DUST
ALSO INCLUDED IN GASKET SET(M/T). 00.797 		1-09625-002-0 02 1 0208- ●
249 00.864 SPACER; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97167-489-0 01 1 9812-0105 ● ●
249 00.864 SPACER; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97167-489-0 01 1 0106- ● ●
290 00.862 BEARING; NEEDLE
00.683 NTN 		1-09811-002-1 02 1 0208- ●

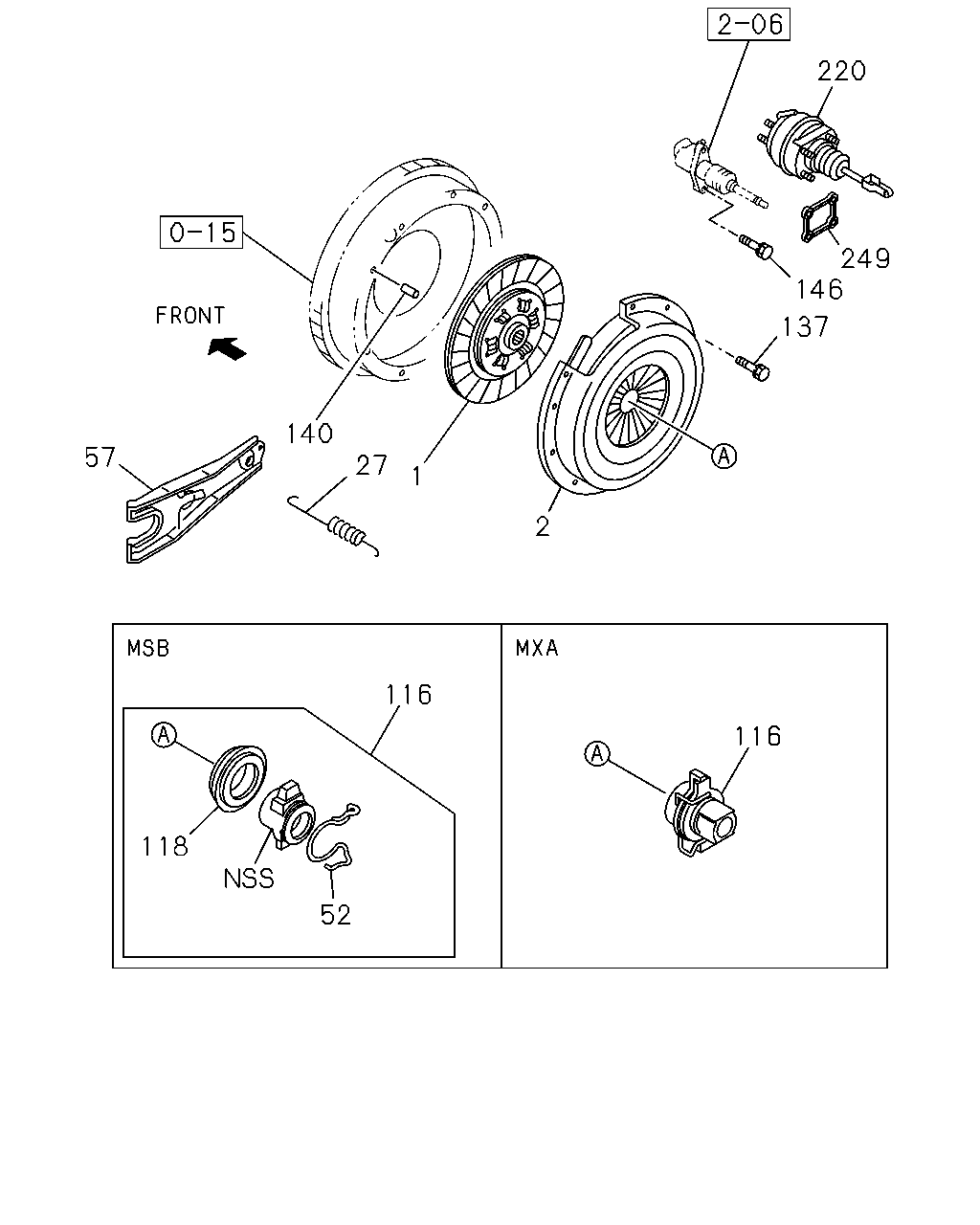

çizim 49030
220 249 146 137 140 57 27 1 2 116 116 118 52
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.886 DISC; CLUTCH
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97217-985-0 01 1 9812-0008 ● ●
1 00.886 DISC; CLUTCH
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97257-124-0 01 1 0009-0105 ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97173-595-1 01 1 9812-9905 ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97173-595-1 01 1 9812-9905 ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97229-241-0 01 1 9906-0105 ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97229-241-0 01 1 9906-0105 ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) 		8-97229-241-0 01 1 0106-0207 ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97229-241-0 01 1 0208- ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL> 		8-97229-241-0 01 1 0208- ● ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97166-390-1 01 1 9812-0105 ● ●
1 00.886 DISC; CLUTCH
4JH1 ENG(RJX) 		8-97166-390-1 01 1 0106- ●
1 00.886 DISC; CLUTCH
4HE1 ENG(RLY) 		8-97259-940-0 01 1 0208- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97109-246-0 01 1 9812-0105 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JH1 ENG(RJX) 		8-97259-693-0 01 1 0106- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97038-831-2 01 1 9812-0105 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97038-831-2 01 1 9812-0105 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) 		8-97038-831-2 01 1 0106- ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97169-534-0 01 1 9812-0105 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JG2 ENG(RJC),4HE1 ENG(RLY) 		8-97184-358-0 01 1 9812-9903 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JG2 ENG(RJC),4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-358-0 01 1 9904-9905 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-358-0 01 1 9906-0105 ● ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-358-0 01 1 0106-0207 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-358-0 01 1 0208- ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HE1 ENG(RLY) 		8-97184-359-0 01 1 9812-9903 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-359-0 01 1 9904-0105 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JH1 ENG(RJX) 		8-97184-359-0 01 1 0106- ●
52 00.797 SPRING; SHIFT BLOCK TO FORK 8-97017-094-0 01 1 9812-0105 ● ●
57 00.795 FORK; SHIFT,CLU 8-97033-701-0 01 1 9812-0105 ● ●
57 00.795 FORK; SHIFT,CLU
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97187-936-0 01 1 9812-0105 ●
57 00.795 FORK; SHIFT,CLU
4JH1 ENG(RJX) 		8-97187-936-0 01 1 0106- ●
57 00.795 FORK; SHIFT,CLU 1-31341-028-0 01 1 9812-0105 ●
57 00.795 FORK; SHIFT,CLU
4HE1 ENG(RLY) 		1-31341-028-0 01 1 0106- ●
57 00.795 FORK; SHIFT,CLU 8-97310-456-1 01 1 0208- ●
116 00.799 BLOCK; SHIFT,CLU 8-97033-699-0 01 1 9812-0105 ● ●
116 00.799 BLOCK; SHIFT,CLU
4HE1 ENG(RLY) ENGINE POWER N-SPEC(7QV) 		8-97089-652-0 01 1 9812-0105 ●
116 00.799 BLOCK; SHIFT,CLU
4JH1 ENG(RJX) 		8-97089-652-0 01 1 0106- ●
116 00.799 BLOCK; SHIFT,CLU 1-31320-034-0 01 1 9812-0105 ●
116 00.799 BLOCK; SHIFT,CLU
4HE1 ENG(RLY) 		1-31320-034-0 01 1 0106- ●
118 00.799 BEARING; CLU RELEASE
JTEKT 		8-94379-499-0 01 1 9812-0105 ● ●
118 00.799 BEARING; CLU RELEASE 1-09820-078-0 01 1 9812-0105 ●
118 00.799 BEARING; CLU RELEASE
4HE1 ENG(RLY) 		1-09820-078-0 01 1 0106-0111 ●
118 00.799 BEARING; CLU RELEASE
4HE1 ENG(RLY) 		1-09820-115-0 01 1 0112- ●
118 00.799 BEARING; CLU RELEASE 1-31310-012-0 01 1 0208- ●
137 00.862 BOLT; CLU COVER
4JG2 ENG(RJC),4JB1 ENG(RLF) 01.062 M8X16 FLANGE 		0-28080-816-0 06 1 9812-0105 ● ●
137 00.862 BOLT; CLU COVER
4HE1 ENG(RLY) 02.559 M10X16 FLANGE 		0-28081-016-0 10 1 9812-0105 ● ●
137 00.862 BOLT; CLU COVER
4JH1 ENG(RJX),4HE1 ENG(RLY) 02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0106-0207 ● ●
137 00.862 BOLT; CLU COVER
4JH1 ENG(RJX) 02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0208- ●
137 00.862 BOLT; CLU COVER
4HE1 ENG(RLY) 02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0208- ● ●
140 00.862 PIN; STRAIGHT
4JG2 ENG(RJC),4JB1 ENG(RLF) OD=6 L=24 		9-09878-532-0 02 1 9812-0105 ● ●
140 00.862 PIN; STRAIGHT
4HE1 ENG(RLY) L=25 		8-94410-361-0 02 1 9812-0105 ● ●
140 00.862 PIN; STRAIGHT
4JH1 ENG(RJX),4HE1 ENG(RLY) L=25 		8-94410-361-0 02 1 0106-0207 ● ●
140 00.862 PIN; STRAIGHT
4JH1 ENG(RJX) L=25 		8-94410-361-0 02 1 0208- ●
140 00.862 PIN; STRAIGHT
4HE1 ENG(RLY) L=25 		8-94410-361-0 02 1 0208- ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
FLOOR REMOTE SHIFT<M11> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9812-0105 ● ● ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
FLOOR REMOTE SHIFT<M11> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0106- ● ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) 		8-97166-854-1 01 1 9812-0105 ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) 		8-97166-854-1 01 1 0106- ● ●
249 00.864 SPACER; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97167-489-0 01 1 9812-0105 ● ●
249 00.864 SPACER; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97167-489-0 01 1 0106- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
