◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50816 - NPR/NQR(EUROPE)-LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56 - EXHAUST BRAKE SYSTEM ▶

1-56 — EXHAUST BRAKE SYSTEM (#44995) — 134 parça

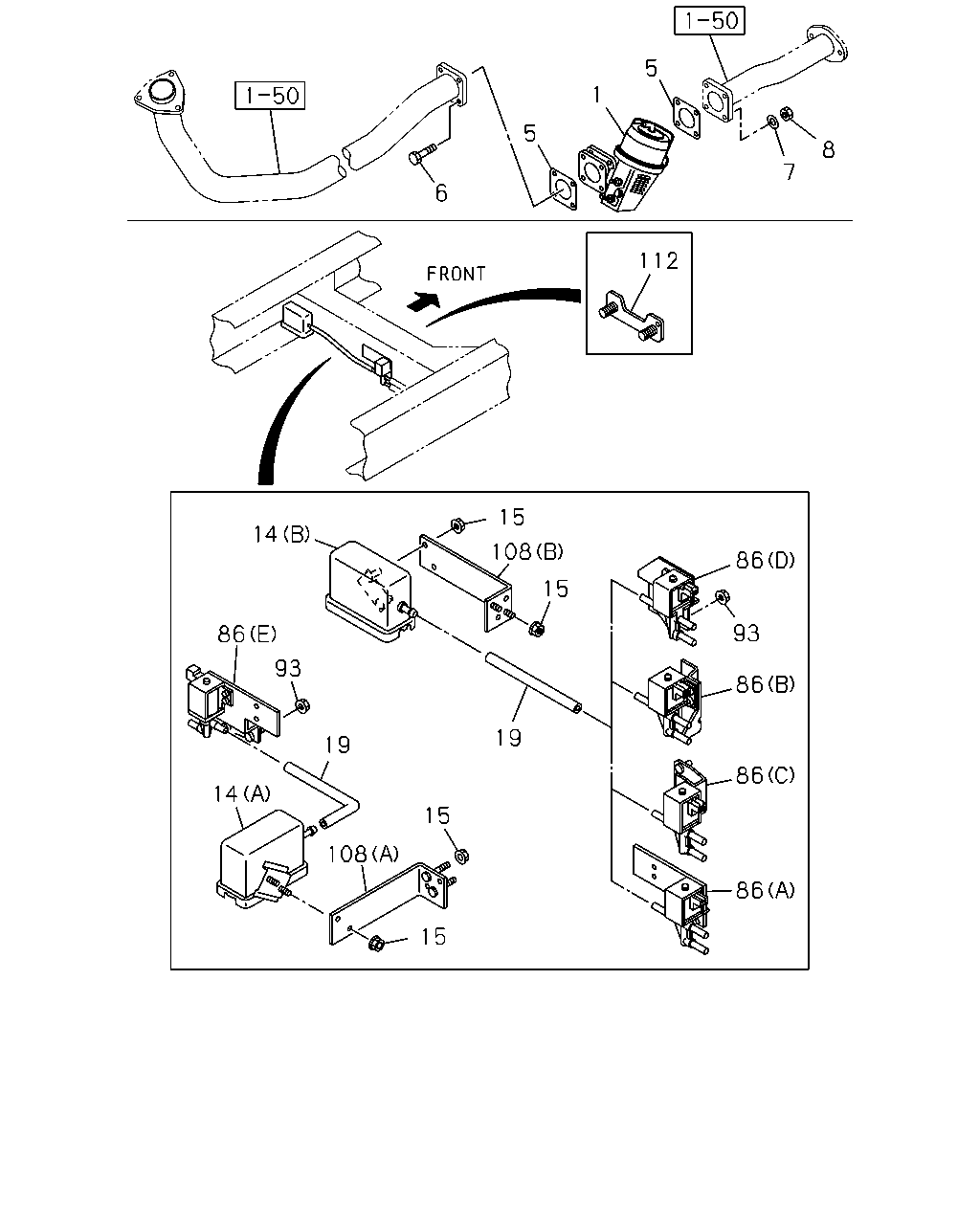

1 7 8 93 94 86 95 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.632 BRAKE UNIT; EXH 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97102-372-2	01	1	9906-0105	●	●
1	03.632 BRAKE UNIT; EXH 4JG2 ENG(RJC)	8-97034-024-3	01	1	9812-0105	●	●
1	03.632 BRAKE UNIT; EXH 4JH1 ENG(RJX)	8-97102-372-3	01	1	0106-	●	●	●
1	03.632 BRAKE UNIT; EXH 4HE1 ENG(RLY)	8-97174-740-0	01	1	9812-0003	●	●	●	●	●	●
1	03.632 BRAKE UNIT; EXH 4HE1 ENG(RLY)	8-97258-153-0	01	1	0004-0103	●	●	●	●	●	●
1	03.632 BRAKE UNIT; EXH 4HE1 ENG(RLY)	8-97308-232-0	01	1	0104-0105	●	●	●	●	●	●
1	03.632 BRAKE UNIT; EXH 4HE1 ENG(RLY)	8-97308-232-1	01	1	0106-	●	●	●	●	●	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4JG2 ENG(RJC) 03.613 ID=10.5	5-09500-013-0	04	1	9812-0105	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4HE1 ENG(RLY) T=1.9	5-09500-012-0	04	1	9812-9905	●	●	●	●	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4JB1 ENG(RLF),4HE1 ENG(RLY) T=1.9	5-09500-012-0	04	1	9906-0105	●	●	●	●	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX T=1.9	5-09500-012-0	04	1	0106-	●	●	●	●	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JG2 ENG(RJC) 03.613 M10 H=18	9-09640-014-0	04	1	9812-0105	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HE1 ENG(RLY) 02.559 M8	9-09110-408-0	04	1	9812-9905	●	●	●	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JB1 ENG(RLF),4HE1 ENG(RLY) 02.559 M8	9-09110-408-0	04	1	9906-0105	●	●	●	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 02.559 M8	9-09110-408-0	04	1	0106-	●	●	●	●	●	●	●
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (E)	8-97090-972-0	01	1	9812-	●
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97043-776-1	01	1	9812-	●
86	03.636 VALVE; MAG,EXH BRK 4JB1 ENG(RLF) TURBOCHARGER(K51) EXC. VOLTAGE 24V<7AE> (A)	8-97226-125-0	01	1	9906-0005	●
86	03.636 VALVE; MAG,EXH BRK 4JB1 ENG(RLF) TURBOCHARGER(K51) EXC. VOLTAGE 24V<7AE> (D)	8-97256-653-0	01	1	0006-0105	●
86	03.636 VALVE; MAG,EXH BRK 4JH1 ENG(RJX) TURBOCHARGER(K51) EXC. VOLTAGE 24V<7AE> (D)	8-97256-653-0	01	1	0106-	●
86	03.636 VALVE; MAG,EXH BRK 4JG2 ENG(RJC) (F)	8-97069-300-2	01	1	9812-0105	●	●
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A)	8-97065-472-0	01	1	9812-9911	●	●	●	●	●	●
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (C)	8-97239-246-0	01	1	9912-0105	●	●	●	●	●	●
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> (C)	8-97239-246-0	01	1	0106-		●	●	●	●	●	●
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> (C)	8-97170-945-0	01	1	9812-9905		●
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> (C)	8-97170-945-0	01	1	9906-9911		●
86	03.636 VALVE; MAG,EXH BRK 4JB1 ENG(RLF) TURBOCHARGER(K51) EXC. VOLTAGE 24V<7AE> (C)	8-97170-945-0	01	1	9906-9911		●
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> (C)	8-97219-362-0	01	1	9912-0105		●
86	03.636 VALVE; MAG,EXH BRK 4JB1 ENG(RLF) TURBOCHARGER(K51) EXC. VOLTAGE 24V<7AE> (C)	8-97219-362-0	01	1	9912-0105		●
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> (C)	8-97219-362-0	01	1	0106-		●	●
86	03.636 VALVE; MAG,EXH BRK 4JH1 ENG(RJX) TURBOCHARGER(K51) EXC. VOLTAGE 24V<7AE> (C)	8-97219-362-0	01	1	0106-		●	●
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97101-047-0	01	1	9812-		●
93	08.917 NUT; MAG VLV 4JG2 ENG(RJC) 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-0105	●	●
93	08.917 NUT; MAG VLV 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-9905	●	●	●	●	●	●
93	08.917 NUT; MAG VLV 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	02	1	9906-0105	●	●	●	●	●	●
93	08.917 NUT; MAG VLV 4JB1 ENG(RLF) TURBOCHARGER(K51) 07.633 M8 FLANGE	0-91150-108-0	02	1	9906-0105	●	●
93	08.917 NUT; MAG VLV 4JH1 ENG(RJX) TURBOCHARGER(K51) 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-	●	●	●
93	08.917 NUT; MAG VLV 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-		●	●	●	●	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JG2 ENG(RJC)	8-97108-996-0	01	1	9812-0105	●	●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 4JG2 ENG(RJC) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9812-0105	●	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JG2 ENG(RJC) 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-0105	●	●

5 1 5 8 7 6 112 1 14 108 86 15 93 86 93 86 19 19 86 14 15 108 86 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.632 BRAKE UNIT; EXH 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97102-372-2	01	1	9906-0105	●	●
1	03.632 BRAKE UNIT; EXH 4JG2 ENG(RJC)	8-97034-024-3	01	1	9812-0105	●	●
1	03.632 BRAKE UNIT; EXH 4JH1 ENG(RJX)	8-97102-372-3	01	1	0106-	●	●	●
1	03.632 BRAKE UNIT; EXH 4HE1 ENG(RLY)	8-97174-740-0	01	1	9812-0003	●	●	●	●	●	●
1	03.632 BRAKE UNIT; EXH 4HE1 ENG(RLY)	8-97258-153-0	01	1	0004-0103	●	●	●	●	●	●
1	03.632 BRAKE UNIT; EXH 4HE1 ENG(RLY)	8-97308-232-0	01	1	0104-0105	●	●	●	●	●	●
1	03.632 BRAKE UNIT; EXH 4HE1 ENG(RLY)	8-97308-232-1	01	1	0106-	●	●	●	●	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> ID=54	8-94328-354-0	01	1	9906-9909	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> ID=54	8-94328-354-0	02	1	9910-0105	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JH1 ENG(RJX) ID=54	8-94328-354-0	02	1	0106-	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4HE1 ENG(RLY) ID=64	8-97037-694-0	02	1	9812-	●	●	●	●	●	●	●
6	03.632 BOLT; EXH BRAKE UNIT FIX 4HE1 ENG(RLY) 03.708 M8X70	0-10805-870-0	04	1	9812-9905	●	●	●	●	●	●
6	03.632 BOLT; EXH BRAKE UNIT FIX 4JB1 ENG(RLF),4HE1 ENG(RLY) 03.708 M8X70	0-10805-870-0	04	1	9906-0105	●	●	●	●	●	●
6	03.632 BOLT; EXH BRAKE UNIT FIX 03.708 M8X70	0-10805-870-0	04	1	0106-	●	●	●	●	●	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4JG2 ENG(RJC) 03.613 ID=10.5	5-09500-013-0	04	1	9812-0105	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4HE1 ENG(RLY) T=1.9	5-09500-012-0	04	1	9812-9905	●	●	●	●	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4JB1 ENG(RLF),4HE1 ENG(RLY) T=1.9	5-09500-012-0	04	1	9906-0105	●	●	●	●	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX T=1.9	5-09500-012-0	04	1	0106-	●	●	●	●	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JG2 ENG(RJC) 03.613 M10 H=18	9-09640-014-0	04	1	9812-0105	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HE1 ENG(RLY) 02.559 M8	9-09110-408-0	04	1	9812-9905	●	●	●	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JB1 ENG(RLF),4HE1 ENG(RLY) 02.559 M8	9-09110-408-0	04	1	9906-0105	●	●	●	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 02.559 M8	9-09110-408-0	04	1	0106-	●	●	●	●	●	●	●
14	03.634 FILTER; AIR,EXH BRAKE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A)	8-94419-755-2	01	1	9812-	●
14	03.634 FILTER; AIR,EXH BRAKE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97033-888-0	01	1	9812-9905	●
14	03.634 FILTER; AIR,EXH BRAKE 4HE1 ENG(RLY) (B)	8-97033-888-0	01	1	9812-9905		●	●	●	●	●
14	03.634 FILTER; AIR,EXH BRAKE 4JB1 ENG(RLF) TURBOCHARGER(K51) (B)	8-97033-888-0	01	1	9906-0105	●	●
14	03.634 FILTER; AIR,EXH BRAKE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97033-888-0	01	1	9906-0105	●
14	03.634 FILTER; AIR,EXH BRAKE 4HE1 ENG(RLY) (B)	8-97033-888-0	01	1	9906-0105		●	●	●	●	●
14	03.634 FILTER; AIR,EXH BRAKE 4JH1 ENG(RJX) TURBOCHARGER(K51) (B)	8-97033-888-0	01	1	0106-	●	●	●
14	03.634 FILTER; AIR,EXH BRAKE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97033-888-0	01	1	0106-	●
14	03.634 FILTER; AIR,EXH BRAKE 4HE1 ENG(RLY) (B)	8-97033-888-0	01	1	0106-		●	●		●	●	●
14	03.634 FILTER; AIR,EXH BRAKE (B)	8-97033-888-0	01	1	0106-				●
15	03.634 NUT; AIR FILTER 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-9905	●	●	●	●	●	●
15	03.634 NUT; AIR FILTER 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-9905	●
15	03.634 NUT; AIR FILTER 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	02	1	9906-0105	●	●	●	●	●	●
15	03.634 NUT; AIR FILTER 4JB1 ENG(RLF) TURBOCHARGER(K51) 07.633 M8 FLANGE	0-91150-108-0	02	1	9906-0105	●	●
15	03.634 NUT; AIR FILTER 4JB1 ENG(RLF) TURBOCHARGER(K51) 07.633 M8 FLANGE	0-91150-108-0	02	1	9906-0105	●
15	03.634 NUT; AIR FILTER 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	02	1	9906-0105	●
15	03.634 NUT; AIR FILTER 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-	●	●	●		●	●	●
15	03.634 NUT; AIR FILTER 4JH1 ENG(RJX) TURBOCHARGER(K51) 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-	●	●	●
15	03.634 NUT; AIR FILTER 4JH1 ENG(RJX) TURBOCHARGER(K51) 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-	●
15	03.634 NUT; AIR FILTER 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-	●
15	03.634 NUT; AIR FILTER 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-				●
19	03.630 HOSE; AIR FILTER 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> L=360 SERVICED BY L=3000	0-08258-300-0	01	1	9812-	●
19	03.630 HOSE; AIR FILTER 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> L=220 SERVICED BY L=3000	0-08258-300-0	01	1	9812-9905	●
19	03.630 HOSE; AIR FILTER 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> L=220 SERVICED BY L=3000	0-08258-300-0	01	1	9906-0105	●
19	03.630 HOSE; AIR FILTER 4JB1 ENG(RLF) TURBOCHARGER(K51) L=220 SERVICED BY L=3000	0-08258-300-0	01	1	9906-0105	●
19	03.630 HOSE; AIR FILTER 4HE1 ENG(RLY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> L=220 SERVICED BY L=3000	0-08258-300-0	01	1	0106-	●
19	03.630 HOSE; AIR FILTER 4JH1 ENG(RJX) TURBOCHARGER(K51) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> L=220 SERVICED BY L=3000	0-08258-300-0	01	1	0106-	●
19	03.630 HOSE; AIR FILTER 4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97289-607-0	01	1	0106-	●
19	03.630 HOSE; AIR FILTER 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> TURBOCHARGER(K51)	8-97289-607-0	01	1	0106-	●
19	03.630 HOSE; AIR FILTER 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> L=180 SERVICED BY L=3000	0-08258-300-0	01	1	9812-		●
19	03.630 HOSE; AIR FILTER 4JB1 ENG(RLF) TURBOCHARGER(K51) L=260 SERVICED BY L=3000	0-08258-300-0	01	1	9906-0105		●
19	03.630 HOSE; AIR FILTER 4JH1 ENG(RJX) TURBOCHARGER(K51) L=260 SERVICED BY L=3000	0-08258-300-0	01	1	0106-		●	●
19	03.630 HOSE; AIR FILTER 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> L=260 SERVICED BY L=3000	0-08258-300-0	01	1	0106-			●
19	03.630 HOSE; AIR FILTER 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> L=230 SERVICED BY L=3000	0-08258-300-0	01	1	9812-0105		●	●	●	●	●
19	03.630 HOSE; AIR FILTER 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0106-		●	●
19	03.630 HOSE; AIR FILTER L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0106-				●
19	03.630 HOSE; AIR FILTER 4HE1 ENG(RLY) L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0106-					●	●	●
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (E)	8-97090-972-0	01	1	9812-	●
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97043-776-1	01	1	9812-	●
86	03.636 VALVE; MAG,EXH BRK 4JB1 ENG(RLF) TURBOCHARGER(K51) EXC. VOLTAGE 24V<7AE> (A)	8-97226-125-0	01	1	9906-0005	●
86	03.636 VALVE; MAG,EXH BRK 4JB1 ENG(RLF) TURBOCHARGER(K51) EXC. VOLTAGE 24V<7AE> (D)	8-97256-653-0	01	1	0006-0105	●
86	03.636 VALVE; MAG,EXH BRK 4JH1 ENG(RJX) TURBOCHARGER(K51) EXC. VOLTAGE 24V<7AE> (D)	8-97256-653-0	01	1	0106-	●
86	03.636 VALVE; MAG,EXH BRK 4JG2 ENG(RJC) (F)	8-97069-300-2	01	1	9812-0105	●	●
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A)	8-97065-472-0	01	1	9812-9911	●	●	●	●	●	●
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (C)	8-97239-246-0	01	1	9912-0105	●	●	●	●	●	●
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> (C)	8-97239-246-0	01	1	0106-		●	●	●	●	●	●
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> (C)	8-97170-945-0	01	1	9812-9905		●
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> (C)	8-97170-945-0	01	1	9906-9911		●
86	03.636 VALVE; MAG,EXH BRK 4JB1 ENG(RLF) TURBOCHARGER(K51) EXC. VOLTAGE 24V<7AE> (C)	8-97170-945-0	01	1	9906-9911		●
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> (C)	8-97219-362-0	01	1	9912-0105		●
86	03.636 VALVE; MAG,EXH BRK 4JB1 ENG(RLF) TURBOCHARGER(K51) EXC. VOLTAGE 24V<7AE> (C)	8-97219-362-0	01	1	9912-0105		●
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> (C)	8-97219-362-0	01	1	0106-		●	●
86	03.636 VALVE; MAG,EXH BRK 4JH1 ENG(RJX) TURBOCHARGER(K51) EXC. VOLTAGE 24V<7AE> (C)	8-97219-362-0	01	1	0106-		●	●
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97101-047-0	01	1	9812-		●
93	08.917 NUT; MAG VLV 4JG2 ENG(RJC) 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-0105	●	●
93	08.917 NUT; MAG VLV 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-9905	●	●	●	●	●	●
93	08.917 NUT; MAG VLV 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	02	1	9906-0105	●	●	●	●	●	●
93	08.917 NUT; MAG VLV 4JB1 ENG(RLF) TURBOCHARGER(K51) 07.633 M8 FLANGE	0-91150-108-0	02	1	9906-0105	●	●
93	08.917 NUT; MAG VLV 4JH1 ENG(RJX) TURBOCHARGER(K51) 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-	●	●	●
93	08.917 NUT; MAG VLV 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-		●	●	●	●	●	●
108	03.634 BRACKET; AIR FILTER 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A)	8-97168-156-1	01	1	9812-	●
108	03.634 BRACKET; AIR FILTER 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97106-474-2	01	1	9812-9905	●
108	03.634 BRACKET; AIR FILTER 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97106-474-2	01	1	9906-0105	●
108	03.634 BRACKET; AIR FILTER 4JB1 ENG(RLF) TURBOCHARGER(K51) (B)	8-97106-474-2	01	1	9906-0105	●
108	03.634 BRACKET; AIR FILTER 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97106-474-2	01	1	0106-	●
108	03.634 BRACKET; AIR FILTER 4JH1 ENG(RJX) TURBOCHARGER(K51) (B)	8-97106-474-2	01	1	0106-	●
112	03.640 PLATE; BRKT 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97091-766-0	01	1	9812-9905	●
112	03.640 PLATE; BRKT 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97091-766-0	01	1	9906-0105	●
112	03.640 PLATE; BRKT 4JB1 ENG(RLF) TURBOCHARGER(K51)	8-97091-766-0	01	1	9906-0105	●
112	03.640 PLATE; BRKT 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97091-766-0	01	1	0106-	●
112	03.640 PLATE; BRKT 4JH1 ENG(RJX) TURBOCHARGER(K51)	8-97091-766-0	01	1	0106-	●
