1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#44994) — 76 parça

74 137 139 140 138 180 141 142 180 143 144 6 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	03.632 VALVE; EXH BRAKE 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97177-309-0	01	1	9906-0105	●	●
6	03.632 VALVE; EXH BRAKE 4JG2 ENG(RJC)	8-97173-325-0	01	1	9812-0105	●	●
6	03.632 VALVE; EXH BRAKE 4JH1 ENG(RJX)	8-97177-309-0	01	1	0106-	●	●	●
74	03.634 CONNECTOR; EXH BRK VLV 4JG2 ENG(RJC)	8-94311-454-0	01	1	9812-0105	●	●
137	03.634 CHAMBER; POWER 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97173-327-0	01	1	9906-0105	●	●
137	03.634 CHAMBER; POWER 4JG2 ENG(RJC)	8-94158-416-0	01	1	9812-0105	●	●
137	03.634 CHAMBER; POWER 4JH1 ENG(RJX)	8-97173-327-0	01	1	0106-	●	●	●
138	03.634 BEARING; EXH BRK VLV 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 03.440	8-94311-446-0	01	1	9906-0105	●	●
138	03.634 BEARING; EXH BRK VLV 4JG2 ENG(RJC)	5-22189-004-0	01	1	9812-0105	●	●
138	03.634 BEARING; EXH BRK VLV 4JH1 ENG(RJX) 03.440	8-94311-446-0	01	1	0106-	●	●	●
139	03.634 GASKET; EXH BRK VLV 4JG2 ENG(RJC)	8-94328-234-0	01	1	9812-9905	●	●
139	03.634 GASKET; EXH BRK VLV 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-94328-234-0	01	1	9906-0105	●	●
139	03.634 GASKET; EXH BRK VLV 4JG2 ENG(RJC)	8-94328-234-0	01	1	9906-0105	●	●
139	03.634 GASKET; EXH BRK VLV 4JH1 ENG(RJX)	8-94328-234-0	01	1	0106-	●	●	●
140	03.634 INSULATOR; EXH BRK VLV 4JG2 ENG(RJC)	8-97093-854-0	01	1	9812-9905	●	●
140	03.634 INSULATOR; EXH BRK VLV 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97093-854-0	01	1	9906-0105	●	●
140	03.634 INSULATOR; EXH BRK VLV 4JG2 ENG(RJC)	8-97093-854-0	01	1	9906-0105	●	●
140	03.634 INSULATOR; EXH BRK VLV 4JH1 ENG(RJX)	8-97093-854-0	01	1	0106-	●	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JG2 ENG(RJC)	9-88510-009-0	01	1	9812-9905	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	9-88510-009-0	01	1	9906-0105	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JG2 ENG(RJC)	9-88510-009-0	01	1	9906-0105	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JH1 ENG(RJX)	9-88510-009-0	01	1	0106-	●	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97177-311-0	01	1	9906-0105	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JG2 ENG(RJC)	8-97177-310-0	01	1	9812-0105	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JH1 ENG(RJX)	8-97177-311-0	01	1	0106-	●	●	●
143	03.636 PIN; EXH BRK VLV 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-94311-452-0	01	1	9906-0105	●	●
143	03.636 PIN; EXH BRK VLV 4JG2 ENG(RJC)	5-22189-008-0	01	1	9812-0105	●	●
143	03.636 PIN; EXH BRK VLV 4JH1 ENG(RJX)	8-94311-452-0	01	1	0106-	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97029-428-0	01	1	9906-0105	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JG2 ENG(RJC) 03.440	8-97010-295-1	01	1	9812-0105	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JH1 ENG(RJX)	8-97029-428-0	01	1	0106-	●	●	●
146	03.634 NUT; EXH BRK VLV 4JG2 ENG(RJC) 00.777 M8 W/LK WASHER	8-94279-050-0	02	1	9812-9905	●	●
146	03.634 NUT; EXH BRK VLV 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 00.777 M8 W/LK WASHER	8-94279-050-0	02	1	9906-0105	●	●
146	03.634 NUT; EXH BRK VLV 4JG2 ENG(RJC) 00.777 M8 W/LK WASHER	8-94279-050-0	02	1	9906-0105	●	●
146	03.634 NUT; EXH BRK VLV 4JH1 ENG(RJX) 00.777 M8 W/LK WASHER	8-94279-050-0	02	1	0106-0201	●	●	●
146	03.634 NUT; EXH BRK VLV 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	02	1	0202-	●	●	●
180	03.640 COLLAR; EXH BRK VLV 4JG2 ENG(RJC) 03.440	8-97018-597-0	02	1	9812-0105	●	●

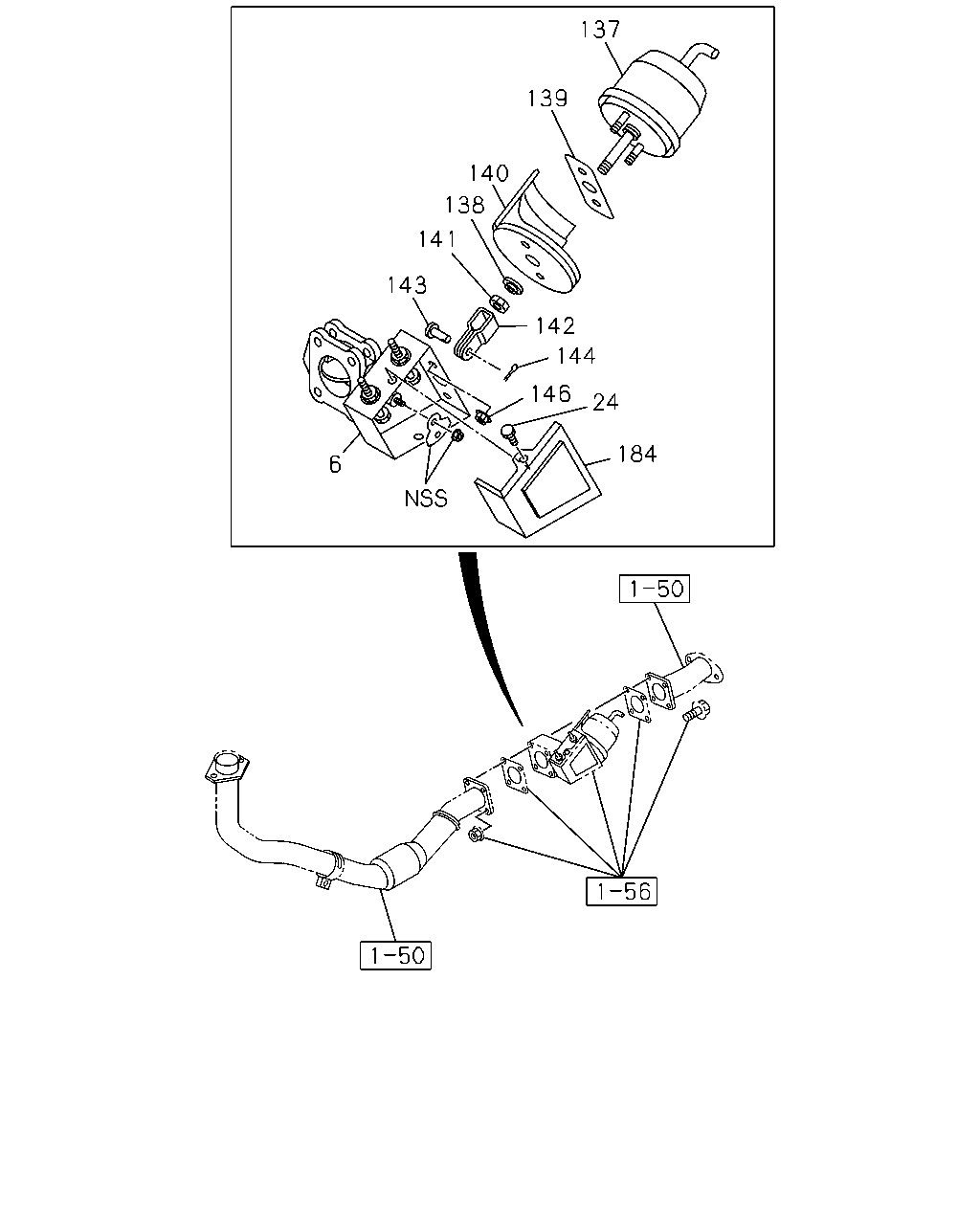

137 139 140 138 141 143 142 144 146 24 184 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	03.632 VALVE; EXH BRAKE 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97177-309-0	01	1	9906-0105	●	●
6	03.632 VALVE; EXH BRAKE 4JG2 ENG(RJC)	8-97173-325-0	01	1	9812-0105	●	●
6	03.632 VALVE; EXH BRAKE 4JH1 ENG(RJX)	8-97177-309-0	01	1	0106-	●	●	●
24	03.634 BOLT; COVER 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 03.444	8-97065-029-0	02	1	9909-0105	●	●
24	03.634 BOLT; COVER 4JH1 ENG(RJX) 03.444	8-97065-029-0	02	1	0106-	●	●	●
137	03.634 CHAMBER; POWER 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97173-327-0	01	1	9906-0105	●	●
137	03.634 CHAMBER; POWER 4JG2 ENG(RJC)	8-94158-416-0	01	1	9812-0105	●	●
137	03.634 CHAMBER; POWER 4JH1 ENG(RJX)	8-97173-327-0	01	1	0106-	●	●	●
138	03.634 BEARING; EXH BRK VLV 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 03.440	8-94311-446-0	01	1	9906-0105	●	●
138	03.634 BEARING; EXH BRK VLV 4JG2 ENG(RJC)	5-22189-004-0	01	1	9812-0105	●	●
138	03.634 BEARING; EXH BRK VLV 4JH1 ENG(RJX) 03.440	8-94311-446-0	01	1	0106-	●	●	●
139	03.634 GASKET; EXH BRK VLV 4JG2 ENG(RJC)	8-94328-234-0	01	1	9812-9905	●	●
139	03.634 GASKET; EXH BRK VLV 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-94328-234-0	01	1	9906-0105	●	●
139	03.634 GASKET; EXH BRK VLV 4JG2 ENG(RJC)	8-94328-234-0	01	1	9906-0105	●	●
139	03.634 GASKET; EXH BRK VLV 4JH1 ENG(RJX)	8-94328-234-0	01	1	0106-	●	●	●
140	03.634 INSULATOR; EXH BRK VLV 4JG2 ENG(RJC)	8-97093-854-0	01	1	9812-9905	●	●
140	03.634 INSULATOR; EXH BRK VLV 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97093-854-0	01	1	9906-0105	●	●
140	03.634 INSULATOR; EXH BRK VLV 4JG2 ENG(RJC)	8-97093-854-0	01	1	9906-0105	●	●
140	03.634 INSULATOR; EXH BRK VLV 4JH1 ENG(RJX)	8-97093-854-0	01	1	0106-	●	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JG2 ENG(RJC)	9-88510-009-0	01	1	9812-9905	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	9-88510-009-0	01	1	9906-0105	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JG2 ENG(RJC)	9-88510-009-0	01	1	9906-0105	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JH1 ENG(RJX)	9-88510-009-0	01	1	0106-	●	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97177-311-0	01	1	9906-0105	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JG2 ENG(RJC)	8-97177-310-0	01	1	9812-0105	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JH1 ENG(RJX)	8-97177-311-0	01	1	0106-	●	●	●
143	03.636 PIN; EXH BRK VLV 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-94311-452-0	01	1	9906-0105	●	●
143	03.636 PIN; EXH BRK VLV 4JG2 ENG(RJC)	5-22189-008-0	01	1	9812-0105	●	●
143	03.636 PIN; EXH BRK VLV 4JH1 ENG(RJX)	8-94311-452-0	01	1	0106-	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97029-428-0	01	1	9906-0105	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JG2 ENG(RJC) 03.440	8-97010-295-1	01	1	9812-0105	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JH1 ENG(RJX)	8-97029-428-0	01	1	0106-	●	●	●
146	03.634 NUT; EXH BRK VLV 4JG2 ENG(RJC) 00.777 M8 W/LK WASHER	8-94279-050-0	02	1	9812-9905	●	●
146	03.634 NUT; EXH BRK VLV 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 00.777 M8 W/LK WASHER	8-94279-050-0	02	1	9906-0105	●	●
146	03.634 NUT; EXH BRK VLV 4JG2 ENG(RJC) 00.777 M8 W/LK WASHER	8-94279-050-0	02	1	9906-0105	●	●
146	03.634 NUT; EXH BRK VLV 4JH1 ENG(RJX) 00.777 M8 W/LK WASHER	8-94279-050-0	02	1	0106-0201	●	●	●
146	03.634 NUT; EXH BRK VLV 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	02	1	0202-	●	●	●
184	03.634 COVER; BRKT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97311-447-0	01	1	9909-0105	●	●
184	03.634 COVER; BRKT 4JH1 ENG(RJX)	8-97311-447-0	01	1	0106-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
