Sayfa 1-45 - Isuzu EPC

1-45 — WATER SEDIMENTER; FUEL (#44992) — 408 parça

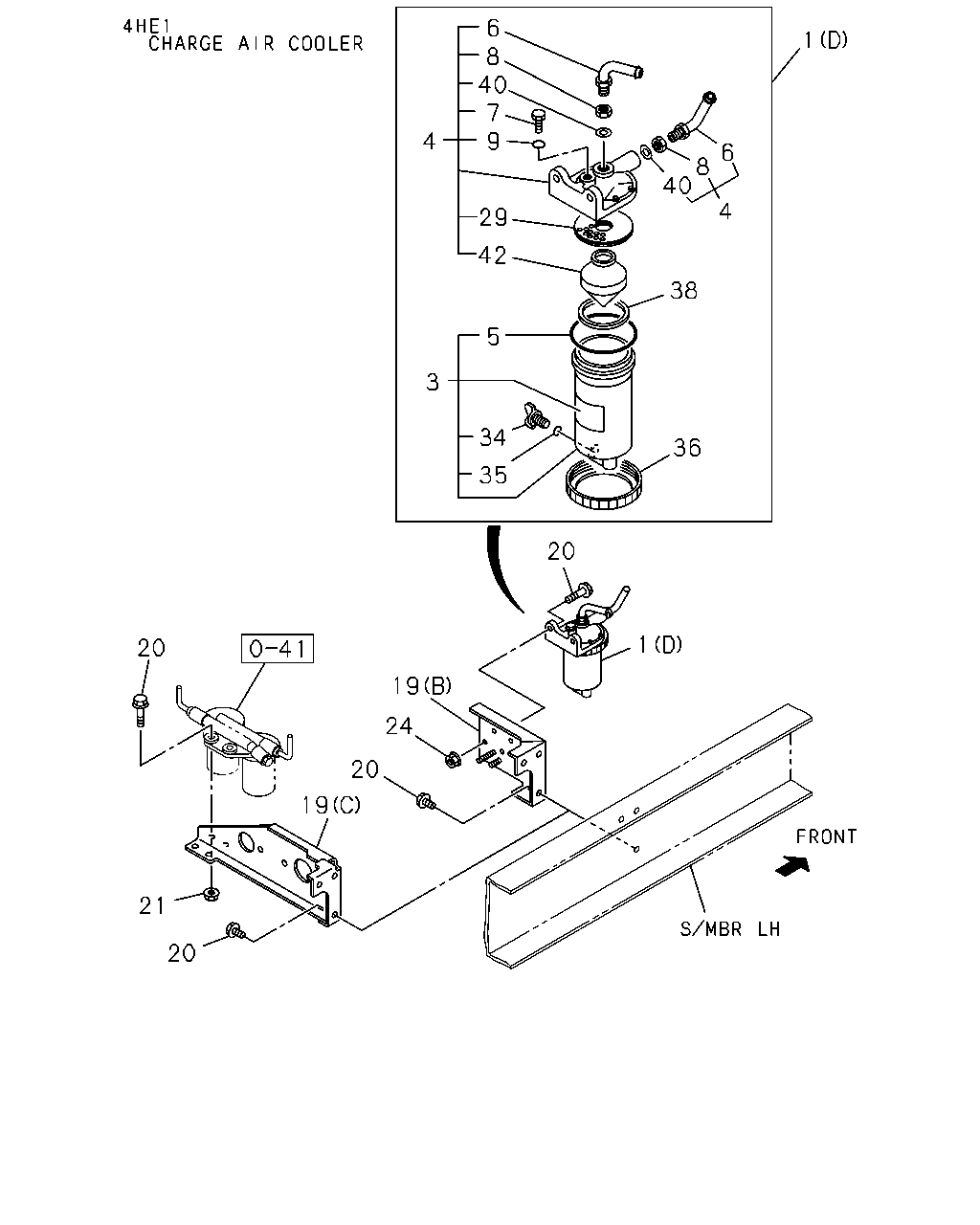

1 9 7 5 36 87 14 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.890 SEDIMENTER; FUEL 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> (E)	8-94311-522-2	01	1	9812-	●	●	●
1	03.890 SEDIMENTER; FUEL 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> (C)	8-94144-933-3	01	1	9812-	●	●	●
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-1	01	1	9812-9905	●	●
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-1	01	1	9906-0105	●	●
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-1	01	1	9812-9905	●	●
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-1	01	1	9906-0105	●	●
1	03.890 SEDIMENTER; FUEL 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (F)	8-97240-126-1	01	1	0106-	●	●	●
1	03.890 SEDIMENTER; FUEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D)	8-97188-042-0	01	1	9812-	●	●	●	●	●	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JG2 ENG(RJC)	5-09623-075-0	01	1	9812-9905	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	5-09623-075-0	01	1	9812-9905	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF)	5-09623-075-0	01	1	9906-0105	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	5-09623-075-0	01	1	9906-0105	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	5-09623-075-0	01	1	0106-	●	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-09623-491-0	01	1	9812-	●	●	●	●	●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JG2 ENG(RJC)	8-94132-674-0	01	1	9812-9905	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-94132-674-0	01	1	9812-9905	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94132-674-0	01	1	9906-0105	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-94132-674-0	01	1	9906-0105	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	0106-	●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-94132-674-0	01	1	0106-	●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	9-13219-070-0	01	1	9812-	●	●	●	●	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL>	8-94132-675-0	01	1	9812-9905	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JG2 ENG(RJC)	8-94132-675-0	01	1	9812-9905	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL>	8-94132-675-0	01	1	9906-0105	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94132-675-0	01	1	9906-0105	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL>	8-94132-675-0	01	1	0106-	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0106-	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 03.895	9-09571-406-0	01	1	9812-	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	9812-	●	●	●	●	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL>	8-94416-377-0	01	1	9812-	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>	8-94447-156-0	01	1	9812-9905	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JG2 ENG(RJC)	8-94447-156-0	01	1	9812-9905	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>	8-94447-156-0	01	1	9906-0105	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94447-156-0	01	1	9906-0105	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>	8-94447-156-0	01	1	0106-	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	0106-	●	●	●
36	03.890 RING; BODY TO CASE 4JG2 ENG(RJC)	5-13234-001-0	01	1	9812-9905	●	●
36	03.890 RING; BODY TO CASE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	5-13234-001-0	01	1	9812-9905	●	●
36	03.890 RING; BODY TO CASE 4JG2 ENG(RJC),4JB1 ENG(RLF)	5-13234-001-0	01	1	9906-0105	●	●
36	03.890 RING; BODY TO CASE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	5-13234-001-0	01	1	9906-0105	●	●
36	03.890 RING; BODY TO CASE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	5-13234-001-0	01	1	0106-	●	●	●
36	03.890 RING; BODY TO CASE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-13219-226-0	01	1	9812-	●	●	●	●	●	●	●
37	03.890 PLUG; SENSOR 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL>	8-94416-376-0	01	1	9812-	●	●	●
37	03.890 PLUG; SENSOR 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU>	8-94450-148-0	01	1	9812-9812	●	●
37	03.890 PLUG; SENSOR 4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	9812-9812	●	●
37	03.890 PLUG; SENSOR 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>	8-94453-746-0	01	1	9812-9812	●	●
37	03.890 PLUG; SENSOR 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>	8-94453-746-0	01	1	9901-9905	●	●
37	03.890 PLUG; SENSOR 4JG2 ENG(RJC)	8-94453-746-0	01	1	9901-9905	●	●
37	03.890 PLUG; SENSOR 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>	8-94453-746-0	01	1	9906-0105	●	●
37	03.890 PLUG; SENSOR 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94453-746-0	01	1	9906-0105	●	●
37	03.890 PLUG; SENSOR 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>	8-94453-746-0	01	1	0106-	●	●	●
37	03.890 PLUG; SENSOR 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97123-549-0	01	1	0106-	●	●	●
87	03.890 CASE ASM; SEDIMENTER 4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97219-363-0	01	1	9812-9812	●	●
87	03.890 CASE ASM; SEDIMENTER 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>	8-97219-363-0	01	1	9812-9812	●	●
87	03.890 CASE ASM; SEDIMENTER 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>	8-97219-363-0	01	1	9901-9905	●	●
87	03.890 CASE ASM; SEDIMENTER 4JG2 ENG(RJC)	8-97219-363-0	01	1	9901-9905	●	●
87	03.890 CASE ASM; SEDIMENTER 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>	8-97219-363-0	01	1	9906-0105	●	●
87	03.890 CASE ASM; SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97219-363-0	01	1	9906-0105	●	●
87	03.890 CASE ASM; SEDIMENTER 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>	8-97219-363-0	01	1	0106-	●	●	●

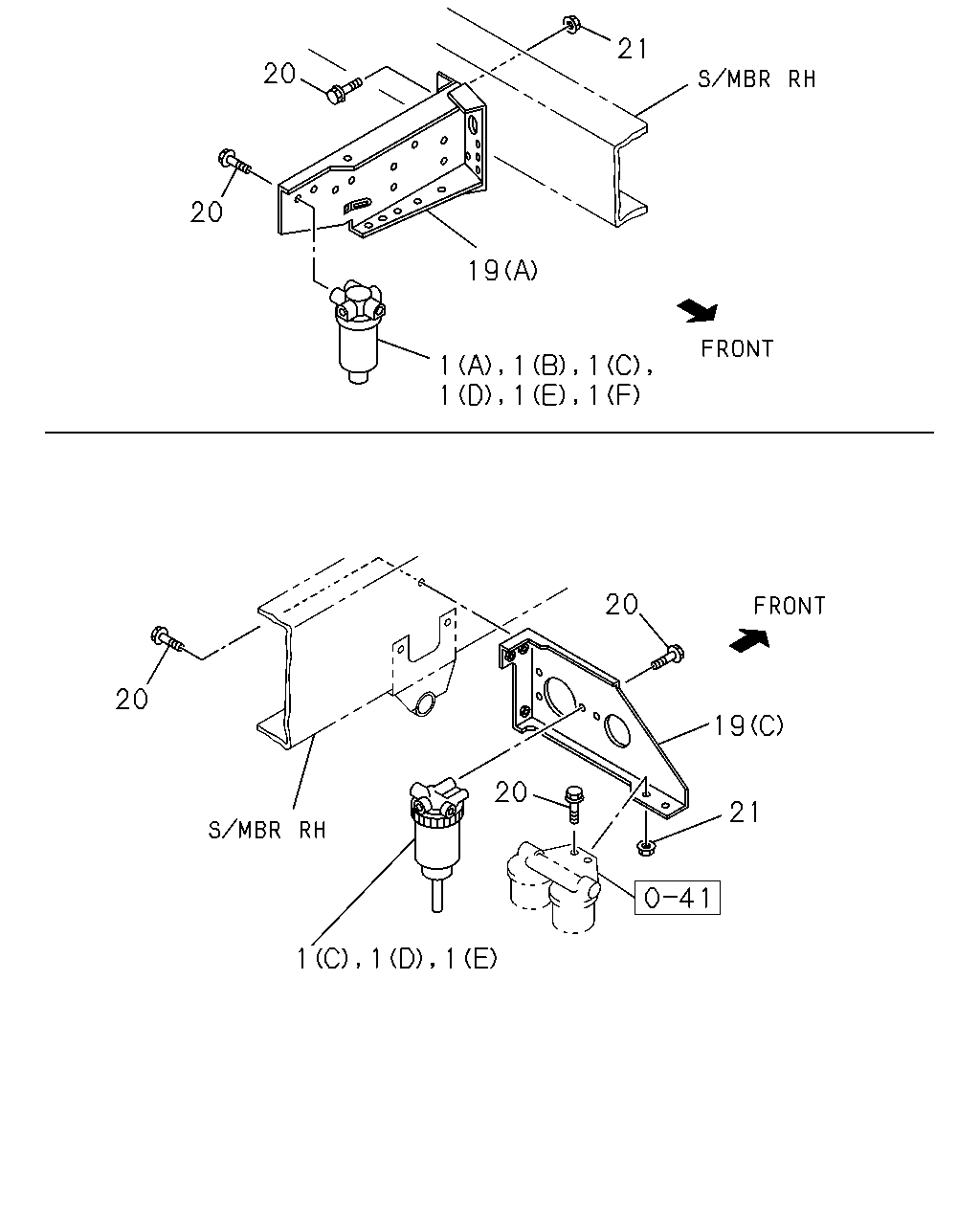

1 7 9 41 14 37 57 15 41 14 37 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.890 SEDIMENTER; FUEL 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> (E)	8-94311-522-2	01	1	9812-	●	●	●
1	03.890 SEDIMENTER; FUEL 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> (C)	8-94144-933-3	01	1	9812-	●	●	●
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-1	01	1	9812-9905	●	●
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-1	01	1	9906-0105	●	●
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-1	01	1	9812-9905	●	●
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-1	01	1	9906-0105	●	●
1	03.890 SEDIMENTER; FUEL 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (F)	8-97240-126-1	01	1	0106-	●	●	●
1	03.890 SEDIMENTER; FUEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D)	8-97188-042-0	01	1	9812-	●	●	●	●	●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JG2 ENG(RJC)	8-94132-674-0	01	1	9812-9905	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-94132-674-0	01	1	9812-9905	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94132-674-0	01	1	9906-0105	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-94132-674-0	01	1	9906-0105	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	0106-	●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-94132-674-0	01	1	0106-	●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	9-13219-070-0	01	1	9812-	●	●	●	●	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL>	8-94132-675-0	01	1	9812-9905	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JG2 ENG(RJC)	8-94132-675-0	01	1	9812-9905	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL>	8-94132-675-0	01	1	9906-0105	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94132-675-0	01	1	9906-0105	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL>	8-94132-675-0	01	1	0106-	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0106-	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 03.895	9-09571-406-0	01	1	9812-	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	9812-	●	●	●	●	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL>	8-94416-377-0	01	1	9812-	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>	8-94447-156-0	01	1	9812-9905	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JG2 ENG(RJC)	8-94447-156-0	01	1	9812-9905	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>	8-94447-156-0	01	1	9906-0105	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94447-156-0	01	1	9906-0105	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>	8-94447-156-0	01	1	0106-	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	0106-	●	●	●
15	03.890 SENSOR ASM; SEDIMENTER 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL>	8-94153-430-0	01	1	9812-	●	●	●
15	03.890 SENSOR ASM; SEDIMENTER 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU>	8-97103-765-0	01	1	9812-9812	●	●
15	03.890 SENSOR ASM; SEDIMENTER 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97079-821-0	01	1	0106-	●	●	●
37	03.890 PLUG; SENSOR 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL>	8-94416-376-0	01	1	9812-	●	●	●
37	03.890 PLUG; SENSOR 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU>	8-94450-148-0	01	1	9812-9812	●	●
37	03.890 PLUG; SENSOR 4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	9812-9812	●	●
37	03.890 PLUG; SENSOR 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>	8-94453-746-0	01	1	9812-9812	●	●
37	03.890 PLUG; SENSOR 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>	8-94453-746-0	01	1	9901-9905	●	●
37	03.890 PLUG; SENSOR 4JG2 ENG(RJC)	8-94453-746-0	01	1	9901-9905	●	●
37	03.890 PLUG; SENSOR 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>	8-94453-746-0	01	1	9906-0105	●	●
37	03.890 PLUG; SENSOR 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94453-746-0	01	1	9906-0105	●	●
37	03.890 PLUG; SENSOR 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>	8-94453-746-0	01	1	0106-	●	●	●
37	03.890 PLUG; SENSOR 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97123-549-0	01	1	0106-	●	●	●
41	03.890 GASKET; SENSOR TO CASE 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	9812-9812	●	●
41	03.890 GASKET; SENSOR TO CASE 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 08.927	9-09563-334-0	01	1	9812-9812	●	●
41	03.890 GASKET; SENSOR TO CASE 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 08.927	9-09563-334-0	01	1	9901-0105	●	●
41	03.890 GASKET; SENSOR TO CASE 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 08.927	9-09563-334-0	01	1	0106-	●	●	●
41	03.890 GASKET; SENSOR TO CASE 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	0106-	●	●	●
57	03.890 CARTRIDGE KIT; FUEL FILTER 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94369-299-3	01	1	0106-	●	●	●

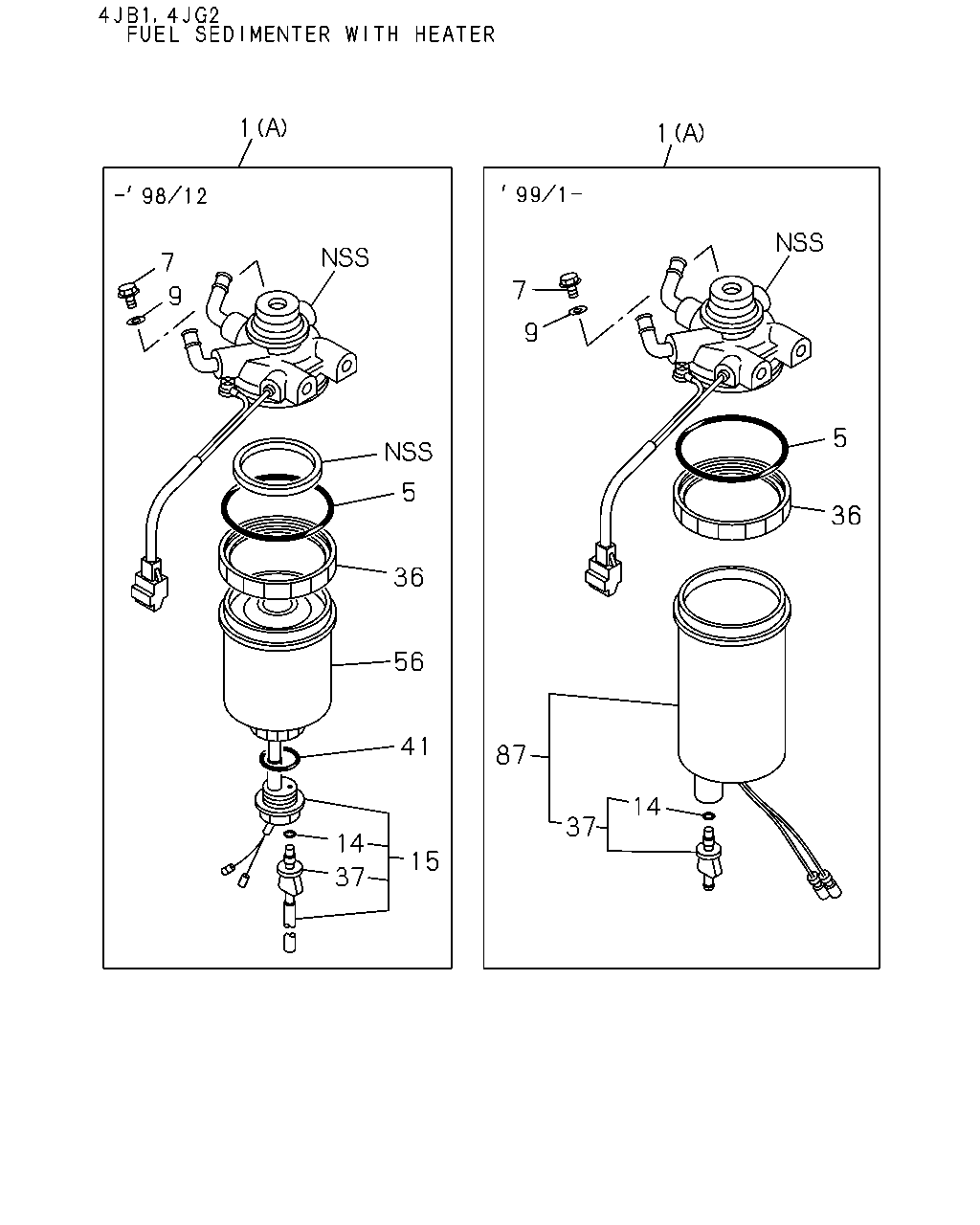

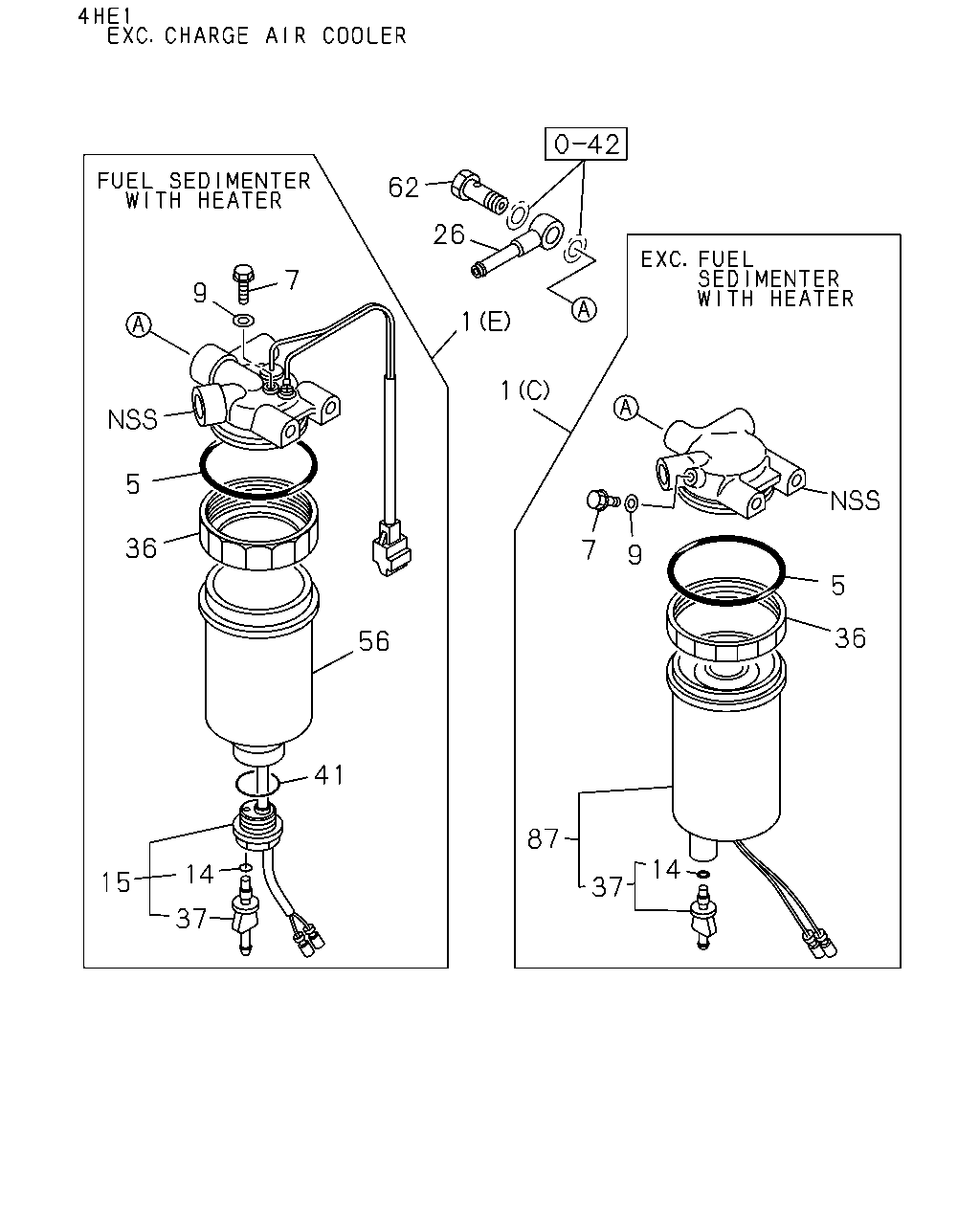

1 7 7 9 9 5 5 36 36 56 41 87 14 37 14 15 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.890 SEDIMENTER; FUEL 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> (E)	8-94311-522-2	01	1	9812-	●	●	●
1	03.890 SEDIMENTER; FUEL 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> (C)	8-94144-933-3	01	1	9812-	●	●	●
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-1	01	1	9812-9905	●	●
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-1	01	1	9906-0105	●	●
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-1	01	1	9812-9905	●	●
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-1	01	1	9906-0105	●	●
1	03.890 SEDIMENTER; FUEL 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (F)	8-97240-126-1	01	1	0106-	●	●	●
1	03.890 SEDIMENTER; FUEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D)	8-97188-042-0	01	1	9812-	●	●	●	●	●	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JG2 ENG(RJC)	5-09623-075-0	01	1	9812-9905	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	5-09623-075-0	01	1	9812-9905	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF)	5-09623-075-0	01	1	9906-0105	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	5-09623-075-0	01	1	9906-0105	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	5-09623-075-0	01	1	0106-	●	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-09623-491-0	01	1	9812-	●	●	●	●	●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JG2 ENG(RJC)	8-94132-674-0	01	1	9812-9905	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-94132-674-0	01	1	9812-9905	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94132-674-0	01	1	9906-0105	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-94132-674-0	01	1	9906-0105	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	0106-	●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-94132-674-0	01	1	0106-	●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	9-13219-070-0	01	1	9812-	●	●	●	●	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL>	8-94132-675-0	01	1	9812-9905	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JG2 ENG(RJC)	8-94132-675-0	01	1	9812-9905	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL>	8-94132-675-0	01	1	9906-0105	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94132-675-0	01	1	9906-0105	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL>	8-94132-675-0	01	1	0106-	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0106-	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 03.895	9-09571-406-0	01	1	9812-	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	9812-	●	●	●	●	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL>	8-94416-377-0	01	1	9812-	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>	8-94447-156-0	01	1	9812-9905	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JG2 ENG(RJC)	8-94447-156-0	01	1	9812-9905	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>	8-94447-156-0	01	1	9906-0105	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94447-156-0	01	1	9906-0105	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>	8-94447-156-0	01	1	0106-	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	0106-	●	●	●
15	03.890 SENSOR ASM; SEDIMENTER 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL>	8-94153-430-0	01	1	9812-	●	●	●
15	03.890 SENSOR ASM; SEDIMENTER 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU>	8-97103-765-0	01	1	9812-9812	●	●
15	03.890 SENSOR ASM; SEDIMENTER 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97079-821-0	01	1	0106-	●	●	●
36	03.890 RING; BODY TO CASE 4JG2 ENG(RJC)	5-13234-001-0	01	1	9812-9905	●	●
36	03.890 RING; BODY TO CASE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	5-13234-001-0	01	1	9812-9905	●	●
36	03.890 RING; BODY TO CASE 4JG2 ENG(RJC),4JB1 ENG(RLF)	5-13234-001-0	01	1	9906-0105	●	●
36	03.890 RING; BODY TO CASE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	5-13234-001-0	01	1	9906-0105	●	●
36	03.890 RING; BODY TO CASE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	5-13234-001-0	01	1	0106-	●	●	●
36	03.890 RING; BODY TO CASE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-13219-226-0	01	1	9812-	●	●	●	●	●	●	●
37	03.890 PLUG; SENSOR 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL>	8-94416-376-0	01	1	9812-	●	●	●
37	03.890 PLUG; SENSOR 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU>	8-94450-148-0	01	1	9812-9812	●	●
37	03.890 PLUG; SENSOR 4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	9812-9812	●	●
37	03.890 PLUG; SENSOR 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>	8-94453-746-0	01	1	9812-9812	●	●
37	03.890 PLUG; SENSOR 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>	8-94453-746-0	01	1	9901-9905	●	●
37	03.890 PLUG; SENSOR 4JG2 ENG(RJC)	8-94453-746-0	01	1	9901-9905	●	●
37	03.890 PLUG; SENSOR 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>	8-94453-746-0	01	1	9906-0105	●	●
37	03.890 PLUG; SENSOR 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94453-746-0	01	1	9906-0105	●	●
37	03.890 PLUG; SENSOR 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>	8-94453-746-0	01	1	0106-	●	●	●
37	03.890 PLUG; SENSOR 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97123-549-0	01	1	0106-	●	●	●
41	03.890 GASKET; SENSOR TO CASE 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	9812-9812	●	●
41	03.890 GASKET; SENSOR TO CASE 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 08.927	9-09563-334-0	01	1	9812-9812	●	●
41	03.890 GASKET; SENSOR TO CASE 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 08.927	9-09563-334-0	01	1	9901-0105	●	●
41	03.890 GASKET; SENSOR TO CASE 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 08.927	9-09563-334-0	01	1	0106-	●	●	●
41	03.890 GASKET; SENSOR TO CASE 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	0106-	●	●	●
56	03.890 CASE; FUEL SEDIMENTER 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU>	5-13211-030-0	01	1	9812-9812	●	●
56	03.890 CASE; FUEL SEDIMENTER 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL>	5-13211-030-0	01	1	9812-9812	●	●
56	03.890 CASE; FUEL SEDIMENTER 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL>	5-13211-030-1	01	1	9901-0105	●	●
56	03.890 CASE; FUEL SEDIMENTER 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL>	5-13211-030-1	01	1	0106-	●	●	●
87	03.890 CASE ASM; SEDIMENTER 4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97219-363-0	01	1	9812-9812	●	●
87	03.890 CASE ASM; SEDIMENTER 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>	8-97219-363-0	01	1	9812-9812	●	●
87	03.890 CASE ASM; SEDIMENTER 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>	8-97219-363-0	01	1	9901-9905	●	●
87	03.890 CASE ASM; SEDIMENTER 4JG2 ENG(RJC)	8-97219-363-0	01	1	9901-9905	●	●
87	03.890 CASE ASM; SEDIMENTER 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>	8-97219-363-0	01	1	9906-0105	●	●
87	03.890 CASE ASM; SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97219-363-0	01	1	9906-0105	●	●
87	03.890 CASE ASM; SEDIMENTER 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>	8-97219-363-0	01	1	0106-	●	●	●

21 20 20 19 1 1 1 1 1 1 20 20 19 20 21 1 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.890 SEDIMENTER; FUEL 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> (E)	8-94311-522-2	01	1	9812-	●	●	●
1	03.890 SEDIMENTER; FUEL 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> (C)	8-94144-933-3	01	1	9812-	●	●	●
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-1	01	1	9812-9905	●	●
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-1	01	1	9906-0105	●	●
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-1	01	1	9812-9905	●	●
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-1	01	1	9906-0105	●	●
1	03.890 SEDIMENTER; FUEL 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (F)	8-97240-126-1	01	1	0106-	●	●	●
1	03.890 SEDIMENTER; FUEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D)	8-97188-042-0	01	1	9812-	●	●	●	●	●	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (C)	8-97189-165-0	01	1	9812-0212	●	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (C)	8-97363-089-0	01	1	0301-	●	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97090-298-2	01	1	9812-9812	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (A)	8-97090-298-2	01	1	9812-9812	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (A)	8-97090-298-2	01	1	9901-9905	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4JG2 ENG(RJC) (A)	8-97090-298-2	01	1	9901-9905	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (A)	8-97090-298-2	01	1	9906-0105	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) (A)	8-97090-298-2	01	1	9906-0105	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4JH1 ENG(RJX) (A)	8-97090-298-2	01	1	0106-	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (A)	8-97090-298-2	01	1	0106-	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FUEL FILTER DUAL<S6B> (B)	8-97182-048-2	01	1	9812-	●	●	●	●	●	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> (C)	8-97148-721-1	01	1	9812-0212	●	●		●	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> (C)	8-97363-088-0	01	1	0301-	●	●		●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE	0-28081-030-0	03	1	9812-	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9812-9905	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9812-9905	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9906-0105	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9906-0105	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0106-	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1 ENG(RJX) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0106-	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.405 M10X30 FLANGE	0-28681-030-0	03	1	9812-	●	●	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9812-9812	●	●		●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9812-9812	●	●		●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9812-9812	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9812-9812	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9812-9812	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9901-9903	●	●		●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9901-9903	●	●		●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9901-9903	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9901-9903	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9901-9903	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9904-9905	●	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9904-9905	●	●		●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9904-9905	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9904-9905	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9904-9905	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9906-0105	●	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9906-0105	●	●		●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9906-0105	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9906-0105	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9906-0105	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0106-	●	●	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1 ENG(RJX) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0106-	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> 00.685 M10X30 FLANGE	0-28081-030-0	04	1	0106-	●	●		●	●	●
21	03.890 NUT; BRKT TO FRAME 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	01	1	9812-	●	●	●
21	03.890 NUT; BRKT TO FRAME 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	02	1	9812-0105	●	●
21	03.890 NUT; BRKT TO FRAME 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> 04.785 M10 FLANGE	0-91150-110-0	02	1	0106-	●	●		●	●	●
21	03.890 NUT; BRKT TO FRAME 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	03	1	9812-9812	●	●
21	03.890 NUT; BRKT TO FRAME 4JG2 ENG(RJC) 04.785 M10 FLANGE	0-91150-110-0	03	1	9901-9905	●	●
21	03.890 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	03	1	9906-0105	●	●
21	03.890 NUT; BRKT TO FRAME 4JH1 ENG(RJX) 04.785 M10 FLANGE	0-91150-110-0	03	1	0106-	●	●

62 26 7 9 1 1 5 36 7 9 5 36 56 41 87 14 14 15 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.890 SEDIMENTER; FUEL 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> (E)	8-94311-522-2	01	1	9812-	●	●	●
1	03.890 SEDIMENTER; FUEL 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> (C)	8-94144-933-3	01	1	9812-	●	●	●
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-1	01	1	9812-9905	●	●
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-1	01	1	9906-0105	●	●
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-1	01	1	9812-9905	●	●
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-1	01	1	9906-0105	●	●
1	03.890 SEDIMENTER; FUEL 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (F)	8-97240-126-1	01	1	0106-	●	●	●
1	03.890 SEDIMENTER; FUEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D)	8-97188-042-0	01	1	9812-	●	●	●	●	●	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JG2 ENG(RJC)	5-09623-075-0	01	1	9812-9905	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	5-09623-075-0	01	1	9812-9905	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF)	5-09623-075-0	01	1	9906-0105	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	5-09623-075-0	01	1	9906-0105	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	5-09623-075-0	01	1	0106-	●	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-09623-491-0	01	1	9812-	●	●	●	●	●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JG2 ENG(RJC)	8-94132-674-0	01	1	9812-9905	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-94132-674-0	01	1	9812-9905	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94132-674-0	01	1	9906-0105	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-94132-674-0	01	1	9906-0105	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	0106-	●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-94132-674-0	01	1	0106-	●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	9-13219-070-0	01	1	9812-	●	●	●	●	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL>	8-94132-675-0	01	1	9812-9905	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JG2 ENG(RJC)	8-94132-675-0	01	1	9812-9905	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL>	8-94132-675-0	01	1	9906-0105	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94132-675-0	01	1	9906-0105	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL>	8-94132-675-0	01	1	0106-	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0106-	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 03.895	9-09571-406-0	01	1	9812-	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	9812-	●	●	●	●	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL>	8-94416-377-0	01	1	9812-	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>	8-94447-156-0	01	1	9812-9905	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JG2 ENG(RJC)	8-94447-156-0	01	1	9812-9905	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>	8-94447-156-0	01	1	9906-0105	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94447-156-0	01	1	9906-0105	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>	8-94447-156-0	01	1	0106-	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	0106-	●	●	●
15	03.890 SENSOR ASM; SEDIMENTER 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL>	8-94153-430-0	01	1	9812-	●	●	●
15	03.890 SENSOR ASM; SEDIMENTER 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU>	8-97103-765-0	01	1	9812-9812	●	●
15	03.890 SENSOR ASM; SEDIMENTER 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97079-821-0	01	1	0106-	●	●	●
26	03.163 PIPE; FUEL,IN & OUT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	5-15411-223-1	02	1	9812-	●	●	●
36	03.890 RING; BODY TO CASE 4JG2 ENG(RJC)	5-13234-001-0	01	1	9812-9905	●	●
36	03.890 RING; BODY TO CASE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	5-13234-001-0	01	1	9812-9905	●	●
36	03.890 RING; BODY TO CASE 4JG2 ENG(RJC),4JB1 ENG(RLF)	5-13234-001-0	01	1	9906-0105	●	●
36	03.890 RING; BODY TO CASE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	5-13234-001-0	01	1	9906-0105	●	●
36	03.890 RING; BODY TO CASE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	5-13234-001-0	01	1	0106-	●	●	●
36	03.890 RING; BODY TO CASE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-13219-226-0	01	1	9812-	●	●	●	●	●	●	●
37	03.890 PLUG; SENSOR 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL>	8-94416-376-0	01	1	9812-	●	●	●
37	03.890 PLUG; SENSOR 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU>	8-94450-148-0	01	1	9812-9812	●	●
37	03.890 PLUG; SENSOR 4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	9812-9812	●	●
37	03.890 PLUG; SENSOR 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>	8-94453-746-0	01	1	9812-9812	●	●
37	03.890 PLUG; SENSOR 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>	8-94453-746-0	01	1	9901-9905	●	●
37	03.890 PLUG; SENSOR 4JG2 ENG(RJC)	8-94453-746-0	01	1	9901-9905	●	●
37	03.890 PLUG; SENSOR 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>	8-94453-746-0	01	1	9906-0105	●	●
37	03.890 PLUG; SENSOR 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94453-746-0	01	1	9906-0105	●	●
37	03.890 PLUG; SENSOR 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>	8-94453-746-0	01	1	0106-	●	●	●
37	03.890 PLUG; SENSOR 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97123-549-0	01	1	0106-	●	●	●
41	03.890 GASKET; SENSOR TO CASE 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	9812-9812	●	●
41	03.890 GASKET; SENSOR TO CASE 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 08.927	9-09563-334-0	01	1	9812-9812	●	●
41	03.890 GASKET; SENSOR TO CASE 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 08.927	9-09563-334-0	01	1	9901-0105	●	●
41	03.890 GASKET; SENSOR TO CASE 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 08.927	9-09563-334-0	01	1	0106-	●	●	●
41	03.890 GASKET; SENSOR TO CASE 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	0106-	●	●	●
56	03.890 CASE; FUEL SEDIMENTER 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU>	5-13211-030-0	01	1	9812-9812	●	●
56	03.890 CASE; FUEL SEDIMENTER 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL>	5-13211-030-0	01	1	9812-9812	●	●
56	03.890 CASE; FUEL SEDIMENTER 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL>	5-13211-030-1	01	1	9901-0105	●	●
56	03.890 CASE; FUEL SEDIMENTER 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL>	5-13211-030-1	01	1	0106-	●	●	●
62	03.162 BOLT; EYE,FUEL FILTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> M14X29 EYE-BOLT	9-09906-325-1	02	1	9812-	●	●	●
87	03.890 CASE ASM; SEDIMENTER 4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97219-363-0	01	1	9812-9812	●	●
87	03.890 CASE ASM; SEDIMENTER 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>	8-97219-363-0	01	1	9812-9812	●	●
87	03.890 CASE ASM; SEDIMENTER 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>	8-97219-363-0	01	1	9901-9905	●	●
87	03.890 CASE ASM; SEDIMENTER 4JG2 ENG(RJC)	8-97219-363-0	01	1	9901-9905	●	●
87	03.890 CASE ASM; SEDIMENTER 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>	8-97219-363-0	01	1	9906-0105	●	●
87	03.890 CASE ASM; SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97219-363-0	01	1	9906-0105	●	●
87	03.890 CASE ASM; SEDIMENTER 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL>	8-97219-363-0	01	1	0106-	●	●	●

6 8 40 7 9 1 4 6 8 40 4 29 42 38 5 3 34 36 35 20 1 20 19 24 20 19 21 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.890 SEDIMENTER; FUEL 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> (E)	8-94311-522-2	01	1	9812-	●	●	●
1	03.890 SEDIMENTER; FUEL 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> (C)	8-94144-933-3	01	1	9812-	●	●	●
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-1	01	1	9812-9905	●	●
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97081-815-1	01	1	9906-0105	●	●
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-1	01	1	9812-9905	●	●
1	03.890 SEDIMENTER; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-97081-814-1	01	1	9906-0105	●	●
1	03.890 SEDIMENTER; FUEL 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (F)	8-97240-126-1	01	1	0106-	●	●	●
1	03.890 SEDIMENTER; FUEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D)	8-97188-042-0	01	1	9812-	●	●	●	●	●	●	●
3	03.890 BODY ASM; SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-13211-192-0	01	1	9812-	●	●	●	●	●	●	●
4	03.890 COVER; UPR,SEDIMENTER ASM 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-13212-146-0	01	1	9812-	●	●	●	●	●	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JG2 ENG(RJC)	5-09623-075-0	01	1	9812-9905	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	5-09623-075-0	01	1	9812-9905	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF)	5-09623-075-0	01	1	9906-0105	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	5-09623-075-0	01	1	9906-0105	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	5-09623-075-0	01	1	0106-	●	●	●
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-09623-491-0	01	1	9812-	●	●	●	●	●	●	●
6	03.890 CONNECTOR ASM; SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-13229-002-0	02	1	9812-	●	●	●	●	●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JG2 ENG(RJC)	8-94132-674-0	01	1	9812-9905	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-94132-674-0	01	1	9812-9905	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94132-674-0	01	1	9906-0105	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-94132-674-0	01	1	9906-0105	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	0106-	●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-94132-674-0	01	1	0106-	●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	9-13219-070-0	01	1	9812-	●	●	●	●	●	●	●
8	03.890 STOPPER; CONN,SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-13229-001-0	02	1	9812-	●	●	●	●	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL>	8-94132-675-0	01	1	9812-9905	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JG2 ENG(RJC)	8-94132-675-0	01	1	9812-9905	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL>	8-94132-675-0	01	1	9906-0105	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94132-675-0	01	1	9906-0105	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL>	8-94132-675-0	01	1	0106-	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0106-	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 03.895	9-09571-406-0	01	1	9812-	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	9812-	●	●	●	●	●	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (C)	8-97189-165-0	01	1	9812-0212	●	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (C)	8-97363-089-0	01	1	0301-	●	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97090-298-2	01	1	9812-9812	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (A)	8-97090-298-2	01	1	9812-9812	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (A)	8-97090-298-2	01	1	9901-9905	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4JG2 ENG(RJC) (A)	8-97090-298-2	01	1	9901-9905	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (A)	8-97090-298-2	01	1	9906-0105	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) (A)	8-97090-298-2	01	1	9906-0105	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4JH1 ENG(RJX) (A)	8-97090-298-2	01	1	0106-	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> (A)	8-97090-298-2	01	1	0106-	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FUEL FILTER DUAL<S6B> (B)	8-97182-048-2	01	1	9812-	●	●	●	●	●	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> (C)	8-97148-721-1	01	1	9812-0212	●	●		●	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> (C)	8-97363-088-0	01	1	0301-	●	●		●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE	0-28081-030-0	03	1	9812-	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9812-9905	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9812-9905	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9906-0105	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9906-0105	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0106-	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1 ENG(RJX) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0106-	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.405 M10X30 FLANGE	0-28681-030-0	03	1	9812-	●	●	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9812-9812	●	●		●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9812-9812	●	●		●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9812-9812	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9812-9812	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9812-9812	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9901-9903	●	●		●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9901-9903	●	●		●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9901-9903	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9901-9903	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9901-9903	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9904-9905	●	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9904-9905	●	●		●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9904-9905	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9904-9905	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9904-9905	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9906-0105	●	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9906-0105	●	●		●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9906-0105	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9906-0105	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9906-0105	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0106-	●	●	●	●	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4JH1 ENG(RJX) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0106-	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> 00.685 M10X30 FLANGE	0-28081-030-0	04	1	0106-	●	●		●	●	●
21	03.890 NUT; BRKT TO FRAME 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	01	1	9812-	●	●	●
21	03.890 NUT; BRKT TO FRAME 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	02	1	9812-0105	●	●
21	03.890 NUT; BRKT TO FRAME 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> 04.785 M10 FLANGE	0-91150-110-0	02	1	0106-	●	●		●	●	●
21	03.890 NUT; BRKT TO FRAME 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	03	1	9812-9812	●	●
21	03.890 NUT; BRKT TO FRAME 4JG2 ENG(RJC) 04.785 M10 FLANGE	0-91150-110-0	03	1	9901-9905	●	●
21	03.890 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	03	1	9906-0105	●	●
21	03.890 NUT; BRKT TO FRAME 4JH1 ENG(RJX) 04.785 M10 FLANGE	0-91150-110-0	03	1	0106-	●	●
24	03.890 NUT; SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 08.917 M10 FLANGE	0-91150-210-0	02	1	9812-	●	●	●	●	●	●	●
29	03.890 SCREEN ASM; SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-13219-228-0	01	1	9812-	●	●	●	●	●	●	●
34	03.890 PLUG; DRAIN,FUEL FILTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-13219-225-0	01	1	9812-	●	●	●	●	●	●	●
35	03.890 GASKET; DRAIN PLUG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-09623-490-0	01	1	9812-	●	●	●	●	●	●	●
36	03.890 RING; BODY TO CASE 4JG2 ENG(RJC)	5-13234-001-0	01	1	9812-9905	●	●
36	03.890 RING; BODY TO CASE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	5-13234-001-0	01	1	9812-9905	●	●
36	03.890 RING; BODY TO CASE 4JG2 ENG(RJC),4JB1 ENG(RLF)	5-13234-001-0	01	1	9906-0105	●	●
36	03.890 RING; BODY TO CASE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	5-13234-001-0	01	1	9906-0105	●	●
36	03.890 RING; BODY TO CASE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	5-13234-001-0	01	1	0106-	●	●	●
36	03.890 RING; BODY TO CASE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-13219-226-0	01	1	9812-	●	●	●	●	●	●	●
38	03.890 FLOAT; SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-13219-227-0	01	1	9812-	●	●	●	●	●	●	●
40	03.890 GASKET; CONNECTOR TO COVER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	9812-	●	●	●	●	●	●	●
42	03.890 PLATE; BAFFLE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-13219-229-0	01	1	9812-	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
